SP C352DN - Color laser printer RICOH - Free user manual and instructions

Product type	Color laser printer
Brand	Ricoh
Model	SP C352DN
Main functions	Print, copy, scan, fax
Dimensions (W x D x H)	402 x 360 x 293 mm
Weight	10 kg
Power supply	220-240 V, 50/60 Hz
Maximum print resolution	1200 x 600 dpi
Print speed (color)	20 ppm
Standard paper tray capacity	150 sheets
Maximum paper tray capacity	185 sheets
Supported paper weight	60-105 g/m²
Standard memory	128 MB
Connectivity	USB 2.0, Ethernet 100Base-TX, Wi-Fi 802.11b/g/n
Mobile printing	Apple AirPrint, Mopria, Google Cloud Print, NFC
Maximum power consumption	900 W
Power consumption in standby	65 W
Noise level (operation)	65 dB(A)
Toner cartridge	High capacity all-in-one cartridge: 2,600 pages (black)
Maintenance	Clean the exterior with a soft, dry cloth. Use a cleaning kit for the interior.
Safety	Do not expose to moisture. Unplug before any maintenance.
Spare parts and repairability	Toner cartridge, drum unit, output tray. Repairability index: 7.2/10.

Frequently Asked Questions - SP C352DN RICOH

How to install the SP C352DN printer for the first time?

Unpack the printer, remove all adhesive tapes, install the toner cartridge, then connect the power cord and the USB or Ethernet cable. Turn on the device and follow the on-screen instructions. Download the drivers from the Ricoh website.

How to connect the printer via Wi-Fi?

Press the Menu button, select Network Settings, then Wi-Fi. Choose your network and enter the password. You can also use the WPS function by pressing the WPS button on your router.

What to do if the printer does not print after extended standby?

Press the power button to wake up. If it does not respond, unplug it for 30 seconds, then plug it back in. Check that the driver is properly installed and that the printer is set as the default device.

How to replace the toner cartridge?

Open the front cover, remove the old cartridge by gently pulling it out. Unpack the new cartridge, remove the protective film, insert it into the slot until it clicks. Close the cover and start a cleaning from the control panel.

The printer shows 'Paper jam', how to fix?

Open the rear cover and the paper tray. Carefully remove any jammed paper by pulling in the direction of the feed. Check that the paper is not wrinkled. Close the covers and press OK to clear the message.

Can I print from a smartphone?

Yes, the printer supports AirPrint (iOS), Mopria (Android), and Google Cloud Print. Make sure your smartphone is connected to the same Wi-Fi network as the printer. Select the printer in the printing options.

How to clean the print heads?

From the control panel, go to Settings > Maintenance > Head Cleaning. The printer will run an automatic cycle. You can also use a slightly damp lint-free cloth for the exterior.

Why are color prints faded?

Check the color toner level and replace if necessary. Make sure the print settings are correct (high quality). Perform a calibration from the maintenance menu. The drivers must be up to date.

How to set up automatic duplex printing?

Go to the print preferences of your software, select Two-sided or Duplex. On the printer, check that the option is enabled in the Print Settings menu. Use 80 g/m² paper for best results.

Where to find the printer serial number?

The serial number is on a label on the back of the printer, near the USB port. You can also display it by pressing the Info button on the control panel.

USER MANUAL SP C352DN RICOH

m = 311

SP 277SNwX

23

3:1 ppm

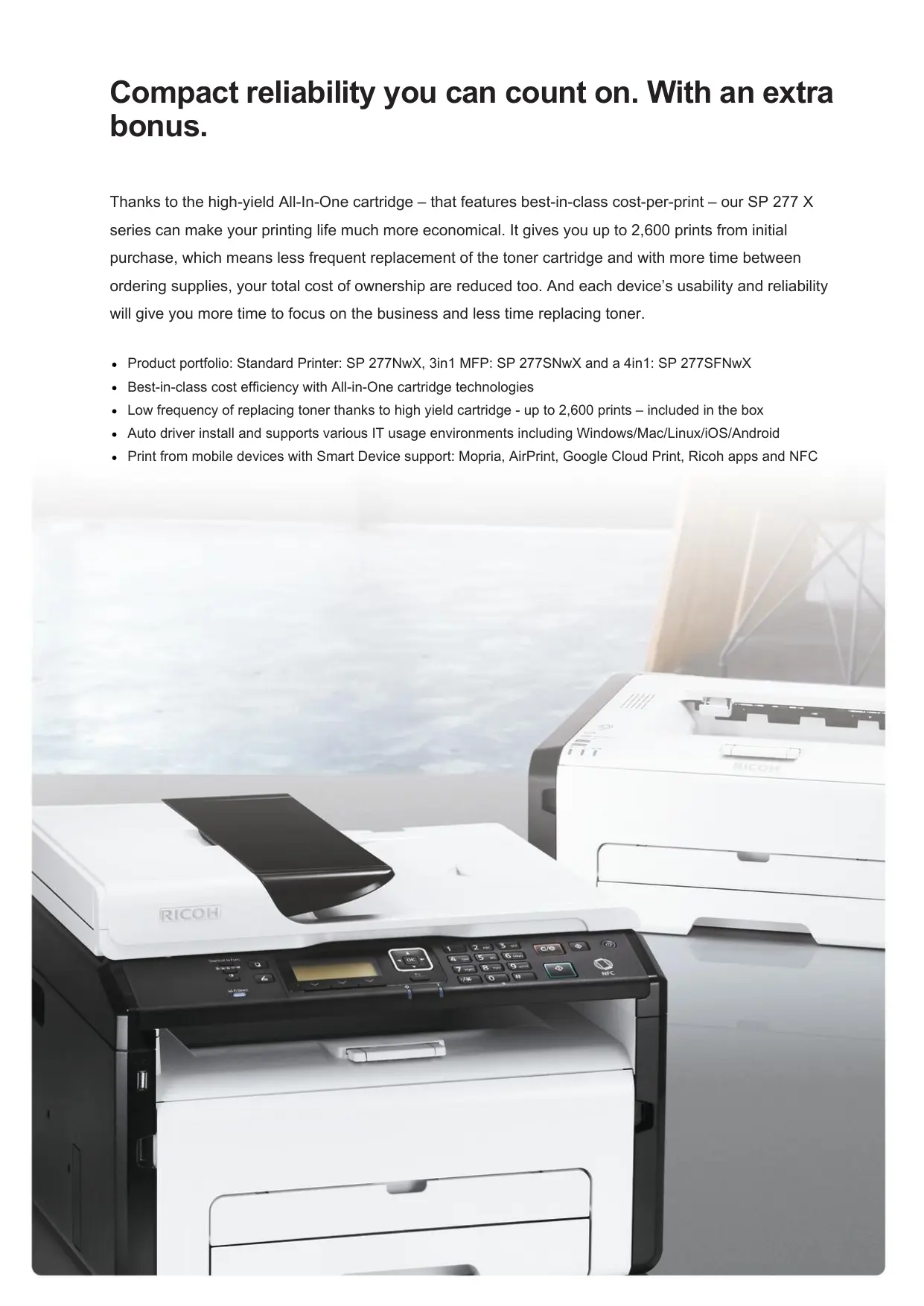

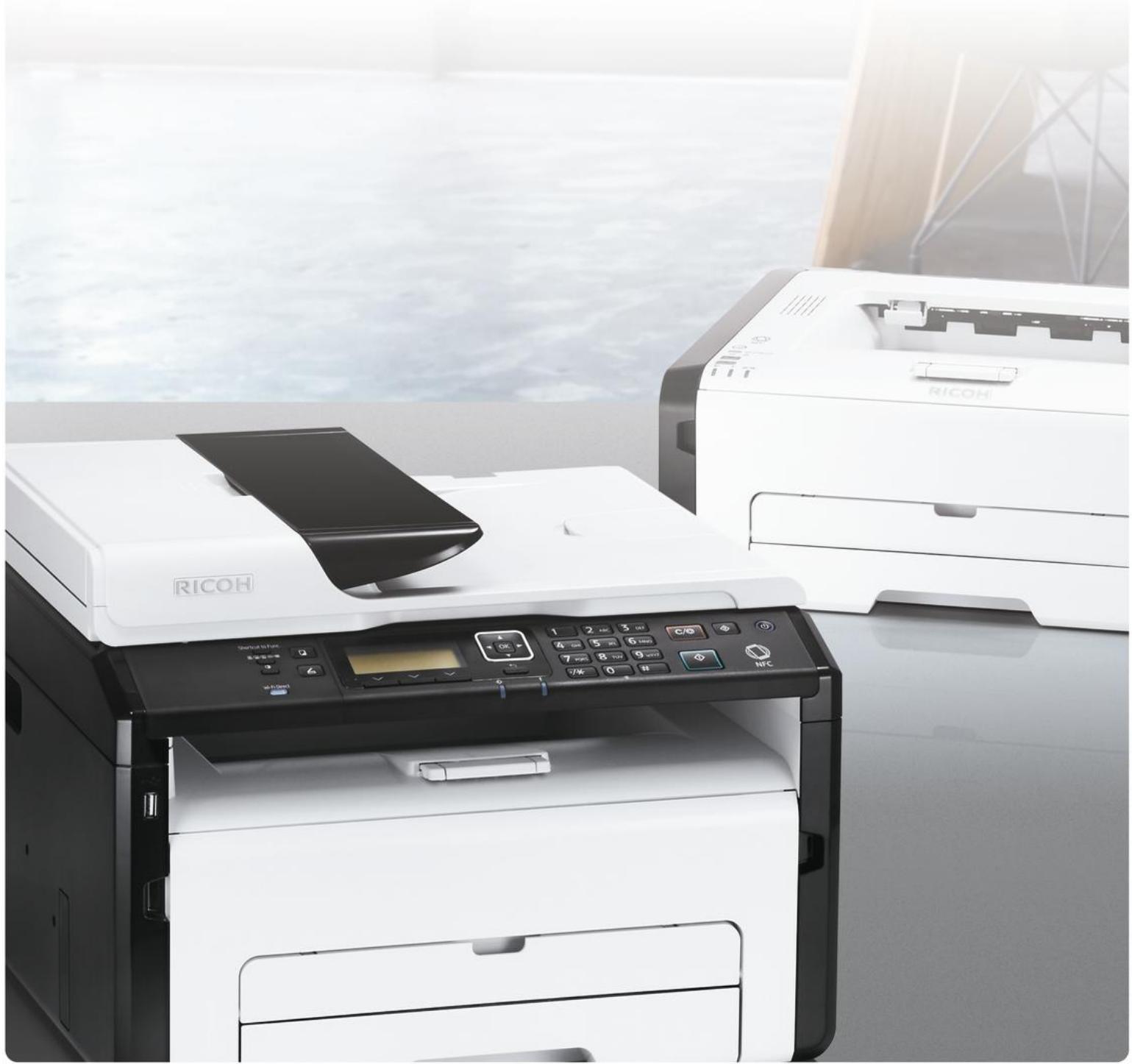

Compact reliability you can count on. With an extra bonus.

Thanks to the high-yield All-In-One cartridge – that features best-in-class cost-per-print – our SP 277 X series can make your printing life much more economical. It gives you up to 2,600 prints from initial purchase, which means less frequent replacement of the toner cartridge and with more time between ordering supplies, your total cost of ownership are reduced too. And each device's usability and reliability will give you more time to focus on the business and less time replacing toner.

• Product portfolio: Standard Printer: SP 277NwX, 3in1 MFP: SP 277SNwX and a 4in1: SP 277SFNwX
• Best-in-class cost efficiency with All-in-One cartridge technologies
• Low frequency of replacing toner thanks to high yield cartridge - up to 2,600 prints – included in the box
• Auto driver install and supports various IT usage environments including Windows/Mac/Linux/iOS/Android
• Print from mobile devices with Smart Device support: Mopria, AirPrint, Google Cloud Print, Ricoh apps and NFC

A range to suit your needs.

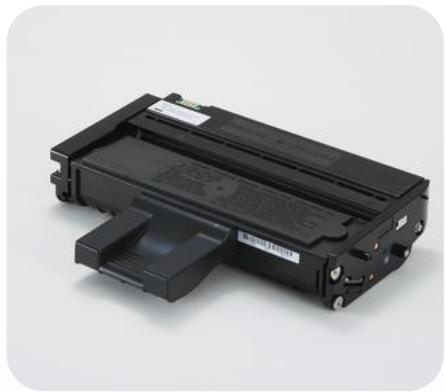

Small size. Mighty output.

Simple to set up, their intuitive interface means they add value to your output every day. Their compact nature enables flexible positioning anywhere in an office or home office environment. And the included high-yield All-In-One cartridges, you get more prints at a lower cost across the range.

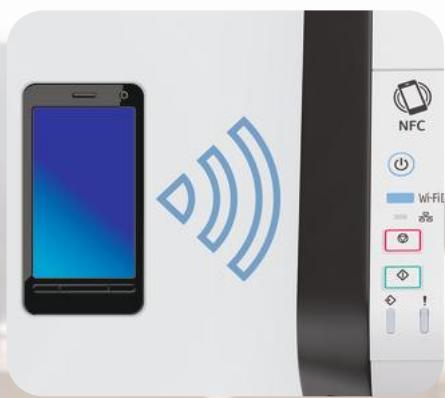

Connect wherever you are.

These multifunction printers enable you to securely send documents to print and collect scanned images from your mobile smart device quickly. The connection options support iOS and Android – and with NFC you can easily connect without having to register your device or join the network.

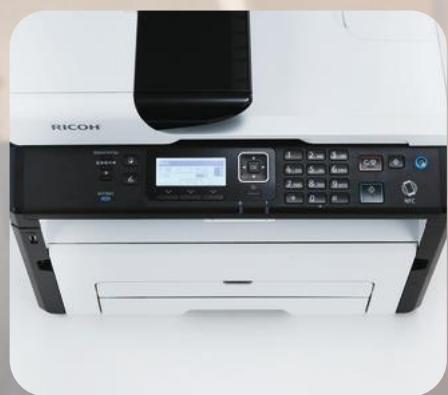

Work in new ways.

Helping you work more efficiently and more flexibly, these black and white A4 devices support wireless connectivity in AirPrint, Mopria and Google Cloud Print to let you connect with ease. And with the Ricoh Smart Device Print&Scan app, you have the flexibility to simply get on with the work.

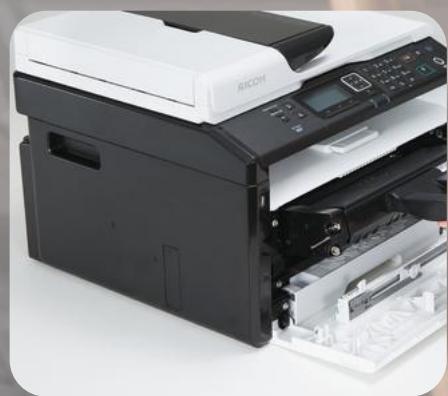

Low cost. Less waste.

Get the advantage of the lowest CPP in its class and buy toner less often. Save on both time and costs with the All-In-One high yield cartridge. Capable of up to 2,600 prints right out of the box, you also get a lower environmental impact thanks to less frequent disposal and an overall better TCO.

SP 277NwX / SP 277SNwX / SP 277SFNwX

MAIN SPECIFICATIONS

GENERAL

Warm-up time:	30 seconds
First output speed:	10 seconds
Continuous output speed
Memory:	Standard: 128 MB Maximum: 128 MB
Dimensions (W x D x H):	402/402/402 x 360/360/360 x 165/293/293 mm
Weight:	7/10/10 kg
Power source:	220 - 240 V, 50/60 Hz

COPIER (SP 277SNwX, SP 277SFNwX)

Copying process:	Laser beam scanning and electro-photographic printing
Multiple copying:	Up to 99 copies
Resolution:	600 x 600 dpi
Zoom:	From 25% to 400% in 1% steps

PRINTER

Printer language:	GDI
Print resolution:	Maximum (1,200 x 600 dpi)
Interface:	USB 2.0 Ethernet 10 base-T/100 base-TX Wireless LAN (IEEE 802.11b/g/n)
Mobile printing capability:	Apple AirPrintTM Mopria Google Cloud Print NFC
Windows® environments:	Windows® Vista, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012, Windows® Server 2012R2
Mac OS environments:	Macintosh OS X v10.8 - v10.11

SCANNER (SP 277SNwX, SP 277SFNwX)

Scanning:	B&W Full Colour
Resolution:	600 dpi
Bundled drivers:	Network TWAIN

FAX (SP 277SFNwX)

Compatibility:	G3
Transmission speed:	G3: 3 second(s)
Modem speed:	Maximum: 33.6 Kbps

PAPER HANDLING

Recommended paper size:	A4
	A5
	A6
	B5
	B6
Paper input capacity:	Standard: 150 sheets
	Maximum: 150/185/185 sheets
Paper output capacity:	Standard: 50 sheets
Paper weight:	Paper tray(s): 60 - 105 g/m2

RICOH

imagine. change.

www.ricoh-europe.com

ECOLOGY

Power consumption:

Maximum: 900 W

Operating power: 400 W

Ready mode: 65 W

CONSUMABLES

All-in-one cartridge capacity:

Black: 2,600 prints

Starter toner:

Black: 2,600 prints

Consumable yield measuring

method ISO/IEC 19752

Apple AirPrint applies only to the SP 277SNwX/SP 277SFNwX. Both Apple AirPrint and Google Cloud Print will be available in spring 2017.

CERTIFIED

mopria

ISO9001 certified, ISO14001 certified, ISO27001 certified

All brand and/or product names are trademarks of their respective owners.

Specifications and external appearance are subject to change without notice. The colour of the actual product may vary from the colour shown in the brochure. The images in this brochure are not real photographs and slight differences in detail might appear.

Copyright © 2017 Ricoh Europe PLC. All rights reserved. This brochure, its contents and/or layout may not be modified and/or adapted, copied in part or in whole and/or incorporated into other works without the prior written permission of Ricoh Europe PLC.
