Product Type	Hair Clipper
Brand	Remington
Model	PG6150 (variants HC5400, HC5600, HC5800)
Power Supply	Rechargeable, mains adapter 3.2 V/4.5 V DC, 1 500 mA
Quick Charge (HC5600 & HC5800)	10 min for 5 min run time; 1 h for 30 min
Full Charge Time	16 h (HC5400), 4-5 h (HC5600 & HC5800)
Cordless Run Time	Up to 60 min (HC5400), up to 120 min (HC5600 & HC5800)
Blades	Stainless steel blade set, removable Quick Wash system
Cutting Guides	2 adjustable guides: 3-21 mm (3 mm steps) and 24-42 mm (3 mm steps)
Beard Guide (HC5800)	1-13 mm, adjustable in 2 mm steps
3-Day Beard Guide (HC5600)	1.5 mm fixed
Special Features	Dual Boost (HC5600) or Auto Boost (HC5800) system
Display	Charge indicator (HC5400/HC5600), LED screen (HC5800)
USB Charging	Yes, via micro USB port
Corded Use	Possible with mains adapter (not via USB)
Cleaning	Quick Wash system: removable blade washable under water; body clean with damp cloth
Maintenance	Oil blades every 6 months; remove battery for disposal
Dimensions (approx.)	18 x 5 x 4 cm (without guide)
Weight (approx.)	250 g
Safety	Do not use near water; safety isolated adapter; maintenance by responsible adult

Frequently Asked Questions - PG6150 REMINGTON

How long does it take to charge the PG6150 clipper?

Charging time depends on the model. For HC5400: 16 hours. For HC5600 and HC5800: 4 to 5 hours. A quick charge of 10 minutes gives 5 minutes of run time (HC5600/HC5800).

Can I use the clipper while it is plugged in?

Yes, with the mains adapter, but not via the USB port. Prolonged corded use reduces battery life.

How do I clean the blade assembly?

Press the Quick Wash button on the front of the clipper to remove the blade. Rinse it under running water. Do not immerse the body of the device.

What are the cutting guide settings?

Two main guides: 3-21 mm (in 3 mm steps) and 24-42 mm (in 3 mm steps). The HC5800 includes a beard guide 1-13 mm (2 mm steps) and a 3-day beard guide of 1.5 mm.

How do I achieve an even cut?

Use a cutting guide, start at the longest length, and cut with small strokes from bottom to top. For the top, cut against the hair growth direction.

Can the clipper be used by children?

The device should not be used by children without supervision. It must be kept out of reach of children.

What should I do if the clipper does not charge?

Check that the device is off, the adapter is properly connected, and the mains socket works. If the problem persists, contact consumer service.

How do I replace the battery?

The battery is replaceable. Follow the instructions in the manual: remove the back cover, unscrew the screws, cut the tabs at the ends of the battery and remove it. Dispose of it safely.

Can I use the clipper without a cutting guide?

Yes, for outlines and finishing. Turn the clipper over to create clean lines. Be careful as the blade cuts close.

How do I maintain the blades every six months?

Remove the two blade screws, brush out hair between the blades, then add a few drops of sewing machine oil. Do not remove the small moving blade.

USER MANUAL PG6150 REMINGTON

Black Remington 11 hair curler with digital display and brand logo, set against a perforated background (no text or symbols on the device itself)

HC5800

HC5600

HC5400

Thank you for choosing Remington ^® . Our products are designed to meet the highest standard of quality, functionality and design.

We hope you enjoy using your new Remington ^® product. Please read the instructions for use carefully and keep in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

1 WARNING – TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:

2 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

3 Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.

4 Do not use accessories or attachments other than those we supply.

5 An appliance should never be left unattended when plugged in to a power outlet, except when charging.

6 Keep the power plug and cord away from heated surfaces.

7 Make sure the power plug and cord do not get wet.

8 Do not plug or unplug the appliance with wet hands.

9 Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.

10 Do not twist or kink the cable, and don't wrap it around the appliance.

11 Store the product at a temperature between 15^ C and 35^ C.

12 Do not immerse the appliance in liquid; do not use it near water in a bath-tub, basin or other vessel; and don't use it outdoors.

13 Suitable for cleaning under an open water tap.

PRO POWER

Two 3D-rendered mechanical components with ribbed surfaces, shown in grayscale without any text or symbols.

3D rendered mechanical component with stepped surfaces and a protruding rod (no text or symbols)

Close-up of a black ergonomic device with 'iOS' and 'REMINGTON' branding, no visible text or symbols beyond the label

3D rendered mechanical part with cutouts and mounting holes (no text or symbols)

Coiled black cable with two USB connectors, no text or symbols visible

Black rectangular electronic device with a cable and plug, labeled '12' in the top-left corner (no other text or symbols visible)

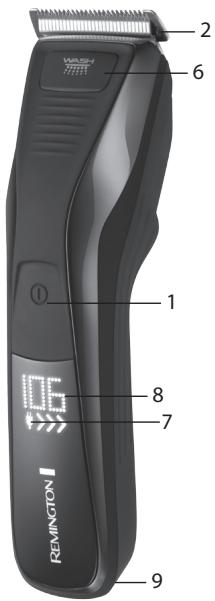

KEY FEATURES

1 On / Off Switch
2 Blade set
3 2 attachment guide combs 3 -21mm and 24-42mm, 3mm adjustment
4 Adjustable stubble comb (HC5800) 1-13mm, 2mm adjustment
5 1.5mm Stubble comb (HC5600)

6 Quick wash release button
7 Charging indicator light (HC5400/HC5600)
8 LED display (HC5800)
9 Micro USB port
10 Micro USB cable
11 Charging stand (HC5800)
12 Adaptor

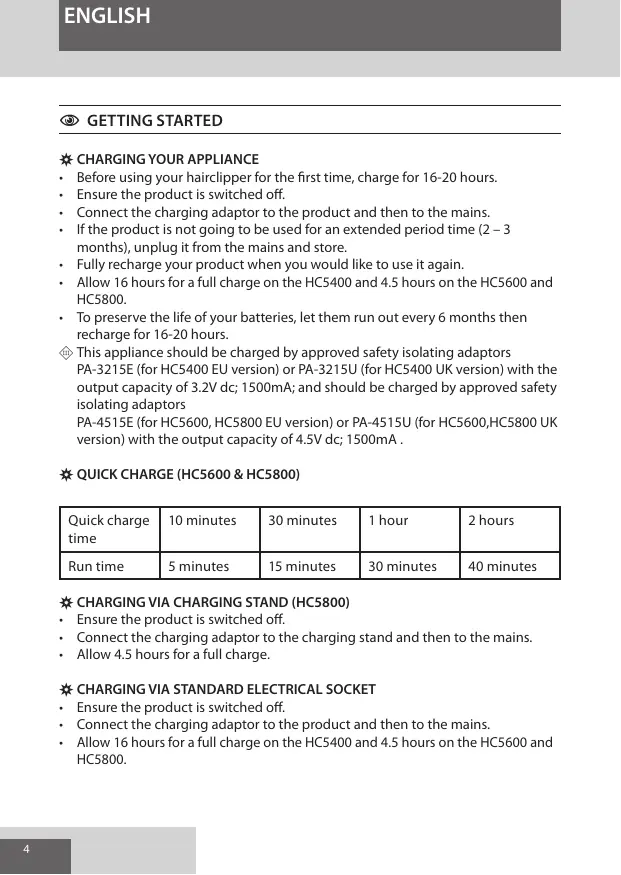

GETTING STARTED

CHARGING YOUR APPLIANCE

• Before using your hairclipper for the first time, charge for 16-20 hours.
- Ensure the product is switched off.
- Connect the charging adaptor to the product and then to the mains.
- If the product is not going to be used for an extended period time (2 – 3 months), unplug it from the mains and store.
- Fully recharge your product when you would like to use it again.
- Allow 16 hours for a full charge on the HC5400 and 4.5 hours on the HC5600 and HC5800.
- To preserve the life of your batteries, let them run out every 6 months then recharge for 16-20 hours.

This appliance should be charged by approved safety isolating adaptors PA-3215E (for HC5400 EU version) or PA-3215U (for HC5400 UK version) with the output capacity of 3.2V dc; 1500mA; and should be charged by approved safety isolating adaptors PA-4515E (for HC5600, HC5800 EU version) or PA-4515U (for HC5600, HC5800 UK version) with the output capacity of 4.5V dc; 1500mA.

★ QUICK CHARGE (HC5600 & HC5800)

Quick charge time	10 minutes	30 minutes	1 hour	2 hours
Run time	5 minutes	15 minutes	30 minutes	40 minutes

★ CHARGING VIA CHARGING STAND (HC5800)

• Ensure the product is switched off.
• Connect the charging adaptor to the charging stand and then to the mains.
• Allow 4.5 hours for a full charge.

\* CHARGING VIA STANDARD ELECTRICAL SOCKET

• Ensure the product is switched off.
• Connect the charging adaptor to the product and then to the mains.
• Allow 16 hours for a full charge on the HC5400 and 4.5 hours on the HC5600 and HC5800.

USB

• Connect your USB cable to the USB port on your power source.
• Connect the USB cable to your appliance.

Note: charging may take longer when charging via USB.

CORDED USE

• Connect the charging adaptor to the product then to the mains.
• When the cord is connected to the mains, a digital display will be displayed on the appliance (HC5800).

CAUTION: Extended mains only use will result in the reduction of the battery life.
WARNING: The appliance can not be operated in corded mode while connected to a PC via the USB port.

CORDLESS USE

When the unit is switched on and fully charged, the product can be used in cordless mode for up to 60 minutes for the HC5400 and up to 120 minutes for the HC5600 & HC5800.

INSTRUCTIONS FOR USE

BEFORE STARTING THE CUT

• Inspect the clipper making sure that it is free from hair and dirt.
• Seat the person so that their head is approximately at your eye level.
  • Before cutting, always comb the hair so it is tangle free and dry.

Comb position	Adjustable stubble comb (HC5800)	Short comb	Long comb
1	1mm	3mm	24mm
2	3mm	6mm	27mm
3	5mm	9mm	30mm
4	7mm	12mm	33mm
5	9mm	15mm	36mm
6	11mm	18mm	39mm
7	13mm	21mm	42mm

★ TO ATTACH A COMB

• Hold the comb with its teeth upward.
• Slide it onto and along the clipper blade until the front of the comb firmly sits against the clipper blade.

★ TO REMOVE THE COMB

- Holding the clipper with the blades facing away from you, firmly push the comb upward and away from the blades.

★ INSTRUCTIONS FOR CUTTING HAIR

For even cutting, allow the comb attachment/blade to cut its way through the hair. Do not force it through quickly. If you are cutting for the first time, start with the maximum comb attachment.

STEP 1 – Nape of the neck

• Set the comb to 3mm or 6mm.
• Hold the clipper with the blade teeth pointing upwards. Begin starting at the centre of the head at the base of the neck.
• Slowly lift the clipper, working upwards and outwards through the hair, trimming just a little at a time.

STEP 2 – Back of the head

- With the comb set at 12mm or 18mm, cut the hair at the back of the head.

STEP 3 – Side of the head

- Set the comb to 3mm or 6mm, trim sideburns. Then change the setting to 9mm and continue to cut the top of the head.

STEP 4 – Top of the head

• Use the longer length comb attachment and set it to 24mm or 27mm then cut hair on top of the head against the direction in which the hair normally grows.
• For longer hair on top, use the longer length comb attachment (24 – 42mm) to achieve the desired style.
  • Always work from the back of the head.

STEP 5 – The finishing touches

• Use the clipper without an attachment comb for close trimming around the base and sides of the neck.
• To produce a clean straight line at the sideburns, reverse the hair clipper. Place the reversed clipper at right angles to the head, tips of the blades lightly touching the skin and then work downwards.

SHORT TAPERED STYLES – "FLAT TOPS" & SHORT CUTS

• Starting with the longest guide comb attached (24 - 42mm), cut from the back of the neck to the crown. Hold the guide comb flat against the head and slowly move the clipper through the hair.
• Use the same procedure from the lower side to the upper side of the head. Then cut the hair against the direction in which it grows and level with the sides.
• To give a "flat top" look, the hair on top of the head must be cut over the top of a flat comb.
• Use a closer guide comb to taper the hair down to the neckline as desired.

\* DUAL BOOST SYSTEM (HC5600)

• There are 3 settings for the Dual Boost system: Off, On, Boost.
• If the clipper is set to on, it will run at regular power.
- If the clipper is set to boost, it will provide maximum power.

★ AUTO BOOST SYSTEM (HC5800)

• There are 3 settings for the Auto Boost system: Off, Auto, Boost
- If the Clipper is set to Auto, it will run at regular power under low load conditions.
- When more power is needed, the clipper will automatically sense this and provide maximum boost.
- To activate the Boost setting, depress the power button for 2 seconds. The clipper will then constantly run at maximum power.

CARE FOR YOUR HAIRCLIPPER

Your clipper is fitted with high quality blades. To ensure long lasting performance of your clipper, clean the blades and unit regularly. Always keep the attachment guide comb on the trimmer blade.

\* AFTER EACH USE

• Ensure the clipper is switched off and disconnected from the mains before cleaning.
• Brush the accumulated hair from the blades. Do not submerge the clipper in water.
  • To clean unit, wipe with damp cloth and dry immediately.

WASHABLE CLEANING

- The QUICK WASH SYSTEM is designed to maximise the efficiency of washable cleaning.

• Push the button that is located on the front of the hair clipper. The blades will slide out and the blade set can be easily cleaned under the tap.
• Once the blades are cleaned the blades are locked into place by pushing the blade set towards the hair clipper head and will snap into place.
• Do not run the entire unit under the tap, only the blade set is meant to be submerged in water.
  Note: Ensure the clipper is turned off when cleaning.

EVERY SIX MONTHS

• At regular intervals the blade set should be removed and cleaned.
• Remove the 2 screws retaining the fixed blade with a screwdriver. Do not remove blade set.
• Brush out hairs from between the blades with soft cleaning brush. Do not remove the lubricating grease from the blades. It is not necessary to remove the small moving blade from the unit.
• If the moving blade has been removed this can be re-fitted by slotting the coated blade holder over the pin in the centre of the interior product head. The groove on the coated blade, just below the teeth, rests on a metal plate at the opposite side to the screw holes. The fixed blade is fitted with the raised profile pointing outwards and fixed with the 2 screws.
• Note that if the blades are not correctly aligned then cutting efficiency will be impaired.
• Place a few drops of cutter or sewing machine oil onto the blades. Wipe off excess oil.

CLEANING CAUTIONS

• Ensure the appliance is switched off and unplug from the main outlet before cleaning.
• Only the attachment guide combs and trimmer blade may be removed from the product for cleaning.
• Cleaning should be done with a soft brush, such as the brush supplied with the product.
• Do not rinse under water.
• Do not use harsh or corrosive cleaners on the units or their blades.

BATTERY REMOVAL

• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the supply mains when removing the battery.
• Ensure that the clipper is discharged of all power and disconnected from the mains.
• Remove the screw cover from back housing.
  • Using a small screwdriver, remove (1) screw from the bottom of the clipper.
• Pry the front panel from the front housing and expose the inner housing.
  • Using a small screwdriver, remove (4) screws from inner housing
• Pry the cover of inner housing and expose the PCB and batteries.
• Cut or break the wire stamps on the both end of the batteries and remove the batteries.
  • The battery is to be disposed of safely.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.
