USER MANUAL MG5050 BRAUN

Thank you for purchasing a Braun product. We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Illustration of a handheld electronic device with a labeled part (11b), showing internal components and no readable text or symbols.

CT5cc
CT4cc
CT4s

11c

Black BoRun-branded electronic device with a circular top and control knob (no visible text or symbols on body)

Black BRAN-branded electronic device with labeled ports and buttons (no text or symbols beyond branding)

15
16a
16b
17
18

Illustration of a light blue plastic container with circular cutouts and a flanged base (no text or symbols)

A 90°

B 2 1 ConeTech 2 1 ConeTech

C CoolTec CoolTec CoolTec click! click!

D CoolTec CoolTec

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower.

For safety reasons, it can only be operated cordlessly.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of the appliance.

6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken shaving system, as serious skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To disconnect turn all controls to «off», then remove plug from outlet.

9. When plugging to an electrical outlet outside the USA, use a plug adapter to match the outlet's pin configuration.

10. The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ) or incinerate.

11. Only use the special electric cord set provided with the appliance.

12. Oil bottle (models CT4s/CT2s only) Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

SAVE THESE INSTRUCTIONS

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality, and we hope you enjoy your new Braun shaver.

This shaver cools the skin to give you a cooling sensation for a pleasant shave.

Please read the use instructions carefully and completely before using the appliance.

Important

We recommend not to use the shaver with any foam or gel to ensure that you

– experience the optimal cooling effect.
- get the optimal cleaning performance from the Clean&Charge station (for CC models).
– avoid potential damage to the device.

Shaver description

1 Foil & Cutter cassette
2 Cooling element
3 Cooling on/off switch
4 Shaver display
5 On/off switch
6 Long hair trimmer
7 Shaver-to-shell/station contacts
8 Release button for long hair trimmer
9 Model number
10 Special cord set
11a Brush
11b Pouch
11c Protective cap
12a Charging shell
12b Shell power socket
12c Stand for charging shell
12d Shell-to-shaver contacts

First use and Charging

Prior to first use, connect the shaver to an electrical outlet using the charging shell as described below, or for models CT6cc/CT5cc/CT4cc/CT3cc/CT2cc use the Clean&Charge station (see Chapter «Automatic Clean&Charge station description»).

Note: The shaver can only be charged via the charging shell or the Clean&Charge station. Models CT4s/CT2s must not be used with the Clean&Charge station.

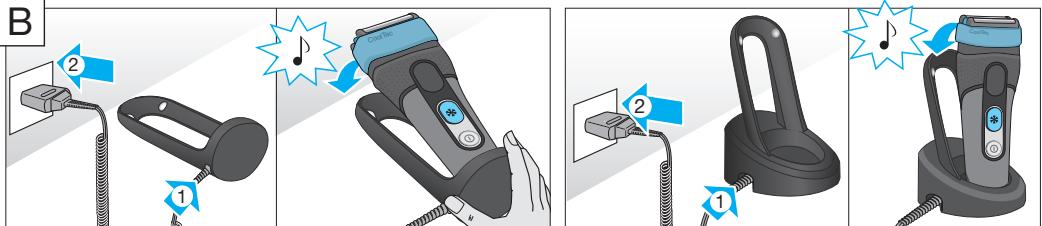

Charging shell (see fig. B)

• Click the charging shell (12a) onto the stand (12c - models CT4s/CT2s only). Using the special cord set (10), connect the shell power socket (12b) to an electrical outlet.
• Place the shaver into the charging shell. The contacts (7) on the back of the shaver need to align with the contacts (12d) in the charging shell. A beep sound confirms that the shaver sits properly in the station.
• The shaver will be automatically charged.

Charging and basic operating information

• A full charge provides up to 45 minutes of shaving time (up to 15 minutes with activated cooling function). This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C.
• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.
• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates.

Shaver display

Charge status

During charging the symbol in the on/off switch (5) blinks green. When fully charged, it will light up for a few seconds, provided the shaver is connected to an electrical outlet.

Low charge

The symbol in the on/off switch (5) shines red when the battery is running low. You should be able to finish your shave. When switching off the shaver a beep sound reminds you of the low charge status.

Cleaning Status ♠ (only models CT6cc/CT5cc/CT4cc/CT3cc/CT2cc)

The cleaning indicator ♠ lights up, when the shaver needs to be cleaned in the Clean&Charge station.

Travel lock

The lock symbol 🔒 lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).

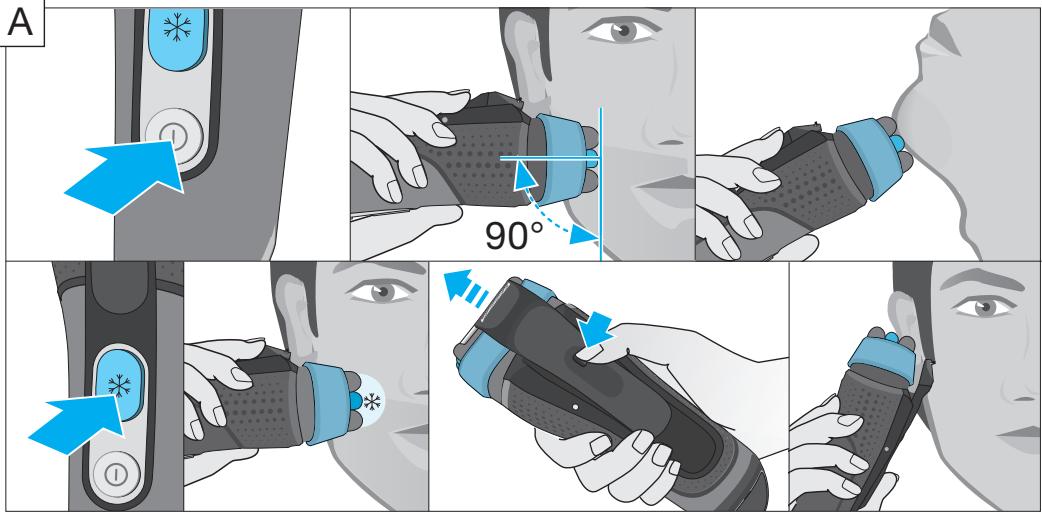

Using the shaver (see fig. A)

Press the on/off switch (5) to operate the shaver.

Tips for a perfect dry shave

For best results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cooling ✿

Note: The cooling sensation experienced may differ from person to person. It is influenced by personal and environmental factors (e.g. skin, environmental temperature).

Activation: To activate the cooling function, press the cooling switch (3) during shaving. The symbol ✦ in the cooling switch shines blue. For best cooling performance, we recommend to wait a few seconds after the cooling function has been activated. Then continue shaving as usual.

Low battery: The symbol ✦ in the cooling switch (3) starts blinking when the battery is running low and there is not enough energy left for the cooling function. You should be able to finish your shave with activated cooling function.

You can deactivate the cooling function by pressing the cooling switch again.

Long hair trimmer

To trim sideburns, moustache or beard, press the release button (8) and slide the long hair trimmer (6) upwards.

Travel lock

• Activation: By pressing the on/off switch (5) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol 🔒 in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again.

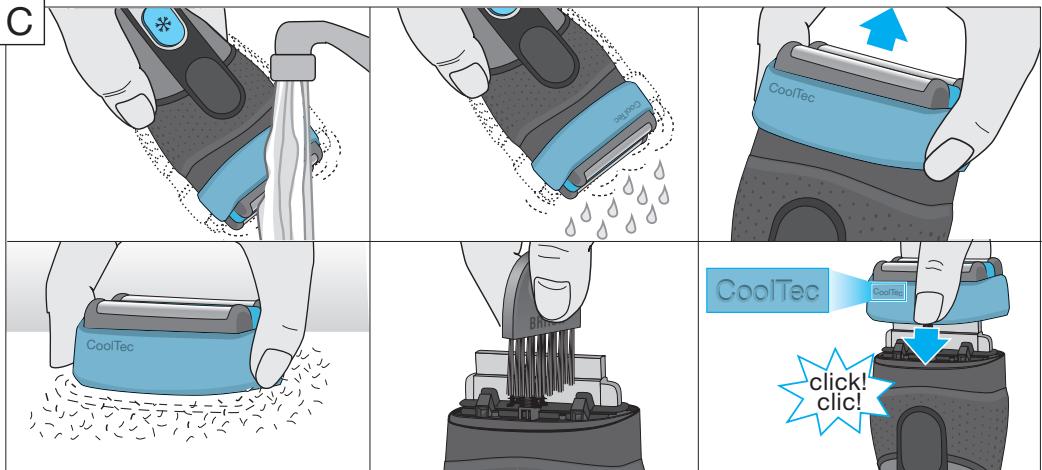

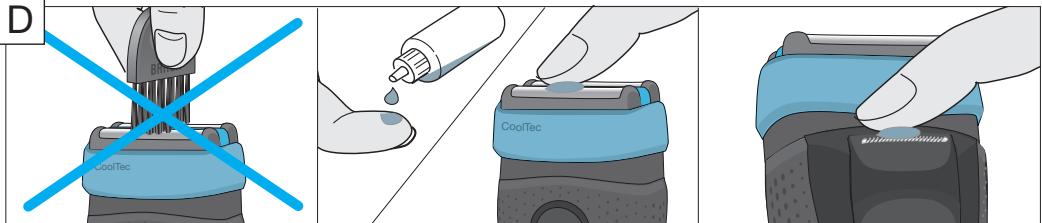

Manual cleaning of the shaver

(see fig. C/D)

The shaver is suitable for cleaning under running tap water. Detach the shaver from the power supply before cleaning it in water.

• Switch the shaver on and rinse the shaver head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the Foil & Cutter cassette and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

Alternatively, you may clean the shaver using a brush:

- Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using a brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

Clean&Charge station

(models CT6cc/CT5cc/CT4cc/CT3cc/CT2cc)

The Clean&Charge station has been developed for cleaning, charging, lubricating, disinfecting and storing your Braun shaver.

Important

- Only use the power supply special electric cord set supplied with the shaver.

• In order to avoid any leakage of the cleaning fluid, place the appliance on a flat, stable surface. Do not tip, move suddenly or transport in any way if a cleaning cartridge is installed.
• Do not place the appliance in a mirror cabinet, nor store it over radiators, nor place it on polished or lacquered surfaces. Do not expose to direct sunlight.
• The appliance contains flammable liquid. Keep it away from sources of ignition. No smoking.
• Keep out of reach of children. Do not refill cartridge. Use only original Braun refill cartridge.

13 Station power socket

14 Lift button for cartridge exchange

15 Station-to-shaver contacts

16a Level indicator

16b Status light

17 Start button

18 Cleaning cartridge

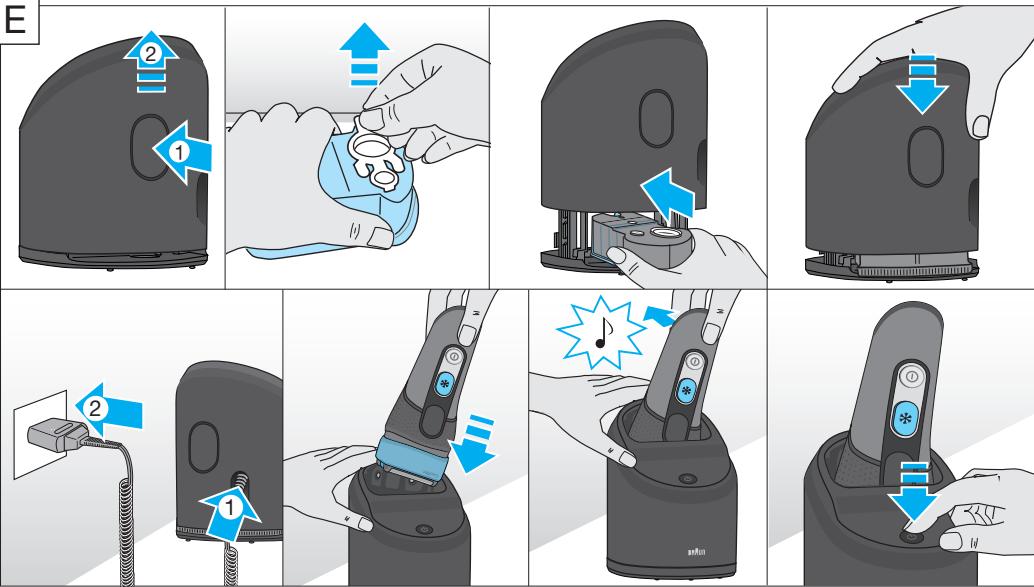

Installing the Clean&Charge station (see fig. E)

• Remove the protection foil from the Clean&Charge station display.
• Press the lift button (14) at the rear side of the Clean&Charge station to lift up the housing.
• Hold the cleaning cartridge (18) down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge from the rear side into the base of the station until it snaps into place.
• Slowly close the housing by pushing it down until it locks.
• Using the special cord set (10), connect the station power socket (13) to an electrical outlet.

Charging the shaver in the Clean&Charge station

Insert the shaver head down into the Clean&Charge station.

Important: The shaver needs to be dry and free from any foam or soap residue!

The contacts (7) on the back of the shaver need to align with the contacts (15) in the Clean&Charge station. Push the shaver in the correct position. A beep sound confirms that the shaver sits properly in the station. Charging will start automatically.

Cleaning the shaver in the Clean&Charge Station

When the cleaning indicator ♠ lights up in the shaver display, insert the shaver into the Clean&Charge station, upside down and with the front showing.

Start automatic cleaning

Start the cleaning process by pressing the start button (17). If the status light (16b) does not shine (Clean&Charge station switches to stand-by after about 10 minutes), press the start button twice.

Otherwise cleaning will not start. For best shaving results, we recommend cleaning after each shave.

The cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. The cleaning time takes 3 minutes. During this time the status light of the Clean&Charge station blinks.

Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions. Afterwards the shaver is ready for use.

After completing the cleaning and charging session, the indicators of the Clean&Charge station turn off.

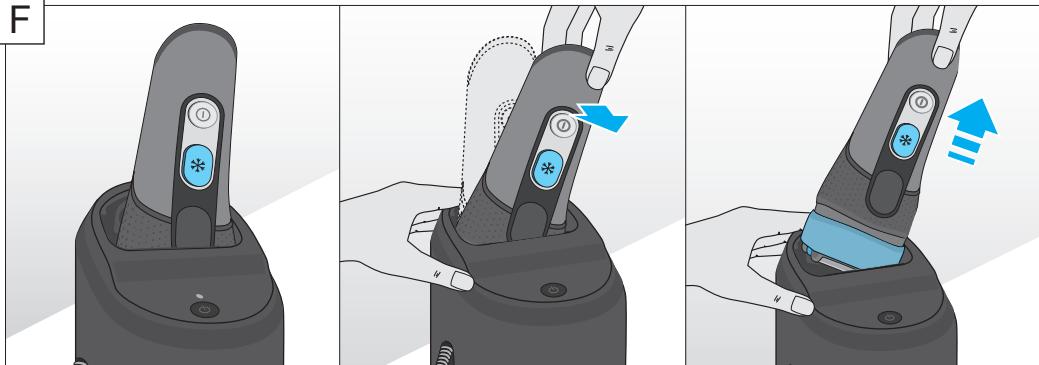

Removing the shaver from the Clean&Charge station (see fig. F)

Hold the Clean&Charge station with one hand and tilt the shaver slightly to the front to release it.

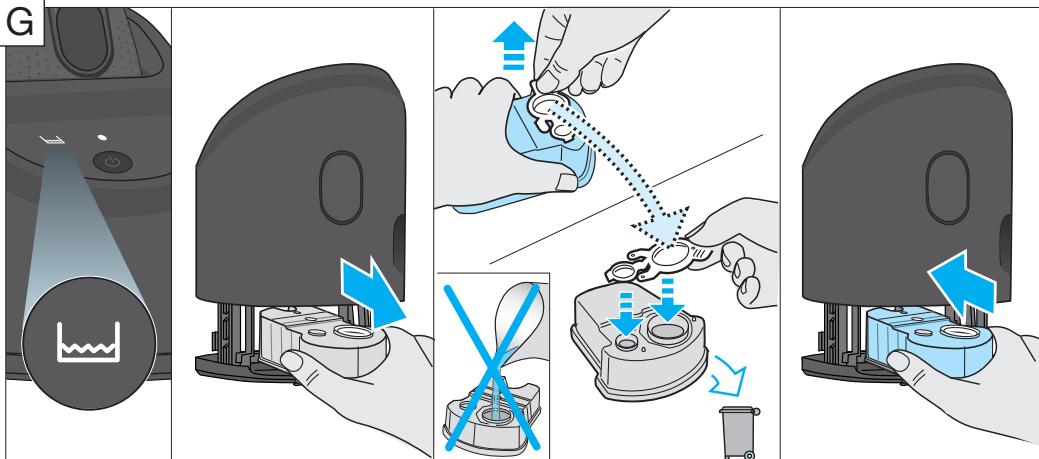

Cleaning Cartridge / Replacement (see fig. G)

When the level indicator ⚪ lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced (about every 3–4 weeks when used daily).

After having pressed the lift button (14) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

The hygienic cleaning cartridge contains denatured ethanol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection.

The cleaning cartridge also contains lubricants, for the shaving system which may leave residual marks on the outer foil frame and the cleaning chamber of the Clean&Charge station after cleaning. These marks can be removed easily by wiping gently with a damp cloth.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centers:

• Foil & Cutter cassette: 40S/40B
• Cleaning cartridge Clean&Charge: CCR

Environmental notice

This appliance contains rechargeable batteries. To protect the environment, do not dispose of the appliance in the household waste at the end of its useful life. Disposal can take place at a Braun Service Center or appropriate collection sites.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electrical specifications, see printing on the special cord set.

Trouble-Shooting

Problem	Possible reason	Remedy
SHAVER
Unpleasant smell from the shaver head.	1. Shaver head is cleaned with water.2. Cleaning cartridge is in use for more than 8 weeks.	1. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove foil & cutter cassette to let it dry.2. Change cleaning cartridge at least every 8 weeks.
Battery performance dropped significantly.	1. Shaver head is regularly cleaned with water but not lubricated.2. Foil and cutter are worn which requires more power for each shave.	1. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.2. Replace foil & cutter cassette.
Shaving performance dropped significantly.	1. Shaving system is clogged.2. Foil and cutter are worn.	1. Soak the foil & cutter cassette in hot water with a drop of liquid dish soap. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.2. Replace foil & cutter cassette.
Cooling element is warm.	1. Shaver was used with cooling function a couple of minutes before.2. Battery capacity is too low for the cooling function.	1. You can use the shaver like this or turn on the cooling function and wait a few seconds until it is activated again.2. Charge the shaver after each shave to ensure sufficient battery capacity for the cooling function.
Shaver head is damp.	1. Drying time after automatic cleaning was not sufficient.2. Drain of the Clean&Charge station is clogged.	1. Clean directly after shaving to allow enough time for drying.2. Clean the drain with a wooden toothpick.

CLEAN&CHARGE STATION
Cleaning does not start when pressing the start button.	1. Shaver is not placed properly in the Clean&Charge station.2. Cleaning cartridge does not contain enough cleaning fluid (display lights red).3. Appliance is in stand-by mode.	1. Insert shaver into the Clean&Charge station (contacts of the shaver need to align with contacts in the station).2. Insert new cleaning cartridge.3. Press start button twice.
Increased consumption of cleaning fluid.	Drain of the Clean&Charge station is clogged.	– Clean the drain with a wooden toothpick.– Regularly wipe the tub clean.

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Close-up of a blue CoolTie electric shaver with a black plastic cover, showing internal components and blade structure (no text or symbols visible)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

40S/40B

Three identical rectangular blocks with vertical lines inside, no text or symbols present
