USER MANUAL DV 4200 MARANTZ

This undertaking is in addition to a consumer's statutory rights and does not affect those rights in any way. FRANÇAIS GARANTIE Pour des informations sur la garantie, contacter le distributeur local Marantz.

• Preparation General notes p. 14
• Connecting to a TV p. 14
• Connecting to optional equipment p. 15
• -16 Connecting to the power cord p. 16
• Remote Control battery installation p. 16
• NTSC/PAL Settings p. 16
• General explanation p. 17
• Turning on the power p. 18
• Initial Setup p. 18
• -19 Personal Preferences p. 19

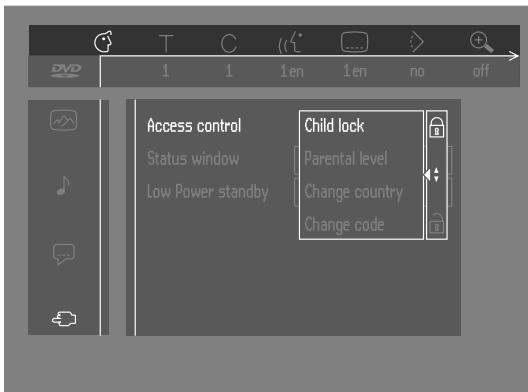

• -20 Access Control: child lock p. 21
• Access Control: parental control p. 22
• -23 Operation Loading discs p. 24
• Playing a DVD-Video disc p. 24
• Playing a Video CD p. 25
• General Features p. 25
• -28 Special DVD features p. 29
• Special VCD features p. 30
• Playing an Audio CD p. 30

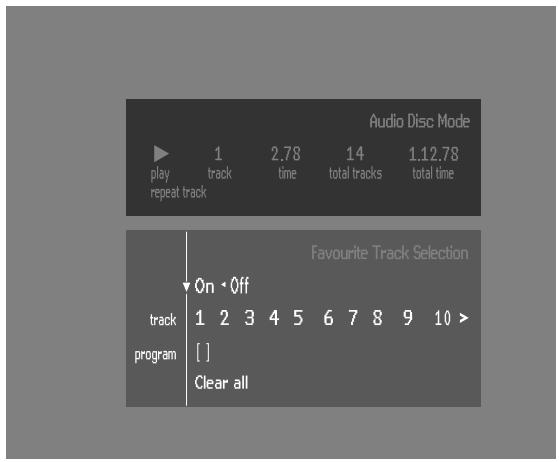

• -31 FTS Program p. 32
• Before requesting service Before requesting service p. 33
• Cleaning discs p. 34
• Specifications Specifications INDEX 5 Downloaded from www.Manualslib.com manuals search engine ENGLISH Introduction Entertainment for the new millennium Video was never like this before! Digital video discs provide perfect digital, studio-quality pictures; three dimensional digital, multi-channel audio; story sequences screened from your choice of camera angle; sound tracks in as many as eight languages; and up to 32 subtitles (if available on disc). Whether you watch DVD-Video on wide-screen or regular TV, you always see it the way it was meant to be. Digital video DVD-Video uses state-of-the-art MPEG2 data compression technology to register an entire movie on a single 5-inch disc. DVD’s variable bitrate compression, running at up to 9.8 Mbits/second, captures even the most complex pictures in their original quality. The crystal-clear digital pictures have a horizontal resolution of over 500 lines, with 720 pixels (picture elements) to each line. This resolution is more than double that of VHS, superior to Laser Disc, and entirely comparable with digital masters made in recording studios. DVD-Video discs conform to either the PAL or NTSC video standard. This player can play both PAL and NTSC discs, presenting them in the best possible way on your multi-standard TV screen. As the universal video system of the future, DVD-Video offers optimal pictures on any TV screen. Introduction Your MARANTZ DVD-Video player will play digital video discs conforming to the universal DVD-Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, as well as stereo or multi-channel sound (depending on the disc and your playback setup). The unique features of DVD-Video, such as selection of sound track, subtitle languages and different camera angles (again depending on the disc), are all included. What’s more, MARANTZ Child Lock lets you decide which discs your children will be able to see. In addition to DVD-Video discs, you will be able to play all Video CDs and Audio CDs (including finalized CD Recordable and CD Rewritable). You will find the On-Screen Display, player display, and remote control make the player easy to use. This manual provides all the information you will need, so read on! DVD-Video DVD-VIDEO DISC TITLE 1 p. 35

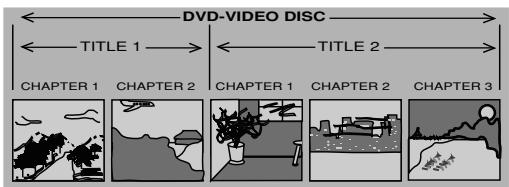

You will recognize DVD-Video discs by the logo shown on the left. Depending on the material on the disc (a movie, video clips, a drama series, etc.) the disc may have one or more Titles. Each Title may have one or more Chapters. To make playback easy and convenient, your player lets you select Titles and playback Chapters. ENGLISH Video CD You will recognize Video CDs by the logo shown at the left. Depending on the material on the disc (a movie, video clips, a drama series, etc.) the disc may have one or more tracks. Tracks may have one or more indexes, as indicated on the disc case. To make playback easy and convenient, your player lets you select tracks and indexes. Super VCD SVCD discs based on the Super VCD IO Standard based on the Standard of the Electronics Industry of the People’s Republic of China. Audio CD Audio CDs contain music tracks only. You will recognize Audio CDs by their logo which is shown at the left. You can play them in conventional style through a stereo system, using the keys on the remote control and/or front panel, or via the TV using the On-Screen Display (OSD). Unpacking First check and identify the contents of your DVD-Video player package. You should have the following items. DVD-Video player Remote Control with batteries AC power cord Audio/Video cable SCART cable Instructions for use Keep the packaging materials; you may need them to transport your player in the future. Placement

Place the player on a firm, flat surface. Keep the player away from domestic heating equipment and direct sunlight. In a cabinet, allow about 2.5 cm (1 inch) of free space all around the player for adequate ventilation. If the DVD-Video player cannot read CDs/DVDs correctly, use a commonly available cleaning CD/DVD to clean the lens before taking the DVD-Video player to be repaired. Other cleaning methods may destroy the lens. Always keep the tray closed to avoid dust on the lens. The lens may cloud over when the DVD-Video player is suddenly moved from cold to warm surroundings. Playing a CD/DVD is not possible then. Leave the DVD-Video player in a warm environment until the moisture evaporates. INTRODUCTION 7 Downloaded from www.Manualslib.com manuals search engine ENGLISH Functional overview Front panel STANDBY-ON - switches the player to Standby mode or ON Standby indicator - lights red when the player is in Standby mode Display - shows the current status of the player

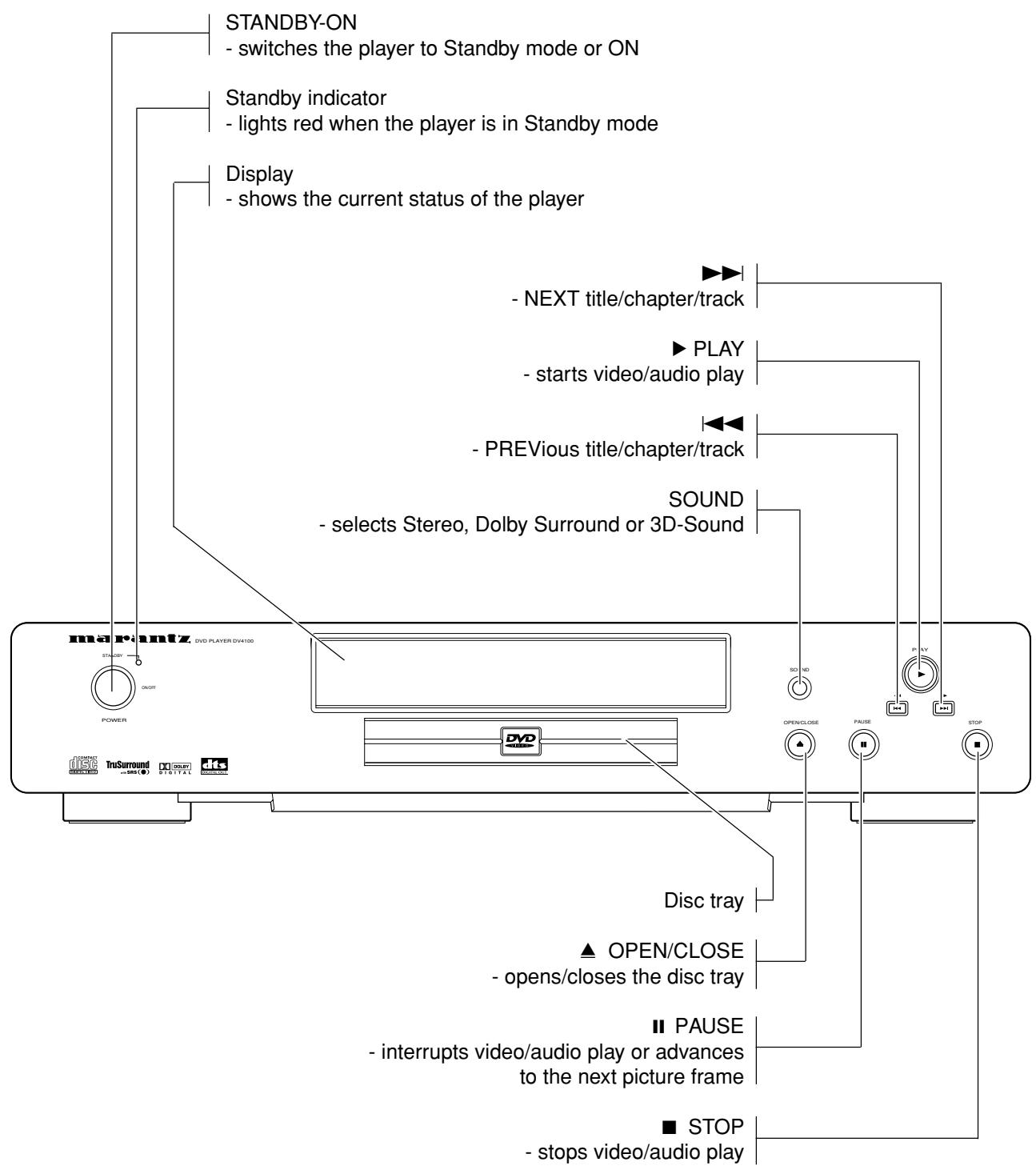

PLAY STANDBY SOUND ON/OFF POWER OPEN/CLOSE Disc tray / OPEN/CLOSE - opens/closes the disc tray ; PAUSE - interrupts video/audio play or advances to the next picture frame 9 STOP - stops video/audio play 8 FUNCTIONAL OVERVIEW Downloaded from www.Manualslib.com manuals search engine PAUSE STOP ENGLISH Rear panel MAINS (AC) power jack - connect to the power source Digital audio out jack (optical) - connect to digital (optical) equipment Digital audio out jack (coaxial) - connect to digital (coaxial) equipment Audio / L/R (Left/Right) - connect to an amplifier, receiver or stereo system Video Out (CVBS) - connect to a TV with CVBS video inputs Video Out (S-Video) - connect to a TV with S- Video (Y/C) inputs Euroconnector (AUX) - connect to a VCR TV OUT (TV) - connect to a TV with Euroconnector

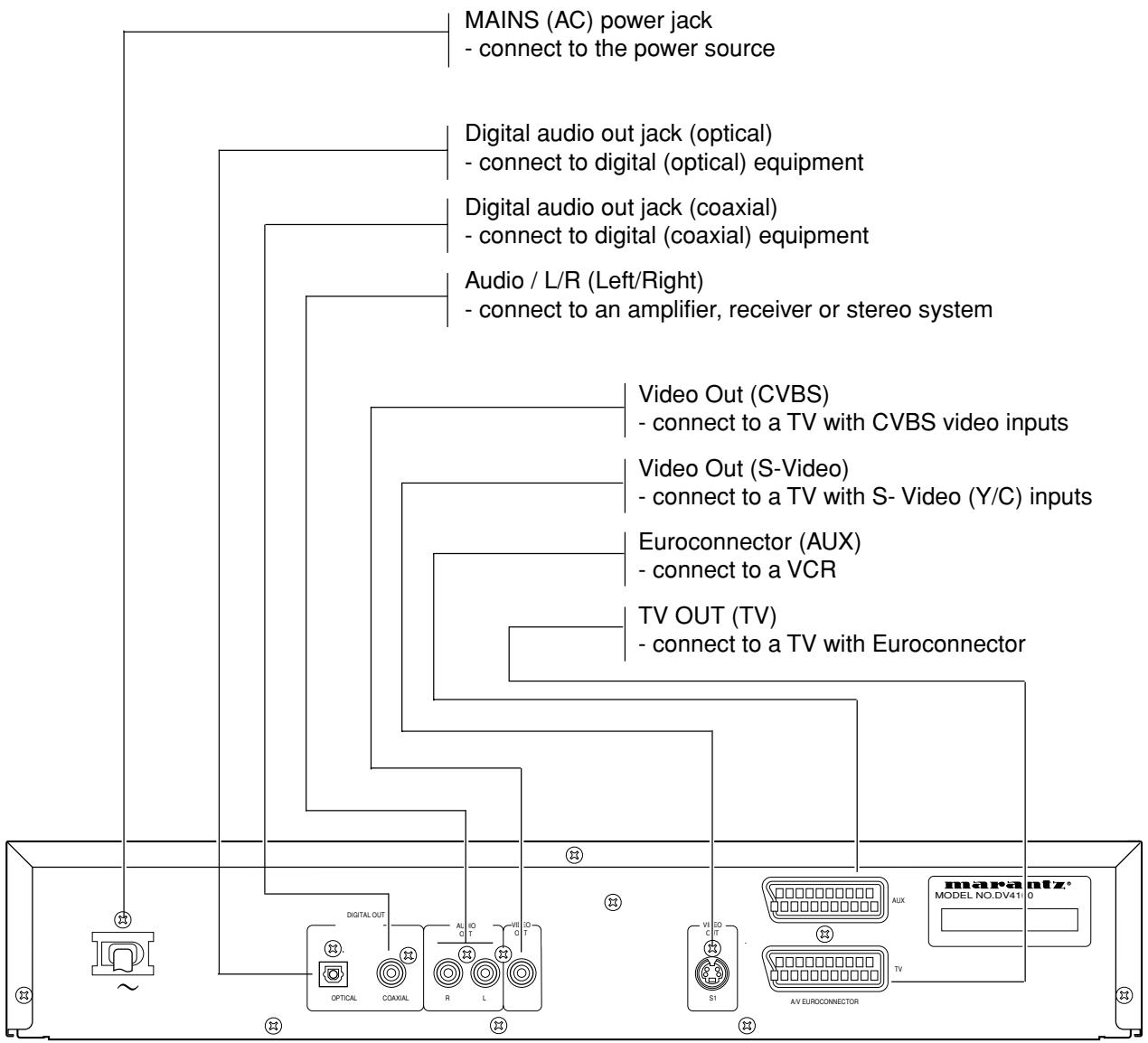

Caution: Do not touch the inner pins of the jacks on the rear panel connectors. Electrostatic discharge may cause permanent damage to the unit. FUNCTIONAL OVERVIEW 9 Downloaded from www.Manualslib.com manuals search engine ENGLISH Display DVD inserted VCD Video CD or Audio CD inserted Indicates current player function: Play, Pause, Search, etc. DVD TITLE number TITLE DVD CHAPTER number CHAPTER TRACK VCD/CD TRACK number TRACK TIME in hours, minutes and seconds TRACK TIME TOTAL TITLE CHAPTER VCD TIME TOTAL TIME in hours, minutes and seconds

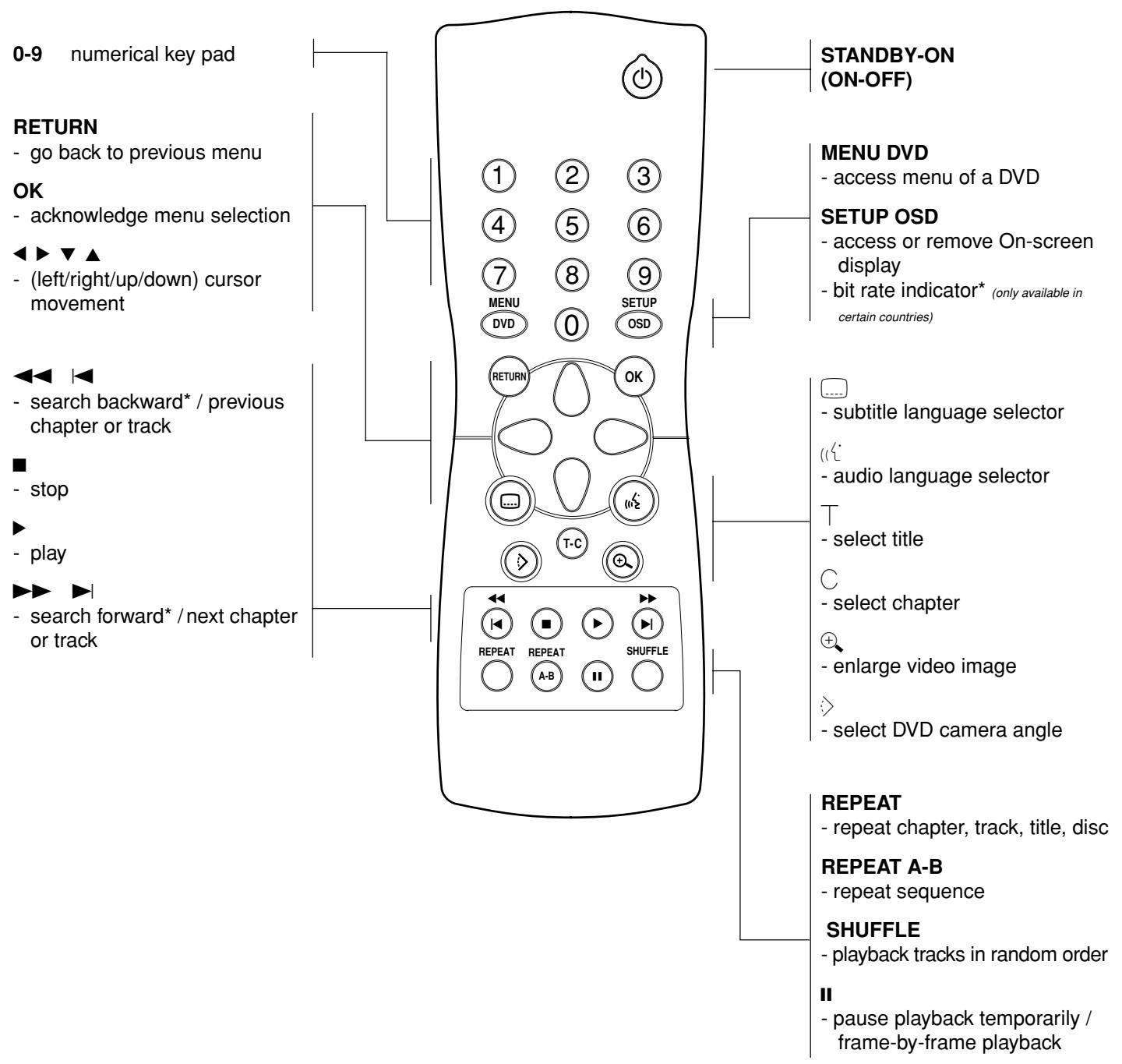

RETURN - go back to previous menu - acknowledge menu selection t u w v - (left/right/up/down) cursor movement

DVD Q O - search backward* / previous chapter or track - stop OSD

RETURN MENU DVD - access menu of a DVD SETUP OSD - access or remove On-screen display - bit rate indicator* (only available in certain countries)

- play R P - search forward* / next chapter or track

- select chapter - enlarge video image - select DVD camera angle REPEAT - repeat chapter, track, title, disc REPEAT A-B - repeat sequence SHUFFLE - playback tracks in random order - pause playback temporarily / frame-by-frame playback

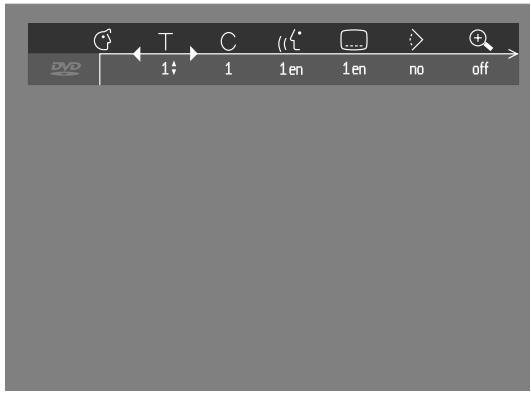

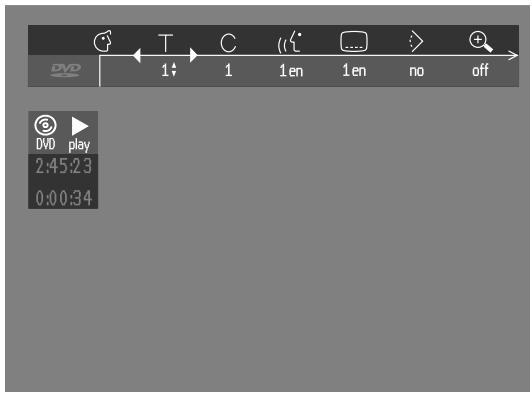

• Press key for about 1 second FUNCTIONAL OVERVIEW 11 Downloaded from www.Manualslib.com manuals search engine ENGLISH On screen display information Menu bar/Status window

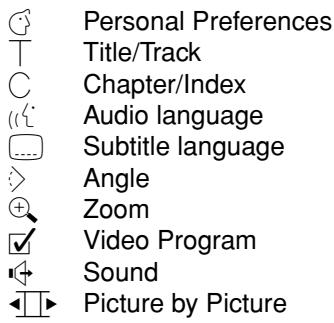

Personal Preferences Title/Track Chapter/Index Audio language Subtitle language Angle Zoom Video Program Sound Picture by Picture

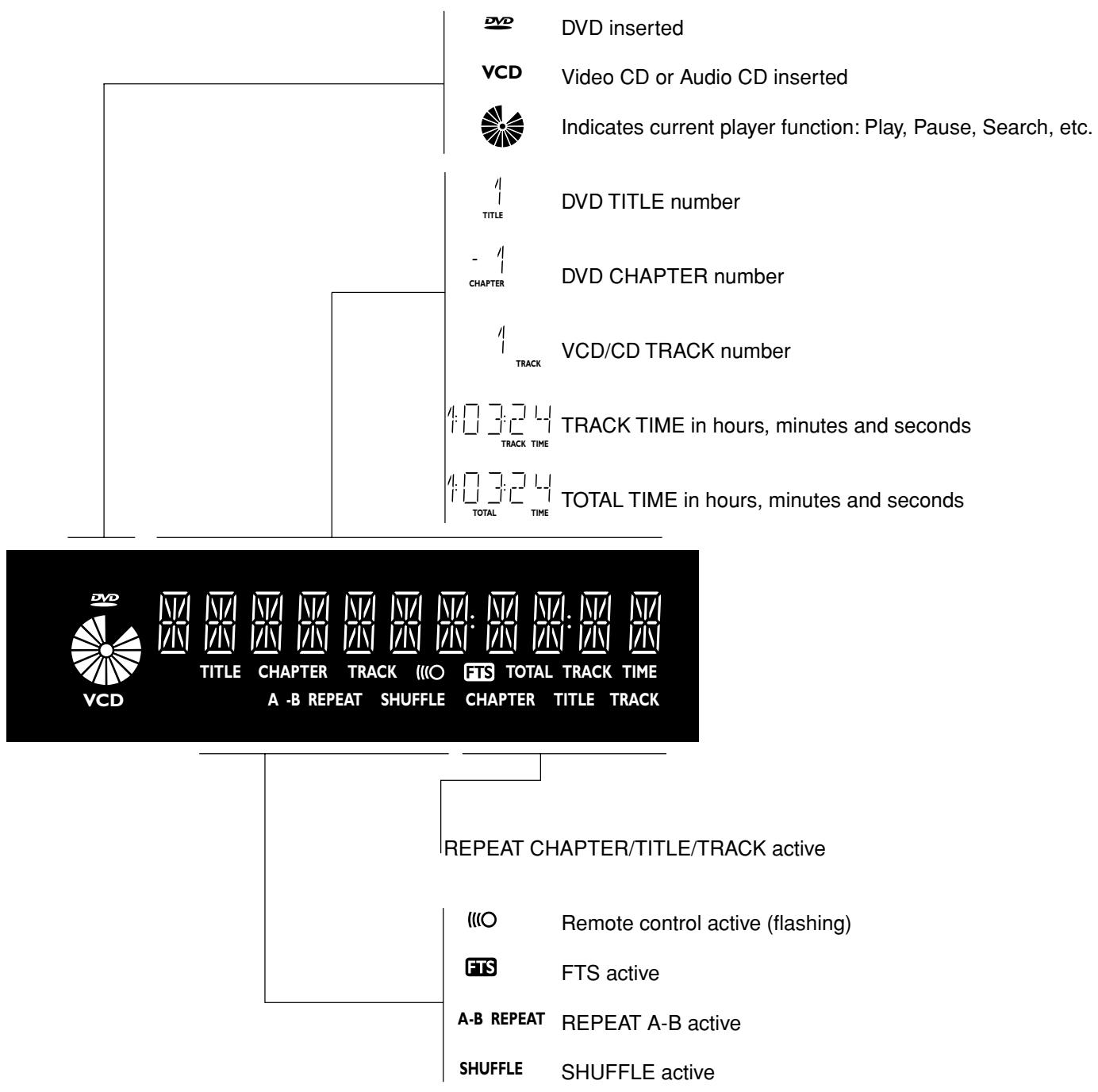

Slow motion Fast motion Time search Status window icons The status window displays the current status of the player and appears with the first part of the menu bar. (You must activate this in the Features Menu - see Personal Preferences for details). General Disc type Tray status Default screen The default screen is displayed when the player is in STOP mode. It may contain a ‘Status Window’ and a ‘Temporary Feedback Field’. This gives information concerning prohibited actions, playback modes, available angles, etc.

12 ON SCREEN DISPLAY INFORMATION

Downloaded from www.Manualslib.com manuals search engine Repeat All Repeat Title Repeat Track Repeat Chapter Shuffle Shuffle Repeat Repeat A to end Repeat A-B Angle Child Lock On Child Safe Resume Action prohibited

ON SCREEN DISPLAY INFORMATION 13

Downloaded from www.Manualslib.com manuals search engine ENGLISH Temporary Feedback Field icons ENGLISH Preparation General notes - Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Possible connections are shown in the following drawings. - Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections. - Do not connect your DVD-player via your VCR. The video quality could be distorted by the copy protection system. - For better sound reproduction, connect the player’s audio out jacks to the audio in jacks of your amplifier, receiver, stereo or A/V equipment. See ‘Connecting to optional equipment’. Caution: Do not connect the player’s audio out jack to the phono in jack of your audio system. Connecting to a TV

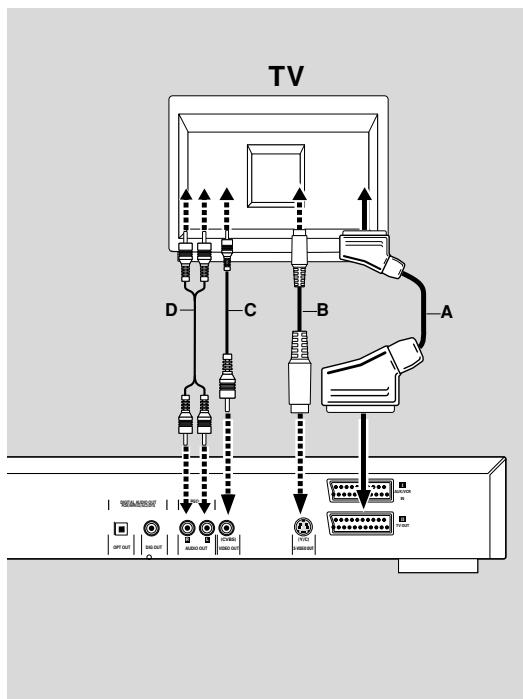

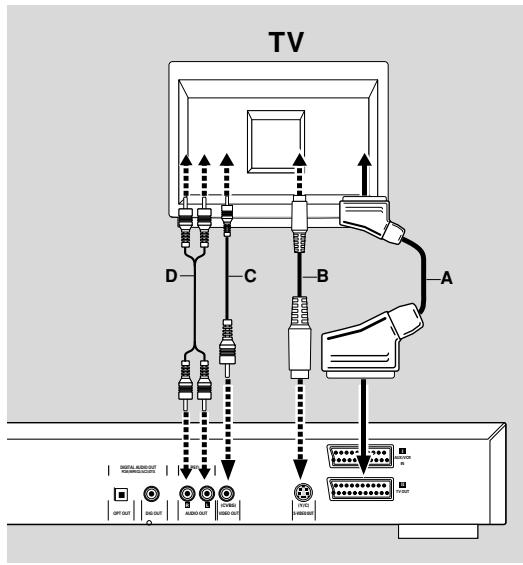

Connect the Euroconnector to the corresponding connector on the TV using the Euroconnector cable supplied (A). If your TV is not equipped with a Euroconnector you can select one of the following alternative connections:

STEREO OUT jacks on the TV (D).

AUDIO OUT (CVBS) (Y/C) VIDEO OUT S-VIDEO OUT Video CVBS connection 1 Connect the Video out (CVBS) jack to the video in jack on the TV using the audio/video cable supplied (C). 2 Connect the audio Left and Right out jacks to the audio left/right in jacks on the TV (D). 14 PREPARATION Downloaded from www.Manualslib.com manuals search engine Connecting to an amplifier equipped with two channel analog stereo AMPLIFIER

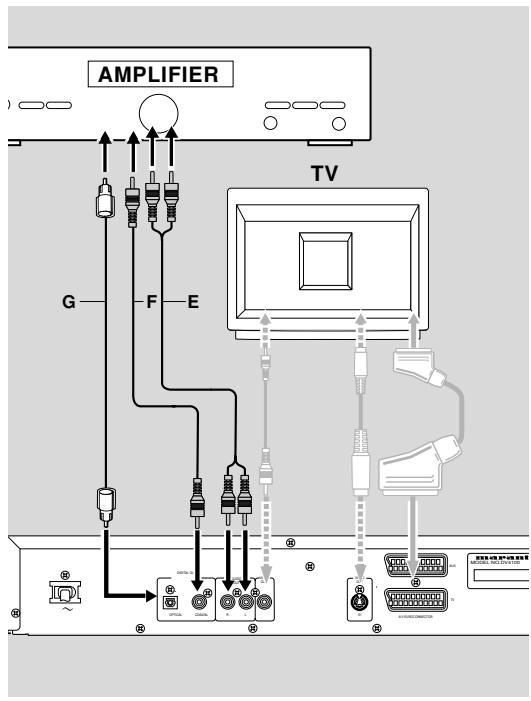

Connect the audio Left and Right out jacks of the DVD player to the audio left and right in jack on your amplifier, receiver or stereo system, using an audio cable (E).

Connecting to an amplifier equipped with two channel digital stereo (PCM)

Connecting to an A/V receiver equipped with a multichannel decoder (Dolby Digital™(AC-3), MPEG 2 and DTS)

Digital Multi-channel sound Digital multi-channel connection provides the best sound quality. For this you need a multi-channel A/V receiver that supports one or more of the audio formats supported by your DVD player (MPEG 2, Dolby Digital™(AC-3), AC3 and DTS). Check the receiver manual and the logos on the front of the receiver. 1 Connect the DVD player’s digital audio output (optical G or coaxial F) to the corresponding input on the receiver using an optional digital (optical G or coaxial F) audio cable. 2 You will need to activate the player’s digital output (see ‘Personal Preferences’). All Note: If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all. The selected audio format of the DVD is displayed in the Status Window when the SETUP OSD is activated or Audio button is activated. Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder. To see the selected audio format of the current DVD in the Status Window, press the SETUP OSD or the Audio Language selector button. PREPARATION 15 Downloaded from www.Manualslib.com manuals search engine ENGLISH Connecting to optional equipment ENGLISH Connecting to an amplifier equipped with Dolby Surround™

Dolby Surround sound 1 Connect the player to the TV, then connect the player’s audio Left and Right out jacks to the corresponding in jacks on the Dolby Surround™ Audio/Video receiver, using the audio/video cable supplied (D).

If your TV is equipped with a Dolby Surround™ decoder, ● Connect the player to the TV as described in ‘Connecting to a TV’. AUX/VCR

If your amplifier is equipped with a Dolby Digital™ decoder, ● Connect the player as described in ‘Connecting to an A/V receiver with multi-channel decoder’.

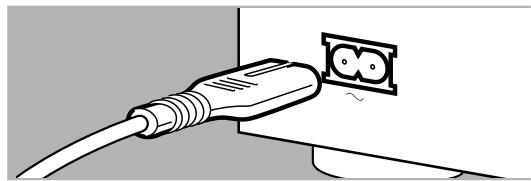

AUDIO OUT (CVBS) (Y/C) VIDEO OUT S-VIDEO OUT Connecting the power cord 1 Plug the female end of the supplied power cord into the Mains (AC) jack on the rear of the player. 2 Connect the other end of the cord to an AC outlet. Note: When the player is in the “STANDBY” mode, it is still consuming some power. If you wish to disconnect your player completely from the power, unplug the power cord from the AC outlet. Caution: Only qualified service personnel should remove the cover or attempt to service this device. Remote control battery installation Loading the batteries

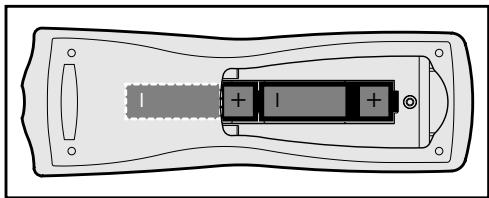

1 Open the battery compartment cover. 2 Insert batteries as indicated inside the battery compartment. 3 Close the cover. Caution: Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.). NTSC/PAL Settings You can switch the NTSC/PAL setting of the DVD player to match the video signal of your TV. This setting only affects the television’s on-screen display that shows the stop and setup modes. You may select either NTSC or PAL. To change the DVD player setting to PAL or NTSC, follow the steps below. 1 Press the POWER ON/OFF button on the front panel of the DVD player to turn OFF the DVD player. 2 Press and hold 9 and T on the front of the DVD player. While holding 9 and T ,press POWER ON/OFF. 3 After PAL or NTSC appears on the display panel of the DVD player, release 9 and T at the same time. The PAL or NTSC that appears on the display panel indicates the current setting. 4 To change the setting, press T within three seconds. The new setting (PAL or NTSC) will appear on the display panel. 16 PREPARATION Downloaded from www.Manualslib.com manuals search engine ENGLISH General explanation About this manual This manual gives the basic instructions for operating this DVD player. Some DVDs require specific operation or allow only limited operation during playback. In these cases, the player may not respond to all operating commands. When this occurs, please refer to the instructions contained with the DVD. When the symbol Ä appears on the TV screen, the operation is not permitted by the player or the disc. Remote control operation - Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player, making sure there are no obstructions in the path of the infrared beam. When there are corresponding keys on the front panel of the player, they can also be used. Menu bar operation

- A number of operations can be carried out via the menu bar on the screen. The menu bar can be accessed by pressing any of the following keys on the remote control: SETUP OSD, T-C, Angle, Audio Language, Subtitle Language and Zoom. - The following functions are available via the menu bar: Personal Preferences Title/Track Chapter/Index Audio language Subtitle language Angle Zoom Video Program Sound Picture by Picture Slow motion Fast motion Time search - The various items can be selected by pressing the SETUP OSD button, then the w/v keys or by pressing relevant keys on the remote control. - Pressing SETUP OSD while the menu bar is displayed will clear the menu bar from the screen. - When selecting an item in the menu bar, the selected item will be high lighted and the appropriate cursor keys to operate this item will be displayed below the icon. - < or > indicates that more items are available at the left/right of the menu bar. Press t or u to select these items. PREPARATION 17 Downloaded from www.Manualslib.com manuals search engine ENGLISH Turning On the power 1 Switch on the TV and select the video input channel for your DVDVideo player.

STANDBY 2 Press ON button. ON/OFF POWER Initial Setup General Initial Setup In ‘Initial Setup’ you may have to set your preferences for some of the player’s features. (not applicable for all models) Menu language English Operation Español After switching on the player for the very first time, the ‘Initial Setup Screen’ will appear. The menu for the first item to be set is displayed and the first option is highlighted. Français Português Chinese Malay

Initial Setup Initial Setup Audio language Subtitle language English English Español Español Français Français Português Português Russian Russian Polish Polish Use the w v keys to go through the options of the menu. The icon of the selected option will be high lighted. Use OK to confirm your selection and to go to the next menu. Note: Preferences have to be set in the order in which the item menus will appear on the screen. The ‘Initial Setup’ screen will only disappear after the settings for the last item have been confirmed. If any keys other than w v or OK are pressed Ä, will appear on the screen. If the player is switched off while setting personal preferences, all preferences have to be set again after switching the player on again. The following items may have to be set in Initial Setup: Menu language The On Screen Menus will be displayed in the language you choose. You can choose from different languages. Audio language The sound will be in the language you choose if it is available on the disc. If the language you select is not available, speech will revert to the first spoken language on the disc. You can choose from different languages. Subtitle language The subtitles will be in the language you choose if it is available on the disc. If the language you select is not available, subtitles will revert to the first subtitle language on the disc. You can choose from different languages. TV Shape If you have a wide screen (16:9) TV, select 16:9. If you have a regular (4:3) TV, select 4:3. If you have a 4:3 TV, you can also select between: Letterbox for a ‘wide-screen’ picture with black bars top and bottom, or Pan Scan, for a full-height picture with the sides trimmed. If a disc has Pan Scan, the picture then moves (scans) horizontally to keep the main action on the screen. 18 PREPARATION Downloaded from www.Manualslib.com manuals search engine Note: All these items may have to be set during ‘Initial Setup’. After that, they can always be changed in the Personal Preferences Menu. Personal Preferences You can set your personal preferences for some of the player features. General operation:

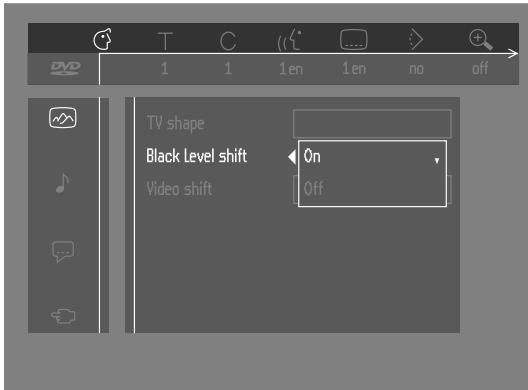

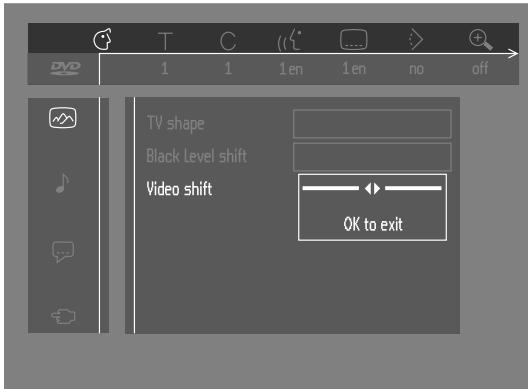

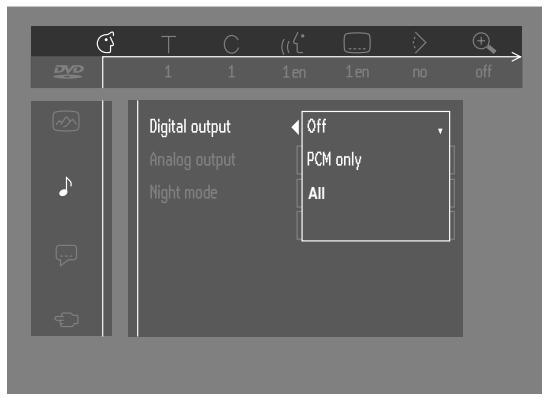

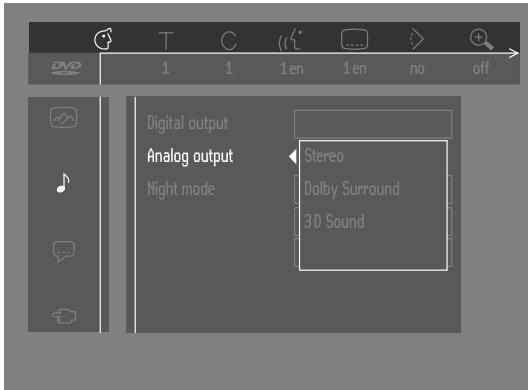

Press SETUP OSD on the remote control. Select V in the menu bar. ➤ The Personal Preferences menu appears. Use the t u w v keys to toggle through the menus, submenus and submenu options. ➤ When a menu item is selected, the cursor keys (on the remote control) to operate the item are displayed next to the item. Press OK to confirm and return to the main menu. The following items can be adapted: Picture -TV Shape See ‘Initial Setup’ - Black level shift (NTSC only) Select ON for adapting the color dynamics to obtain richer contrasts. - Video shift The factory centers the video on your screen. Use this setting to personalize the position of the picture on your TV by scrolling it to the left or right. PREPARATION 19 Downloaded from www.Manualslib.com manuals search engine ENGLISH Country Select your country. This also is used as input for the ‘Parental Control’ feature (see ‘Access Control’). ENGLISH Sound - Digital output Factory setting: ALL. This means that both coaxial and optical outputs are switched on. If you are not connecting equipment with a digital input, change the setting to OFF. If your equipment doesn't include a digital multi-channel decoder, set the digital output to PCM (Pulse Code Modulation). Both coaxial and optical outputs are switched on. - Analog output Select Stereo, Dolby Surround or 3D sound. - Night Mode Optimizes the dynamics of the sound with low volume playback. - Karaoke vocal Put this setting to ON only when a multi-channel karaoke DVD is being played. The karaoke channels on the disc will then be mixed to a normal stereo sound. Language Select the required Menu, Audio and Subtitle language. See ‘Initial Setup’. Audio language and Subtitle language can also be adapted via the Menu bar on the screen. Features - Access Control Access Control contains the following features: Child Lock - When Child Lock is set to ON, a 4-digit code needs to be entered in order to play discs. Parental control - Allows the conditional presentation of DVDs containing Parental Control information (see ‘Access Control’). - Status Window Displays the current status of the player and is displayed with the menu bar. When disc playback is stopped, it is displayed with the ‘Temporary Feedback Field’ in the default screen. See ‘On-Screen Display information; Factory setting is ON. Select OFF to suppress display of the Status Window. 20 PREPARATION Downloaded from www.Manualslib.com manuals search engine Activating/deactivating the child lock 1 When disc playback is stopped, select Access Control in the features menu using the w/v keys. Enter a 4-digit code of your own choice. Enter the code a second time. Move to “Child Lock” using the w/v keys. Move to LOCK/UNLOCK using the u key. Select LOCK using the w/v keys. Press OK or t to confirm, then press t again to exit the menu. ➤ Now unauthorized discs will not be played unless the 4-digit code is entered. 8 Select UNLOCK to deactivate the Child Lock.

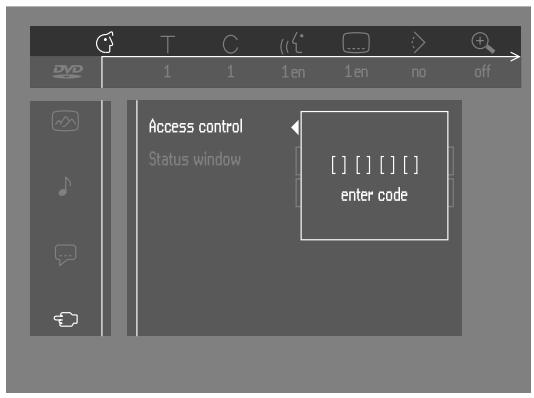

Note: Confirmation of the 4-digit code is necessary when: - The code is entered for the very first time (see above), - The code is changed (see ‘Changing the 4-digit code’), - The code is cancelled (see ‘Changing the 4-digit code’). Authorizing discs Insert the disc. See ‘Loading disc’. ➤ The ‘child protect’ dialog will appear. You will be asked to enter your secret code for ‘Play Once ‘or ‘Play Always.’ If you select ‘Play Once’, the disc can be played as long as it is in the player and the player is ON. If you select ‘Play Always’, the disc will become child safe (authorized) and can always be played, even if the Child Lock is set to ON.

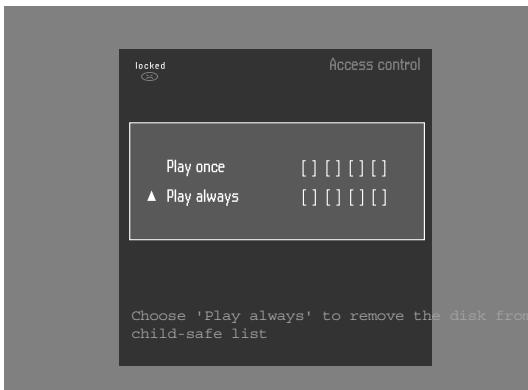

Choose 'Play always' to remove the disk from child-safe list Notes: The player memory maintains a list of 50 authorized (‘Child safe’) disc titles. A disc will be placed in the list when ‘Play Always’ is selected in the ‘child protect’ dialog. Each time a ‘child safe’ disc is played, it will be placed on top of the list. When the list is full and a new disc is added, the last disc in the list will be removed from the list. Double sided DVDs may have a different ID for each side. In order to make the disc ‘child safe’, each side has to be authorized. Multi-volume VCDs may have a different ID for each volume. In order to make the complete set ‘child safe’, each volume has to be authorized. Deauthorizing discs

Insert the disc. See ‘Loading disc’. ➤ Playback starts automatically. Press 9 while { is visible. ➤ The | will appear and the disc is now deauthorized. PREPARATION 21 Downloaded from www.Manualslib.com manuals search engine ENGLISH Access control; child lock (DVD and VCD) ENGLISH Access control; Parental control (DVD-Video only) Movies on DVDs may contain scenes not suitable for children. Therefore, disc may contain ‘Parental Control’ information which applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternative, more suitable scenes are available on the disc. Ratings are country dependent. The ‘Parental Control’ feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes. Activating/Deactivating Parental Control 1 When disc playback is stopped, select Access Control in the

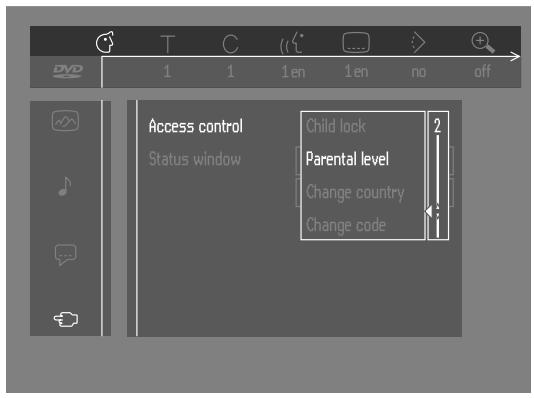

features menu using the w/v keys. Enter your 4-digit code. If necessary, enter the code a second time. Move to Parental Control using the w/v keys. Move to Value Adjustment (1-8) using the u key. Then use the w/v keys or the numerical keys on the remote control to select a rating from 1 to 8 for the disc inserted. Rating 0 (displayed as ‘– –’): Parental Control is not activated. The Disc will be played in full. Ratings 1 to 8: The disc contains scenes not suitable for children. If you set a rating for the player, all scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, play will stop and the 4digit code has to be entered. 6 Press OK or t to confirm, then press t again to exit the menu. Country 1 When disc playback is stopped, select ACCESS CONTROL in the

22 PREPARATION Downloaded from www.Manualslib.com manuals search engine features menu using the w/v keys. Enter the 4-digit code. Move to CHANGE COUNTRY using the w key. Press the u key. Select a country using w/v. Press OK or t to confirm, then press t again to exit the menu. 1 When disc playback is stopped, select ACCESS CONTROL in the

features menu using the w/v keys. Enter the old code. Move to CHANGE CODE using the w key. Press the u key. Enter the new 4-digit code. Enter the code a second time and reconfirm by pressing OK. Press t to exit the menu. Note: If you forget your 4 digit code, it can be cancelled by pressing 9 four times in the ‘Access Control’ dialog. You can then enter a new code (twice!) as described above. Parental Control Disclaimer This DVD player features the PARENTAL CONTROL system which is intended to activate when playing DVD discs furnished with certain software coding. This is according to technical standards adopted by the set maker and disc content industries. Please note that the PARENTAL CONTROL system will not operate a DVD disc which is not furnished with the appropriate software coding. Also note that at the time of release of this DVD player, certain aspects of the technical standards had not been settled between set makers and the disc industries. On this basis MARANTZ cannot guarantee functioning of the PARENTAL CONTROL system and denies any liability associated with unintended watching of disc content. If in doubt, please make sure the disc plays according to your PARENTAL CONTROL settings before you allow children access. PREPARATION 23 Downloaded from www.Manualslib.com manuals search engine ENGLISH Changing the 4-digit code ENGLISH Operation Loading discs 1 Press OPEN/CLOSE on the front of the player. The disc tray opens. 2 Load your chosen disc in the tray, label side up (also when a double PLAY SOUND OPEN/CLOSE PAUSE STOP sided DVD is inserted). Make sure it is sitting properly in the correct recess. 3 Gently push the tray, or press OPEN/CLOSE, to close the tray. ➤ READ appears in the status window and on the player display, and playback starts automatically. Note: If ‘Child Lock’ is set to ON and the disc inserted is not in the ‘child safe’ list (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see ‘Access Control’). Playing a DVD-video disc Playing a title ➤ After inserting the disc and closing the tray, playback starts automatically and the status window and the player display show the type of disc loaded, as well as information about the disc’s contents and playing time. The disc may invite you to select an item from a menu. If the selections are numbered, press the appropriate numerical key; if not, use the w/v, t/u keys to highlight your selection, then press OK. ➤ The currently playing title and chapter number are displayed in the menu bar and the player display. The elapsed playing time is shown in the status window and the player display. ● If required, you can use the Sound key to select Stereo, Dolby Surround or 3D-Sound. Play may stop at the end of the Title, and the player may return to the DVD menu. To go on to the next title, press 2. ● To stop play at any other time, press 9. ➤ The default screen will appear, giving information about the current status of the player. ● You can resume play from the point at which you stopped play. Press 2; when you see the Resume icon . on the screen, press 2 again. ➤ The RESUME feature applies not only to the disc in the player, but also to the last four discs you have played. Simply reload the disc and press 2; when you see the Resume icon . on the screen , press 2 again. Note: Since it is usual for DVD movies to be released at different times in different regions of the world, all players have region codes. Discs can have an optional region code. If you load a disc of a different region code into your player, you will see the region code notice on the screen. The disc will not play and should be removed from the player. 24 OPERATION Downloaded from www.Manualslib.com manuals search engine ENGLISH Playing a Video CD Playing a disc - After inserting the disc and closing the tray, playback starts automatically and the status window and the player display show the type of disc loaded, as well as information about the disc’s contents and playing time. - The disc may invite you to select an item from a menu. If the selections are numbered, press the appropriate numerical key. - The currently playing track number is displayed in the menu bar and the player display. The elapsed playing time is shown in the status window and the player display. ● If required, you can use the SOUND key to select Stereo, Dolby Surround or 3D-Sound. ● To stop play at any time, press 9. ➤ The default screen will then appear. ● You can resume play from the point at which you stopped play. Press 2; when you see the Resume icon on the screen ., press 2 again. The resume feature applies not only to the disc in the player, but also to the last four discs you have played. Simply reload the disc and press 2; when you see the Resume icon . on the screen, press 2 again. General features Note: Unless stated otherwise, all operations described are based on remote control operation. A number of operations can also be carried out via the menu bar on the screen (see ‘Menu bar operation’). Moving to another title/TRACK T-C

A-B When a disc has more than one title or track (which you can see from both the menu bar and the player display), you can move to another title as follows: ● Press T-C (title/chapter), then press P briefly during play to select the next title/track. ● Press T-C (title/chapter), then press O briefly during play to return to the beginning of the current title/track. Press O twice briefly to step back to the previous title/track. T-C

Moving to another chapter/index

When a title on a disc has more than one chapter or a track has more than one index (which you can see from the player display and on the menu bar), you can move to another chapter/index as follows: ● Press P briefly during play to select the next chapter/index. ● Press O briefly during play to return to the beginning of the current chapter/index. Press O twice briefly to step back to the previous chapter/index. ● To go directly to any chapter or index, select T-C (title/chapter), then enter the chapter/index number using the numerical keys (0-9). Note: If the number has more than one digit, press the keys in rapid succession. OPERATION 25 Downloaded from www.Manualslib.com manuals search engine ENGLISH Still Picture and Frame-by-frame playback T-C

Select e (picture by picture) in the menu bar. Use the w key to enter the picture by picture menu. ➤ The player will now go into PAUSE mode. Use the cursor keys t u to select the previous or next picture frame. To exit Picture by picture mode, press 2 or v. You can also step forward by pressing ; repeatedly on the remote control. Search T-C

Select g (Fast motion) in the menu bar. Use the w keys to enter the Fast Motion menu. Use the t u keys to select the required speed: -32, -8 or -4 (backward), or +4, +8, +32 (forward). Select 1 to play at normal speed again. To exit Fast Motion mode, press 2 or v. To search forward or backward through different speeds, you can also hold down Q or R. T-C Repeat

REPEAT REPEAT A-B CHAPTER

TITLE REPEAT REPEAT REPEAT TRACK REPEAT REPEAT

REPEAT A-B Video CDs - Repeat track/disc ● To repeat the track currently playing , press REPEAT. ➤ REPEAT TRACK appears on the player display. ● To repeat the entire disc, press REPEAT a second time. ➤ REPEAT appears on display and screen. ● To exit Repeat mode, press REPEAT a third time. Repeat A-B T-C REPEAT DVD-Video Discs - Repeat chapter/title/disc ● To repeat the currently playing chapter, press REPEAT. ➤ REPEAT CHAPTER appears on the player display. ● To repeat the title currently playing , press REPEAT a second time ➤ REPEAT TITLE appears on the display. ● To repeat the entire disc, press REPEAT a third time ➤ REPEAT appears on the display. ● To exit Repeat mode, press REPEAT a fourth time.

26 OPERATION Downloaded from www.Manualslib.com manuals search engine To repeat a sequence in a title: ● Press REPEAT A-B at your chosen starting point; ➤ A- appears briefly on the screen. ● Press REPEAT A-B again at your chosen end point; ➤ A-B REPEAT appears briefly on the display, and the repeat sequence begins (A-B REPEAT is displayed on the front panel of the player). ● To exit the sequence, press REPEAT A-B.

REPEAT REPEAT A-B ENGLISH Shuffle T-C

DVD-Video discs This shuffles the playing order of chapters within a title, if the title has more than one. ● Press SHUFFLE during play. ➤ SHUFFLE appears on the screen for about 2 seconds. ● To return to normal play, press SHUFFLE again. Video CDs This shuffles the playing order of the tracks, if the disc has more than one. ● Press SHUFFLE during play. ➤ SHUFFLE appears on the screen for about 2 seconds. ● To return to normal play, press SHUFFLE again. SHUFFLE

Time search The Time Search function allows you to start playing at any chosen time on the disc. ● Select h (Time Search) in the menu bar. ● Press w. ➤ The player will now go into PAUSE mode. ➤ A time edit box appears on the screen, showing the elapsed playing time of the current disc. ● Use the digit keys to enter the required start time. Enter hours, minutes and seconds from left to right in the box. ➤ Each time an item has been entered, the next item will be highlighted. ● Press OK to confirm the start time. ➤ The time edit box will disappear and play starts from the selected time position on the disc. Zoom T-C

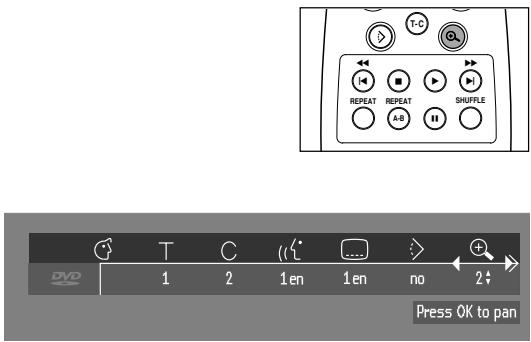

The Zoom function allows you to enlarge the video image and to pan through the enlarged image. ● Select a (Zoom) in the menu bar. ● Press w/v to activate the ZOOM function and select the required zoom factor: 1.33 or 2 or 4. ➤ The player will go into Pause mode. ➤ The selected zoom factor appears below the Zoom icon in the menu bar and ‘Press OK to pan’ appears below the menu bar. ➤ The picture will change accordingly. ● Press OK to confirm the selection. ➤ The panning icons appear on the screen: v w t u and OK. ● Use the v w t u keys to pan across the screen. ● When OK is pressed only the zoomed picture will be shown on the screen. ● If you wish to zoom at any moment, press a (Zoom) and select the required zoom factor as described above. ● To exit Zoom mode: – Press 2. ➤ Playback will resume. – Press STOP, SETUP OSD. OPERATION 27 Downloaded from www.Manualslib.com manuals search engine ENGLISH FTS-Video - The FTS-Video function allows you to store your favorite titles and chapters (DVD) and favorite tracks and indexes (VCD) for a particular disc in the player memory. - Each FTS program can contain 20 items (titles, chapters). - Each time an FTS program is played it will be placed on top of the list. When the list is full and a new program is added, the last program in the list will be removed from the list. - The selections can be called up and played at any time. Storing a FTS-Video Program ● In STOP mode, select Video FTS c in the menu bar. ● Press w to open the menu. ➤ The Video FTS menu appears. ● Press t or u or FTS to select ON or OFF. Storing titles/tracks Press w to select TITLES. ● Use t or u to select the required title. ● Press OK if you wish to store the entire title. ➤ The title number will be added to the list of selections.

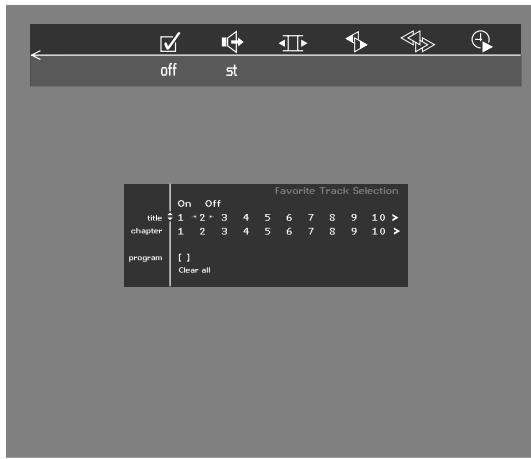

Storing chapters/indexes ● Press w on the selected title number. ➤ The title number will be marked and the highlight moves to the first available chapter number for this title. ● Use t or u to select the required chapter number. ● Press OK to confirm the selection. ➤ The title/chapter selection will be added to the list of selections. ● Press SETUP OSD to exit the Video FTS c menu. Erasing a FTS-Video Program ● In STOP mode, select Video FTS c in the menu bar. ● Use w to select PROGRAM. ● Use t or u to select the required selection number. ● Press OK to erase the selection. ● Press SETUP OSD to exit. If you wish to erase all selections: ● In STOP mode, select Video FTS c in the menu bar. ● Use w to select CLEAR ALL. ● Press OK. ➤ All selections will now be erased. ● Press SETUP OSD to exit. 28 OPERATION Downloaded from www.Manualslib.com manuals search engine ENGLISH Special DVD features Checking the contents of DVD-Video discs: Menus For titles and chapters, selection menus may be included on the disc. The DVD’s menu feature allows you to make selections from these menus. Press the appropriate numerical key; or use the w, v, u, t keys to highlight your selection, then press OK. Title menus

Press MENU DVD. ➤ If the current title has a menu, the menu will appear on the screen. If no menu is present in the title, the disc menu will be displayed. The menu can list camera angles, spoken language and subtitle options, and chapters for the title. To remove the title menu, press MENU DVD again. Disc menu

Press T-C then press MENU DVD. ➤ The disc menu is displayed. To remove the disc menu, press T-C, then press MENU DVD. Camera Angle If the disc contains sequences recorded from different camera angles, the angle icon appears, showing the number of available angles and the angle being shown currently. You can then change the camera angle if you wish.

Use the w/v keys to select the required angle in the angle icon. ➤ After a small delay, play changes to the selected angle. The angle icon remains displayed until multiple angles are no longer available. Changing the audio language

Select Y (Audio) in the menu bar. Press Y or w/v repeatedly to see the different languages. Subtitles

Select Z (Subtitle) in the menu bar. Press Z or w/v repeatedly to see the different subtitles. OPERATION 29 Downloaded from www.Manualslib.com manuals search engine ENGLISH Special VCD-Features Playback Control (PBC)

Load a Video CD with PBC and press 2. Go through the menu with the keys indicated on the TV screen until your chosen passage starts to play. If a PBC menu consists of a list of titles, you can select a title directly. Enter your choice with the numerical keys (0-9). Press RETURN to go back to the previous menu. You may also set the PBC OFF under Personal Preferences menu. Playing an audio CD

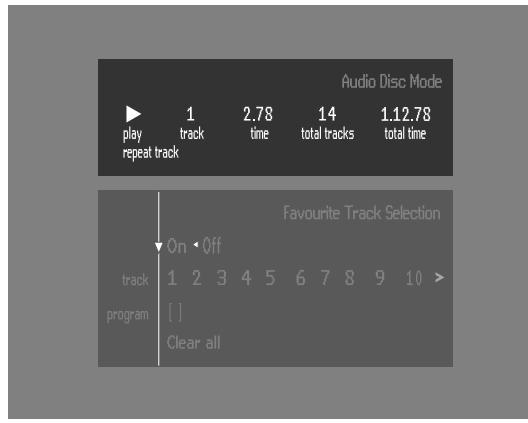

After loading the disc, playback starts automatically. If the TV is on, the Audio CD screen appears. The number of tracks and the total playing time will be shown on the screen. During play, the current track number and its elapsed playing time will be shown on the screen and on the player display. Playback will stop at the end of the disc. To stop play at any other time, press 9. Pause T-C

A-B Press ; during play. To return to play, press 2. Search T-C

T-C To search forward or backward through the disc at four times normal speed, hold down 5 or 6 for about one second during play. ➤ Search begins, and sound is partially muted. To step up to eight times the normal speed, press 5 or 6 again. ➤ Search goes to eight times the speed, and the sound is muted. To return to four times the normal speed, press 5 or 6 again. If the TV is on, search speed and direction are indicated on the screen each time 5 or 6 is pressed. To end the search, press 2 to resume playback or 9 to stop. Moving to another track

30 OPERATION Downloaded from www.Manualslib.com manuals search engine Press P briefly during play to go to the next track. Press O briefly during play to return to the beginning of the current track. Press O twice briefly to step back to the previous track. To go directly to any track, enter the track number using the numerical keys (0-9). ENGLISH Shuffle

Press SHUFFLE during play. ➤ The order of the tracks is changed. To return to normal play, press SHUFFLE again.

A-B Repeat track/disc T-C

To repeat the track currently playing , press REPEAT. ➤ REPEAT TRACK appears on the display. To repeat the entire disc, press REPEAT a second time. ➤ REPEAT appears on the display. To exit Repeat mode, press REPEAT a third time. Repeat A-B T-C

To repeat a sequence: ● Press REPEAT A-B at your chosen starting point; ➤ A- appears on the player display. ● Press REPEAT A-B again at your chosen end point; ➤ A-B appears on the display, and the sequence begins to play repeatedly. ● To exit the sequence, press REPEAT A-B again. OPERATION 31 Downloaded from www.Manualslib.com manuals search engine ENGLISH FTS Program - FTS Program allows you to store your favorite tracks for a particular disc in the player memory. - Each FTS Program can contain 20 tracks. Storing an FTS Program 1 Load a disc and stop playback. 2 Use w to go to the list of available tracks. 3 Use t or u to select tracks from the list. To go directly to any track, enter the track number using the numerical keys (0-9). 4 Store each track by pressing OK. ➤ The track numbers will be added to the list of selected tracks. ➤ The number of tracks and the playing time of the program will be shown on the screen and the player display. When your FTS Program is complete, press 2 to start play, or v to go back to Stop mode. In either case, the FTS Program will be automatically memorized. Switching FTS ON/OFF 1 Use v/w to move to the top. 2 Use t or u to select either ON or OFF. Erasing a track from an FTS Program 1 Use w to go to the list of selected tracks. 2 Use t or u to select the track number you wish to erase. 3 Press OK. ➤ The track number will be erased from the list of selected tracks. Erasing the complete program ● Use w to select Clear All, then press OK. ➤ The complete FTS Program for the disc will be erased. 32 OPERATION Downloaded from www.Manualslib.com manuals search engine If it appears that the DVD-Video player is faulty, first consult this checklist. It may be that something has been overlooked. Under no circumstances attempt to repair the system yourself; this will invalidate the warranty. Look for the specific symptom(s). Then perform only the actions listed to remedy the specific symptom(s). Symptom Remedy No power Make sure the AC cord is properly connected. Check if there is power at the AC outlet by plugging in another appliance. No picture Check if the TV is switched on. Check the video connection. Distorted picture Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge. Sometimes a small amount of picture distortion may appear .This is not a malfunction. Completely distorted picture or no color with player menu. If the picture is distorted completely or if the picture rolls vertically, make sure the NTSC/PAL setting at the DVD player matches the video signal of your television. If your TV video signal is NTSC, select the NTSC setting at the DVD player. If your video signal is PAL, select the PAL setting - see NTSC/PAL SETTINGS. Distorted or Black/White picture with DVD or Video CD. The disc format does not match your TV’s video signal (PAL/NTSC). No sound Check audio connections. If you are using a amplifier, try another sound source. Distorted sound from amplifier. Check to make sure that no audio connections are made to the amplifier phono input. No audio at digital output. Check the digital connections. Check the settings menu to make sure the digital output is set to ALL or PCM. Check if the audio format of the selected audio language matches your receiver capabilities. Disc can’t be played. Ensure the disc label is facing up. Clean the disc. Check if the disc is defective by trying another disc. Check to see if the disc is defective, badly scratched or warped (not flat) No return to start-up screen when disc is removed. Reset by switching the player off, then on again. Check to see if the program requires another disc to be loaded. The player does not respond to the remote control. Aim the remote control directly at the sensor on the front of the player. Remove any obstacles between the player and the remote control. Inspect or replace the batteries in the remote control. Buttons do not work. In order to completely reset the player, unplug the AC cord from the AC outlet for a few seconds. Player does not respond to all operating commands during playback. Operations are not permitted by the disc. Refer to the instructions of the disc. DVD-Video player cannot read CDs/DVDs correctly. Use a commonly available cleaning CD/DVD to clean the lens before taking the DVD-Video player to be repaired.

BEFORE REQUESTING SERVICE 33

Downloaded from www.Manualslib.com manuals search engine ENGLISH Before requesting service ENGLISH Cleaning discs Some problems occur because the disc inside the player is dirty. To avoid these problems clean your discs regularly, in the following way:

When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Caution: Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for analog discs.

Playback Control for VCD 2.0 discs Parental Control and Disc lock Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming Tracks with Favorite Selection

AUDIO CD FUNCTIONALITY

Time Display (Total / Track / Remaining Track Time) Full audio functionality with remote control Programming with Favorite Track Selection

Printed in China Downloaded from www.Manualslib.com manuals search engine is a registered trademark. 00/05 MITi 302W851310
