USER MANUAL SBS66I2 LIEBHERR

Operating and installation instructions

Large-capacity BioFresh refrigerator

GB

Line drawing of a server rack cabinet with multiple internal compartments and indicator lights (no text or symbols)

081110

7084228 - 00

B 2756 ... 6

LIEBHERR

Contents

1 Appliance at a glance.... 2
1.1 Description of appliance and equipment.... 2
1.2 Range of appliance use.... 2
1.3 Conformity.... 3
1.4 External dimensions of the appliance.... 3
1.5 Saving energy.... 3
1.6 Insulation plate.... 3
1.7 HomeDialog.... 3
2 General safety information.... 3
3 Controls and displays.... 4
3.1 Operating and control elements.... 4
3.2 Temperature display.... 4
4 Putting into operation.... 4
4.1 Transporting the appliance.... 4
4.2 Installing the appliance.... 4
4.3 Changing over the door hinges.... 5
4.4 Insertion into a row of kitchen units.... 6
4.5 Disposing of packaging.... 6
4.6 Connecting the appliance.... 6
4.7 Switching on the appliance.... 6
5 Control.... 7
5.1 Brightness of the temperature display.... 7
5.2 Child proofing.... 7
5.3 Door alarm.... 7
5.4 Storing food.... 7
5.5 Storage times.... 7
5.6 Setting the temperature.... 8
5.7 Adjusting the humidity.... 8
5.8 Drawers.... 8
6 Maintenance.... 8
6.1 Cleaning the appliance.... 8
6.2 Customer service.... 9
7 Malfunction.... 9
8 Decommissioning.... 10
8.1 Switching off the appliance.... 10
8.2 Taking the appliance out of service.... 10
9 Disposing of the appliance.... 10

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a ▶, the results of action are marked with a ▷.

1 Appliance at a glance

1.1 Description of appliance and equipment

Note

▶ Shelves, drawers and baskets are arranged for optimum energy efficiency on delivery.

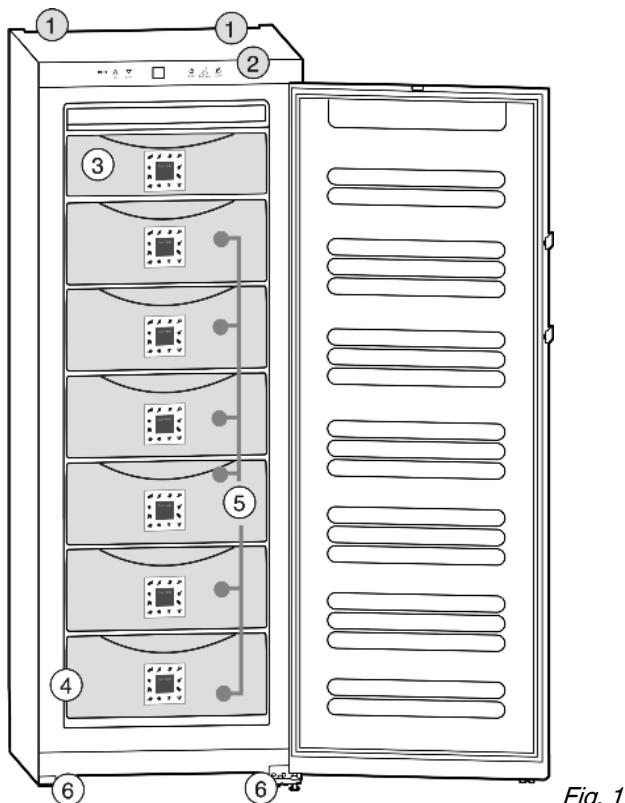

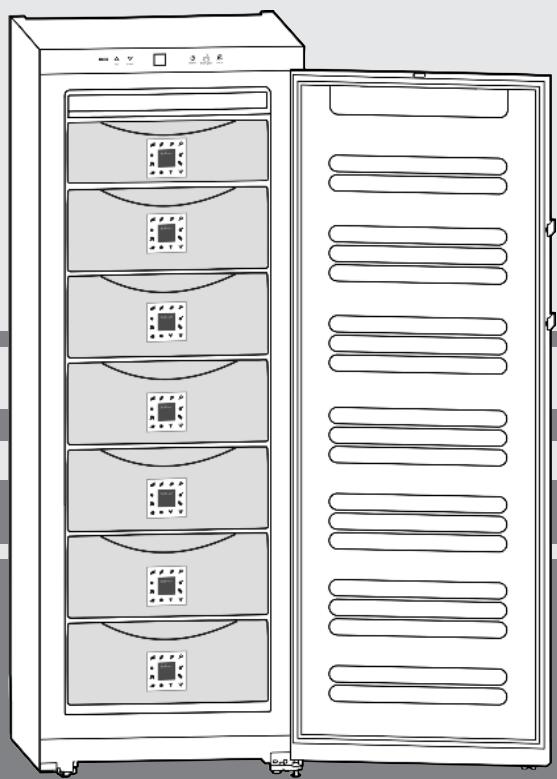

1 2 3 4 5 6 Fig. 1

(1) Transport grips at back

(2) Operating and control elements

(3) Drawer for herbs and berries

(4) Type plate

(5) Drawers

(6) Adjustable feet

1.2 Range of appliance use

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes use in, for example

• in staff kitchenettes, bed and breakfast establishments,
• by guests in country homes, hotels, motels and other forms of accommodation,
• in catering and similar services in the wholesale trade

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance is not suitable for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Misuse of the appliance can result in the stored products suffering harm or perishing. Furthermore, the appliance is not suitable for operation in potentially explosive atmospheres.

The appliance is set to operate within specific ambient temperature limits according to its climate rating. The correct climate rating for your appliance is indicated on the type plate.

Note

▶ Compliance with the ambient temperatures indicated is required, otherwise the cooling performance is reduced.

Climate rating	for ambient temperatures of
SN	10 °C to 32 °C
N	16 °C to 32 °C
ST	16 °C to 38 °C
T	16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. The appliance complies with current safety regulations and EC directives 2006/95/EC and 2004/108/EC.

1.4 External dimensions of the appliance

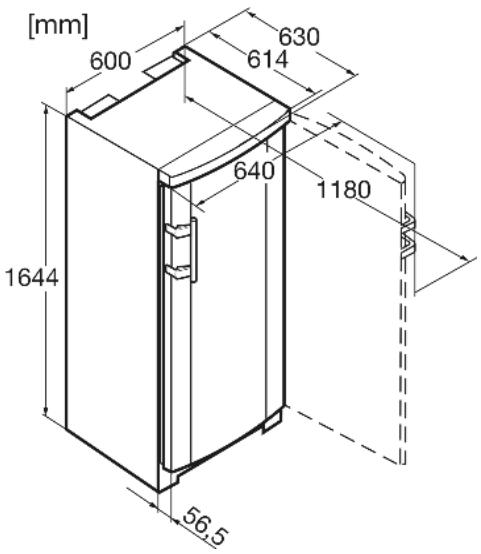

[mm] 600 630 614 640 1180 1644 56.5

Fig. 2

1.5 Saving energy

• Always ensure good ventilation. Do not cover ventilation openings or grille.
• Always keep fan louvres clear.
• Do not place appliance in areas of direct sunlight or next to a stove, heater or similar object.
• The energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.2).
• Keep the time the appliance is open to a minimum.
• The lower the temperature setting, the higher the power consumption.
• Store food logically. (see Appliance at a glance).
• First cool warm food to room temperature before storing it.

Accumulated dust increases the energy consumption:

- Once a year, dust the refrigerating unit together with the metal grille of the heat exchanger at the back of the appliance.

1.6 Insulation plate

The insulation plate for part-load operation is available as an accessory from specialist dealers.

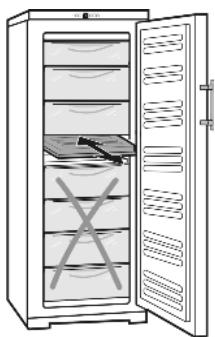

If you do not store much food in the appliance, you can reduce the power consumption by as much as 50 % by using the insulation plate. Up to 5 drawers can be de-energised, depending on model. At least 3 drawers are necessary for cooling. More information accompanies the insulation plate.

Illustration of a double boiler cabinet with open door and internal compartments (no text or symbols)

1.7HomeDialog

Depending on model and options, the Home-Dialog system can be used to network a number of Liebherr appliances (situated, for example, in the basement) with a main appliance (sited, for example, in the kitchen) and control them via the latter. You will find more information on the benefits, requirements and principle of operation on the internet at www. liebherr.com.

2 General safety information

Danger for the user:

• This appliance is not designed for persons (including children) with physical, sensory or mental impairment or persons not having sufficient experience and knowledge, unless they are instructed in the use of the appliance and are initially supervised by a person responsible for their safety. Keep children under supervision to ensure they do not play with the appliance.
• In case of a fault, pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.
• Have any repairs to or intervention in the appliance, and any change of the mains power cable, carried out by the customer service only or by other specialised personnel trained for the purpose.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• Install and connect the appliance only as instructed.
• Please keep these instructions in a safe place and pass them on to any subsequent owners.
• Special-purpose lamps (incandescent lamps, LEDs, fluorescent tubes) in the appliance serve to illuminate the appliance interior and are not suited for room illumination.

Fire hazard:

- The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

• Do not damage the refrigerant circuit pipes.
• Do not allow naked flames or ignition sources to enter the appliance.
• Do not use any electrical appliances in the interior (e.g. steam cleaners, heaters, ice cream maker etc.).
• If refrigerant escapes: eliminate naked flames or sources of ignition from the vicinity. Pull out the power plug. Ventilate the area well. Notify customer service.

- Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. Respective spray cans can be identified by reference to the contents printed on the can or by a flame symbol. Gases possibly escaping may ignite due to electrical components.

- Do not place any burning candles, lamps or other items with naked flames on or in the appliance.

- Only store high-percentage alcohol in tightly sealed, upright containers. Alcohol possibly escaping may ignite due to electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

- Avoid lasting skin contact with cold surfaces or refrigerated/frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Please observe the specific information in the other sections:

	DANGER	identifies a situation involving direct danger which, if not obviated, may result in death or severe bodily injury.
	WARNING	identifies a dangerous situation which, if not obviated, may result in death or severe bodily injury.
	CAUTION	identifies a dangerous situation which, if not obviated, may result in minor or medium bodily injury.
	NOTICE	identifies a dangerous situation which, if not obviated, may result in damage to property.
	Note	identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

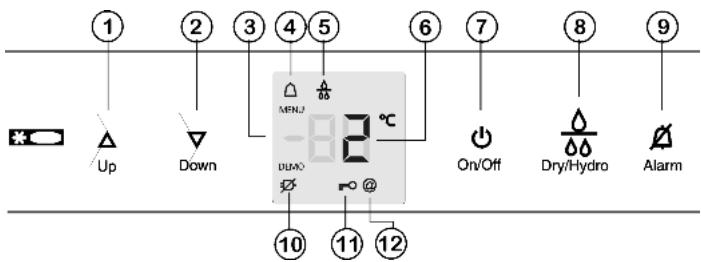

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Up Down MENU 2 °C DUMO On/Off Dry/Hydro Alarm ⑩ ⑪ ⑫

Fig. 3

(1) Up setting button

(7) On/Off button

(2) Down setting button

(8) Dry/Hydro button

(3) Menu symbol

(9) Alarm button

(4) Alarm symbol

(10) Power failure symbol

(5) Dry/Hydro symbol

(11) Child lock symbol

(6) Temperature display

(12)HomeDialog symbol

3.2 Temperature display

The following are displayed in normal operation:

- the average BioFresh temperature

The temperature display flashes:

- the temperature setting is being changed

The following displays indicate malfunction. Possible causes and corrective action (see Malfunction).

- F0 to F9

4 Putting into operation

4.1 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect transport!

▶ Transport the appliance in a packed condition.
▶ Transport the appliance upright.
▶ Do not transport the appliance without assistance.

4.2 Installing the appliance

In the event that the appliance is damaged, contact the supplier immediately before connecting to the mains.

The floor at the site must be flat and level.

Do not install the appliance in a location where it is exposed to direct radiation of the sun, next to a cooker, heater and similar.

Always install the appliance with the back directly against the wall.

Do not install the appliance without assistance.

Standard EN 378 specifies that the room in which you install your appliance must have a volume of 1 m^2 per 8 g of R 600a refrigerant used in the appliance. If the room in which the appliance is installed is too small, a flammable gas-air mixture may form in the event of a leakage in the refrigeration circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

The appliance may be moved only when it is empty.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short circuits.

The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

▶ Do not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

▶ Do not place appliances emitting heat e.g. microwaves, toasters etc. on the appliance!

WARNING

Blocked ventilation openings pose a risk of fire and damage!

▶ Always keep the ventilation openings clear. Always ensure that the appliance is properly ventilated!

▶ Detach the connecting cable from the rear of the appliance, removing the cable holder at the same time because otherwise there will be vibratory noise!
▶ Remove the protective film from the decorative trims.
▶ Remove all transit supports.
▶ Dispose of packaging material (see 4.5).

NOTICE

Risk of damage due to condensate!

▶ Do not install the appliance directly alongside a further refrigerator/freezer.

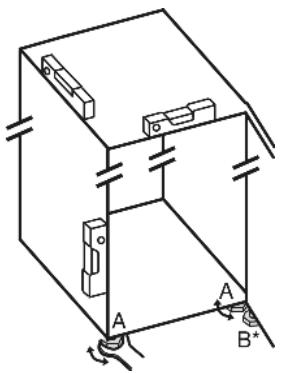

▶ Align the appliance so that it stands firmly and on a level by applying the accompanying spanner to the adjustable-height feet (A) and using a spirit level.
▶ Then support the door: Extend the adjustable foot at the turn hinge (B) until it rests on the floor and then make a further 90° turn.

Diagram of a 3D electrical enclosure with labeled components and grounding symbols

Note

▶ Clean the appliance (see 6.1).

If the appliance is installed in a very damp environment, condensate may form on the outside of the appliance.
▶ Always see to good ventilation at the installation site.

4.3 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

Torx 25
□ Torx 15
□ Screwdriver
□ Accompanying open-end spanner
☐ Second person for fitting work, if needed

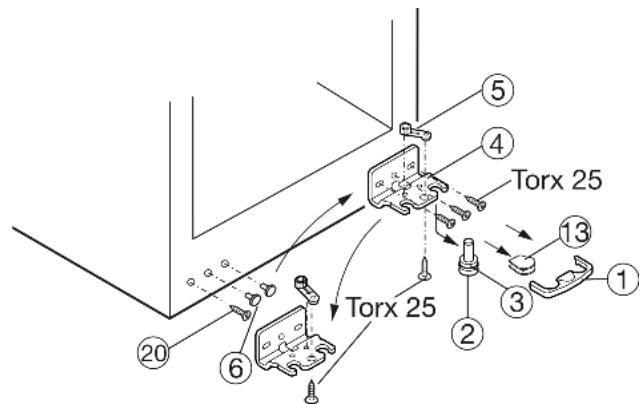

Torx 25 Torx 25 Torx 25 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 13

Fig. 4

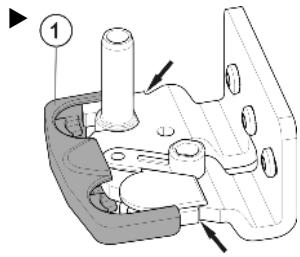

▶ Draw safety lock Fig. 4 (1) forwards for removal.
▶ Remove the cover Fig. 4 (13).*
▶ If necessary, tip the appliance back a little with the assistance of a second person for removal of the bearing pin.
▶ Pull out the bearing pin Fig. 4 (2) downwards and forwards. In so doing, pay attention to the hinge bush Fig. 4 (3).

CAUTION

Risk of injury if the door tips!

▶ Take good hold of the door.
▶ Set down the door carefully.

▶ Open the door, tip it at the bottom for removal and detach it.
▶ Unscrew the turn hinge Fig. 4 (4).
▶ Unscrew the bearing part Fig. 4 (5), transfer it to the opposite hole in the turn hinge and screw it down again.
▶ Carefully lift out the plugs Fig. 4 (6) and insert them into the opposite side.
▶ Unscrew the screw Fig. 4 (20) and insert it into the opposite side.
▶ Screw the bearing bracket Fig. 4 (4) onto the new hinge side tightly (4 Nm) or retighten with the aid of a cordless screw-driver if necessary.

⑧ ⑨ ⑦ SW6

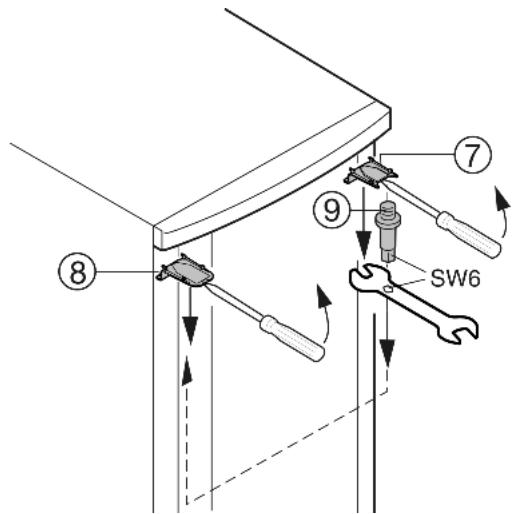

Fig. 5

▶ Disengage the top cover Fig. 5 (7) and cover Fig. 5 (8) in a forward direction using a screwdriver and remove them downwards at an angle.
▶ Unscrew the bearing pin Fig. 5 (9) and screw it into the opposite side tightly (4 Nm). To do this, use the Allen screw on the spanner wrench provided.
▶ To re-fit the cover Fig. 5 (7) to the side where the bearing pin is located: insert it at the back and engage it at the front.
▶ To re-fit the cover Fig. 5 (8) at the opposite side: insert it at the back and engage it at the front.

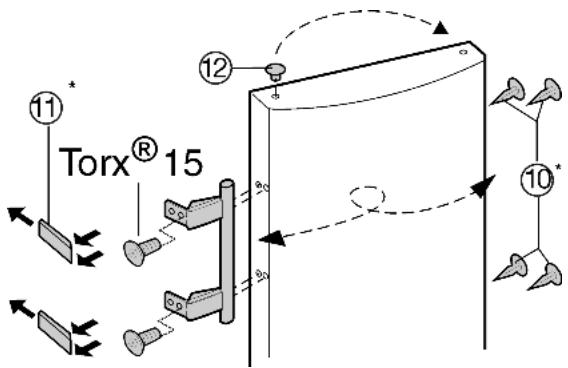

Torx® 15 ⑪* ⑫ ⑫ ⑩*

Fig. 6

▶ Lift the stopper Fig. 6 (12) out of the door bearing bush and transfer it.
▶ Detach door handle, stoppers Fig. 6 (10) and pressure plates Fig. 6 (11) and transfer to the opposite side.
▶ When fitting the pressure plates, pay attention that they engage properly.
▶ Attach the door to the bearing pin Fig. 5 (9) and close the door.
▶ Slightly tip the appliance backwards again and reinsert the bearing pin Fig. 4 (2) together with the hinge bush Fig. 4 (3). The notch on the bearing pin must face forward.
▶ Place the cover Fig. 4 (13) on the opposite side.*

Technical diagram of a mechanical assembly with labeled components and directional arrow

Fig. 7

CAUTION

Risk of injury if the door tips!

The safety lock (1) has to engage with the turn hinge at the side so that the bearing pin and therefore the door are secured.

Mechanical assembly diagram showing a component with arrows indicating parts (no text or labels)

▶ Snap the safety lock (1) onto the turn hinge again.
▶ If necessary, align the door to the appliance housing by way of the two oblong holes in the turn hinge Fig. 4 (4). To do so, unscrew the middle screw.

WARNING

Risk of injury due to the door dropping out!

If the bearing parts are not screwed into place firmly enough, the door may drop out. This may lead to severe injuries. What is more, the door may not close and therefore the appliance may fail to cool properly.

▶ Screw on the bearing brackets/bearing pins tightly (4 Nm).
▶ Check all of the screws and retighten if necessary.

4.4 Insertion into a row of kitchen units

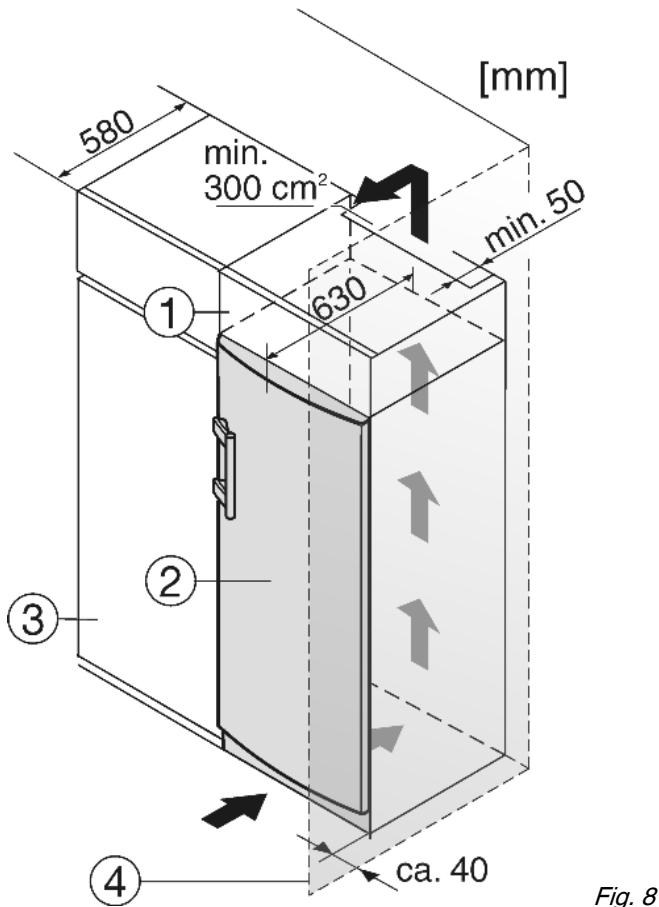

580 min. 300 cm² [mm] 630 min. 50 ① ② ③ ④ ca. 40 Fig. 8

(1) Stack cabinet
(2) Appliance

(3) Kitchen cabinet

(4) Wall

The appliance can be inserted into a row of kitchen units. To match the appliance Fig. 8 (2) to the height of the row of units, a suitable stack cabinet Fig. 8 (1) can be fitted above the appliance.

When inserting the appliance into a row of kitchen units (max. depth 580 mm), the appliance can be installed directly next to the kitchen unit Fig. 8 (3). The appliance door projects relative to the front of the kitchen unit by 34 mm at the side and by 50 mm in the middle of the appliance. It can be opened and closed perfectly as a result.

Important for the ventilation:

• At the back of the stack cabinet there has to be a ventilation duct of at least 50 mm depth throughout the width of the stack cabinet.
• The ventilation space under the ceiling has to be at least 300 cm^2 .
• The larger the ventilation space, the more energy-saving the appliance is in operation.

If the appliance is installed with the hinges next to a wall Fig. 8 (4), the distance between appliance and wall has to be at least 40 mm. This corresponds to the projection of the handle when the door is open.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

▶ Do not allow children to play with packing material.

The packaging is made of recyclable materials:

• corrugated board/cardboard
• expanded polystyrene parts
• polythene bags and sheets
• polypropylene straps
• nailed wooden frame with polyethylene panel*
  ▶ Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

▶ Do not use stand-alone inverters (conversion of d.c. to a.c./three-phase) or energy saving plugs.

WARNING

Fire and overheating hazard!

▶ Do not use extension cables or multiple socket outlets.

The type of current (alternating current) and voltage at the installation site have to conform with the data on the type plate (see Appliance at a glance).

Connect the appliance only with a properly installed socket outlet with earthing contact. The socket outlet must be fused with 10 A or higher.

It must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.

▶ Check the electrical connection.
▶ Plug in the power plug.

4.7 Switching on the appliance

▶ Press On/Off button Fig. 3 (7).
The temperature display indicates the current temperature.
▷ The interior light is on when the door is open.

5 Control

5.1 Brightness of the temperature display

You can adjust the brightness of the temperature display to the light conditions of the room in which the appliance is installed.

5.1.1 Adjusting the brightness

The brightness is adjustable between h0 (no illumination) and h5 (maximum luminosity).

▶ To activate the setting mode: Press the Dry/Hydro button Fig. 3 (8) for about 5 seconds.
▷ The display indicates c.
▷ The menu symbol Fig. 3 (3) shines.
▶ Using the Up setting button Fig. 3 (1) or Down setting button, Fig. 3 (2) select h.
▶ To confirm: Briefly press the Dry/Hydro button Fig. 3 (8).
▶ To make the display brighter: Press Up button Fig. 3 (1).
▶ To make the display darker: Press Down button Fig. 3 (2).
▶ To confirm: Press theDry/Hydro button Fig. 3 (8).
The brightness is adjusted to the new value.
▶ To deactivate the setting mode: Press the On/Off button Fig. 3 (7).

-or-

▶ Wait for 5 minutes.
▷ The temperature is indicated again in the temperature display.

5.2 Child proofing

The child-proofing function enables you to make sure that the appliance is not inadvertently switched off by playing children.

5.2.1 Setting the child lock

▶ To activate the setting mode: Press the Dry/Hydro button Fig. 3 (8) for about 5 seconds.
▷ The display indicates c.
▷ The menu symbol Fig. 3 (3) shines.
▶ Using the Up setting button Fig. 3 (1) and Down setting button, Fig. 3 (2) select c.
▶ Briefly press the Dry/Hydro button Fig. 3 (8) to confirm. When cl is indicated in the display:
▶ Briefly press the Dry/Hydro button Fig. 3 (8) to activate the child lock.

▷ The child lock symbol Fig. 3 (11) shines. c flashes in the display.

When c0 is indicated in the display:

▶ Briefly press the Dry/Hydro button Fig. 3 (8) to deactivate the child lock.
▷ The child lock symbol Fig. 3 (11) goes out. c flashes in the display.
▶ To deactivate the setting mode: Press the On/Off button Fig. 3 (7).

-or-

▶ Wait for 5 minutes.
▷ The temperature is indicated again in the temperature display.

5.3 Door alarm

If the door is open longer then 60 s, the audible alarm sounds.

The audible alarm is automatically silenced when the door is closed.

5.3.1 Muting the door alarm

The audible alarm can be muted when the door is open. The sound switch-off function is active as long as the door is left open.

▶ Press alarm button Fig. 3 (9).
▷ The door alarm is silenced.

5.4 Storing food

Note

▶ Vegetables sensitive to cold, such as cucumbers, aubergines, semi-ripe tomatoes, zucchini and all tropical fruits sensitive to cold, do not belong in the BioFresh compartment.
▶ To prevent food spoilage due to transfer of germs: Store unwrapped animal and vegetable products separate from one another in the drawers. This also applies to different sorts of meat.

If food has to be stored together due to lack of space:

▶ wrap the food.
▶ The maximum load for the top drawer is 15 kg and for the other drawers 25 kg each.
▶ The shelves can each be loaded with 35 kg.

5.5 Storage times

Standard values for storage time at low humidity

Butter	up to	90	days
Hard cheese	up to	110	days
Milk	up to	12	days
Sausage, cold meat	up to	9	days
Poultry	up to	6	days
Pork	up to	7	days
Beef	up to	7	days
Game	up to	7	days

Note

▶ Please note that protein-rich food deteriorates faster, i.e. shellfish and crustaceans deteriorate faster than fish, fish faster than meat.

Standard values for storage time at high humidity
Vegetables, salad
Artichokes	up to	14	days
Celery	up to	28	days
Cauliflower	up to	21	days
Broccoli	up to	13	days
Chicory	up to	27	days
Lamb's lettuce	up to	19	days
Peas	up to	14	days
Kale	up to	14	days
Carrots	up to	80	days
Garlic	up to	160	days
Kohlrabi	up to	55	days
Lettuce	up to	13	days
Herbs	up to	13	days
Leek	up to	29	days
Mushrooms	up to	7	days
Radishes	up to	10	days
Brussels sprouts	up to	20	days
Asparagus	up to	18	days
Spinach	up to	13	days
Savoy cabbage	up to	20	days
Fruit
Apricots	up to	13	days
Apples	up to	80	days
Pears	up to	55	days
Blackberries	up to	3	days
Dates	up to	180	days
Strawberries	up to	7	days
Figs	up to	7	days
Blueberries	up to	9	days
Raspberries	up to	3	days
Currants	up to	7	days
Sweet cherries	up to	14	days
Kiwis	up to	80	days
Peaches	up to	13	days
Plums	up to	20	days
Cranberries	up to	60	days
Rhubarb	up to	13	days
Gooseberries	up to	13	days
Grapes	up to	29	days

5.6 Setting the temperature

The temperature is automatically regulated to just above 0 ^ .

You can adjust the temperature slightly colder or warmer. The temperature can be adjusted from b_1 (coldest temperature) to b_3 (warmest temperature). The presetting is b_5 . With the b_1 to b_4 values, the temperature can drop below 0^ and therefore food can freeze slightly as a result.

▶ To set a higher temperature: Press Up button Fig. 3 (1).
▶ To set a lower temperature: Press Down button Fig. 3 (2).
▷ When the button is pressed the first time, the previous value is indicated in the temperature display.
▶ To change the temperature in steps: Briefly press the button.

-or-

▶ To change the temperature continuously: Hold down the button.
During the adjustment, 61 to 69 are displayed.
The actual temperature is displayed about 5 seconds after the last press of a button. The temperature slowly adjusts to the new value.

5.7 Adjusting the humidity

The humidity in the appliance can be adjusted depending on what type of food is placed inside.

The dry setting produces a dry atmosphere suitable for storing dry or wrapped food (dairy products, meat, fish, sausages). The appliance has the lowest energy consumption in this operating mode.

The hydro setting produces a humid atmosphere suitable for storing unwrapped salad, vegetables and fruit with high intrinsic moisture. When the drawers are well filled, a dewy atmosphere with a humidity of up to 90% max. is established.

The humidity in the compartment depends on the moisture content of the food stored and on the opening frequency. dry is preset.

▶ To set hydro: Press the Dry/Hydro button Fig. 9 (8).
▷ The Dry/Hydro symbol Fig. 9 (5) shines.
▶ To set dry: Press the Dry/Hydro button Fig. 9 (8).
The Dry/Hydro symbol Fig. 9 (5) goes out.

⑤ 8 On/OFF Drip/Hydro Alarm

Fig. 9

5.8 Drawers

Two-panel line drawing showing hands holding a document or object, no text or symbols present

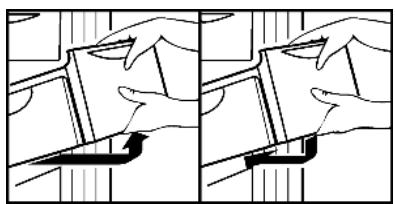

▶ To store the food straight on the shelves: Pull the drawer forwards and lift it out.

6 Maintenance

6.1 Cleaning the appliance

Before cleaning:

CAUTION

Risk of injury and damage as a result of hot steam!

Hot steam may damage the surfaces and cause burns.

▶ Do not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!

▶ Do not use cleaning agents in concentrated form.
▶ Do not use any scouring or abrasive sponges or steel wool.
▶ Do not use any cleaning agents containing sand, chloride, chemicals or acid.
▶ Do not use chemical solvents.
▶ Do not damage or remove the type plate on the inside of the appliance. It is important for the customer service.
▶ Do not pull off, bend or damage cables or other components.
▶ Do not allow any cleaning water to enter the drain channel, ventilation grille or electrical parts.

▶ Empty the appliance.

• Use soft cleaning cloths and a multi-purpose cleaning agent with neutral pH value.
• Only use food compatible cleaning and care agents on the inside of the appliance.
  ▶ Regularly clean ventilation grilles.
  ▷ Dust deposits increase energy consumption.

Outside surfaces and interior:

▶ Clean the plastic surfaces, outside and inside, by hand using lukewarm water and a little washing-up liquid.

Items of equipment:

▶ Clean items of equipment by hand with lukewarm water and a little washing-up liquid.

After cleaning:

▶ Wipe dry the appliance and items of equipment.
▶ Connect the appliance and switch it on again. When the temperature is sufficiently cold:
▶ Put the food back inside.

6.2 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see Maintenance)

▶ Read the appliance designation Fig. 10 (1), service No. Fig. 10 (2) and serial No. Fig. 10 (3) off the type plate located inside the appliance on the left-hand side.

① Index Service-Nr.No. Service: ② Name/Class Class/Class A#-Type A#-Type A#-Type A#-Type Brands small / Gross Capacity Volume Unit / Coupled Struts Gravement/Agren / Receiving Capacity Fluorade Target Capex Completions kg / 24 h Part Length: 7K 1/2 NC BQ Part Capacity: 7K 1/2 NC BQ Service Time: 70s 1/2 NC BQ Capacity: 70s 1/2 NC BQ Capacity: 70s 1/2 NC BQ R 800a: 11 g W A C D V Serial-Nr.

Fig. 10

▶ Notify the customer service, specifying the fault, appliance designation Fig. 10 (1), service No. Fig. 10 (2) and serial No. Fig. 10 (3).
▷ This will help us to provide you with a faster and more accurate service.
▶ Keep the appliance closed until the customer service arrives.
▷ The food will stay cool longer.
▶ Pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.

7 Malfunction

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

→ The appliance is not switched on.
▶ Switch on the appliance.
→ The power plug is not properly inserted in the wall socket.
▶ Check power plug.
→ The fuse of the wall socket is not in order.
▶ Check fuse.

The compressor runs for a long time.

→ The compressor switches to a low speed when little cold is needed. Although the running time is increased as a result, energy is saved.
▶ This is normal in energy-saving models.

Excessive noise.

→ Speed-controlled* compressors may produce varying running noise due to different speed steps.

▶ The sound is normal.

A bubbling and gurgling noise.

→ This noise comes from the refrigerant flowing in the refrigeration circuit.
▶ The sound is normal.

A quiet clicking noise.

→ The noise is produced whenever the refrigeration unit (motor) automatically switches on or off.

▶ The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

→ The refrigeration increases automatically when fresh food has just been placed in the appliance or the door has been left open for a while.

The sound is normal.
→ The ambient temperature is too high.
▶ Solution: (see 1.2)

A low hum.

→ The sound is produced by air flow noise of the fan.

▶ The sound is normal.

The fan runs for a long time

→ With the "hydro" setting, the fan has to run longer for functional reasons.

This is normal.

Vibratory noise.

→ The appliance is not standing firmly on the floor. As a result, adjoining units or objects are set into vibration by the running refrigeration unit.

▶ Move the appliance away a little and align it using the adjustable feet.

The temperature display indicates: F0 to F9

→ There is a fault.
▶ Contact the customer service. (see Maintenance).

DEMO shines in the temperature display.

→ The demo mode is activated.
▶ Contact the customer service. (see Maintenance).

The temperature is not cold enough.

→ The door of the appliance is not properly closed.
▶ Close the door of the appliance.
→ Insufficient ventilation.
▶ Clear ventilation grilles.
→ The ambient temperature is too high.
▶ Solution: (see 1.2).
→ The appliance was opened too frequently or for too long.
▶ Wait until the appliance reaches the required temperature itself. If not, contact the customer service. (see Maintenance).
→ The temperature is incorrectly set.
▶ Set to a colder temperature and check after 24 h.
→ The appliance is too close to a heat source.
▶ Solution: (see Putting into operation).

The interior light is not on.

→ The appliance is not switched on.
▶ Switch on the appliance.
→ The door was open longer than 15 min.
▶ The interior light automatically switches off if the door has been open for about 15 min.
→ The LED lighting is defective or the cover is damaged:

WARNING

Risk of injury due to electric shock!

Live parts are located under the cover.

▶ Have the LED interior light changed or repaired only by the customer service or by specialized personnel trained for the purpose.

WARNING

Danger of injury due to laser radiation, class 1M.

▶ Do not look inside when the cover is open.

8 Decommissioning

8.1 Switching off the appliance

▶ Press On/Off button Fig. 3 (7) for about 2 seconds.

▷ The temperature display is dark.

8.2 Taking the appliance out of service

▶ Empty the appliance.

▶ Pull out the power plug.

▶ Clean the appliance (see 6.1).

▶ Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

▶ Disable the appliance.
▶ Pull out the plug.
▶ Cut through the connecting cable.
