FTXS / CTXS - FTXS-G - FTXS20K - FTXS25K - FTXS35K - FTXS42K - FTXS50K - FTXS71G - Wall air conditioner DAIKIN - Free user manual and instructions

Product type	Wall-mounted air conditioner (split system)
Brand	Daikin
Compatible models	FTXS20K, FTXS25K, FTXS35K, FTXS42K, FTXS50K, FTXS71G, CTXS, FTXS-G
Indoor unit dimensions (HxWxD)	Approx. 283 x 770 x 228 mm (depending on model)
Outdoor unit dimensions (HxWxD)	Approx. 550 x 765 x 285 mm (depending on model)
Indoor unit weight	Approx. 8 kg
Outdoor unit weight	Approx. 35 kg
Power supply	220-240 V ~ 50 Hz, single-phase
Cooling capacity	From 2.0 to 7.1 kW depending on model
Heating capacity	From 2.5 to 8.0 kW depending on model
Energy class	A++ to A+ depending on model
Refrigerant	R32 (or R410A depending on model)
Main functions	Cooling, heating, ventilation, dehumidification, night mode, timer, self-diagnosis
Remote control	Wireless, included
Air filter	Washable, anti-dust
Noise level (indoor unit)	19 to 46 dB(A) depending on model and speed
Noise level (outdoor unit)	46 to 54 dB(A) depending on model

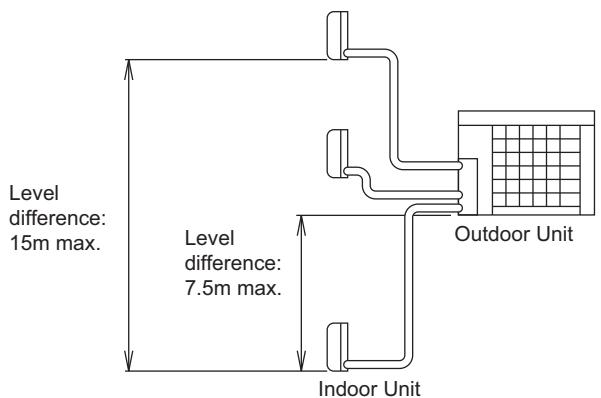

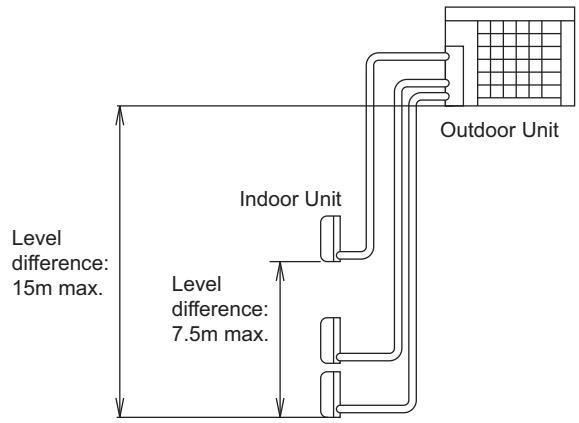

Maximum piping length	15 m (depending on model)
Maintenance and cleaning	Clean the filter every 2 weeks; do not use abrasives
Safety	Automatic shut-off in case of overload, anti-freeze protection
Spare parts and repairability	Available via Daikin authorized network; repairability index not disclosed
Warranty	5 years (depending on country and installation conditions)

Frequently Asked Questions - FTXS / CTXS - FTXS-G - FTXS20K - FTXS25K - FTXS35K - FTXS42K - FTXS50K - FTXS71G DAIKIN

How to clean the filter of my Daikin FTXS air conditioner?

Turn off the unit, open the front panel, remove the filter, wash it with warm water (no detergent), dry it and put it back. Clean every 2 weeks.

What to do if the remote control does not work?

Check the batteries (remove the back cover, replace with new AAA batteries). Make sure there is no obstacle between the remote and the indoor unit. If the problem persists, reset the device by unplugging the power for 5 minutes.

What is the ideal temperature for heating in winter?

Daikin recommends 20 °C for a good comfort/consumption balance. Avoid exceeding 26 °C in summer for cooling.

Can I install the air conditioner myself?

No, installation must be carried out by a qualified professional (refrigeration technician). Poor installation can lead to gas leaks, malfunctions or electrical hazards.

How to use the timer to schedule a shut-off?

Press the 'TIMER' button on the remote, select 'OFF' (shut-off), set the desired time (e.g., 2h), confirm. The unit will turn off automatically after that period.

What does error code 'U4' on the display mean?

Code U4 indicates a communication fault between the indoor and outdoor unit. Check the electrical connections and linking cables. If the problem persists, contact a Daikin authorized technician.

The air conditioner blows cold air in heating mode, is this normal?

Yes, in heating mode, the unit may blow slightly cold air at first to avoid hot air drafts. After a few minutes, the air becomes warm. If it lasts too long, check the mode setting or contact customer service.

How to switch from cooling mode to heating mode?

On the remote, press the 'MODE' button to cycle through modes: Cool, Heat, Dry, Fan. Select 'Heat' for heating. Make sure the heat pump is compatible (reversible models).

How often should a Daikin air conditioner be serviced?

An annual inspection by a professional is recommended to check the refrigerant circuit tightness, clean the exchangers and check the electrical components.

How to reduce the noise of the outdoor unit?

Make sure the unit is installed on a stable and flat surface. Check that there are no obstacles blocking the ventilation. If the noise is abnormal, have the fastenings or compressor checked by a professional.

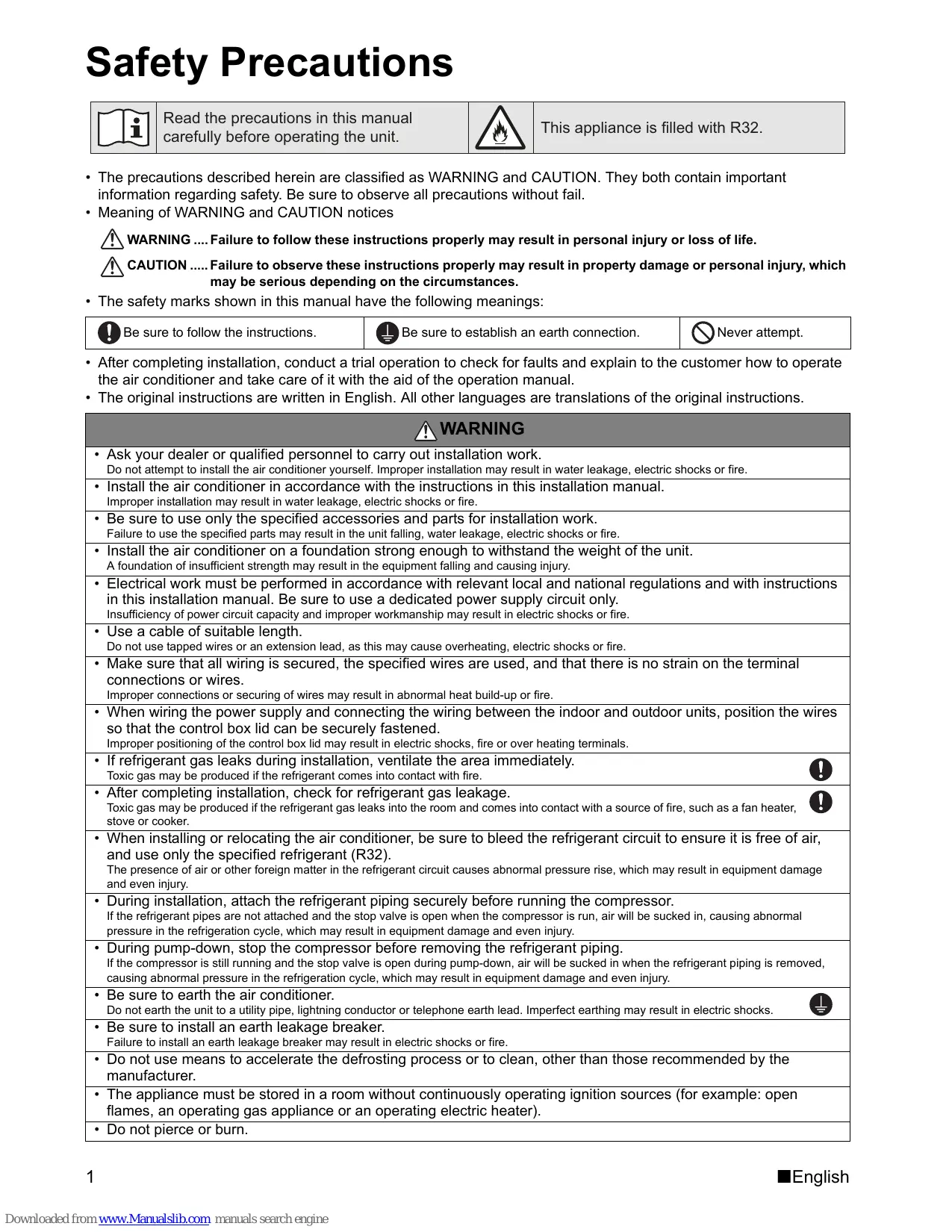

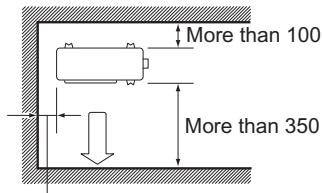

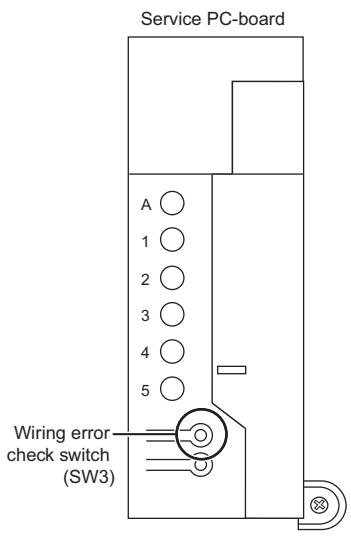

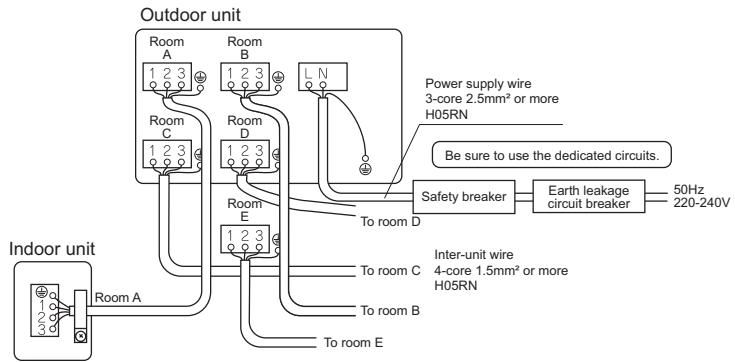

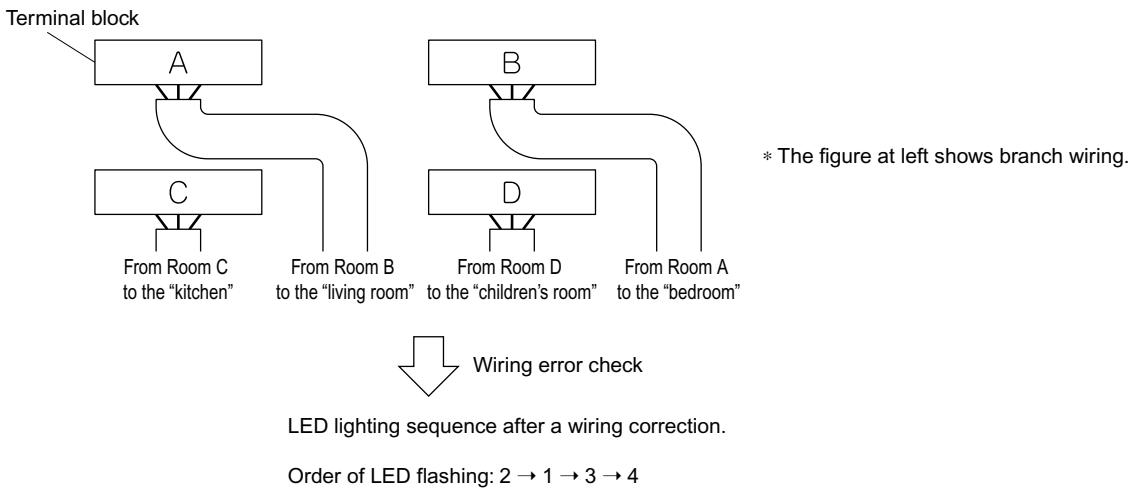

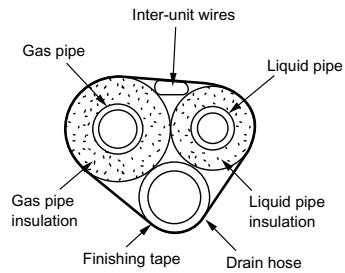

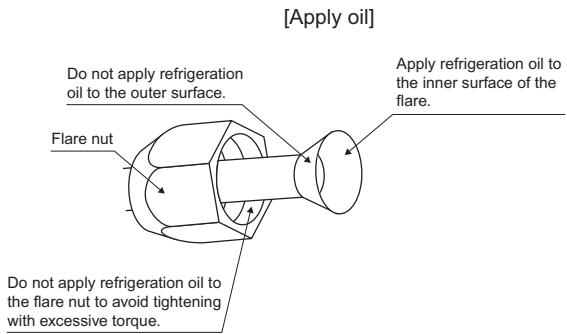

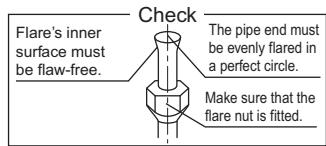

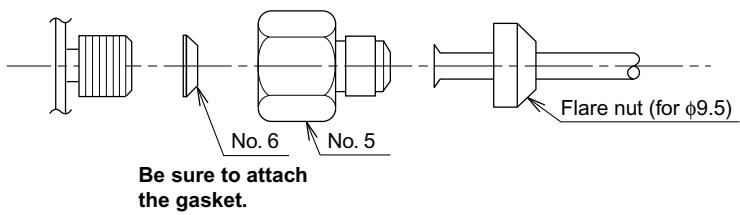

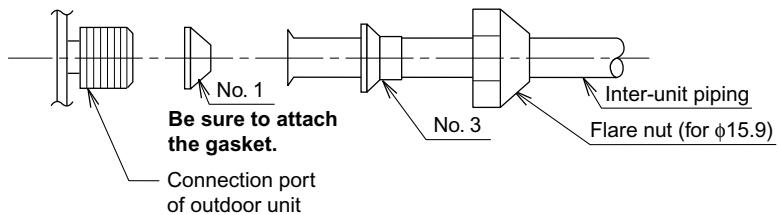

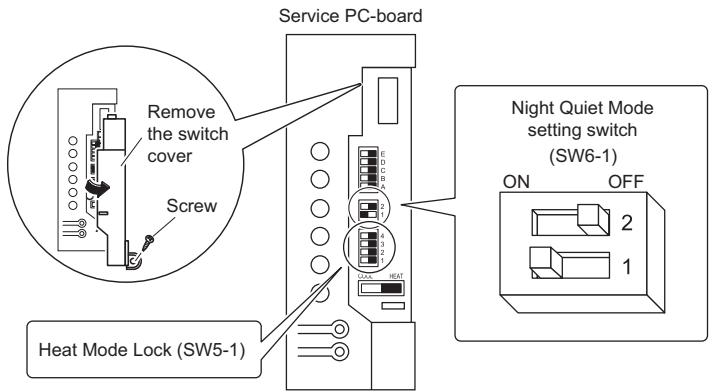

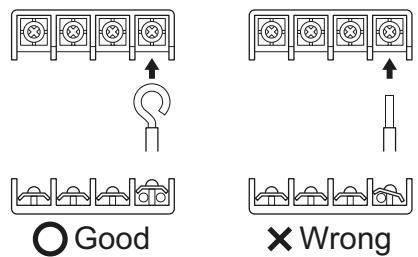

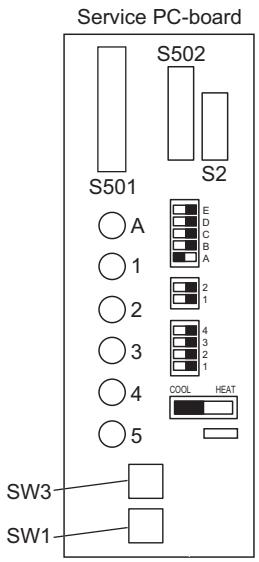

USER MANUAL FTXS / CTXS - FTXS-G - FTXS20K - FTXS25K - FTXS35K - FTXS42K - FTXS50K - FTXS71G DAIKIN

Daikin Industries Czech Republic s.r.o.

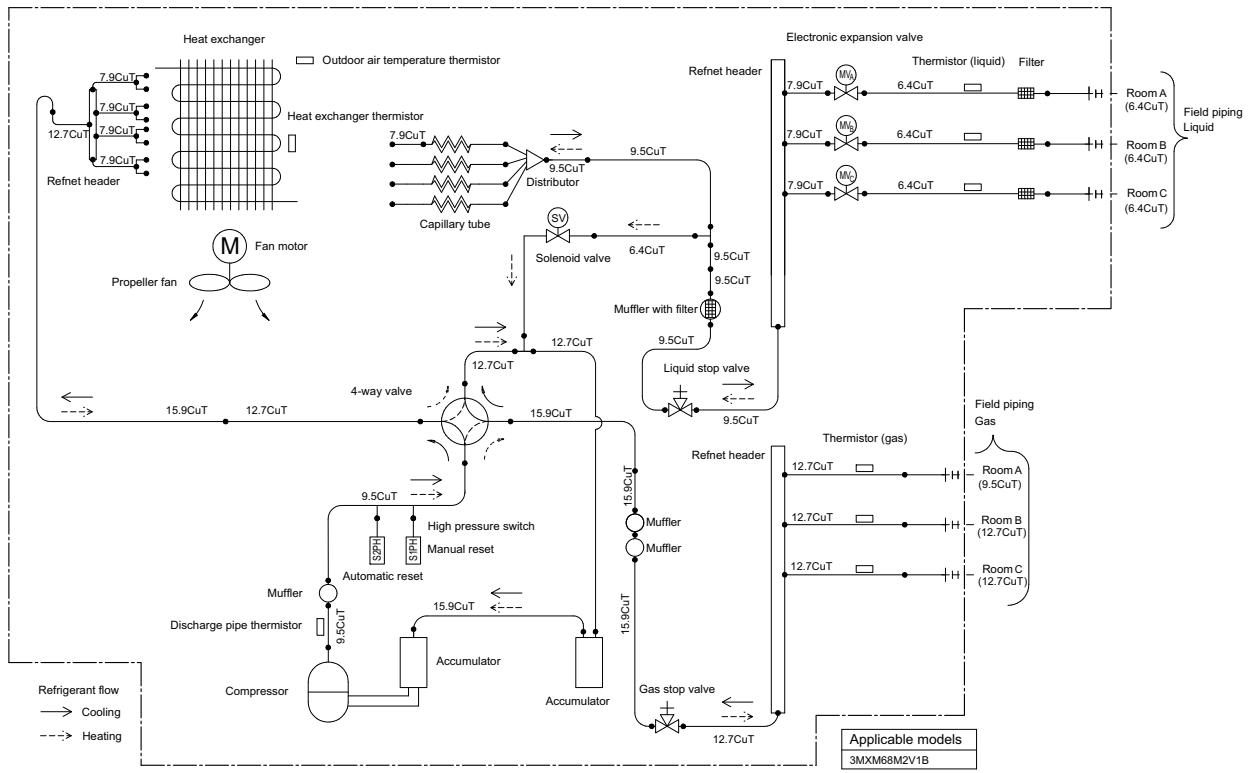

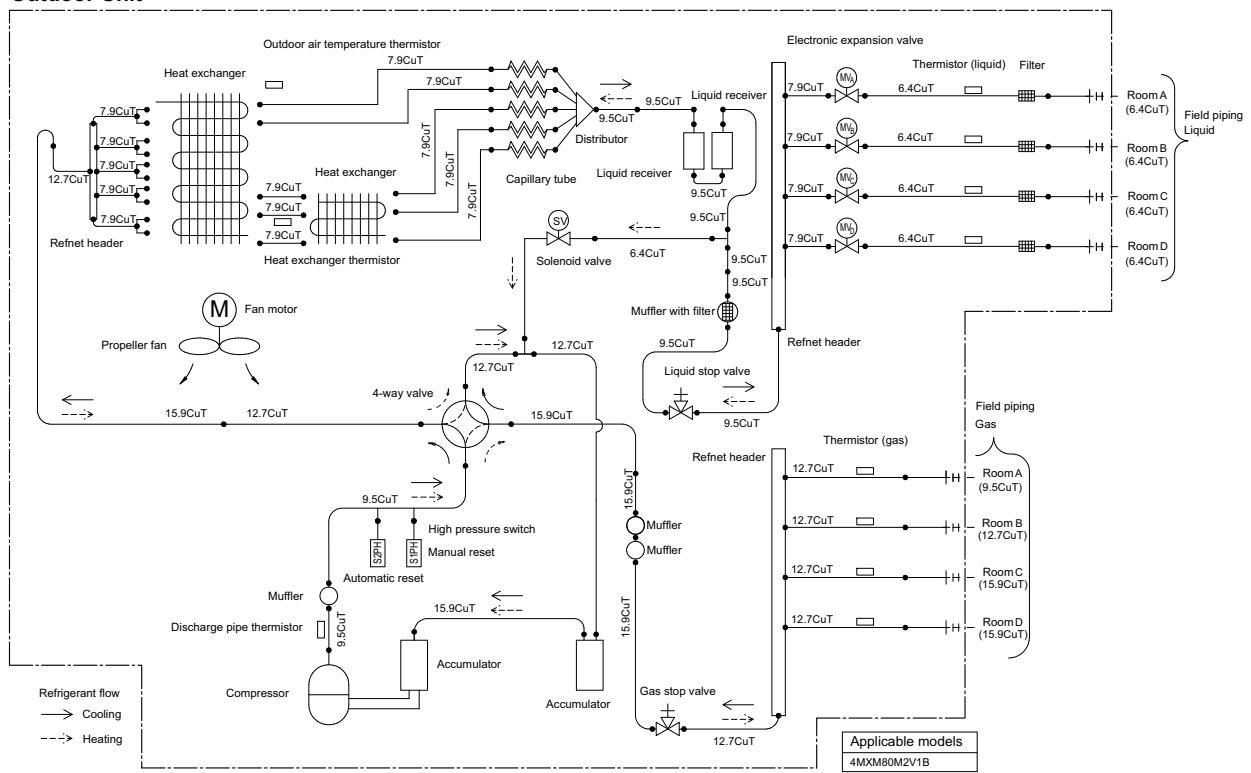

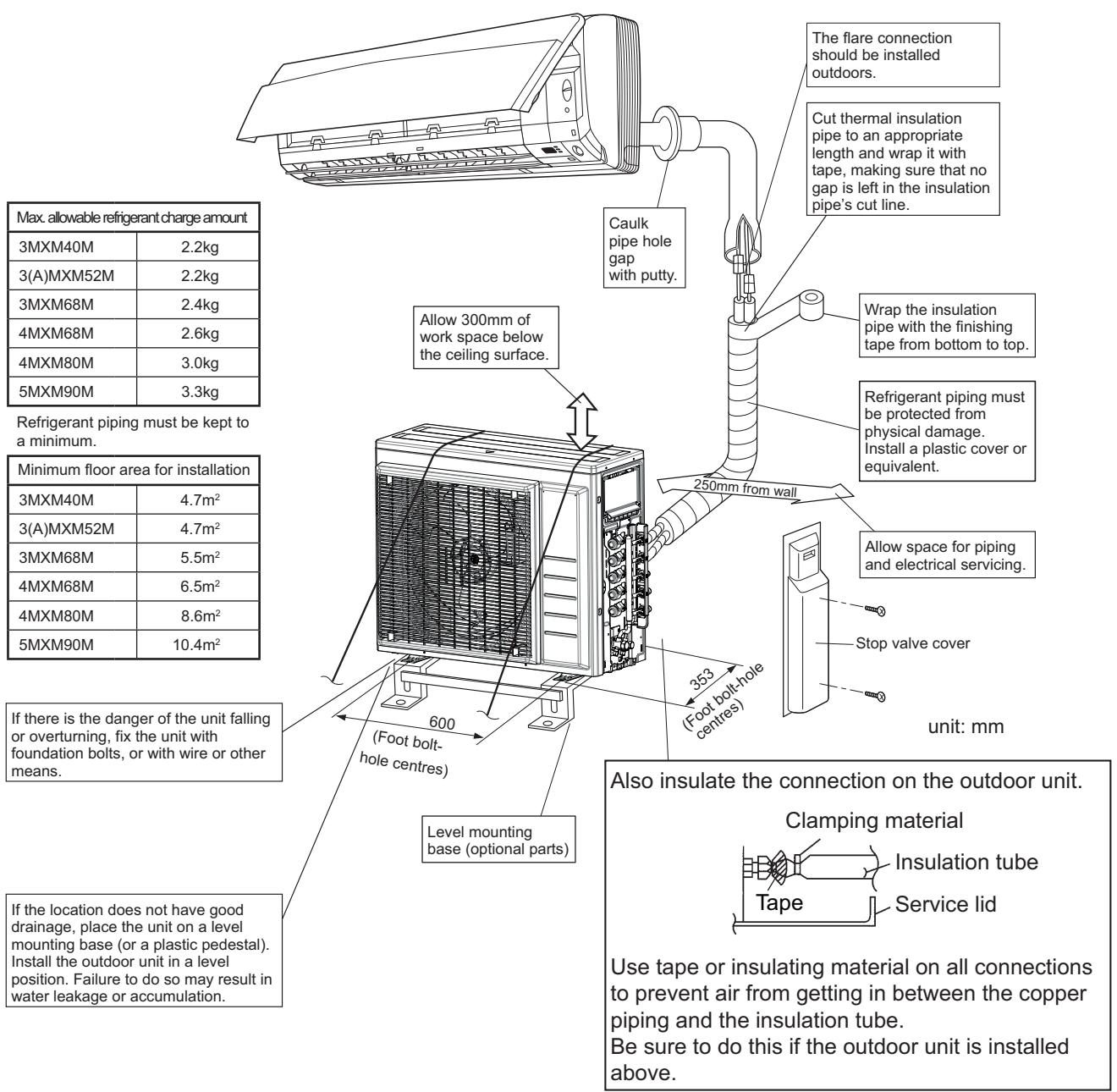

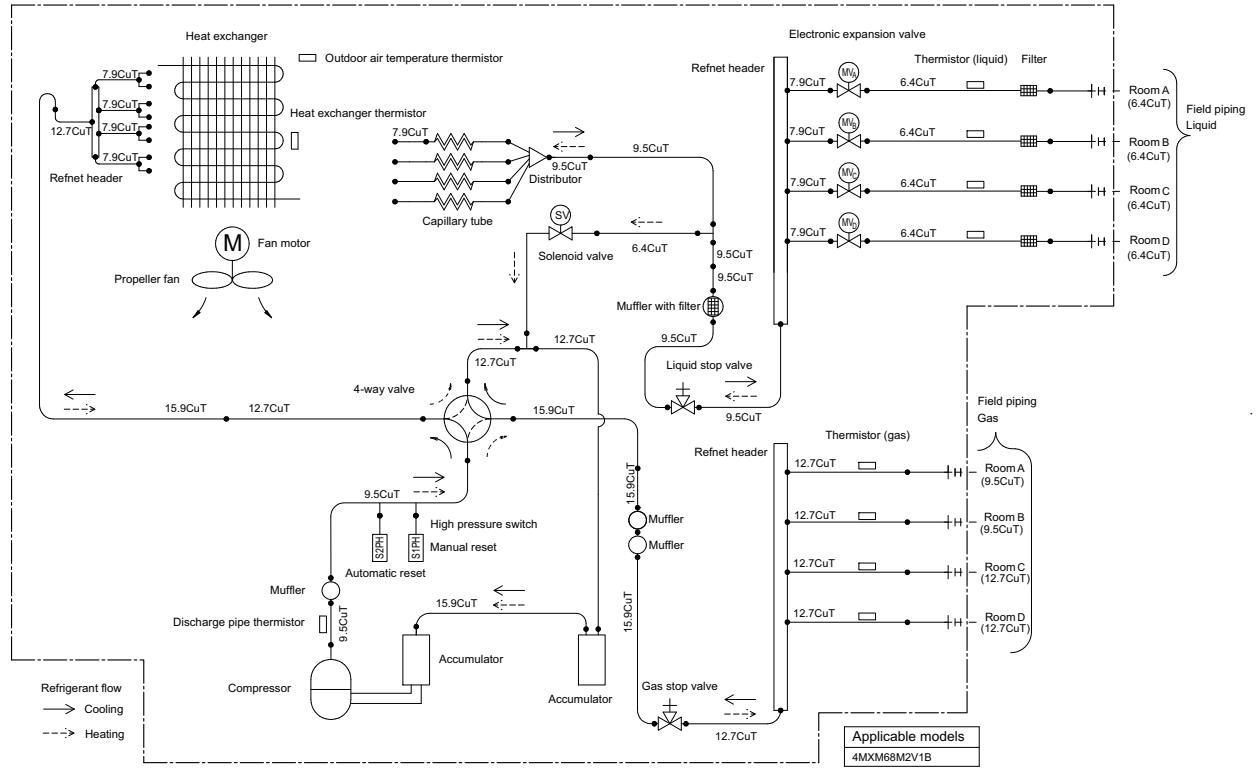

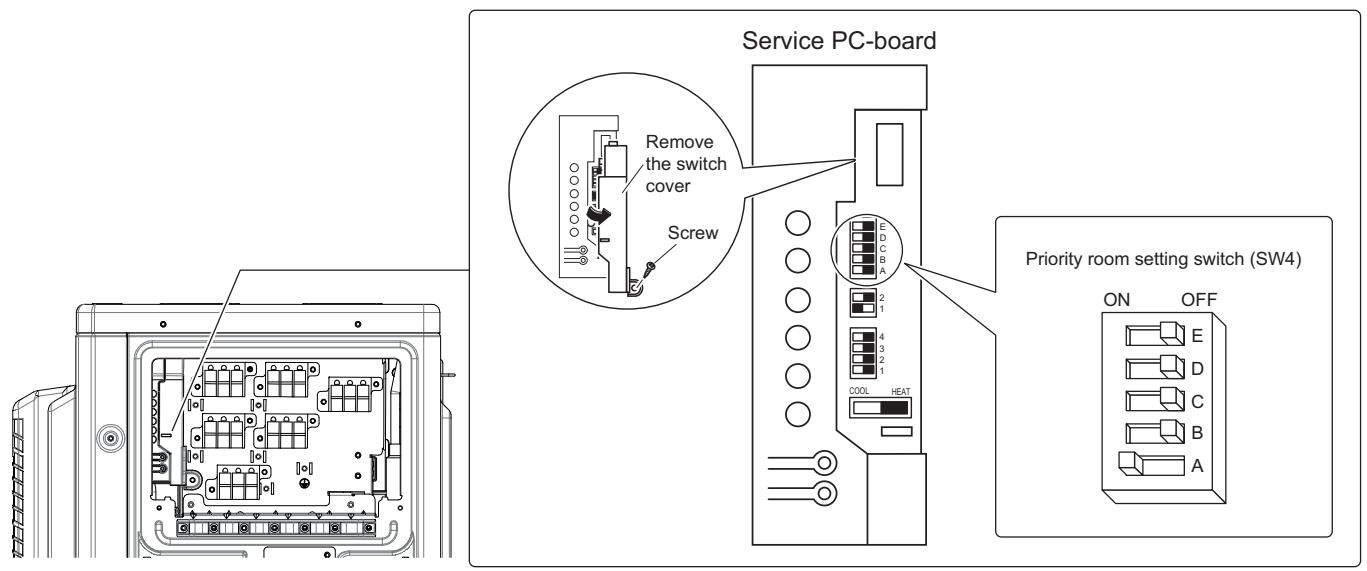

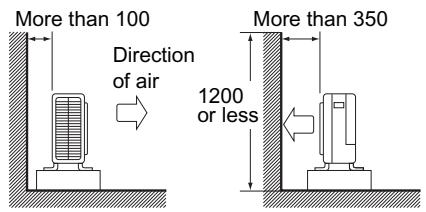

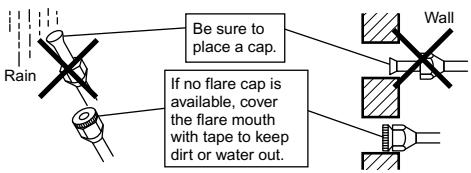

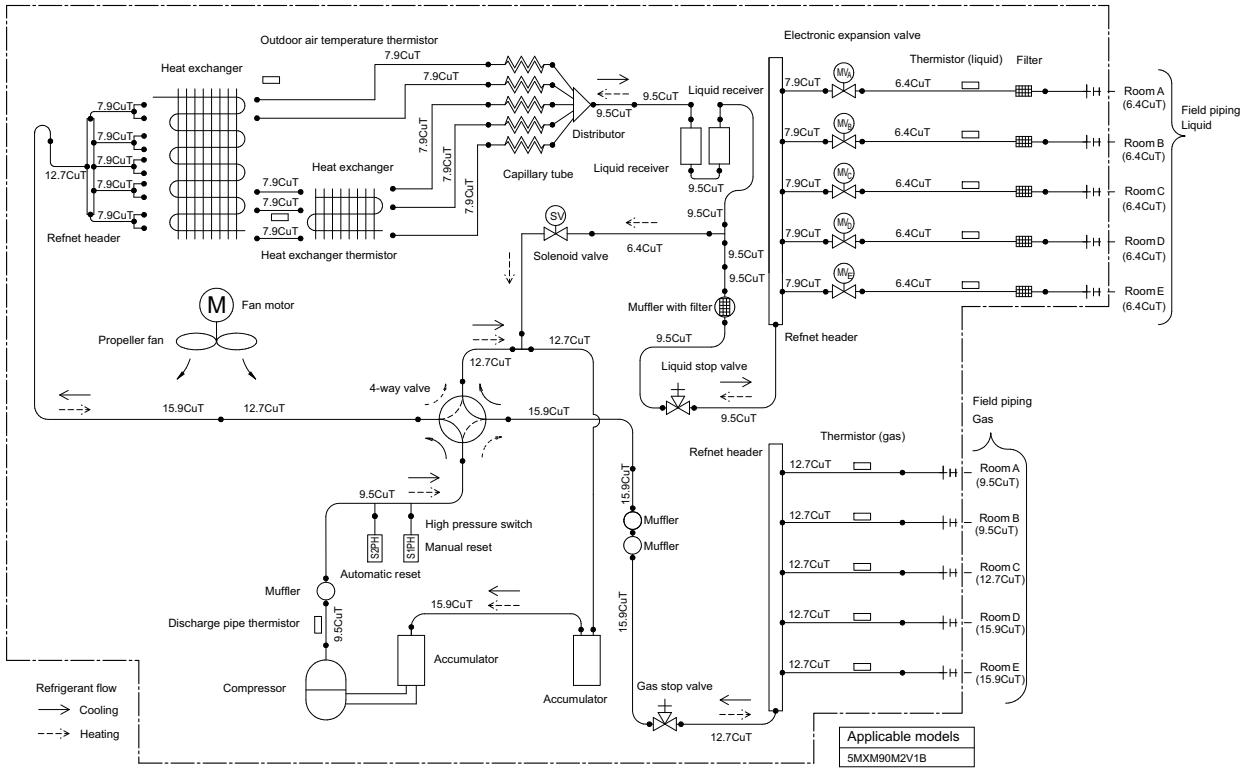

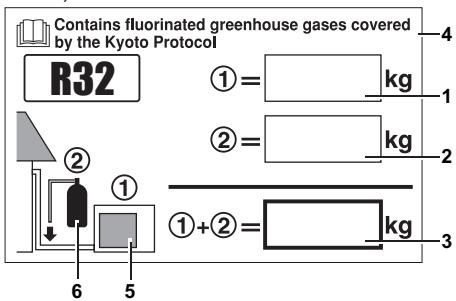

3MXM40M2V1B, 3MXM52M2V1B, 3AMXM52M2V1B,

01

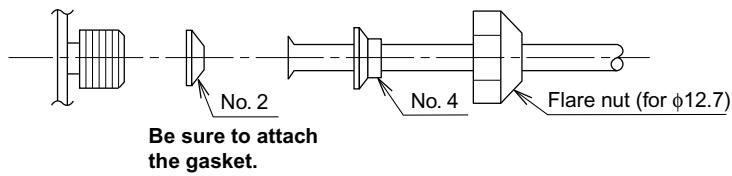

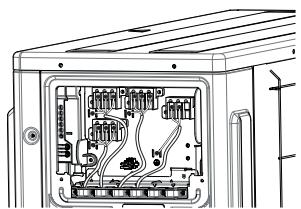

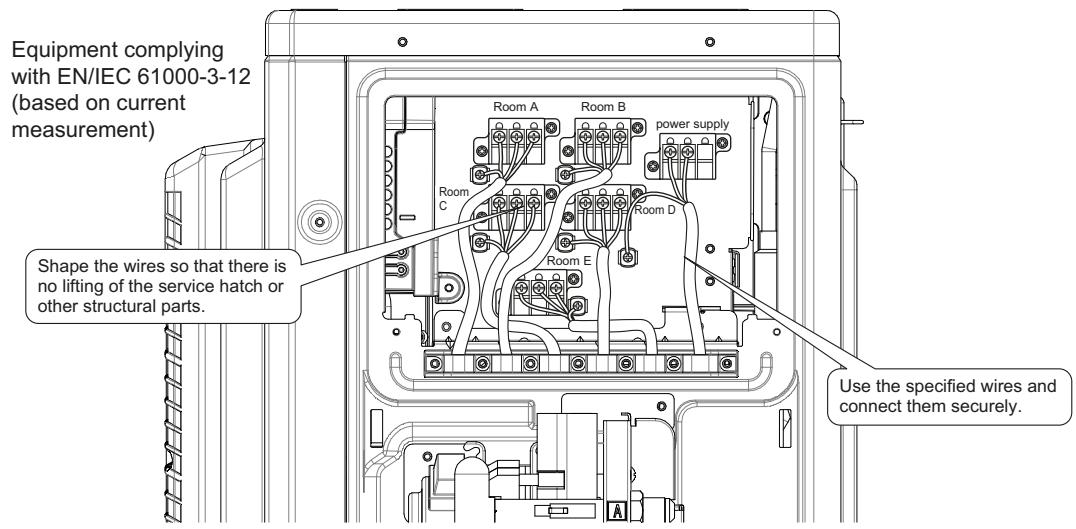

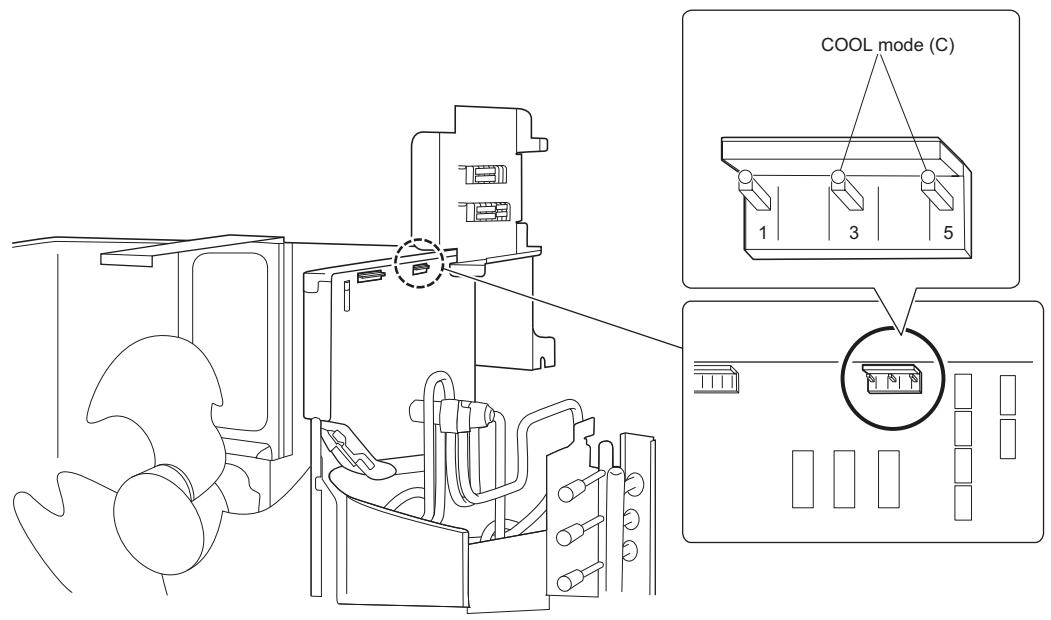

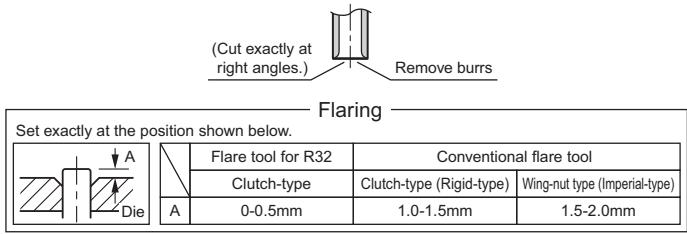

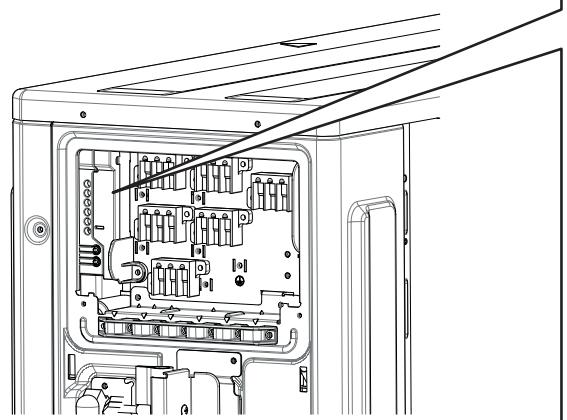

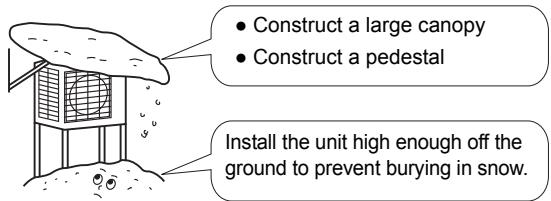

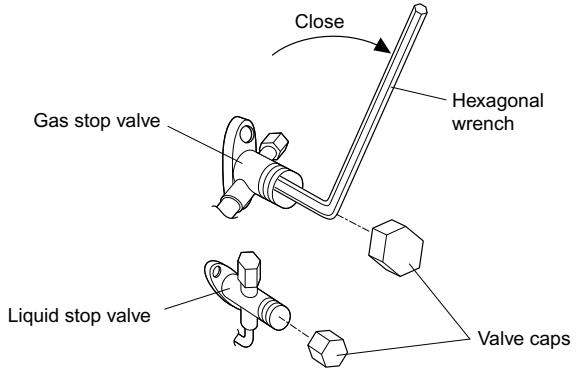

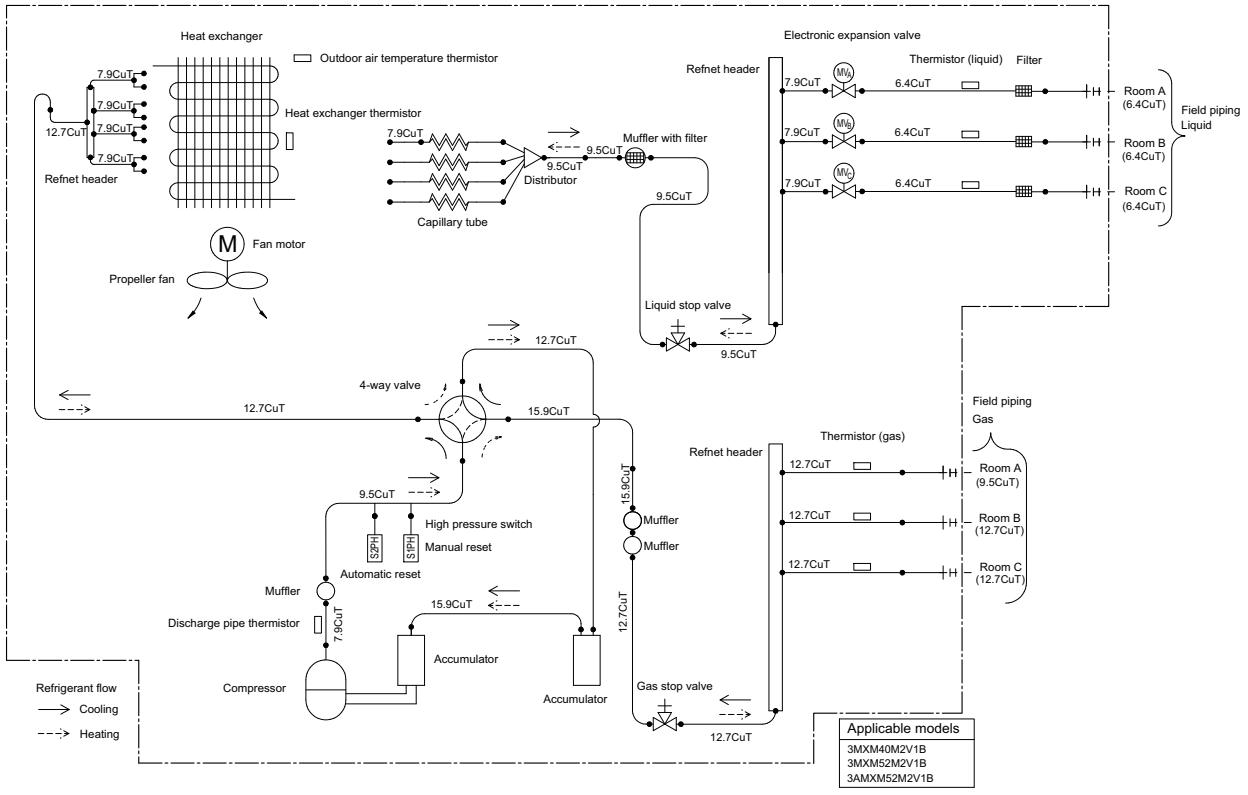

• Maximum allowable pressure (PS) (bar) • Minimum maximum absolute pressure (TS) • Tmin: Minimum temperature of low pressure side: (℃) (T) • Tmax: Saturated temperature corresponding with the maximum absolute pressure (PS) (℃) (T) • Refrigerant (℃) • Setting of pressure safety device: (bar) • Manufacturing number and manufacturing year: refer to model number(s) (T) • Maxima maxima (PS) (bar) • Temporise minimum maximum acte (TS) • Temporise minimum maxima base pressure: (℃) (T) • Temporise temperature corresponding à la pressiun maximale acte (PS) (℃) (T) • Kallimet (℃) • Enstehung der Schutzverhältnis: (bar) • Higbeleitungen und Herstellung: (bar) (T) • Pission maxima aktive (PS) (bar) • Temporise minimum maxima acte (TS) • Temporise minimum minima ete (℃) (T) • Nucleo de fabricacion y/o de fabricacion: consta de peoples de fabricacion del modelo (CS) (T) • Rokalmia (℃) • Intervening du vino/boiling (bar) (T) • Frotto/agentes en fabricagirne: zie naoiajal mode • Peso maximo admissible (PS) (bar) • Temporise minimao admissivo (TS) • Temporise minimao anumang lagerutide (℃) (T) • Temposo varidicoce tereovernment do empero da Dadecon (CS) (T) • Rokalmia (℃) • Auste del presostato o segudacr: (bar) (T) • Numero de fabricacion y/o de fabricacion: consta de peoples de Pricen (T) (T) • Rokalmia (℃)

02

• Continuation de la pagina anterior: 03

• Continuation de la pagina anterior: 04

• Continuation de la pagina anterior: 05

• Continuation de la pagina anterior: 06

• Continuation de la pagina anterior: 07

• Continuation de la pagina anterior: 08

• Continuation de la pagina anterior: 09

• Continuation de la pagina anterior: 10

• Continuation de la pagina anterior: 11

• Continuation de la pagina anterior: 12

• Continuation de la pagina anterior: 13

• Continuation de la pagina anterior: 14

• Continuation de la pagina anterior: 15

• Continuation de la pagina anterior: 16

• Continuation de la pagina anterior: 17

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER

• CONTINUANCE OF THE PAPER
