USER MANUAL BALAI 4163 ARIETE

Line drawing of a vacuum cleaner with a long propeller and base (no text or symbols)

A B C D E F G H I L P R Q O N M

Illustration of a hand adjusting a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a vacuum cleaner with a pointed tip and attached clamped parts (no text or symbols)

Diagram showing hand positioning of a car seatbelt with a magnified view of the seat (no text or symbols present)

Line drawing of a hand using a tool to lift a cylindrical component into a base (no text or symbols)

Line drawing of a hand using a magnifying glass to insert a cylindrical component into a base (no text or symbols)

Line drawing of a hand placing a component into a plastic tray (no text or symbols)

Line drawing of a mechanical component with layered structure and a cylindrical protrusion (no text or symbols)

Line drawing of a hand using a sewing machine to adjust a piece of hair (no text or symbols present)

Line drawing of a mechanical component with layered structure and a tool tip (no text or symbols)

Line drawing of a mechanical component with multiple pins and a curved body (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a hand inserting a component into a car intake tray (no text or symbols)

A PROPOSITO DI QUESTO MANUALE

Even if the appliances are made in conformity with the European regulatory specifications in force and therefore all potentially hazardous parts are protected. Carefully read these warnings and use the appliance only for the use it is designed for in order to prevent accidents and damage. Keep this manual close by for future consultation. If you should decide to give this appliance to other people, remember to also include these instructions.

The information provided in this manual is marked with the following symbols indicating:

Danger for children

Warning of burns

Danger due to electricity

Warning – material damage

Danger of damage originating from other causes

INTENDED USE

The appliance is suitable for thoroughly cleaning and sanitizing floors, as marble, ceramic, stone, tiles, parquet, as well as hard-wood floors provided they are treated and impervious. Use the cloth to absorb excessive moisture. The appliance exploits active power of steam without the need of detergents and soaps.

Any other use of the appliance is not intended by the Manufacturer who does not accept any responsibility for damages of any kind caused by improper use of the appliance itself. Improper use also results in any form of warranty being forfeited.

RESIDUAL RISKS

Warning!

Do not use the appliance on wax-treated surfaces. The wax will be removed by the heat and steam action. Do not use on untreated or permeable wood floors. Do not leave the appliance turned on for a long time on any type of wooden surface: the wood could swell.

Test the appliance first on a concealed area of the floor in the house. As an alternative, ask the floor manufacturer for information on cleaning procedures.

After you have turned off the appliance and unplugged it, let it rest on the preheating base provided. Keep the appliance out of the reach of children.

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS CAREFULLY.

• This appliance is designed solely for household and similar uses.
• We decline any responsibility resulting from misuse or any use other than those covered in this booklet.
• We suggest you keep the original box and packaging, as our free-of-charge service does not cover any damage resulting from inadequate packaging of the product when this is sent back to an Authorised Service Centre.
• Using accessories not recommended or not supplied by the manufacturer of the appliance may entail risks of fire, electric shock or injuries to people.

Danger for children

• This appliance is not suitable for use by people (children included) with physical, sensorial or mental disabilities; users lacking experience and knowledge of the appliance, or those who have not been given the user's instructions, must be supervised by a person responsible for their safety.
• Children must be supervised at all times to ensure they do not play with the appliance.
• Position the appliance so that children cannot reach the hot parts.
• Do not leave the packaging near children because it is potentially dangerous.
• Prevent children from grabbing the power cord, in this way making the appliance fall.
• In the event that this appliance is to be disposed of, it is suggested that the power cord is cut off. It is also recommended that all potentially dangerous components are rendered harmless to prevent children hurting themselves when playing with the apparatus.

Warning of burns

- Do not touch the metal parts of the appliance, the hot water or the steam when it is in operation and for several minutes after it is turned off since it could cause burns.

• Do not aim the jet of steam towards parts of the body or pets, plants or delicate objects.
• Do not leave the appliance on the ground when running or right after it is turned off. Always use the accessory for carpet cleaning for setting down the appliance.
• Never aim the jet of steam towards equipment containing electrical parts (inside ovens, for example).

- Before removing the cloth from the steam head, unplug the power cord. Wait at least 5 minutes so that the steam head and cloth cool down.

Danger due to electricity

• Before plugging the appliance into the mains socket, ensure that the voltage shown on the rating plate matches the local voltage supply.
• The use of extension leads, which have not been authorised by the appliance manufacturer, may cause damage and accidents.
  • Always connect the appliance to an earthed socket.
• Do not immerse the appliance in water or other liquids.
• Do not use the appliance if your hands are wet or if you are barefoot.

• Do not use the appliance if the power cord or the plug are damaged, or if the appliance is faulty. To prevent any accident, all repairs, including the replacement of the power cord, must be carried out by an Authorised Service Centre or, in any case, by qualified personnel.

• Do not plug any other high power appliance (electric heaters, irons, radiators, etc.) into the same socket. Danger of electric overload.

• Do not set the hot parts of the appliance on the power cord.
• Do not pull the power cord to unplug the appliance.
• Do not leave the power cord against sharp edges or sharp parts.
• Make sure that the power cord does not come into contact with hot surfaces.
• Do not move the appliance pulling it by the power cord.
• Remove the power cable from the socket-outlet in case of a thunderstorm.

Warning – material damage

• Do not use the appliance for cleaning untreated or non-waterproof wooden floors, soft plastics, wooden objects and leathers.
• Do not use the appliance on glass surfaces.
• Do not use the appliance with the cloth worn. Danger of the floor becoming damaged and scratched.
• Do not use the appliance without the filter.
  • Always unwind the power cord before use.
• The use of extensions not approved by the manufacturer can result in damage to property and personal injury.
• Using the appliance with no water in the tank may damage the pump. Check the water level in the tank on a regular basis.
• Do not use sparkling (carbonated) water. If the tap water is particularly hard (higher than 20^ ), use a mixture of 50% tap water and 50% demineralised water.
• The appliance must only be cleaned with a soft, slightly damped, cloth after unplugging the appliance and allowing all its parts to cool down. Never use solvents which may damage the plastic parts.
• Do not pour vinegar, descalers or other scented substances into the tank; otherwise, the warranty may be revoked.
• Always unplug the appliance before putting it away. Wait for it to cool down and completely empty the tank.
• Do not expose the appliance to atmospheric agents (rain, sun...).
• Any modifications made on this product that are not explicitly authorised by the manufacturer may lead to the forfeiture of its safety and guarantee of its use by the user.

Danger of damage originating from other causes

• Do not use the appliance in closed environments and in the presence of fumes given off by oil-based paints, solvents or waterproofing agents, or by flammable power or other toxic or explosive fumes.
• When using on stairs, use extra caution.

• Fill up the tank with water before starting up the appliance. Be sure to unplug the appliance before pouring water into the tank.

• Turn on the appliance only when it is in working position.

• Never leave the appliance unattended when it is connected to the power supply.
• When you have to leave for even a short period of time, always place the appliance on its accessory for carpet cleaning (O). Turn off the appliance and always unplug the electric power cord.

- Store indoors in a cool, dry area.

- SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

DESCRIPTION OF THE APPLIANCE (FIG.1)

A - Grip
B - Steam dispensing button
C - Handle
D - ON indicator light
E - Cord storage hook
F - Steam adjusting dial
G - Water tank
H - Filter
I - Motor body
L - Steam head
M - Floor washable cloth
N - Measuring cup
O - Attachment for carpet cleaning
P - Handle release button
Q - Steam discharge nozzle
R - Cloth fixing Velcro

ASSEMBLING THE APPLIANCE

Proceed as follows after removing the appliance from the box:

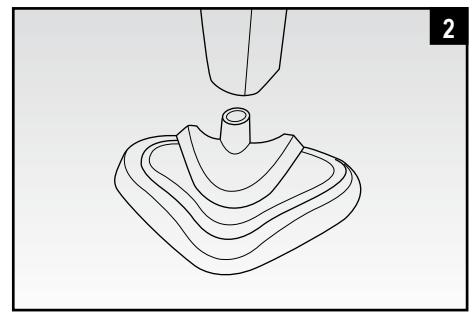

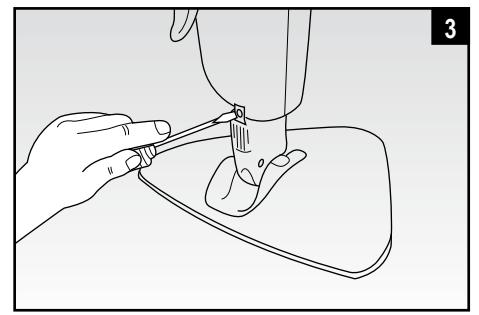

Assemble the motor body to the steam head (Fig. 2). Tighten the screw supplied to lock the components (Fig. 3).

Warning!

Check the tightening of the screw from time to time.

Press the handle release button (P). Lift the handle until it is aligned with the motor body (Fig. 4-5).

INSTRUCTIONS FOR USE

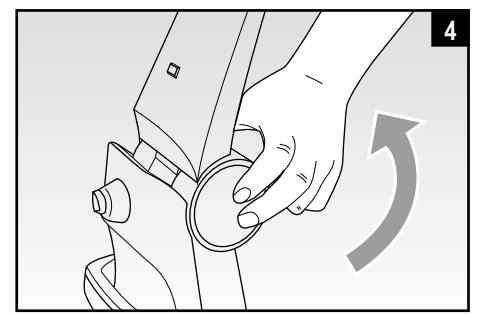

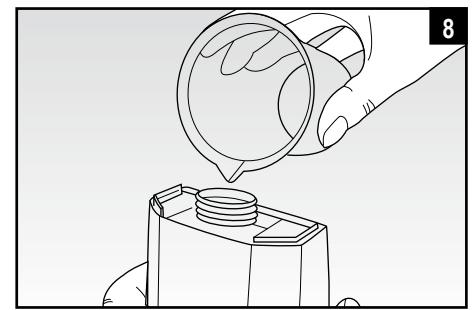

Totally unwind the power cord by releasing it from apposite cord storage hooks (E). Remove the water tank (G) by slightly pressing it downwards, then tilt and remove it (Fig. 6). Turn the tank upside-down and remove the cap (Fig. 7). Fill the tank up to the MAX mark using the supplied measuring cup (N) - Fig. 8. Screw the cap back on without using too much force.

Warning!

NEVER fill the tank beyond the MAX level. If the tap water is particularly hard (higher than 20^ f), use a mixture of 50% tap water and 50% demineralised water.

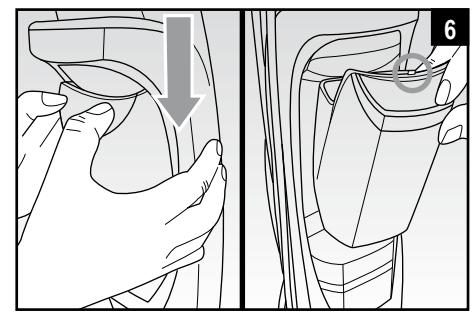

Insert the tank (G) by slightly pressing it downwards and at the same time pushing it inwards. Do not force the pin on the upper side of the tank during its removal/insertion.

Warning!

Make sure the tank is filled enough to avoid dry running.

To protect the floor from high temperatures, it is advisable to allow the appliance to warm up/cool down on the carpet cleaning attachment.

Before use, make sure objects and surfaces to be treated are resistant or compatible with the high temperature of steam. In case of treated terracotta floors and wooden surfaces, refer to the manufacturer's instructions and test the appliance first on a concealed area of the floor or a sample.

If the appliance is left standing on the floor whilst in use, a whitish ring may form. Not to worry, as this can be removed with a normal decalcification agent or with some drops of vinegar.

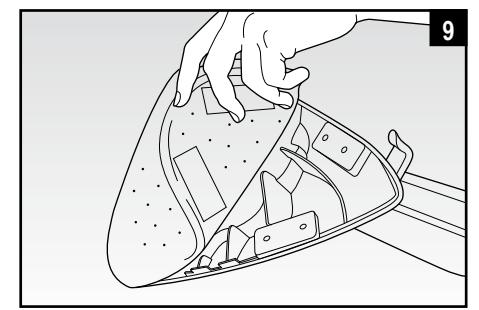

Place the cloth (M) underneath the steam head (L) - Fig. 9. Lay the cloth on the apposite Velcro (R).

Insert the plug into the socket, which must be earthed. The indicator light (D) will turn on, signalling the appliance is on and the internal boiler is starting to heat up.

Make sure there is no more dust on the floor. Press the steam dispensing button (B) and run the appliance on the floor.

STEAMdelivery can be adjusted through the apposite dial (F), by rotating it from a minimum (-) to a maximum level (+).

For more delicate floors, as parquet, wood or laminate, it is advisable to adjust steam delivery at a lower level, while, for surfaces requiring a deeper cleaning, e.g. marble, terracotta tiles floor, tiles or stone, it is advisable to adjust at a higher level.

Warning!

Do not use the steam function without the cloth. The cloth can be purchased at Authorised Service Centres.

Use the appliance in well-lit rooms.

Warning!

Burn hazard! Do not turn the steam head upside-down during use to remove the cloth.

Unplug the appliance. Wait at least 5 minutes to allow both the steam head and the cloth to cool down.

The cloth can be removed and rinsed during use. Before removing the cloth, press the button (B) to stop steam dispensing and unplug the appliance.

Filling the boiler during use

No special operation is necessary when the water in the tank runs out. Just unplug the machine, pull out the tank and fill it with fresh cool water again. If the tap water is particularly hard (higher than 20^ f), use a mixture of 50% tap water and 50% demineralised water.

Using accessory for cleaning carpets

The accessory must be used only to clean carpets and similar soft surfaces. Do not use on hard surfaces.

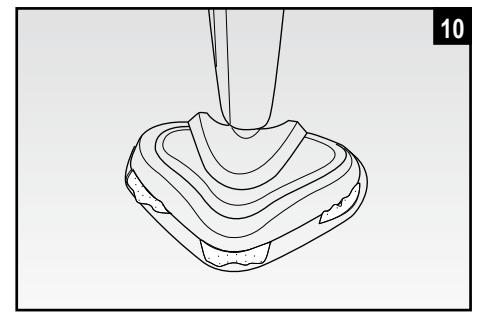

Lay the carpet attachment (O) on the floor on the flat side. Make sure the cloth is positioned underneath the steam head (L). Position the appliance on the attachment (O) by slightly pressing (Fig. 10). The appliance is now ready for use.

After use

Remove the power cable from the socket-outlet. Empty the water tank completely so as to prevent the water from stagnating, which may form lime deposit.

Warning!

Wait at least 5 minutes so that the steam head and cloth cool down.

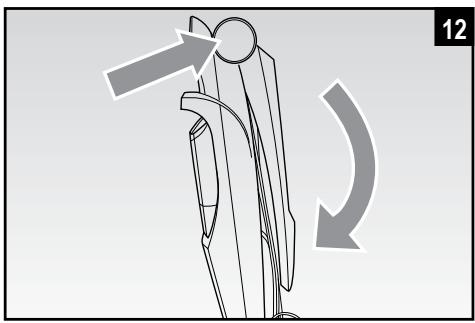

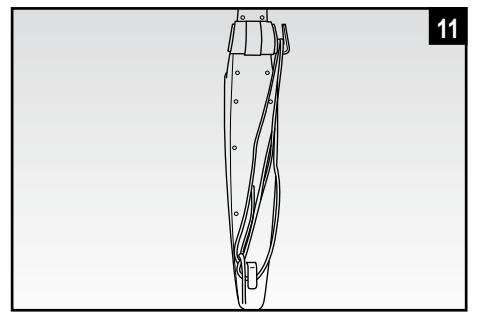

Remove cloth. Wrap the electrical power cord on hooks (E) - Fig. 11. Press the handle release button (P). Fold the handle to close the appliance (Fig. 12). Position the appliance on the attachment for carpet cleaning (O). Position the motor body vertically.

Warning!

Make the joint between steam head and motor body snap so that the appliance is stable in a vertical position.

Put the appliance in a dry place and away from the reach of children.

CLEANING AND MAINTENANCE

Warning!

Always unplug the appliance before cleaning it. Let the appliance to cool down for a few minutes.

Warning!

Never immerse the appliance in water or other liquids.

Warning!

Check the state of the power cable of your appliance on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel.

Do not use abrasive products for cleaning the appliance.

Do not put vinegar, decalcifying agents or other fragrant substance inside the tank; otherwise, the warranty may be revoked.

Cleaning the appliance

Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth. Clean the water tank from time to time by putting fresh water in it. Rinse and empty. For cleaning washable cloths, refer to indications on labels.

Filter replacement

The filter (H) must be replaced every 4-6 months or after 100 cleaning cycles (one cycle is equivalent to the consumption of a full tank of water). Unplug it from the socket-outlet. Wait for the hot parts to cool down. Remove the tank. Extract the filter (H) by pulling it upwards, parallel to the motor body. Replace the filter with a new one, being sure to put it firmly in its seat (Fig. 13).

TROUBLESHOOTING

Warning!

Immediately switch off the appliance in case of operational faults and electrical failures. Unplug it from the socket-outlet. Wait for the appliance to cool down.

PROBLEM	CAUSE	REMEDY
On light off	Not plugged in	Check that the appliance is properly plugged in. Check that there is current on the power supply line. Try to plug the appliance into another socket-outlet. If the problem continues, contact an Authorised Service Centre.
No steam comes out of the nozzle	Steam dispensing button not pressed	Press the steam dispensing button all the way down.
	The appliance is not ready for use	Press the steam dispensing button for thirty (30) seconds or until you hear the noise of the pump. Wait for the steam to come out.
	Water shortage in tank	Fill the tank up to the level marked MAX.
	Incorrect insertion of the tank in its seat	Remove the tank and put it back in, making sure it is in the right position.
	The steam exit holes may be blocked by limescale	Contact an Authorised Service Centre.
Unexpected increase of the noise level of the pump	Water shortage in tank	Turn off the appliance and fill the water tank.
	Incorrect insertion of the tank in its seat	Remove the tank and put it back in, making sure it is in the right position.
Water leakage from the nozzle	Possible condensation residue in the steam duct	Press the steam dispensing button until you see steam coming out. Position a soft cloth so as to not dampen the floor. If water continues to come out, turn off the appliance. Wait at least 5 minutes so that the steam head and cloth cool down. Try again.
