USER MANUAL MS6CM6166 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use. Do not exceed permitted maximum quanti­ ties (X “Application examples” see page 26).

The appliance is suitable for mixing, kneading and beating food. The appliance must not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the ­accessory parts for other appliances. Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer’s liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or ­knowledge if they have been given supervision or instruction ­concerning use of the appliance in a safe way and if they ­understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children. WW Risk of electric shock and fire! ■■ Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. ■■ Use only the rotary switch to switch the appliance on or off. Never connect the appliance to timer switches or remote-­controllable sockets. Never leave the appliance unattended while it is switched on! ■■ Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.

Important safety information

■■ Never immerse the base unit in water or place it in the dishwasher.

Do not steam-clean the appliance. Do not use the ­appliance with damp hands. ■■ After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains. WW Risk of injury! ■■ Before replacing accessories or additional parts which move during operation, the appliance must be switched off and dis­connected from the power supply. After switching off, the drive continues for a short time. Wait until the drive has come to a standstill. ■■ Do not adjust the swivel arm while the appliance is switched on. ■■ Only use tools when the bowl is inserted, the lid is fitted and the protective drive covers are in place! When using accessories, fit the bowl, lid and drive covers according to the instructions! ■■ While operating the appliance, never reach into the bowl or filling shaft with your hands. Do not insert any objects (e.g. wooden spoon) into the bowl or filling shaft. Keep hands, hair, clothing and other utensils away from rotating parts. ■■ Never use tools and accessories or 2 accessories at the same time. When using the accessories, follow the individual operating instructions enclosed. ■■ The accessory must be completely assembled before use. Never assemble the accessory on the base unit. The accessory should only be used in the intended operating position. ■■ Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only. ■■ Do not touch blender blades with bare hands. ■■ Never reach into the attached blender! Never use the blender without the lid in place. ■■ Care shall be taken when handling the sharp cutting blades, emptying the container and during cleaning. WW Risk of scalding! If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.5 litres of hot or frothing liquid. WW Risk of suffocation! Do not allow children to play with packaging material. WW Caution! We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. Do not operate at no-load. 18

Important safety information

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period (X “Cleaning and servicing” see page 24). WW Explanation of the symbols on the appliance or accessory

Y W Follow the instructions in the operating instructions.

Caution! Rotating blades. Caution! Rotating tools. Do not place fingers in the feed tube.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our web page.

See “Operating positions” table.

The appliance can be switched on in pos. 1 and 3 only: ■■ when the bowl (11) has been inserted and turned until it locks into place.

If the power is interrupted, the appliance remains switched on but the motor does not start running again when the power is restored. To switch the appliance on again, turn the rotary switch to P, then switch on.

If the motor switches itself off while the appli­ ance is being used, the overload protection feature has been activated. A possible cause may be that too much food was processed at one time.

If a safety system is activated, see “Troubleshooting”. The appliance requires no maintenance.

Please fold out the illustrated pages.

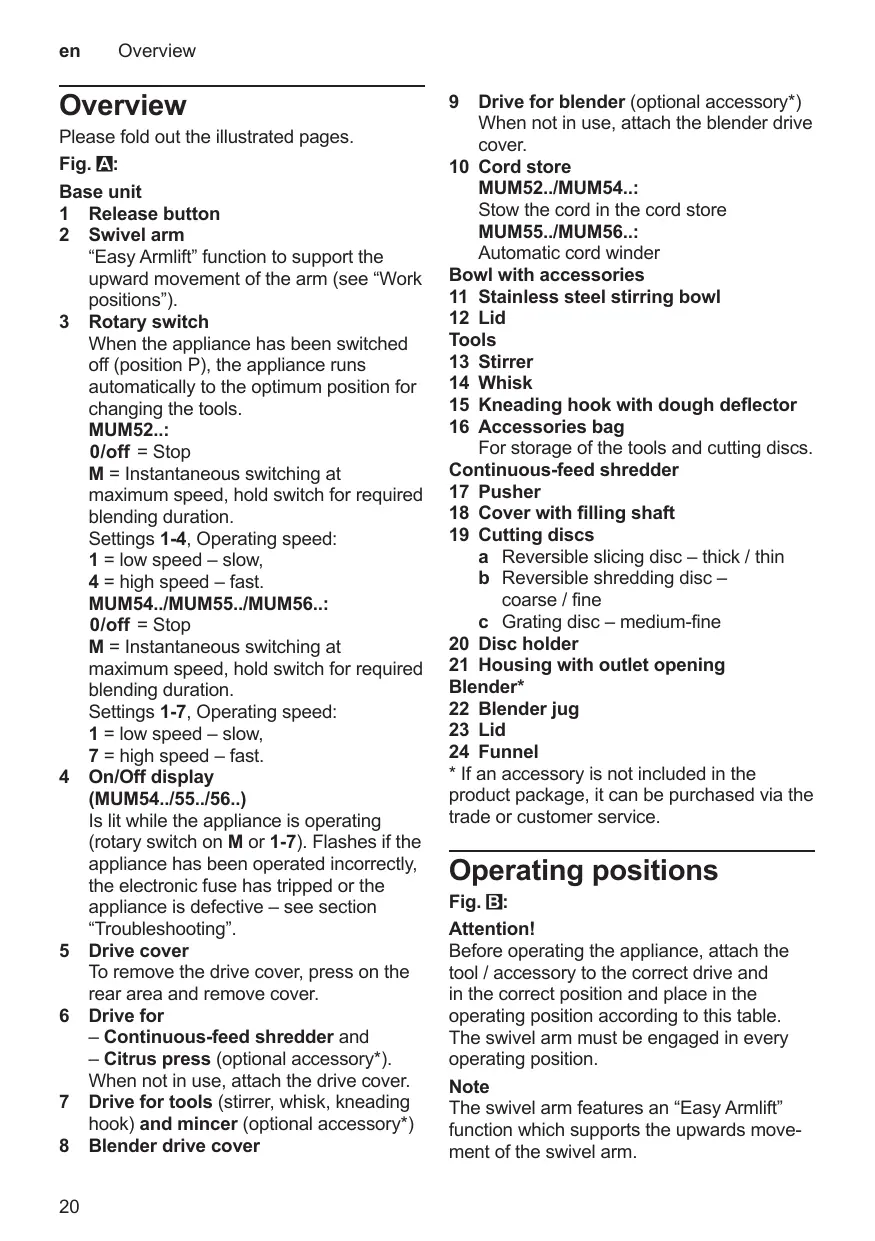

Fig. A: Base unit 1 Release button 2 Swivel arm “Easy Armlift” function to support the upward movement of the arm (see “Work positions”). 3 Rotary switch When the appliance has been switched off (position P), the appliance runs automatically to the optimum position for changing the tools. MUM52..: P = Stop M = Instantaneous switching at maximum speed, hold switch for required blending duration. Settings 1-4, Operating speed: 1 = low speed – slow, 4 = high speed – fast. MUM54../MUM55../MUM56..: P = Stop M = Instantaneous switching at maximum speed, hold switch for required blending duration. Settings 1-7, Operating speed: 1 = low speed – slow, 7 = high speed – fast. 4 On/Off display (MUM54../55../56..) Is lit while the appliance is operating (rotary switch on M or 1-7). Flashes if the appliance has been operated incorrectly, the electronic fuse has tripped or the appliance is defective – see section “Troubleshooting”. 5 Drive cover To remove the drive cover, press on the rear area and remove cover. 6 Drive for – Continuous-feed shredder and – Citrus press (optional accessory*). When not in use, attach the drive cover. 7 Drive for tools (stirrer, whisk, kneading hook) and mincer (optional accessory*) 8 Blender drive cover 20

Drive for blender (optional accessory*)

When not in use, attach the blender drive cover. 10 Cord store MUM52../MUM54..: Stow the cord in the cord store MUM55../MUM56..: Automatic cord winder Bowl with accessories 11 Stainless steel stirring bowl 12 Lid Tools 13 Stirrer 14 Whisk 15 Kneading hook with dough deflector 16 Accessories bag For storage of the tools and cutting discs. Continuous-feed shredder 17 Pusher 18 Cover with filling shaft 19 Cutting discs a Reversible slicing disc – thick / thin b Reversible shredding disc – coarse / fine c Grating disc – medium-fine 20 Disc holder 21 Housing with outlet opening Blender* 22 Blender jug 23 Lid 24 Funnel * If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Attention! Before operating the appliance, attach the tool / accessory to the correct drive and in the correct position and place in the operating position according to this table. The swivel arm must be engaged in every operating position. Note The swivel arm features an “Easy Armlift” function which supports the upwards move­ ment of the swivel arm.

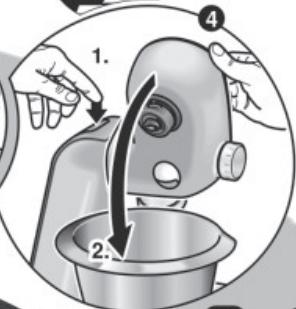

Selecting the operating position:

■■ Press the Release button and move the swivel arm. Support movement with your hand.

■■ Move the swivel arm until it engages in the required position. Position

WWRisk of injury! Do not insert mains plug until all preparations for working with the appliance are complete. Attention! Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to heat sources. Parts are not microwave-safe. ■■ Before operating the appliance and acces­ sories for the first time, clean thoroughly; see “Cleaning and servicing”. Important information In these instructions for use the recom­ mended reference values for the operating speed refer to appliances with a 7-setting rotary switch. For appliances with a 4-setting rotary switch you can find the values in brackets after the values for a 7-setting rotary switch. These operating instructions contain a sticker with reference values for the oper­ ating speed of the appliance when using the tools or accessories. We recommend attaching this sticker to the appliance (Fig. C).

* Insert / remove whisk, stirrer or kneading hook. Add large quantities of ingredients.

■■ Place the base unit on a smooth, clean surface.

■■ Pull out the power cord (Fig. D). MUM52../MUM54.. Cord store: Pull out cable to the required length. MUM55../MUM56.. Automatic cord winder: Pull out the cord in one go to the required length (max. 100 cm) and slowly release; the cord is locked. Reducing the cord length: Pull gently on the cord and allow it to roll up to the required length. Then gently pull the cord again and slowly release; the cable is locked.

Do not twist the cord when inserting it. If the appliance features an automatic cord winder, do not insert the cord manually. If the cord jams, pull out the cord all the way and then allow it to wind up. ■■ Insert the mains plug.

WWRisk of injury from the rotating tools! While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance! Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move the swivel arm until the tool has come to a standstill. Always secure unused drives with protective drive covers. Attention! Use bowl with this appliance only. Stirrer (13) for stirring dough, e.g. cake mixture Whisk (14) for whisking egg whites, cream and light dough, e.g. sponge mixture Kneading hook (15) for kneading heavy dough and mixingin ingredients that ought not be cut (e.g. raisins and chocolate chips) Working with the bowl and the tools Fig. E: ■■ Press the Release button and move the swivel arm to position 2. ■■ Insert the bowl: Tilt the bowl forwards and then set it down. Turn anti-clockwise until it locks into place. ■■ Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position.

If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position (Fig. E-4b). ■■ Put the ingredients to be processed into the bowl. ■■ Press the Release button and move the swivel arm to position 1. ■■ Attach the cover. ■■ Set the rotary switch to the desired setting. Our recommendation: –– Stirrer: first stir in at setting 1 (1), then select setting 7 (4) –– Whisk: setting 7 (4), mix in at setting 1 (1) –– Kneading hook: first stir in at setting 1 (1), knead at setting 3 (2) Adding more ingredients ■■ Switch off the appliance with the rotary switch. ■■ Add more ingredients through the feed tube in the cover. or ■■ Remove lid. ■■ Press the Release button and move the swivel arm to position 2. ■■ Add ingredients. After using the appliance ■■ Switch off the appliance with the rotary switch. ■■ Remove mains plug. ■■ Remove lid. ■■ Press the Release button and move the swivel arm to position 2. ■■ Take the tool out of the drive. ■■ Remove the bowl. ■■ Clean all parts, see “Cleaning and servicing”.

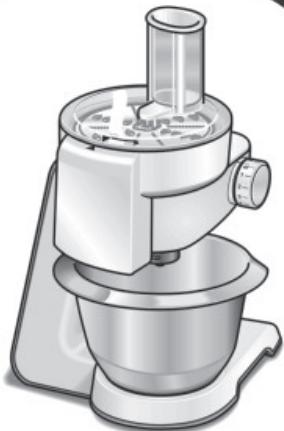

Continuous-feed shredder

WWRisk of injury! Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only. Before attaching / removing the continuousfeed shredder, wait until the drive has come to a standstill and pull out the mains plug. Do not reach into the feed tube.

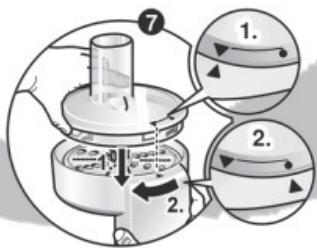

The continuous-feed shredder must be completely assembled before use. Never assemble the continuous-feed shredder on the base unit. Operate the continuous-feed shredder in the indicated operating position only. Predetermined breaking point Fig. F: The built-in predetermined breaking point protects the drive of the appliance. If an overload occurs, the drive shaft of the ­continuous-feed shredder breaks. However, the drive shaft can easily be replaced. A new disc holder with drive shaft is available from customer service. Reversible slicing disc – thick / thin for slicing fruit and vegetables. Process at setting 5 (3). Designation on the reversible slicing disc: “1” for the thick slicing side “3” for the thin slicing side Warning! The reversible slicing disc is not suitable for slicing hard cheese, bread, rolls or choco­ late. Slice boiled, waxy potatoes only when they are cold. Reversible shredding disc – coarse / fine for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan). Processing at setting 3 (2) or 4 (3). Designation on the reversible shredding disc: “2” for the coarse shredding side “4” for the fine shredding side Warning! The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 7 (4). Grating disc – medium-fine for grating raw potatoes, hard cheese (e.g. Parmesan), cooled chocolate and nuts. Process at setting 7 (4).

The grating disc is not suitable for grating soft cheese and cheese slices. Working with the continuous-feed shredder Fig. G: ■■ Press the Release button and move the swivel arm to position 2. ■■ Insert the bowl: Tilt the bowl forwards and then set it down. Turn anti-clockwise until it locks into place. ■■ Press the Release button and move the swivel arm to position 3. ■■ Remove drive cover from the drive of the continuous-feed shredder (Fig. G-5a). ■■ Hold disc holder at the lower end, ensuring that the two tips are face up. ■■ Carefully place the required slicing or shredding disc onto the tips of the disc holder (Fig. G-6a). In the case of reversible discs, ensure that the required side is face up. ■■ Grip disc holder at the upper end and insert into the housing (Fig. G-6b). ■■ Attach the cover (note mark) and turn all the way in a clockwise direction. ■■ Place continuous-feed shredder on the drive and rotate all the way in a clockwise direction, as illustrated in Fig. G-8. ■■ Turn rotary switch to recommended setting. ■■ Put food to be processed in the feed tube and push down with the pusher. Warning! Prevent the cut ingredients from building up in the outlet opening. Tip: To ensure even cutting results, process thin ingredients in bunches. Note: If the food to be processed sticks in the continuous-feed shredder, switch food processor off, pull out mains plug, wait until the drive comes to a standstill, remove cover from the continuous-feed shredder and empty feed tube.

Cleaning and servicing

After using the appliance

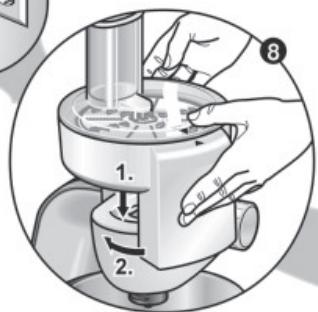

■■ Switch off the appliance with the rotary switch. ■■ Rotate the continuous-feed shredder in an anti-clockwise direction and remove. ■■ Rotate the lid in an anti-clockwise direction and remove. ■■ Remove disc holder with disc. To do this, press finger from below against the drive shaft (Fig. H). ■■ Clean parts.

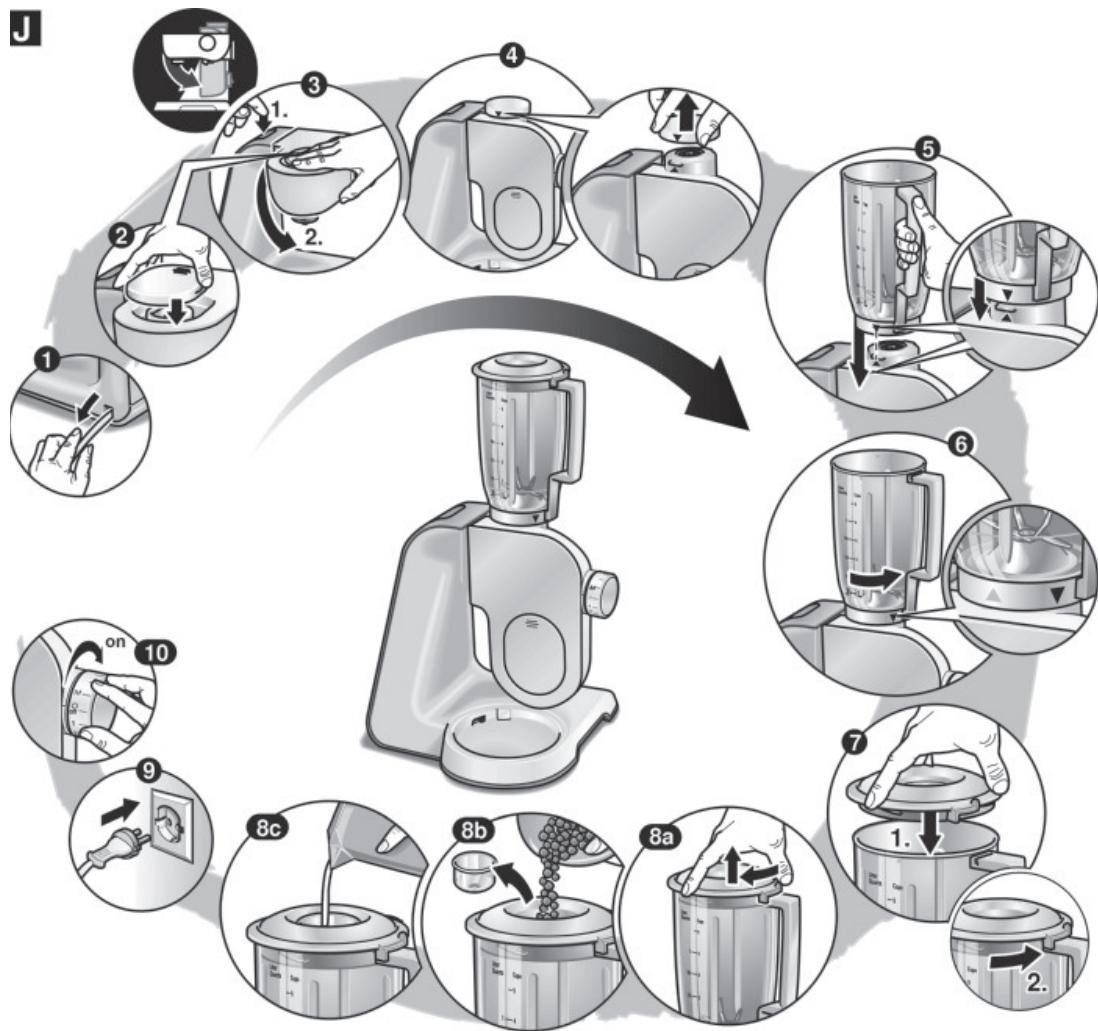

WWRisk of injury from sharp blades / rotating drive! Never place fingers in the attached blender! Do not remove / attach the blender until the drive is at a standstill! Operate the assem­ bled blender only and with the lid attached. WWRisk of scalding! If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,5 litres of hot or frothing liquid. Warning! Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty. Working with the blender Fig. J: ■■ Press the release button and move the swivel arm to position 4. ■■ Remove the blender drive cover. ■■ Attach blender jug (mark on the handle on mark on the base unit) and turn all the way in an anti-clockwise direction. ■■ Add ingredients. Maximum amount of liquid = 1.25 litres; maximum amount of frothing or hot liquids = 0.5 litres; Optimal processing capacity – solids = 50-100 g; ■■ Attach the cover and turn anti-clockwise all the way into the blender handle. The cover must be locked in position. ■■ Set the rotary switch to the desired setting.

Adding more ingredients

Fig. J-8: ■■ Switch off the appliance with the rotary switch. ■■ Remove the lid and add ingredients or ■■ remove the funnel and gradually add solid ingredients through the refill opening or ■■ pour liquid ingredients through the funnel. After using the appliance ■■ Switch off the appliance with the rotary switch. ■■ Rotate the blender in a clockwise direction and remove. Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

The attachments and accessories used must be thoroughly cleaned after each use.

Attention! Do not use abrasive cleaning agents. Surfaces may be damaged.

Cleaning the base unit

WWDanger of electric shock! Never immerse the base unit in water or place under running water. Do not use a steam cleaner. ■■ Remove mains plug. ■■ Wipe the base unit and drive cover with a damp cloth. If required, use a little detergent. ■■ Then dry the base unit.

Cleaning the bowl and tools

The bowl and tools are dishwasher-proof. Do not wedge plastic parts in the dishwasher, as they could be permanently deformed during the washing process!

Cleaning the continuous-feed shredder

WWRisk of injury from sharp blades! Do not grip the sharp blades or edges of the cutting discs. Clean them with a brush. All parts of the continuous-feed shredder are dishwasher-proof. Tip: To remove the red film after processing e.g. carrots, pour a little cooking oil on a cloth and rub the film off the continuous-feed shredder (not the cutting discs). Then rinse the continuous-feed shredder.

Cleaning the blender

WWRisk of injury from sharp blades! Do not touch blender blades with bare hands. The blender jug, lid and funnel are dishwasher-proof. Tip: After processing liquids, it is often suffi­ cient to clean the blender without removing it from the appliance. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (setting M). Pour out the water and rinse out the blender with clear water. Important information If required, clean accessories bag. Follow care instructions in the bag.

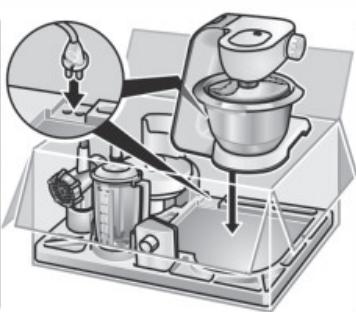

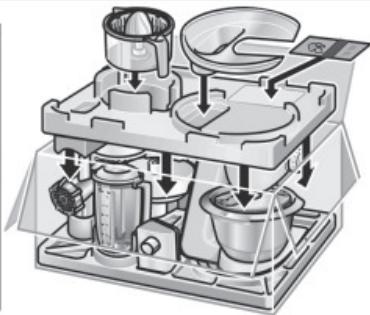

WWRisk of injury! When the appliance is not in use, pull out the mains plug. Fig. K: ■■ Store tools and cutting discs in the acces­ sories bag. ■■ Keep accessories bag in the bowl. ■■ To store in the original packaging, see Fig. L.

WWRisk of injury! Before eliminating a fault, pull out the mains plug. Important information for MUM54../MUM55../MUM56.. The Operating indicator flashes if the appli­ ance has been operated incorrectly or the electronic fuse has tripped or the appliance is defective. The swivel arm must be engaged in every operating position. Initially try to eliminate the problem which has occurred with the help of the following information. Fault Appliance does not start. Remedial action ■■ Check the power supply. ■■ Check the mains plug. ■■ Check swivel arm. Correct position? Engaged? ■■ Screw on blender or bowl as far as possible. ■■ Attach the blender cover and screw on as far as possible. ■■ Attach drive cover to unused drives. ■■ The safety lock is active. Switch appliance to P and then back to the required setting. Fault Appliance switches off during use. The over­ load protection feature has been activated. Too much food was processed at one time. Remedial action ■■ Switch off the appliance. ■■ Reduce processing quantity. ■■ Do not exceed permitted maximum quanti­ ties (see “Application examples”).

Application examples

While the drive was running, the release button was inadvertently pressed. The swivel arm moves up. The drive switches off, but does not stop in the tool change position. Remedial action ■■ Set the rotary switch to P. ■■ Move swivel arm to position 1. ■■ Switch on appliance (setting 1). ■■ Switch off appliance again. Tool stops in tool change position. Fault Blender does not start working or stops during use, the drive is “humming”. Blade is blocked. Remedial action ■■ Switch off the appliance and pull out the mains plug. ■■ Detach the blender and remove the obstruction. ■■ Re-attach the blender. ■■ Switch on the appliance. Important information If the fault cannot be eliminated, please contact customer service.

Application examples

■■ Whip cream with the whisk for 1½ to 4 minutes at setting 7 (4) depending on the quantity and properties of the cream.

■■ Beat egg white with the whisk for 4 to 6 minutes at setting 7 (4).

2 eggs 2-3 tbs. hot water 100 g sugar 1 packet of vanilla sugar 70 g flour 70 g cornflour Baking powder if required 26

■■ Beat the ingredients (except flour and cornflour) with the whisk for approx.

4-6 minutes at setting 7 (4) until frothy. ■■ Rotate switch to setting 1 (1) and spoon in the sifted flour and cornflour within approx. ½ to 1 minute. Maximum quantity: 2 x basic recipe

3-4 eggs 200-250 g sugar 1 pinch of salt 1 packet of vanilla sugar or peel from ½ lemon 200-250 g butter or margarine (room temperature) 500 g flour 1 packet of baking powder 125 ml of milk ■■ Mix all ingredients with the stirrer for approx. ½ minute at setting 1 (4), then for approx. 3-4 minutes at setting 7 (4). Maximum quantity: 1,5 x basic recipe

125 g butter (room temperature) 100-125 g sugar 1 egg 1 pinch of salt A little lemon peel or vanilla sugar 250 g flour Baking powder if required ■■ Using the stirrer, process all ingredients for approx. ½ minute at setting 1 (1), then for approx. 2-3 minutes at setting 6 (3). From 500 g flour: ■■ Knead the ingredients with the kneading hook for approx. ½ minute at setting 1 (1), then for approx. 3-4 minutes at setting 3 (2). Maximum quantity: 2 x basic recipe

500 g flour 1 egg 80 g fat (room temperature) 80 g sugar 200-250 ml lukewarm milk 25 g fresh yeast or 1 packet of dried yeast Peel of ½ lemon 1 pinch of salt ■■ Process all ingredients for approx. ½ minute at setting 1, then for approx. 3-6 minutes at setting 3 (2) using the kneading hook. Maximum quantity: 1,5 x basic recipe

300 g flour 3 eggs 1-2 tbs. (10-20 g) cold water as required ■■ Process all ingredients for approx. 3-5 minutes at setting 3 (2) until a dough forms. Maximum quantity: 1,5 x basic recipe

750 g flour 2 packets of dry yeast 2 tsp. salt 450-500 ml warm water ■■ Process all ingredients for approx. ½ minute at setting 1, then for approx. 4-5 minutes at setting 3 (2) using the ­kneading hook.

■■ Process the ingredients (except the oil) in the blender for several seconds at setting

3 (2) or 4 (3). ■■ Switch the blender to setting 7 (4) and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies. Eat the mayonnaise immediately, do not store.

J Dispose of packaging in an environ­ mentally­friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the frame­ work for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

2 tsp. mustard ¼ l oil 2 tbs. lemon juice or vinegar 1 pinch of salt 1 pinch of sugar Ingredients must be at the same temperature.

Optional accessories

Optional accessories

For squeezing oranges, lemons and grapefruits.

For cutting fruit and vegetables into equally sized cubes.

For cutting fresh meat for steak tartare or meat loaf.

Perforated disc set fine (3 mm), coarse (6 mm) MUZ45SV1 Viennese whirl attachment

For the mincer MUZ5FW1.

Fine disc for pasties and spreads, coarse disc for sausages and bacon.

For the mincer MUZ5FW1.

For grating nuts, almonds, chocolate and dried bread rolls.

For the mincer MUZ5FW1.

For pressing soft fruit, except raspberries, tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.

For the continuous-feed shredder MUZ5DS1.

For slicing raw potatoes for chips.

Asian ­vegetable disc

For the continuous-feed shredder MUZ5DS1.

Slices fruit and vegetables into fine strips for Asian ­vegetable dishes.

For the mincer MUZ5FW1.

With metal template for 4 different pastry moulds.

Optional accessories

For the continuous-feed shredder MUZ5DS1.

For grating raw potatoes, e.g. for potato pancakes or dumplings.

For the continuous-feed shredder MUZ5DS1.

For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.

Stainless steel stirring bowl

Up to 750 g of flour plus ingredients can be processed in the bowl.

Up to 750 g of flour plus ingredients can be processed in the bowl.

Plastic blender attachment

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

If an accessory is not included in the product package, it can be purchased via the trade or from customer service.
