FON800NR - Fondue maker BRANDT - Free user manual and instructions

USER MANUAL FON800NR BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

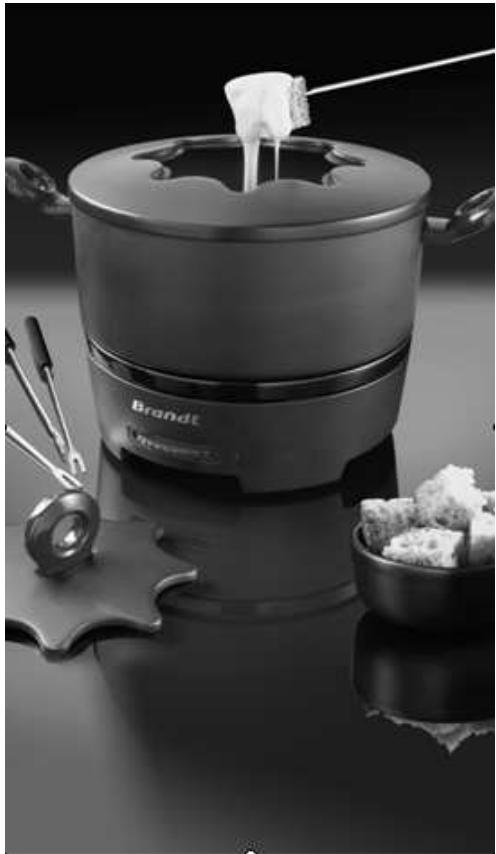

Fondue

FON800NR

Chère(Client, Cher Client

You have just purchased a BRANDT fondue and we would like to thank you.

We have placed in this appliance all our passion and know-how in order to meet at best your need. Innovative and efficient: we designed it to be always easy to use.

In the BRANDT products line, you will also find a wide range of small domestic appliances that can be coordinated to your new BRANDT fondue.

Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service department is at your disposal and at your listening to answer to all your questions and suggestions.

You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information.

BRANDT

As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development

Be careful : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation

www.brandt.com

TABLE OF CONTENTS

1) INFORMATION FOR THE USER 14

a) Safety recommendations 14
b) Technical Data. 18
c) Protecting the environment 18

2) APPLIANCE PRESENTATION 18

a) Fondue description 18
b) Before the first use 19

3) USING YOUR APPLIANCE 19

a) Functioning 19
b) Cooking guide 20

4) CLEANING AND MAINTENANCE 20

5) WARRANTY AND CUSTOMER RELATIONS 20

a) Warranty. 20
b) Customer relations. 20

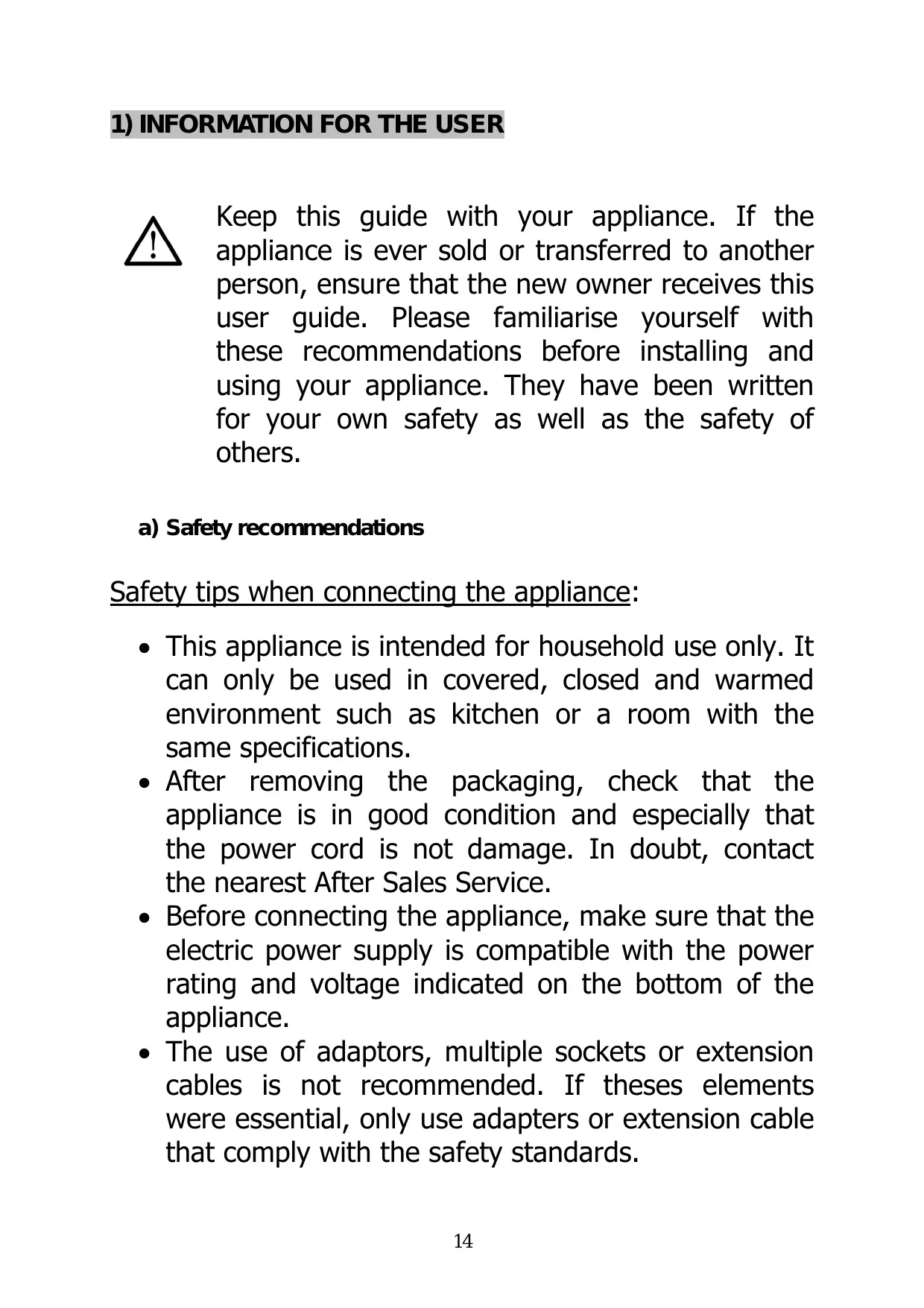

1) INFORMATION FOR THE USER

Keep this guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives this user guide. Please familiarise yourself with these recommendations before installing and using your appliance. They have been written for your own safety as well as the safety of others.

a) Safety recommendations

Safety tips when connecting the appliance:

• This appliance is intended for household use only. It can only be used in covered, closed and warmed environment such as kitchen or a room with the same specifications.
• After removing the packaging, check that the appliance is in good condition and especially that the power cord is not damage. In doubt, contact the nearest After Sales Service.
• Before connecting the appliance, make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• The use of adaptors, multiple sockets or extension cables is not recommended. If theses elements were essential, only use adapters or extension cable that comply with the safety standards.

• This appliance is not intended to be operated by an external timer or separate remote control system.

• Place the appliance on a dry, stable and smooth surface.
• Keep the appliance and its cord out of reach of children under 8 years.
• Children shall not play with the appliance.

Safety tips when using the appliance:

• This appliance should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.
• This appliance shall not be used by children from 0 to 8 years. It can be used by children aged from 8 years and above if they are continuously supervised.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The surfaces are liable to get hot during use.
• Children under the age of 8 years should not use this appliance unless continuous supervision by a responsible adult is given.
• This appliance is not a deep fryer. Never cook fries, donuts,...in the fondue pot.

• Do not fill the fondue pot above "MAX" level. Do not operate the appliance if the liquid is below "MIN" level.

• Do not use aluminium foil or other objects under the fondue pot, or between the heating coil.

• Do not slice directly food on the fondue pot.
• Important tips when cooking fondue with oil: always use fresh, new oil. Do not mix different types of oils. Never add water in oil or other fat. Do not add herbs or other seasoning to the oil.
• Keep cord away from heated surfaces.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture...) or on a soft surface such as a tea-towel.
• If the appliance is used in the centre of the table, keep it out the reach of children.
• Do not move the hot appliance when it is used.
• Never pull the power cord when the appliance is used.
• The use of accessory attachments not recommended by the appliance's manufacturer may cause hazard or injury.

Cleaning and Maintenance:

• Unplug the appliance before cleaning and allow the appliance to cool down.

• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped. This product is covered by your distributor. For more details, please refer to the warranty conditions supplied.

• To protect against electric shock, do not place the base unit in water or other liquid.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean your fondue.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Improper use:

• Use this appliance only for its intended uses as described in manual.
• The manufacturer shall not be liable for any damage resulting from improper use.
• The appliance is intended for domestic use only in private housing environments. The use of this appliance in common or professional's area such as staff kitchen areas in shop, offices and other working environments; by clients in hotels, motels and restaurants or any other shops; by clients in kitchen areas or campsite; are not a proper us as defined by the manufacturer.

Hot surfaces during use

b) Technical Data

Model no	FON800NR
Power supply	230V~50/60Hz
Power	1000W
Dimensions	H237xW305xL210mm
Net wt.	2.1Kg

c) Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste. For further information, contact your local authority or the shop where you bought the product.

2) APPLIANCE PRESENTATION

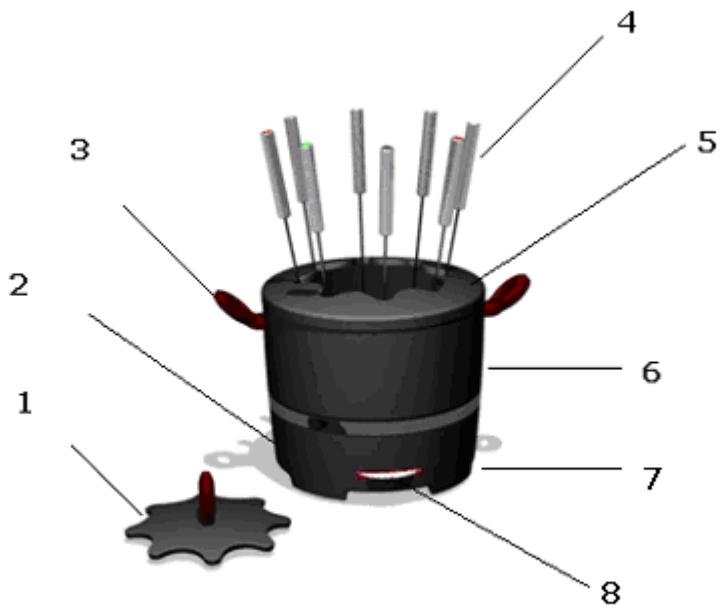

a) Fondue description

1. Lid
2. Base unit
3. Handles
4. Forks
5. Forks support
6. Fondue pot
7. Light indicator
8. Thermostat

b) Before the first use

• When unpacking your unit, make sure that you carefully remove all of the packaging materials.
• Clean the lid, the fondue pot, the forks support and the forks with a soft sponge and soapy water. Then, rinse and dry the entire component thoroughly.
• Put the unit on a dry, smooth and stable surface where it will be used during the meal.

3) USING YOUR APPLIANCE

a) Functioning

1. Put oil, cheese or any other ingredients in the fondue pot. Be careful to comply with "MIN/MAX" level listed on the fondue pot.

Note: the liquid to be used for the fondue set shall be pre-heated first on an oven and then filled into the Fondue pot in order to achieve the best performance.

1. Place the base onto a dry and stable surface, in the centre of the table.
2. Place the fondue with the lid in place, on top of the hot plate.
3. Plug in the appliance.
4. Set the temperature by sliding the temperature control. The preheating temperature depends on the recipe.
5. When the ingredients reach the preheating temperature (approx. 10 minutes, depending on the amount of ingredients, the initial temperature and the type of ingredient) the indicator light goes off and the fondue will automatically set an on- and-off cycle in order to maintain the selected temperature.
6. Gently put the forks into the pot, with a small piece of food on the tip of the fork.
7. When the food is to taste, remove it by holding the handle of the fork. Be careful as the metal parts of the fork will be hot and the tips of the forks are very sharp. Do not eat the food directly off the forks.
8. When you have finished cooking, turn the appliance off by sliding the temperature control to the MIN position. Unplug the fondue.
9. Leave the fondue to cool down completely before moving it and cleaning it.

b) Cooking guide

FONDUE	TEMPERATURE	THERMOSTAT POSITION
Chocolat	40°C	●
Cheese	60-70°C	♣♣
Chinese	80-85°C	♣♣♣
Beef	160-180°C	♣♣♣♣

Temperatures for each type of fondue are pre-programmed at each point of the wheel. So, if you want to prepare a cheese fondue, adjust the wheel on "●●" position.

4) CLEANING AND MAINTENANCE

Always unplug the appliance before cleaning it and allow the fondue to cool down.
- Never immerse the base into water or any other liquid for any reason whatsoever. Use a damp cloth to clean it.
- Clean the fondue pot, the lid and forks in soapy water. Rinse and dry them properly. Note that all these elements can be washed in the dishwasher.
If food has burned, soak the fondue pot in water before washing it.
If you had prepared a cheese fondue, soak the fondue pot in water all night.

5) WARRANTY AND CUSTOMER RELATIONS

a) Warranty

This product is covered by your retailer. For more details, please refer to the warranty conditions supplied.

Service calls

Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand.

When you call, mention your appliance's "Service" reference, as well as its serial number "Nr".

This information appears on the manufacturer's nameplate which can be found stuck behind the machine.

b) Customer relations

To find out more about all the brand's products you can visit our website: www.brandt.com

To communicate:

You may visit our website www.brandt.com and go to the "CONTACT" section
You may e-mail us: [e-mail]
You may write us at the following address:

Or phone us from Monday to Friday from 8:30 am to 6:00 pm :
