USER MANUAL NN-CD58J PANASONIC

Microwave Cookery Book

Black-and-white photo of a plate with sliced meat and garnish, served with a fork (no text or symbols visible)

Close-up of a layered dessert or pastry on a dark plate (no text or symbols visible)

Close-up of a textured, irregularly shaped object with a dark circular inset (no visible text or symbols)

For models

NNQ653

NNF663

NNQ623

NNF623

NNQ653

NNF653

For further information, please also refer to the operating instructions.

Inverter technology is the key

Inverter technology for microwave ovens has been developed by a Panasonic initiative over a period of more than 10 years. It is the key technology for making a very different type of microwave oven which has a number of special qualities:

• It makes possible the first oven in the industry which controls the amount of microwave energy linearly. This new distribution system allows cooking and defrosting food without losing its flavour.
• It provides efficient conversion of electrical energy to microwave energy, resulting in minimizing power requirements without sacrificing microwave output.
• It allows a dramatic enlargement of oven cavity size even in a compact oven body, due to the small size of the inverter circuit, which replaces the currently used bulky transformer.
• Finally, at the end of the product's useful life, not using bulky transformers made of iron makes the process of recycling discarded ovens environmentally friendly.

Contents

Cooking with Microwave Energy	.2
General Guidelines	.2-3
Quick Check Guide to Cooking Utensils	.4
Microwave Power Levels	.5
Grilling	.5
Combination Cooking	.5
Accessories to Use	.5
Reheating	.6
Reheating by Microwave	.6-7
Microwaving Cooking Tips	.8

Defrosting Guidelines	9
Defrosting Common Foods	10
Combination Cooking and Reheating Charts	11-13
Meat & Poultry	14-15
Fish	16
Vegetables	17
Eggs & Cheese	18
Rice, Pasta, Dried Vegetables & Jacket Potatoes	18
Common Queries Answered	19

The items in this book are guidelines only. The total time will vary depending on the starting temperature of the food and the container used.
Always check if the food is piping hot before consumption.

En-1

Cooking with Microwave Energy

Microwaves are a form of high frequency electromagnetic waves similar to those used in radios. Electricity is converted into microwave energy by a magnetron tube. The microwaves travel from a magnetron tube to the oven cavity where they are reflected, transmitted or absorbed.

Reflection

Microwaves are reflected by metal similar to the way a ball would bounce off a wall. Most metal cookware and utensils are not recommended for microwave cooking, since they would produce uneven cooking. Also, if a metal dish is placed close to the oven wall (which is also metal), arcing (bluish sparks) could occur. Arcing can damage an oven or cause a fire.

Transmission

Microwaves pass through some materials such as paper, glass and plastic much like sunlight shining through a window. Because these substances do not absorb or reflect the microwave energy, they are ideal materials for microwave cooking containers. However, they will get hot during cooking, because as food cooks, heat is conducted from the food to the dish.

Absorption

Microwaves are absorbed by food. They penetrate to a depth of about 2-4 cm. Microwave energy excites the molecules in the food (especially water, fat and sugar molecules), and causes them to vibrate very quickly. The vibration causes friction and heat is produced. In large foods, the heat which is produced is conducted to the centre to finish cooking the food.

General Guidelines

Close-up of hands holding a small bowl with liquid, no visible text or symbols

PIERCING

The skin or membrane on some foods will cause steam to build up during cooking. These foods must be pierced or a strip of skin

should be peeled off before cooking to allow the steam to escape. Eggs, potatoes, apples, sausages etc, will all need to be pierced before cooking. DO NOT ATTEMPT TO BOIL EGGS IN THEIR SHELLS.

Black-and-white photo of whole and sliced fruits, including a halved fruit and a rose (no text or symbols visible)

MOISTURE CONTENT

Many fresh foods e.g. vegetables and fruit, vary in moisture content throughout the season. Jacket potatoes are a

particular example of this. For this reason cooking times may have to be adjusted throughout the year. Dry ingredients e.g. rice, pasta, can dry out further during storage and cooking times may differ from ingredients freshly purchased.

10 Mimera Film 10 CLING FILM CLING FILM

CLING FILM

Cling film helps keep the food moist and the trapped steam assists in speeding up cooking times. However it should be pierced before

cooking, to allow excess steam to escape. Always take care when removing cling film from a dish as the build-up of steam will be very hot. Always purchase cling film that states on the packet “suitable for microwave cooking” and use as a covering only. Do not line dishes with cling film.

Dense foods e.g. meat, jacket potatoes and cakes, require a STANDING TIME (inside or outside of the oven) after cooking, to allow heat to finish conducting to cook the centre completely.

Black-and-white photo of a food item with a glass lid, a container of dark sauce, and two small containers (no visible text or symbols)

STANDING TIME

MEAT JOINTS -

Stand 8 - 10 mins. wrapped in tin foil.

JACKET POTATOES -

Stand 5 mins. wrapped in tin foil.

LIGHT CAKES - Stand 5 mins. before removing from dish.

RICH DENSE CAKES - Stand 15-20 mins.

FISH - Stand 2-5 mins.

EGG DISHES - Stand 2-3 mins.

PRECOOKED CONVENIENCE

FOODS - Stand for 5 mins.

PLATE MEALS - Stand for 2-5 mins.

VEGETABLES - Boiled potatoes benefit from standing for 1-2 mins., however most other types of vegetables can be served immediately.

DEFROSTING - It is essential to allow standing time to complete the process. This can vary from 5 mins. e.g. raspberries, to up to 1 hour for a joint of meat.

If food is not cooked after STANDING

TIME, return to oven and cook for additional time.

En-2

General Guidelines

Three white circular containers filled with granular material, placed on a textured surface (no text or symbols visible)

DISH SIZE

Follow the dish sizes given in the recipes, as these affect the cooking and reheating times. A quantity of food spread in a bigger dish cooks and reheats more quickly.

Four oval-shaped pastries arranged on a white surface, possibly eggs or baked goods (no text or symbols visible)

QUANTITY

Small quantities cook faster than large quantities, also small meals will reheat more quickly than large portions.

Black-and-white photo of a sliced bread roll and a whole potato (no text or symbols visible)

DENSITY

Porous airy foods heat more quickly than dense heavy foods.

Two whole potatoes on a plain background (no text or symbols)

SHAPE

Even shapes cook evenly. Food cooks better by microwave when in a round container rather than square.

Close-up of three heart-shaped food items on a plate (no text or symbols visible)

ARRANGING

Individual foods e.g. chicken portions or chops, should be placed on a dish so that the thicker parts are to the outside.

Petri dish containing multiple round, dark, textured food items arranged in a circular pattern (no visible text or symbols)

SPACING

Foods cook more quickly and evenly if spaced apart. NEVER pile foods on top of each other.

Three small food items on a white plate: one sliced with dark filling, one whole with dark filling, and one shaped like a dumpling (no text or symbols visible)

INGREDIENTS

Foods containing fat, sugar or salt heat up very quickly. The filling may be much hotter than the pastry. Take care when eating. Do not overheat even if the pastry does not appear to be very hot.

Scanned image of a food item label with handwritten Chinese characters and numerical data

STARTING TEMPERATURE

The colder the food, the longer it takes to heat up. Food from a fridge takes longer to reheat than food at room temperature.

Two glass bowls containing round, pill-shaped objects, possibly pills or capsules (no text or symbols visible)

COVERING

Cover foods with microwave cling film or a self-fitting lid. Cover fish, vegetables, casseroles, soups. Do not cover cakes, sauces, jacket potatoes, pastry items.

Black-and-white photo of a glass pitcher with a metal spoon inside, containing a white liquid (no text or symbols visible)

TURNING AND STIRRING

Some foods require stirring during cooking. Meat and poultry should be turned after half the cooking time.

Black-and-white photo of a mug filled with dark liquid and a spoon, no visible text or symbols

LIQUIDS

All liquids must be stirred before and during heating. Water especially must be stirred before and during heating, to avoid eruption. Do not heat liquids that have previously been boiled. DO NOT OVERHEAT.

Black-and-white photo of a microwave oven with a hand holding a cloth above it (no visible text or symbols)

CLEANING

As microwaves work on food particles, keep your oven clean at all times. Stubborn spots of food can be removed by using a branded oven cleaner, sprayed onto a soft cloth, always wipe the oven dry after cleaning. Avoid any plastic parts and door area.

Quick Check Guide to Cooking Utensils

Cookware	For Microwave	For Grill	For Combination
Heat resistant glass
Microwave-safe plastic cookware
Heat resistant china and ceramics	Do not use dishes with a metal rim or pattern; or jugs or mugs with glued handles.
Pottery, Earthenware, Stoneware
Foil/Metal containers
Wicker, Wood, Straw baskets
Cling film
Aluminium foil	Small amounts of aluminium foil can be used to SHIELD and prevent food from overheating when cooking or defrosting. Take care that the foil does not touch the sides or top of the oven.

En-4

Microwave Power Levels

Power Level	Use
Max. Power: 1000 Wmin *** 270 W (*)600 W440 W (NN-Q543/NN-Q523/NN-Q553)250 W	Reheating meals and sauces; Cooking fish, vegetables, sauces, and preservesDefrosting frozen foodsRoasting; Cooking egg sauces and sponge cakes; Heating milkCooking and reheating chicken casseroles and quichesCooking stews, casseroles, rice puddings, rich fruit cakes, and egg custards

Note: (*) CYCLIC DEFROST with automatic standing time (see page 9).

Grilling

DO NOT ATTEMPT TO PREHEAT THE GRILL.

The quartz Grill on your oven gives fast, even cooking for a wide variety of foods.

There is 1 Grill setting of 1300 W.

Place food to be grilled on the wire rack or in a shallow dish on wire rack. Place this on the turntable. For large weight foods, place the dish directly on the turntable.

The food being grilled should normally be turned over after half the grilling time.

Never cover foods when grilling.

There is NO MICROWAVE POWER ON THE GRILL ONLY PROGRAM.

Approximate Times for Grilling

	First side	Second side
Steak (4 pieces, well done)	approx. 10 mins.	approx. 10 mins.
Loin of pork (slices)	approx. 12 mins.	approx. 10 mins.
Porkchops	12-14 mins.	approx. 12 mins.
Kebabs	approx. 12 mins.	approx. 12 mins.
Sausages	6-7 mins.	approx. 6 mins.
Chicken legs	15-20 mins.	15-20 mins.
Toast	3-4 mins.	3 mins.

Combination Cooking

Combination cooking is ideal for many foods. The Microwave power cooks them quickly, while the Grill provides traditional browning and crisping; all of this happening simultaneously.

The following 3 combination modes are available:

NOTE:

• Never cover foods when cooking on a Combination program.
• For small quantities do not cook by Combination, cook by Grill or Microwave only for best results.
• Do not preheat the oven on Combination.

Combination mode	Display	Grill power	Microwave power	Uses
1	G1-600 W	1300 W	600 W	White meat, lamb, whole poultry, gratin dishes. Preheating of pizza pan.
2	G1-440 W	1300 W	440 W	Sausages, red meat, pieces of poultry, fish.
3	G1-250 W	1300 W	250 W	4/4 style cakes, quiches, pork chops, gratin dishes with eggs.

Accessories to Use

Microwave	Grill		Combination

Reheating

Many convenience foods are readily available in supermarkets. You may also wish to reheat homecooked food or leftovers. This can all be done safely in your oven, however you must check the food carefully to see if it is piping hot before serving, just as you would in a conventional oven. Chilled foods to be reheated must also be stored correctly.

How do I choose which method to reheat by?

The heat method i.e. Microwave only or Combination, depends on the type of food to be reheated. For foods that do not require browning, reheat by microwave only. For foods that do require browning, reheat by Combination.

How long do I reheat foods for?

There are reheating charts for Microwave and Combination: these charts give timings that are a guideline ONLY, as the exact time will depend on the weight of the food, size of the dish used and start temperature.

What should I do if the food I am reheating does not appear in the charts?

It is not possible to test every food available for the following charts, however we have selected a great variety of foods, and suggest that by following the guidelines given, you can reheat safely and successfully.

Stirring and Turning

Whenever possible, foods should be stirred or turned over during reheating. This helps ensure that the food reheats evenly on the outside and in the centre.

Standing Time

Many foods require a STANDING TIME after reheating. Standing time is a rest time which allows the heat in the food to continue to transfer to the centre, thus eliminating cold spots. If the food has been covered during the reheating time, then leave the covering on during the standing time. Stand time is particularly important for dense foods e.g. Lasagnes, Gratins, etc and those foods that cannot be stirred during reheating.

When is food reheated?

Reheated food should be served “piping hot” i.e. steam should be visibly emitted from all parts. As long as good hygiene practices have been followed during the preparation and storage of the food, then reheating by microwave or Combination present no added safety risks.

Foods that cannot be stirred should be cut with a knife to test that they are well heated through.

Even if manufacturer's instructions or the times in the reheating charts have been followed, it is still important to check that the food is piping hot. If in doubt, always return the food to your oven for further reheating.

Reheating by Microwave

Food	Weight/quantity	Fresh	Frozen
DELICATESSEN STARTERS
- croque monsieur	1 piece (170 g)	MAX 1 min	MAX 2 mins 30 secs to 3 mins
	2 pieces (320 g)	MAX 2 mins	MAX 5 mins
- shellfish (4)	1 piece (170 g)	MAX 2 mins	MAX 3 mins
	2 pieces (220 g)	-	MAX 6 to 7 mins
- unfilled pancake (2)	1 piece	MAX 30 secs	-
- stuffed pancake (2) (3)	1 piece (150 g)	-	MAX 3 to 4 mins
	2 pieces (300 g)	-	MAX 5 mins
- soup (2)	400 g	MAX 4 mins	-
	1 litre	MAX 6 to 7 mins	MAX 11 to 12 mins
- small pizza (1)	1 piece (160 g)	MAX 1 min	MAX 2 mins 30 secs to 3 mins
- American pizza	1 piece (400 g)	MAX 4 to 5 mins	MAX 7 to 8 mins
- small quiche (1)	1 piece (130 g)	600 W 1 min 10 secs	MAX 3 mins
- large quiche	1 piece (400 g)	600 W 3 mins	600 W 7 to 8 mins
- Nem, Samosa (3)	2 pieces (100 g)	MAX 15 to 20 secs	-
READY-COOKED DISHES
- stuffed tomatoes	1 piece (170 g)	MAX 2 mins	MAX 6 to 7 mins
- Chilli con Carne (2) (3)	400 g	MAX 3 mins 40 secs	-
- Chicken Korma with rice (2) (3)	350 g	-	MAX 6 mins
- Quenelles (2) (3)	6 pieces (240 g)	-	600 W 6 mins
- Snails (2) (3)	12 pieces (100 g)	440 W 2 mins	600 W 2 mins - 2 mins 30 secs
- Gratin dishes (starchy with meat) (4)	300 - 400 g	MAX 3 mins	MAX 8 to 10 mins
	600 g	MAX 6 to 8 mins	MAX 13 to 14 mins
	1 kg	MAX 10 to 11 mins	MAX 16 to 18 mins

Reheating by Microwave

Food	Weight/quantity	Fresh	Frozen
READY-COOKED DISHES (cont.)
- vegetable gratin (with/without meat) (4)	300 - 400 g	MAX 6 mins	MAX 11 to 13 mins
	1 kg	MAX 12 mins	MAX 18 mins + 600 W 6 mins
- fish gratin (4)	450 g	-	600 W 12 to 15 mins
	1 kg	-	MAX 18 mins + 250 W 5 mins
- fish in sauce (2) (3)	225 g	-	MAX 6 to 7 mins
FILLINGS
- starchy (2)	300 g	MAX 2 to 3 mins	MAX 4 to 5 mins
- vegetables (2)	100 g	MAX 1 min to 1 min 30 secs	-
	200 g	MAX 1 min 30 secs to 2 mins	-
- purée (2) (3) of potato of vegetables
	200 g	MAX 1 min 30 secs	MAX 4 mins 30 secs
	200 g	MAX 1 to 2 mins	MAX 5 mins
	400 g	MAX 3 mins 30 secs	MAX 8 mins
- spaghetti in sauce (2)	210 g	MAX 2 mins	-
	450 g	MAX 4 mins	-
- rice (2)	150 g	MAX 1 min	MAX 2 mins 30 secs
	300 g	MAX 2 mins 30 secs	MAX 4 mins 30 secs
MEAT AND FISH
- hamburger (raw) (2)	1 piece (150 g)	-	MAX 1 min 30 secs
- cocktail sausages (2) (3)	120 g	250 W 2 to 3 mins	-
- pieces of cooked meat minced steak (2)	100 g	600 W 40 to 50 secs	-
pork 2 pieces (2)	130 g	600 W 1 min 30 secs	-
lamb 2 pieces (2)	160 g	600 W 1 min	-
beef 2 pieces (2)	120 g	600 W 50 secs	-
chicken leg (2)	205 g	MAX 1 min 40 secs	-
chicken nuggets cordon bleu	10 pieces (200 g)	-	MAX 2 mins 30 secs
	1 piece (100 g)	-	MAX 2 mins
MISCELLANEOUS
- baby food (small pot at room temperature)	30 g	600 W 15 secs Test	-
	120 g	600 W 25 secs Test	-
	200 g	600 W 40 secs Test	-
- breakfast pastries (1)	2 x 50 g	-	MAX 30 to 40 secs or min ** 3 mins
- bread (1)
- sliced sandwich bread	800 g	-	min ** 8 mins
- slice	60 g	-	MAX 40 secs
- baguette	150 g	-	MAX 30 to 40 secs
- 1 wholemeal loaf	500 g	-	MAX 2 mins 30 secs + 12 hr stand
- rye bread roll	1 piece (85 g)	-	MAX 40 secs
	3 x 85 g	-	MAX 1 min 10 secs

(1) Remove packaging and wrap in absorbent paper. (2) Cover. (3) Stir halfway through cooking time. (4) Remove the aluminium tray and put the gratin in a heat-resistant microwaveable dish.

BABY BOTTLES and FOOD JARS - CAUTION

Milk or formula MUST be stirred or shaken thoroughly before heating and again at the end, and tested carefully before feeding a baby.

For 210-240 ml of milk at fridge temperature, remove top and teat. Heat on 1000 W for 25-30 secs. CHECK CAREFULLY.

For 90 ml of milk at fridge temperature, remove top and teat. Heat on 1000 W for 10-15 secs. CHECK CAREFULLY.

N.B. Liquid at the top of the bottle will be much hotter than at the bottom of the bottle and must be shaken thoroughly before checking the temperature.

Microwave Cooking Tips

To soften butter for easy spreading on removal from the fridge

Soften for 35-40 seconds on min ** (for 150g). Remove any foil beforehand.

Swelling dried fruit

Add 4 tablespoons of water to 200 g of raisins or prunes, (they can be swollen with rum for cakes). Stir and heat on 1000 W for 2 to 3 minutes. Allow to stand for 10 minutes.

Restoring cheese to room temperature

Cheese removed from the refrigerator must be placed in the oven and "warmed" for 30 seconds -1 minute (depending on the size of the cheese) at 250 W.

Blanching almonds or hazelnuts

Cover with hot water and cook for 3-6 minutes on 1000 W (return to boil). Cool, drain and the skin is then easy to remove.

Drying herbs

Place absorbent paper on the turntable. Carefully spread out the finely chopped, fresh herbs on the paper. Repeat several times if necessary. Heat on 1000 W for a few minutes, checking them every 30 seconds until the herbs begin to dry. Extreme care must be taken to ensure that the herbs do not remain in the oven too long; otherwise, they will disintegrate, and possibly catch fire. Leave the herbs on the absorbent paper for a further 2 hours at room temperature, then store in air-tight containers.

Making caramel

Cook 100 g of sugar with 2 tablespoons of water in a bowl for 2-3 minutes on 1000 W, checking halfway-through cooking time. Remove caramel before it becomes darkened since it will continue to cook outside. You can stop the cooking with 2 tablespoons of very hot water (beware of sharp edges).

Liquifying hardened honey

Remove the lid to the pot, place in oven and heat on 250 W for 30-50 seconds, depending on the quantity. Stir and repeat if necessary.

Croutons in minutes

Cut two slices of white bread into small cubes. Spread out these cubes on a plate. Heat on 1000 W for 2 minutes then allow to stand for 5 minutes. You can rub a clove of garlic on the slices of bread before cutting them or drizzle with a few drops of olive oil.

How to obtain more juice from an orange or a lemon

Before squeezing, place orange or lemon in microwave for 30-40 seconds on 1000 W, then squeeze immediately; this will produce more juice.

Melting butter

100g of butter in a ramekin dish covered with a saucer will melt in around 1 minute at 600 W.

Melting chocolate

Break 100 g chocolate into little pieces into a bowl and heat at 600 W for 2-2 ^1/2 minutes (the time may vary depending on the cocoa and sugar content). Stir at least once during cooking.

Leaving dough to prove

Place the covered dough in the oven and heat for around 5 minutes on min ** (for 500 g of dough). Leave the dough in the oven (away from air currents) until it has doubled in volume.

Making mulled wine

In an ovenproof glass (or mug), mix together 20 CL of red wine, the zest of a lemon, a pinch of cinnamon, one clove and 2-4 teaspoons of sugar according to taste. Heat on 1000 W for 1-1 ^1/2 minutes.

"Deodorise" your oven

To rid your oven of that "fishy" smell, place a bowl of white wine vinegar or water with the juice of a lemon inside the oven. Heat on 1000 W for 5 minutes. Wipe off the steam that collects on the oven walls.

Preparing a hot compress

Heat a clean, damp, folded cloth on a plate for 1-2 minutes on 1000 W. Check temperature before applying the cloth.

Defrosting Guidelines

The biggest problem when defrosting food in a microwave is to get the inside defrosted before the outside starts to cook.

For this reason Panasonic have made the defrosting on your oven CYCLIC DEFROST, just select the 270 watts DEFROST ^min ^** pad and set the required time. The oven then divides this time into 8 stages. These stages alternate between defrosting (total of 4) and standing (total of 4).

During the standing stages there is no microwave power in the oven, although the light will remain on and the turnatable will turn. The automatic stand times ensure a more even defrost and for small items the usual stand time can be eliminated.

Tips for Defrosting

Check the defrosting several times, even if you use the automatic buttons. Observe the standing times.

STANDING TIMES

Close-up of a rectangular food item on a glass plate (no visible text or symbols)

Individual portions of food may be cooked almost immediately after defrosting (5 minutes standing time for steaks, 15 minutes for fruit and pastry). It is normal for large portions of food to be frozen in the centre. Before cooking, allow

to stand for a minimum of one hour. During this standing time, the temperature becomes evenly distributed and the food is defrosted by conduction. NB If the food is not going to be cooked immediately, store it in the refrigerator. Never refreeze defrosted food without first cooking it.

JOINTS AND POULTRY

Black-and-white photo of a glass container containing three food items, possibly bread or snacks, with no visible text or symbols.

It is preferable to place the joints on an upturned plate or plastic rack so that they are not resting in the juices. It is essential to protect delicate or projecting parts of this food with

small pieces of foil to prevent these parts from cooking. It is not dangerous to use small pieces of foil in your oven, provided they do not come into contact with the oven walls.

MINCED MEAT OR CUBES OF MEAT AND SEAFOOD

Close-up of hands using a fork to cut dough on a fluted plate (no text or symbols visible)

Since the outside of these foods quickly defrosts, it is necessary to separate them, break the blocks into pieces frequently while defrosting and remove them when they have defrosted.

SMALL PORTIONS OF FOOD

Close-up of a glass bowl containing several food items, possibly meat or vegetables, with no visible text or symbols.

Chops and chicken pieces must be separated as soon as possible so that they defrost evenly throughout. Fatty parts and the ends defrost more quickly. Place them near the centre of the turntable or protect them.

Auto Weight Defrost

This feature allows you to enter the weight in grams and the oven will select the correct defrosting time for the foods described. Do not use for porous foods e.g. bread, cakes and convenience foods etc.

See Operating Instructions for selection of the grams. During the defrosting process, the oven will beep to remind you to check the food i.e. turn, shield or break the food apart, as shown above.

There are two categories for Auto Weight Defrost:

	Recommended Weight (Min.- Max.)
1. Small pieces e.g. Fish/Chops, Sausages, Chicken Portions	100 - 1200 g
2. Big pieces e.g. Meat Joints, Whole Chicken	400 - 2000 g

Defrosting Common Foods

Select Defrost Power ^min ^** ^*** 270 W then the approximate time given below.

The times given below are guidelines only. Always check the progress of the food by opening the oven door and then re-starting. For larger quantities adjust times accordingly. It is not essential to cover food during defrosting.

Food	Weight/quantity	Time in minutes	Standing times (minimum)
MEAT
- joints with bone#	500 g	18 - 20	60
- roast filleted#	500 g	20 - 22	70
- chops#	500 g	8 - 12	15
- cutlets#	250 g	6 - 7	10
- kidneys*	250 g	7 - 8	10
- lean beef*	430 g (2)	11 - 12	10
- entrecôte*	150 g	4 - 6	10
- minced beef, sausage meat, pork mince*	500 g	10 - 12	10
- hamburger*	200 g (2)	6 - 7	10
	400 g (4)	10 - 12	10
- meat for stewing/braising*	500 g	12 - 14	15
- whole poultry#	500 g	12 - 13	60
- poultry pieces#	1 kg (4)	22 - 24	30
- poussin#	400 g	15	30
- rabbit#	500 g	14 - 15	30
- pork sausages*	300 g (2)	10 - 11	15
BUTTER	250 g	2	10
FRUIT COULIS	200 g	3 - 4	10
CHEESE*	450 g	3	10
RED FRUIT*	200 g	5 - 6	10
	300 g	9	10
	500 g	12	10
CAKES AND PUDDINGS
- Victoria Sandwich Cake	400 g (1)	7	10
- Black Forest	550 g (1)	4 - 5	15
- Bavarois	110 g (1 portion)	8 seconds	15
- raspberry tart	470 g (1)	10	15
CONCENTRATED FRUIT JUICE	200 ml	4	4
PASTRY
- sweet flan or shortcrust*	370 g (block)	4 - 5	5
- puff*	300 g (block)	3 - 4	5
FISH
- whole#	400 g (2)	10 - 12	15
- fillets#	500 g (4)	13 - 14	15
- fish steak with bone*	380 g (2)	10	15
- thick steaks without bone*	200 g (2) (4)	9	15
- shrimps/prawns*	200 g	7	10

NOTES

turn this food halfway through defrosting and protect ends and projecting parts with foil.

* stir, turn or separate several times during defrosting.

Combination Cooking and Reheating Charts (NN-F663/NN-F623/NN-F653)

Food	Weight/quantity	Time required - fresh	Time required - frozen
ENTREES
- croque monsieur (2) (3)	1 piece (100 g)	1 min 30 secs Combi 1 + 3 mins grill	3 mins Combi 1
	2 pieces (300 g)	5 mins Combi 2	3 mins 30 Combi 1
	1 piece (150 g)	3 to 4 mins Combi 1 + 1 min grill	3 to 4 mins Combi 2
- shellfish (1)(remove croissant halfway through)	1 piece (100 g)	-	5 mins Combi 2
	1 piece (170 g)	2 mins 30 secs Combi 1 + 2 mins grill	5 to 7 mins Combi 2
	2 pieces (2 x150 g)	4 to 5 mins Combi 1	7 mins 30 secs Combi 1
- cheese croissant, gnocchi (1)	1 piece (160 g)	3 to 4 mins Combi 1	3 mins 30 secs Combi 2
	2 pieces (300 g)	4 to 5 mins Combi 1	-
- roulé au fromage (1) (3)	1 piece (130 g)	3 mins Combi 1	3 mins Combi 2
- large sausage roll (2) (3)	1 piece (130 g)	1 min 40 secs Combi 3	3 mins Combi 1
- stuffed pancakes (1) (3)	1 piece (150 g)	-	4 mins 30 secs Combi 1
	1 piece (190 g)	3 mins Combi 1	-
	2 pieces (2 x 130 g)	3 mins 30 secs to 4 mins Combi 2	7 mins Combi 1
- mini-quiches (1)	12 pieces (180 g)	MAX 50 secs + 2 mins grill	MAX 2 mins + 3 mins grill
- American pizza (2)smallbig
	1 piece (200 g)	2 mins Combi 3 + 2 mins grill	MAX 3 mins + 3 mins grill
	1 piece (450 g)	-	5 to 6 mins Combi 1
	1 piece (750 g)	-	8 mins Combi 1 + 2 min grill
- pizza (2)smallbig
	1 piece (200 g)	4 mins Combi 2	MAX 2 mins 10 secs + 3 to 4 mins grill
	1 piece (300 g)	3 mins Combi 1 + 1 min 30 secs grill	-
	1 piece (400 g)	3 mins 30 secs Combi 1 + 1 min 30 secs grill	Autopizza***
	1 piece (600 g)	5 mins Combi 1 + 1 min 30 secs grill	Autopizza***
thin crustcalzone (3)	1 piece (500 g)	4 mins Combi 1 + 1 min 30 secs grill	-
	1 piece (420 g)	3 mins Combi 1 + 2 mins grill	-
- small quiche (2)	1 piece (130 g)	2 mins Combi 3	-
	1 piece (200 g)	4 mins Combi 2	-
	2 pieces (300 g)	4 mins Combi 3	Autoquiche***
- large quiche	1 piece (400 g)	3 mins 30 secs Combi 1	-
	1 piece (500 g)	4 mins 30 secs Combi 1 + 1 min 30 secs grill	Autoquiche***
	1 piece (600 g)	5 mins Combi 1	Autoquiche***
- double crust pastry pie with cheese,- ham or bacon filling (2) (3)	1 piece (300 g)	4 to 5 mins Combi 1	-
	1 piece (500 g)	6 to 7 mins Combi 1	-
- double crust mushroom pie	1 piece (450 g)	8 mins Combi 1	-
COOKED DISHES
- Lasagne Bolognaise (1)	130 g	2 mins Combi 1 + 3 mins grill	-
	300 g	6 to 8 mins Combi 2	AutoGratin***
	1 kg	Combi 1 10 to 12 mins	AutoGratin***
- fish gratin (1)	450 g	-	AutoGratin***
	800 g	-	AutoGratin***
- vegetable gratin (1)	450 g	5 - 7 mins Combi 1	AutoGratin***
	1 kg	12 - 14 mins Combi 1	AutoGratin***
SIDE DISHES
- Dauphine potato (1) (3)	200 g	-	4 mins 30 secs Combi 1
- noisettes potato (1) (3)	350 g	-	4 mins Combi 1 + 3 mins grill
- Duchesse potato (1)	500 g	-	7 mins Combi 1 + 7 mins grill
- oven chips (1) (3)	400 g	-	8 to 10 mins Combi 1
MEAT AND FISH
- Confit of duck (1) (3)	2 pieces (400 g)	4 mins Combi 1 + 3 mins grill	-
- Cordon bleu (1) (3)	1 piece (120 g)	4 mins Combi 1	3 mins 30 secs Combi 1
- Chicken nuggets (1) (3)	10 pieces (200 g)	3 mins Combi 1 + 2 mins grill	6 mins Combi 2
MISCELLANEOUS
- ready-cooked double crust almond pie (2) (3)	1 piece (400 g)	3 mins to 3 min 30 secs Combi 3	4 to 5 mins Combi 2
- apricot crumble (1)	1 piece (300 g)	-	5 to 6 mins Combi 1
- croissants & other types of sweet rolls (2) (3)	1 piece (60 g)	Grill 2 mins	MAX 12 secs + 2 mins grill (or Auto)

(1) Put in a heat-resistant microwaveable dish (or a piece of greaseproof paper) on the wire rack. (2) Remove packaging and place directly on the wire rack. (3) Turn or stir halfway through cooking time.

Cooking Chart For Your Pizza Pan (NN-F663/NN-F623)
Unless otherwise indicated, the pizza pan is always preheated for 4 minutes on Combination N°1.

Food	Weight/quantity	Fresh	Frozen
- appetisers - tartlets	12 pieces (160 g)	-	2 mins 30 secs Combi 1
- appetisers - vol-au-vents (for cooking)	15 pieces (210 g)	-	7 mins 30 secs Combi 2**
- choux pastry	20 pieces (150 g)	-	1 min 30 secs Combi 1**
- crique lardons-fromage	1 x 170 g	4 mins Combi 2	3 mins Combi 1 + 2 mins grill
- tarte alsacienne	1 x 120 g	4 mins Combi 3	3 mins 30 secs Combi 1
PIZZA
- standard crust	2 x 140 g	4 mins 30 secs Combi 2	-
	200 g	-	3 mins Combi 1
	300 g	6 mins Combi 1	7 mins Combi 1
	500 g	5 mins Combi 3	6 mins Combi 1
	200 g	4 mins Combi 3	3 mins Combi 1
	250 g	2 mins Combi 1 + 2 mins grill**	3 mins Combi 1
- thin crust	500 g	-	6 mins Combi 1
	500 g	-	10 mins 30 secs Combi 1
- American style
- McCain rise and up
QUICHES & PIES
- quiche lorraine	1 x 100 g	-	2 mins 30 secs to 3 mins Combi 1
	2 x 150 g	3 mins Combi 2	-
	150 g	-	2 mins 30 secs to 3 mins Combi 1
	400 g	-	5 to 6 mins Combi 1
	2 x 120 g	-	5 mins Combi 1
	400 g	-	6 mins 30 secs Combi 1**
- Savoie pie	450 g	4 mins 30 secs to 5 mins Combi 1**	10 min Combi 1* + **
- double crust mushroom pie	450 g	6 to 7 mins Combi 1**	-
- seafood quiche	350 g	4 mins Combi 2**	-
- quiche with onion and anchovy filling	1 x 150 g	-	2 mins 40 secs Combi 1
- stuffed crepes	4 pieces (200 g)	-	3 mins Combi 1
	2 pieces (100 g)	-	1 min 40 secs Combi 1*
- stuffed pancakes	2 pieces (140 g)	3 mins Combi 2	5 mins Combi 1
- roulé au fromage, large sausage roll	130 g	2 mins Combi 3	2 mins 20 secs to 3 mins (roulé) Combi 3
	2 x 130 g	2 mins 30 secs Combi 1	3 mins Combi 1**
- chicken vol-au-vents	1 piece (150 g)	2 mins 20 secs Combi 1	4 mins Combi 1 (remove the lid)
	2 x 150 g	3 mins Combi 1	6 mins 30 secs to 7 mins Combi 1 (remove the lid)
- gnocchis	2 x 130 g	-	6 mins Combi 1
- croque-monsieur	1 x 100 g	3 mins Combi 3*	-
	2 x 100 g	4 mins Combi 3 + 1 min grill	-
	1 x 160 g	3 mins 30 secs to 4 mins Combi 3	3 mins Combi 1
	2 x 160 g	5 to 6 mins Combi 3	5 mins Combi 1
- croque-bacon/tomato	1 x 140 g	2 mins 30 secs Combi 2	3 mins 30 secs Combi 1
POTATOES
- oven chips	200 g	-	5 mins Combi 1 + 3 to 5 mins grill*
	400 g	-	6 mins Combi 1 + 5 to 7 mins grill*
- potato wedges	300 g	-	4 mins Combi 1 + 5 mins grill*
- Duchesse potato	400 g	-	9 mins Combi 1 + 4 mins grill
- Dauphine potato	200 g	-	4 to 5 mins Combi 1*
- roast potatoes	9 pieces (600 g)	-	10 mins Combi 1*
- noisettes potato	450 g	-	8 mins Combi 1 + 3 mins grill*
- pieces/quarters (raw)	500 g to 1 kg	15 to 20 min Combi 1*	-
SAUSAGES	2 pieces (120 g)	2 mins Combi 1*	3 mins 30 secs Combi 1*
	3 pieces (180 g)	3 mins Combi 1*	4 mins Combi 1*
- Toulouse sausage	1 piece (150 g)	3 mins 30 secs to 4 mins Combi 2*	4 mins 30 secs Combi 1*
- pork sausages*	1 piece (150 g)	5 mins Combi 2*	7 mins Combi 1*

(*) Turn or stir halfway through cooking. (**) Allow to stand for 5 minutes after heating.

Cooking Chart For Your Pizza Pan (NN-F663/NN-F623)
Unless otherwise indicated, the pizza pan is always preheated for 4 minutes on Combination N°1.

Food	Weight/quantity	Fresh	Frozen
- pork chop*	180 g	3 to 4 mins Combi 2*	6 mins Combi 1*
- duck fillet*	1 piece (350 g)	4 mins Combi 3 + 5 mins grill*	-
- chicken legs	2 pieces (670 g)	10 mins Combi 1 + 4 mins grill*	18 mins Combi 1 + 4 mins grill*
- hamburgers*standard
	1 piece (100 g)	1 min 50 secs to 2 mins Combi 3*	3 mins 30 secs to 4 mins Combi 3*
	1 piece (140 g)	2 mins 30 secs to 3 mins Combi 3*	-
	2 pieces (200 g)	-	4 mins 20 secs Combi 3*
	4 pieces (400 g)	-	3 mins 30 secs to 4 mins Combi 3
- breaded fish*	2 pieces (200 g)	3 mins 40 secs Combi 2*	5 mins Combi 1*
- fish sticks	5 pieces (150 g)	-	4 mins Combi 1*
	10 pieces (300 g)	-	5 mins Combi 1*
- cordon bleu	1 piece (100 g)	3 mins 30 secs Combi 3*	3 mins Combi 1*
	2 pieces (200 g)	3 mins 30 secs Combi 2*	5 mins Combi 1*
- chicken nuggets	10 pieces (200 g)	4 mins Combi 2*	4 mins Combi 1*
	5 pieces (100 g)	3 mins Combi 2*	3 mins Combi 1*
- omelette	4 beaten eggs	1 to 2 mins Combi 1*	-
	8 beaten eggs	2 mins to 2 mins 30 secs Combi 1*	-
- apple strudel (pre-cooked)*	300 g	-	4 mins 30 secs to 5 mins Combi 1* and **
- double crust almond pie (pre-cooked)	400 g	-	2 mins 30 secs Combi 1**
- apple fritters (pre-cooked)	7 pieces (220 g)	-	6 mins Combi 3*
- waffles (pre-cooked)	1 piece (70 g)	-	2 mins 30 secs Combi 3*
- croustade aux pommes (pre-cooked)	400 g	-	5 mins Combi 1**
- kouing aman aux pommes (pre-cooked)	550 g	-	3 mins Combi 1**
- Tarte Tatin	1 piece (600 g)	-	7 mins Combi 1** /stand apple side down
	1 piece (150 g)	-	2 mins Combi 2** /stand apple side down
- nut brownies (pre-cooked)	2 pieces (150 g)	-	1 min 30 secs Combi 3 * and **

(*) Turn or stir halfway through cooking.

(**) Allow to stand for 5 minutes after heating.

Black-and-white photo of a pan containing a cooked dish with shrimp, mushrooms, and olives (no text or symbols visible)

En-13

Meat & Poultry

Guidelines

DEFROSTED JOINTS

If the meat has previously been frozen, ensure it is properly thawed before cooking by microwave. Defrosted joints of meat must be allowed to STAND for a minimum of 1 hour before cooking to ensure the centre is fully defrosted.

FAT

Large amounts of fat absorb microwave energy and can cause the meat next to it to overcook. Always choose joints that aren't excessively fatty.

Cooking with microwave only

Close-up of a transparent dome-shaped container with internal geometric patterns, placed on a textured surface (no text or symbols visible)

Place joints on an upturned plate in a microwaveable dish and on the turntable. It is important that the joint should not soak in its juice. The upturned plate is not needed for pieces of meat or poultry if fricasseed or cooked

with an accompaniment.

It is advisable to cover the meat with a lid or cling-film to speed up cooking and prevent splashes.

STANDING TIME

Meat and poultry require a minimum of 15 mins. STANDING TIME wrapped in tin foil after cooking by microwave. Roast meat is always easier to carve after STANDING and the meat will continue to cook during the STAND TIME.

BONE

Bone tips on legs of lamb and crown roasts may need shielding when cooked by microwave, to prevent overcooking.

How to cook small cuts of meat by microwave

Some cuts of meat can be cooked by microwave although due to their short cooking times and no heat source, they will not crisp and brown.

They should always be cooked on a microwave rack to lift them out of their juices.

Arrange drumsticks so the fleshiest part is towards the outside.

TURNING

Joints and poultry should be turned over halfway through cooking.

SHIELDING

Large joints may need shielding with pieces of smooth aluminium foil after half the cooking time to avoid overcooking on the outside edges. Turkeys and large chickens should have their breast meat, legs and wings protected. Secure foil with toothpicks and do not allow foil to touch the walls of the oven.

How to roast a joint by Combination

Plate of cooked chicken on a white dish, no text or symbols visible

Place the joint on an upturned saucer on heatproof dish. Joints are best cooked by microwave only then browned and crisped by a final Combination stage. DO NOT cover.

Tips for stews and ragouts

BEFORE: the accompanying vegetables must be cut into regular pieces and pre-cooked, otherwise they may stay crunchy when cooking is completed. Lightly cover the pieces of meat with flour, to ensure the sauce cooks properly.

DURING cooking, it is essential to keep the pieces of meat covered by the liquid using an upturned saucer or plate (to prevent the meat from drying out). Since cooking stews takes a long time and sometimes there is a lot of evaporation, do not hesitate to add liquid while cooking if necessary. Cover the vessel with a lid to restrict evaporation. Bring to the boil on 1000 W for 10 to 12 mins. then continue cooking for the desired length of time at 250 W.

Cooking small cuts of meat by Grill or Combination

Two petri dishes with food items, one showing dark sauce and the other with chicken (no text or symbols visible)

Place food on the wire rack. Place the wire rack on the turntable. Use a heatproof dish to catch grease/drips.

Black-and-white photo of several raw chicken pieces in a glass basket (no text or symbols visible)

For larger pieces or pieces of meat that will not fit without touching the roof or catching on the grill, place in a heatproof dish on turntable. The grilling action will still brown the food, but may take slightly longer.

En-14

Meat & Poultry
For 500 g (time in minutes)

Type of meat	Microwave only***	Cooking time in minutes	Combination or grill	Cooking time in minutes
BEEF
- rib*			Grill	25 -30**
- roast*	600 W	5	Combi 3	7 - 8
- stew	MAX then 250 W	10 then 60 - 75**	-	-
LAMB
- roast on the bone*	600 W	6 - 7	Combi 1	7 - 8
- rolled shoulder*	600 W	8	Combi 1	8 - 9
- stew*	MAX then 250 W	10 then 40 - 50**	-	-
VEAL
- roast shoulder*	600 W	14 - 15	Combi 1	10 - 11
- stew	MAX then 250 W	10 then 50 - 60 **	-	-
PORK
- roast fillet*	600 W	15 - 17***	Combi 1	11 - 12
- roast spare rib*	600 W	15 - 17***	Combi 1	12 - 13
- stew	MAX then 250 W	10 then 50 - 60**	-	-
- ribs*	-	-	Grill	20
CHICKEN - GUINEA FOWL - TURKEY
- roast whole	-	-	Combi 1	8 - 9
- pieces*	600 W	7 - 8	Combi 2or Grill	12 - 1425**
- turkey drumstick*	-	-	Combi 1	8 - 9
- turkey pieces	600 W	12	Combi 1	10 - 11
DUCK
- roast whole	-	-	Combi 1 then grill	9 - 10 then 4**
- pieces*	-	-	Combi 1 then grill	7 - 8 then 6**
- stew	MAX then 250 W	10 then 70**	-	-
RABBIT	MAX	7 - 8	-	-
GAME
- roast*	MAX	5 - 6***	Combi 3	9 - 11
- stew	MAX then 250 W	10 then 70**	-	-
CHIPOLATAS, MERGUEZ*	MAX	3 - 4	Grill	12 - 14**
PORK SAUSAGE (1 pce)*	-	-	Combi 2	8**
Toulouse Sausage (2 pces)*	-	-	Combi 2or Grill	1015**

Note: For boned or stuffed meat, increase cooking time by at least 5 mins. (depending on weight).
* dish placed on the wire rack for grill or combination cooking, if the thickness of the meat allows; otherwise, on the turntable.
** Regardless of the weight.
*** with microwave-only cooking, the cooking times of joints (pork, veal, lamb, beef) apply to joints that have previously been browned on all sides in a pan (for a few minutes).

En-15

Fish

Fish cooks very well by microwave as it stays moist and the lingering fish smells left in conventional ovens are avoided.

White oval-shaped food item with four cylindrical pastries, possibly steamed buns or rice cakes (no text or symbols visible)

ARRANGING

Thin fillets of fish i.e. plaice, should be rolled up prior to cooking to avoid overcooking on the thinner outside edge and tail.

Close-up of hands holding a fish inside a bowl (no visible text or symbols)

COVERING

Always cover fish with either microwave cling film or use a dish with a self-fitting lid.

Close-up of a cooked fish inside a white oval bowl (no text or symbols visible)

WHOLE FISH

If cooking 2 whole fish together, they should be arranged head to tail for even cooking. Large whole fish must have the tail and head shielded halfway through cooking with smooth pieces of tin foil secured with toothpicks.

SALT

DO NOT sprinkle salt onto fish before cooking as this may make the fish dry.

Top-down view of a circular container with a lid and a side panel, containing a white substance (no visible text or symbols)

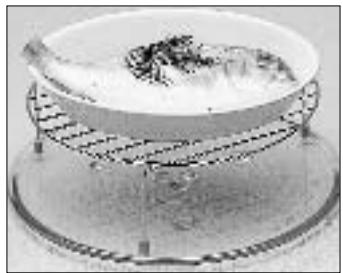

COOKING FISH BY GRILL OR COMBINATION

Brush fish with melted butter or oil to keep fish moist. Place on wire rack. DO NOT add salt, however sprinkle with pepper or herbs if required.

WHEN IS FISH COOKED?

Fish is cooked when it flakes easily and becomes opaque.

Plate of food with garnish, possibly a dessert or dish, on a textured surface (no visible text or symbols)

LIQUID

Fresh fish should always be sprinkled with 30 ml (2 tbsp) of lemon juice or white wine. When cooking Frozen fish, add liquid as above for even cooking.

Big fish (more than 400 g)

You are recommended to turn them over halfway through cooking time and to protect the head and tail with a small piece of aluminium foil to avoid overcooking. (Attention: the aluminium must not touch the walls of the oven).

Three food items arranged on a decorative plate (no visible text or symbols)

FISH STEAKS

Fish steaks should be arranged in a circle - thicker part to the outside - to avoid overcooking and disintegration of the tail ends.

Stand time

Fish should STAND after cooking for 2-3 mins. This can be outside the oven to enable the oven to be used for further cooking.

Fish en papillote

You can make papillotes of fish by replacing the aluminium foil by microwaveable greaseproof paper (or parchment paper).

Cooking Time for 500g in minutes

Food	FRESH		FROZEN
	Power	Time	Power	Time
Fish in thin fillets	600 W	4 - 5	MAX	10
Fish in thick fillets	600 W	5 - 6	MAX	11 - 12
Fish steaks	600 W	5 - 7	MAX	11 - 13
Whole fish	600 W	5	MAX	12
Shrimp*	600 W	4 - 5
Mussels*	600 W	5 - 6
Scallops*	600 W	6 - 7
Squid*	600 W	5 - 6	MAX	11
Crab*	600 W	5 - 6
Fish croquettes (1 piece=50 g)*			MAX	3 min 30(2 pieces)or 5 min(4 pieces)

*We do not recommend cooking with the Auto menu for these fish.

Vegetables

ADDED WATER

Very water-rich vegetables such as tomatoes, courgettes, aubergines, frozen vegetables for ratatouille, mushrooms, spinach, endives, lettuce, onions, most fruits, etc., to which little or no water should be added, since microwave cooking uses the water contained in the foods naturally.

Fairly water-rich vegetables, to which 4 to 5 tablespoons of water should be added for 500g, to create the steam which cooks the vegetables and prevents dehydration: cauliflower, leeks, broccoli, Brussels sprouts, fennel, carrots, celeriac, asparagus, dwarf beans, potatoes, cabbages, turnips, artichokes, etc.

Vegetables containing relatively little water, to which 8 to 10 tablespoons of water should be added per 500 g to encourage hydration: peas, broad beans, runner beans, French beans.

In all cases: vegetables must be cooked on 1000 W power (except for whole cauliflowers) and must not be salted before cooking, but after. This is because the salt absorbs the natural moisture of the vegetable and encourages dehydration.

Fresh/Frozen Vegetables Manual Cooking Charts - Use Max Power (1000 W) For 500g (time in minutes)

VEGETABLES	FRESH	FROZEN		VEGETABLES	FRESH	FROZEN
Artichokes:				Broad beans*	16 - 19	18 - 20
- whole	11 - 12	-		Fennel:
- hearts	10 - 12	13 - 16		- whole cut in half	12 - 14	-
Asparagus*	10 - 12	14 - 15		- thin cut	17 - 20	-
Aubergines	9 - 11	-		Green beans*	12 - 13	12 - 13
Beetroot*	18 - 20	-		Dwarf beans	10 - 13	-
Chinese Leaves	8 - 10	14 - 15		Mixed spring vegetables*	-	15 - 16
Broccoli	8 - 10	13 - 15		Corn on cob (2 cobs)*	12 - 14	14 - 17
Mushrooms	9 - 10	13 - 15		Turnips	10 - 12	18 - 20
Carrots:				Onions	9 - 12	15 - 18
- round slices	10 - 12	13 - 15		Peas*	20	16 - 18
- strips	12 - 14	-		Mange-tout peas	10 - 12	-
Cabbage*	12 - 14	-		Thin sliced leeks	12 - 14	15 - 16
Cauliflower	10 - 12	13 - 15		Leek stalks	12 - 14	15 - 16
Brussels sprouts	10 - 12	13 - 15		Squash	10 - 12	-
Boule celery	9 - 11	-		Capsicums	12 - 14	14 - 16
Celery*	15 - 17	-		Whole potatoes (<220 g)	9 - 12	-
Courgettes	8 - 10	13 - 15		Cut potatoes	10 - 12	-
Endives	12 - 14	18 - 20		Ratatouille	16 - 18	14 - 16
Spinach:				Salsify	12 - 14	14 - 16
- chopped	-	12		Tomatoes*	4 - 5	-
- leaves	9 - 10	13

Close-up of a glass bowl containing a textured, flower-like food item with a central garnish (no visible text or symbols)

*We do not recommend cooking with the Auto menu for these vegetables.

A whole cauliflower must be cooked head down, on 600 W power, for 12 to 15 mins. (according to size of cauliflower) with 6 tablespoons of water.

Eggs & Cheese

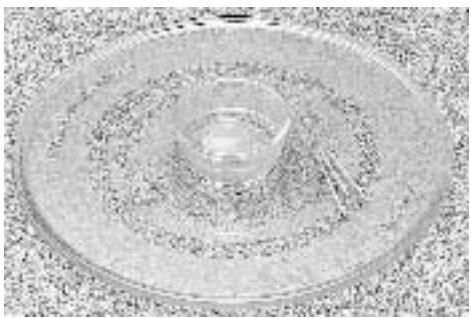

Circular object with concentric rings and central hole, possibly a mechanical or architectural component (no visible text or symbols)

Eggs are delicate products which require special attention. This is because if they are placed straight into the oven, they explode because of the pressure created inside the shell. Being broken, the yolk also explodes if

the film covering it is not pierced. So push the tip of a toothpick into the centre of the yolk; if the egg is fresh, it will not spill out. The yolk and the white react differently to the microwaves and unfortunately the yolk cooks more quickly. When eggs are beaten (omelette), the edges should be taken into the centre halfway through cooking time.

Poached eggs

Heat 50 ml of water with salt and a dash of vinegar for 1 min on 1000 W. Break the egg into the boiling water and carefully pierce the yolk and the white with a toothpick; cook on 600 W for 30 to 40

seconds (depending on the size of the egg). Leave to stand for 1 minute, then drain and serve.

Scrambled eggs

Mix 2 raw eggs in a bowl with a little cream or milk, a knob of butter, salt and pepper. Cook for 40 seconds on 1000 W. Remove and beat briskly with a fork. Resume cooking on 1000 W for a further 30 to 40 seconds. The eggs should remain creamy.

Oeufs cocotte

Break the egg into a buttered ramekin, season with salt and pepper, pierce the yolk and the white with a toothpick. Add the desired ingredients (cream, mushrooms, lumpfish roe, etc.). Cook for 1 min 30 sec to 2 min per egg at 250 W, depending on the size of the egg and the quantity of garnish.

Cheeses react differently depending what type they are: the fattier they are the quicker they melt. If they are cooked for too long a time, they harden. When possible, it is preferable to add grated cheese at the last moment (for pasta, gratins, etc.).

Rice, Pasta, Dried Vegetables & Jacket Potatoes

The cooking times for dried vegetables in the microwave are much the same as with traditional cooking. On the other hand, these foodstuffs heat up very quickly, without taking on a reheated flavour, so long as they are in a closed vessel, with butter or sauce mixed in.

For the cooking, use a big vessel (to avoid any overspill). Fully cover with water or stock. Leave to stand for at least 5 to 8 minutes after cooking.

Rice

Once the liquid reaches boiling point, cook for approx. 20 minutes at 250 W, regardless of the quantity of rice.

Semolina

Semolina cooks perfectly in a microwave oven, with no risk of burning. Simply add a volume of water equal to that of the semolina, bring to the boil covered on 1000 W for 2 min 30 sec (for 200 g of medium-grain semolina with 0.2 l of water), then cook on 250 W for about 3 min while it swells.

Pasta

Remember to salt the cooking water and stir once during cooking. When the liquid is bubbling, cook for 7 or 8 minutes on 1000 W for 250 g of pasta (for 1 litre of water) and 10 minutes for 250 g of ravioli.

Dried vegetables

Fully cover with water and leave to soak for one night. The next day, rinse and drain. Cover with water. Do not salt before cooking (this hardens the dried vegetables). Cook for 10 minutes on 1000 W then 15 to 30 minutes on 250 W. Monitor the cooking and add water if necessary: the dried vegetables must always be covered with liquid.

Jacket potatoes

Varieties of potatoes vary in their suitability for cooking by microwave. The ideal size of potato to be cooked by microwave or Combination is 200 g -250 g. Microwaving jacket potatoes is quicker than Combination, but will produce a soft result. Combination cooking will produce a drier, crisper texture. If you wish to further enhance the browning at the end of cooking, use the GRILL (see chart below). Before Cooking wash potatoes and prick skins several times. Spread around edge of turntable.

After Cooking remove from oven and wrap in tin foil to retain the heat. Leave to stand for 5 mins.

Jacket Potatoes - Manual Cooking Chart

Qty	Mins. on 1000 W	Mins. on Grill to crisp
1	4-7	8-10
2	7-10	10-12
4	11-15	11-13

En-18

Common Queries Answered

Problem	Cause	Solution
Food cools quickly after being MICROWAVED.	Food not cooked through.	Put back in oven for extra time.Remember foods at fridge temperature require more cooking time than food at room temperature.
Rice pudding or casserole boils over during cooking by MICROWAVE.	Container too small.	For liquid foods, use container twice the volume of food.
Food cooks too slowly when cooked by MICROWAVE.	Oven not receiving correct power.	Oven should be on an independent outlet.
	Food temperature from fridge colder than room temperature.	Extra time required for cooking colder foods.
Meat is tough when cooked by MICROWAVE or Combination.	Power setting too high.	Use reduced power level for meats.
	Meat salted before cooking.	Do not salt before cooking. Add salt if necessary, after cooking.
Cake remains uncooked in centre when cooked by MICROWAVE.	Too short a cooking and/or standing time.	Add extra cooking time/standing time.
Scrambled or poached eggs tough and rubbery when cooked by MICROWAVE.	Cooking time too long.	Take care when cooking small quantities of eggs, once spoiled they cannot be saved.
Quiche/Egg Custards are tough and rubbery when cooked by MICROWAVE.	Power level too high.	Use reduced power levels for these items.
Quiche/Egg Custards are tough and rubbery when cooked by Combination.	Cooked too long. Dish size larger than stated in recipe.	Always check progress of food as it cooks.
Cheese sauce is tough and stringy when cooked by MICROWAVE.	Cheese cooked with sauce.	Add cheese at the end of cooking time.The heat of the sauce will melt the cheese.
Vegetables are dry when cooked by MICROWAVE.	Cooked uncovered.	Cover with a lid or cling film.
	Low moisture content, e.g. old root vegetables.	Add extra 2-4 tbsp. of water.
	Salt added before cooking.	Salt after cooking if necessary.
Condensation appears in the oven.	This is normal and means the food is cooking faster then the moisture can be expelled from the oven.	Wipe off with a soft cloth.
Turntable rotates in both directions.		This is normal.
Warm air is felt coming from the door seal area.	The oven door is not an air-tight seal.	This is normal and does not indicate any microwave leakage.
Blue sparks or arcing is seen when using the metal accessories.	Using metal accessories on MICROWAVE only is incorrect. If using a Combination program check accessories for any damage.	Stop the oven IMMEDIATELY. Do not use the metal accessories on MICROWAVE only. Check minimum weight of food on Auto Programs.
The GRILL periodically turns off during GRILLING or Combination.	During cooking the GRILL will cycle on and off so that the food does not burn before it is cooked through in the centre.	This is normal.

En-19

INVERTER

Close-up of hands holding a small bowl with a pipette inserted (no text or symbols visible)

Einstechen

Black-and-white photo of whole and sliced fruits, including peaches and lettuce (no text or symbols)

Musea Film CLING FILM Sling FILM

Klarsicht-Folie

Black-and-white photo of various food items including a glass bowl, a container with dark sauce, and small containers (no visible text or labels)

Ruhezeit

Three circular containers filled with granular material, no visible text or symbols

GESCHIRRGRÖSSE

Four oval-shaped pastries on a white surface, arranged in a cross pattern (no text or symbols visible)

MENGE

Black-and-white photo of a sliced bread roll and a whole potato (no text or symbols visible)

Two whole potatoes on a plain background (no text or symbols)

FORM

Close-up of three irregularly shaped objects on a plate (no text or symbols visible)

ANORDNEN

Petri dish containing multiple round, textured food items arranged in a circular pattern (no visible text or labels)

PLATZ

Three small food items on a white plate, one cut open to reveal dark filling (no text or symbols visible)

ZUTATEN

Two glass bowls containing round, cylindrical objects, possibly pills or capsules (no visible text or symbols)

ZUDECKEN

Black-and-white photo of a glass pitcher with a spoon inside, containing a white liquid (no text or symbols visible)

WENDEN UND RÜHREN

Black and white photo of a ceramic mug filled with dark liquid, with a spoon inserted (no visible text or symbols)

FLÜSSIGKEITEN

Person cleaning a microwave oven with a cloth (no visible text or symbols)

Close-up of a rectangular dessert on a glass plate (no text or symbols visible)

Einzelne

A glass container containing a dark cylindrical object with granular top, placed on a textured surface (no visible text or symbols)

Close-up of a hand using a fork to cut meat on a plate (no text or symbols visible)

Close-up of a glass bowl containing several food items, possibly meat or dough, with no visible text or symbols.

Black-and-white photo of a pan containing a cooked dish with shrimp, mushrooms, and sauce (no text or symbols visible)

Fleisch & Geflügel

Wissenswertes

Aufgetaute Stücke

Close-up of a transparent glass container with internal geometric patterns (no text or symbols visible)

Black-and-white photo of a whole chicken on a plate (no text or symbols visible)

Two petri dishes with food items, one divided into a clear glass (no text or symbols visible)

Black-and-white photo of several raw ginger pieces in a glass bowl (no text or symbols visible)

White oval-shaped food item with four cylindrical food items, possibly steamed or wrapped food (no text or symbols visible)

VORBEREITEN

Close-up of hands holding a piece of fish on a plate (no text or symbols visible)

Zudecken

Close-up of a cooked fish inside an oval-shaped white bowl (no text or symbols visible)

GANZER FISCH

Top-down view of a cooking pot with a lid and side dish (no visible text or symbols)

FISCH MIT GRILL ODER KOMBINATION GAREN

Plate of food with garnish, possibly a dish or protein, on a textured surface (no visible text or symbols)

FLÜSSIGKEIT

Three food items arranged on a decorative plate (no visible text or symbols)

FISCHSTEAKS

Close-up of a glass bowl containing a textured, flower-like food item (no visible text or symbols)

Circular object with concentric rings and a central hole, possibly a disc or basin (no visible text or symbols)

Close-up of hands holding a small bowl with liquid, no visible text or symbols

Black-and-white photo of whole and sliced fruits, including peaches and pineapples (no text or symbols)

VOCHTIGHEID

CLING FILM CLING FILM

MAGNETRONFOLIE

Black-and-white photo of a food item set including a glass lid, a container with dark sauce, and packaged snacks (no visible text or symbols)

Three circular containers filled with granular material, placed on a textured surface (no text or symbols visible)

MATERIAAL

Four oval-shaped pastries arranged on a white square plate (no text or symbols visible)

HOEVEELHEID

Black-and-white photo of a sliced bread next to a small potato, both on a plain background (no text or symbols)

DICHTHEID

Two whole potatoes on a plain background (no text or symbols)

VORM

Close-up of three heart-shaped food items on a plate (no text or symbols visible)

RANGSCHIKKEN

Petri dish containing multiple round, dark, irregularly shaped food items arranged in a circular pattern (no text or symbols visible)

RUIMTE

Three food items on a white plate: one sliced with dark filling, one whole with dark filling, and one with a halved slice (no text or symbols visible)

INGREDIËNTEN

Two bowls containing round, round objects, possibly pills or capsules, with no visible text or symbols.

BEDEKKEN

Close-up of a glass pitcher with a pipette inserted into it, no visible text or symbols

ROEREN EN OMDRAAIEN

Black and white photo of a ceramic mug filled with dark liquid, with a spoon inserted (no visible text or symbols)

VLOEISTOFFEN

Interior view of a microwave oven with a hand holding a cloth above it (no visible text or symbols)

SCHOONMAKEN Omdat

Close-up of a rectangular food item on a circular plate (no visible text or symbols)

Black-and-white photo of a rectangular container filled with food items, possibly dough or vegetables, with no visible text or symbols.

Close-up of a hand using a fork to cut meat on a plate (no text or symbols visible)

Black-and-white photo of a glass bowl containing several food items, possibly meat or vegetables, with no visible text or symbols.

Black-and-white illustration of a pan containing a cooked dish with olives and cheese, no text or symbols present.

NI-13

Vlees

Opmerkingen

Ontdooien

Close-up of a glass bowl containing a textured, metallic object with no visible text or symbols

Close-up of a raw chicken breast on a plate (no text or symbols visible)

Two glass containers with food items, one showing dark sauce and the other with chicken (no text or symbols visible)

Black-and-white photo of several raw ginger buns in a glass bowl (no text or symbols visible)

White oval-shaped food item with four cylindrical food items, possibly steamed buns or rolls (no text or symbols visible)

Close-up of hands holding a fish inside a bowl (no visible text or symbols)

Plate of food with garnish, possibly a dessert or dish, on a textured surface (no visible text or symbols)

Three food items arranged on a decorative plate (no visible text or symbols)

Close-up of a cooked fish inside a white oval bowl (no text or symbols visible)

Top-down view of a circular container with a lid and a side dish, no visible text or symbols

Close-up of a glass bowl containing a dessert with visible toppings (no text or symbols)

Circular object with concentric rings and central hole, resembling a mechanical or architectural component (no visible text or symbols)

Close-up of hands stirring a small bowl with a spoon (no text or symbols visible)

PERCER

Black-and-white photo of whole and sliced chestnuts with visible grains (no text or symbols)

TAUX

CLING FILM CLING FILM

FILM
ALIMENTAIRE

Black-and-white photo of a food item including a glass container, dark liquid, and small containers with food items (no visible text or symbols)

TEMPS DE REPOS

Three circular containers filled with granular material, placed on a textured surface (no text or symbols visible)

TAILLE DU RECIPIENT

Four oval-shaped pastries arranged on a white square plate, no text or symbols visible

QUANTITE

Black-and-white photo of a sliced bread roll and a whole onion, both on a plain background (no text or symbols)

DENSITE

Two round potatoes on a plain background (no text or symbols)

FORME

Close-up of three breaded bread pieces on a white plate (no text or symbols visible)

DISPOSER

Petri dish containing multiple round, textured food items arranged in a circular pattern (no visible text or symbols)

ESPACER

Three small food items on a white plate: one sliced with dark filling, one with a slice cut (no text or symbols visible)

INGRÉDIENTS

Scanned image of a food label with Chinese text and a small icon, likely a label or sign.

TEMPERATURE INITIALE

Two bowls containing round, segmented pills or capsules, no visible text or symbols

COUVRIR

Glass pitcher with a pen inserted into it, no visible text or symbols

RETOURNER ET REMUER

Black and white photo of a mug filled with dark liquid and a spoon, no visible text or symbols

LIQUIDES

Person cleaning a microwave oven with a cloth (no visible text or symbols)

NETTOYAGE

Close-up of a rectangular food item on a circular plate (no visible text or symbols)

Black-and-white photo of a glass container filled with food items, no visible text or symbols

Close-up of a hand using a fork to cut meat on a plate (no text or symbols visible)

Close-up of a glass bowl containing several food items, possibly meat or vegetables, with no visible text or symbols.

Black-and-white illustration of a pan containing a cooked dish with olives and sauce, no text or symbols present.

Fr-13

Close-up of a metallic bowl with a textured interior and reflective surface (no visible text or symbols)

Black-and-white photo of a raw chicken on a plate (no text or symbols visible)

Two glass dessert containers with toppings, one showing dark filling and the other with shrimp (no text or symbols visible)

Black-and-white photo of several raw ginger pieces in a glass bowl (no text or symbols visible)

White oval-shaped food item with four cylindrical food items, possibly steamed or wrapped food (no text or symbols visible)

DISPOSITION

Close-up of hands holding a piece of fish on a plate (no text or symbols visible)

COUVERTURE

Close-up of a cooked fish inside an oval-shaped white bowl (no text or symbols visible)

POISSON ENTIER

Top-down view of a food item on a stand, possibly a hot pot or dish, with no visible text or symbols.

Plate of food with garnish, possibly a dish or protein, on a textured surface (no visible text or symbols)

LIQUIDE

Three small food items arranged in a flower-like pattern on a white plate (no text or symbols visible)

DARNES DE POISSON

Close-up of a glass bowl containing a textured, flower-like food item (no visible text or symbols)

Circular object with concentric rings and a central hole, possibly a disc or basin (no visible text or symbols)

Close-up of hands stirring a small bowl with a spoon (no text or symbols visible)

Black-and-white photo of whole and sliced fruits, possibly peaches or tomatoes, with visible grains (no text or symbols)

CLING FILM CLING FILM

Black-and-white photo of a food item including a glass bowl, a cup of dark sauce, and small containers with food items (no visible text or symbols)

TEMPO DI RIPOSO

TRANCI DI CARNE -

Three circular containers filled with granular material, placed on a textured surface (no visible text or symbols)

Four oval-shaped pastries arranged on a white square plate (no text or symbols visible)

QUANTITÀ

Black-and-white photo of a sliced bread roll and a whole potato (no text or symbols visible)

DENSITÀ

Two round, textured objects resembling potatoes or similar fruits on a plain background (no text or symbols visible)

FORMA DEL CIBO

Close-up of three heart-shaped food items on a plate (no text or symbols visible)

Petri dish containing multiple round, dark, textured food items arranged in a circular pattern (no visible text or symbols)

ALLARGARE

Three small food items on a white plate: one sliced with dark filling, one whole with dark filling, and one shaped like a dumpling (no text or symbols visible)

INGREDIENTI

Scanned image of a food packaging label with Chinese text and a QR code, likely indicating a food item or product.

TEMPERATURA INIZIALE

Two bowls containing round, round objects, possibly pills or capsules, with no visible text or symbols.

COPRIRE

Black-and-white photo of a glass pitcher with a wooden stick inside, no visible text or symbols

RIGIRARE E MESCOLARE

Black and white photo of a ceramic mug filled with dark liquid, with a spoon resting inside (no visible text or symbols)

LIQUIDI

Black-and-white photo of a microwave oven with a hand holding a cloth above it (no visible text or symbols)

Close-up of a rectangular food item on a circular plate (no visible text or symbols)

Black-and-white photo of a glass container containing three food items, possibly bread or instant noodles, with no visible text or symbols.

Close-up of hands using a fork to place food on a plate (no visible text or symbols)

Close-up of a glass bowl containing several food items, possibly meat or vegetables, with no visible text or symbols.

Black-and-white illustration of a pan containing a cooked dish with olives and meat, no text or symbols present.

Carni e pollami

Indicazioni

TRANCI DI CARNE SCONGELATI

Close-up of a glass plate with a textured, abstract pattern on a textured surface (no visible text or symbols)

Close-up of a cooked chicken on a decorative plate (no text or symbols visible)

Two petri dishes with food items, one showing dark sauce and the other with chicken (no text or symbols visible)

Black-and-white photo of several raw chicken pieces in a glass bowl (no text or symbols visible)

White oval-shaped food item with four cylindrical food items, possibly steamed buns or rolls (no text or symbols visible)

COME DISPORRE SUL PIATTO

Close-up of hands holding a piece of fish on a plate (no text or symbols visible)

COPRIRE

Close-up of a cooked fish inside a white oval bowl (no text or symbols visible)

PESCE INTERI

Top-down view of a cooking pan with a lid and side dish (no visible text or symbols)

COTTURA DEL PESCE CON IL GRILL O CON IL PROGRAMMA COMBINATO

Plate of food with garnish, possibly a dish or protein, on a textured surface (no visible text or symbols)

LIQUIDI

Three food items arranged on a decorative plate (no visible text or symbols)

TRANCI DI PESCE

Close-up of a glass bowl containing a dessert with a garnish (no visible text or symbols)

Circular object with concentric rings and a central hole, resembling a mechanical or architectural component (no visible text or symbols)

Close-up of hands stirring a small bowl with a spoon, no visible text or symbols

Black-and-white photo of whole and sliced root vegetables with dried herbs (no text or symbols)

60 Microwave film Microwave film CLING FILM CLING FILM

Black-and-white photo of food items including a glass bowl, a container with dark sauce, and a small tray with food (no visible text or symbols)

Three circular containers filled with dark, textured food items, placed on a light surface (no text or symbols visible)

TAMAÑO

Four oval-shaped pastries on a white napkin, arranged on a plate (no text or symbols visible)

CANTIDAD

Black-and-white photo of a whole wheat bread and a small potato, both on a plain background (no text or symbols)

DENSIDAD

Two potatoes on a plain background (no text or symbols)

FORMA

Three large, textured food items arranged on a white plate (no text or symbols visible)

ORDENAR

Close-up of eight round, dark, textured food items arranged in a circular pattern on a clear glass plate (no text or symbols visible)

SEPARACIÓN

Three small pastries on a white plate, one cut open showing dark filling (no text or symbols visible)

INGREDIENTES

Two glass bowls containing round, textured food items, possibly candies or capsules, with no visible text or symbols.

COBERTURA

Black-and-white photo of a measuring cup with a pen inserted, showing liquid and a small object on the side (no visible text or symbols)

REMOVER

Black and white photo of a ceramic mug filled with dark liquid, topped with a spoon (no visible text or symbols)

LIQUIDOS

Person cleaning a microwave oven with a cloth (no visible text or symbols)

Close-up of a rectangular food item on a circular stand (no visible text or symbols)

Black-and-white photo of three brown food items in a glass container with foil, placed on a flat surface (no text or symbols visible)

Close-up of hands cutting meat on a plate with a fork (no text or symbols visible)

Black-and-white photo of five raw chicken legs in a clear glass bowl (no text or symbols visible)

Black-and-white photo of a pan containing a cooked dish with olives and cheese, no visible text or symbols.

Es-13

Aves y Carne

Consejos generales

Transparent plastic bag with wrapped contents, placed on a plate (no text or symbols visible)

Black-and-white photo of a whole roasted chicken on a fluted plate (no text or symbols visible)

Two glass containers with food items, one divided diagonally (no text or symbols visible)

Black-and-white photo of raw chicken pieces in a clear glass bowl (no text or symbols visible)

White oval-shaped food item with four rolled food items, possibly steamed or wrapped food (no text or symbols visible)

ARREGLAR

Close-up of hands holding a plate of fresh fish, no visible text or symbols

TAPAR

Plate of cooked fish with garnish, served on a white dish (no text or symbols visible)

LÍQUIDO

Black-and-white photo of four steamed buns arranged on a scalloped plate (no text or symbols visible)

ORDENAR

Black-and-white photo of a cooked fish inside an oval-shaped white dish (no text or symbols visible)

PESCADO ENTERO

Black-and-white photo of a fish-shaped dish on a stand, placed on a metal rack (no text or symbols visible)

Close-up of a glass bowl containing a dessert with visible toppings and a central slice (no text or symbols)

Top-down view of a circular tray with a glass container and chopsticks, no visible text or symbols

Close-up of hands stirring a small glass bowl with a pipette (no text or symbols visible)

PERFURAÇÃO

A película de certos alimentos pode causar vapor durante a cozedura. Estes alimentos devem ser perfurados antes de

Black-and-white photo of a food item set including a transparent container, dark granular substance, and small containers with visible contents (no text or symbols)

Black-and-white photo of whole and sliced fruits, including peaches and pineapples, with scattered herbs (no text or symbols)

HUMIDADE

Three circular containers filled with baked bread, no visible text or symbols

Four oval-shaped food items on a white square plate, no text or symbols visible

QUANTIDADE

Black-and-white photo of a whole wheat bread and a halved potato, both on a plain background (no text or symbols)

DENSIDADE

Two whole potatoes on a plain background (no text or symbols)

FORMA

Three whole chicken legs arranged on a plate, no text or symbols visible

DISPOSIÇÃO

Black-and-white photo of eight round, textured food items arranged in a circular pattern on a petri dish (no text or symbols visible)

ESPAÇO

Three small pastries on a white plate, one cut open showing dark filling (no text or symbols visible)

INGREDIENTES

Freezer Fridge 50 40 30 20 10 0 10 20 30 40 °C Sample ID: 1769-2018 Temperature: 30°C Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Source: Freezer Fridge Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 Sample ID: 1769-2018 samples in the image are not included in the image.

TEMPERATURA INICIAL

Two petri dishes containing round, textured food items, possibly tomatoes or candies, placed on a surface (no visible text or symbols)

COBERTURA

Black-and-white photo of a measuring cup with a pen inserted into it, no visible text or symbols on the cup itself.

MEXER E VIRAR

Black-and-white photo of a mug filled with dark liquid and a spoon, no visible text or symbols

LÍQUIDOS

Person in protective suit cleaning a microwave oven with a cloth (no visible text or symbols)

Close-up of a rectangular food item on a circular stand (no visible text or symbols)

Black-and-white photo of three round food items in a transparent container with foil, placed on a textured surface (no text or symbols visible)

Close-up of hands using a fork to cut meat on a plate (no text or symbols visible)

Black-and-white photo of several small food items in a clear glass bowl on a textured surface (no text or symbols visible)

Black-and-white photo of a pan containing a cooked dish with olives and cheese, no visible text or symbols.

Pg-13

CARNE E AVES

Orientações

DESCONGELAÇÃO

Transparent plastic container with wrapped contents, placed on a circular base (no text or symbols visible)

Black-and-white photo of a whole roasted chicken on a fluted plate (no text or symbols visible)

Two glass containers with food items, one on a patterned plate and the other with chicken pieces (no text or symbols visible)

Black-and-white photo of raw chicken pieces in a clear glass bowl (no text or symbols visible)

Three rolled food items in a white oval dish, possibly steamed buns or rolls, on a textured surface (no text or symbols visible)

PREPARAÇÃO

Close-up of hands holding a piece of fresh fish on a white plate (no text or symbols visible)

COBERTURA

Black-and-white photo of a cooked fish inside an oval-shaped white dish (no text or symbols visible)

PEIXE INTEIRO

Black-and-white photo of a fish-shaped dish on a stand, placed on a metal rack (no text or symbols visible)

Plate of raw meat with garnish, accompanied by a small bowl and a whole fruit (no text or symbols visible)

LÍQUIDO

Black-and-white photo of four round, leafy vegetables on a white scalloped plate (no text or symbols visible)

FILETES DE PEIXE

Close-up of a glass bowl containing a dessert with visible toppings and a central slice (no text or symbols)

Top-down view of a circular tray with a glass container and chopsticks, no visible text or symbols

Close-up of hands stirring a small glass bowl with a spoon (no text or symbols visible)

Black-and-white photo of whole and sliced fruits, including peaches and lettuce leaves (no text or symbols)

60 Microwave film Microwave film 60 CLING FILM CLING FILM

Assorted food items including a transparent container, dark liquid, and packaged snacks (no visible text or labels)

Three circular baking pans containing baked cake with visible texture and swirl patterns (no text or symbols)

Rozmiary naczynia

Four oval-shaped pastries on a white square plate, arranged on a textured surface (no text or symbols visible)

Iloú

Black-and-white photo of a whole wheat bread and a halved potato, both on a plain background (no text or symbols)

Gęstoú

Two whole potatoes on a plain background (no text or symbols)

Kszta t potrawy

Three whole chicken legs arranged on a plate, no text or symbols visible

U o enie

Black-and-white photo of eight round, dark, textured food items arranged in a circular pattern on a petri dish (no text or symbols visible)

Odstípy

Three pastries on a white plate: one sliced with dark filling, one with a slice of dark filling (no text or symbols visible)

Składniki

Two bowls of round, cylindrical objects, possibly food items or candies, placed side by side (no text or symbols visible)

Przykrywanie

Close-up of a glass measuring cup with a pen inserted, showing liquid and a small object (no text or symbols visible)

Black-and-white photo of a white ceramic mug filled with dark liquid, topped with a spoon (no text or symbols visible)

Płyny

Person cleaning a microwave oven with a cloth (no visible text or symbols)

Close-up of a rectangular food item on a circular stand (no visible text or symbols)

Black-and-white photo of a glass container containing several round food items, possibly potatoes or baked goods, with no visible text or symbols.

Close-up of hands using a fork to place food on a plate (no visible text or symbols)

Black-and-white photo of five irregularly shaped food items in a clear glass bowl on a textured surface (no text or symbols visible)

Black-and-white photo of a pan containing a cooked dish with shrimp, mushrooms, and sauce (no text or symbols visible)

PL-13

Milso i dr b

Wskazówki

ODMROŻONE PIECZYSTE

Close-up of a transparent plastic container with wrapped lid, placed on a circular base (no text or symbols visible)

Black-and-white photo of a whole roasted chicken on a fluted plate (no text or symbols visible)

Two petri dishes with food items, one showing dark meat and the other with chicken (no text or symbols visible)

Black-and-white photo of raw ginger pieces in a clear glass bowl (no text or symbols visible)

Three rolled food items in a white oval dish, possibly steamed buns or rolls, on a textured surface (no text or symbols visible)

Close-up of hands holding a plate of fresh fish, no visible text or symbols

Black-and-white photo of a cooked fish inside an oval-shaped white dish (no text or symbols visible)

CAŁA RYBA

Black-and-white photo of a fish-shaped dish on a stand, placed on a metal rack (no text or symbols visible)

PRZYRZĄDZANIE RYBY NA ROŻNIE LUB ZA POMOCĄ PROGRAMU KOMBINOWANEGO

Plate of cooked fish with garnish, served on a white dish (no text or symbols visible)

PŁYNY

Black-and-white photo of four steamed buns arranged on a scalloped plate (no text or symbols visible)

Close-up of a glass bowl containing a dessert with cream and a white garnish (no text or symbols visible)

Top-down view of a circular tray with a glass bowl and chopsticks, no text or symbols visible.

Ziemniaki w mundurkach

Ziemniaki w mundurkach

Close-up of hands holding a small bowl with liquid, no visible text or symbols

ТРУПНМА

Black-and-white photo of food items including a glass bowl, a cup of dark sauce, and small containers with food items (no visible text or symbols)

Black-and-white photo of whole and sliced fruits, including a halved fruit and a rose (no text or symbols visible)

Three circular containers filled with granular material, placed on a textured surface (no text or symbols visible)

Four oval-shaped food items arranged on a white surface, possibly potatoes or similar items (no text or symbols visible)

ΠΟΣΟΤΗΤΑ

Black-and-white photo of a sliced bread roll and a whole potato (no text or symbols visible)

ПУКNOTHTA

Two whole potatoes on a plain background (no text or symbols)

ΜΟΡΦΗ ΤΩΝ ΤΡΟΦΙΜΩΝ

Close-up of three white bread rolls on a plate (no text or symbols visible)

MEMONΩΜΕΝΑ ΦΑΓΗΤΑ

Petri dish containing multiple round, dark-colored food items arranged in a circular pattern (no visible text or labels)

ΤΟΠΟΘΕΤΗΣΗ ΦΑΓΗΤΟΥ

Three food items on a white plate: one with dark filling, one with sliced filling, and one with dark filling (no text or symbols visible)

ΣΥΣΤΑΤΙΚΑ

Scanned image of a food item label with handwritten Chinese characters and a small icon, likely from a cooking or cooking instruction.

Two glass bowls containing round, round objects, possibly pills or capsules (no visible text or symbols)

ΣΚΕΠΑΣΜΑ

Black-and-white photo of a glass pitcher with a spoon inside, containing a white liquid (no text or symbols visible)

Black and white photo of a ceramic mug filled with dark liquid, with a spoon resting inside (no visible text or symbols)

УГРА

Interior view of a microwave oven with a hand placing paper over it (no visible text or symbols)

ΚΑΘΑΡΙΣΜΑ

Close-up of a rectangular food item on a circular plate (no visible text or symbols)

Black-and-white photo of three round food items in a glass container (no visible text or symbols)

Close-up of hands using a fork to place food on a plate (no text or symbols visible)

Close-up of a glass bowl containing several food items, possibly meat or vegetables, with no visible text or symbols.

Black-and-white illustration of a pan containing a cooked dish with shrimp, mushrooms, and olives (no text or symbols)

Gr-13

Κρέας και πουλερικά

Γενικές οδηγίες

Close-up of a transparent dome-shaped container with internal geometric patterns (no text or symbols visible)

Plate of raw chicken with scalloped edges, no visible text or symbols

Two petri dishes with food items, one showing dark sauce and the other with raw chicken (no text or symbols visible)

Black-and-white photo of three raw chicken pieces in a glass bowl (no text or symbols visible)

White oval-shaped food item with four cylindrical food items, possibly steamed buns or rolls (no text or symbols visible)

ΤΟΠΟΘΕΤΗΣΗ

Close-up of hands holding a fish on a plate (no visible text or symbols)

КАЛУΨΗ

Plate of food with garnish, possibly a dish or protein, on a textured surface (no visible text or symbols)

PANTIΣMA

Three food items arranged on a decorative plate (no visible text or symbols)

ΦΕΤΕΣ ΨΑΡΙΟΥ

Close-up of a cooked fish inside a white oval bowl (no text or symbols visible)

ОЛОКЛНРО ЏАРІ

Top-down view of a cooking pot with a lid and side dish (no visible text or symbols)

Close-up of a glass bowl containing a dessert with a garnish (no visible text or symbols)

Circular object with concentric rings and central hole, possibly a mechanical or architectural component (no visible text or symbols)
