USER MANUAL MOG25X FAR

Black grill oven with control panel and side door (no visible text or symbols)

MANUEL D'UTILISATION

FMO 20 GRIL

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS......GB-2
SPECIFICATIONS......GB-8
CLEANING......GB-10
UTENSILS GB-11
SETTING UP YOUR OVEN......GB-16
INSTALLATION......GB-18
OPERATION GB-19
TROUBLE SHOOTING ....GB-22
DISPOSAL OF OLD ELECTRICAL APPLIANCES......GB-24

SAFETY INSTRUCTIONS

• IMPORTANT PRECAUTIONS
- READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
- WARNING: If the door or the door seal is damaged, the microwave must not be switched on before being repaired by a qualified person.
- WARNING: It is dangerous for anyone other than a qualified person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
- WARNING: Liquids and other foods must not be heated in sealed containers as they are liable to explode.
- Leave a minimum space of 30 cm above the upper surface of the oven.
- Only use cooking utensils appropriate for use in microwave ovens.
- When heating food or drink in plastic or paper containers, keep an eye on the microwave given the possibility of fire;
- If smoke appears, stop or unplug the microwave and keep the door closed to extinguish possible flames.

• Heating drinks in microwaves can cause sudden eruptions of boiling liquid. Caution must also be taken when handling the container.
• The contents of feeding bottles or jars of baby food must be stirred or mixed, and the temperature must be checked before serving to avoid burns.
• It is not recommended that whole or hard-boiled eggs be cooked or heated in their shells as they are liable to explode, even after cooking.
• It is recommended that you clean the microwave regularly and remove any food deposits.
• Failure to keep the appliance clean may lead to permanent deterioration of the surface, reducing the useful life of the appliance and potentially leading to hazardous situations.
• The microwave oven is designed to be positioned freely.
• The microwave oven must not be placed on movable furniture.
• The microwave oven is provided for heating foodstuffs and drinks. The drying of foodstuffs or of linen and the heating of heating pads,

slippers, sponges, wet linen and other similar items may entail a risk of injury, inflammation or fire.

- This appliance is designed to be used for domestic and similar purposes such as:

• kitchens used by employees in shops, offices and other working environments;
• farms;
  – use by guests in hotels, motels and other residential environments;

• other bed and breakfast-type accommodation;

• Metal food and drink containers must not be heated in the microwave.

• The appliance must not be steam cleaned.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance by the user must not be carried out by children unless they are over 8 years of age and are supervised.

• Keep the appliance and its cable out of reach of children under 8 years of age.

• If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a qualified professional in order to avoid any danger.
  • Group 2, Class B equipment
• This appliance is a Group 2 appliance as it intentionally generates radio-frequency energy for treating materials and is designed for domestic use in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes (Class B).
• Regarding the instructions for cleaning surfaces in contact with food thanks to refer to the below paragraph of the manual.
• Refer to the CLEANING AND UPKEEP section for detailed information on cleaning the door seals, cavities, adjacent parts and surfaces in contact with food.

• Warning: If the appliance does not work in combined mode, it is recommended that children only use the oven under adult supervision due to the high temperatures generated.

• The back of the oven must be placed against a wall.

• The temperature of accessible surfaces may be high when the appliance is on.
• This appliance is not designed to be used in conjunction with a separate timer or remote control system.
• The door or outer surface of the microwave may become hot while it is on.
• Surfaces are likely to become hot during use.
• Warning, very hot surface!
• During use, the appliance will become hot. Be careful not to touch the heating elements inside the oven.
• WARNING: The accessible parts can become hot during use. It is recommended that young children are kept away from the appliance.
• The power socket must remain easily accessible.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	FMO 20 GRIL
Rated Voltage:	230V~50Hz
Rated Input Power (Microwave):	1050W
Rated Output Power (Microwave):	700W
Rated Input Power (Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	255MM
External Dimensions:	440X324X258
Net Weight:	11.2KG

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:
   1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2). The extension cord must be a grounding-type 3-wire cord.
   3). The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip --- For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

UTENSILS

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.”

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Utensils	Remarks
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking Bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment Paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

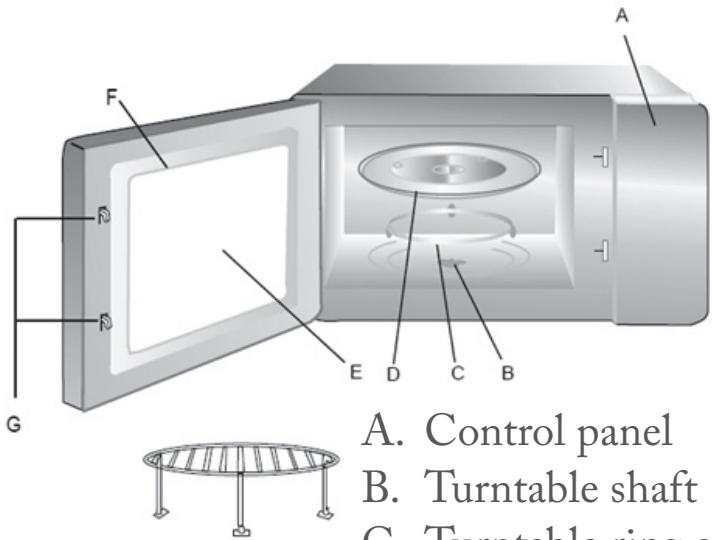

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

A. Control panel B. Turntable shaft C. Turntable ring

Grill Rack (Only for Grill series)

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock system

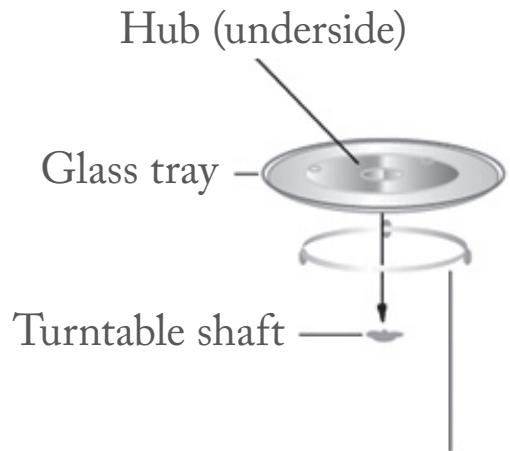

Turntable Installation

Hub (underside) Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

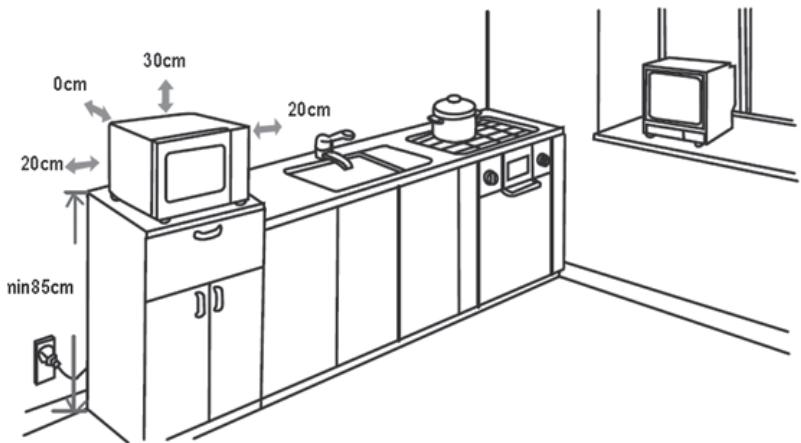

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm nin85cm

1). The minimum installation height is 85cm.
2). The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
3). Do not remove the legs from the bottom of the oven.

4). Blocking the intake and/or outlet openings can damage the oven.
5). Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

OPERATION

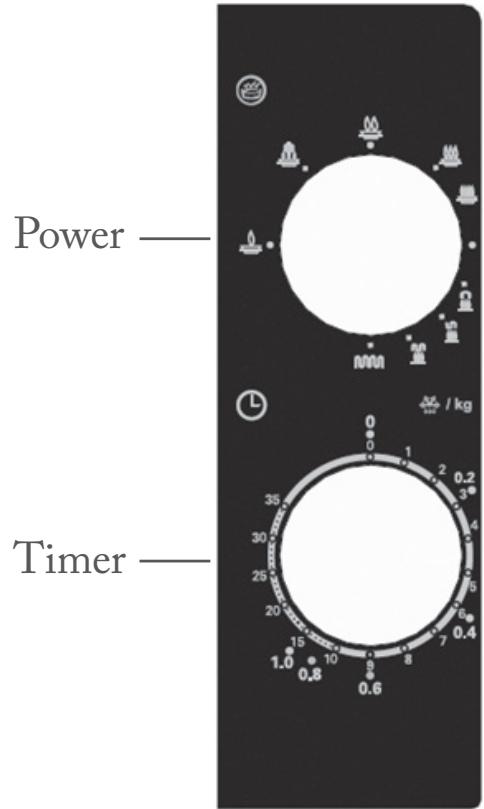

Control Panel and Features

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.

3. The microwave oven will automatically start cooking after power level and time are set.

4. After the cooking time is up, the unit will "Dong" to stop.

5. If the unit is not in use, always set time to "0".

Power — Timer — 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 / kg

Function/Power	Output	Application
	17% micro.	Soften ice cream
	33% micro.	Soup stew, soften butter or defrost

Function/Power	Output	Application
	55% micro.	Stew, fish
	77% micro.	Rice, fish, chicken, ground meat
	100% micro.	Reheat, milk, boil water, vegetables, beverage
	80% grill20% micro.	Sausage, Lamb, Kabobs, Seafood, Steak
	70% grill30% micro.	Chicken pieces, Chicken breasts, Pork chops
[6H6G]	60% grill40% micro.	Whole chicken
	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception.	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner and electric fan. It is normal.
Dim oven light.	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started.	1). Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	2). Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	3). Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	4). Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates.	5). Dirty roller rest and oven bottom	Refer to “Maintenance of Microwave” to clean dirty parts.

En application de la directive

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on

Waste Electrical and Electronic Equipment

(WEEE), requires that old household

electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
