USER MANUAL MOE25SB FAR

MANUEL D'UTILISATION

MOC25BM

Instructions	Affichage	Micro-ondes	Grid	Convection
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS.GB-2

SPECIFICATIONS. GB-6

REDUCE THE RISK OF INJURY TO

PERSONS GROUNDING INSTALLATION .GB-7

CLEANING. GB-8

UTENSILS . GB-9

SETTING UP YOUR OVEN.GB-13

COUNTERTOP INSTALLATION .GB-15

INSTALLATION . GB-15

OPERATION INSTRUCTION. .GB-17

TROUBLESHOOTING .GB-29

DISPOSAL OF OLD ELECTRICAL APPLIANCES...GB-30

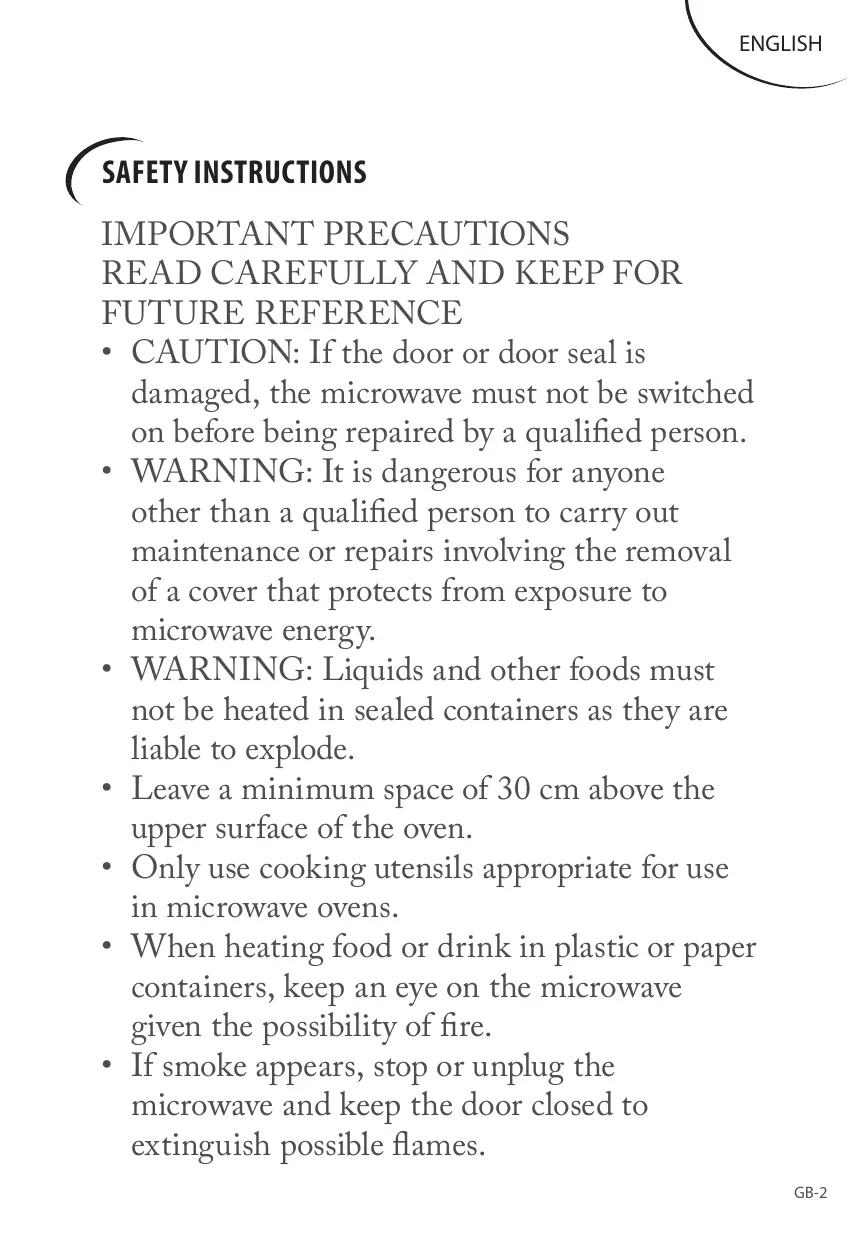

SAFETY INSTRUCTIONS

IMPORTANT PRECAUTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• CAUTION: If the door or door seal is damaged, the microwave must not be switched on before being repaired by a qualified person.
• WARNING: It is dangerous for anyone other than a qualified person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
• WARNING: Liquids and other foods must not be heated in sealed containers as they are liable to explode.
• Leave a minimum space of 30~cm above the upper surface of the oven.
• Only use cooking utensils appropriate for use in microwave ovens.
• When heating food or drink in plastic or paper containers, keep an eye on the microwave given the possibility of fire.

• If smoke appears, stop or unplug the microwave and keep the door closed to extinguish possible flames.

• Heating drinks in microwaves can cause sudden eruptions of boiling liquid. Caution must also be taken when handling the container.

• The contents of feeding bottles or jars of baby food must be stirred or mixed, and the temperature must be checked before serving to avoid burns.
• It is not recommended that whole or hard-boiled eggs be cooked or heated in their shells as they are liable to explode, even after cooking.
• It is recommended that you clean the microwave regularly and remove any food deposits.
• Failure to keep the appliance clean may lead to permanent deterioration of the surface, reducing the useful life of the appliance and potentially leading to hazardous situations.
• The microwave oven is designed to be freestanding.
• The microwave must not be placed on movable furniture.
• The microwave oven is designed for heating foodstuffs and drinks. The drying of foodstuffs

or of linen and the heating of heating pads, slippers, sponges, wet linen and other similar items may entail a risk of injury, inflammation or fire.

• This appliance is designed to be used for domestic and similar purposes such as:

• kitchens used by employees in shops, offices and other working environments;
  -farms;

• for guests in hotels, motels and other residential environments;

• bed and breakfast type accommodation.

• Metal food and drink containers must not be heated in the microwave.

• The appliance must not be steam cleaned.
• This appliance may be used by children aged 8 years or older and by those with reduced physical, sensory or mental abilities, or those lacking experience or knowledge, provided they are correctly supervised, or if the instructions related to the use of the appliance have been adequately given and if the risks involved have been understood. Children must not play with the appliance. Cleaning and maintenance by the user must not be carried

out by children unless they are over 8 years of age and are supervised.

• Keep the appliance and its cable out of reach of children under 8 years of age.
• If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a qualified professional in order to avoid any danger.
• Group 2, Class B appliance
• This appliance is a Group 2 appliance as it intentionally generates radio-frequency energy for treating materials and is designed for domestic use in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes (Class B).
• Refer to the CLEANING section for detailed information on cleaning the door seals, cavities, adjacent parts and surfaces in contact with food.
• Warning: If the appliance does not work in combined mode, it is recommended that children only use the oven under adult supervision due to the high temperatures generated.

Warning, hot surface!
- The power socket must remain easily accessible.
- This appliance is not designed to be used in conjunction with a separate timer or remote control system.
- Do not use abrasive cleaning products or metal scourers to clean the glass door of the oven as this can scratch the surface and lead to the glass shattering.
- The appliance is not designed to be used in conjunction with a separate timer or with a control system used at a distance.
- The temperature of accessible surfaces may be high when the appliance is on.

SPECIFICATIONS

Model:	MOC25BM
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1100W
Rated Input Power(Convection):	2100W
Oven Capacity:	25 L
Turntable Diameter:	Ø315mm
External Dimensions:	513x513 x310mm
Net Weight:	Approx. 18.2 kg

REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug

must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip — For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2

pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on «Materials you can use in microwave oven or to be avoided in microwave oven.» There may be certain non-metallic utensils that are not safe to use for microwaving.

If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

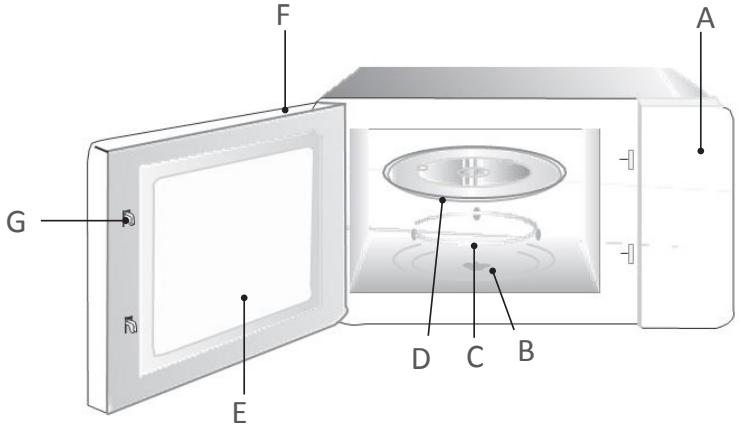

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray

E. Observation window
F. Door assembly
G. Safety interlock system

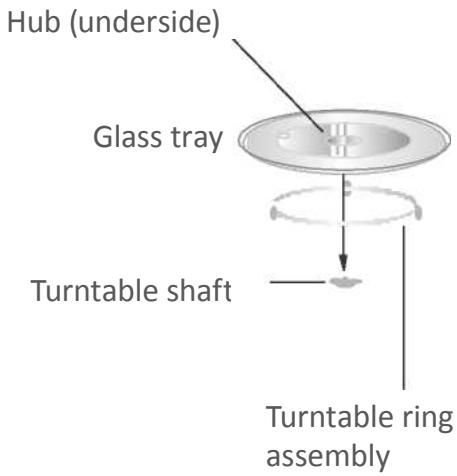

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

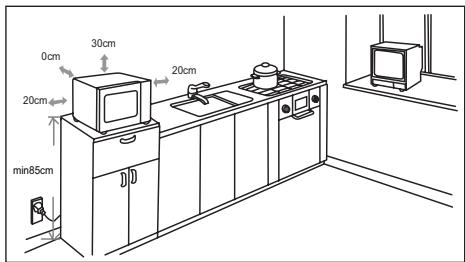

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

1). The minimum installation height is 85cm
2). The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30 ~cm above the oven, a minimum clearance of 20 ~cm is

required between the oven and any adjacent walls.

3). Do not remove the legs from the bottom of the oven.
4). Blocking the intake and/ or outlet openings can damage the oven.
5). Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting
   1). In waiting state, press “ 口 ” once, “00:00” displays. Hour figures flash.
   2). Turn "..." to adjust the hour figures, the input time should be within 0-23.
   3). Press « », the minute figures will flash
   4). Turn "Q" to adjust the minute figures, the input time should be within 0-59.
   5). Press " ① ”to finish clock setting. “:” will flash.

Note:

a. The clock will not work if is not set when powered.
b. During the process of clock setting, if you press "I", it will exit the setting state.
2. Microwave Cooking
1). Press the “ ” key once and, “P100” displays.

2). Press " 忍 _ 忍 ^ 忍 for times or turn "to select the microwave power from 100% to 10% . "P100", "P80", "P50", "P30", "P10" will display in order.
3). Press “ + 30 s” to confirm.
4). Turn “” to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5). Press “ +30s ” to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0—1 min	5 seconds
1—5 min	10 seconds
5—10 min	30 seconds
10—30 min	1 minute
30—95 min	5 minutes

Microwave Power Chart

Press	Once	Twice	Thrice	4 times	5 times
Display	P100	P80	P50	P30	P10

1. Grill Cooking

1). Press the “ ” key once, and “P100” displays.

2). Press “ © ” for times or turn “ © ” to select the grill function. When “G-1” displays, it indicates grill

function.

3). Press “ + 30 s” to confirm.
4). Turn “” to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5). Press “ + 30s ” to start cooking.

Note: If half the grill time passes, the oven will sound twice to tell you to turn over the food. You can just leave it continue. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press +30s to continue cooking.

1. Combination Cooking
   1). Press the “ ” “key once, and “P100” displays.
   2). Press the " 念 "For times or turn "to select the combination function. Stop turning when "C-1","C-2","C-3", "C-4" displays.
   3). Press “ ( c + 3 0 s ) ^ to confirm.
   4). Turn "O" to adjust the cooking time. (The time setting should be 0:05- 95:00.)
   5). Press “ + 30s ” to start cooking.

Note: Combination instructions

Instructions	Display	Microwave	Grill	Convection
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

1. Convection Cooking (With preheating function)

1). Press the “ ” key once, and “P100” displays.
2). Press "for times or turn " to select the convection temperature. When convection temperature displays, it indicates convection function. The temperature can be chosen from 150 degrees to 220 degrees.
3). Press the “ + 30s ” to confirm the temperature
4). Press the “ ( +30s) ” to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.
5). Put the food into the oven and close the door.

Turn “” to adjust the cooking time. (The maximum setting time is 95 minutes.)

6). Press the “ + 30s ” key to start cooking.

Note:

a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.
6. Convection Cooking (Without pre-heating function)
1). Press the “ ” key once, and “P100” displays.
2). Press “for times or turn “to select the convection temperature. When convection temperature displays, it indicates convection function. The temperature can be chosen from 150 degrees to 220 degrees.
3). Press the “ ()_+30s ” to confirm the temperature.

4). Turn "h" to adjust the cooking time. (The maximum setting time is 95 minutes.)
5). Press the “ +30s” key to start cooking.
7. Multi-Stage Cooking

Two stages can be maximumly set. If one stage is defrosting, it will be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note:

Auto menu and preheating cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1). Press " ”twice, the screen will display "d-2";
2). Turn “” to adjust the defrost time of 5 minutes;
3). Press" un " once;
4). Turn "®" to choose 80% microwave power till "P80" display;
5). Press “ +30s ” to confirm;
6). Turn "O" to adjust the cooking time of 7 minutes;

7). Press “ +30s ” to start cooking.
8. Kitchen timer
1). In waiting state, press “ “twice, "00:00" displays.
2). Turn “” to adjust the timer. The MAX.time is 95 minutes.
3). Press " " to confirm.

Note:

a. The kitchen time is different from 24-hour system. Kitchen Timer is a timer.
b. During kitchen timer, any program cannot be set.
9. Speedy Cooking
1). In waiting state, press “ +30s ” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 94 minutes and 59 seconds.

Note: this function cannot work under defrost by weight or auto menu cooking.

2). During microwave, grill, convection and combination states, press “ + 30 ~s ” key can increase 30 seconds of

cooking time. Note: this function cannot work under defrost by weight or auto menu cooking.

3). ) In waiting state, turn “ ” left to choose cooking time directly then press “ + 30s ” key to cook with 100% microwave power.

This program can be set as the first one of multistage.

1. Auto Menu
   1). In waiting state, turn ““ right to choose the function wanted, and “A1”, “A2”, “A3”.... “A10” will be displayed.
   2). Press “ () + 30s ” to confirm the menu you need.
   3). Turn "O" to choose the weight of menu, and "g" indicator will light.
   4). Press “ + 30s ” to start cooking.

Note: Cake menu is under convection cooking with 180~^ C -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the

door to put cake in, then press “ ( + 30s) ” to start cooking.

Auto menu Chart

Menu	Weight	Display	Power
A1 Reheat	150 g	150	100 %
	250 g	250
	350 g	350
	450 g	450
	600 g	600
A2 Potato	1 (about 230g)	1	100 %
	2 (about 460g)	2
	3 (about 690g)	3
A3 Meat	150 g	150	100 %
	300 g	300
	450 g	450
	600 g	600
A4 Vegetable	150 g	150	100 %
	350 g	350
	500 g	500
A5 Fish	150 g	150	80 %
	250 g	250
	350 g	350
	450 g	450
	650 g	650
A6 Pasta	50 g (with water 450 ml)	50	80 %
	100 g (with water 800 ml)	100
	150 g (with water 1200 ml)	150
A7 Soup	200 ml	200	100 %
	400 ml	400
	600 ml	600
A8 Cake	475 g	475	Preheat at 180 degrees
A9 Pizza	200 g	200	C-4
	300 g	300
	400 g	400
A10 Chicken	500 g	500	C-4
	750 g	750
	1000 g	1000
	1200 g	1200

1. Defrost by W.T.
   1). Press "pad once, the oven will display "d-1".
   2). Turn "” to select the weight of food. At the same time, "g" will lights, The weight should be 100-2000g.
   3). Press “ + 30s ”key to start defrosting.

2. Defrost by Time
   1). Press " ” key twice, the oven will display “d-2".
   2). Turn "O" to select the cooking time. The maximum setting time is 95 minutes.
   3). Press “ + 30s ” key to start defrosting.

The defrosting power is P30 and it cannot be changed.

Note: If the food weight is no more than 200 grams, please place the food at the edge of the glass turntable but not the center to be defrosted.

1. Inquiring Function
   1). In cooking state, press " 山山 ", the current power will be displayed for 2-3 seconds.
   2). During cooking state, press "L" to check the current time.
2. Lock-out Function for Children

Lock: In waiting state, press “ ” for

3 seconds, there will be a long "beep" denoting entering into the children-lock state and locked indicator will light. Screen will display current time or 0:00.

Lock quitting: In locked state, press “ ”

for 3 seconds, there will be a long "beep"

denoting that the lock is released, and the locked indicator will disappear.

1. Specification
   1). The buzzer will sound once when turning the knob at the beginning;
   2). “ () + 30s ” must be pressed to continue cooking if the door is opened during cooking;
   3). Once the cooking programme has been set, “ ( + 30s) is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.
   4). The buzzer sounds once by efficient press, inefficient press will be no response.
   5). The buzzer will sound five times to remind you when cooking is finished.

TROUBLE SHOOTING

Normal
Oven interfering	Radio and TV reception may be Interfered when microwave oven operating It Is similar to the Interference of small electrical appliances like mixer vacuum cleaner and electric fan It Is normal
	In low power microwave cooking become dim It Is normal
Steam accumulating on hot air out of vents
Oven started accidentally with no food In	It is forbidden to run the unit without any food inside. It is very dangerous.

	Possible Cause
Oven can not be started	(1) Power cord not plugged In tightly	Unplug Then plug again after 10 seconds
	(2) Fuse blowing or circuit breaker works	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
		Test outlet with other electrical appliances
Oven does not heat	(3) Door not closed well	Close door well

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on

Waste Electrical and Electronic Equipment (WEEE), requires that old household

electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

CE

CONFORAMA France SA
