Product type	Extractor cooker hood
Brand	Franke
Model	FSMD508GY
Width (mm)	598
Depth (mm)	280
Height (mm)	282
Air outlet diameter (mm)	120
Minimum safety distance from cooking surface (mm)	650
Electrical class	Class I (earthing mandatory)
Power supply	220-240 V ~ 50/60 Hz (via bipolar switch)
Lighting power	Not specified (integrated lamp)
Number of speeds	3 (minimum, medium, maximum)
Control type	Push buttons (L for light, M for motor, V for speeds)
Exhaust type	Extraction or recirculation version
Grease filter	Self-supporting metal, dishwasher safe (every 2 months)
Activated carbon filter	Not washable, replace every 3-4 months
Maintenance	Clean with damp cloth and mild detergent
Material	Not specified (probably stainless steel)
Country of origin	Not specified

Frequently Asked Questions - FSMD508GY FRANKE

What is the minimum safety distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. Check the instructions of your gas hob which may require a greater distance.

How to install the hood in extraction version?

Connect the hood to the outlet duct using a rigid or flexible tube with 120 mm diameter. Use clamps. Remove the activated carbon filters if present.

How to install the hood in recirculation version?

Drill a 125 mm hole in the cabinet above, connect a 120 mm pipe between the hood and the provided oriented grille. Make sure the activated carbon filters are in place.

What are the control buttons and their functions?

The buttons are: L to turn the light on/off, M to turn the motor on/off, and V to select the 3 speeds (minimum, medium, maximum).

How to clean the grease filters?

The metal grease filters can be washed in the dishwasher or by hand. Clean them about every 2 months, or more often with heavy use. Let them dry before replacing.

When should the activated carbon filter be replaced?

The activated carbon filter cannot be washed or regenerated. Replace it every 3 to 4 months, or more often with heavy use. Contact customer service to purchase a replacement.

What to do in case of power failure or malfunction?

Before any intervention, disconnect the appliance or turn off the circuit breaker. Check the filters and lighting. If the cord is damaged, have it replaced by a qualified professional.

Can the hood be used with gas appliances?

Yes, but ensure sufficient room ventilation (maximum negative pressure 0.04 mbar) to prevent backflow of combustion gases. An opening to the outside is recommended.

How to adjust the motor speed?

Press the V button to cycle through the 3 speeds: minimum (low steam), medium (normal conditions), and maximum (high steam emissions).

Is the hood light replaceable?

The lighting is integrated. To replace the bulb, wait for it to cool down, turn off the hood and consult the manual. If in doubt, contact Franke customer service.

USER MANUAL FSMD508GY FRANKE

Instructions for use and installation

Cooker Hood

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 6

INSTALLATION....7

USE 9

MAINTENANCE 10

INDICE

IT

CONSIGLI E SUGGERIMENTI....11

CARATTERISTICHE....14

INSTALLAZIONE 15

USO 17

MANUTENZIONE 18

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS....19

CARACTERISTIQUES....22

INSTALLATION....23

UTILISATION 25

ENTRETIEN....26

INHALTSVERZEICHNIS

DE

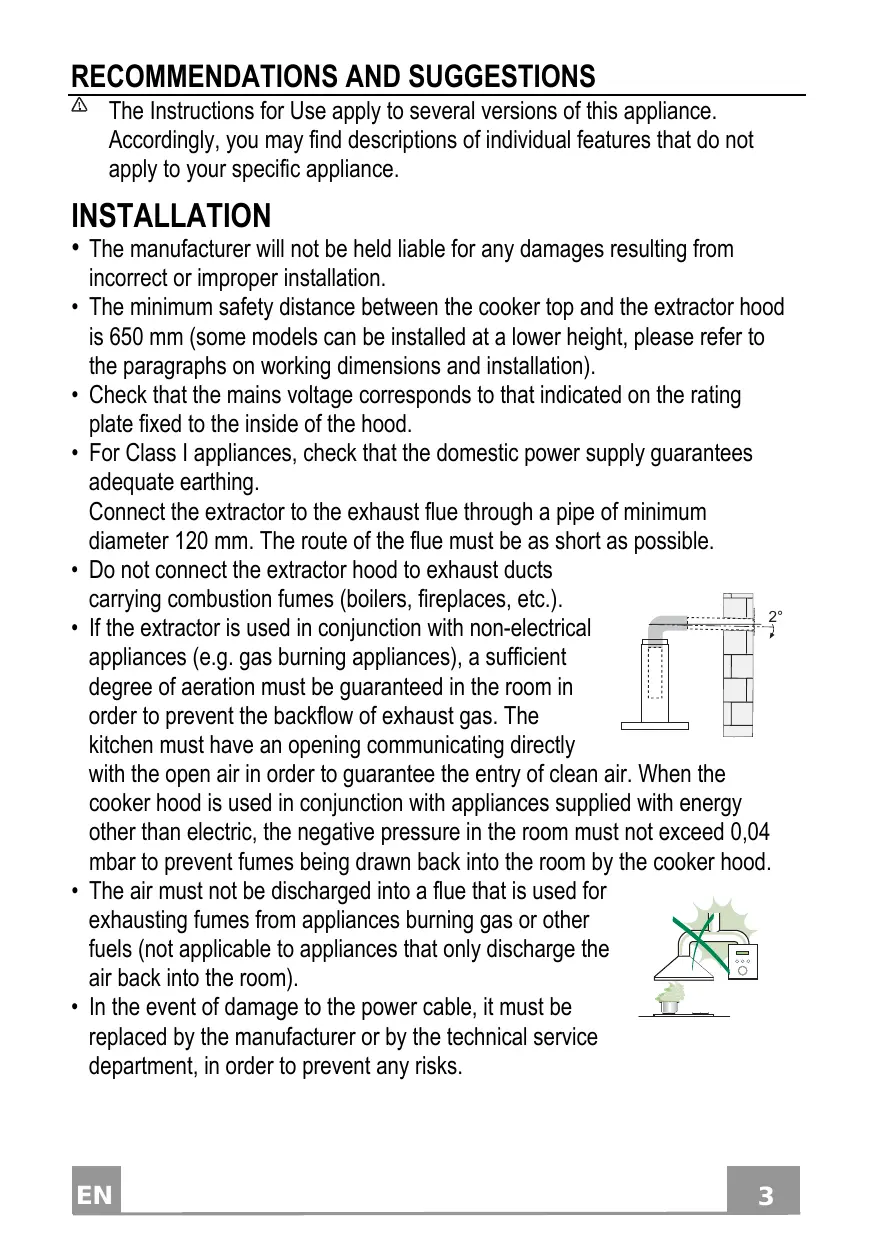

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a cooking setup with a pot and stove, featuring a green smokestack and fire extinguisher (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

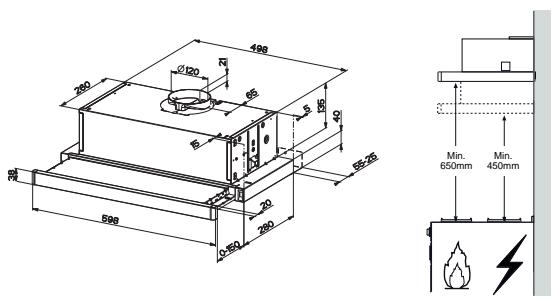

Dimensions

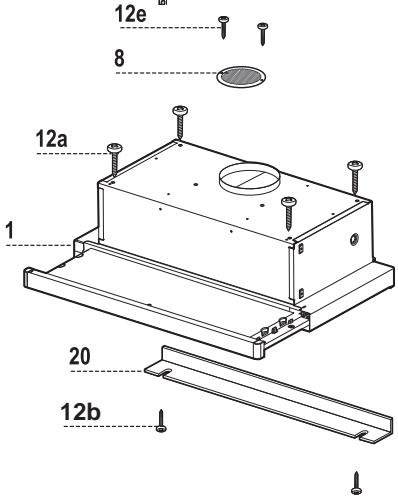

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
20	1	Closing element

Ref. Q.ty Installation Components

12a	4	Screws 4,2 x 44,4
12b	2	Screws 4,2 x 12,7
12e	2	Screws 2,9 x 12,7

Q.ty	Documentation
1	Instruction Manual

Drilling the Support surface and Fitting the Hood

SCREW FITTING

• The hood support surface must be 135 mm above the bottom surface of the wall units.
• Drill the support with a 4,5 mm drill bit, using the drilling template provided.
• Cut a hole 125 mm in size on the support surface, using the drilling template provided.
  • Fix using the 4 screws 12a (4,2 x 44,4) provided.

SNAP-ON FITTING

• The hood can be installed either directly on the bottom surface of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.

Hood Type	45	50	55	60	70	80	90
L1	360	410	460	510	610	710	810

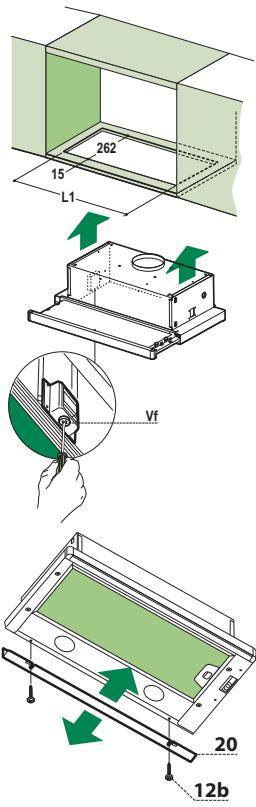

CLOSING ELEMENT

- The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws 12b.

Connections

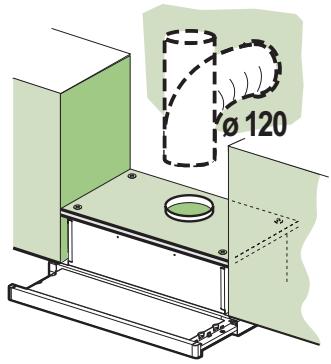

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 120 mm, the choice of which is left to the installer.

• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

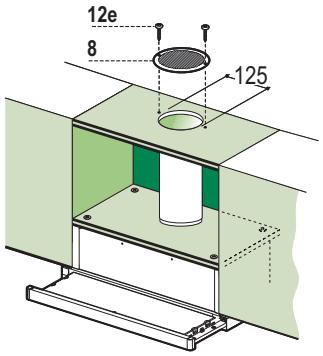

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

Control panel

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

Grease filters

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
• Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

Illustration of a hand pressing a green directional arrow on a green circular background (no text or symbols)

Charcoal filter (Recycling version)

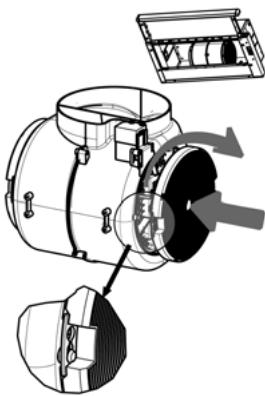

REPLACING CHARCOAL FILTERS
