| Product type | Tumble dryer |
| Brand | Candy |
| Model | CSH9A1LES |
| Maximum drying capacity | 6 kg (cotton), 4 kg (synthetics) |
| Dimensions (H × W × D) | 85 × 60 × 60 cm |
| Power supply | 220-240 V, 50 Hz, 10 A |
| Drying programmes | Cotton Eco, White/Cotton, Synthetics, Shirts, Colours, Baby cotton, Jeans, Sport, Wool, Antiallergy, Wrinkle removal, Refresh, Mixed, Mix & Dry |
| Special functions | Smart Touch (NFC), Delayed start (1-24h), Anti-crease, Child lock, Drying level (iron dry, hang dry, cupboard dry, extra dry), Quick cycle |
| Maintenance and cleaning | Filter cleaning after each cycle, regular condenser cleaning, water tank emptying |
| Safety | Child lock, automatic stop when door opens, cooling cycle at programme end |
| Spare parts and repairability | Parts available through GIAS service, stacking kit for column installation (mod. 35100019 or 35900120) |
Frequently Asked Questions - CSH9A1LES CANDY
User questions about CSH9A1LES CANDY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Washing machine in PDF format for free! Find your manual CSH9A1LES - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CSH9A1LES by CANDY.
USER MANUAL CSH9A1LES CANDY
Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.
Keep all documentation in a safe place for future reference or for any future owners.
Please check that the following items are delivered with the appliance:
- Instruction manual
- Guarantee card
- Energy label
By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.
Index
-
SAFETY REMINDERS
-
VENTILATION
-
PREPARING THE LOAD
-
CLEANING AND ROUTINE MAINTENANCE
-
DOOR AND FILTER OPERATION
-
CONTROLS AND INDICATORS
-
SELECTING THE PROGRAMME AND SET THE FUNCTION
-
TROUBLESHOOTING CUSTOMER SERVICE
1. SAFETY REMINDS
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
- WARNING Misuse of a tumble dryer may create a fire hazard.
- This appliances is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments" A different use of this appliance from house hold environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.
If the appliance is used in a manner inconsistent with this it
may reduce the life of the appliance and may void the manufacturer's warranty.
Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.
- This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
- Do not touch the appliance when hands or feet are damp or wet.
- Do not lean on the door when loading the machine or use the door to lift or move the machine.
- Do not allow children to play with the machine or its controls.
- WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
- WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
- Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
- Do not continue to use this machine if it appears to be faulty.
- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
- WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Maximum load drying weight: see energy label.
Installation
- Do not use adapters, multiple connectors and/or extensions.
- Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.
The Laundry
- Do not dry unwashed items in the tumble dryer.
- WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
- WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
- Always refer to the laundry care labels for directions on suitability for drying.
- Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.
- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
Items that have been soiled
- with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
Ventilation
- Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
- Installing the rear of the appliance close to a wall or vertical surface.
- There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
- Check regularly that the air flowing through the dryer is not restricted.
- Check frequently the fluff filter after use, and clean, if necessary.
- Prevent items from falling or collecting behind the dryer as
these may obstruct the air inlet and outlet
- NEVER install the dryer up against curtains.
- In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.
- Stacking kit Mod 35100019: for minimum washing machine depth 49 cm
- Stacking kit Mod 35900120: for minimum washing machine depth 51 cm
The stacking kit shall be one of that above, obtainable from our spare service.
The instructions for installation and any fixing attachments, are provided with the staking kit.
⚠ Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.
- All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
- To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.
European Directive 2012/19/EU
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE should not be treated as household waste.
- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
GIAS Service
- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.
Electrical Requirements
Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10 A.
Electricity can be extremely dangerous. This appliance must be earthed.
The socket outlet and the plug on the appliance must be of the same type.
Do not use multiple adapters and/or extension leads.
The plug should be accessible for disconnection after the appliance has been installed.
You may be charged for a service call if a problem with your machine is caused by incorrect installation.
If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.
Adjusting the Feet
Once the machine is in place the feet should be adjusted to ensure that the machine is level.
Installation of the Discharge Hose
It is essential to use a venting hose to carry the hot moist air away from the dryer unless the dryer is situated in a open space with a good air flowaround it. Recirculation of the moist air will prevent the efficient operation of the dryer.
The hose is assembled to the machine as shown. The hose may be fitted through a wall or through an open door or window. The hose is 110mm in diameter and will extend 1.8 meters.
The following guidelines should be followed when installing the discharge hose.
- Do not restrict the flow of air through the hose e.g. by kinking it or fitting a smaller diameter connector to mount to a wall opening.
- Avoid the hose making U shaped curves as this will restrict the flow of air and increase the chance that water will collect in the hose.
- Check the hose regularly to remove any build-up of fluff or water that may have collected in it.

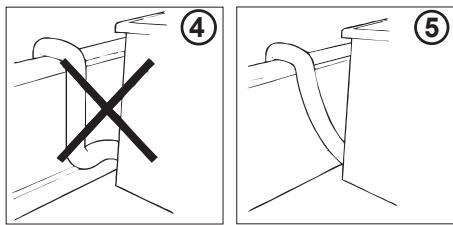

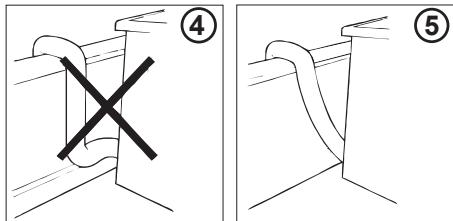

The following diagrams give examples of good and bad installations.
3. PREPARING THE LOAD
Before using the tumble dryer for the first time:
- Please read this instruction book thoroughly.
- Remove all items packed inside drum.
- Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.
Clothes Preparation
Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.
Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.
Do Not Tumble Dry:
Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.
IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).
During the last 15 minutes the load is always tumbled in cool air.
Energy Saving
Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.
ALWAYS
- Check that the filter is clean before every drying cycle.
- Put dripping wet items into the tumble dryer, this may damage the appliance.
NEVER
Sort the Load as Follows
- By care symbols
These can be found on the collar or inside seam:
Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.
Do not tumble dry.
If the item does not have a care label it must be assumed that it is not suitable for tumble drying.
- By amount and thickness
Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).
- By type of fabric
Cottons/linen: Towels, cotton jersey, bed and table linen.
Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.
Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).
4. CLEANING AND ROUTINE MAINTENANCE
Cleaning the Dryer
- Clean the filter and empty the water container after every drying cycle.
- Regularly clean the condenser.
- After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
- Wipe the outside of the machine and the door with a soft cloth.
- DO NOT use abrasive pads or cleaning agents.
- To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.
WARNING! The Drum, door and load be very hot.
IMPORTANT Always switch off and above the plug from the electricity supply are cleaning this appliance.
For electrical data refer to the rating I on the front of the dryer cabinet (with door open).
5. DOOR and FILTER
Pull on handle to open the door.
To restart the dryer, close the door and press Start / Pause button. ▷
WARNING! When the tumble dryer is in the drum and door may be VERY HOT.
Filter
IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.
-
Pull the filter upwards.
-
Open filter as shown.
-
Gently remove lint using a soft brush or your fingertips.
-
Snap the filter together and push back into place.
Lights when the filter needs cleaning.
If the laundry is not drying check that the filter is not clogged.
IF YOU CLEAN FILTER UNDER TER, REMEMBER TO DRY IT.
OPERATION
-
Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
-
Gently close the door pushing it slowly until you hear the door 'click' shut.
-
Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
-
Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.
-
If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.
-
When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
-
Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.
Do not open the door during the automatic grams in order to obtain a proper drying.

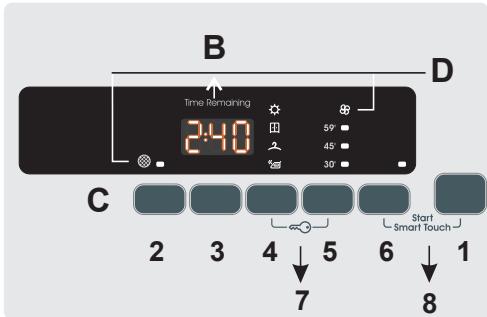

6. CONTROLS AND INDICATORS
B- Display Digit - The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.
C-Buttons -
1. Start/Pause Button
To start the selected program and/or suspend it.
2. Time cycle selection
It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle. The progressive pressure increases the time in 10-minute intervals.
After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.
3.Delay Start Button
It allows to delay the start of the program from 1 to 24 hours in 1-hour intervals. The delay selected is shown on the display.
After pressing the START button the time showed decrease hour after hour.
Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.
4. Drying Selection Button
It allows to set the desired dryness level editable option up to 5 minutes after the starting of the cycle:
- Ready to Iron : It leaves the garments slightly wet to facilitate ironing.
- Dry Hanger: To get garment ready to be hang
田 - Dry wardrobe : For laundry that can be directly stored
-Extra-dry : To get completely dry garments, ideal for full load.
This appliances is equipped with Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached.all LEDs flash quickly for 3 times.
5.Rapids Button
It's possible switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).
After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.
6.Anti crease
This option allows to activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle. To stop the movements set the knob to OFF.
Useful when it's not possible to remove immediately.
7. Keylock
This function allows to block unwanted changes of the set options on the bezel, during drying phase.
Activation/ Inactivation: Push 4 and 5 buttons simultaneously for two seconds. The sign "LOC" appears on the display. Unlocking the option, on the display appears the sign "Unl", only once. In case of opening of 'porthole' with activated key lock, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and restore Start. When the dryer is off, the option is automatically inactivated.
Key lock can be modified at any time of the cycle.
8. Start smart touch
Simultaneously pressing the START/PAUSE and OPTIONS buttons allows a previously downloaded cycle to be started whilst the Smart Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).
D-Led
Filter cleaning ⚙ - It lights up when the cleaning of the filters is requested (the door and the lower filter.)
Cooling ✿ - It lights up when the cycle is in the final cooling phase.
E-
SMART TOUCH area - pressing the START/PAUSE button allows to a previously downloaded cycle to start whilst the Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).
APPAREL CARE
The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. M1524.
In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.
| Maximum Drying Weight | |
| Cottons | Max.capacity declared |
| Synthetics or Delicates | Max.4 Kg |
Drying Guide
The standard cycle COTTON DRY (☐) is the most energy efficient and best suited for drying normal wet cotton laundry.
The table in last page shows the approximate time and energy consumption of the main drying programmes.
| Capacity (as energy label) | 6 kg /7 kg - 8 kg /9 kg |
| Power consumption of off-mode | 0,40 W |
| Power consumption of on-mode | 0,75 W |
Technical Specifications
| Drum capacity | 115 |
| Maximum load | See energy label |
| Height | 85 cm |
| Width | 60 cm |
| Depth | 60 cm |
| Energy class | See energy label |
Information for Test Laboratory
EN 61121 Programme To Use
-DRY COTTON
-IRON DRY COTTON
-EASY-CARE TEXTILE
-COTTON OR
-COTTON OR WHITES
-DELICATES OR SYNTHETIC
The real duration of drying cycle ends by the starting humidity level of laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.
- SELECTING THE PROGRAMME AND SET THE FUNCTION
| PROGRAM | PROGRAM DESCRIPTION | CAPACITY (kg) | DRYING TIME (min) | |
| [0AHZ] | Super Easy Iron | A comfortable solution to dry laundry of mixed fabrics minimizing folds, delivering the perfect humidity to iron in the easier way. Before drying it's better to shake off the linens. | 2 | * |
| [3408] Cotton | Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens. | 6 | * | |
 | Whites | The right cycle to dry cottons, sponges and towels. | Full | * |
| Mix&Dry | To dry all together different kind of fabrics as cotton ,linen, mix, synthetics. | 4 | * | |
 | Synthetics | To dry delicate and synthetic fabrics that need an accurate and specific treatment. | 4 | * |
 | Shirts | This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle. | 2.5 | * |
 | Coloured | A delicate and specific cycle to dry dark or colour cotton or syntethics garments. | 4 | * |
| [sovio] | Baby | This cycle is perfect for baby clothes, when an high hygiene level is expected. | 4 | 150' |
| [meo] | Jeans | Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying. | 4 | * |
| Sport | Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers. | 4 | * | |
| [covm] | Woolmark Wool finish | Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes. | 1 | 70' |
| [25KK] | Antiallergy | One specifics cycle that dry and in the same time helps to reduce the main allergens as dustmites, pet hair, pollens and residual of powder detergents | 4 | 220' |
 | Relax creases | This is a warm cycle that in only 12 minutes helps to relaxe folds and creases. | 2.5 | 12' |
| Refresh | The perfect cycle to remove the bad smells from the linens smoothing creases. | 2.5 | * | |
| Smart Touch | Customizable setting that interacts with the App on your android smartphone and to download the cycles (see the dedicated section). The factory sets the default programme Auto-Hygiene, which will sanitize the machine. | |||
* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.
SMART TOUCH
This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function.
- Download on your smartphone the Candy simply-Fi App.
The Candy simply-Fi App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to following functional scheme:
| Android smartphone with NFC technology | Interaction with the machine + contents |
| Android smartphone without NFC technology | Contents only |
| Android Tablet | Contents only |
| Apple iPhone | Contents only |
| Apple iPad | Contents only |
FUNCTIONS
The main functions available using the App are:
- Voice Assistant – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, colour, drying level).
-
Cycles – To download and launch new drying programmes.
-
Smart Care – -Smart Check-up and a troubleshooting guide.
- My Statistics – Drying statistics and tips for a more efficient use of your machine.
Get all the details of the Smart Touch functions, browsing the App in DEMO mode or go to: www.candysmarttouch.com
HOW TO USE SMART TOUCH
FIRST TIME - Machine registration
Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.
Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.
- Turn the knob to the Smart Touch position to enable the sensor on the dashboard.
- Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.
More information, F.A.Q. and the video for an easy registration are available on:
www.candysmarttouch.com/how-to
NEXT TIME – Regular usage
- Every time you want to manage the machine through the App, first you have to enable the Smart Touch mode by turning the knob to the Smart Touch indicator.
- Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier.
- If you want to start a dry cycle, load the laundry and close the door.
- Select the desired function in the App (e.g.: starting a programme, the Smart Check-up cycle, update statistics, etc...).
- Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App.
Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustrate below).
Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.
The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.
The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).
WIRELESS PARAMETERS
| Parameter | Specifications |
| Wireless Standard | ISO/IEC 14443 Type A and NFC Forum Type 4 |
| Frequency band | 13,553-13,567 MHz (centre frequency 13,560 MHz) |
| Magnetic field limit | < 42dBμA/m (at 10 meters) |
With this the Candy Hoover Group Srl, declares that this appliance marked with CE complies with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com
8. TROUBLESHOOTING
FOR SMART TOUCH MODELS
The Candy simply-Fi app has a Smart Check-up function that allows you to confirm the functionality and status of the product at any time. To use the Candy simply-Fi APP you will need an Android smartphone with NFC technology.
More info can be found on the App.
If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on, selecting "Read the error" on the "Help on line" menu place your smart phone against the Smart Touch logo on the control panel. You should now be able to read the fault directory to solve the issue.
What Might be the Cause of...
Defects you can remedy yourself
Before calling service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.
Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.
Drying time is too long/clothes are not dry enough...
- Have you selected the correct drying time/programme?
- Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Does the filter need cleaning?
- Is the dryer overloaded?
The dryer does not operate...
- Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
- Is the plug properly connected to the mains supply?
• Is there a power failure?
- Has the fuse blown?
- Is the door fully closed?
- Is the dryer switched on, both at the mains supply and at the machine?
- Has the drying time or the programme been selected?
- Has the machine been switched on again after opening the door?
The dryer is noisy...
- Switch off the dryer and contact GIAS Service for advice.
- Does the filter need cleaning?
- Does the water container need emptying?
The 📄 Indicator is on...
The 📋 Indicator is on...
CUSTOMER SERVICE
Should there still be a problem with your dryer after completing all the recommended checks, please call service for advice.
They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:
• Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
- Has been used incorrectly.
Spares
Always use genuine spares, available direct from service.
Service
For service and repairs call your local service engineer.
The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
- Dans des bed and breakfast,
Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)2. VENTILATION
② H max 20 inches (50.80cm) ③
Hand holding a smartphone displaying a device with a rotary knob and a logo, likely for product or testing purposes.natural_image
Close-up of a mechanical component with a curved arrow indicating direction (no text or symbols visible)natural_image
Simple line drawing of a showerhead with shower inside, no text or symbols presentUmweltschutz
Electrical Requirements
② H max 20 inches (50.80cm) ③
Line drawing of a person inserting a card into a car door (no text or symbols)
More information, F.A.Q. and the video for an easy registration are available on: www.candysmarttouch.com/how-to
Diagram of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)2. VENTILAZIONE
H max 20 inches (50.80cm) ③
Line drawing of a person holding a rectangular object inside a car (no text or symbols)
Close-up of a mechanical component with a circular arrow indicating direction (no visible text or symbols)natural_image
Line drawing of a door with handle, seat, and control panel (no text or symbols)Het Milieu
After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.
-DELICAAT OF SYNTHETISCH
Simple line drawing of a kitchen appliance with a sock and control panel (no text or symbols)Ambiente
H max 20 inches (50.80cm) ③
Line drawing of a person opening a car door with a box (no text or symbols)
Simple line drawing of a sock with decorative elements and lines, no text or symbols presentnatural_image
Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)2. VENTILACIÓN
② H max 20 inches (50.80cm) ③
Line drawing of a person opening a car door with a seatbelt (no text or symbols)

