USER MANUAL ALPHA 7 III SONY

“Help Guide” (Web manual) Refer to “Help Guide” for in-depth instructions on the many functions of the camera.

Interchangeable Lens Digital Camera/Instruction Manual

©2018 Sony Corporation Printed in China

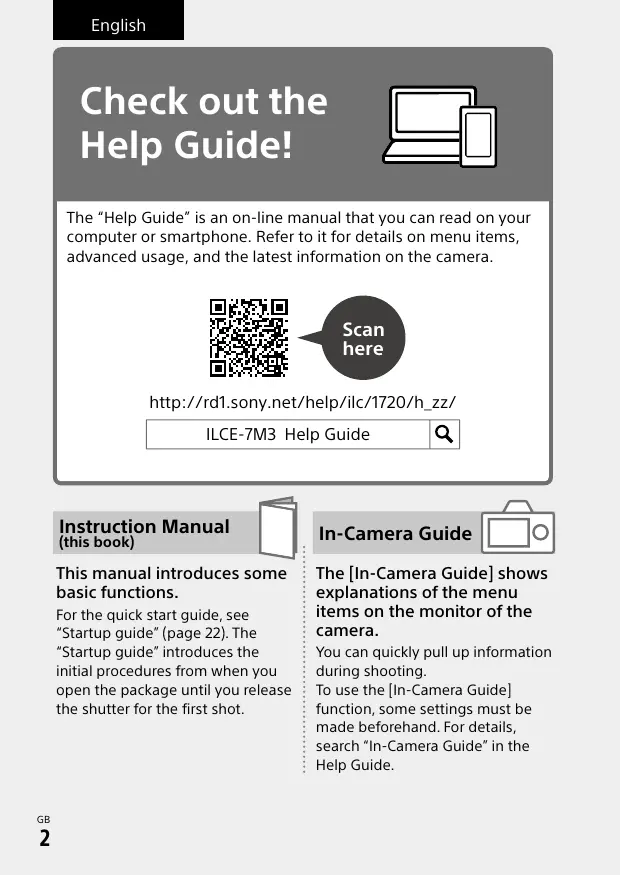

Help Guide! The “Help Guide” is an on-line manual that you can read on your computer or smartphone. Refer to it for details on menu items, advanced usage, and the latest information on the camera.

Scan here http://rd1.sony.net/help/ilc/1720/h_zz/

This manual introduces some basic functions.

The [In-Camera Guide] shows explanations of the menu items on the monitor of the camera.

For the quick start guide, see

“Startup guide” (page 22). The “Startup guide” introduces the initial procedures from when you open the package until you release the shutter for the first shot.

You can quickly pull up information during shooting.

To use the [In-Camera Guide] function, some settings must be made beforehand. For details, search “In-Camera Guide” in the Help Guide.

Notes on using your camera

Along with this section, also see “Precautions” in the Help Guide (page 2).

You can select the language displayed on the screen using the menu (page 70).

Notes on handling the product

••This camera is designed to be dustand moisture-resistant, but is not waterproof or dust-proof. ••When using the power zoom lens, be careful not to get your fingers or any other objects caught in the lens. ••Always attach the lens front cap or body cap when you are not using the camera. To prevent dust or debris from getting inside the camera, remove dust from the body cap before attaching it to the camera. ••Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens’s condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.

••When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.

••Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction. GB ••Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction. ••Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

Notes on the monitor and electronic viewfinder

••The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These are imperfections due to the manufacturing process and do not affect the recorded images in any way. GB

••The image may be slightly distorted near the corners of the viewfinder.

This is not a malfunction. When you want to see the full composition with all its details, you can also use the monitor. ••If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder. ••When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder. In case you may feel uncomfortable, refrain from using the viewfinder until your condition recovers, and consult your doctor as necessary. ••If the monitor or electronic viewfinder is damaged, stop using the camera immediately. The damaged parts may harm your hands, face, etc.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

••Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies. ••When the temperature of the camera rises, the image quality may deteriorate. It is recommended that you wait until the temperature of the camera drops before continuing to shoot. ••Under high ambient temperatures, the temperature of the camera rises quickly. ••Camera body and battery may get warm with use – this is normal.

••If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering.

Pay special attention in the following situations and use a tripod, etc. ––When using the camera in a hightemperature environment ––When someone with poor circulation or impaired skin sensation uses the camera ––When using the camera with the [Auto Pwr OFF Temp.] set to [High]. ••Especially during 4K movie shooting, the recording time may be shorter under low temperature conditions. Warm up the battery pack or replace it with a new battery.

Notes on recording/playback

••Before you start recording, make a trial recording to make sure that the camera is working correctly. ••The recorded image may be different from the image you monitored before recording. ••Do not use the camera in areas where strong radio waves or radiation are being emitted. Recording and playback may not function correctly. ••Playback of images recorded with your product on other equipment and playback of images recorded or edited with other equipment on your product are not guaranteed.

••Sony can provide no guarantees in the event of failure to record or loss or damage of recorded images or audio data due to a malfunction of the camera or recording media, etc. We recommend backing up important data.

••Once you format the memory card, all the data recorded on the memory card will be deleted and cannot be restored. Before formatting, copy the data to a computer or other device.

Notes on the Multi Interface Shoe

••When attaching or detaching accessories such as an external flash to the Multi Interface Shoe, first turn the power to OFF. When attaching the accessory, confirm that it is firmly fastened to the camera. ••Do not use the Multi Interface Shoe with a commercially available flash that applies voltages of 250 V or more or has the opposite polarity of the camera. It may cause a malfunction.

GB Sony lenses/accessories

Using this unit with products from other manufacturers may affect its performance, leading to accidents or malfunction.

On the data specifications described in this manual

Notes on discarding or transferring a memory card to others

The data on performance and specifications are defined under the following conditions, except as described in this manual: at an ordinary ambient temperature of

25ºC (77°F), and using a battery pack that has been fully charged until the charge lamp has turned off.

Executing [Format] or [Delete] on the camera or a computer may not completely delete the data on the memory card. When transferring a memory card to others, we recommend that you delete the data completely using data deletion software. When discarding a memory card, we recommend that you physically destroy it.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

Notes on location information

If you upload and share an image tagged with a location, you may accidentally reveal the information to a third party. To prevent third parties from obtaining your location information, set [ Loc. Info. Link Set.] to [Off] before shooting images.

Notes on discarding or transferring this product to others

When discarding or transferring this product to others, make sure to perform the following operation to protect private information. ••Select [Setting Reset]  [Initialize].

Notes on wireless LAN If your camera is lost or stolen, Sony bears no responsibility for the loss or damage caused by illegal access or use of the registered access point on the camera.

Notes on security when using wireless LAN products

••Always make sure that you are using a secure wireless LAN to avoid hacking, access by malicious third parties, or other vulnerabilities. ••It is important that you set the security settings when using a wireless LAN. ••If a security problem arises because no security precautions are in place or due to any inevitable circumstances when using a wireless LAN, Sony bears no responsibility for the loss or damage.

How to turn off wireless network functions (Wi-Fi, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily using [Airplane Mode]. GB

For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there. For the customers in other EU countries/regions Use the power cord (B). (A)

For Customers in the U.S.A.

For question regarding your product or for the Sony Service Center nearest you, call 1-800-222-SONY (7669).

Declaration of Conformity

Trade Name: SONY Model No.: WW541200 Responsible Party: S ony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of GB the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notes on this manual

This manual covers several models supplied with different lenses. The model name varies depending on the supplied lens. The available model varies depending on the countries/regions. Model name Lens ILCE-7M3

ILCE-7M3K For details on the Wi-Fi functions and NFC One-touch functions, refer to the

“Help Guide” (page 2). GB

Preparations for shooting

Checking the camera and the supplied items First check the model name of your camera (page 7). The accessories supplied differ depending on the model. The number in parentheses indicates the number of pieces.

•• Micro USB cable (1)

Supplied with all models

•• Camera (1) •• AC Adaptor (1) The shape of the AC Adaptor may differ depending on the country/ region.

•• Power cord (mains lead) (1)*

(supplied in some countries/ regions)

•• Body cap (1) (Attached to the camera)

•• Shoe cap (1) (Attached to the camera)

•• Eyepiece cup (1) (Attached to the camera)

* Multiple power cords may be supplied with your camera.

Use the appropriate one that matches your country/region. See page 7.

•• Rechargeable battery pack

•• Zoom lens FE 28-70 mm F3.55.6 OSS (1) (including a front lens cap and a rear lens cap) •• Lens hood (1)

See the pages in parentheses for details.

 ON/OFF (Power) switch

When the lens is removed

(28)/Shutter button (29)

You can quickly adjust the settings for each shooting mode.

 Remote sensor  Lens release button (27)  Wi-Fi/Bluetooth antenna

Do not cover this part during movie recording. Doing so may cause noise or lower the volume.

 AF illuminator (59)/Self-

 Mounting index (26)

 Image sensor*  Mount  Lens contacts* * Do not directly touch these parts.

To remove the eyepiece cup

Push the grips at the bottom of the eyepiece cup to the left and right and lift up the cup.

 C3 button (Custom button 3)

(For touch operation: Touch panel/Touch pad) (40)

You can adjust the monitor to an easily viewable angle and shoot from any position.

Remove the eyepiece cup when attaching an angle finder (sold separately).

Also, select MENU  (Camera Settings 2)  [FINDER/MONITOR], and then switch to [Viewfinder (Manual)] or [Monitor (Manual)].  Viewfinder

 Diopter-adjustment dial

Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder. If it is hard to operate the diopter-adjustment dial, remove the eyepiece cup before operating the dial.

 For shooting: C4 button

(Custom button 4) (65)

For viewing: (Delete) button (30) 

 For shooting: AF-ON (AF On)

You can quickly adjust the settings for each shooting mode.

 For shooting: AEL button

 Multi-selector (18)

 Media slot cover switch  For shooting: Fn (Function)

For viewing: (Send to Smartphone) button You can display the screen for [Send to Smartphone] by pressing this button.  Control wheel (17) GB

Image sensor position mark

•• The image sensor is the sensor that converts light into an electric signal. The mark shows the location of the image sensor. When you measure the exact distance between the camera and the subject, refer to the position of the horizontal line.

•• If the subject is closer than the minimum shooting distance of the lens, the focus cannot be confirmed. Make sure you put enough distance between the subject and the camera.

  (Microphone) jack

 Hooks for shoulder strap

When an external microphone is connected, the builtin microphone turns off automatically. When the external microphone is a plugin-power type, the power of the microphone is supplied by the camera.

Attach both ends of the strap onto the camera.

  (Headphones) jack

 HDMI micro jack  USB Type-C™ terminal (14,

 Charge lamp  Multi/Micro USB Terminal*

This terminal supports Micro USB-compatible devices.

•• This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone.

 Multi Interface Shoe*

Some accessories may not go in all the way and protrude backward from the Multi interface shoe. However, when the accessory reaches the front end of the shoe, the connection is completed.

 Mode dial (30)  C2 button (Custom button 2)

 C1 button (Custom button 1)

 Exposure compensation dial

Communication) is an international standard of short-range wireless communication technology.  SLOT 1 (Memory card slot 1)

Supports SD cards only (compatible with UHS-I and UHS-II)

 SLOT 2 (Memory card slot 2)

Supports SD cards (compatible with UHS-I) and Memory Stick PRO Duo media * For details on compatible accessories for the multi interface shoe and the Multi/Micro USB Terminal, visit the Sony website, or consult your Sony dealer or local authorized Sony service facility. Accessories for the Accessory Shoe can also be used. Operations with other manufactures’ accessories are not guaranteed.

Notes on USB terminals

You can use either the USB Type-C terminal or the Multi/ Micro USB Terminal for supplying power, charging the battery, and USB communications. However, you cannot conduct these operations with both terminals simultaneously. •• The battery charging time does not change according to the terminal you use. •• You can use accessories for the Multi/Micro USB Terminal, such as a remote commander (sold separately), while supplying power or performing PC Remote shooting using the USB Type-C terminal. GB

 Battery insertion slot (22)

 Battery cover (22)  Tripod socket hole

Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

 Battery cover release lever

Lens FE 28-70 mm F3.5-5.6 OSS (Supplied with ILCE-7M3K)

 Zoom ring  Focal-length scale  Focal-length index  Lens contacts

Do not touch this part directly.

Using the control wheel

•• You can select setting items by turning or pressing the top/bottom/left/ GB right side of the control wheel. Your selection is determined when you press the center of the control wheel.

•• The DISP (Display Setting), / (Drive Mode), and ISO (ISO) functions are assigned to the top/left/right side of the control wheel. In addition, you can assign selected functions to the left/right/bottom side and the center of the control wheel, and to the rotation of the control wheel. •• During playback, you can display the next/previous image by pressing the right/left side of the control wheel or by turning the control wheel.

Using the multi-selector

•• Put your finger right on top of the multi-selector to manipulate it more precisely.

•• When [Focus Area] is set to [Zone], [Flexible Spot], or [Expand Flexible Spot], you can move the focus area by pressing the multi-selector up/down/left/right. •• The [Focus Standard] function is assigned to the center of the multiselector in the default settings.

Using the Fn (Function) button

You can register frequently used functions to the Fn (function) button and recall them while shooting. Up to 12 frequently used functions can be registered to the Fn (Function) button.

Press the DISP on the control wheel repeatedly to display a screen mode other than

[For viewfinder], and then press the Fn (Function) button.

2 Select the desired function by pressing the top/bottom/left/ right side of the control wheel.

3 Select the desired setting by turning the front dial, and press the center of the control wheel.

•• Some functions can be fine-tuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 2, then press the center of the control wheel. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

How to use the Quick Navi screen

The Quick Navi screen is a function optimized for shooting with the viewfinder, that lets you control settings directly.

(Camera Settings 2)  [DISP Button] 

mark on [For viewfinder] and then select [Enter].

3 Press the DISP on the control wheel to set the screen mode to

4 Press the Fn button to switch to the Quick Navi screen.

•• The displayed contents and their positions in the illustrations are just guidelines, and may differ from the actual displays.

Auto mode/Scene Selection mode

5 Select a function to set by pressing the top/bottom/left/right side of the control wheel.

6 Select the desired setting by turning the front dial.

•• Some functions can be fine-tuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 5, then press the center of the control wheel. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

••Items that are gray on the Quick Navi screen are not adjustable. ••When using functions such as [Creative Style] or [Picture Profile], some settings can only be controlled from the dedicated screen.

Step 1: Inserting the battery pack into the camera

Open the battery cover.

2 Insert the battery pack while pressing the lock lever with the tip of the battery until the battery locks into place.

To remove the battery pack

Make sure that the access lamp (page 11) is not lit, and turn off the camera. Then, slide the lock lever and remove the battery pack. Be careful not to drop the battery pack. Lock lever GB

Step 2: Charging the battery pack while it is inserted in the camera

2 Connect the camera with the battery pack inserted to the AC Adaptor

(supplied) using the USB cable, and connect the AC Adaptor to the wall outlet (wall socket).

GB Charge lamp on the camera (orange)

Lit: Charging Off: Charging finished Flashing: Charging error or charging paused temporarily because the camera is not within the proper temperature range •• Charging time (full charge): approximately 285 min (when charging a fully depleted battery pack at a temperature of 25°C (77°F)) •• When you use a completely new battery pack or a battery pack that has not been used for a long time, the charge lamp may flash quickly when the battery is charged. If this happens, remove the battery pack or disconnect the USB cable from the camera and then re-insert it to recharge. •• Be sure to use only genuine Sony brand battery packs and AC Adaptors (supplied). •• Use the USB cable (supplied) or a USB-standard cable. •• The charging time will be the same if you use a USB Type-C cable.

Step 3: Inserting a memory card

For details on memory cards that can be used with this camera, refer to page 81.

Open the memory card cover.

2 Insert the SD card into the slot 1.

Slot 1 (lower): Supports SD cards (compatible with UHS-I and UHS-II) Slot 2 (upper): Supports SD cards (compatible with UHS-I) and Memory Stick PRO Duo media

•• With the notched corner facing in the direction illustrated, insert the memory card until it clicks into place.

•• You can change which memory card slot to use by selecting MENU  (Setup)  [Rec. Media Settings]  [Prioritize Rec. Media]. The slot 1 is used in the default settings. •• Use the slot 1 when you are only using one SD card. •• Use the slot 2 when you are using Memory Stick media. In this case, set [Prioritize Rec. Media] to [Slot 2].

••When you use a memory card with the camera for the first time, it is recommended that you format the card on the camera for more stable performance of the memory card (page 71).

••Do not insert a Memory Stick media into the slot 1. It may cause a malfunction.

To remove the memory card

Open the memory card cover. Make sure that the access lamp (page 11) is not lit, and then push in the memory card once to remove it.

To record to memory cards in two slots

The slot 1 is used in the default settings. If you do not intend to change the settings and will only use one memory card, use the slot 1. By inserting another memory card into the slot 2, you can record the same images to two memory cards simultaneously or record a different type of image (still images/movies) to each memory card ([Recording Mode] under [Rec. Media Settings]) (page 71).

Step 4: Attaching a lens

Remove the body cap from the camera and the rear lens cap from the rear of the lens.

•• When changing the lens, work quickly in a dust-free environment to keep dust or debris from getting inside the camera.

•• It is recommended that you attach the front lens cap when you have done shooting.

2 Mount the lens by aligning the two white index marks

(mounting indexes) on the lens and camera. •• Hold the camera with the lens facing down to prevent dust or debris from entering the camera.

3 While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.

••Be sure to hold the lens straight and do not use force when attaching a lens. ••Do not press the lens release button when attaching a lens. ••The Mount Adaptor (sold separately) is required to use an A-mount lens (sold separately). For details, refer to the operating manual supplied with the Mount Adaptor. ••If you want to shoot full-frame images, use a full-frame size compatible lens. ••When carrying the camera with a lens attached, hold both the camera and the lens firmly. ••Do not hold the part of the lens that is extended for zoom or focus adjustment.

Keep pressing the lens release button and turn the lens in the direction of the arrow until it stops.

Lenses compatible with this camera are as follows: Lens

Lens compatible with 35 mm fullframe format

APS-C size dedicated lens

Compatibility with the camera

 (An optional Mount Adaptor (sold separately) compatible with full-frame format is required) * (An optional Mount Adaptor (sold separately) is required)

Lens compatible with 35 mm fullframe format

APS-C size dedicated lens

* Images will be recorded in APS-C size. The angle of view will correspond to approximately 1.5 times the focal length indicated on the lens. (For example, the angle of view will correspond to 75 mm when a 50 mm-lens is attached.)

Step 5: Setting the language and the clock

Set the ON/OFF (Power) switch to “ON” to turn on the camera.

ON/OFF (Power) switch

2 Select the desired language and then press the center of the control wheel.

3 Make sure that [Enter] is selected on the screen and then press the center.

4 Select the desired geographic location and then press the center.

5 Select [Date/Time] using the top/bottom of the control wheel or by turning the control wheel, and then press the center.

6 Select the desired item by pressing the top/bottom/left/right side of the control wheel, and then press the center.

7 Repeat steps 5 and 6 to set other items, then select [Enter] and press the center.

Hint ••To reset the date and time setting, use MENU (page 71).

••This camera does not have a function for inserting the date into images. You can insert the date into images and then save and print them using PlayMemories Home (for Windows only).

Step 6: Shooting images in auto mode

Turn the mode dial to set to

The shooting mode will be set to

2 Look into the viewfinder or the monitor and hold the camera.

3 Set the size of the subject by rotating the zoom ring of the lens when a zoom lens is attached.

4 Press the shutter button halfway down to focus.

•• When the image is in focus, an indicator (such as ) will light up.

5 Press the shutter button all the way down.

Press the MOVIE button to start/stop recording.

Press the (Playback) button to play back images. You can select the desired image using the control wheel.

To delete displayed image

Press the (Delete) button while an image is displayed to delete it. Select [Delete] using the control wheel on the confirmation screen, and then press the center of the control wheel to delete the image.

To shoot images in various shooting modes

Set the mode dial to the desired mode depending on the subject or the functions you want to use.

Focusing Focus Mode Selects the focus method to suit the movement of the subject.

(Camera Settings 1)  [Focus Mode]  desired

(Single-shot AF): The product locks the focus once focusing is complete. Use this when the subject is motionless.

(Automatic AF): [Single-shot AF] and [Continuous AF] are switched according to the movement of the subject. When the shutter button is pressed halfway down, the product locks the focus when it determines that the subject is motionless, or continues to focus when the subject is in motion. During continuous shooting, the product automatically shoots with Continuous AF from the second shot.

(Continuous AF): The product continues to focus while the shutter button is pressed and held halfway down. Use this when the subject is in motion. In [Continuous AF] mode, there is no beep when the camera focuses. (DMF): You can make fine adjustments manually after performing auto focusing, letting you focus on a subject more quickly than when using the manual focus from the beginning. This is convenient in situations such as macro shooting. (Manual Focus): Adjusts the focus manually. If you cannot focus on the intended subject using auto focus, use manual focus.

 (lit): The subject is in focus and the focus is locked.  (flashing): The subject is not in focus.

(lit): The subject is in focus. The focus will be adjusted continuously according to the movements of the subject.

(lit): Focusing is in progress.

Subjects on which it is difficult to focus using auto focus

•• Dark and distant subjects •• Subjects with poor contrast •• Subjects seen through glass •• Fast-moving subjects •• Reflective light or shiny surfaces •• Flashing light •• Back-lit subjects •• Continuously repetitive patterns, such as the facades of buildings •• Subjects in the focusing area with different focal distances Hint ••In [Continuous AF] mode, you can lock the focus by pressing and holding the button that has been assigned the [Focus Hold] function (page 65). ••When you set the focus to infinity in the manual focus mode or the direct manual focus mode, make sure that the focus is on a sufficiently distant subject by checking the monitor or the viewfinder.

••[Automatic AF] is available only when you are using a lens that supports phase detection AF. ••When [Continuous AF] or [Automatic AF] is set, the angle of view may change little by little while focusing. This does not affect the actual recorded images. ••Only [Continuous AF] and [Manual Focus] are available when shooting movies . or when the mode dial is set to

Focus Area Selects the focusing area. Use this function when it is difficult to focus properly in the auto focus mode.

(Camera Settings 1)  [Focus Area]  desired

Wide: Focuses on a subject covering the whole range of the screen automatically. When you press the shutter button halfway down in the still image shooting mode, a green frame is displayed around the area that is in focus.

GB Zone: Select a zone on the monitor on which to focus, and the product will automatically select a focus area.

Center: Focuses automatically on a subject in the center of the image. Use together with the focus-lock function to create the composition you want. Flexible Spot: Allows you to move the focusing frame to a desired point on the screen and focus on an extremely small subject in a narrow area. Expand Flexible Spot: If the product cannot focus on a single selected point, it uses focus points around the flexible spot as a secondary priority area for focusing. Lock-on AF: When the shutter button is pressed and held halfway down, the product tracks the subject within the selected autofocus area. This setting is available only when the [Focus Mode] is set to [Continuous AF]. Point the cursor at [Lock-on AF] on the [Focus Area] setting screen, and then adjust the desired area to start tracking using the left/right sides of the control wheel. You can also move the tracking start area to the desired point by designating the area as a zone, flexible spot or expand flexible spot.

Examples of the focusing frame display

The focusing frame differs as follows.

When focusing on a larger area

When focusing on a smaller area

•• When [Focus Area] is set to [Wide] or [Zone], the focusing frame may switch between “When focusing on a larger area” and “When focusing on a smaller area” depending on the subject or situation.

•• When you attach an A-mount lens with a Mount Adaptor AF System] is set to (LA-EA1 or LA-EA3) (sold separately) and [ [Phase Detection AF], the focusing frame for “When focusing on a smaller area” may be displayed.

When focus is achieved automatically based on the whole range of the monitor

•• When you use a zoom function other than the optical zoom, the

[Focus Area] setting is disabled and the focusing frame is shown by the dotted line. The AF operates with priority on and around the center area.

To move the focus area

•• You can move the focus area in [Flexible Spot], [Expand Flexible Spot], or [Zone] by operating the multi-selector. If you assign [Focus Standard] to the center of the multi-selector beforehand, you can move the focusing frame back to the center of the monitor by pressing the center of the multi-selector. •• You can move the focusing frame quickly by touching and dragging it on the monitor. Set [Touch Operation] to [On] beforehand (page 40). Hint •• In the default settings, [Focus Area] is assigned to the C2 button. Note ••[Focus Area] is locked to [Wide] in the following situations: ––[Intelligent Auto] ––[Scene Selection] ••The focus area may not light up during continuous shooting or when the shutter button is pressed all the way down at once. (Movie) or , or during movie shooting, ••When the mode dial is set to [Lock-on AF] cannot be selected as the [Focus Area].

When it is difficult to focus properly in the autofocus mode, you can adjust the focus manually.

(Camera Settings 1)  [Focus Mode]  [Manual Focus].

2 Rotate the focusing ring to achieve sharp focus.

•• When you rotate the focusing ring, the focus distance is displayed on the screen. The focus distance is not displayed when the Mount Adaptor (sold separately) is attached.

3 Press the shutter button fully down to shoot an image.

Note ••When you use the viewfinder, adjust the diopter level to obtain the correct focus on the viewfinder (page 11).

Direct manual focus (DMF)

You can make fine adjustments manually after performing auto focusing, letting you focus on a subject more quickly than when using the manual focus from the beginning. This is convenient in situations such as macro shooting.

(Camera Settings 1)  [Focus Mode]  [DMF].

2 Press the shutter button halfway down to focus automatically.

3 Keep the shutter button pressed halfway down, and then rotate the focusing ring to achieve a sharper focus.

•• When you rotate the focusing ring, the focus distance is displayed on the screen. The focus distance is not displayed when the Mount Adaptor

(sold separately) is attached.

4 Press the shutter button fully down to shoot an image.

Shoots images continuously while you press and hold down the shutter button.

Select / (Drive Mode) on the control wheel 

[Cont. Shooting]. •• You can also set the drive mode by selecting MENU  (Camera Settings 1)  [Drive Mode].

2 Select the desired mode using the right/left side of the control wheel.

Continuous Shooting: Hi+: Images are shot continuously at the maximum speed while you press and hold down the shutter button. Continuous Shooting: Hi / Continuous Shooting: Mid / Continuous Shooting: Lo: Subjects are easier to track because the subject is displayed in real-time on the monitor or viewfinder during shooting.

••To continuously adjust the focus and exposure during continuous shooting, set as follows: ––[Focus Mode]: [Continuous AF] AEL w/ shutter]: [Off] or [Auto] ––[

••The shooting speed during continuous shooting becomes slower when RAW File Type] is set to [Uncompressed]. [‌ ••The shooting speed during continuous shooting becomes slower when [e-Front Curtain Shut.] is set to [Off] in [Continuous Shooting: Hi], [Continuous Shooting: Mid] or [Continuous Shooting: Lo] mode. ••When the F-value is greater than F11 in [Continuous Shooting: Hi+], [Continuous Shooting: Hi] or [Continuous Shooting: Mid] mode, the focus is locked to the setting in the first shot. ••The subject is not displayed in real-time on the monitor or viewfinder when shooting in [Continuous Shooting: Hi+] mode. ••Continuous shooting is unavailable in the following situations: ––The shooting mode is set to [Scene Selection] and a scene other than [Sports Action] is selected. ––[Picture Effect] is set to [Rich-tone Mono.]. ––[DRO/Auto HDR] is set to [Auto HDR].

GB Displaying continuous shooting remaining time indicator

(Cont. Shoot. Length) Sets whether to display an indicator of the remaining time for which continuous shooting can be performed at the same shooting speed.

(Camera Settings 2)  [Cont. Shoot. Length]  desired setting. Always Display: Always displays the indicator when the drive mode is set to [Cont. Shooting]. Shoot.-Only Display: Displays the indicator only while continuous shooting is performed. Not Displayed: Does not display the indicator. Hint ••When the internal camera memory for buffering is full, “SLOW” will be displayed and the continuous shooting speed will decrease.

Using touch function

Touch Operation Sets whether to activate or not the touch operation of the monitor. Touch operations when shooting with the monitor are referred to as “touch panel operations,” and touch operations when shooting with the viewfinder are referred to as “touch pad operations.”

(Setup)  [Touch Operation]  desired setting.

On: Activates the touch operation.

Off: Deactivates the touch operation.

Selects whether to activate touch panel operation when shooting with the monitor, or touch pad operation when shooting with the viewfinder.

(Setup)  [Touch Panel/Pad]  desired setting.

Touch Panel+Pad: Activates both the touch panel operations when shooting with the monitor and touch pad operations when shooting with the viewfinder.

Touch Panel Only: Activates only the touch panel operations when shooting with the monitor. Touch Pad Only: Activates only the touch pad operations when shooting with the viewfinder.

You can select a subject on which to focus using touch operations in the still image and movie recording modes.

(Setup)  [Touch Operation]  [On].

Specifying the position where you want to focus in the still image mode

You can focus on the desired position by touching the monitor.

 Select a [Focus Area] other than [Flexible Spot] or

[Expand Flexible Spot].  MENU  [Off].

(Camera Settings 1)  [Center Lock-on AF] 

 Touch the monitor.

••When shooting with the monitor, touch the subject to focus. ••When shooting with the viewfinder, you can move the position of the focus by touching and dragging on the monitor while looking through the viewfinder.

••When the shutter button is pressed halfway down, the camera focuses on the focusing frame. Press the shutter button all the way down to shoot images. or press the

••To cancel focusing with touch operations, touch center of the control wheel if shooting with the monitor, and press the center of the control wheel if shooting with the viewfinder.

Specifying the position where you want to focus in the movie recording mode (spot focus)

The camera will focus on the touched subject. Spot focus is not available when shooting with the viewfinder.

 Select a [Focus Area] other than [Flexible Spot] or

[Expand Flexible Spot].  MENU  [Off].

(Camera Settings 1)  [Center Lock-on AF] 

 Touch the subject on which you want to focus before or during recording.

••When you touch the subject, the focus mode temporarily switches to manual focus and the focus can be adjusted using the focus ring. or press the center of the control ••To cancel spot focus, touch wheel. Hint ••In addition to the touch focus function, touch operations such as the following are also available. ––When [Focus Area] is set to [Flexible Spot] or [Expand Flexible Spot], the focusing frame can be moved using touch operations. ––When the [Focus Mode] is set to [Manual Focus], the focus magnifier can be used by double-tapping the monitor.

••The touch focus function is not available in the following situations: ––When [Focus Mode] is set to [Manual Focus]. ––When using the digital zoom ––When using the LA-EA2 or LA-EA4 ––When using the LA-EA1 or LA-EA3, and the shooting mode is set to [Movie]

Selecting a still image size/image quality

JPEG Image Size The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The smaller the image size, the more images can be recorded.

(Camera Settings 1)  [ desired setting. When [

Aspect Ratio] is set to 3:2

Aspect Ratio] is set to 16:9

GB When recording in the APS-C-equivalent size

Aspect Ratio] is set to 16:9

Aspect Ratio] is set to 3:2

••When [ File Format] is set to [RAW] or [RAW & JPEG], the image size for RAW images corresponds to “L.”

Selects the JPEG image quality when [ [RAW & JPEG] or [JPEG].

File Format] is set to

(Camera Settings 1)  [

JPEG Quality]  desired

Extra fine/Fine/Standard: Since the compression rate increases from

[Extra fine] to [Fine] to [Standard], the file size decreases in the same order. This allows more files to be recorded on one memory card, but the image quality is lower.

Sets the file format for still images.

(Camera Settings 1)  [

RAW: Digital processing is not performed on this file format. Select this format to process images on a computer for professional purposes.

RAW & JPEG: A RAW image and a JPEG image are created at the same time. This is suitable when you need two image files, a JPEG for viewing, and a RAW for editing. JPEG: The image is recorded in the JPEG format.

Changing settings for movie recording File Format Selects the movie file format.

(Camera Settings 2)  [

Records movies in 4K resolution

You can save movies on a computer using the

PlayMemories Home software.

XAVC S HD Records movies in crisper quality than AVCHD with larger amounts of data.

You can save movies on a computer using the

PlayMemories Home software.

AVCHD The AVCHD format has a high degree of compatibility with storage devices other than computers.

You can save movies on a computer or create a disc that supports this format using the

PlayMemories Home software.

For details on memory cards that can be used for these formats, refer to page 81.

••When [ File Format] is set to [AVCHD], the file size of movies is limited to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically. ••Images will not appear on the monitor of the camera if you record movies File Format] set to while the camera is connected to an HDMI device with [ [XAVC S 4K].

Selects the frame rate and bit-rate for movie recording.

(Camera Settings 2)  [ desired setting.

•• The higher the bit-rate, the higher the image quality.

•• For estimates of the maximum recordable movie time with each recording setting, refer to page 84.

File Format] is set to [XAVC S 4K]

30p 100M/25p 100M Approx. 100 Mbps

Records movies in 3840×2160

30p 60M/25p 60M Approx. 60 Mbps

Records movies in 3840×2160

Approx. 100 Mbps Records movies in 3840×2160 (24p).

Records movies in 3840×2160 (24p).

* Only when [NTSC/PAL Selector] is set to NTSC GB

File Format] is set to [XAVC S HD]

60p 50M/50p 50M Approx. 50 Mbps

Records movies in 1920×1080

60p 25M/50p 25M Approx. 25 Mbps

Records movies in 1920×1080

30p 50M/25p 50M Approx. 50 Mbps

Records movies in 1920×1080

30p 16M/25p 16M Approx. 16 Mbps

Records movies in 1920×1080

Records movies in 1920×1080 (24p).

120p 100M/100p 100M Approx. 100 Mbps Records high-speed movies in

1920×1080 (120p/100p). You can record movies in 120 fps or 100 fps. ••You can create smoother slow-motion movies by using compatible editing devices.

120p 60M/100p 60M Approx. 60 Mbps

GB Records high-speed movies in

1920×1080 (120p/100p). You can record movies in 120 fps or 100 fps. ••You can create smoother slow-motion movies by using compatible editing devices.

* Only when [NTSC/PAL Selector] is set to NTSC When [

File Format] is set to [AVCHD]

Records movies in 1920×1080

Approx. 17 Mbps on average

Records movies in 1920×1080

••Creating an AVCHD recording disc from movies that were recorded with Record Setting] takes a long time [60i 24M (FX)]/[50i 24M (FX)] as the [ because the image quality of movies is converted. If you want to store movies without converting them, use a Blu-ray Disc. ••[120p]/[100p] cannot be selected for the following settings. ––[Intelligent Auto] ––[Scene Selection] ••In full-frame shooting, the angle of view will be narrower under the following conditions: File Format] is set to [XAVC S 4K] and [ Record Setting] is set ––When [ to [30p]

Using network functions

Using the Wi-Fi/One-touch (NFC)/ Bluetooth functions You can perform the following operations using the camera’s Wi-Fi, NFC One-touch, and Bluetooth functions. •• Saving images to a computer •• Transferring images from the camera to a smartphone •• Using a smartphone as a remote control for the camera •• Viewing still images on a TV •• Recording location information from a smartphone to images •• Transferring images to the FTP server

GB For details, refer to the “Help Guide” (page 2).

Installing PlayMemories Mobile

PlayMemories Mobile is required to connect the camera and a smartphone. If PlayMemories Mobile is already installed on your smartphone, be sure to update it to the latest version. For details on PlayMemories Mobile, refer to the support page (http://www.sony.net/pmm/).

••To use the camera’s NFC One-touch function, an NFC-enabled Android smartphone or tablet is required. ••The Wi-Fi functions introduced in this manual are not guaranteed to operate on all smartphones or tablets. ••The Wi-Fi functions of this camera are not available when connected to a public wireless LAN. ••Depending on future version upgrades, the operational procedures or screen displays are subject to change without notice.

Recording location information to captured images

By using PlayMemories Mobile, you can obtain location information from a connected smartphone (via Bluetooth communication) and record it to captured images.

Transferring images to the FTP server

You can use the camera’s Wi-Fi function to transfer images to the FTP server. For details, refer to the “FTP Help Guide.” http://rd1.sony.net/help/di/ftp/h_zz/

•• Basic knowledge of FTP servers is required.

Connecting the camera to a wireless access point

Connect the camera to your wireless access point. Before starting the procedure, make sure you have the SSID (name of the access point) and password of your wireless access point with you.

2 Use the control wheel to select the access point to which you

want to connect. Press the center of the control wheel and enter GB the password for the wireless access point, then select [OK].

••If a connection is not established, see the wireless access point operating instructions or contact the administrator of the access point. To save images to a computer, install PlayMemories Home on your computer. PlayMemories Home http://www.sony.net/pm/

Connecting the camera to a computer Connecting to a computer

Insert a sufficiently charged battery pack into the camera.

2 Turn on the camera and the computer.

3 Check that [USB Connection] under

4 Connect the camera to the computer using the USB cable.

•• When you connect the camera to the computer for the first time, the procedure for recognizing the camera may start automatically on the computer. Wait until the procedure is finished. •• If you connect the camera to your computer using the USB cable when [USB Power Supply] is set to [On], power is supplied from your computer. (Default setting: [On]) •• Use a USB 3.1-compatible computer and the USB Type-C cable (sold separately) for higher-speed communications.

To the Multi/Micro USB Terminal USB cable

Disconnecting the camera from the computer

Perform steps 1 and 2 below before performing the following operations: •• Disconnecting the USB cable. •• Removing a memory card. •• Turning off the product.

Click (Safely Remove Hardware and Eject Media) in the taskbar.

••On Mac computers, drag and drop the memory card icon or the drive icon into the “Trash” icon. The camera will be disconnected from the computer.

••On Windows 7/Windows 8 computers, the disconnection icon may not appear. In that case, you can skip the steps above. ••Do not remove the USB cable from the camera while the access lamp is lit. The data may be damaged.

Introduction to computer software

We offer the following computer software to enhance your enjoyment of photos/movies. Access one of the following URLs using your Internet browser and then download the software by following the onscreen instructions. If one of these software is already installed on your computer, update it to the latest version before use.

Windows: http://www.sony.co.jp/imsoft/Win/

Mac: http://www.sony.co.jp/imsoft/Mac/

You can check the recommended operating environment for the software from the following URL: http://www.sony.net/pcenv/

Image management software (PlayMemories Home)

PlayMemories Home allows you to import still images and movies to your computer and view or use them. You need to install PlayMemories Home to import XAVC S movies or AVCHD movies to your computer. You can access the download website directly from the following URL: http://www.sony.net/pm/ •• When you connect the camera to your computer, new functions may be added to PlayMemories Home. Connecting the camera to your computer is therefore recommended even if PlayMemories Home has already been installed on the computer.

RAW processing/remote camera control software

•• You can develop and edit RAW images using various adjustment functions like tone curve and sharpness. •• With the software, you can change the camera settings or release the shutter from a computer connected via a USB cable. To control the camera using the software, first select MENU  (Setup)  [USB Connection]  [PC Remote], then connect the camera to a computer via a USB cable.

MENU items/List of icons

Using MENU items You can change settings related to all the camera operations including shooting, playback, and operating method. You can also execute camera functions from the MENU.

Press the MENU button to display the menu screen.

2 Select the desired setting you want to adjust using the top/ bottom/left/right sides of the control wheel or by turning the control wheel, and then press the center of the control wheel.

Select an icon at the top of the screen and press the left/right side of the control wheel to move to another MENU item.

Press the MENU button to go back to the previous screen.

3 Select the desired setting value, and press the center to confirm your selection.

For details on each MENU items, refer to the reference page in the last column or the Help Guide.

Sets the file format for still images.

([RAW] / [JPEG], etc.)

Selects the file type for RAW images.

Selects the JPEG image quality for [RAW & JPEG] or [JPEG] under

Selects the size of still images.

Selects the aspect ratio for still images.

Sets whether to record in

APS-C-equivalent size for still images and Super 35 mm-equivalent size for movies.

Long Exposure NR Sets noise reduction processing for shots with a shutter speed of 1 second or longer.

High ISO NR Sets noise reduction processing for high-sensitivity shooting.

Changes the color space (range of reproducible colors).

Selects the type of lens compensation.

Selects pre-set settings to match various scene conditions.

([Portrait] / [Sports Action], etc.)

Sets the drive mode, such as for continuous shooting.

([Self-timer] / [Cont. Bracket], etc.)

Sets self-timer shooting in bracket mode, shooting order for exposure bracketing, and white balance bracketing.

Calls up settings pre-registered to

Registers the desired modes and camera settings.

Selects the memory card slot from which settings are recalled or to which settings are registered for M1 through

Assign functions to the custom key to recall when shooting.

Selects the focus mode.

([Single-shot AF] / [Continuous AF], etc.)

Priority Set in AF-S Sets the timing of the shutter release when [Focus Mode] is set to [Single-shot AF], [DMF] or

[Automatic AF] with a still subject.

Priority Set in AF-C Sets the timing of the shutter release when [Focus Mode] is set to

[Continuous AF] or [Automatic AF] with a moving subject.

Selects the area of focus.

([Wide] / [Flexible Spot], etc.)

Allows you to focus using the front dial, rear dial or control wheel.

Sets whether to adjust the

[Focus Area] and the position of the focusing frame based on the camera’s position (horizontal or vertical).

Sets the AF illuminator, which provides light to aid focusing in dark scenes.

Center Lock-on AF Sets the function to track a subject and continue focusing when pressing the center of the control wheel in the shooting screen.

Set. Face Prty in AF Sets whether the camera focuses based on detected faces.

Sets the AF tracking sensitivity for the still image mode.

Sets the auto focus method when an LA-EA1/LA-EA3 Mount Adaptor

(sold separately) is attached.

Sets whether to perform auto focusing when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.

Pre-AF Sets whether or not to perform auto focus before the shutter button is half pressed.

Eye-Start AF Sets whether to use auto focus when you look through the viewfinder if an LA-EA2/LA-EA4 Mount Adaptor

(sold separately) is attached.

Sets whether to move the focusing frame to a preassigned position when shooting still images.

Deletes the focusing frame position information that was registered using

Sets whether the focus area is displayed all the time or disappears automatically shortly after focusing.

Sets whether or not to display the focus area in [Continuous AF] mode.

Finely adjusts the autofocused position, when using the LA-EA2 or LA-EA4 Mount Adaptor

Compensates for the brightness of the entire image.

Sets whether to maintain the exposure value set using

[Exposure Comp.] when you turn off the power when the exposure compensation dial position is set to “0.”

ISO Sets the ISO sensitivity.

Sets the slowest shutter speed at which ISO sensitivity will start to change in [ISO AUTO] mode.

Selects the method for measuring brightness.

([Multi] / [Spot], etc.)

Face Prty in Mlti Mtr

Sets whether the camera measures brightness based on detected faces when [Metering Mode] is set to

Sets whether to coordinate the spot metering point with the focus area when [Focus Area] is set to [Flexible Spot] or

[Expand Flexible Spot].

Selects the size of the increment step for shutter speed, aperture, and exposure compensation values.

Sets whether to lock the exposure when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.

Exposure Std. Adjust

Adjusts the standard for the correct exposure value for each metering modes.

Sets the flash settings.

Adjusts the intensity of flash output.

Sets whether to reflect exposure compensation value to flash compensation.

Sets whether to shoot with the wireless flash.

Reduces the red-eye phenomenon when using flash.

Corrects the tone effect of the ambient light to shoot whitish objects in a white tone.

([Auto] / [Daylight], etc.)

Priority Set in AWB Selects which tone to prioritize when shooting under lighting conditions such as incandescent light with

[White Balance] set to [Auto].

DRO/Auto HDR Analyzes the contrast of light and shadow between the subject and the background by dividing the image into small areas, and creates an image with the optimal brightness and gradation.

Selects the desired image processing.

You can also adjust contrast, saturation, and sharpness. ([Vivid] / [Portrait], etc.)

Shoots images with a texture unique to the selected effect.

([Toy Camera] / [Rich-tone Mono.], etc.)

GB Color/WB/Img. Processing

Changes settings such as color and tone when recording images.

* This function is for skilled movie creators.

Enlarges the image before shooting so that you can check the focus.

Sets the length of time the image will be shown in an enlarged form.

Sets whether or not to autofocus when an enlarged image is being displayed. While the enlarged image is being displayed, you can focus within a smaller area than the flexible spot.

Displays an enlarged image when focusing manually.

Sets the peaking function, which enhances the outline of in-focus areas when focusing manually.

Detects flickering/blinking from artificial light sources such as fluorescent lighting and times the shooting of images to moments when flickering will have less of an impact.

Registers or changes the person to be given priority when focusing.

Regist. Faces Priority

Detects the registered face with higher priority using

[Face Registration].

Sets the exposure mode when shooting movies.

Sets the exposure mode when shooting slow-motion/quick-motion movies.

Selects the movie file format.

([XAVC S 4K] / [AVCHD], etc.)

Selects a frame-rate and bit-rate for the movie.

Changes the settings for slow-motion and quick-motion movie shooting.

Records low-bit-rate proxy files simultaneously when recording

Switches focusing speed when using autofocus in movie mode.

Sets the AF tracking sensitivity for the movie mode.

Sets the function that automatically adjusts the shutter speed following the brightness of the environment in movie mode.

Sets whether to record audio when shooting a movie.

Adjusts the audio recording level during movie recording.

Sets the timing of audio output during the movie recording.

Reduces wind noise during movie recording.

Sets whether to display markers on the monitor when recording movies.

Sets which markers to display on the monitor when recording movies.

Sets the illumination setting for the

HVL-LBPC LED light (sold separately).

Records movies using the shutter button.

Shoots images without the shutter sound.

e-Front Curtain Shut.

Sets whether to use the electronic front curtain shutter function.

Sets whether to release the shutter when the lens is not attached.

Sets whether to release the shutter when a memory card is not inserted.

Sets whether to activate SteadyShot for shooting.

Sets SteadyShot settings.

Sets the zoom scale for zoom functions other than the optical zoom.

Sets whether to use the Clear Image

Zoom and Digital Zoom when zooming.

Assigns the zoom in/out to the rotational direction of the zoom lens.

This function is only available with a power zoom lens that is compatible with this function.

Sets the type of information to be displayed on the monitor or in the viewfinder when the DISP button is pressed.

FINDER/MONITOR Sets the method for switching the display between the electronic viewfinder and the monitor.

Sets the stripes displayed to adjust brightness.

Displays grid lines for adjusting the image composition.

Sets the guide displayed when exposure settings are changed in the shooting screen.

Sets whether to reflect settings such as exposure compensation in screen display.

Sets whether to display an indicator of the remaining time for which continuous shooting can be performed at the same shooting speed.

Sets auto review to display the captured image after shooting.

Assigns functions to the various keys so that you can perform operations more quickly by pressing the keys when shooting still images.

Assigns functions to the various keys so that you can perform operations more quickly by pressing the keys when shooting movies.

Assigns functions to the keys so that you can perform operations more quickly by pressing the keys when playing back images.

Customizes the functions displayed when the Fn (Function) button is pressed.

Sets the functions of the front and rear dials when the exposure mode is set to M. Dials can be used for adjusting shutter speed and aperture value.

Sets the direction of turning the front or rear dial or the control wheel to adjust the aperture value or shutter speed.

Sets whether to compensate the exposure with the front or rear dial.

Enables or disables for the MOVIE button.

Lock Operation Parts

Sets whether to disable the multiselector, control wheel, or front and rear dials temporarily when the Fn button is pressed and held down.

Selects whether the camera beeps during auto focus and self-timer operations.

Sets movies to be transferred to a smartphone, or transfers images to a smartphone.

Backs up images by transferring them to a computer connected to a network.

Sets image transfer using FTP and executes it.

* Basic knowledge of FTP server is required.

View on TV Allows you to view images on a network-enabled TV.

Sets the condition for connecting the camera to a smartphone.

Disables wireless communications from the device such as Wi-Fi, NFC, and Bluetooth function.

Allows you to register your access point and check or change the Wi-Fi connection information.

Controls the settings for connecting the camera with a smartphone via a

Bluetooth connection.

Obtains location information from the paired smartphone and records it to captured images.

Changes the device name under Wi-Fi

Imp Root Certificate

Imports a root certificate to the camera.

Resets all the network settings.

Protects recorded images against accidental erasure.

Assigns rating to recorded images on to

Rating Set (Cust Key)

Sets the rating (number of

) that can be selected using the custom key to which [Rating] has been assigned with [‌ Custom Key].

Specifies in advance on the memory card which still images to print out later.

Copies images from the memory card in the memory card slot designated in

[Select PB Media] to the memory card in the other slot.

Captures a chosen scene in a movie to save as a still image.

Enlarges the playback images.

Sets the initial magnification scale when playing back enlarged images.

Sets the initial magnification area when playing back enlarged images.

Selects the memory card slot of the memory card to be played back.

Plays back images from a specified date or specified folder of still images and movies.

Displays multiple images at the same time.

Sets whether to display continuously shot images as a group.

Sets the playback orientation for images shot vertically.

Sets which dial and method to use for jumping between images during playback.

Adjusts the brightness of the screen.

Sets the brightness of the electronic viewfinder.

Sets the color temperature of the viewfinder.

Adjusts the screen to make monitoring easier when displaying an

Sets the volume for movie playback.

Sets whether [Delete] or [Cancel] is preselected in the delete confirmation screen.

Sets the display quality.

* When [High] is selected, the battery is consumed more quickly. * When the temperature of the camera is high, [Display Quality] may be locked to [Standard].

Sets the time intervals to automatically switch to power save mode.

Sets the camera temperature at which the camera turns off automatically during shooting. When shooting in hand-held mode, set to [Standard].

Changes the TV format of the device so that you can shoot in a different movie format.

Starts the cleaning mode to clean the image sensor.

Sets whether or not to activate the touch operation of the monitor.

Selects whether to activate touch panel operation when shooting with the monitor, or touch pad operation when shooting with the viewfinder.

Adjusts settings related to touch pad operation.

Sets demonstration playback of movies to on or off.

Sets the time code (TC) and user bit

(UB). * This function is for skilled movie creators.

Sets whether to use the infrared remote control.

Sets the HDMI settings.

* Images will not appear on the monitor of the camera if you record movies while the camera is connected to an HDMI device with [‌ File Format] set to [XAVC S 4K].

Sets how to record and output 4K movies via HDMI when the camera is connected to an external recorder/ player that supports 4K.

Sets the USB connection method.

Enhances compatibility by limiting the functions of USB connection. Set to [Multi] in normal conditions and to [Single] only when the connection cannot be established.

Sets whether to supply power via

USB connection when the camera is connected to a computer or USB device.

Controls the PC remote shooting settings.

Selects the language.

Sets the date, time, and daylight savings.

Sets the location of use.

Sets copyright information for still images.

Formats the memory card.

Sets the method used to assign file numbers.

Changes the first 3 characters of the file names for still images.

Sets the method for recording images to two memory card slots.

Changes the folder selected for storing still images.

Creates a new folder for storing still images.

Sets the folder format for still images.

Recover Image DB Recovers the image database file and enables recording and playback.

Displays the remaining recording time of movies and the recordable number of still images on the memory card.

Displays the camera software version.

Restores settings to their defaults.

Select [Initialize] to restore all settings to their default values.

Sorts the MENU items added to

Deletes MENU items added to

Deletes all the MENU items on a page in

Deletes all the MENU items added to

*1 If you change this item, you will need to format the memory card for compatibility with the PAL or NTSC system. Also, note that it may not be possible to play back movies recorded for the NTSC system on PAL system

List of icons on the monitor

The displayed contents and their positions in the illustrations are just guidelines, and may differ from the actual displays.

Icons on the shooting screen

P P ASM Shooting mode (29)

Register number (58)

Scene Recognition icons

NO CARD Memory card status (24, 81)

Remaining number of recordable images (83)

Writing data / Number of images left to write

Aspect ratio of still images (57)

24M 20M 10M 8.7M 6.0M 5.1M

2.6M 2.2M Setting Effect OFF (65)

Image size of still images (43)

RAW RAW recording (compressed/ uncompressed) (44)

XAVC S 4K XAVC S HD AVCHD SteadyShot off/on, Camera shake warning (64)

File format of movies (45)

SteadyS. Focal Len./ Camera shake warning (64) Record setting of movies (46)

120p 60p 60i 30p 24p

100p 50p 50i 25p Frame rate of movies (46)

PC remote (70) Proxy Recording (63)

120fps 60fps 30fps 15fps 8fps

4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps Frame rate for slow/quick motion shooting (63)

Silent Shooting (64)

Infrared remote control

No audio recording of movies

Flash charge in progress

Wind Noise Reduct. (63) GB

Copyright information writing on (71)

Remaining battery (22)

Gamma Disp. Assist (69)

Remaining battery warning Focus Cancel (41) USB power supply (70) Lock-on AF Cancel

GB Performing [Spot Focus] (42)

Drive Mode (38) Bluetooth connection available / Bluetooth connection unavailable (67)

Connected to smartphone / Not connected to smartphone

Obtaining location information/

Location information cannot be obtained (67)

Wireless Flash (61) / Red Eye Reduction (61)

JPEG RAW RAW+J Overheating warning

Database file full/Database file error

 Focus indicator/exposure settings

7500K A5 G5 White Balance (Auto, Preset, Underwater Auto, Custom, Color temperature, Color filter) (61)

Focus indicator (32)

D-Range Opt./Auto HDR (61)

Creative Style (61)/Contrast, saturation, and sharpness

Exposure compensation (60)/

ISO400 ISO AUTO ISO sensitivity (60)

Picture Effect (61) AE lock/ FEL lock Face Priority in AF (59)

Picture Profile (62)

Prioritize Rec. Media (71)

Lock-on AF Cancel Guide display for Lock-on AF (59)

Guide display for canceling focusing (41)

Spot metering area (60)

Exposure Setting Guide (65)

Shutter speed indicator

GB STBY REC Movie recording standby/Movie recording in progress

Actual movie recording time (hours: minutes: seconds)

Audio Level Display (63)

Icons on the playback screen

Single-image playback display

Proxy movie included (63) Playback media (68)

Refer to “Icons on the shooting screen” (page 73).

File number/Number of images in the view mode

Remaining battery (22)

Continuous shooting group

HDR recording (Hybrid LogGamma)

Refer to “Icons on the shooting screen” (page 73) for other icons displayed in this area.

2018 - 1 - 1 10:37AM Date of recording (28)

Folder number  File number (71)

Histogram (Luminance/R/G/B)

Specifications Battery life and number of recordable images Battery life Shooting (still images)

•• The above estimates for battery life and number of recordable images apply when the battery pack has been fully charged. The battery life and number of images may decrease depending on the conditions of use.

•• The battery life and number of recordable images are estimates based on shooting with the default settings under the following conditions: –– Using the battery pack at an ambient temperature of 25°C (77°F). –– Using a Sony SDXC memory card (U3) (sold separately) –– Using a lens FE 28-70 mm F3.5-5.6 OSS •• The numbers for “Shooting (still images)” are based on the CIPA standard and shooting under the following conditions: (CIPA: Camera & Imaging Products Association) –– One picture is taken every 30 seconds. –– The power is turned on and off once every ten times.

•• The number of minutes for movie shooting is based on the CIPA standard and shooting under the following conditions:

–– The image quality is set to XAVC S HD 60p 50M / 50p 50M. –– Actual shooting (movies): Battery life based on repeated shooting, zooming, shooting stand-by, turning on/off, etc. –– Continuous shooting (movies): Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE (Movie) button again. Other functions, such as zooming, are not operated.

Memory cards that can be used

When using microSD memory cards or Memory Stick Micro media with this camera, be sure to use the appropriate adaptor.

Supported memory card

AVCHD SD/SDHC/SDXC card

(Class 4 or faster, or U1 or faster)

XAVC S GB SDHC/SDXC card

(Class 10, or U1 or faster)

* Including when recording proxy movies at the same time

Supported memory card

* Including when recording proxy movies at the same time

••Use the slot 1 when you are using a UHS-II memory card. Also, select MENU  (Setup)  [Rec. Media Settings]  [Prioritize Rec. Media]  [Slot 1]. ••Memory Stick PRO Duo media cannot be used in the slot 1. ••When an SDHC memory card is used to record an XAVC S movie over extended periods of time, the recorded movies will be divided into files 4 GB in size. The divided files can be handled as a single file by importing them to a computer using PlayMemories Home. ••When recording a movie on memory cards in both the slot 1 and the slot 2 with following camera settings, insert two memory cards with the same file system. XAVC S movies cannot be recorded simultaneously when using a combination of the exFAT file system and FAT32 file system. File Format] is set to [XAVC S 4K] or [XAVC S HD] ––[ ––[Recording Mode] under [Rec. Media Settings] is set to [Simult. ( )] or / )] [Simult. ( Memory card

exFAT Memory Stick PRO Duo (Mark2)

Memory Stick PRO-HG Duo SDHC memory card

••Charge the battery pack sufficiently before attempting to recover the database files on the memory card.

Number of recordable images

When you insert a memory card into the camera and set the ON/OFF (Power) switch to “ON,” the number of images that can be recorded (should you continue to shoot using the current settings) is displayed on the screen. Note ••When “0” (the number of recordable images) flashes in orange, the memory card is full. Replace the memory card with another one, or delete images from the current memory card. ••When “NO CARD” flashes in orange, it means no memory card has been inserted. Insert a memory card.

GB The number of images that can be recorded on a memory card

The following table shows the approximate number of images that can be recorded on a memory card formatted with this camera. The values are defined using Sony standard memory cards for testing. The values may vary depending on the shooting conditions and the type of memory card used. JPEG Image Size]: [L: 24M] [ Aspect Ratio]: [3:2]*1 [ (Units: Images) 8 GB

RAW & JPEG (Compressed RAW)*2

RAW (Compressed RAW)

RAW & JPEG (Uncompressed RAW)*2

RAW (Uncompressed RAW)

Aspect Ratio] is set to other than [3:2], you can record more

*1 When [ images than the numbers shown in the table (except when [RAW] is selected). JPEG Quality] when [RAW & JPEG] is selected: [Fine] *2 [

••Even if the number of recordable images is higher than 9999 images, “9999” will appear. ••The numbers shown are when using a Sony memory card.

Recordable movie times

The table below shows the approximate total recording times using a memory card formatted with this camera. The values may vary depending on the shooting conditions and the type of memory File Format] is set to card used. The recording times for when [ [XAVC S 4K] and [XAVC S HD] are recording times when shooting with Proxy Recording] set to [Off]. [‌ (h (hour), m (minute)) File Format

XAVC S 4K XAVC S HD GB

* Only when [NTSC/PAL Selector] is set to NTSC

•• Continuous shooting is possible for approximately 29 minutes (a product specification limit). The continuous recordable time may differ in the following situations:

–– When shooting slow-motion/quick-motion movies: Recording will automatically stop when the recorded file reaches approximately 29 minutes (the played back movie reaches approximately 29 minutes). (Recording will automatically stop when the recorded file reaches Record Setting] is set to [60p/50p] approximately 15 minutes if [ Frame Rate] is set to [30fps/25fps].) and [ •• The times for slow-motion/quick-motion movies are playback times, not recording times.

••The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings. ••The times shown are recordable times using a Sony memory card.

Notes on continuous movie recording

•• High-quality movie recording and high-speed continuous shooting require large amounts of power. Therefore, if you continue to shoot, the temperature inside the camera will rise, especially that of the image sensor. In such cases, the camera will turn off automatically because the surface of the camera is heated to a high temperature or the high temperature affects the quality of the images or the internal mechanism of the camera.

•• The duration of time available for continuous movie recording when the camera records with the default settings after the power has been turned off for a while is as follows. The values indicate the continuous time from when the camera starts recording until the camera stops recording.

Continuous recording time for movies (HD)

Continuous recording time for movies (4K)

[Auto Pwr OFF Temp.]: [Standard]

HD: XAVC S HD (60p 50M/50p 50M, when the camera is not connected via Wi-Fi) 4K: XAVC S 4K (24p 60M/25p 60M, when the camera is not connected via Wi-Fi) •• The duration of time available for movie recording varies with the temperature, file format/record setting for movies, Wi-Fi network environment, or condition of the camera before you start recording. If you frequently recompose or shoot images after the power is turned on, the temperature inside the camera will rise and the recording time available will be shorter. icon appears, the temperature of the camera has risen. •• If the •• If the camera stops movie recording due to a high temperature, leave it for some time with the power turned off. Start recording after the temperature inside the camera drops fully. •• If you observe the following points, you will be able to record movies for longer periods of time. –– Keep the camera out of direct sunlight. –– Turn the camera off when it is not being used. File Format] is set to [AVCHD], the file size of movies is limited •• When [ to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically.

Interchangeable Lens Digital Camera Lens: Sony E-mount lens

Image format: 35 mm full frame

(35.6 mm × 23.8 mm), CMOS image sensor Effective pixel number of camera: Approx. 24 200 000 pixels Total pixel number of camera: Approx. 25 300 000 pixels

In-camera sensor shift image stabilization system

Detection system: Phase detection system/Contrast detection system

Sensitivity Range: –3 EV to +20 EV (at ISO 100 equivalent, F2.0)

[Electronic viewfinder]

Type: 1.3 cm (0.5 type) Electronic

Viewfinder Total number of dots: 2 359 296 dots Magnification: Approx. 0.78× with 50 mm lens at infinity, –1 m–1 Eye Point: Approx. 23 mm from the eyepiece and approx. 18.5 mm from the eyepiece frame at –1 m–1 Diopter Adjustment: –4.0 m–1 to +3.0 m–1

Metering method: 1 200-zone evaluative metering

Metering Range: –3 EV to +20 EV (at ISO 100 equivalent with F2.0 lens) ISO sensitivity (Recommended exposure index): Still images: ISO 100 to ISO 51 200 (Extended ISO: Minimum ISO 50, maximum ISO 204 800) Movies: ISO 100 to ISO 51 200 equivalent

Type: Electronically-controlled, vertical-traverse, focal-plane type

Speed range: Still images: 1/8 000 second to 30 seconds, BULB Movies: 1/8 000 second to 1/4 second 1080 60i-compatible devices (1080 50i-compatible devices): up to 1/60 (1/50) second in AUTO mode (up to 1/30 (1/25) second in Auto slow shutter mode) Flash sync speed: 1/250 second (when using a flash manufactured by Sony)

7.5 cm (3.0 type) TFT drive, touch panel

Total number of dots: 921 600 dots

File format: JPEG (DCF Ver. 2.0, Exif

Ver. 2.31, MPF Baseline) compliant, RAW (Sony ARW 2.3 format) Movie (XAVC S format): MPEG-4 AVC/H.264 XAVC S ver.1.0 format compliant Video: MPEG-4 AVC/H.264 Audio: LPCM 2ch (48 kHz 16 bit) Movie (AVCHD format): AVCHD format Ver. 2.0 compatible Video: MPEG-4 AVC/H.264 Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator ••Manufactured under license from Dolby Laboratories.

SLOT 1: Slot for SD cards (UHS-I and

UHS-II compatible) SLOT 2: Multi-slot for Memory Stick PRO Duo media and SD cards (UHS-I compatible)

[Input/output terminals]

, 3.2 W Rated input: 7.2 V Operating temperature: 0 to 40°C (32 to 104°F) Storage temperature: –20 to 55°C (–4 to 131°F) Dimensions (W/H/D) (Approx.): 126.9 × 95.6 × 73.7 mm 126.9 × 95.6 × 62.7 mm (from grip to monitor) 5 × 3 7/8 × 3 in. 5 × 3 7/8 × 2 1/2 in. (from grip to monitor) Mass (CIPA compliant) (Approx.): 650 g (1 lb 7.0 oz) (including battery pack, SD card)

Supported format: IEEE 802.11 b/g/n

Frequency band: 2.4 GHz Security: WEP/WPA-PSK/WPA2-PSK Connection method: Wi-Fi Protected Setup™ (WPS)/ Manual Access method: Infrastructure mode

, 50/60 Hz, 0.2 A 100 - 240 V

, 1.5 A Rated output: 5 V Rechargeable battery pack

Rated voltage: 7.2 V GB

Lens FE 28-70 mm F3.5-5.6 OSS

(Supplied with ILCE-7M3K)

Focal length: 28 mm – 70 mm

Lens groups–elements: 8–9 Angle of view: 75° – 34° Minimum focus*: 0.3 m – 0.45 m (0.99 ft. – 1.48 ft.) * Minimum focus is the shortest distance from the image sensor to the subject. Maximum magnification: 0.19× Minimum f-stop: f/22 – f/36 Filter diameter: 55 mm Dimensions (max. diameter × height): Approx. 72.5 mm × 83 mm (Approx. 2 7/8 inches × 3 3/8 inches) Mass: Approx. 295 g (Approx. 10.5 oz.) SteadyShot: Available Design and specifications are subject to change without notice.

On image data compatibility

••This camera conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan Electronics and Information Technology Industries Association). ••Playback of images recorded with your camera on other equipment and playback of images recorded or edited with other equipment on your camera are not guaranteed.

••Memory Stick and are trademarks or registered trademarks of Sony Corporation. are registered ••XAVC S and trademarks of Sony Corporation. ••“AVCHD” and the “AVCHD” logotype are trademarks of Panasonic Corporation and Sony Corporation. ••Mac is a trademark of Apple Inc., registered in the United States and other countries. ••IOS is a registered trademark or GB trademark of Cisco Systems, Inc. ••iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. ••Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association. ••DLNA and DLNA CERTIFIED are trademarks of Digital Living Network Alliance. ••USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ••USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. ••Dolby, Dolby Audio and double-D symbol are trademarks of Dolby Laboratories. ••The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

••Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

••SDXC logo is a trademark of SD-3C, LLC. ••Facebook and the “f” logo are trademarks or registered trademarks of Facebook, Inc. ••Android and Google Play are trademarks or registered trademarks of Google Inc. ••YouTube and the YouTube logo are trademarks or registered trademarks of Google Inc. ••Wi-Fi, the Wi-Fi logo and Wi-Fi Protected Setup are registered trademarks or trademarks of the Wi-Fi Alliance. ••The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. ••The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. ••QR code is a trademark of Denso Wave Inc. ••In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the  or  marks may not be used in all cases in this manual.

On GNU GPL/LGPL applied software

The software that is eligible for the following GNU General Public License (hereinafter referred to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”) are included in the product. This informs you that you have a right to have access to, modify, and redistribute source code for these software programs under the conditions of the supplied GPL/LGPL. Source code is provided on the web. Use the following URL to download it. http://oss.sony.net/Products/Linux/ We would prefer you do not contact us about the contents of source code.

GB Licenses (in English) are recorded in the internal memory of your product.

Establish a Mass Storage connection between the product and a computer to read licenses in the “PMHOME” “LICENSE” folder. Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

•• Câble micro-USB (1)

•• Batterie rechargeable NP-FZ100

 Prise  (microphone)

 Griffe multi-interface*

Comm zo. AF V/H Verrouill. AF central

Désact. Aut. Zone AF Opti Dyn/HDR aut

Active/désactive le bouton MOVIE.

Imp. certificat racine

Affich. info support

24M 20M 10M 8.7M 6.0M 5.1M

2.6M 2.2M Alimentation USB (73)

Carte SDHC/SDXC (U3)

Batterie rechargeable

NP-FZ100 Tension nominale : 7,2 V

 Multi-Interface-Schuh*

SDHC/SDXC-Karte (U3)

•• Cable micro USB (1)

 Interruptor ON/OFF

24M 20M 10M 8.7M 6.0M 5.1M

2.6M 2.2M DPOF Ajuste DPOF Tarjeta SDHC/SDXC (U3)

24M 20M 10M 8.7M 6.0M 5.1M

120fps 60fps 30fps 15fps 8fps

4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Scheda SDHC/SDXC (U3)

Memory Stick PRO Duo (Mark2)

Memory Stick PRO-HG Duo

Scheda di memoria SDHC FAT32

 Interruptor ON/OFF

24M 20M 10M 8.7M 6.0M 5.1M

120fps 60fps 30fps 15fps 8fps

4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Executar [Foco Ponto]

Otimiz Alc Din/HDR Auto

Cartão SDHC/SDXC (U3)

Memory Stick PRO Duo (Mark2)

Memory Stick PRO-HG Duo

Cartão de memória SDHC FAT32

FE 28-70 mm F3.5-5.6 OSS (fornecida com ILCE-7M3K)

Helpfunct. in camera

 C3-knop (customknop 3)/

 C2-knop (customknop 2)

 C1-knop (customknop 1)

24M 20M 10M 8.7M 6.0M 5.1M

120fps 60fps 30fps 15fps 8fps

4fps 100fps 50fps 25fps 12fps 6fps 3fps 2fps 1fps

Belichtingsinstellingengids

Digitale niveaumeter

•• Akumulator NP-FZ100 (1)

24M 20M 10M 8.7M 6.0M 5.1M

2.6M 2.2M XAVC S 4K XAVC S HD AVCHD Karta SDHC/SDXC (U3)

24M 20M 10M 8.7M 6.0M 5.1M

24M 20M 10M 8.7M 6.0M 5.1M

Memory Stick PRO Duo (Mark2)

Memory Stick PRO-HG Duo SDHC-minneskort

•• Ladattava akku NP-FZ100 (1)

Memory Stick PRO Duo (Mark2)

Memory Stick PRO-HG Duo SDHC-minnekort
