USER MANUAL WS105GA - WS32GAE - WS46GDBE - WS59GAE HAIER

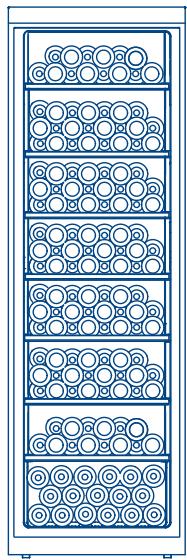

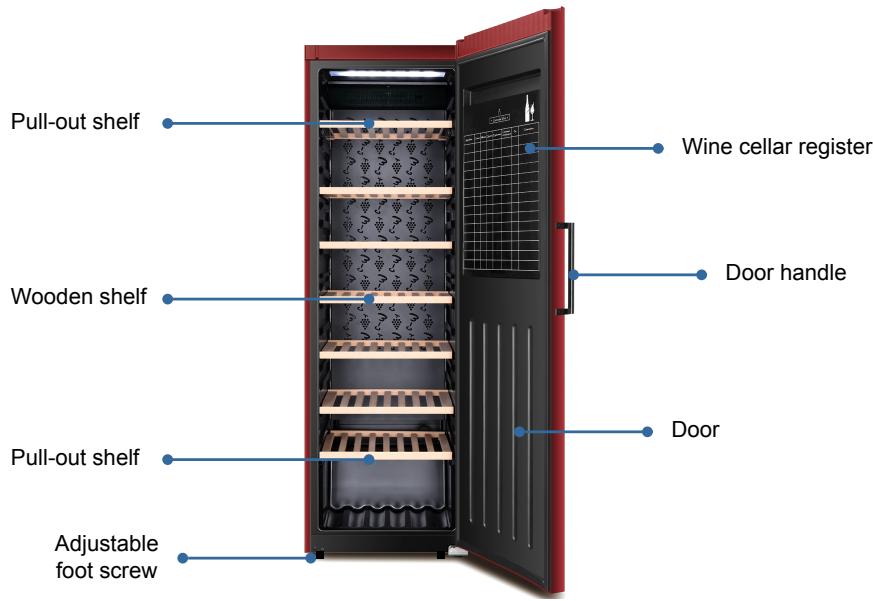

Names of Wine Cellar Components

WS160FSAA (160 bottle capacity)

Page

IMPORTANT SAFEGUARDS 4

Installing Your Wine Cellar 5

Unpacking Your Wine Cellar 5

Leveling Your Wine Cellar 5

Proper Air Circulation 5

Electrical Requirement 6

Install Limitations 6

Use of Extension Cord. 6

Initial Setup 6

Introduction to Primary Functions of the Appliance 7

1.Automatic Locking and Unlocking. 7
2.Temperature Adjustment. 7
3.Rouge Indicator 7
4.Blanc Indicator 7
5.Alarm Function 8
6.Child lock 8
7.Screen Saver Function 8
8. OK/5S Button Function 8
9.Power-Off Memory 8

Precautions for Use of Wine Cellar 9

Automatic Defrosting 9
Shelving 10
Normal Operating Sounds You May Hear 10
Proper Wine Cellar Care and Cleaning 11

Troubleshooting 12

Technical Data\*Packing List. 13

This appliance is intended to be used exclusively for the storage of wine. When using this appliance, always exercise basic safety precautions, including the following:

1. Read all of the instructions before using this appliance.
2. Use this appliance only for its intended purpose as described in this use and care guide.
3. This wine cellar must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
4. It is intended strictly for household use. If using it for industrial or commercial purpose, be sure to observe the relevant norms and regulations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
5. The appliance must be positioned so that the plug is accessible.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
8. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
9. Do not damage the refrigerant circuit.
10. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
11. If the light is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
12. This appliance is intended to be used exclusively for the storage of wine.
13. Risk of child entrapment. Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not easily climb inside.
14. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Unpacking Your Wine Cellar

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar.

Leveling Your Wine Cellar

• Your wine cellar has four leveling legs which are located in the front and rear corners of your wine cellar. After properly placing your wine cellar in its final position, you can level your wine cellar.
• Leveling legs can be adjusted by turning them clockwise to raise your wine cellar or by turning them counterclockwise to lower your wine cellar. The wine cellar door will close easier when the leveling legs are extended.

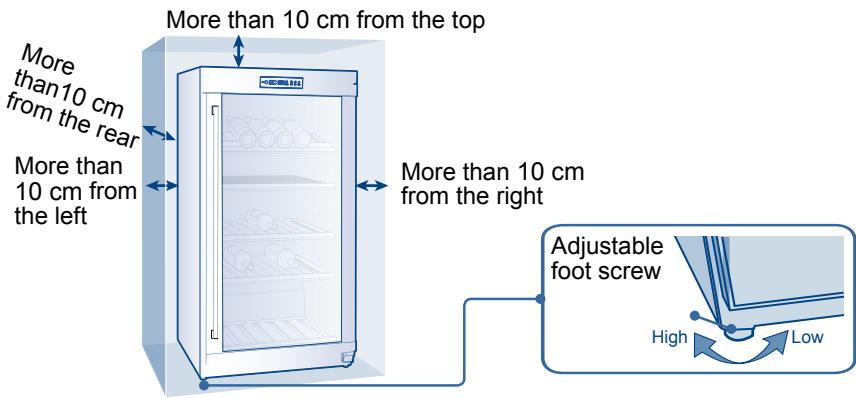

Proper Air Circulation

• To assure your wine cellar works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the wine cellar:

Sides. 4" (100mm)

Top. 4" (100mm)

Back. 4" (100mm)

• Do not over fill your wine cellar for proper wine cooling.

Note: If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in.

Electrical Requirement

• Make sure there is a suitable power Outlet (220-240V, 15 amps outlet) with proper grounding to power the wine cellar.
• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the wine cellar and may result in shock hazard.

Install Limitations

• Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not laid to operate if the ambient temperature is below 10^ .
• Select a suitable location for the wine cellar on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the wine cellar.
• Your wine cellar is designed for free-standing installation only. It is not designed for built-in application.

Use of Extension Cord

• Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

Initial Setup

Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimate itself before making any adjustments. During this time, depending on the internal temperature, the red or white wine light will stay on for the upper compartment and red or white wine light will stay on for the lower compartment. The LED display will show the current internal temperature.

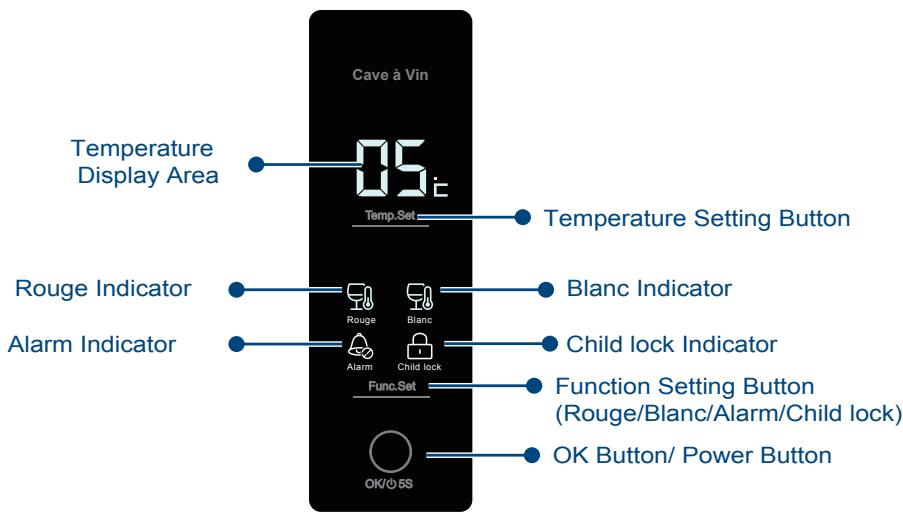

Control Panel

1. Automatic locking and Unlocking

The appliance has an automatic locking function in order to prevent improper operation of the operating temperature due to accidental triggering.

Child lock indicator lights up when no operation for 30s and control panel will be locked. Press "Func. Set" button till "Child lock" flashes, then press "OK/5S", "Child lock" indicator turns off and control panel unlocked.

2.Temperature Adjustment

Under unlocked mode, pressg"Tem. Set", temperature flashes and control panel starts temperature setting. The temperature rises by 1^ each time when "Temp. Set" is pressed and temperature circulates between 5 20^ . After 3 seconds, temperature is set. Display will return to real temperature inside the cabinet.

3.Rouge Indicator

Under unlocked mode, press "Func. Set", till Rouge indicator flashes and press "OK/5S" to set this function. After setting Rouge mode, Rouge indicator lights up and system works with designed temperature of 12^ . Rouge mode has power-off memory.

4.Blanc Indicator

Under unlocked mode, press "Func. Set", till Blanc indicator flashes and press "OK/5S" to set this function. After setting Blanc mode, Blanc indicator lights up and system works with designed temperature of 8^ . Rouge mode has power-off memory.

5. Alarm Function

Breakdown alarm: If alarm icon flashes with intermittent buzzer and display shows "E0, E7, F4, E1, F1, dr or L1", that means the product requires a servicing, please contact the after sales service. Door alarm: If the door is left open over 60s, buzzer starts but no alarm indicator. The alarm condition will stop by closing the door or by pressing "Func. Set" to select Alarm function and pressing the "OK /5S" button.

6.Child Lock

Under unlocked mode, press "Func. Set" button to select "Child lock" and press "OK/5S" to confirm the function, the function will be on. To unlock the display, press any button and display lights up, then press "Func. Set" till Child lock icon flashes,press "OK/5S".

7.Screen Saver Function

Under unlocked mode, the display turns off if no button is pressed within 30s and the door is closed, system starts screen saver mode. (Display lights up if any button is pressed or door is open, but the display will keep locked).

8. OK/5S Button Function

When a certain function is selected, press "OK/5S" to confirm this function, or else the selected function will be cancelled after the icon flashes 5 times. Press the OK/5S button for 5 seconds to power off the cabinet.

9.Power-off Memory

In case of power failure, the cabinet will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power failure while other functions will return to the default status.

10.Livre des Vins(Wine cellar register function)

Livre des Vins helps to manage information of your wine collection. Below information below could be registered:

Appellation: Region

Couleur: Color

Millésime: Year

Quantité: Quantity

Consommeravant/jusqu'a: Best before date and expiry date

Emplacement: Location on the shelf

Prix: Price

Commentaires: Comments

Use only white water pen to write on the register so as the register can be reused, do not use oil pen. To erase information, use a slightly moistened cloth or sponge. Never use detergent or abrasive materials. There is a pen box on top of the register which can be used to hold the water pen horizontally.

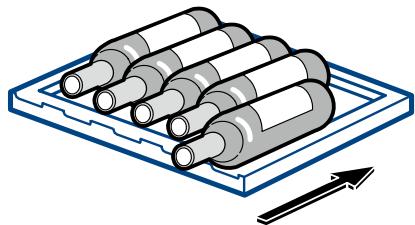

Precautions for Use of Wine Cellars

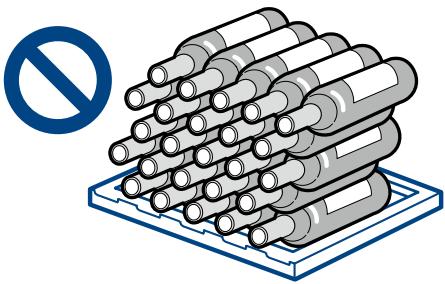

Do not place too much wine in the cellar so as not to exceed the bearing capacity of the wine shelves. Do not place more than three layers of wine on each shelf. The number of wine bottles should not exceed three layers on each shelf, or the bearing capacity of the wine shelves should not exceed 35kg.

Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable.

In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

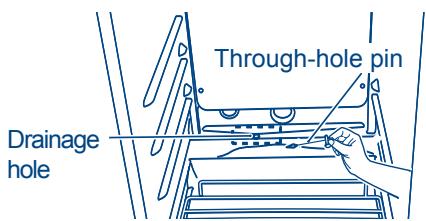

Automatic Defrosting

This appliance has an automatic defrosting function. When using the appliance for the first time, please place a through-hole pin at the drainage hole. During use, ensure that the drainage hole is unblocked so as to force defrosting water to flow smoothly through the drainage hole into the water receiver inside the cellar cabin. If blocked, take the through-hole pin inside drainage hole out, clear away blockages inside and then put the pin back.

Regularly clean water receivers at the bottom of the upper and lower compartments; use a dry cloth to absorb water inside the water receivers and wipe down them (clean them every three months as suggested).

Air exchange with activated carbon filter

The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon filter has been fitted in the lower area of the rear wall of the appliance to ensure that the air through put remains at an optimum quality.

We recommend that you replace the filter once a year. Filters can be obtained from your dealer.

Changing the filter:

Take the filter by the handle. Turn it to the left and remove.

Inserting the filter:

Insert with the handle in a vertical position. Turn it to the right and insert.

Shelving

• The shelves are designed for appearance and easy cleaning. Larger bottles or Magnums can be more easily accommodated at the cross shelves at the bottom of the cellar.
• There are some shelves for easy storage and removal of your wine.

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

Cleaning and Maintenance

Warning: To avoid electric shock always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury.

Caution: Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage.

General:

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cellar.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your wine cellar.

Door Gaskets: Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

Wine Shelf: If the wine shelf was accidentally sprinkled with wine or water droplets, please use 300-400 sandpaper to polish, then use soft cloth to wipe down the sawdust. Do not use towel or soft cloth with water.

Power Interruptions

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet.

Vacation and Moving Care

• For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets according to "General cleaning" section. Leave doors open, so air can circulate inside.
• When moving always move the wine cellar vertically. Do not move with the unit lying down, as possible damage to the sealed system could occur.

Note: After moving, wait for 24 hours before plugging in the wine cellar.

Wine Cellar Does Not Operate:

• Check if wine cellar is plugged in.
• Check if there is power in the AC outlet, by checking the circuit breaker.

Wine appears too warm:

• Frequent door openings.
• Allow time for recently added wine to reach desired temperature.
• Check gaskets for proper seal.
• Clean condenser coils.
• Adjust temperature control to colder setting.

Wine temperature is too cold:

• If temperature control setting is too cold, adjust to a warmer setting.

Wine cellar runs too frequently:

• This may be normal to maintain constant temperature during high temperature and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Clean condenser coils.
• Check gasket for proper seal.
• Check to see if doors are completely closed.

Moisture build up on interior or exterior of the wine cellar:

• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.

Wine cellar door does not shut properly:

• Level the wine cellar.
• Check for blockages e.g. wine bottles, shelves.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Technical Data

Model	Climate Type	Electric Shock Resistance Type	Available Capacity (l)	Rated Voltage (V)	Rated Frequency (Hz)	Input Power (W)
WS160FSAA	SN~ST	I	360	220~240	50	75

Temperature Range (℃)	Refrigerant (R600a) (g)	Supply Cord Connection Mode	Weight (kg)	Noise (Acoustic Power Level) dB (A)	Overall Dimension (Depth × Width × Height) (mm)
5~20	65	Y	73	39	639×595×1,850

EN

Remarks:

1. According to international standards, if the climate is an SN~ST type, the ambient temperature for use of the wine cellar ranges between 10^ and 38^ .
2. "Noise (acoustic power level)" marked in the technical data refers to a situation in which the semi-anechoic room is set up as specified according to national standards, in the case of an empty wine cellar, a resilient rubber cushion as thick as 5mm to 6mm is placed inside. It can run for at least 30 minutes after the door is closed. A test will be conducted after stable running (excluding startup and shutdown). Ground noise will be tested at 1m from the front, rear, left and right surfaces of the wine cellar respectively.

During use, it is normal that the actual noise is different from the marked noise due to the effects of the type of wine stored in the wine cellar, ambient noise, door opening and closing, compressor startup and shutdown, etc.

1. The standard implementation sequence of the enterprise for this appliance series is: Q/0212BGC 007

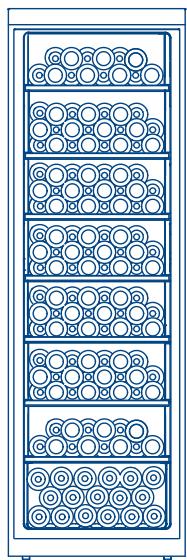

Packing List

This appliance is being developed continuously. We reserve the right to change the components of the wine cellar without notice.

Quantity Name Product Model	User Guide	Information Kit	Pull-out Shelf	Wooden Shelf	Through- hole Pin	Key
WS160FSAA	1	1	2	5	1	2

WS160FSAA (160 bottle capacity)
