USER MANUAL CVD50 LA SOMMELIERE
IT - MANUEL D' USO p. 73

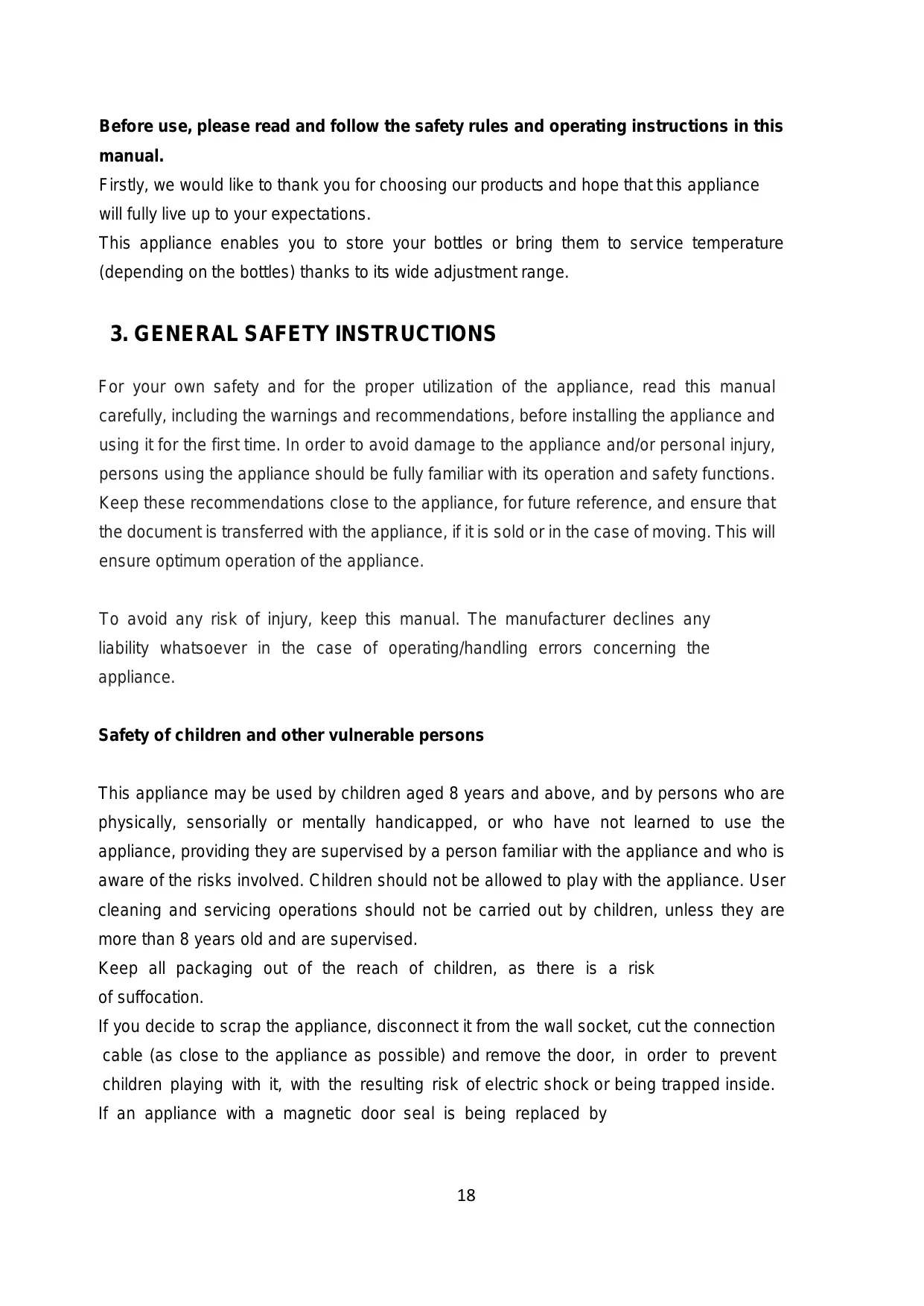

Before use, please read and follow the safety rules and operating instructions in this manual.
Firstly, we would like to thank you for choosing our products and hope that this appliance will fully live up to your expectations.
This appliance enables you to store your bottles or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.
3. GENERAL SAFETY INSTRUCTIONS
For your own safety and for the proper utilization of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.
To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.
Safety of children and other vulnerable persons
This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.
Keep all packaging out of the reach of children, as there is a risk of suffocation.
If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside. If an appliance with a magnetic door seal is being replaced by
another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.
Keep the appliance and its power cable out of reach of children less than 8 years old.
General safety
CAUTION — This appliance is designed for home use.
CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.
CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.
CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.
CAUTION — Do not damage the refrigerating circuit.
CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.
CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to fire.
Refrigerating fluid
The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.
Caution: Fire rise
If the refrigerating circuit is damaged:
- Avoid open flames or any source of combustion.
- Ensure that the room in which the appliance is installed is well ventilated. It is dangerous to change the specification of the appliance in any way whatsoever.
Damage to the power cable may cause a short circuit and/or electric shock.
Electrical safety
- We decline any liability in respect of incidents caused by poor electrical installation.
-
Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.
-
Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.
- Check that the wall socket used for the appliance is properly accessible.
- Never pull on the main power cable.
- Ensure that the appliance is always electrically earthed.
- If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.
- Do not use the appliance if the interior lighting cover is not installed.
- Disconnect the appliance before replacing the lighting bulb.
- The appliance operates on a single phase 220 240 ~V / 50 ~Hz powersupply.
- The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.
- Do not attempt to replace a damaged power cable, contact your after-sales service.
- The power socket must be easily accessible but out of reach of children.
In case of doubt, contact your installation technician.
Daily utilisation
- Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.
- Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).
- When disconnecting the appliance, grip the plug firmly and do not pull on the cable.
- Do not expose the appliance to direct sunlight.
- Keep the appliance away from candles, luminaries and open flames, in order to avoid fire risk.
This appliance is only designed to store wines and drinks.
- The appliance is heavy. Be careful when moving it.
- If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
- Do not lean or climb on the appliance or its elements.
- In order to avoid falling objects and to prevent damage to the appliance, do not overload the compartments of the appliance.
Caution! Cleaning and servicing
-
Before carrying out servicing, switch off the power supply and disconnect the appliance.
-
When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
- Do not use sharp or pointed objects to remove ice. Use a plastic Scaper.
- To ensure proper electrical connection, follow the recommendations given in the present manual.
- Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
- It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
- Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations Provided.
- In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.
- The appliance should not be placed close to radiators or cooking hot plates or gas rings.
- Check that electrical sockets remain accessible when the appliance is Installed.
Power saving
To limit the electricity consumption of your appliance:
Install it in an appropriate place (see "Installing your appliance").
- Leave the doors open as little time as possible.
- To ensure that the appliance operates properly, clean the condenser regularly (see "Routine servicing of your appliance").
- Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.
Troubleshooting
- Any electrical work should be carried out by a qualified and skilled technician.
- The appliance should be repaired by an accredited repair centre, using
only manufacturer's original spare parts.
The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilisations
R600a
Safety instructions
Caution: Do not obstruct the ventilation grills on the appliance.
Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.
Caution: Do not damage the refrigerating circuit in the appliance.
Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.
Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.
This appliance meets the requirements of all applicable European directives and their amendments.
C
2. TECHNICAL DATA

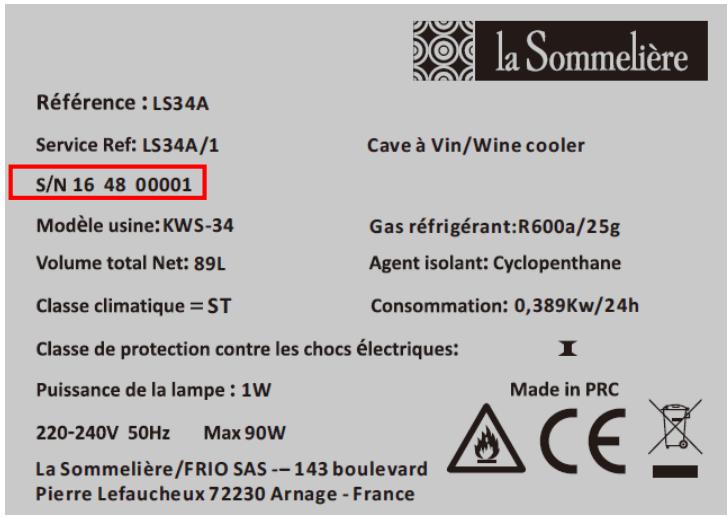

Below is an example of the nameplate:
The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance.
We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).
Once the appliance is installed and loaded, access to it is not so easy.
CAUTION: no assistance can be provided without this information.

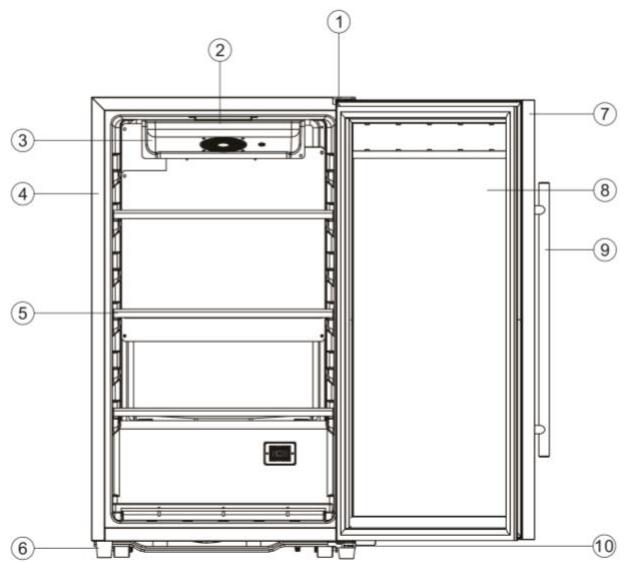

3. DESCRIPTION OF THE APPLIANCE
| ① | Front hinge |
| ② | LED light |
| ③ | Fan base |
| ④ | Cabinet |
| ⑤ | Shelf |
| ⑥ | Adjustable feet |
| ⑦ | Door |
| ⑧ | Door glass |
| ⑨ | Handle |
| ⑩ | Lower hinge |
| 11 | Control panel |
4. INSTALLATION INSTRUCTIONS
Before using this appliance
- Remove the exterior and interior packing.
- Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
- Clean the interior surface with lukewarm water using a soft cloth.
- When disposing your appliance, please choose an authorized disposal site.
- Place your wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the wine cooler.
- Adequate ventilation is required, do not block the front air outlet.
This wine cellar is designed for free-standing
- Connect the cellar to a single socket, leaving a 30-mm gap between the back of the cellar and the wall. Be careful to support it, so that your wine cellar is perfectly level (use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.
This appliance is intended to be used exclusively for the storage of wine.
- This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation.
Caution
- Store wine in sealed bottles.
- Do not overload the cabinet.
- Do not open the door unless necessary.
- Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
- Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming.
CAUTION: please keep the appliance away from substance, which can cause ignition.
Ambient room temperature limits
This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.
The ambient temperature affects the interior temperature and humidity of your cellar. For optimal operation, the settings of your cellar are carried out for ambient temperatures of 23^ C to 25^ C.
| CLASS | SYMBOL | AMBIENT TEMPERATURES RANGE (°C) |
| Extended temperate | SN | From +10 to +32 |
| Temperate | N | From +16 to +32 |
| Subtropical | ST | From +16 to +38 |
| Tropical | T | From +16 to +43 |

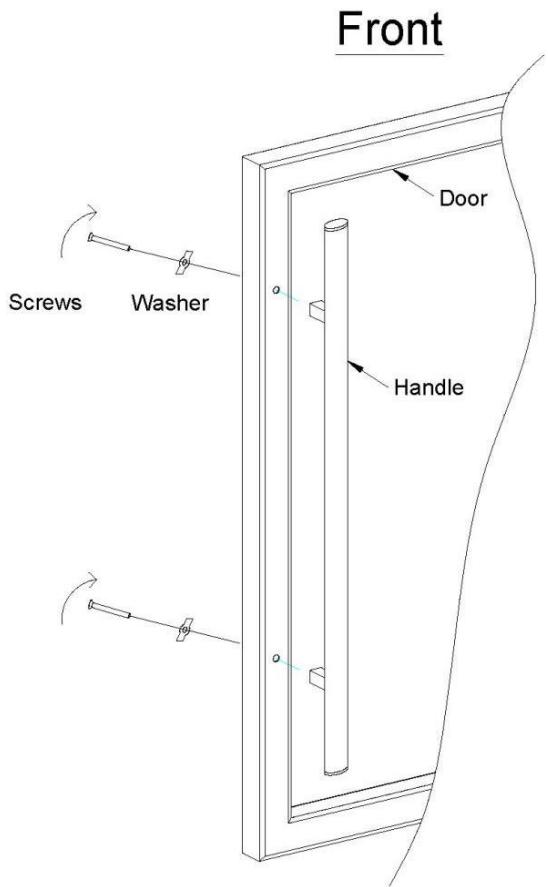

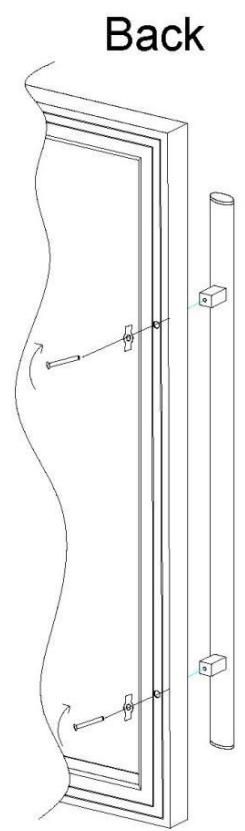

Handle installation
- Open the door and carefully pull out the door gasket only at the area where the handle is to be installed.
- Insert the two supplied screws into the two slots on the inside of the door
- Align the handle with the screws and tighten using a head screwdriver until the handle is flush against the door frame.
- Carefully press the door seal back into its original position
5. USE INSTRUCTIONS
It is recommended that you installed your appliance in a place where the ambient temperature is between 16 - 38^ (ST class marked on the rating plate). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected and it may not be possible to obtain temperature between 5 - 20^ .
> Control panel
Temperature range is 5 - 20^
button for 3 seconds to turn on or turn off the appliance.
button to turn on or turn off the light.
button to change temperature display from Celsius to Fahrenheit.
- All the controls will be locked after no operation for 20 seconds, press temperature
control button and together for 3 seconds to unlock it.
- You can set the desired temperature by pressing or button
- The temperature selected will increase/decrease by 1^ with each press of the buttons.
> Door Reverse:
Please the door is not reversible as control is put on the door.
6. EQUIPMENT
The climate control system
According to advice from specialists, the ideal temperature for storing wine is around 12^ , within a bracket of 10 to 14^ . Do not confuse this with service temperature, which varies between 5 and 20^ , depending on the specific nature of the wine.
It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.
The anti-vibration system
The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.
Defrosting
Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.
Shelves
- To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.
- For easier access to the contents of the shelves, slide the shelf out approximately one third of the way. The shelves are, however, fitted with a stop to prevent the bottles falling out.
- To remove or reposition the shelves, incline the shelf as indicated in the diagram, then push or pull as required.
7. LOADING
The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in liters).
They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle -standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.
In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

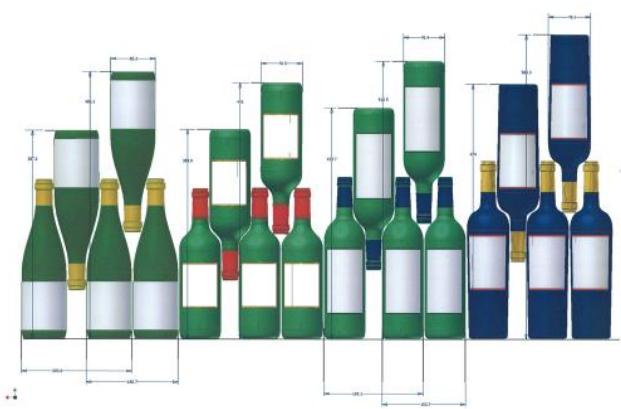

Types of bottle:
We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. You will note the storage differences depending on bottle heights, diameters and alternating position method.
For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.
Criss-crossing types
Top-to-bottom neck-to-neck:
Note the difference in depth!
Top-to-bottom neck between bottle bodies:
Increased loading.
Examples of serving temperatures
Opinions vary, and the ambient temperature too, but many people agree on the following:
Prestigious Bordeaux wines - Reds 16 - 17°C
Prestigious Burgundy wines – Reds 15 – 16°C
Prestigious dry white vintages 14-16°C
Light, young, fruity reds 11 - 12°C
Provence rosés, primeur wines 10 - 12°C
Dry whites and vin de pays reds 10 - 12^
Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.
Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow drying before reconnecting. Do not use solvents or abrasives.
When the appliance is switched on for the first time, there may be a residual odor. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odors.
In case of a power cut
Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.
- If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re- starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).
- When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilize.
Vacation time
- Short vacations: leave the wine cooler operating during vacations of less than three weeks.
- Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
Moving your wine cooler
- Remove all items.
- Securely tape down all loose items (shelves) inside your appliance.
- Turn the adjustable leg up to the base to avoid damage.
- Tape the door shut.
- Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.
9. IN THE EVENT OF A BREAKDOWN
Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:
- The appliance is properly plugged in
There is not a power cut in progress
- The breakdown is not one of those described in the table at the end of this manual
IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.
IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.
CAUTION!
Unplug the appliance before carrying out any maintenance or repair work.
10. PROBLEMS AND SOLUTIONS
You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your after- sales department. Try the following suggestions.
| PROBLEM | POSSIBLE CAUSES |
| Appliance is not running | Appliance is not plugged in
Appliance is not turned on
Check if voltage of the installation
Check the circuit breaker or if fuse has blown |
| Appliance is not cold enough | Check the temperature control setting
Check if ambient temperature is beyond appliance operating temperature
The door is opened too frequently
The door is not closed properly
The door is not sealing properly
Insufficient free space around the appliance |
| The compressor starts and stops frequently | The external temperature is high.
A large quantity of bottles has been put into the cellar.
The appliance is opened frequently.
The door is not properly closed.
The cellar has not been correctly set. |
| LED lights do not operate | The appliance is not plugged in
The fuse has blown
LED lights are not broken
The light switch is off |
| Vibration | Check and ensure that the appliance is level |
| The appliance makes a lot of noise | A noise resembling circulating water is produced by the coolant gas and this is normal.
At the end of a cooling cycle, you can hear the noise of water circulating.
Expansion and contraction of the internal walls may cause a cracking sound.
The appliance is not level
Check if fan is in good condition |
| The door does not close properly | The appliance is not level.
The door seal is dirty or damaged.
The shelves are not positioned correctly.
A part of the contents is preventing the door from closing. |
| LED display is not working properly | Control panel failed
Power PCB has broken
The appliance is not plugged in
The probe is not working |
11. ENVIRONMENT
This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.
The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.
For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.
12. WARNING
As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.
Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers.
No part of these instructions may be considered as a supplementary guarantee.
FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document.
Non-binding document.
EUROPEAN DATA SHEET
according to the regulations (UE) N°1060/2010
SERVICE WINE CABINET
| Model | LS24A | LS34A | LS36A | LS52A |
| Brand | LA SOMMELIERE |
| Power supply | 220-240 V/50 Hz |
| Product Dimensions (W x D x H) | 480 x 430 x 630 mm | 480 x 430 x 838 mm | 480 x 430 x 838 mm | 480 x 565 x 838 mm |
| Packing Dimensions (W x D x H) | 510 x 460 x 665 mm | 510 x 460 x 883mm | 510 x 460 x 883 mm | 515 x 600 x 883 mm |
| Net Weight (kg) | 22 | 27 | 25.5 | 29 |
| Energy efficiency class | A |
| Energy consumption/year | 140kWh | 142kWh | 142kWh | 146kWh |
| Net Volume | 60 L | 89 L | 89 L | 128L |
| Temperature range | 5°C – 20°C |
| No frost | NO |
| Climate class | ST |
| Acoustic emissions in air in dB(A) re 1pW | 40 dB | 42 dB | 42 dB | 43 dB |
| Installation type | Free standing |
This appliance is intended exclusively for the storage of wine
FRIO ENTREPRISE - LA SOMMELIERE
143 B OULEVARD PIERRE LEFAUCHEUX
72 230 ARNAGE - FRANCE
www.lasommeliere.com
Service Ref: LS34A/1
S/N 16 48 00001
