Product type	MIDI controller keyboard
Brand	Roland
Model	A-500 PRO (A-500 M HI-FI / A-500 PRO M HI-FI)
Number of keys	49 keys with velocity and channel aftertouch
Controllers	Keys (A1-A8), buttons (B1-B4, L1-L9), rotary knobs (R1-R9), sliders (S1-S9), HOLD and EXPRESSION pedals, Bender lever, keyboard aftertouch, VALUE button
Function buttons	ACT, arrows, DUAL, SPLIT, UPPER, LOWER, SHIFT, TRANSPOSE, OCTAVE -/+
Display	LCD 16 characters x 2 lines with backlight
Connectors	MIDI IN/OUT, USB, DC IN, HOLD and EXPRESSION pedal jacks (6.35 mm)
Power supply	DC 9 V AC adapter (sold separately) or USB bus power
Power consumption	300 mA
Dimensions (W x D x H)	838.9 x 250.8 x 91.4 mm
Weight	3.8 kg
Included accessories	A-PRO CD-ROM, Cakewalk Production Plus Pack DVD-ROM, USB cable, owner's manual, installation guide
Options	DP-2/DP-10 footswitch, EV-5/EV-7 expression pedal, AC adapter
Compatible operating systems	Windows 7/8/10/Vista/XP, Mac OS X (10.4 or later)
Main functions	MIDI control, keyboard playing, layer (DUAL), split (SPLIT), MIDI message assignment, use of control maps, ACT compatibility with SONAR
Maintenance	Clean with a soft, dry or slightly damp cloth. Do not use solvents.
Safety	Do not open the device, use only the specified adapter, avoid moisture and shocks.
Repairability	Contact an authorized Roland service center for any repairs.

Frequently Asked Questions - A-500 M HI-FI - A-500 PRO M HI-FI POPCORN HOUR

How to install the A-PRO driver on Windows 7?

Insert the included CD-ROM, open the Driver/Win7 folder, then double-click Setup. Follow the instructions. When prompted, connect the A-PRO and set the POWER switch to USB. Restart if necessary.

How to connect the A-PRO to the computer?

Use the included USB cable. Connect it to the A-PRO and to a USB port on the computer. Set the POWER switch to USB. Power is supplied via USB bus or an AC adapter (sold separately).

Can I use the A-PRO without a computer?

Yes, via the MIDI IN/OUT connectors. You can connect it directly to a MIDI sound module. Power is then supplied via the AC adapter.

What to do if the computer does not recognize the A-PRO?

Check that the driver is installed. If necessary, uninstall it then reinstall following the procedure on page 79. Make sure the USB cable is properly connected and the POWER switch is set to USB.

How to select a sound using the A-PRO?

Use the [VALUE] button to scroll through program changes (PGM CHANGE) or select a bank via BANK. You can also use controllers to send Program Change and Bank Select messages.

How to use the DUAL function (layer sounds)?

Press the [DUAL] button to layer two sounds. Adjust the UPPER and LOWER parts with the corresponding buttons. You can also set a split point with SPLIT.

How to assign a MIDI message to a controller?

Enter EDIT mode by pressing [ACT] and [<] simultaneously. Select the controller, then choose the MIDI message type (Note, CC, etc.) in the assignment window. Confirm with [ENTER].

What are control maps?

Control maps are sets of MIDI assignments for all controllers on the A-PRO. The device contains 19 presets. You can select them using the [VALUE] knob or create them with the A-PRO Editor software.

How to reset the A-PRO to factory settings?

In EDIT mode, navigate to SYSTEM SETTING > FACTORY RESET. Confirm with [ENTER]. All user data will be erased.

What are the recommended optional accessories?

The EV-5/EV-7 expression pedals, DP-2/DP-10 footswitches, and an AC adapter (contact Roland). Use only the specified pedals.

USER MANUAL A-500 M HI-FI - A-500 PRO M HI-FI POPCORN HOUR

Bank Select (BANK) 43

[Transmit], [Receive]

6 Aftertouch mode (AFT Mode)

[Transmit], [Receive]

Commande	Touche (Windows)	Touche (Mac OS X)
[File]–[New]	Ctrl + N	Command + N
[File]–[Open]	Ctrl + O	Command + O
[File]–[Save]	Ctrl + S	Command + S
[File]–[Save As]	Ctrl + Shift + S	Command + Shift + S
[File]–[Exit]	Alt + F4	Command + Q
[Edit]–[Copy]	Ctrl + C	Command + C
[Edit]–[Paste]	Ctrl + V	Command + V
[Edit]–[NO ASSIGN]	Del	Del
Next controller	Ctrl + F	Command + F
Previous controller	Ctrl + B	Command + B

Program Change (Min-Max)

Bank Select + Program Change

Program Change - Dec

Program Change - Inc

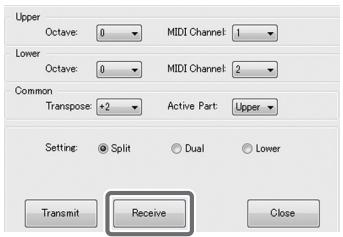

2 Cliques sur [Receive].

Affectation RPN/NRPN

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

O:Yes

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

X:No

Channel Message 24,33,34,35,36,37

Channel Pressure 25,33

Export Assign List 27

EXPRESSION 11

F

F6 37

FACTORY RESET 58,70

NO ASSIGN 24,27,33,56

Note 33

NRPN 36,53

Output Port 23, 25, 29

P

PAD AFTERTOUCH CURVE 57,63

PAD VELOCITY CURVE 57,63

Program Change 34, 35

Program Change - Dec 35

Program Change - Inc 36

Program Change (Min-Max) 35

R

raccourcis 28

Show Keyboard Panel 27

Show Messages 27

SMF 27,32

SONAR 21

SPLIT 45

Bouton [SPLIT] 9

STARTUP MEMORY 57

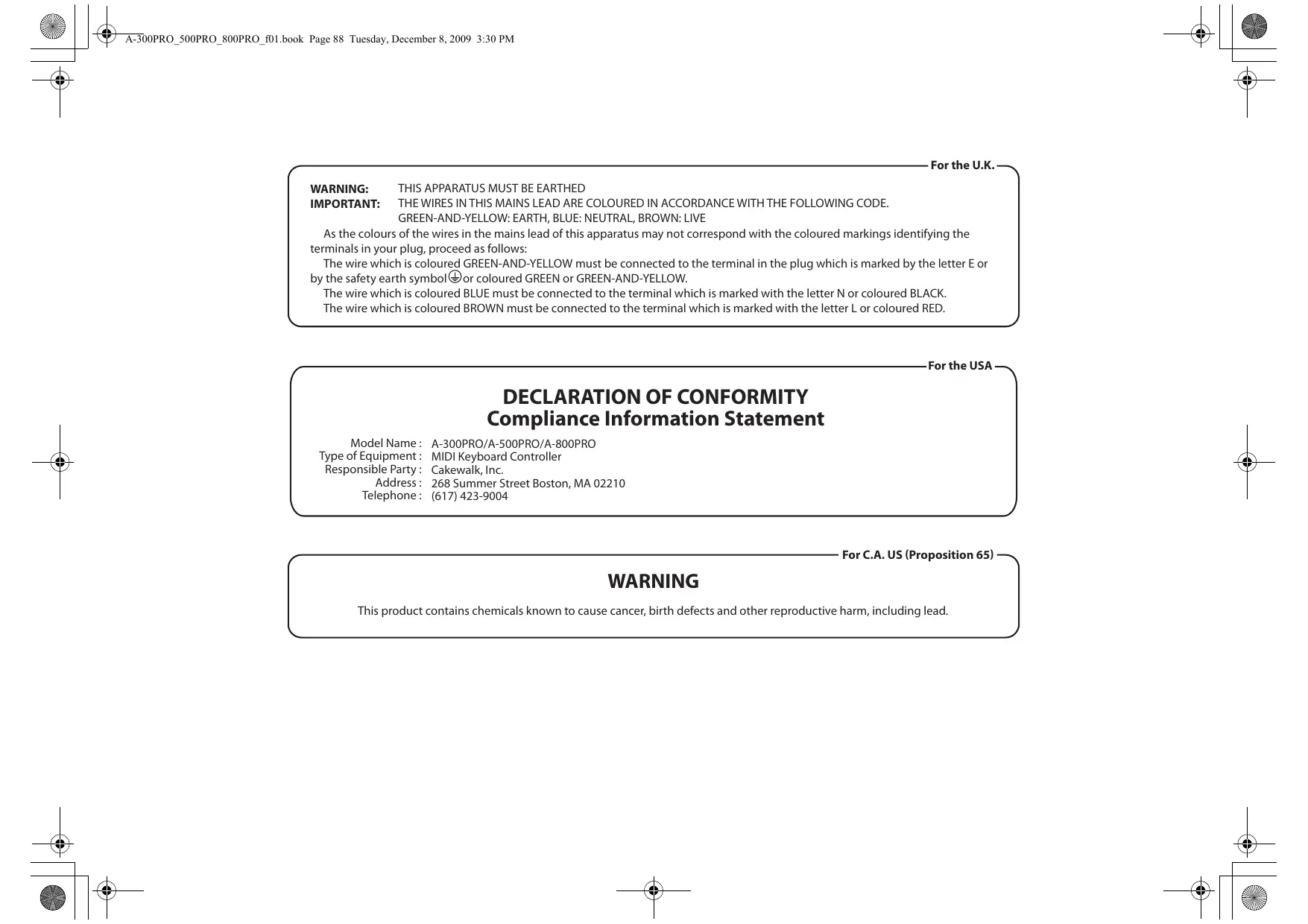

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
