Technical data

		DW771	DW777
Voltage	V	230	230
(U.K. & Ireland only)	V	230/115	230/115
Power input	W	1550/1400	1800/1600
Blade diameter	mm	216	216
Blade bore	mm	30	30
Max. blade speed	min-1	2600-5200	6300
Mitre (max. positions)	left and right	50°	50°
Bevel (max. positions)	left	48°	48°
Compound metre	bevel	45°	45°
	mitre	45°	45°
Capacities
cross-cut 90°	mm	60 x 270	60 x 270
mitre 45°	mm	60 x 190	60 x 190
mitre 48°	mm	60 x 180	60 x 180
bevel 45°	mm	48 x 270	48 x 270
bevel 48°	mm	45 x 270	45 x 270
Overall dimensions	cm	460 x 560 x 430	460 x 560 x 430
Weight	kg	14.0	14.0
LpA (sound pressure)	dB(A)	90.8	93
KpA (sound pressure uncertainty)	dB(A)	3	3
LwA (acoustic power)	dB(A)	102	104
KwA (acoustic power uncertainty)	dB(A)	3.2	3.9

Vibration total values (triax vector sum) determined according to EN61029:

Vibration emission value ah
ah=	m/s2	1.6	1.7
Uncertainty K =	m/s2	1.5	1.5

Notified body, delivering the certificate

TUV Rheinland Product and Safety

GmbH (TRPS)

Am Grauen Stein 1

D-51105 Köln, Germany

Fuses

Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs
U.K. & Ireland	115 V tools	16 Amperes, mains

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 61029 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Denotes sharp edges.

EC-Declaration of conformity

DW771, DW777

DEWALT declares that these products described under "technical data" have been designed in compliance with:

98/37/EC (until Dec. 28, 2009); 2006/42/EC (from Dec. 29, 2009); 2004/108/EC; 2006/95/EC; EN 61029-1:2000 + A11:2003 +

A12:2003; EN 61029-2-9:2002; EN 55014-1; EN55014-2; EN 61000-3-2; EN 61000-3-3.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

Horst Grossmann

Vice President Engineering and Product Development

D-65510, Idstein, Germany

11/2007

Safety instructions

WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following.

Read all these instructions before attempting to operate this product and save these instructions.

SAVE THIS MANUAL FOR FUTURE REFERENCE

General Safety Rules

1. Keep work area clear.

Cluttered areas and benches invite injuries.

1. Consider work area environment.

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit (250 - 300 Lux). Do not use the tool where there is a risk of causing fire or explosion, e.g., in the presence of flammable liquids and gases.

1. Guard against electric shock.

Avoid body contact with earthed surfaces (e.g., pipes, radiators, cookers and refrigerators). When using the tool under extreme conditions (e.g., high humidity, when metal swarf is being produced, etc.), electric safety can be improved by inserting an isolating transformer or a (Fl) earth-leakage circuit-breaker.

1. Keep other persons away.

Do not let persons, especially children, not involved in the work, touch the tool or the extension cord and keep them away from the work area.

1. Store idle tools.

When not in use, tools must be stored in a dry place and locked up securely, out of reach of children.

1. Do not force the tool.

It will do the job better and safer at the rate to which it was intended.

1. Use the right tool.

Do not force small tools to do the job of a heavy duty tool. Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs.

1. Dress properly.

Do not wear loose clothing or jewellery, as these can be caught in moving parts. Non-skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

1. Use protective equipment.

Always use safety glasses. Use a face or dust mask if working operations create dust or flying particles. If these particles might be considerably hot, also wear a heat-resistant apron. Wear ear protection at all times. Wear a safety helmet at all times.

1. Connect dust extraction equipment.

If devices are provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.

1. Do not abuse the cord.

Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. Never carry the tool by its cord.

1. Secure work.

Where possible use clamps or a vice to hold the work. It is safer than using your hand and it frees both hands to operate the tool.

1. Do not overreach.

Keep proper footing and balance at all times.

1. Maintain tools with care.

Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tools periodically and if damaged have them repaired by an authorized service facility. Keep handles and switches dry, clean and free from oil and grease.

1. Disconnect tools.

When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.

1. Remove adjusting keys and wrenches.

Form the habit of checking to see that adjusting keys and wrenches are removed from the tool before operating the tool.

1. Avoid unintentional starting.

Do not carry the tool with a finger on the switch. Be sure that the tool is in the "off" position before plugging in.

1. Use outdoor extension leads.

Before use, inspect the extension cable and replace if damaged. When the tool is used outdoors, use only extension cords intended for outdoor use and marked accordingly.

1. Stay alert.

Watch what you are doing. Use common sense. Do not operate the tool when you are tired or under the influence of drugs or alcohol.

1. Check for damaged parts.

Before use, carefully check the tool and mains cable to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual. Have defective switches replaced by an authorized service centre. Do not use the tool if the switch does not turn it on and off. Never attempt any repairs yourself.

WARNING! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

1. Have your tool repaired by a qualified person.

This electric tool complies relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional Safety Rules for Mitre Saws

• Do not use the saw to cut other materials than those recommended by the manufacturer.
• Do not operate the machine without guards in position, or if guards do not function or are not maintained properly.
• Ensure that the arm is securely fixed when performing bevel cuts.
• Keep the floor area around the machine level, well-maintained and free of loose materials, e.g., chips and cut-offs.
• Use correctly sharpened saw blades. Observe the maximum speed mark on the saw blade.
• Make sure all locking knobs and clamp handles are tight before starting any operation.
• Never place either hand in the blade area when the saw is connected to the electrical power source.
• Never attempt to stop a machine in motion rapidly by jamming a tool or other means against the blade; serious accidents can occur.
• Before using any accessory consult the instruction manual. The improper use of an accessory can cause damage.
• Use a holder or wear gloves when handling a saw blade.
• Ensure that the saw blade is mounted correctly before use.
• Select the correct blade for the material to be cut.
• Make sure that the blade rotates in the correct direction.
• Do not use blades of larger or smaller diameter than specified under technical data. For the proper blade rating refer to the technical data. Use only the blades specified in this manual, complying with EN 847-1. Never use spacers or spindle rings to fit another saw blades. Only use saw blades with negative tooth rake design (min. 5^ -)!

• Ensure that the saw is always fixed to a bench. Follow the separate section in this manual.

• Consider applying specially designed noise-reduction blades.

• Do not use HSS blades.
• Do not use cracked or damaged saw blades.
• Do not use any abrasive discs.
• Never use your saw without the kerf plate.
• Raise the blade from the kerf in the workpiece prior to releasing the switch.
• Do not wedge anything against the fan to hold the motor shaft.
• The blade guard on your saw will automatically raise when the arm is brought down; it will lower over the blade when guard lock up release lever (b) is pushed.
• Never raise the blade guard manually unless the saw is switched off. The guard can be raised by hand when installing or removing saw blades or for inspection of the saw.
• Check periodically that the motor air slots are clean and free of chips.
• Replace the kerf plate when worn.
• Disconnect the machine from the mains before carrying out any maintenance work or when changing the blade.
• Never perform any cleaning or maintenance work when the machine is still running and the head is not in the rest position.
• When possible, always mount the machine to a bench.

• Connect the saw to a dust collection device when sawing wood. Always consider factors which influence exposure of dust such as:

• Type of material to be machined (chip board produces more dust than wood);

• Correct adjustment of the saw blade;

• Ensure that the local extraction as well as hoods, baffles and chutes are properly adjusted.

• Operator shall be instructed on factors influencing exposure to noise (e.g., use of saw blade designed to reduce the emitted noise, saw blade and machine maintenance);

• Report faults in the machine, including guards or saw blade, as soon as they are discovered;

• Provide adequate general or localized lighting;
• Ensure the operator is adequately trained in the use, adjustment and operation of the machine;
• When fitted with laser, no exchange with different type of laser permitted. Repairs shall only be carried out by the laser manufacturer or an authorized agent.

Residual risks

The following risks are inherent to the use of saws:

• injuries caused by touching the rotating parts

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
- Risk of accidents caused by the uncovered parts of the rotating saw blade.
- Risk of injury when changing the blade.
- Risk of squeezing fingers when opening the guards.
- Health hazards caused by breathing dust developed when sawing wood, especially oak, beech and MDF.

Package contents

The package contains:

1 Partly assembled machine
2 Allen key 4/6 mm
1 216 mm TCT saw blade
2 Dust extraction nozzles

1 Dust bag
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. 1, 2, 9)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

INTENDED USE

Your cross-cut litre saw has been designed for professional cutting of wood, wood products and plastics. It will perform the sawing operations of cross-cutting, bevelling and mitring easily, accurately and safely.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

This cross-cut mitre saw is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

a. On/off switch
b. Guard lock up release lever
c. Carrying handle
d. Fixed upper guard
e. Outer flange

f. Blade bolt
g. Lower blade guard
h. Saw blade
i. Sliding fence lock knob
j. Fixed table
k. kerf plate
I. Mitre arm

m. Mitre latch

n. Rotating table/mitre arm
o. Mitre scale
p. Sliding fence
q. Dust extraction nozzle

r. Traverse lock

s. Guard lock up hook

t. Bevel clamp handle

u. Bevel scale

v. Bench mounting holes

w. Lock down button

x. Traverse bars

y. Saw head

z. Allen keys

a. Cable clamp

bb. Cable

cc. Speed control dial

dd. Padlock hole

ee. Override button

ff. Carrying handle (left and right)

gg. Inner flange

ii. Support guide rails
jj. Material support plate

kk. Material clamp

II. Swivelling stop

mm. Adjustable stand 760 mm (max. height)

nn. Legstand
oo. Length stop for short workpieces (to be used with guide rails [ii])

pp. Roller table

qq. Dust extraction tubes

rr. Three-way connector

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your tool is double insulated in accordance with EN 61029; therefore no earth wire is required.

In case of cord replacement the tool must only be repaired by an authorized service agent or by qualified electrician.

The following cords are mandatory:

DW777 / DW771:

H07RN-F, 2x1.0 mm²

DW777 LX / DW771 LX:

H05RR-F, 2x1.5 mm²

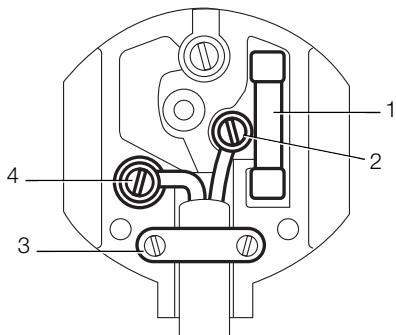

Mains plug replacement (U.K. & Ireland only)

DANGER:

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

• Disconnect the plug from the supply.

• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

WARNING: NEVER use a light socket.

NEVER connect the live (L) or neutral (N) wires to the earth pin marked E or 1一

Fitting a mains plug to 115 V units (U.K. and Ireland only)

• The plug should be fitted by a competent person. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• The wires are coloured according to the following code:

live = brown

neutral = blue

• Do not connect the blue or brown wire to the earth terminal in the plug. Connect as follows:

brown to terminal marked 'L'

blue to terminal marked 'N'

• The plug fitted should be comply with BS EN 60309 (BS4343), 16 Amps, earthing contact position 4h .

WARNING: Always ensure that the cable clamp is correctly and securely fitted to the sheath of the cable.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data).

The minimum conductor size is 1.5mm^2 . When using a cable reel, always unwind the cable completely. Also refer to the table below.

Conductor size (mm2)		Cable rating (Amperes)
0.75		6
1.00		10
1.50		15
2.50		20
4.00		25
Cable length (m)
	7.5	15	25	30	45	60
Voltage Amperes	Cable rating (Amperes)
115	0-2.0	6	6	6	6	6	10
	2.1-3.4	6	6	6	6	6	15
	3.5-5.0	6	6	10	15	20	20
	5.1-7.0	10	10	15	20	20	25
	7.1-12.0	15	15	20	25	25	-
	12.1-20.0	20	20	25	-	-	-
230	0-2.0	6	6	6	6	6	6
	2.1-3.4	6	6	6	6	6	6
	3.5-5.0	6	6	6	6	10	15
	5.1-7.0	10	10	10	10	15	15
	7.1-12.0	15	15	15	15	20	20
	12.1-20.0	20	20	20	20	25	-

Voltage drops

In rush currents cause short-time voltage drops. Under unfavourable power supply conditions, other equipment may be affected. If the system impedance of the power supply is lower than 0.25 , disturbances are unlikely to occur.

ASSEMBLY

WARNING: To reduce the risk of injury, turn unit off

and disconnect machine from power source before

installing and removing accessories, before adjusting or

changing set-ups or when making repairs. Be sure the

trigger switch is in the OFF position. An accidental start-up

can cause injury.

Unpacking

The motor and guards are already assembled onto the base.

Cable clamp (fig. 7)

Insert the cable (bb) into the cable clamp (aa). Allow enough cable for the saw head to travel, then tighten the clamp by means of the screw.

Bench mounting (fig. 2)

1. Holes (v) are provided in all four feet to facilitate bench mounting. The holes are provided to accommodate different sizes of bolts. Use either hole; it is not necessary to use both. Always mount your saw firmly to prevent movement.

To enhance the portability, the tool can be mounted to a piece of 12.5mm or thicker plywood which can then be clamped to your work support or moved to other job sites and reclamped.

1. When mounting your saw to a piece of plywood, make sure that the mounting screws do not protrude from the bottom of the wood. The plywood must sit flush on the work support. When clamping the saw to any work surface, clamp only on the clamping bosses

where the mounting screw holes are located. Clamping at any other point will interfere with the proper operation of the saw.

1. To prevent binding and inaccuracy, be sure the mounting surface is not warped or otherwise uneven. If the saw rocks on the surface, place a thin piece of material under one saw foot until the saw is firm on the mounting surface.

Mounting the saw blade (fig. 8-10)

WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

WARNING: The teeth of a new blade are very sharp and can be dangerous.

1. Insert the 6 mm Allen key (z) into the opposite location of the blade shaft and hold it (fig. 8).
2. Loosen the blade bolt (f) by turning clockwise. Remove the blade bolt (f) and the outer flange (e).
3. Press the lower guard lock up release lever (b) to raise the lower blade guard (g) and remove the saw blade (h).
4. Install the new saw blade onto the shoulder provided on the inner flange (gg) making sure that the teeth at the bottom edge of the blade are pointing towards the fence (away from the operator).
5. Replace the outer flange (e), making sure that the location lugs (ss) are engaged correctly, one on each side of the motor shaft.
6. Tighten the blade bolt (f) by turning anti-clockwise while holding the 6 mm Allen key (z) engaged with your other hand (fig. 10).

ADJUSTMENTS

WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Your litre saw was accurately adjusted at the factory. If readjustment due to shipping and handling or any other reason is required, follow the steps below to adjust your saw. Once made, these adjustments should remain accurate.

Adjusting the traverse bars for constant cutting depth (fig. 1, 2, 11, 12)

The blade must run at a constant cutting depth along the full length of the table and must not touch the fixed table at the rear of the slot or at the front of the rotating arm. To achieve this, the traverse arms must be perfectly parallel to the table when the saw head is fully depressed.

1. Press the lower guard lock up release lever (b) (fig. 1).
2. Press the saw head fully to the rear position and measure the height from the rotating table (n) to the bottom of the outer flange (e) (fig. 11).
3. Turn the saw head traverse lock (r) (fig. 2).
4. Keeping the saw head fully depressed, pull the head to the end of its travel.
5. Measure the height indicated in figure 11 again. Both values should be identical.
6. If adjustment is required, proceed as follows (fig.12):

a. Loosen the locknut (tt) in the bracket (uu) under the upper dust extraction nozzle (q) and adjust the screw (w) as required, proceeding in small steps.
b. Tighten the locknut (tt).

WARNING: Always check that the blade does not touch the table at the rear of the slot or at the front of the rotating arm at 90^ vertical and 45^ bevel positions. Do not switch on before having checked this!

Adjusting the fence (fig. 13)

Turn the sliding fence lock knob (i) anti-clockwise to loosen. Move the sliding fence (p) to a position that avoids the blade cuts it, then tighten the fence lock knob by turning clockwise.

Checking and adjusting the blade to the fence (fig. 2, 14, 15)

1. Slacken the litre latch (m).
2. Place your thumb on the litre arm (l) and squeeze the litre latch (m) to release the rotating table/mitre arm (n).
3. Swing the litre arm until the latch locates it at the 0^ litre position.
4. Pull down the head and lock it in this position using the lock down button (w).
5. Check that the two 0^ markings (ww) on the litre scale (o) are just visible.
6. Place a square (xx) against the left side of the fence (p) and blade (h).

WARNING: Do not touch the tips of the blade teeth with the square.

1. If adjustment is required, proceed as follows:

a. Loosen the screws (yy) and move the scale/mitre arm assembly left or right until the blade is at 90^ to the fence as measured with the square (fig. 14).
b. Retighten the screws (yy).

Checking and adjusting the blade to the table (fig. 16 - 19)

1. Loosen the bevel clamp handle (t) (fig. 16).
2. Press the saw head to the right to ensure it is fully vertical and tighten the bevel clamp handle.
3. Place a set square (xx) on the table and up against the blade (h) (fig. 17).

WARNING: Do not touch the tips of the blade teeth with the square.

1. If adjustment is required, proceed as follows:

a. Loosen the bevel clamp handle (t) and turn the vertical position adjustment stop screw (zz) in or out until the blade is at 90^ to the table as measured with the square.
b. If the bevel pointer (a1) does not indicate zero on the bevel scale (u), loosen the screws (a2) that secure the scale and move the scale as necessary.

Checking and adjusting the bevel angle (fig. 1, 18, 19)

The bevel override allows the max. bevel angle to be set at 45^ or 48^ as required.

• Left = 45°
  Right = 48^

• Make sure the override knob (a3) is located in the left position.

• Loosen the bevel clamp handle (t) and move the saw head to the left.
• This is the 45^ bevel position.
• If adjustment is required, turn the stopscrew (a4) in or out as necessary until the pointer (a1) indicates 45^ .

WARNING: The guide grooves can become clogged with sawdust. Use a stick or some low pressure air to clear the guide grooves.

OPERATION

WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Instructions for use

WARNING: Always observe the safety instructions and applicable regulations.

The attention of UK users is drawn to the "woodworking machines regulations 1974" and any subsequent amendments.

Prior to operation

WARNING:

• Install the appropriate saw blade. Do not use excessively worn blades. The maximum rotation speed of the tool must not exceed that of the saw blade.
• Do not attempt to cut excessively small pieces.
• Allow the blade to cut freely. Do not force.
• Allow the motor to reach full speed before cutting.
• Make sure all locking knobs and clamp handles are tight.
• Secure the workpiece.
• Although this saw will cut wood and many nonferrous materials, these operating instructions refer to the cutting of wood only. The sameguide-lines apply to the other materials. Do not cut ferrous (iron and steel) materials or masonry with this saw! Do not use any abrasive discs!
• Make sure to use the kerf plate. Do not operate the machine if the kerf slot is wider than 10mm .
• Placing the workpiece on a piece of wood will increase the capacities to 300 mm .

Switching on and off (fig. 1)

A hole (dd) is provided in the on/off switch (a) for insertion of a padlock to lock the tool.

1. To run the tool, press the on/off switch (a).
2. To stop the tool, release the switch.

SPEED CONTROL DIAL (DW771 ONLY)

The speed control dial (cc) can be used for advance setting of the required range of speed.

Turn the speed control dial (cc) to the desired range, which is indicated by a number (1-5).

• Use high speeds for sawing soft materials such as wood.
• Use low speeds for sawing hardwood.

Body and hand position

Proper positioning of your body and hands when operating the mitre saw will make cutting easier, more accurate and safer.

WARNING:

• Never place your hands near the cutting area.
• Place your hands no closer than 150 mm from the blade.
• Hold the workpiece tightly to the table and the fence when cutting. Keep your hands in position until the switch has been released and the blade has completely stopped.
  Always make dry runs (without power) before finish cuts so that you can check the path of the blade.
• Do not cross your hands.
• Keep both feet firmly on the floor and maintain proper balance.
• As you move the saw arm left and right, follow it and stand slightly to the side of the saw blade.

Basic saw cuts

VERTICAL STRAIGHT CROSS CUT (FIG. 1, 20)

NOTE: Use 216 mm saw blades with 30 mm arbor holes to obtain the desired cutting capacities.

1. Slacken the litre latch (m) and subsequently lift it up.
2. Engage the litre latch (m) at the 0^ position and fasten the litre latch.

3. Place the wood to be cut against the fence (p).

4. Take hold of the carrying handle (c) and press the guard lock up release lever (b) to release the guard. Press the trigger switch (a) to start the motor. It is recommended to start the cut near the fence.

5. Depress the head to allow the blade to cut through the timber and enter the plastic kerf plate (k).
6. When the head is fully depressed, slowly pull it across to complete the cut.
7. After completing the cut, release the switch and wait for the saw blade to come to a complete standstill before returning the head to its upper rest position.

WARNING:

• For some types of plastic profiles, it is advisable to follow the sequence in reverse order.
• The lower blade guard is designed to close quickly when the lever (b) is released. If it does not close within 1 second, have the saw serviced by an authorized DEWALT repair agent.

VERTICAL MITRE CROSS-CUT (FIG.21)

1. Squeeze the litre latch (m). Move the arm left or right to the required angle.
2. The litre latch will automatically locate at 0^ , 15^ , 22.5^ , 31.62^ , 45^ and 50^ both left and right. If any intermediate angle is required hold the head firmly and lock by fastening the litre latch.
3. Always ensure that the metre lock lever is locked tightly before cutting.
4. Proceed as for a vertical straight cross-cut.

WARNING: When mitring the end of a piece of wood with a small off-cut, position the wood to ensure that the off-cut is to the side of the blade with the greater angle to the fence, i.e.:

left litre, off-cut to the right right litre, off-cut to the left

BEVEL CROSS-CUTS (FIG. 18, 22)

Bevel angles can be set from 0^ to 48^ to the left. Bevels up to 45^ can be cut with the litre arm set between zero and a maximum of 45^ litre position right or left.

1. Loosen the bevel clamp handle (t) and set the bevel as desired.
2. Set the override button (ee) if required.
3. Hold the head firmly and do not allow it to fall.
4. Tighten the bevel clamp handle (t) firmly.
5. Proceed as for a vertical straight cross-cut.

Quality of cut

The smoothness of any cut depends on a number of variables, i.e. the material being cut. When smoothest cuts are desired for moulding and other precision work, a sharp (60-tooth carbide) blade and a slower, even cutting rate will produce the desired results.

WARNING: Ensure that the material does not creep while cutting; clamp it securely in place. Always let the blade come to a full stop before raising the arm. If small fibres of wood still split out at the rear of the workpiece, stick a piece of masking tape on the wood where the cut will be made. Saw through the tape and carefully remove tape when finished.

Clamping the workpiece (fig. 3)

1. Whenever possible, clamp the wood to the saw.
2. For best results use the material clamp (kk) made for use with your saw. Clamp the workpiece to the fence whenever possible. You can clamp to either side of the saw blade; remember to position your clamp against a solid, flat surface of fence.

WARNING: Always use a material clamp when cutting non-ferrous metals.

This cut is a combination of a litre and a bevel cut. This is the type of cut used to make frames or boxes with slanting sides like the one shown in figure 23.

WARNING: If the cutting angle varies from cut to cut, check that the bevel clamp handle and the metre clamping knob are securely tightened. These must be tightened after making any changes in bevel or metre.

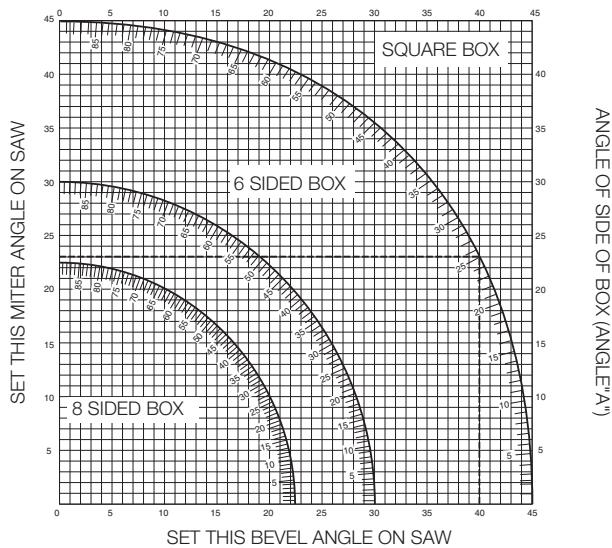

• The chart shown below will assist you in selecting the proper bevel and litre settings for common compound litre cuts.
• To use the chart, select the desired angle “A” (fig. 24) of your project and locate that angle on the appropriate arc in the chart. From that point follow the chart straight down to find the correct bevel angle and straight across to find the correct metre angle.

1. Set your saw to the prescribed angles and make a few trial cuts.
2. Practice fitting the cut pieces together.

Example: To make a four-sided box with 25^ exterior angles (angle "A") (fig. 24), use the upper right arc. Find 25^ on the arc scale. Follow the horizontal intersecting line to either side to get the litre angle setting on the saw (23^) . Likewise follow the vertical intersecting line to the top or bottom to get the bevel angle setting on the saw (40^) . Always try cuts on a few scrap pieces of wood to verify the settings on the saw.

WARNING: Never exceed the compound litre limits of 45^ bevel with 45^ left or right litre.

Support for short and long pieces (fig. 3)

CUTTING SHORT MATERIAL

It is advisable to use the length stop (mm) for short workpieces both for batch sawing and for short individual workpieces of different lengths. The length stop can only be used in conjunction with a pair of optional guide rails (ii).

CUTTING LARGE MATERIAL

WARNING: To reduce the risk of injury, always support long workpieces.

Figure 3 shows the ideal configuration for sawing long workpieces when the saw is used free-standing (all items available as an option).

These items (except the legstand and the material clamp) are required both on the infeed and the outfeed side:

• Legstand (nn) (supplied with mounting instructions).
  Guide rails (500 or 1,000 mm) (ii).
• Stands (mm) to support the guide rails. Do not use the stands to support the machine! The height of the stands is adjustable.
  Material support plates (jj).
• Table end plate (hh) for supporting the rails (also when working on an existing bench).
  Material clamp (kk).

• Swivelling stop (II).

• Place your saw on the legstand and fit the guide rails.

• Firmly screw the material support plates (jj) to the guide rails (ii).

• The material clamp (kk) now functions as a length stop.

• Install the table end plates (hh).
• Install the swivelling stop (I) to the rear rail.
• Use the swivelling stop (I) to adjust the length of medium and long workpieces. It can be adjusted sideways or swung out of the way when not in use.

Dust extraction (fig. 1, 6)

WARNING: Whenever possible, connect a dust extraction device designed in accordance with the relevant regulations regarding dust emission.

Connect a dust collection device designed in accordance with the relevant regulations. The air velocity of externally connected systems shall be 20m / s + ·2m / s . Velocity to be measured in the connection tube at the point of connection, with the tool connected but not running.

A separate dust kit is available as an option (DE7777).

1. Fit the dust extraction tubes (qq) to the nozzles (q); the longer hose to upper nozzle.
2. Connect the hoses to the three-way connector (rr).

Transporting (fig. 1)

WARNING: In order to conveniently carry the litre saw, the base is provided with two hand indentations (ff).

1. To transport the saw, set the bevel and metre positions to 0^ .
2. Press the lower guard lock up release lever (b) (fig.1).
3. Press the head down and press the lock down button (w) (fig. 2).
4. Bring the saw blade to rest position and press the traverse lock (r).

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

WARNING: If the saw blade is worn replace it with a new sharp blade.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

WARNING: To reduce the risk of injury, regularly clean the table top.

WARNING: To reduce the risk of injury, regularly clean

the dust collection system.

Optional accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous.

To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Using the roller table (fig. 3 - 5)

The roller table (pp) makes the handling of large and long pieces of wood very easy (fig. 5). It can be connected either to the left or to the right of the machine. The roller table requires the use of the optional legstand (fig. 3).

WARNING: Assemble the roller table following the

instructions supplied with the legstand.

• Replace the short support bars provided with the legstand with the irregular rails from the table on the side the table is to be used.
• Follow all instructions provided with the roller table.

RANGE OF SAW BLADES AVAILABLE (RECOMMENDED BLADES)

Type of blade	Blade dimensions (diameter x bore x no. of teeth)	Usage
DT4222 series 40	216x30x24	For general purpose, ripping and cross-cutting of wood and plastics
DT4286 series 40	216x30x80	TCG for use with aluminum
DT4320 series 60	216x30x48	ATB for fine cutting of manmade and natural wood
DT4350 series 60	216x30x60	TCG for extra fine cutting of manmade and natural wood

Consult your dealer for further information on the appropriate accessories.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs to, or if it is of no further use to you, do not dispose of it with a waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

GUARANTEE

30 DAY NO RISK

SATISFACTION GUARANTEE

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

- ONE YEAR FULL WARRANTY

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

Belgique et Luxembourg	Black & Decker - DEWALT	Tel: +32 (0)015 - 15 47 9211
België en Luxemburg	Nieuwlandlaan 7, IZ Aarschot B156	Fax: +32 (0)015 - 15 47 9210
	B-3200 Aarschot	www.dewalt.be
Danmark	DEWALT	TIf: 70201511
	Sluseholmen 2-4	Fax: [phone]
	2450 København SV	www.dewalt.dk
Deutschland	DEWALT	Tel: [phone]
	Richard-Klinger-Straße	Fax: [phone]
	65510 Idstein	www.dewalt.de
Erlaç	Black & Decker (Hellas) S.A.	Tŋλ: [phone]
	Στούβωνος 7 & Bouμαγμένης 159	Φαξ: [phone]
	Γλυφάδα 16674, Αθήνα	Service: [phone]
Espana	DEWALT	Tel: [phone]
	Parque de Negocios "Mas Blau"	Fax: [phone]
	Edificio Muntadas, c/Bergadá, 1, Of. A6	www.dewalt.es
	08820 El Prat de Llobregat (Barcelona)
France	DEWALT	Tel: [phone]
	Le Paisy	Fax: [phone]
	BP 21, 69571 Dardilly Cedex	www.dewalt.fr
Schweiz	DEWALT	Tel: 01 - 730 67 47
Suisse	In der Luberzen 40	Fax: 01 - 730 70 67
Swizzera	8902 Urdorf	www.dewalt.ch
Ireland	DEWALT	Tel: [phone]
	Calpe House Rock Hill	Fax: [phone]
	Black Rock, Co. Dublin	www.dewalt.ie
Italia	DEWALT	Tel: [phone]
	Viale Elvezia 2	Fax: [phone]
	20052 Monza (Mi)	www.dewalt.it
Nederlands	Black & Decker - DEWALT	Tel: [phone]
	Joulehof 12	Fax: [phone]
	4600 AB Bergen Op Zoom	www.dewalt.nl
Norge	DEWALT	Tel: [phone]
	Postboks 4814, Nydalen	Fax: [phone]
	0422 Oslo	www.dewalt.no
Österreich	DEWALT	Tel: 01 - 66116 - 0
	Werkzeugevertriebs GmbH	Fax: 01 - 66116 - 14
	Erlaerstraße 165, Postfach 320,1231 Wien	www.dewalt.at
Portugal	DEWALT	Tel: [phone]
	Rua Egas Moniz 173	Fax: [phone]
	João do Estoril, 2766-651 Estoril	www.dewalt.pt
Suomi	DEWALT Oy	Puh: 010 400 430
	Teknikantie 12	Faksi: 0800 411 340
	02150 Espoo, Finland	www.dewalt.fi
	DEWALT Oy	Tel: [phone]
	Teknikvägen 12	Fax: [phone]
	02150 Esbo, Finland	www.dewalt.fi
Sverige	DEWALT	Tel: [phone]
	Box 94	Fax: [phone]
	431 22 Möndal	www.dewalt.se
Türkije	Merkez Servis	Tel: [phone]
	Defterdar Mah.Savaklar Cad.No:15 34050	Faks: 0212 533 10 05
	Edirnkapi, Eyüp - Istanbul	www.dewalt.com.tr
United Kingdom	DEWALT	Tel: [phone]
	210 Bath Road	Fax: [phone]
	Slough, Berks SL1 3YD	www.dewalt.co.uk
