USER MANUAL PHONE EASY 311C DORO

PhoneEasy 311C English

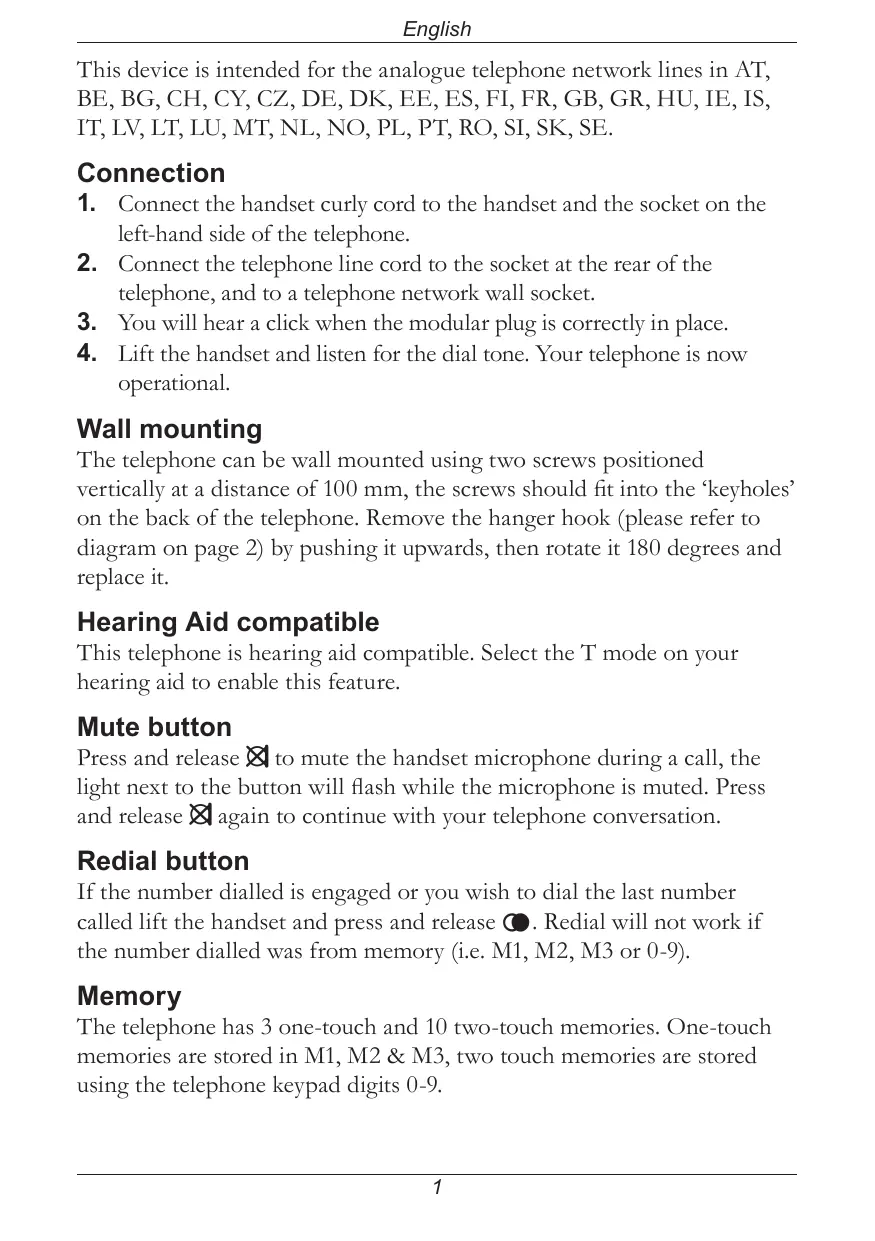

1. Connect the handset curly cord to the handset and the socket on the

left-hand side of the telephone.

2. Connect the telephone line cord to the socket at the rear of the

telephone, and to a telephone network wall socket.

3. You will hear a click when the modular plug is correctly in place.

4. Lift the handset and listen for the dial tone. Your telephone is now

operational. Wall mounting The telephone can be wall mounted using two screws positioned vertically at a distance of 100 mm, the screws should fit into the ‘keyholes’ on the back of the telephone. Remove the hanger hook (please refer to diagram on page 2) by pushing it upwards, then rotate it 180 degrees and replace it. Hearing Aid compatible This telephone is hearing aid compatible. Select the T mode on your hearing aid to enable this feature. Mute button Press and release z to mute the handset microphone during a call, the light next to the button will flash while the microphone is muted. Press and release z again to continue with your telephone conversation. Redial button If the number dialled is engaged or you wish to dial the last number called lift the handset and press and release r . Redial will not work if the number dialled was from memory (i.e. M1, M2, M3 or 0-9). Memory The telephone has 3 one-touch and 10 two-touch memories. One-touch memories are stored in M1, M2 & M3, two touch memories are stored using the telephone keypad digits 0-9.

English Storing One-touch Memories

1. Lift the handset, press and release P (ignore anything you hear in the

2. Select a memory location M1, M2 or M3 by pressing the corresponding

3. Enter the telephone number to be stored (up to 21 digits).

4. Press and release P again.

5. Replace the handset. The number is now stored.

Dialling using One-touch Memories

1. Lift the handset and wait for a dialling tone.

2. Select a memory location by pressing the corresponding memory

button (M1, M2 or M3). The stored number will now be dialled. Storing Two-touch Memories

1. Lift the handset, press and release P (ignore anything you hear in the

2. Press and release m.

3. Select a memory location by pressing one of the keypad number

4. Enter the telephone number to be stored (up to 21 digits).

5. Press and release P again.

6. Replace the handset. The number is now stored.

Dialling using Two-touch Memories

1. Lift the handset and wait for a dialling tone.

2. Press and release m.

3. Select a memory location by pressing the relevant keypad number

0-9. The stored number will now be dialled. Press and release r if you need to insert a pause in a telephone number. If a stored number changes, follow the procedures above entering the new number in the same location as the old one. Earpiece Volume control During a conversation press and release either v to increase or V to decrease the earpiece volume.

1. Lift the handset (ignore anything you hear in the earpiece). Press and

2. Press and release #.

3. Select a ringer and melody by pressing the number keys 0-9 (please

refer to the table below).

4. Press and release P . Replace the handset.

Key/setting Melody type Ringer volume 1................................Melody A...............Low 2................................Melody A...............Normal 3................................Melody A...............High 4................................Melody B...............Low 5................................Melody B...............Normal 6 (factory setting).......Melody B...............High 7................................Melody C...............Low 8................................Melody C...............Normal 9................................Melody C...............High 0................................Off *.......................* If you select 0 the ringer will be turned off until the handset is lifted. After that, the ringer will revert to the previous setting. Guarantee This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely event of a fault occurring during this period, please return the item with a copy of the purchase receipt to the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, nonmaintenance or any other circumstances on the users’ part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm. Declaration of conformity Doro hereby declares that the product Doro PhoneEasy 311C conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC and 2002/95/EC. A copy of the manufacturer’s declaration is available at www.doro.com/dofc

English French Dutch Version 3.2
