USER MANUAL AGB72526NX AEG-ELECTROLUX

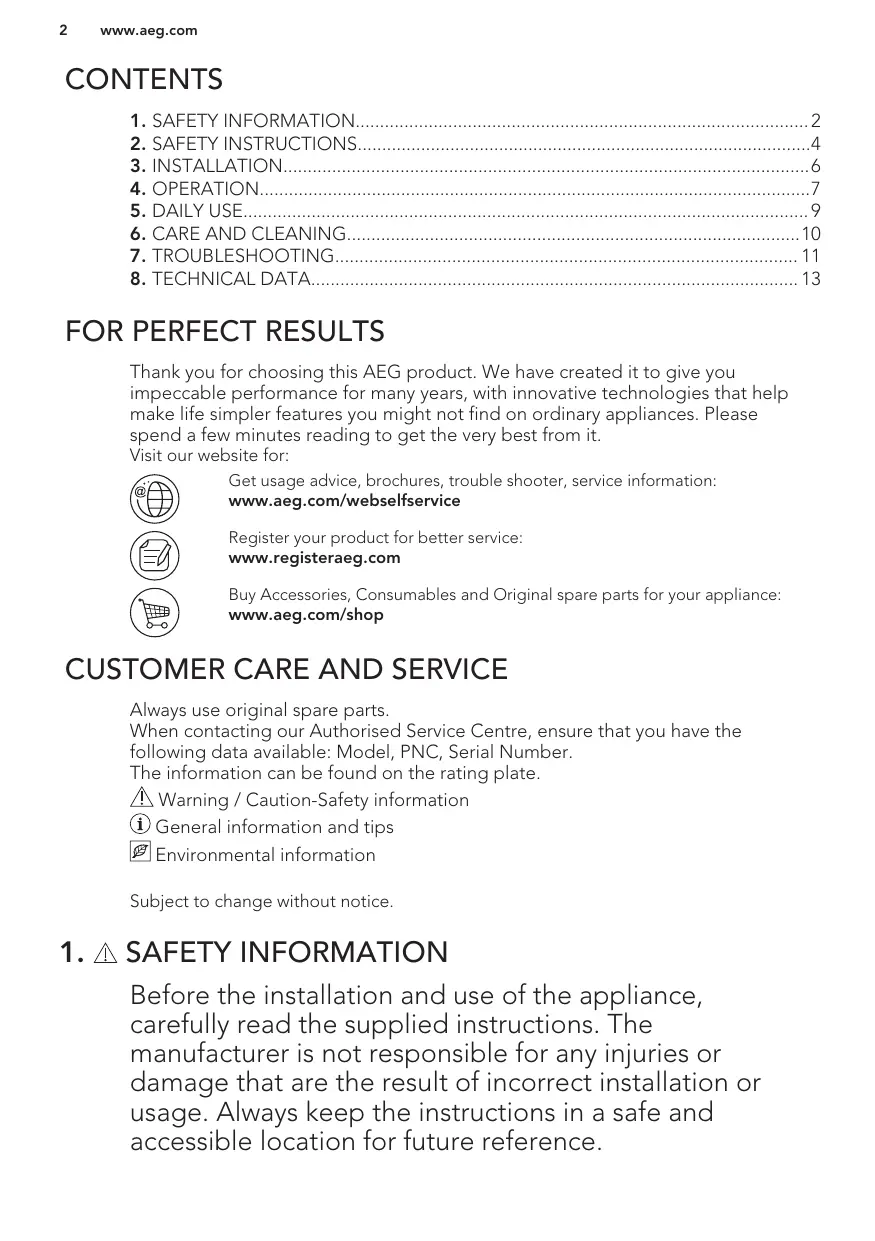

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. ENGLISH

1.1 Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed. Children of less than 3 years of age should be kept away from the appliance unless continuously supervised. Do not let children play with the appliance. Children shall not carry out cleaning and user maintenance of the appliance without supervision. Keep all packaging away from children and dispose of it appropriately.

1.2 General Safety

This appliance is intended to be used in household and similar applications such as: – Farm houses; staff kitchen areas in shops, offices and other working environments – By clients in hotels, motels, bed and breakfast and other residential type environments

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the

food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure the air can circulate around the appliance.
• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens or hobs.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too cold.

• When you move the appliance, lift it by the front edge to avoid scratching the floor.

2.2 Electrical connection

WARNING! Risk of fire and electric shock. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not use multi-plug adapters and extension cables.

• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components. ENGLISH

• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING! Risk of injury, burns, electric shock or fire. The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Follow the storage instructions on the packaging of frozen food.

• Wrap the food in any food contact material before putting it in the freezer compartment.

2.4 Internal lighting

WARNING! Risk of electric shock.

• The type of lamp used for this appliance is for household appliances only. Do not use it for house lighting.

2.5 Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.6 Service

• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only.

2.7 Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger. WARNING! Refer to Safety chapters. 100 mm min

3. INSTALLATION

3.1 Positioning

Climate class Ambient temperature

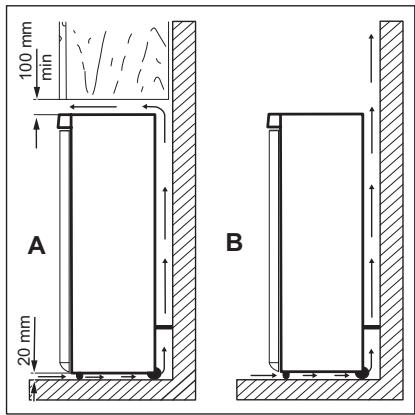

3.2 Location

It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation. The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100mm. Ideally, however, the appliance should not be positioned below overhanging wall units. One or more adjustable feet at the base of the cabinet ensure that the appliance stands level.

20 mm This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: CAUTION! In order to guarantee proper functioning in ambient temperature above 38°C, it is advised to have a 30mm separation between the sides of the appliance and surrounding furniture.

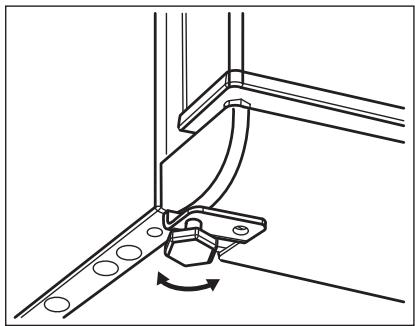

3.3 Levelling

Accurate levelling prevents the vibration and noise of the appliance during operation. To adjust the heigh of the appliance loosen or tighten the two adjustable front feet. ENGLISH

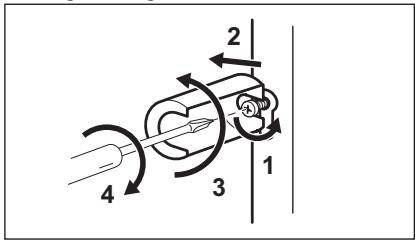

3.4 Rear spacers

You can find the two spacers in the bag with documentation.

Release the screw. Engage the spacer below the screw. Turn the spacer to the right position. Tighten again the screws.

• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

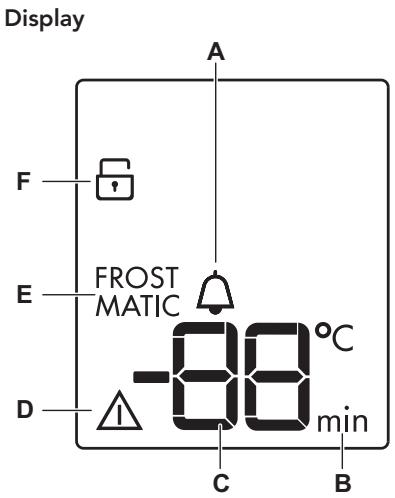

3.6 Door reversibility

3.5 Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. In case you want to change the opening direction of the door, contact the nearest Authorised Service Centre. The Authorised Service specialist will carry out the reversibility of the doors at your cost. 1 Display 2 Alarm reset button 3 OK button 4 Temperature warmer button 5 Temperature colder button 6 Mode button 7 ON/OFF button It is possible to change a sound volume of buttons by pressing together Mode and the temperature colder buttons for a few seconds. Change is reversible.

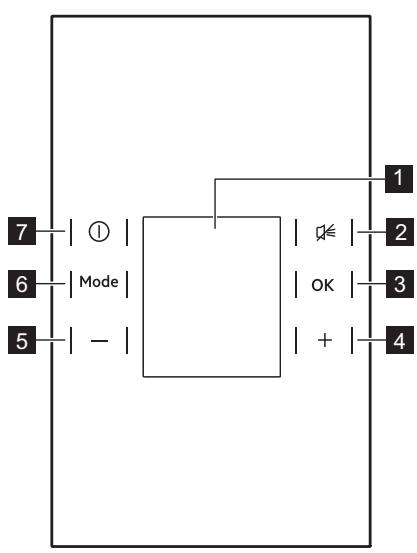

4.2 Switching on

1. Connect the mains plug to the power

2. Press the appliance ON/OFF if the

display is off. The alarm buzzer could operate after few seconds. The temperature indicators show the set default temperature. To reset the alarm refer to "High temperature alarm". To select a different set temperature refer to "Temperature regulation". If "dEMo" appears on the display, refer to "Troubleshooting" chapter.

4.3 Switching off

1. Press ON/OFF for a few seconds.

The display switches off.

2. Disconnect the mains plug from the

4.4 Temperature regulation

The set temperature of the freezer may be adjusted by pressing the temperature button. Default temperature:

• -18°C for the freezer The temperature indicator shows the set temperature. The set temperature will be reached within 24 hours. After a power failure the set temperature remains stored.

4.5 High temperature alarm

An increase in the temperature in the freezer compartment (for example due to an earlier power failure) is indicated by:

• flashing of the alarm and freezer temperature indicators;
• sounding of the buzzer. Press any button to reset the alarm. The buzzer switches off. The freezer temperature indicator shows the highest temperature reached for a few seconds. Then show again the set temperature. The alarm indicator continues to flash until the normal conditions are restored.

4.6 FROSTMATIC function

This function accelerates the freezing of fresh food and protects food products already stored from warming.

1. Press Mode button repeatedly until

FROSTMATIC icon flashes.

2. Press OK button to confirm your

selection. The FROSTMATIC indicator is displayed. ENGLISH This function deactivates automatically after 52 hours. To switch off the function before its automatic end, repeat the steps until the FROSTMATIC indicator disappears.

4.7 Door open alarm

If the door is left open for approximately 90 seconds, the acoustic alarm starts and alarm indicator flashes. The alarm stops after closing the door. During the alarm, the acoustic signal can be muted by pressing any button.

4.8 MinuteMinder function

Use this function to set an acoustic alarm at the preferred time for example when a recipe requires to cool down food products for a certain length of time. It is also useful when a reminder is needed not to forget the bottles placed in the freezer for fast cooling.

1. Press Mode until the corresponding

icon appears. The MinuteMinder indicator flashes. The Timer shows the set value (30 minutes) for a few seconds.

2. Press the Temperature colder or

Temperature warmer button to change the Timer set value from 1 to 90 minutes.

3. Press OK to confirm.

The MinuteMinder indicator is displayed. The Timer starts to flash (min). It is possible to change the time at any time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button. At the end of the countdown, the MinuteMinder indicator flashes and an alarm sounds. Press OK to switch off the sound and deactivate the function. It is possible to deactivate the function at any time during the countdown by repeating the function steps, until the indicator disappears.

4.9 ChildLock function

Activate the ChildLock function to lock the buttons from unintentional operation.

1. Press Mode until the corresponding

icon appears. The ChildLock indicator flashes.

2. Press OK to confirm.

The ChildLock indicator is shown. To deactivate the ChildLock function, repeat the procedure until the ChildLock indicator goes off.

5. DAILY USE

WARNING! Refer to Safety chapters.

5.1 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours with the FROSTMATIC function turned on. The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom drawer which needs to be in place to provide good air circulation. On all shelves it is possible to place food that protrude until 15 mm from the door.

WARNING! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

5.2 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze small amount of fresh food it is not necessary to change the present setting. To freeze fresh food activate the FROSTMATIC function at least 24 hours before placing the food to be frozen in the freezer compartment. Place the food to be frozen in the two top compartments. The freezing process lasts 24 hours: during this period do not add other food to be frozen. When the freezing process is complete, return to the required temperature (see "FROSTMATIC Function").

5.3 Cold accumulators

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.

6. CARE AND CLEANING

WARNING! Refer to Safety chapters.

6.1 Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brandnew product, then dried thoroughly. CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

6.2 Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the appliance. CAUTION! Do not damage the cooling system. The equipment has to be cleaned regularly:

1. Clean the inside and accessories with

lukewarm water and some neutral soap.

2. Regularly check the door seals and

wipe them clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser

and the compressor at the back of the appliance with a brush. This will improve the performance of the appliance and save electricity consumption.

6.3 Defrosting of the freezer

The freezer compartment is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls, nor on the foods.

6.4 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from

2. Remove all food.

3. Clean the appliance and all

4. Leave the door/doors open to

prevent unpleasant smells. ENGLISH

7. TROUBLESHOOTING

WARNING! Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Solution The appliance is noisy. The appliance is not supported properly. Check if the appliance stands stable. Audible or visual alarm is on. The cabinet has been recently switched on or the temperature is still too high. Refer to "Door Open Alarm/ Indicator" or "High Temperature Alarm/Indicator". The temperature in the appliance is too high. Refer to "Door Open Alarm/ Indicator" or "High Temperature Alarm/Indicator". A square symbol is shown instead of numbers on the temperature display. Temperature sensor problem. Contact the nearest Authorised Service Centre (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible). The lamp does not work. The lamp is in stand-by mode. Close and open the door. The lamp is defective. Contact the nearest Authorised Service Centre. Temperature is set incorrectly. Refer to "Operation"/"Control Panel" chapter. Many food products were put in at the same time. Wait a few hours and then check the temperature again. The room temperature is too high. Refer to climate class chart on the rating plate. Food products placed in the appliance were too warm. Allow food products to cool to room temperature before storing. The FROSTMATIC function is switched on. Refer to "FROSTMATIC function". This is normal, no error has occurred. The compressor starts after some time. The compressor operates continually. The compressor does not start immediately after pressing the FROSTMATIC or after changing the temperature.

www.aeg.com Problem Possible cause Solution Water flows on the floor. The melting water outlet is Attach the melting water outnot connected to the evap- let to the evaporative tray. orative tray above the compressor. Temperature cannot be set. The FROSTMATIC or COOLMATIC function is switched on. Switch off FROSTMATIC or COOLMATIC manually, or wait until the function resets automatically to set the temperature. Refer to "FROSTMATIC or COOLMATIC function". DEMO appears on the display. The appliance is in demonstration mode. Keep the OK pressed for approximately 10 seconds until a long sound is heard and display shuts off for a short time. The temperature in the appliance is too low/too high. The temperature regulator is not set correctly. Set a higher/lower temperature. The food products temperature is too high. Let the food products temperature decrease to room temperature before storage. The FROSTMATIC function is switched on. Refer to "FROSTMATIC function". Side panels of the appliance are warm. This is a normal state caused by operation of the heat exchanger. Make sure that there is at least 30 mm of space between each side of the appliance and the surrounding furniture when the ambient temperature exceeds 38°C. Door does not open easily. You attempted to re-open the door immediately after closing. Wait a few seconds between closing and re-opening of the door. If the advice does not lead to the desired result, contact the nearest Authorised Service Centre.

7.2 Replacing the lamp

The appliance is equipped with a longlife LED interior light. Only service is allowed to replace the lighting device. Contact your Authorised Service Centre. ENGLISH

8. Upright freezer

Energy efficiency class A++ Energy consumption in kWh per year, based on standard test results for 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located

Storage volume in litres, Fridge

Storage volume in litres, Star

Storage volume in litres, Cellar zone

Storage volume in litres, Wine

Storage volume in litres, Total

Storage volume in litres, Freezer

Storage volume in litres, Chiller

Storage volume in litres, Other compartments

Star rating of freezer compartment with highest stor- **** age volume (l) Design temperature of other compartments > 14 °C (°C), if any Frost free (Y/N), Fridge

Frost free (Y/N), Freezer Yes Power cut safe in h

Freezing capacity in kg/24h

Climate class SN-N-ST-T Lowest ambient temperature at which this appliance 10 is intended to be used, in °C Highest ambient temperature at which this appliance is intended to be used, in °C

Acoustical noise emissions dB(A) re1 pW

Built in appliance Y/N

www.aeg.com This appliance is intended to be used exclusively for No the storage of wine Y/N

8.2 Additional technical data

Height 1850 mm Width 595 mm Depth 668 mm Voltage

230 - 240 V

Frequency 50 Hz The technical information is situated in the rating plate, on the external or internal side of the appliance and on the energy label.

9. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. FRANÇAIS

Volume utile in litri, Stella

Volume utile in litri, Vino

Volume utile in litri, Freezer

Antibrina (S/N), Freezer
