Product Type	Audio amplifier for the hearing impaired
Brand	GEEMARC
Model	CLA-40
Power supply	9V PP3 battery (not included)
Maximum gain	30 dB (volume) + 10 dB extra (amplification button)
Tone control	5 positions, bass/treble adjustment in 5 dB steps
Additional amplification button	+10 dB, cuts microphone to avoid whistling (CLA-40 only)
Battery indicator	LED lights up when in use, goes off when battery is low
Telephone compatibility	Standard telephones without amplification or tone adjustment, without keys on the handset
Installation	Wall mounting possible (template provided)
Warranty	1 year, parts and labor
After-sales service	Phone: [phone], website: www.geemarc.com
Standards	EN60950 (TNT-3), RTTE directive
Recycling	WEEE directive - do not dispose of with household waste
Accessories included	Telephone connection cord, wall mounting template
Maintenance	Replace the 9V battery when the LED is dim; disconnect the device before replacement

Frequently Asked Questions - CLA-40 GEEMARC

How to install the CLA-40 amplifier on my phone?

Disconnect the handset from the base. Connect the small cord provided between the base and the socket (1) on the back of the CLA-40. Connect the handset to the socket (2) on the front. If the LED does not light up, check the battery.

What to do if I don't hear the dial tone after installation?

Use the rotary switch located under the device. Turn it position by position until you get a dial tone. The factory setting often works, but adaptation may require a different setting.

How to adjust the volume and tone?

The volume is adjusted with the VOLUME slider (gain from 0 to 30 dB). The tone with the TONE switch with 5 positions (bass/treble adjustment in 5 dB steps). Adjust according to your comfort.

What is the rotary switch under the device for?

It adapts the CLA-40 wiring to your phone. If you have no dial tone or the microphone does not work, change the position until you get correct operation.

How to replace the battery?

Disconnect the amplifier from the phone. Open the battery compartment by pressing the plastic tab. Replace the 9V PP3 battery respecting polarity. Close the cover.

What to do if the amplifier whistles?

Whistling is normal when you hold the amplification button (because the mic is cut). If whistling persists in normal use, reduce the volume or tone, or check the connections.

Can I use the amplifier with a phone that has keys on the handset?

No, the CLA-40 is only compatible with standard telephones without dial keys on the handset. Use with a handset with keys can damage the device.

What is the warranty period?

The warranty is 1 year parts and labor, from the date of purchase. Damage due to lightning, surges or shocks is not covered.

How to recycle the device at the end of its life?

Do not discard the device with household waste. Take it to a WEEE collection point or return it to your retailer when purchasing a new product.

What to do if the amplifier still does not work after checking?

Disconnect the amplifier and reconnect the handset directly to the base. If the problem disappears, the amplifier may be defective or incompatible. Contact after-sales service at 0328587599.

USER MANUAL CLA-40 GEEMARC

Boost switch (CLA-40 only) 9

Battery LED 9

TROUBLESHOOTING 10

GUARANTEE 11

WALL MOUNT TEMPLATE 16

Geemarc

For product support and help visit our website at www.geemarc.com

telephone [phone]

or fax [phone]

SOMMAIRE

DESCRIPTION CLA-30/40 4

INSTALLATION 12

REGLAGES 13

(*) Classified TNV-3 according to EN60950 standard.

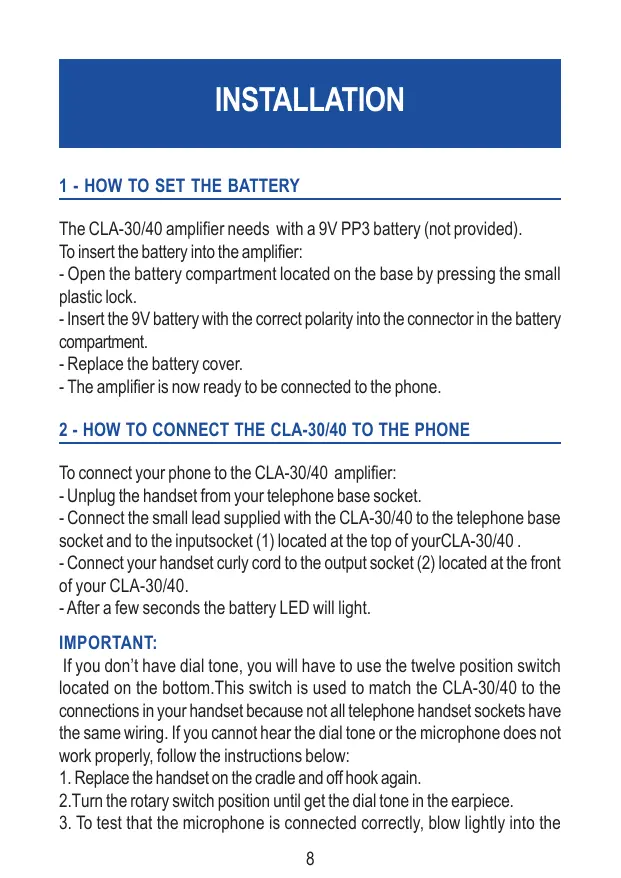

1 - HOW TO SET THE BATTERY

The CLA-30/40 amplifier needs with a 9V PP3 battery (not provided). To insert the battery into the amplifier:

• Open the battery compartment located on the base by pressing the small plastic lock.
• Insert the 9V battery with the correct polarity into the connector in the battery compartment.
• Replace the battery cover.
• The amplifier is now ready to be connected to the phone.

2 - HOW TO CONNECT THE CLA-30/40 TO THE PHONE

To connect your phone to the CLA-30/40 amplifier:

• Unplug the handset from your telephone base socket.
• Connect the small lead supplied with the CLA-30/40 to the telephone base socket and to the inputsocket (1) located at the top of yourCLA-30/40.
• Connect your handset curly cord to the output socket (2) located at the front of your CLA-30/40.
• After a few seconds the battery LED will light.

IMPORTANT:

If you don't have dial tone, you will have to use the twelve position switch located on the bottom. This switch is used to match the CLA-30/40 to the connections in your handset because not all telephone handset sockets have the same wiring. If you cannot hear the dial tone or the microphone does not work properly, follow the instructions below:

1. Replace the handset on the cradle and off hook again.
2. Turn the rotary switch position until get the dial tone in the earpiece.
3. To test that the microphone is connected correctly, blow lightly into the

SETTINGS

mouthpiece. If you hear the 'blowing sound' in the earpiece, your CLA-30/40 is now set. If you cannot hear the 'blowing sound', repeat 2. and 3. until both the earpiece and microphone are working correctly.

Note 1: The rotary switch is factory set in the most of common wiring position so always try this first before turning the switch.

Note 2: The rotary switch has deliberately been made rather stiff to avoid misoperation or accidental chage of setting. We apologise if you find this inconvenient but after first set-up, the switch will not be to turned again unless you change your phone.

Note 3: The CLA-30/40 cannot be used with one-piece telephones which have a keypad on the handset.

CLA-30/40 is now ready to use.

3 - VOLUME CONTROL

You can adjust the volume control level by using the "VOLUME" control slide switch located on the top. Volume can be adjusted from the standard level of your phone up to 30 dB or more.

4-TONE CONTROL

You can adjust the tone by using the 5 position "TONE" switch located on the top. The tone can be adjusted in 5 dB step from the 0dB mid point to the Hi or LO positions shown according to your individual requirements.

5-BOOST SWITCH (CLA-40 ONLY)

If you wish you can increase the receiving up to 10 dB more by pressing and holding the Boost switch button. During this operation the microphone is muted to avoid feedback problems. To speak release the button so that other party can hear you.

TROUBLESHOOTING

6-BATTERY INDICATOR

The battery LED indicator should illuminate every time you use your CLA-30/40. If the LED start to fade or does not light when your CLA-30/40 is in use, you should change the battery to ensure optimum sound quality and performance.

IMPORTANT: Always disconnect CLA-30/40 from the phone before replacing the battery.

IF THE AMPLIFIER DOES NOT WORK

• Make sure all connections are plugged into the correct sockets (phone line cord, amplifier connections) and try other position on the rotary switch.
• Make sure battery is correctly inserted and is fully charged.

If you still have a problem when using your amplifier follow the instructions below:

• Disconnect the amplifier from the telephone.
• Connect the handset to the telephone.
• If the problem ceases, the amplifier may be faulty or your telephone socket wiring may not be compatible with the CLA-30/40. Call our HELPLINE for advice.
• If you have a problem after disconnecting the amplifier, the problem may come from your telephone or your telephone line socket.

In this case you will have to inform your telephone company about the problem or take your telephone to a repair centre.

IMPORTANT: The CLA-30/40 can not be used with telephones which include a keypad on the handset. The CLA-30/40 can only be used with standard phones without any amplification or tone adjustment.

GUARANTEE

GUARANTEE

From the moment your Geemarc product is purchased, Geemarc will guarantee it for the period of one year. During this time, all repairs or replacements are free of charge. Should you experience a problem then contact our helpline or visit our website at www.geemarc.com. The guarantee does not cover accidents, negligence or breakages of any parts. The product must not be tampered with or taken apart by anyone who is not an authorised Geemarc representative. The Geemarc guarantee in no way limits your legal rights.

IMPORTANT: YOUR RECEIPT IS PART OF YOUR GUARANTEE AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM

Please note: The guarantee applies to the United Kingdom only.

Declaration : Geemarc Telecom SA hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EEC and in particular article 3 section 1a, 1b and section 3.

Telephone connection : Voltages present on the telecommunication network are classified TNV-3 (Telecommunication Network Voltage) according to the EN60950 standard.

Recycling directives : The WEEE (Waste Electrical and Electronic Equipment) has been put in place for the products in end of life are recycled in the best way.

When this product is out of order, please do not put it in your domestic waste bin.

Please use one of the following disposal options :

• Remove the batteries and deposit them in an appropriate WEEE skip.

Deposit the product in an appropriate WEEE skip.

• Or hand the old product to the retailer. If you purchase a new one, they should accept it.

Thus if you respect these instructions you ensure human health and environmental protection.

INSTALLATION

1 - MISE EN PLACE DE LA PILE

If you wish to wall mount the amplifier, use this template to mark the screw holes.

GABARIT DE MONTAGE MURAL
