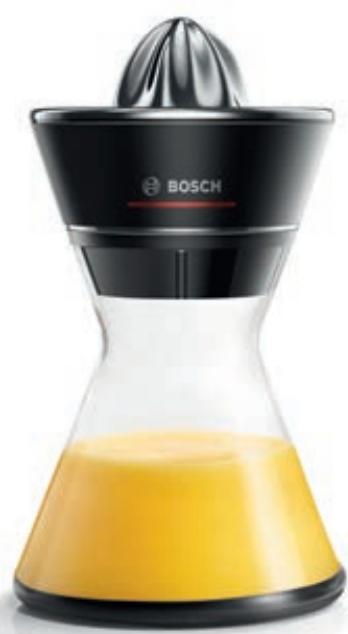

MCP72GPB - Juicer BOSCH - Free user manual and instructions

Product type	Electric citrus juicer
Brand	BOSCH
Model	MCP72GPB
Glass jug capacity	1.0 liter
Bowl capacity	About 100 ml
Jug material	Glass
Number of fruit press cones	2 (different sizes)
Rotation direction	Clockwise and counterclockwise (automatic reversal depending on pressure)
Automatic stop function	Yes, when pressure on the cone decreases
Juice flow valve	Yes, closes automatically when the juicer is removed
Storage cap	Yes, included
Dishwasher-safe parts	Glass jug, cap, stand, bowl, strainer insert, press cones and lid
Safety	Do not immerse motor unit; glass jug not heat-resistant; do not manually rotate the cone
Intended use	For juicing citrus fruits (lemons, oranges, grapefruits) for domestic use
Net weight	About 1.5 kg (estimated)
Dimensions (L x W x H)	About 20 x 20 x 30 cm (estimated)
Power supply	220-240 V ~ 50-60 Hz (typical estimated)

Frequently Asked Questions - MCP72GPB BOSCH

How to use the juicer with the glass jug?

Place the prepared juicer on the glass jug so that it seals the opening tightly. Plug in the appliance, place half a citrus fruit on the cone and press to start. The juice is collected in the jug. To stop, reduce pressure on the cone.

Can I use the juicer without the glass jug?

Yes, for small quantities. The bowl collects the juice (capacity about 100 ml). Use the spout to serve directly or pour the juice into a container.

How to clean the parts?

Unplug the appliance. Wipe the motor unit with a damp cloth. Other parts (jug, bowl, cones, etc.) are dishwasher safe or can be washed in soapy water. Never immerse the motor unit.

Why does the fruit press cone change rotation direction quickly?

This happens if the pressure on the cone is too strong. Reduce pressure until the cone rotates normally.

What to do if juice leaks from the appliance without the jug?

Stop immediately. Remove the cone, strainer insert and bowl. Clean the juice flow valve to remove any foreign objects. Reassemble and continue.

Can the glass jug hold hot liquids?

No, the glass jug is not heat-resistant. Never pour hot liquids into it, as it could break.

How many fruits can I juice continuously?

Maximum 10 fruits (about 2 kg). After that, stop juicing until the motor unit cools to room temperature.

Is the appliance suitable for children?

Children aged 8 and above can use it under supervision. Children under 8 should be kept away. Do not let children play with the appliance.

Can I use the appliance for something other than citrus fruits?

No, the appliance is designed only for juicing citrus fruits (lemons, oranges, grapefruits). Do not use it for other substances.

How to store the appliance?

After cleaning and drying, fully assemble the juicer, place it on the glass jug and put the lid on.

USER MANUAL MCP72GPB BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

MCP7...

BOSCH

Read and follow the operating instructions carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

This appliance is suitable for pressing citrus fruits, such as lemons, oranges and grapefruits. It must not be used for processing other substances/objects. It must not be used for processing other substances/objects.

Only use the appliance indoors at room temperature and up to 2000m above sea level. Do not place the appliance on or near hot surfaces, e.g. hobs.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Children shall not play with the appliance.

Safety instructions

Warning

Danger of electric shock and fire!

Never manually move the pressing cone/drive shaft.

The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

"Connect and operate the appliance only according to the type plate specifications. Use only if power cord and appliance show no signs of damage. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Do not connect the appliance to or operate it by means of a time

switch or remote control socket.

The mains cable must not come into contact with hot parts or be pulled across sharp edges. Never immerse the appliance or mains cable in water or place it in the dishwasher!

After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains. Prior to replacing accessories or replacement parts that are moved during operation, the appliance must be switched off and disconnected from the mains.

Warning

Risk of injury!

The glass carafe is not heat-resistant. Do not pour in any hot liquids.

Warning

Risk of suffocation!

Do not allow children to play with packaging material.

Congratulations on the purchase of your new Bosch appliance.

On the following pages of these operating instructions, you will find useful information for safe use of this appliance.

We request that you read these operating instructions carefully and observe all instructions. This ensures that you will be able to enjoy this appliance for a long time and the results of your work will be an endorsement of your decision to purchase this appliance.

Retain these operating instructions for subsequent use or for the next owner.

You can find further information about our products on our website.

Contents

Intended use 10

Safety instructions 11

Overview. 12

Before using for the first time. 12

Preparing the citrus press and glass carafe 13

Operation. 13

Using the citrus press with the glass carafe 13

Using the citrus press without the glass carafe 14

Care and daily cleaning 14

Motor unit. 14

Accessories 14

Storage 14

Disposal. 15

Guarantee. 15

Simple troubleshooting 15

Overview

Fig. A

1 Motor unit

a Drive shaft
b Mains cable
c Cable clip
d Operation indicator*
e Button for discharge valve
f Supporting feet

2 Collecting tray

a Spout
b Discharge valve

3 Filter insert

4 Pressing cone

a Plastic
b Metal

5 Cover

6 Glass carafe 1.0 litre

a Lid
b Saucer

7 Operating instructions

• Depending on the model The operating instructions refer to different models of the appliance. An overview is provided on the pages that feature the figures. → Fig. ②

Before using for the first time

Before the new appliance can be used, this must be fully unpacked, cleaned and assembled. To do this, perform the following steps:

1. Remove the motor unit, glass carafe and all accessories from the packaging.
2. Remove the packaging material that is present.
3. Check all parts for completeness. Fig. A / B
4. Inspect all parts for visible damage.

Caution!

Never operate a damaged appliance!

1. Thoroughly clean and dry all parts before using for the first time.

"Care and daily cleaning" see page 14

Preparing the citrus press and glass carafe

Fig. C

1. Insert the collecting tray into the motor unit.

Caution!

Inspect the discharge valve before inserting the collecting tray. It must not be blocked by a foreign object.

1. Place the filter insert into the collecting tray and rotate until it clicks into place.
2. Position the pressing cone on the drive shaft.

Warning

Risk of electric shock!

Never manually move the pressing cone/ drive shaft.

The citrus press is prepared.

1. Place the glass carafe on the saucer.
   Note: Always use the saucer. This provides anti-slip protection and noise reduction.
2. Place the prepared citrus press onto the glass carafe until the opening is sealed tight.

The citrus press is prepared for use with the glass carafe.

Operation

Using the citrus press with the glass carafe

Fig. D

Use the citrus press with the glass carafe in order to press larger quantities of juice, such as freshly squeezed orange juice.

Caution!

The juice is collected in the glass carafe. The volume capacity of the glass carafe is 1.0 l. End the pressing procedure before the juice reaches the bottom edge of the motor unit.

1. Position the prepared citrus press with glass carafe on a stable and level work surface.

2. Connect the mains cable to the socket.

3. Position the halved citrus fruits with the cut surface on the pressing cone and press down.

The citrus press starts running once the pressed product is pressed onto the pressing cone. The pressing cone rotates either clockwise or anticlockwise. Once the pressed product is released and pressed once again, the pressing cone changes its rotation direction. If excess pressure is applied, the pressing cone changes the rotation direction in rapid succession. Reduce the pressure until the pressing cone rotates normally once more.

Caution!

Press a maximum of 10 fruits (approx. 2kg ) one after the other. Then halt the pressing procedure until the motor unit has once again reached room temperature. Only then should the pressing procedure be resumed.

Notes:

To obtain the largest amount of juice, the pressing procedure should be repeated a few times.
The filter insert with the rough peel and the seeds should be emptied if required.
4. To switch off the appliance, reduce the pressure on the pressing cone. The citrus press switches off automatically.
5. Disconnect the mains cable from the socket.
6. Remove the citrus press from the glass carafe.

The discharge valve closes automatically once the citrus press is removed from the glass carafe.

1. For the purpose of storage, for example in the refrigerator, seal the glass carafe with the lid.
2. To pour out the juice, remove the lid.

Using the citrus press without the glass carafe

Fig. 3

Use the citrus press without the glass carafe in order to press smaller quantities of juice, such as lemon juice for use in baking or for seasoning fish.

Caution!

The juice is collected in the collecting tray. The volume capacity of the collecting tray is approx. 100ml . This corresponds approximately to the juice from 2 medium-sized lemons. End the pressing procedure before the juice reaches the top edge of the collecting tray.

1. Position the prepared citrus press on a stable and level work surface.
2. Connect the mains cable to the socket.
3. Press the citrus fruits as described. "Using the citrus press with the glass carafe" see page 13
4. Disconnect the mains cable from the socket.
5. Use the juice directly via the spout or pour into a container.

Care and daily cleaning

Fig. 1

The appliance must be thoroughly cleaned after each use.

Warning

Risk of electric shock!

• Disconnect the mains cable from the socket prior to cleaning.
• Never manually move the pressing cone/drive shaft.
• Never immerse the motor unit in liquid and do not clean in the dishwasher.

Warning

Risk of injury!

The glass carafe is not heat-resistant.

• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Before cleaning:

1. Remove the motor unit from the glass carafe.
2. Remove the pressing cone, the filter insert and the collecting tray.

Motor unit

Wipe down the motor unit with a soft, damp cloth and dry off.

Accessories

Clean the individual parts with a detergent solution and a soft cloth or sponge.

Note: The glass carafe, lid, saucer, collecting tray, filter insert, both pressing cones and the cover can also be cleaned in the dishwasher.

Storage

Fig. 6

Prior to storage, always clean the appliance and allow all parts to dry. "Care and daily cleaning" see page 14

1. Fully assemble the citrus press and position on the glass carafe.
2. Replace the cover.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Simple troubleshooting

Problem	Cause	Remedy
Juice runs out of the citrus press even though this is being used without the glass carafe.	The discharge valve is blocked by a foreign object.	Stop the pressing procedure immediately. Remove the pressing cone, the filter insert and the collecting tray from the motor unit. Remove the foreign objects from the discharge valve of the collecting tray. Reassemble the citrus press. Resume the pressing procedure.
	The filter insert is full.	Stop the pressing procedure immediately. Remove the pressing cone and the filter insert from the motor unit and clean them. Reassemble the citrus press. Resume the pressing procedure.
The glass carafe overflows during the pressing procedure.	Too many fruits have been pressed.	Stop the pressing procedure immediately. Fully clean the appliance and allow all parts to dry. ➔ "Care and daily cleaning" see page 14 Fully assemble the citrus press and position on the empty glass carafe. Resume the pressing procedure.
The pressing cone changes the rotation direction in rapid succession.	The pressure on the pressing cone is too high.	Reduce the pressure on the pressing cone until the pressing cone rotates normally once more.

If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.
