USER MANUAL FC400MW BRANDT

ENGLISH INSTRUCTION MANUAL

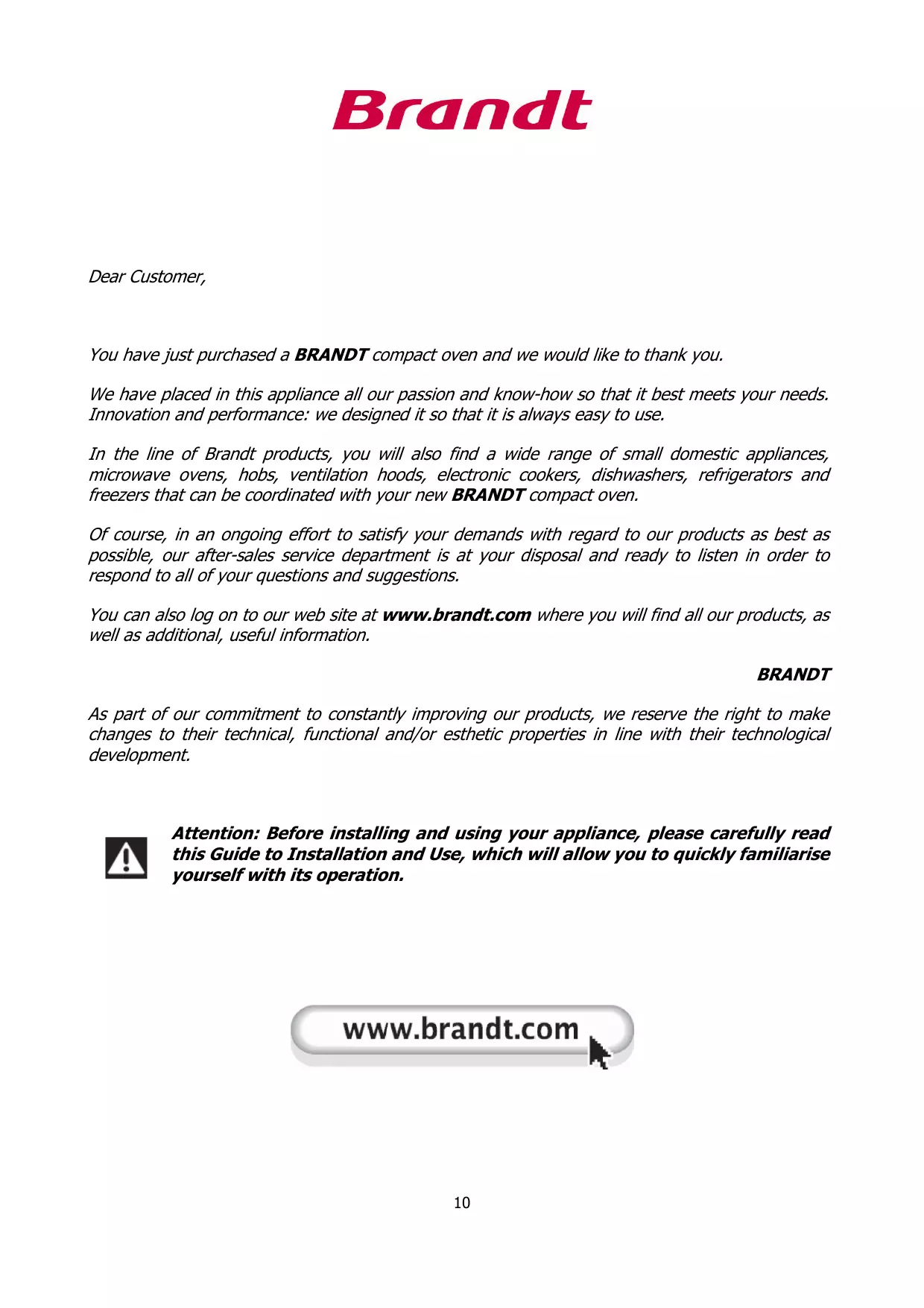

Dear Customer, You have just purchased a BRANDT compact oven and we would like to thank you. We have placed in this appliance all our passion and know-how so that it best meets your needs. Innovation and performance: we designed it so that it is always easy to use. In the line of Brandt products, you will also find a wide range of small domestic appliances, microwave ovens, hobs, ventilation hoods, electronic cookers, dishwashers, refrigerators and freezers that can be coordinated with your new BRANDT compact oven. Of course, in an ongoing effort to satisfy your demands with regard to our products as best as possible, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions. You can also log on to our web site at www.brandt.com where you will find all our products, as well as additional, useful information. BRANDT As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or esthetic properties in line with their technological development. Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

A. Safety recommendations

C. Protecting the environment

2/ INSTALLING YOUR APPLIANCE

A. Countertop installation

B. Electrical connection

C. Description of your appliance

A. Before using your oven

B. Temperature control

D. Cooking time setting

4/ CARING FOR AND CLEANING YOUR APPLIANCE

A. Safety recommendations Food cannot be heated directly in a bottle or tin as the bottle or tin could break and contents could scald the user Take care during and immediately after use. The metal parts and glass window of the door become extremely hot during use. Take care not to touch them when opening and closing the door. Oven surfaces may be hot when in use Always use the handle when inserting or removing the tray. Touching the tray may cause severe burns. When hot, do not apply water to the glass window. It may cause the glass to break. When unplugging the oven, always take hold of the plug itself. Never pull on the cord. This could break the wires inside the cord. Do not position the oven near a gas burner or any other heat source, and do not direct an electric fan, etc, at the unit during use. Doing so could affect the temperature control. Do not touch the power cable or unit with wet hands. Always unplug the cord after use and whenever the unit is left unattended. A malfunction while the plug is inserted into the mains could cause a fire. When cooking fat-spitting dishes such as roast chicken, it is recommended to use 2 sheets of aluminium foil in order to reduce fat spitting. Place one sheet on the tray and the other over the food. The oil will drip in to the gap between the sheets of foil. B. Technical data Model no. Power supply Energy consumption Specifications Net weight FC-40MW / FC-40MB 220-240V 50Hz 2100W 310 x 610 x 440 mm

C. Protecting the environment At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources. To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste. For further information, contact your local authority or the shop where you bought the product.

2/ INSTALLING YOUR APPLIANCE

A. Countertop installation If the oven is positioned too close to a wall it may be burned or stained. Ensure curtains etc. are not in contact with the oven. Do not put anything between the base of the oven and the surface on which it is set. Any object under the over may be burned Do not put anything on top of the oven when it is use, the heat could deform, crack, etc the item. B. Electrical connection The oven must be connected to a properly wired power outlet. Insert the plug fully into the socket. If it is not, it could become overly hot. Do not use an electric light outlet. Never connect multiple plugs to the same power outlet C. Description of your appliance

3/ USING YOUR APPLIANCE

A. Before using the oven for the first time Heat the oven with nothing inside it.

1. Insert the tray and wire rack.

2. Set the cooking function switch to "UPPER & LOWER", set the temperature control knob to "250℃" and

heat the empty oven for about 10 minutes. There may be some smoke and a burning smell at first, but this is not a malfunction. B. Temperature control Set the Temperature Control Dial to the suitable temperature for the dish you are cooking. Set the “Temperature Control” by turning the knob clockwise to the suitable temperature for the dish you are cooking. (Temperature Control range up to 250°C) C. Cooking function selection Select the suitable cooking function for the dish you are cooking. Upper & Lower Heating Convection Function Upper Heating Convection Function Lower & Lower Heating Upper Heating Rotisserie Function Lower & Lower Heating Convection & Rotisserie Function

Fan Function The fan function circulates the hot air to provide faster and evenly cooked food. Also helps to maintain original flavour. Rotisserie Function This function allows even cooking. Use with Rotisserie Forks Installing Rotisserie Forks Fit the rotisserie forks in the rotisserie holes, and then attach it to the rotisserie tray. Removing Rotisserie Forks Use the rotisserie handle to remove the rotisserie forks from the rotisserie tray, and then remove it from the rotisserie hole. Rotisserie Handle Always use the rotisserie handle to remove the rotisserie forks. Beware of hot dripping fat! D. Cooking time setting

1. Move the “Timer” arrow to the number which indicates the cooking time (minutes)

depending on the dish you are cooking.

2. Set the “Timer” by turning it clockwise.

You can check whether the heating elements are working or not by looking at the front Indicator light. The oven will turn off automatically at the end of the selected time and a bell will ring.

3. The oven can be turned off manually during cooking by turning the “Timer” anti-clockwise to the "OFF"

position. If the inside of the oven is dirty, cooking may take slightly longer than usual. Baking times Type of food Number or thickness Temperature(°C) Timer (min.) Sandwich 2-3 pcs

Baking Tray and Wire Rack Accessory Food (For Ref. only) How to use Tray Handle Baking Tray Roast chicken wings, hamburgers, gratin, cakes, most other oven-cooked foods Note : We recommend you use it as crumb tray. Wire Rack Baked potatoes, dry food Baking Tray and Wire Rack Rotisserie forks and handle For food which will drip, e.g. boiled fish etc. Take care when removing pudding and hot liquids.

Rack Support There are 4 different positions for the tray which you can adjust according to the dish you are cooking. For example, when cooking macaroni gratin, to have the top part cooked the most, use the top or second position. For roasting a chicken, use the fourth or bottom position.

4/ CLEANING & MAINTENANCE Unplug and allow the oven to cool completely before cleaning. When cleaning, use a soft cloth (or sponge) and neutral cleaner on the interior and exterior surfaces of the oven, tray, rack, and rotisserie fork. Then rinse with clean water. Do not use a hard brush or any others cleaners to avoid scratching or damaging the interior surface of the oven, tray, wire rack and the rotisserie fork. Do not use toxic or abrasive cleaners such as gasoline, polishing powder, solvent. For safety reasons if the power cable is damaged, it must be replaced by the manufacturer or its servicing company or a qualified person. FagorBrandt SAS – Management Company - SAS with a capital of 20,000,000 euros - Head Office: 7 rue Henri Becquerel 92500 Rueil-Malmaison - RCS Nanterre 440 303 196
