USER MANUAL TIS 632 CDL SCHOLTES

Potenza (in W) I 1400 I 1400 I 1400 I 1400 5600

EXTENSO TECHNOLOGY Touche

EXTENSO TECHNOLOGY Touche

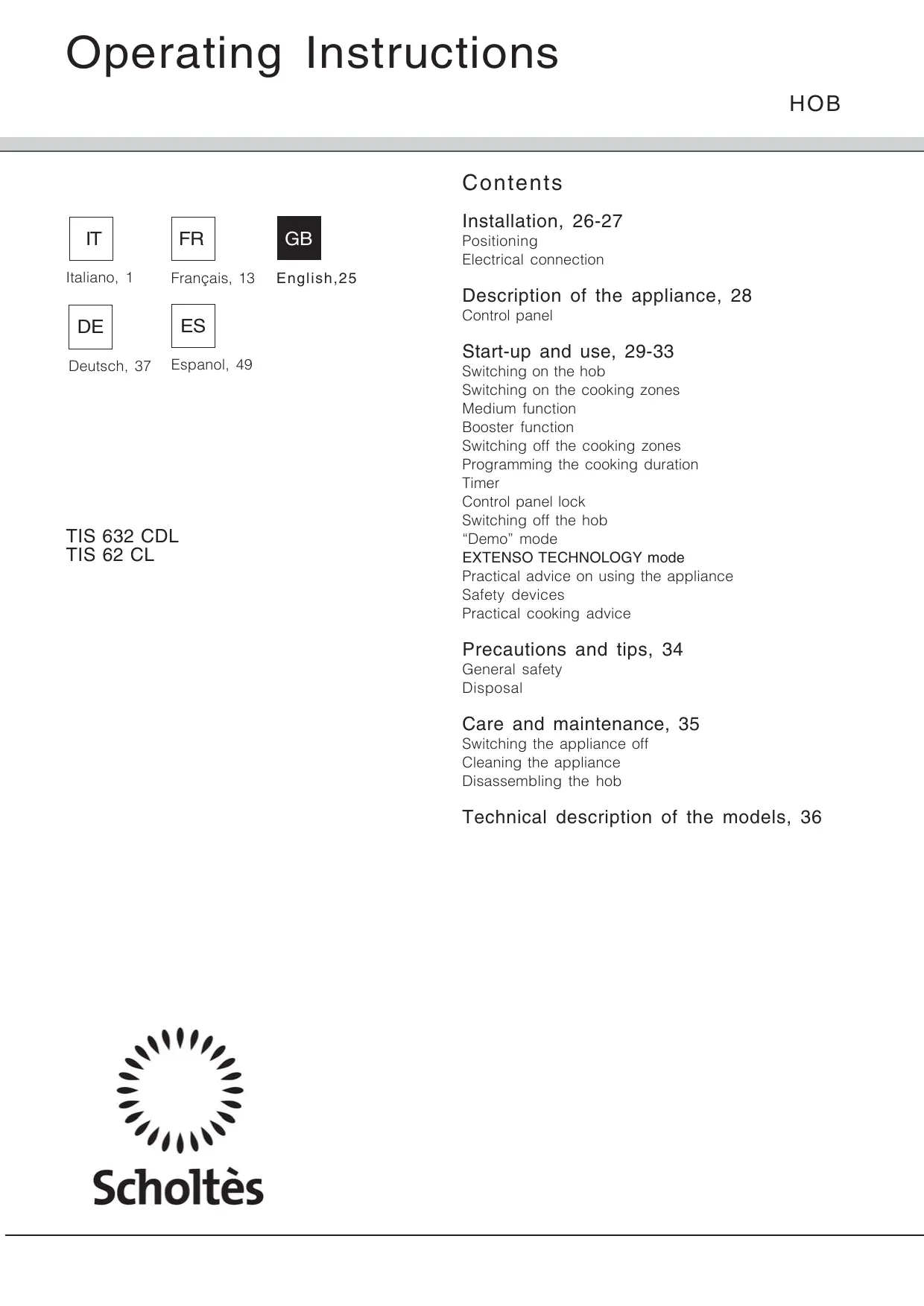

NE CONVIENT PAS Operating Instructions

Installation, 26-27 IT Italiano, 1

Electrical connection

Description of the appliance, 28

TIS 632 CDL TIS 62 CL Control panel

Start-up and use, 29-33

Switching on the hob Switching on the cooking zones Medium function Booster function Switching off the cooking zones Programming the cooking duration Timer Control panel lock Switching off the hob “Demo” mode EXTENSO TECHNOLOGY mode Practical advice on using the appliance Safety devices Practical cooking advice

Precautions and tips, 34

General safety Disposal

Care and maintenance, 35

Switching the appliance off Cleaning the appliance Disassembling the hob

Technical description of the models, 36

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.

! Please keep these operating instructions for future reference. Pass them on to any new owners of the appliance.

Positioning min. 40 mm

! Keep all packaging material out of the reach of children.

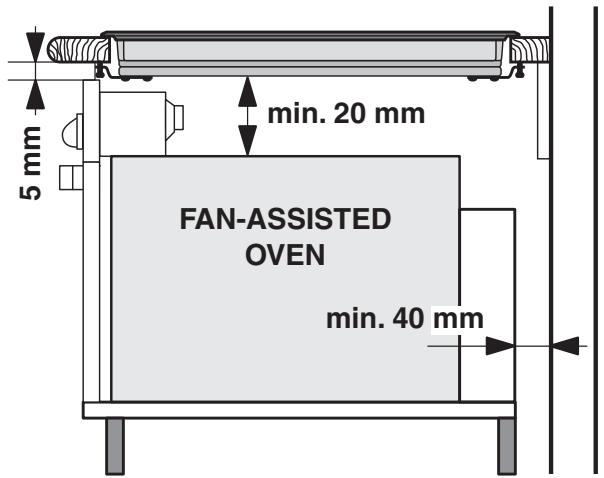

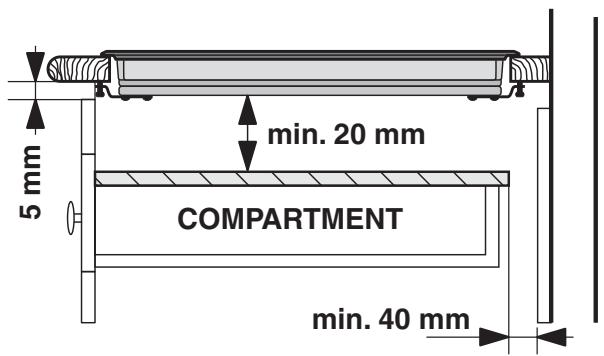

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

• At a minimum distance of 40 mm from the back panel or any other vertical surfaces.

• So that a minimum distance of 20 mm is maintained between the installation cavity and the cabinet underneath. • Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.

Use a suitable cabinet to ensure that the appliance functions properly. • The supporting surface must be heat-resistant up to a temperature of approximately 100°C. • If the appliance is to be installed above an oven, the oven must be equipped with a forced ventilation cooling system. • Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances. • Depending on the hob you want to install, the cabinet must have the following dimensions (see figure):

It may present a choking or suffocation hazard (see

Precautions and tips). ! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

• 220-240V 3 ~ 50 Hz

The appliance must be installed on a perfectly level

Any deformities caused by improper fixing could affect the features and operation of the hob. The thickness of the supporting surface should be taken into account when choosing the length of the screws for the fixing hooks: • 30 mm thick: 23 mm screws • 40 mm thick: 13 mm screws

! In order to adhere to safety standards, the appliance must not come into contact with electrical parts once it has been installed. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connection

! The electrical connection for the hob and for any built-in oven must be carried out separately, both for safety purposes and to make extracting the oven easier.

Single-phase connection

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase connection. Connect the wires in accordance with the instructions given in the following table and diagrams: Electrical cable

N: the two blue wires together

L: brown and black together

Other types of connection

If the mains supply corresponds with one of the following: Voltage and mains frequency

• 400V - 2+N ~ 50 Hz

Voltage and mains frequency

! The screws for the alignment springs must remain

Voltage and mains frequency

Separate the wires and connect them in accordance with the instructions given in the following table and diagrams:

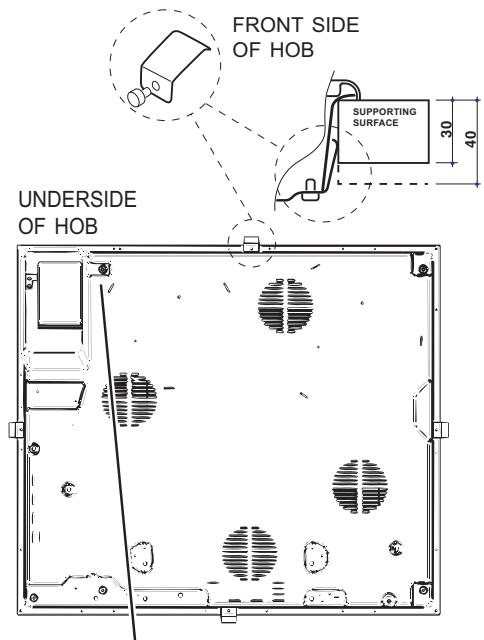

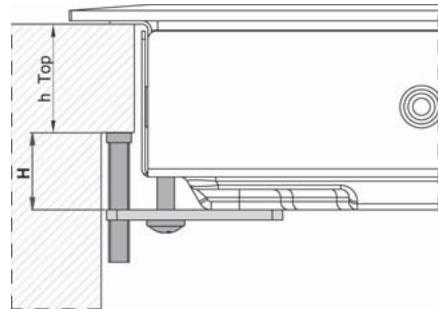

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment springs in the holes provided at the central point of each side of the hob. 2. Place the hob in the cavity, make sure it is in a central position and push down on the whole perimeter until the hob is stuck to the supporting surface. 3. For hobs with raised sides: After inserting the hob into its cavity, insert the 4 fixing hooks (each has its own pin) into the lower edges of the hob, using the long pointed screws to fix them in place, until the glass is stuck to the supporting surface.

: yellow/green; N: the two blue wires together L1: black L2: brown : yellow/green;

Connecting the electricity supply cable to the mains

If the appliance is being connected directly to the electricity mains an omnipolar switch must be installed with a minimum opening of 3 mm between contacts. ! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law. • The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself. • The voltage falls within the range of values indicated on the data plate. • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only. ! The manufacturer declines any liability should these safety measures not be observed. ! Do not remove or replace the power supply cable for any reason. Its removal or replacement will void the warranty and the CE marking. INDESIT does not assume liability for accidents or damage arising from replacement/ removal of the original power supply cable. Replacement can only be accepted when carried out by personnel authorised by INDESIT and using an original spare part.

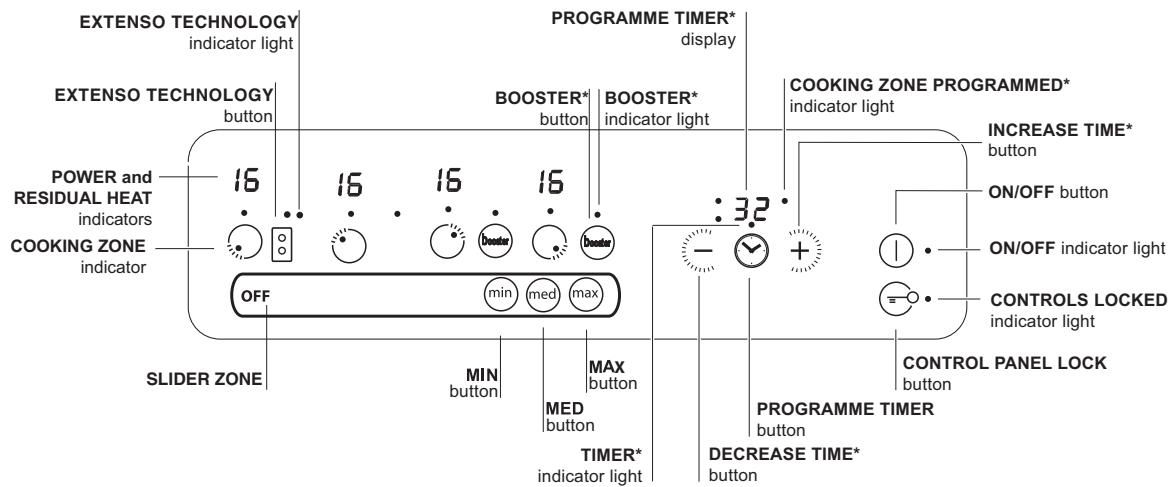

Description of the appliance

The control panel described in this manual is only a representative example: it may not exactly match the panel on your appliance. PROGRAMME TIMER* display

EXTENSO TECHNOLOGY indicator light

EXTENSO TECHNOLOGY button

RESIDUAL HEAT indicators

COOKING ZONE indicator

• "SLIDER" ZONE - switches the hotplate on/off or adjusts its power level (see Start-up and use).

• COOKING ZONE indicator represents the corresponding cooking zone. • POWER indicator provides a visual display for the current heat level. • ON/OFF button switches the appliance on and off. • ON/OFF indicator light shows whether the appliance is on or off. • PROGRAMME TIMER* button controls the cooking programme times (see Start-up and use). • PROGRAMME TIMER* display shows which programme has been selected (see Start-up and use). • COOKING ZONE PROGRAMMED* indicator lights show which cooking zones are being used during a cooking programme (see Start-up and use). • CONTROL PANEL LOCK button prevents accidental changes to the hob settings (see Startup and use). • CONTROL PANEL LOCK indicator light shows the control panel has been locked (see Start-up and use). • BOOSTER* button activates the booster function 3000 W - of the cooking zone (see Start-up and use). • BOOSTER* indicator light shows that the booster function has been activated.

* Only available in certain models.

• TIMER* indicator light shows that the timer has been activated

• MAX BUTTON - switches the cooking zone on at its maximum power level 16 (see Start-up and use). • MED BUTTON - switches the cooking zone on at its medium power level 8 (see Start-up and use). • MIN BUTTON - switches the cooking zone on at its minimum power level 1 (see Start-up and use). • INCREASE TIME* button increases the cooking duration while the timer is running or while a set programme is underway (see Start-up and use). • DECREASE TIME* button decreases the cooking duration while the timer is running or while a set programme is underway (see Start-up and use). • EXTENSO TECHNOLOGY button - activates the EXTENSO TECHNOLOGY mode • EXTENSO TECHNOLOGY indicator light shows that the EXTENSO TECHNOLOGY function has been activated ! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the “off mode”. The appliance resumes the operating mode once the ON/OFF button is pressed.

! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. ! A few seconds after the hob is connected to the electricity supply, a buzzer will sound. The hob may now be switched on. Types of noise during normal hob operation: • Buzz: due to the vibration of the metallic parts that make up the induction element and the pot; it is generated by the electromagnetic field required for heating and increases as the power of the induction element increases. • Soft whistle: heard when the pot placed on the heating zone is empty; the noise disappears once food or water is placed into the pot. • Crackle: produced by the vibration of materials on the bottom of the pot due to the flow of parasitic currents caused by electromagnetic fields (induction); can be more or less intense depending on the material making up the bottom of the pot, and decreases as the pot dimensions increase. • Loud whistle: heard when two induction elements of the same group function simultaneously at maximum power and/or when the booster function is set on the larger element while the other is auto-adjusted. Noise is reduced by decreasing the power level of the autoadjusted induction element; pot bottom layers made of different kinds of materials are among the main causes of this noise. • Fan noise: a fan is necessary to ensure the hob functions correctly and to safeguard the electronic unit from possible overheating. The fan functions at maximum power when the large induction element is at maximum power or when the booster function is on; in all other cases, it works at average power depending on the temperature detected. Furthermore, the fan may continue to work even after switching the hob off, if the temperature detected is high. The types of noise listed above are due to induction technology and are not necessarily operational faults.

Switching on the hob

To switch the hob on, press and hold the approximately one second.

Switching on the cooking zones

To operate a cooking zone, select the button corresponding to the desired zone and set the required power level by pressing down on the slider and moving it towards the right to increase the power level, or towards the left to decrease the power level. The min/med/max buttons can also be pressed directly to select the pre-set power levels: min (1) / med (8) / max (16), and to switch off the plate (see below).

MIN/MED/MAX functions

Press the MED button to switch on the cooking zone at medium power level 8. Press the MIN button to switch on the cooking zone at minimum power level 1. Press the MAX button to switch on the cooking zone at maximum power level 16.

The booster function for some of the cooking zones may be used to shorten heating-up times. It may be activated by pressing the

above the button will illuminate. This function boosts the power to 2000 W or 3000 W, depending on the size of the corresponding cooking zone.

It stops automatically after 4 minutes. While the booster for one of the cooking zones is active, the corresponding front or rear cooking zone will operate at a reduced power level (e.g. if the booster for the rear left-hand hotplate has been activated, the power level of the front left-hand hotplate will be reduced). For further information, please refer to the Technical description of the models.

Switching off the cooking zones

To switch off the hotplate, select the button corresponding to the desired zone, moving the slider towards the left to return to level 0, or press the Off button on the slider control directly. ! The first time the slider is pressed, a short beep will sound to acknowledge the touch. If - and only if the power level is adjusted, another short beep will sound when the slider is released. ! The hotplate selection LEDs light up for the power adjustment period (10 seconds), during which the slider (or min/med/max buttons)* can influence the selected hotplate.

* Only available in certain models.

GB Programming the cooking duration

The hob must be switched on.

The timer can be used to set a duration up to 99 minutes.

buttons are pressed for an extended

period of time, the timer scrolls quickly through the minute values in the corresponding direction.

! All the cooking zones may be programmed simultaneously, for a duration between 1 and 99 minutes. 1. Select the cooking zone using the corresponding selector button. 2. Adjust the power level of the cooking zone. programming button. The indicator light

programming button until the timer

indicator light is illuminated

2. Set the desired duration using the

3. Confirm by pressing the

The timer begins counting down immediately. When the time has elapsed, a buzzer will sound (for one minute).

corresponding to the selected zone will start flashing.

4. Set the cooking duration using the 5. Confirm by pressing the

selection occurs after 10 seconds.

The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished. Repeat the above procedure for each hotplate you wish to programme. Using multiple programmes and the display If one or more hotplates are programmed, the display will show the data for the hotplate with the least time remaining, and the light corresponding to the position of the hotplate will flash. The lights corresponding to the other hotplates programmed will be switched on. To visualise the time remaining for the other programmed button repeatedly: the time

hotplates, press the

remaining for each hotplate will be shown sequentially in a clockwise order, starting from the front left hotplate.

Changing the programme button repeatedly until the duration you

wish to change is shown.

buttons to set the new duration.

3. Confirm by pressing the

To cancel a programme, follow the above instructions. At step 2, press the

button: the duration decreases

progressively until it reaches 0 and switches off. The programme resets and the display exits programming mode.

When the hob is switched on, it is possible to lock the oven controls in order to avoid accidental changes being made to the settings (by children, during cleaning, etc.). Press the

button to lock the control panel: the

indicator light above the button will switch on.

To use any of the controls (e.g. to stop cooking), you must button for a few

switch off this function. Press the

moments, the indicator light will switch off and the lock function will be removed.

Switching off the hob

to switch off the appliance - do not

rely solely on the pan sensor.

If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function.

It is possible to set the hob to a demonstration mode where all the controls work normally but the heating elements do not switch on. To activate the “demo” mode the hob must be switched on, with all the hotplates switched off. • Press and hold the

buttons simultaneously

for 6 seconds. When the 6 seconds have elapsed, the

ON/OFF and CONTROLS LOCKED indicator lights will flash for one second. Release the and press the

• The display will show the text DE and MO and the hob will be switched off.

• When the hob is switched on again it will be set to the “demo” mode.

To exit this mode, follow the procedure described above.

The display will show the text DE and OF and the hob will be switched off. When it is next switched on, the hob will function normally.

The EXTENSO TECHNOLOGY mode

The EXTENSO TECHNOLOGY can be used to set the power of two "interconnected" hotplates to the same level. It can be activated if the two hotplates are OFF, by pressing the EXTENSO TECHNOLOGY button The EXTENSO TECHNOLOGY can be activated while the hob is on by pressing the EXTENSO TECHNOLOGY button once; the LEDs corresponding to both linked hotplates light up. The 2 LEDs remain lit as long as the hotplates are linked (if EXTENSO TECHNOLOGY button is pressed again, the hotplates are disconnected and are both set to power level 0). Pressing the +, - or Max buttons for one of the two Flexi hotplates also affects the display corresponding to the other hotplate. To deactivate the EXTENSO TECHNOLOGY , press the button . A timer may be set for the EXTENSO TECHNOLOGY; this appears on the display and both LEDs corresponding to the linked hotplates light up. When the Timer button is pressed, the two linked hotplates are treated as if they were a single zone.

For optimal EXTENSO TECHNOLOGY performance, we recommend the use of pans with an elliptical or elongated base and a major diameter of at least 250 mm; if using pans with a smaller diameter, we recommend positioning them in the upper or lower part as indicated by the X symbol. If the saucepan is not in the centre of the screen printing detail, you may hear a whistling sound or a slight buzzing noise; this does not indicate a hob malfunction. We recommend adjusting the position of the pan so that it is in the centre of the EXTENSO TECHNOLOGY zone

Selecting and using EXTENSO TECHNOLOGY To begin using the EXTENSO TECHNOLOGY, press the button. To set the power level (see above).

EXTENSO TECHNOLOGY operation Once you have selected EXTENSO TECHNOLOGY by pressing the button , the 2 LEDs corresponding to the EXTENSO TECHNOLOGY for both hotplates light up; it will then be possible to control both as if they were a single zone. The power level will appear on both displays. If only the upper or lower part is in use, the display corresponding to the unused zone will begin to flash, and after 3 minutes cooking will automatically revert to standard mode (notEXTENSO TECHNOLOGY). ! Once activated, the EXTENSO TECHNOLOGY can also be programmed, using the same procedure as described for the individual hotplates.

GB Practical advice on using the appliance

! Use cookware made from materials which are compatible with the induction principle (ferromagnetic material). We especially recommend pans made from: cast iron, coated steel or special stainless steel adapted for induction. Use a magnet to test the compatibility of the cookware.

The appliance has a safety switch which automatically switches the cooking zones off after they have been in operation for a certain amount of time at a particular power level. When the safety switch has been triggered, the

0”. display shows “0 For example: the rear right-hand hotplate is set to 5 and will switch off after 7 and a half hours of continuous operation, while the front left-hand hotplate is set to 2 and will switch off after 9 and a half hours.

GB SUITABLE UNSUITABLE

Cast iron Enamelled steel Special stainless steel

Aluminium, Glass, Earthenware, Ceramic, non magnetic Stainless steel

Maximum operating time in hours

In addition, to obtain the best results from your hob:

• Use pans with a thick, flat base in order to fully utilise the cooking zone.

• Always use pans with a diameter which is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the base of the cookware is always clean and dry, in order to fully utilise and extend the life of both the cooking zones and the cookware.

• Avoid using the same cookware which has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly.

Pan sensor Each cooking zone is equipped with a pan sensor device. The hotplate only emits heat when a pan with suitable measurements for the cooking zone is placed on it. If the power level indicator display flashes, this may be because: • An incompatible pan • A pan whose diameter is too small • The pan has been removed from the hotplate. Overheating protection If the electronic elements overheat, the hob switches off automatically and

F appears on the display, followed by a

flashing number. When the temperature has reached a suitable level, this message disappears and the hob may be used again.

This can also indicate several irregularities: • An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds. • Something has been spilt on the control panel. • A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off.

Practical cooking advice

Medium-flame cooking

Very high-flame cooking

Cooking on a high flame and browning

(roasts, steaks, escalopes, fish fillets, fried eggs)

Fast thickening (liquid juices)

Boiling water (pasta, rice, vegetables) Milk

Slow thickening (dense juices)

Very low-flame cooking

Low-flame cooking (stews)

Pressure cooking after whistle

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance conforms to the following European

Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments; - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC dated 22/07/93 and subsequent amendments. - 1275/2008 stand-by/off mode.

! Make sure that the air inlet behind the fan grille is never obstructed. The built-in hob should, in fact, be provided with suitable ventilation for the cooling of the electronic components used in the appliance. ! We advise against the installation of an induction hob above an under-the-counter refrigerator (heat) or above a washing machine (vibrations). In fact, there would be insufficient space for the ventilation of electronic components. • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • Do not touch the appliance when barefoot or with wet or damp hands and feet. • The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board. • The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre. • Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob. • Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use). • Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces which are still hot, they may cause serious damage to the hob. • Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. • The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. • For the attention of wearers of pacemakers or other active implants: The hob complies with all current standards on electromagnetic interference. Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation. Your induction hob generates short-range magnetic fields. To avoid any interference between your induction hob and a pacemaker, the latter must be designed to comply with relevant regulations. In this respect, we can only guarantee our own product conformity. Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility. • Do not let children play with the appliance. • Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.. • The appliance is not intended to be operated by means of an external timer or separate remotecontrol system.

• When disposing of packaging material: observe local legislation so that the packaging may be reused. • The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Care and maintenance

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

Stainless steel frame (only in models with outer frame)

GB Stainless steel can be marked by hard water which has been left on the surface for a long time, or by cleaning products containing phosphorus.

After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly.

! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Some hobs have an aluminium frame which is similar to stainless steel. Do not use any cleaning or degreasing products which are not suitable for use with aluminium.

! Never use steam cleaners or pressure cleaners on the appliance.

Disassembling the hob

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen towel.

• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly. • To remove more stubborn dirt, use the scraper provided. Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rust-proof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.

If it is necessary to disassemble the hob:

1. Loosen the screws fixing the alignment springs on each side. 2. Loosen the screws holding the fixing hooks in each corner. 3. Take the hob out of its installation cavity. ! Do not attempt to repair the appliance yourself. If the appliance breaks down, contact a Service Centre.

! The scraper provided is sharp: be careful when using it.

• If any plastic or sugary substances are accidentally melted on the hob, remove them immediately with the scraper, while the surface is still hot. • Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance task should be carried out while the appliance is warm (not hot) or cold. • Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Technical description of the models

GB The induction system is the quickest existing way of cooking. Unlike traditional hotplates where the cooking zone heats up, with the induction system heat is generated directly inside pans which have ferromagnetic bases.

Key: I = single induction cooking zone IDD = double-diameter induction cooking zone B = booster: the power of the cooking zone may be boosted to 3000 W * = the maximum power level is limited while the booster is activated for the relevant rear cooking zone (see Start-up and use).

Cooking zone Back Left Back Right Front Left Front Right Total power

TIS 62 C L Power (W)

I 1400 I 1400 I 1400 I 1400 5600

TIS 62 C L Leistung (W)

I 1400 I 1400 I 1400 I 1400 5600
