USER MANUAL RTG64SFIN ROSIERES

BAPOUHbIE NOBEPXHOCTN

HCTPYKJIЯ ПОЛьЗOBATEJI RA

CONTENU

FR

1. Installation 04
   1.1 Encastrement 04
   1.2. Characteristiques Requires 04
   2.1.Raccordement Electrique 04
   2.2.Raccordement Gaz 04
   2.3. Adapter La Table A Differents Types De Gaz 05
   2.4. Reguler La Flamme Au Minimum 05
2. Utilisation De La Table 05
   3.1. Using The Gas Burner 05
3. Maintenance Et Entretien 06
4. Assistance Technique 06
5. Protection De L'environnement 06

CONTENT

GB-IE

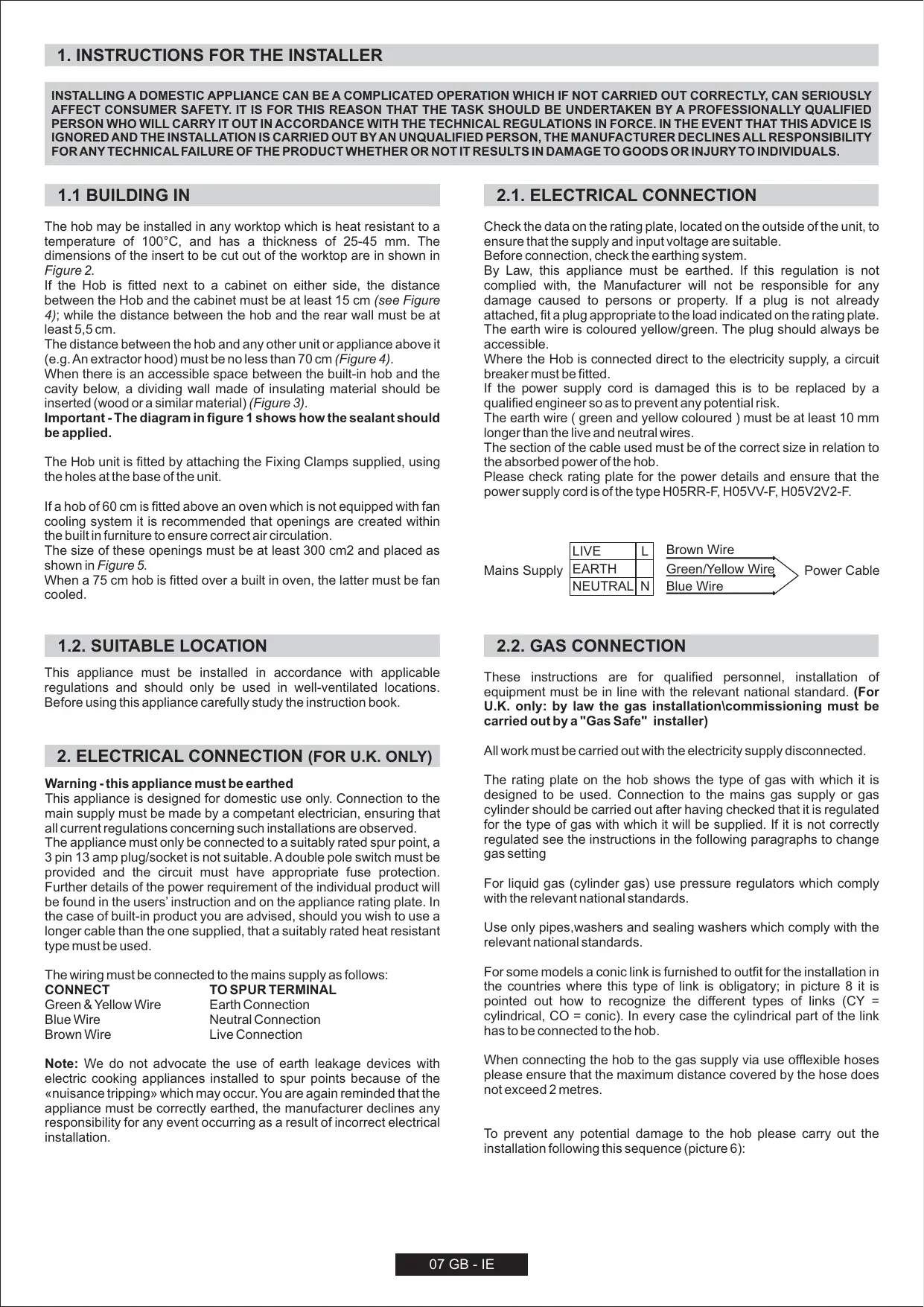

1. Instructions For The Installer 07
   1.1. Building In 07
   1.2. Suitable Location 07
2. Electrical Connection (For U.K. Only) 07
   2.1. Electrical Connection 07
   2.2. Gas Connection (For U.K. Only) 07
   2.3.Adapting The Hob To Different Types Of Gas 08
   2.4.Regulating The Minimum Flame 08
   3.Use Of Hob-User Instructions 08
   3.1. Using The Gas Burner 08
3. Maintenance and Cleaning 09
4. Aftercare 09
5. Protection Of The Environment 09

COДЕРЖAHNE

RU

1.Инструкци no BbINONHeHNo yctaHOBKn 10
1.1.BcTpaIbAeMbIe BapOChIe NOBepXHocTn 10
1.2.Bb6op MeCTa dIy ycTaHOBKn BapOCHN IOBepxHocTn 10
2.ПодклоченkeКэлькторсети(TолькоДяВелнобрпани) 10
2.1.ПодкlioчениКэл ektrpoсети 10
2.2.Подклоченke Клини ra3ochna6жени (ToIbko ДяВeIiko6pntahnii) 10
2.3.AdaTnTaunBavOuHNoIIOBepXHocTnHaIpyrHe Tnblra3a 11
2.4.PerynilpoBkaMinHmAlbHoroPnAmEHN 11
3.Инструкци по Зкплуаци варочи NOBepxHocTn 11
3.1 nCnoIb3OBAHne ra3oBoi konΦopKn 11
4.ObcIyXmbHne n Chstka 12
5.Послpenpoаджhoeобсуньане 12
6. 3aunta okpykaioe cpebl

Gas Type Tables

13-14-15

Figure 6

1. INSTALLATION

The hob may be installed in any worktop which is heat resistant to a temperature of 100^ , and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2.

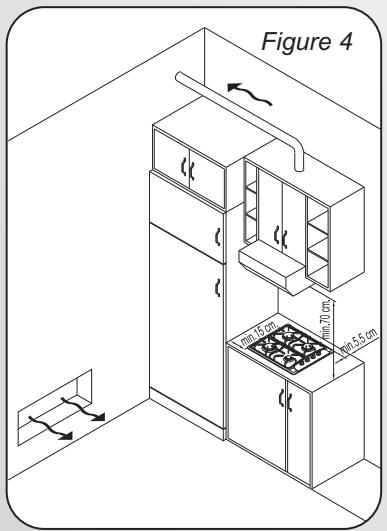

If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15 cm (see Figure 4); while the distance between the hob and the rear wall must be at least 5,5 cm.

The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70~cm (Figure 4).

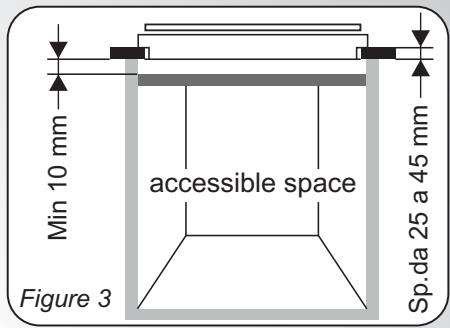

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).

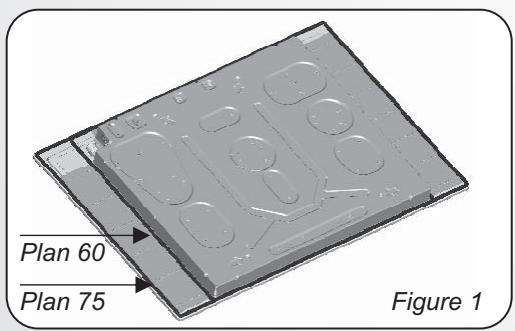

Important - The diagram in figure 1 shows how the sealant should be applied.

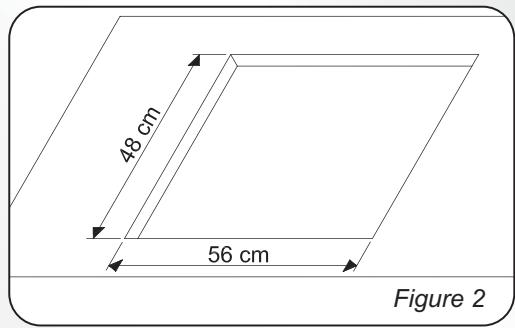

The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.

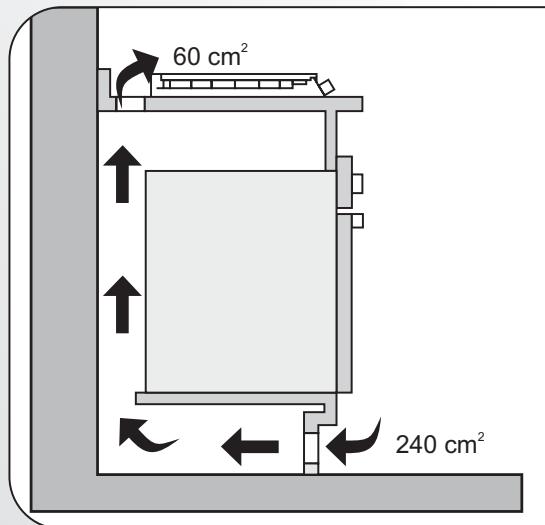

If a hob of 60~cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation.

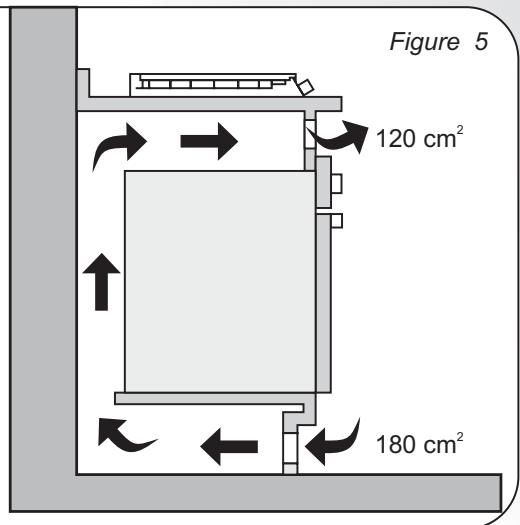

The size of these openings must be at least 300~cm^2 and placed as shown in Figure 5.

When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.

1.2. SUITABLE LOCATION

This appliance must be installed in accordance with applicable regulations and should only be used in well-ventilated locations. Before using this appliance carefully study the instruction book.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.

The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.

The wiring must be connected to the mains supply as follows: CONNECT TO SPUR TERMINAL

Green & Yellow Wire

Blue Wire

Brown Wire

Earth Connection

Neutral Connection

Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.

Before connection, check the earthing system.

By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.

If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.

The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed power of the hob.

Please check rating plate for the power details and ensure that the power supply cord is of the type H05RR-F, H05VV-F, H05V2V2-F.

Mains Supply	LIVE	L	Brown Wire
	EARTH		Green/Yellow Wire
	NEUTRAL	N	Blue Wire

2.2. GAS CONNECTION

These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer)

All work must be carried out with the electricity supply disconnected.

The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting

For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.

Use only pipes, washers and sealing washers which comply with the relevant national standards.

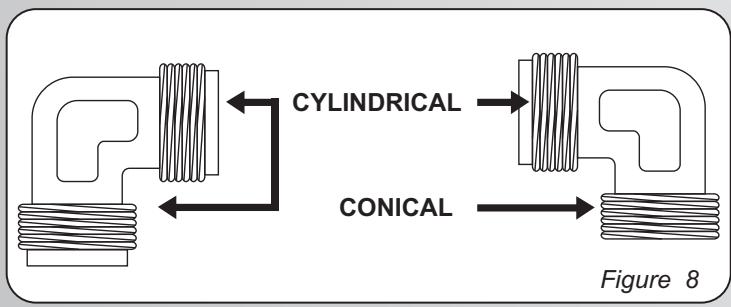

For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.

When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):

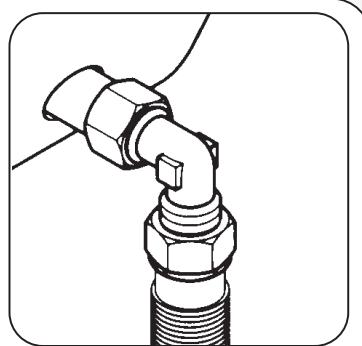

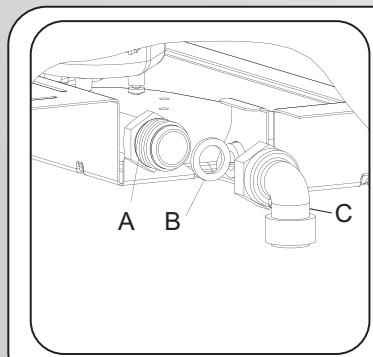

1)As illustrated, assemble parts in sequence:
A: 1/2 Male Adaptor Cylindrical
B:1/2 Seal
C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical

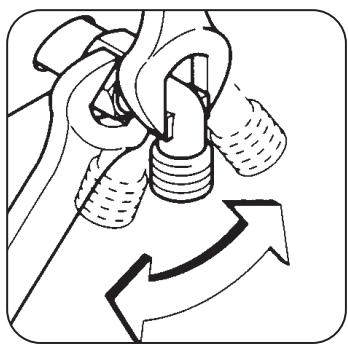

2) Tighten the joints with the spanner, remembering to twist the pipes into position.

3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.

IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:

remove the grids and burners

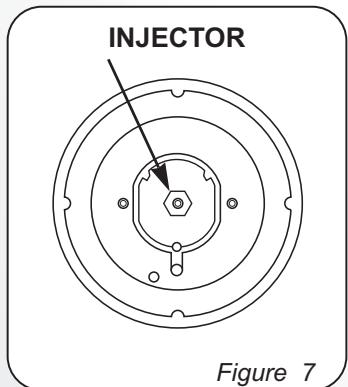

- insert on hexagonal spanner (7 mm) into the burner support (Figure 7)
- Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

2.4. REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

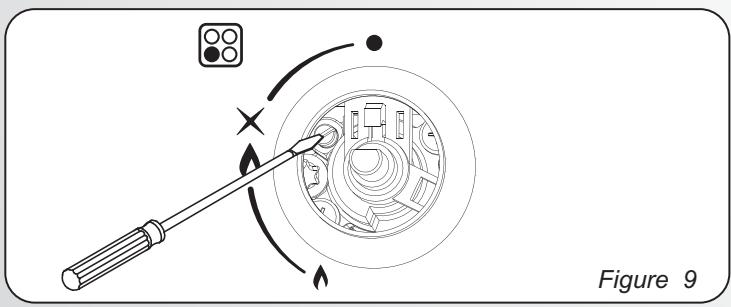

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4mm in length and then replace the control knob.

When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.

If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.

For appliances fitted with electronic ignition carry out the following:

• push in and turn the knob anticlockwise to the ignition symbol.

• ignite the burner by pressing the sparker button.

For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol.

The ignition system will continue to generate sparks as long as the control knob is being pressed.

If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.

For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken.

Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.

GENERAL ADVISE

For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A.

Table A

Burner Type		Ø pan / pot (cm)
AUX	Auxiliary Burner	12 - 18
SR	Semi Rapid Burner	18 - 24
R	Rapid Burner	24 - 26
UR	Ultra Rapid Burner	24 - 28
QC	Double Ring Burner	24 - 28

For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.

If over the years the gas taps become stiff to turn it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

4. MAINTENANCE AND CLEANING

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

"WARNING" - Do not use a steam cleaner to clean the hob.

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.

The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the Burners are replaced correctly.

Chromed grids and burners

Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.

Our After Sales Service Centre can provide spare parts if required.

5. AFTERCARE

Before calling out a Service Engineer please check the following:

• that the plug is correctly inserted and fused;
• that the gas supply is not faulty.

If the fault cannot be detected:

Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.

6. PROTECTION OF THE ENVIRONMENT

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.

CE Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

Table 1

BUILT IN HOBS
Burner	1	1	2	3
	4 gas QC / R / SR / AUX	4 gas UR / R / SR / AUX	5 gas QC / 2R / SR / AUX	4 gas QC / R / SR / AUX
Type / reference	S67 / HBGPX	S67 / HBGPX	S67 / HBGPX	S67 / HBGPX
Flame failure device	YES	YES	YES	YES
Auxiliary burner ( AUX Ø 50 mm)	1	1	1	1
Double ring burner ( QC Ø 135 mm)	1	-	1	1
Ultra rapid burner ( UR Ø 110 mm)	-	1	-	-
Semirapid burner ( SR Ø 75 mm)	1	1	1	1
Rapid burner ( R Ø 100 mm)	1	1	2	1
Installed Gas Type / Power:
Power	9.25 kW	8.75 kW	11.75 kW	9.25 kW
G 20/20 mbar (methane)	881 L/h	833 L/h	1119 L/h	881 L/h
G 30/28-30 mbar (LPG)	673 L/h	636 L/h	854 L/h	673 L/h
Installation Class	3	3	3	3
Voltage / Frequency V / Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz
Electrical input power	15 W	15 W	15 W	15 W
Electric ignition	YES	YES	YES	YES
Product dimension	595 x 510	595 x 510	745 x 510	745 x 510

This appliance has been designed for non-professional, i.e. domestic, use.

1.ИHCTPYKUINIIO BbIINOJIHEHNIO YCTAHOBKN

UCTAHOBKA BbITOBOY TEXHKN RBJIETCQ CLOXHOJ PABOTOH, HEPPABINbHOE BbIOJIHEHNE KOTOPOI MOKET OTPUATEJIbHO CKA3ATbCS HA B630NACHOCTNI POJIb3OBATEJI. NO 3TOI PPUNHE YCTAHOBKA BbTobOY TEXHKN DOJNXBA BblONHtBcR BbICOKOBALINPHUPOBAHHbIMCNIEUANCTAMN, KOTOPBIE BbIIOJHRT YCTAHOBKY COBIOJEHEM BCEX DEIeCTBYOuixn IPABNJ I HOPM. B TOM CUYAE, ECJN 3TO INEOCTPEXHENBEyET PONIHOPINPOBAHO, N YCTAHOBKA BYET BBIIOJHENA JINUCOM, HE IMEQUIM IOCTATOCHNO KBAJINPHKAUZMI, INPON3BOJNTENHE B yEDET PPINHOPINPOBAH, N YCTAHOBKA BYET BBIIOJHENA JINUCOM, HE OBOPYODOBAHN I3 CTPOY HAHECEHHORIPN 3TOM USEPBMAUMUECTBYNJ3DOPOBBIOJIOJE.

1.1.BCTPANBAEMbIE BAPOUHbIE NOBEPXHOCTN

Bapouhna nobepxhoctb moKeT yctahabnBaTcRa Ha IIO6o pa6oey nobepxHocTH KxOHHoro cTOna, KOtopa BbIePxAbaET HarpeB Do Temnepatpyb 100 C, n IMeet ToIunHy O T 25 Do 40 MM. Pa3Mepbl OTBepCTn, KOTOpoe DoJIxHO bblb BbIpe3aHo B pa6oey nobepxHO CTn KxOHHoro cTOna, NOKa3AHbHa npC.2.

EcnB BapOuHnA NOBepxHocTb yCTaHabNtBaetc TaK, YTO NO oBe ee cSTOPHO bapCOnanarAOITcWkaΦbl, TO pAcCToRHe Mekdy BapOuHnIOBOPxHocTbO IN KkaΦom DoJnxHo 6blTb He MeHbIe 15 cm (CM. pnc. 4), a pacCToRHe Mekdy BapOuHnIOBepxHocTbO IN PacNoIoxKeHHo C3aDn CTeHoi DoJnxHo 6blTb He MeHbIe 5,5 cm.

PacctoarHne MeJxdu BapOCHNo NOBepXHoCTbIO u npyTMM 3nEeKtpOnpN6OpOM (HaNPmEp, BbITaXHO KOJIInak)doJXHO 6bIbHe MeHbSe 70 cm (cm. pnc. 4).

Ecni noiB aBoUHNo IOBepxHOCTbIO UMeETcR CBO6OJHoe IpocTpaHCTBO, TOniB aBoUHNO IOBepxHOCTbIO HxKHO UCTaHOBnTb pa3JeNITeHbHyI NaHeJIb, N3rTOBJIeHHyIO N3 TePION3OJNAUHO Horapmep, N3 DepeBa (cm.pnc.3).

Baxha HOpmaun Ha pnc. 1 nokaaso, KaKaHaocntc repmetnk

Bapouhna nobepxhoctb kpeiNTcra n omoIbIO qKcnpyuOux 3aJIMOB, KOtOpBle BCTabJIyOTcBA OTBepCTnRA paNIOXKeHHbIE Ha OCHOBaHm BapouHNOBepxHOCTn.

EcnI Bapouhna nobepxhoctb 60 cm yctanabnBaetcna Had IyXOBKO, B KOTOPH HET CNTEmbl OXnAaJdHnC B EHTINrAToPOM, TO BO BCTpAmBaEMO MeBenn peKoMeHnyeTc cdenaTb OTBepCTnA DnI oBeCneHn HOpMaJIbHOU CpKpyAun Bo3Dyxa.

Плоцадь STINx OTBepCTN DoJnxHa 6bITb He MeHbIe 300 cm2 n 3TN OTBepCTN DoJnxHbI paCnOlaRaTbCra TAK, KaK pOKa3aHo Ha pnc.5.

EcniB aBoOpHaia NoBepxHocb7 5Cm KpeiNTcHa Nd DyXOBKo,TO B DyXOBKe DoJxHa 6bIb CnCTema OXJaXeHnC BeHTnIaTOpOM.

1.2. BbIbOP MECTAДЛЯ UCTAHOBKNBAPOUHOJ NOBEPXHOCTN

Даньий 6ытови 3лкрponрбор должени устаньваць с COOTBETCTBи C DeiCTByUOuIMn nPabunamn HOpMaMn dЯ 6ытовьх npb6obovи Должени EKcnpyaTnpoBaTbC TOnIbKO B XopoWo BEHTINNpyeMbIX NOMeUeHnx.пepd Tem Kak npuctynt b K 3Kcnpyaataaun DAHHOB BapOCHNo NOBepxHocTN BHIMATEbHO pOQTnTe IHCTpykUIO NO 3Kcnpyaataaun.

2. ПОДКЛЮЧЕНЕ KЭЛЕКТPOCETN (TOЛьКО ДЯ BEЛИКOBРNTAHИ)

BHHMaHHe DaHHbI 3NeKTpOpi6Op DoJXeH 6bITb 3a3EmJeH

Danhbl 3neKtpo np6op npedHa3haeH ToIbKO dIy 6bIToBbIX pnpimehenm. IpOKnIOUeHMe K 3neKtpocTeN DOJXHO BbIOnHrTaBCr ToIbKO ONbTHbIM 3neKtpnKOM CcO6JIOnDeHHeM BCEx DeIcTBYUOUX npINBnI HOPM 3neKtpo6e3OpAchoCTn.

Danhbl 3neKtpoepbop DOnJxHn POnKlOuCybC K OTBeTBNeHIO 3neKtpocTe n DOCTaOChHn Harpy3OuHn CnOC6HoCTbI. 3-ItbIpbKOBaB BnLkA/p03ETKa h 13 A He NpOxDnT DnA DAHNORo NpOKnOHeHn. B IInnn 3neKtpoNtAHn IOnJxHn 6bITb YcTAHOBn DByXnOLOCHB BbIKLIOUaTeB, IN cIeB DOnJxHa 6bITb 3aunueHa C nOMoUbI IO pAnbKO rpeDOxpaHTenE COOTBeCTbYUcero HOMINHAp. BoIee NpOpBOHn IHΦOpMaunr OTHOCHTeBHO Tpe6oBaHn, PpeBraBmBX K 3neKtpoNtAHn DnI KOnKpeTHOrO INdEInn, PpeCTabNEHa B INCTpyKUnn PO EKnPlyataunn IN B NaCnpOpTHo TAbuNKe, ZAkpeNLeHHo HA INdEInn. EcIi DInna H Ka6e nnTAtHn, NOCTabNMeRTO B KOMnNeKeTc B BarOuHn NOBepxHOCTbU, ABnEeTc HEDocTaOChHn, TO CSeDuYet NcONlb3OBA Tb BoIee DInHHb TENlOcToKn Ka6eNb NtAHn C DOctaTOchHn Harpy3OuHn CnoCo6HoCTbU. POnKlOuCeHne K 3neKtpocTe n DOJxHO 6bITb BblONJIHeNo CJeDyUoM o6pa30m:

IPODCOEHNHTE

Ceyehne npoBODHnKOB Ka6eJIy NITaHnI DOJXHO COOTBeTCTByET MOUHOCTN,NOTpe6bIeMoB BApOuHOI NOBepxHOCTbIO.

PpOBepbTe 3NaueHHe MoUHocTn, NOTpe6IeMOn 3JNeKTPoPnp6OpOM, yKa3aHHoe B nacopTpHO T6NHyKe, a TaKke npOBepbTe, yTO nCNoB3yeTcKa6eJIb NtTaHnTuHa HO5RR-F, H05VV-F uNt HO5V2V-F.

He pa3peshaTe TETaM UrgaTb C3JeKtponpnp6opom.

3.1 NcIIOJIb3OBAHNE rA3OBOKOHΦOPKN

YTo6bI 3aKeey KOHΦopky, NOHeNCHTe K Hei 3aXKeHHyO CnUky, HaxMnte Ha pyuKy peYJInpOBKn BbICOTbI PJIaMeHN, INOBepHNTe ee npOTNB YacOBoi CTpeKN.

EcnI KOHΦOpKn He nCnOJIb3OBaIIncB TeUeHne IByx IIn 60onee DHei, To npexKe cheM 3aJceHy KOHΦOpKy IIOJQdnte HeCKoJIbKO CekyHdIgToro, YTO6bl N3 Tpy6OK BblIeN BO3dyX.

YTo6bI 3aKeey KOHΦOpky BApOuHoN IOBepxHocTn, Cha6KeHHyUcTpoiCTBOM 3NeKtPOnoJxNra, BbIIOJIHnTE CneDuOuIe Oepaun:

• HaxMMTe Ha puKy peRyIuPobBKN BbICOTbI PIIaMeHn I NOBepHNTe ee npOTNB YacOBoN CTpeIKN B NIOJoxHeNe, O6O3HaueHHOe NODxIrA.

3aXrnte KOHOpky C NOMOulbHO HaKaTnKHOKN 3JeKToPOOnDxNra.

EcInBapOuHnaIOBepxHocb Cha6KeHa ABTOMaTHueCKM3NeKtpoNoJXnIROM, npocTo HaxmTe Ha puKy peYnIpOBKn BbICOTblPnAmEHn UyCTAHOBnTE ee B NOJoxHeME, 0603NaehHOe 3NaKOMPOJxNtura.Cntema 3NeKtpoNoJxNtura 6yDet nOCToHHoreHepnpoBaT Nckpbl,doTexnop, poka pyKa peYnIpOBKn PnAmEHn6yDet hAxOOnTbcB HaxaTOM NoJoxHeHN.

Ecn konhopka He 3aropaetcB Teeyne 5 ckyH, yctahOBnTe pyky perylnpObKn B noloxehne O, n nobTopnte onncanHyo Bblse onepaunio.

B MoDJIaX, Cha6xehHbIX 3aUHTbIM KJanaHOM, KOtOpbI aBToMaTnueeCKn nepeKpbIbAet NODauy rAa B CJIyae BHe3aNHO rOraCaHn IPiameHn, KOHΦopKn 3aJrAOTcR, KaONiCaHO BbIe, HO npn 3Tom nocne 3aJrAHHo KOHΦopKn Heo6xoDmO Co6nIOdaTb OCTOpOKHoCTb.

IpepeBkIouHeHemra30BOB BapOuHOIOBepxHocTn npOBepbTe,TO KOHOpOKN KpbIUsKoHΦopOK npaBnIbHO yCTaHOBJIeHbI Ha BapOCHyU IOBepxHocTb.

NOJE3HbIE COBETbl

Дя поунець Нанлuyшхpe3ультатов NOьз龟TeсьCKOBOPODAMNиКаCTРOLЯМСПLOCKIMДHOM,pa3MepblKOTOpbIXCOOTBETCTBYOT pa3Mepam ra3OBbIX KOHΦopOK (cM. Ta6n.A).

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.

RU

PpOIN3BODInTeIb He HecET OTBcETBHeHHocTn 3a OoneAtkN I HeToCHOCn, KOTOpbIE MOrY BCTpeTbC8 B DaHHO INCHpyKUIM. MbI OCTaBIAeM 3a cO6oI npABO BVOCNTb N3MeHeHnB KOHCTpyKUIO BbIyNcKaEMbIX HAIM N3DeJIi C CEbIbO yIyUHeHn KaYeCTBa BblNyCKaEMo INpoDyKUIM. Ppi 3OM OCHOBHbIE fynKUIM n3deJIin er oBe3OJNaCHOctb 6dyT OCTaBAcBcHn3MeHHbIM.
