Brand	HOOVER
Model	SSNB1700 STEAMJET
Product type	Steam mop cleaner
Power supply	Mains, power cord with earth (13 A plug)
Water tank capacity	Approximately 350 ml (continuous autonomy ~20 min)
Heating time	Approximately 30 seconds
Indicator lights	Blue (power on), Green (steam ready)
Compatible surfaces	Hard floors (tile, marble, stone, linoleum, sealed wood, parquet) and carpets/rugs with accessory
Main functions	Standard steam cleaning, intensive cleaning (triangular brush), refreshing carpets and rugs
Steam trigger	Manual control for steam production
Included accessories	Mop stand, mop head, cloths (2), carpet and rug support, hard water filter
Maintenance and cleaning	Machine-washable cloths (40 °C max, no bleach or fabric softener), hard water filter replacement every 6 months
Spare parts	Textile cloth ref. 35601330, Filter ref. 35601335
Safety	Automatic shut-off not mentioned; caution: hot surface, risk of burns, do not use on people/animals/plants, do not immerse
Warranty	According to retailer conditions (attach invoice)
Country of origin	Not specified (manufactured according to ISO 9001 standard)

Frequently Asked Questions - SSNB1700 STEAMJET HOOVER

How long does it take for the SteamJet to be ready?

Approximately 30 seconds after powering on, the green light turns on.

Can I use the SteamJet on all types of floors?

Yes, on all hard floors such as marble, ceramic, stone, linoleum, sealed hardwood floors and parquet. With the appropriate accessory, it can also refresh carpets and rugs.

Does the SteamJet emit steam continuously?

No, steam is produced only when you press the steam trigger located under the handle.

Can I use the steam mop vertically?

No, the SteamJet is designed for horizontal use on floors.

Can I add detergent or chemicals to the tank?

No, use only cold tap water. Adding products may damage the appliance.

What if the water in my area is very hard?

Use filtered water or replace the filter cartridge more frequently. If steam is weak, descale the steam outlet with a small tool.

When should the hard water filter be replaced?

Generally every 6 months, depending on water hardness. The yellow resin inside becomes dull when it needs to be changed.

How long does a full water tank last?

Approximately 20 minutes of continuous steam use.

Are the cloths washable?

Yes, they can be hand-washed or machine-washed at 40 °C maximum with a mild detergent. Do not use bleach or fabric softener.

How often should I replace the cloth?

Replace the cloth when it remains dirty after washing or if it no longer cleans as well as before. The frequency depends on usage and floor type.

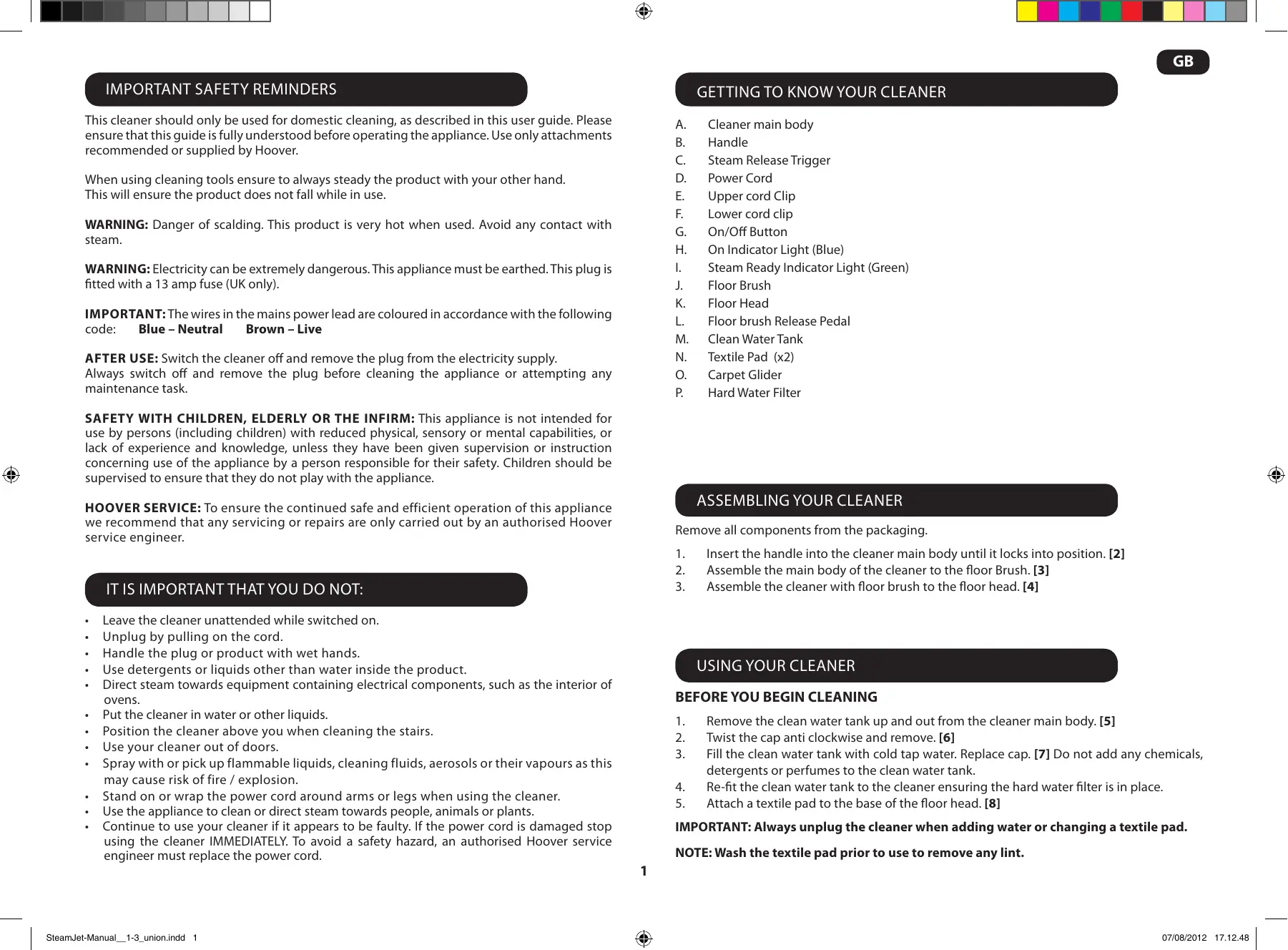

USER MANUAL SSNB1700 STEAMJET HOOVER

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.

When using cleaning tools, always steady the product with your other hand. This will ensure the product does not fall while in use.

WARNING: Danger of scalding. This product is very hot when used. Avoid any contact with steam.

WARNING: Electricity can be extremely dangerous. This appliance must be earthed. This plug is fitted with a 13 amp fuse (UK only).

IMPORTANT: The wires in the mains power lead are coloured in accordance with the following code: Blue - Neutral, Brown - Live.

AFTER USE: Switch the cleaner off and remove the plug from the electricity supply. Always switch off and remove the plug before cleaning the appliance or attempting any maintenance task.

SAFETY WITH CHILDREN, ELDERLY OR THE INFIRM: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance, we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

IT IS IMPORTANT THAT YOU DO NOT:

• Leave the cleaner unattended while switched on. Unplug by pulling on the cord.
• Handle the plug or product with wet hands.
• Use detergents or liquids other than water inside the product.
• Direct steam towards equipment containing electrical components, such as the interior of ovens.
• Put the cleaner in water or other liquids.
• Position the cleaner above you when cleaning the stairs. Use your cleaner out of doors.
• Do not spray or pick up flammable liquids, cleaning fluids, aerosols, or their vapours, as this may cause a risk of fire or explosion.
• Do not stand on or wrap the power cord around arms or legs when using the cleaner.
• Do not use the appliance to clean or direct steam towards people, animals, or plants.
• Do not continue to use your cleaner if it appears to be faulty. If the power cord is damaged, stop using the cleaner IMMEDIATELY. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord.

GETTING TO KNOW YOUR CLEANER

A. Cleaner main body B. Handle C. Steam Release Trigger D. Power Cord E. Upper cord Clip F. Lower cord clip G. On/Off Button H. On Indicator Light (Blue) I. Steam Ready Indicator Light (Green) J. Floor Brush K. Floor Head L. Floor brush Release Pedal M. Clean Water Tank N. Textile Pad (x2) O. Carpet Glider P. Hard Water Filter

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Insert the handle into the cleaner main body until it locks into position. [2]
2. Assemble the main body of the cleaner to the floor brush. [3]
3. Assemble the cleaner with floor brush to the floor head. [4]

USING YOUR CLEANER

1. Remove the clean water tank up and out from the cleaner main body. [5]
2. Twist the cap anti-clockwise and remove. [6]
3. Fill the clean water tank with cold tap water. Replace cap. [7] Do not add any chemicals, detergents, or perfumes to the clean water tank.
4. Re-fit the clean water tank to the cleaner ensuring the hard water filter is in place.
5. Attach a textile pad to the base of the floor head. [8]

IMPORTANT: Always unplug the cleaner when adding water or changing a textile pad.

NOTE: Wash the textile pad prior to use to remove any lint.

Steam cleaning hard floors

NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris.

IMPORTANT: Do not use the cleaner without a textile pad attached to the floor head.

NOTE: Do not use the carpet glider when cleaning hard floors.

1. Plug the steam cleaner into the main power. The blue ON light will illuminate.
2. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use.
3. Recline the cleaner by placing a foot on the floor head and lowering the main body towards the floor. [9]
4. To produce steam press the Steam Trigger Button. [10]
5. Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [11]

Steam cleaning hard floor - intensive clean

Use the triangular floor brush on hard floors that require deep cleaning. Please note that there is no mop to allow the steam to be aimed directly at the surface to clean more intensely. The area will have to be mopped separately.

NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris.

1. Remove the floor brush from the floor head by pressing the release pedal at the rear. Lift the cleaner with floor brush attached out of the floor head. [12]
2. Plug the steam cleaner into the main power. The blue ON light will illuminate. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use.
3. Recline the cleaner by placing a foot on the floor brush and lowering the main body towards the floor. [13]
4. To produce steam press the Steam Trigger Button. [10]
5. Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [14]

Refreshing carpets

NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris.

IMPORTANT: Do not use the cleaner without a textile pad attached to the floor head.

1. Attach the carpet glider to the floor head. [15]
2. Plug the steam cleaner into the main power. The blue ON light will illuminate.
3. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use.
4. Decline the cleaner by placing a foot on the floor head and lowering the main body towards the floor. [9]
5. To produce steam press the Steam Trigger Button. [10]
6. Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [11]

CLEANER MAINTENANCE

IMPORTANT: ALWAYS ENSURE THE CLEANER HAS FULLY COOLED DOWN BEFORE PERFORMING ANY MAINTENANCE TASKS.

Empty the water tank

1. Unplug the cleaner from the main power and ensure the unit has cooled.
2. Remove the clean water tank from the main body of the cleaner. [5]
3. Twist the cap anti-clockwise and remove. [6]
4. Empty any excess water from the tank. [16] Replace the cap and return to the cleaner.

Removing and cleaning the textile pad

1. Unplug the cleaner from the main power and ensure the unit has cooled.
2. If necessary remove the carpet glider, then peel the textile pad from the floor base. [17]
3. Wash the textile pad in a washing machine with a mild detergent at max temperature 40°C.

IMPORTANT: Do not use bleach or fabric softener when washing the textile pad.

Replacing the hard water filter

The cleaner is fitted with a hard water filter. If you live in an area of hard water the filter will discolour over time. Depending on the water hardness and frequency of use the filter should be changed every 6 months.

1. Unplug the cleaner from the main power and ensure the unit has cooled.
2. Remove the clean water tank from the main body of the cleaner. [5]
3. Lift the hard water filter out of the cleaner. [18] Replace with new filter.
4. Reassemble the clean water tank to your cleaner.

Note: The condition of the filter will affect the cleaner performance.

TROUBLESHOOTING

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

The steam stick will not switch on.

• Check the unit is plugged in.
• Check the power cord.

The steam stick is not producing steam.

• There may be no water in the clean water tank.
• The tank may not be fitted correctly.

The textile pad won't pick up dirt. - The cleaning pad may already be saturated with dirt and needs to be washed. Refer to the Maintenance section.

CLEANING FAQs

When is steamjet ready? In approximately 30 seconds.

Can I use steamjet on all floor surfaces? On all hard floors like marble, ceramic, stone, linoleum, sealed hardwood floors and parquet.

Does steamjet emit steam automatically? No, to produce steam you should press the steam/sweep trigger button under the handle.

Can I use it vertically? No, steamjet can be used only on horizontal floor surfaces.

Can I put detergents or other chemicals inside the tank? No, you would damage the product.

What if in the city where I live the water is very hard? You can use filtered water or you will have to change the filter cassette more often. If you find very weak steam, check steam orifice, you can descale it by inserting small tools into steam orifice if necessary.

When is it time to change the filter cassette? How do you notice it? It depends on the water hardness. Normally 6 months. You will notice that the colour of yellow resin inside the filter cassette becomes a bit dull.

How long will one tank of water last before needing to be refilled? Approximately 20 minutes if you press continuously the trigger.

Is the mop washable? Yes, it can be washed by hand or in the washing machine with a mild detergent at max temperature 40°C. Do not use bleach or fabric softener.

How often should I replace the mop? It depends on different factors above all how hard the floor is. The best way to understand when to change the mop is when the mop is still dirty after having washed it or if you notice that it doesn't perform like before.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Consumables

Textile Pad: 35601330

Filter: 35601335

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

The Environment:

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

IMPORTANT SAFETY REMINDERS

What is the steam jet CLAr? In about 30 seconds.

MAINTENANCE OF THE VACUUM CLEANER

IMPORTANT: ALWAYS MAKE SURE THAT NO MAINTENANCE IS PERFORMED BEFORE THE CLEANER HAS FULLY COOLED DOWN.

BEFORE YOU START CLEANING

1. Insert the handle into the main body of the vacuum cleaner until it clicks into the lower position. [2]
2. Connect the main body of the vacuum cleaner to the floor nozzle. [3]
3. Connect the main body of the vacuum cleaner to the floor nozzle with the floor nozzle head. [4]

OPERATING THE VACUUM CLEANER

BEFORE YOU START CLEANING

1. Remove the clean water tank from the main body. [5] 2. Turn the cap counterclockwise and remove it. [6] 3. Fill the tank with clean cold tap water. Replace the cap. [7] Do not add any chemicals, detergents, or fragrances to the clean water tank. 4. Reinstall the clean water tank into the vacuum cleaner, securing the filter for clean water in place. 5. Attach the textile pad to the base of the floor nozzle. [8]

CAUTION! Always unplug the vacuum cleaner before adding water or replacing the textile pad.

TECHNICAL MAINTENANCE OF THE VACUUM CLEANER

CAUTION! BEFORE PERFORMING TECHNICAL MAINTENANCE OF THE VACUUM CLEANER, MAKE SURE IT HAS FULLY COOLED DOWN.

Empty the water tank

1. Unplug the vacuum cleaner and make sure it has cooled down.
2. Remove the clean water tank from the vacuum cleaner body. [5]
3. Turn the collar counterclockwise and remove it. [6]
4. Remove any remaining water from the reservoir. [16] Put the collar back in place and turn it clockwise.

Remove and clean the textile dust bag.

1. Disconnect the vacuum cleaner from the power supply and make sure it has cooled down.
2. Attach the carpet nozzle to the floor nozzle. [17]
3. Wash the textile dust bag in a washing machine with a mild detergent at a maximum temperature of 40°C.

WARNING! Do not use bleach or fabric softener when washing the textile dust bag.

Replacing the hard water filter

The vacuum cleaner is equipped with a hard water filter. If you live in an area with hard water, the filter will gradually become clogged. Depending on the water hardness and frequency of use, the filter should be replaced every 6 months.

1. Disconnect the vacuum cleaner from the power supply and make sure it has cooled down.
2. Remove the clean water reservoir from the vacuum cleaner body. [5]
3. Remove the hard water filter from the vacuum cleaner. [18] Replace it with a new filter.
4. Reinstall the clean water reservoir into the vacuum cleaner.

Note: The condition of the filter will affect the performance of the vacuum cleaner.

TROUBLESHOOTING

If you have any difficulties using this product, please fill out this simple questionnaire before contacting your local Hoover service center.

The steam generator does not turn on.

• Check that the plug is inserted.
• Check the power cord.

The steam generator does not produce steam.

There may be no water in the tank. The tank may not be properly seated.

The textile pad does not pick up dirt. The pad may be saturated with dirt or may need to be rinsed. Refer to the "Maintenance" section.

FREQUENTLY ASKED QUESTIONS:

When does the steam jet come out? Approximately within 30 seconds.

Can I use the steam jet on all surfaces? On all hard surfaces, such as marble, ceramic, stone, linoleum, parquet, and hardwood floors.

Does the steam jet come out automatically? No, to make the steam jet come out, you need to press the steam trigger button located on the handle.

Can I use it on vertical surfaces? No, the steam jet can only be used on horizontal surfaces.

Can I add cleaning agents or other chemical substances to the tank? No, you will damage it.

What to do if the water in my city is hard? You can use filtered water or you can install the descaling module. If you notice that the steam jet is weak, check the steam nozzle opening - it may be necessary to remove scale with a small tool.

How often should the filter be cleaned? It depends on the hardness of the water. Usually once every 6 months. You will notice that the resin inside the filter for water decreases or lightens.

How long does the water reservoir last and when should it be refilled?

Approximately 20 minutes if you press the button continuously.

Can the mop be washed? Yes, it can be washed by hand or in a washing machine with a mild detergent at a maximum temperature of 40°C. Do not use bleach or fabric softeners.

How often should the mop be replaced? It depends on various factors, but the main one is the hardness of the floor covering. The best way to know whether to replace the mop is if it remains dirty even after washing or does not work as well as before.

IMPORTANT INFORMATION

Spare parts and consumables from Hoover

When replacing parts, use only genuine spare parts and consumables manufactured by Hoover. They can be purchased from your local Hoover dealer or directly from Hoover. When ordering spare parts, always quote the model number of the vacuum cleaner.

Consumables

Cloth pad: 35601330

Filter: 35601335

Hoover service

At any time, when servicing of the vacuum cleaner is required, call your local Hoover service department.

Quality

Hoover factories have passed an independent quality check. Production is carried out using a quality system that meets the requirements of the ISO 9001 standard.

Environmental protection:

This device has terminals in accordance with the requirements of the European Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE). By following the disposal rules for this electrical appliance, you will help prevent possible negative consequences for the environment and human health that could occur with improper disposal of this device.

The marking on this device indicates that it cannot be disposed of as household waste. It must be taken to an appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local regulations for waste disposal. For more detailed information on the reuse, recovery, and recycling of this device, please contact your local city authorities, the household waste disposal service, or the store where you purchased this device.

Your warranty

The warranty conditions for this household electrical appliance are determined by our representative in the country where this electrical appliance is sold. You can obtain more detailed information about these conditions from the dealer who sold the electrical appliance. When making claims or complaints regarding the terms of these warranty obligations, a receipt or proof of purchase for the sold goods must be presented.

Changes may be made without notice.

SAFETY INSTRUCTIONS

IT IS FORBIDDEN TO DO THE FOLLOWING:
