80B XENON - Tablet ARCHOS - Free user manual and instructions

Product type	Tablet
Brand	ARCHOS
Model	80B XENON
Screen	8 inches
Operating system	Android
Connectivity	Wi-Fi, Bluetooth, 3G
Front camera	Webcam
Rear camera	With flash
Audio	Speaker, microphone, 3.5 mm jack
Connection port	Micro-USB
Supported cards	SIM, microSD
Battery	Rechargeable lithium-ion
Charger	Included, micro-USB connector
Box contents	Tablet, quick start guide, USB cable, charger
Maintenance	Clean with a soft dry cloth
Safety	Use only the supplied charger, do not expose to water
Spare parts	Battery and charger available

Frequently Asked Questions - 80B XENON ARCHOS

How to insert a SIM card and a memory card?

Turn off the tablet. Remove the back cover using the notch. Insert the SIM card into the SIM slot, magnetic side down. Insert the memory card into the microSD slot, magnetic side down. Replace the cover.

How to connect to a Wi-Fi network?

From the status bar, swipe down, enable Wi-Fi, then select 'WiFi' to display networks. Choose your network and enter the password. Check 'Show password' to verify.

How to enable 3G mobile data?

From the status bar, swipe down, enable the 'Mobile data' icon. If the connection fails, contact your operator for APN settings.

What to do if the tablet does not turn on?

Let the battery charge for at least 10 minutes if it is completely discharged. Press the ON/OFF button for 10 seconds or use the Reset button with a pointed object.

How to reset the tablet in case of a freeze?

Press the ON/OFF button for 10 seconds or use the Reset button (with a paperclip). This forces a restart.

How to lock the tablet screen?

Go to 'Settings' > 'Security' > 'Screen lock'. Choose between pattern, PIN code or password. Once set, the screen locks automatically.

How to transfer files from a computer?

Connect the tablet to the computer via the micro-USB cable. On the tablet, select 'File transfer' in the USB notifications. The computer recognizes the internal storage and the microSD card.

How to update the software?

Visit http://www.archos.com/support to download updates. You can also check in 'Settings' > 'About tablet' > 'System update'.

What to do if the SIM card is blocked?

If you enter the wrong PIN code three times, the SIM card is blocked. Contact your operator to get the PUK code.

How to save battery?

Reduce screen brightness, disable unused Wi-Fi and Bluetooth, close background applications, and enable Airplane mode if necessary.

USER MANUAL 80B XENON ARCHOS

Package contents. 2 Getting started. 3 Description of the device. 4 Inserting SIM & Micro-SD cards. 5 3G & WiFi connection.. 6 The AndroidTM interface. 8 Getting familiar with AndroidTM 12 Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Contents

ARCHOS 8ob Xenon

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.
3. You can use your ARCHOS whilst it charges.
4. Let your device charge completely the first time you use it.
5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

Description of the device

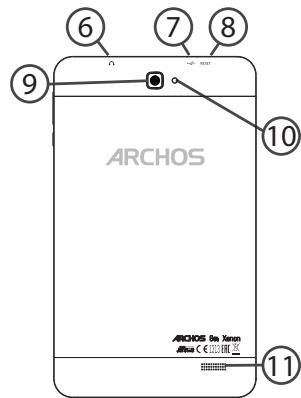

① Webcam ON/OFF button ② Loudspeaker ⑥ Headphone jack ③ Microphone Micro-USB port Volume buttons ⑧ Hardware reset

⑨ Camera ⑩ Flash ⑪ Loudspeaker

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the slot.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

3G & WiFi connection

3G connection

To be able to access Internet, the mobile data icon must be activated.

Activating the mobile data

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the mobile data icon to activate it.

When the mobile data is activated, it turns blue.

If your device does not connect to your 3G provider's network: Contact your 3G provider to obtain the connection parameters. On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters.

TIP:

When you encounter connection problems, see the FAQs on www.archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the "Settings" icon to open the settings menu.
4. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
5. Touch "WiFi" to display available networks.
6. Touch the name of the network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

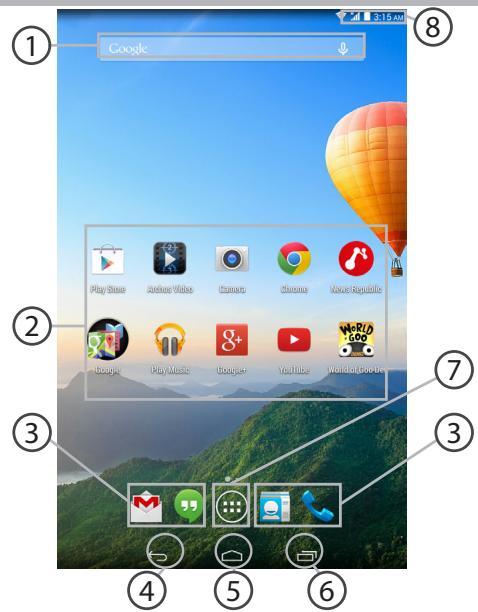

The Android™ Interface

Back button

Home button

Recent apps buttons

7 All Apps button

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search. 2 AndroidTM apps shortcuts Touch to start an application. 3 Permanent Android™ apps shortcuts Touch to start an application

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

(1)New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device. (2)You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless

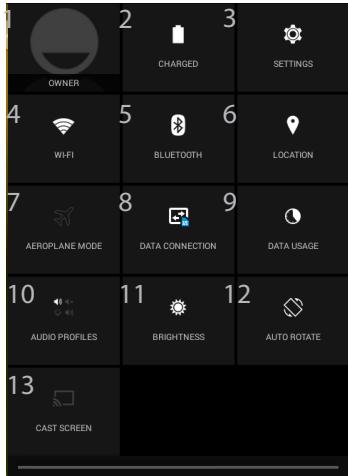

The Quick settings

1 Current user(1) 2 Percentage of battery remaining 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To turn on/off your Bluetooth connection. 6 To activate/deactivate your GPS location system. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate the data connection. 9 To see how much data have been used. 10 To set an audio profile. 11 To adjust the screen brightness. 12 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 13 To enable wireless display(2)

display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

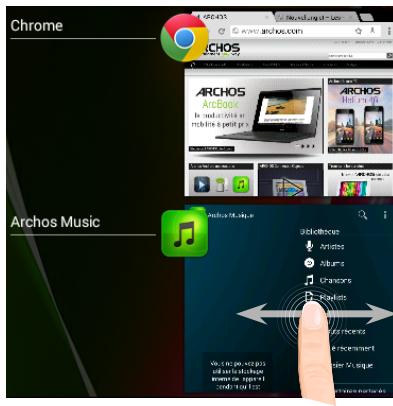

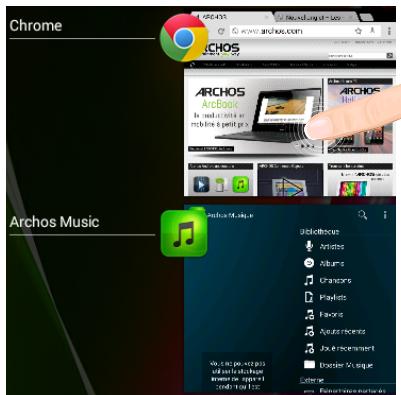

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

My tablet cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

security	Choose screen host
None
Slide
Pattern
PN
Password

Security - Drive screen lock

None

Slide

Pattern

PIN

Password

Lock the touchscreen:

Security - Drive screen lock

None

Slide

Pattern

PIN

Password

Security	• Open screen lock
	None
	Slide
	Pattern
	PIN
	Password

WiFi network connection

3G connection
