USER MANUAL 101B COPPER ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....6

Connecting to a WiFi network....7

The Android ^TM interface....8

Getting familiar with Android ^TM ....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Gradient color bar transitioning from black to white (no text or symbols)

Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

Package Content

Front view of a tablet device with no visible text or symbols on the screen or frame

ARCHOS 101b Neon

ARCHOS

QSG booklet

Warranty

Warranty, legal & safety booklet

Black cable with a connector icon (no text or symbols)

USB cable

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Charger

2

Getting Started

Charging

Circular diagram showing a plug inserted into a device, with no visible text or symbols

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

The charging indicator light is on when the battery is charging.

• You can use your ARCHOS whilst it charges.
• Let your device charge completely the first time you use it.
• Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

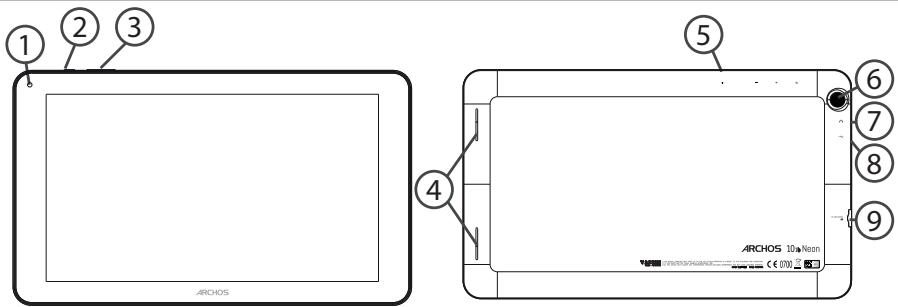

Description of the device

1 2 3 4 5 6 7 8 9 ARCHOS 10a Neon

① Front camera
② ON/OFF button
③ Volume buttons

④ Loudspeaker
⑤ Microphone
⑥ Back camera

⑦ Headphone jack
⑧ Micro-USB port
⑨ Micro-SD card slot

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Touch-screen calibration
• Language
• Date & time
• WiFi connection
• Location service options
• 3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

Digital interface screenshot showing a Wi-Fi notification badge and a hand icon with a fingerprint, no readable text or symbols.

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

Illustration of a finger pressing a horizontal line on a black background (no text or symbols)

② Pull the blue line down to display the status dashboard.

WI-FI OFF EMERGENCY CALLS ONLY AUTO ROTATE

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

Wi-Fi N

④ Slide the WiFi switch to "ON" positon.

ARCHOS-Tech Connected ARCHOS-Office Secured with WEP

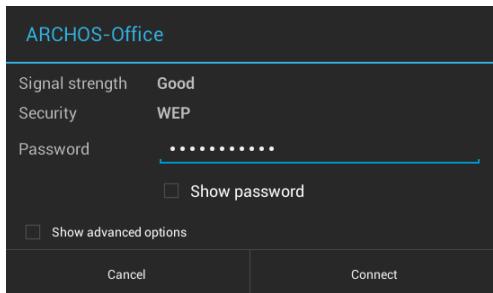

⑤The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

ARCHOS-Office Signal strength Good Security WEP Password •••••••••• □ Show password □ Show advanced options Cancel Connect

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

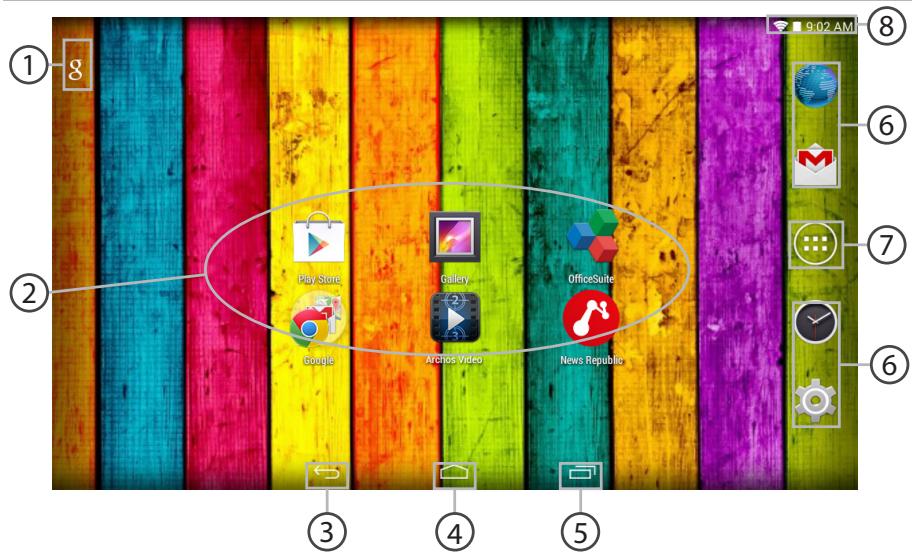

The Android™ Interface

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Pay Store Gallery OfficeSuite Google Arctos Video News Republic

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.

② Android™ apps shortcuts

Touch to start an application.

③ Back button

④ Home button

⑤ Recent apps buttons

⑥ Permanent Android™ apps shortcuts

Touch to start an application

⑦ All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑧ The status bar

Displays notifications and quick settings

The Android™ Interface

1 OWNER 2 BRIGHTNESS 3 SETTINGS 4 WIFI 5 AUTO ROTATE 6 7 AIRPLANE MODE 8 LOCATION

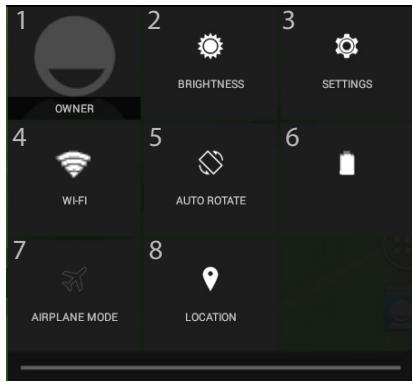

The Quick settings

1 Current user*
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

Gradient color bar transitioning from black to white (no text or symbols)

Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray (no text or symbols)

EN

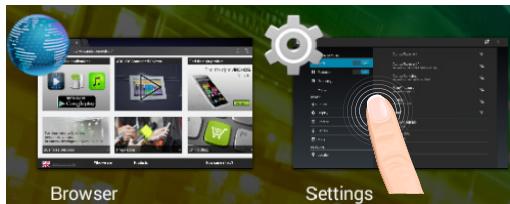

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Browser Settings

Touch: to open an app.

Hold down: to display options

Browser Settings

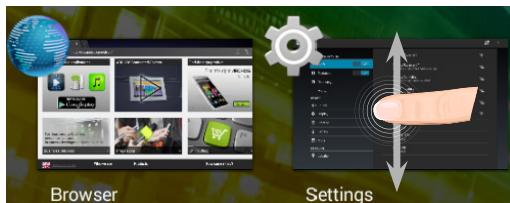

Swipe up or down: to close an app.

Getting familiar with Android™

Screenshot of iOS home screen interface showing app icons and bidirectional arrows between two screens

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Screenshot of a mobile app interface showing a finger pointing at a grid of app icons with Chinese labels.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Illustration of a hand interacting with a touchscreen display showing two square images and arrows (no text or symbols)

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Email Files Maps Email Google Mapping Tool Maps Maps Studio Navigation

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

WALLPAPER WIDEWATER SETTINGS

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

WALLPAPERS SETTINGS

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Security Choose screen lock None Slide Pattern PIN Password

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.
