USER MANUAL 11405 MAGIMIX

ARRET DANS ARRET APR 5 H

AJOUTER ANTICALC exit

Set up Rinsing Language selection Adjusting the clock Installing the filter Water hardness level Selecting the temperature

Brewing espresso coffee Preparing the machine Adjusting the grind Large or small espresso? Light, strong or extra-strong espresso? 1 or 2 cups Ground coffee

Using the nozzle Hot water Steam Cappuccino

Aftercare Weekly aftercare Changing the filter Cleaning programme Descaling programme

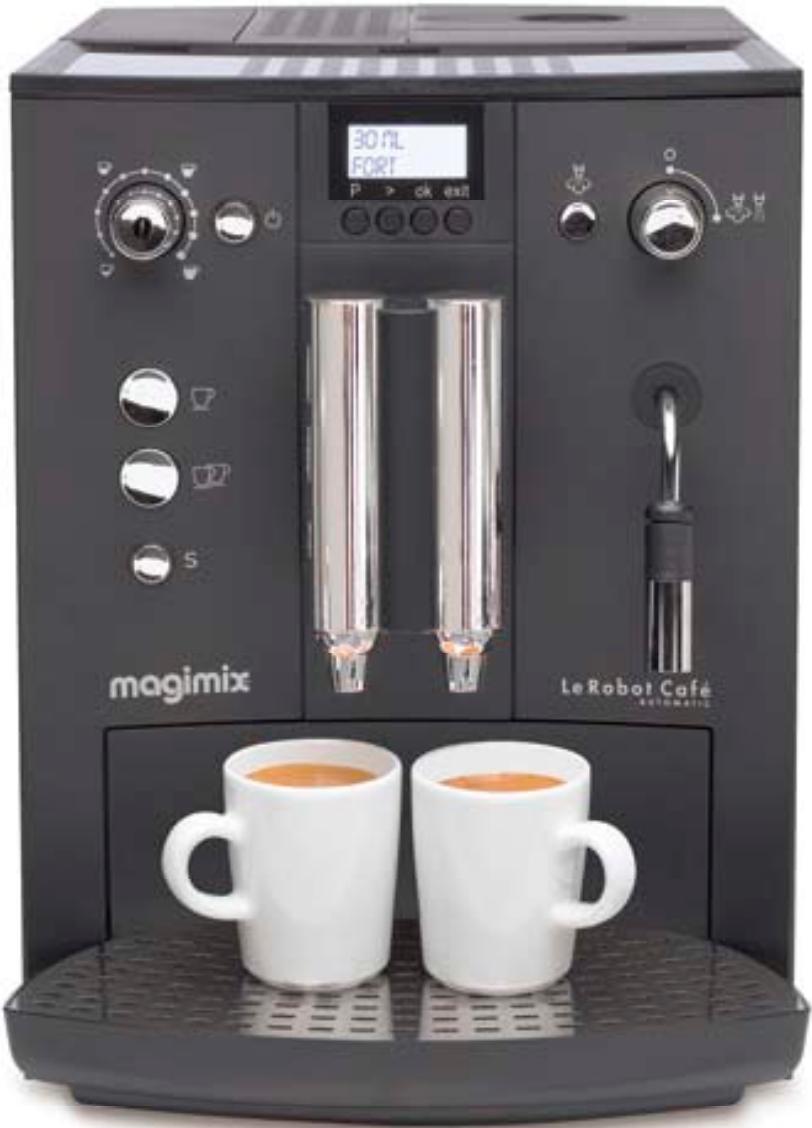

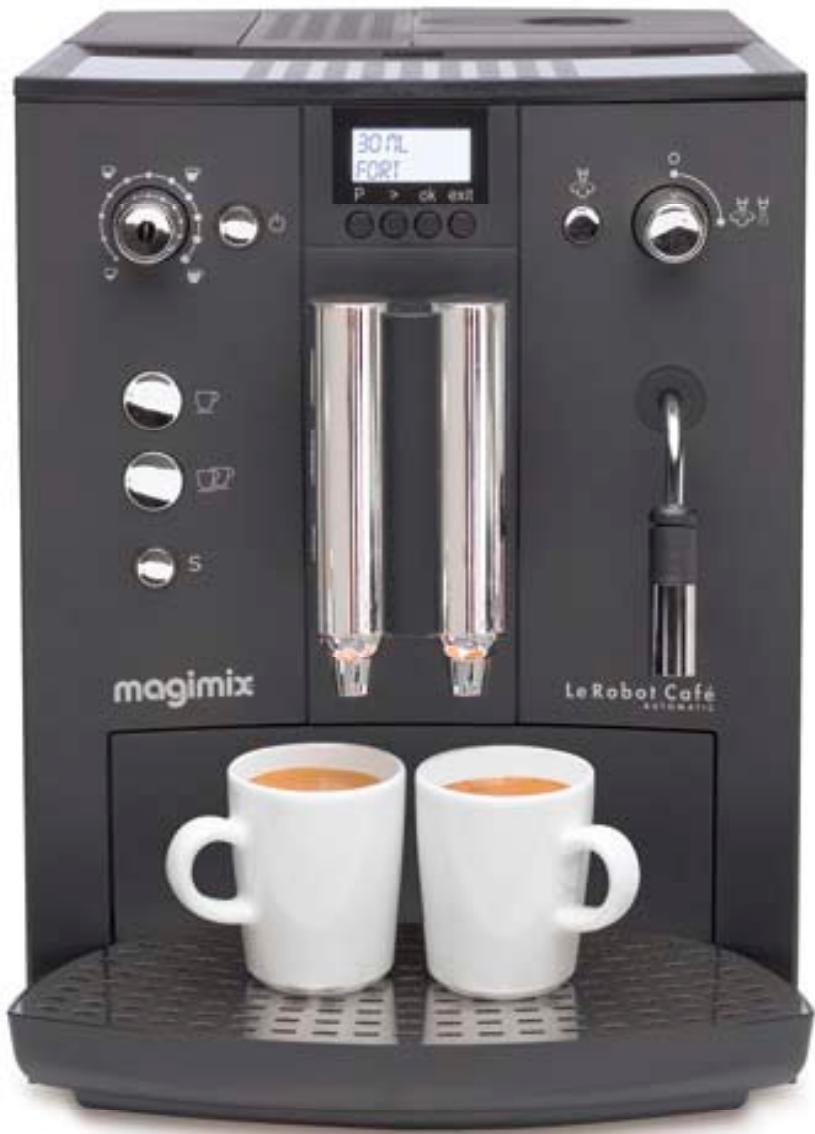

Description Read these safety instructions carefully before using your machine. Ground coffee compartment Max.: 1 level teaspoon Coffee bean compartment with grind fineness setting Removable water tank (1.8 litres) Water volume Coffee strength setting LED display Steam / hot water pipe Steam Flow head 1 cup 2 cups Cappuccino attachment Service/Rinsing Steam /hot water nozzle On/Off switch Drip tray with removable grid Grounds container Grounds drawer Measuring spoon: 1 level spoon = 1 cup (1 coffee)

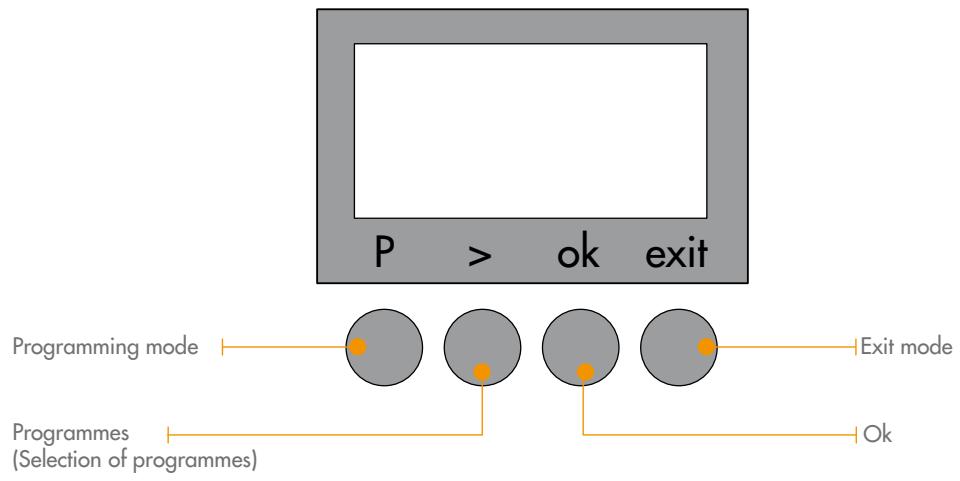

exit Programming mode Exit mode Programmes (Selection of programmes)

PROGRAM F I LT E R Indicate whether or not you have chosen to install the water filter. See “Installing the filter” chapter (p. 44).

PROGRAM W.HARD Choose your water hardness setting between 1 and 4. See “Water hardness level” chapter (p. 45).

PROGRAM TEMP Choose between three temperature settings for your coffee: Normal, High, Maximum. See “Selecting the temperature” chapter (p. 45).

PROGRAM LANGUAGE Choose between 8 different languages. See “Language selection” chapter (p. 42).

PROGRAM TIME Setting the on/off time See “Adjusting the clock” chapter (p. 43).

PROGRAM STATIST You can find out how many times each function has been used.

SET UP Rinsing Before you use your machine for the first time, you must rinse the water circuit to eliminate any residual water in the system. FILL UP PIPE-SYS

Plug into earthed socket.

exit Select. Fill with fresh water Switch the machine on. CHANGE FILTER TURN VALVE SYS.IS HEATING

exit Allow water to flow for 45 s Turn the tap on. Turn the tap off.

exit Press S as soon as the button starts flashing Place a cup underneath the flow head You can rinse your machine at any time simply by pressing the S button. Language selection 30 ML NORMAL

exit Wait for the machine to heat up. PLEASE RINSE

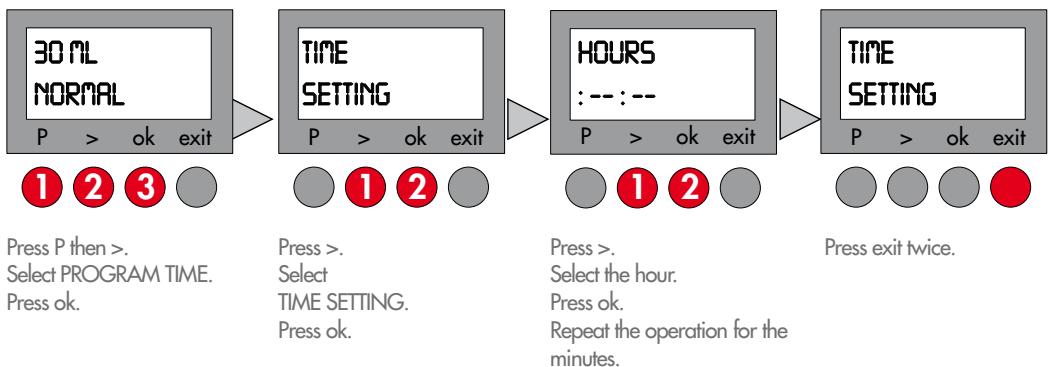

exit SET UP Adjusting the clock 30 ML NORMAL

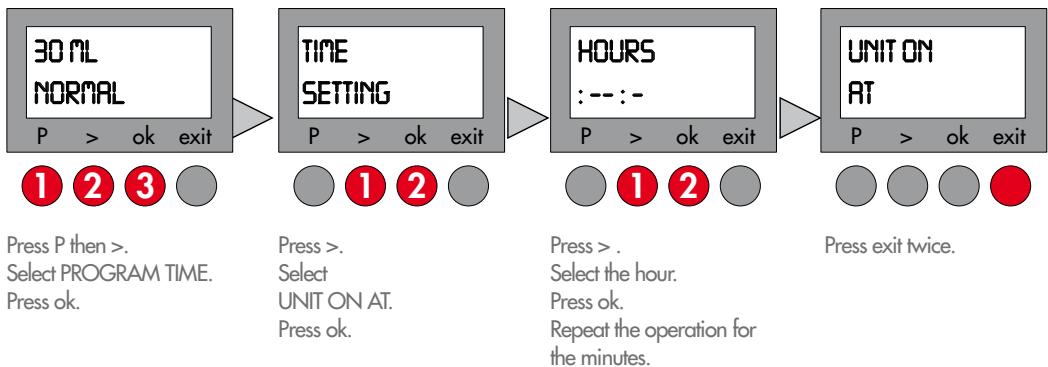

Press >. Select TIME SETTING. Press ok. Press >. Select the hour. Press ok. Repeat the operation for the minutes. Press exit twice. Setting the timer for the automatic switch-on Pre-program your machine for automatic switch on. 30 ML NORMAL

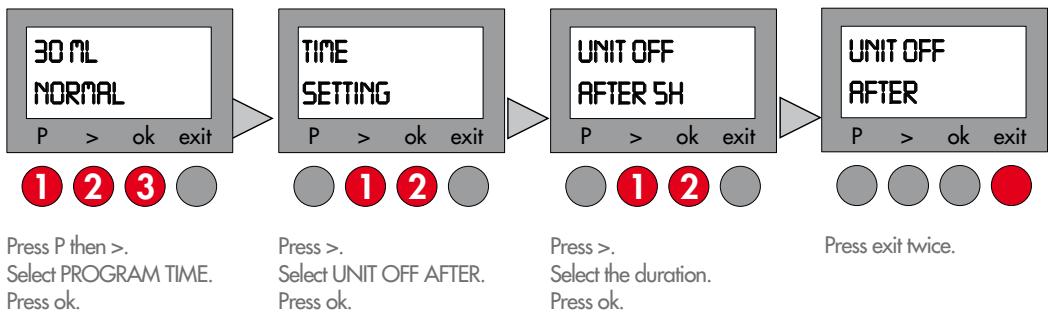

Press >. Select UNIT ON AT. Press ok. Press > . Select the hour. Press ok. Repeat the operation for the minutes. Press exit twice. Setting the timer switch-off Pre-program your machine for automatic switch off. 30 ML NORMAL

Press >. Select the duration. Press ok. Press exit twice.

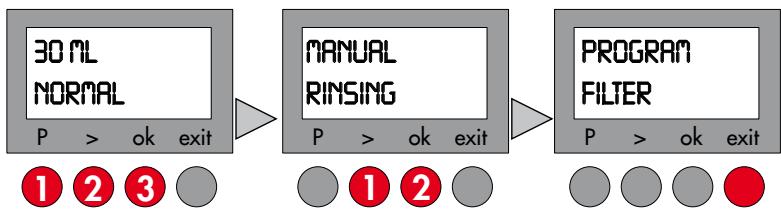

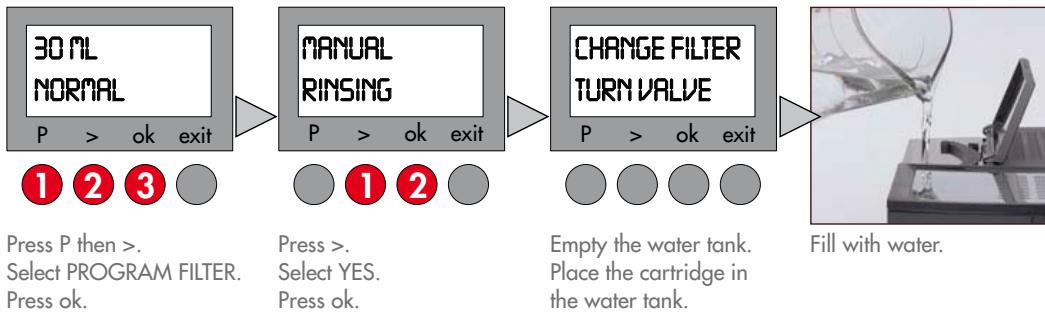

SET UP Installing the water filter Option 1 If you decide to use the filter option, the water hardness and manual descaling programmes will no longer be displayed. 30 ML NORMAL

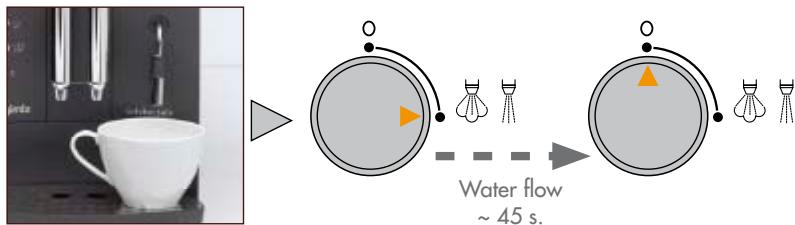

Press P then >. Select PROGRAM FILTER. Press ok. Press >. Select YES. Press ok. Empty the water tank. Place the cartridge in the water tank. Fill with water. Water flow ~ 45 s. Place a cup underneath the flow head Turn the tap on. Turn the tap off. Option 2 If you decide not to use the filter option, you will need to set the water hardness (see p. 45) and carry out manual descaling (see p. 54). 30 ML NORMAL

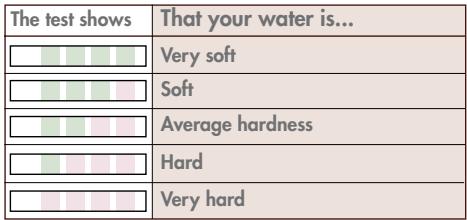

exit SET UP Setting Water hardness level If, and only if, you have not installed your filter, you must select the water hardness setting so that the system is set up warn you when you need to descale your machine. Machine level That your water is... The test shows Very soft

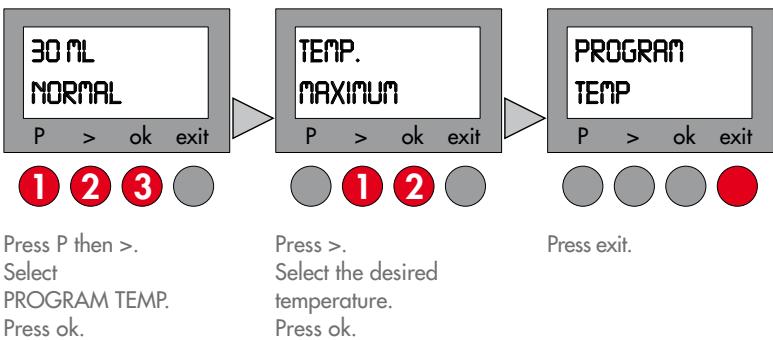

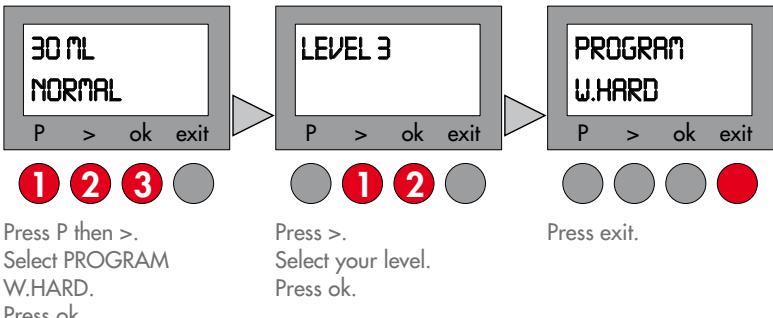

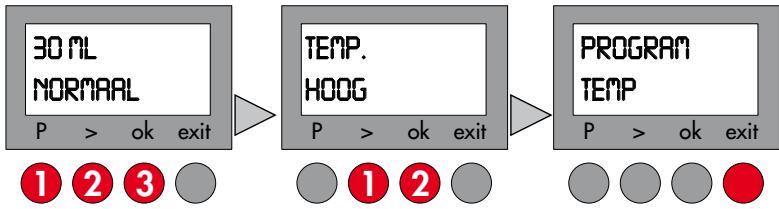

Press P then >. Select PROGRAM W.HARD. Press ok. Press >. Select your level. Press ok. Press exit. Temperature setting You can choose between three temperature settings for your coffee.

Brewing espresso coffee Preparing the machine Fill the water tank. Fill the coffee bean compartment. Ensure the tap is off Setting the fineness of the grind The paler the beans (lightly roasted) the finer they must be ground. Only adjust the grind setting while the grinder is running. Clockwise: coarser grind. Anti-clockwise: finer grind. Large or small espresso? …adapt your water level to the type of coffee: 30 ML NORMAL

exit Water volume display.

Turn the dial to the desired level. 30 ml – 70 ml > Espresso 80 ml – 130 ml > Espresso with milk / Cappuccino 140 ml – 240 ml > White coffee

BREWING ESPRESSO COFFEE

Light, strong or extra-strong espresso? Choose between 3 levels of flavour intensity. Press the button: 30 ML NORMAL

x 3 : Strong exit Coffee intensity display. Press centre of cup dial to obtain desired intensity of coffee. 1 or 2 cups Place 1 or 2 cups under the flow heads Adjust the height. Press the 1 or 2 cup button. The coffee will stop automatically. The water quantity displayed represents the amount for each cup. When you are brewing 2 cups, the flow will stop then resume, as the machine will carry out 2 grinding cycles. The flow can be halted any time by pressing on the 1 or 2 cups selection button. Ground coffee POWDER READY

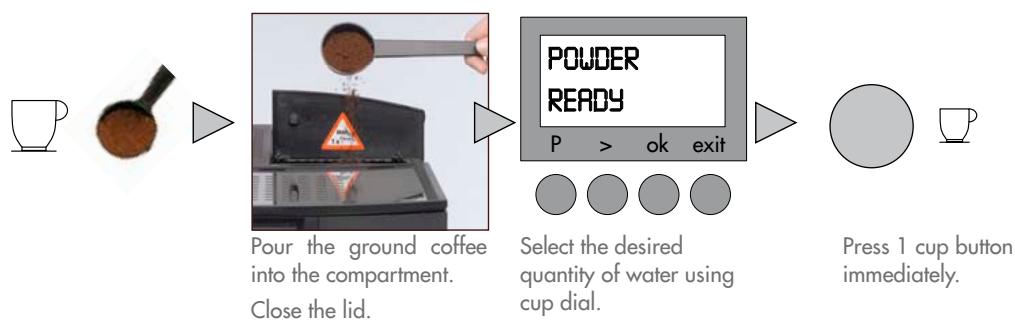

Pour the ground coffee into the compartment. Close the lid.

exit Select the desired quantity of water using cup dial. Press 1 cup button immediately. Never use more than one measuring spoonful of ground coffee. Never insert anything other than ground coffee or cleaning tablets into the ground coffee compartment. If the ground coffee compartment is opened by mistake or a button has not been pressed within a minute of putting the ground coffee in, the machine will automatically be rinsed through via the flow heads. Close the lid and wait 1 minute.

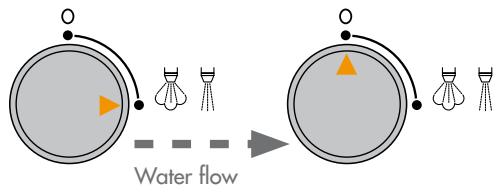

Hot water Water flow Place the cup underneath the nozzle Turn the tap on. Turn the tap off. Steam STEAM IS HEATING

Place the cup underneath the nozzle Ensure the tap is turned off Press

System ready. exit Turn the tap on. Turn the tap off. Return to “coffee” mode. You can draw steam for 2 minutes at a time. After that, the machine automatically interrupts the supply. You can resume by turning the button again. A small amount of water will flow from the nozzle before the steam arrives.

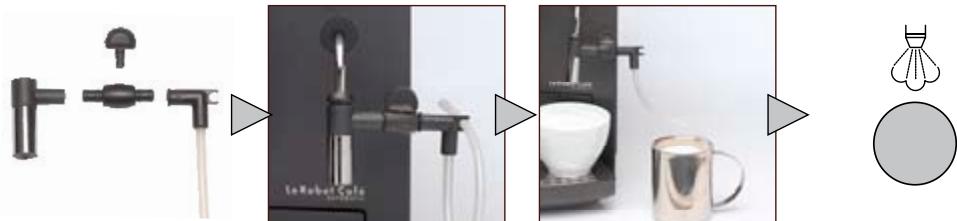

Cappuccino Assemble the attachment. Attach it to the nozzle.

Place 1 cup under the nozzle. Put the pipe in a jug 1/3 full of milk.

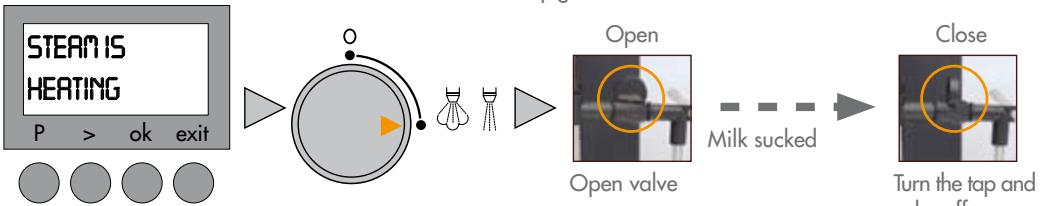

exit Close Milk sucked Open valve Turn the tap and valve off. Wait for the STEAM IS READY Slowly turn the message to be displayed. tap on. Press to return to coffee mode. Brewing a Cappuccino? Prepare your frothy milk as described above. Press to return to coffee mode. Prepare 1 or 2 cups of coffee. Spoon the desired amount of froth on top of the coffee. Cleaning the Cappuccino attachment STEAM IS HEATING

Fill the jug with water and place the Cappuccino pipe in the water. Place a cup under the nozzle. Slowly turn the tap on. Open valve Press. Water will be drawn up into the pipe. Turn the steam dial when water runs clear and the pipe is clean.

exit Wait until the STEAM READY message is displayed. Turn the tap and valve off

AFTERCARE Always unplug the machine and wait for it to cool down before cleaning. Do not put any of the parts in the dishwasher. Do not use an abrasive sponge or aggressive detergent. Weekly aftercare Once a week or more if necessary.

• Contacts Empty the drip tray and Clean and dry well using the grinds container. water + mild detergent. Wipe the the exterior of the machine housing with a damp cloth. Clean the compartment with a damp cloth and dry. Remove the machine’s central unit. Clean the funnel + filter with a damp cloth. Clean with a dry cloth. Unscrew using a flat screwdriver or a coin. Raise the release handle, pressing the red button at the same time. Closed. Open. Place the central unit back in the machine

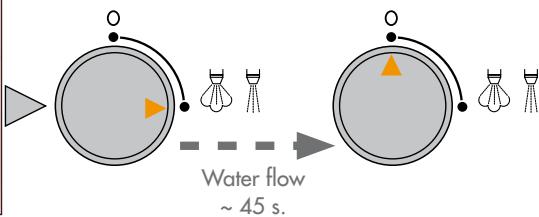

Lock into place by pushing the Handle down, pressing the red button at the same time. Screw the door shut. AFTERCARE Changing the filter Automatic rinsing. After filtering approximately 50 litres of water, the filter will need to be replaced. The machine is set up to tell you when you need to change the filter. CHANGE FILTER

exit The filter needs to be changed

Empty the water tank. Change the filter.

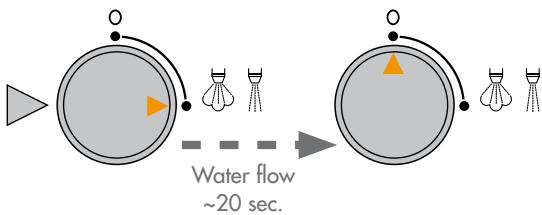

exit Press. Water flow ~ 45 s. Place a cup underneath the flowhead. Turn the tap on. Turn the tap off. Manual rinsing Even if you do not use your machine very often, the filter will still need changing approximately every 2 months or so. 30 ML NORMAL

exit Place a cup underneath the flowhead. Water flow ~20 sec. Turn the tap on. Turn the tap off.

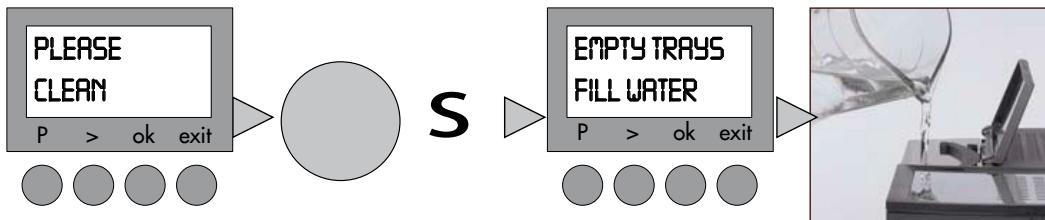

AFTERCARE Cleaning programme Automatic PLEASE EMPTY TRAYS CLEAN FILL WATER

exit The machine needs to be cleaned. Press.

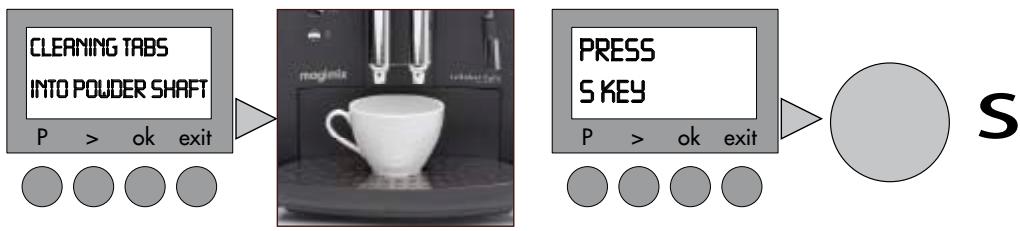

exit Put a cleaning tablet in the ground coffee compartment. Close the lid. exit PRESS S KEY

The metal sensors at the back Fill the water tank. Put of the drip tray are very the tray back in position. sensitive and need to be wiped clean thoroughly. CLEANING TABS

exit Place a large cup under the flow head. Press. EMPTY TRAYS Cleaning underway 10 min.

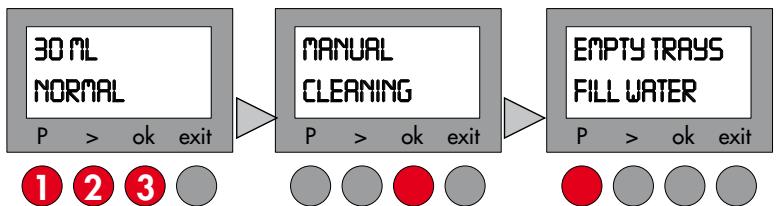

exit Empty the trays and put them back. Never interrupt the cleaning programme once it has started. Manual You can launch a cleaning programme whenever necessary. 30 ML NORMAL

EMPTY TRAYS FILL WATER exit

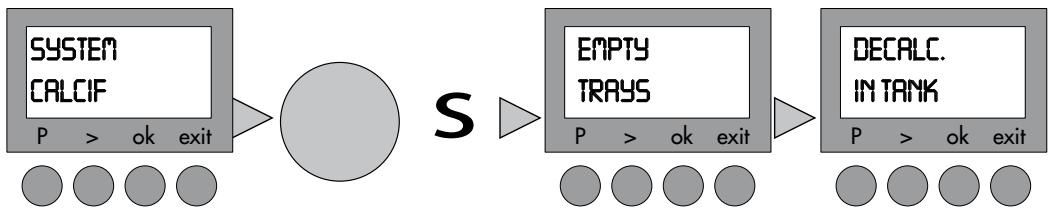

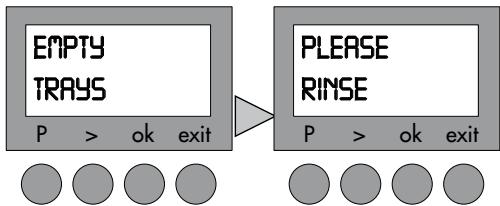

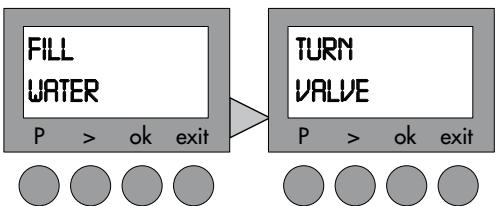

Press ok. Proceed according to the automatic mode. AFTERCARE Descaling programme Automatic: filter option activated Never interrupt the descaling programme once it has started. Never use vinegar or a vinegar-based product for descaling. Always remove the water tank filter before descaling. SYSTEM CALCIF

exit The machine needs descaling.

exit Empty the trays and put them back. TURN VALVE

Fill the tank with fresh water + descaling product up to the 0.5 l mark. 10 min.

exit Place a cup underneath the nozzle. Turn the tap on. TURN VALVE

15 min. exit Turn the tap off. FILL WATER

exit Fill the water tank up to the

exit Turn the tap off. Turn the tap on.

Empty the trays and container. TURN VALVE

exit Empty the trays and put them back.

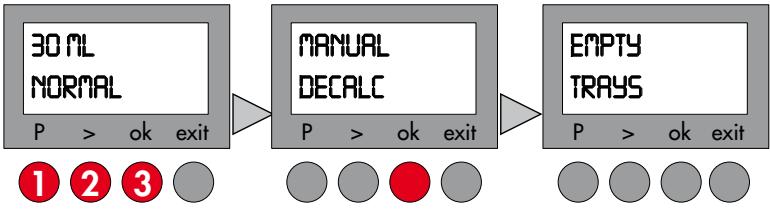

AFTERCARE Manual: filter option deactivated You can select the descaling programme whenever necessary. 30 ML NORMAL

Press P then >. Select PROGRAM DECALC. Press ok. Press ok. Proceed as for the automatic mode. RECIPES Espresso Espresso coffee is characterised by the colour of its creamy golden top, midway between russet and hazel, and by its extremely rich aroma…Espresso coffee represents roughly 40 or 50 ml of black coffee served in a 60 ml cup. Cappuccino Fill a large cup 1/3 full with frothed milk (see “Cappuccino” chapter, p. 49). Froth the milk using the cappuccino attachment. You can either spoon the froth onto your espresso coffee and sprinkle it with cocoa powder or pour the coffee on top of your frothed milk. Ristretto This is concentrated espresso coffee, made from the same quantity of ground coffee, but only half the water. It never exceeds 30 ml. Macchiato “Macchiato” means “spotted” in Italian. It closely resembles cappuccino coffee, but is stronger and has a more powerful aroma. Make a cup of espresso coffee and top it with a spoonful of milk froth.

Screen messages Actions Screen messages FILE UP PIPE-SYS Turn the steam/hot water tap on. Press S. FILL WATER Fill with fresh water. Position the water tank correctly. FILL BEANS Pour coffee beans into the coffee bean compartment. This message will remain on the screen until you grind some more coffee. EMPTY TRAYS Empty the trays. Clean the contacts at the bottom of the drip tray and dry thoroughly. TRAYS MISSING Position the trays correctly. Clean the contacts at the bottom of the drip tray and dry thoroughly.

Cool the system down by drawing hot water through the nozzle. PLEASE CLEAN Clean the machine (see p. 52). SYSTEM CALCIF Descale the machine (see p. 53). FILTER CHANGE Replace the filter (see p. 51).

Check that the central unit is properly positioned (see p. 50). Screw the door shut. PLEASE RINSE Place a cup under the flow heads. Press the S button.

Troubleshooting Question Answer No coffee flow. Check the positioning of the water tank. Fill the water tank. Check the positioning of the trays. Machine clogged with limescale ---> descale. Clean the central unit filter. Coffee flow reduced to a dribble. Coffee ground too finely ---> adjust the setting to a coarser grind. Coffee too watery, not strong enough. Refill the coffee bean compartment. Reduce the volume of coffee in ml. Select a stronger coffee by pressing Reduce the fineness of the grind. Unpleasant taste. Coffee: stale? acidic? ---> replace the coffee beans. Chlorinated water? ---> use the filter cartridge or bottled water (low mineral content). After descaling, fill the water tank and rinse the machine through, ½ via the nozzle, ½ via the flow heads. Coffee not hot enough. Preheat the cups using the hot water nozzle. Adjust the coffee temperature setting. Insufficient coffee flow. Refill the coffee bean compartment. Grinder making unusual noise. Refill the coffee bean compartment. Call Magimix Customer Care 01483 427411. Milk not frothy enough. Nozzle or pipe: blocked? clogged with limescale? ---> see ”Aftercare” chapter. Use cold, full fat milk. Cappuccino attachment not drawing up liquid. Clean the tube (see p. 49 ). Check that the attachment components have been properly assembled. Check valve is open. No steam or hot water supply. Clean the nozzle (see p. 49). Water around the base of the machine. Empty the drip tray. Machine not working at all. Check all the connections. Close the ground coffee compartment and wait for one minute. Press S. Call Magimix Customer Care 01483 427411. The descaling programme will not start. Deactivate the filter option. (see p. 44) Trouble with initial start up. Ensure machine has been rinsed through following the instructions to allow you to change the language. This symbol means that this product must not be treated as household waste. It must be taken to a suitable collection point for the recycling of electrical or electronic equipment. To find out where your nearest collection points are, contact your local council or the local waste reception centre.

We reserve the right to modify the characteristics of this machine at any time and without prior notice. The information contained in this document is not legally binding. All rights reserved for all countries by Magimix. SAFETY INSTRUCTIONS

• Check that the voltage of your power supply corresponds to that shown on the identification plate of your machine.
• Never leave children near the machine unattended. The machine has not been designed for use by children.
• This machine has not been designed for use by persons (including children) with physical, sensory or mental impairments or who are lacking in knowledge or experience, unless they have been the necessary initial supervision or have received instructions as to how use the machine by a person responsible for their safety.
• The machine must always be connected to an earthed socket.
• Never allow the power cord to dangle over the work surface.
• Never allow the machine or its power cord to come into contact with a hot or wet surface.
• Always unplug the machine after using it before you fill the water tank and move or clean the machine. Never tug on the power cord to unplug it.
• Never leave the machine and/or its power cord near heat.
• While operating the machine, avoid touching certain parts which can become extremely hot (flow heads, nozzle, etc.).
• Never heat flammable liquids with the steam.
• Always fill the tank with cold water and never add other types of liquid.
• Malfunctions due to failure to descale the machine or the use of a descaling method other than that described in the Instructions for Use are not covered by the guarantee.
• Never use your machine after it has fallen or been dropped or if it is not working properly. If the power cord has been damaged, it must be replaced by the manufacturer, approved by Magimix. For further information please contact customer care on; 01483 427411, in order to avoid all possible danger.
• Never use your machine outside.
• This machine is intended solely for use in the home and has not been designed for professional/commercial use.
