ICM15240BK - Coffee maker DELONGHI - Free user manual and instructions

Brand	DELONGHI
Model	ICM15240BK
Product type	Filter coffee maker (drip coffee maker)
Power consumption	1000 W
Supply voltage	220-240 V ~ 50/60 Hz
Weight	2.3 kg
Carafe capacity	15 small cups (approx. 1.25 L)
Carafe type	Glass carafe
Permanent filter	Yes (depending on model) or paper filter (size 1×4)
Auto shut-off function	Yes (after 40 minutes for models with hot plate)
Programmable timer	Yes (models with electronic controls)
Aroma function (slow brew)	Yes (AROMA button)
Water level indicator	Yes (transparent graduations)
Hot plate	Yes (keeps warm)
Recommended descaling	Every 60 cycles (green AROMA light)
Body material	Plastic
Included accessories	Glass carafe, measuring spoon, permanent filter (depending on model)
Safety	Automatic shut-off, overheat protection, do not immerse
Intended use	Household only
Repairability	Genuine spare parts available from authorized service centers

Frequently Asked Questions - ICM15240BK DELONGHI

How to set the clock on the DELONGHI ICM15240BK coffee maker?

Plug in the appliance, the display shows '0:00'. Press the SET CLOCK (R) button until the desired time appears, then release. The clock can be set at any time.

How to program the automatic start of coffee?

First set the clock. Press SET TIMER (P) until the desired start time. Release, the time flashes then is memorized. Then prepare the machine with water and coffee, then press ON/AUTO/O (O) twice quickly. The red light turns on and 'auto' is displayed.

What is the AROMA function for?

The AROMA function activates a slower brew that extracts more aromas and flavors. It is recommended when you are not brewing a full carafe. Press the AROMA button (the light turns on) to activate, and again to deactivate.

How to clean and descale the coffee maker?

For cleaning, wipe with a soft damp cloth. Never immerse the appliance in water. Descaling is recommended every 60 cycles. Use a special descaler, pour the solution into the tank, run a cup, let it sit for 15 minutes, then repeat and rinse with 3 cycles of fresh water. The green AROMA light flashes to remind you to descale.

Why is the coffee brewing slowly?

The most common cause is limescale buildup. Perform a descaling of the machine as indicated in the manual. After descaling, rinse thoroughly to avoid a sour taste.

The coffee tastes sour, what to do?

This may be due to insufficient rinsing after descaling. Rinse the machine by running at least 3 complete cycles with fresh water only (fill the tank three times).

How many scoops of coffee should I use?

The chart recommends: for 2 cups, 2 level scoops; for 6 cups, 6 scoops; for 15 cups, 10 scoops. One level scoop is approximately 5 g of coffee. Adjust according to your taste.

Is there a thermal carafe for this model?

The manual mentions that some models come with a thermal carafe (B). For the ICM15240BK, it is a glass carafe with a hot plate. Check the packaging. For models with a thermal carafe, the machine turns off automatically after brewing.

Can I use standard paper filters?

Yes, use paper filters size 1×4. Some models are equipped with a permanent filter (H). Place it in the filter holder (G) before adding ground coffee.

What to do if the coffee maker does not turn on?

Check that the plug is properly inserted and that the mains voltage matches (220-240 V). Make sure the main switch is in the on position. If the problem persists, unplug the appliance and contact an authorized service center. Do not attempt to repair it yourself.

USER MANUAL ICM15240BK DELONGHI

Instructions for use

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below. WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol ≡ or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

Please note:

This symbol identifies important advice or information for the user.

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments;
• farm houses; by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Any other use is considered improper and thus dangerous. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. After positioning the appliance on the work top, leave a space of at least 5 cm between the surfaces of the appliance and the side and rear walls and at least 20 cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance. - When using the appliance do not touch the hot surfaces. Use the knobs or handles. - Never touch the appliance with wet or damp hands or feet. - The warming plate remains hot after the appliance has been used.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only. - The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard. - Place the appliance on a work surface far away from water taps, basins and sources of heat. - Never install the appliance in environments where the temperature may reach 0°C or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified electrician.
• When filling the water tank or removing the jug from the machine, avoid spilling liquid on the plug or power cable.

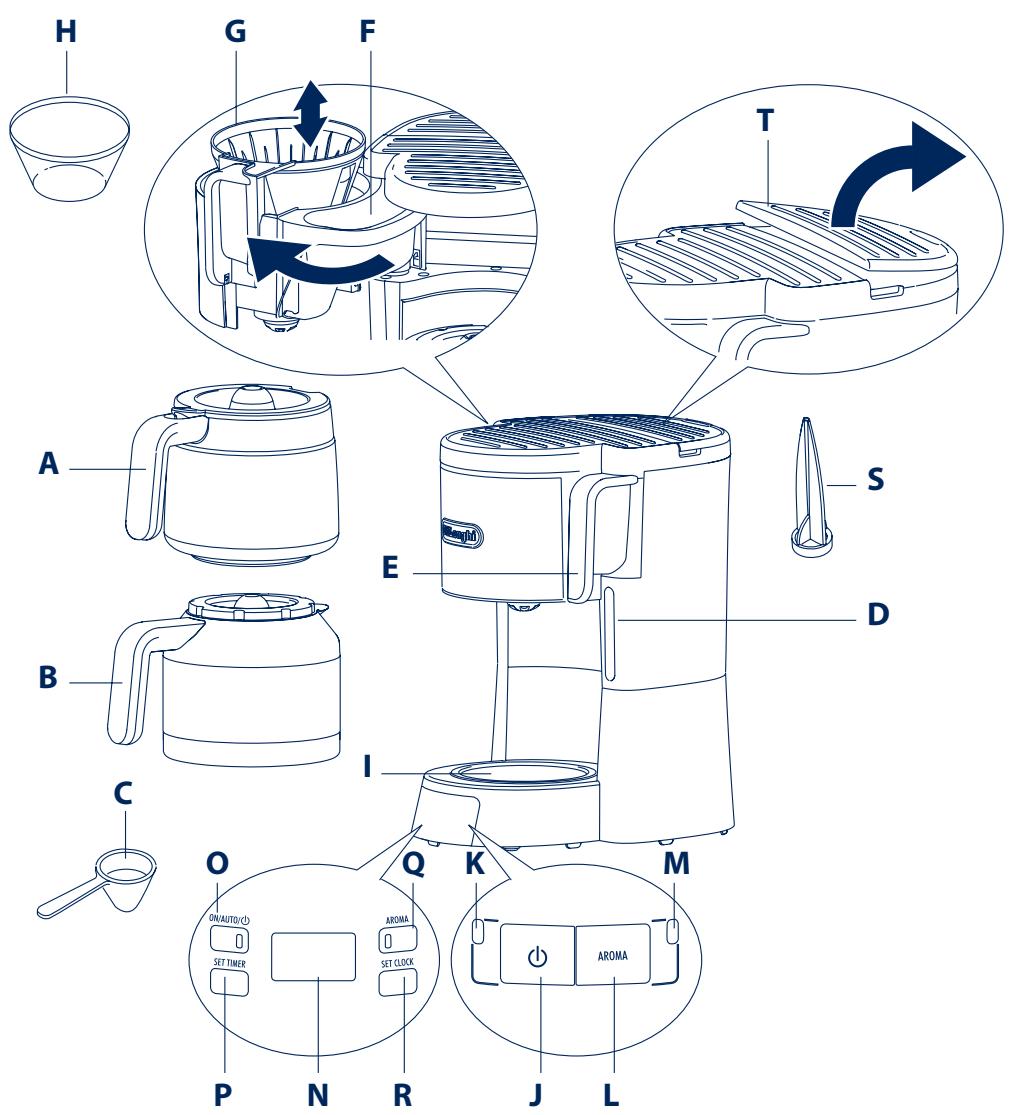

Description of appliance

A. Glass jug (certain models only) B. Thermal jug (certain models only) C. Measure D. Water level indicator E. Open/extract filter holder handle F. Water fill compartment G. Filter holder for drip coffee H. Permanent filter (if provided) or paper filter I. Plate (hot in models with glass jug only)

Models with switch:

J. "ON/STAND-BY" button K. "ON/STAND-BY" light L. Aroma button M. Aroma light

Electronic models:

N. Display O. ON/AUTO button with light P. Set timer button Q. Aroma button with light R. Set clock button S. Water tank filter T. Inspection door

Setting the clock (certain models only)

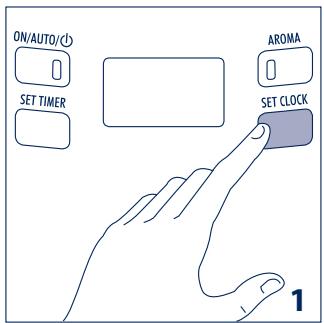

Plug the appliance into the mains socket. The first time it comes on, "0:00" appears on the display. To set the exact time, press and hold the SET CLOCK button (R) (fig. 1) until the current time is displayed, then release. The time can be set at any moment.

How to make drip coffee

Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

• Open the door at the front by pulling the handle (E) and use the jug to pour clean cold water into the water fill compartment (F) up to the level indicated for the number of cups of coffee you want to make. Check the level of water in the tank through the level window (D) (fig. 3). You are recommended to use the jug provided as a measure as the maximum capacity of the jug and the tank are the same. Position the permanent filter (H) (if present) in the filter

holder (G) (fig. 4). In versions without permanent filter, use the paper filter (size 1x4). - Place the pre-ground coffee in the filter using the measure (C) provided and level evenly (fig. 5). See the table for recommended quantities. Use good quality, medium pre-ground coffee for drip coffee makers.

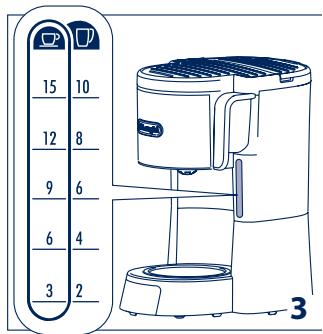

Recommended quantities:

No. small cups ☐	No. large cups ☐	No. measures (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(^*) 1 level measure = 1 tablespoon (5g)

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 10 measures. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

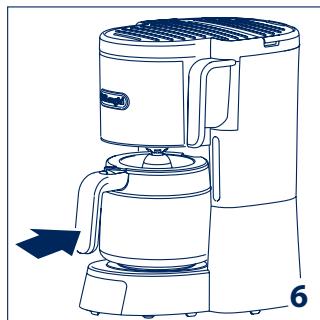

• Models with glass jug (A): close the door at the front of the appliance and place the closed jug on the plate (fig. 6).

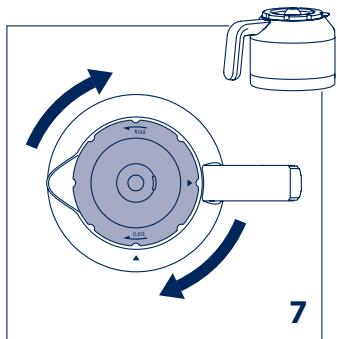

• Models with thermal jug (B): before placing the jug on the plate, make sure the lid is closed (fig. 7).

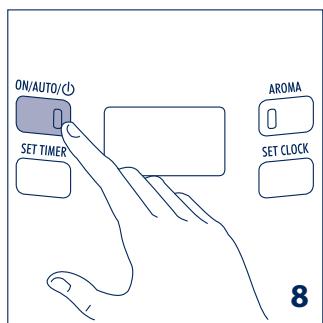

• Models with electronic controls: press the ON/AUTO/ button (O) (fig. 8). The red light indicates that the coffee maker is operating and "BREW" appears on the display. The appliance emits a beep when delivery begins, then three beeps when it ends. The taste of the coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.
• Models with switch: Press the button (J) (fig. 9). The light (K) indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating. The coffee maker emits a beep when delivery begins, then three beeps when it ends. The taste of

The coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.

In models with glass jug: if you leave the button pressed after percolation has finished, the plate will keep the coffee at the ideal temperature. The appliance goes off automatically 40 minutes after coffee delivery ends. - Models with thermal jug: to pour the coffee, turn the lid to the position shown in fig. 10. To remove the lid completely, turn the lid to the position shown in fig. 11. After percolation has ended, the appliance goes off automatically.

Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible in order to avoid the coffee overflowing.

Programming auto-start (models with electronic controls only)

Check that the time is set correctly.

To programme when you want the appliance to make coffee:

• Press the SET TIMER button (P) and hold it down until the time you want the coffee maker to come on is reached.
• Release the SET TIMER button. The time flashes briefly until the setting has been memorised, then the current time is displayed.

Activating the timer function

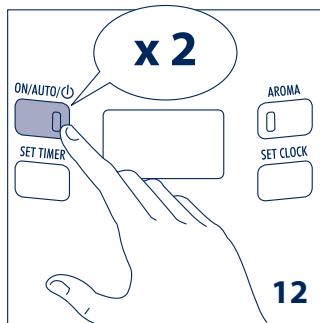

• Set the time you want the appliance to come on and go off as described in the above paragraph; Prepare the appliance to make coffee. Press the ON/AUTO/ button (0) (fig. 12) rapidly twice. The light becomes red to indicate that the appliance is operating and "AUTO" is displayed.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn off, unplug from the mains socket and allow to cool. - Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.

• Never immerse the coffee maker in water. It is an electrical appliance.
• The water tank filter (S) can be reached through the inspection door (T). Clean when necessary.

Descaling

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 coffee making cycles.

Models with electronic controls only: When green light flashes on the aroma button (Q), (about every 60 cycles) you have to descale the appliance. To reset the descaling alarm press the two buttons aroma and set clock at the same time. The green light will be power off.

To descale, always use special commercially available descending products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack;
2. Pour the solution into the water fill compartment;
3. Place the jug on the warming plate;
4. Press the ON/AUTO/ / (J) button, percolate the equivalent of one cup then turn the appliance off;
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V-50/60Hz

Absorbed power: 1000W

Weight: ICM15240 / ICM15250 2,3 kg

ICM15740/ICM15750 2.63 kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

The appliance complies with the following EC directi

ves:

Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments EC Regulation 1275/2008 for standby

Troubleshooting

Problem	Probable cause	Solution
The coffee takes longer to brew.	The coffee maker needs to be descaled.	Descale the machine as described in the section DE-SCALING.
The coffee has an acidic ta-ste.	Insufficient rinsing after descaling.	Rinse the machine as described in the section DE-SCALING.

i Note:

The materials intended for contact with food products comply with the requirements of European Directive 1935/2004. After installing the appliance on the work surface, make sure that there is approximately 5 cm of free space on the sides and at the back, and at least 20 cm of free space above.

Danger of burns!

Failure to observe the warning may result in burns or scalding.

This appliance is manufactured by LLC "Manufacturing of Coffee Machines". Be careful not to burn yourself with steam or water when using the appliance not for its intended purpose. Do not touch the heated parts of the appliance during use. Use handles or knobs. Do not touch the kettle with wet or damp hands, and if you have wet feet. - The heating plate remains hot after use of the appliance.

!Attention!

Failure to observe the warning may result in injury or damage to the appliance.

• The manufacturer shall not be liable for any damage caused by improper use, erroneous operation, or incorrect maintenance. In case of malfunction or inoperability of the device, turn it off and unplug it. For necessary repairs, contact only the manufacturer's authorized service center, using only genuine spare parts. Failure to follow the rules described above may affect the reliability of the coffee maker.

Do not allow persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, to use the appliance, unless they are supervised or have been given instruction concerning use of the appliance by a person responsible for their safety. Supervise children and ensure they do not play with the appliance. After removing the appliance from its packaging, check its integrity; in case of doubt, do not use it and contact a qualified specialist. - Packaging elements (plastic bags, foam plastic, etc.) must not be left in places accessible to children, as they are potential sources of danger. Place the appliance on a work surface away from water taps, heat sources, and stoves. Never install the coffee maker in rooms where the temperature may drop to 0°C or below (if water freezes, the appliance may be damaged).

Danger!

Failure to follow the warning may result in electric shock, which is dangerous to life.

The power cord of the appliance must not be replaced by the user. In case of damage to the cable or its replacement, to avoid any risk, contact only the manufacturer's authorized service center. Never immerse the coffee maker in water - it is an electrical appliance. When the coffee maker is not in use, unplug it from the outlet and turn off the main switch. Do not leave the appliance connected to the power supply unnecessarily. As with any electrical appliance, exercise common sense and caution, especially with children. Ensure that the mains voltage matches that indicated on the appliance's rating plate. Connect the appliance only to outlets with a permissible current of at least 10 A and reliable grounding.

The manufacturer cannot be held responsible for possible damage caused by lack of grounding.

In case of mismatch between the plug type and the outlet, contact a qualified specialist to replace the outlet with a suitable one. During filling of the tank and removal of the drip tray from the appliance, be careful not to spill liquid on the power cord and plug.

Description of the appliance

A. Glass carafe (for some models only) B. Thermal carafe (for some models only) C. Measuring spoon D. Water level indicator E. Handle for opening/removing the filter holder F. Drip tray G. Filter holder H. Permanent filter (if provided) or paper filter I. Base (heating plate, only in models with glass carafe)

Models with a drip tray:

J. Button "ON/STAND-BY" K. Light indicator "ON/STAND-BY" L. Button AROMA M. Light indicator AROMA

Electronic models:

N. Display 0. Button ON/AUTO/ WITH LIGHT INDICATOR P. Button SET TIMER Q. Button AROMA WITH LIGHT INDICATOR R. Button SET CLOCK S. Filter holder T. Display window

Setting the clock (only for

some models)

Plug in the appliance; at first switch-on, the display will show flashing "0:00". To set the correct time, press and hold the SET CLOCK button R, fig. 1, until the desired time value is reached, then release the button. The time can be changed at any moment.

How to prepare coffee through the filter

Note: at first use of the coffee maker, it is necessary to rinse all accessories and the internal system by preparing at least two cups of water without adding coffee.

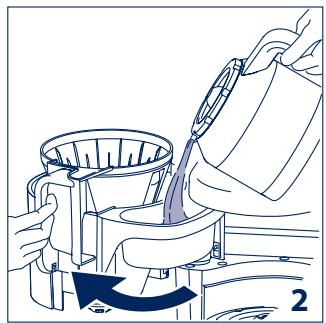

Open the top lid by pulling the handle E, fig. 2. Using the measuring cup, pour fresh cold water into the water tank up to the level required for the selected number of cups of coffee: check the water level in the tank using the special indicator D, fig. 3. In any case, for dosing it is recommended to use the supplied measuring cup, as the maximum capacity of the cup corresponds to the capacity of the tank. - Install the permanent filter H (if provided) in the filter holder G, fig. 4; in models without a filter, use a paper filter (size 1x4). Pour ground coffee into the filter, using the measuring cup C, and distribute it evenly, fig. 5. Pay attention to the table with recommended quantities. Use good quality coffee, medium grind, for preparing coffee in coffee makers with a filter.

Recommended quantities:

The warranty of the appliance ceases to be valid if the above-described cleaning is not performed regularly.

Technical data

Voltage: 220-240V~50/60Hz

Power consumption: 1000W

Weight: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

This product complies with the relevant regulations.

EC:

- Directive 2006/95/EC (Low Voltage) as amended. Directive 2004/108/EC (EMC) as amended. - European regulation on standby power 1275/2008

Troubleshooting

The appliance is equipped with a safety device that protects against overheating. It automatically switches off if the heating plate overheats.

In case of incompatibility between the contact and the intended device, the contact must be replaced by qualified personnel. - When connecting and disconnecting the appliance from the mains, be careful to avoid spilling liquid on the electrical parts and the power cord.

Description of the device

A. Glass jug (only for models with glass jug) B. Thermal jug (only for models with thermal jug) C. Measuring spoon D. Water level indicator E. Handle for opening/removing the filter holder F. Water tank G. Filter holder with permanent filter H. Permanent filter (if provided) or paper filter I. Hot plate (heating plate, only for models with glass jug)

Model specifications:

J. Button ( ) "ON/STAND-BY" K. Indicator light ( ) "ON/STAND-BY" L. Button "AROMA" M. Indicator light AROMA

Electronic models:

N. Display O. Button ON/AUTO with indicator light P. Button SET TIMER Q. Button AROMA with indicator light R. Button SET CLOCK S. Water tank filter T. Opening for checking

Setting the clock (only for models with clock)

Plug in the appliance; when first switched on, the display shows "0:00". To set the current time, press and hold the SET CLOCK button (R) (Fig. 1) until the time is reached, then release the button. The time can be set at any time.

Pour the water into the filter

Important: before preparing the first coffee, you must remove all accessories and rinse the inside of the machine, as well as make two cups of coffee without adding ground coffee.

• Open the lid by turning the handle (E), pour cold water into the reservoir (F) using the cup (Fig. 2) up to the level corresponding to the desired number of cups of coffee: check the water level in the reservoir through the special indicator (D) (Fig. 3); it is recommended to use the cup from the set as a dispenser, as its maximum capacity corresponds to the capacity of the reservoir. Place the permanent filter (H) (if provided) into the filter holder (G) (Fig. 4), and for versions not equipped with one, use paper filters (size 1x4). Place the ground coffee into the filter, using the measuring spoon (C) from the set and spread it evenly (Fig. 5). Adjust the brewing table according to the recommended quantities. Use quality ground coffee with fine grinding, suitable for filter coffee machines.

Recommended quantities:

Бр. малки чаши БP	Бр. rolемп чаши	Бр. мерітелни пъж. (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(*) 1 measuring spoon = 1 spoon (5g)

The quantities in the table are indicative and should be adjusted to your personal taste preferences: do not add more than 10 measuring spoons. The type of blend significantly affects the quality of the resulting coffee: we recommend trying different types of coffee to find the one that best suits your taste.

Model with drip-stop valve (A): close the lid and place the valve over the carafe (Fig. 6). - Model with thermos (B): open the lid and place the carafe on the plate, make sure the lid is closed (Fig. 7)

Modern espresso machine: Press the ON/AUTO button (O) (0) (0). The indicator light shows the operating mode, and the display shows the word 'READY'. A sound signal (beep) is emitted at the start of brewing, and after that a sound signal indicates the end. The taste of the coffee can be adjusted by pressing the AROMA button (Q). This function activates the pre-brewing process, during which the water soaks the coffee grounds more thoroughly; gradual infusion gives the coffee a richer taste and aroma. To activate the function, press the AROMA button: the indicator light on the button lights up; to deactivate the function, press the button again. The use of the AROMA button is recommended when you want to prepare a cup of coffee. Models with pre-brewing: Press the button ( ) (J) (9). The indicator light (K) on the button shows the operating mode. The coffee will start brewing after a few seconds. It is quite normal for the machine to emit a little steam during the coffee brewing process. A sound signal (beep) is emitted at the start of brewing, and after that a sound signal indicates the end. The taste of the coffee can be adjusted by pressing the AROMA button (Q). This function activates the pre-brewing process, during which the water soaks the coffee grounds more thoroughly; gradual infusion gives the coffee a richer taste and aroma. To activate the function, press the AROMA button: the indicator light lights up. To deactivate the function, press the button again. The use of the AROMA button is recommended when you want to prepare a cup of coffee. Models with a milk frother: if you keep the button (J) pressed after the coffee brewing, the heating plate maintains the ideal temperature of the hot coffee. The appliance switches off automatically 40 minutes after the coffee is brewed. Thermo cup model: to brew coffee, turn the cup to the position shown in fig. 10. To remove the cup from the base, turn the cup to the position shown in fig. 11. When the preparation is complete, the appliance switches off automatically.

Important: when removing the cup from the machine, make sure that the preparation of the desired amount of coffee is complete; the brewing process does not stop, but the coffee continues to flow into the cup; if you want to pour

a little coffee, it is recommended to do it as quickly as possible, to avoid unpleasant dripping.

Programmed switch-on (AUTO) (only for models with electronic control)

Removing the scale (descaling)

If the water in your area is hard, the scale will build up over time. The scale deposits can affect the proper operation of the appliance. It is recommended to remove the scale every 60 operating cycles.

Models with electronic control: when the green indicator light on the AROMA button (Q) lights up (approximately every 60 operating cycles), it indicates that the scale needs to be removed.

To activate the descaling function, press the AROMA and SET CLOCK buttons simultaneously. The green indicator light flashes.

Proceed with the removal of the scale, using the special descaling agent recommended by the manufacturer.

Remove the jug from the coffee maker and rinse it with filtered coffee.

1. Dissolve the preparation in the jug, following the instructions on the package of the preparation;
2. Pour the solution into the water reservoir;
3. Place the jug on the base;
4. Press the button (J) / ON/AUTO(0), wait for the amount equal to one cup to flow out, then turn off the appliance;
5. Leave the solution to act for 15 minutes; repeat operations 4 and 5 once more.
6. Turn on the machine and let it run until the reservoir is completely empty. 7. Turn off the machine, letting it operate only for at least 3 minutes (3 minutes in the reservoir).

The warranty is not valid if the above cleaning procedure is not performed regularly.

Technical data

Rated voltage: 220-240V-50/60Hz

Rated power: 1000W

Weight: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

Disposal

According to European Directive 2002/96/EC, this appliance must not be disposed of with household waste, but must be handed over to a separate collection point for recycling.

CE declaration of conformity:

- Directive 2006/95/EC on low voltage equipment and subsequent amendments; Directive 2004/108/EC on electromagnetic compatibility (EMC) and subsequent amendments; - European regulation Stand-by 1275/2008

Troubleshooting

(6)

Therefore m = 3/11

J 1

UJ 0

(S1 · a1 · S2 · S3 · S4) = (S1 · S2 · S3 · S4)(S1 · S2 · S3 · S4)

15 15 15

(ON/STAND-BY)

(ON/STAND-BY) K

Therefore cos ∠ABD = 1/2

Therefore, M = 1.

:

JuiLi .N

S20 “ON/AUTO/() 100

Therefore, the area of triangle OBC equals the area of triangle COD plus the area of triangle BOC minus the area of triangle BOC.

(2) 1/2 x - 1 > 0

Therefore, cos alpha = b/a.

1joo 5

J 1

1000000000000000000000000000000000000000000000000000000000000000000000000

Therefore, the area of triangle PQ equals the area of triangle PQ plus the area of triangle QP, which equals the area of triangle PQ plus the area of triangle QP.

000000000000

i

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0000000000000000000000000000000000000000000

Therefore {2j1,{0j1},{0j2}}

jglj 5 olaowol alwog j 1

Juiiui

الله	الله الحرفicus	الله الحرفicus
عَزَلْفَنَهُ وَسَمِهُ لَبَعْدِهُ وَسَمِهُ لَبَعْدِهُ.اللهَسَمِهُ بَعْدِهُ	اللهَجَعَلَةَدَعَلَةَالَسَعَلَةَدَعَلَةَالَسَعَلَةَدَعَلَةَالَسَعَلَةَدَعَلَةَالَسَعَلَةَدَعَلَةَالَسَعَلَةَدَعَلَةَالَسَعَلَةَدَحَيْرْبْدِهُ	عَزَلْفَنَهُ لَبَعْدِهُ لَبَعْدِهُ. اللهَسَمِهُ بَعْدِهُ. اللهَسَمِهُ بَعْدِهُ. اللهَسَمِهُ بَعْدِهُ. اللهَسَمِهُ بَعْدِهُ. اللهَسَمِهُ بَعْدِهُ. اللهَسَمِهُ bَعْدِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَmِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِهُ. اللهَسَمِهُ bَعْdِ�. اللهَسَمِهُ bَعْdِ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \. . \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. . \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \? \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \. \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \text{الله} . \begin{array}{l} \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \begin{array}{l} \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \begin{array}{l} \begin{array}{l} \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \text{الله} \\ \end{array} \begin{array}{l} \text{الله} \\ \text{الله} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \end{array} \begin{array}{l} \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \begin{array}{l} \begin{array}{l} \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\text{الiale}} \\ \begin{array}{l} \begin{array}{l} \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ {\text{الiale}} \\ {\text{الiale}} \\ {\begin{array}{l} \begin{array}{l} \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{الiale} \\ \text{\text{第}} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{\text{第}} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \) \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{ 第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \text{第 } \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{\text{第}}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text {第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{\text{第}}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text {第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\text{第}) \\ (\\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \end{array} \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \int \end{array} \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{\text{第}} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l}\text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} {\text{第}} \\ {\text{第}} \\ {\text{第}} \\ {\begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ {\begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \\ \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \\ \text{第} \\ \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{年第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \mid \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end}{\begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{array} \begin{array}{l} \text{第} \end{}

J 1

yj 20 j 60 J (Q) j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

jaii jaii i jaii lalol puiu uil 1 . jaii jaii aaiu jaii uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu uaiu

a

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 111 1: (A) jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j （B） （）JSLJI） 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789 (Q) aJj jI baiy oagall JIO aJb g aJg aJg aJg aJg Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jnn . 0000000000000000000000000000000000000000000000000000000000000000000000000000

jglg

(baaa)aaa(aaaa)		A
(baaa)aaa(aaaa)		B
		C
		D
		E
		F
		G
		H

“ON/STAND-BY”// // J “ON/STAND-BY”// // K

J 10 J 10 J 10 J 10 J 10 J 10 J 10

aI 1 aI 1 I 1 I 1 I 1 I 1 I 1 I 1 I 1

a a

plicu w 1j ouiy lia jy jai y jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

. 1

De'Longhi Appliances

via Seitz, 47

31100 Treviso Italia
