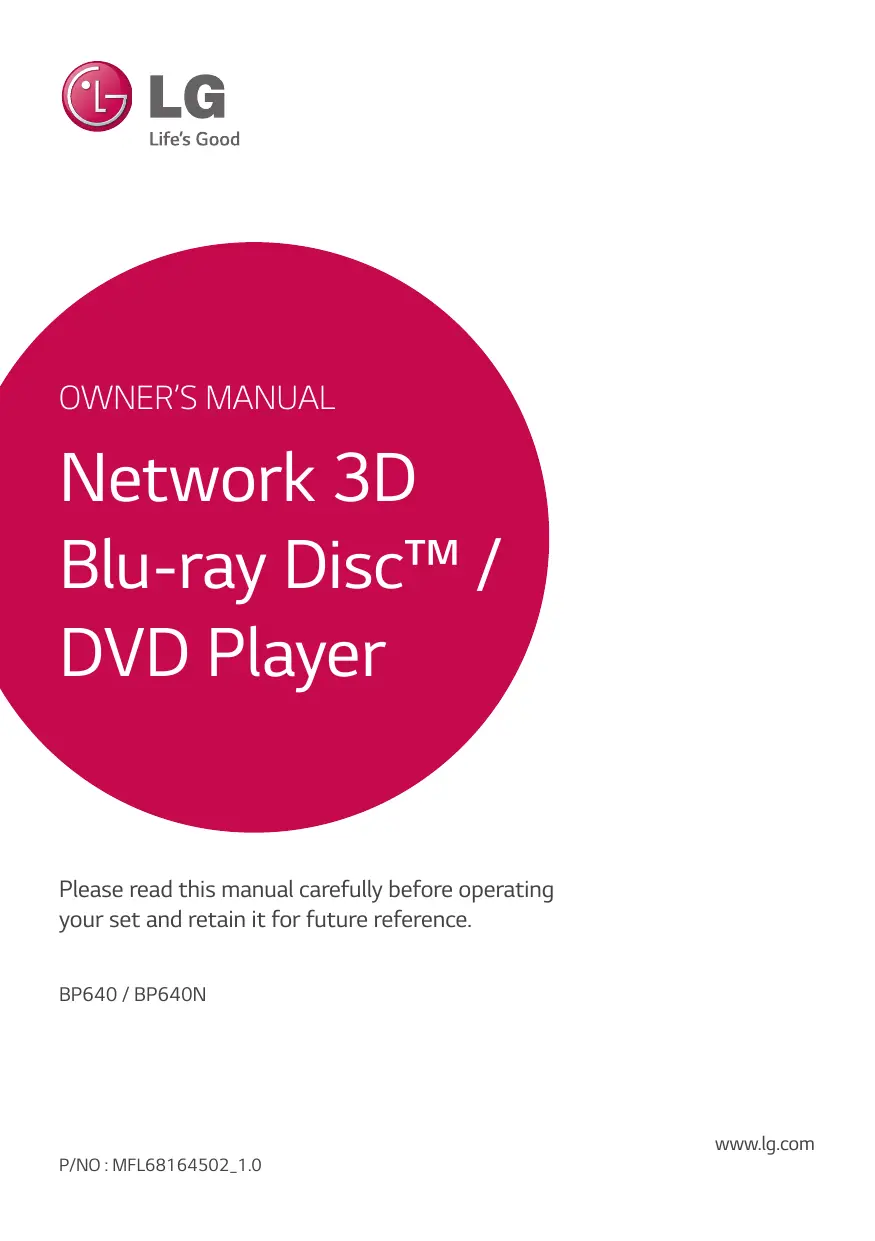

@ La Life's Good OWNER'S MANUAL Network 3D Blu-ray Disc'M / DVD Player Please read this manual carefully before operating your set and retain it for future reference. BP640 / BP640N

TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

WARNING: Do not install this equipment in à

confined space such as à book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufactures instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built- in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instruction has been adhered to Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure CAUTION concerning the Power Cord Most appliances recommend they be placed upon à dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure thatthe plug is easily accessible

Getting Started 3 This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack follow the steps in reverse order than the assembly. To prevent contamination ofthe environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. lt is recommended that you use local free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fre or the like. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquids, such as vases, shall be placed on the apparatus. Disposal of your old appliance

1. All electrical and electronic products

should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities

The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Disposal of waste batteries/accumulators

1. This symbol may be combined with

chemical symbols for mercury(Hg), cadmium(Cd) or lead{Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead. All batteries/accumulators should be pb disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of Your old

batteries/ accumulators will help to prevent potential negative consequences for the environment, animal and human health

For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product. poueys Buyoo [ER

pepes Suyeo JA 4 Getting Started For Wireless product European Union Notice LG Electronics hereby CE 01970: these product(s)is/ are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ EC, 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU. Please contact to the following address for obtaining a copy of the Doc (Declaration of Conformity) Contact office for compliance of this product: LG Electronics Inc. EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product. Indoor use only. RF Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Notes on Copyrights Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc, of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD- ROM Mark, BD+, or this product, please contact an authorized Customer Service Center. Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR, Connecting to a VCR results in a distorted picture from copy-protected discs. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only. unless otherwise authorized by Rovi Corporation! Reverse engineering or disassembly is prohibited Under the US. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

Getting Started 5 Important Notice for TV color system The color system of this player differs according to currently playing discs. For example, when the player plays the disc recorded in the NTSC color system, the image is output as an NTSC signal Only the multi system color TV can receive all signals output from the player. +_IFyou have a PAL color system TV, you will see just distorted images when using discs or video contents recorded in NTSC. The multi system color TV changes the color system automatically according to input signals In case that the color system is not changed automatically, turn it off and then on to see normal images on screen. Even ifthe disc recorded in NTSC color system are well displayed on your TV, these may not be recorded correctiy on your recorder. (À Caution + Watching a 3D content for a long period time may cause dizziness or tiredness. It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman. If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, itis strongly recommended to stop the playback and rest until you feel normal popes Sue WA

6 Table of Contents Table of Contents 1 Getting Started 2 Safety Information 8 Introduction

8 - Playable Discs and symbols used in

9 - About the "@" Symbol Display

10 Remote Control 1 Front Panel 1 Rear Panel 2 Connecting 12 Connecting to Your TV

13 - What is SIMPLINK?

13 - Resolution Setting

14 Connecting to an Amplifier

15 - Connecting to an Amplifier via HDMI

15 - Connecting to an Amplifier via Digital

Audio Output 16 Connecting to your Home Network

16 - Wired network connection

16 - Wired Network Setup

18 - Wireless network connection

18 - Wireless network setup

3 System Setting 21 Initial Setup 22 Settings

30 - Using the SmartShare

31 Playing the Linked Devices

32 - Playing a file on disc/USB device

33 - Playing a file on Android device

35 - Downloading SmartShare PC

36 - Sharing files and folders

36 - System requirements

37 - Basic operations for video and audio

37 - Basic operations for photo content

40 - To control photo view

41 Repeating a specific portion

41 - Playing from selected time

42 - Selecting a subtitle language

42 - Hearing à different audio

42. - Waïching from a different angle

42 - Changing the TV Aspect Ratio

44 - Selecting a subtitle file

45 - Listening to music during slide show

45 - Playing file encoded in 3D

Table of Contents 7 AT Enjoying Miracast” AT - Enjoying BD-Live”

54 - Customer support

54 - Open source software notice

6 Appendix 55 Controling a TV with the Supplied Remote Control 55 Setting up the remote to control your

58 Additional Information

58 - File requirement

59 - AVCHD (Advanced Video Codec High

60 - Certain system requirements

60 - Compatibility notes

69 | Important Information Relating to Network Services Some of the content in this manual may differ from your player depending on the software of the player or your service provider.

pouers Suyeo A 8 Getting Started Introduction Playable Discs and symbols used in this manual Media/Term Logo Symbol Description + Dises such as movies that can be purchased or rented >) EI + “Blu-ray 3D'discs and'Blu-ray 30 ONLY" discs. Bneraÿ Disc gl or + BD-R/RE discs that are recorded in BDAV format. u-ray 4

2. EI |: 508€ dises that contain Movie, Music or

Er music] Photo files. ou (PHoro: +150 9660+JOLIET, UDF and UDF Bridge format + Dises such as movies that can be purchased or EDVD rented Vers + Movie mode and finalized only DVD-ROM 22 V D + Supports the dual layer disc also DUDR pp Finalized AVCHD format

Getting Started 9 -@ Note + Depending on the conditions ofthe recording equipment or the CD-R/RW (or DVD+R/RW) disc itself, some CD-R/RW (or DVD+R/RW) discs cannot be played on the unit. Depending on the recording software &the finalization, some recorded discs (CD-R/RW DVD+R/RW, BD-R/RE) may not be playable. BD-R/RE, DVD+R/RW and CD-R/RW discs recorded using a personal computer or à DVD or CD Recorder may not play ifthe disc is damaged or dirty, or ifthere is dirt or condensation on the player lens. If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.) This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality Pre-recorded DVDs are automatically set to these standards, There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. You have to set the disc format option to [Masteredl] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System Disc format system for windows Vista) About the “@" Symbol Display *@° may appear on your TV display during operation and indicates that the function explained in this owners manual is not available on that specific media Regional Code This unit has a regional code printed on the rear of the unit, This unit can play only BD-ROM or DVD discs labelled same as the rear ofthe unit or'ALL' System Select Open the disc tray using the À (OPEN/CLOSE) button and then, press and hold H (PAUSE) for more than five seconds to change the color system (PAL /NTSC /AUTO). poueys Buyoo [ER

pouers Suyeo A 10 Getting Started Remote Control C1C0) 6%) WU) Ce0 Replacement of battery Remove the battery cover on the rear of the remote control, and insert a RO3 (size AAA) battery with @ and ® matched correctiy. @ (POWER): Switches the player ON or OFF. Æ (OPEN/CLOSE): Opens and closes the disc tray. 0-9 numerical buttons: Selects numbered options in a menu. CLEAR: Removes a number when setting the password or network connection. REPEAT (CD): Repeats a desired section or sequence. Æ</»»> (SCAN): Searches backward or forward. Hé@/»1 (SKIP): Goes to the next or previous chapter / track / file. M (STOP}: Stops playback > (PLAY): Starts playback. IL (PAUSE): Pauses playback HOME (@}: Displays or exits the [Home], TITLE/POPUP: Displays the DVD title menu or BD-ROMS pop-up menu, if available. INFO/MENU ([J): Displays or exits On-Screen Display. Direction buttons (A / V / <1>}:Selects an option in the menu. ENTER (©): Acknowledges menu selection BACK (9): Exits the menu or returns to the previous screen. %: This button is not available. DISC MENU: Accesses menu on à disc. Colored (R, G, Y, B) buttons: Use to navigate BD-ROM menus. They are also used as shortcut buttons for specific menus. TV Control Buttons: See page ss.

Suyoeuuos M 12 Connecting Connecting to Your TV If you have à HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI" Cable). Connect the HDMI jack on the player to the HDMI jack on à HDMI compatible TV or monitor. Set the TV5 source to HDMI (Refer to TV's Owner's manual) © Note Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections. Additional Information for HDMI + When you connect à HDMI or DVI compatible device make sure of the following = Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player. The connected devices video input is set correctly for this unit The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input. +_Not all HDCP-compatible HDMI or DVI devices wall work with this player. = The picture will not be displayed properly with non-HDCP device. -@ Note +_Ifa connected HDMI device does not accept the audio output of the player, the HDMI device audio sound may be distorted or may not output. +_ When you use HDMI connection, you can change the resolution for the HDMI output {Refer to Resolution Setting'on page 13) Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Settings] menu (see page 25) Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again: When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable. Ifthere are noises or lines on the screen, please check the HDMI cable (length is generally limited to 45 m)

Connecting 13 What is SIMPLINK? Resolution Setting Pa The player provides several output resolutions for SIMRLINK HDMI OUT jack. You can change the resolution

using [Settings] menu. Some functions of this unit are controlled by the 9 ettings] TVS remote control when this unit and LGTVS with: Press HOME (@) SIMPLINK are connected through HDMI connection. 2. Use </> to select the [Settings] and press Controllable functions by LG TV remote control; ENTER (©). The [Settings] menu appears. Play, Pause, Scan, Skip, Stop, Power Off etc. 3. Use A/ V to select [DISPLAY] option then Refer to the TV owners manual for the details of press > to move to the second level SIMPLINK function: 4. Use AJ V to select the [Resolution] option LG TV with SIMPLINK function has the logo as then press ENTER (@) to move to the third level. shown above. © \cte Depending on the disc type or playing status, some SIMPLINK operation may differ from your purpose or not work Suyouuos [AR

5. Use A/V to select the desired resolution then

press ENTER (©) to confirm your selection.

Connecting - @ Note If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows

1. Press & to open the disc tray.

2. Press I (STOP) for more than 5 seconds.

If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto]. If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution. The 1080p video output frame rate may be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference ofthe connected TV and based on the native video frame rate ofthe content on the BD-ROM disc. Connecting to an Amplifier Make one ofthe following connections, depending on the capabilities of your existing equipment + HDMI Audio connection (page 15) + Digital Audio connection (page 15) Since many factors affect the type of audio output, see ‘Audio Output Specifications’ for details (page 61). About Digital Multi-channel sound A digital multi-channel connection provides the best sound quality. For this, you need a multi- channel Audio/Video Receiver that supports one or more ofthe audio formats supported by your player. Check the logos on the front of the Audio/ Video receiver and the manual. (PCM Stereo, PCM Multi-Ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or DTS-HD)

Connecting 15 Connecting to an Amplifier via Connecting to an Amplifier via HDMI Output Digital Audio Output Connect the players HDMI OUT jack to the Connect the players OPTICAL AUDIO OUT jack to corresponding in jack on your amplifier using à the corresponding in jack on your amplifier using HDMI cable. an optional digital audio cable. Des Suyouuos [AR Optical cable Receiver/Amplifier You will need to activate the player digital output. (See“[AUDIO] Menu” on page 26) Connect the amplifier HDMI output jack to HDMI input jack on your TV using a HDMI cable if your amplifier has HDMI output jack. (Refer to amplifier owners manual) You will need to activate the players digital output. (See“[AUDIO] Menu" on page 26)

Connecting to your Home Network This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and on-line content services. Wired network connection Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference. Please refer to the documentation for your network device for further instructions. Connect the player LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable: -@ Note +_When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock. + Do not connect a modular phone cable to the LAN port Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider. If you want to access content from DLNA servers, this player must be connected to the same local area network with them via a router. To set your PC as a DLNA server install the SmartShare PC Software on your PC. (page 35) Broadband service Router

L ES Rear ofthe unit Wired Network Setup Ifthere is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the players network setting to be adjusted. Adjust the [NETWORK] setting as follow Preparation Before setting the wired network, you need to connect the broadband interet to your home network.

1. Select [Connection Setting] option in the

[Settings] menu then press ENTER (©).

2. Read the preparations for the network settings

and then press ENTER (©) while [Start] is highlighted Network will automatically be connected to the unit.

between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP. address automatically. RES °° © Note Ifthere is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using AIN I<I> and numerical buttons. you make à mistake while entering a number, press CLEAR to clear the highlighted part.

3. Select [Next] and press ENTER (©) to apply

network settings. Advanced Setting If you want to set the network settings manually, use A / V to select [Advanced Setting] on the [Network Setting] menu and press ENTER (©).

1. Use A / V to select [Wired] and press ENTER

Network connection status is displayed on the screen.

4. Press ENTER (©) while [OK] is highlighted to

finish the wired network settings. Suyseuuo WA

Suyoeuuos M 18 Connecting Wireless network connection Another connection option is to use an Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment.

Wireless Communication ( < 7K\ DLNA certified servers

Access Point or Wireless Router Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings. For best performance, a direct wired connection from this player to your home network router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be affected by other electronic devices in the home. Wireless network setup For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Settings] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network. Preparation Before setting the wireless network, you need to: - Connect the broadband internet to the wireless home network. -_ Set the access point or wireless router. - Note the SSID and security code ofthe network. Select [Connection Setting] option in the [Settings] menu then press ENTER (©).

Read the preparations for the network settings and then press ENTER (©) while [Start] is highlighted. Ifwired network is not connected to the unit, all available networks are displayed on the screen. Use A / V to select a desired SSID of wireless network and press ENTER (©).

If you have security on your access point, you need to input the security code as necessary. © Note If ou use other characters than the english alphabet or digits for the SSID name of your access point or wireless router, it may be displayed differentiy.

Connecting 19 -@ Note + WEP security mode generally have 4 keys available on an access point setting. IF your access point or wireless router use WEP security, enter the security code of the key “No.l"to connect on your home network. An Access Point is a device that allows you to connect to your home network wireless.

4. Use A/V/<J> to selectthe IP mode

between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP address automatically —@ Note Ifthere is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using À / V / <1> and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

5. Select [Next] and press ENTER (©) to apply

network settings. Network connection status is displayed on the screen

6. Select [OK] and press ENTER (©) to complete

the network connection. Advanced Setting If you want to set the network settings manually, use A / V to select [Advanced Setting] on the [Network Setting] menu and press ENTER (©).

1. Use A/ V to select [Wireless] and press ENTER

AP List] - Scans all available access points or wireless routers within range and display them as a list. [Network name (SSID)] - Your access point may not be broadcasting its network name (SSID). Check your access point settings through your computer and either set your access point to broadcast SSID, or manually enter the network name in [Network name(SSID)] [PBC] - If your access point or wireless router that supports the PBC (Push Button Configuration) method, select this option and press the Push Button on your access point within 120 counts. You do not need to know the network name (SSID) and security code of your access point. LPIN] - If your access point supports the PIN Code configuration method based on WPS(Wi- Fi Protected Setup), select this option and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point to connect. Refer to the documentation for your network device.

Follow the instructions of each connection method on the screen. © Note To use PBC and PIN network connection, security mode of your access point must be set to OPEN or AES. Suyouuos [AR

Suyoeuuos M Notes on Network Connection Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickiy power off and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again. Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP. Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment. The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. you have questions about such content, please contact the producer of the disc. Some interet contents may require a higher bandwidth connection. Even ifthe player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content. Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection. Any fees charged by an ISP including, without limitation, connection charges are your responsibility. À 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. your interet service does not allow for such à connection, you wi not be able to connect the player You must use a Router to use xDSL service. +_ ADSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP. you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected) The use of a" Router may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP For details, contact your ISP directly. The wireless network operate at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them Turn offall unused network equipment in your local home network. Some devices may generate network traffic. For the purpose of the better transmission, placing the player from the access point as close as possible. In some instances, placing the access point or wireless router at least 0.45 m above the floor may improve the reception. Move closer to the access point if possible or re- orient the player so there is nothing between it and the access point. The reception quality over wireless depends on many factors such as type of the access point, distance between the player and access point, and the location ofthe player. Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported.

System Setting 21 Initial Setup When you turn on the unit for the first time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

Press () (POWER). The initial setup wizard appears on the screen. Use A/V/</> to select a display language and press ENTER (©). Read and prepare the preparations for the network settings and then press ENTER (©) while [Start] is highlighted. Ifwired network is connected, the network connection setting will automatically be finished. All available networks are displayed on the screen. Use A / V to select [Wired Network] or desired SSID of wireless network and press ENTER (©). If you have security on your access point, you need to input the security code as necessary. Use A/ VI <J> to select the IP mode between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP address automatically. Select [Next] and press ENTER (©) to apply network settings. Network connection status is displayed on the screen. For details on network settings, refer to “Connecting to your Home Network” on page

Check all the settings that you have set in the previous steps. Press ENTER (©) while [Finish] is highlighted to finish the initial setup settings. IFthere is any settings to be changed, use A/V/</3 to select 9 and press ENTER (©). Displays private sound mode guide. Press ENTER

Suyes wests M 22 System Setting Settings Adjust the Setup Settings You can change the settings ofthe player in the [Settings] menu

3. Use A/ V to select the first setup option, and

press ENTER (©) to move to the second level.

4. Use A/ V to select a second setup option, and

press ENTER (©) to move to the third level. Use A / V to select a desired setting, and press ENTER (©) to confirm your selection. [NETWORK] Menu The [NETWORKI settings are needed to use the software update, BD-Live and on-line content services. Connection Setting If your home network environment is ready to connect the player the player needs to be setthe wired or wireless network connection for network communication. (See “Connecting to your Home Network'on page 16) Connection Status Ifyou want to check the network status on this player, select the [Connection Status] options and press ENTER (©) to check whether a connection to the network and the internet have been established BD-LIVE connection You can restrict Internet access when BD-Live functions are used. [Permitted] Internet access is permitted for all BD-Live contents. [Partially permitted] Internet access is permitted only for BD- Live contents which have content owner certificats. Internet access and AACS Online functions are prohibited for all BD-Live contents without a certificate. [Prohibited] Internet access is prohibited for all BD-Live contents.

System Setting_ 23 Smart Service Setting Network Play This function allows you to control the playback of media streamed from DLNA media server by à Select your area for displaying proper online DLNA certified smartphone. Most DLNA certified content service. smartphone has a function to control the playback media on your home network. Set this option to {On for allowing your smartphone to control this unit. Refer to instructions of your DLNA certified smartphone or the application for more detailed information. © Note +_ This unit and the DLNA Certified Smartphone must be connected to the same network. [Country Setting] [initialize] Depending on rhe region, [Initialize] function may not be available. Device Name You can make à network name using virtual keyboard. This player will be recognised by the name you are entering on your home network. Wi-Fi Direct + To use the [Network Play] function using a 3 This player is a Wi-Fi Direct" certifed device. Wi- PNA AT EAU £ Fi Direct is the technology that devices to connect nec De " ë each other without connecting to an Access point 9 3 or a router. Press ENTER (©) to display the Wi-Fi + While controlling the unit using the 8 Direct menu. Refer to page 46 for the device [Network Play] function, the remote control El connection. may not work. e Available file formats described on page 58 are not always supported on [Network Play] function.

Suyes wests M 24 System Setting [DISPLAY] Menu TV Aspect Ratio Select a TV aspect ratio option according to your TV type. [4:3 Letter Box] Select when a standard 43 TV is connected Displays theatrical images with masking bars above and below the picture. [4:3 Pan Scan] Select when a standard 43 TV is connected Displays pictures cropped to fil your TV screen Both sides of the picture are cut off. [16:9 Original] Select when a 16:9 wide TV is connected. The 43 picture is displayed with an original 43 aspect ratio, with black bars appearing at the left and right sides. [16:9 Full] Select when a 16:9 wide TV is connected. The 43 picture is adjusted horizontally (in a linear proportion) to fil the entire screen © Note You cannot select [4:3 Letter Box] and [43 Pan Scan] option when the resolution is set to higher than 720p. Resolution Sets the output resolution of the HDMI video signal Refer to page 13 for details about the resolution setting [Auto] Ithe HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. [576p] Outputs 576 lines of progressive video. [720p] Outputs 720 lines of progressive video. [1080i] Outputs 1080 lines of interlaced video. H1080p] Outputs 1080 lines of progressive video. 1080p Display Mode When the resolution is set to 1080p, select [24 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input. © Note +_ When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material. In this case, select [50 Hz] Even when [1080p Display Mode] is set to L24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

System Setting 25 HDMI Color Setting Select the type of output from the HDMI OUT jack For this setting, please refer to the manuals of your display device. [YCbCr] Select when connecting to à HDMI display device [RGB] Select when connecting to à DVI display device 3D Mode Select the type of output mode for Blu-ray 3D disc playback. (This function is activated only when 30 TVis connected) [On] Blu-ray 3D disc playback will output as 3D mode [off] Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback. Home Menu Guide This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide. [LANGUAGE] Menu Display Menu Select à language for the [Settings] menu and on- screen display. Disc Menu/Disc Audio/ Disc Subtitle Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu [Original] Refers to the original language in which the disc was recorded, [Other] Press ENTER (©) to select another language. Use number buttons then press ENTER (©) to enter the corresponding 4-digit number according to the language code list on page

[Off] (Disc Subtitle only) Turn off Subtitle © Note Depending on the disc, your language setting may not work. Suyes mests [M

Suyes wests M 26 System Setting [AUDIO] Menu Each disc has a variety of audio output options. Set the players Audio options according to the type of audio system you use. © Note Since many factors affect the type of audio output, see ‘Audio Output Specifications" on page 61 for details. Digital Output [Auto] Select if you connect this units DIGITAL AUDIO OUT and HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and DTS-HD decoder. [PCM] Select i you connect this units HDMI OUT jack to a device with digital decoder or DIGITAL AUDIO OUT jack to à device with two channel digital stereo decoder. IDTS Re-Encode] Select if you connect this units HDMI OUT or DIGITAL AUDIO OUT jack to a device with DTS decoder. © Note +_ When [Digital Output] option is set to [Auto], the audio may output as bitstream. IFthe Bitstream information is not detected from HDMI device with EDID, the audio may output as PCM +_Ifthe [Digital Output] option is set to [DTS Re-Encodel, the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [Autol). Sampling Freq. {Digital Audio Output) [48 kHz] Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz and 96 kHz signal. When this choice is made, this unit automatically converts any 192 kHz and 96 kHz signals to 48 kHz so your system can decode them. [96 kHz] Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz signals. When this choice is made, this unit automatically converts any 192 kHz signals to 96 kHz so your system can decode them. [192 kHz] Select this if your AM Receiver or Amplifier is capable of handling 192 kHz signals Check the documentation for your AW Receiver or Ampliñer to verify its capabilities. DRC (Dynamic Range Control) This function allows you to listen to à movie at a lower volume without losing clarity of sound. [Auto] The dynamic range of the Dolby TrueHD audio output is specified by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode. [On] Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output. [Off] Turns off this function. © Note The DRC setting can be changed only when à disc is not inserted or the unit is in complete stop mode.

System Setting 27 [LOCK] Menu The [LOCK] settings affect only BD-ROM and DVD playback To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created I you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (©) to create a new password. Password You can create or change the password [None] Enter a 4-digit password twice, and press ENTER (©) to create a new password. [Change] Enterthe current password and press ENTER (©). Enter a 4-digit password twice, and press ENTER (©) to create a new password. If you forget your password If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Highlight [Password] option in the [Settings]

The password is cleared © \cte Iyou make a mistake before pressing ENTER (©), press CLEAR. Then input the correct password DVD Rating Blocks playback of rated DVD based on their content. (Not all discs are rated.) [Rating 1-8] Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock] If you select [Unlock], parental control is not active and the disc plays in full Blu-ray Disc Rating Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing, 1255] All BD-ROM can be played. [0-254] Prohibits play of BD-ROM with corresponding ratings recorded on them. © Note The [Blu-ray Disc Rating] will be applied only for the Blu-ray disc that containing the Advanced Rating Control Area Code Enter the code ofthe area whose standards were used to rate the DVD video disc, based on the list on page 63 Suyes mests [M

Suyes wests M 28 System Setting [OTHERS] Menu DivX° VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified” device that has passed rigorous testing to verif/ that it plays DivX video. Visit divxcom for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod divxcom for more information on how to complete your registration. [Register] Displays the registration code of your player. [Deregister] Deactivate your player and display the deactivation code. © Note Allthe downloaded videos from DivX(R) VOD with this players registration code can only be played on this unit Quick Start This player can stay in standby mode with low power consumption, so that the player can instantly boot without delay when you turn on this unit. Set this option to [On] for activating [Quick Start] function. © Note +_l(Quick Start] option is set to [On] and an AC power is accidentiy re-connected to the player by power failure etc, the player automatically boots itself to be the standby status. Before operating the player, wait for a while untilthe player is in standby status. When [Quick Star] is set to [On], power consumption will be higher than when [Quick Start] is set to [Off]. Auto Power Off The screen saver appears when you leave the player in Stop mode for about 5 minutes. I you set this option to [On], the unit automatically turns off within 15 minutes since the Screen Saver is displayed. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

System Setting Initialize [Factory Set] You can reset the player to its original factory settings. [Blu-ray Storage Clear] Initializes the BD-Live contents from the connected USB storage. © \ote Ifyou reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again: Software [information] Displays the current software version [Update] You can update the software by connecting the unit directly to the software update server (see page 56) Daylight Saving Time When you use the BBC App, this function sets the time ahead one hour for daylight saving time (GMT+1). [On] Sets the time ahead one hour. [off] Turns off this function.

Suyesodo EN 30 Operating Home Menu Display Using [HOME] menu The home menu appears when you press HOME (@). Use A/ V 1<J > to select a category and press ENTER (©). © Note Depending on the region, the [LG Smart World], [My Apps], [@] and [R] may not be available. ET ISmartShare]- Displays SmartShare menu IPremium] - Displays the Premium home screen. (page 49) ILG Smart World] - Displays LG Apps titles provided to the unit. (page 49) IMy Apps] - Displays the [My Apps] screen. (page 51) [Settings] - Adjusts the system settings. gi Ses Por desied LG Apps and other content. LA] - Displays login menu Using the SmartShare You can play video, photo and audio content on the unit by inserting a disc, connecting an USB device and Android device (MTP) or using home network (DLNA). Press HOME (@) to display the home menu Select [SmartShare] and press ENTER (©) CL]

Displays all linked devices. Displays video, photo or audio content. ETES Displays the file or folder on linked device.

laying the Linked evices aying a Disc E DD ET

8 w Press & (OPEN/CLOSE) and place a disc on the disc tray. Press & (OPEN/CLOSE) to close the disc tray, For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically. Press HOME ({@) and then select [SmartShare] Select disc icon: © \cte Playback functions described in this manual are not always available in every files and media. Some functions can be restricted depending on many factors Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback. Unfinalized DVD-VR format discs may not be played in this player. Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs Playing Blu-ray 3D disc This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes Preparation In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to: + Check your TVis 3D capable and has HDMI input(s). + Wear 3D glasses to enjoy the 3D experience ifit is necessary. + Check whether the BD-ROM title is the Blu- ray 3D disc or not + Connect an HDMI cable (Type A, High Speed HDMI" Cable) between the players HDMI output and TV HDMI input.

1. Press HOME (@), and set the [3D Mode] option

on the [Settings] menu to [On] (page 25).

2. Press & (OPEN/CLOSE), and place a disc on the

3. Press & (OPEN/CLOSE) to close the disc traÿ.

The playback starts automatically.

4. Refer to the owners manual of your 3D-ready

TV for the further instruction You may need to adjust the display settings and focus on your TV setting for the improved 3D effect. (N Caution + Wätching a 3D content for a long period time may cause dizziness or tiredness. It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman. If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, itis strongly recommended to stop the playback and rest until you feel normal Suyeedo DR

Suyesedo EN 32 Operating Playing a file on disc/USB device

[MOVIE [MUSIC [PHOTO

This player can play video, audio and photo files contained in the disc or USB device.

When you connect the USB device on the HOME menu, the player plays an audio file contained in the USB storage device automatically. Ifthe USB storage device is containing various types of files, a menu for the file type selection will appear. File loading may take few minutes depending on the number of content stored in the USB storage device. Press ENTER (©) while [Cancel] is selected to stop loading.

Gsm" e Select the desired linked device in the category. Select [Movie], [Photo] or [Music] Select a file using A / V /</>, and press D» (PLAY) or ENTER (©) to play the file. ous Notes on USB device This player supports USB flash drive/external HDD formatted in FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-Live, use the USB flash drive / external HDD formatted in FAT32. This unit can support up to 4 partitions ofthe USB device. +_ Do not extract the USB device during operation (play, etc). An USB device which requires additional program installation when you have connected itto a computer, is not supported USB device: USB device that supports USB1.1 and USB2.0. Video, audio and photo files can be played. For details of playing each file type, refer to the relevant pages. Regular back up is recommended to prevent data loss. If you use an USB extension cable, USB HUB or USB Mult-reader, the USB device may not be recognized Some USB device may not work with this unit. Some digital cameras and mobile phones are not supported. USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Operating 33 Playing a file on Android device

This player can play video, audio and photo files contained in Android device.

1. Connect Androïd device to the unit with USB

cable. Press HOME (@). Select [MTP] and press ENTER (©). “EOEE file loading may take few minutes depending on the number of content stored in Android device.

4. Select [Movie], [Photol or [Music]

Ge sors" © we D « CREER = ps Fe

Select a file using A/V/</3,and press > (PLAY) or ENTER (©) to play the file. Ge sou" e Notes on Connecting Android device This unit can support only MTP (Media Transfer Protocol) Androïd device Do not extract Android device during operation (play, etc). Video, audio and photo files can be played. For details of operations on each file, refer to relevant pages. Regular back up is recommended to prevent data loss. Ifyou use an USB extension cable, USB HUB or USB Mult-reader, Androïd device may not be recognized Some Android device may not work with this unit When you use MTP playing some music, photo, movie, or subtitle files may not work depending on Android device. Suyeedo N

Suyesodo EN 34 Operating Playing a file on a network server

[MOVIE [MUSIC [PHOTO

This player can play video, audio and photo files located in a DLNA server through your home network. Check the network connection and settings (page 16). Press HOME (@) Select [SmartSharel and press ENTER (©) w N Ge smrsue”" e -@ Note +_ The file requirements are described on page

The thumbnail ofthe unplayable files can be displayed, but those cannot be played on this player. The subtitle file name and video file name have to be the same and located at the same folder. The playback and operating quality may be affected by your home network condition. You may experience connection problems depending on your server environment. To set your PC as a DLNA server, install the SmartShare PC Software on your PC. (page 35)

Select a DLNA media server in the category. Select [Movie], [Photo] or [Music] Select a file using A / V /</>, and press D» (PLAY) or ENTER (©) to play the file.

Operating 35 Using Home Network Server for PC DLNA standés for Digital Living Network Alliance, which allows users to access video, photo and audio files stored in server and enjoy them on TV via home networking, Before connecting to PC to play a file, SmartShare PC Software (DLNA) should be installed on your PC About SmartShare PC Software (DLNA) SmartShare PC Software (DLNA) is for sharing video, audio and photo files stored on your computer to this unit as a DLNA-compatible digital media server. Downloading SmartShare PC Software (DLNA)

1. Start up your computer, visit http/Awwla.com

Ifnecessary, select your region:

2. Click support tab.

Fill your model name on the cover of owners manual in search bar.

4. Find and download the"SmartShare PC

Software (DLNAJ file: Installing SmartShare PC Software (DLNA)

1. Before installation, close all running programs

including firewall and Anti-Virus programs.

2. Unzip and double-click"Setup.exe"to install

SmartShare PC Software (DLNA). The installation is prepared and the installation wizard appears. Follow the directions of the installation wizard displayed on the screen

4. Click the [Exit] button to complete the

installation. © Note + SmartShare PC Software is not supported with Mac OS, The SmartShare PC Software (DLNA) is a customized software edition only for sharing files and folders to this player. This manual explains operations with the English version of SmartShare PC Software (DNA) as examples. Follow the explanation referring to the actual operations of your language version: Suyeiedo [IN

Suyesedo EN 36 Operating Sharing files and folders On your computer, you must share the folder containing video, audio and/or photo content to play them on this player. This part explains the procedure for selecting the shared folders on your computer.

1. Double-click the*SmartShare”icon.

2. Click [Movie], [Photo] or [Music] icon on the

center, and then click [Settings] on the top right corner of the SmartShare PC Software. The [Settings] menu appears on the screen.

3. Click [My Shared Contents] tab, and then click

Cè icon. The [Add/Remove Shared Folders] menu appears on the screen.

4. Click the folder containing the files you want

to share and then click the [OK]. The checked folder is added to the [My Shared Contents] and then click the [OK] at the bottom ofthe [Settings] menu.

5. Make sure that the SmartShare (DLNA) service

Operating 37 General Playback Basic operations for video and audio content To stop playback Press I (STOP) during playback To pause playback Press I (PAUSE) during playback Press D (PLAY) to resume playback To play frame-by-frame (Video) Press I (PAUSE) during video playback Press I (PAUSE) repeatedy to play Frame-by-Frame playback To scan forward or backward Press 4 or Bb to play fast forward or fast reverse during playback You can change the various playback speeds by pressing 44 or Be repeatediy To slow down the playing speed (Video) While the playbackis paused, press > repeatedly to play various speeds of slow motion. To skip to the next/previous chapter/track/file During playback, press 4 or BB to go to the next chapter/track/file or to return to the beginning ofthe current chapter/trackfle. Press Hé twice briefly to step back to the previous chapter/track/file. In the file list menu of a server, there may have many types of content in a folder together. In this case, press Hd or BB to go to the previous or next content with same type. Basic operations for photo content To play a slide show Press & (PLAY) to start slide show. To stop a slide show Press M (STOP) while slide show. To pause a slide show Press I (PAUSE) while slide show. Press & (PLAY) to re-start the slide show. To skip to the next/previous photo While viewing a photo in full screen, press < or > to go to the previous or next photo. Using the disc menu BD LDvo FACHD| To display the disc menu Suyeedo N The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu during playback, press DISC MENU. Use A / V /</J> buttons to navigate through menu items. To display the Pop-up menu Some BD-ROM dises contain Pop-up menu that appears during playback. Press TITLE/POPUP during playback, and use À / V1 </> buttons to navigate through menu items.

Suyesodo EN 38 Operating Resume playback [BD Eovo [avcHD [MOVIE LAC | [MUSIC] The unit records the point where you pressed the M (STOP) depending on the disc. IH (Resume Stop} appears on the screen briefly, press à (PLAY) to resume playback (from the scene point). Ifyou press I (STOP) twice or unload the disc, “ÆComplete Stopl' appears on the screen. The unit will clear the stopped point. © Note +_ The resume point may be cleared when a button is pressed (for example; (1) (POWER), # (OPEN/CLOSE), etc). +_ On BD-ROM discs with BD-J, the resume playback function does not work. +_Ifyou press M (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode. Last Scene Memory This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. IF you load a disc that has the scene memorized, the scene is automatically recalled. © Note +_ Last Scene Memory function for a previous disc is erased once a different disc is played: +_ This function may not work depending on the disc. + On BD-ROM discs with BD-J, the last scene memory function does not work +_ This unit does not memorize settings of à disc if you switch off the unit before commencing to play it.

2. Select an [Option] using </>, and press

ENTER (©). Title 9 "5 LE] G5Œ Title - Current title number/total number of titles Chapter - Current chapter number/total number of chapters E| © EE Time — Elapsed playing time/total playback time Audio - Selected audio language or channel Subtitle - Selected subtitle. Angle - Selected angle/total number of angles TV Aspect Ratio - Selected TV aspect ratio EN) GGS Picture Mode - Selected picture mode Suyeedo N

Suyesodo EN 40 Operating © Note +_ Ifno button is pressed for a few seconds, the on-screen display disappears. + Atitle number cannot be selected on some discs. +_ Available items may differ depending on discs or titles. +_ fan interactive Blu-ray Disc is playing back some setting information is displayed on the screen but prohibited to be changed! To control photo view Controis playback and sets options while viewing pictures in full screen You can control playback and set options while viewing pictures in full screen: While viewing pictures, press INFO/MENU ([J) [Slideshow] - Starts or pause slide show. Ci] [Music] - Select the background music for the: slide show IOption]- Displays slide show options [Rotate] - Rotates the photo clockwise. IZoom] - Displeys the [Zoom] menu Setting the slide show option You can use various options during viewing à photo in full screen:

1. While viewing pictures, press INFO/MENU (C9).

2. Select an [Option] using </>, and press

ENTER (©). Option Speed Normal D | Eu B EX fSpeed]- Use </> to select a delaying speed between photos in a slide show. [Effect] - Use </> to select a transition effect between photos in a slide show. [Music Select] - Select the background music for the slide show (page 45).

Operating 41 Advanced Playback Repeat playback [eo Eovo FavcHp[ acD [usic} [MOVIE Blu-ray Disc / DVD / Video files During playback, press REPEAT (C9) to select a desired repeat mode. A-B - Selected portion will be repeated continually. Chapter — The current chapter will be played back repeatedly. Title — The current title will be played back repeatedly. Al Allthe titles or files will be played back repeatedly. Off Returns to normal playback To return to normal playback, press CLEAR Audio CDs/Audio files During playback, press REPEAT (CD) repeatedly to select a desired repeat mode - Selected portion will be repeated continually. (Audio CD only) GTrack- The current track or file will be played back repeatedly. GAIL- Allthe tracks or files will be played back repeated. @ÿ X AIL- Allthe tracks or files will be played back repeatedly in random order. ZX -The tracks or files will be played back in random order. To return to normal playback, press CLEAR © \cte This function may not work on some disc or title. Repeating a specific portion en Lovo [AvCHD AcD [MOVIE | This player can repeat a portion you have selected

1. During playback, press REPEAT (C9).

2. Select [A-8], and press ENTER (©).

Press ENTER (©) at the beginning of the portion you wish to repeat.

4. Press ENTER (©) at the end of the portion. Your

selected portion will be repeated continually

5. To retum to normal playback, press CLEAR

© Note +_ You cannot select a portion less than 3 seconds +_ This function may not work on some disc or title. Playing from selected time

2. Select an [Option] using </>, and press

3. Select the [Time] option and then input the

required start time in hours, minutes, and seconds from left to right. {You can also input the required start time with the virtual keyboard by pressing ENTER (©) For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter*21020" Press </ > to skip the playback 60 seconds forward or backward

4. Press ENTER (©) to start playback from selected

time. © Note +_ This function may not work on some disc or titles. +_ This function may not work depending on the file type and ability ofthe DLNA server. Suyeedo N

Suyesodo EN 42 Operating Selecting a subtitle language

[BD LDVD LAVCHD [MOVIE |

During playback, press INFO/MENU (C3). Select an [Option] using </>, and press ENTER (©). Use AJ V to select the [Subtitle] option Use </ > to select desired subtile language. D = 8 w By pressing ENTER (©), you can set various subtitle options. Press BACK (9) to exit the On-Screen display. © Note Some discs allow you to change subtitle selections only via the disc menu. this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu. Hearing a different audio

[BD LDVD LAVCHD [MOVIE |

1. During playback, press INFO/MENU (C9).

2. Select an [Option] using </>, and press

3. Use A7 V to select the [Audio] option.

4. Use </> to select desired audio language,

audio track or audio channel

5. Press BACK (9) to exit the On-Screen display.

© Note + Some discs allow you to change audio selections only via the disc menu. In this case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu + immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound + On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display. Watching from a different angle Ifthe disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback

1. During playback, press INFO/MENU (C9).

2. Select an [Option] using </>, and press

4. Use </> to select desired angle.

5. Press BACK (9) to exit the On-Screen display.

Changing the TV Aspect Ratio

You can change the TV aspect ratio setting during playback During playback, press INFO/MENU (Cd). Select an [Option] using </ >, and press ENTER (©) Use AJ V to select the [TV Aspect Ratio] option. D =

Use < / > to select desired option Press BACK (9) to exit the On-Screen display. © Note Even if you change the value ofthe [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Settings] menu is not changed

Operating 43 Changing subtitle Code Page Changing the Picture Mode [MOVIE BD LDvD J'AVCHD [MOVIE] Ifthe subtitie is displayed in broken letter, you can You can change the [Picture mode] option during change the subtitle code page to view the subtitle playback file properly. 1. During playback, press INFO/MENU (Cd).

menu ‘The file information appears on the screen. During video playback, you can display the file information by pressing TITLE/POPUP. © Note ‘The information displayed on the screen may not correct comparing actual content information Changing content list view

On the [SmartShare] menu, you can change the content list view. Press red (R) colored button repeatedly. Selecting a subtitle file [MOVIE Ifthe subtitl file name is different from the video file name, you need to select the subtile file on the [Movie] menu before playing the movie

1. Use A/V/<J> to select the subtitle file you

wish to play in the [Movie] menu

smart Press ENTER (©) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the video file: © Note +_Fyou press I (STOP) during playback, the subtitle selection is cancelled +_ This function is not available for playing file on a server via home network

Operating 45 Listening to music during slide show You can display photo files while listening to audio files.

1. While viewing a photo in full screen, press INFO/

3. Use A7 V to select [Music Select] option, and

Available device may differ depending on the location of the current photo fil. Photo location Available Device Disc, USB Disc, USB MTP MTP DLNA server DLNA server

5. Use A7 V to select a file or a folder you wish to

play. nd press ENTER (©) to display the upper directory. © \cte When selecting audio file from a server, folder selection is not available. Only file selection is available.

6. Use > to select [OK], and pres:

complete music selection ER (©) to Playing file encoded in 3D [MOVIE This function allows you to play 3D content in case offile encoded in 3D.

2. Select [3D] using </ >, and press ENTER (©)

3. Select suitable mode (side by side, top and

bottom) which is same way as file encoded in 3D byusing A/V/</> © Note Ithe subtitle is displayed abnormally, set the TVS 3D option to off and the units 3D option to on. Suyeedo N

Suyesedo EN 46 Operating Advanced Features Wi-Fi Direct" Connecting to a Wi-Fi Direct" certified device

[MOVIE [MUSIC [PHOTO

This player can play movie, music and photo files located in a Wi-Fi Direct” certified device. The Wi-Fi Direct” technology make the player to be directely connected to a Wi-Fi Direct" certified device without connecting to à network device such as an access point On Wi-

1. Turn on the Wi-Fi Direct" certified device and

run its Wi-Fi Direct function irect” certified device

2. Run DLNA application on the device.

3. Select [NETWORK] option in the [Settings]

5. Select a Wi-Fi Direct" device on the list using

AI V and press ENTER (©). Wi-Fi Direct” connection will be proceeded: follow the procedure on the screen: If you want to rescan available Wi-Fi Direct" device, Select the [Refresh List] and press ENTER

To select a server from the device list, files or folders must be shared by DLNA server from the connected Wi-Fi Direct" device.

ENTER (©) to play the file. -@ Note For the purpose of the better transmission, placing the player from the Wi-Fi Direct” certified server as close as possible. This unit can connect only 1 device at a time. Multiple connection is not available. If you try to connect wireless network while a device is connected by Wi-Fi Direct" function, Wi-Fi Direct” connection will be force disconnected. Ithis player and a Wi-Fi Direct" device are connected to the different local area network, Wi-Fi Direct" connection may not available Ia Wi-Fi Direct” certified device is not in WiFi direct standby mode, this product can not find the device. +_ When you connect a Wi-Fi Direct" certfied device to your player, PIN network connection is not supported. This player cannot connect to a Wi-Fi direct” device which is in Group Ouner mode.

Operating 47 Enjoying BD-Live'" BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers Enjoying Miracast'" You can mirror Miracast certified devices screen and sound onto TV screen through your player wirelessly. On Miracast” certified device

1. Tum on the Miracast certified device and run its

[Miracast] function. On your player

and press ENTER (©) Miracast function will be proceeded automatically. If you want to rescan available Miracast device, select [Refresh List] and press ENTER (©) —@ Note + For the purpose ofthe better mirroring, place Miracast certified device from the player as close as possible This unit can connect only 1 device at a time. Multiple connection is not available. While mirroring, Wireless network or Wi-Fi Direct cannot be used simultaneously. Ifa Miracast certified device is not in [Miracast] standby mode, this player cannot find the device. Depending on your wireless network condition, mirroring may be unstable. While mirroring, the screen may be cut off depending on your TV setting. In this case, please adjust the display settings on your TV. by connecting this unit to the internet

Check the network connection and settings (page 16) Insert an USB storage device to the USB port on the front panel An USB storage device is needed to download bonus content. Press HOME (@), and set the [BD-LIVE connection] option on the [Settings] menu (page 22) Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted] Insert a BD-ROM with BD-Live. The operations may differ depending on the disc. Refer to the manual supplied with the disc. Suyeedo N

Suyesedo EN 48 Operating - (D Caution Do not extract the connected USB device while content is being downloaded or à Blu- ray disc is still in the disc tray. Doing so may damage the connected USB device and BD- Live features may not operate properly with the damaged USB device anymore. the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player -@ Note + Some BD-Live content may be restrictively accessed in some territories by content provider's own decision. +_lt may take up to several minutes to load and start enjoying BD-Live content. +_ For BD-Live, use the USB flash drive / external HDD formatted in FAT32 only. LG AV Remote You can control this player with your iPhone or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit “Apple iTunes'or"Google Android Market (Google Play Store)” for detailed information of"LG AV Remote”. Private Sound Mode By downloading”LG AV Remote" application on your smart phone or tablet, you can connect your headsets, and enjoy the sound from your player on your smart devices. This feature transmits video signal to TV through HDMI and Audio signal to smart phone or tablet through Wi-Fi. For more detailed information, please refer to“LG AV Remote" application.

Operating 49 Using the Premium You can use various content services via Internet with the Premium feature.

1. Check the network connection and settings

and press ENTER (©). —@ Note +_ For detailed information of each service, contact to the content provider or visit support link ofthe service. The content of Premium services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up- to-date information. Using Premium features with wireless network connection may result in improper streaming speed by interference from household devices that are using radio frequencies. For the first time to access [Premium] or {LG Smart World] feature, current country setting appears. If you want to change the country setting, go to [Settings] > [INETWORK] > [Smart Service Setting] > [Country Setting]. Select [Manual] and press ENTER (©) on [Country Setting] menu. Using the LG Smart World You can use the LG application services on this player via Internet. You can easily find and download various applications from LG Smart World.

1. Check the network connection and settings

5. Use A/V/<J> to select an application, and

press ENTER (©) to display the information.

6. Press ENTER (©) while [Install] icon is

highlighted. The application will be installed to the player. To install an application to the player, user needs to sign in. Refer to page 50 for more information of signning in. Press yellow (Y) colored button to display the [My Apps] screen.

8. Select the installed application and press ENTER

(©) to excute it. © Note + Depending on the region, the [LG Smart World], [My Apps], [A] and [&] may not be available. + Toinstall a paid application, you need to be à paid member. Visit wwvigappstu.com for more information. Suyesedo

Suyesedo EN 50 Operating Signing in To use the [LG Smart World] feature, you need to sign in with your account.

1. On the [LG Smart World] or [My Apps] screen,

press red (R) colored button:

2. Fillthe [ID] and [Password] field using the virtual

keyboard If you do not have an account, press red (R) colored button to register.

3. Use A/V/</> to select [OK] and press

ENTER (©) to sign in with your account. If you select the [Auto Sign In] check box, your ID and password are remembered and automatically signed in without entering them. © Note +_fyou want to sign in with other account, press red (R) colored button on [LG Smart World] or [My Apps] screen, and select [Change User] option. + To view the information of your account and applications, press red (R) colored button on {LG Smart World] or [My Apps] screen, and select [Account Setting] option. Searching online content If you are having difficulties finding specific content from online services, you can use the allin-one search function by entering keywordé in the search menu.

2. Select the [@] icon on the home menu using

AIVI<I>, and press ENTER (@) The search menu appears on the screen with virtual keyboard

3. Use A/V/</> to select letters then press

ENTER (©) to confirm your selection on the virtual keyboard

and press ENTER (©) to move to the selected content directly. © Note +_Depending on the region, the [LG Smart World], [My Appsl, [a] and [&] may not be available. +_ The search function does not search content in every online services. lt works only in certain online services

Operating 51 Using the My Apps Menu You can move or delete an installed application in the [My Apps] menu.

1. Select an application, and press green (G)

3. Use A/V/</> to select a position you want

0 move to, and press ENTER (©). Delete an application

1. Select an application, and press green (G)

colored button to display the options.

2. Use A /V to select [Delete], and press ENTER

to confirm. C1] Note Depending on the region, the [LG Smart World], [My Apps], [@] and [&] may not be available. Suyesedo

Suyooussianou, MA 52 Troubleshooting Troubleshooting General Symptom Cause & Solution The Power does not turned on. +_ Plug the power cord into the wall outlet securely. The unit does not start playback Insert a playable disc. (Check the disc type, color system, and regional code) Place the disc with the playback side down Place the disc on the disc tray correctiy inside the guide. Clean the disc. Cancel the Rating function or change the rating level The connected USB storage device is not recognized. Try using different USB cable, some USB cables may not support enough current for normal USB operation If you use an USB extension cable or USB HUB, the USB devices may not be recognized. An USB device which requires additional program installation when you have connected it to a computer is not supported. This unit supports only USB Flash Drive and USB External HDD with FAT32 or NTFS format. The angle cannot be changed Multi-angles are not recorded on the DVD Video being played! Cannot play movie, photo or music files. The files are not recorded in a format that the unit can play. The unit does not support the codec ofthe movie file The remote control does not work propery. The remote control is not pointed at the remote sensor of the unit The remote control is too far from the unit. There is an obstacle in the path of the remote control and the unit. The batteries in the remote control are exhausted. The unit is plugged in, but the power will not turn on or off. The unit is not operating normally. You can reset the unit as follows. + Unplug the powrer cord, wait at least five seconds, and then plug it in again

Troubleshooting 53 Network Symptom Cause & Solution BD-Live feature does not work. +_ The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space Ensure that the unit is correctly connected to the local area network and can access the internet (page 16) Your broadband speed may not fast enough to use the BD-Live features, Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. The [BD-LIVE connection] option in the [Settings] menu is set to [Prohibited]. Set the option to [Permitted]. Streaming video services (such as YouTube" etc) are often stopped or‘buffer" during playback + Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. Media servers are not displayed on the device list. +_The firewall or antivirus software on your media server is running, Turn off the firewall or antivirus software running on your media server. The player is not connected to the local area network that your media server is connected Cannot connect the player to the access point or wireless LAN router. +_ The wireless communication may be interrupted from household devices that are using radio frequencies. Move the player away from them Access point is not displayed on the "Access point name‘ ist. + The access point or wireless LAN router may not broadcast its SSID. Set your access point to broadcast its SSID through your computer. Your network device such as access point may not set with available frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting, Suyoousajanou], WAR

Suyooussianou, MA 54 Troubleshooting Picture Symptom Cause & Solution There is no picture. + Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. Connect the video connection securelÿ. Check the [HDMI Color Setting] in the [Settings] menu is set to the appropriate item that conforms to your video connection. Your TV may not support the resolution you have set on the player. Change the resolution that your TV accepts. The players HDMI OUT jack is connected to a DVI device that does not support copyright protection. Picture noise appears. You are playing a disc recorded in a color system that is different from your TV. Setthe resolution which your TV accepts. Blu-ray 3D disc playback does not output 3D views. + Connect the player to your TV with HDMI cable (Type À, High Speed HDMI“ Cable) Your TV may not support "HDMI 3D mandatory format! The [3D Mode] option in the [Settings] menu is set to [Off]. Set the option to [On] Customer support You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http//wwwlg.com or contact LG Electronics customer care center. Open source software notice To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http//opensource lge.com. Al referred license terms, warranty disclaimers and copyright notices are available to download with the source code

Controlling a TV with the Supplied Remote Control You can control your TV using the buttons below. By pressing You can O(TVPOWER) | Turn the TV on or off. Switch the TVS input source INPUT between the TV and other input sources. VOL +/- Adjust the volume ofthe TV —@ Note Depending on the unit being connected, you may not be able to control your TV using some ofthe buttons. Setting up the remote to control your TV You can operate your TV with the supplied remote control If your TVis listed in the table below, set the appropriate manufacturer code

1. While holding down © (TV POWER) button,

and press the manufacturer code for your TV with the numerical buttons (see the table below) Manufacturer Code Number LG 1(Default), 2 Zenith 1,3,4 GoldStar 12 Samsung 67 Sony 8,9 Hitachi 4

2. Release the () (TV POWER) button to complete

setting. Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries ofthe remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

xpueddy 56 Appendix Network Software Update Network update notification From time to time, performance improvements and/or additional features or services may be made available to units that are connected to à broadband home network. IFthere is new software available and the unit is connected to a broadband home network the player will inform you about the update as follows. Option 1:

1. The update menu will appear on the screen

when you turn on the player.

2. Use </> to select a desired option and then

press ENTER (©). IOK] Starts the software update. Cancel] Exits the update menu and the home menu appears. Option 2: Ifthe software update is available from the update server, the“ Update” icon appears in the Home menu. Press blue (8) colored button to start the update procedure. Software update You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by. connecting the unit directly to the software update server © Note + Before updating the software in your player, remove any disc and USB Device from the player. Before updating the software in your player, tu the player off and then turn it back on. During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button. If you cancel the update, tum off the power and turn it on for stable performance This unit cannot be updated to previous software version.

1. Checkthe network connection and settings

The player will check for the newest update. © Note +_ Pressing ENTER (©) while checking for the update will end the process +_ Ifthere is no update available, the Message, “No update is found! appears. Press ENTER (©) to return to the [Home Menu]

update was found The update takes a few minutes. Do you want to update?" appears.

5. Select [OK] to start update. (Selecting [Cancel]

will end the update)

6. The player starts downloading the newest

update from the server (Downloading wi takes several minutes depending on your home network condition.)

7. To update software the next time, the software

update procedure has to be started from the beginning again. — (D Caution Do not turn off the power during the software update. —@ Note Ifthe software includes the driver update, disc tray may open during the process.

8. When update is completed, the power will be

turned off automatically in a few seconds.

9. Turn the power back on. The system now

operates with the new version. —@ Note The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to "Customer Support’ on page

xpueddy 58 Appendix Additional Information File requirement Video files File File Audio . Location Extension ESRRONES Format SD DIVX 3.11, DIVX4, Dolby | SubRip (srt/ het), SAMI (smi), DIVXS. DIVX6 (standard | Digital, | SubStation Alpha (ssa/.bxt), es “asfi "wmv "ma" playback only) DIS, MicroDVD (sub/.txt), VobSub usg | (PAM fee) vob!"3gpt | XVID, MPEGI S5,H264/ | MP3, | (sub), SubViewer 1.0 (sub), “mov “tp mat MPEG-4 AVC, MPEG2 | WMA, | SubViewer 2.0 (sub/bet), “mpe’miv!mav’ PS, MPEG2TS, VC-1 SM | AAC, | TMPlayer (pet), DVD Subtitle “mm "Avi "ts "dat (WMV3) AC3 System (Det) DIVX 3.11, DIVX4, Dolby | SubRip (srt/ pet), SAMI “mpeg "mkv "mp4 | DIVXS. DIVX6 (standard | Digital | (smi), SubStation Alpha “asfi "wmv! tmav" playback only) DIS, ssa/.bct), MicroDVD (sub DLNA | (DRM free), “3gp' XVID, MPEGI SS,H264/ | MP3, | txt), SubViewer 1.0 (sub), “miv | MPEG-4 AVC MPEG2 | WMA, | Subiewer 20 (sub/txt), “avi “Av! "ts" "dat PS, MPEG2TS, VC-1 SM | AAC, | TMPlayer (pet), DVD Subtitle (WMV3) AC3 System (Det) Audio files File File : ï leon Bern Sampling Frequency Bitrate Note “mp3iwma’ | within 32 - 48 kHz within 32-192 kbps | Some wav iles are Ge “wav'“méa | (WMA) within 16-48 | (WMA), within 32-320 | not supported on à (DRM free), | kHz (MP3) kbps (MP3) this player. usB naeoer flac!"0gg “ait “mp3lwme’ | within 32 - 48 kHz within 32-192 kbps | Some wavfiles are pina [eviimé | (WMA within 16-48 | (WMA) within 32-320 | not supported on (DRM free), | kHz (MP3) kbps (MP3) this player. “flac!"0gg" Photo files File File Recommended _ Location Extension Size Disc, Less than 4,000 x 3,000 x 24 bit/pixel | Progressive and lossless USB, Less than 3,000 x 3,000 x 32 bit/pixel | compression photo image files DLNA are not supported

-@ Note + The file name is limited to 180 characters. + Maximum files/Folder: Less than 2000 (total number offiles and folders) Depending on the size and number ofthe files, it may take several minutes to read the content on the media. File compatibility may differ depending on the server. Because the compatibility on DLNA server are tested on the DLNA server (SmartShare PC Software) environment, file requirements and playback functions may differ depending on media servers. The file requirements on page 58 are not always compatible. There may have some restrictions by ile features and media servers ability. Playing video subtitle files are only. available on DLNA media server created by SmartShare PC Software downloaded from website. The files from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly. The total playback time of audio file indicated on the screen may not correct for VBR files. HD video files contained on the CD/DVD or USB 1.0/1.1 may not played properly. Blu-ray Disc or USB 2.0 are recommended to play back HD video files. ‘This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. A file with higher level may not be supported This player does not support files that are recorded with GMC*! or Qpel”? “1. GMC - Global Motion Compensation *2 Qpel - Quarter pixel -@ Note +_A‘avi"file which is encoded"WMV 9 codec" is not supported. This player supports UTF-8 files even it contains Unicode subtitle content. This player can not support the pure Unicode subtitle files. Depending on the types offile or ways of recording, it may not play back A disc which was recorded by multi-session on normal PC is not supported on this player To be playback a video file, video file name and Subtitle fille name must be the same. When you play a video file with a extension such as ts tm2ts!“mts! pt “Trp'or “mat your player may not support subtitle iles. The total playback time of audio file indicated on the screen may not correct for VBR files Video / Audio codec compatibility may differ depending on video file. AVCHD (Advanced Video Codec High Definition) This player can playback AVCHD format discs These discs are normally recorded and used in camcorders. The AVCHD format is a high definition digital video camera format. The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format. This player can playback AVCHD discs using “xwColor' format Some AVCHD format discs may not play. depending on the recording condition AVCHD format discs need to be finalized. “xv.Color" offers a wider color range than normal DVD camcorder discs,

xpueddy 60 Appendix About DLNA This Player is a DLNA Certified digital media player that can display and play video, photo and audio content from your DLNA-compatible digital media server (PC and Consumer Electronics). The Digital Living Network Alliance (DLNA) is à cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network. The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information. Certain system requirements For high definition video playback High definition display that has HDMI input jack. BD-ROM disc with high definition content. HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors) For Dolby* Digital Plus, Dolby TrueHD and DTS-HD multi-channel audio playback: An amplifier/receiver with a built-in (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD) decoder. Main, center, surround speakers and subwoofer as necessary for chosen format. Compatibility notes Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. I you experience compatibility problems, please contact an authorized Customer Service Center. This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc, with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1). Secondary video and audio can be played from à disc compatible with the picture-in- picture function. For the playback method, refer to the instructions in the disc. Viewing high-definition content and up- converting standard DVD content may require à HDMI-capable input or HDCP-capable DVI input on your display device. Some BD-ROM and DVD discs may restrict the use of some operation commands or features. Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 7.1 channels if you use HDMI connection for the audio output of the unit. You can use an USB device to store some disc related information, including downloaded online content. The disc you are using will control how long this information is retained.

Audio Output Specifications Jack/Setting OPTICAL (DIGITAL AUDIO OUT) EE PCM DTS Re-encode * Auto Dolby Digital PCM 2ch DTS Dolby Digital Dolby Digital Plus PCM 2ch DTS Dolby Digital Dolby TrueHD PCM 2ch DTS 2ch Dolby Digital DTS PCM 2ch DTS DTS DTS-HD PCM 2ch DIS DTS Linear PCM 2ch PCM 2ch DTS 2ch PCM 2ch Linear PCM 5.1ch PCM 2ch DIS PCM 2ch Linear PCM 7.1ch PCM 2ch DTS PCM 2ch Jack/Setting HDMI OUT Source PCM DTS Re-encode * Auto *1*2 Dolby Digital PCM 2ch Drs Dolby Digital Dolby Digital Plus PCM 2ch Drs Dolby Digital Plus Dolby TrueHD PCM 2ch DTS 2ch Dolby TueHD DTs PCM 2ch Drs Drs DTS-HD PCM 2ch Drs DIS-HD Linear PCM 2ch PCM 2ch DTS 2ch Linear PCM 2 d Linear PCM 5.1ch PCM 5.1ch DITS Linear PCM 5.1ch Linear PCM 7.1ch PCM 7.1ch DIS Linear PCM 7.1ch “1. The secondary and interactive audio may not +_Ifthe HDMI OUT jack is connected to your TV > be included in the output bitstream if [Digita with High Speed HDMI" Cable and Dolby Digital à Output] option is set to [Auto]. (Except LPCM Plus/Dolby TrueHD is outputted from HDMIOUT 3 Codec : the output always include interactive jack, DIGITAL AUDIO OUT jack is limited to*PCM * and secondary audio) 2ch' (When the HDMI and DIGITAL AUDIO OUT “2 This player automatically selects the HDMI audio are connected simultaneously). according to the decoding capabilty ofthe connected HDMI device even though [Digital Output] option is set to [Auto]. #3 fthe [Digital Output] option is set to [DTS re- encode], the audio output is limited to 48 kHz and 5.1Ch Ifthe [Digital Output] option is set to [DTS re-encodel, the DTS Re-encode audio s outputted for BD-ROM discs, and the original audio is outputted for the other discs (Ike [Auto]).

xpueddy 62 Appendix The audio is outputted up to PCM 48 kHz/16 bit for MP3/WMA flle and PCM 44.1kHz/16 bit for Audio CD during playback. You must select a digital audio output and a maximum sampling frequency that your Amplifier (or AV receiver) accepts using [Digital Output] and [Sampling Freq/] options on the [Settings] menu (page 26) With digital audio connection (DIGITAL AUDIO OUT or HDMI OUT), Disc Menu button sounds of BD-ROM may not be heard if the [Digital Output] option is set to [Auto] Ithe audio format of the digital output does not match the capabilties of your receiver, the receiver will produce a strong, distorted sound or no sound at all Muiti-channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

Area Code List Choose an area code from this list. Area Code | Area Code | Area Code | Area Code Afghanistan AF | Fijl F | Monaco MC | Singapore sG Argentina AR | Finland FI | Mongolia MN | Slovak Republic SK Australia AU |France FR | Morocco MA | Slovenia SI Austria AT | Germany DE | Nepal NP | South Africa ZA Belgium BE | Great Britain GB | Netherlands NL | South Korea KR Bhutan BT | Greece GR | Antilles AN | Spain ES Bolivia BO | Greenland GL | New Zealand NZ | Sri Lanka LK Brazil BR | Hong Kong HK | Nigeria NG | Sweden SE Cambodia KH | Hungary HU | Norway NO | Switzerland cH Canada CA [India IN | Oman OM | Taiwan TW Chile CL |Indonesia ID | Pakistan PK | Thailand TH China CN | Israel IL | Panama PA | Turkey TR Colombia CO |italy IT | Paraguay PY | Uganda UG Congo CG | Jamaica JM | Philippines PH | Ukraine UA Costa Rica CR | Japan JP | Poland PL | United States Us Croatia HR | Kenya KE | Portugal PT | Uruguay uy Czech Republic CZ | Kuwait KW | Romania RO | Uzbekistan UZ Denmark DK | Libya LY | Russian Vietnam VN Ecuador EC | Luxembourg Lu | Federation RU | Zimbabwe ZW Egypt EG | Malaysia my | Saudi Arabia SA El Salvador SV | Maldives mv | Senegal SN Ethiopia ET | Mexico MX

Trademarks and Licenses = Elu-rey A)

Blu-ray Disc”, Blu-ray", Blu-ray 3D%, BD-Live”, BONUSVIEW"* and the logos are trademarks of the Blu-ray Disc Association Sdts 2.0+Digital Out For DTS patents, see http///patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved VIDEO “DVD Logo'is a trademark of DVD Format/Logo Licensing Corporation. £ Java = ronereo Java is a trademark of Oracle and/or its affiliates. &dina DLNA*, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks ofthe Digital Living Network Alliance The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. HOmr The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance. “xxColor'is à trademark of Sony Corporation: NCHD “AVCHD' and the‘AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. HIDOLBY TRUETE DIGITAL PLUS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DIVX.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

xpueddy 66 Appendix Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some commercially- produced film and videos and their soundtrack. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http//www.cinaviacom. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, PO. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under license from Verance Corporation and is protected by US. Patent 7,369,677 and other US. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark ofVerance Corporation. Copyright 2004-2013 Verance Corporation. AIl rights reserved by Verance. Reverse engineering or disassembly is prohibited

Specifications General Power requirements Refer to main label on the rear panel Power consumption 2w Dimensions (W x H x D) Approx. 430 mm x 43.5 mm x 205 mm Net Weight (Approx) 15 kg Operating temperature 5°C-35 € Operating humidity 5%-90% Outputs HDMI OUT (video/audio) 19 pin (Type À, HDMI" Connector) DIGITAL AUDIO OUT (OPTICAL) | 3V(p-p}, Optical jackx 1 System Laser Semiconductor laser wavelength 405 nm / 650 nm Signal system Standard PAL/NTSC color TV system LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX Wireless LAN (internal antenna) Integrated IEEE 802.11n (5 GHz and 24 GHz bands) wireless networking access, compatible with 802.1 1a/b/g Wi-Fi networks. Bus Power Supply (USB) 5V2== 500 mA +_ Design and specifications are subject to change without notice.

xpueddy 68 Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. you need to ship the unit for maximum protection, re-pack the unit as it was originally packed at the factory. Cleaning the uni To clean the player, use a soft, dry cloth. IFthe surfaces are extremely dirty, use a soft cloth lightiy moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Keeping the exterior surfaces clean Do not use volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time. Maintaining the u The unitis a high-tech, precision device. IFthe optical pick-up lens and disc drive parts are dirty. or wom, the picture quality could be diminished For details, please contact your nearest authorized service center. Notes on discs Handling discs Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. Storing discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight Cleaning dises Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out. Do not use strong solvents such as alcohol, benzine, thinner, commerciallÿ available cleaners, or anti-static spray intended for older vinyl records.

Important Information Relating to Network Services Al information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content Content’) and all services and offerings (‘Services’) provided or made available by or through any third party (each a“Service Provider‘) is the sole responsibility ofthe Service Provider from whom it originated. The avallability of and access to Content and Services furished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part ofthe Content or Services. Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider website for the most up-to- date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers. Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the avallability of or access to such Content or Services.
