USER MANUAL HR822T LG

OWNER'S MANUAL Blu-ray Disc'"/DVD Player with built-in HDD & HD Tuner

Please read this manual carefully before operating your set and retain it for future reference

HR822T / HR825T Dee www.Ig.com

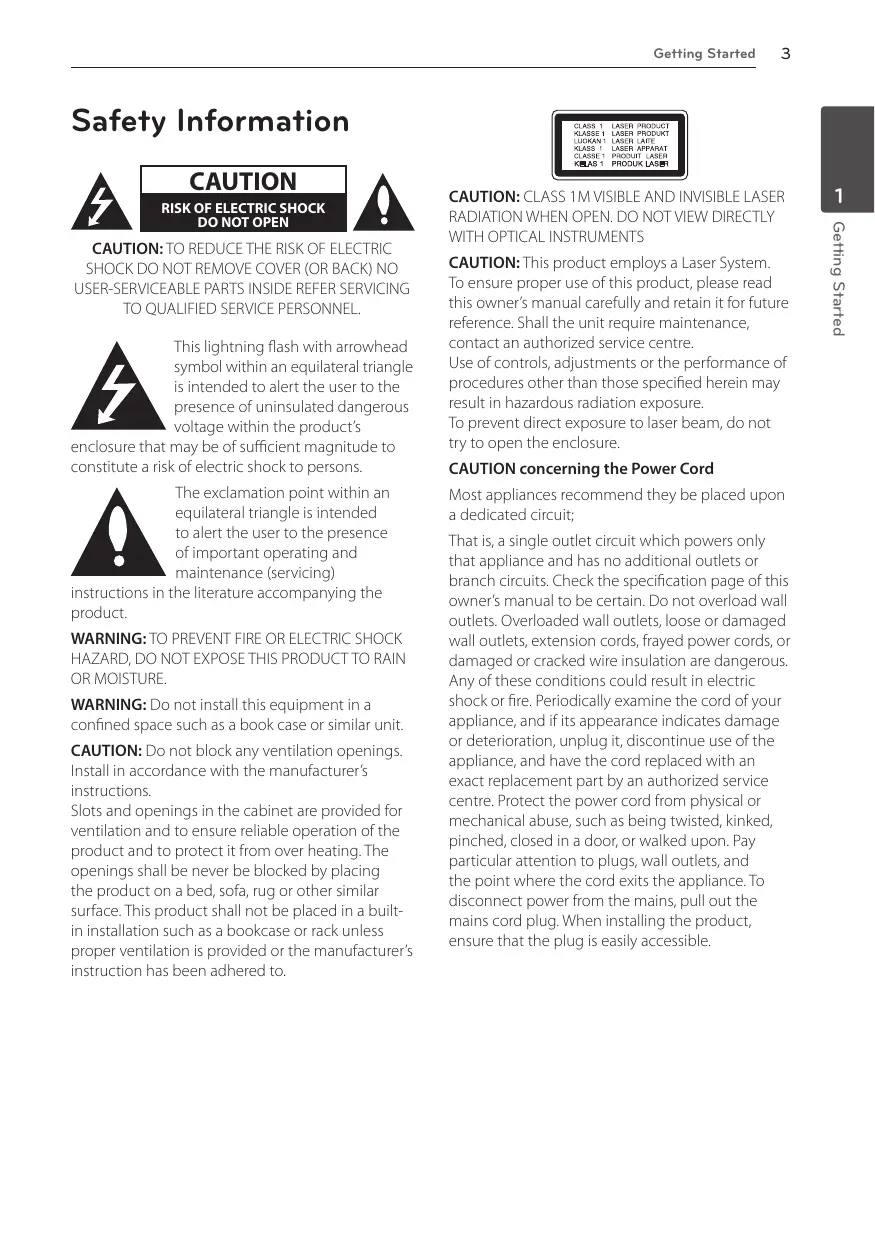

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products

enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence ofimportant operating and maintenance (servicing)

instructions in the literature accompanying the

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as à book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built in installation such as à bookcase or rack unless proper ventilation is provided or the manufacturers instruction has been adhered to.

CAUTION: CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS CAUTION: This product employs à Laser System:

To ensure proper use of this product, please read this owners manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure

To prevent direct exposure to laser beam, do not try to open the enclosure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon à dedicated circuit:

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cord, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service centre. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure thatthe plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack follow the steps

in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do:

not dispose of batteries or battery together with other waste. lt is recommended that you use local free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

All electrical and electronic products shall be disposed of separately

from the municipal waste stream

via designated collection facilities appointed by the government or the local authorities.

The correct disposal of your old appliance wi help prevent potential negative consequences for the environment and human health,

For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Disposal of waste batteries/accumulators

When this crossed-out wheeled bin symbol is attached to batteries/ accumulators of Your product it means they are covered by European Directive 2006/66/EC.

This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead{Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead

All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

The correct disposal of Your old batteries/ accumulators will help

to prevent potential negative consequences for the environment, animal and human health.

For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product.

CE LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2006/125/ EC.

European Standards Centre:

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

+ Please note that this is NOT a Customer Service contact point. For Customer Service Information,

see Warranty Card or contact the dealer that you purchased this product

Important Notice for TV colour system

The colour system of this player differs according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is output as an NTSC signal

Only the multi system colour TV can receive all signals output from the player.

+_IFyou have a PAL colour system TV, you will see

just distorted images when using discs or video contents recorded in NTSC.

The multi system colour TV changes the colour system automatically according to input signals In case that the colour system is not changed automatically, turn it off and then on to see normal images on screen.

Even ifthe disc recorded in NTSC colour system are well displayed on your TV, these may not be recorded correctiy on your recorder.

+_ Recording equipment should be used only for lawul copying and you are advised to check carefully what is lawful copying in the area in which you are making a copy. Copying of copyright material such as films or music is unlawful unless permitted by à legal exception or consented to by the rights owner.

+_ This product incorporates copyright protection

technology that is protected by US. patents

and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED INTHE PICTURE. IN CASE OF 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS REÉCOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE'STANDARD DEFINITION OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 625p UNIT PLEASE CONTACT OUR CUSTOMER SERVICE CENTRE.

+ Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc, of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems. for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD- ROM Mark, BD+, or this product, please contact an authorized Customer Service Centre.

Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs

Under the US, Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liabilit.

8 - About the "@" Symbol Display

8 - Supplied Accesorries

8 - What is SIMPLINK?

10 - File compatibility

11 - AVCHD (Advanced Video Codec High Definition)

14 Connections to Your TV

14. — Antenna connection to your TV and this unit

15 - HDMI Connection

16 - Composite connection

16 - Resolution Setting

17 Connecting to an Amplifier

17. Connecting to an Amplifier via HDMI Output

18 - Connecting to an Amplifier via Digital Audio Output

18 - Connecting to an Amplifier via 2 Channel Audio Output

19 Connecting to your Home Network

19. Wired network connection

20 - Wired Network Setup

22 USB device connection

22 - Playback content in the USB device

24 - Basic button operations

25 - Scanning programmes automatically (Auto Tuning)

25 - Scanning programmes manually (Manual Tuning)

26 - Editing Programme List (Channel Edit)

26 - Setting the DTV Lock

27 - Adjusting DTV Rating

36 - Viewing the programme information

36 - Selecting DTV audio language

36 - Selecting DTV subtitle language

37 - Programme Guide (Digital program onby)

38 - Using the timeshift function manually

38 - Using the timeshift function automatically

38 - Using the teletext (Viewing Teletext)

39 Recording TV programmes

39 - Normal Recording

39 - Timer Recording (Manual)

40 - Timer Recording (EPG)

40 - Canceling a timer recording

40 - Editing a timer recording

41. — Instant Timer Recording

— Using the dise menu — Resume playback

Playing the recorded titles — Searching the recorded titles

Sorting the recorded titles

— Playing content contained in the internal hard disk drive

— Searching content in the hard disk drive

by entering file name

Playing Blu-ray 3D disc

— Repeating a specific portion

— Changing content list view

— Viewing content information

- Selecting a subtitle file

— Displaying content information on- screen

Playing from selected time — Hearing different audio

Selecting a subtitle language

— Watching from a different angle

— Changing the TV Aspect Ratio

— Changing the Picture Mode

— Copying file(s)/folder(s) to the internal hard disk drive

— Copying file(s)/folder(s) from the internal hard disk drive to a USB storage device

- Deleting a file(s)/folder(s)

— Naming a file/folder

Enjoying BD-LIVE Playing movie file and VR discs

— Selecting a subtitle file

— Changing subtitle code page

- Listening to music during a slide show

63 - Customer Support

63 - Open source software notice

64 Contralling a TV with the Supplied Remote Control

64 - Setting up the remote to control your TV

66 Language code List

67 Trademarks and Licenses

70 Audio Output Specifications

T1 About the internal hard disk drive

72. Video Output Resolution

About the “@" Symbol Display

*@° may appear on your TV display during operation and indicates that the function explained in this owners manual is not available on that specific media

Symbols Used in this Manual

Indicates special notes and operating features. A . € Caution Indicates caution for preventing possible damages from abuse

A section whose title has one ofthe following symbol are applicable only to the disc represented by the symbol

Movie files contained in the

Disc/USB/HDD Music files contained on à

Disc/USB/HDD Photo files contained on à

Disc/USB/HDD REC Titles recorded via this unit

You can control this player with your iPhone

or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit‘Apple iTunes" or"Google Apps Marketplace" for detailed information of”LG Remote’

What is SIMPLINK? =,

(SIMRUINK Some functions of this unit are controlled by the TV remote control when this unit and LG TVS with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV remote control Play, Pause, Scan, Skip, Stop, Power Off etc. Refer to the TV owners manual for the details of SIMPLINK function.

LG TV with SIMPLINK function has the logo as shown above.

Depending on the disc type or playing status, some SIMPLINK operation may differ from your purpose or not work.

Depending on the conditions ofthe recording equipment or the CD-R/RW (or DVD-R/RW) disc itself, some CD-R/RW (or DVD2R/RW) dises cannot be played on the unit.

+ Discs such as movies that can be purchased or rented

+ BD-R/RE discs that contain Movie, Music or Photo files.

Depending on the recording software & the finalization, some of recorded discs (CD-R/ RW or DVD+R/RW) may not be playable

BD-R/RE, DVD+R/RW and CD-R/RW discs recorded using à personal computer or à DVD or CD Recorder may not play if the disc is damaged or dirty, or ifthere is dirt or condensation on the players lens.

DVD-VIDEO (8 cm / 12 cm disc)

Discs such as movies that can be purchased or rented!

poueys Guyoo [A DVD4R (8 cm / 12 cm disc) Video mode and finalized only

Supports the dual layer disc also Finalized AVCHD format

DVD2R discs that contain Movie, Music or Photo files.

Ifyou record a disc using a personal computer, even ifit is recorded in à compatible format, there are cases in which it may not play because of the settings of the application sofeware used to create the disc. (Check with the software publisher for

DVD-RW (8 cm / 12 cm disc)

VR mode, Video mode and finalized only

Finalized AVCHD format

more detailed information.)

This unit requires discs and recordings to meet certain technical standards in order to

achieve optimal playback quality.

DVD-RW discs that contain Movie, Music or Photo files.

Pre-recorded DVDs are automatically set to these standards, There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and

DVD+RW (8 cm / 12 cm disc) + Video mode and finalized only

eee these require certain pre-existing conditions + Finalized AVCHD format to ensure compatible playback +" DVD+RW discs that contain +_ Hybrid disc have both BD-ROM and DVD (or Movie, Music or Photo files. CD) layers on one side. On such discs, BD-

ROM layer wil be only played back in this player

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be obtained from / guaranteed by the copyright owner.

Audio CD (8 cm / 12 cm disc)

LISE CD-R/RW (8 cm / 12 cm disc)

+_ CD-R/RW discs that contain audio titles, Movie, Music or Photo files.

You have to set the disc format option

to [Mastered] in order to make the discs compatible with the LG players when formatting rewitable discs. If you set the option to“Live System! the disc cannot be played on LG player. (Mastered/Live File System : Disc format system for windows Vista)

“divx, “mpg'*mpeg ‘wma’,

+_ The file name is limited to 180 characters.

+ Depending on the size and number of the files, it may take several minutes to read the contents on the media

Maximum Files/Folder: Less than 2000 (total number of files and folders)

CD-R/RW, DVD+R/RW, BD-R/RE Format: 10 9660+JOLIET, UDF and UDF Bridge format

MPEG2 PS, MPEG2TS Playable Audio format: ‘Dolby Digital: "DTS"

+ Not all the WMA and AAC Audio formats are compatible with this unit.

Sampling frequency: within 32-48 kHz (WMA),

within 16-48 kHz (MP3)

Bit rate: within 20-320 kbps (WMA), within 32-320 kbps (MP3)

+_ HD movie files contained on the CD or USB 1.0/1.1 may not be played properly. Blu-ray Disc, DVD or USB 2.0 are recommended to play back HD movie files.

This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. For a file with higher level there will be an warning message on the screen

This player does not support the file that are recorded with GMC*' or Qpel*. Those are video encoding techniques in MPEG4 standard, like DivX or XVID.

*1 GMC - Global Motion Compensation

+2 Qpel - Quarter pixel

HD movie files that need high performance playback could react slowiy.

The total playback time indicated on the screen may not be correct for is files.

MUSIC Sampling frequency: between 8 - 48 kHz (WMA), within 11-48 kHz (MP3),

44.1 and 48 kHz (LPCM)

Bit rate: between 8 - 320 kbps (WMA, MP3), 768 kbps and 1.536 Mbps (LPCM)

+ This unit cannot support the ID3 Tag embedded MP3 file.

+_ The total playback time indicated on the screen may not be correct for VER files.

PHOTO Recommended size: Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless compression photo image flles are not supported.

Depending on the size and number of the photo files, it may take several minutes to read the contents of the media.

This player can not display thumbnail image in some files.

Regional Code This unit has a regional code printed on the rear of

the unit, This unit can play only BD-ROM or DVD discs labelled same as the rear ofthe unit or'ALL'

AVCHD (Advanced Video Codec High Definition)

This player can playback AVCHD format discs These discs are normally recorded and used in camcorders.

The AVCHD format is a high definition digital video camera format.

The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than the conventional image compressing format.

Some AVCHD discs use the"xvColor" format.

This player can playback AVCHD discs using “xwColor' format

Some AVCHD format discs may not be played, depending on the recording condition

AVCHD format discs need to be finalized.

“xv.Color"offers a wider colour range than normal DVD camcorder discs.

System Requirements For high definition video playback

High definition display that has COMPONENT or HDMI input jacks.

BD-ROM disc with high definition content

device is required for some content (as specified by disc authors)

For up-conversion of standard definition DVD, à

HDMI or HDCP capable DVI input on your display

device is required for copy-protected content. For Dalby® Digital Plus, Dolby TrueHD and DTS-HD multi-channel audio playback:

+ An amplifier/receiver with a built-in (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD) decoder.

+ Main, centre, surround speakers and subwoofer as necessary for chosen format:

HDMI or HDCP capable DVI input on your display

+ Because BD-ROMis a new format, the can be issues regarding certain disc, digital connection and other compatibility issues. If you experience compatibilty problems, please contact an authorized Customer Service Center.

Viewing high-definition content and up- converting standard DVD content may require à HDMI-capable input or HDCP-capable DVI input on your display device.

Some BD-ROM and DVD discs may restrict the use of some operation commandé or features. Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 7.1 channels if you use HDMI connection as the audio output.

You can use a USB device that is used to store some disc related information, including downloaded om-line content. The disc you are using wil control how long this information is retained.

While watching 3D contents, on-screen displayed may not be displayed properly. To display proper on-screen display, turn off 3D mode on TV.

F UD Battery Installation

Remove the battery cover on the rear of the Remote Control, andinsert two RO3 (size AAA) batteries with @ and @ matched correctly.

( (POWER): ON or OFF.

OPEN/CLOSE (#): Opens and closes the disc tray.

%: Feature is not available.

0-9 numerical buttons: Selects numbered options in à menu

CLEAR: Removes à mark on the search menu or a number when setting the password

REPEAT: Repeats a desired section or sequence.

TV/RADIO: Switches between TV and radio modes.

TV Control Buttons: See page 64

Æ/»»: Searches backward or forward.

Hd /p»1: Goes to next or previous chapter/track/file.

Pauses playback or recording,

tops playback TIME SHIFT: Activates pause live

TV/playback (timeshift) for a live TV programme

HOME (): Accesses or removes the HOME menu. INFO/MENU ([J}: Displays or exits On-Screen Display. AINI<I> (left/right/up/ down): Navigates on-screen displays

ENTER (©): Acknowledges

menu selection or displays the TVinfo.

BACK (9): Exits the menu or back to previous step.

DISC MENU/REC.LIST: Accesses menu on a disc or swsitches between recording list menu

GUIDE: Displays the EPG menu. PR (-/+): Scans up or

down through memorized programmes.

PR LIST: Displays the Channel list

Coloured (R, G, Y, B) buttons: Use to navigate BD-ROM menus. They are also used for [MOVIE], [PHOTO], [MUSIC] and [DTV] menu.

EXIT: Exits a menu or hides on- screen information.

SUBTITLE: Selects a subtitle language.

TEXT: Switches between teletext mode and normal TV viewing. MUTE (3): Mutes the sound. REC. (@): Starts recording.

TIMER REC: Displays [Timer Recording] menu TITLE/POPUP: Displays the DVD

TV Make one ofthe following connections, depending on the capabilities of your existing equipment.

+_ Antenna connection (page 14) + HDMI connection (page 15) + Composite connection (page 16)

+ Depending on your TV and other equipment you wish to connect, there are various ways you could connect the unit. Use only one of the connections described in this manual.

Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.

Mike sure the player is connected directiy to the TV. Tune the TV to the correct video input channel

Do not connect the player‘s AUDIO OUT jack to the phono in jack (record playen of your audio system.

Do not connect your player via your VCR, The image could be distorted by the copy protection system.

Antenna connection to your TV and this unit

Connect one end of the RF cable to ANTENNA OUT(TO TV) jack on the unit and other end to ANTENNA IN jack on your TV. Passes the signal from the ANTENNA IN jack to your TV/monitor.

Connect the Terrestrial TV antenna to the ANTENNA IN jack on the unit. If you want to use an indoor antenna, use one with a signal amplifier rated at SV, 100mA and set [Antenna SV] to [ON] in the setup menu (See page 28)

+_ Fa connected HDMI device does not accept the audio output of the unit, the HDMI devices audio sound may be distorted or may not output.

If you have à HDMI TV or monitor, you can connect it to this unit using à HDMI cable (Type A, High Speed HDM/* Cable). Connect the HDMI jack on

the unit to the HDMI jack on à HDMI compatible TV or monitor. When you use HDMI connection, you can

change the resolution for the HDMI output. (Refer to ‘Resolution Setting'on page 16)

Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 29).

Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn offthe player and then turn it on again:

When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the the HDMI connection, or disconnect the HDMI cable.

Suyoouuos [AR Ifthere is noise or lines on the screen, please check the HDMI cable (length is generally limited to 4.5m)

nal Information for HDMI

+_ When you connect a HDMI or DVI compatible device make sure ofthe following:

= Tryswitching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

Set the TV source to HDMI (refer to TV Owner's manual)

The connected device video input is set correct for this unit

The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.

+_ Not all HDCP-compatible HDMI or DVI devices will work with this player. = The picture will not be displayed properly with non-HDCP device.

= This player does not playback and TV screen is changed to black screen.

Composite connection

Connect the VIDEO OUT jack on the Recorder to the video in jack on the TV using the video cable supplied. Connect the Left and Right AUDIO OUT. jacks on the Recorder to the audio left/right in jacks on the TV using the supplied audio cables.

[ If mai e. Rear of this unit

‘The player provides several output resolutions for HDMI OUT jacks. You can change the resolution using [Setup] menu.

2. Use </> to select the [Setup] and press ENTER (©). The [Setup] menu appears.

3. Use A7 V to select [DISPLAY] option then press > to move to the second level.

4. Use </ > to select the [Resolution] option then press ENTER (@) to move to the third level.

5. Use A/V to select the desired resolution then press ENTER (©) to confirm your selection.

Connecting to an Amplifier

Make one of the following connections, depending on the capabilities of your existing equipment.

+_ HDMI Audio connection (page 17) +_ Digital Audio connection (page 18)

+ 2CH Analogue Audio connection (page 18) Since many factors affect the type of audio output,

see ‘Audio Output Specifications" for details (pages 70-71).

About Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this, you need a multi- channel AudioWideo Receiver that supports one or more ofthe audio formats supported by your unit Check the receiver manual and the logos on the front of the receiver. (PCM Stereo, PCM Multi-Ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or DTS-HD)

Connecting to an Amplifier via HDMI Output

Connect the players HDMI OUT jack to the corresponding in jack on your amplifier using à HDMI cable. You will need to activate the players digital output. (See AUDIO] Menu' on pages 30- 31)

Suyoouuos [AR Amplifier/Receiver

Connecting to an Amplifier via Digital Audio Output

Connect the player's DIGITAL AUDIO OUT (COAXIAL) jack to the corresponding in jack (COAXIAL) on your amplifier

Use an optional digital (coaxial) audio cable. You will need to activate the unit digital output. (See “[AUDIO] Menu'on pages 30-31.)

Connecting to an Amplifier via 2 Channel Audio Output

Connect the Left and Right 2CH AUDIO OUT jacks on the unit to the audio left and right in jacks on your amplifier receiver, or stereo system, using audio cables

Connecting to your Home Network

This unit can be connected to a local area network {LAN) via the LAN port on the rear panel

By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and streaming services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Please refer to the documentation for your network device for further instructions.

Connect the players LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CATS or better with RJ45 connector). In the example configuration for wired connection below, this player would be able to access content from either ofthe PCS.

*_ When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock

Do not connect à modular phone cable to the LAN port.

Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider.

Ifthere is a DHCP server on the local area network {LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the players network setting to be adjusted. Adjust the [NETWORK] setting as follow

Before setting the wired network, you need to connect the broadband internet to your home network

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (©).

2. Use A/V/</> to select the IP mode between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP address automatically.

Ithere is no DHCP server on the network and you want to set the IP address manual, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using A / V/ <> and numerical buttons. If you make a mistake while entering a number, press CLEAR +0 clear the highlighted part.

3. Select [OK] and press ENTER (©) to apply network settings.

4. The player will ask you to test the network connection. Select [OK] and press ENTER (©) to complete the network connection.

5. Ifyou select [Test] and press ENTER (©) at step 5 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

Notes on Network Connec:

Many network connection problems during

set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/

or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player you have questions about such content, please contact the producer of the disc.

Some internet content may require a higher bandwidth connection

Even ifthe player is properly connect and configured, some internet content may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider ofthe content

Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection:

Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

You must use a Router to use xDSL service.

A DSL modem is required to use DSL service and à cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited

to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

The use of a"Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP For details, contact your ISP directly.

Turn off all unused network equipment in

your local home network. Some devices may generate network traffic.

Suyoouuos [AR Buyseuuos EN

USB device connection

This unit can play movie, music and photo files contained on a USB device.

Playback content in the USB device

1. Insert a USB device into the USB port until it fits into place.

Withdraw the USB device carefully after exiting the USB mode

This unit supports USB flash memory/ external HDD formatted in FAT16, FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-Live, only FAT and FAT32 formats are supported. The USB device can be used for local storage for enjoying BD-Live discs from the Internet. Please use the Internal HDD or USB flash memory/external HDD formatted in either FATI6 or FAT32 when using BD-Live.

This unit can support up to 4 partitions of the USB device

Do not extract the USB device during operation (play, recording, etc.)

A USB device which requires additional programme installation when you have connected it to a computer, is not supported.

USB device: USB device that supports USB1.1 and USB2.0.

Movie, Music and photo files can be played. For details of operations on each file, refer to relevant pages.

Regular back up is recommended to prevent data loss.

If you use a USB extension cable or USB HUB or USB multi card reader, the USB device may not be recognized.

Some USB device may not work with this unit.

Digital camera and mobile phone are not supported.

The USB Port on this unit cannot be connected to a PC. The unit cannot be used as a storage device.

Unformatted media cannot be used. Please format before using

IFUSB HDD cannot be recognized, try another different USB cable.

Some USB cables may not supply enough current for normal USB operation

Files over 4GB are supported with NTFS format.

Auto Set UP You can reset the recorder to all its factory settings. Some options cannot be reset (Rating and Password), The [Auto Setup] menu appears on the screen after the factory settings.

Step 2. Channel Setting

1. Use A/V/</3 to select a country, and press ENTER (©).

2. Input the new password using numerical buttons. Enter it again to verify.

While the Start option is selected, and press ENTER (©) to begin the channel search.

The recorder automatically searches for and saves the programmes

I you select [Stop], the [Channel Setting] function will be skipped

Step 3. Time Setting

1. Use </> to select an option among [Manual] or [Auto], and press ENTER (©).

Auto: Set the programme that broadcasts a clock signal and the clock will be set automatically.

Ifthe time that has automatically set is not correct comparing your local time, you can set additional time option.

Manual: fthere is no channel that broadcasts a clock signal in your area, you can set the time and date manyally. Use A / V to select each field, and input correct time and date using < / >. You can use numerical buttons.

2. Press ENTER (©) to complete the time setting.

Step 4. Network Setting

Refer to “Wired network connection‘ on pages 19- 21 to complete the [Wired] setup option, and press ENTER (©).

To access numerous functions of the unit, press

HOME on the remote. Adjust the Setup Settings

: . You can change the settings of the player in the Basic button operations [Setup] menu. HOME: Accesses or removes the Home Menu. 1. Press HOME (@r).

</>:Used to navigate on-screen displays. ENTER (©): Acknowledges menu selection. BACK: Exits the menu

Use </ > to select [Setup] and press ENTER (©). The [Setup] menu appears.

DTV You can watch digital broadcasts. (pages 35-41)

Starts video media playback or displays the 3 IMOVIE] menu.

Use A / V to select the first setup option, and press > to move to the second level.

Displays [Setup] menu. (pages 28-34) 4. Use A/ V to select a second setup option,

and press ENTER (©) or > to move to the third level.

5. Use A / V to select a desired setting, and press ENTER (©) or > to confirm your selection:

Settings for Digital TV To use DTV functions, this recorder needs some settings in advance.

Scanning programmes automatically (Auto Tuning)

All available digital TV or radio programmes are

searched for and stored automatically based on the

5. Use V to select [Start], and press ENTER (©) to begin the channel search

Select [Stop] and press ENTER (©) to stop the scanning programmes.

© \cte Ifthe [DTV Lock] option is set to [Lock], this function is available when you enter the

password correctly. (see page 26)

Scanning programmes manually (Manual Tuning)

Scans digital TV or radio programmes and adds the

detected programmes to the programme list.

4. Use A/V/</> to select the desired multiplexer (MUX), Modulation option, and the unit starts scanning automatically.

5. Use V to select the [Add] and press ENTER (©) to add the programme the unit scans automatically.

Ifthe [DTV Lock] option is set to [Lock], this function is available when you enter the password correctly. (see page 26)

Suyes weysts PM Suyes wests FA]

Editing Programme List (Channel Edit)

3. Use A/V/</3 to select [Channel Edit] and press ENTER (©).

4. Press A to select [DTV] and use </> to select [DTV] or [Radio] programme list.

5. Use A/V/</> to select a programme you want to skip from the list, and press red coloured (R) button.

If you do not want to skip the programme, select the programme and press red coloured {R] button again

Use A/V/</> to select a programme you want to lock from the list, and press blue coloured (B) button. I you do not want to lockthe programme, select the programme and press blue coloured {B) button again.

6. Press BACK (9) to return to the previous step. Skip : the programme is assigned to skip, you

can't select that programme with PR button in Remote control

Block/unblock : I the programme is assigned to block and [DTV Lock] in the [Setup] menu is set to [Lock], you should enter the password to watch the programme.

Setting the DTV Lock

Allowrs you to activate or deactivate all ofthe lock schemes previously set. When the [DTV Lock] is set to [Unlock]

Display [Setup] menu

Adjusting DTV Rating

Viewing of some digital TV programmes can be

limited according to the age limit you set.

1. Display [Setup] menu.

You can view all programs.

4 (Kids) - 18 (Adult)

Rating [4 (Kids)] has the most restrictions and [18 (Adult)] is the least restrictive.

Setting the antenna power

If you are using indoor antenna with a signal amplifier rated at DC SV, 100mA, the recorder can supply power through ANTENNA IN jack.

1. Display [Setup] menu.

2. Use A/V/</3 to select [Antenna 5V] and press ENTER (©).

3. Use A7 V to select [On], and press ENTER (©) to supply antenna power.

The [Antenna 5V] option must be set to [Off] when your indoor antenna is supplied the power from the mains. If you set the [Antenna SV] option to [On] for the indoor antenna which is supplied power from the mains, it may cause serious defect to this unit.

You can set the Time Shift function automatically

will start after Digital TV tuner mode is started

Suyes weysts PM Suyes wests FA]

This option scans à programme and sets the available programmes. Refer to page 25 for more information.

Scans digital TV or radio programmes and adds the found programmes to the programme list. Refer to page 25 for more information

This option allows you to edit the TV or Radio programmes. Refer to page 26 for more information

Antenna 5V If you are using an indoor antenna, use one with à signal amplifier rated at DC SV, 100mA and set this option to [On]. Refer to page 27 for more information.

Set this option to [Auto] to use the Time Shift function automatically without pressing TIME SHIFT button, The timeshift will start after TV viewing is started. Refer to page 27 for more information.

Software Auto Update

I you set this option to [On], the unit updates the lastest software automatically through the built-in digital tuner Ifthe software update is available from the broadcaster.

Select a TV aspect ratio option according to your TV type.

Select when a standard 43 TV is connected Displays theatrical images with masking bars above and below the picture.

Select when a standard 43 TV is connected Displays pictures cropped to fil your TV screen Both sides of the picture are cut off.

Select when a 169 wide TV is connected. The 43 picture is displayed with an original 43 aspect ratio, with black bars appearing at the left and right sides.

Select when à 16:9 wide TV is connected. The 433 picture is adjusted horizontally (in a linear proportion) to fil the entire screen

You cannot select [4:3 Letter Box] and [43 Pan Scan] option when the resolution is set to higher than 720p.

Sets the output resolution of the HDMI video signal. Refer to page 16 and 72 for details about the resolution setting.

Select the type of output from the HDMI OUT jack For this setting, please refer to the manuals of your display device.

Ifthe HDMI OUT jack is connected to TVs providing display information (EDID), this automatically selects the resolution best suited to the connected TV.

Select when connecting to a HDMI display device

[RGB] Select when connecting to a DVI display

[1080p] device. Outputs 1080 lines of progressive video [1080i] 3D Mode Outputs 1080 lines of interlaced video. Select the type of output mode for Blu-ray 3D disc playback. Refer to page 45 for more information

[720p] about Blu-ray 3D disc. Outputs 720 lines of progressive video.

[off] [576p] Blu-ray 30 disc playback will output as 20: Outputs 576 lines of progressive video. mode like a normal BD-ROM disc playback. [576i] [On]

Outputs 576 lines of interlaced video

When the resolution is set to 1080p, select

{24 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

+ When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material In this case, select [50 Hz]

Even when [1080p Display Mode] is set to {24 Hz] if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz or 60 Hz to match the video source format.

Blu-ray 3D disc playback will output as 3D mode.

This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide.

Suyes mests [PM Suyes wests FA]

Display Menu Select a language for the [Setup] menu and on- screen display.

Disc Menu/Disc Audio/Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtiles, and the disc menu

Refers to the original language in which the disc was recorded

Press ENTER (©) to select another language. Use number buttons then press ENTER (©) to enter the corresponding 4-digit number according to the language code list on page 66.

10ff] (Disc Subtitle only) Turn off Subtitle.

Depending on the disc, your language setting may not work.

Digital channels sometimes provide multiple audio tracks, often in a different language or format (Dolby Digital, Dolby Digital+, AVC, Mpeg, etc). You can set a default audio language with this setting) If provided by the broadcaster, you can also select à different audio language while viewing TV by pressing AUDIO repeatedly. (See “Selecting DTV audio language‘ on page 36)

Digital channels sometimes provide subtitles, often in a different language. You can set a preferred subtitle language with this setting, if DTV subtitles are provided by the broadcaster. Press SUBTITLE repeatedly to select a subtitle language while viewing digital TV. (See"Selecting DIV subtitle language’ on page 36)

Each disc has a variety of audio output options. Set the players Audio options according to the type of audio system you use.

Since many factors affect the type of audio output, see ‘Audio Output Specifications" on pages 70-71 for details

HDMI / Digital Output

Select the output sound format when a device equipped with a HDMI or Digital Audio input jack is connected to the HDMI OUT or DIGITAL AUDIO OUT jack on this player.

Select if you connect this units HDMI OUT or DIGITAL AUDIO OUT jack to a device with two- channel digital stereo decoder.

[PCM Multi-Ch] (HDMI only)

Select if you connect this units HDMI OUT jack to a device with multi-channel digital decoder. IDTS Re-Encode]

Select if you connect this units HDMI OUT or DIGITAL AUDIO OUT jack to a device with a DTS decoder.

Select if you connect this units DIGITAL AUDIO OUT and HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby. TrueHD, DTS and DTS-HD decoder.

+_ When [HDMI] option is set to [PCM Multi-

Ch], the audio may output as PCM Stereo ifthe PCM Multi-Ch information is not detected from HDMI device with EDID.

+_lfthe [HDMI] or [Digital Output] option is set to [DTS re-encode], the DTS Re-encode audio is output for BD-ROM discs with secondary audio and the original audio is output for the other discs (like [Primary Pass- Thru))

Sampling Freq. (Digital Audio Output)

Select this if your AM Receiver or Amplifier is capable of handling 192 kHz signals.

Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz signals. When this choice is made, this unit

automatically converts any 192 kHz signals to 96 kHz so your system can decode them

Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz and 96 kHz signal. When this choice is made, this unit automatically converts any 192 kHz and 96 kHz signals to 48 kHz so your system can decode them.

Check the documentation for your AM Receiver or Ampliñier to verify its capabilities DRC (Dynamic Range Control) This function allows you to listen to à movie at à lower volume without losing clarity of sound. LOff] Turns off this function. [On]

Compress the dynamic range ofthe Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

The dynamic range of the Dolby TrueHD audio output is specified by itself.

And the dynamic range ofthe Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

The DRC setting can be changed only when à disc is not inserted or the unit is in complete stop mode

Ifthe player is connected to the multi-channel Audio Receiver by HDMI connection, set this option to enjoy the mult-channel surround sound with the 2-channel audio source.

[off] Outputs the stereo sound via front speakers.

Outputs the mult-channel sounds that are optimized for listening to music.

Outputs the mult-channel sounds that are optimized for watching movie.

This function is not available on an online service.

Only the audio source with less than 48 KHz sampling frequency is available for this function

This function is availabe only when [HDMI] option is set to [PCM Muiti-Ch]

Suyes mests [PM Suyes wests FA]

To access any features in the [LOCK] settings, you must enter the 4-digit security code you have created

IF you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (©) to create a new password.

You can create, or change the password

Enter a 4-digit password twice, and press ENTER (©) to create a new password. [Change]

Enter the current password and press ENTER (©). Enter a 4-digit password twice, and press ENTER (©) to create a new password.

If you forget your password If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player. 2. Select [Password] option in the [Setup] menu

3. Use Number buttons to enter“210499" The password is cleared

If you make a mistake before pressing ENTER (©) press CLEAR. Then input the correct password

Allows you to set up specific programs and through blocking schemes. Also allows you to activate or disable all ofthe lock schemes previously set up.

A password is required to gain access to the lock menu options. When the DTV Lock is set to [unlock] (SeeSetting the DTV Lock"on page 26)

You can set the rating to block out all the programs with rating above a specified level. (See‘Adjusting DTV Rating'on pages 27)

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock]

If you select [Unlock parental control is not active and the disc plays in full

Sets an age limit for BD-ROM playback. Use number buttons to input an age limit for BD-ROM viewing,

L255] AIBD-ROM can be played.

Prohibits play of BD-ROM with corresponding ratings recorded on them.

The [Blu-ray Disc rating] will be applied only for the Blu-ray Disc that containing the Advanced Rating Control

Enter the code ofthe area whose standards were used to rate the DVD video disc, based on the list on page 65.

The [NETWORKI settings are needed to use the software update feature and BD-LIVE.

If your home network environment is ready to be connected to the player, the player needs to be set to the wired network connection for network communication, (See “Connecting to your Home Network"on pages 19-21)

If you want to check the network status on this player, select the [Connection Status] option and press ENTER (©) to check whether a connection to the network and the internet has been established.

You can restrict Internet access when BD-LIVE functions are used.

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BD- LIVE contents which have content owner certificates. Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certificate.

Internet access is prohibited for all BD-LIVE contents.

The clock must be set in order to use timer recording.

Select à programme that broadcasts a clock signal and the clock will be set automatically. If the time that has been automatically set is not correct when compared your local time, you can set additional time option.

Ithere is no channel that broadcasts a clock signal in your area, you can set the time and date manually. Use / > to select each field, and input correct time and date using A/ V, and press ENTER (©)

Blu-ray Storage Select

This player can store some BD-ROM disc related information, including downloaded on-line content such as movie trailers and special features into the internal Flash Memory or an USB device.

Store the downloaded Blu-ray disc content on the Internal Flash Memory.

Store the downloaded Blu-ray disc content on the connected USB device.

Blu-ray Storage Clear

Removes the BD contents from the built-in storage or the connected USB storage

Delete all the downloaded contents from the built-in storage

[USB Storage] Delete all the downloaded contents from the connected USB storage.

If you select USB Storage, playback, copying and recording on the USB device is disabled

Suyes mests [PM Suyes wests FA]

DivX° VOD ABOUT DIVX VIDEO: Divx® is a digital video

format created by DivX, LCC, a subsidiary of Rovi Corporation. This is an official DivX Certified” device that plays DivX video. Visit divxcom for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod divxcom for more information on how to complete your registration.

[Register] Displays the registration code of your player.

Deactivate your player and display the deactivation code.

© Note Allthe downloaded videos from DivX VOD with this players registration code can only be

played back on this unit

You can reset the recorder to all its factory settings. Some options cannot be reset (Rating and Password). The [Factory Set] menu appears on the screen after the factory settings.

If you reset the unit to its original factory settings using [Factory Set] option, you have to set the network settings activation again

The [Initialzation] option is not available while recording or [Lock] in the [Setup] menu is set to [On]

If you select [Factory Set] in the Setup menu, All the channels will be deleted

internal HDD Format] Everything recorded on the HDD will be erased

[information] Displays the current software version.

You can update the software by connecting the unit direct to the software update server (see pages 68-69)

The screen saver appears when you leave the player in Stop mode for about five minutes. If you set this option to [On], the unit automatically turns itself off afterthe Screen Saver is displayed for 25 minutes. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

Using the Digital TV functions

You can watch and record the digital TV programmes or playback the recorded TV programmes you want to watch using this unit.

Viewing the Digital TV Viewing the Digital TV broadcasting on the TV screen.

+ DTVantenna connection is required. (page 14)

+ DTV settings such as [Auto Tuning] in the [Setup] menu may be required. (page 25)

1. Press (D (POWER) to turn on the recorder.

2. Use </> to select [DTV] on the HOME menu and press ENTER (©)

2. Use A/ V to select a desired programme, and press ENTER (©). Press red coloured button (R) to sort the programmes into alphabetical order. Press green coloured button (G) to sort the programmes into FTA - CAS Press yellow colored (Y) button to sort the programmes into number order.

3. Press BACK (9) to exit the programme list.

Setting favourite programmes

You can set the storage location where you want to

store the DTV recordings.

1. While watching DTV, press PR LIST.

2. Use A /V to select à programme you want to add on the Favourite List.

3. Press blue coloured (B) button to display [Select Favorite Group] menu!

4. Use AJ V to select a group and press ENTER (©) to add the programme on the selected group.

Changing Digital TV programmes

Generally, press PR (-/+) to select the programme position, or entering à programme number using numerical buttons. If you want to change the programme on the program me list, follow the instruction as below.

1. While watching DTV, press PR LIST.

On the Programme List menu, use </> to move to the Favorite List menu

The @ mark appears for the favorite programmes on the Favorite List.

To cancel the favourite programmes from the Favorite List, select a programme with @ mark, and press blue coloured (8) button.

Suyeedo [IN Suyesedo EN

You can view a description ofthe programme being broadcast

This function informs you of related broadcasting information on current channel

Selecting DTV subtitle language Some digital programmes may broadcast several

subtitle languages. You can select a subtitle language when it is available:

1. While watching DTV, press SUBTITLE.

2. Use </> to select a subtitle language, and press ENTER (©)

You can find a programme that supports subtile language on the programme nformation:

For the programmes with subtitle, SUB icon appears on the programme information.

Selecting DTV audio language

Some digital programmes may broadcast several audio languages or encoding methods. You can select an audio languages or an encoding method when it is available

1. While watching DTV, press INFO/MENU (C3)

Programme Guide (Digital program only)

The Program Guide contains schedule and program information for digital programs. They also provide local over-the-air programs information including conventional digital programs. Use the Program Guide to find programs easily and conveniently and to view schedule and descriptive program information for the programs

To Display the Program Guide

Press the GUIDE button on your remote control

To Exit the Program Guide

Press the BACK (9) button to return to the last program you tuned to.

To change guide menu The guide screen provides to search menus. Press blue colored (B) button when the Programme Guide is displayed.

Now/Next: The screen shows now and next programs.

8 Days: The screen shows programs within 8 days.

To navigate through programs on the Guides

Use AJ V 1/3 on your remote control to navigate the guide screen.

You can move faster through programs by scrolling page-by-page with the PR (-/+) buttons on the remote control. Each button stroke scrolls one page up or down.

To tune to another current channel

Use A/V/</J> to select a current channel then press ENTER (©). You can watch the channel.

When the Program Guide with 8 days is displayed, you can also change the date ofthe Program Guide by pressing the green colour button then use </ > to select à date.

After setting favorite channels from the PR list, you can use the yellow button to toggle between [AI] and [Favorite] channel list.

Timer Recording with Program Guide

You can set a timer record using program guide

1. Display Program Guide with 8 days.

2. Select a program then press red colour (R) button. The red timer icon will be displayed and the program will be memorized by the recorder. You can check the programming on the Timer Record List menu (see page. 39-41)

To release the timer recording, select the program then press red colour (R) button. The red timer icon disappears

Suyeedo DR Suyesedo EN

Using the timeshift function manually

You can pause a Live TV broadcast, then continue

watching the programme at a later time. This is

useful when you receive an unexpected call or

visitor while watching TV.

The following are operating steps when the

[Timeshif] option is set to [Manual

1. Press TIME SHIFT while watching a TV broadcast. The recorder starts recording the current TV programme to the HDD.

2. Press I to pause the programme your watching the just now.

Press D to resume watching the programme.

Press TIME SHIFT to display the progress of timeshift.

Press 64/1 10 move the starting point or the ending point oftimeshift.

Press 44/ > to playback of timeshift fast forward or fast reverse.

4. Press M to cancel the timeshift Timeshift cannot be saved as a recorded title

Using the timeshift function automatically

If you set the Timeshift option to [Auto], live TV broadcast will automatically be recorded to the HDD without pressing the TIME SHIFT button. The timeshift will start automatically when the Digital TV tuner mode is started Refer to“Setting the Timeshift"on page 27 to set the [Timeshift] option 1. Press (D (POWER) to turn on the unit. 2. Use A/V/</> to select [DTV] and press ENTER (©). The timeshift function will automatically start.

Press 4/4 to move the starting point or the ending point of timeshift.

Press 44/ > to playback of timeshift fast forward or fast reverse.

3. Press HOME (@r) to exit from the DTV viewing.

4. Press Mit not turning offthe timeshif function but going back to the DTV in realtime

Without changing a channel, the timeshift function will go on

When you exit from the DTV mode, Timeshift function automatically will be stopped.

Ex) Home menu, Power off, Record et.

If you change the channel during the timeshift function, the unit will switch to Live TV automatically.

Ifthe timeshift data exceeds the capacity, the date will be deleted automatically from the oldest one.

Timeshift doesn't support Audio only channel

Using the teletext (Viewing Teletext)

Many Digital TV programmes broadcast information via their text service, and this recorder has access to dedicated text programmes transmitted by the broadcasters.

117 Fimnair jatkaa mnianerkin sa 4 6

uonalaista Orvausvaat if

1. Press TEXT while watching Live TV.

2. Use coloured (R/G/Y/B) button to select à page You can also select a page by entering a three digit number with the numerical buttons

3. Press TEXT or EXIT to exit the teletext screen.

Additionally, you now have four coloured buttons to navigate through the content of the page. The use ofthese coloured buttons will be displayed on the screen:

Recording TV programmes

You can record Digital TV programmes and store them on the HDD.

Use PR (-/#) to select a programme you want to record

Press @ REC to start recording.

Press I to pause recording, press I again to resume recording

Press I to stop recording

To stop recording, you must move to the programme being recorded before pressing I

The TV screen turns black with stop mark caused by no signal, Scramble, rating lock recording is not available.

Timer Recording (Manual)

You can set the timer for a total of 32 programmes, up to 22-28 days in advance.

3. Select an item using </ > and adjust it using A JV. You can use numbered buttons to change the setting.

The adjustable items are listed below.

Starttime Setsthe starttime.

Endtime Setstheendtime

Channel Setsthe programme position {Fyou want to display more channels, press PR LIST)

Repeat Choose a desired repeat mode

(Once, Daily, Weekly or Mon-Fri)

+_ The timer recording can be set from 3 minutes after the current time.

+ Timer recording is not available on a USB device

4. Press ENTER (©) 5. Select [OK] then press ENTER (©)

If you input the wrong information, an error message will appear and the timer recording cannot be made

You can also set the timer based on the information provided by the EPG:

1. While watching TV, press GUIDE.

2. Use </> to select date field, and select the date of recording schedule using A / V

3. Use </> to select programme field, and set the programme using À / V

4. Use </> to select the programme list, and select à programme you want to record using AIV

5 Press the red coloured (R) button.

For the successfully scheduled programme, à red bullet mark appears.

A red bullet mark may not appear for inavailable programme to record.

6. Press BACK (9) to return to the TV viewing.

Press TIMER REC, and check whether the schedule is registered properly or not.

Canceling a timer recording

You can cancel a timer recording before the timer recording actually starts

1. While watching TV, press TIMER REC.

2. Press the red coloured (R) button

3. Use A/V/</> to select a schedule you want to cancel.

4. Use A V to select [Timer Record List], and press the green coloured (G) button.

{Are you sure you wish to delete to the selected recording?

Select [No] and press ENTER (©) to cancel

Select [Yes] and press ENTER (©) to delete selected schedules (selected recording).

Editing a timer recording

You can edit a pre-scheduled timer recording before the timer recording actuall starts While watching TV, press TIMER REC.

Press the red coloured (R) button

Press ENTER (©) to display the [Record setting] menu.

4. Follow the steps 3-5 from"Timer Recording {Manual} on page 39 to complete the editing,

Instant Timer Recording General Playback You can set the recording time instantly to stop the recording automatically.

1. Use PR (/4) to select a programme you want to Playing Discs record

1. Press & (OPEN/CLOSE), and place a disc on the disc tray.

2. Press @ REC. to start recording.

While recording, press </ > repeatedly to set the recording duration Insert a disc

Recording me is remained O Hr. 13 Min.

5. Press I to stop recording.

+_ The standard recording time is hours {MAX=6hours). Depending on the remaining capacity of HDD, the recording

time is somewhat flexible 4 2. Press & (OPEN/CLOSE) to close the disc tray. +_lfthe unit cannot catch the signal, the o recording will be pause, actual recording For most Audio CD, BD-ROM and H time can be less than the time set on timer. DVD-ROM discs, playback starts automatically. El *_ You cannot record radio or blocked 3. Press HOME (À) a channels

The quality of recording can be different on the status of the broadcast signal.

During the recording, turning off by force can cause a serious problem on hard disk drive.

4. Select [Moviel, [Photo] or [Music] using </>,

While navigating [Movie], [Photo] or [Music] menu, press green(G) colored button to change the device. (DISC, USB or HDD)

6. Select a file using A /V/</>, and press D (PLAY) or ENTER (©) to play the file.

+ Playback functions described in this manual are not always available in every files and media. Some functions can be restricted depending on many factors

Depending on the BD-ROM titles, a USB device connection may be needed for proper playback

To stop playback Press I (STOP) during playback

Press I (PAUSE) during playback Press à (PLAY) to resume playback

To play frame-by-frame

Press I (PAUSE) while movie playback Press I (PAUSE) repeatedly to playback Frame-by- Frame.

To scan forward or backward

Press 44 or BB to play fast forward or fast reverse during playback

You can change the various playback speeds by pressing 44 or Bæ repeatediy

To slow down the playing speed

While the playback is paused, press > repeatediy to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press 4 or BBA to go to the next chapter/tracWfle or to return to the beginning ofthe current chapter/trackfile

Press Hé twice briefly to step back to the previous chapter/track/ile.

Using the disc menu an [ou [ac |

To display the disc menu

The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu during playback press DISC MENU.

Use A/V/</> buttons to navigate through menu items.

To display the Pop-up menu

Some BD-ROM discs contain a Pop-up menu that appears during playback.

Press TITLE/POPUP during playback, and use A / V/<J> buttons to navigate through menu items

Cu [ou [on [uoue( ac |

This unit remembers the point where you pressed the I (STOP) depending on the disc.

IF“ (Resume Stop" appears on the screen briefy, press à (PLAY) to resume playback (from the scene point).

IFyou press IR (STOP) twice or unload the disc, ‘I (Complete Stop)" appears on the screen. The unit will clear the stopped point.

+_ The resume point may be cleared when a button is pressed (for example; (1) (POWER), & (OPEN/CLOSE), etc)

+ On BD-Video discs with BD-J the resume playback function does not work

+_Ifyou press M (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode

Playing the recorded titles REC

1. While watching TV, press REC LIST to display the options menu or press REC LIST in Home menu

Use A / V /</> to select recording title:

Press à (PLAY) or ENTER (©) to play the recording title.

+ @markis displayed in recorded files that never once played since it was recorded!

Searching the recorded titles

REC You can search for videos by entering search words

of up to 60 characters.

1. While watching TV orin Home, press REC LIST to display the options menu:

2. Press yellow (Y) colored button:

3. Use A/V/</> to select a character then press ENTER (©) to confirm your selection on the virtual keyboard

To enter a letter with an accent mark, select the letter from extended character set

[Clear] - Clear all entered characters.

[Space] - Inserts a space at the cursor position.

[<-1- Deletes the previous character attthe cursor position.

IABC / abc / #+-=&] - Change the keyboard menu settings to capital letters, small letters or symbol.

To enter a letter with an accent mark: Select a letter using A/V/</> on the keyboard menu

character set. Use </> to select a character then press ENTER (©).

4. When you finish entering the search words,

Select [OK] and press ENTER (©) to display the related videos list.

Sorting the recorded titles REC

1. While watching TV, press REC LIST to display the options menu.

Press blue coloured (B) button repeatedly to sorted by recorded time in recent order or title name in alphabetical order.

[ABC order] - by title name in alphabetical order.

[Recent order] - sorted by recorded date.

Suyesedo [EN Buyerdo [EN

Playing content contained in the internal hard disk drive 1. Press HOME (@r).

While navigating [Movie], [Photo] or [Music] menu, press green(G) colored button to change the device. (DISC, USB or HD)

4. Select a file using A / V/</>, and press PLAY or ENTER (©) to play the file.

+_ The file requirements are described on page 10.

+ You can use various playback functions. Refer to pages 41-50.

+ Recorded files are searchable only by

searching on the (REC. LISTI Searching content in the hard disk drive by entering file name

Ifyou are having difficukies finding content in the hard disk drive, you can search for the content by entering keyword with the virtual keyboard

1. On the [Movie], [Photo], [Music] or Home menu, press yellow (Y) colored button to display the virtual keyboard

4. Press </ > repeatedly until the search result is selected, and use À / V to select a desired content.

5. Press ENTER (©) to play the content.

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes Preparation

In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

N Check if your TV is 3D capable and has HDMI 14 input) Wear 3D glasses to enjoy the 3D experience if itis necessary. l you want to purchase additional 3D-ready glasses, contact the dealer that you purchased the 3D-ready TV from. check whether the BD-ROM title is the Blu-ray 3D disc or not. connect an HDMI cable (version 1.3 or higher) between the players HDMI output and TVs {DMI input. 1. Press HOME (À), and set the [3D Mode] option on the [Setup] menu to [On] (page 29). 2. Press & (OPEN/CLOSE) and place a disc on the disc tray. 3. Press (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

The 3D icon appears on the screen when 3D content is in playback.

4. Refer to the owners manual of your 3D-ready TV for the further instruction

You may need to adjust the display settings and focus on your TV setting for the improved 3D effect.

CN Caution + Watching a 3D content for a long period time may cause dizziness or tiredness. +_Itis not recommended to watch a movie

in 3D mode for infirm, child and pregnant woman.

+_Ifyou are experiencing headache, tiredness or dizziness while viewing contents in 3D, itis strongly recommended to stop the playback and rest until you feel normal

3D available Blu-ray 3D Discs

£lu-rey Tne’Blu-rey 3D°logo lebeled BD-

F2 ROM disc can be played on this player with 3D mode output. If

Blu-ray 3D-ready TV*, 2D mode

£lu-rey Tne’Blu-rey 3D ONLY logo labeled 32 BD-ROM disc can be played on this player with 3D mode output. 3D ONLY The Blu-ray 3D ONLY disc playback is not available, if your TV or player

are not the Blu-ray 3D-ready device.

+ 3D-ready TV refers to TVS that are compliant with “HDMI 1.4 3D mandatory format" standard.

© Note The “Blu-ray 3D' and “Blu-ray 3D ONLY" may not

be printed on your BD-ROM disc, even ifthe disc contains 3D contents.

Suyeedo DR Suyesedo EN

During playback, press REPEAT repeatedly to select à desired repeat mode.

9 A-- Selected portion will be repeated continual. 9 Chapter - The current chapter will be played back repeatedly.

Q Title — The current title will be played back repeatediy.

To return to normal playback, press REPEAT repeatedly to select [Of]

Audio CDs/Music files

D Track - The current track or file will be played back repeatediy.

<> AI Allthe tracks or files will be played back repeatediy.

D£- The tracks or files will be played back in fandom order.

>< @ AI Allthe tracks or files will be played Back repeatediy in random order.

© a:8 - Selected portion will be repeated continually. (Audio CD only)

To return to normal playback, press CLEAR

+_Fyou press BI once during Repeat Chapter/Track playback, the repeat playback cancels.

+_ This function may not work on some disc or title.

Repeating a speci portion

ENENEUE This player can repeat a portion you have selected

1. During playback, press REPEAT to select [A-] at the beginning of the portion you wish to repeat

2. Press ENTER (©) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press REPEAT repeatedly to select [Off].

+_ You cannot select a portion less than 3 seconds

+_ This function may not work on some disc or title.

Changing content list view

On the [Movie], [Music] or [Photo] menu, you can change the content list view.

Press red (R) coloured button repeatediy.

The player can display the content information.

Select the [Information] option using A / V, and press ENTER (©)

The file information appears on the screen

During movie playback, you can display the file information by pressing TITLE/POPUP

‘The information displayed on the screen may not be correct compared to the actual content information.

Selecting a subtitle file

Ifthe subtitle file name is different from the movie

name, you need to select the subtitle file on the

[Movie] menu before playing the movie.

E Use A/V/</3 to select the subititle file you wish to play in the [Movie] menu

Press ENTER (©) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the movie fle.

Iyou press I (STOP) while playback, the subtitle selection is cancelled

Last Scene Memory On-Screen display Leo Lovo

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch

offthe unit. If you load a disc that has the scene Displaying content information memorized, the scene is automatically recalled.

You can display and adjust various information and settings concerning the content.

@ «+ on-screen _ ote + Last Scene Memory function for a previous (RO RON |EXGDI|MONE disc is erased once a different disc is played. 1. During playback, press INFO/MENU (TJ) to +_ This function may not work depending on show various playback information

On BD-ROM discs with BD-J, the last scene memory function does not work

wots2/0tws2 —|— [EJ This unit does not memorize settings of à disc if you switch off the unit before commencing to play it.

of —— E U 6 16:9 Original ——

Standard —— E Title - current title number/total number of titles

Chapter — current chapter number/total number of chapters

Time — elapsed playing time/total playback time

Audio - selected audio language or channel

Subtitle - selected subtitle

GGS Angle - selected angle/total number of angles

TV Aspect Ratio — selected TV aspect Ratio

E Picture Mode - selected picture mode

2. Select an option using A / V. 3. Use </> to adjust the selected option value. 4. Press BACK (9) to exit the On-Screen display.

Ino button is pressed for a few seconds, the on-screen display disappears.

A title number cannot be selected on some discs.

Available items may differ depending on discs or titles.

Ifan interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed

Playing from selected time

so [ou [on [uoue( rec |

1. Press INFO/MENU (T3) during playback. The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter "21020"

Press </ > to skip the playback 60 seconds forward or backward 3. Press ENTER (©) to start playback from selected time.

+_ This function may not work on some disc or titles.

Hearing different audio

CORNE CE During playback, press INFO/MENU (1) to display the On-Screen display.

Use A/ V to select the [Audio] option.

Use </> to select desired audio language, audio track or audio channel

+ Some discs allow you to change audio selections only via the disc menu. In this case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound

On BD-ROM disc, the multi audio format {5.1CH or 7.1CH) is displayed with [MultiCH} in the on-screen display.

Selecting a subtitle language

so [ou [ao [uoue( mec

1. During playback, press INFO/MENU ([) to display the On-Screen display.

Use A / V to select the [Subtitle] option: Use </> to select the desired subtitle language

Press BACK () to exit the On-Screen display.

Some dises allow you to change subtitle selections only via the disc menu. Fthis is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

Suyeedo DR Suyesedo EN

Watching from a different angle

EE Ifthe disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback

1. During playback, press INFO/MENU (C9) to display the On-Screen display.

2. Use A / V to select the [Angle] option. 3. Use </> to select the desired angle. 4. Press BACK (9) to exit the On-Screen display.

Changing the TV Aspect Ratio D BD [arc [move | rec

You can change the TV aspect ratio setting during playback

During playback, press INFO/MENU ([) to display the On-Screen display.

Use A / V to select the [TV Aspect Ratio] option.

Use < / > to select desired option Press BACK (9) to exit the On-Screen display.

Even if you change the value ofthe [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed

Changing the Picture Mode

EEE EN You can change the [Picture mode] option during playback.

Use A / V to select the [Picture Mode] option

3. Use </> to select the [User setting] option, and press ENTER (©)

4. Use A/V <> to adjust the [Picture Mode] options.

Select [Default] option then press ENTER (©) to reset the all video adjustments.

5. Use A/V/</> to select the [Close] option, and press ENTER (©) to finish setting,

Copying file(s)/folder(s) to the internal hard disk drive

You can copy music, photo, video file(s)/folder(s) from disc/USB storage device to the internal hard disk drive.

4. Use AJ V1 <J > to select a directory that files or folders you want to copy are located.

Repeat this step to select files and folders as many as you can

Select all the files and folders on the current directory.

Shows al type offiles on the screen. (Movie, Photo and Music)

Cancels the copying and returns to the previous screen.

8. Use A/V/</> to select [Start], and press ENTER (©).

Ifyou want to create a new folder, use A /V/ </> to select [New Folder] and press ENTER (©)

Enter folder name using virtual keyboard, and press ENTER (©) while [OK] is selected.

11. Use A/V/<J> to select [OK], and press ENTER (©) to start copying.

© Note Copying speed may vary depending on the file size, number of files and network condition.

Copying file(s)/folder(s) from the internal hard disk drive to a USB storage device

You can copy music, photo, video file(s)/folder(s)

from the internal hard disk drive to a USB storage

1. Insert a USB device to the USB port until it fits into place.

5. Use A/V/</> to select a directory that files or folders you want to copy are located.

7. Use À / V to select [Copy] option, and press ENTER (©) to display the [Copy] menu.

8. Use A / V to select a file or a folder you wish to copy on the menu, and press ENTER (©).

Repeat this step to select files and folders as many as you can

Select all the files and folders on the current directory.

[sea | Sn | So al ype offles onthe Low]

screen. (Movie, Photo and Music)

Cancels the copying and returns to the previous screen.

9. Use A/V/</> to select [Start], and press ENTER (©).

Ifyou want to create a new folder, use A /V/ <> to select [New Folder] and press ENTER (©)

Enter folder name using virtual keyboard, and press ENTER (©) while [OK] is selected. 12 Use A/V/<J3 to select [OK], and press ENTER (©) to start copying.

+ Copying speed may vary depending on

the file size, number of files and network condition:

Itis unable to do copy during the recording,

If a reserved recording is started during taking a copy, the recording is discontinued then a notification pops up.

The name of copied iles can be different from that of original files.

It might not be copied fit is copy-protected contents.

Successful copying contents also depend on USB storage capability.

Deleting a file(s)/folder(s)

You can delete file(s)/folder(s) from the internal

1. Use A/V/</> to select a directory that files or à folders you want to delete are located

2. Press INFO/MENU ([) to display the option menu

3. Use A / V to select [Delete] option, and press ENTER (©) to display the [Delete] menu.

4. Use AJ V to select a file or a folder you wish to copy on the menu, and press ENTER (©)

Repeat this step to select files and folders as many as you can

Select all the files and folders on the current directory.

Shows al type offiles on the screen. (Movie, Photo and Music)

Cancels the copying and returns to the previous screen.

5. Use A/V/</> to select [Start], and press ENTER (©).

6. Use </> to select [OK], and press ENTER (© to delete the selected files and folders.

+_ fa reserved recording is started during taking a copy, the recording is discontinued then a notification pops up.

+_Itis unable to do delete during the recording

Suyesedo ÎN Suyesedo EN

Naming a file/folder

You can rename a file or a folder in the internal hard

1. Select afile or a folder contained in the internal hard disk drive.

2. Press INFO/MENU ([) to display the option menu.

3. Use A V to select [Rename] option, and press ENTER (©) to display the virtual keyboard.

Enter a new name using virtual keyboard, and press ENTER (©) while [OK] is selected.

A just archived audio file(s) from an audio CD may be unable to be renamed for a while.

Enjoying BD-LIVE This unit allows you to enjoy functions such as picture-in-picture, secondary audio and

Virtual packages, etc, with BD-Video supporting BONUSVIEW (BD-ROM version 2 Profile 1 version

1.1/ Final Standard Profile). Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

In addition to the BONUSVIEW function, BD-Video supporting BD-LIVE (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Checkthe network connection and settings {pages 19-21).

2. Insert a USB storage device to the USB port on the front panel

A USB storage device is needed to download bonus content.

3. Press HOME (7), and set the [BD-LIVE connection] option on the [Setup] menu (page 33)

Depending on the disc, the BD-LIVE function may not operate if [BD-LIVE connection] option is set to [Partially Permittedl]

4. Insert à BD-ROM with BD-LIVE.

The operations may different depending on the disc. Refer to the manual supplied with the disc.

while content is being downloaded or à Blu- ray disc is still in the disc tray. Doing so may damage the connected USB device and BD- LIVE features may not operate properly with the damaged USB device anymore. the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this unit.

Do not extract the connected USB device

accessed in some territories by contents provider own decision.

+_lt may take up to several minutes to load and start enjoying BD-LIVE contents,

+ Some BD-LIVE contents may be restrictively

Playing movie file and VR discs

You can play DVD-RW discs that are recorded in Video Recording (VR) format and movie files contained on à disc/HDD/USB device.

2. Select [Movie] using </ >, and press ENTER (©)

3. Select [Disc], [USB] or [HDD] option using A / V, and press ENTER (©).

This step is needed only when a disc or a USB device is connected on this unit.

While navigating [Movie], [Photo] or [Music] menu, press green (G) colored button to change the device. (DISC, USB, HDD or Recordings)

4. Select aile using A / V/</>, and press D (PLAY) or ENTER (©) to play the file.

The file requirements are described on page 10.

You can use various playback functions. Refer to pages 41-50.

Unfinalized DVD VR format discs may not be played in this player.

Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs

CPRM is a copy protection system (with scramble system) only allowing the recording of'copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media

Selecting a subtitle file

Ia movie file name and the subtitle file name are

the same, subtitle file is played automatically when

playing the movie file.

Ifthe subtile file name is different from the movie

file name, you need to select the subtitle fille on the

[Movie] menu before playing the movie:

1. Use A/V/</> to select the subtile file you wish to play in the [Movie] menu

3. Press ENTER (©) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the movie fie.

© Note If you press I (STOP) during playback, the subtitle selection is cancelled.

Changing subtitle code page

Ifthe subititle is not displayed properly, you can change the subtile code page to view the subtitle file properly.

1. During playback, press INFO/MENU (C9) to display the On-Screen display.

2. Use A / V to select the [Code Page] option. 3. Use </> to select desired code option.

4. Press BACK (9) to exit the On-Screen display.

You can view photo files using this player. 1. Press HOME (@').

2. Select [Photo] using </>, and press ENTER ©)

3. Select [Disc], [USB] or [HDD] option using A / V, and press ENTER (©).

This step is needed only when a disc or a USB device is connected on this unit.

While navigating [Movie], [Photo] or [Music] menu, press green (G) colored button to change the device. (DISC, USB or HDD)

4. Select a file using A / V/</>, and press ENTER (©) to view the photo in full screen.

To play a slide show Press à (PLAY) to start the slide show.

To stop a slide show Press I (STOP) during slide show.

To pause a slide show

Press I (PAUSE) during slide show. Press & (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in ful screen, press < or > to go to the previous or next photo.

‘The file requirements are described on page 10.

Options while viewing a photo

You can use various options while viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/ MENU ([) to display the option menu.

2. Select an option using A/V Current photo/Total number of photos Use < / > to view previous/next photo.

Slide Show - Press ENTER (©) to start or pause slide show.

Music Select - Select the background music for the slide show (page 58-59)

Music -Press ENTER (©) to start or pause background music.

Rotate - Press ENTER (©) to rotate the photo clockwise.

EF Zoom - Press ENTER (©) to display the

Effect - Use </> to select a transition effect

between photos in a slide show.

E Speed - Use </> to select a delaying speed between photos in a slide show.

3. Press BACK (9) to exit the option menu.

Listening to music during a slide show

You can display photo files while listening to music fles.

Select [Photo] using </>, and press ENTER ©)

3. Select [Disc], [USB] or [HDD] option using A / V, and press ENTER (©)

Select a file using A / V/</ >, and press

ENTER (©) to view the photo.

5. Press INFO/MENU ([) to display the option menu.

6. Use A V to select [Music Select] option, and press ENTER (©) to display the [Music Select] menu.

Devices that you can select may differ depending on the location of the photo file you are displaying in full screen

Disc Disc, USB, HDD USB Disc, USB, HDD Internal HDD Disc, USB, HDD Operating 59

8. Use A / V to select a file or a folder you wish to play.

Select a folder and press ENTER (©) to display the lower directory.

and press ENTER (©) to display the upper directory.

9. Use > to select [OK], and press ENTER (©) to complete music selection.

This player can play Audio CDs and music files. 1. Press HOME (@').

3. Select the [Disc], [USB] or [HDD] option using AV and press ENTER (©).

This step is needed only when a disc or a USB device is connected on this unit.

While navigating [Movie], [Photo] or [Music] menu, press green(G) colored button to change the device. (DISC, USB or HDD)

4. Select a music file or audio track using AIVI<I>, and press ENTER (@) to play the

© Note Es file requirements are described on page

Suyesedo ÎN Suyesedo EN

You can record one desired track or all ofthe tracks

in Audio CD to the internal hard disk drive or a USB

1. Press OPEN/CLOSE(&), and place an Audio CD on the disc tray. Press OPEN/CLOSE() to close the disc tray. The playback starts automatically.

3. Use A/ V to select [CD Archiving] option, and press ENTER (©) to display the [CD Archiving] menu.

4. Use AJ V to select a track you wish to copy on the menu, and press ENTER (©).

Repeat this step to select tracks as many as you can.

Select all the tracks on an Audio CD.

DS | °<ects an encoding option from

the pop-up menu (128 kbps, 192 kbps, 320 kbps or Lossless).

Cancels the recording and returns to the previous screen.

This step is needed only when a USB storage device is connected!

7. Use A/V/</> to select a destination folder

to be copied, and press ENTER (©).

If you want to create a new folder, use

AIN <I> to select [New Folder] and press ENTER (©)

Enter folder name using virtual keyboard, and press ENTER (©) while [OK] is selected.

8. Use A/V/</> to select [OK], and press ENTER (©) to start Audio CD archiving.

If you want to stop in progressing Audio CD archiving, press ENTER (©) while [Cancel] is highlighted

9. A message appears when Audio CD archiving is completed Press ENTER (©) to check the audio file created in the destination folder.

+_ The table below shows the average recording time from an audio track with 4 minutes of playback time to an audio file with 192kbps as an example

Status | stop while Device mode | playback Internal HDD 15sec. | 23sec. USB t4min. | 2min

Alltimes in the above table are approximate

Actual recording time for USB storage device varies depending on the USB storage devices ability.

Make sure that there is minimum of 50MB free space is needed when recording into the USB storage device.

The length ofthe music should be longer than 20 second for the proper recording

Do not turn off this player or extract the connected USB storage device during Audio CD recording

The making of unauthorized copies of copy- protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes

Be responsible Respect copyrights

The Power does not turn on.

+ Plug the power cord into the wall outlet secure.

The unit does not start playback

Insert a playable disc. (Check the disc type, color system, and regional code)

Place the disc with the playback side down.

Place the disc on the disc tray correctiy inside the guide.

Cancel the Rating function or change the rating level.

The angle cannot be changed

Muht-angles are not recorded on the DVD Video being played

Cannot play movie, photo or audio files.

The files are not recorded in a format that the unit can play.

The unit does not support the codec ofthe movie file

The remote control does not work proper.

The remote control is not pointed at the remote sensor of the unit.

The remote control is too far from the unit.

There is an obstacle in the path between the remote control and the unit.

The batteries in the remote control are exhausted.

There is no picture.

+ Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.

Connect the video connection securely.

Checkthe [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection:

Your TV may not support the resolution you have set on the unit. Change the resolution to one that your TV accepts.

The players HDMI OUT jack is connected to a DU device that does not support copyright protection.

Picture noise appears

You are playing a disc recorded in a colour system that is different from your TV.

Set the resolution to one that your TV accepts.

ol S £ Es a & 8 £& 5

There is no sound or the sound is distortedl.

+ Connect the audio connection securely.

The input source setting on the amplifier or the connection to the amplifier is incorrect.

The unit is in scan, slow motion, or pause mode.

The sound volume is low.

Check that the connected amplifier is compatible with the audio format output from the player.

The players HDMI OUT jack is connected to a DVI device. The DV jack does not accept audio signal

Check the device connected to the players HDMI OUT jack is compatible with the audio format output from the unit.

BD-LIVE feature does not work.

+_ The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space.

+ Ensure that the unit is correctly connected to the local area network and can access the internet (see pages 19-21)

+_ Your broadband speed may not be fast enough to use the BD-Live features. Contact your Internet Service Provider (ISP) and increase the broadband speed to suit the units requirements.

+_The (BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted]

Recording Symptom Cause & Solution Cannot record or does not + Checkthe remaining space on the HDD: record successfully. +_Ifyour source is copy-protected, you cannot record it using this

If you set a DTV rating for the recorder and higher rated digital programs are received, the programme cannot be recorded. Change the DTV rating level in order to record it

Timerrecord does notrecord | + Clock is not set to correct time. successfully.

The start time of the timer recording is past.

When setting the recording programme, make sure you set the recorder builtin tuner, not the TV built-in tuner.

Ithe HDD is damaged, the recording may not complete successfully.

You cannot enter a timer The time youre trying to set has already passed

There are already 32 timer programs set.

Itwo or more timer programs | «_ The earlier programme takes priority. overlap.

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http//laservice. com or contact LG Electronics customer care centre.

Open source software notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http-//opensourcelge com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below

(I Setting up the remote to

control your TV You can operate your TV with the supplied remote control.

I your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down (D (TV POWER) button,

press the manufacturer code for your TV with the numerical buttons (see the table below).

"5o) etes Manufacturer Code Number 000 È LG 1(Default), 2 = Zenith 13,4 [OACACIIE GoldStar 12 Id da 7 œe O 6 ©! Samsung 67 By pressing You can Sony 8,9 @(TVPOWER) | Turn the TV on or off. Hitachi 4 Switch the TV input 2. Release the (D (TV POWER) button to complete AV/INPUT source between the TV setting. and other input sources. Depending on your TV, some or all buttons may not function on the TV, even after entering the correct Scan up or down manufacturer code. When you replace the batteries PR (-/4) through memorized in the remote, the code number you have set may channels. be reset to the default setting. Set the appropriate code number again: VOL + Adjust the volume of the TV TV MUTE Mute the sound of the TV

Depending on the unit being connected, you may not be able to control your TV using some ofthe buttons.

Appendix 65 Area Code List

Choose an area code from this list

Area Code | Area Code | Area Code | Area Code

Afghanistan AE | Fit FJ | Monaco MC | Singapore SG Argentina AR | Finland fl | Mongolia MN | Slovak Republic SK Australia AU |France FR | Morocco MA | Slovenia SI Austria AT | Germany DE | Nepal NP | South Africa ZA Belgium BE | Great Britain GB | Netherlands NL | South Korea KR Bhutan BT | Greece GR | Antilles AN | Spain ES Bolivia BO | Greenland GL | New Zealand NZ | Sri Lanka LK Brazil BR | Hong Kong HK | Nigeria NG | Sweden SE Cambodia KH | Hungary HU | Norway NO | Switzerland CH Canada CA [India IN | Oman OM | Taiwan TW Chile CL |Indonesia ID | Pakistan PK | Thailand TH China CN | Israel IL | Panama PA | Turkey TR Colombia CO |italy IT | Paraguay PY | Uganda UG Congo CG | Jamaica JM | Philippines PH | Ukraine UA Costa Rica CR | Japan JP | Poland PL | United States US Croatia HR | Kenya KE | Portugal PT | Uruguay UY Czech Republic CZ |Kuwait KW | Romania RO | Uzbekistan UZ Denmark DK | Libya LY | Russian Vietnam VN Ecuador EC | Luxembourg Lu | Federation RU | Zimbabwe ZW Egypt EG | Malaysia my [Saudi Arabia SA El Salvador SV | Maldives mv | Senegal SN Ethiopia ET | Mexico MX

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu]

Licenses [= &lu-rey D m2. D Ov.

Blu-ray Disc”, Blu-ray", Blu-ray 3D%, BD-Live”, BONUSVIEW"* and the logos are trademarks of the Blu-ray Disc Association:

Java is a trademarks of Oracle and/or its affiliates.

DIGITAL PLUS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories

HOMI HIGH DEFINITION MULTIMEDIA INTERFAGE HDMI the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

“DVD Logo'is a trademark of DVD Format/Logo Licensing Corporation.

“AVCHD' and the‘AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

Manufactured under license under US. Patent #5:5,451,942; 5,956,674; 5,974,380; 5,978,762 6226616; 6487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other US. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved

HD DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries, and are used under license.

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially- produced film and videos and their soundtrack. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted:

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http//www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, PO. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under license from Verance Corporation and is protected by US. Patent 7,369,677 and other Us. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited

Network update notification

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to à broadband home network. IFthere is new software available and the unit is connected to a broadband home network the player will inform you about the update as follows.

Option 1: 1. The update menu wi appear on the screen when you turn on the player

2. Use </> to select a desired option and then press ENTER (©).

[OK] Starts the software update.

[Cancel] | Exits the update menu and

displays it next booting,

IHide] | Exits the update menu and it does not appear until next sofoware is uploaded in the update server.

Ifthe software update is available from the update server, the“ Update” icon appears in the Home menu. Press blue (8) coloured button to start the update procedure.

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by. connecting the unit directly to the software update server

Before updating the software in your player, remove any disc and USB Device from the unit.

Before updating the software in your player, tu the player off and then turn it back on.

During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button.

If you cancel the update, tum off the power and turn it on for stable performance

This unit cannot be updated to previous software version.

Check the network connection and settings (pages 19-21)

+_ Pressing ENTER (©) while checking for the update will end the process

+_ Ifthere is no update available, the Message, “No update is found” appears. Press ENTER (©) to return to the [Home Menu]

4. Ifnewer version exists, the message “Do you want to update?" appears.

5. Select [OK] to start update. (Selecting [Cancel] will end the update)

Do not turn off the power during the software update.

Ifthe software includes the driver update, disc tray may open during the process.

EN When update is completed, the message, “Update is complete’ wi appear, and then power will tu off automatically after 5 seconds.

Turn the power back on. The system now operates with the new version.

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Centre then update your player. Refer to "Customer Support’ on page 63.

Audio Output Specifications

Jack/Setting | Analog Digital Output (SPDIF) (DIGITAL AUDIO OUT) ** Source 2CH Output | PCM Stereo DTS Re-encode* * | Primary Pass-Thru Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital Dolby Digital Plus | PCM 2ch PCM 2ch DTS Dolby Digital Dolby TrueHD PCM 2ch PCM 2ch DTS Dolby Digital DTS PCM 2ch PCM 2ch DTS DTS DTS-HD PCM 2ch PCM 2ch DTS DTS Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch Linear PCM 5.1ch | PCM 2ch PCM 2ch DTS PCM 2ch Linear PCM 7.1ch | PCM 2ch PCM 2ch DTS PCM 2ch Jack/Setting HDMI OUT Source PCM Stereo | PCM Multi-Ch* | DTS Re-encode** * | Primary Pass-Thru *** Dolby Digital PCM 2ch PCM5.1ch DIS Dolby Digital Dolby Digital Plus PCM 2ch PCM7.Ich DIS Dolby Digital Plus Dolby TrueHD PCM 2ch PCM7.Ich DIS Dolby Tr ueHD DTS PCM 2ch PCMS.Ich DIS DIS DTS-HD PCM 2ch PCM7.Ich DIS DTS-HD Linear PCM 2ch PCM 2ch PCM 2ch DIS Linear PCM 2ch Linear PCM 5.1ch PCM 2ch PCMS.Ich DIS Linear PCM 5.1ch Linear PCM 7.1ch PCM 2ch PCM7.Ich DIS Linear PCM 7.1ch

*1 The secondary and interactive audio may not be included in the output bitstream if [Digital Output] or [HDMI] option is set to [Primary Pass- ‘Thru]. (Except LPCM Codec : the output always

ncludes interactive and secondary audio)

This player automatically selects the HDMI audio according to the decoding capability of the connected HDMI device even though [HDMI] option is set to [Primary Pass-Thru]

*3 The [PCM Muiti-CH}/{Primary Pass-Thru] setting of the HDMI] option and [DTS re-encode] setting ofthe [Digital Output] option cannot be set together. If you set them together, the [HDMI] or [Digital Output] option is set to [PCM Stereo] automatically.

On the PCM audio output, the sampling frequency of DIGITAL AUDIO OUT is limited to 96 kHz

#5 Ifthe [HDMI] or [Digital Output] option is set to [DTS re-encodel, the audio output is limited to 48 kHz and 5.1Ch. Ifthe [HDMI] or [Digita Output] option is set to [DTS re-encode], the DTS Re-encode audio is output for BD-ROM discs, and the original audio is output for the other discs, files and broadcast signal (like [Primary Pass-Thrul).

IF [HDMI] option is set to [PCM Multi-CH] and

[Digital Output] option is set to [Primary Pass-

Thru] while playback Dolby Digital Plus or

TrueHD audio, DIGITAL AUDIO OUT is limited to

“PCM 2ch (Fthe HDMI connection is version 1.3 and Dolby

Digital Plus/Dolby TrueHD is output from HDMI OUT jack, DIGITAL AUDIO OUT jack is limited to

“PCM 2ch' (When the HDMI and DIGITAL AUDIO OUT are connected simultaneously)

The audio is outputted as PCM 48 kHz/ 16 bit for MP3/WMA file and PCM 44.1 kHz/16 bit for Audio CD while playback

The Dolby TrueHD audio recorded on some Blu- rey discs consists of Dolby Digital and TrueHD audio. Dolby Digital audio is output through DIGITAL AUDIO OUT jacks and*DD"displays on the screen if TrueHD audio is not output (for example, when [HDMI is set to [PCM Stereo] and (Digital Output] is set to [Primary Pass-Thrul)

You must select a digital audio output and a maximum sampling frequency that your Amplifier (or AV receiver) accepts using [Digital Output, [HDMI] and [Sampling Freq options on the [Setup] menu (see page 30-31).

With digital audio connection (DIGITAL AUDIO OUT or HDMI), Disc Menu button sounds of BD- ROM may not be heard ifthe [Digital Output] or IHDMI] option is set to [Primary Pass-Thrul,

Ifthe audio format of the digital output does

not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

Multi-channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

About the internal hard disk drive

The internal hard disk drive (HDD) is a fragile piece of equipment. Please use the player following the guidelines below to protect against possible HDD failure.

+ Do not move the player while it is on

Install and use a player on a stable, levelled surface.

Do not use the player in excessively hot or humid places, or in places that may be subject to sudden changes in temperature. Sudden changes in temperature can cause condensation to form inside the player. This can be a cause of HDD failure.

While the player is powered on, do not unplug from the wall socket or switch the electricity off from the breaker switch

Do not move the player immediately after switching it off. If you need to move the player, please follow the steps below:

1. After the message *OFF'is shown in the display, wait at least two minutes.

2. Unplug from the wall socket

Itheres à power failure while the player is on, there is a chance that some data on the HDD will be lost.

The HDD is very delicate. If used improperiy or in an unsuiteble environment, it is possible that the HDD will fail after a few years of use. Signs of problems include playback unexpectediy freezing and noticeable block noise (mosaic) in the picture.

However, sometimes there wi be no warning signs of HDD failure.

Ithe HDD fails, playback of content wi not be possible. In this case, contact the LG service center by following methods

Web: http//lgservice.com

The manufacturer disclaims responsibility for loss of data contained in internal HDD.

There are some capacities in HDD reserved for the fill system and timeshift

Video Output Resolution

When the non-copy protected media is playing back

Video Out Resolution MON CUT 576 576p S76p 576p 720p 720p 1080i 1080i 1080p/24 Hz 1080p / 24 Hz 1080p / 50 Hz 1080p / 50 Hz When the copy protected media is playing back Video Out Resolution ROMIOUT 576 576p 576p 576p 720p 720p 1080i 1080i 1080p/24 Hz 1080p / 24 Hz 1080p/ 50 Hz 1080p / 50 Hz

+_ This unit supports simultaneous output of all video out jacks.

+_ For the 576i resolution setting, real output resolution of HDMI OUT will change to 576p.

fyou select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

if you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen please wait 20 seconds and the resolution

will automatically revert back to the previous resolution.

The 1080p video output frame rate may be automatically set to either 24Hz or 50Hz depending both on the capability and preference ofthe connected TV and based on

the native video frame rate of the content on the

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

Specifications General Power requirements AC 200-240 V, 50/60 Hz Power consumption 30W Dimensions (W x H x D) Approx. 430 x 58 x 320 mm without foot Net Weight (Approx) 306kg Operating temperature 5°Cto35 °C Operating humidity 5 %t0 90% Television system DVB-T Standard Compliant TV Recording Recording format TS (Transport Stream format) Recordable media Hard Disk Drive (250GB/500GB), USB 2.0 HDD Connectors VIDEO OUT: OV (p-p), 75 Q, sync negative, RCA jack x 1 HDMI OUT (video/audio) 19 pin (HDMI standard, Type A) ANALOGUE AUDIO OUT 2.0 Vrms (1 KHz, 0 dB), 600 ©, RCA jack (L, R} x 1 DIGITAL OUT (COAXIAL) 05 V (p-p}, 75 0, RCA jack x 1 ANTENNA IN Antenna input, 75 Q USB Port 4 pin (USB 2.0 standard) System Laser Semiconductor laser > wavelength 405 nm / 650 nm E Signal system Standard PAL/NTSC colour TV system £ Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling) Signal-to-noise ratio More than 100 dB (Analogue OUT connectors only) Harmonic distortion Less than 0.008% Dynamic range More than 95 dB LAN port Ethernet jack x 1, 10BASE-T/100BASE-TX Bus Power Supply (USB)

+_ Design and specifications are subject to change without notice.

Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre to out.

Do not use strong solvents such as alcohol, benzine, thinner, commerciallÿ available cleaners, or anti-static spray intended for older vinyl records.

When shipping the unit

Please save the original shipping carton and packing materials. you need to ship the unit for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

To clean the player, use a soft, dry cloth. IFthe surfaces are extremely dirty, use a soft cloth lightiy moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit

Maintaining the Unit

The unitis a high-tech, precision device. IFthe optical pick-up lens and disc drive parts are dirty. or wom, the picture quality could be diminished For details, please contact your nearest authorized service centre.

Important Information Relating to Network Services

Al information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content Content”) and all services and offerings (‘Services’) provided or made available by or through any

third party (each a “Service Provider‘) is the sole responsibility of the Service Provider from whom it originated!

The availability of and access to Content and Services furished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider website for the most up-to-

date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the avallability of or access to such Content or Services.
