OWNER'S MANUAL

LED TV

• LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LN45**

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand
A-3 Detaching the stand
A-4 Tidying cables

COMMON

LANGUAGE LIST

English Italiano

LANGUAGE

B-1 MAKING CONNECTIONS

B-1 Antenna connection

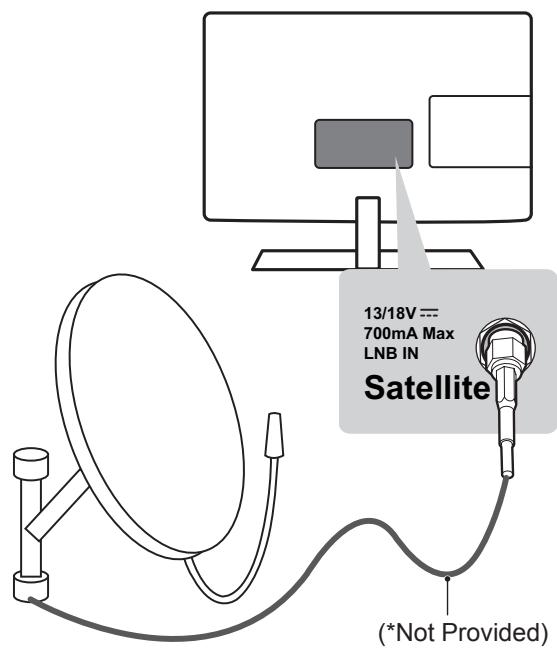

B-2 Satellite dish connection
B-2 Adapter connection
B-3 HDMI connection
B-4 DVI to HDMI connection
B-5 MHL connection
B-6 RGB connection

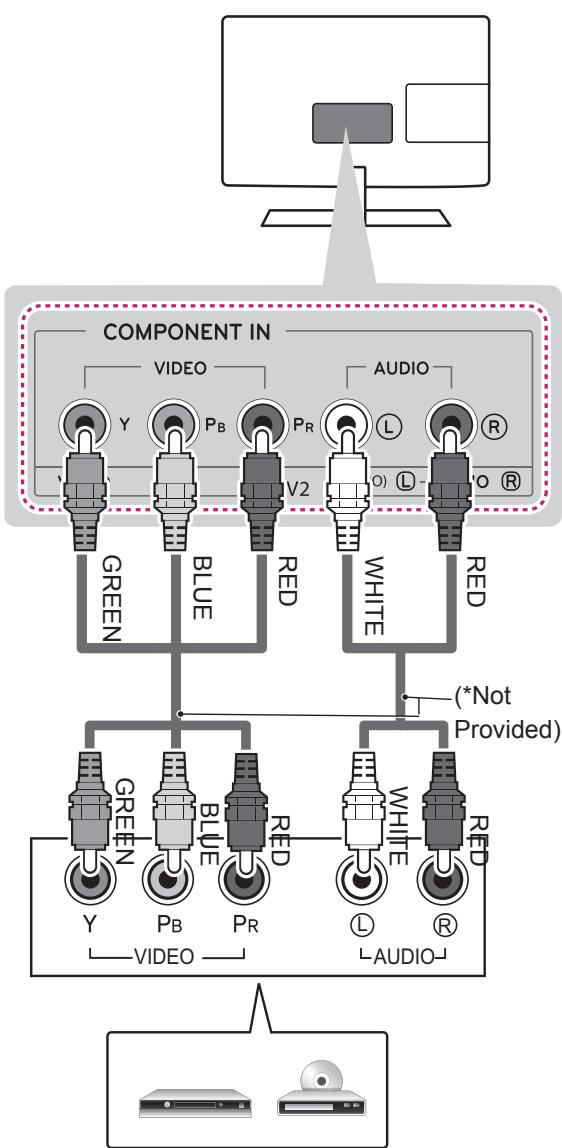

B-7 Component connection
B-8 Composite connection

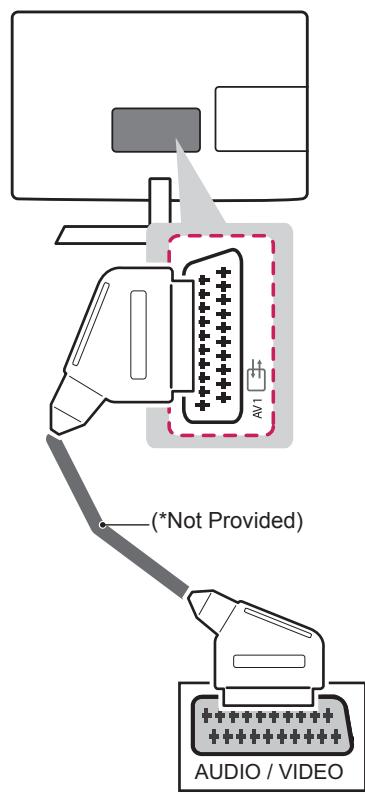

B-8 Euro Scart connection
B-9 USB connection
B-10 CI module connection

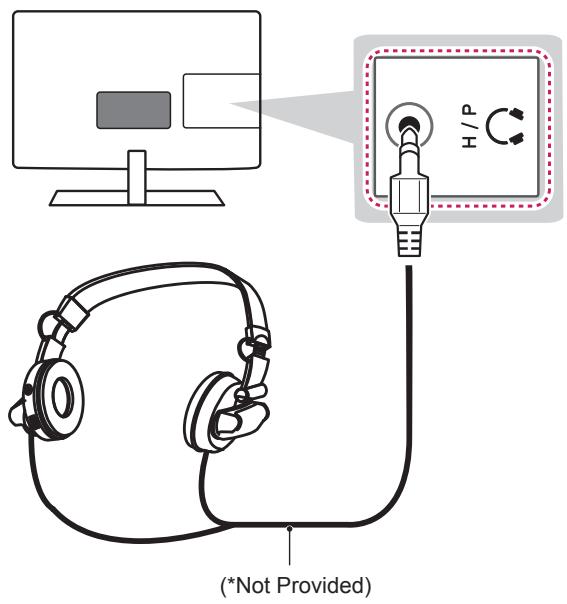

B-11 Headphone connection

COMMON

Setting up the TV

Image shown may differ from your TV.

Attaching the stand

22/24/26/28/29LN45**

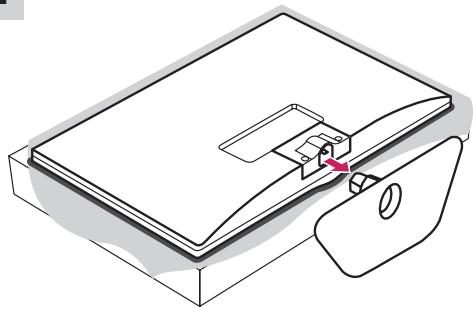

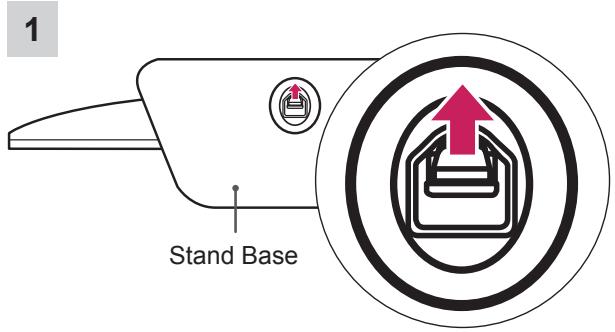

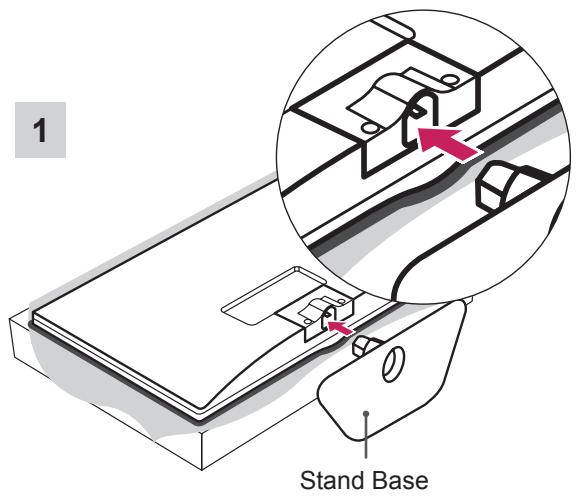

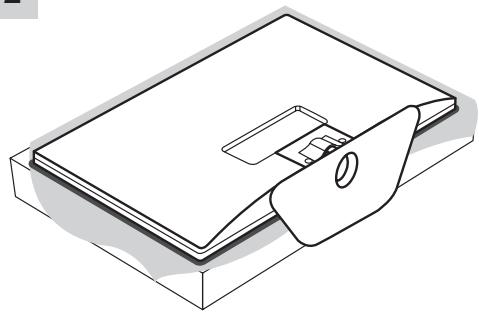

Detaching the Stand

22/24/26/28/29LN45**

2

2

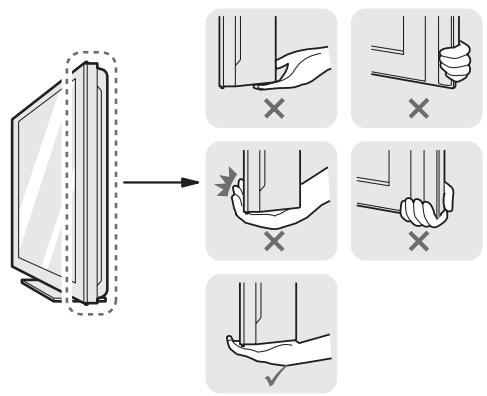

CAUTION

• When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

NOTE

• When Detaching the stand from TV, Detach the stand with lifting up the lever in the direction of the arrow.

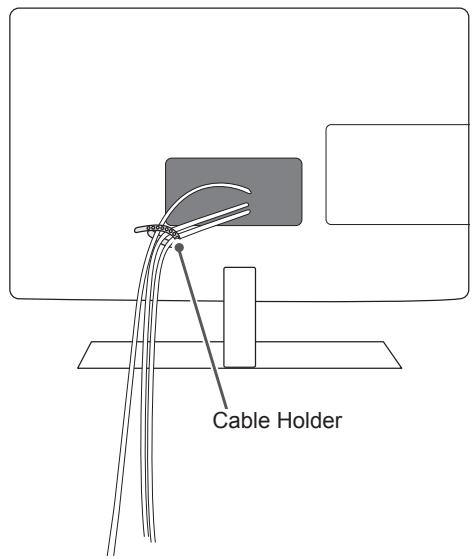

Tidying cables

Gather and bind the cables with the cable holder.

CAUTION

• Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

OWNER'S MANUAL

LED TV

• LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

3 EXTERNAL CONTROL DEVICE SETUP

4 SAFETY INSTRUCTIONS

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking

13 Parts and buttons

14 Lifting and moving the TV

15 Mounting on a table

16 Mounting on a wall

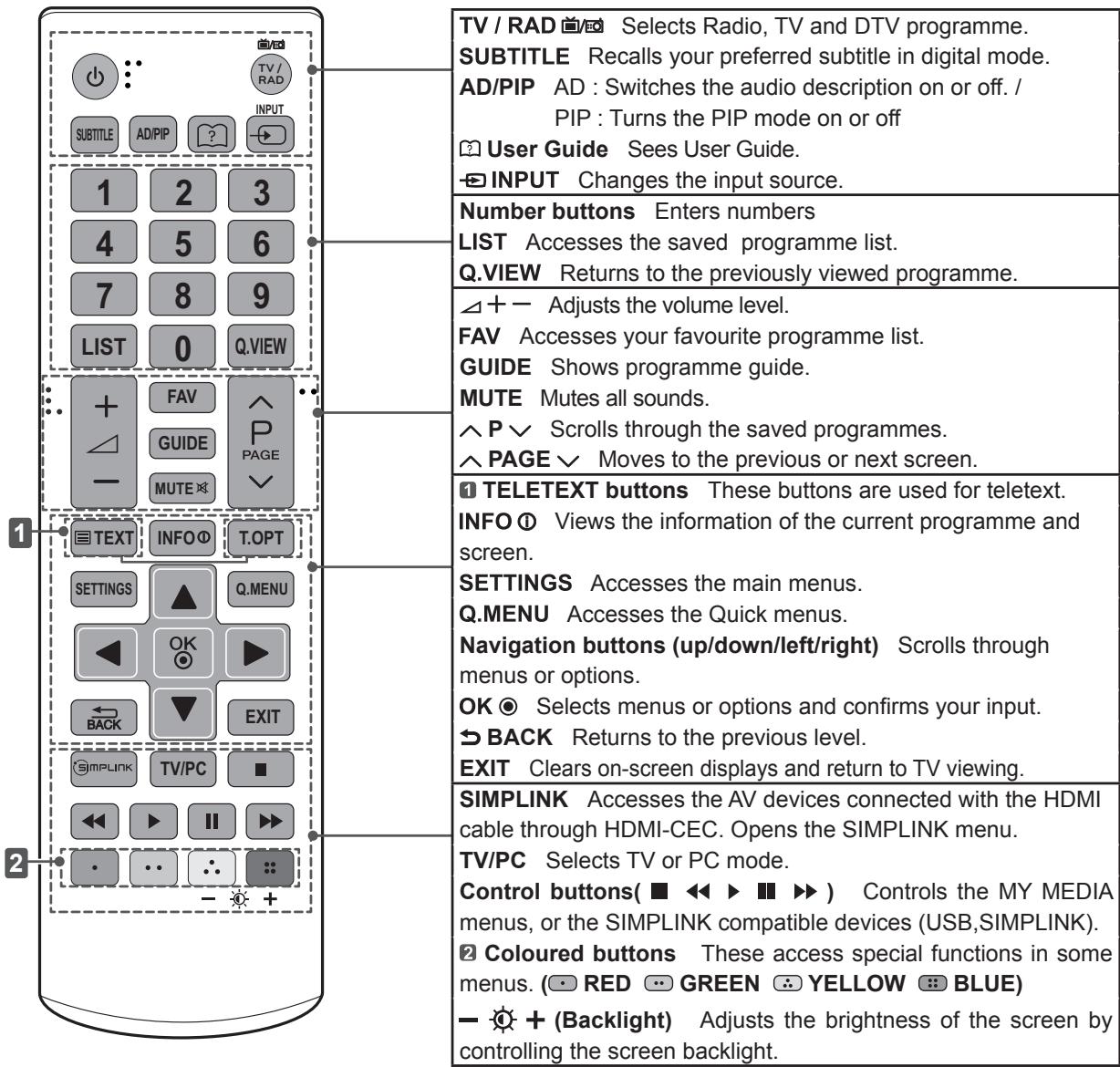

18 REMOTE CONTROL

19 ENTERTAINMENT

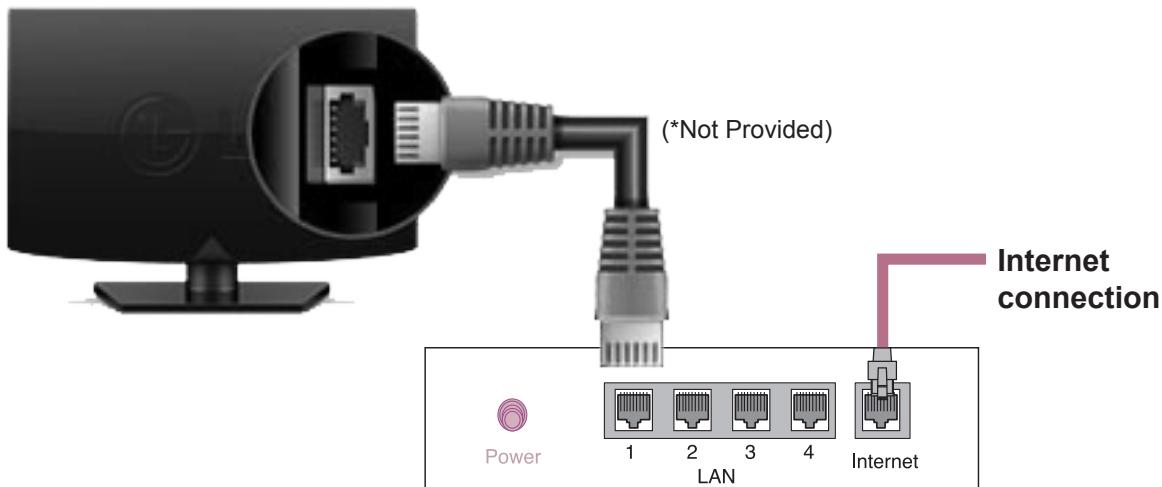

19 Wired Network Connection

19 Network setting

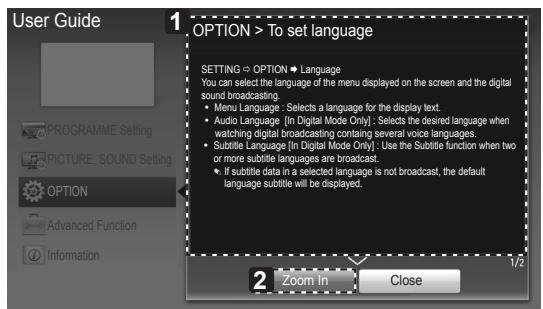

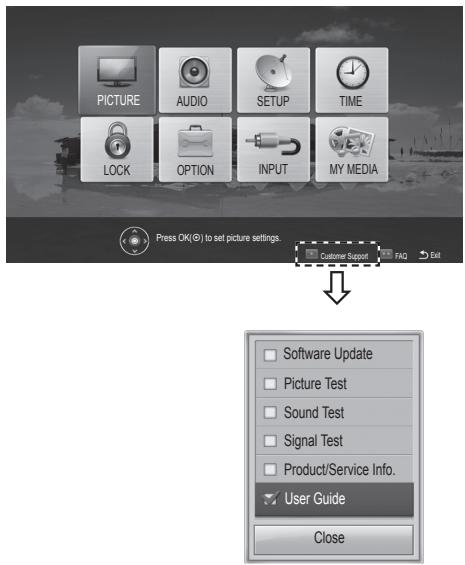

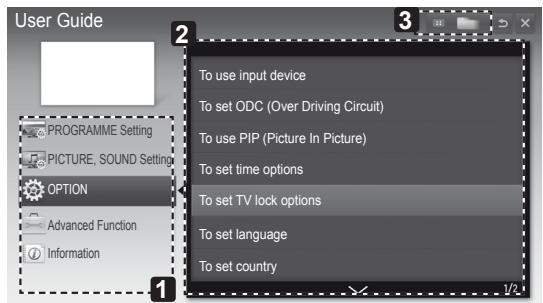

20 USING THE USER GUIDE

21 MAINTENANCE

21 Cleaning your TV

21 - Screen, frame, cabinet and stand

21 - Power cord

21 TROUBLESHOOTING

WARNING

• If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

• If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

• The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www/lg.com

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

·Do not place the TV and/or remote control in the following environments: - A location exposed to direct sunlight - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat - Near kitchen counters or humidifiers where they can easily be exposed to steam or oil - An area exposed to rain or wind - Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

·Do not place the product where it might be exposed to dust. This may cause a fire hazard.

·Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

·Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

·Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

·Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

·Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

·Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

·Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

·When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock /fire hazard.

·Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

·Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

·Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

·Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

·Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

·Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted.(Depending on model)

·Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

·Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

·Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

·Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

·Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

·Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

·Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

·If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.

·Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

·Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

• Install the product where no radio wave occurs.

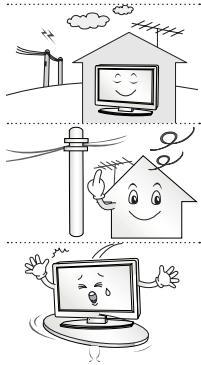

• There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
• Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

• Only use the attachments / accessories specified by the manufacturer.

• When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

• Only use the specified type of battery.
  This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters.

• Do not place non-rechargeable batteries in charging device.

• Make sure there are no objects between the remote control and its sensor.

• Signal from remote control can be interrupted due to external/internal lighting eg sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discoloration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

• When moving or unpacking the product, work in pairs because the product is heavy.

Otherwise, this may result in injury.

• Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

• The panel is a high technology product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

• You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made. (Depending on model)

ASSEMBLING AND PREPARED

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

$$ \begin{array}{l} ^ {} A \leq 1 0 m m \ ^ {} B \leq 1 8 m m \ \end{array} $$

Remote control, batteries (AAA) (See p.18)

Owner's manual

Cable holder (See p. A-4)

Power Cord

AC-DC Adaptor
Depending on model & country) (See p.B-2) (See p.B-2)

or

AC-DC Adaptor (Depending on model) (See p. B-2)
Stand Base (See p.A-3)

Isolator (Depending on model) (See p. 12)

CAUTION

• If there is a Isolator, follow as shown.

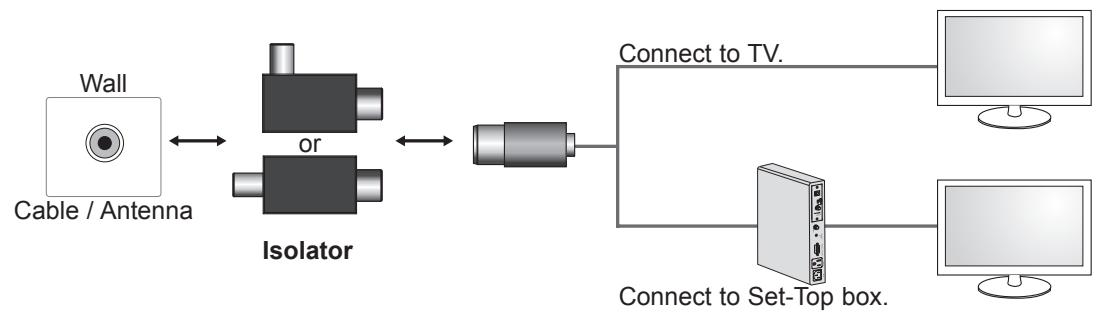

» Use this to install TV in a place where there is a voltage difference between TV set and GND of antenna signal. If there is a voltage difference between TV set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
» You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

Before starting, be sure that the TV antenna is connected.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

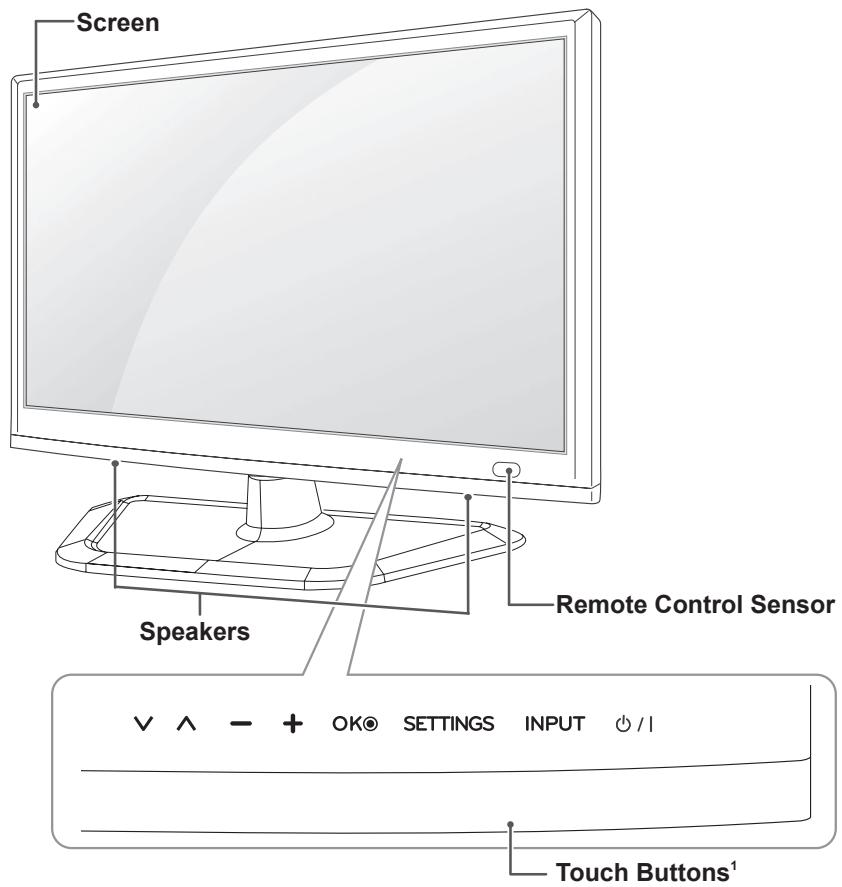

Parts and buttons

Touch Buttons	Description
√^	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK ©	Selects the highlighted menu option or confirms an input.
SETTINGS	Accesses the main menu, or saves your input and exits the menus.
INPUT	Changes the input source.
©/I	Turns the power on or off.

1 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.

Mounting on a table

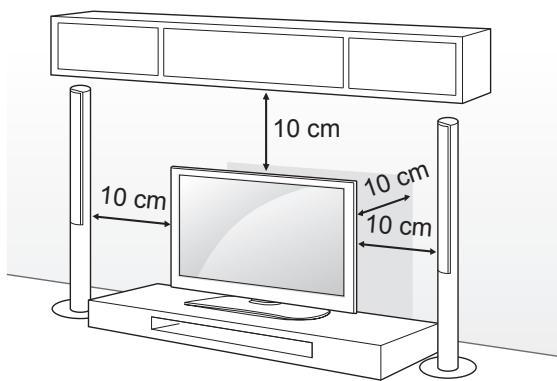

1 Lift and tilt the TV into its upright position on a table.
- Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a wall

(This feature is not available for all models.)

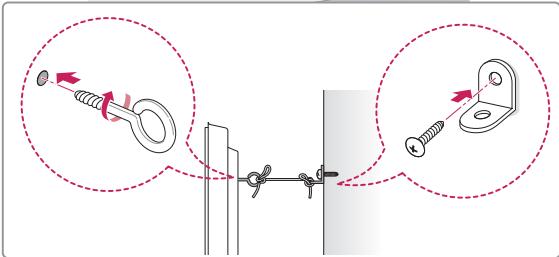

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Using the Kensington security system

Depending on model)

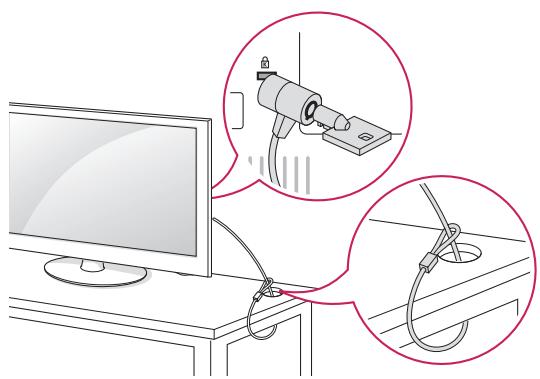

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Mounting on a wall

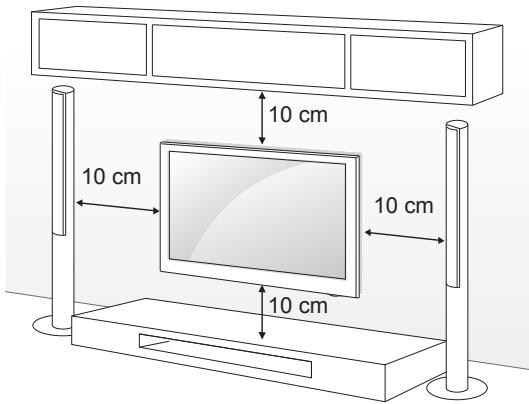

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	22/24/26/28/29LN45**
VESA (A x B)	100 x 100
Standard screw	M4
Number of screws	4
Wall mount bracket	LSW130B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

ENTERTAINMENT

Only LN450U model(Only UK)

Image shown may differ from your TV.

Wired Network Connection

Wired router

Network setting

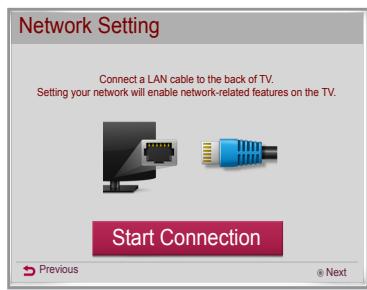

1 Press the SETTING button to access the main menu.

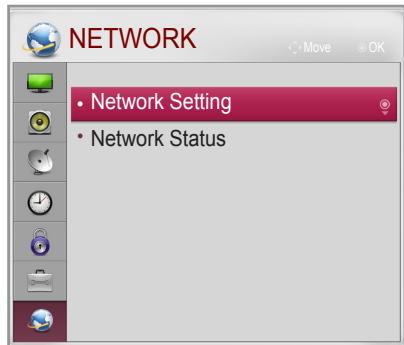

2 Select the NETWORK Network Setting menu.

3 Select the Start Connection.

4 The device automatically tries to connect to the network.

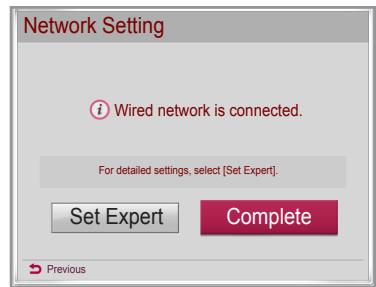

5 The connected network is displayed. Select the Complete to confirm the network connection.

NOTE

• U.K: LAN port is available. (The LAN port is added to support HD MHEG.)
• Other areas: LAN port is not available.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation buttons to scroll to User Guide and press OK.

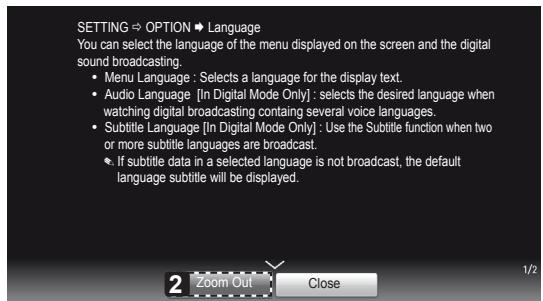

1 Shows the description of the selected menu. You can use / to move between pages.
2Zooms in or out the screen.

Image shown may differ from your TV.

1 Allows to select the category you want.
2 Allows to select the item you want. You can use / to move between pages.
3 Allows to browse the description of the function you want from the index.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to⊕,⊕ to⊕).
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (RGB/HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control. Reconnect the RGB/HDMI cable. Restart the PC with the TV on.

MANUALE UTENTE

TV LED

MODELLI		22LN45**	24LN45**	26LN45**
		22LN4500-ZA	24LN4500-ZA	26LN4500-ZA
		22LN450S-ZA	24LN450S-ZA	26LN450S-ZA
		22LN450V-ZA	24LN450V-ZA	26LN450V-ZA
		22LN450U-ZB	24LN450U-ZB	26LN450U-ZB
		22LN450R-ZB	24LN450R-ZB	26LN450R-ZB
		22LN450B-ZB	24LN450B-ZB	26LN450B-ZB
		22LN4505-ZB	24LN4505-ZB	26LN4505-ZB
		22LN4503-ZB	24LN4503-ZB	26LN4503-ZB
		22LN457B-ZB	24LN457B-ZB	26LN457B-ZB
		22LN4573-ZB	24LN4573-ZB	26LN4573-ZB
		22LN4575-ZB	24LN4575-ZB	26LN4575-ZB
		22LN4573-ZI	24LN4573-ZI	26LN4573-ZI
		22LN457U-ZI	24LN457U-ZI	26LN457U-ZI
		22LN457B-ZI	24LN457B-ZI	26LN457B-ZI
		22LN4575-ZI	24LN4575-ZI	26LN4575-ZI
Dimensioni(L x A x P)	Con supporto (mm)	513 x 362 x 140	557 x 390 x 140	621 x 431 x 162
	Senza supporto (mm)	513 x 320 x 63.0	557 x 348 x 62.3	621 x 386 x 72.9
Peso	Con supporto (kg)	3.4	3.7	4.5
	Senza supporto (kg)	3.2	3.5	4.2
Consumo elettrico		30 W	33 W	38 W
Requisiti di alimentazione		19 V ---	19 V ---	19 V ---
Adattatore CA/CC		Produttore : Lienchang, Modello : LCAP16B-E, LCAP25B Produttore : LG Innotek, Modello : PSAB-L204B, PSAB-L205B		Produttore : LG Innotek, Modello : PSAB-L101A Produttore : Lite-On, Modello : PA-1650-64

MODELLI		28LN45**	29LN45**
		28LN4500-ZA	29LN4500-ZA
		28LN450S-ZA	29LN450S-ZA
		28LN450V-ZA	29LN450V-ZA
		28LN450U-ZB	29LN450U-ZB
		28LN450R-ZB	29LN450R-ZB
		28LN450B-ZB	29LN450B-ZB
		28LN4505-ZB	29LN4505-ZB
		28LN4503-ZB	29LN4503-ZB
		28LN457B-ZB	29LN457B-ZB
		28LN4573-ZB	29LN4573-ZB
		28LN4575-ZB	29LN4575-ZB
		28LN4573-ZI	29LN4573-ZI
		28LN457U-ZI	29LN457U-ZI
		28LN457B-ZI	29LN457B-ZI
		28LN4575-ZI	29LN4575-ZI
Dimensioni(L x A x P)	Con supporto (mm)	650 x 440 x 170	668 x 456 x 182
	Senza supporto (mm)	650 x 400 x 62.3	686 x 348 x 62.3
Peso	Con supporto (kg)	5.4	5.8
	Senza supporto (kg)	5.0	5.4
Consumo elettrico		39 W	40 W
Requisiti di alimentazione		19 V ---	19 V ---
Adattatore CA/CC		Produttore : Lienchang Modello : LCAP16B-E, LCAP25B Produttore : LG Innotek Modello : PSAB-L204B, PSAB-L205B	Produttore : LG Innotek Modello : PSAB-L206A

22LN4500-ZA/22LN450S-ZA/22LN450V-ZB/22LN450U-ZB/22LN450R-ZB/22LN450B-ZB/22LN450S-ZB/ 22LN4503-ZB/22LN457B-ZB/22LN4573-ZB/22LN4575-ZB/22LN4573-ZI/22LN457U-ZI/22LN457B-ZI/ 22LN4575-ZI/24LN4500-ZA/24LN450S-ZA/24LN450V-ZA/24LN450U-ZB/24LN450R-ZB/24LN450B-ZB/ 24LN4505-ZB/24LN4503-ZB/24LN457B-ZB/24LN4573-ZB/24LN4575-ZB/24LN4573-ZI/24LN457U-ZI/ 24LN457B-ZI/24LN4575-ZI/26LN4500-ZA/26LN450S-ZA/26LN450V-ZA/26LN450U-ZB/26LN450R-ZB/ 26LN450B-ZB/26LN4505-ZB/26LN4503-ZB/26LN457B-ZB/26LN4573-ZB/26LN457S-ZB/26LN4573-ZI/ 26LN457U-ZI/26LN457B-ZI/26LN4575-ZI/28LN4500-ZA/28LN450S-ZA/28LN450V-ZA/28LN450U-ZB/ 28LN450R-ZB/28LN450B-ZB/28LN450S-ZB/28LN4503-ZB/28LN457B-ZB/28LN4573-ZB/28LN457S-ZB/ 28LN4573-ZI/28LN457U-ZI/28LN457B-ZI/28LN457S-ZI/29LN4500-ZA/29LN450S-ZA/29LN450V-ZA/ 29LN450U-ZB/29LN450R-ZB/29LN450B-ZB/29LN450S-ZB/29LN4503-ZB/29LN457B-ZB/29LN4573-ZB/ 29LN457S-ZB/29LN4573-ZI/29LN457U-ZI/29LN457B-ZI/29LN457S-ZI

• This section on MAKING CONNECTIONS mainly uses diagrams for the LN45** models.

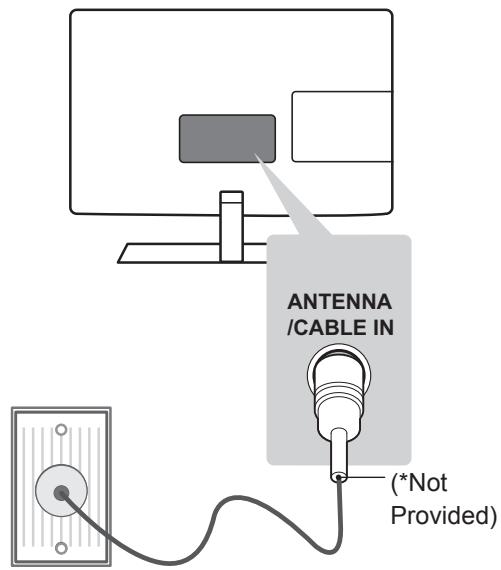

Antenna connection

Italiano

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC.

Satellite dish connection

(Only satellite models)

English

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Italiano

1 Connect the antenna cable to the antenna input port on the TV.
2 Connect the DC adapter plug to the power input jack on the TV.
3 Connect the power cord to the DC adapter first, then plug the power cord into the wall power outlet.

CAUTION

• Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.

Italiano

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)

Italiano

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the HDMI to DVI cable as shown. To transmit an audio signal, connect an audio cable.

NOTE

Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

Italiano

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTE

• The MHL passive cable is needed to connect the TV and a mobile phone.
• This only works for the MHL-enabled phone.
• Some applications can be operated by the remote control.

• Remove the MHL passive cable from the TV when:

• The MHL function is disabled.

• Your mobile device is fully charged in standby mode.

Italiano

Transmits the video signal from your PC to the TV. To transmit an audio signal, connect an audio cable.

Italiano

Component connection

DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

• If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Italiano

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with th composite cable as shown.

Italiano

Euro Scart connection

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Output Type Current input mode	AV1 (TV Out¹)
Digital TV	Digital TV
Analogue TV	Analogue TV
Component, AV, HDMI, RGB

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.

Italiano

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My media menu to use various multimedia files.

Italiano

• Image shown may differ from your TV.

English

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when Cl + CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Headphone connection

English

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

NOTE

• AUDIO menu items are disabled when connecting a headphone.
• Headphone impedance: 16 Ω
  Max audio output of headphone: 9 mW to 15 mW
• Headphone jack size: 0.35 cm

Italiano

Connect various external devices to the TV and switch input modes to select an external device. For more information on external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Italiano

Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODELS		22LN45**	24LN45**	26LN45**
		22LN4500-ZA	24LN4500-ZA	26LN4500-ZA
		22LN450S-ZA	24LN450S-ZA	26LN450S-ZA
		22LN450V-ZA	24LN450V-ZA	26LN450V-ZA
		22LN450U-ZB	24LN450U-ZB	26LN450U-ZB
		22LN450R-ZB	24LN450R-ZB	26LN450R-ZB
		22LN450B-ZB	24LN450B-ZB	26LN450B-ZB
		22LN4505-ZB	24LN4505-ZB	26LN4505-ZB
		22LN4503-ZB	24LN4503-ZB	26LN4503-ZB
		22LN457B-ZB	24LN457B-ZB	26LN457B-ZB
		22LN4573-ZB	24LN4573-ZB	26LN4573-ZB
		22LN4575-ZB	24LN4575-ZB	26LN4575-ZB
		22LN4573-ZI	24LN4573-ZI	26LN4573-ZI
		22LN457U-ZI	24LN457U-ZI	26LN457U-ZI
		22LN457B-ZI	24LN457B-ZI	26LN457B-ZI
		22LN4575-ZI	24LN4575-ZI	26LN4575-ZI
Dimensions(W x H x D)	With stand (mm)	513 x 362 x 140	557 x 390 x 140	621 x 431 x 162
	Without stand (mm)	513 x 320 x 63.0	557 x 348 x 62.3	621 x 386 x 72.9
Weight	With stand (kg)	3.4	3.7	4.5
	Without stand (kg)	3.2	3.5	4.2
Power Consumption		30 W	33 W	38 W
Power requirement		19 V ---	19 V ---	19 V ---
AC/DC Adapter		Manufacturer : LienchangModel : LCAP16B-E, LCAP25BManufacturer : LG InnotekModel : PSAB-L204B, PSAB-L205B		Manufacturer : LG InnotekModel : PSAB-L101AManufacturer : Lite-OnModel : PA-1650-64

MODELS		28LN45**	29LN45**
		28LN4500-ZA	29LN4500-ZA
		28LN450S-ZA	29LN450S-ZA
		28LN450V-ZA	29LN450V-ZA
		28LN450U-ZB	29LN450U-ZB
		28LN450R-ZB	29LN450R-ZB
		28LN450B-ZB	29LN450B-ZB
		28LN4505-ZB	29LN4505-ZB
		28LN4503-ZB	29LN4503-ZB
		28LN457B-ZB	29LN457B-ZB
		28LN4573-ZB	29LN4573-ZB
		28LN4575-ZB	29LN4575-ZB
		28LN4573-ZI	29LN4573-ZI
		28LN457U-ZI	29LN457U-ZI
		28LN457B-ZI	29LN457B-ZI
		28LN4575-ZI	29LN4575-ZI
Dimensions(W x H x D)	With stand (mm)	645.3 x 447.9 x 182.1	669 x 456 x 182
	Without stand (mm)	645.3 x 401.6 x 78.7	669 x 411 x 82
Weight	With stand (kg)	5.2	5.8
	Without stand (kg)	4.8	5.4
Power Consumption		39W	40 W
Power requirement		19 V ---	19 V ---
AC/DC Adapter		Manufacturer : Lienchang Model : LCAP16B-E, LCAP25B Manufacturer : LG Innotek Model : PSAB-L204B, PSAB-L205B	Manufacturer : LG Innotek Model : PSAB-L206A

CI Module Size(W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV1	Satellite Digital TV2	Digital TV	Analogue TV
Television system	DVB-T	DVB-T/T2	DVB-T	PAL/SECAM B/G/D/K
	DVB-C	DVB-C	DVB-C	PAL-I/I', SECAM L/L'3
	DVB-S/S2	DVB-S/S2
Programme coverage	VHF, UHF C-Band, Ku-Band		VHF, UHF	VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmes	6,000		1,500
External antenna impedance	75 Ω

1 Only satellite models
2 Only DVB-T2 support models
3 Except for Nordic countries(Denmark, Finland, Norway and Sweden)

HDMI (DTV) supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.469	59.940
	31.500	60.000
720x576	31.250	50.000
1280x720	37.500	50.000
	44.960	59.940
	45.000	60.000
1920x1080	33.720	59.940
	33.750	60.000
	28.125	50.000
	27.000	24.000
	33.750	30.000
	56.250	50.000
	67.430	59.940
	67.500	60.000

RGB (PC) / HDMI (PC) supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x400	31.468	70.080
640x480	31.469	59.940
640x480	37.500	75.000
800x600	37.879	60.317
800x600	46.875	75.000
1024x768	48.363	60.004
1024x768	60.023	75.029
1280x800	49.702	59.810
1366x768	47.717	59.790

Component port connecting information

Component ports on the TV

Y

PB

PR

NOTE

• The optimal display resolution is 1366 X 768@60Hz.
• The optimal timing in each mode is vertical frequency 60Hz .

Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O (50 Hz / 60 Hz only)

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre
www.lg.com

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
Belgie	015 200 255	Norge	800 187 40
Luxemburg	0032 15 200 255	Polska	801 54 54 54
Бълария	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	Espana	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01803 11 54 11	Schweiz	0848 543 543
Емäðα	801 11 200 900, 210 4800 564	United Kingdom	0844 847 5454
		Russlia	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	0818 27 6955	Уkraine	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805, 2255(GSM)
Беларүь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыр���_STAN	8 0000 710 005

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Digital Video

Broadcasting
