USER MANUAL DSX-S300 SONY

The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual.

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oceur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiw — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For the State of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate

RE A D Y The “HD Radio Ready” logo indicates that this product will control a Sony HD Radio'" tuner (sold separately)

For HD Radio® tuner operation, please refer to the HD Radio! tuner Operating Instructions.

HD Radio® and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corp.

The “SAT Radio Ready”

SAT } 1090 indicates that this RAI product will control a satellite READY

radio tuner module (sold separately). Please see your nearest authorized Sony dealer for details on the satellite radio tuner module “SAT Radio,” “SAT Radio Ready,” the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius XM Radio Inc. and XM Satellite Radio Inc.

ZAPPIN is a trademark of Sony Corporation.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without à license from Microsoft or an authorized Microsoft subsidiary.

Content providers are using the digital rights management technology for Windows Media contained in this device (*WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated.

This device uses WM-DRM software 10 play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software”s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. À list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

Warning if your car's ignition has no ACC position

Be sure to set the Auto Off function (page 20). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain.

If you do not set the Auto Off function, press and hold until the display

disappears each time you turn the ignition off.

Resetting the unit... . ..6 Changing the sound settings... . 19 Canceling the DEMO mode 6 Adjusting the sound characteristics . 19 Preparing the card remote commander . 6 Customizing the equalizer curve Setting the clock .… . ..6 —EQ3 .19 Detaching the front panel .…… 7 Adjusting setup items — SET .… . 19 Attaching the front panel 7 Using optional equipment... .21 Auxiliary audio equipment. .21 Location of controls and basic operations Additional Information Main unit.… .8 Precautions . 21

Card remote commander RM-X151 .. :.: 10 Playback order of MP3/WMA/AAC Searching for a track . Searching a track by name — Quick-BrowZer … . il Searching a track by listening to track passages

—ZAPPININ ee. 12 Radio Storing and receiving stations . .… 12 Storing automatically — BTM.… 12 Storing manually. . 12 Receiving the stored stations . 13 Tuning automatically .13 .13 Overview .13 Selecting PTY .14 Setting CT... .4 USB devices Playing back a USB device … .14 Display items .15

Repeat play . Shuffle play.

files... About Device Inside Alert. About iPod . Maintenance . Removing the unit. Specifications Troubleshooting .… Error displays/Messages.

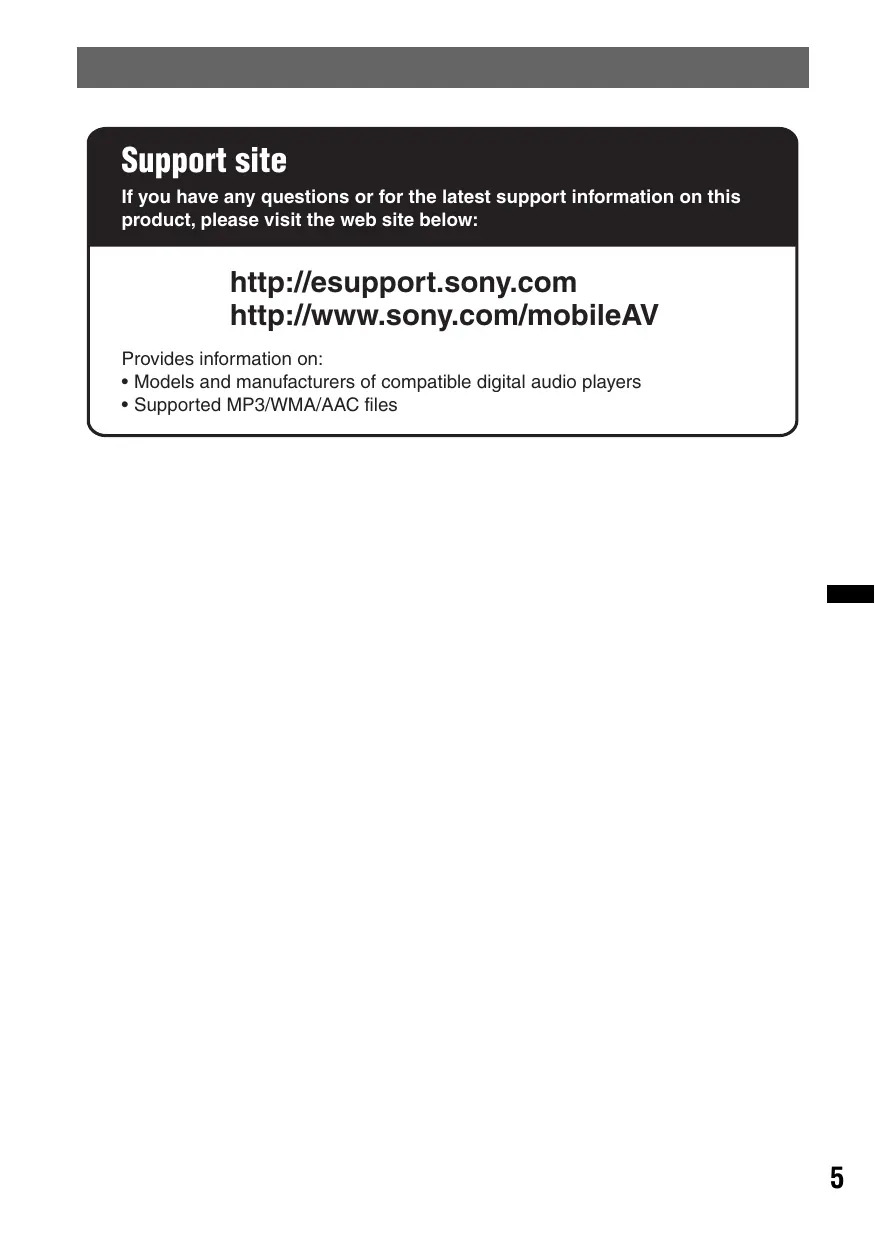

If you have any questions or for the latest support information on this product, please visit the web site below:

http://esupport.sony.com http://www.sony.com/mobileAV Provides information on:

+ Models and manufacturers of compatible digital audio players + Supported MP3/WMA/AAC files

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.

Detach the front panel (page 7) and press the RESET button (page 8) with a pointed object, such as a ball-point pen.

Pressing the RESET button will erase the clock setting and some stored contents.

Canceling the DEMO mode

You can cancel the demonstration display which appears during turning off.

1 Press and hold the select button. The setup display appears.

2 Press the select button repeatedly until “DEMO” appears.

3 Rotate the control dial to select “DEMO-OFF:"

4 Press and hold the select button. The setup is complete and the display returns to normal reception/play mode.

Preparing the card remote

Remove the insulation film.

Tip For how to replace the battery, see page 22.

The clock uses a 12-hour digital indication.

1 Press and hold the select button. The setup display appears.

2 Press the select button repeatedly until “CLOCK-ADJ” appears.

3 Press +>»1. The hour indication flashes.

4 Rotate the control dial to set the hour and minute. To move the digital indication, press -H4@/ dl

5 After setting the minute, press the select button. The setup is complete and the clock starts.

To display the clock, press (SPL). Press again to return to the previous display. Tip

You can set the clock automatically with the RDS feature (page 14).

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press and hold (SOURCEIOFF).

The unit is turned off.

2 Press (OPEN). The front panel is flipped down.

3 Slide the front panel to the right, then gently pull out the left end of the front panel.

+ Do not drop or put excessive pressure on the front panel and display window.

+ Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

+ IF"DEVICE INSIDE” appears in the display or the Device Inside Alert LED flashes, detach the front panel and remove the USB device or iPod.

Attaching the front panel

Place the hole @ of the front panel onto the spindle ® on the unit, then lightly push the left side in.

Press (SOURCE/OFF) on the unit to operate the

Note Do not put anything on the inner surface of the front panel.

cation of controls and basic operations

This section contains instructions on the location

of controls and basic operations.

For details, see the respective pages.

[] SOURCE/OFF button*' Press {o turn on the power/change the source (Radio/USB/AUX). Press for 1 second to turn off the power. Press for 2 seconds or more 1 turn off the power and the display disappears.

à (BROWSE) button“? page 11, 13 To list up (Radio); enter the Quick-BrowZer mode (USB).

PAUSE button To pause playback. To cancel, press again.

[4] + »»1/- 64 buttons Radio: To tune in stations automatically (pre: a station manually (press and hold). USB: To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); fast-forward/ reverse a track (press and hold).

Control dial/select button page 19 To adjust volume (rotate); select setup items (press and rotate).

[6] Receptor for the card remote commander

Display window OPEN button page 7

[8] AUX input jack page 21 To connect a portable audio device.

+ (BACK)/MODE* page 11, 12, 19 To return to the previous display/select the radio band (FM/AM).

1] ZAP/SHUF button page 12, 16, 18 To enter ZAPPINTM mode (press); select shuffle play mode (press and hold).

F2] PTY/CAT* button page 14 To select PTY in RDS.

H3] DSPL (display)/SCRL (scroll) button page 13, 15, 17 To change display items (press) display item (press and hold).

H4] USB connector (located on the TUNE TRAY) page 15, 16 To connect to the USB device.

H5] TUNE TRAY page 14, 16 Tray unit to place a USB device or an iPod.

H6] Device Inside Alert LED page 21 FA RESET button page 6

*1 fan HD Radio tuner or SAT tuner is connected: when OURGEIOFF) is pressed, the connected device (‘HD,"-XM' or “SR') will appear in the display. Furthermore, if ODE) is pressed, you can switch the HD Radio tuner band or SAT tuner band.

If an HD Radio tuner or SAT tuner is connected: the list will include the HD Radio or SAT Radio accordingly.

*3 When the SAT tuner is connected.

Card remote commander RM-X151

To turn off; stop the source.

To turn on; change the source (Radio/USB/ AUX).

To control Radio/USB, the same as -H6@/ +21 on the unit.

Setup, sound setting, etc., can be operated by ——.

[4] DSPL (display) button

To change display items.

VOL (volume) +*2/- button To adjust volume.

[6] ATT (attenuate) button To attenuate the sound. To cancel, press again

SEL (select) button The same as the select button on the unit.

MODE button*! Press to select the radio band (FM/AM)

©] 4 (+4 (©) buttons To control USB, skip albums. Setup, sound setting, etc., can be operated by

SCRL (scroll) button To scroll the display item.

Number buttons To receive stored stations (press); store stations (press and hold).

*1 Han HD Radio tuner or SAT tuner is connected: when (SOURCE) is pressed, the connected device CHD;"°XM"or “SR") will appear in the display. Furthermore, if MODE) is pressed, you can switch the HD Radio tuner band or SAT tuner band.

*2 This button has a tactile dot.

Note Ifthe unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (BOURCEJOFF) on the unit is pressed to activate the unit first.

Searching for a track

— Quick-BrowZer You can search for a track in a USB device easily by category.

Press Q (BROWSE). The unit enters the Quick-BrowZer mode, and the list of search categories appears.

2 Rotate the control dial to select the

desired search category, then press it to confirm.

3 Repeat step 2 until the desired track is selected. Playback starts.

To return to the previous display Press # (BACK).

To exit the Quick-BrowZer mode Press Q (BROWSE).

Note When entering the Quick-BrowZer mode, the repeat/ shuffle setting is canceled.

Searching by skip items

When many items are in a category, you can

search the desired item quickly.

1 Press +1 in Quick-BrowZer mode. The following display appears.

@ Current item number © Total item number in the current layer

Then the item name will appear.

2 Rotate the control dial to select the desired item, or one near the desired item. It skips in steps of 10% of the total item number.

3 Press the select button. The display returns to the Quick-BrowZer mode and the selected item appears.

4 Rotate the control dial to select the desired item and press it. Playback starts if the selected item is a track.

To cancel Jump mode Press # (BACK) or -H&@

Searching a track by listening to track passages — ZAPPINTM While playing back short track passages in a USB device in sequence, you can search for a track you want to listen to.

ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode

+ (BACK) Select button

1 Press during playback. After “ZAPPIN” appears in the display, playback starts from a passage of the next track.

The passage is played for the set time, then a click sounds and the next passage starts.

2 Press the select button or when a track you want to listen is played back.

The track that you select returns to normal play mode from the beginning.

To search a track by ZAPPIN mode again, repeat steps 1 and 2.

The part of each track to playback in ZAPPIN mode.

+ You can select the playback time from about 6 seconds/15 seconds/30 seconds (page 20). You cannot select the passage of the track to playback.

+ Press +»»1/€4 in ZAPPIN mode to skip a track.

+ Pressing © (BACK) also confirms a track to playback.

Storing and receiving stations

Caution When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press repeatedly until “TUNER” appears. To change the band, press repeatedly. You can select from FM1, FM2, FM3, AMI or AM2.

2 Press and hold the select button. The setup display appears.

3 Press the select button repeatediy until “BTM” appears.

4 Press +»»1. The unit stores stations in order of frequency in the preset list. À becp sounds when the setting is stored.

1 While receiving the station that you want to store, press Q (BROWSE). The preset list appears.

2 Rotate the control dial to select the preset number.

3 Press and hold the select button until “MEMORY” appears.

(with the card remote commander)

1 While receiving the station that you want to store, press and hold a number button Lo (6)) until “MEMORY” appears.

If you try to store another station on the same number button, the previously stored station will be replaced.

Receiving the stored stations You can select a station to receive via a list.

1 Select the band, then press à (BROWSE). The preset list appears.

2 Rotate the control dial until the desired station appears.

3 Press the select button to receive the station. The display returns to normal reception mode.

(with the card remote commander)

1 Select the band, then press a number button ((1) to (6)).

Tuning automatically

1 Select the band, then press +»>»1/ —H< to search for the station. Scanning stops when the unit reccives a station. Repeat this procedure until the desired station is received.

If you know the frequency of the station you want to listen to, press and hold +#æ»1/+44 to locate the approximate frequency, then press 1/44 repeated}y to fine adjust to the desired frequency {manual tuning).

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

© Radio band, Function, Frequency, Preset number

© Program service name, Clock, Frequency*, Preset number

* While receiving the RDS station, “*"is displayed on the lett of the frequency indication.

To change display items @. @. press SPL). RDS services

This unit automatically provides RDS services as follows:

PTY (Program Types) Displays the currently received program type. Also searches your selected program type.

The CT data from the RDS transmission sets the clock.

+ Depending on the country/region, not all RDS lunctions may be available.

+ RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting ADS data.

1 Press during FM reception.

The current program type name appears if the Station is transmitting PTY data.

2 Press repeatedly until the desired program type appears.

3 Press +>»>1/-1H64. The unit starts to search for a station broadcasting the selected program type.

NEWS (News), INFORM (Information), SPORTS (Sports), TALK (Talk), ROCK (Rock), CLS ROCK (Classic Rock), ADLT HIT (Adult Hits), SOFT RCK (Soft Rock), TOP 40 (Top 40), COUNTRY (Country), OLDIES (Oldies), SOFT (Soft), NOSTALGA (Nostalgia), JAZZ (Jazz), CLASSICL (Classical), R AND B (Rhythm and Blues),

mn SONT RE Son and Be),

LANGUAGE (Foreign Language), REL MUSC (Rcligious Music), REL TALK (Religious Talk), PERSNLTY (Personality), PUBLIC (Public), COLLEGE (College), WEATHER (Weather)

+ You cannot use this function in countries/regions where no PTY data is available.

+ You may receive a different radio program from the one you select.

À Set “CT-ON” in setup (page 20).

+ The CT function may not work even though an RDS station is being received.

+ There might be à difference between the time set by the CT function and the actual time.

For details on the compatibility of your USB device, visit the support site.

ht} http:/{www.sony.com/mobileAV

+ MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.

+ Corresponding codec is MP3 (.mp3), WMA (wma) and AAC (.mda).

+ Backup of data in a USB device is recommended.

+ Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may oceur i it is connected before starting the engine.

+ Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.

+ Do not leave a USB device in a parked car, as malfunction may result.

1 Press (OPEN). The front panel is flipped down.

2 Press PUSH OPEN on the TUNE TRAY. The TUNE TRAY opens slowly.

3 Connect the USB device to the USB connector.

4 Slide in the TUNE TRAY by pressing CLOSE on the TUNE TRAY until it locks shut.

5 Close the front panel. Playback starts.

If a USB device is already connected, to start

playback, press (SOURCE/OFF) repeatedly until USB" appears.

Press (CSOURCE/OFF) for 1 second to stop playback.

Removing the USB device

1 Stop the USB device playback.

3 Press PUSH OPEN on the TUNE TRAY. 4 Remove the USB device.

5 Slide in the TUNE TRAY, and close the front panel.

+ Do not remove the USB device during playback, otherwise USB data may be damaged.

+ Do not place non-USB devices on the TUNE TRAY, or foreign objects, such as coins, keys, cards, liquids, etc.

+ Do not place a flammable object such as a lighter on the TUNE TRAY, as this may cause smoke, fire, or other accident.

+ Capacity of the ray: Approx. 65 x 17 x 118 mm Ce he x 2 x 4 %a in) (hd)

ffthe size of the USB device alone or combined with the USB cable cannot be placed easily in the TUNE TRAY, the device may be exceeding the tray capacity.

Do not slide in the TUNE TRAY or the USB cable lorcetully.

For ‘WALKMAN" users, use of the optional adaptor XA-50WM is recommended. It is designed for use with this unit only, and should not be used with the other USB devices.

This unit cannot recognize USB devices via a USB hub.

+ Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the car, etc.

Ifthe front panel does not fully open because of the dashboard shape at the installation position, detach the front panel and open the TUNE TRAY manual) For how to detach the front panel, see page 7.

It is extremely dangerous to connect or remove the USB device while driving.

© Source, Track name, Artist name, Album name Track name, Artist name, Album number*, Album name, Track number/Elapsed playing time, Clock

* Album number is displayed only when the album is changed.

To change display items @, ©. press SPL).

+ Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.

The maximum number of displayable data is as follows.

— folders (albums): 128

— files (tracks) per folder: 500

It may take time for playback to begin, depending on the amount of recorded data.

DRM (Digital Rights Management) files may not be played.

During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.

Playback of the following MP3/WMA/AAC files is not supported.

— lossless compression

— copyright-protected

À During playback, press and hold the select button. The setup display appears.

2 Press the select button repeatedly until the “REPEAT” appears.

3 Rotate the control dial to select the play mode.

4 Press and hold the select button.

The setup is complete and the display returns to normal play mode.

Select To play REPEAT-TRK track repeatedly. REPEAT-ALB album repeatedly.

To return to normal play mode, select “REPEAT- OFF”

À During playback, press and hold GAPISHUF). The lower half of the display starts flashing.

2 Press repeatedly until the desired setting appears.

LIT USE Select To play ALBUM album in random order. DEVICE device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select “OFF. ”

r details on the compatibility of your iPod, see “About iPod” on page 22 or visit the support site.

In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.

http://esupport.sony.com

http:/{www.sony.com/mobileAV Notes

+ Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.

+ Do not leave an iPod in a parked car, as malfunction may result.

Before connecting the iPod, turn down the volume of the unit.

1 Press (OPEN). The front panel is flipped down.

2 Press PUSH OPEN on the TUNE TRAY. The TUNE TRAY opens slowly.

3 Connect the supplied adaptor to the USB connector.

4 Connect the iPod to the supplied adaptor.

5 Slide in the TUNE TRAY by pres: CLOSE on the TUNE TRAY until it locks shut.

6 Close the front panel. The iPod will turn on automatically, and the display will appear on the iPod screen as

The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start playback press repeatedly until “USB” appears. (“IPOD” appears in the display when iPod is recognized.)

* Display differs depending on the iPod, or may not

appear in the case of an iPod touch being connected.

7 Adjust the volume.

Press (CSOURCE/OFF) for 1 second to stop playback.

1 Stop the iPod playback.

3 Press PUSH OPEN on the TUNE TRAY. 4 Remove the iPod.

5 Slide in the TUNE TRAY, and close the front panel.

+ Do not remove the iPod during playback, otherwise data may be damaged.

+ Do not place non-iPod devices on the TUNE TRAY,

or foreign objects, such as coins, keys, cards,

Do not place a flammable object such as a lighter on

the TUNE TRAY, as this may cause smoke, fire, or

+ For iPod users, use the supplied adaptor XA-5OIP It

is designed for use with this unit only, and should not

be used with the other USB devices.

This unit cannot recognize iPod via a USB hub.

Slide in the TUNE TRAY and close the front panel

before playback, as damage may result in the case

of an obstruction in the car, etc.

Hthe front panel does not fully open because of the

dashboard shape at the installation position, detach

the front panel and open the TUNE TRAY manually.

For how to detach the front panel, see page 7.

His extremely dangerous to connect or remove the

+ When the ignition key is turned to the ACC position, and the unit is on, the iPod will be recharged.

+ Ifthe iPod is disconnected during playback, ‘NO DEV" appears in the display of the unit.

When the iPod is connected, the mode of this unit changes to resuming mode and playback Starts in the mode set by the iPod.

In resuming mode, repeat/shuffle play does not function.

© Source, Track name, Artist name, Album name

© Track name, Artist name, Album name, Track number/Elapsed playing time, Clock

To change display items @, ©. press SPL).

continue to next page —+ 17

When album/podcast/genre/artist/playlist is changed, its item number appears momentarily.

Some letters stored in iPod may not be displayed correctiy.

À During playback, press and hold the select button. The setup display appears.

2 Press the select button repeatedly until the “REPEAT” appears.

3 Rotate the control dial to select the play mode.

4 Press and hold the select button. The setup is complete and the display returns to normal play mode.

Select To play REPEAT-TRK track repeatedly. REPEAT-ALE album repeatedly. REPEAT-PCS podeast repeatediy. REPEAT-ART artist repeatedly. REPEAT-PLY playlist repeatedly. REPEAT-GNR genre repeatedly.

To return to normal play mode, select “REPEAT- OFF”

À During playback, press and hold GAPISHUF). The lower half of the display starts flashing.

2 Press repeatedly until the desired setting appears.

Select To play ALBUM album in random order, PODCAST podeast in random order. ARTIST artist in random order. PLAYLIST playlist in random order. GENRE genre in random order. DEVICE device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select “OFF”

Changing the sound settings

Adijusting the sound characteristics

1 Press the select button repeatedly until the desired item appears.

2 Rotate the control dial to adjust the selected item.

3 Press + (BACK). The setting is complete and the display returns to normal reception/play mode.

The following items can be set (follow the page reference for details):

Selects an equalizer curve from 7 music types {XPLOD, VOCAL, EDGE, CRUISE, SPÂCE, GRAVITY, CUSTOM or OFF).

DSO (Dynamic Soundstage Organizer)

Creates a more ambient sound field.

To select the DSO mode: “1,” “2, “3” or “OFF” The larger the number, the more enhanced the effect.

LOW*, MID*, HIGH® (page 19)

BALANCE Adjusts the sound balance between the left and right speakers.

FADER Adjusts the relative level between the front and rear speakers.

SUB? (Subwoofer volume) Adjusts the subwoofer volume.

AUX LV* (AUX level) Adjusts the volume level for each connected auxiliary equipment: “+18 dB” — “0 dB” -“-8 dB”

This setting negates the need to adjust the volume level between sources.

*1 When EG8 is activated.

*2 When the audio output is set to “SUB-OUT” (page 20). “ATT"is displayed at the lowest setting, and can be adjusted up to 21 steps.

*3 When AUX source is activated (page 21)

ing the equalizer curve

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press the select button repeatedly to select “EQ3.”

2 Rotate the control dial to select “CUSTOM.”

3 Press the select button repeatedly until “LOW/" “MID” or “HIGH” appears.

4 Rotate the control dial to adjust the selected item.

The volume level is adjustable in 1 dB steps, from —10 dB to +10 dB.

Repeat steps 3 and 4 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

5 Press + (BACK). The setting is complete and the display returns to normal reception/play mode. Tip Other equalizer ypes are also adjustable.

Adjusting setup items — SET

1 Press and hold the select button. The setup display appears.

2 Press the select button repeatediy until the desired item appears.

3 Rotate the control dial to select the setting (example “ON” or “OFF”).

4 Press and hold the select button. The setup is complete and the display returns to normal reception/play mode.

Displayed items will differ, depending on the source

The following items can be set (follow the page

reference for details):

continue to next page —+

CLOCK-ADJ (Clock Adjust) (page 6)

CT (Clock Time) Activates the CT function: “ON” “OFF” (page 13, 14).

BEEP Activates the beep sound: “ON,” “OFF”

AUX-A*1 (AUX Audio) Activates the AUX source display: “ON!” “OFF” (page 21).

AUTO OFF Shuts off automatically after a di when the unit is turned off: *

{Seconds);" “30M (Minutes) “60M (Minutes).

SUB/REAR* Switches the audio output: “SUB-OUT” (subwoofer), “REAR-OUT” (power amplifier)

DEMO (Demonstration) Activates the demonstration: “ON,” “OFF”

DIMMER Changes the display brightness.

— “AT: to dim the display automatically when you turn lights on. (Available only when the illumination control lead is connected.)

— “ON”: to dim the display.

— “OFF”: deactivate the dimmer.

CONTRAST Adjusts the contrast for a clear view of the display, suitable for the installed viewing angle. The contrast level is adjustable in 7 steps.

LV-METER (Level Meter) Activates the level meter: “ON,” “OFF?

A.SCRL (Auto Scroll) Scrolls long items automatically: “ON!

REPEAT (page 16, 18)

LOCAL (Local Seek Mode)

= “ON”: to only tune into stations with stronger signals.

= “OFF”: to tune normal reception.

MONO (Monaural Mode) Selects monaural reception mode to improve poor FM reception: “ON.” “OFF”

ZAP.TIME (Zappin Time)

Selects the playback time for the ZAPPIN function.

—“ZAP.TIME-I (about 6 seconds)” ‘ZAP.TIME-2 (about 15 seconds)" “ZAP.TIME-3 (about 30 seconds).

LPF# (Low Pass Filter) Selects the subwoofer cut-off frequenc: “80Hz,” “100Hz. “120Hz,° *140Hz/

SUB (Subwoofer Phase) Selects the subwoofer phase: “NORM," “REV.”

HPF (High Pass Filter) Selects the front/rear speaker cut-off frequency: “80Hz/ “100Hz," *“120Hz.° “140Hz;"

LOUD (Loudness) Reinforces bass and treble for clear sound at low volume levels: “ON,” “OFF”

DM+ Activates the DM+ function: “ON,” “OFF”

*1 When the unit is turned off *2 When FMis received. *3 When the audio output is set to “SUB-OUT:"

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect to the unit.

Connecting cord* {not supplied)

* Be sure to use a Straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit.

2 Press repeatedly until “AUX”

appears After that, “AUX FRONT IN” appears.

3 Start playback of the portable audio device at a moderate volume.

4 Set your usual listening volume on the unit. 5 Adjust the input level (page 19).

Additional Information

+ Cool off the unit beforehand if your car has been parked in direct sunlight. + Power antenna (aerial) extends automatically.

(©) MPawmaraac (7 ban) MP3/WMA/

About Device Inside Alert

If you turn the ignition switch to the OFF position without removing the USB device or iPod, “DEVICE INSIDE” will appear in the display.

Open the front panel to remove the USB device or iPod.

If the front panel is detached when the ignition is turned off. The Device Inside Alert LED flashes.

Tip For how to remove the USB device or iPod, see page 15 (USB), 17 (iPod)

The Device Inside Alert will only sound if the built-in amplifier is used.

+ You can connect to the following iPod models.

Update your iPod devices to the latest software

— iPod touch (2nd generation)

— iPod nano (5th generation)

— iPod nano (4th generation)

— iPod nano (3rd generation)

— iPod nano (2nd generation)

— iPod nano (Ist generation)

“Made for iPod” means that an electronic

accessory has been designed to connect

specifically to iPod and has been certified by the

developer to meet Apple performance standards.

+ Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

ium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on the lithium battery

+ Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

+ Wipe the battery with a dry cloth to assure a good contact.

+ Be sure to observe the correct polarity when installing the battery.

+ Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of in fire.

Fuse replacement When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case,

Fuse (10 A) consult your nearest Sony

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply 100 much force. Otherwise, the connectors may be damaged.

Back of the front panel

+ For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.

+ Never touch the connectors directly with your fingers or with any metal device.

Removing the unit Specifications

1 Remove the protection collar. ©O Detach the front panel (page 7).

@Pinch both edges of the protection collar, then pull it out.

Onsert both release keys simultaneously until they click.

Hook facing inwards.

@Pull the release keys to unseat the unit.

© Slide the unit out of the mounting.

pass. CEA2006 Standard &; Power Output: 17 Watts RMS x 4 at PF 4 Ohms < 1% THD4N fa SN Ratio: 80 dBA (reference: 1 Watt into 4 Ohms)

FM Tuning range: 87.5 — 107.9 MHz Antenna (aerial) terminal:

External antenna (aerial) connector Intermediate requency= 150 kHz

Separation: 40 dB at 1 kHz

Frequency response: 20 — 15,000 Hz LL AM Tuning range: 530 — 1,710 kHz Antenna (aerial) terminal:

External antenna (aerial) connector Intermediate frequency: 25 kHz

Sensitivity: 26 uV USB Player section

Interface: USB (Full-speed)

Maximum current: 500 mA Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 — 8 ohms

Maximum power output: 52 W x 4 (at 4 ohms)

Outputs: Audio outputs terminal (front, sub/rear switchable) Power antenna (aerial) relay control terminal Power amplifier control terminal Inputs: BUS control input terminal BUS audio input terminal Remote controller input terminal Antenna (aerial) input terminal Telephone ATT control terminal Illumination control terminal AUX input jack (stereo mini jack) USB signal input connector

continue to next page —+ 23

‘Tone controls: Low: +10 dB at 60 Hz (XPLOD) Mid: +10 dB at 1 kHz (XPLOD) High: +10 dB at 10 kHz (XPLOD) Power requirements: 12 V DC car battery {negative ground (earth)) Dimensions: Approx. 178 x 50 x 180 mm 7 Ü8x2 x 7 Us in) (w/h/d) Mounting dimensions: Approx. 182 x 53 x 163 mm (7 ax 2 Ua x 6 Vin) (w/h/d) Mass: Approx. 1.0 kg (2 Ib 4 oz) Supplied accessories: Card remote commander: RM-X151 USB connector for iPod XA-SOIP Parts for installation and connections (1 set) Optional accessories/equipment: BUS cable (supplied with an RCA pin cord); Source selector: XA-C40

HD Radio!" tuner: XT-100HD Walkman adaptor XA-50WM Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

Ifthe problem is not solved, visit the following support site.

http://esupport.sony.com

http:/{www.sony.com/mobileAV General No power is being supplied to the unit.

+ Check the connection or fuse.

+ Ifthe unit is turned off and the display disappears, it cannot be operated with the remote commander.

—+ Tum on the unit. The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box

+ The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.

+ The position of the fader control “FADER! is not set for a 2-speaker system

+ The beep sound is canceled (page 20).

+ An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

+ The RESET button has been pressed.

— Store again into the memory.

+ The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown. Makes noise when the position of the ignition is switched.

The leads are not matched correctiy with the car's

accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with

“DEMO-ON" set, demonstration mode start.

—+ Set “DEMO-OFF” (page 20).

The display disappears from/does not appear in the display window.

+ The dimmer is set “DIMMER-ON" (page 20).

+ The display disappears if you press and hold Pres on the unit until the

+ The connectors are dirty (page 22).

The Auto Off function does not operate. The unit is turned on. The Auto Off function activates after tuning off the unit.

—+ Turn off the unit.

DSO does not function.

+ Depending on the type of car interior or type of music, DSO may not have a desirable effect.

The stations cannot be received. The sound is hampered by noises. + The connection is not correct.

—+ Connect a power antenna (aerial) control lead blue) or accessory power supply lead (red) to the power supply lead of a cars antenna (aerial) booster (only when your car has built-in FM/AM antenna (aerial) in the rear/side glass).

—+ Check the connection of the car antenna (aerial).

—+ If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.

—+ When the DSO mode is on, the sound is sometimes hampered by noises.

Set the DSO mode to “OFF” (page 19).

Preset tuning is not possible. + Store the correct frequency in the memory. + The broadcast signal is too weak.

Automatic tuning is not possible. + Setting of the local seek mode is not correct. — Tuning stops 100 frequently: Set “LOCAL-ON” (page 20) —+ Tuning does not stop at a station: Set “LOCAL-OFF” (page 20). + The broadcast signal is 100 weak. — Perform manual tuning

During FM reception, the “ST” indication flashes.

Tune in the frequency accurately.

The broadcast signal is to weak.

—+ Set “MONO-ON" (page 20).

An FM program broadcast in stereo is heard in monaural The unit is in monaural reception mode. —+ Set “MONO-OFF” (page 20).

RDS PTY displays “------- + The current station is not an RDS station. + RDS data has not been received.

The station does not specify the program type:

The USB device takes longer to play back. The USB device contains files with a complicated tree structure.

The display items do not scroll + A large number of characters may not scroll + “A.SCRL" et 10 “OFF”

—+ Set “A.SCRL-ON” (page 20). — Press and hold (SCRL). A beep sounds. k, the USB device has been

—+ Before disconnecting a USB device, make sure to

stop playback first for data protection. The sound is intermittent. The sound may be intermittent at a high-bit-rate of more than 320 kbps

Error displays/Messages

CHECKING The unit is conf —+ Wait until cont

DEVICE INSIDE If you turn the ignition switch to the OFF position without removing the USB device or iPod, “DEVICE INSIDE” will appear in the display ERROR USB device was not automatically recognized.

— Reconnect it again.

FAILURE (lluminates until any button is pressed.) The connection of speakers/amplifiers is incorrect. —+ See the installation/connections manual of this

model to check the connection.

FAILURE (llluminates for about 1 second.)

When the SAT tuner is connected, storing an SAT

radio channel into a preset failed.

—+ Be sure to receive the channel that you want to store, then try it again.

HUB NO SUPRT (HUB Not Support)

USB hub is not supported on this unit.

‘The local seek mode is on during automatic tuning.

USB is selected as source without a USB device connected. À USB device or a USB cable has been disconnected during playback.

—+ Be sure to connect a USB device and USB cable.

NO MUSIC The USB device does not contain a music file —+ Connect a USB device with a music file in it.

ing the connection of a USB device. ing the connection is finished

You cannot play back items via a USB hub. This unit cannot recognize USB devices via a USB hub.

Cannot play back items. A USB device does not work. — Reconnect it.

NO NAME À albumartist/rack name is not written in the track.

continue to next page —+

OFFSET There may be an internal malfunction.

—+ Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

OVERLOAD USB device is overloaded.

— Disconnect the USB device, then change the source by pressing

—+ Indicates that the USB device is out of order, or an unsupported device is connected.

READ The unit is reading all track and album inforn

—+ Wait until reading is complete and playback starts automatically.

RESET USB device cannot be operated due to a problem. —+ Press the RESET button (page 6)

USB NO SUPRT (USB Not Support)

The connected USB device is not supported.

—+ For details on the compatibility of your USB device, visit the support site.

During reverse or fast-forward, you have reached the beginning or the end of the USB device and you cannot go any further.

‘The character cannot be displayed with the unit.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

Pour plus de sécurité, installez cet appareil dans le tableau de bord de votre véhicule. Pour de plus amples informations sur l'installation et les raccordements, reportez-vous au manuel d'installation et de raccordement fourni.

Botones <= (44 }/=> (D>1)

REPEAT (pâgina 16, 18)

Si estas soluciones no ayudan a mejorar la situacién, péngase en contacto con el distribuidor Sony m4s cercano.

If you have any questions/problems

regarding this product, try the following:

1 Read Troubleshooting in these Operating Instructions. 2 Reset the unit.

Note: Stored data may be erased.

S Please contact (U.S.A. only); Call 1-800-222-7669 URL http://www.SONY.com

http://www.sony.net/

Sony Corporation Printed in Thailand —
