Product Type	Digital car radio with Bluetooth
Brand / Model	ALPINE UTE-72BT
Main unit dimensions (H x W x D)	50 mm x 170 mm x 161 mm
Front panel dimensions (H x W x D)	46 mm x 170 mm x 25 mm
Power supply	14.4 V DC (11–16 V allowable)
Maximum output power	50 W × 4
FM range	87.5 – 108.0 MHz
LW range	Not specified (LW reception included)
Bluetooth	V3.0, profiles HFP, HSP, A2DP, AVRCP
Front USB port	USB 1.1/2.0, mass storage class, FAT 12/16/32
USB audio formats	MP3, WMA, AAC (.m4a files)
Front AUX input	3.5 mm mini-jack
Pre-amp outputs	2 V / 10 kΩ (front and rear/subwoofer)
Equalizer	3-band parametric (bass, mid, treble) + presets
Filters	Adjustable high-pass (HPF) and low-pass (LPF)
RDS functions	AF, REG, PI SEEK, TP/TA, radio text
Front panel	Detachable, secure
Remote control compatibility	Yes (optional)
Security	Detachable front panel, reset, 10 A fuse
Repairability	Repairs by authorized Alpine dealer only

Frequently Asked Questions - UTE-72BT ALPINE

How to connect my phone via Bluetooth?

Make sure the BT IN menu is set to ON (in SETUP > BLUETOOTH). Enable Bluetooth on your phone and search for devices. Select 'Alpine Digital Media Receiver' (or 'Alpine CD Receiver' depending on model). If pairing requests a code, enter 0000 (four zeros) or follow on-screen instructions.

How to adjust bass, mid, and treble?

Press and hold AUDIO/SETUP for 2 seconds to enter SETUP menu. Turn the rotary knob to select AUDIO then press Q/ENTER. Choose 3BAND EQ then adjust BASS, MID and TREBLE in succession. You can adjust the center frequency, bandwidth (Q) and level for each band.

What to do if the radio does not pick up stations?

Check that the antenna is properly connected. Press TUNE/A.ME to switch to DX SEEK mode (distance) to receive all stations. If the problem persists, perform auto preset by holding TUNE/A.ME for 2 seconds. Make sure you are in an area with good reception.

How to memorize a radio station?

Select the band (FM1/FM2/FM3/MW/LW) with BAND and tune to the desired station. Press and hold one of the preset buttons (1 to 6) for at least 2 seconds. The station is memorized and the display shows confirmation. You can memorize up to 30 stations (6 per band).

How to play music from a USB flash drive?

Connect the USB flash drive to the front USB port (or rear depending on model). Press SOURCE/ to select USB AUDIO source. Playback starts automatically. Use ◀▶ buttons to change tracks and ▼▲ to navigate between folders if the drive contains multiple directories.

How to use the AUX input?

Connect your audio device (MP3 player, smartphone) to the front AUX jack using an adapter cable (3.5 mm mini-jack). Enable the AUX source by going to SETUP > GENERAL > AUX SETUP and set it to ON. Then press SOURCE/ to select AUXILIARY. The sound from your device will be played through the car speakers.

What to do if the device displays 'ERROR'?

The error may come from a disc (for models with CD player) or a USB flash drive. If it is a disc, eject it with ▲ and reinsert it correctly. For a USB flash drive, check that it is formatted in FAT 12/16/32 and does not contain protected files (DRM). If the error persists, press the RESET button with a ballpoint pen after removing the front panel.

How to reset the device?

Turn off the device, remove the detachable front panel. With a ballpoint pen or pointed object, press the RESET button located on the front of the main unit. Replace the front panel and turn the device back on. This restores factory settings.

How to activate traffic announcements (TA)?

In radio mode, press and hold BAND/TA for at least 2 seconds until the TA indicator lights up. The device then searches for stations broadcasting traffic information. During reception, the volume can be adjusted automatically. To deactivate, press and hold BAND/TA again for 2 seconds.

How to adjust the high-pass filter (HPF)?

In the SETUP menu, select AUDIO then HPF. Choose the cutoff frequency: 60, 80, 120 or 160 Hz. Frequencies above the selected value will be reproduced, which helps avoid unwanted low frequencies in the front speakers. Set to OFF to disable the filter.

USER MANUAL UTE-72BT ALPINE

DIGITAL MEDIA RECEIVER WITH ADVANCED BLUETOOTH UTE-72BT

Made for

iPod iPhone

Works with NOKIA

Bluetooth

• OWNER'S MANUAL

Please read before using this equipment.

BEDIENUNGSANLEITUNG

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Wilhelm-Wagenfeld-Str. 1-3, 80807 München, Germany

Phone [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.l. Paris Nord II

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, France

Phone [phone]

CD (CDE-174BT/CDE-173BT

uniquement) 35

MP3/WMA/AAC 36

Audio 36

iPod 36

Indications relatives au mode CD (CDE-174BT/CDE-173BT uniquement) ......... 36

Installation et raccordements

AVERTISSEMENT 39

ATTENTION 39

PRECAUTIONS 39

Installation 40

Retrait 40

CD*/CMPM*/USB/iPod/BT AUDIO/AUX

Commanded extinction progressive

HU MODE (HEAD UNIT):

Impossible de receivevoir les stations.

Specification BLUETOOTH

Puisance de sortie

Profil

LENTILLE

Poids 1,194 kg (2 lbs. 10 oz)

UTE-72BT:

Poids 0,854kg (1lbs. 14 oz)

DIMENSIONS DU CHASSIS

Largeur 178mm(7^ )

Installation et raccordements

23 Microphone (fourni)

About the Rules of Bluetooth Electromagnetic Radiation Regulation

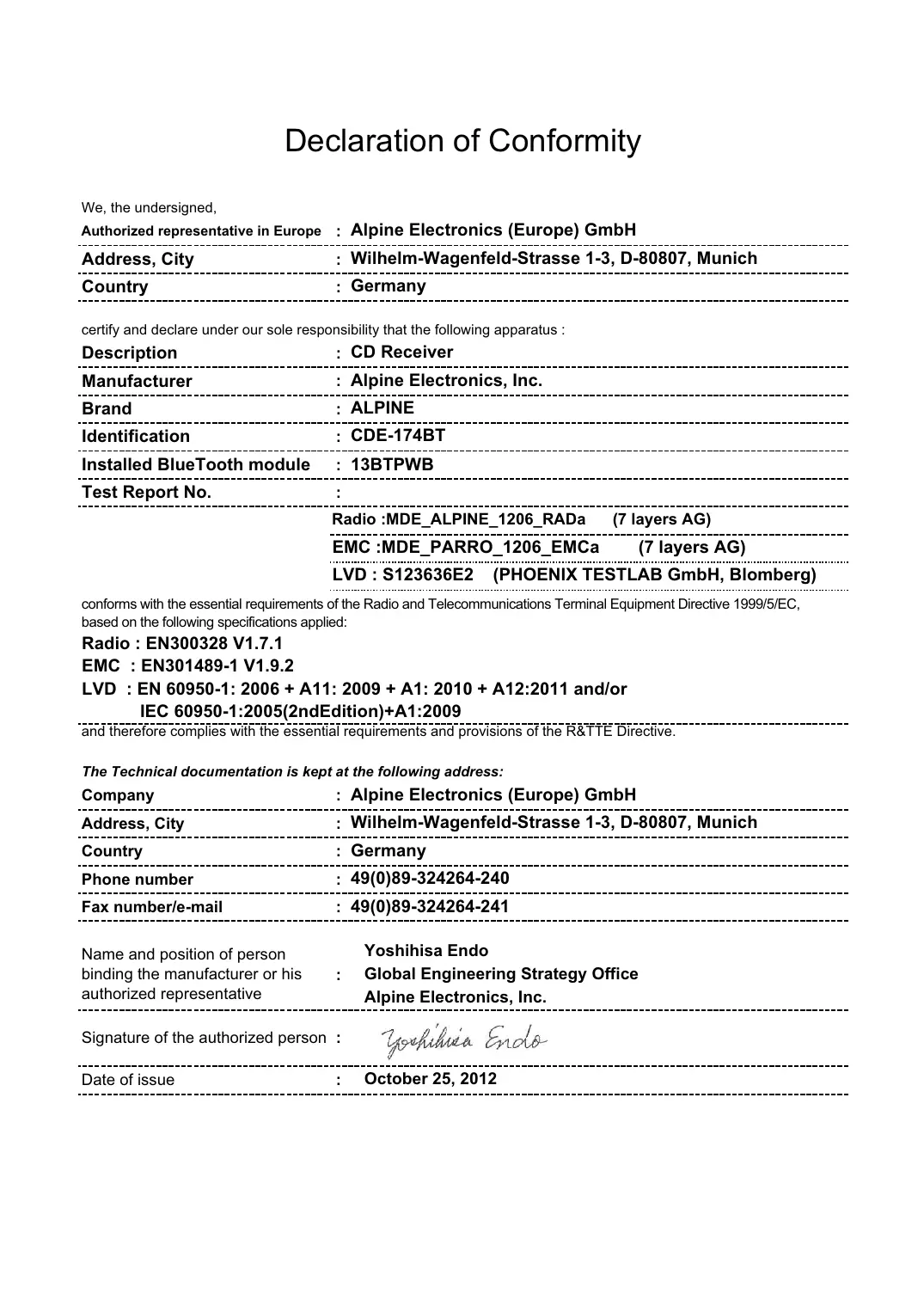

Declaration of Conformity

Declaration of Conformity

We, the undersigned,

Authorized representative in Europe : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

certify and declare under our sole responsibility that the following apparatus :

Description : CD Receiver

Manufacturer : Alpine Electronics, Inc.

Brand : ALPINE

conforms with the essential requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, based on the following specifications applied:

Radio: EN300328 V1.7.1

EMC : EN301489-1 V1.9.2

LVD : EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:2011 and/or

IEC 60950-1:2005(2ndEdition)+A1:2009

and therefore complies with the essential requirements and provisions of the R&TTE Directive.

The Technical documentation is kept at the following address:

Company : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

Phone number : 49(0)89-324264-240

Fax number/e-mail : 49(0)89-324264-241

Name and position of person Yoshihisa Endo

binding the manufacturer or his : Global Engineering Strategy Office

Alpine Electronics, Inc.

Signature of the authorized person : – yoshiluea Endo

Date of issue October 25, 2012

Declaration of Conformity

We, the undersigned,

Authorized representative in Europe : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

certify and declare under our sole responsibility that the following apparatus :

Description : CD Receiver

Manufacturer : Alpine Electronics, Inc.

Brand : ALPINE

Identification : CDE-173BT

Installed BlueTooth module : 13BTPWB

Test Report No. :

Radio:MDE_ALPINE_1206_RADa (7 layers AG)

EMC:MDE_PARRO_1206_EMCa (7 layers AG)

LVD: S123636E2 (PHOENIX TESTLAB GmbH, Blomberg)

conforms with the essential requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, based on the following specifications applied:

Radio: EN300328 V1.7.1

EMC : EN301489-1 V1.9.2

LVD : EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:2011 and/or

IEC 60950-1:2005(2ndEdition)+A1:2009

and therefore complies with the essential requirements and provisions of the R&TTE Directive.

The Technical documentation is kept at the following address:

Company : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

Phone number : 49(0)89-324264-240

Fax number/e-mail : 49(0)89-324264-241

Name and position of person Yoshihisa Endo

binding the manufacturer or his Global Engineering Strategy Office

Alpine Electronics, Inc.

Signature of the authorized person : – yoshiluea Endo

Date of issue October 25, 2012

Declaration of Conformity

We, the undersigned,

Authorized representative in Europe : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

certify and declare under our sole responsibility that the following apparatus :

Description : Radio Receiver

Manufacturer : Alpine Electronics, Inc.

Brand : ALPINE

Identification : UTE-72BT

Installed BlueTooth module : 13BTPWB

Test Report No. :

Radio:MDE_ALPINE_1206_RADa (7 layers AG)

EMC:MDE_PARRO_1206_EMCa (7 layers AG)

LVD: S123636E2 (PHOENIX TESTLAB GmbH, Blomberg)

conforms with the essential requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, based on the following specifications applied:

Radio: EN300328 V1.7.1

EMC:EN301489-1 V1.9.2

LVD : EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:2011 and/or

IEC 60950-1:2005(2ndEdition)+A1:2009

and therefore complies with the essential requirements and provisions of the R&TTE Directive.

The Technical documentation is kept at the following address:

Company : Alpine Electronics (Europe) GmbH

Address, City : Wilhelm-Wagenfeld-Strasse 1-3, D-80807, Munich

Country : Germany

Phone number : 49(0)89-324264-240

Fax number/e-mail : 49(0)89-324264-241

Name and position of person Yoshihisa Endo

binding the manufacturer or his Global Engineering Strategy Office

Alpine Electronics, Inc.

Signature of the authorized person : – yoshiluea Endo

Date of issue October 25, 2012
