USER MANUAL HX650 80PLUS GOLD CORSAIR

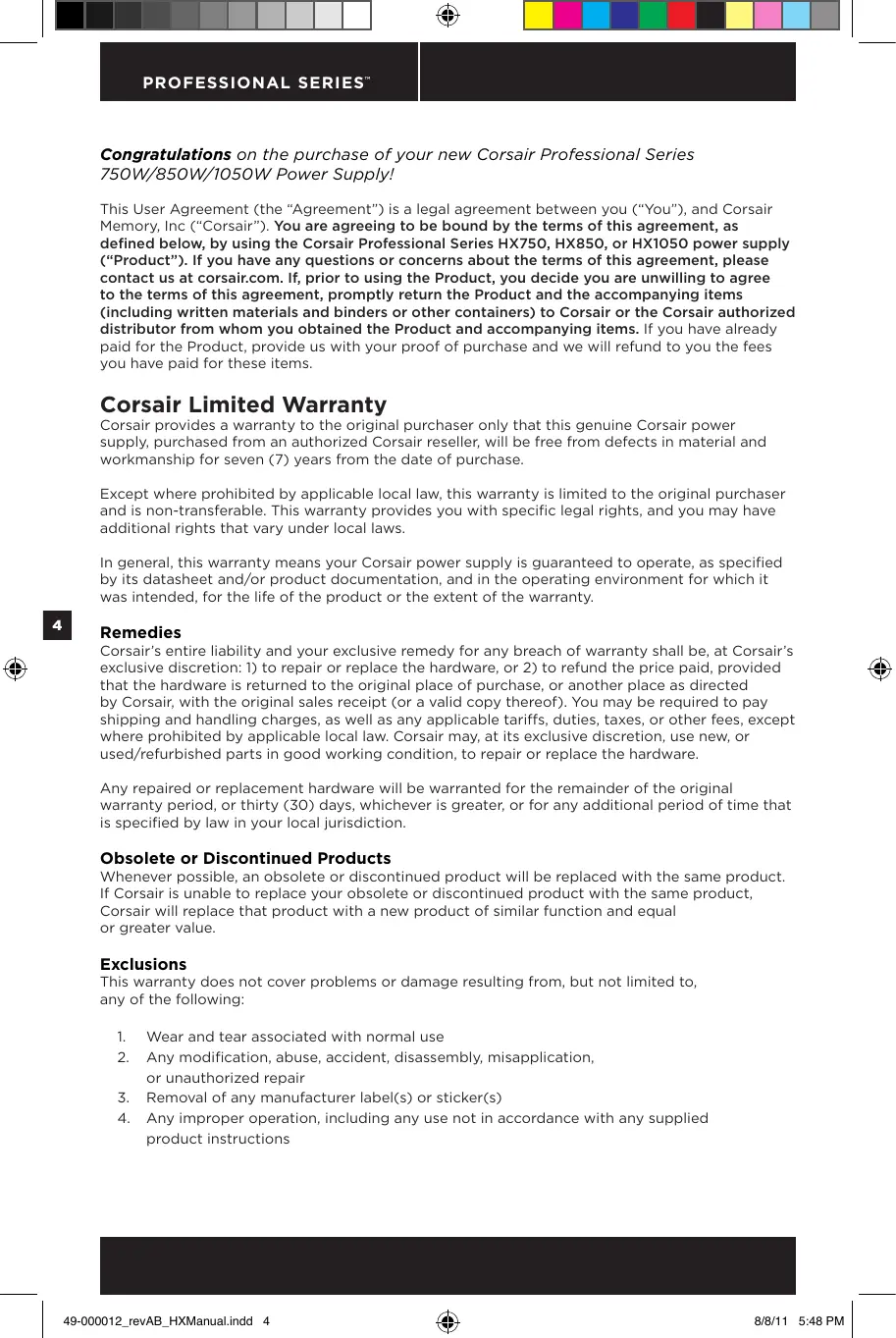

Congratulations on the purchase of your new Corsair Professional Series 750W/850W/1050W Power Supply!
This User Agreement (the "Agreement") is a legal agreement between you ("You"), and Corsair Memory, Inc ("Corsair"). You are agreeing to be bound by the terms of this agreement, as defined below, by using the Corsair Professional Series HX750, HX850, or HX1050 power supply ("Product"). If you have any questions or concerns about the terms of this agreement, please contact us at corsair.com. If, prior to using the Product, you decide you are unwilling to agree to the terms of this agreement, promptly return the Product and the accompanying items (including written materials and binders or other containers) to Corsair or the Corsair authorized distributor from whom you obtained the Product and accompanying items. If you have already paid for the Product, provide us with your proof of purchase and we will refund to you the fees you have paid for these items.
Corsair Limited Warranty
Corsair provides a warranty to the original purchaser only that this genuine Corsair power supply, purchased from an authorized Corsair reseller, will be free from defects in material and workmanship for seven (7) years from the date of purchase.
Except where prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal rights, and you may have additional rights that vary under local laws.
In general, this warranty means your Corsair power supply is guaranteed to operate, as specified by its datasheet and/or product documentation, and in the operating environment for which it was intended, for the life of the product or the extent of the warranty.
Remedies
Corsair's entire liability and your exclusive remedy for any breach of warranty shall be, at Corsair's exclusive discretion: 1) to repair or replace the hardware, or 2) to refund the price paid, provided that the hardware is returned to the original place of purchase, or another place as directed by Corsair, with the original sales receipt (or a valid copy thereof). You may be required to pay shipping and handling charges, as well as any applicable tariffs, duties, taxes, or other fees, except where prohibited by applicable local law. Corsair may, at its exclusive discretion, use new, or used/refurbished parts in good working condition, to repair or replace the hardware.
Any repaired or replacement hardware will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is greater, or for any additional period of time that is specified by law in your local jurisdiction.
Obsolete or Discontinued Products
Whenever possible, an obsolete or discontinued product will be replaced with the same product. If Corsair is unable to replace your obsolete or discontinued product with the same product, Corsair will replace that product with a new product of similar function and equal or greater value.
Exclusions
This warranty does not cover problems or damage resulting from, but not limited to, any of the following:
- Wear and tear associated with normal use
- Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair
- Removal of any manufacturer label(s) or sticker(s)
- Any improper operation, including any use not in accordance with any supplied product instructions
- Connection to any improper voltage supply
- Use of consumables, such as replacement batteries, not supplied by Corsair, except where such restriction is prohibited by applicable local law.
- Any other cause which does not relate to a product defect in materials or workmanship
Also excluded from this warranty are counterfeit products; that is, products that Corsair, at its sole discretion, determines were not manufactured by Corsair or any of its authorized manufacturing partners.
Limitation of Liability
CORSAIR SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF CORSAIR HAS BEEN ADVISED PREVIOUSLY OF THE POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so this limitation or exclusion may not apply in your jurisdiction.
Duration of Implied Warranties
EXCEPT AS PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some local laws do not allow limitations on how long an implied warranty may last, so this limitation may not apply in your jurisdiction.
National Statutory Rights
Consumers may have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.
No Other Warranties
No Corsair employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.
How to Make a Warranty Claim
Before submitting a warranty claim, we suggest you contact our technical support group or visit corsair.com and review the support section for technical assistance. A simple fix for your problem may be found there.
Generally, valid warranty claims should be processed through your original point of purchase during the first thirty (30) days after purchase. This period may vary depending on where you purchased your product; please verify the return policy with the retailer where you purchased your product. Any warranty claims that cannot be processed through your original point of purchase should be addressed directly to Corsair. Our customer service contact information can be found on the web at _corsair.com/contact or in the documentation included with your product.
Introduction
Easy-to-configure Single-rail Architecture & Semi-Modular Cable Set
The single +12V rail simplifies your setup and gives you maximum compatibility in dual- and triple-graphics cards configurations. Combined with the semi-modular design, this makes building or upgrading your PC fast and easy, using only the cables you need.
Certified 80PLUS Silver Efficiency & Low-noise Thermally Controlled Fan
With up to 88% energy-efficiency, Corsair Professional Series power supply produces less waste heat and noise, and can even help reduces your energy. The thermally-controlled double ball-bearing fan runs at minimum speed at low loads, so your PC runs quieter.
Corsair Engineering, Corsair Quality and Backed by a 7-year Warranty
Built using only high quality Japanese capacitors, a custom-designed PCB, and premium, industrial-grade components, Corsair Professional Series power supply delivers clean, stable power with very low electrical ripple and noise, ensuring high reliability and a long operating life.
Corsair Advantages
Your Corsair Professional Series power supply is packed with the latest technology and features:
It supports the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
- An ultra-quiet 140mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
- Up to 88% energy efficiency at real world load conditions means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V. No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components.
- Over-current, over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
- High-quality Japanese capacitors provide uncompromised performance and reliability.
- Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.
- A seven year warranty and lifetime access to Corsair's legendary technical support and customer service.
Power Supply Specifications
Dimensions: 150mm (W) × 86mm (H) × 180mm (L)
MTBF: 100,000 hours
| Model | CMPSU-750HX | CMPSU-850HX | CMPSU-1050HX | |||
| AC Input Rating | ||||||
| AC Input | 100-240V | 100-240V | 100-240V | |||
| Input Current | 10A | 12A | 13-6.5A | |||
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||
| DC Output Rating | DC Output Rating | DC Output Rating | ||||
| Max Load | Max Output | Max Load | Max Output | Max Load | Max Output | |
| +3.3V | 25A | 150W | 25A | 150W | 30A | 180W |
| +5V | 25A | 25A | 30A | |||
| +12V | 62A | 744W | 70A | 840W | 87.5A | 1050W |
| -12V | 0.8A | 9.6W | 0.8A | 9.6W | 0.8A | 9.6W |
| +5Vsb | 3A | 15W | 3A | 15W | 3.5A | 17.5W |
| Total Power | 750W | 850W | 1050W | |||
Package Contents
- Corsair Professional Series power supply unit
Modular cable set - User Manual
AC power cord
Cable ties
Mounting screws - Corsair case badge
- Carrying bag
Corsair Cable Configuration
| CMPSU-750HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 4 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 2 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-850HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-1050HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 2 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
Notes:
- The ATX power connector has a detachable four-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
- The EPS12V power connector has a detachable four-pin mechanism in order to support either an eight-pin socket or a four-pin "P4/12V" socket on the motherboard.
Installation
Before proceeding with installation, please read this manual in its entirety.
Step A: Removing your existing power supply
If you are building a new system, skip to Step B.
- Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
- Disconnect all the power cables from your video card, motherboard and all other peripherals.
- Follow the directions in your chassis manual and uninstall your existing power supply.
- Proceed to Step B.
Step B: Installing the Corsair Professional Series power supply
- Make sure the power supply's AC power cable is not connected.
- Follow the directions in your chassis manual and install the power supply with the screws provided.
- The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
a. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
b. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.
- Connect the eight-pin +12V (EPS12V) cable to the motherboard.
a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.
Warning: The detachable four-pin from the 24-pin main connector is not a "P4" or "+12V" connector. Serious damage can be caused if you use it in place of a "P4" or "+12V" connector.
5. Connect the peripheral cables, PCI-Express cables, and SATA cables.
a. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
b. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
c. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required
d. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
e. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
- Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").
Congratulations! You have completed installation of your new Corsair Professional Series power supply and your system is ready to go!
Important Safety Information CAUTION ELECTRIC SHOCK HAZARD!
- Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
- High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
- This product is designed for indoor use only.
- Do not use the power supply near water, or in high temperature or high humidity environments.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Do not insert any objects into the open ventilation or fan grill area of the power supply.
- Do not modify the cables and/or connectors included with this power supply.
- If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
- The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
- Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.
Safety and Agency Approvals
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B EN61000-3-2:2006 Class A EN61000-3-3:1995 + A1:2001 + A2:2005 EN55024:1998 + A1:2001 + A2:2003 IEC61000-4-2:1995 + A1:1998 + A2:2000 IEC61000-4-3:2006 IEC61000-4-4:2004 IEC61000-4-5:2005 IEC61000-4-6:2003 + A1:2004 + A2:2006 IEC61000-4-8:1993 + A1:2000 IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive
ROHS China Order No.39, Administration on the Control of Pollution Caused By
(China) Electronic Information Products
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive (Directive européenne limitant l'utilisation de substances dangereuses)
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive (Directive européenne)
CpeDCTBaIopnIuYeCKo3aunTbI
O6uHn o6bem OTBcETBHeHOctn KOMpaHn Corsair n BaWe NckLIOHTeHbHOe cpeCTBO UpNDUueCKo3aunTbB Cnyae HapuySeHnraPANTNcoCTabJIeT, NO yCMOTpeHIO KOMpaHn Corsair, cJeDyUooee: 1) pEmOH nIIN 3aMeHa annapaTHoro 06ceNeHnna IIN 2) Bo3BpAT BblNaueHHo CEhbl, npn ycNoBN BO3BpTa annapaTHoro 06ceNeHnBa OPUNHAJBHOe MeTO NOKyKN, ININ dpyroE MeCTo, Yka3aHHoe KOMpaHne Corsair, cOpUNHAJBHbIM TOBAPbHM QueKOM (ININ erO JeCHTBHeBHOJ KOIne).OT Bac MoXeT Ntpe6OBaTcBcA ONlATA CTOnMOCTN DoCTABKn I O6pa6OTKn, a TaKKe JIObIX pRmuMeHNbIX TaPiOF, POniINH, HAnorOB INI IN DpyrNX BblNAT, 3a NCKLIQUeHnEM cUYaeB, KOrDa 3TO 3aPpeSeHO MeCTbIM 3aKoHOdATENBCTbOM. KompaHn Corsair MOxet No CBOemy NCKLIQUHTeBHOMy UcMOTpeHIO INCNOB3OBaTb HOBBe INI IN CNOJIb3OBAHbIe/BOcCTaHOHBeHbIe DeTAlN B XopoWem pa6OeM COCTOHN IIPE moHtA INI 3aMeHbI annapaTHo 06ceNeHnra.
Ha OtpemOHnpOBaHHOe IINI 3aMeHeHHoe aInpapathoe 06ecneueHne ppeOCTabIeTcra rapAHnHa octabuINsCpOK opunHahbHoro rapaHTnHoro nepnoa IINI Ha cPOK 3O (TpUdauTB)Ine, B 3aBNCUMOCTN OT TORO, UTO 6OJbSe, IINI HA IIOBoI dONOpIHNTeHbHbI nepNOd BpeMeHn, ONpeJeEHbI 3aKOHODaTeNbCTBOM BaSeI MeCTHOJ opncDNI.
YcTapeBwne nn CHaTbIe c npOn3BOdCTBa npOdyKtBi
Ecni 3TO BO3MOxHO,yCTapeBWHne INI CNHtBie C pOnu3BODCTBA pOdyKTb6yDt 3aMeHeHbI pOdyKTAMn TOJ Ke MoDeni. EcnI KOMpaHnna Corsair He MOKeT 3aMeHnTB BaU yCTapeBWhn INI CNHtBic C pOnu3BODCTBA pOdyKT DpyrIM pOdyKTOM TOJ Ke MoDeni, OHa 3aMeHnT 3OT pOdyKT HOBBIM pOdyKTOM CO CXoHNbIMN fYHKUNHaNbHBIMn BO3MOxHOCTaMn IN paBHOIN IIN 6Onee BBICOKO CTOnMOCTbIO.
tUckloueHn
Hactoiaa rapaHTna He paocpoctpaHareTc Ha npObeMb nn NobpeJdeHn, Bo3NkaUoJe, B uactHOCTn, n O CneDyUoM npuHnAm:
- IN3HOC BCNeDCTBNE HOpMaIbHOJ 3KcNlpyTaUIN;
- IIO6oe I3MeHHeHne, HApUeHHeI NCIOJIb3OBAHnI, ABapIa, pa36OpKa, HeIpaBnIbHOe IOKJIIOUeHHeI NII peMOHT HeyIOJIHOMOeHHbIMN LIuCaMn;
3.ydaJIeHHe MapKINPOBKNnHaKJIeKnI3ROTOBUNTeJIA; - lióbile cIyuaH HeipabuINbHOJ 3KcNpyaTaUIM, BKlIOUaY IcNOJIb3OBAHHe C HApuyehnem npInIOJeHHbIX K npOduKy INCHpyKcI;
- NOKIIoueHne K IcTOUHNky TOKa C HecOoTBeTCTByIOUIM HaipJKeHnEM;
- Исторынейп расхоньх MaTeрnaIOB, HanpIMeP cMeHHbIX 6aTapeeK, He nOCTaBnIbBuxxCkOMmaHnei Corsair, 3a NCKJIuOeHNeM ClyuaeB, KOrda TaKoe OrpaHnueHne 3anpeSeHo MeCTbIM 3aKOHoDaTeJIbCTBOM;
- Дугпс Сучан, КOTье He CBЯЗаHы C HaJIчЕМ DeФeКТОВ B MaTeРиАх ИИ ПОИЗБОДСТУ ПОДУКТА.
Kpome Toro, daHna rapaHTnHa paCnpocTpaHaeTc Ha KOHTpaKaTHbe npOdyKtB, To eCTb Ha npOdyKtbl, KOTopble KOMpanHna Corsair nO CBOemy Co6CTBeHHOMy yCMOTpeHIO ONpeDenAeT KaH He n3ROTOBHeHhie Corsair nIIN JIO6bIM I3 ee aBTOPI3OBaHHbIX napTHePOB NO pON3BOdCTBy.
Orpahnuehne OTBetCTBeHHOCTN
KOMPAHNA CORSAIR HE HECET OTBETCTBEHHOCTN 3A CNEUJIbHbIE, CJUYAHbIE, KOCBEHNbIE INI NOCJIeDyIOUe YbItKN JIOBOr POJa, B TOM UNCJIe BKJIIOUaY TYPATY PIPbIIN, DOXODA INI DAHHbIX (Byd To IPRMyIO INI KOCBEHHUO) INI KOMMEPUECKINE YbItKN, Bbl3BAHHbIE HAPUJEHnEM JIOBOJ RAHOJ INI IOJPA3yMEBAEMOJ FAPAHTIN HA BAII NPOdYKT, DAXE ECJIN KOMPAHNA CORSAIR BblA 3APAHEE IPEdyIPEXDEHA O BO3MOXHOCTN TAKNX YbItKOB. HeKOToPbIMn MeCtNbIM 3aKOHOdaTeJIbCTBaMn He IOnyckaTcN IcKLIouHeNe INI ORpaHnueHne CNEUJIbHbIX, KOCBeHNbIX, CUYaIHbIX INI NocJeDyIOUx y6bITKOB, IOTOMy DaHHoe ORpaHnueHne INI INCJIouHeNe MoKeT 6bITb HenpImMeHmO B BaWeJ IOpncuKlun.
Cpok DeiCTBnI NOpa3yMeBaembIX rapaHTnI
3A NCKJIIOUCHENEM CJUYAEB, KOGDA 3TO 3ANPEUEHO IPIPUMEHIMbIM 3AKOHODATEJBCTBOM, JIObIe IIOPA3YMEBAEMbIE TAPAHTmN UJIN YCJIOBnRA TOBAPHORO COCTOHRN INIIN IPIROJHOCTN DIA KOHKPETHORO NCNOJb3OBAHNIA DAHHORO AINAPATHORO IPOJyKTA ORPAHNUBAOTcB TEUHENE CPOKA DEICTBNA IPIPUMEHMOI ORPAHNUEHHOI TAPAHTNI HA BAII PNOJyKT. HeKOTOpbIM MeCTbIMN 3aKOHOaTeJIbCTBaMn HE OJNYcKaETcR OpRaHNeHne IPOJONJITIELBOCTN cPoKA DeIcTBnI POJa3YMeBaemr rapaHTn, NO3TOMy DaHHOe OrpaHueHne MOXET 6bITb HEPIMeHMo B BaWeI JOpNCdIKznn.
Ppaba no haunohalbHomy 3aKoHOdaTeIbCTBy
IopTe6nteMmOyT mMeTb IOpDnueckne npaba TIO pnpMeHmOMy HaOnoHaJIbHOMy 3aKoHOaTeJIbCTBy, perynipuyIoemMy npodaJy notpe6nteJIbCKnx TObApOB. HactoJsa OraPauHcHna rapaHTn He 3aTparnBaETakne npaba.
OTka3 OT dpynx rapaHTn
Hn Odn H3 cotpydHnKOB, dInpeob nIIN dpyrrnx areHTOB KOMnaHn Corsair He IMeET NOLHOMOuB BHCNTb I3MeHeHnRA, paCsiHpeHnI IN Do6aBNeHn B HactoJyU rapaHTNIO.
Otnpabka tpe6oBaHn no rapaHTm
Ipeed OTnpabkoTpe6obAHnIO rapaHTmMb pekOMeHnyEM Bam CB3aTbCc Haaew Cnyx6oB TeHNueckO IOdepKnnIIN Nocetntb Be6-caIT corssair.com IN3yUHTb MaTePnaJIbIO TeHNueckO IOdepKke.Bo3MOXHO,3TO nOMoKET Bam HaTI npocToe peSeHHe BO3NHKeE pno6JeMbl.
Kak npabnlo, tpe6oBaHnno rapaHTnn DoJnxHbI 6bTb o6pa6oTaHbI MeCTOM opunHaJIbHO npOdoa n npOyKaT B TeueHne nepBbIX 30 (Tpndau) dNei c MOMeHT naOpno6peTeHn. PpOdoJXtEnbHocT b 3TOrO npinoDA moKeT nMehaTcB C BAUCIMOCTo OT MeCTa npNo6peTeHn npOdyKaT. Y3NaIte y npOdaBua npAbaN aBo3Bpata npOdyKaT. BCE tpe6oBaHn no rapaHTn, KOtOpbe He MOryT 6bTb o6pa6oTaHbI B MeCTe opunHaJIbHO npOdaXn, DoJnxHbI 6bTb pepedaHbI HeNOPceDCTBeHHO KOMnaHn Corsair. KoTHAKTHUIO nHΦopMauio HaSe iClyx6bI pOndepKKn MoXHo hAIa H aBe6-caTe corsair.com/contact IIN B DOKumHeTauin K BaWeMy npOdyKTy.
BVeDHeNc
Jlerko KOHfNrgpnpyemaj apxnteKtypa c ednHOJ uHOB nITaHnI nOlymOdyIbHbIM KOMPNeKTOM Ka6enei
EiHa HnHa nHtAHn +12B ynpOaet NahtpOky npaMeTPOB u o6ecneuBaet MaKcMaJIbHyo COBMeCTMOCb T KOHfNpyaCnx C DBOHbIMN I TPOHbIMN rpaFNUeCKmN KapTaMn. B coUeTaHn C pONyMDyHbOH cStEmO 3TO pONBONJeT 6bICTpee n PPOSe cO6bPaTB nI IN O6HOBJIbT PK 3a cuet INCNoB3OBaHN TOJbKO HeO6XODMbIX dJa NIOKnIOueHn Ka6enei.
Tuxn TepmoperynpemyB BeHTnIaTOp, npoeweun nceTpNkaucuO 3HeproofoekTeNbHocTn no cTaHapTy 80Plus Silver
O6naaunxapaKepncTkoKN 88%,6nok Corsair cepnu Professional Series npou3Bovnt Mehwe yma, BbIeJnreT Mehwe TeNtIObIu n daKe N03BOJare TCH3NTy pOBeH bHeprONOTpe6HeHHa. Tepmoperynpyembl 140-MM BeHTnJIaTOP co CbOeHHbIM NODUHNHkOM pa6oTaet Ha MNHMaJIbHOcKOpocTn pnHn3Knx HarpY3kax, INoTOMy BaW PK pa6oTaET TNIse.
Pa3pa6oTKa Corsair, KaueCTBO Corsair n rapaHTnHoe o6cnyXmbaHne B TeueHne 7 JeT
Co3daHnBc nCnObl3oBaHmEM TolbKO BvICOKoKaueCTBeHHbIX AINOHCKHX KOHNcHcATOpOB, CneUaJIbHO
pa3pa60taHNo neaTHo PnAeTbI N KOMNOHeHTO IpomblJeHHO Klacca, 6NOK NITaHnra Corsair
cepNI Professional Series noDpeKnBAeT cTa6nJbHOe NtAHne C OChEB Hn3KIM yPOBHE
3JIeKTPnueckoro Wyma I PylbCaun, o6ecneuBaB aBicOKyIO HaedXHoCTb I npOdoJKNTeNbHbI
cPOK cnYk6bl.
ПpenmyeCTBa 6LOKOB nHTaHnA Corsair
Блok пианя Corsair cepи Professional Series co3dah Ha ochobe HObeiux TexthoJorri n o6naadet cambIMN COBepeHHbIMN xapakTeprncTukamn.
- Пденихка Новшero CTандага ATX12V 2.31и EPS12V 2.92и образная COBMECTIMOCb CСNTeMaMn ATX12V 2.2и ATX12V 2.01.
- Празтучески б ecшунь веHTиЯТОС сдBoEHHbIM NOДшИнКOM н ретул，在рованем усся о6./mH.ВЗвсIMOCТи OT TemпepaТурbl, обесочиBAJOSSI ONTINCHYIB OБДУВ пи ИСКЛЮЧТЕьНИЗКOM yPOBHe shMa.
- ΘΦΦeKtɪBbHocTbdo 88% (ПигТИПУСHонHaRpy3ke)ОзHAчaET MeHbIeTeNIIOBbIeJIeJIeNEи MeHbIeE ЗнeproNToPte6JIeNE.
- AKTINBnaJ KOPpeKzIa PhaKTopa MoUHocTn (APFC) c Ko3ΦnCneHTom O.99, oBeCneuBaIOsa Cta6NbHyU n HadeXHyI pOdaUy PNTAHia.
- YnHBepcaIbHa NaIpaIePka BxOndoro HapRjKeHna: 90-264B. BoJIbSe HnKaKnx KpaChbIx nepeKJIouaTeNei!
- Bыдениная седашина петаня +12В дя мakсимально COBMecTUMOCTN C HOBeшIMN KOMNOHEHTAMN.
3aunTa OT npEbIeHn TOKa, HapJxHeHn IIN MoUHocTn, NOHxHeHn HApJxHeHn IN KOpOTKOrO 3aMbIkaHn.06ecneuBaIO T MaKcMmaJIbHyIO 6e3OpNaCHocTb KpNTiueCKN BaXhBIX CNCTeMHbIX KOMNoHEHTOB, - BbICOKoKaueCTBHeHbIe JAnOHCKne KOHdEHCaTOpbl, o6ecNeyBaIoUne 6eCKOMPnOmcCHyU HaJeXHoCTb I pON3BOuTeNbHOCTb.
Hn3KoPpOΦnIbHbДn3aHn PIIoCKnx Ka6eJe yMeHbShaet Bo3dUHoe conpoTINBHeHne, qTO n03BOJraET yLyUShITb BO3dYXoo6MeH BHyTpN KOpnyCa BaWero KOMNbIoTepa.
CemnIeTHra rapaHTnI NIOCTyN KcLnyrAm OTNIuH O3apeKomeHDoBaWSeI c68 cnJx6bI TEXHnueckOINoDnepXKN INoCnEInpOdaXHOrO 06cLyXnBaHN KOMnAHn Corsair.
Texnueckne xapaKtepncn6loka nntaHna
Pa3MepbI:150mm×86mm×180mm(LJxBxF)
CpeDHee Bpem 6e30Ka3Hoi pa6OtbI:100,000 yacOB
| Модаль | CMPSU-750HX | CMPSU-850HX | CMPSU-1050HX | |||
| ВхODноу tok (перем.) | ||||||
| ВхODhoe напражени (перем.) | 100-240B | 100-240B | 100-240B | |||
| ВхOD. тok | 10A | 12A | 13-6.5A | |||
| Частota | 50/60Гц | 50/60Гц | 50/60Гц | |||
| ВыхODноу tok (пост.) | ВыхODноу tok (пост.) | ВыхODноу tok (пost.) | ||||
| Мак. нагрузka | Мак. мошностb | Мак. нагрузka | Мак. мошностb | Мак. нагрузka | Мак. мошностb | |
| +3.3B | 25A | 150Вt | 25A | 150Вt | 30A | 180Вt |
| +5B | 25A | 25A | 30A | |||
| +12B | 62A | 744Вt | 70A | 840Вt | 87.5A | 1050Вt |
| -12B | 0.8A | 9.6Вt | 0.8A | 9.6Вt | 0.8A | 9.6Вt |
| +5B (разсевна шima) | 3A | 15Вt | 3A | 15Вt | 3.5W | 17.5Вt |
| Полная мошиностb | 750W | 850W | 1050W | |||
KomJIeKtaZna
- Блок петань сери Corsair сери Professional Series
Ha6opMoynbHbIXKa6eNei
PykoBODCTBO Nolb3ObaTeIa
Ka6eIb nItaHnI nepemEnHoTo kA
CTaKnIpaKa6eNei
MoHTnPoBOOHyIe 6oJIbI - HakuJeIka Corsair Ha cnCTeMHbI 6nOK
Cymka
KoHnIpyaunna Ka6eNei Corsair
| CMPSU-750HX | |||
| Кол-Во | Длина | РазBLEM на Кабель | |
| 1 | 610mm ± 25mm | 1 | Кабель ATX (24-контaktнbi) |
| 1 | 650mm ± 25mm | 1 | Кабель цП EPS12V (8-контaktнbi) |
| 4 | 600mm ± 25mm | 1 | Кабель PCI-E |
| 3 | 850mm ± 25mm | 4 | Кабель SATA |
| 2 | 750mm ± 25mm | 4 | Кабель для песиферийнbiх устroduстВ |
| 2 | 101mm ± 5mm | 1 | Кабель FDD |
| CMPSU-850HX | |||
| Кол-Во | Длина | РазBLEM на Кабель | |
| 1 | 610mm ± 25mm | 1 | Кабель ATX (24-контaktний) |
| 1 | 650mm ± 25mm | 1 | Кабель цП EPS12V (8-контaktний) |
| 6 | 600mm ± 25mm | 1 | КабельPCI-E |
| 3 | 850mm ± 25mm | 4 | Кабель SATA |
| 3 | 750mm ± 25mm | 4 | Кабель для петифераийньх устroduств |
| 2 | 101mm ± 5mm | 1 | Кабель FDD |
| CMPSU-1050HX | |||
| Кол-Во | Длина | Разьемов на Кабель | |
| 1 | 610mm ± 25mm | 1 | Кабель ATX (24-контaktн biom) |
| 2 | 650mm ± 25mm | 1 | Кабель цП EPS12V (8-контaktн biom) |
| 6 | 600mm ± 25mm | 1 | КабельPCI-E |
| 3 | 850mm ± 25mm | 4 | Кабель SATA |
| 3 | 750mm ± 25mm | 4 | Кабель для петифераийн biom устюв |
| 2 | 101mm ± 5mm | 1 | Кабель FDD |
Приимechаю.
Pa3bemПNTaHINATX OCHaIeH CbEMHbIM 4-KoHTaKTHbIM MexaHn3MOM,6laRogapremy oecneuBaetc coBmecttmoCTb KaK c 24-KoHTaKTHbIMn, TaK nC 20-KoHTaKTHbIMn pa3beMaMn Ha MaTePunHCKnx PJIaTax.
- Pa3bem Питань EPS12V ochaшис сбемыm 4-KOHTAKTHbIM МexанзMOM, 6laorapra чуMy obecneuBaetcя COBMeCTIMOCt b KaK C 8-KOHTAKTHbIMn, tak n c 4-KOHTAKTHbIMn pa3bemamn P4/12V ha MaTePNHCKnx Пл Tax.
YctaHOBKa
Ipejde yem npucmynumb k ycmaHOBke, Heo6xodumo do KOHca npouumamb Hacmoaee pyko6o3mo.
War A.ИЗBLEЧЕНСТAPORO 6LOKA pHTAHNIA
EcnBb co6npaTe HOBYIO cnCTeMy, nepeiDnte K shary B.
- OToeHnHTe shypr nHTaHnI nepeMeHHoro TOKa oT hAcTeHHo 3JeKtpnuecko pOzETKn nn N5P, a TaKxge O Te MeHOUeGcR 6NoKa PnTaHnI.
- OToeHnHTe Bc Ka6eJI, NIOBODaIe NITaHne K BUNeOKeApTe, MaTePNHcko INaTe n npOUM nepuΦepn HbIM yCTpoCTBaM.
- Cnényra yka3aHnM pyKOBoDCTBa nO ekCnIyatauN cNCTeMHOro 6Ioka, DEMOHtUpyTe 6JOK nITaHnI.
- IpeeJnte K 7aury b.
Uar 5. Uctanobka 6Ioka nITaHnI cepu Corsair Professional Series
- Y6eIntecb, yTo Ka6eJIb nepemehnHO rToKa 6noka nITaHnHe noDKlIOUeH.
- Cnéýra yka3aHnM pykoBODCTBa no 3KcπIyatauIN CNTeMHOrO 6IOKa, yctahOBInTe 6IOK nITaHnI 3aKpeNITe pnpIoKeHHbIM BnHTAMn,
- ПдклочиTe 24-KoHTaKThbI 6LoKy NiTuHaNЯ K MaTePnHcKo NpTaTe. OChOBHOJ 24-KoHTaKThbI Ka6eJIb NiTuHaNЯ OChaUeH CbeMHbIM 4-KOHTaKThbIM MExaHn3MOM, 6laorOapra YEmy O6ecneuBaetcO BmecTmOcTb KaK c 24-KoHTaKThbIM, TaK n c 20-KoHTaKThbIMn pa3BeMaMn Ha MaTePnHcKIn X PnTaX.
a. EcIn Ha MaTePNHcKo PnIaTe UMeeTcR 24-KoHTaKTThbI pa3beM, K HeM MoXHo HApPMyIO NOkJIooHTb 24-KoHTaKTThbI OCHOBHO Ka6eJIb PntAHnO T 6JOKa NITAHn.
b. EcnMATEpHNCkA PnIaTcOcHaeHa 20-KoHTaKTHbIM pa3beMOM, CneJyET OTOeDINHTb 4-KoHTaKTHbI Ka6eIb OT 24-KoHTaKTHoP a3beMa n 3aTEM NOdkJIIOUHTb 20-KoHTaKTHbI Ka6eJIb K MATEpHNCKo PnIaTe, He NOdKJIIOUaY 4-KoHTaKTHOrO pa3beMa.
- ПОДКЛЮЧИТЕ BOCBMUNKOHTaKTHbI Ka6eJIb LInHn +12B (EPS12V) K MaTePnHcKo ПlaTe.
a. EcIN MaTePNHcKa PnIaT OCHaUeHa 8-KoHTaKTbIM WTeNCEbHbIM pa3beMOM +12B, CneJyET PNOKNIuHTb Ka6eJIb C8-KoHTaKTbIM pa3beMOM HeNoCpeDCTBeHHO K MaTePNHcKOI PnIaTe.
b. EcIN MaTePHNCKaI PaTaOcHaSeHa 4-KoHTaKTThbIM pa3beMOM, cNeIyET OTCoeDInHtB 4-KoHTaKTThbI Ka6eIb OT 8-KoHTaKTHorO pa3BeMa I 3aTe MIOKJIIOUHTb 4-KoHTaKTThbI Ka6eIb HEnOCpeICTBeHHO K MaTePHNCKoi PIIate.
IpeynpexdHe. CbemHbI 4-KoHTaKTHbI pa3bEm Ka6eJIc 24-KoHTaKTHbIM OCHOBHbIM pa3bEMOM He IaBJIeTcra pa3bEMOM TnIa "P4" nII "+12B". Ero nCnoJIb3OBAHne BmecTo pa3bema TnIa "P4" nII "+12B" MoKeT bI3BaTbccepBe3HbIe HenOnaJKn.
(KHP) 3NEKTPOHHO-HHΦOPMaUHOBHbIMN pOdyKTAMN
| CMPSU-750HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 4 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 2 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-850HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-1050HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 2 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
注意：
- ATX电源接口中可分离的4-pin接口于主板24-pin或20-pin电源插槽
- EPS12V 电源接口中可分离的4-pin接口于主板8-pin socket 或4-pin “P4/12V”插槽
安装
在继续安装电源前，请先通读本手册
步骤A：更换现有电源
如果您组建全新系统，请转至步骤B.
Safety and Agency Approvals
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive
ROHS China Order No.39, Administration on the Control of Pollution Caused By
(China) Electronic Information Products
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC,特定有害物質除去に閲る指令
EMAIL: support@corsair.com
FACEBOOK: facebook.com/corsair
BLOG: blog.corsair.com
FORUM: forum.corsair.com
TWITTER: twitter.com/corsairmemory
AUDIO PAGE: corsair.com/audio
USA and CANADA: (800) 205-7657
INTERNATIONAL: (510) 657-8747
FAX: (510) 657-8748
CORSAIR
46221 Landing Parkway • Fremont • California • 94538 • USA
© 2011 Corsair Memory, Inc. All rights reserved. Corsair and the sails logo are registered trademarks and Professional Series is a trademark in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured. Document Number: 49-000012 rev AB
