CHORUS OD706V - Speaker FOCAL - Free user manual and instructions

Product type	2-way indoor/outdoor acoustic speaker
Brand	FOCAL
Model	CHORUS OD706V
Speakers	16.5 cm Polyglass woofer/midrange, 25 mm TNV inverted dome tweeter Al/Mg
Frequency response (±3 dB)	60 Hz - 28 kHz
Response at -6 dB	52 Hz
Sensitivity (2.83 V/1 m)	90 dB
Nominal impedance	8 ohms
Minimum impedance	3.6 ohms
Crossover frequency	3000 Hz
Recommended amplifier power	25 - 150 W
Dimensions (HxWxD)	304 x 216 x 192 mm
Weight (unit)	3.2 kg
Use	Indoor and outdoor (under eave recommended)
Materials	Tropicalized Polyglass cone, Al/Mg tweeter, perforated aluminum grille
Mounting	Wall mounting with metal bracket and anti-vibration silent blocks
Package contents	1 speaker, 4 screws, 4 wall plugs, 1 bracket with silent blocks, 2 mounting screws, 1 grille, 1 logo
Warranty	2 years (France), non-transferable, return in original packaging

Frequently Asked Questions - CHORUS OD706V FOCAL

Where to install the Focal Chorus OD706V speaker?

This speaker is designed for indoor and outdoor use. For prolonged exposure to sun or weather, it is recommended to install it under an eave in summer and remove it in winter.

How to mount the speaker on the wall?

Use the supplied metal bracket with silent blocks. Remove the knobs, pass the cable through the wall, fix the bracket to the wall with screws, then reposition the speaker on the bracket and tighten the knobs. Orient the speaker towards the listening area.

What cable to use and how to connect?

Use a suitable speaker cable. Respect polarity: connect the '+' to the positive output of the amplifier and '-' to the negative terminal.

What amplifier power is recommended?

Focal recommends an amplifier of 25 to 150 watts to fully exploit the speaker's performance.

Is the speaker water-resistant?

Yes, it is designed for outdoor use with a tropicalized Polyglass cone and a perforated aluminum grille. However, avoid direct and prolonged exposure to weather.

How to break in the speakers?

Run the speakers for about twenty hours at medium level on standard music programs rich in bass. This stabilizes mechanical characteristics and optimizes performance.

How to clean the speaker?

Use a soft, dry cloth. Avoid solvents or abrasive products. For the grille, light dusting is sufficient.

What is the warranty and how to activate it?

The warranty is 2 years in France. Return the completed warranty coupon within 10 days of purchase to the address indicated in the manual.

Can I use these speakers for home theater?

Yes, they are suitable for hi-fi and home theater. Their low directivity and wide frequency response make them versatile.

What accessories are included?

The package contains: 1 speaker, 4 screws, 4 wall plugs, 1 metal bracket with 2 silent blocks, 2 mounting screws for the bracket, 1 grille, and 1 logo.

USER MANUAL CHORUS OD706V FOCAL

Thank you for choosing the Chorus V on-wall loudspeakers. We are pleased to share with you our philosophy : "the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

To ensure optimal performance from your on-wall loudspeakers, we highly recommend that installation is carried out by a professional. They will be able to advise on the best placement within your listening environment and adjust your system to achieve the highest possible sound quality.

The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Included inside:

• 1x loudspeaker
• 4x screws
• 4x plugs
• 1x metallic bar with 2 silent-blocks
• 2x fixing screws for the bar
• 1x grille
• 1x logo

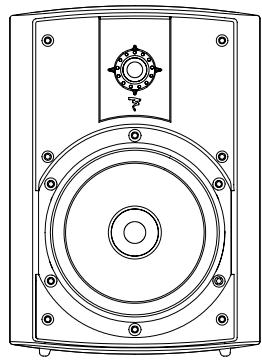

Main features:

• All weather Polyglass cone woofer.
• Al/Mg tweeter with anti-drop frame.
• Punched aluminum grille.
• Weather resistant
• Low directivity
• Wall fixing on anti-vibration rubber foam.

Français page 5

C E

A

B

C

E

D

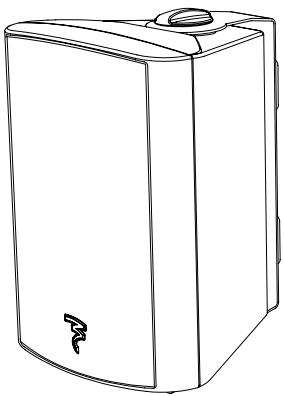

Chorus 0D 706 V

Installation

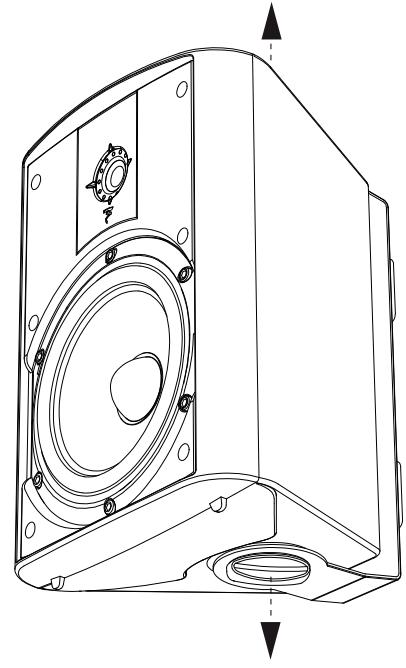

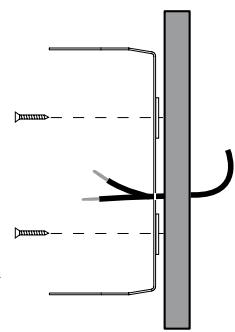

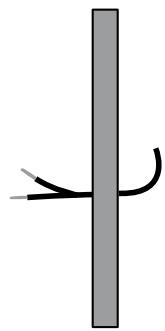

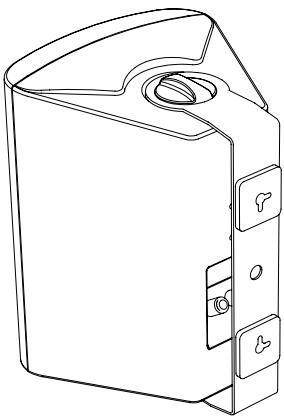

Loosen the two knobs. Remove the bracket from speaker (pic.A). Run the appropriate gauge wire from your amplifier (pic. B). Mount the C-bracket to the wall surface by running screws through the holes located in the bracket (pic.C).

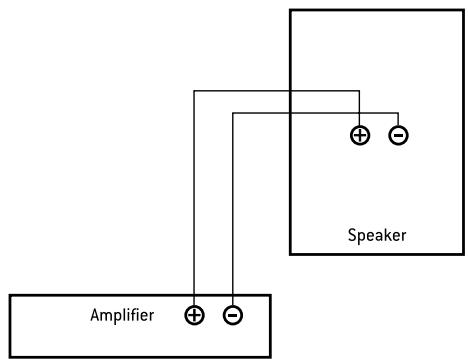

Install the speaker into the C-bracket. Turn the bracket knobs into the cabinet. Point the speaker toward the listening area (pic.D). You must respect the connector polarity of both loudspeaker and amplifier. The positive terminal "+" must be connected to the corresponding amplifier terminal and the negative terminal "-" to the negative terminal (pic.E).

Running-in period

The drivers used in the Chorus V loudspeaker are complex mechanical devices and require a run-in period before they deliver their best performance. They must get adapted to the temperature and humidity conditions of their environment. This breaking-in period depends on the encountered conditions and can last several weeks. In order to shorten this period, we advise you to let your loudspeakers operate for about twenty hours at medium level, playing standard musical programmes, but with a large amount of bass. Once the components of the loudspeakers are completely stabilized, it is possible to enjoy the real performance of your Chorus V loudspeakers.

Conditions of guarantee

All Focal-JMlab loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Warning!

Long sun and/or bad weather exposure can damage your loudspeakers.

We recommend that you place your OD 706 V loudspeakers under a penthouse in summer and to remove them in winter.

OD 706 V

Type	2-way closed outdoor/indoor speaker
Drivers	61/2'' (16.5cm) Polyglass mid-bass1'' (25mm) TNV Al/Mg inverted dome tweeter
Frequency response (+/- 3dB)	60Hz - 28kHz
Low frequency point (- 6dB)	52Hz
Sensitivity (2.83V/1m)	90dB
Nom. impedance	8 ohms
Minimum impedance	3.6 ohms
Crossover frequency	3 000Hz
Recommended amplifier power	25 - 150W
Dimensions (HxWxD)	1115/16x81/2x79/16''(304x216x192mm)
Net weight	7lbs (3.2kg)

Validation guarantee

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:

Your complete address:

Your email address:

Details of your installation (brand, model):
