USER MANUAL CHORUS OD706V FOCAL

Thank you for choosing the Chorus V on-wall loudspeakers. We are pleased to share with you our philosophy : "the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

To ensure optimal performance from your on-wall loudspeakers, we highly recommend that installation is carried out by a professional. They will be able to advise on the best placement within your listening environment and adjust your system to achieve the highest possible sound quality.

The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Included inside:

• 1x loudspeaker
• 4x screws
• 4x plugs
• 1x metallic bar with 2 silent-blocks
• 2x fixing screws for the bar
• 1x grille
• 1x logo

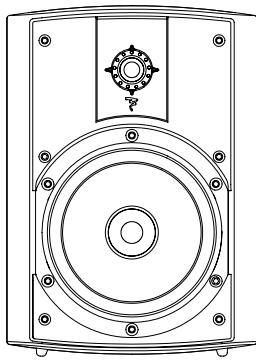

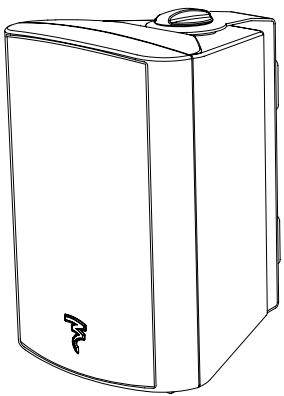

Main features:

• All weather Polyglass cone woofer.
• Al/Mg tweeter with anti-drop frame.
• Punched aluminum grille.
• Weather resistant
• Low directivity
• Wall fixing on anti-vibration rubber foam.

Français page 5

C E

A

B

C

E

D

Chorus 0D 706 V

Installation

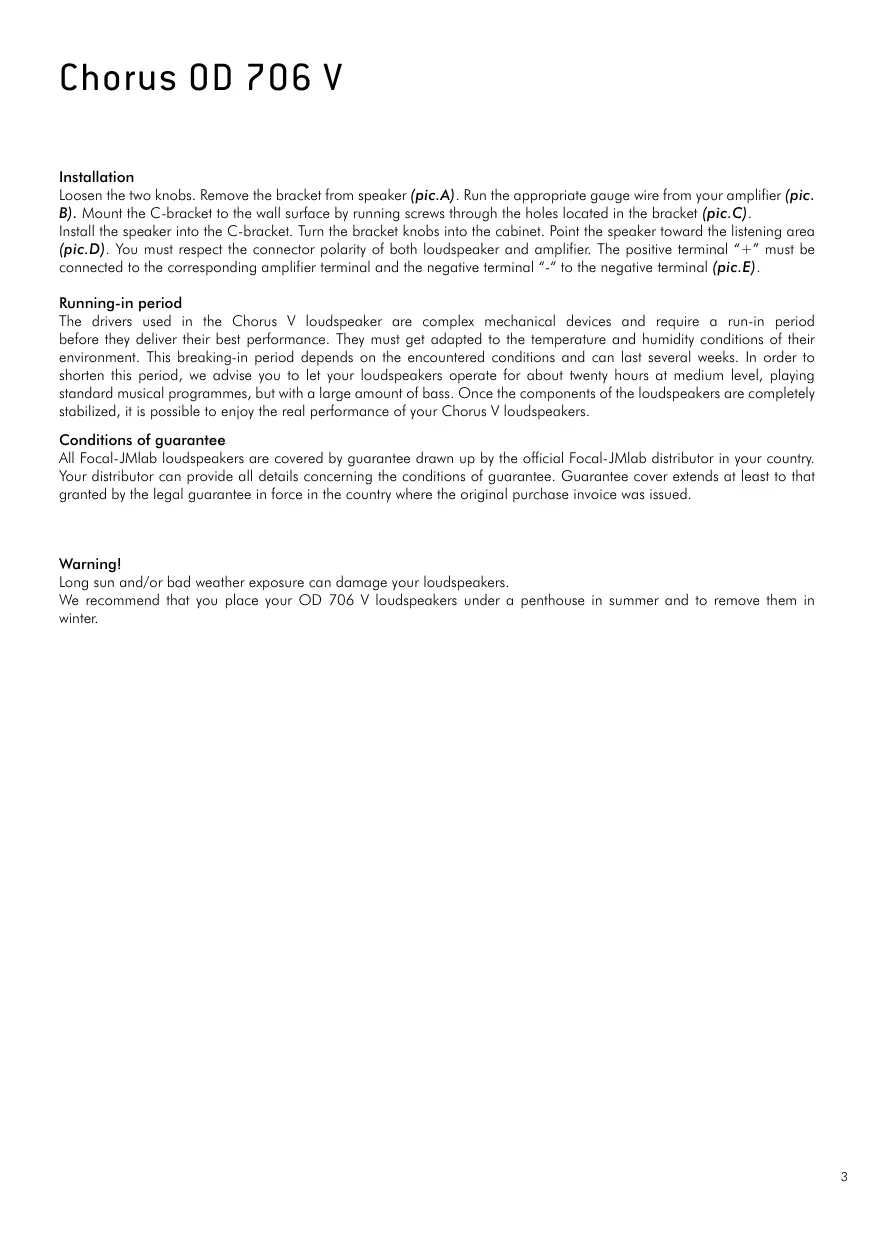

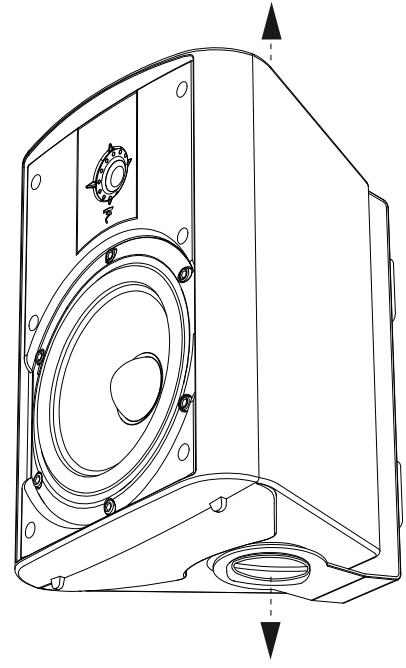

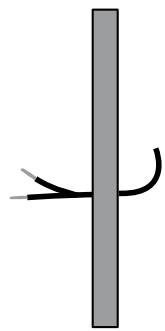

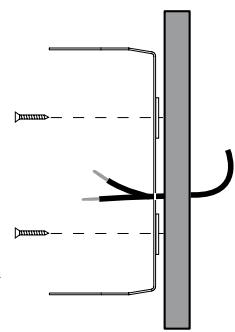

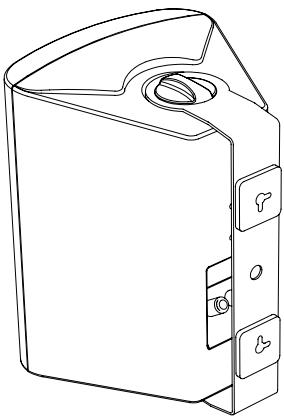

Loosen the two knobs. Remove the bracket from speaker (pic.A). Run the appropriate gauge wire from your amplifier (pic. B). Mount the C-bracket to the wall surface by running screws through the holes located in the bracket (pic.C).

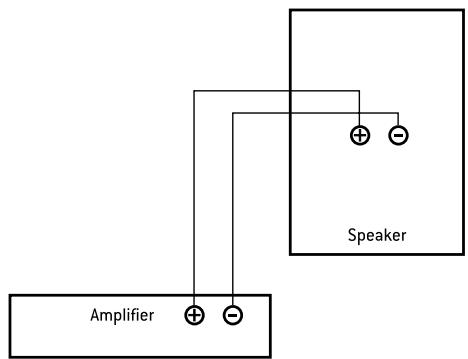

Install the speaker into the C-bracket. Turn the bracket knobs into the cabinet. Point the speaker toward the listening area (pic.D). You must respect the connector polarity of both loudspeaker and amplifier. The positive terminal "+" must be connected to the corresponding amplifier terminal and the negative terminal "-" to the negative terminal (pic.E).

Running-in period

The drivers used in the Chorus V loudspeaker are complex mechanical devices and require a run-in period before they deliver their best performance. They must get adapted to the temperature and humidity conditions of their environment. This breaking-in period depends on the encountered conditions and can last several weeks. In order to shorten this period, we advise you to let your loudspeakers operate for about twenty hours at medium level, playing standard musical programmes, but with a large amount of bass. Once the components of the loudspeakers are completely stabilized, it is possible to enjoy the real performance of your Chorus V loudspeakers.

Conditions of guarantee

All Focal-JMlab loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Warning!

Long sun and/or bad weather exposure can damage your loudspeakers.

We recommend that you place your OD 706 V loudspeakers under a penthouse in summer and to remove them in winter.

Specifications

OD 706 V

Type	2-way closed outdoor/indoor speaker
Drivers	61/2'' (16.5cm) Polyglass mid-bass1'' (25mm) TNV Al/Mg inverted dome tweeter
Frequency response (+/- 3dB)	60Hz - 28kHz
Low frequency point (- 6dB)	52Hz
Sensitivity (2.83V/1m)	90dB
Nom. impedance	8 ohms
Minimum impedance	3.6 ohms
Crossover frequency	3 000Hz
Recommended amplifier power	25 - 150W
Dimensions (HxWxD)	1115/16x81/2x79/16''(304x216x192mm)
Net weight	7lbs (3.2kg)
