Product Type	Unmanaged Network Switch
Brand	TRENDNET
Model	TE100-S5
Number of Ports	5 ports 10/100 Mbps
Port Type	RJ-45 with Auto-MDI/MDIX
Transfer Speed	10/100 Mbps (half/full duplex)
Switching Method	Store-and-forward
Switching Capacity	1 Gbit/s (non-blocking)
MAC Address Table	2,000 entries
Power Supply	External power adapter 5 V DC, 1 A
Power Consumption	5 W (max)
LEDs	Power, link/activity per port
Dimensions (L × W × H)	10.5 × 7.5 × 2.5 cm
Weight	200 g (approx.)
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % (non-condensing)
Mounting	Desktop / wall (mounting kit included)
Housing Material	Plastic
Certifications	CE, FCC
Maintenance and Cleaning	Unplug the device, clean with a dry, lint-free cloth. Do not use chemicals.
Safety	Do not expose to moisture, avoid shocks, ensure proper ventilation.
Spare Parts and Repairability	No user-serviceable parts. Contact TRENDNET support in case of failure.
General Information	Compact and silent 5-port switch, ideal for small businesses or home.

Frequently Asked Questions - TE100-S5 TRENDNET

How to connect the TE100-S5 switch to my network?

Plug the power adapter into the switch and into an electrical outlet. Use CAT5 or higher Ethernet cables to connect your devices (computers, router, etc.) to the RJ-45 ports. The green LEDs light up to indicate an active link.

What do the LEDs on the switch mean?

The Power LED indicates the device is powered on. The Link/Act LEDs (per port) light up green when a connection is established and blink during network traffic.

Can I mount the switch on the wall?

Yes, the TE100-S5 comes with a wall mounting kit. Make sure to securely attach the brackets and follow the ventilation instructions.

What type of cable should I use?

Use CAT5, CAT5e, or CAT6 cables with RJ-45 connectors. The switch automatically detects the cable type (straight or crossover) thanks to Auto-MDI/MDIX.

The switch does not power on, what should I do?

Check that the power adapter is properly connected to the switch and to a working outlet. Visually inspect the power cable. If the problem persists, contact TRENDNET support.

What is the maximum speed of each port?

Each port supports up to 100 Mbps in full duplex, i.e., 200 Mbps per port (simultaneous reception/transmission).

Is the switch compatible with routers and modems?

Yes, it is compatible with all standard network equipment using 10/100 Mbps Ethernet. It can be connected to a router to extend the number of ports.

How to clean the switch?

Always unplug the device before cleaning. Use a soft, dry cloth to wipe the casing. Do not use liquids or aerosols.

What is the power consumption of the switch?

The maximum consumption is 5 W, making it energy efficient. The adapter provides 5 V DC / 1 A.

Where can I find the quick installation guide?

The quick installation guide is included in the packaging. You can also download it in PDF format from the TRENDNET website or from our platform Notice-facile.com.

USER MANUAL TE100-S5 TRENDNET

Technical Specifications 5

Troubleshooting 6

The switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment.

1. Attach the mounting brackets to both sides of the switch and secure them with the provided screws.
2. Carefully position the switch onto the rack. Align the bracket to the screw holes on the rack, then use the screws provided with the equipment rack to mount the switch.

Hardware
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control
Network Media	Ethernet: 2-Pair UTP/STP CAT-3, -4, -5 Fast Ethernet: 2-Pair UTP/STP CAT-5, -5e, -6
Data Transfer Rates	Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)
Protocol/Topology	CSMA/CD / Star
Interface	TE100-S16g: 16 x 10/100/1000 Auto-MDIX RJ-45 ports TE100-S24g: 24 x 10/100/1000 Auto-MDIX RJ-45 ports
Data RAM Buffer	TE100-S16g: 1.25Kbits per device TE100-S24g: 1.25Mbits per device
Packet Filtering/Forwarding Rate	10Mbps Ethernet: 14,880pps (packets per second) 100Mbps Fast Ethernet: 148,800pps
MAC Address Learning	Automatic Update
Filtering Table	8K entries per device
Switch Fabric	TE100-S16g: 3.2Gbps Forwarding Capacity TE100-S24g: 4.8Gbps Forwarding Capacity
Power Consumption	TE100-S16g: 6W (max) TE100-S24g: 6.4W (max)

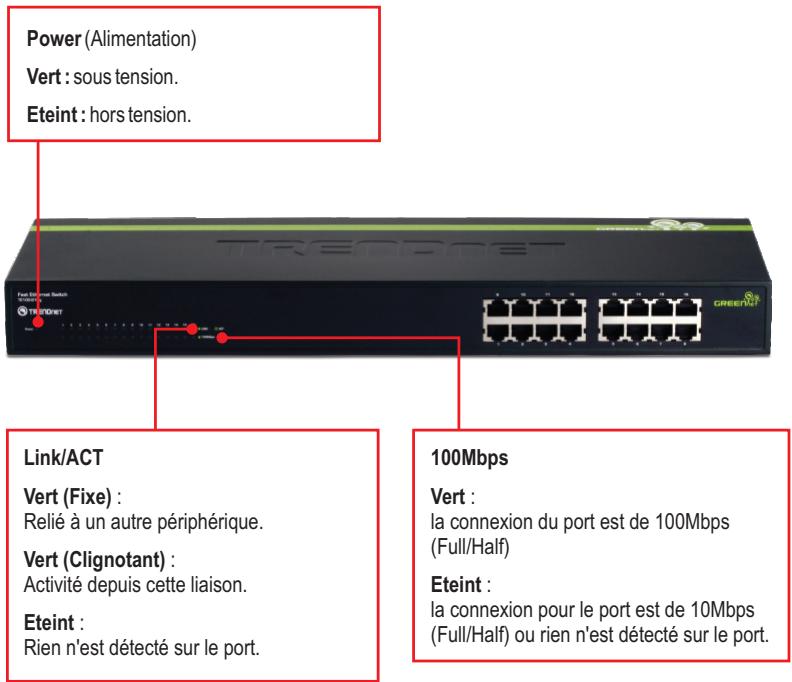

Diagnostic LEDs	Power, Link/ACT, 100Mbps
Power	100-240VAC, 50/60Hz, Internal Power Supply
Dimensions	440 x 140 x 40 mm (17.32 x .5.51 x 1.57 in.)
Weight	TE100-S16g: 1.72kg (3.8 lb) TE100-S24g: 1.86kg (4.1 lb)
Temperature	Operating: 0° ~ 40°C (32° ~ 104°F) Storage: -10° ~ 70°C (14° ~ 158°F)
Humidity	Operating: 10% ~ 90% Storage: 5% ~ 90%
Certifications	CE, FCC

After connecting the Switch to a power outlet, the LEDs do not turn on.

1. Check the connection of the power cord to the TE100-S16g/TE100-S24g and the power outlet.
2. Check that the power outlet is receiving power.

When I connect a computer to the Switch's port, the Link/ACT LED turns on, but the 100Mbps LED remains off.

When the 100Mbps LED is off, the computer's connection speed is 10Mbps.

After I connect my PCs to the Switch, I am unable to share files.

1. Check the LEDs on the Switch. Make sure the Link/ACT LED is on.
2. Check the network cable. The minimum length of the cable is 1.5 meters and the maximum length of the cable is 100 meters.
3. Disable any software firewall program.
4. Verify that you have file sharing enabled. Please contact your Operating System support for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one computer.

The Switch was not designed to share Internet between multiple computers. You need to get an Internet router such as the TW100-S4W1CA.

Where is the uplink port located on the Switch?

Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as an uplink port.

If you still encounter problems or have any questions regarding the TE100-S16g/ TE100-S24g please contact TRENDnet's Technical Support Department.

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.

TE100-S16g/TE100-S24g - 5 Year Limited Warranty AC/DC Power Adapter, Cooling Fan and Power Supply carry 1 year warranty

If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTY AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALGEGD DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCULES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ASING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.

PWP05202009v2

Certifications

This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
