• Owner’s Manual L243*D / W243*D L245*D / W245*D DIGITAL Series This standard owner’s manual is designed to show you how to connect and tune in your Toshiba TV and to operate the most commonly used functions. During the life of your TV firmware updates will be made available to ensure that your TV maintains optimum performance: If your TV is connected to the internet, firmware will be automatically made available. If your TV is not connected to the internet, you can download the latest version of firmware from www.toshiba-om.net/firmware.php If you want to view advanced functions for your TV you can do so by visiting www.toshiba-om.net Toshiba estimates that the initiative of making the advanced functions available online will save over 100,000 trees per year (6.5 Million Kg CO2). If you wish to view the advanced functions but do not have access to a computer or the internet then please contact your local owner’s manual Helpline number. Contact details are shown at the back of this book. English Contents Channel Grouping p. 23
• Common Interface p. 23
• Safety Precautions p. 4
• Installation and Important Information p. 5
• Digital On-Screen Information and Programme Guide p. 24
• Where to install p. 5
• When using a Wall Bracket p. 5

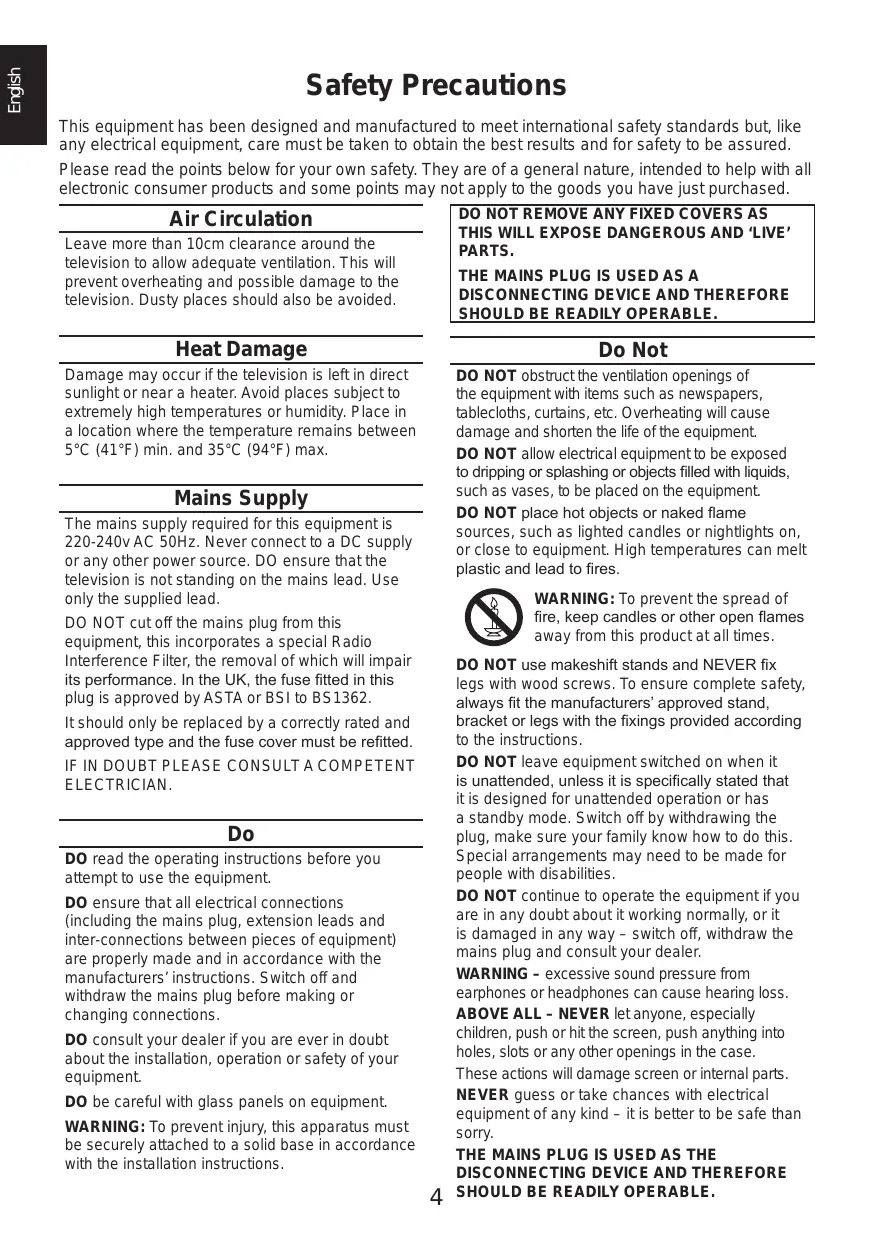

English Enjoy Photos through USB Port ......... 33 English Safety Precautions This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased. DO NOT REMOVE ANY FIXED COVERS AS

THIS WILL EXPOSE DANGEROUS AND ‘LIVE’

PARTS. Air Circulation Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided. THE MAINS PLUG IS USED AS A

DISCONNECTING DEVICE AND THEREFORE

SHOULD BE READILY OPERABLE. Heat Damage Do Not Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max. DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment. DO NOT allow electrical equipment to be exposed WRGULSSLQJRUVSODVKLQJRUREMHFWV¿OOHGZLWKOLTXLGV such as vases, to be placed on the equipment.

DO NOTSODFHKRWREMHFWVRUQDNHGÀDPH

sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt SODVWLFDQGOHDGWR¿UHV Mains Supply The mains supply required for this equipment is 220-240v AC 50Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead.

WARNING: To prevent the spread of

¿UHNHHSFDQGOHVRURWKHURSHQÀDPHV away from this product at all times. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair

LWVSHUIRUPDQFH,QWKH8.WKHIXVH¿WWHGLQWKLV

plug is approved by ASTA or BSI to BS1362. It should only be replaced by a correctly rated and

IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels on equipment.

WARNING: To prevent injury, this apparatus must

be securely attached to a solid base in accordance with the installation instructions.

DO NOTXVHPDNHVKLIWVWDQGVDQG1(9(5¿[ legs with wood screws. To ensure complete safety,

DOZD\V¿WWKHPDQXIDFWXUHUV¶DSSURYHGVWDQG

EUDFNHWRUOHJVZLWKWKH¿[LQJVSURYLGHGDFFRUGLQJ to the instructions. DO NOT leave equipment switched on when it

LVXQDWWHQGHGXQOHVVLWLVVSHFL¿FDOO\VWDWHGWKDW

it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities. DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer. WARNING – excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts. NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry. THE MAINS PLUG IS USED AS THE

DISCONNECTING DEVICE AND THEREFORE

SHOULD BE READILY OPERABLE. Where to install Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV set on a stable, level surface that can support the weight of the TV. The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. Make sure the television is located in a position it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case. Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or near the TV pedestal. Studies indicate that plastics may weaken and crack over time from the combination effects of chemical agents and mechanical stress (such as weight of TV). Failure to follow these instructions could result in serious injury and/or permanent damaged to TV and TV pedestal. Cleaning the screen and cabinet... Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage. When using a Wall Bracket Please use a wall bracket appropriate for the size and weight of the LCD TV. ‡ Two people are required for installation. ‡ To install a wall-mount from another manufacturer.

1. Unplug and remove any cables and/or other connections from the rear of the TV.

2. &DUHIXOO\OD\WKHIURQWRIWKHXQLWIDFHGRZQRQDÀDWFXVKLRQHGVXUIDFHVXFKDVDTXLOWRUEODQNHW

3. Follow the instructions provided with your wall bracket. Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

4. Always use the screws supplied or recommended by the wall mount manufacturer.

Removing the Pedestal Stand:

1. &DUHIXOO\OD\WKHIURQWRIWKHXQLWIDFHGRZQRQDÀDWFXVKioned surface with the stand hanging over the edge.

2. Remove the screws.

3. After the screws are removed, hold the pedestal stand in

place, then remove it from the TV by sliding away from the bottom of the TV. NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel.

32W24** | 32L/40L24** x 4 English Installation and Important Information English

:KHQXVLQJ0+/ 0RELOH+LJKGH¿QLWLRQ/LQN

‡ Interoperability with MHL devices of other manufacturers is not guaranteed. ‡ Toshiba does not provide any guarantee, therefore, against operational failure such as that described below when an MHL source is connected to the TV. - No picture or sound - Some of the functions do not work be remote operation from the TV ‡ If the MHL does not work properly, also contact the manufacturer of the source device for advice on its use. ‡ Do not disconnect the power plug when the TV is active and the MHL device is being connected. ‡ Do not disconnect the power plug when the TV is in standby mode and the MHL device is being connected. Please take note EXCLUSION CLAUSE Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions vii) VHWRXWLQWKHRZQHU¶VPDQXDO any loss or damage caused directly as a result of misuse or malfunction of the product when used viii) VLPXOWDQHRXVO\ZLWKDVVRFLDWHGHTXLSPHQW Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage LQFOXGLQJEXWQRWOLPLWHGWRWKHIROORZLQJORVVRISUR¿WLQWHUUXSWLRQRIEXVLQHVVWKHORVVRIUHFRUGHGGDWD whether caused during normal operation or misuse of the product. ‡ The digital reception function of this television is only effective in the countries listed in the Country section of the SETUP menu. Depending on country/area, some of this television’s functions may not be

DYDLODEOH5HFHSWLRQRIIXWXUHDGGLWLRQDORUPRGL¿HGVHUYLFHVFDQQRWEHJXDUDQWHHGZLWKWKLVWHOHYLVLRQ

‡ ,IVWDWLRQDU\LPDJHVJHQHUDWHGE\EURDGFDVWVWH[WVHUYLFHVFKDQQHOLGHQWL¿FDWLRQORJRVFRPSXWHU

displays, video games, on-screen menus, etc. are left on the television-screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings. ‡ Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines, this is not a defect of the LCD TV and is not covered under the manufacturers warranty. Regular use of other size modes (e.g.: Super Live) will prevent permanent retention. NOTE: Interactive video games that involve shooting a “gun” type of joystick at an on-screen target may not work with this TV. SYMBOL SYMBOL DEFINITION INSTRUCTIONS: The exclamation point within on equilateral triangle to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

WARNING:7RSUHYHQWWKHVSUHDGRI¿UHNHHSFDQGOHVRURWKHURSHQÀDPHVDZD\IURP

this product at all times.

Simple at-a-glance reference of your remote control.

In TV mode: Display on-screen information In Text mode: Access the index page Mute the sound Display the QUICK access menu Exit the menu system Display EPG Go to the previous level of the menu Display the on-screen menu 0HQXQDYLJDWLRQŸźŻŹ In Text mode: Change the page &RQ¿UPWKHVHOHFWLRQ Colour button: Text control buttons Reveal concealed text Hold a wanted page Enlarge text display size Select a page while viewing a normal picture Inserting batteries and effective range of the remote

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, 1.5V. Do not combine a used, old battery with a new one or mix battery types. Remove exhausted batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 58 of this manual. Warning: batteries must not be exposed to excessive heat such as VXQOLJKWRU¿UH The performance of the remote control will

GHWHULRUDWHEH\RQGDGLVWDQFHRI¿YHPHWUHV

or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing. Switch between TV ON or Standby Switch between external input sources Still Picture To display the teletext screen TEXT subtitle pages if available Stereo/Bilingual transmissions Number buttons Audio Description Switch between ATV and DTV Change the volume Change the channel

English The Remote Control English Connecting External Equipment Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket. ILLUSTRATION SHOWS 32L24. USB SOCKET *a decoder could be Digital Satellite or any other compatible decoder. *Model will determine power cord position. HDMI 2 INPUT SOCKET POWER CORD RGB/ PC HDMI 1 INPUT SOCKET SCART 1 (INPUT/TV OUT)

If you use a decoder and/or media recorder, connect through the decoder and/or media recorder to the television. SCART cables: - - - -- - - - - - - - - - - - - - Connect the video recorder IN/OUT or decoder TV socket to the television. Connect the media player SAT socket to the decoder MEDIA REC. socket. Before running Auto Tuning put your decoder and media recorder to Standby. HDMI® +LJK'H¿QLWLRQ0XOWLPHGLD,QWHUIDFH LVIRUXVHZLWKD'9'GHFRGHURUHOHFWULFDOHTXLSPHQW

ZLWKGLJLWDODXGLRDQGYLGHRRXWSXW,WLVGHVLJQHGIRUEHVWSHUIRUPDQFHZLWKLKLJKGH¿QLWLRQ

video signals but will also accept and display 480i, 480p, 576i, 576p, 720p and 1080p. HDMI1 also support VGA, SVGA, XGA, WXGA and SXGA. NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment may not operate correctly. A wide variety of external equipment can be connected to the back of the television, therefore the relevant owner’s manuals for all additional equipment must be referred to. If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired channel button. To recall external equipment, press to select. NOTE: Due to copy protected signal in some DTV programme, non-scrambled content and scrambled content with “copy freely (CGMS-A: 00)” are available via SCART analog video and audio output. DTV Programme SCART Analog Output Scrambled with CGMS-A: 00 (Copy Freely) Output via SCART Scrambled with CGMS-A: 01 (Copy No More) Not output via SCART Scrambled with CGMS-A: 10 (Copy Once) Not output via SCART Scrambled with CGMS-A: 11 (Copy Never) Not output via SCART Non- scrambled Output via SCART *CGMS-A (Copy Generation Management System-Analog) is a copy protection mechanism for analog television signals.

English Aerial cables: - - - - - - - - - - - - - - - - - - Connect the aerial to the ANT socket on the rear of the television. English HDMI CEC Connections The basic functions of connected audio/video equipment can be controlled using the television’s remote control if an HDMI CEC compatible device is connected. ILLUSTRATION SHOWS 32L24. The back of your television AV amplifier HDMI in HDMI out Playback equipment Playback equipment HDMI out HDMI out

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device. This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D–compliant [1] consumer electronic devices (such as a settop box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 14. NOTE: ‡ Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. ‡ Supported Audio format: Linear PCM and Dolby Digital, sampling rate 32/44.1/48kHz. To connect an HDMI device Connect an HDMI cable (type A connector) from the device to the HDMI terminal. For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo

‡ If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this mode. ‡ HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration). ILLUSTRATION SHOWS 32L24. HDMI device HDMI out To view the HDMI device video, press the HDMI cable (not supplied) button to select HDMI 1 or HDMI 2 mode.

English Connecting an HDMI or DVI Device to the HDMI Input English To connect a DVI device Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to the HDMI 1. ‡ The maximum recommended HDMI – DVI cable length is 6.6ft (2m). ‡ An HDMI-to-DVI adapter cable transfers video only. ‡ Separate analogue audio connection is not supported for audio receivers. ILLUSTRATION SHOWS 32L24. HDMI-to-DVI adapter cable (not supplied) DVI device To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures: ‡ :KHQWXUQLQJRQ\RXUHOHFWURQLFFRPSRQHQWVWXUQRQWKHWHOHYLVLRQ¿UVWDQGWKHQWKH+'0,RU'9, device.

‡ :KHQWXUQLQJRII\RXUHOHFWURQLFFRPSRQHQWVWXUQRIIWKH+'0,RU'9,GHYLFH¿UVWDQGWKHQWKH

television. [1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection,

With either an RGB/PC or an HDMI connection, you can watch your computer’s display on the television. To connect a PC to the HDMI terminal When connecting a PC to the HDMI terminal on the television, use an HDMI-to-DVI cable. If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary. ILLUSTRATION SHOWS 32L24. the back of your television

Computer HDMI-to-DVI adapter cable (not supplied) For acceptable PC and video signal formats, see page 14. NOTE: ‡ The edges of the images may be hidden. ‡ If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

English Connecting a Computer English Acceptable Video signals through HDMI terminals Resolution +)UHTXHQF\ .+] 9)UHTXHQF\ +] 480i

Acceptable PC signals through HDMI terminals Resolution

While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used control some functions. ILLUSTRATION SHOWS 32L24. Common Interface USB HDMI 2 INPUT SOCKET Power Up / down (Volume or channel) Programme / Volume / Source Remote sensor Headphone RED LED - Standby GREEN LED - Power on Switching On Using the Remote Control If the RED Standby LED is unlit, check that the plug is connected to the power supply. If the picture does not appear press on the remote control, it may take a few moments. To set up the television you will now need to use the on screen menus. Press MENU on the remote control to see the menus. 7KHRQVFUHHQPHQXDSSHDUVDVDOLVWRI¿YH topics. As each symbol is selected by pressing ŻRUŹRQWKHQDYLJDWLRQULQJRQWKHUHPRWH control. To use the options, press to enter the sub PHQX7KHQSUHVVŸRUźRQWKHQDYLJDWLRQ ring to move up and down through the menu and use to select the required choice. Follow the on-screen instructions. The functions of each menu are described in detail throughout this manual. To put the television into Standby press on the remote control. To view the television press again. The picture may take a few seconds to appear. For energy saving: We recommend that you use the television with factory settings. These settings are designed for energy saving. Unplugging the mains plug will reduce energy use to zero. This is recommended when the television is not being used for long periods, e.g. when on holiday. Reducing the brightness of the screen will

UHGXFHHQHUJ\XVH(QHUJ\HI¿FLHQF\UHGXFHV

energy consumption and can save money by reducing electricity bills. NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power. Using the Controls on the TV Press to adjust volume. Press to change programme selection, then press to adjust programme selection. Press and hold until Source List is displayed, then press to scroll through the list until desired input source is located.

3OHDVHDOZD\VUHIHUWRWKHRZQHU¶VPDQXDORI

WKHHTXLSPHQWWREHFRQQHFWHGIRUIXOOGHWDLOV NOTE: Inserting the headphone plug will mute the sound from all speakers.

English Using the Controls English Tuning the Television Before switching on the television put your decoder and media recorder to Standby if they are connected. To set up the television use the buttons on the remote control as detailed on page 7. First Time Using 7 3UHVVŻRUŹWRVHOHFWHome or Store. For normal home use, select Home. )RU¿UVWWLPHXVHSOXJLQWKHWHOHYLVLRQ and press the button. Location To use the TV for the display in a store showroom, The Language menu will appear. please select [Store]. [Home] mode is recommended for normal use. Language English Español Nederlands Norsk slovenščina Česky бългapcки Hrvatski Gaeilge Français Italiano Svenska Suomi Magyar Pyccкий Srpski Türkçe Deutsch Português Dansk Polski Slovensky Română Eλληvıκά

Auto tuning RETURN Back When StoreLVVHOHFWHGWKHFRQ¿UPDWLRQ window appears. Location Select

Enter You have selected [Store]. This mode consumes more energy. Are you sure you want to set to this mode? NOTE: This function is accessed in the SETUP ¼ Quick Setup menu. 3UHVVŸźŻRUŹWRVHOHFW\RXUODQJXDJH Press to enter Quick Setup menu. 3UHVVŸRUźWRVHOHFWCountry and

Germany German Turkish German Turkish Tuner Mode

RETURN Auto tuning RETURN Back Tuning Mode ATV and DTV Start Scan

Tuner Mode RETURN Back 3UHVVŻRUŹWRVHOHFWMainland or Canary Islands. NOTE: This function is only available when Country is Spain.

6 % DTV Station: to exit ATV scan The search will begin for all available stations. The slide bar will move along the line as the search progresses. You must allow the television to complete the search. When the search is complete the television will automatically select channel 1. This may not be a clear picture or the signal may be weak, so the station order can be changed using ATV/ DTV Manual Tuning in the SETUP menu. to select Tuner Mode. Back 3UHVVŻRUŹWRVHOHFWAntenna or Cable. NOTE: This function is only available in certain regions. Press to select Location. ATV Channel: Tuner Mode Select Back 3UHVVŸRUźWRVHOHFWTuning Mode DQGWKHQSUHVVŻRUŹWRVHOHFWATV, DTV or ATV and DTV. 3UHVVŸRUźWRVHOHFWStart Scan and press . This function allows you to manually set the time zone. Select Back Auto tuning 3UHVVŸRUźWRVHOHFWDigital Subtitle Language, Digital Subtitle Language 2nd, Audio Language and Audio Language 2ndWKHQSUHVVŻRUŹWR select your preferred language. Press

3UHVVŻRUŹWRVHOHFWYES or NO. Press to enter the Auto tuning menu. NOTE: Please make sure the aerial is connected to the TV before tuning.

English Setting the Channels NOTE: When Parental Block is activated, the 4-digit password is needed. 3UHVVŸRUźWRVHOHFWStart Scan and press to start Auto Tuning. Auto Tuning The Auto tuning function will completely retune the television and can be used to update the channel list. NOTE: It is recommended that Auto tuning is run periodically to ensure that all new services are added. NOTE: All the current channels and settings, for example, the locked channels, will be lost. Auto tuning

SOUND SETUP APPLICATIONS

S54 Station: to exit ATV scan Tuner Mode This may change the features available on your TV. Continue? 1/2

English Germany Antenna Enter Tuning Mode 0 % Switching between tuner modes will change the features available on your television. All the current channels and settings, for example, the locked channels, will be lost. In the SETUPPHQXSUHVVŸRUźWRVHOHFW Tuner Mode and press . 3UHVVŻRUŹWRVHOHFWYES or NO. PREFERENCES SETUP Language Country Tuner Mode Auto tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV connection Picture Position Quick Setup

Found Progress Enter English Germany Cable

RETURN Back English 3UHVVŸRUźWRVHOHFWTuning Mode DQGSUHVVŻRUŹWRVHOHFWATV, DTV or ATV and DTV. Manual Tuning There are two TV modes: ATV and DTV that can be tuned-in manually using Manual Tuning. Auto tuning ATV mode - Antenna/Cable Previous settings will be lost ! Press EXIT for no change. Tuning Mode Start Scan Operator Selection Scan Type Start Frequency (MHz) End Frequency Modulation Symbol Rate Network ID System Edit

English Germany Antenna

Enter RETURN Back 3UHVVŸRUźWRVHOHFWWKHSURJUDPPH position you want to arrange and then SUHVVŹ ATV Manual Tuning 3UHVVŸRUźWRVHOHFWOperator Selection, Scan Type, Start Frequency 0+] , End Frequency, Modulation, Symbol Rate, Network ID or System, and use number key pad on the remote to GH¿QHWKHLQIRUPDWLRQRUVHOHFWAuto for tuning. 3UHVVŸRUźWRVHOHFWStart Scan and to start tuning. press NOTE: ‡ The information should be given by your cable provider. ‡ Network ID is only available for Quick Scan. Position

Enter RETURN Back 3UHVVŸRUźWRPRYHWKURXJKWKHOLVWWR your preferred position. As you do so the other stations will move to make room. 3UHVVŻWRVWRUHSURJUDPPHSRVLWLRQ ATV Manual Tuning Position

Position: The number to be pressed on the remote control. System: 6SHFL¿FWRFHUWDLQDUHDV Colour system: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source. Skip: means nothing has been stored or the facility to skip the channel is On. Signal Class: 7KHFKDQQHOFODVVL¿FDWLRQ Channel: The channel number on which a station is being broadcast. Searching: Search up and down for a signal. 0DQXDO¿QHWXQLQJ

English Germany Antenna

pad on the remote to enter a channel. DTV Manual Tuning Weak Average Strong Signal Strength Poor Quality Tuner Mode RF Channel Frequency Start Scan 0−9 Input DVB−T

English Press to display the breakdown

The TV will automatically turn itself off (standby) within 4 hours, if you do not touch the control buttons on the remote control or on the TV control panel. It will also automatically turn off if no input signal is detected after approximately 15 minutes. 1 In the SETUPPHQXSUHVVŸRUźWR select Automatic Power Down. English Germany Cable Press ŻRUŹ to select Off, 4h, 6h or 8h.

RETURN RETURN Back Selecting Reset TV will reset all TV settings to their original factory values. In the SETUPPHQXSUHVVŸRUźWR select Reset TV and press .

3UHVVŻRUŹWRVHOHFWYESWRFRQ¿UPRU

select NO to exit and press .

Reset TV Strong Poor Frequency Modulation Symbol Rate Start Scan

Edit Signal Strength Quality

Home Back 3UHVVŸRUźWRVHOHFWFrequency, Modulation or Symbol Rate, and use

the information or select Auto for tuning. Weak 2/2 Automatic Power Down Location Software Upgrade System Information Reset TV Back 3UHVVŸRUźWRVHOHFWStart Scan and press to start tuning. Reset TV Previous settings will be lost ! Press EXIT for no change.

Enter RETURN Back English DTV Settings Favorite Channels The channel order may be changed to suit your personal preference. NOTE: This function is only available in DTV mode.

Press the button on the remote. A icon appears. Channels Position

Sort Press to show the Channel List and SUHVVŻRUŹWRFavorite. The desired channel is displayed on the list. PREFERENCES 3UHVVŸRUźWRVHOHFWDTV Settings and press to enter the submenu. 3UHVVŸRUźWRVHOHFWChannels and press . Channel List Favorite DTV Settings Channels Subtitle and Audio Password Parental Local Time Setting Standby Update Control Standby Channel Update Channel Grouping Common Interface

Enter RETURN Back Press the button on the remote. A icon appears. 3UHVVŸRUźWRVHOHFWChannels. Channels Channels Position

Sort English Password Sort 3UHVVŸRUźWRVHOHFWWKHGHVLUHG channel and then press . A tick icon appears. Channels Position

Name The name of the two channels are swapped. Position

Parental Sort This function blocks channels or programmes that you do not want to or that you do not want your children to watch. A password is required to access this function. The factory default password is “1276”. NOTE: When Parental Control is activated, you will need to enter the 4-digit password before you enter the DTV Settings submenu under the SETUP menu. After auto tuning, all the channel blocks will be cleared. Subtitle and Audio You can choose the Subtitle Type or Audio Type from Normal or Hearing Impaired. If the Hearing Impaired is selected, it provides subtitle services to deaf and hard of hearing viewers with additional descriptions. Subtitle Language or Audio Language allow DSURJUDPPHRU¿OPWREHYLHZHGZLWKDFKRLFH of soundtrack language, provided they are currently being broadcast. 1 In the DTV SettingsPHQXSUHVVŸRU źWRVHOHFWSubtitle And Audio, and press to enter the submenu. 3UHVVŸRUźWRVHOHFWSubtitle Display DQGSUHVVŻRUŹWRVHOHFWOn or Off. 3UHVVŸRUźWRVHOHFWSubtitle Type or Audio TypeDQGSUHVVŻRUŹWRVHOHFW Normal or Hearing Impaired. 3UHVVŸRUźWRVHOHFWDigital Subtitle Language, Digital Subtitle Language 2nd, Audio Language or Audio Language 2ndDQGSUHVVŻRUŹWR select your preferred language.

age 3~18 or select None to turn this function off. NOTE: This function is available for programmes with Age Rating information.

Common Interface The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider. 1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box ZLOODSSHDURQWKHVFUHHQWRFRQ¿UPWKDW the CAM has been inserted. In the DTV SettingsPHQXSUHVVŸRU źWRVHOHFWCommon Interface, and press to enter the submenu. Details of the CAM should now be available. NOTE: The software updating of CI Plus CAM may be automatically executed. At this time, any Recording/Reminder programme timer will be cancelled. Standby Channel Update If the Standby Channel Update is set to On, when the TV is in standby mode, Digital Tuning is automatically executed and any new channels are saved. 1 In the DTV SettingsPHQXSUHVVŸRU źWRVHOHFWStandby Channel Update. 3UHVVŻRUŹWRVHOHFWOn or Off. NOTE: Standby Channel Update is only available when Standby Update Control is Enable. Channel Grouping There are Video, Radio and Text services combined in a channel list for DTV services, The function provides the selection of channel change with one service group or among all services by pressing P and P . the DTV SettingsPHQXSUHVVŸRU źWRVHOHFWChannel Grouping. 3UHVVŻRUŹWRVHOHFWOn or Off. DTV Settings Channels Subtitle and Audio Password Parental Local Time Setting Standby Update Control Standby Channel Update Channel Grouping Common Interface Edit

RETURN Back When Channel Grouping is On, the channel change by P and P will be within a single service group, press ATV/DTV on the remote control can be still used for change services among ATV, DTV Video, DTV Radio and DTV Text.

Press , and the information screen will appear giving details of the channel and programme currently being viewed.

Now Westminster Hall Next Prime Minister's Questions 16 : 9 Multi-audio track 07:00 − 11:30

0, 4 - 18 Recorded coverage of questions in the House of Commons to Prime Minister Gordon Brown from Wednesday 26 November. Change RETURN Encrypted Exit 3UHVVŸRUźWRFKRRVHIURPNow or Next information guide. Guide 1 Select the on-screen guide by pressing GUIDE. The guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

3UHVVŻRUŹIRULQIRUPDWLRQRQRWKHU

programmes scheduled for the channel selected. For details of other programmes currently DYDLODEOHSUHVVŸDQGźWRVFUROOXSDQG down the channel list. NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please refer to the owner’s manual of the recording equipment. On-Screen Information Icons Icons will appear on the Information screen giving details about the programmes being broadcast. Details of these icons are listed below: Icon Description Service type (TV, Radio, TEXT) Service info Skip Mono Stereo Dual mono Multichannel Audio info Audio/ Subtitle info Parental rating Dolby D Dolby Digital Dolby D+ Dolby Digital+ HE-AAC Audio Coding

English General Controls The General Functions allow you to select channels and information, adjust sound features, personalise the picture style and select any connected external equipment. Selecting Channels Subtitles To select a channel use the numbered buttons on the remote control. Channels can also be selected using P and P . If Subtitles are available for your current programme, pressing the SUBTITLE button will toggle Subtitles on or off. Picture Still Stereo and Bilingual Transmissions This feature is used to hold a still image on the screen. Press to hold an image on the screen, press again to cancel. If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time channels are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear. Stereo: Press to select Stereo or Mono. Bilingual: If a bilingual programme is offered, the word Dual will display on screen. To change between languages, press switch between Dual 1 and Dual 2. Input Selection Use the Input Selection feature if the television does not switch over automatically when using an external device. Pressing , a list will appear on-screen showing all external equipment. 8VHŸRUźWRKLJKOLJKWDQG to select. Quick Access Menu Inputs Quick access helps you access some options quickly such as Picture Size, Picture Mode, Sleep Timer, Media Player, System Information, HDMI CEC Control, Speakers and MHL Control. Press the QUICK button to display the Quick accessPHQXDQGXVHŸRU źWRVHOHFWWKHRSWLRQ\RXZRXOGOLNHWRFKDQJH

HDMI® displays equipment connected to Input HDMI on the back of the television. It is designed for best performance with LSKLJKGH¿QLWLRQVLJQDOV Quick access Picture Size Picture Mode Sleep Timer Media Player System information HDMI CEC Control Speakers MHL Control Wide Standard 00:00

TV Speakers NOTE: Quick access items are different depending on the current mode.

English Sound Controls Volume Controls and Mute Sound Volume Press

Stable Sound The Stable Sound feature limits high volume levels in order to prevent the extreme changes in volume that can occur when channels are changed or a programme switches to a commercial. 1 Press MENU3UHVVŻRUŹWRVHOHFW SOUND and press to enter the submenu. 3UHVVŸRUźWRVHOHFWStable Sound, DQGSUHVVŻRUŹWRVHOHFWOn or Off. to adjust the volume. Sound Mute Press on the remote once to turn the sound off and again to cancel. Dual ,IDSURJUDPPHRU¿OPLVEHLQJEURDGFDVWZLWK a soundtrack in more than one language, the DUAL feature allows selection between them. 1 Press MENU3UHVVŻRUŹWRVHOHFW SOUND and press to enter the submenu. PICTURE SOUND SETUP APPLICATIONS Dynamic Range Control This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported). 1 Press MENU3UHVVŻRUŹWRVHOHFW SOUND and press to enter the submenu. 3UHVVŸRUźWRVHOHFWDynamic Range ControlDQGSUHVVŻRUŹWRVHOHFWOn or Off. PREFERENCES 3UHVVŸRUźWRVHOHFWDual, and press ŻRUŹWRFKRRVHEHWZHHQDual1 or Dual2. SOUND Dual Bass Treble Balance Stable Sound Dynamic Range Control Advanced Sound Settings Audio Level Offset Digital Audio Output Audio Description Edit Dual1

the setting. NOTE: $XGLR'HOD\7LPH PV is only available when Audio Delay is Manual. Audio Description Audio Level Offset DTV 2ch ATV External Input Audio Format Audio Delay Audio Delay Time (ms) Back NOTE: ‡ The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are grayed out in the menu. This allows you to easily adjust according to each condition. ‡ When watching a DTV 5.1ch programme, this feature is not available. Audio Description is an additional narration describing on-screen action, body language, expressions and movements for people with visual disabilities while watching the TV. This function enables you to choose the type of narrations. 1 Press MENU3UHVVŻRUŹWRVHOHFW SOUND and press to enter the submenu. 3UHVVŸRUźWRVHOHFWAudio Description and press to enter the submenu. 3UHVVŸRUźWRVHOHFWAudio DescriptionDQGSUHVVŻRUŹWRVHOHFW On or Off. Audio Description Audio Description Mixing Level Edit

NOTE: Mixing Level can only be adjusted when Audio Description is On. NOTE: Press the AD button on the remote control to switch the Audio Description On or Off. English Bass Boost Bass Boost enhances depth of the sound. 1 Press MENU3UHVVŻRUŹWRVHOHFW SOUND and press to enter the submenu. 3UHVVŸRUźWRVHOHFWAdvanced Sound Settings and press to enter the submenu. 3UHVVŸRUźWRVHOHFWBass Boost, and

SUHVVŻRUŹWRFKDQJHWKHVHWWLQJ

English Widescreen Viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Wide (Expect PC) Wide (PC only) 4:3 Super Live Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible on the top and bottom of the screen. This setting will show the picture without over scan and side panel when watching a PC signal source via HDMI or PC terminal. Use this setting to view a true 4:3 broadcast. This setting will enlarge a 4:3 image to ¿WWKHVFUHHQE\VWUHWFKLQJWKHLPDJH horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur. Cinema

:KHQZDWFKLQJOHWWHUER[IRUPDW¿OPV

video tapes, this setting will eliminate or reduce the black bars at the top and bottom of the screen by zooming in and selecting the image without distortion. Subtitle When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed. 14:9 Native Use this setting when watching a 14:9 broadcast. The setting will show the picture without over scan, i.e. WYSIWYG. This option is available when watching video signal source via HDMI or watching DTV (HD signal).

Subtitle English This setting will show the picture without over scan, i.e. WYSIWYG. This option is only available when watching a PC signal source via HDMI or PC terminal. Normal “Dot by Dot” is a non-scaling display. Depending on the input signal format, the setting will display the picture with side panels and/or bars at the top and bottom (i.e. VGA input source). Dot by Dot Press QUICK to display the Quick access PHQX8VHŸRUźWRVHOHFWWKHPicture Size,

TV Speakers You can choose the picture size from Wide, 4:3, Super Live, Cinema, Subtitle, 14:9, Native, Normal or Dot by Dot. Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws. Available Picture Size and Position Control Wide ATV 4:3 Super Live Cinema Subtitle 14:9 Native Normal Dot by Dot

English Picture Controls Most of the picture controls and functions are available in both digital and analogue modes. NOTE: Features not available will be greyed out. Picture Position Picture Mode The Picture Position may now be adjusted to suit personal preference. 1 Press MENU3UHVVŻRUŹWRVHOHFW SETUP and press to enter the submenu. PICTURE SOUND SETUP APPLICATIONS You can adjust the picture appearance by selecting the preset value in picture mode based on the programme category. 1 Press MENU3UHVVŻRUŹWRVHOHFW PICTURE and press to enter the submenu. PREFERENCES PICTURE 3UHVVŸRUźWRVHOHFWPicture Position and press to enter the submenu. SETUP

adjust the settings as required. Picture Position Horizontal position Vertical position Reset

Edit Edit RETURN RETURN Back Back Picture Preferences You can customise current picture mode settings while selecting User. 1 In the Picture SettingsPHQXSUHVVŸ RUźWRVHOHFWBack Light, Contrast, Brightness, Colour, Tint, Sharpness.

Off, Low, Middle or High. The effect depends on the broadcast and is most noticeable on dark colours. Reset This feature resets all picture settings to the factory settings. In the Picture SettingsPHQXSUHVVŸRUźWR select Reset and press to reset settings. NOTE: If any picture settings have not been changed, Reset is not available. Cinema Mode

$PRYLH¿OP¶VSLFWXUHUXQVDWIUDPHVD

second, whereas movie software such as DVD, etc., that you enjoy watching on television at home runs at 30 (NTSC) or 25 (PAL) frames a second. To convert this signal to reproduce a smooth motion and picture quality, select the Cinema Mode. 1 In the Picture SettingsPHQXSUHVVŸ RUźWRVHOHFWCinema Mode. Active Backlight Control When the Active Backlight Control feature is activated, High mode will control the backlighting levels depending on various scenes such as picture motion, bright scene or dark scene. Low mode will control the backlighting level on dark scene. 1 In the Picture SettingsPHQXSUHVVŸ RUźWRVHOHFWActive Backlight Control. 3UHVVŻRUŹWRVHOHFWOn or Off. Colour Temperature Colour Temperature increases the ‘warmth’ or “coolness” of a picture by increasing the red or blue tint. 1 In the Picture SettingsPHQXSUHVVŸ RUźWRVHOHFWColour Temperature and SUHVVŹ 3UHVVŸRUźWRVHOHFWColour TemperatureDQGSUHVVŻRUŹWRVHOHFW Medium, Warm or Cool to suit your preference. 3UHVVŻRUŹWRVHOHFWOff, Low or High. Colour Temperature Colour Temperature Red Level Green Level Blue Level Medium

3UHVVŸRUźWRVHOHFWRed Level, Blue Level or Green LevelDQGSUHVVŻRUŹ to adjust the settings as required.

English Black/White Level This function increases the strength of dark areas of the picture, which improves picture GH¿QLWLRQ English 3D Colour Management Digital Noise Reduction When 3D Colour Management is set to On, it allows the Base Colour Adjustment feature to become available. You can adjust the picture colour quality by selecting from 6 base colour adjustments : Red, Green, Blue, Yellow, Magenta or Cyan. 1 In the PICTUREPHQXSUHVVŸRUźWR select 3D Colour Management. '15 'LJLWDO1RLVH5HGXFWLRQ enables you to “soften” the screen representation of a weak signal to reduce the noise effect. 1 In the PICTUREPHQXSUHVVŸRUźWR select DNR. 3UHVVŻRUŹWRVHOHFWOff, Low, Middle or High. NOTE: This function is not available for HDMI input. 3UHVVŻRUŹWRVHOHFWOn or Off. NOTE: When a DVD movie with subtitle is playing back, this mode may not work correctly. MPEG NR – Noise Reduction When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges. 1 In the PICTUREPHQXSUHVVŸRUźWR select MPEG NR. 3UHVVŻRUŹWRVHOHFWOff, Low, Middle or High. Base Colour Adjustment The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source. It only can be adjusted when 3D Colour Management is set to On. 1 In the PICTUREPHQXSUHVVŸRUź to select Base Colour Adjustment and press to enter the submenu. 3UHVVŸRUźWRVHOHFWDQLWHP\RXZDQW to adjust and press . Base Colour Adjustment Red Green Blue Yellow Magenta Cyan Reset Hue Saturation Brightness

Edit RETURN Back 3UHVVŻRUŹWRVHOHFWHue, Saturation or Brightness. Base Colour Adjustment Red Hue Saturation Brightness

3UHVVŸRUźWRDGMXVWWKHVHWWLQJVDV required. NOTE: In the PC Input mode, this function is not available.

Press MENU to change the settings when viewing a photo. 3UHVVŻRUŹWRVHOHFW and press to select the desired interval time (3/5/10/15/30/60/90 Sec). Off Using the Play List

Select RETURN Back Background Music This view allows you to watch a slide show of the photos. In this view mode, the only content that locates on the same directory shall be played. 1 Press MENU to change the settings when viewing a photo. Set the background music when viewing photo. 1 Press MENU to change the settings when viewing a photo.

InfoGLVSOD\VWKH¿OHVWDWXVLQIRUPDWLRQ FRQWHQW number, photo title, shooting date and time, resolution etc.). 1 Press MENU to change the settings when viewing a photo.

Select RETURN Back Home Music The information will be removed by timeout (about 15 sec) or press to exit. Photo Video P Page Move

to select One or Folder.

Select RETURN Back English 3UHVVŸRUźWRVHOHFWWKHGHVLUHGPXVLF and press to play. Repeat Settings

and press . 3UHVVŸRUźWRVHOHFWPXVLFDQGSUHVV to play music. Press EXIT on the remote to collapse the list. Play 001.mp3 002.mp3 003.mp3 1/1 Folder 00:00:02 / 00:02:42

Select RETURN Back Music Info InfoGLVSOD\¿OHVWDWXVLQIRUPDWLRQ FRQWHQW number, music title, Bit Rate, Artist, Sampling, Year, and size).

WRFRQ¿UPWKHVHWWLQJ and press

Bit Rate: 320K Artist: Singer Sampling: 44K Year:

Select RETURN Back The information will be removed by timeout (about 15 sec) or press to exit.

MP4: GMC is not supported 6RPH¿OHV may not be played.

Native Folder 00:00:08 / 00:02:28 Move

: Go to the previous video

: Go to the next video

: Repeat from A to B - Set A: A-Set Repeat and Start - Set B: B-Set Repeat and repeat from A to B Exit 1/1 Home Up Folder 001.avi 002.avi 003.avi Move

Select RETURN Back 3UHVVŸRUźWRVHOHFWWKHGHVLUHGYLGHR and press to play.

: Slow forward the selected video

: Step forward the selected video

Close Native Folder Press MENU to change the settings when viewing a video. 00:00:16 / 00:02:28 Info P Page

3UHVVŸRUźWRVHOHFWDYLGHRDQGSUHVV to play the video. Press RETURN on the remote to collapse the list. Move Select

RETURN Back The information will be removed by timeout (about 15 sec) or press to exit. Aspect Ratio

Native 1/1 Folder 00:00:16 / 00:02:28

Select RETURN Press MENU to change the settings when viewing a video. Back Slow Forward Goto Time The feature changes forward speeds. 1 Press MENU to change the settings when viewing a video. The feature allows you to view a selected time during the video. 1 Press MENU to change the settings when viewing a video. 3UHVVŻRUŹWRVHOHFW and press to select SF2X, SF4X, SF8X, SF16X or Play.

Step Forward The feature allows you to view a video one frame at a time. 1 Press MENU to change the settings when viewing a video.

to play step by step. and press

Use the number key pad on the remote to enter time. Press to go to the input time. Standard Playy and press Input search time:

Native Folder 00:00:16 / 00:02:28

Select RETURN Back English HDMI CEC Control This feature uses CEC (Consumer Electronics Control) technology, and allows the control of Toshiba HDMI CEC compatible equipment from the television’s remote control. NOTE: Not all Toshiba products currently support HDMI CEC. Equipment Control Select HDMI CEC Device The HDMI CEC mode on the television’s remote control allows the control of connected HDMI CEC equipment being watched. To control the HDMI CECLQSXWVRXUFH¿UVW select the equipment with HDMI CEC input source selection, then switch the mode on the remote control to HDMI CEC and press any buttons. The available functions are dependent on the equipment connected. Not all the remote control keys may be available. Please refer to the operation manual for each piece of equipment connected.

Press . A list appears on screen showing modes and all stored external equipment. The HDMI-LINK icon appears automatically after detected with HDMI

3UHVVŹDQGWKHGHYLFHVHOHFWLRQPHQX appears showing all connected HDMI CEC equipment. 3UHVVŸRUźWRKLJKOLJKWWKHGHVLUHG HDMI CEC equipment, and then press to select. Inputs HDMI1

HDMI-LINK HDMI-LINK English HDMI CEC Menus By activating the Enable HDMI-LINK feature in the HDMI CEC Control menu, individual HDMI-LINK features can then be activated. One Touch Play Enable HDMI-LINK The function of HDMI CEC will automatically power on the television that was in standby mode and switch the television’s input source to the port connected with the audio/video equipment by powering-on or playing from the audio/video equipment. NOTE: This feature is dependent on the connected equipment and television setting. When the Enable HDMI-LINK is set to On, it allows the other functions to be enabled. 1 Press MENU3UHVVŻRUŹWRVHOHFW PREFERENCES and press to enter the submenu. PICTURE

System Standby This feature automatically switches the connected equipment into standby when the television goes into standby and conversely for the television to switch into standby when connected equipment goes into standby. It is selected in the HDMI CEC Control menu. NOTE: This feature is dependent on the connected equipment and television setting. SOUND SETUP APPLICATIONS PREFERENCES 3UHVVŸRUźWRVHOHFWHDMI CEC Control, and press to enter the submenu. PREFERENCES HDMI CEC Control Teletext Panel Lock Auto Format 4:3 Stretch Blue Screen Side Panel DivX Registration DivX Deregistration

System Audio Control Using the Speaker Preference feature allows the television’s remote control to adjust the volume or mute the sound of the speakers

FRQQHFWHGWRWKHWHOHYLVLRQYLDDQ$9DPSOL¿HU

(QVXUHWKDWWKHFRQQHFWHG$9DPSOL¿HUDQG

HDMI CEC equipment are selected in the input source selection and that the Speaker Preference is set to $PSOL¿HU in the HDMI CEC Control menu.

NOTE: :KHQWKH$9$PSOL¿HULVVZLWFKHGRQ

its input source changed or the volume adjusted, the sound will be output from

WKH$9$PSOL¿HU¶VVSHDNHUVHYHQLI79

speakers has been selected. Turn the television off then on again to output the sound from the TV’s speakers. The full function may not work and is dependent RQWKHDPSOL¿HUEHLQJXVHG

television’s remote control adjust or mute the volume of the audio. 1 In the HDMI CEC Control menu, press ŸRUźWRVHOHFWSpeaker Preference when $PSOL¿HU&RQWURO is On. 2 3UHVVŻRUŹWRVHOHFWTV Speakers or $PSOL¿HU. NOTE: This function is only available when the TV is connected to audio receivers that support CEC function.

English HDMI CEC Playback Device Control This is a new feature that uses CEC technology and allows you to control HDMI CEC compatible devices from the TV remote control via HDMI connection. When there are two or more HDMI CEC devices connected to the television, the device selection to select. menu appears. Highlight the desired device, and then press Remote Control Pass-Through Control Panel

NOTE: ‡ 3UHVVŸRUźWRVHOHFWHDMI CEC Control in the Quick access menu, and then press . The Pass-Through Control Panel appears. ‡ Some functions are only available when the Pass-Through Control Panel is displayed on the screen. Please refer to the following procedure. ‡ Please refer to the Remote ControlLPDJHDQGWKHIROORZLQJWDEOHIRUWKHNH\GH¿QLWLRQVRIWKH Pass-Through Control Panel. ‡ MENU and RETURN functions are unavailable when the Pass-Through Control Panel is on.

Item Description When opening the Pass-Through Control Panel:

GUIDE Turn off the desired HDMI CEC device.

EXIT Close the Pass-Through Control Panel.

RETURN Skip Forward.

English Using MHL TV Function You can use the following functions by connecting between the TV HDMI 2 port and micro USB port of mobile phones etc. with a MHL cable. ‡ Charge with mobile phone from TV ‡ Video/Audio output from mobile phone ‡ Access mobile content through TV remote controller ‡ Supports transfer of HD video resolution up to 1080p ‡ MHL functions may not perform properly as some mobile devices may not incorporate the full MHL functionality NOTE: These functions may not be available depending on the connected equipment. MHL Control

The Pass-Through Control Panel appears. 14:21 Connecting an MHL-compatible Device Connect the device to the HDMI 2 port on the TV using an MHL cable (not supplied). GUIDE EXIT MENU RETURN HDMI 2

NOTE: The Pass-Through Control Panel is only available when viewing photo/video or listening to music. micro USB MHL cable (not supplied) When you connect an MHL-compatible device to the HDMI 2 port on the TV with the MHL cable, charging starts automatically. NOTE: Do not connect an MHL-compatible device to any port other than the HDMI 2 port.

English Operating an MHL-compatible Device MHL is a new mobile audio video interface standard for direct connection with MHL enabled mobile devices to MHL enabled TVs, providing instant access to a wealth of mobile content with ease of control through the TV remote controller. Remote Control Pass-Through Control Panel

Right. Select. RETURN Exit. Entry MHL Control (Pass-Through Control Panel)

EXIT Close the Pass-Through Control Panel. When viewing the video or listening to music:

RETURN Skip Forward.

This feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length of time. 1 Press MENU3UHVVŻRUŹWRVHOHFW APPLICATIONS and press to enter the submenu. PICTURE

SOUND SETUP APPLICATIONS

number or use the number key pad on the remote to enter the channel number. NOTE: ‡ Channel is only available when the Input is ATV or DTV. ‡ Blank screen will appear if not tuned. 3UHVVŸRUźWRVHOHFWVolume and

SUHVVŻRUŹWRPRGLI\WKHYROXPHRU

use the number key pad on the remote to enter the volume. 3UHVVŸRUźWRVHOHFWTime Until Power OnDQGSUHVVŻRUŹRUXVH the number key pad on the remote to enter the time for the TV to turn on automatically. NOTE: Time Until Power On is only available when Enable DTV Clock is Off. Sleep Timer The television can be set to turn itself Off after a certain length of time. 1 Press MENUDQGSUHVVŻRUŹWRVHOHFW APPLICATIONS. 2 3UHVVŸRUźWRVHOHFWSleep Timer (Turn off the TV).

3 3UHVVŻRUŹWRPRGLI\WKHWLPHWKH79

should turn off, or use the number key pad on the remote to enter the time. Back NOTE: The settings are only available when Enable On Timer is On. 3UHVVŸRUźWRVHOHFWEnable DTV ClockDQGSUHVVŻRUŹWRVHOHFWOn or Off. NOTE: Power On Time and Repeat are only available when Enable DTV Clock is On.

English Preference Controls English EPG

EPG (Electronic Programme Guide) supports 9 sets of timers. You can set or cancel a timer for a selected programme within the guide. When the TV is on and the timer activates, a dialogue box is shown informing you that the programme is about to start. When the TV is in standby mode and the timer activates, the TV will wake up with backlight off, speaker mute on, and change to the channel selected. You must set the time correctly before using this function. All set timers are cleared when performing a new channel scan. 1 Press GUIDE on the remote to display the Programme Guide. Programme Guide

Tune RETURN Re−number Edit

Date Fri, 27 Aug Fri, 27 Aug Fri, 27 Aug Fri, 27 Aug Fri, 27 Aug 3UHVVŸRUźWRVHOHFWWKHGHVLUHG programme and press to edit. NOTE: Press the button on the remote to delete the timer. Channel

4 Rossia K 27 Aug Press the button on the remote to enter the Timer List menu. to save the settings.

Blue Screen When Blue Screen is selected, the screen will turn blue when no signal is received. 1 In the PREFERENCESPHQXSUHVVŸ RUźWRVHOHFWBlue Screen.

SOUND SETUP APPLICATIONS PREFERENCES 3UHVVŸRUźWRVHOHFWPanel Lock and SUHVVŻRUŹWRVHOHFWOn or Off. Side Panel The Side Panel feature lightens or darkens the band each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable. 1 In the PREFERENCESPHQXSUHVVŸ RUźWRVHOHFWSide Panel.

RETURN Back DivX Registration When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control. View the registration code that is required to

SOD\YLGHR¿OHVWKDWDUHFRPSDWLEOHZLWKWKH

DivX® VOD (Video On Demand) service on the TV. DivX® VOD is a video delivery service that lets you rent or purchase video content recorded in DivX®IRUPDW7RSOD\YLGHR¿OHV that are compatible with the DivX® VOD service, the TV needs to be registered as a DivX® player. In the PREFERENCESPHQXSUHVVŸRUźWR select DivX Registration and press .

$XWR)RUPDW :LGHVFUHHQ

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format, irrespective of the television’s previous setting. 1 In the PREFERENCESPHQXSUHVVŸ RUźWRVHOHFWAuto Format.

English Panel Lock Panel Lock disables the buttons on the television. All buttons on the remote control can still be used. 1 Press MENU3UHVVŻRUŹWRVHOHFW PREFERENCES and press to enter the submenu. English DivX Deregistration

select Cancel to exit and press . In the SETUPPHQXSUHVVŸRUźWRVHOHFW System Information and press to display WKHPRGHOLQIRUPDWLRQDQG¿UPZDUHYHUVLRQ System Information TOSHIBA Nov 9 2012, 17:48:06, FW: v0.08 (SR) Your device is already registered. RETURN Back Are you sure you wish to deregister? Software Upgrade

select Cancel to exit and press . Press MENU3UHVVŻRUŹWRVHOHFW SETUP and press to enter the submenu. PICTURE Deregistration code: XXXXXXXX

Press Cancel Auto Upgrade Auto Install Manual OAD USB Detection USB Upgrade to exit.

Edit You must register your device to play DivX® protected videos.

NOTE: Firmware upgrading is suggested to be done by the professional service personnel.

This television has a multi-page text memory, which takes a few moments to load. Setting the Modes

Control Buttons In the PREFERENCESPHQXSUHVVŸ RUźWRVHOHFWTeletext. Below is a guide to the functions of the remote control text buttons. Displays the index/initial page: Press to access the index/initial page. The page displayed is dependant on the broadcaster. Reveals concealed text: To discover the solutions on quiz and joke pages press the button. PREFERENCES HDMI CEC Control Teletext Panel Lock Auto Format 4:3 Stretch Blue Screen Side Panel DivX Registration DivX Deregistration Edit

RETURN Holds a wanted page: At times it is convenient to hold a page of text. Press and will appear in the top left of the screen. The page will be held on-screen until the button is pressed again. Back 3UHVVŻRUŹWRVHOHFWAuto or LIST. Navigating Pages using Auto Enlarges the text display size: Press once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size. If Fastext is available, four coloured titles will appear at the base of the screen. To access one of the four given subjects, press the relevant coloured button on the remote control. For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer. Selects a page while viewing a normal picture: Enter the page number then press normal picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Navigating Pages using LIST If Fastext is available, four coloured titles with numbers 100, 200, 300 and 400 have been programmed into the television’s memory. To view these pages press the relevant coloured buttons. To change these stored pages press the relevant coloured button and enter a new 3 digit number. This number will change in the top left of the screen and in the coloured highlight. Press to store. The bars at the bottom of the VFUHHQZLOOÀDVKZKLWH:KHQHYHU is pressed all four page numbers showing at the bottom will be stored and the previous ones will be lost. is not pressed the selection will be forgotten when text is cancelled. Other pages may be viewed by entering the 3 digit page number – but DO NOT press these pages will be stored. To displayQHZVÀDVKHV 6HOHFWWKHQHZVÀDVKSDJHIRUWKHFKRVHQ text service (see the index page of your text service). By pressing QHZVÀDVKHVZLOOEH displayed as and when they are broadcast. Press again to cancel the display. How to change the page: 3UHVVŸRUźWRFKDQJHWKHSDJH

English Text Services and Text Information English PC Settings ‡ Most of the picture controls and functions are available. However features not available will be greyed out. ‡ In the PC input mode, the Manual Setting is not displayed. ‡ First press XQWLOWKHYLGHRLQSXWPRGHOLVWDSSHDUVRQWKHVFUHHQWKHQSUHVVŸRUźDQG in order to select the PC input mode. ‡ This function may not be available for some signal or if no signal is received. ‡ The optimum points of the clock phase and sampling clock adjustments may be incomprehensible according to the input signals. Horizontal and Vertical Position Horizontal Width Connect the PC (as shown in the “Connecting a Computer” section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference. 1 Press MENU3UHVVŻRUŹWRVHOHFW SETUP and press to enter the submenu. PICTURE

SOUND SETUP APPLICATIONS

Clock Phase The Clock phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur. 1 In the PC SettingPHQXSUHVVŸRUźWR select Clock phase. PREFERENCES 3UHVVŸRUźWRVHOHFWPC Setting, and press to enter the submenu.

SETUP Language Country AV connection PC Setting Auto Adjust Automatic Power Down Location Software Upgrade

This feature resets all PC settings to the factory settings. NOTE: If any PC settings have not been changed, Reset is not available. 1 In the PC SettingPHQXSUHVVŸRUźWR select Reset.

NOTE: ‡ When a PC is connected using HDMI none of these functions will be available. ‡ The screen is disrupted momentarily when adjusting PC setting. This is not a sign of malfunction. ‡ The default settings and adjustment ranges may vary depending on the input signal format. PC Setting Horizontal position Vertical position Horizontal width Clock phase Reset Edit In the PC SettingPHQXSUHVVŸRUźWR select Horizontal width.

Use the Input Selection feature if the television does not switch over automatically when using an external device. Input Signal Selection You can select source of AV or S-VIDEO from this function. 1 Press MENU3UHVVŻRUŹWRVHOHFW SETUP and press to enter the submenu. PICTURE

English Input Signal Selection English Frequently Asked Questions

Check that the television is on and that all connections are made properly. 7KHUHLVDSLFWXUHEXWZK\LVWKHUHOLWWOH RUQRFRORXU"

The colour is factory set to Auto to automatically display the best colour system. When using an external source, if there is little or no colour, improvements may sometimes be achieved.

:K\GRHVQ¶WWKHYLGHR'9'EHLQJSOD\HG

Make sure the Media player or DVD player is connected to the television, then select the correct input by pressing .

Check all cable connections and that the volume has not been turned down or that the sound has not been muted.

Select Colour system: Auto Change Select the ATV Manual Tuning in the SETUP menu. Highlight the station and press , then

With the external source playing, select Manual setting in the SETUP menu. Select Interference or a weak signal. Try a

GLIIHUHQWWHOHYLVLRQVWDWLRQ0DQXDO¿QH

tuning may help: ATV Manual Tuning

8VLQJŸRUźWRDGMXVWWRJHWWKHEHVW picture and sound. Press and then RETURN.

Check that the batteries aren’t exhausted or inserted incorrectly.

Good performance of text depends on a strong broadcast signal. If the text is unreadable or garbled, check the aerial, satellite or cable connection. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail.

Text has been selected while viewing an external source. No text will appear on-screen or a box may appear stating no information is available. Select a broadcasting channel and press access. :K\DUHWKHFRORXUVZURQJZKHQDQ 176&VRXUFHLVSOD\HG"

Connect the NTSC source via a SCART cable and play. Select Manual setting from the SETUP menu and set the Colour System to Auto. English

Save RETURN Back :KDWFDQEHGRQHLIWKHXVHUGH¿QHG SDVVZRUGKDVEHHQIRUJRWWHQ" Use the universal password 1276, then change to a new number of your choice.

:K\GRQ¶WWKHGHYLFHVFRQQHFWHGYLD

+'0,RSHUDWHSURSHUO\" Make sure to use cables with the HDMI logo ( ). Some early HDMI equipment may not work properly with the latest HDMI TV products, due to adoption of new standards.

:K\LVWKH0HGLD3OD\HU'9'SLFWXUHLQ

EODFNDQGZKLWH" Check the correct input has been chosen: S-VIDEO or AV.

:K\GLG79WXUQRIIE\LWVHOI"

After roughly 15 minutes without any input video signal at TV mode, the TV will turn off to reduce power.

‡ 7KLVWHOHYLVLRQFRPSOLHVZLWKWKHVSHFL¿FDWLRQOLVWHGEHORZ Receiving systems DVB-T Broadcast systems/ channels UHF 21-68 Broadcast systems/channels PAL-I

Power consumption 32W (approx.) 32L 40L Standby power consumption (approx.) On-mode power consumption1 (approx.) Italian UHF 21-69 VHF 05-12 (D,E,F,G,H,H1,H2) Spain UHF 21-69 UHF 21-69 Nederlands VHF 05-12

Dimensions 32W 47.8cm (H) 73.5cm (W) 18.3cm (D) (approx.) 32L 47.8cm (H) 73.5cm (W) 18.3cm (D) 40L 58.3cm (H) 92.5cm (W) 20.2cm (D) External connections (Height dimension includes foot stand) EXT1 Input/Output 21-pin SCART Auto, Mixed, RGB, Composite, S-Vídeo / TV Out EXT2/EXT3 Input RCA jacks (EXIT2) Video RCA jacks RGB/PC Input D-sub HDMI 1/2 Input HDMI® Weight (EXIT3) Y, PB/CB/PR/CR RGB File system: FAT32 A2, Nicam TV without stand 32W 80cm (approx.) 32L 80cm 40L 102cm Screen Resolution 32W 1366 x 768 (H x V pixels) 32L 1920 x 1080 40L 1920 x 1080 16:9 Sound Output Main: 6.0kg 40L 9.0kg 8.5kg 32L 8.5kg 40L 12.5kg 32W 5.5kg 32L 5.5kg 40L 8.5kg Operating Conditions Temperature: 5°C - 35°C (41°F - 94°F) Supplied accessories Remote control CT-90326 2 Carrier System Visible Screen Size 6.0kg 32L Gross weight 32W RCA jacks Audio L + R (shared) Output Coaxial (S/PDIF) Interface version: USB 2.0 USB Class: USB Flash Drive TV with stand 32W (approx.) Audio Display 69.8KWh/y Tested in accordance with IEC 62087-BD in default settings. Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

(QHUJ\(I¿FLHQF\&ODVV 32W

Switzerland Video Input 64W 70W Humidity: 20% - 80% (non-condensing) 2 batteries (AAA, IEC R03 1.5V) Screw (M4*12 x 4) 7W + 7W (at 10 % distortion) 6SHFL¿FDWLRQLVVXEMHFWWRFKDQJHZLWKRXWQRWLFH

'LY;&HUWL¿HG® device must be registered in

English License Information English Cleaning the screen and cabinet…

7KHEODFNEDULQGLFDWHVWKDWWKHSURGXFWZDVSODFHGRQWKHPDUNHWDIWHU$XJXVW %\SDUWLFLSDWLQJLQVHSDUDWHFROOHFWLRQRISURGXFWVDQGEDWWHULHV\RXZLOOKHOSWRDVVXUHWKHSURSHU disposal of products and batteries and thus help to prevent potential negative consequences for WKHHQYLURQPHQWDQGKXPDQKHDOWK

(8&RQIRUPLW\6WDWHPHQW

UHODWHGLPSOHPHQWLQJPHDVXUHV ,IWKLVSURGXFWKDVDQLQWHJUDWHG:LUHOHVV/$1IHDWXUHWKH5DGLR(TXLSPHQDQG7HOHFRPPXQLFDWLRQV7HUPLQDO (TXLSPHQW'LUHFWLYH(&LVDOVRDSSOLFDEOH DVB is a registered trademark of the DVB Project © TOSHIBA All rights reserved. Reproduction in whole or part without written permission is strictly prohibited. TOSHIBA 23 Davy Road, Plymouth, PL6 8BY, UK 6SHFL¿FDWLRQLVVXEMHFWWRFKDQJHZLWKRXWQRWLFH

© TOSHIBA All rights reserved. Reproduction in whole or part without written permission is strictly prohibited. TOSHIBA 23 Davy Road, Plymouth, PL6 8BY, UK Specification is subject to change without notice.
