Product type	Tablet
Brand	ASUS
Model	ZenPad 10 Z300C
Screen size	10.1 inches (25.7 cm)
Screen resolution	1280 x 800 pixels (WXGA)
Processor	Intel Atom x3-C3200 quad-core
RAM memory	2 GB
Storage capacity	16 GB (expandable via microSD card)
Operating system	Android 5.0 (Lollipop)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Rear camera	5 megapixels
Front camera	2 megapixels
Battery	Li-Polymer 18 Wh (approximately 8 hours of battery life)
Dimensions (L x W x H)	251.6 x 172 x 7.9 mm
Weight	510 grams
Power supply	AC adapter 5V / 2A via micro-USB
Care and cleaning	Use a soft, dry cloth, do not use abrasive products
Safety	Do not expose to moisture or extreme temperatures
Spare parts and repairability	Non-removable battery, professional repair recommended
General information	Compliant with ICES-003 and Industry Canada CNR standards

Frequently Asked Questions - ZENPAD 10 Z300C-1B045A ASUS

How to turn on and off the ASUS ZenPad 10 tablet?

To turn on, press the power button on the side edge for 2 seconds. To turn off, hold the same button until the context menu appears, then select 'Turn off'.

How to increase the storage memory of the tablet?

The tablet has a microSD card slot (up to 64 GB). Insert the card into the designated slot; it will be automatically detected.

Why is the touchscreen not responding?

If the screen stops responding, try restarting the tablet by holding the power button for 10 seconds. If the problem persists, clean the screen with a soft cloth and check that no screen protector is interfering.

How to connect the tablet to a Wi-Fi network?

Go to Settings > Wi-Fi, turn on Wi-Fi, then select your network. Enter the password if necessary and confirm.

How to perform a factory reset?

In Settings > Backup and reset, choose 'Factory data reset'. Note that this operation erases all your data.

The tablet no longer charges, what to do?

Check that the micro-USB cable and adapter are properly connected. Try another power outlet. If the problem persists, the battery might be defective.

How to update the operating system?

Go to Settings > About tablet > System updates. The tablet will check for available updates. Follow the on-screen instructions.

How to transfer files between the tablet and a computer?

Connect the tablet to the computer via a micro-USB cable. On the tablet, select 'File transfer' from the notifications. The computer will then recognize the tablet as a storage device.

The battery drains quickly, what to do?

Reduce screen brightness, turn off Wi-Fi and Bluetooth when not in use, and close background apps. If the problem persists, recalibrate the battery by fully discharging it and then charging it to 100%.

How to take a screenshot?

Press and hold the power button and the volume down button simultaneously for about 2 seconds. The image will be saved in the gallery.

USER MANUAL ZENPAD 10 Z300C-1B045A ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2015 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at: http://support.asus.com

Contents

Conventions used 7
Care and safety 7

1 Get your Zen ready!

Parts and features 9

Installing a memory card 10
Removing a memory card 12
Installing a micro SIM card (on selected models) 14
Removing a micro SIM card (on selected models) 16

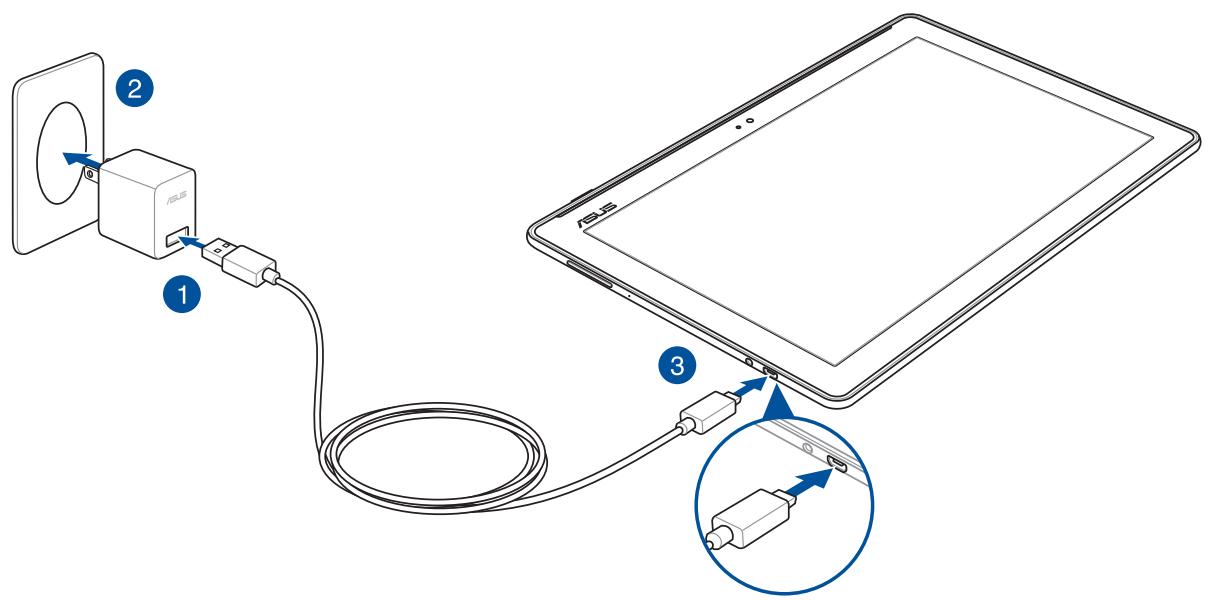

Charging your ASUS Tablet 17

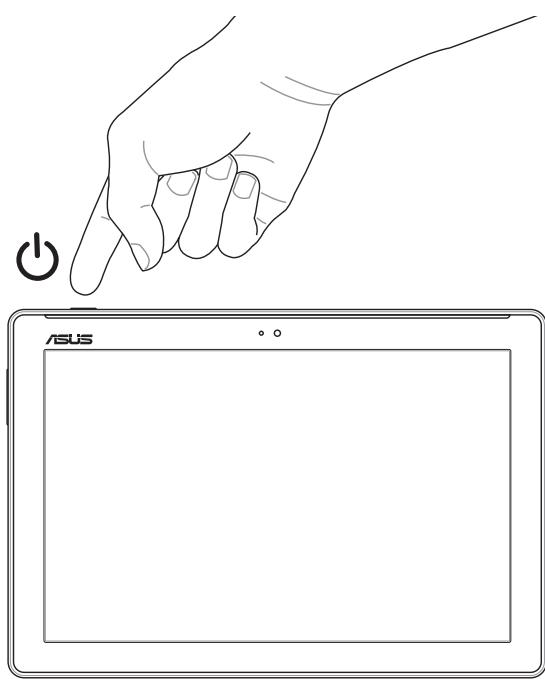

Turning your ASUS Tablet on or off. 19
Basics. 20
Starting for the first time 21

Using your OSUS Mobile Dock 23

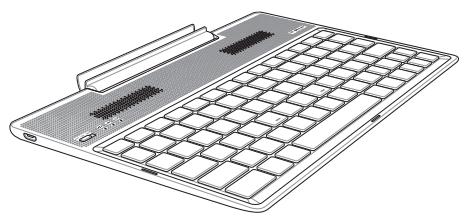

Package contents 23

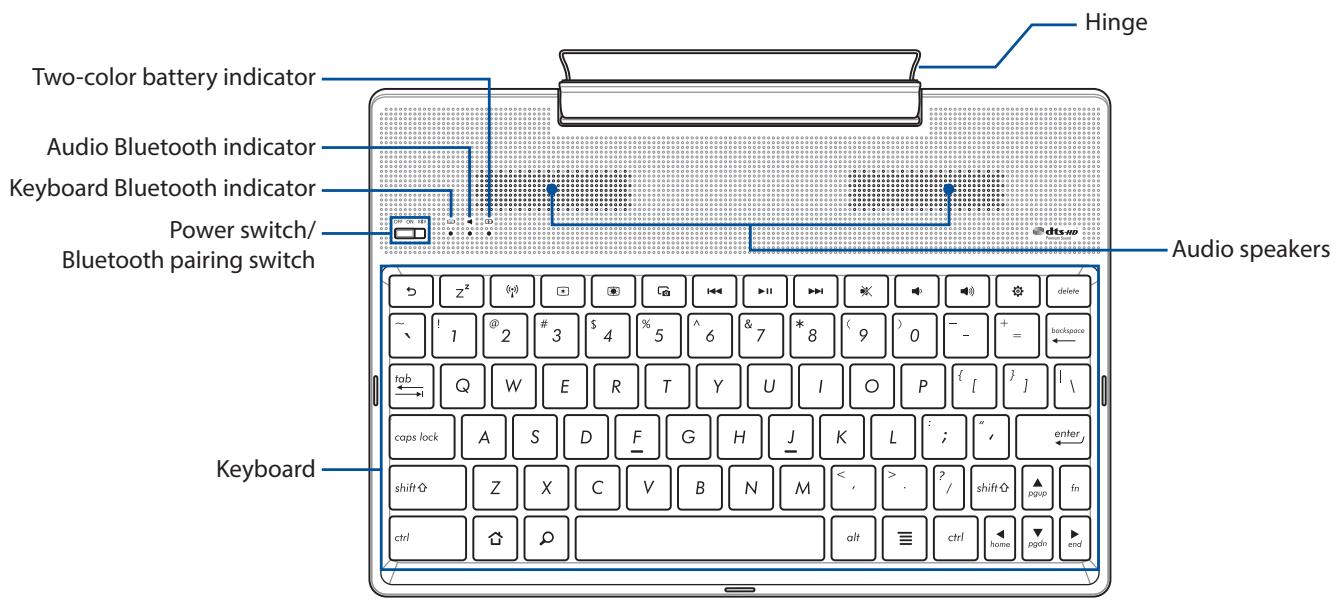

Parts and features 23

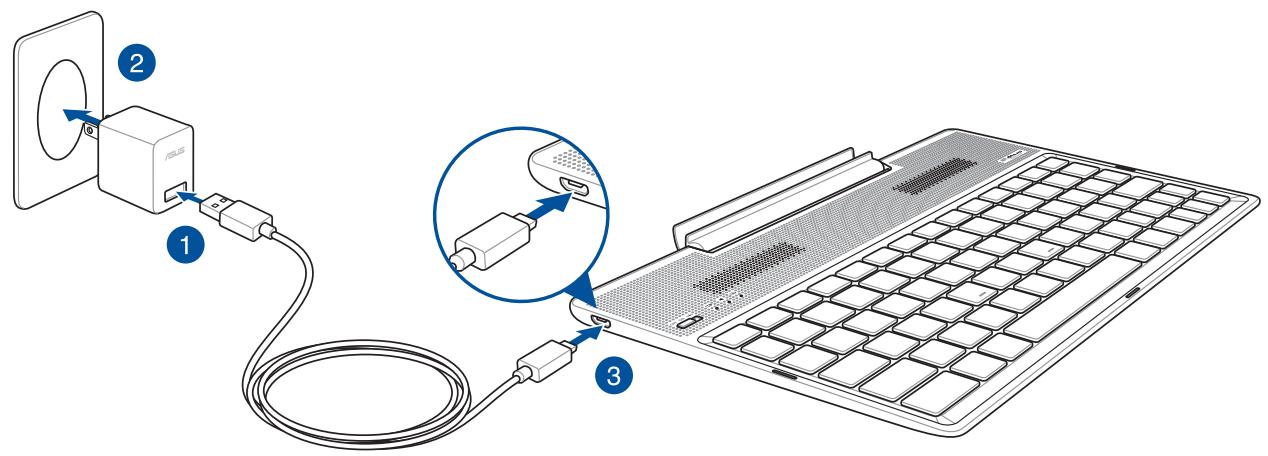

Charging your ASUS Mobile Dock 25

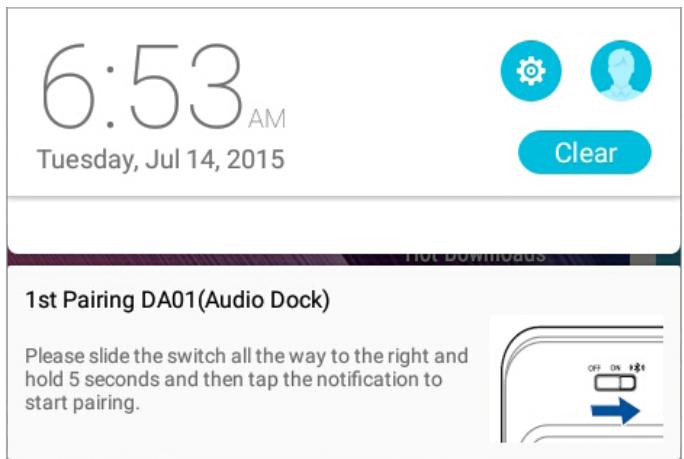

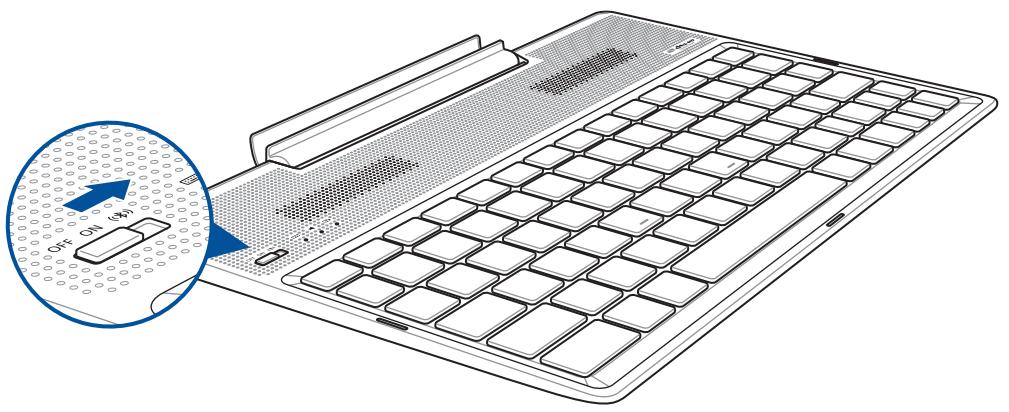

Pairing your ASUS Tablet with ASUS Mobile Dock 26
Pairing your Bluetooth devices with ASUS Mobile Dock. 27

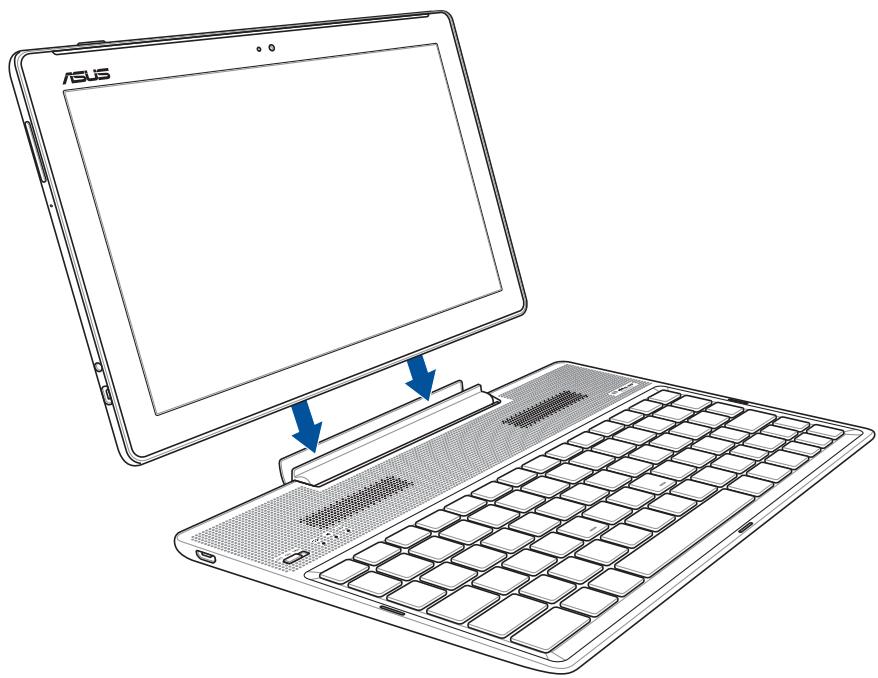

Docking your ASUS Tablet 28
Using the special keys. 28

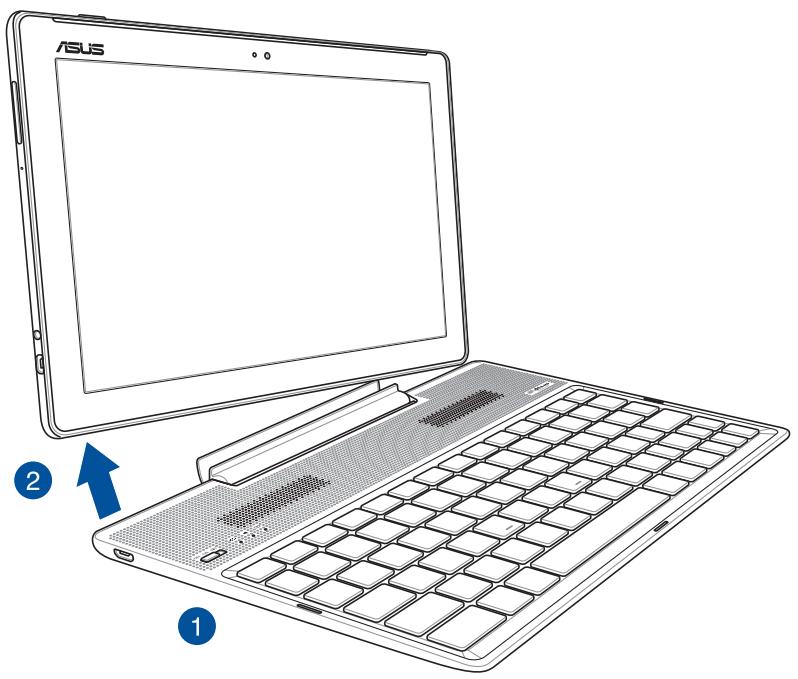

Undocking your ASUS Tablet 30

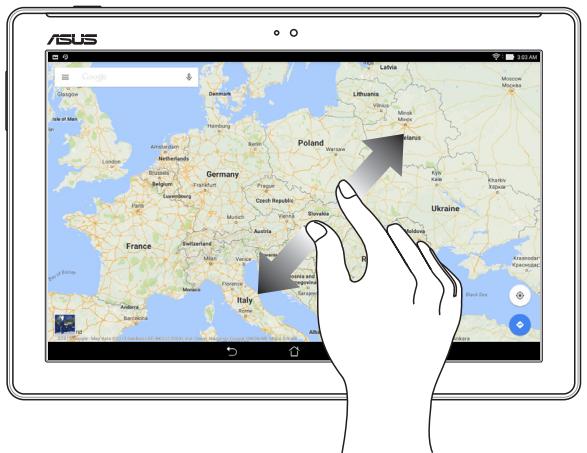

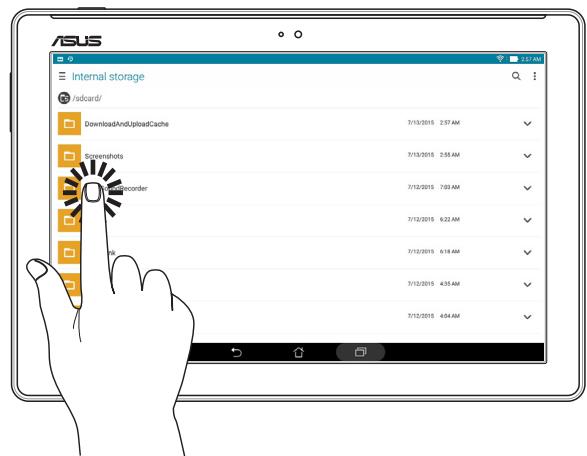

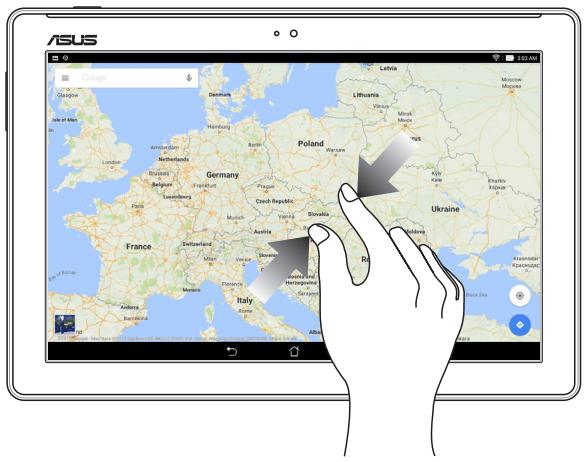

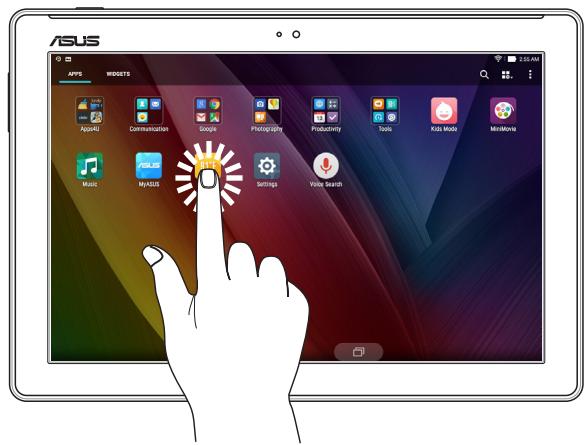

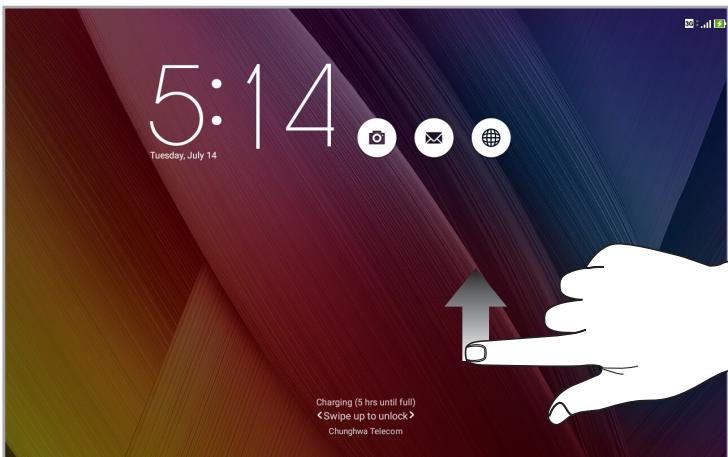

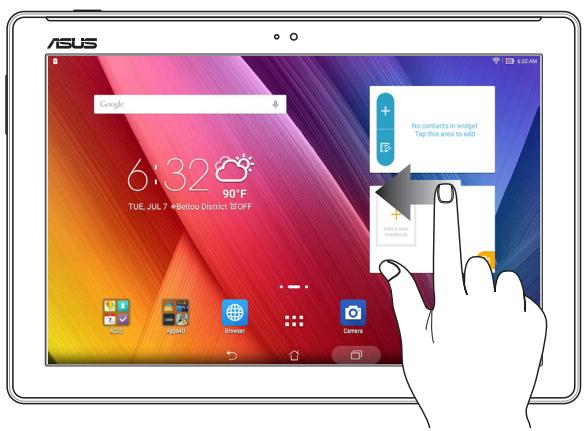

Using the touchscreen 31

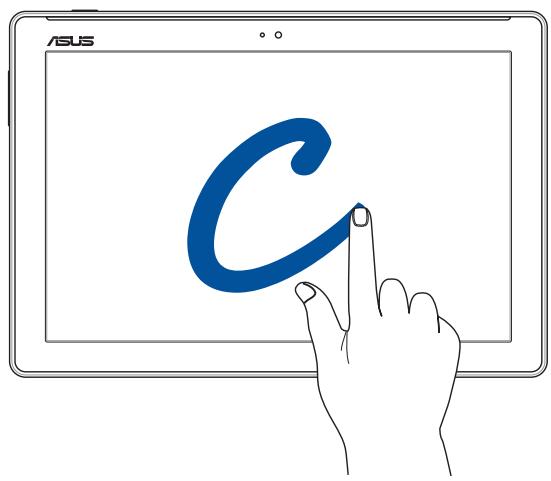

ZenMotion 33

2 There's no place like Home

Zen Home features 35

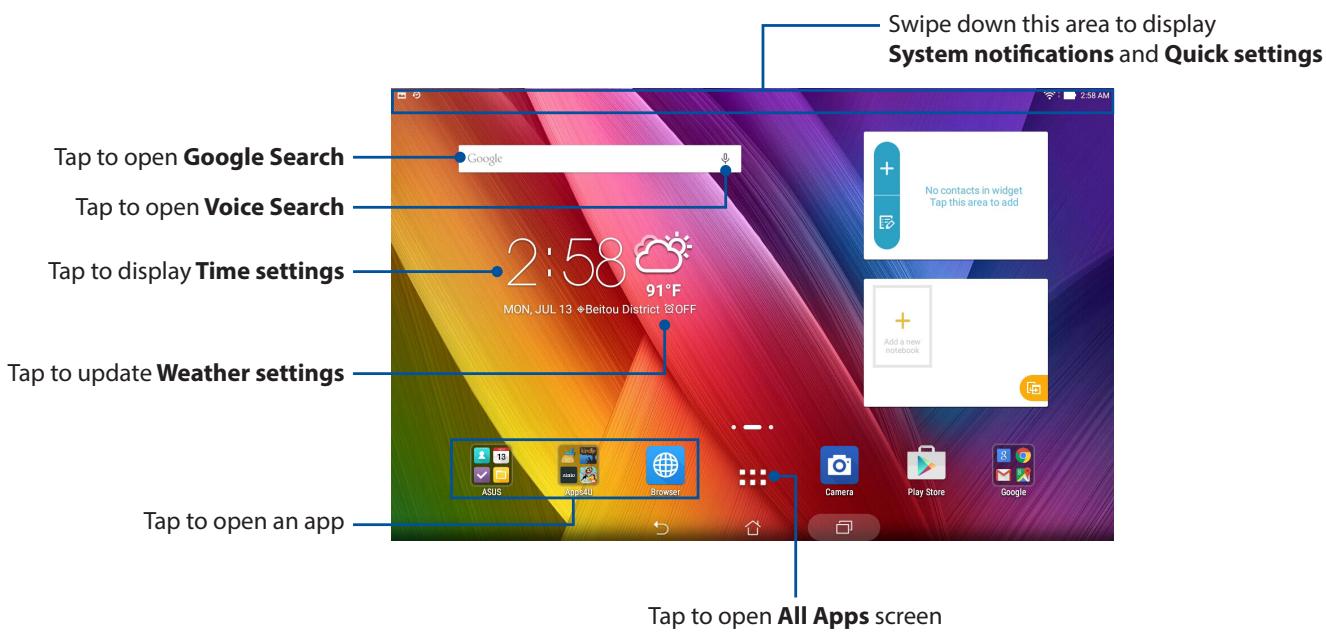

Home screen 35

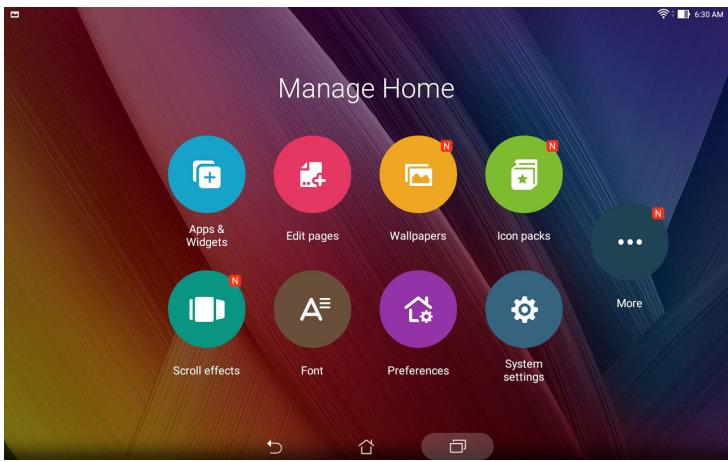

Personalizing your Home screen 37

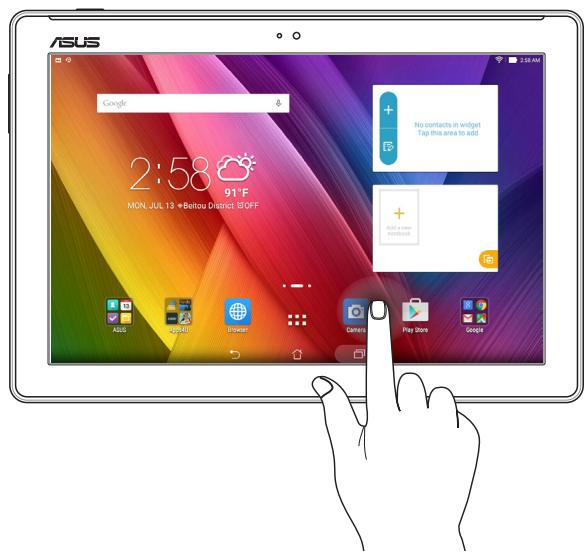

App shortcuts 37
38

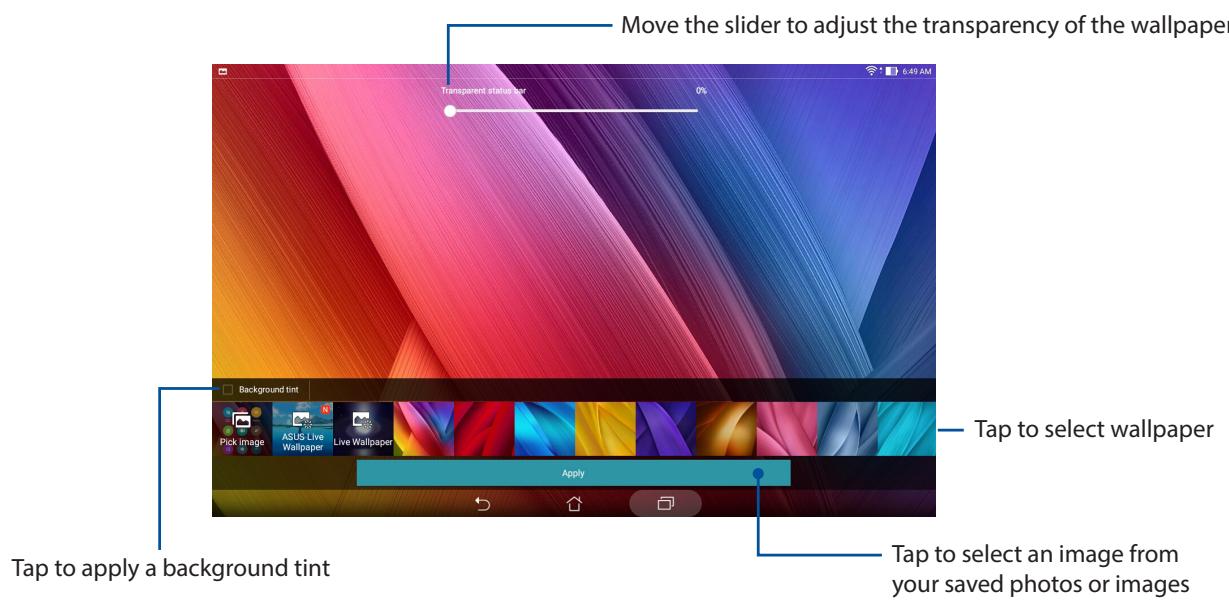

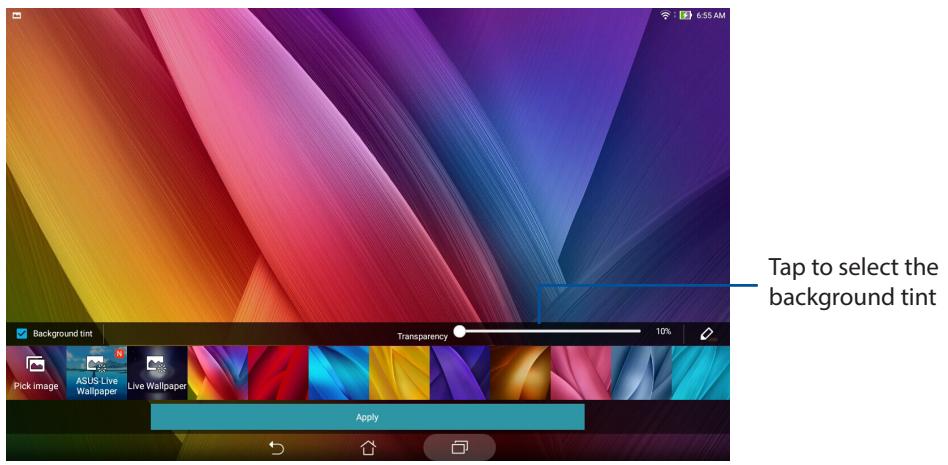

Wallpapers 39
Extended Home screen 40
Setting up the date and time 41
Setting up your ringtone and alert sounds. 41

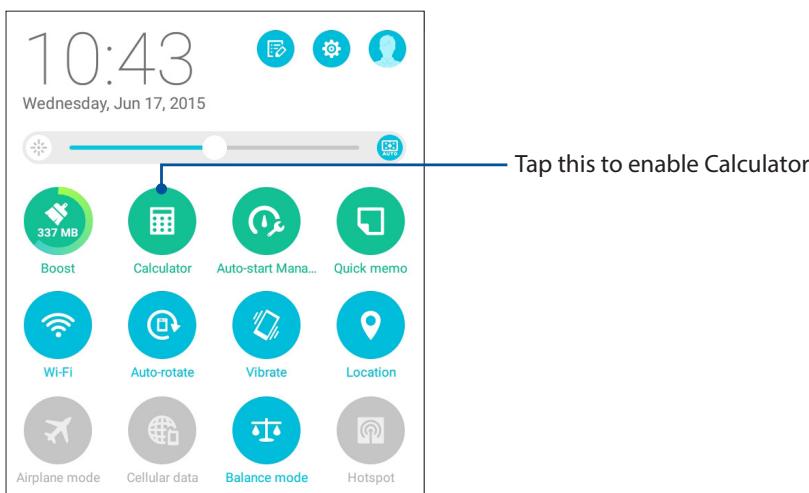

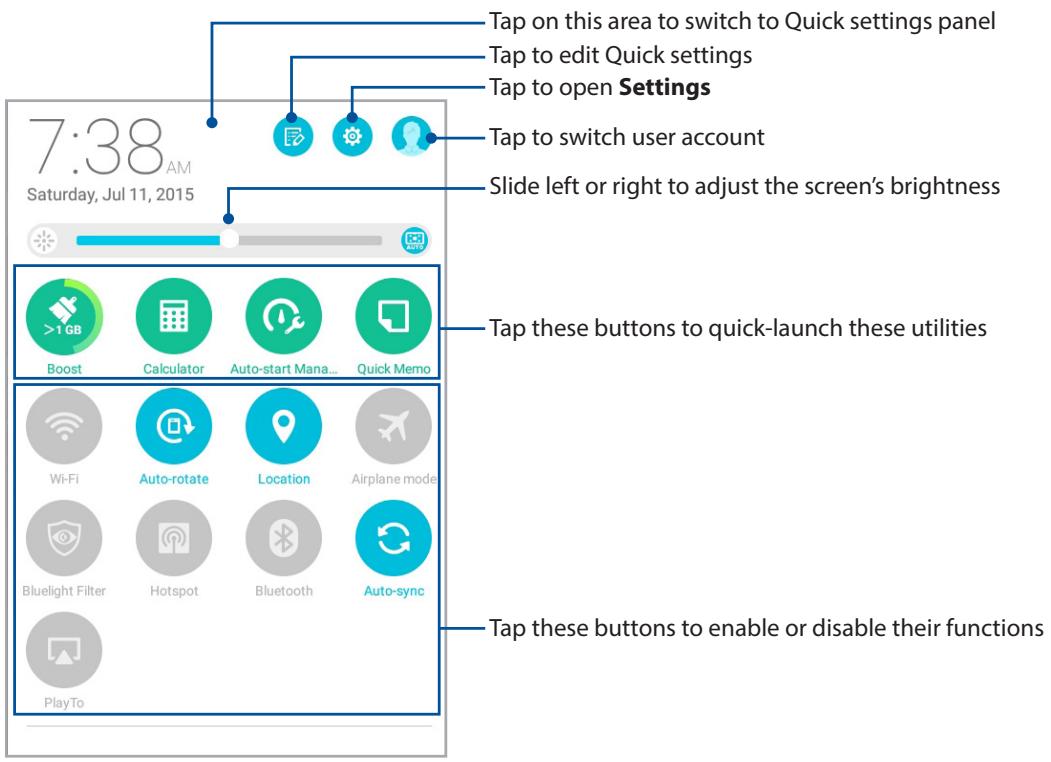

Quick settings 42

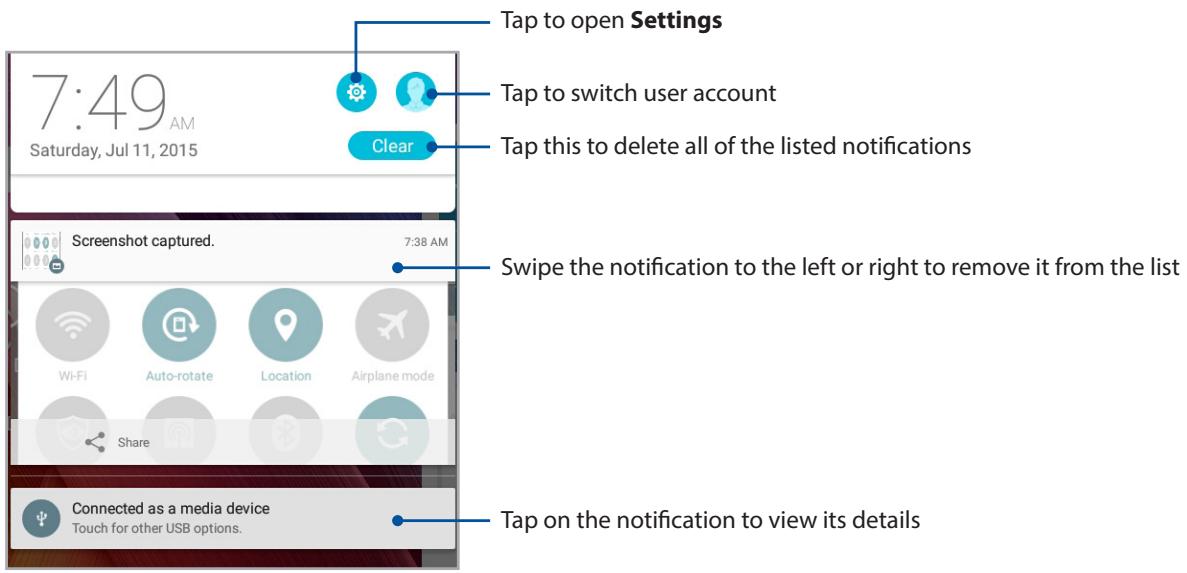

System notifications 43

Lock Screen 44

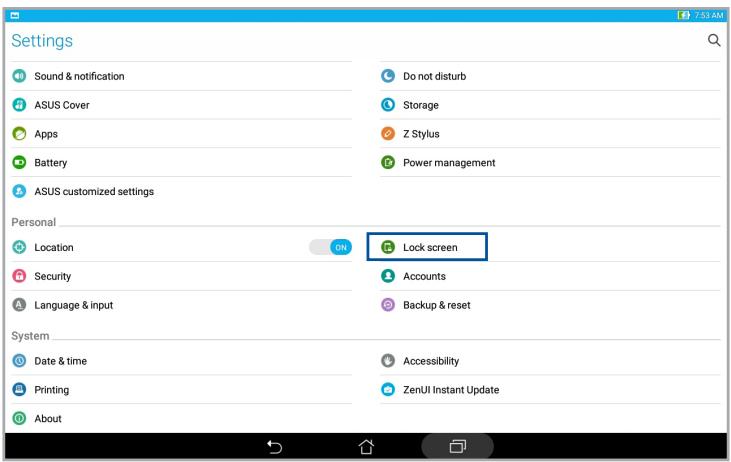

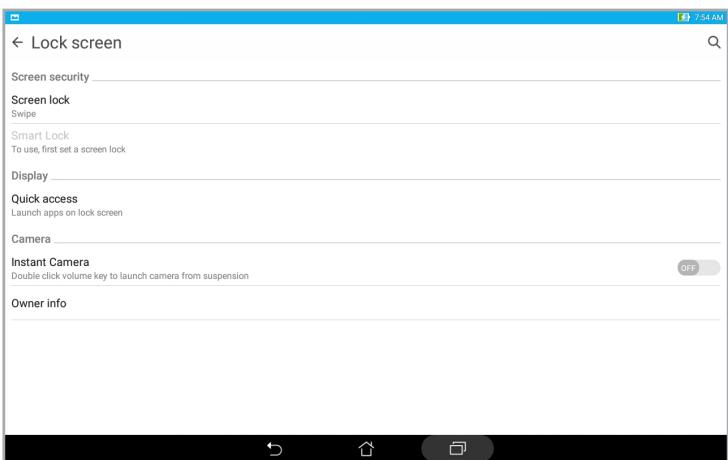

Customizing your lock screen 44

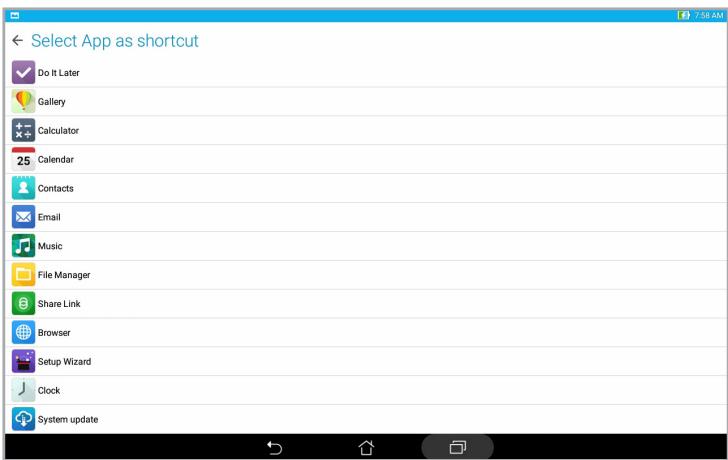

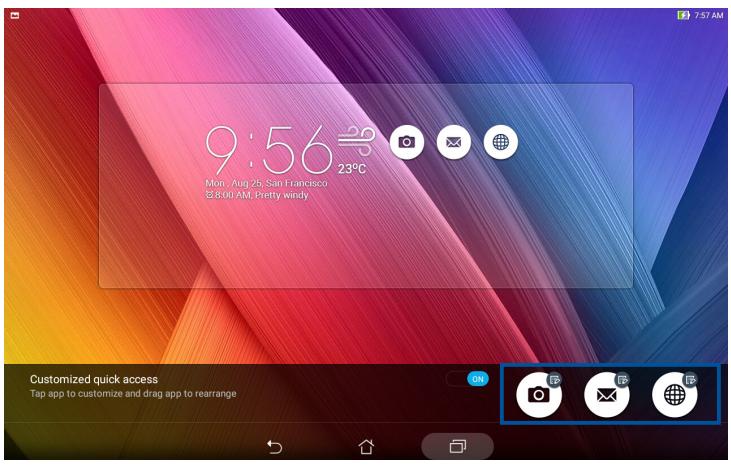

Customizing the quick access buttons 45

3 Keeping in touch

Managing contacts 49

Launching the Contacts app. 49

Contacts Settings 49

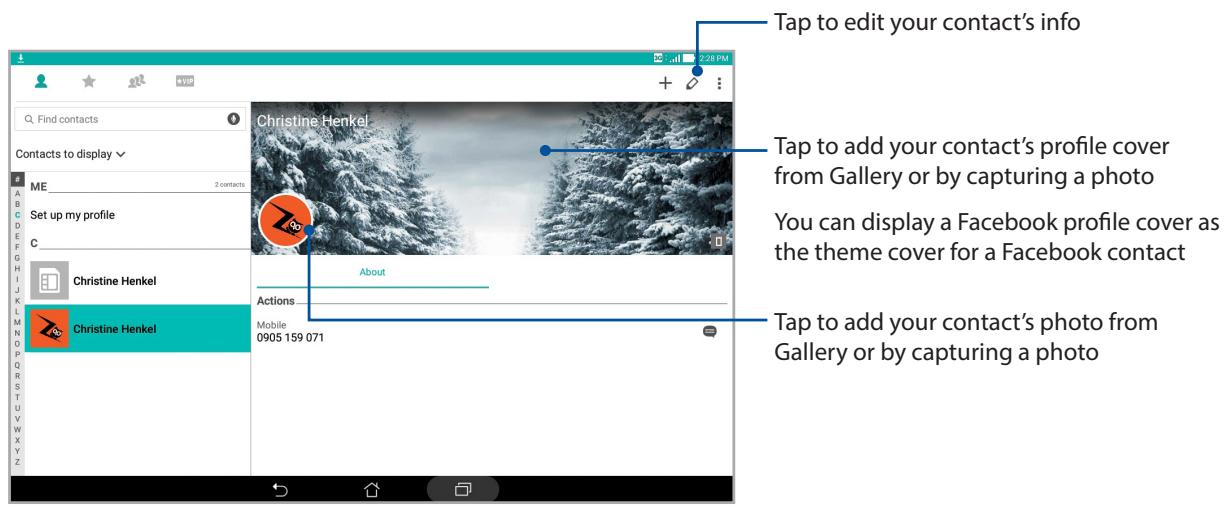

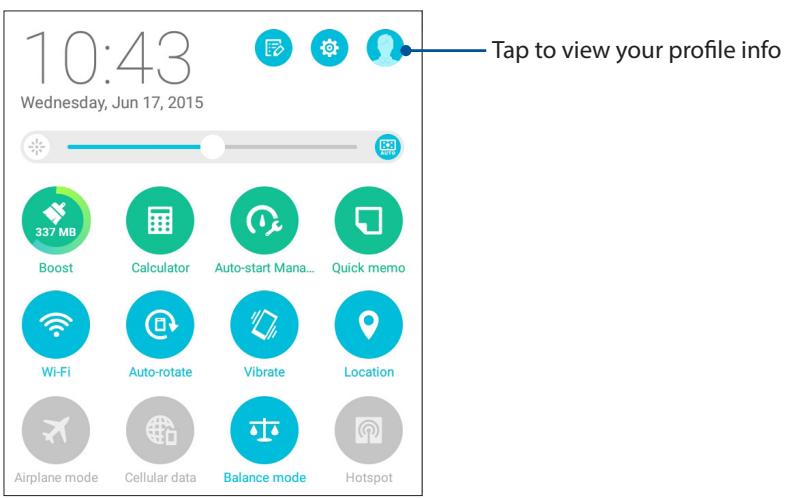

Setting up your profile 49

Adding contacts. 50

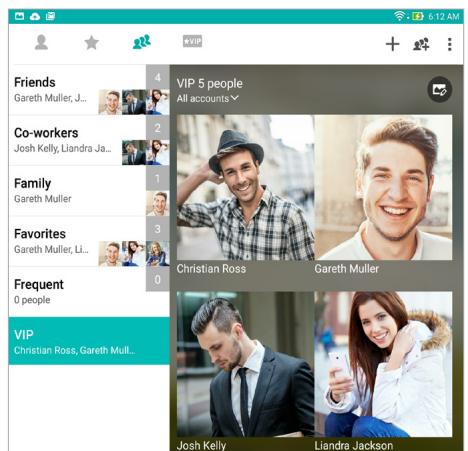

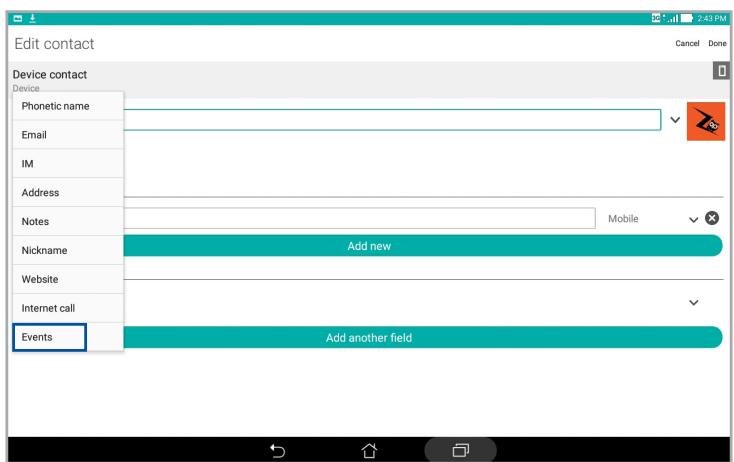

Setting up your VIPs 51

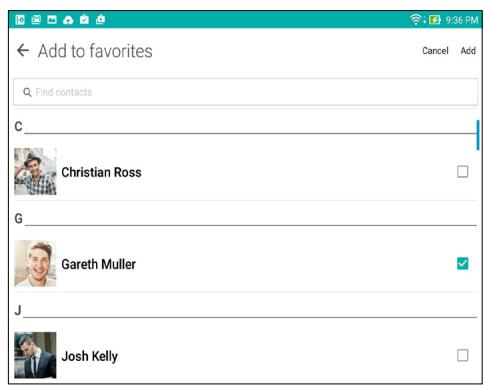

Marking your favorite contacts 54

Importing contacts 55

Exporting contacts. 55

Social networking with your contacts 56

Send messages and more 57

Messaging (on selected models) 57

Linking your contacts' info 59

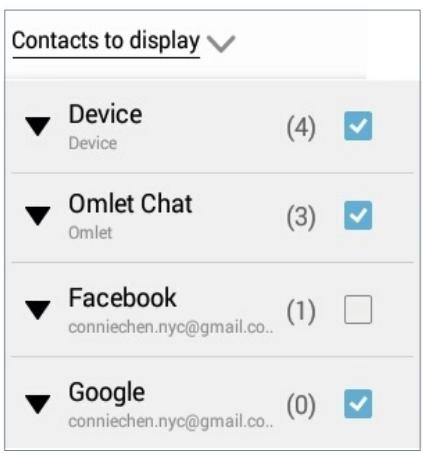

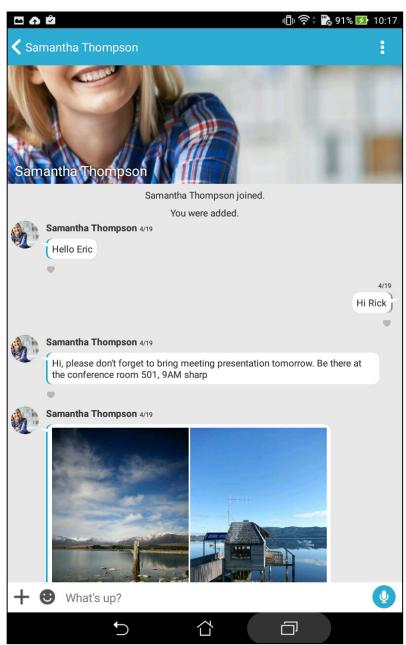

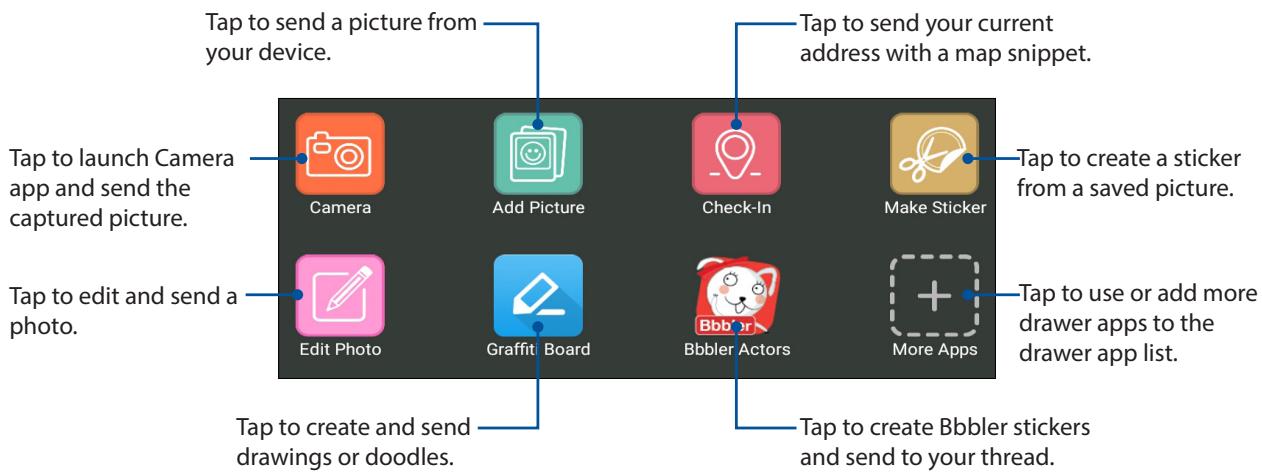

Omlet Chat. 59

Your precious moments

Capture moments 69

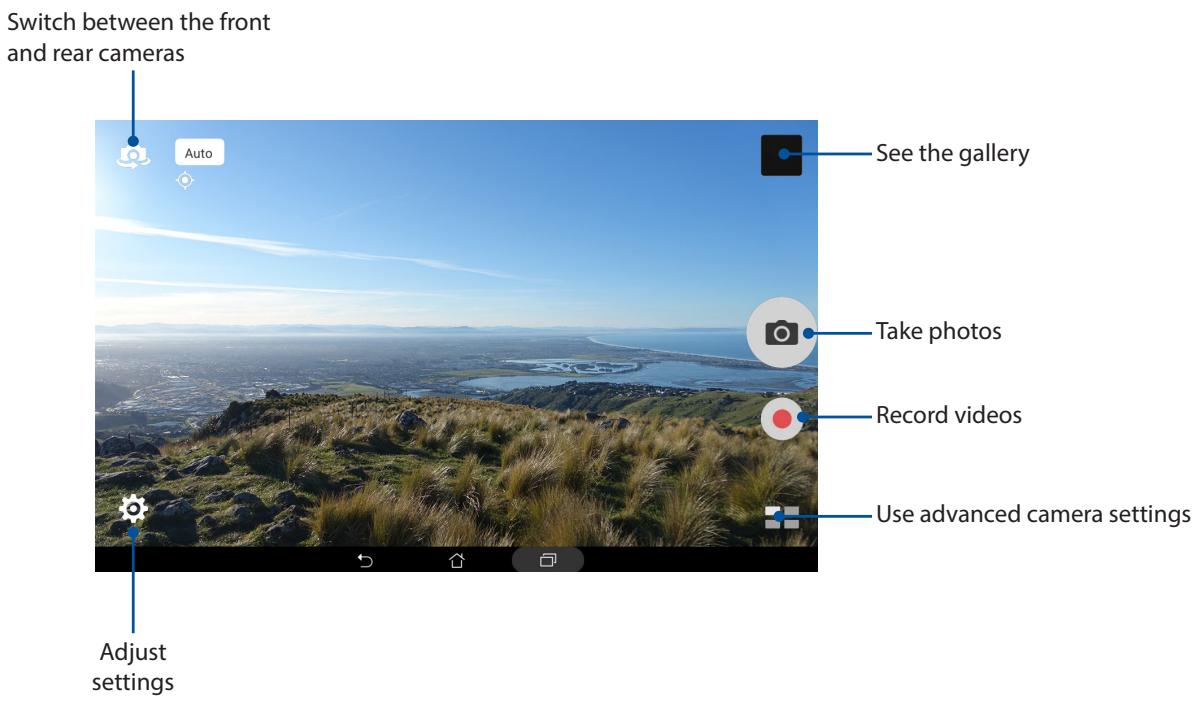

Launching the Camera app 69

Using Camera for the first time. 70

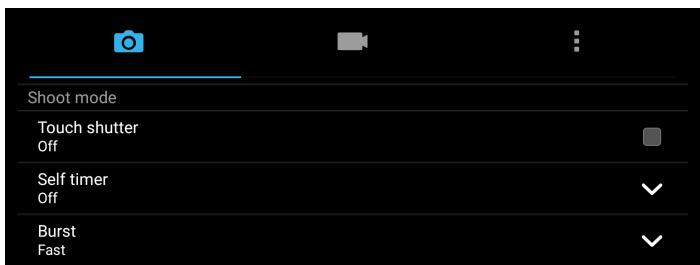

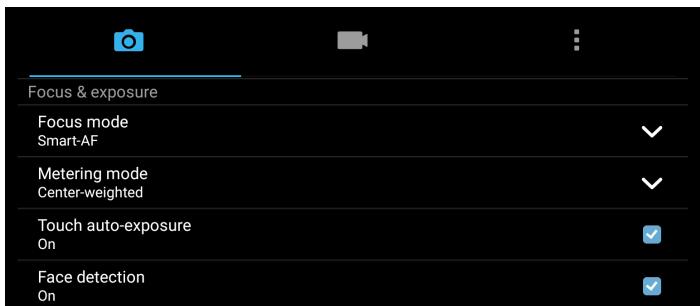

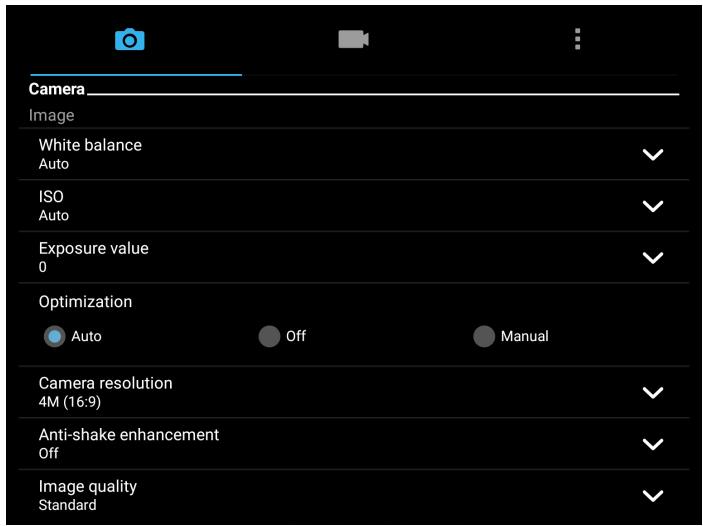

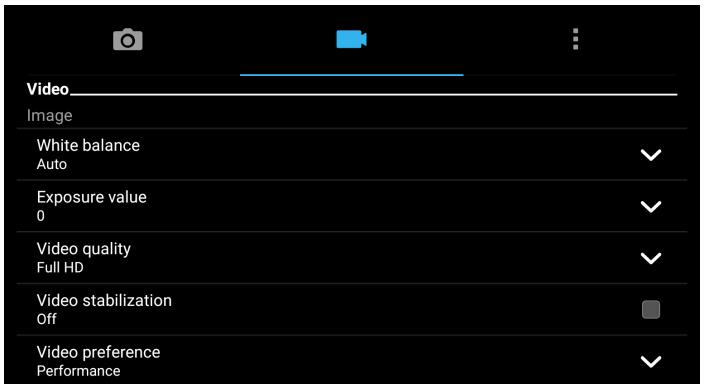

Advanced camera features 74

Using the Gallery 79

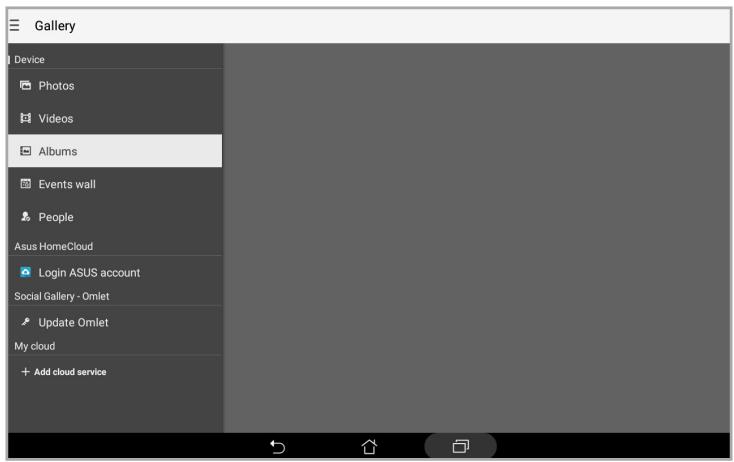

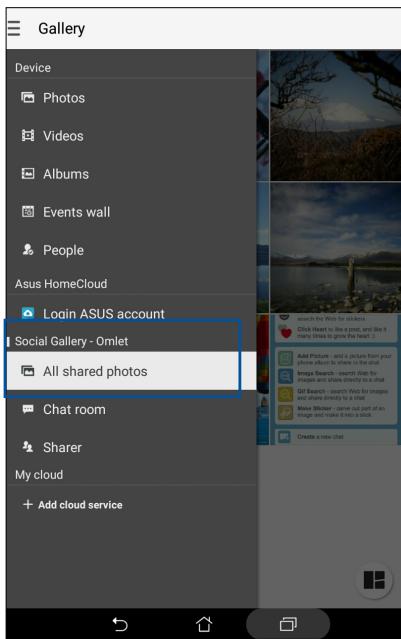

Viewing files from your social network or cloud storage. 79

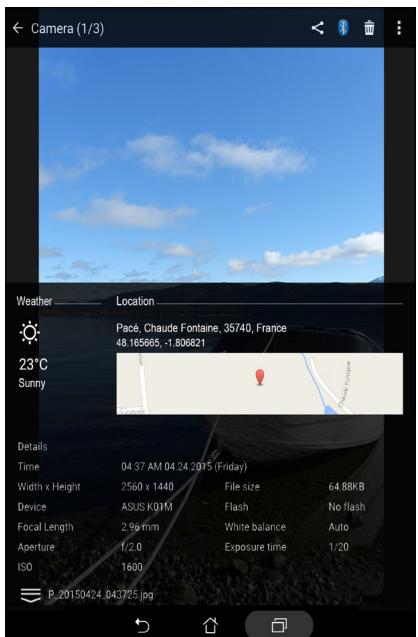

Viewing the photo location. 80

Sharing files from the Gallery. 81

Deleting files from the Gallery. 81

Editing images. 81

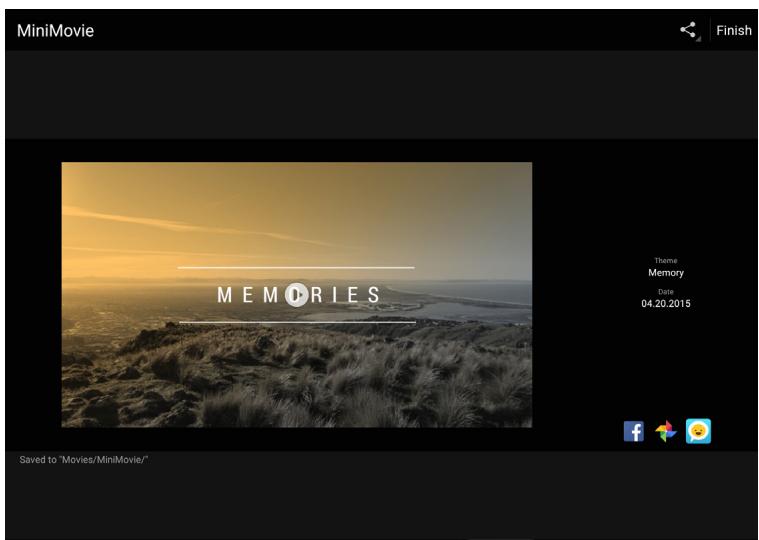

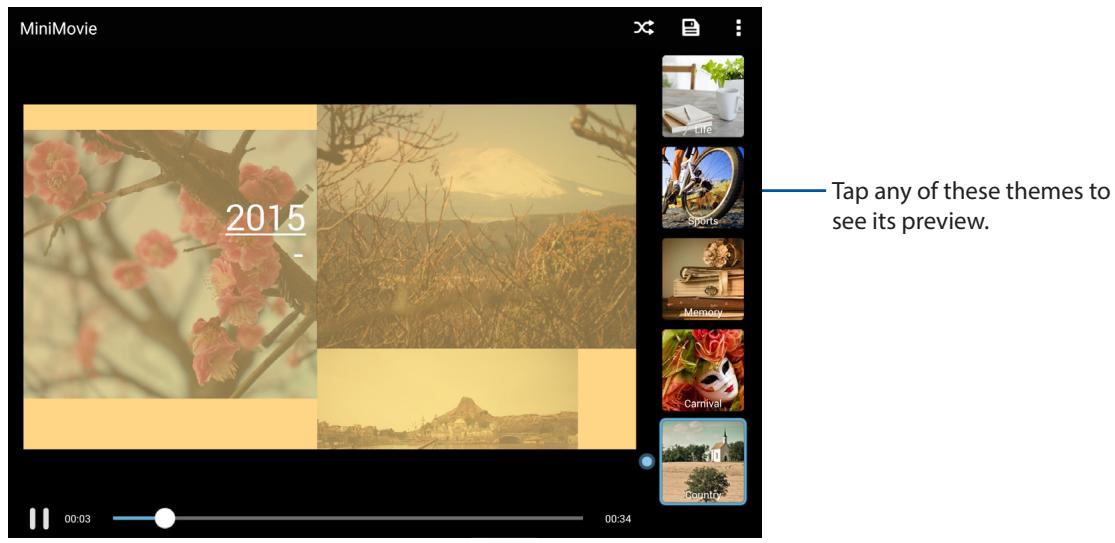

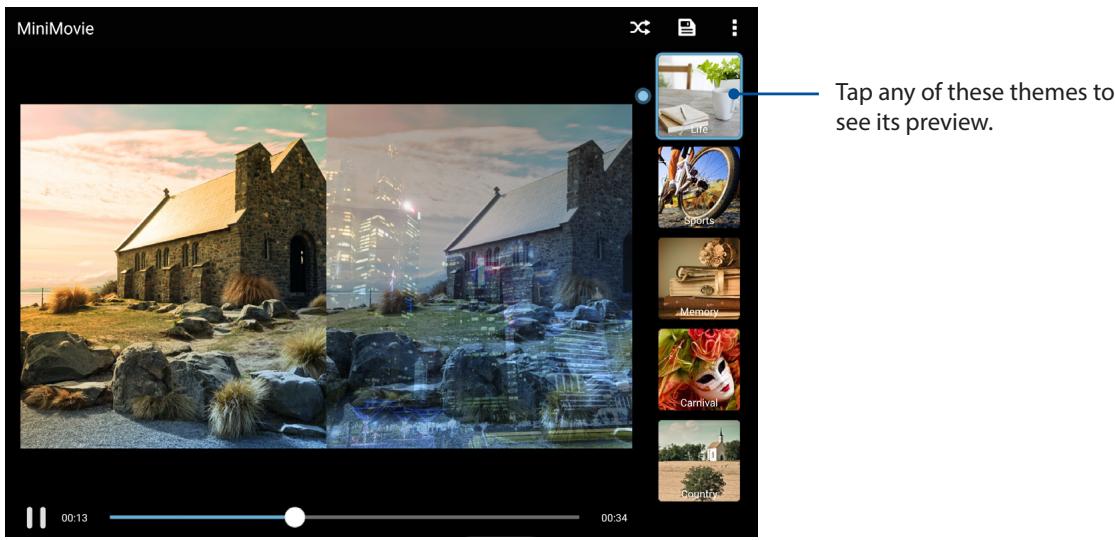

Using MiniMovie 82

Using PlayTo 83

Work hard, play harder

Browser 85

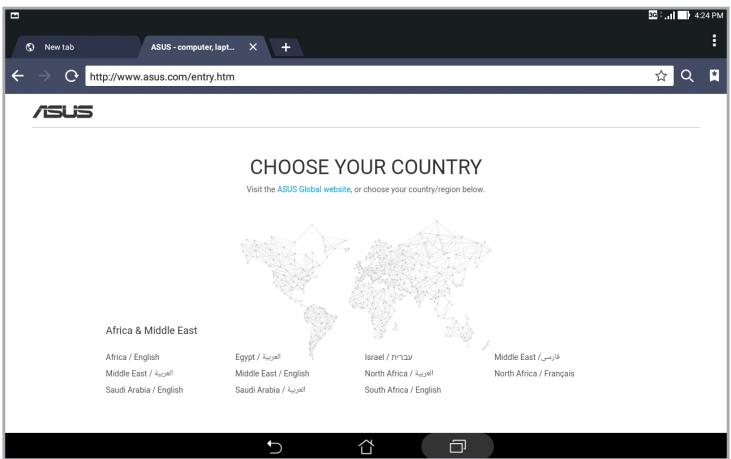

Launching the Browser app. 85

Sharing pages 86

Reading the pages later 86

Adding a new tab 86

Bookmarking pages 86

Clearing the browser cache. 87

Email 87

Setting up email accounts. 87

Adding email accounts. 88

Setting up a Gmail account 88

Calendar 89

Creating events 89

Adding accounts to Calendar 89

Creating an event from your account 90

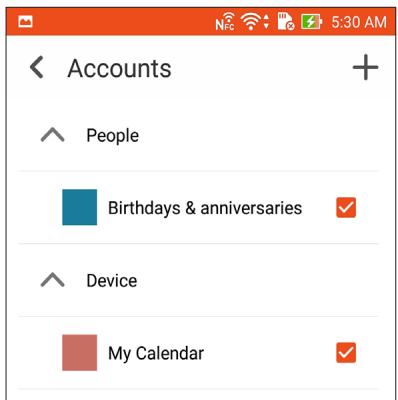

Enabling alert reminders for events 90

What's Next 91

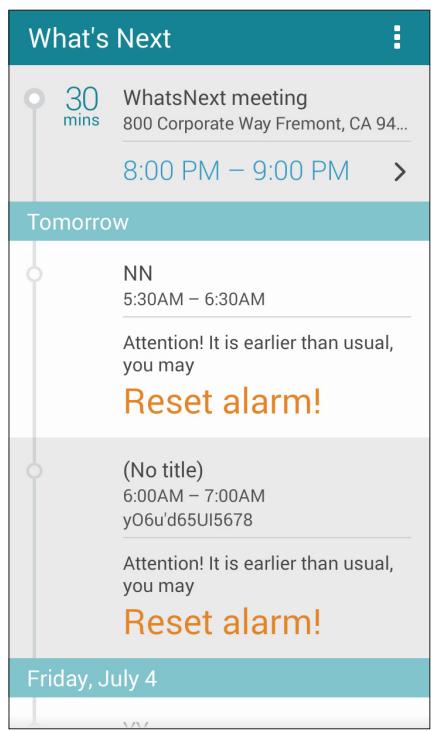

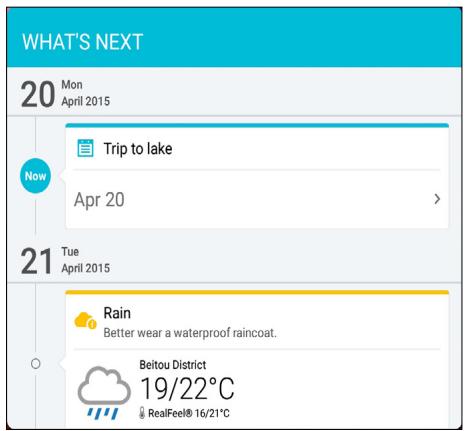

Getting event reminders. 91

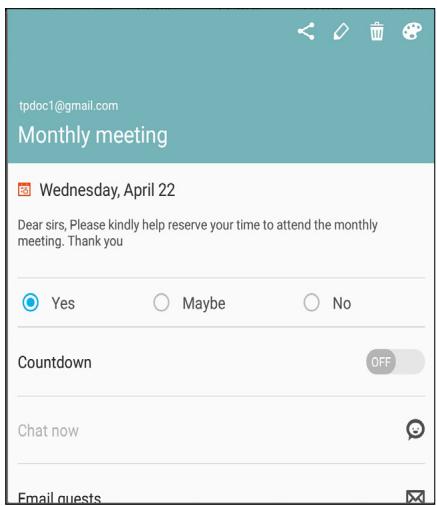

Accepting or declining invites to events 92

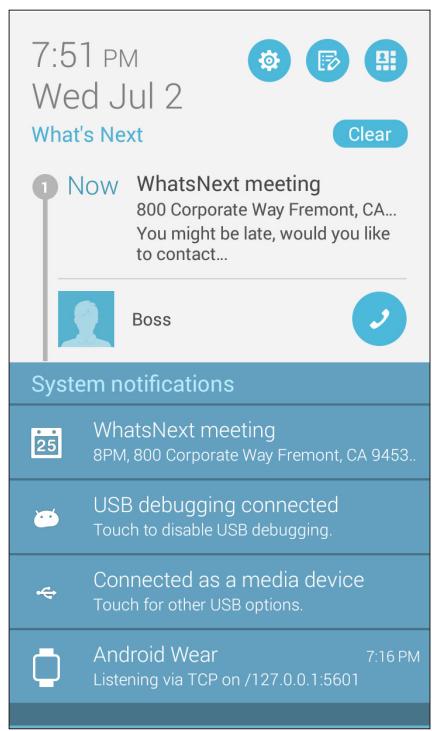

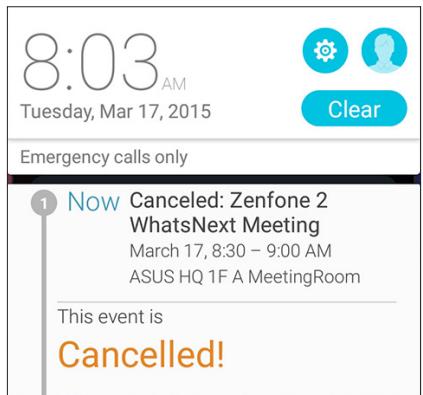

Getting event-related alerts 93

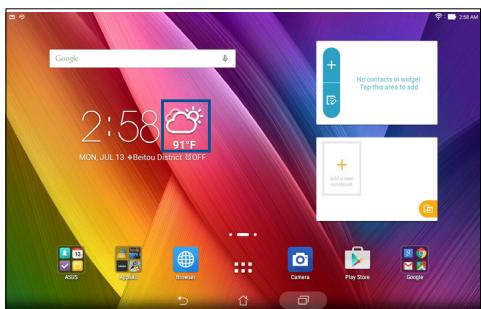

Getting the weather updates. 94

Do It Later 95

Adding to-do tasks 95
Prioritizing to-do tasks 95
Catching up on my online reading now 96
Replying now (on selected models) 96
96

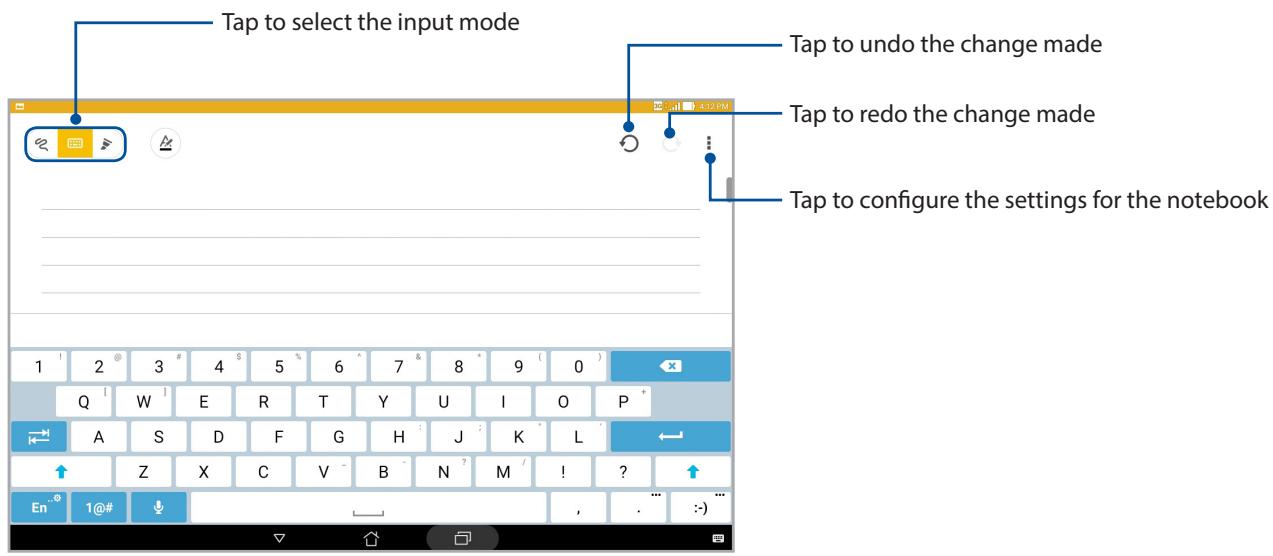

SuperNote 97

Understanding icons. 97
Creating a notebook 98
Sharing a notebook on the Cloud 98
Sharing a note to the Cloud 98

File Manager 99

Accessing the internal storage 99
Accessing the external storage device 99
Accessing Cloud Storage 99

The Cloud 100

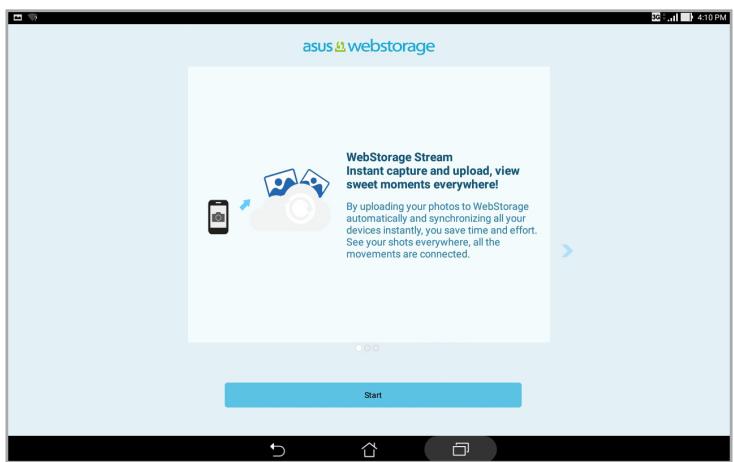

ASUS WebStorage 100

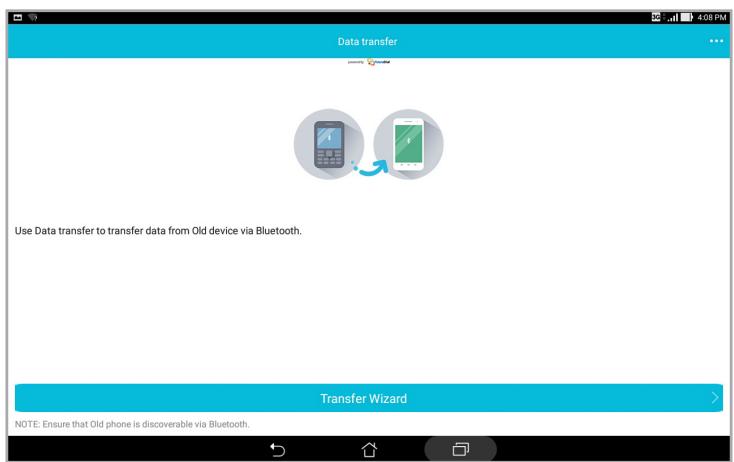

Data Transfer 101

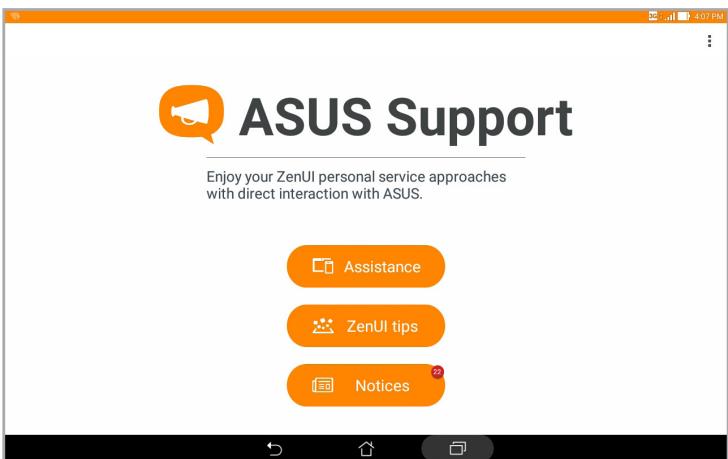

ASUS Support 102

6 Fun and entertainment

Using a headset 103

Connecting the audio jack. 103

Music 104

Launching Music 104

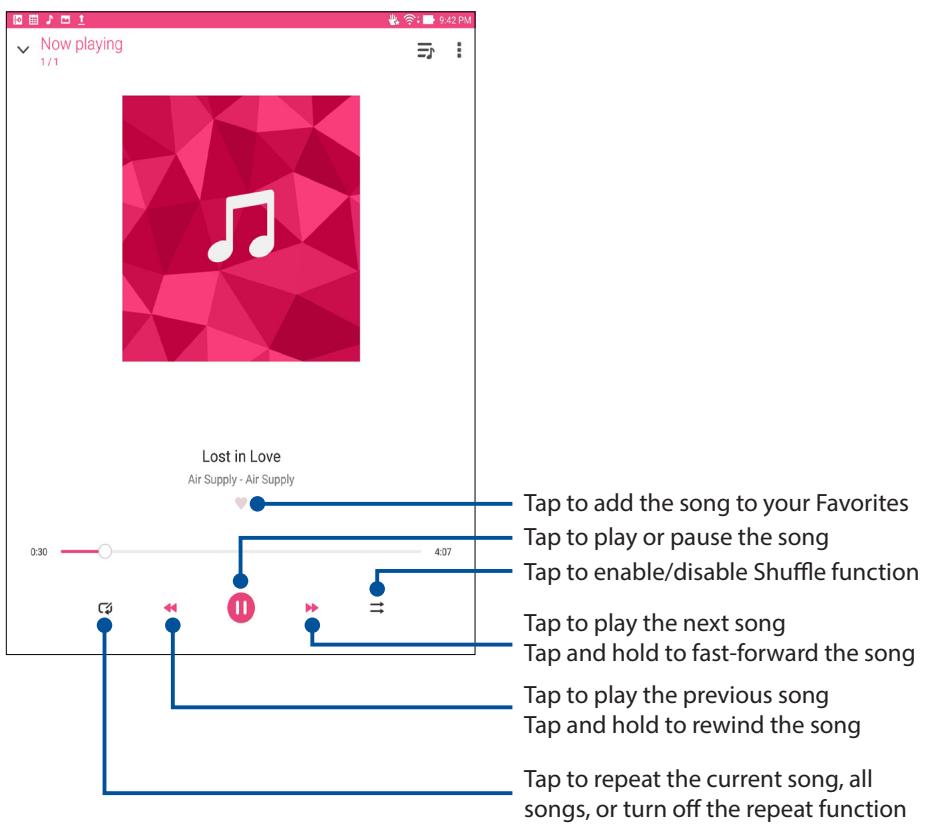

Playing songs 104
Streaming Cloud music 105
Creating a playlist 106
PlayTo other devices 107

7 Staying connected

Wi-Fi 109

Enabling Wi-Fi 109
Connecting to a Wi-Fi network 109
Disabling Wi-Fi 110

Bluetooth 110

Enabling Bluetooth 110
Pairing your ASUS Tablet to a Bluetooth device 111
Unpairing your OSUS Tablet from the Bluetooth® device 111

Tethering 112

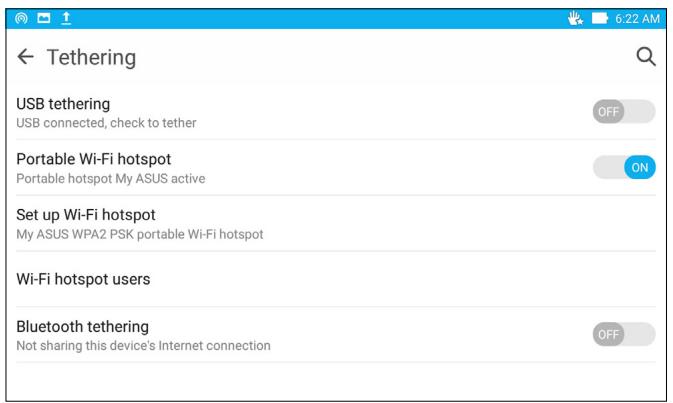

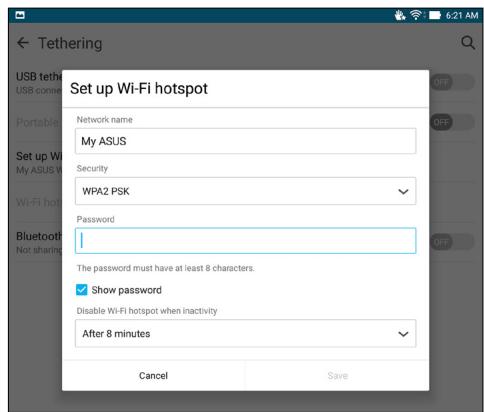

Wi-Fi Hotspot 112

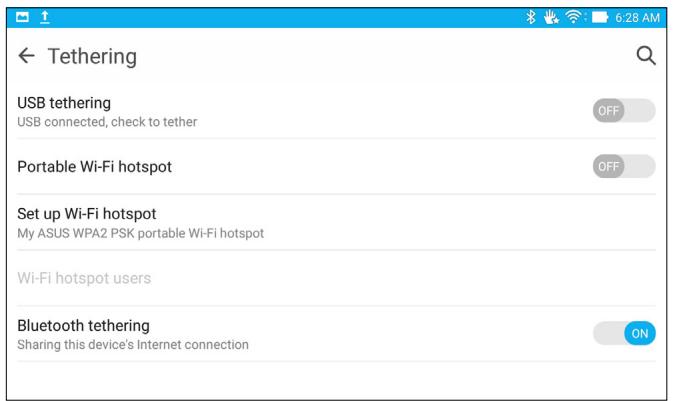

Bluetooth Tethering 113

PlayTo 114

Launching PlayTo 114

8 Travel and Maps

Weather 115

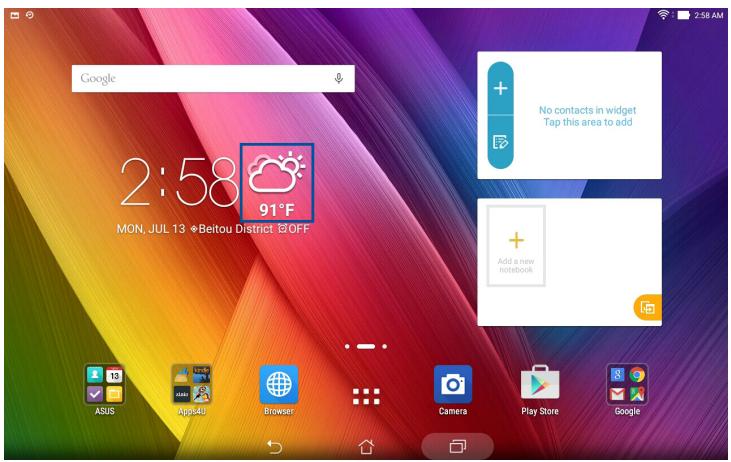

Launching the Weather app 115

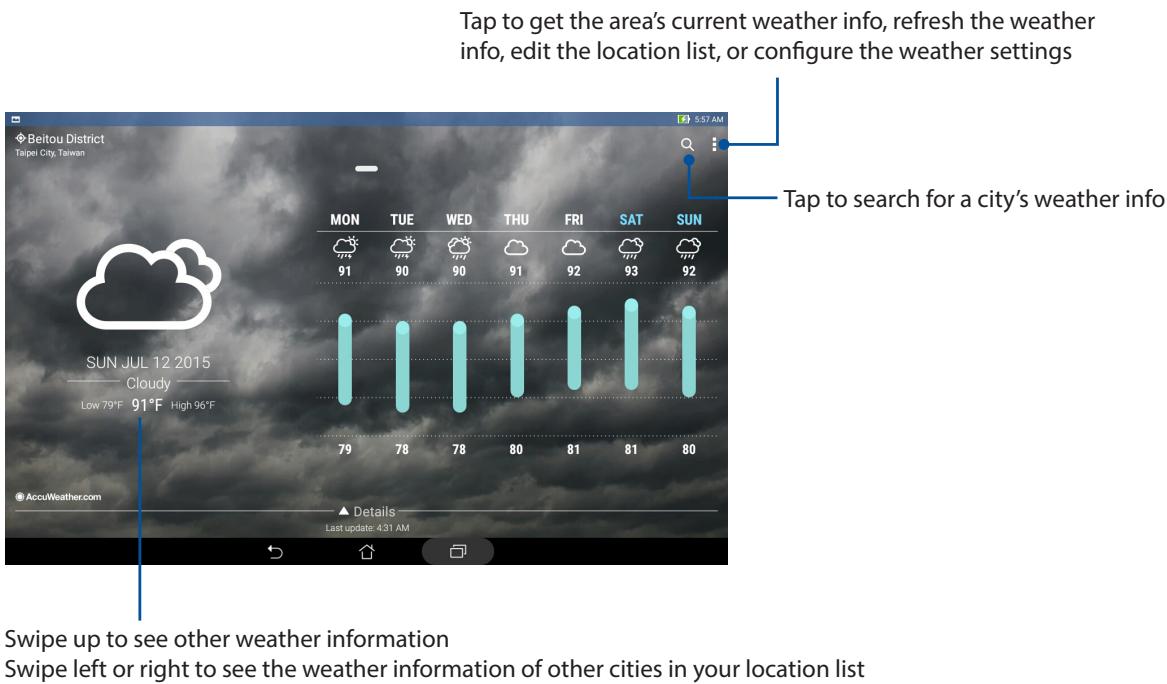

Weather home screen 116

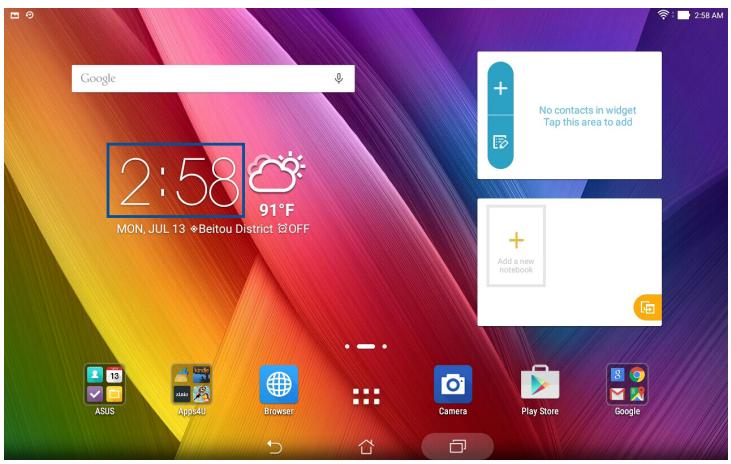

Clock 117

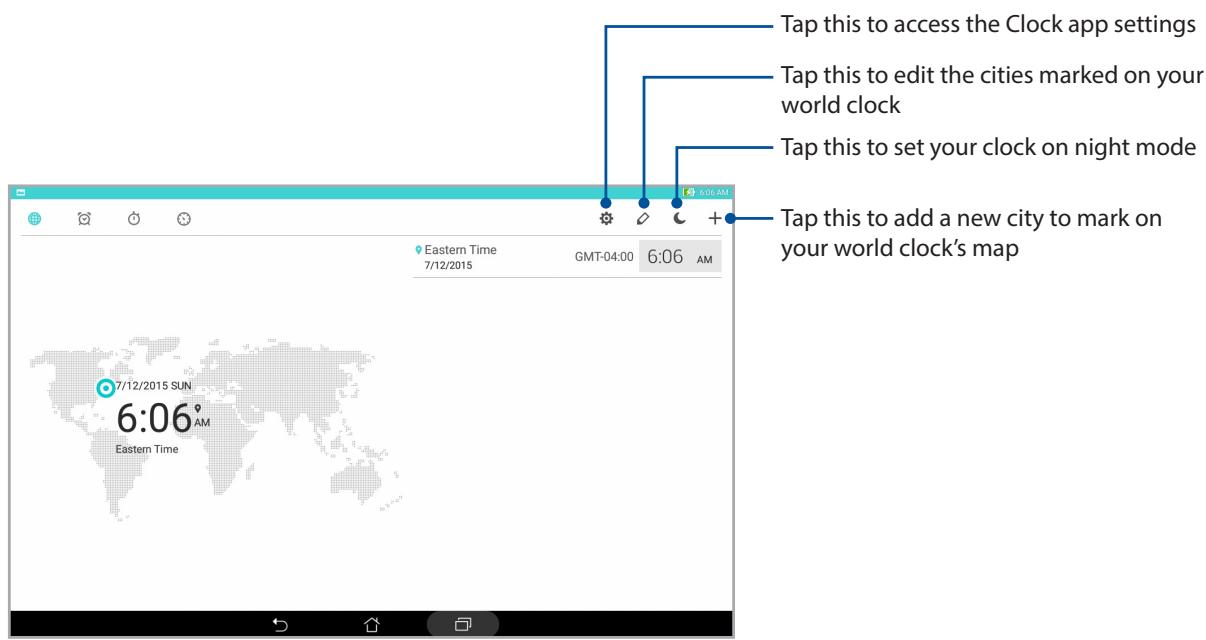

WorldClock. 117

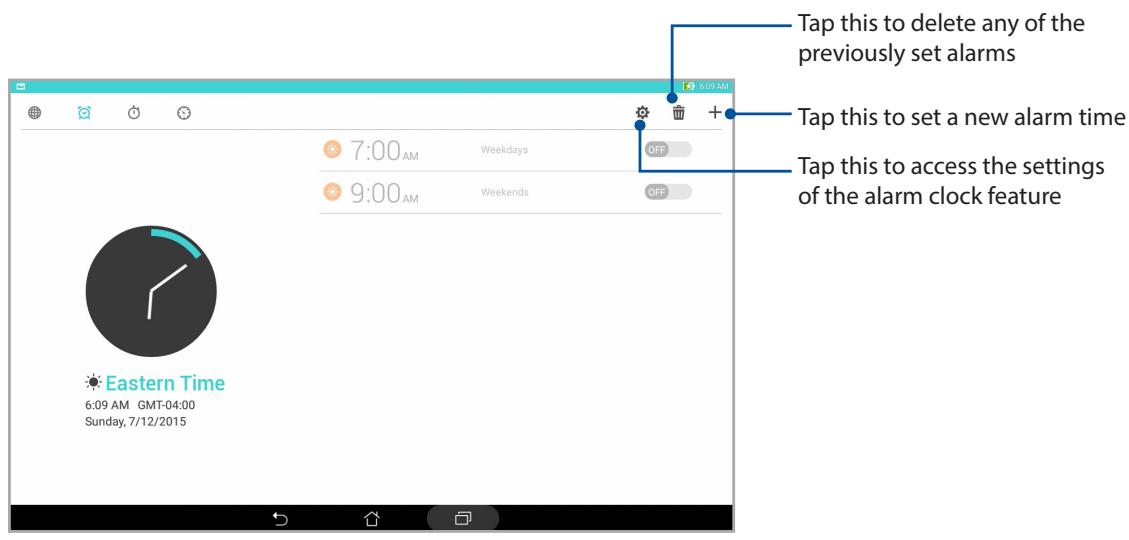

Alarm clock 118

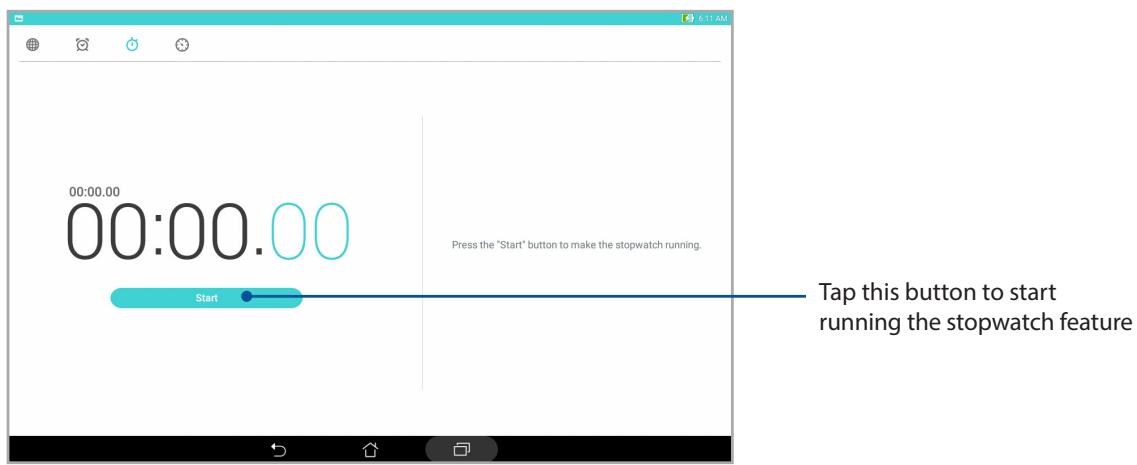

Stopwatch 118

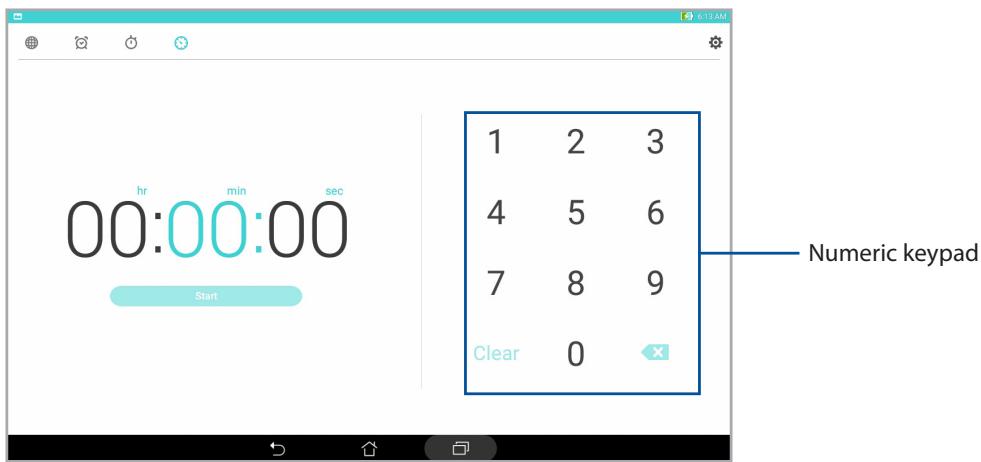

Timer 119

9 ZenLink

Knowing ZenLink 121

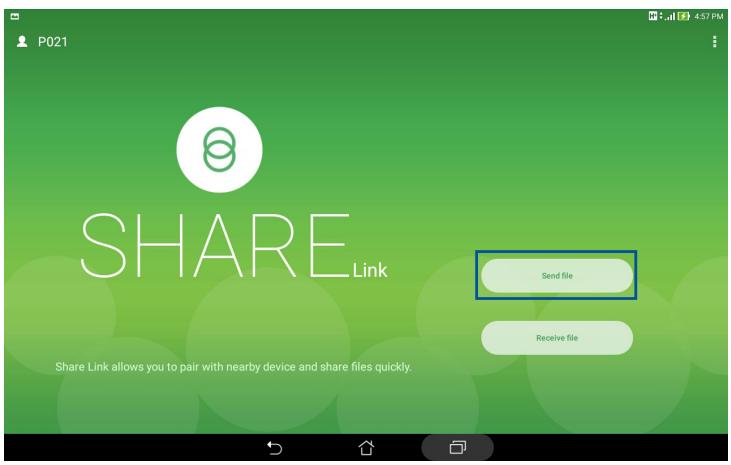

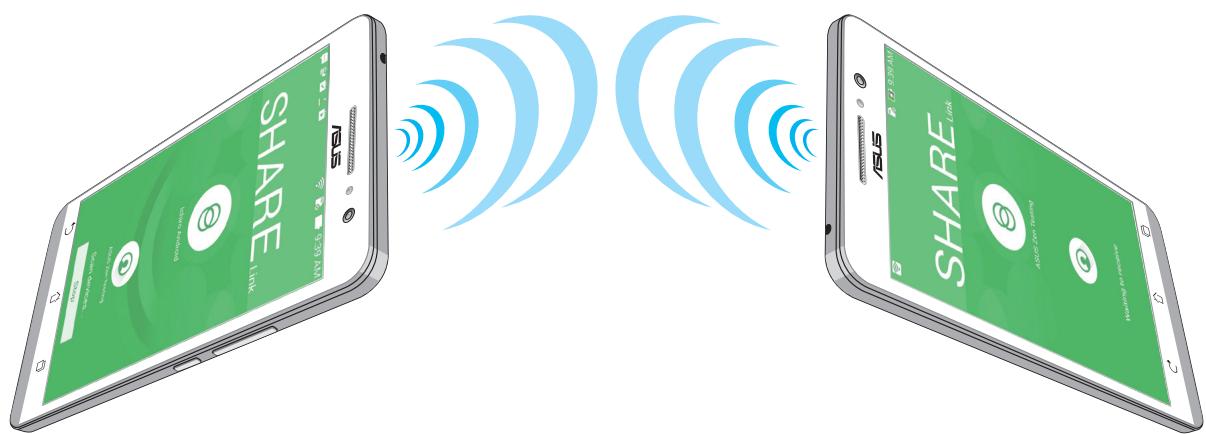

Share Link 122

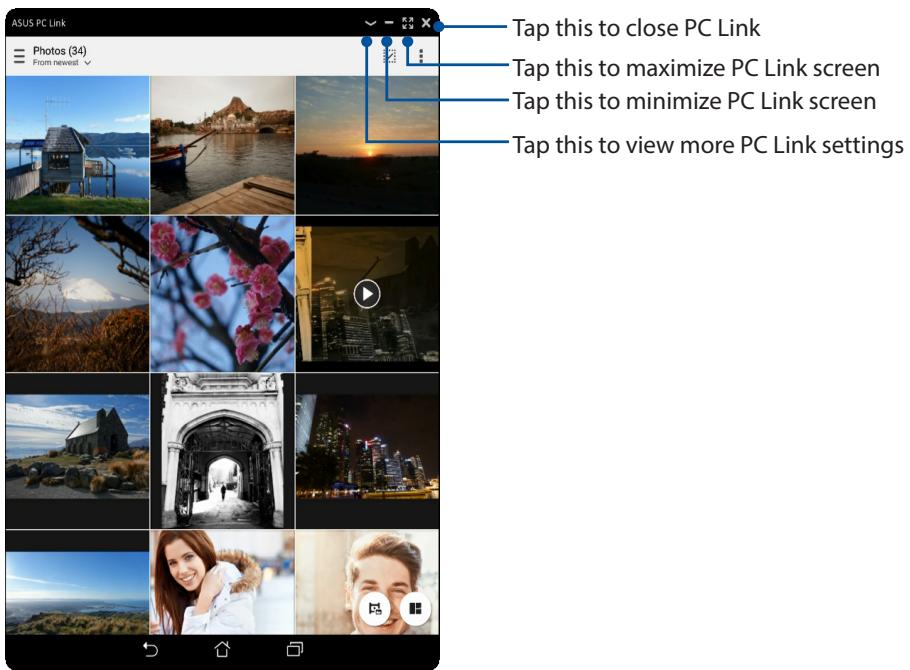

PC Link 123

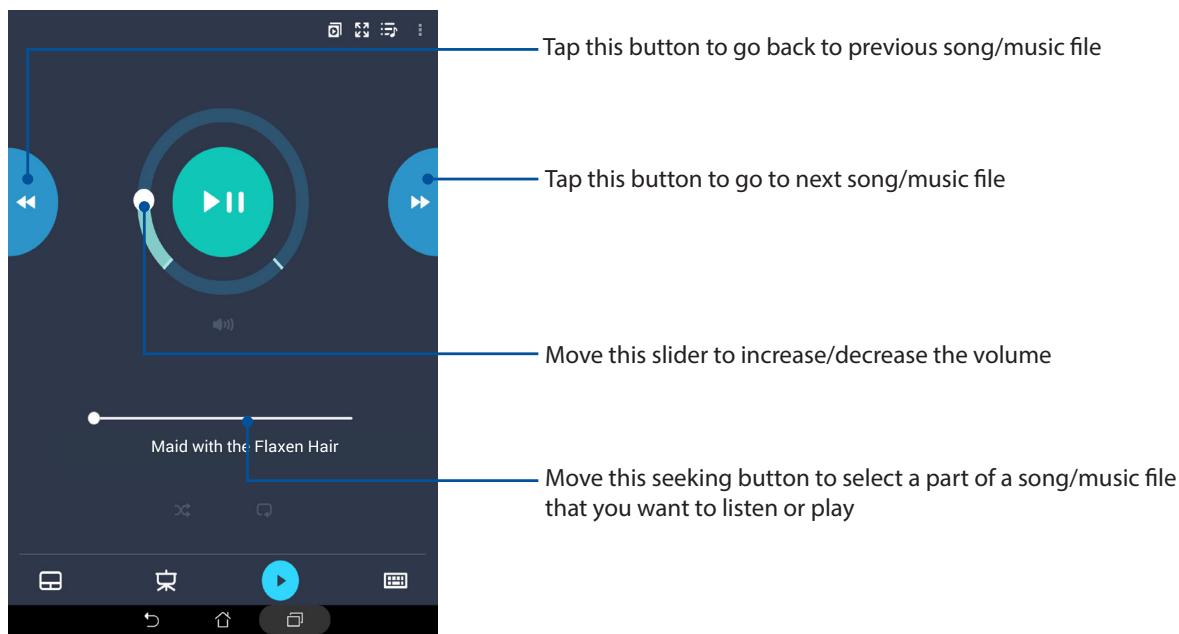

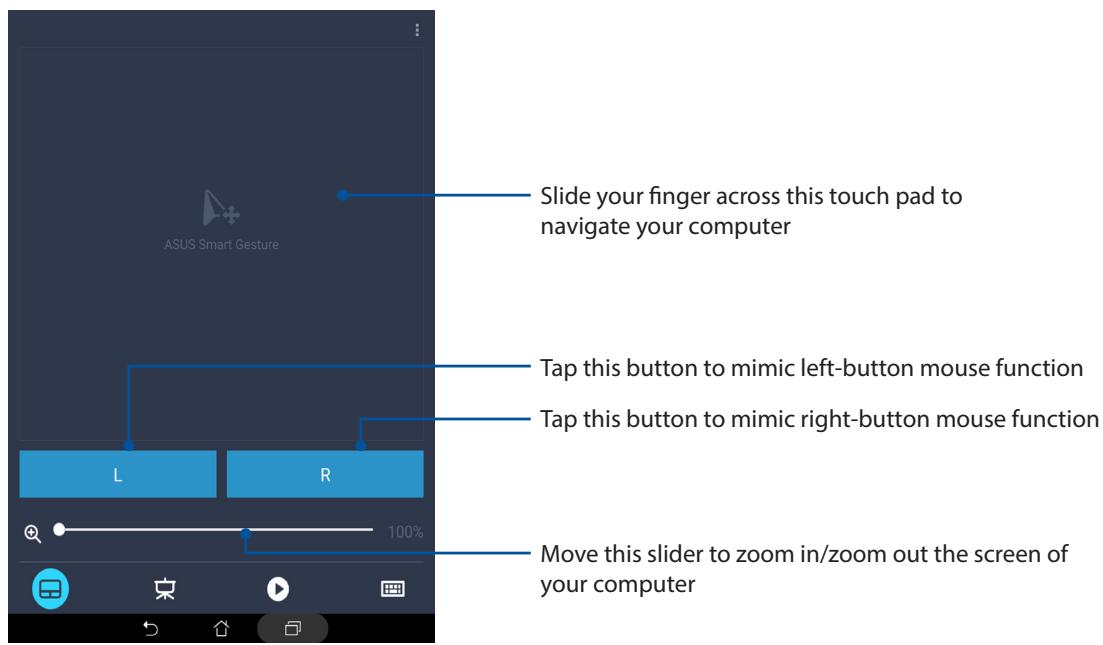

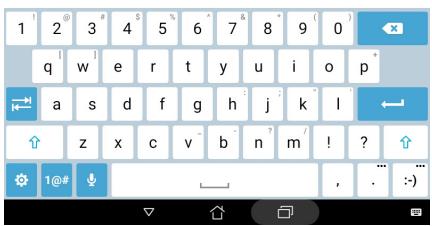

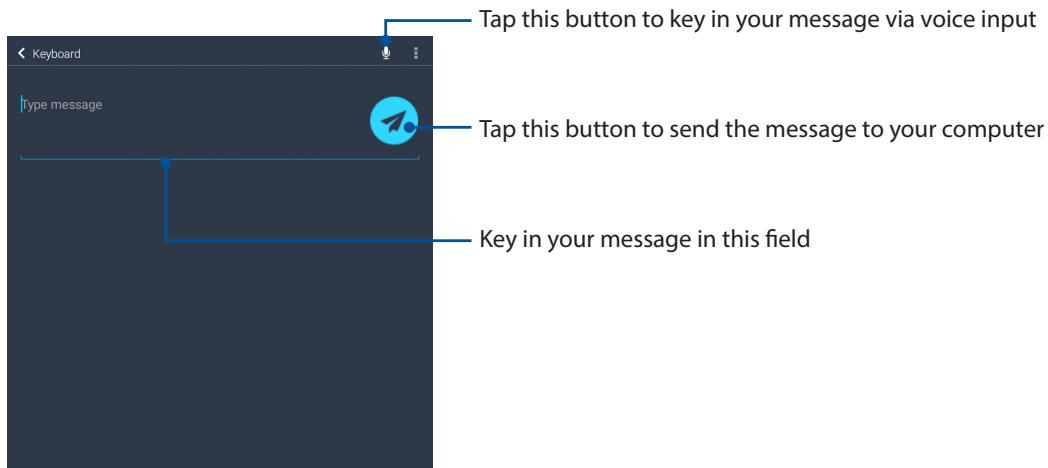

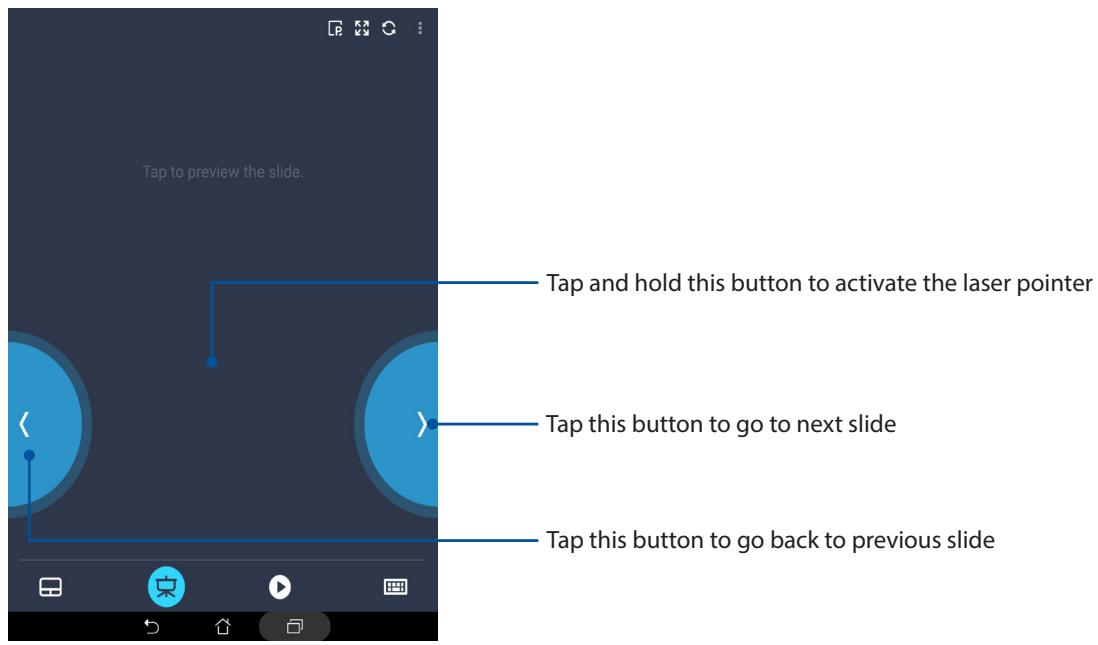

Remote Link 125

10 Zen Everywhere

Special Zen Tools 129

129

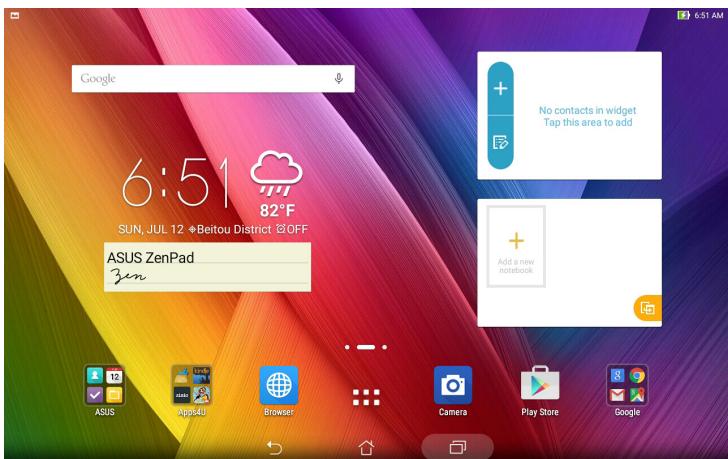

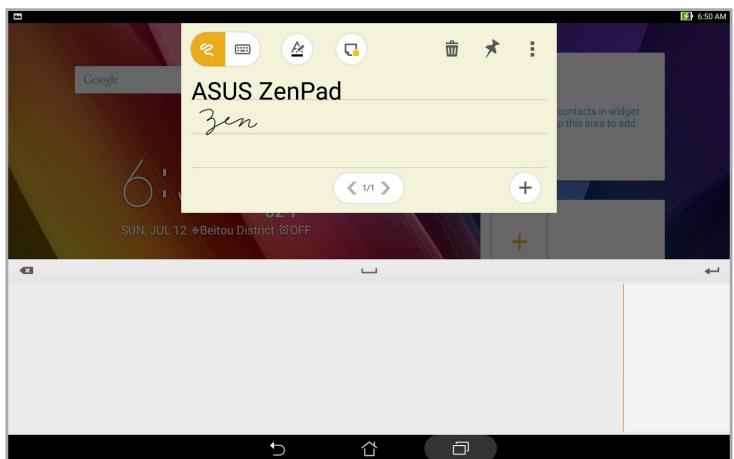

Quick Memo 131

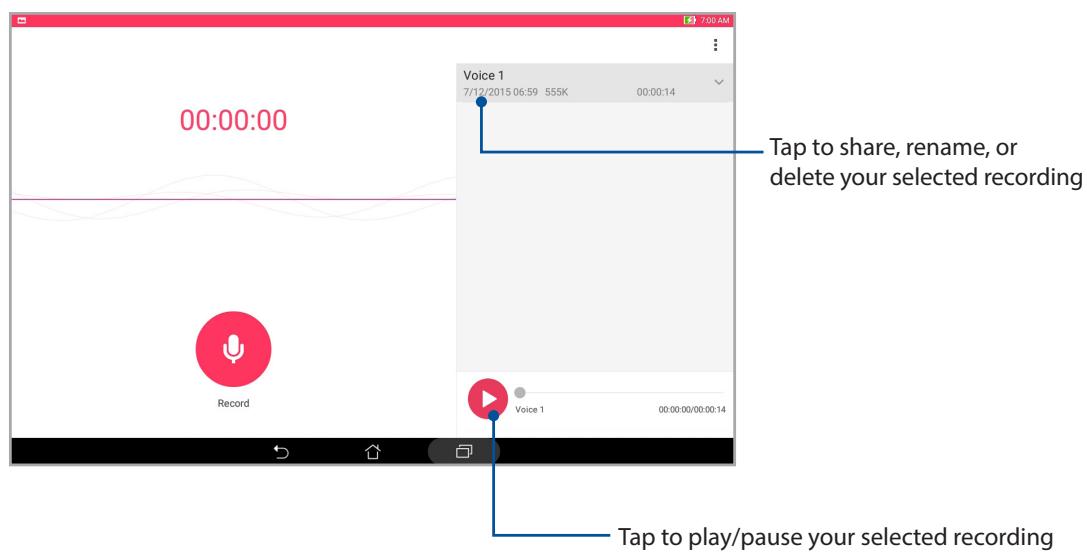

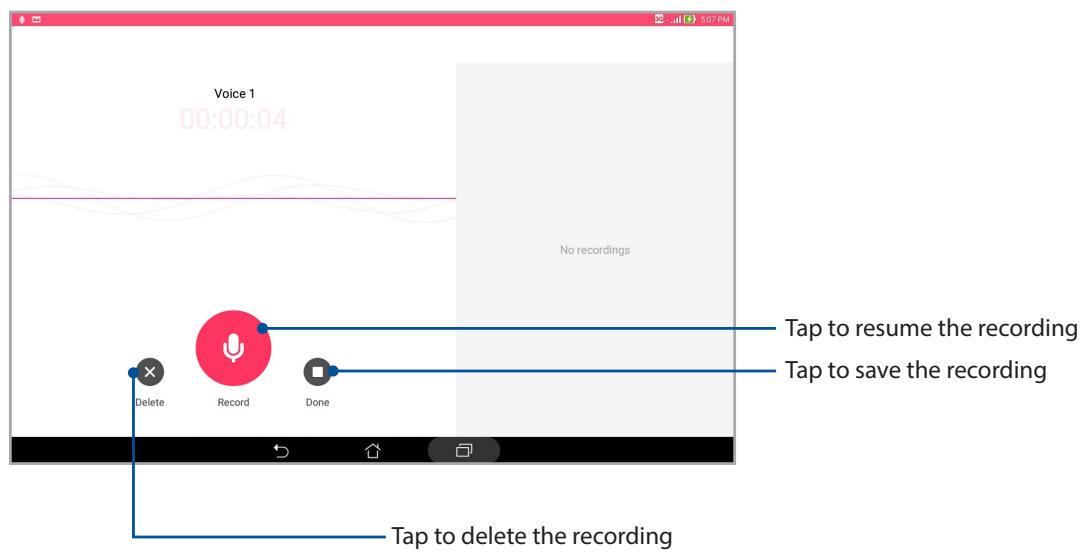

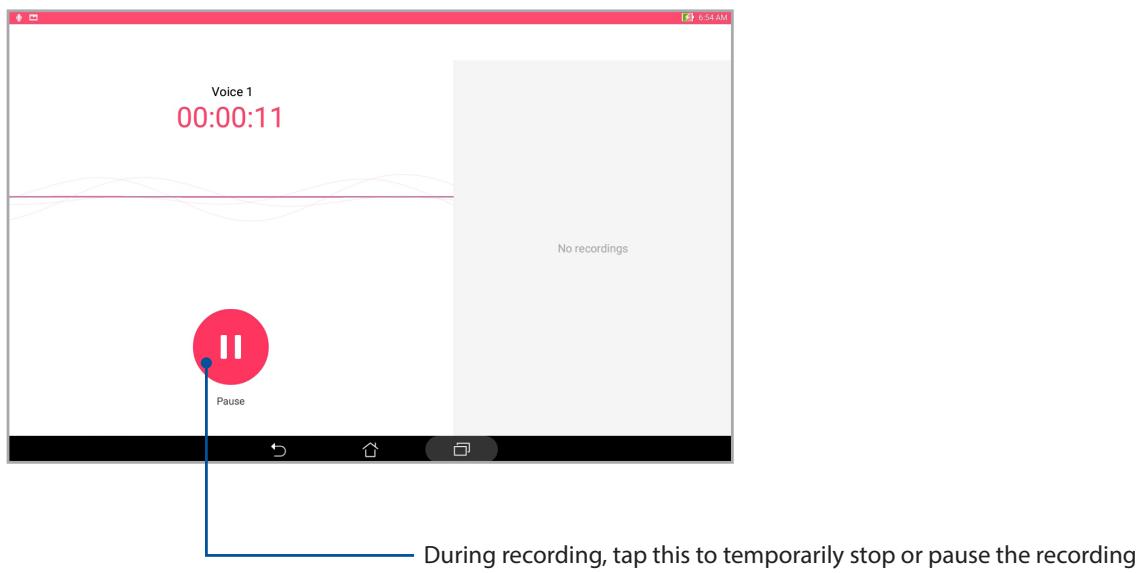

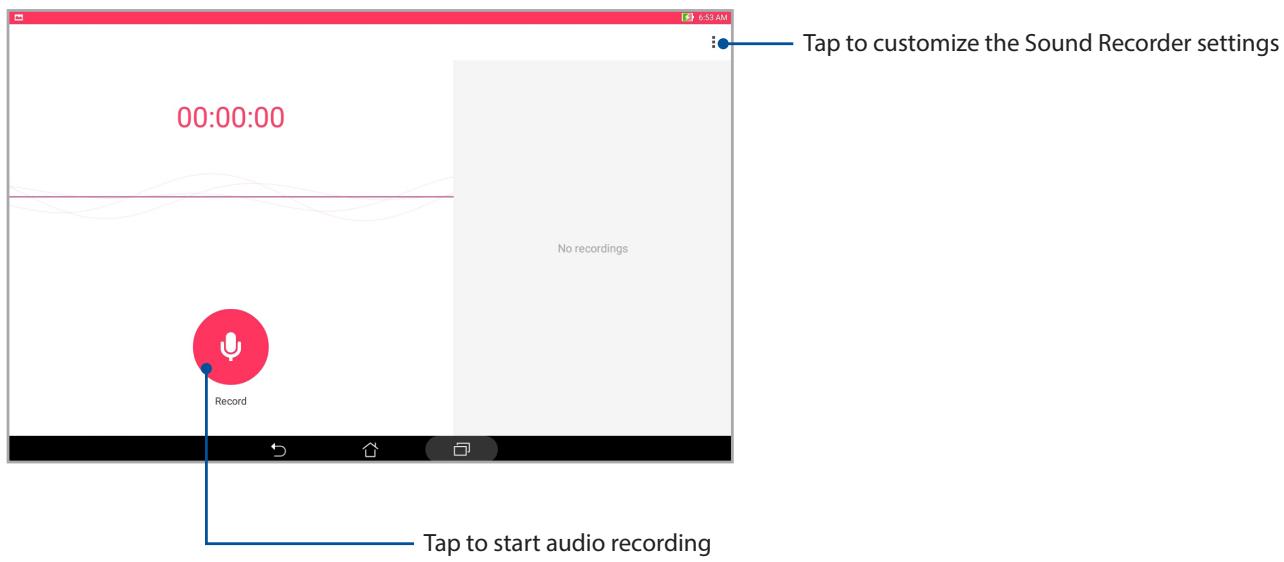

Sound Recorder 132

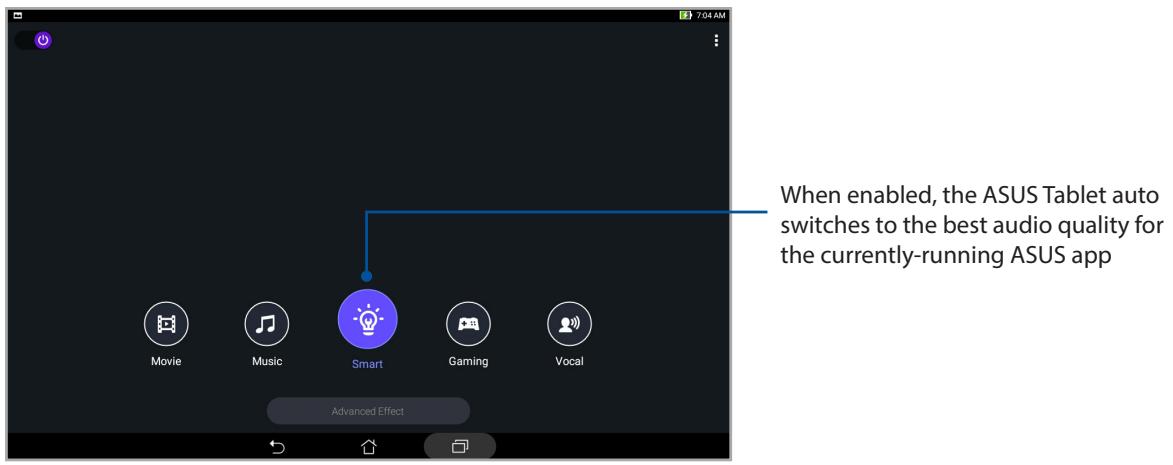

Audio Wizard 134

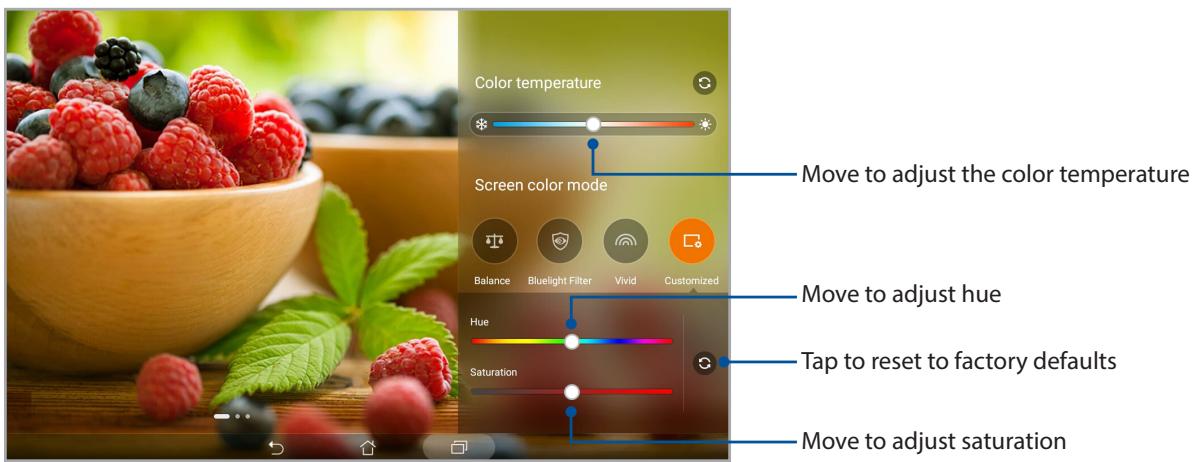

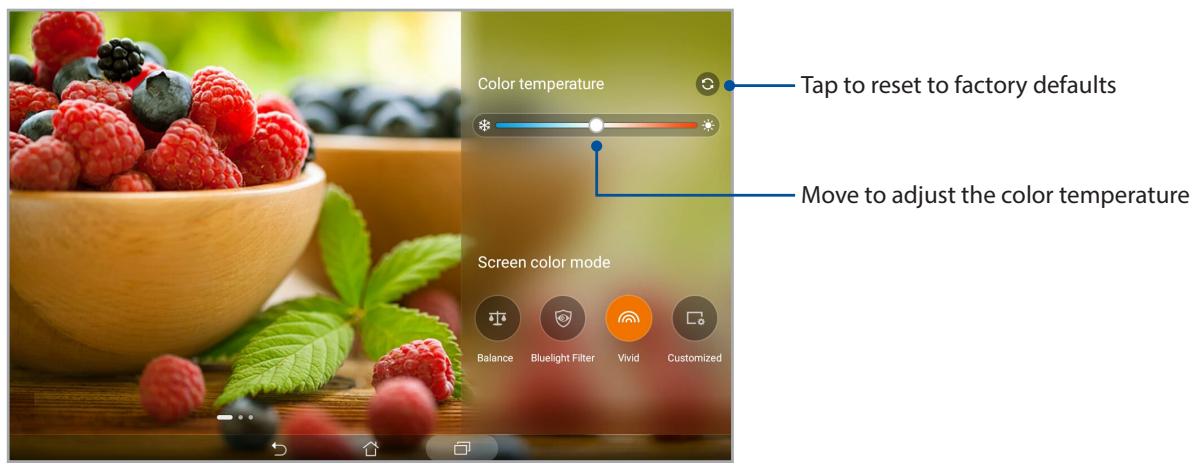

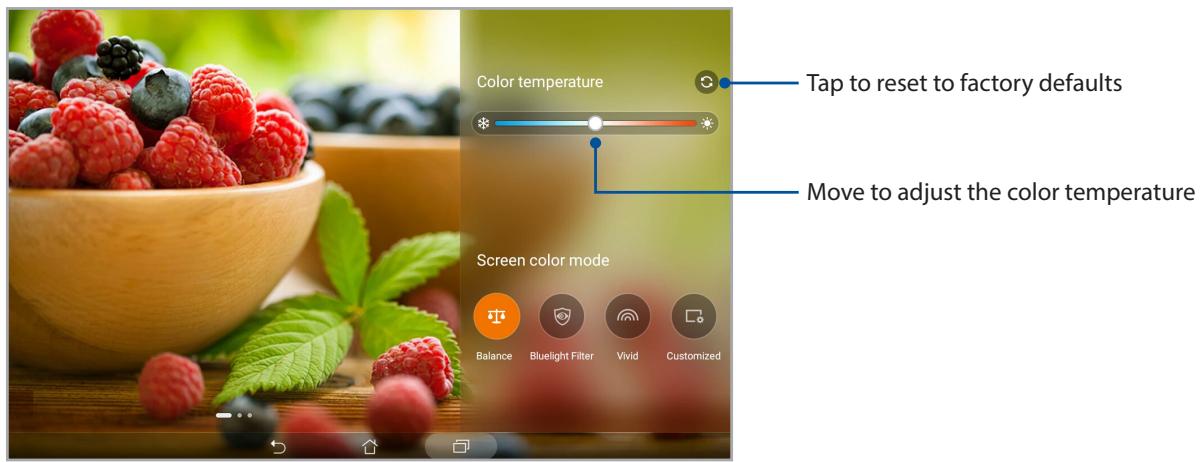

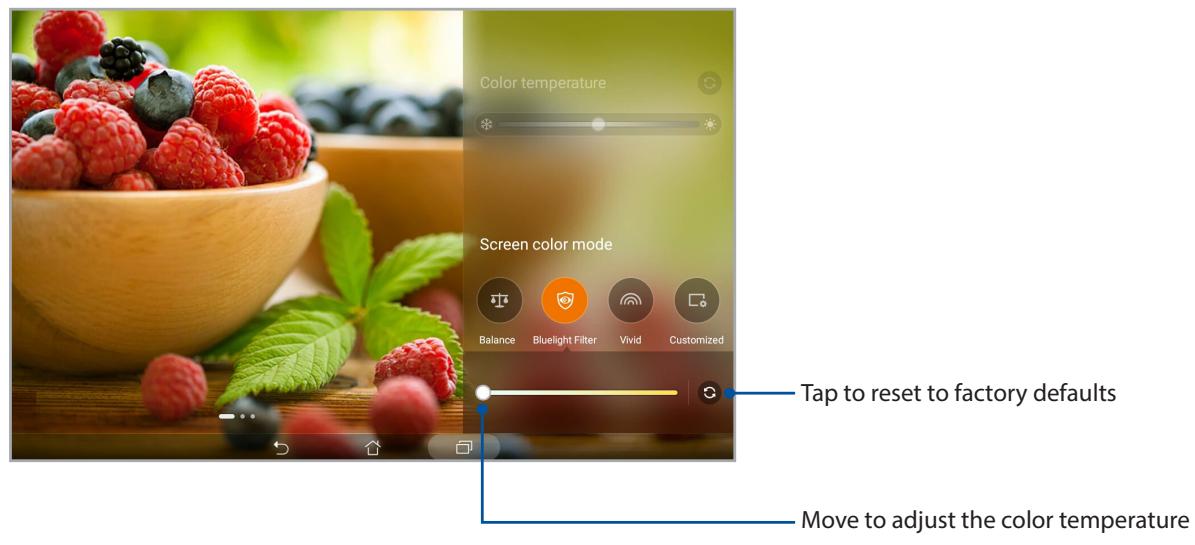

Splendid 135

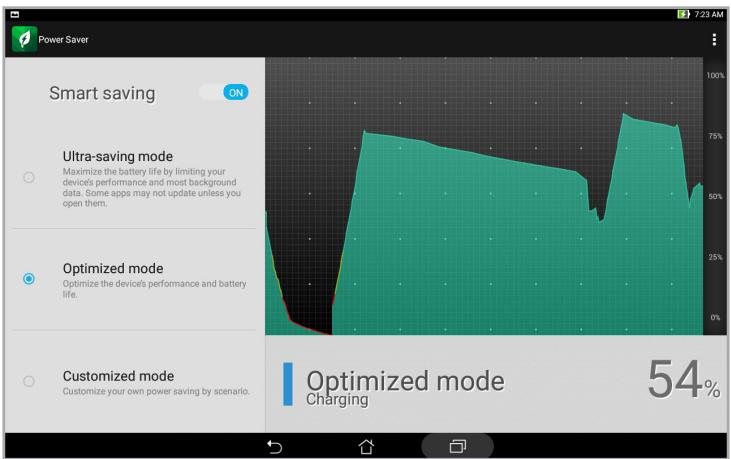

Power Saver 138

11 Maintain your Zen

Keeping your device up-to-date 141

Updating your system 141

Storage 141

Backup and reset 141

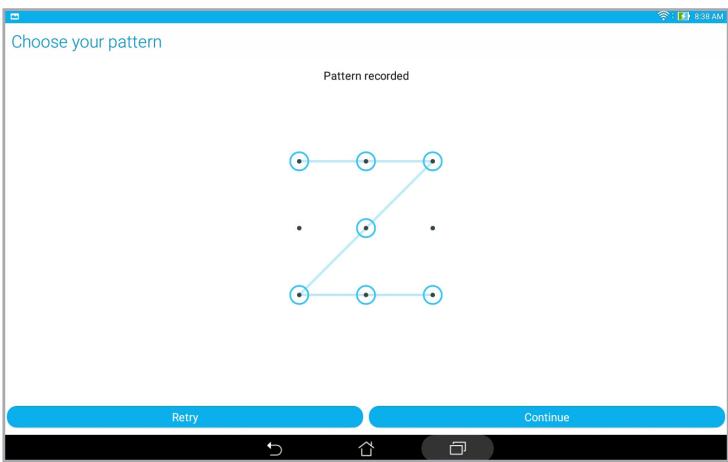

Securing your OSUs Tablet. 142

Appendix

Notices 147

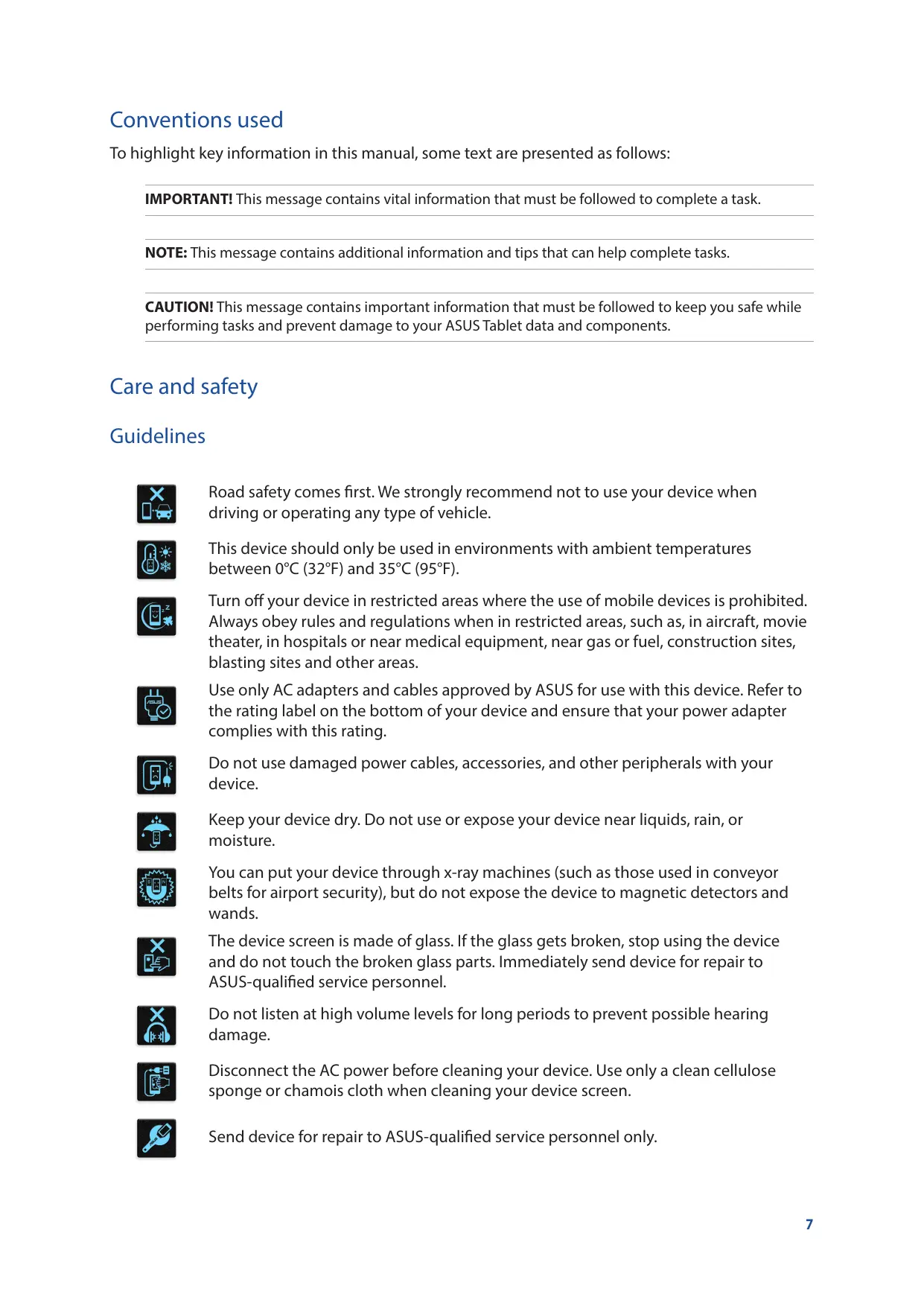

Conventions used

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

CAUTION! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your ASUS Tablet data and components.

Care and safety

Guidelines

Road safety comes first. We strongly recommend not to use your device when driving or operating any type of vehicle.

This device should only be used in environments with ambient temperatures between 0^ ( 32^ ) and 35^ ( 95^ ).

Turn off your device in restricted areas where the use of mobile devices is prohibited. Always obey rules and regulations when in restricted areas, such as, in aircraft, movie theater, in hospitals or near medical equipment, near gas or fuel, construction sites, blasting sites and other areas.

Use only AC adapters and cables approved by ASUS for use with this device. Refer to the rating label on the bottom of your device and ensure that your power adapter complies with this rating.

Do not use damaged power cables, accessories, and other peripherals with your device.

• Keep your device dry. Do not use or expose your device near liquids, rain, or moisture.

You can put your device through x-ray machines (such as those used in conveyor belts for airport security), but do not expose the device to magnetic detectors and wands.

The device screen is made of glass. If the glass gets broken, stop using the device and do not touch the broken glass parts. Immediately send device for repair to ASUS-qualified service personnel.

Do not listen at high volume levels for long periods to prevent possible hearing damage.

Disconnect the AC power before cleaning your device. Use only a clean cellulose sponge or chamois cloth when cleaning your device screen.

Send device for repair to ASUS-qualified service personnel only.

Proper disposal

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Do not throw your device in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

DO NOT throw the device in fire. DO NOT short circuit the contacts. DO NOT disassemble the device.

Get your Zen ready!

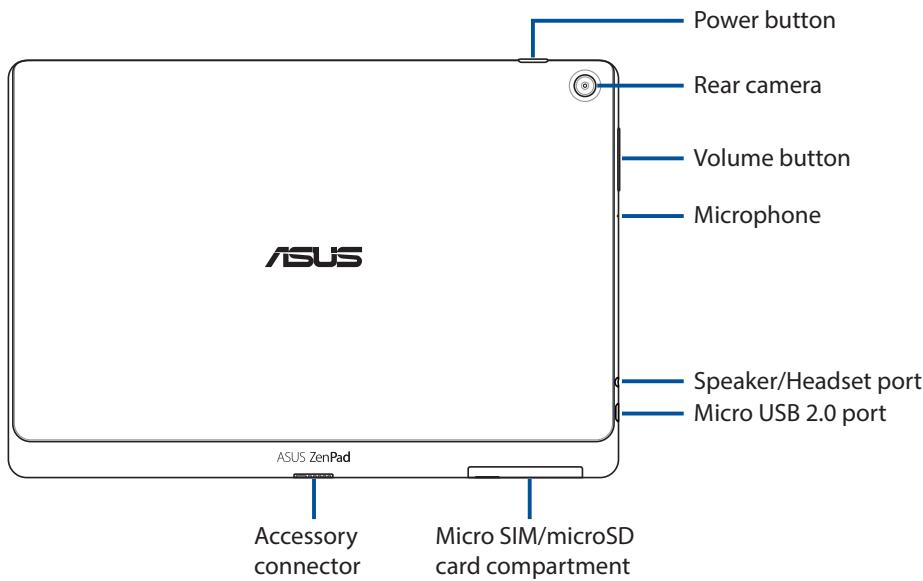

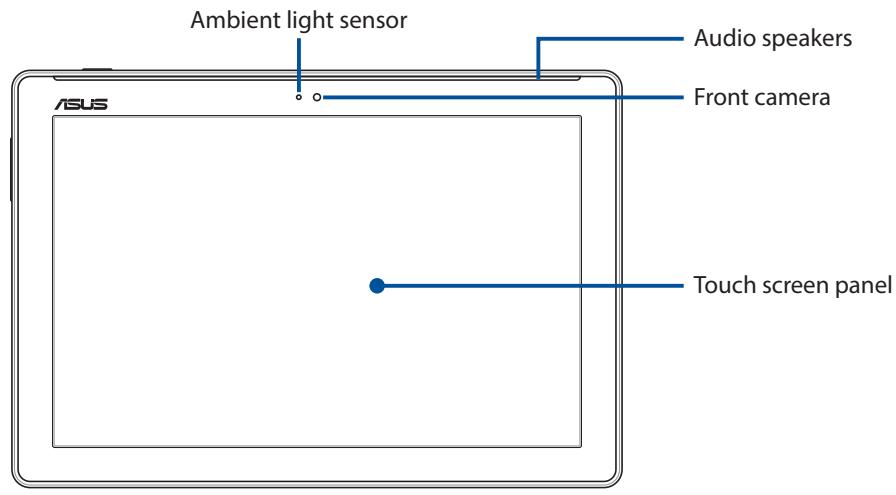

Parts and features

Take a hold of your device and have it up and running in a jiffy.

IMPORTANT! Keep the device, particularly the touch screen, dry all the time. Water or other liquids can cause the touch screen to malfunction.

NOTE:

• The card compartment's layout may vary per model.
• The micro SIM card slot is available on selected models.

Installing a memory card

Your ASUS Tablet supports a microSD™, microSDHC™, and microSDXC™ memory card with up to 128 GB of capacity.

NOTE: Some memory cards may not be compatible with your ASUS Tablet. Ensure that you use only compatible memory cards to prevent loss of data, damage to your device, or memory card, or both.

CAUTION! Be extra careful when handling a memory card. ASUS is not responsible for any data loss or damage incurred to your memory card.

To install a memory card:

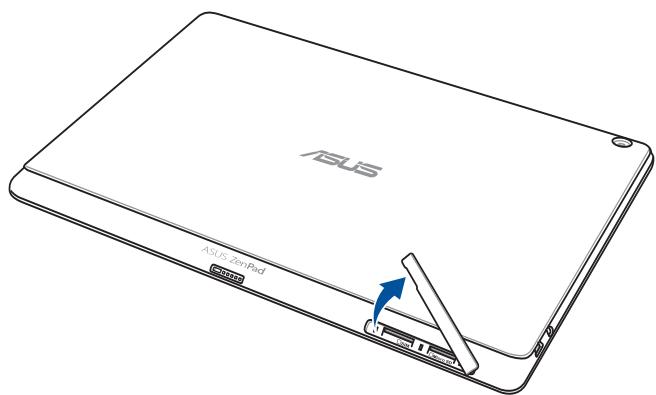

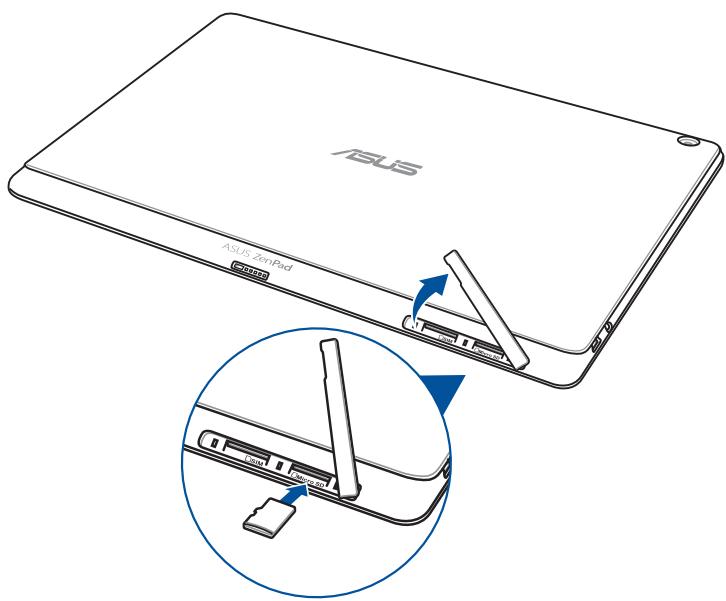

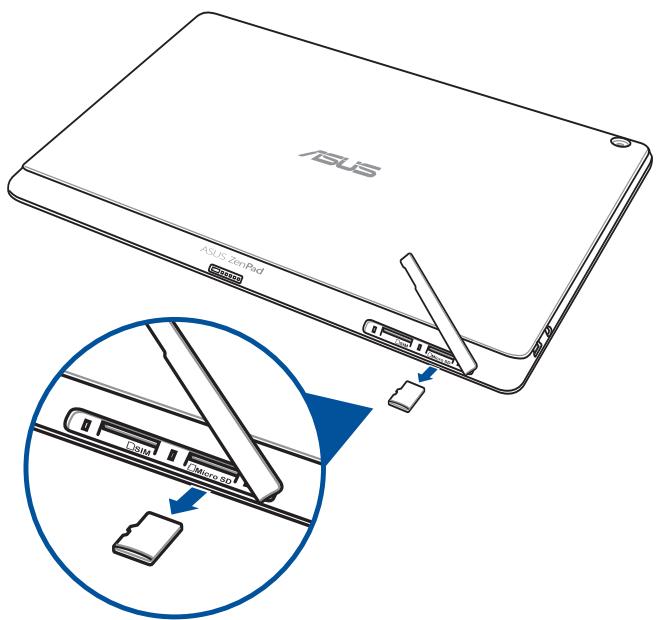

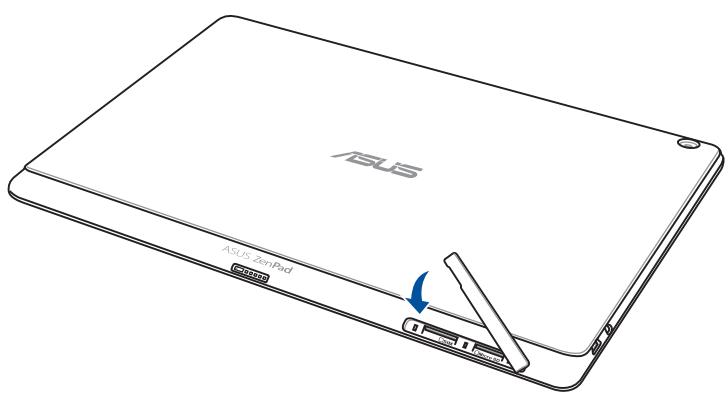

1. Orient your device as shown, and open the micro SIM/microSD card compartment.

CAUTION!

• Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
• Do not forcibly remove, shear, or distort the memory card slot cover.

NOTE: The card compartment's layout may vary per model.

1. Align and insert a memory card into the memory card slot.
2. Push the memory card all the way into the slot until it is seated firmly in place.

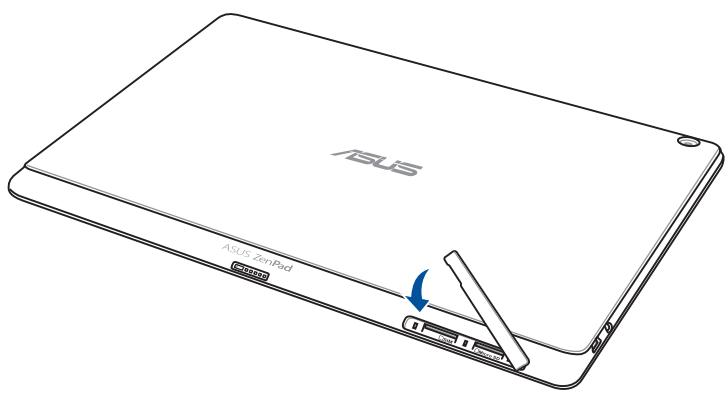

1. Put back the memory card slot cover.

NOTE: After installing a formatted memory card, you can access its contents from ASUS > File Manager > Internal storage > sdcard.

Removing a memory card

CAUTION!

• Be extra careful when handling a memory card. ASUS is not responsible for any data loss or damage incurred to your memory card.
• Eject the memory card properly to safely remove it from device. To eject the memory card, go to Settings > Storage > Unmount external storage.

To remove a memory card:

1. Orient your device as shown, and open the micro SIM/microSD card compartment.

CAUTION!

• Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
• Do not forcibly remove, shear, or distort the memory card slot cover.

NOTE: The card compartment's layout may vary per model.

1. Press the memory card to eject, then pull it out.

1. Put back the memory card slot cover.

Installing a micro SIM card (on selected models)

Your micro SIM card slot supports WCDMA and EDGE/GSM bands. Certain model supports WCDMA, LTE, and GSM network bands.

NOTE: To prevent connector damage, ensure to use a standard micro SIM card without a SIM adapter or the use of a cutter.

CAUTION! Be extra careful when handling a micro SIM card. ASUS is not responsible for any data loss or damage incurred to your micro SIM card.

To install a micro SIM card:

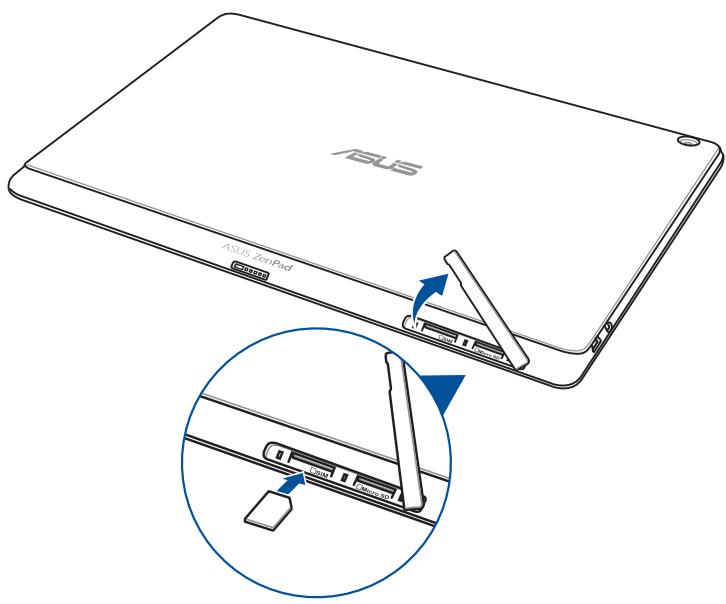

1. Orient your device as shown, and open the micro SIM/microSD card compartment.

CAUTION!

• Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
• Do not forcibly remove, shear, or distort the memory card slot cover.

1. Align and insert a micro SIM card into the micro SIM card slot.
2. Push the micro SIM card all the way into the slot until it is seated firmly in place.

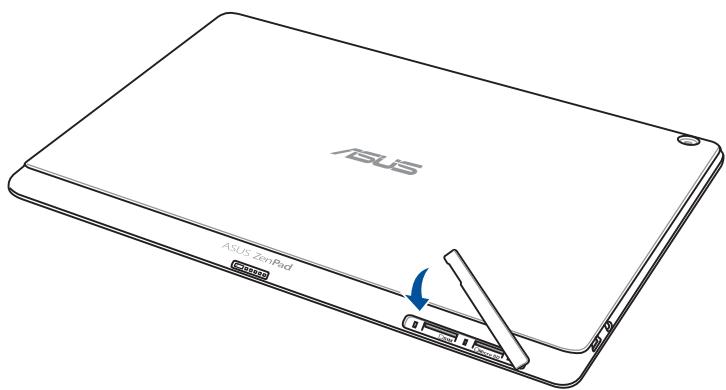

1. Put back the memory card slot cover.

Removing a micro SIM card (on selected models)

CAUTION! Be extra careful when handling a micro SIM card. ASUS is not responsible for any data loss or damage incurred to your micro SIM card.

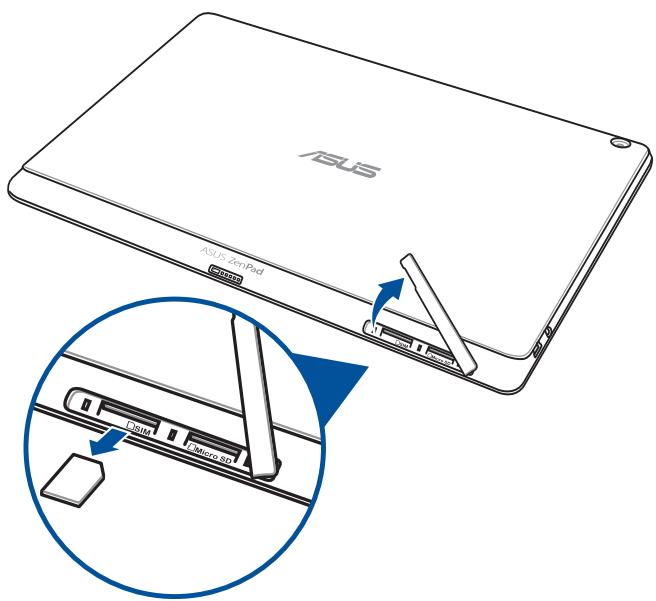

To remove a micro SIM card:

1. Orient your device as shown, and open the micro SIM/microSD card compartment.

CAUTION!

• Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
• Do not forcibly remove, shear, or distort the memory card slot cover.

1. Press the micro SIM card to eject, then pull it out.

1. Put back the memory card slot cover.

Charging your ASUS Tablet

Your Asus Tablet comes partially charged but you must charge it fully before using it for the first time. Read the following important notices and cautions before charging your device.

IMPORTANT!

• Use only the bundled AC power adapter and micro-USB cable to charge your ASUS Tablet. Using a different AC power adapter and cable may damage your device.
• Peel off the protective film on the AC power adapter and micro-USB cable before using it with your device.
• Ensure to plug the AC power adapter to a compatible power outlet. You can plug the AC power adapter to any compatible 100~240V outlet.
• The output voltage of the AC power adapter for this device is DC 5.2V, 1.35A.
• When using your ASUS Tablet while plugged-in to a power outlet, the power outlet must be near your device and easily accessible.
• Do not use or expose your ASUS Tablet near liquids, rain, or moisture.
• Do not use your ASUS Tablet near heating equipment or in places where there is likelihood of high temperature.
• Keep your ASUS Tablet away from sharp objects.
• Do not place objects on top of your ASUS Tablet.

CAUTION!

• While charging, your ASUS Tablet can become warm. This is normal, however, if your device becomes unusually hot, disconnect the micro-USB cable from your device and send the device, including the AC power adapter and cable to an ASUS-qualified service personnel.
• To prevent any damage to your ASUS Tablet, AC adapter, or micro-USB cable. Ensure that the micro-USB cable, AC adapter, and your device are connected properly before charging.

To charge your ASUS Tablet:

1. Connect the micro USB cable to the AC power adapter.
2. Plug the AC power adapter to a grounded power outlet.
3. Connect the micro USB cable to your ASUS Tablet.

IMPORTANT!

• Charge your ASUS Tablet for eight (8) hours before using it in battery mode for the first time.
• The status of battery charge is indicated by the following icons:

Low

Not Charging

Charging

Full

1. When fully-charged, disconnect the USB cable from your ASUS Tablet first before unplugging the AC power adapter from the power outlet.

NOTE:

• You can use your device while charging but it may take longer to fully charge the device.
• Charging your device via USB port of a computer may take longer to fully charge the device.
  If your computer does not provide enough power for charging via USB port, charge your ASUS Tablet using the AC power adapter plugged to a power outlet instead.

Turning your ASUS Tablet on or off

Turning your device on

To turn your device on, press and hold the power button until your device starts up.

Turning your device off

To turn your device off:

1. If your screen is turned off, press the power button to turn it on. If your screen is locked, unlock the device screen.
2. Press and hold the power button, then when prompted, tap Power off then tap OK.

Sleep mode

To put your device in sleep mode, press the power button once until the screen turns off.

Basics

Explore the intuitive simplicity of ASUS Zen UI!

ASUS Zen UI is a charming and intuitive interface exclusively for ASUS Tablets. It provides you with special apps, which are integrated in or with other apps, to fit your unique individual needs and make your life easier while letting you have fun with your ASUS Tablet.

ASUS Support Find answers from FAQs (Frequently Asked Questions) or provide your feedbacks in the user forum.

Camera With PixelMaster technology, capture those precious moments in vivid and high-quality photos and videos.

Do It Later Get hold and act on your important emails, SMS messages, interesting websites, or other important tasks when it is more convenient for you to do so.

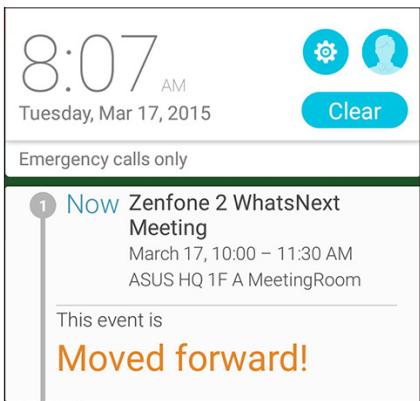

What's Next View meeting details, emails, and other event alerts or notifications at a glance right from your Home screen, Lock Screen, or What's Next app.

ZenLink Get maximum productivity from ZenLink, which comprises of Remote Link, Share Link and PC Link apps. Use any of these apps to connect with other devices for sharing and receiving files. NOTE: Availability of the ZenLink apps vary with ASUS Tablet models.

NOTE: Availability of ASUSZen UI 2.0 apps vary per region and Asus Tablet model. Tap from your Home screen to check the apps available on your Asus Tablet.

Starting for the first time

When you turn your ASUS Tablet on for the first time, Setup Wizard will guide you through the setup process. Follow the onscreen instructions to select your language, select input methods, set up your mobile network, Wi-Fi, sync accounts, and configure your location services.

Use your Google or ASUS account to set up your device, if you do not have a Google or Asus account yet, go ahead and create one.

Google Account

Using a Google Account allows you to fully utilize these Android OS features:

• Organize and see all your information from anywhere.
• Automatically backup all your data.
• Leverage Google services conveniently from anywhere.

ASUS Account

Having an ASUS Account gets you to enjoy the following perks:

Personalized ASUS support service and warranty extension for registered products.
Free 5 GB of Cloud storage space.
Receive the latest device and firmware updates.

NOTE: You can also use the Setup Wizard to reconfigure your device, any time at your convenience. From the Home screen tap > Tools > Setup Wizard.

Battery power conservation tips

The battery charge is the lifeline of your ASUS Tablet. Here are some battery power conservation tips that helps preserve the power of your ASUS Tablet's battery.

• Close all running apps that are not in use.
• When not in use, press the power button to put the device in sleep mode.
• Activate Smart Saving in Power Saver app.
• Set audio to Smart Mode.
  Decrease brightness of display.
• Keep the speaker volume to a low level.
• Disable Wi-Fi feature.
• Disable Bluetooth feature.
• Disable PlayTo feature.
• Disable GPS.
• Disable the screen auto-rotate feature.
• Disable all auto-sync features in your device.

Using your ASUS Mobile Dock

Package contents

ASUS Mobile Dock

User Guide

NOTE: If any of the items is damaged or missing, contact your retailer.

Parts and features

NOTE:

• The keyboard layout differs by model or region.
• Pair up with ZenPad 10 to experience the best audio quality available from DTS HD Premium Sound.

Two-color battery charge indicator

The two-color LED provides a visual indication of the battery's charge status. Refer to the following table for details:

Color	Status
Solid Green	Fully Charged
Solid Orange	Charging
Blinking Orange	Low Battery
Lights off	Battery mode

Keyboard and Audio indicator

The LED provides a visual indication of the pairing status. Refer to the following table for details:

Color	Status
Blinking Blue	1. Power on (lights off after two (2) seconds)
	2. Pairing successful (lights off after two (2) seconds)
	3. Speaker on (flashes once per five (5) seconds)

NOTE: In the event that your device becomes unresponsive to the pairing procedure after two (2) minutes, release and slide the Bluetooth pairing switch to the right again.

Left View

Micro USB port

NOTE: This port is for charging only, not for data transfer.

To charge your ASUS Mobile Dock:

1. Connect the micro USB cable to the power adapter.
2. Plug the power adapter into a grounded power outlet.
3. Plug the micro USB connector into your ASUS Mobile Dock.

NOTE: The input voltage of your ASUS Mobile Dock is DC 5.2V, 1.35A, 7W.

IMPORTANT!

• Use only the power adapter and micro USB cable of ZenPad 10 to charge your ASUS Mobile Dock. Using a different power adapter and cable may damage your device.
• Peel the protective film off from the power adapter and micro USB cable before charging your ASUS Mobile Dock to prevent risk of injury.
• Ensure that you plug the power adapter to the correct power outlet with the correct input rating. The output voltage of this adapter is DC 5.2V, 1.35A.
• When using your ASUS Mobile Dock while plugged-in to a power outlet, the grounded power outlet must be near the unit and easily accessible.
• Do not place heavy objects on top of your ASUS Mobile Dock.

NOTE:

• Charging through the USB port of a computer may take longer time to complete.
  If your computer does not provide enough power for charging your ASUS Mobile Dock, charge your device via the grounded power outlet instead.

Pairing your ASUS Tablet with Asus Mobile Dock

You may use your ASUS Mobile Dock to wirelessly connect with your ASUS ZenPad 10 via Bluetooth pairing. Refer to the following steps to learn how to establish this connection.

1. Turn on your ASUS Mobile Dock and its Bluetooth function by pressing the switch all the way to the right and hold for five (5) seconds.

1. Tap the notification to start pairing.

NOTE:

• Once paired, there is no need to pair your ASUS ZenPad 10 with Asus Mobile Dock again. Power on your Asus Mobile Dock and the Bluetooth connection is established automatically.
• You may also establish the Bluetooth connection by following the instruction on next page.

Pairing your Bluetooth devices with ASUS Mobile Dock

You may use your ASUS Mobile Dock to wirelessly connect with your Bluetooth devices via Bluetooth pairing. Refer to the following steps to learn how to establish this connection.

1. Turn on your ASUS Mobile Dock and its Bluetooth function by pressing the switch all the way to the right and hold for five (5) seconds.
2. Turn on the Bluetooth feature of your devices.
3. Search for the name DA01-SPK and DA01-KB under the list of Bluetooth devices for pairing, then select both.

NOTE:

• If the Bluetooth feature of your device is turned on prior to step 1, refresh and search the list of detected devices again.
• Your ASUS Mobile Dock can memorize up to eight (8) paired Bluetooth devices, but can only play music from one paired device at a time.

To disconnect the Bluetooth speaker/keyboard:

1. Slide the switch to OFF to disable the connection of both speaker and keyboard.
2. Under Settings in your Tablet, disable the connection of either speaker or keyboard.

Docking your ASUS Tablet

To dock your ASUS Tablet:

1. Put your ASUS Mobile Dock on a flat and stable surface.
2. Align your ASUS Tablet with ASUS Mobile Dock.
3. Firmly insert your ASUS Tablet into the hinge.

IMPORTANT! Always pick up the entire assembly from the bottom when your ASUS Tablet is attached to ASUS Mobile Dock.

Using the special keys

The special keys on your ASUS Mobile Dock have standalone functions and some must be used with the function key .

NOTE:

• The placement of the special keys on the Mobile Dock may vary with country or region, but their functions remain the same.
  The function key feature is available on ASUSZenPad 10.

Returns to previous page.

Activates sleep mode.

Toggles the internal wireless LAN ON or OFF.

Decreases the display brightness.

Increases the display brightness.

Captures the screen image.

Returns to the previous track when playing music.

Starts playing music from your playlist. Resumes or pauses the current playback.

Skipping to the next track during playback.

Mutes the speaker.

Decreases the speaker volume.

Increases the speaker volume.

Launches the Settings screen.

Deletes texts.

Returns to Home Screen.

Activates the properties menu and is equivalent to: or on the screen.

Press <Fn> and the arrow keys to scroll up and down or scroll to the start and end of a document or web page.

Undocking your ASUS Tablet

To undock your ASUS Tablet:

1. Put the entire assembly on a flat and stable surface.
2. Lift your ASUS Tablet from the bottom left corner to detach it from ASUS Mobile Dock.

Using the touchscreen

Use these gestures on the touchscreen to launch apps, access some settings, and navigate your ASUS Tablet.

Launching apps or selecting items

Do any of the following:

To launch an app, simply tap on it.
- To select an item such as in File Manager app, simply tap on it.

Moving or deleting items

Do any of the following:

• To move an app or widget, tap and hold then drag it to the location where you want it to be.
  To delete an app or widget from the Home screen, tap and hold then drag it to Remove.

Moving through pages or screens

Do any of the following:

• Swipe your finger to the left or to the right to switch between screens or to flip through a gallery of images.
• Scroll your finger up or down to go through web pages or list of items.

Zooming in

Spread apart your two fingers on the touch panel to zoom in an image in Gallery or Maps, or zoom in a web page.

Zooming out

Bring together your two fingers on the touch panel to zoom out an image in Gallery or Maps, or zoom out of a web page.

ZenMotion

When your touch screen panel is off, with these easy and intuitive gestures, you can launch apps on your ASUS Tablet in a snap by simply writing down an alphabet.

Gesture	Wi-Fi / 3G / LTE models
C	Camera
S	Calendar
V	Gallery
W	Browser
Z	ASUS Booster
e	Email

NOTE: Actual apps shown onscreen may vary per model. The following screenshot is for reference only.

Zen Home features

Home screen

Get reminders of important events, app and system updates, weather forecasts, and text messages from people who really matter to you, right from your Home screen.

Swipe the Home screen to the left or right to display the extended Home screen.

NOTE: To add more pages to your Home screen, see Extended Home screen.

Understanding notification icons

These icons are shown on the status bar and will guide you of the current status of your ASUS Tablet.

III	Mobile network (on selected models) Shows the signal strength of your mobile network.
	Messages Shows that you have an unread message.
Wi-Fi Shows the signal strength of your Wi-Fi connection.
Battery life Shows the battery status of your ASUS Tablet.
MicroSD card Shows that a microSD card is inserted in your ASUS Tablet.
Screenshot Shows that you took screenshots of your ASUS Tablet.
Airplane mode Shows that your ASUS Tablet is on Airplane mode.
Wi-Fi Hotspot Shows that Wi-Fi hotspot of your ASUS Tablet is enabled.
Smart Saving mode Shows that Smart Saving mode is enabled. NOTE: For more details, see Power Saver.
Mute mode Shows that Mute mode is enabled.
Bluelight Filter mode Shows that Bluelight Filter mode is enabled. NOTE: For more details, see Bluelight Filter mode.
Download status Shows the download status of an app or file.

Personalizing your Home screen

Stamp your own personality on your Home screen. Select an attractive design as your wallpaper, add shortcuts for quick access to your favorite apps, and add widgets for a quick review of important info. You can also add more pages so you can add and quickly access or view more apps or widgets on your Home screen.

App shortcuts

App shortcuts make it easier to quickly-access your often-used or favorite apps from your Home screen. You can add, remove, or group your apps into one folder.

Adding app shortcuts

Add shortcuts to quickly access your often-used apps right from your Home screen.

1. Tap and hold an empty area on your Home screen and select Apps & Widgets.
2. From the Apps list, tap and hold an app, then drag it to an empty area on your Home screen.

Removing app shortcuts

From your Home screen, tap and hold an app, then drag it to Remove on top of your screen. The app that you've removed from your Home screen will remain in the Apps screen.

Grouping your app shortcuts in a folder

Create folders to organize your app shortcuts on your Home screen.

1. On your Home screen, tap and drag an app onto another app and a folder will appear.
2. Tap the new folder and tapUnnamed Folder to assign a name to this folder.

Widgets

You can put widgets, which are small dynamic apps, on your Home screen. Widgets provide you with quick-views of the weather forecast, calendar events information, battery status, and more.

Adding widgets

To add a widget:

1. Tap and hold an empty area on your Home screen and select Apps & Widgets.
2. From the Widgets screen, tap and hold a widget, then drag it to an empty area on your Home screen.

Removing widgets

From your Home screen, tap and hold a widget, then drag it to Remove on top of your screen.

NOTE: You can also tap on your Home screen to view Apps and Widgets.

Wallpapers

Let your apps, icons, and other Zen elements sit on an attractively designed wallpaper. You may add a translucent background tint to your wallpaper for readability and clarity. You can also select an animated wallpaper to make your screen come alive.

Applying wallpaper and background tint

To apply wallpaper and background tint:

1. Tap and hold an empty area on your Home screen and select Wallpapers.
2. Select where you want your wallpaper: on your Home screen, Lock screen, or Home and Lock screen. If you do not want to add a background tint to your wallpaper, skip to step 5.
3. Tick Background tint, then adjust the transparency level.
4. Tap then select a color.
5. Select a wallpaper, then tap Apply.

Applying an animated wallpaper

To apply an animated wallpaper:

1. Tap and hold an empty area on your Home screen and select Wallpapers.
2. Select where you want your wallpaper: on your Home screen, or Home Screen and Lock screen.
3. Select an animated wallpaper, then tap Apply.

NOTE: You can also set up your wallpaper settings from Settings > Display.

Extended Home screen

Extending your Home screen

You can add more pages to extend your Home screen and put more app shortcuts and widgets on it.

1. Tap and hold an empty area on your Home screen and select Edit pages.
2. Tap + to a new page. If you wish to delete an extended Home screen, select then drag and drop it into

Setting up the date and time

By default, the date and time displayed on your Home screen automatically syncs when you are connected to the internet.

To change the date and time settings:

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Scroll down the Settings screen and select Date & time.

5. Uncheck Automatic date & time.
6. Select the time zone and manually set the date and time.
7. You can opt to use the 24-hour format, if you prefer.
8. Select the date format that you want to display.

NOTE: See also Clock.

Setting up your ringtone and alert sounds

Set up the sound for your notifications such as messages, emails, and event alerts. You can also choose to enable or disable the touch sounds or screen lock sound.

To set up the sound settings:

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Scroll down the Settings screen and select Sound & notification.

5. Set up your preferred sound settings.

Quick settings

The Quick settings panel provides a one-tap access to some of the wireless features and settings of your ASUS Tablet. Each of these features are represented by a button.

To launch the Quick settings panel, swipe down with two fingers from the top of your ASUS Tablet.

NOTE: A blue button indicates that the feature is currently enabled while a gray button indicates a disabled feature. The green buttons refer to individual utilities that you can quickly access via the Quick Settings Notification Panel.

Adding or removing buttons

To add or remove existing buttons from the ASUS Quick settings notification panel:

1. Launch Quick settings then tap
2. Tap the box beside the feature to add or remove it from the ASUS Quick settings notification panel.

NOTE: A checked box indicates that the feature's button is accessible via the ASUS Quick settings notification panel while an unchecked box means the opposite.

1. Tap to go back and view the current ASUS Quick settings notification panel.

System notifications

From System notifications, you can see the latest updates done and system changes made on your ASUS Tablet. Most of these changes are data and system-related.

To launch the System notifications panel, swipe down with two fingers from the top of your ASUS Tablet.

Lock Screen

By default, the lock screen appears after turning on your device and while waking it up from sleep mode. From the lock screen, you can proceed to your device's Android system by swiping on your touch screen panel.

Your device's lock screen can also be customized to regulate access to your mobile data and apps.

Customizing your lock screen

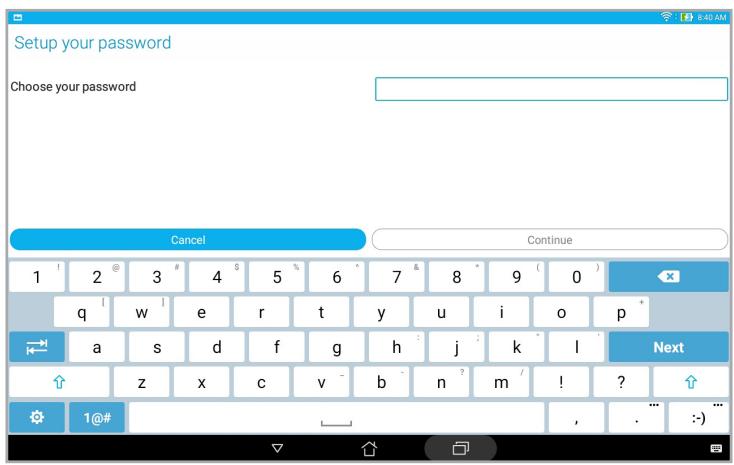

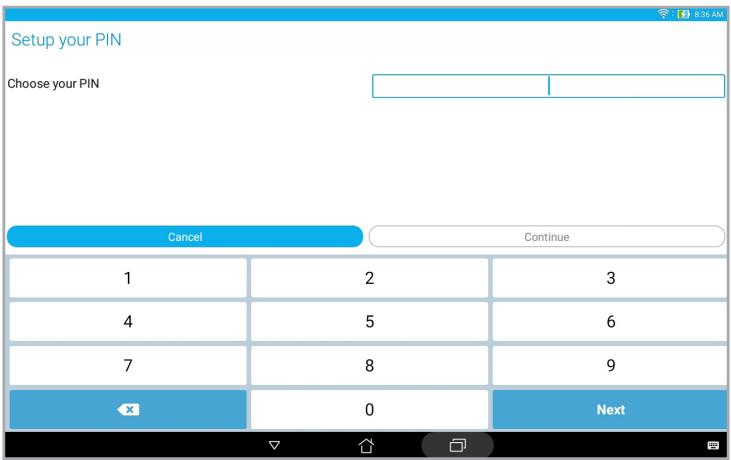

If you want to change your lock screen settings from the default Swipe option, refer to the following steps:

1. Launch Quick settings then tap

1. Scroll down the Settings screen and select Lock screen.

1. In the next screen, tap Screen lock.

1. Tap the screen lock option you would like to use.

NOTE: For more details, see Securing your ASUS Tablet.

Customizing the quick access buttons

By default, your lock screen includes quick access buttons for these apps: Messaging, and Camera. Change this default settings and customize these buttons to launch other apps on the lock screen using the following steps:

1. Launch Quick settings then tap

1. Scroll down the Settings screen and select Lock screen.
2. Tap Quick access.
3. Under the Quick access screen, select which button you would like to customize.

1. Tap the app you would like to preset on the quick access button you chose to configure.

NOTE: Scroll up or down to view the current list of apps you can preset.

Voice Search

Make voice commands to your ASUS Tablet then watch it listen and take action using the Voice Search app. Using Voice Search, you can make voice commands to accomplish the following:

Search for data and information online or on your ASUS Tablet
- Launch apps inside your ASUS Tablet
Get directions going to a location

IMPORTANT! Your ASUS Tablet must be connected to the Internet to be able to use this feature.

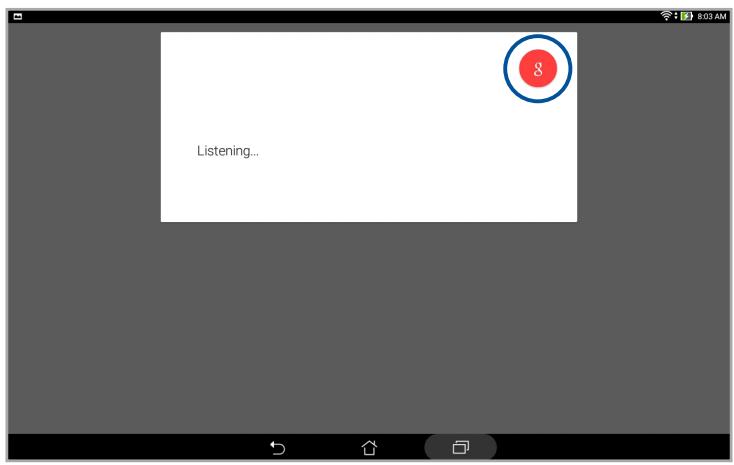

Launching Voice Search

1. Launch the Voice Search app by doing any of the following:

2. Tap on the Google search bar.

3. Tap > Voice Search.

4. Once the mic icon turns red, start saying your voice command.

NOTE: Speak clearly and use concise phrases when talking to your ASUS Tablet. It also helps to start your commands with a verb related to the ASUS Tablet feature you want to use.

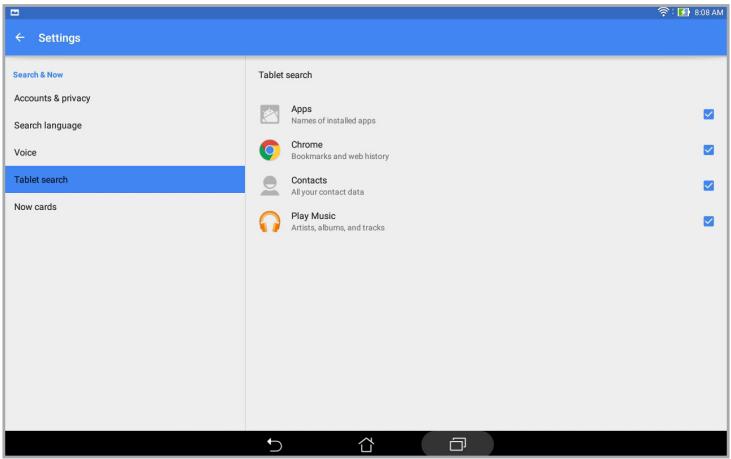

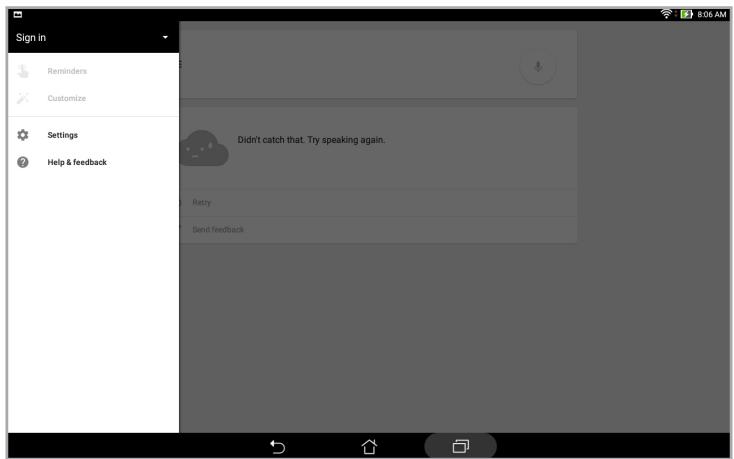

Customizing voice search results from the Tablet search group

If you want to set parameters for the voice search results gathered from your Google account and your ASUS Tablet's data, you may do so using the following steps:

1. On your ASUS Tablet's Home screen, tap > Voice Search.
2. Tap > Settings.

1. Tap Tablet search.
2. Tick the box of the search groups you would like to include as source when using Voice Search.

Managing contacts

Organize your contacts and easily stay in touch with them via SMS messages (on selected models), emails, or social networks. Group your contacts as Favorites to quickly get in touch with them, or group them as VIPs to get notified about any upcoming events or unread messages.

You can also sync your contacts with your email or social network accounts, link contacts' info for easy access in one place, or filter the contacts you want to keep in touch with.

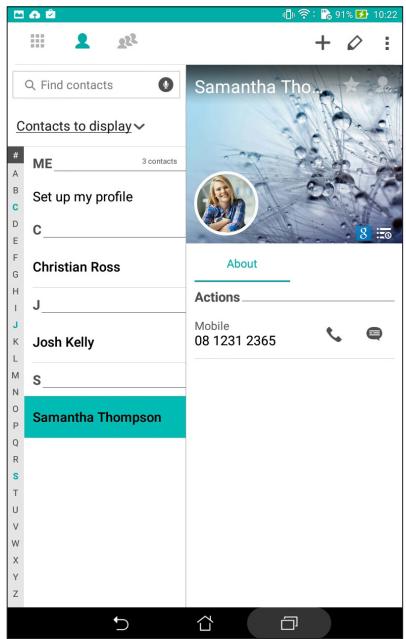

Launching the Contacts app

From your Home screen, do any of the following to launch the Contacts app:

• Tap Asus > Contacts.
• Tap > Contacts.

Contacts Settings

Select how you would want to display your contacts from the Contacts settings. Such display options include displaying only those contacts with phones, displaying contacts with source account icons, sorting list by first/last name, or viewing contact names as first/last names first. You can also choose which of these tabs to display on your Contacts screen: Favorites, Groups, or VIP.

To set up your Contacts settings, tap > Settings from the Contacts app.

Setting up your profile

Make your ASUS Tablet truly your own and set up your profile info.

1. Launch the Contacts app then tap Set up my profile or ME.

NOTE: ME appears when you've set up your Google account on your ASUS Tablet.

1. Fill in your info such as mobile or home number. To add other info, tap Add another field.
2. When you've completed your info, tap Done. To view your profile info, swipe down from the top of your screen to launch the Quick settings panel, then tap the button with your name on it.

NOTE: The screenshots in this chapter are for reference only.

Adding contacts

Add contacts to your device, corporate, Google, or other email accounts and fill in more important contact information such as contact numbers, email addresses, special events for VIPs, and more.

1. Launch the Contacts app then tap +.
2. Select Device.

NOTE:

• You can also save the contact to your SIM card (on selected models) or your email account.
  If you don't have an email account, tap Add account then create one.

• Fill in the necessary information such as mobile or home number, email address, or group where you want to put the contact in.

• After filling in the information and you want to add more contact numbers or email addresses, tap Add New.
• If you want to add other contact information, tap Add another field.
• When you've completed the info, tap Done.

Customizing your contact's profile

Edit your contact's info, add a photo, or take a photo as a cover for your contact's profile.

1. Launch the Contacts app then select the contact whose info or profile you want to edit or customize.
2. Make the changes from the contact's profile page.

Setting up your VIPs

Group your contacts as VIPs to get notified about upcoming anniversaries, birthdays, and other important events. You'll also get alerts about any unread messages or emails from your VIPs. You'll get all these notices as your What's Next alerts and reminders.

NOTE: For more details, see What's Next.

Set up your VIP from the Contacts app home screen

To set up your VIP from the Contacts app home screen:

1. Launch the Contacts app, tap and hold the contact you want to set up as a VIP, then select Add to VIP group.

Set up your VIP from the Groups screen

To set up your VIP from the Groups screen:

1. Launch the Contacts app.
2. Tap > VIP.
3. In the VIP screen, tap
4. Select the contact or contacts you want to group as VIPs, then tap Add. The contact or contacts are added to your VIP list.

Set up your VIP from the VIP screen

To set up your VIP from the VIP screen:

1. Launch the Contacts app.
2. Tap ★VIP .
3. In the VIP screen, tap +.
4. Select the contact or contacts you want to group as VIPs, then tap Add. The contact or contacts are added to your VIP list.

Adding an event to a VIP contact

You can add an event to a VIP contact such as anniversary, birthday, and other important events.

1. Launch the Contacts app, tap the contact you want to add an event detail to, then tap
2. In the contact's info screen, tap Add another field > Events.

1. Select the date for the event, then tap Set.
2. Ensure that you select VIP under the Group field. When finished, tap Done.
3. The contact's special event will appear in your calendar of events. If you want to get an event alert, set the reminder time in the Calendar app.

NOTE:

• Set the reminder time for events in Calendar to get What's Next event alerts or reminders.
• Aside from getting upcoming events reminders, you'll also get new email and SMS message from What's Next. For more details, see What's Next.

Marking your favorite contacts

Set your frequently-accessed contacts as your favorites to be able to locate them quickly from the Contacts app.

1. Launch the Contacts app by doing any of the following:

a. From the Home screen, tap ASUS > Contacts app.
b. From the All Apps screen, tap Contacts app.

1. From the Contacts app screen, tap then tap +.
2. Tick the boxes of the contacts that you wish to add to Favorites.

1. When done, tap Add. All contacts that you added appear on Favorites screen.

NOTE: You can also set a favorite contact as a VIP. For more details, refer to the section Setting up your VIPs.

Importing contacts

Import your contacts and their respective data from one contact source to your ASUS Tablet, or email account, or a micro SIM card.

1. Tap Asus > Contacts then tap > Manage contacts.
2. Tap Import/export then select from the following importing options:

a. Import from SIM card (on selected models)
b. Import from storage

1. Select from the following accounts to save the contact:

a. Email account/s
b. Device
c. SIM card (on selected models)

1. Tick to select the contacts that you wish to import and when done, tap Import.

Exporting contacts

Export your contacts to any of the storage accounts in your ASUS Tablet.

1. Tap Asus > Contacts then tap > Manage contacts.
2. Tap Import/export then select from the following exporting options:

a. Export to SIM card (on selected models)
b. Export to storage

1. Tap to select the contacts from the following accounts:

a. All contacts
b. Email account/s
c. Device
d. SIM card (on selected models)

1. Tick the contacts that you want to export.
2. When done, tap Export.

Social networking with your contacts

Integrating the social network accounts of your contacts makes it easier for you to view their profiles, news, and social feeds. Stay updated with the activities of your contacts in real time.

IMPORTANT! Before you can integrate social network accounts of your contacts, you need to log in to your social network account and sync its settings.

Syncing your social network account

Sync your social network account to add the social network accounts of your contacts to your ASUS Tablet.

1. Do any of the following to launch the Settings app:

2. Launch Quick settings then tap

3. Tap > Settings.

4. From the Settings screen, tap your social network account under Accounts section.

5. Tick Contacts to sync the social network accounts of your contacts.
6. Launch the Contacts app to view your contacts list.
7. To view only your contacts with social network accounts, tap Contacts to display then untick the other contact sources, leaving the social network name checked.
8. When done, tap or anywhere on the screen.

Send messages and more

Messaging (on selected models)

Messaging lets you send, promptly reply, or reply at a later time to important messages from your contacts in any of your SIM cards installed on your ASUS Tablet. You can also email your message threads or conversations to others to keep them in the loop.

Launching the Messaging app

From your Home screen, do any of the following to launch the Messaging app:

• Tap
• Tap > Messaging.

Sending messages

1. Launch the Messaging app then tap +.
2. In the To field, enter the number or tap + to select a contact from your list.
3. Start composing your message in the Type message field.
4. When you're done, tap

Replying messages

1. Tap your message alert from your Home screen or Lock screen.
2. Start composing your reply in the Type message field.
3. When you're done, tap

Blocking messages

Block spam messages such as sales ad messages, or messages from unwanted senders.

1. From the Home screen, tap , then tap thread of the sender that you don't want to receive any message from.
2. Tap >Blocked messages then tap Add to block list.
3. Tap OK to confirm.

Forwarding a message thread (on selected models)

You can forward a message thread or conversation to others, and set an alert so you can reply to an important message at a convenient time.

1. From the Home screen, tap .
2. Tap the message thread then tap > Forward SMS conversation.
3. Tap Select All or any of the messages from the thread, then tap Forward.
4. In the To field, tap + to select a contact's email address or mobile number.
5. When you're done, select the SIM account where you're going to send your message from. The conversation will be forwarded as an MMS (Multimedia Messaging Service) message.

NOTE:

• Ensure that you have MMS subscription with your mobile service provider.
• Ensure that data access is enabled on your device. From your Home screen, tap Settings > More > Mobile networks, then tick Data enabled.
• Mobile data and messaging rates apply when forwarding conversations to others.

Messaging later (on selected models)

You can set an important message as a reply-later task and reply to it later from the Do It Later app.

1. In the message screen, tap
2. Tap Reply later. The message is added to your Do It Later tasks.
3. To retrieve and reply to the email, tap Asus > Do It Later from the Home screen.

NOTE: For details on replying to reply-later messages, see Replying now (on selected models).

Other messaging options (on selected models)

When you are in an active message thread or while composing a message, you can tap and do any of these other options below.

Add subject	Tap to add the title of your message.
Insert smiley	Insert a smiley or emoticon into your message.
Insert text templates	Insert a predefined reply into the body of your message.
Delete messages	Tap this option and select the messages that you want to delete from the thread.
Settings	Tap this option to configure the message settings.

Linking your contacts' info

When you add social network or email accounts, data from these accounts automatically sync with the Contacts app. In some instances, some contact info may appear in several places or under different name variations or nicknames in the Contacts app. You can manually link and unify all these info and put them under one place or profile.

1. From the Contacts app, tap and hold the contact whose info you want to link, then select Link contact.
2. From the contact's profile page, tap
3. Select all the contact profiles that you think should be linked to one profile, then tap Link. You can now view and retrieve all your contact's info under one profile.

Omlet Chat

Omlet Chat is an open messaging and mobile sharing app that lets you chat with friends on the spot. It also allows you to manage your data by storing them securely to your private Cloud accounts.

NOTE:

• Omlet Chat app may only be available in some countries.
• On its first use, you have to visit Play Store to update Omlet Chat. You must have a Google account to update Omlet Chat.

Registering to Omlet Chat

Register to Omlet Chat with any of the following accounts:

• Email account
  Gmail account
  Facebook account

Using your Google™ account

To register using your Google™ account:

1. Tap then tap Omlet Chat.
2. On the Sign Up screen, tap Connect a different account here then tap Google.
3. Tap OK to use the Google account that you registered with your device.
4. Key in your name then tap Get Started.
5. Tap Okay! Let's do it! to update your friends from your contacts list. Tap No thanks to add your friends manually to your contacts list.

NOTE: Your Omlet contacts are automatically integrated to your contacts list in Contacts app. Refer to section Viewing your Omlet contacts from Contacts app for more information.

1. Tap to display the Omlet Chat menu.

Using your email account

To register using your email account:

1. Tap then tap Omlet Chat.
2. On the Sign Up screen, tap Connect a different account here then tap Email.
3. Key in your email account then tap Next. Omlet Chat app will send a confirmation email to your email account.
4. From your email account, open the confirmation email from Omlet then tap the link to activate your account.
5. Key in your name then tap Get Started.
6. Tap Okay! Let's do it! to update your friends from your contacts list. Tap No thanks to add your friends manually to your contacts list.

NOTE: Your Omlet contacts are automatically integrated to your contacts list in Contacts app. Refer to section Viewing your Omlet contacts from Contacts app for more information.

1. Tap to display the Omlet Chat menu.

Using your Facebook® account

To register using your Facebook account:

1. Tap then tap Omlet Chat.
2. On the Sign Up screen, tap Connect a different account here then tap Facebook. Omlet Chat app will take you to Facebook screen to log in to your Facebook account.
3. Log in to your Facebook account then tap OK.
4. Key in your name then tap Get Started.
5. Tap Okay! Let's do it! to update your friends from your contacts list. Tap No thanks to add your friends manually to your contacts list.

NOTE: Your Omlet contacts are automatically integrated to your contacts list in Contacts app. Refer to section Viewing your Omlet contacts from Contacts app for more information.

1. Tap to display the Omlet Chat menu.

Sending Omlet invites

Invite your friends to use Omlet Chat by sending them Omlet invites to their email or Facebook account.

Sending Omlet invites via Facebook

To send an Omlet invite via Facebook:

1. From the Omlet Chat screen, tap to display Omlet Chat menu.
2. Tap Contacts then tap Add/Invite friends.
3. From the Add contacts screen, tap Invite Facebook friends.
4. Log in to your Facebook account then tap OK to let Omlet Chat access your account.
5. Tap + to select the contacts then tap Send.

Sending Omlet invites via email

1. From the Omlet Chat screen, tap to display Omlet Chat menu.
2. Tap Contacts then tap Add/Invite friends.
3. From the Add contacts screen, tap Invite address book friends.
4. Tick to select the contacts, then tap

Using Omlet chat

Send text and multimedia messages for a fun, creative, and interactive conversation.

To start a conversation:

1. From the Omlet Chat screen, tap to display Omlet Chat menu then tap Contacts.
2. Tap the contact that you wish to chat then tap

Sending a chat message

To send a chat message, key in your message in What's up field then tap

Sending a voice message

To send a voice message, tap and hold while saying your message then release to send.

Sending a virtual sticker

To send a virtual sticker, tap then select from the available virtual stickers.

NOTE: You can download more virtual stickers from Sticker Store. To download the virtual stickers, tap

+

then tap

Using drawer apps

Omlet Chat features these value-added drawer apps, allowing you to share multimedia messages for a more fun and personal touch.

To use these drawer apps, tap + from the chat thread then select an app from the drawer app list to send a specific multimedia message.

More drawer apps

Aside from the default apps in the drawer app list, there are other apps listed in your Omlet Chat app that you can use. Simply tap + from the chat thread, then tap + to view more drawer apps.

Using other drawer apps

To use other drawer app, tap + then tap an app to launch it.

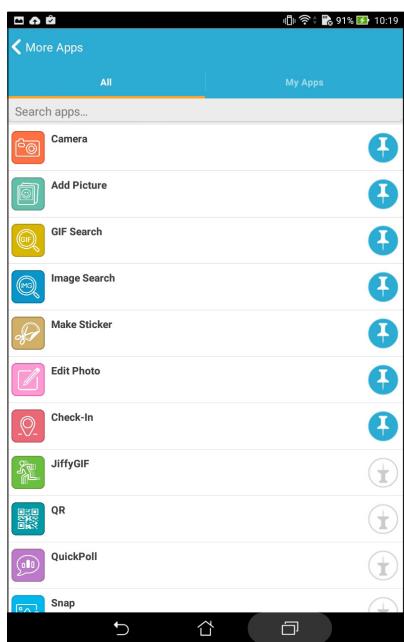

Adding more drawer apps to the drawer app list

Tap to view more apps, then tap to pin the app.

NOTE: The drawer apps may vary depending on location.

Viewing shared photos in Gallery app

The photos that you and your friends have shared in the Omlet Chat app's chat room are instantly saved to your device. You can view the shared photos using the Gallery app.

To view the shared photos:

1. Launch the Gallery app by doing any of the following:

a. From the Home screen, tap ASUS > Gallery app.
b. From the All Apps screen, tap Gallery app.

1. From the Gallery main screen, tap then select from the following options:

a. All shared photos
b. Chat room
c. Sharer

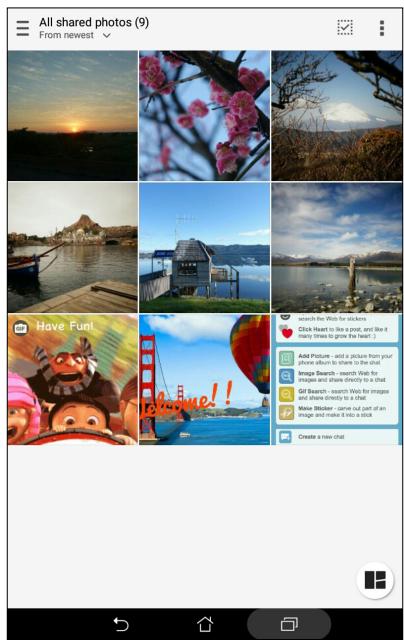

Viewing all shared photos

Tap All shared photos to view all photos shared by you and your Omlet Chat contacts.

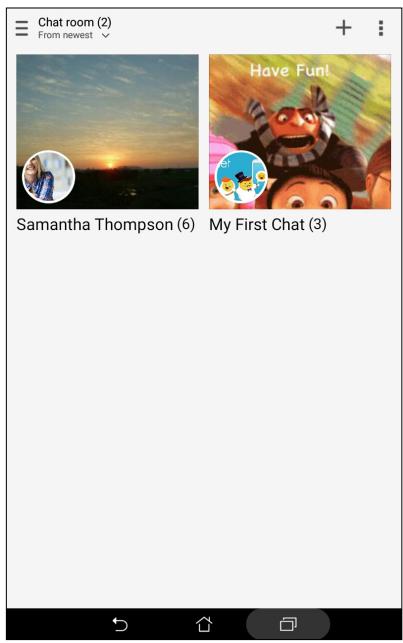

Viewing shared photos by chat room

Tap Chat room to view photos shared by chat room or social hotspot.

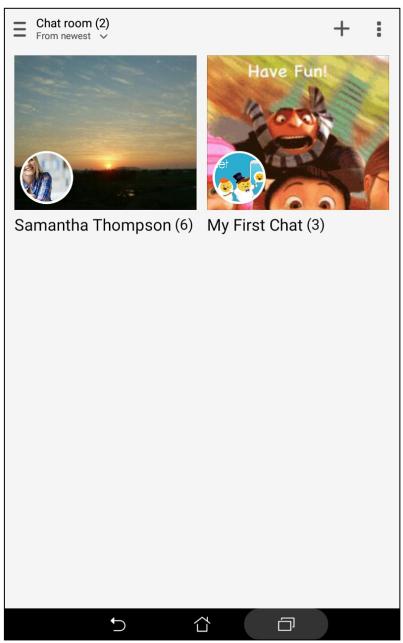

Viewing shared photos by sharer

Tap Sharer to view photos shared by an Omlet Chat contact.

Viewing your Omlet contacts from Contacts app

Aside from connecting with your Omlet contacts in Omlet Chat app, you can also view and chat with your Omlet contacts using the Contacts app. The integration of your Omlet contacts to the Contacts app makes it easier for you to look up and chat to your Omlet contacts even without launching Omlet Chat app.

To view Omlet Contacts from Contacts app:

1. Launch the Contacts app by doing any of the following:

a. From the Home screen, tap ASUS > Contacts app.
b. From the All Apps screen, tap Contacts app.

1. Tap Contacts to display dropdown list to view the contact groups.

1. Untick all contact groups except Omlet Chat, then tap anywhere. Your Contacts screen displays all Omlet contacts.
2. Tap an Omlet contact to select and view the contact details or chat with that contact directly.

Syncing Omlet Chat to Cloud

If you have a Dropbox®, Box®, or Baidu PCS Cloud account, the Omlet Chat app instantly uploads your private conversations and chat logs securely.

Before Omlet Chat app uploads your data, you have to sync your Cloud account to Omlet Chat app first. To do this:

1. From the Omlet Chat menu, tap Settings.
2. Tap Cloud Storage, then select from the following Cloud services:

a. Dropout
b. Box
c. Baidu PCS
d. OneDrive
e. Google Drive

1. Key in your username and password to log in to your Cloud account. Follow the onscreen instructions to sync your Cloud account with Omlet Chat app.

NOTE: The following screenshot is for reference only.

Capture moments

Launching the Camera app

Capture images and record videos using your ASUS Tablet's Camera app. Refer to any of the steps below to open the Camera app.

From the lock screen

Drag down until the camera app is launched.

From the home screen

Tap

Using the volume key

While your ASUS Tablet is on sleep mode, double-click the volume key to wake it up and immediately launch the Camera app.

NOTE: Before using the volume key to launch the Camera app, enable this function from Settings > Lock screen, then slide Instant camera to ON.

Using Camera for the first time

After launching the Camera for the first time, two consecutive features appear to help you get started: Tutorial and Image locations.

Tutorial

If it is your first time to use your ASUS Tablet's camera, you will encounter the following tutorial screen after launching the Camera app. Refer to the following steps to proceed from this screen.

1. On the Tutorial screen, tap Skip if you want to skip viewing or Start to view the basic tutorial about using Camera.
2. After tapping either of these options, you will then proceed to the Remember Photo Locations screen.

Photo Locations

After going through the Tutorial screen, the Remember Photo Locations screen appears to help you create automatic location tags for your images. Refer to the following steps to proceed from this screen:

1. On the Remember Photo Locations screen, tap No thanks to proceed to the camera screen or Yes to set up location tagging for your captured images.
2. Slide Location Access to ON to enable the location tagging feature.
3. Tap Agree on the next screen to fully enable the feature and proceed to the Camera screen.

Camera home screen

Your Asus Tablet's camera is equipped with auto-scene detection and auto-image stabilizer features. It also features a video stabilization function that helps prevent shakiness while video recording.

Tap the icons to start using your camera and explore the image and video features of your ASUS Tablet.

Image settings

Adjust the appearance of your captured images by configuring your camera's settings using the steps below.

IMPORTANT! Apply the settings first before taking images.

1. On the camera's home screen, tap

1. Scroll down and configure the available options.


Configure the image quality using these options.

Shoot mode

Set your shutter speed to Timer mode, enable Touch shutter or change the Burst speed under this option.

Focus & Exposure

Enable Face detection, or set Metering mode and Focus mode under this option.

Video settings

Adjust the appearance of your recorded videos by configuring your camera's settings using the steps below.

IMPORTANT! Apply the settings first before taking images.

1. On the camera's home screen, tap 0 > 0 .
2. Scroll down and configure the available options.


Configure the video quality using these options.

Focus & Exposure

Enable Touch auto-exposure under this option.

Advanced camera features

Explore new ways of capturing images or videos and make captured moments extra special using the advanced camera features of your ASUS Tablet.

IMPORTANT! Apply the settings first before taking images. Available features may vary per model.

HDR

The HDR (High-Dynamic-Range) feature allows you to take more detailed images for low-light and highly contrasting scenes. HDR is recommended for use when taking images on brightly lit locations, helping balance out the colors produced on your image.

Capturing HDR photos

1. From the Camera app's home screen, tap > HDR.
2. Tap to start capturing HDR photos.

Beautification

Have fun during and after taking photos of your family and friends using the Beautification feature of your ASUS Tablet. When enabled, this feature allows you to make live beauty enhancements on your subject's face before you press the shutter button.

Capturing Beautification photos

1. From the Camera app's home screen, tap > Beautification.
2. Tap to adjust the Beautification settings to apply to the photo.
3. Tap to start capturing the photo.

NOTE: Drag leftwards to set a countdown timer.

Applying Beautification to photos

1. Tap the thumbnail to preview the photo and display the Beautification settings.
2. Tap the photo and tap to select your preferred Beautification feature, then tap to save the photo.

Low light (on selected models)

Using PixelMaster, your camera's light sensitivity is increased by up to 400% to enhance noise reduction and boost color contrast by up to 200% . Use this mode to transform any subject into a great photo or video—with or without ample natural lighting.

Capturing Low light photos

1. From the Camera app's home screen, tap l > Low light.
2. Tap to start capturing photos.

Capturing Low light videos

1. From the Camera app's home screen, tap > Low light.
2. Tap to start recording a video.

Night

Take well-lit photos even on night time or on low-light situations using the Night feature of your ASUS Tablet.

NOTE: Keep your hands steady before and while the ASUS Tablet is capturing the image to prevent blurry results.

Capturing Night photos

1. From the Camera app's home screen, tap > Night.
2. Tap to start capturing Night photos.

Depth of Field

Take macro shots with a soft background using the Depth of Field. This feature suits close up photos of subjects for a more defined and dramatic result.

Capturing Depth of Field photos

1. From the Camera app screen, tap > Depth of Field.
2. Tap to start capturing photos.
3. Tap or to increase or decrease the background blur.
4. Tap × to save the photo.

Effect

Take photos using different effects such as Pixelize, Cartoon, Vintage, LOMO or other effects.

NOTE: Effect should be selected before taking the photo.

Capturing Effect photos

1. From the Camera app screen, tap > Effect.
2. Tap and select an effect to apply to the photo.
3. Tap to start capturing photos.

Applying effects to photos

1. Tap the thumbnail to preview the photo.
2. Tap the photo and tap to select your preferred effect, then tap to save the photo.

Selfie

Take advantage of your rear camera's high megapixel specs without worrying about pressing the shutter button. Using face-detection, you can set your ASUS Tablet to detect up to four faces using the rear camera then automatically capture your selfie or group selfie.

Capturing Selfie photos

1. From the Camera app screen, tap > Selfie.
2. Tap to choose how many people should be included in the photo.
3. Use the rear camera to detect faces and wait for your ASUS Tablet to start beeping, counting down until it captures the photo.
4. Tap × to save the photo.

GIF animation

Create GIF (Graphics Interchange Format) images straight from your ASUS Tablet's camera using the GIF animation feature.

Capturing GIF animation photos

1. From the Camera app's home screen, tap > GIF Animation.
2. Long press to start capturing burst photo for GIF animation.
3. Make your preferred adjustments to the GIF animation settings.
4. Tap when finished.

Panorama

Capture images from various angles using Panorama. Images captured from a wide angle perspective are automatically stitched together using this feature.

Capturing panoramic photos

1. From the Camera app's home screen, tap > Panorama.
2. Tap then pan your ASUS Tablet to the left or right to capture the scenery.

NOTE: While panning your ASUS Tablet, a timeline of thumbnails appears on the lower part of your screen as it captures the scenery.

1. Tap when finished.

Miniature

Simulate the tilt-shift effect of DSLR lenses via the Miniature feature. Using this feature allows you to focus on specific areas of your subject, adding a bokeh effect that can be used on both photos and video using your ASUS Tablet.

Capturing Miniature photos

1. From the Camera app screen, tap > Miniature.
2. Tap or to select your focus area, then use your two fingers to adjust the focus area's size and position.
3. Tap 4 or 5 to increase or decrease the background blur. Tap 4 or 5 to increase or decrease saturation.
4. Tap to capture Miniature photos.

Smart remove

Eliminate unwanted details immediately after capturing the image using the Smart remove feature.

Capturing Smart remove photos

1. From the Camera app screen, tap >Smart remove.
2. Tap to start capturing photos that can be edited using Smart remove.
3. On the captured photo, tap the outline around the detected moving object to delete it.
4. Tap × to save the photo.

All Smiles

Capture the perfect smile or the wackiest facial expression from a range of photos using the All Smiles feature. This feature lets you take five consecutive photos after pressing the shutter button, automatically detecting faces on the image for comparison.

Capturing All smiles photos

1. From the Camera app's home screen, tap > All smiles.
2. Tap to start capturing photos that can be edited using All Smiles.
3. Touch the subject's face, then select the subject's best facial expression.
4. Swipe down from the top, then tap × to save the photo.

Time lapse

The time lapse video feature of your ASUS Tablet allows you to capture stills for automatic time lapse playback. In effect, events seem to move in a fast-forward manner though they actually occurred and were recorded between long intervals.

Recording Time lapse videos

1. From the Camera app's home screen, tap Time lapse.
2. Tap then select the time lapse interval.
3. Tap to start taking Time lapse videos.

Using the Gallery

View images and play videos on your ASUS Tablet using the Gallery app.

This app also allows you to edit, share, or delete image and video files stored in your ASUS Tablet. From Gallery, you can display images in a slideshow or tap to view the selected image or video file.

To launch Gallery, tap > Gallery.

Viewing files from your social network or cloud storage

By default, your Gallery displays all the media files on your ASUS Tablet according to their album folders.

To view the media files from other locations accessible via your ASUS Tablet:

1. From the Gallery screen, tap
2. Tap any of the following source locations to view their respective media files.

NOTE:

• You can download photos to your ASUS Tablet from your cloud account and use them as your wallpaper or a contact's cover image.
  For details on adding cover images to your contacts, see Customizing your contact's profile.
  For details on using photos or images as your wallpaper, see Wallpapers.

IMPORTANT! Internet connection is required for viewing photos and videos under My cloud photos and Friends photos.

Viewing the photo location

Enable the location access on your ASUS Tablet, and get the location details on your photos. Your photos' location details include the area where the photos are taken, as well a map of the location via Google Map or Baidu (in China only).

To view the details of a photo:

1. Turn on the location access from > Settings > Location.
2. Ensure that you have shared your location to Google Map or Baidu.
3. Launch the Gallery app, and select the photo whose photo details you want to view.
4. Tap the photo then tap

Sharing files from the Gallery

1. From the Gallery screen, tap the folder where the files you want to share are located.
2. After opening the folder, tap to activate file selection.
3. Tap the files you want to share. A check mark appears on top of the image you select.
4. Tap then select from the list where you want to share the images.

Deleting files from the Gallery

1. From the Gallery screen, tap the folder where the files you want to delete are located.
2. After opening the folder, tap to activate file selection.
3. Tap the files you want to delete. A check mark appears on top of the image you select.
4. Tap

Editing images

The Gallery also features its own image editing tools that you can use to enhance images saved on your ASUS Tablet.

1. From the Gallery screen, tap the folder where the files are located.
2. After opening the folder, tap the image you want to edit.
3. Once the image is opened, tap it again to show its functions.
4. Tap to open the image editing toolbar.
5. Tap any of the icons on the editing toolbar to apply changes to the image.

Zooming in/out the thumbnails or images

From the Gallery screen or your selected image, spread apart your fingers on the touchscreen panel to zoom in. To zoom out, bring your fingers together on the touchscreen panel.

Using MiniMovie

Turn photos into a creative slideshow using the MiniMovie feature of the Gallery. MiniMovie contains a theme of slideshow presentations which you can immediately apply to selected photos.

To create a MiniMovie from a photo folder:

1. Launch Gallery then tap to select the location of your photo folder.
2. Select the photo folder then tap > Auto MiniMovie.
3. Select the MiniMovie theme you would like to use for your photo slideshow.

1. After selecting a theme, tap to save the slideshow.
2. You can then share the slideshow to social network sites or instant messaging apps such as Facebook, Google Plus, or Omlet Chat.

To create a MiniMovie from a selection of photos:

1. Launch Gallery then tap to select the location of your photos.
2. Tap to activate file selection.
3. After selecting your photos, tap MiniMovie.
4. Select the MiniMovie theme you would like to use for your photo slideshow.

1. After selecting a theme, tap to save the slideshow. You can access your saved slideshows from ASUS > File Manager > Movies > MiniMovie.
2. You can then share the slideshow to social network sites or instant messaging apps such as Facebook, Google Plus, or Omlet Chat.

Using PlayTo

Play files from your Gallery to a compatible streaming device using PlayTo.

1. From the Gallery screen, tap or the folder where the file you want to screencast is located.
2. Tap >PlayTo.
3. In the next screen, select a compatible device to start screencasting your file.

Browser

Your browser's state-of-the-art Chromium-based engine lets you surf the Internet at a fast loading speed. Its clean and intuitive Zen interface powered by text-reflow technology optimizes web contents to better fit the screen of your ASUS Tablet. With its magazine view mode via its Smart Reader feature, you can pleasantly read your favorite web contents online or offline without any distracting items such as banner ads. You can also mark an interesting page as a read later task, which you can retrieve from the Do It Later app and read at your convenient pace.

IMPORTANT! Before doing any Internet surfing or Internet-related activities, ensure that your ASUS Tablet is connected to a Wi-Fi network. For more details, see Staying connected.

Launching the Browser app

From your Home screen, do any of the following to launch the Browser app:

• Tap
• Tap > Browser.

Sharing pages

Share interesting pages from your ASUS Tablet to others via an email account, cloud storage account, Bluetooth, or other ASUS Tablet apps.

1. Launch the browser.
2. From a web page, tap > Share page.
3. Tap the account or app that you want to use as medium in sharing the page.

Reading the pages later

When there's an interesting piece of information online yet you don't currently have the time to read it, you can mark it as a read later task. You can retrieve and read this page at a convenient time from the Do It Later app.

1. From the page, tap > Read later.
2. To retrieve the page, tap Asus > Do It Later from the Home screen.

NOTE: For details on browsing Read later pages, see Catching up on my online reading now.

Adding a new tab

Hide the current website and open a new window to continue surfing or browsing another website.

1. From the current page, tap New tab or tap + beside the current tab.
2. Enter the URL address in the URL field and continue enjoying browsing the Internet from your ASUS Tablet.
3. If you want to do add another tab, follow step 1 again.

NOTE:

• Opening many websites in your browser slows down its loading performance.
• If Internet connection slows down, try clearing the cache. For details, refer to the section Clearing the browser cache.

Bookmarking pages

Bookmark your favorite pages or websites so you can go back and browse them again.

To bookmark a page:

From the page, tap > Save to bookmarks. The next time you open your browser, you can quickly tap on your bookmarked page.

Clearing the browser cache

Clear the browser cache to delete temporary Internet files, websites, and cookies that are temporarily stored in your ASUS Tablet. This helps improve the loading performance of your browser.

1. Launch the browser.
2. Tap > Settings > Privacy & security > Clear cache.
3. Click OK on the confirmation message.

Email

Add Exchange, Gmail, Yahoo! Mail, Outlook.com, POP3/IMAP accounts so you can receive, create, and browse emails right from your device. You can also sync your email contacts from these accounts to your ASUS Tablet.

IMPORTANT! Your ASUS Tablet must be connected to a Wi-Fi or mobile network so you can add an email account or send and receive emails from added accounts. For more details, see Staying connected.

Setting up email accounts

Set up your existing personal or work email account so you can receive, read, and send emails from your ASUS Tablet.

1. From the Home screen, tap Email to launch the Email app.
2. Tap the mail provider you want to set up.
3. Key in your email address and password and tap Next.

NOTE: Wait while your device automatically checks your incoming and outgoing mail server settings.

1. Configure the Account settings such as inbox checking frequency, sync days, or notification for incoming emails. When done, tap Next.
2. Key in an account name that you want to be displayed in the outgoing messages, then tap Next to log into your inbox.

NOTE: If you want to set up your work account on your ASUS Tablet, ask for the email settings from your network administrator.

Adding email accounts

If you don't have an existing email account, you can create one so you can receive, read, and send emails right from your ASUS Tablet.

1. From the Home screen, tap Email to launch the Email app.
2. Tap > Settings, then add an email account.
3. Tap the mail provider that you want to add.
4. Follow the succeeding instructions to complete setting up your new email account.

NOTE: You may also refer to steps 3 to 5 in the Setting up email accounts section to complete this setup process.

Setting up a Gmail account

Set up your Gmail account to get into Google-related services and apps as well as receive, send, and browse emails right from your ASUS Tablet.

1. Tap Google then tap Gmail.
2. Tap Existing and key in your existing Gmail account and password, then tap

NOTE:

• Tap New if you do not own a Google account.

• When signing in, you have to wait while your device communicates with Google servers to setup your account.

• Use your Google account to backup and restore your settings and data. Tap to sign in to your Gmail account.

IMPORTANT! If you have several email accounts aside from Gmail, use Email app to set up and access all your email accounts.

Calendar

The Calendar app enables you to keep track of important events using your ASUS Tablet. Along with creating events you may also set reminders, or create a countdown notice to ensure you don't forget these important occasions. It also stores the events, such as birthdays and anniversaries, that you've set up for your VIP contacts.

Creating events

To create an event:

1. Tap Asus > Calendar.
2. Tap + to start creating a new event.
3. In the New event screen, input all the necessary details of your event.
4. Turn Countdown to ON. You'll get a countdown notice on the System notifications panel as to the days left until this event takes place.

NOTE: For details on the System notifications panel, see System notifications.

1. On the Reminders field, select the time that you want to get an alert or reminder about the event.
2. Once finished, tap Done to save and exit.

Adding accounts to Calendar

Aside from creating an event logged on your ASUS Tablet, you can also use Calendar to create events that get automaticallyynced with your online accounts. But first, these accounts must be added to Calendar using the following steps:

1. Tap Asus > Calendar.
2. Tap > Accounts > +.
3. Tap the account you want to add.
4. Follow the succeeding onscreen instructions to complete adding the new account to Calendar.

Creating an event from your account

After adding online accounts that you would like to sync with Calendar, you may now use your ASUS Tablet to create notifications for those online accounts by following these steps:

1. Tap Asus > Calendar.
2. Tap New Event to start creating a new event.
3. In the New event screen, tap My Calendar to view all the accounts currentlyynced with the Calendar.
4. Tap the account where you would like to create a new event.
5. In the New event screen, input all the necessary details of your event then tap Done.

NOTE: Your online account must already be added to Calendar before you can proceed with the following steps. For more details, see Adding accounts to Calendar.

Enabling alert reminders for events

Turn on the alert function from the Calendar app to get alert reminders and notifications for special events such as birthdays, anniversaries, meetings, and other important events that matter you.

1. Tap Asus > Calendar.
2. Tap > Accounts.
3. Tap the accounts from which you want to receive alert reminders from.

NOTE:

• For details on setting up event alerts about your VIPs, see Adding an event to a VIP contact.
  Get alerts or reminders as your What's Next.

What's Next

Do not miss out on important events, having fun out in the sun, or getting messages/emails/calls (on selected models) from your VIP contacts. Set up your calendar of events, VIP groups, or weather update settings to get alerts and reminders of What's Next. View your What's Next alerts from the Lock screen, System notifications panel, and What's Next widget or app.

Getting event reminders

To get your What's Next event reminders and notifications, ensure the following:

• Set up your VIPs' events info such as birthdays or anniversaries on the Contacts app. For details, see Adding an event to a VIP contact.
• You can set up an event and set the reminder time in the Calendar app. For details, see Creating events.

Accepting or declining invites to events

Set up your email account in the Email app to send or receive emails such as invites to events. When you accept email invites, the events will be synced with the Calendar app.

NOTE: For more details, see Email and Calendar.

IMPORTANT! Your ASUS Tablet must be connected to a Wi-Fi or mobile network to get emailed invites or event-related alerts. For more details, see Staying connected.

To accept or decline an invite:

1. Tap your email invite to open it.
2. Tap Yes to accept or No to decline the invite. Your reply will be emailed to the event organizer or host.

Getting event-related alerts

When you accept an invitation to an event, you'll get reminders of any changes to the event such as postponement, cancellation, change in event location, or shift in event schedule. These event-related alerts will be posted on the Lock screen, System notifications panel, and What's Next widget or app.

Start event alert

A few minutes before the event, you'll get a reminder that the event is about to start. You can call to give the organizer or host a heads up if you're running late.

Cancelled event alert

You'll get a cancellation alert when the organizer or host cancels the event.

Rescheduled event alert

You'll get an alert if the event has been postponed, rescheduled, or moved to another location.

Getting the weather updates

Get real-time AccuWeather® updates, every hour or up to 12 hours, for your current location or for other parts of the world. You can make plans for up to seven (7) days with the 7-day weather forecast or dress appropriately based on AccuWeather RealFeel® temperature. You can also get the real-time UV index or air pollution index, letting you take the necessary protective measures against harmful ultra-violet rays or air pollutants.

1. Before getting the weather updates, ensure the following:

2. Wi-Fi or mobile network is turned on when you are indoors and GPS is turned on when you are outdoors.

3. Turn on the location access from Settings > Location access.

4. Launch the Weather app in any of these two ways:

5. Tap > Weather.

6. From your ASUS Tablet's home screen, tap the weather icon.

1. Tap > Edit then tap +.
2. In the search box, enter the city or area whose weather updates you want search for.
3. Wait for a while your ASUS Tablet gets the weather information. The city or area's weather data will be added to your location list. Tap the city's or area's weather data that you want to display on the What's Next widget on the Home screen.

Do It Later

Get hold of even the most trivial things in your busy life. Even when you're too busy, reply to your emails, SMS messages (on selected models), calls (on selected models), read news online, or add other important to-do tasks at your convenience.

Mark your unread messages or emails, interesting web pages, and missed calls as Reply Later, Read Later, or Call Later items (on selected models). These marked items will be added to your Do It Later tasks, and you can act on these tasks at a convenient time.

NOTE:

• Popular third-party apps that support Do It Later include Google Maps, Google Chrome, Google Play, YouTube, and IMDb.
  Not all apps can share and add tasks to Do It Later.

Adding to-do tasks

Create important to-do tasks to organize your work or social activities in your professional or social life.

1. From the Home screen, tap Asus > Do It Later.
2. Tap + then fill in the necessary information.
3. If you want to set the importance level, select High in the Importance field.
4. When you're done, tap OK.

Prioritizing to-do tasks

Set the importance level of your to-do tasks so you can prioritize and act on them accordingly.

1. From the Home screen, tap Asus > Do It Later.
2. Tap the task that you want to set as a top priority.
3. Under the Importance field in the task screen, select High.
4. When you're done, tap OK.

NOTE: High-priority to-do tasks are marked as on your Do It Later list. This allows you to quickly determine which to-do tasks need immediate actions.

Catching up on my online reading now

You can retrieve pages that you've previously marked as read later tasks and catch up on your online reading at your convenience from the Do It Later app.

1. From the Home screen, tap Asus > Do It Later.
2. Select the page or pages that you want to read now, then tap Read now.

NOTE: For details on setting pages as read later tasks, see Reading the pages later.

Replying now (on selected models)

When you've previously set an SMS message as a reply later task, you can retrieve it and reply to the message when it's convenient from the Do It Later app.

1. From the Home screen, tap Asus > Do It Later.
2. Select the SMS message that you want to send a reply to, then tap Reply now.

NOTE: For details on setting pages as reply later tasks, see Messaging later (on selected models).

Deleting to-do tasks

You can delete any completed, overdue, or unnecessary to-do tasks from the Do It Later app.

1. From the Home screen, tap Asus > Do It Later.
2. Tap the task you want to remove from the list, then tap Delete.

SuperNote

Turn note-taking into a fun and creative activity using Supernote.

This intuitive app allows you to create notes organized per notebook by directly writing or drawing on the touchscreen. While creating notes, you can also add multimedia files from other apps and share them via social networks or your Cloud storage account.

Understanding icons

Depending on your selected input mode, these icons appear as you take down your notes on SuperNote.

Select this type mode when you want to use the onscreen keyboard to enter your notes.

Select this write mode when you want to scribble or write your notes.

Select this draw mode when you want to create drawings or doodles.

When in write or type mode, tap this icon to select text weight and color.

When in draw mode, tap this icon to select the drawing tool to use, and the stroke color or size.

When in draw mode, tap this icon to erase some contents in your notes.

Tap this icon to take a photo or video, record audio, add timestamp and more to your notes.

Tap this icon to add a new page to your notebook.

Creating a notebook

To create new files using Supernote, refer to the following steps:

1. Tap ASUS > SuperNote, then tap +.
2. Select a template and start writing your notes.

Sharing a notebook on the Cloud

You may share your notebook on the Cloud using the following steps:

1. On the Supernote home screen, tap-and-hold the notebook you would like to share.
2. In the pop-up screen, tap Enable cloud sync.
3. Input your ASUS WebStorage account's User name and Password details to proceed withyncing your notebook to the Cloud.
4. Once the notebook has been successfully syncsed to the Cloud, the Cloud icon appears on top of the shared notebook.

Sharing a note to the Cloud

Aside from your notebook, you may also share individual notes from your Supernote to your Cloud storage account. To do this:

1. Launch the notebook that contains the note you want to share.
2. Tap-and-hold the note you want to share.
3. In the pop-up screen, tap Share then select the type of file format you want to share it as.
4. In the next screen, select the Cloud storage account where you would like to share your note.
5. Follow the succeeding instructions to complete sharing your selected note.

File Manager

Using File Manager allows you to easily locate and manage your data on the internal storage of your ASUS Tablet and its connected external storage devices.

Accessing the internal storage

To access the internal storage:

1. Tap File Manager.
2. Tap Internal storage to view the contents of your ASUS Tablet then tap an item to select.

Accessing the external storage device

To access the external storage device:

1. Insert the microSD card into your ASUS Tablet.
2. Tap File Manager.
3. Tap > MicroSD to view the contents of your microSD card.

Accessing Cloud Storage

IMPORTANT! Ensure that Wi-Fi or mobile network (on selected models) is enabled on your ASUS Tablet. For details, see Staying connected.

To access files saved on your cloud storage accounts:

1. Tap File Manager.
2. Tap then tap a cloud storage location under Cloud Storage.

The Cloud

Back up your data, sync files among different devices, and share files securely and privately via a Cloud account such as ASUS WebStorage, Drive, OneDrive, and Dropbox.

ASUS WebStorage

Register for or sign in to ASUS WebStorage and get free cloud storage. Automatically upload newly captured photos for instant sharing, sync files among different devices, or share files via your ASUS WebStorage account.

NOTE: To enjoy the auto-upload function, enable Instant Upload from Settings > Instant Upload in your ASUS WebStorage.

IMPORTANT! Ensure that Wi-Fi or mobile network (on selected models) is enabled on your ASUS Tablet. For details, see Staying connected.

Data Transfer

Transfer your data such as contacts, calendar entries from your old mobile device to your ASUS Tablet via Bluetooth technology.

To use Data Transfer:

1. Pair your old mobile device with your ASUS Tablet via Bluetooth.

NOTE: For more details on pairing devices, see Pairing your ASUS Tablet to a Bluetooth® device.

1. From the All apps screen, tap Data transfer.
2. Tap Transfer Wizard then follow the onscreen instructions to complete the Data Transfer process.

ASUS Support

Find answers from FAQs (Frequently Asked Questions) or directly interact with other Zen UI users to find and share solutions about ZenUI 2.0 apps.

To access ZenUI Help:

1. Tap > ASUS Support.
2. Tap ZenUI Tips, then select the app that you want to find answers for.

Using a headset

Have the freedom to do other things while you're in a call or enjoy listening to your favorite music using a headset.

Connecting the audio jack

Insert the 3.5mm headset jack into the audio port of your device.

WARNING!

• Do not insert other objects into the audio jack port.
• Do not insert a cable with electric power output into the audio jack port.
• Listening at a high volume for long periods can damage your hearing.

NOTE:

We highly recommend to use only compatible headsets or the bundled headset with this device.
- Unplugging the audio jack while listening to music, automatically pauses the music played.
- Unplugging the audio jack while watching a video, automatically pauses the video playback.

Music

Music app automatically searches for music files from the internal and external storages on your ASUS Tablet. You can organize these music files in a playlist or add them in a queue to play them sequentially. You can also stream music from cloud accounts such as ASUS WebStorage, Dropbox, OneDrive, and Drive.

IMPORTANT! Before streaming music from a cloud account, ensure that your ASUS Tablet is connected to a Wi-Fi or mobile network. For more details, see Staying connected.

Launching Music

To launch Music, tap > Music.

Playing songs

To play a song:

1. From the Music app, tap Music then select Songs. You can also select these other options on how you want to browse your music files: Album, Artist, Genres,Composer, or Folder.
2. From your list, tap the song that you want to play. Tap Play All if you want to play all songs.
3. Swipe up from the song title bar to get a full screen of the song that's currently playing.

NOTE: To add several songs to an existing playlist, see Adding songs to a playlist.

Other playback options

During playback, you can tap and do any of these other options below:

Add to playlist	Tap to add the song to an existing playlist or create a new one to add the song to it.
Play To	Tap to scan and play the song to other devices nearby. __________________________ NOTE: For details, see PlayTo other devices.
Share	Tap to share the song via some apps or cloud accounts.
Edit info	Tap to add some details about the song.
Clear queue	Tap Clear queue to remove all songs in the queue.
Equalizer	Tap to configure the Equalizer settings and get better audio for your songs.
Sleep timer	Set the time when the music will stop playing.
Settings	Tap this option to configure the Music settings.
Feedback & Help	Get answers to your questions and you can send us your feedbacks.

Streaming Cloud music

Register or sign in to a cloud account and stream music from your cloud account to your ASUS Tablet.

IMPORTANT! Ensure that Wi-Fi or mobile network is enabled on your ASUS Tablet. For details, see Staying connected.

Adding a cloud storage account

To add a cloud storage account:

1. From the Music home screen, tap
2. Under Cloud Music, tap Add cloud service.
3. Select the cloud storage service where you want to play music files from.
4. Follow the succeeding instructions to complete signing in to your cloud storage account.

Streaming music from the cloud

To stream music from your cloud account:

1. From the Music home screen, tap
2. Under Cloud Music, tap the cloud account where you want to stream music from.
3. Select the song, then tap to play it.

Creating a playlist

Get your favorite songs from different sources such as internal storage, external storage, or cloud accounts and organize them in a playlist.

1. From the Music home screen, tap
2. Under Playlist, tap My playlist, then tap +.
3. Assign a name to your playlist, then tap Save.

Adding songs to a playlist

You can add several songs to your playlist from your local source (internal and external storages) or cloud accounts.

1. From the Music home screen, tap
2. Under Playlist, tap My playlist, then tap the name of your playlist.
3. Tap > Add songs.
4. Tap the music source where you want to get your songs from to add to your playlist.
5. Select how you would want to browse your music: Album, Artist, Songs, Genres, Composer, or Folder.
6. Select the songs that you would like to add to your playlist. Tap Select All if you want to add all songs from your music list, album, folder, or from your favorite artists.

PlayTo other devices

Use the PlayTo function to stream music from your ASUS Tablet to other Miracast or DLNA-enabled devices nearby.

To use PlayTo:

1. From a currently-playing song, tap > PlayTo.
2. Tap the device that you want to stream music to. Music from your ASUS Tablet will play or stream on the other device.
3. To stop PlayTo, tap > Disconnect.

Staying connected

Wi-Fi

The Wi-Fi technology of your ASUS Tablet gets you connected to the wireless world. Update your social media accounts, browse the Internet, or exchange data and messages wirelessly from your ASUS Tablet.

Enabling Wi-Fi

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Slide the Wi-Fi switch to the right to turn on the Wi-Fi.

NOTE: You can also enable the Wi-Fi from Quick Settings screen. Refer to section Quick settings on how to launch Quick Settings screen.

Connecting to a Wi-Fi network

1. On the Settings screen, tap Wi-Fi to display all detected Wi-Fi networks.
2. Tap a network name to connect to it. For a secured network, you may be prompted to key in a password or other security credentials.

NOTE:

• Your ASUS Tablet automatically reconnects to the network that you connected with previously.
• Turn off the Wi-Fi feature when you are not using it to help save battery power.

Disabling Wi-Fi

To disable Wi-Fi:

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Slide the Wi-Fi switch to the left to turn off the Wi-Fi.

NOTE: You can also disable the Wi-Fi from Quick Settings screen. See Quick settings on how to launch Quick Settings screen.

Bluetooth®

Use the Bluetooth feature of your ASUS Tablet to send or receive files and stream multimedia files with other smart devices over short distances. With Bluetooth, you can share your media files with your friends' smart devices, send data for print with a Bluetooth printer, or play music files with a Bluetooth speaker.

Enabling Bluetooth®

1. Do any of the following to launch the Settings screen:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Slide the Bluetooth switch to the right to turn on the Bluetooth.

NOTE: You can also enable the Bluetooth from Quick Settings screen. See Quick settings on how to launch Quick Settings screen.

Pairing your ASUS Tablet to a Bluetooth® device

Before using the Bluetooth feature of your ASUS Tablet in full scale, you have to pair it first with the Bluetooth device. The ASUS Tablet automatically stores the pairing connection of the Bluetooth device.

1. On the Settings screen, tap Bluetooth to display all available devices.

IMPORTANT!

• If the device that you want to pair is not in the list, ensure to enable its Bluetooth feature and is discoverable.

• See the user guide that came with your device to learn how to enable its Bluetooth and and set it to discoverable.

• Turn on the Bluetooth of your ASUS Tablet to make it visible to other Bluetooth devices.

• In the list of available devices, tap the Bluetooth device that you want to pair with.
• Ensure that the same pairing code is shown on both devices, then tap Pair.

NOTE: Turn off the Bluetooth feature when you're not using it to help save battery power.

Unpairing your ASUS Tablet from the Bluetooth® device

1. On the Settings screen, tap Bluetooth to display all available and paired devices.
2. In the list of paired devices, tap of Bluetooth device that you want to unpair, then tap Unpair.

Tethering

When Wi-Fi service is not available, you can use your ASUS Tablet as a modem or turn it into a Wi-Fi hotspot to get Internet access on your laptop, tablet, and other mobile devices.

IMPORTANT! Most mobile service providers may require a data plan for you to be able to use the tethering function. Contact your mobile service provider about availing of this data plan.

NOTE:

• Internet access via tethering may be slower than the standard Wi-Fi or mobile connection.
• Only a limited number of mobile devices can tether to your ASUS Tablet for Internet access.
• Turn off the tethering feature when you're not using it to help save battery power.

Wi-Fi Hotspot

Turn your ASUS Tablet into a Wi-Fi Hotspot to link with other devices.

1. Do any of the following to launch the Settings screen:

2. Launch Quick settings then tap

3. Tap > Settings.

4. Tap More > Tethering > Set up Wi-Fi hotspot.

5. Assign a unique SSID or network name and a strong 8-character password for your Wi-Fi hotspot. When done, tap Save.

1. From the Tethering screen, tap Portable Wi-Fi hotspot to turn on the Wi-Fi hotspot on your ASUS Tablet.

1. Connect other devices to your ASUS Tablet's hotspot connection the same way you connect to a Wi-Fi network.

Bluetooth Tethering

Enable Bluetooth on your ASUS Tablet and use it to link with other devices using Share Link, or link to a printer.

1. Enable Bluetooth on your ASUS Tablet and the other device.
2. Pair both devices.

NOTE: For details, see Pairing your ASUS Tablet to a Bluetooth device.

1. From the Settings screen, tap More > Tethering, then silde Bluetooth tethering to ON.

PlayTo

PlayTo app lets you screencast your ASUS Tablet to a streaming-supported display. Doing this allows an external display to become a dual monitor or second screen to your ASUS Tablet.

IMPORTANT! Your external display must have Miracast™ or DLNA® technology to support PlayTo app.

Launching PlayTo

There are two ways you can use to start using PlayTo from your ASUS Tablet.

From Quick settings

1. Setup the streaming-supported display you want to use with your ASUS Tablet.
2. Launch Quick settings on your ASUS Tablet then tap PlayTo.
3. Refer to the SSID shown on your streaming-supported display and select the same SSID on your ASUS Tablet to start pairing.

Once the connection is made, your streaming-supported display shows the same content currently shown on your ASUS Tablet.

From Settings

1. Tap > Settings.
2. Tap More then tap PlayTo.
3. Refer to the SSID shown on your streaming-supported display and select the same SSID on your ASUS Tablet to start pairing.

Once the connection is made, your streaming-supported display shows the same content currently shown on your ASUS Tablet.

Weather

Get real-time weather updates straight from your ASUS Tablet using the weather app. Using Weather, you can also check other weather details from around the world.

Launching the Weather app

From your Home screen, launch the Weather app using either of the following options:

• Tap > Weather.
• From your ASUS Tablet's home screen, tap the weather icon.

Weather home screen

Set up and get your current location's weather updates as well as other parts of the world. You can display the weather updates or daily weather forecast on the What's Next widget or app, and on the Calendar app.

NOTE: For more details, see Getting the weather updates.

Clock

Customize the time zone settings of your ASUS Tablet, set alarms, and use your ASUS Tablet as a stop watch using the Clock app.

Launching Clock

Launch the Clock app using either of the following options:

• Tap > Clock.
• From your ASUS Tablet's home screen, tap the digital clock display.

World Clock

Tap to access the world clock settings of your ASUS Tablet.

Alarm clock

Tap to access the world clock settings of your ASUS Tablet.

Stopwatch

Tap to use your ASUS Tablet as a stopwatch.

Timer

You may set multiple timer options for your ASUS Tablet. To do this, follow the steps below.

Setting the timer

1. Tap to access the timer feature of your ASUS Tablet.

1. Use the numeric keypad to input your target time then tap start to start the timer.

Knowing ZenLink

Stay connected with the ASUS-exclusive ZenLink for maximum productivity. With these ZenLink apps, you can connect with other devices to share and receive files.

Your ZenLink comprises of the following apps: Share Link, PC Link, and Remote Link.

NOTE: Some of these ZenLink apps may not be available in your ASUS Tablet.

Share Link

Share and receive files, apps, or media contents with Android mobile devices using Share Link app (for ASUS mobile devices) or SHAREit app (for other mobile devices) via a Wi-Fi hotspot. With this app, you can send or receive files that are larger than 100 MB and lets you share or receive multiple files at the same time. Share Link app sends and receives files faster than using Bluetooth.

Sharing files

1. From your Home screen, tap ZenLink > Share Link.
2. Tap Send file then select from the options that appear on your screen.

1. Tap the files that you want to send then tap Share selected files > Send.
2. After your ASUS Tablet detects the other devices, tap the device that you want to share your files with.

Receiving files

To receive files:

1. From your Home screen, tap then tap Share Link.
2. Tap Receive file to receive the files from the sender.

PC Link

Use your computer to access and control your ASUS Tablet and its apps via the PC Link. It allows you to control your ASUS Tablet using your computer's keyboard and mouse.

NOTE: Before using PC Link, ensure to install PC Link to your computer. Go to http://pclink.asus.com to download and install PC Link.

Using PC Link

To use PC Link:

1. Connect your ASUS Tablet to your computer using a USB cable.
2. In your ASUS Tablet, a pop-up screen Allow USB debugging appears. Tap OK to allow connection between your computer and your Asus Tablet.
3. From your computer's desktop, launch PC Link then click Connect.
4. On the PC Link screen, click OK. When connected, you can access and control your device using the keyboard for typing and mouse for hand gestures.

Understanding the PC Link settings

Screen Rotation	Click this icon to rotate the mirrored ASUS Tablet screen on your computer screen.
Volume	Click this icon to increase or decrease the volume.
Screenshot	Click this icon to capture a screenshot.
Power	Click this icon to wake your ASUS Tablet or put it to sleep.
Settings	Click this icon to check for PC Link updates and assign a path for your screenshots.

Remote Link

Turn your ASUS Tablet into a wireless input device and a presentation tool. Using this app, you can use your ASUS Tablet as a touchpad, touchscreen panel, laser pointer for presentations, and Windows® Media Player controller while connected to your computer via bluetooth or Wi-Fi.

NOTE:

• Before using Remote Link, ensure to install Remote Link to your computer. Go to http://remotelink.asus.com to download PC Link and install it to your computer.
• Ensure to pair your computer and your ASUS Tablet first before using Remote Link.

Using Remote Link

To use Remote Link:

1. From your Home screen, tap then tap Remote Link.
2. Tap Search device then select the device that you want to connect.

Remote Link touch pad

Tap to activate ASUS Smart gesture and navigate your computer.

Remote Link presentation controller

Tap to control the presentation slides on your computer.

Remote Link Windows® Media Player controller

Tap to control the Windows Media player.

Remote Link keyboard input

Tap to use keyboard input. You can also use the microphone icon for voice input.

Special Zen Tools

Calculator

One-swipe and a tap is all it takes to launch your Calculator. When you open the Quick settings panel, the Calculator icon is there visibly on top of the list. Tap it to get started with your computations.

Calculator screen

Quick Memo

Quick Memo is a note-taking tool that gives you the freedom to either scribble or type down important notes you need to remember. After creating notes, you can share them via Share Link and social media sites or turn them into a task inside Do It Later.

Creating a sticky note

You can turn Quick Memo notes into a sticky note so you can view them anywhere on your ASUS Tablet. To create a sticky note, just tap on the pin icon on the upper right corner of Quick Memo after creating your note.

Sound Recorder

Record audio files using your ASUS Tablet by enabling the Sound Recorder app.

Launching Sound Recorder

To launch Sound Recorder, tap >Sound Recorder.

Pausing a recording

During a paused recording, you can choose to resume, delete, or save the recording.

Recording List

From the Recording List, you can play, rename, share, or deleted a saved audio recording file. View your recording list at the right side of the Sound Recorder main screen.

Audio Wizard

Audio Wizard allows you to customize the sound modes of your ASUS Tablet for a clearer audio output that fits actual usage scenarios.

Using Audio Wizard

To use AudioWizard:

1. Tap ASUS > Audio Wizard.
2. In the AudioWizard window, tap the sound mode you want to activate.

Splendid

ASUS Splendid allows you to easily adjust the display settings. It enriches the color of your screen with its preset screen color modes.

Using Splendid

To use Splendid:

1. From your Home screen tap ASUS > Splendid .
2. Select any of these screen color modes: Balance, Bluelight Filter, Vivid, and Customized.

Balance mode

This mode provides a balanced display of color on your ASUS Tablet.

Bluelight Filter mode

This mode provides a mild paper-like display that reduces eye strain for a comfortable reading experience on your ASUS Tablet.

Vivid mode

This mode provides a fine-tuned color preset that enriches the screen color of your ASUS Tablet.

Customized mode

This mode allows you to adjust the screen display based on your preferred color temperature, hue, and saturation.

Power Saver

Fully maximize or extend the power of your ASUS Tablet even when it is idle or while it stays connected to your network. Smartly customize the power settings for your frequent activities such as reading emails or watching videos.

Setting up Power Saver

Maximize, optimize, or customize the power of your ASUS Tablet with some smart power saving options.

1. Do any of the following to launch Power Saver:

2. Swipe down with two fingers from the top to launch the Quick Settings panel, then tap Smart saving.

3. Tap ASUS > Power Saver.

4. Slide Smart saving to ON.

1. Select any of these modes:

2. Ultra-saving mode: Disconnects the network connection when your ASUS Tablet is idle to fully maximize its battery life.

3. Optimized mode: Extends the battery life while your ASUS Tablet stays connected to your network.
4. Customized mode: Allows you to set up the power settings for your frequent activities.

Customizing Power Saver

Set the brightness level for your frequent activities such as reading emails or eBooks, watching videos, browsing websites, and listening to music. You can also enable the power saving function for some apps or enable the auto-disconnection of your network when your ASUS Tablet is asleep.

1. From Power Saver, tick Customized mode.
2. From Reduce brightness, set the brightness level in percentage.
3. If you want to enable the auto-disconnection of your network, tick IM and other apps using push notification. Your ASUS Tablet will automatically disconnect from your network when it is idle, and will resume the network connection when you wake up your ASUS Tablet.

Keeping your device up-to-date

Keep your OSUS Tablet in the loop of Android system updates and upgraded apps and features.

Updating your system

1. Tap then tap Settings.
2. On the Settings screen, slide down then tap About.
3. Tap System update then tap Check Update.

NOTE: You can preview the last time your ASUS Tablet's system was updated in the Last check for update section.

Storage

You can store data, apps, or files on your ASUS Tablet (internal storage), on an external storage, or on an online storage. You need an internet connection to transfer or download your files on an online storage. Use the bundled USB cable to copy files to or from the computer to your Asus Tablet.

Backup and reset

Back up data, Wi-Fi passwords, and other settings to Google servers using your ASUS Tablet.

1. Tap then tap Settings > Backup & reset.

2. From the Backup & reset window, you can:

3. Backup my data: This feature backs up your data, Wi-Fi passwords, and other settings to Google servers when enabled.

4. Backup account: Allows you to specify the account you wish to be associated when you save your backup.
   Automatic Restore: This features facilitates restoration of backed up settings and data when you reinstall an app.
   Factory data reset: Erases all data on tablet.

Securing your ASUS Tablet

Use the security features of your ASUS Tablet to prevent unauthorized access of information.

Unlocking your screen

When the screen is locked, you can open it with the security unlocking options that the ASUS Tablet offers you.

1. Tap then tap Settings > Lock Screen.
2. Tap Screen lock then select an option to unlock your ASUS Tablet.

NOTE:

Refer to section Unlock screen options for more information.
- To deactivate the unlock screen option that you set, tap None on Choose screen lock screen.

Unlock screen options

Choose from these options to unlock your ASUS Tablet.

Swipe

Swipe up to unlock your ASUS Tablet.

PIN

Key in at least four numbers to set a PIN.

IMPORTANT! Ensure to remember the PIN that you created to unlock your device.

Pattern

Slide your finger on the dots and create a pattern.

IMPORTANT! You can create a pattern with a minimum of four dots. Ensure to remember the pattern that you created to unlock your device.

Password

Key in at least four characters to create a password.

IMPORTANT! Ensure to remember the password that you created to unlock your device.

Configuring the other screen security features

Aside from the mode of screen lock, you can also do the following on the Lock screen window:

• Quick Access: Slide the Quick Access switch to ON to launch apps on the lock screen.
• Instant camera: Slide the Instant camera switch to ON to launch the Camera app even if your ASUS Tablet is in idle mode by pressing the volume button twice.
• Owner info: Tap this to edit and key in the information that you want to appear even when your screen is locked.

Setting your ASUS Tablet identity

Know your ASUS Tablet's identity such as serial number, IMEI (International Mobile Equipment Identity) number, or model number.

This is important, as when you lose your ASUS Tablet, you can contact your mobile carrier and provide the information to blacklist the unauthorized use of your Asus Tablet.

To display your ASUS Tablet's identity:

1. Tap then tap Settings.
2. On the Settings screen, slide down then tap About. The About screen displays the status, legal information, model number, operating system version, hardware, and software information of your ASUS Tablet.
3. To see the serial number, SIM contact number (on selected models) and IMEI of your ASUS Tablet, tap Status.

Appendix

Notices

For Model P023

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

For FCC and IC e-labelling information, please go to Settings > About > Regulatory information.

RF Exposure Information (SAR)

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W / kg . Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels.

The highest SAR value for the device as reported to the FCC is 0.93 W/kg when placed next to the body.

The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: MSQP023.

Canada, Industry Canada (IC) Notices

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the condition that this device does not cause harmful interference.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The Country Code Selection feature is disabled for products marketed in US/Canada.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The IC ID for this device is 3568A-P023.

For FCC and IC e-labelling information, please go to Settings > About > Regulatory information.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has been evaluated for and shown compliant with the IC Specific Absorption Rate ("SAR") limits when installed in specific host products operated in portable exposure conditions.

Canada's REL (Radio Equipment List) can be found at the following web address:

http://www.ic.gc.ca/app/sitt/reTel/srch/nwRdSrch.do?lang eng

Additional Canadian information on RF exposure also can be found at the following web address:

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Canada, avis d'Industrie Canada (IC)

http://www.ic.gc.ca/app/sitt/reTel/srch/nwRdSrch.do?lang eng

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

IC Warning Statement

The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.

The Country Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/Canada markets, only channel 1-11 can be operated. Selection of other channels is not possible.

This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528.

CE Mark Warning

CE

CE marking for devices with wireless LAN/Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and recognition of conformity.

The highest CE SAR value for the device is 0.081 W/Kg.

RF Exposure information (SAR) - CE

This device meets the EU requirements (1999/5/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0W / Kg averaged over 10 gram of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

For next-to-body operation, this device has been tested and meets the ICNRP exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is measured with the device at a separation of 1.0cm to the body while transmitting at the highest certified output power level in all frequency bands of the mobile device.

A minimum separation distance of 1.0cm must be maintained between the user's body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

For France, headphones/earphones for this device are compliant with the sound pressure level requirement laid down in the applicable EN 50332-1:2000 and/or EN 50332-2:2003 standard required by French Article L.5232-1.

EC Declaration of Conformity

This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The Declaration of Conformity can be downloaded from http://support.asus.com.

Green ASUS notice

ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.

For the detailed user manual and related information, refer to the user manual included in the ASUS Tablet or visit the ASUS Support Site at http://support.asus.com/.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

ENERGY STAR complied product

ENERGY STAR

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS slate computers with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The display will be automatically set to sleep within 10 minutes user inactivity. Users could wake your computer through click the display, or press the power button.

Please visit http://www.energystar.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

Premium Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Rechargeable Battery Recycling Service in North America

For US and Canada customers, you can call 1-800-822-8837 (toll-free) for recycling information of your ASUS products' rechargeable batteries.

Coating notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

For Model P021

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

For France, headphones/earphones for this device are compliant with the sound pressure level requirement laid down in the applicable EN 50332-1:2000 and/or EN 50332-2:2003 standard required by French Article L.5232-1.

CE Mark Warning

C€ 0682

CE marking for devices with wireless LAN/Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and recognition of conformity.

The highest CE SAR value for the device is 0.718 W/Kg.

RF Exposure information (SAR) - CE

This device meets the EU requirements (1999/5/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0W / Kg averaged over 10 gram of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

For next-to-body operation, this device has been tested and meets the ICNRP exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is measured with the device at a separation of 1.0cm to the body while transmitting at the highest certified output power level in all frequency bands of the mobile device.

A minimum separation distance of 1.0cm must be maintained between the user's body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.

EC Declaration of Conformity

This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The Declaration of Conformity can be downloaded from http://support.asus.com.

dtss-HD

Premium Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Green ASUS notice

ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.

For the detailed user manual and related information, refer to the user manual included in the ASUS Fonepad or visit the ASUS Support Site at http://support.asus.com/.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

Coating notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

For Model P01T

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

For France, headphones/earphones for this device are compliant with the sound pressure level requirement laid down in the applicable EN 50332-1:2000 and/or EN 50332-2:2003 standard required by French Article L.5232-1.

CE Mark Warning

C E 2200

CE marking for devices with wireless LAN/Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and recognition of conformity.

The highest CE SAR value for the device is 1.140 W/Kg.

This equipment may be operated in:

AT	BE	BG	CH	CY	CZ	DE	DK
EE	ES	FI	FR	GB	GR	HU	IE
IT	IS	LI	LT	LU	LV	MT	NL
NO	PL	PT	RO	SE	SI	SK	TR

dtss-HD

Premium Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

RF Exposure information (SAR) - CE

This device meets the EU requirements (1999/5/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0W / Kg averaged over 10 gram of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

For next-to-body operation, this device has been tested and meets the ICNRP exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is measured with the device at a separation of 1.5cm to the body while transmitting at the highest certified output power level in all frequency bands of the mobile device.

A minimum separation distance of 1.5cm must be maintained between the user's body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.

EC Declaration of Conformity

This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The Declaration of Conformity can be downloaded from http://support.asus.com.

GreenASUSnotice

ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.

For the detailed user manual and related information, refer to the user manual included in the ASUS Fonepad or visit the ASUS Support Site at http://support.asus.com/.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

Coating notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

For Model DA01

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canada, Industry Canada (IC) Notices

This device complies with Industry Canada license-exempt RSS standard(s).

This Class B digital apparatus complies with Canadian ICES-003 and CAN ICES-3(B)/NMB-3(B).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The IC ID for this device is 3568A-DA01.

Canada, vis d'Industrie Canada (IC)

EC Declaration of Conformity

This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The Declaration of Conformity can be downloaded from http://support.asus.com.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which *ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

CE Mark Warning

CE

The shipped version of this device complies with the requirements of the EEC directives 2004/108/ EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

For use with UL Listed I.T.E., ASUS Tablets series only.

Coating notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Green ASUS notice

ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.

For the detailed user manual and related information, refer to the user manual included in the ASUS Fonepad or visit the ASUS Support Site at http://support.asus.com/.

dtss-HD

Premium Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name :	ASUS Tablet
Model name :	P023

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011	EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009	EN 61000-3-3:2008
EN 55013:2001+A1:2003+A2:2006	EN 55020:2007+A11:2011

1999/5/EC-R&R'TTE Directive

EN 300 328 V1.8.1(2012-06)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.6.1(2013-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V6.2.1(2013-04)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V6.2.1(2013-10)	EN 301 489-17 V2.2.1(2012-09)
EN 301 893 V1.7.1(2012-06)	EN 301 489-24 V1.5.1(2010-10)
EN 302 544-2 V1.1.1(2009-01)	EN 302 326-2 V1.2.2(2007-06)
EN 302 623 V1.1.1(2009-01)	EN 302 326-3 V1.3.1(2007-09)
EN 50360:2001	EN 301 357-2 V1.4.1(2008-11)
EN 62479:2010	EN 302 291-1 V1.1.1(2005-07)
EN 50385:2002	EN 302 291-2 V1.1.1(2005-07)
EN 62311:2008	EN 50566:2013
EN 300 330-1 V1.7.1(2010-02)	EN 62209-2:2010
EN 300 330-2 V1.5.1(2010-02)

2006/95/EC-LVD Directive

EN 60950-1: 2006 / A12: 2011 EN 60950-1: 2006 / A2: 2013

EN 60065:2002 / A12: 2011

2009/125/EC-ErP Directive

□ Regulation (EC) No. 1275/2008	□ Regulation (EC) No. 278/2009
□ Regulation (EC) No. 642/2009	□ Regulation (EU) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 150326

CE marking

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Declaration Date: 26/06/2015

Year to begin affixing CE marking: 2015

Signature :

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name :	ASUS Tablet
Model name :	P021

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011	EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009	EN 61000-3-3:2008
EN 55013:2001+A1:2003+A2:2006	EN 55020:2007+A11:2011

1999/5/EC-R&R'TE Directive

EN 300 328 V1.8.1(2012-06)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.6.1(2013-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V6.2.1(2013-04)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V6.2.1(2013-10)	EN 301 489-17 V2.2.1(2012-09)
EN 301 893 V1.7.1(2012-06)	EN 301 489-24 V1.5.1(2010-10)
EN 302 544-2 V1.1.1(2009-01)	EN 302 326-2 V1.2.2(2007-06)
EN 302 623 V1.1.1(2009-01)	EN 302 326-3 V1.3.1(2007-09)
EN 50360:2001	EN 301 357-2 V1.4.1(2008-11)
EN 62479:2010	EN 302 291-1 V1.1.1(2005-07)
EN 50385:2002	EN 302 291-2 V1.1.1(2005-07)
EN 62311:2008	EN 50566:2013
EN 300 330-1 V1.7.1(2010-02)	EN 62209-2:2010
EN 300 330-2 V1.5.1(2010-02)

2006/95/EC-LVD Directive

EN 60950-1: 2006 / A12: 2011 EN 60950-1: 2006 / A2: 2013

EN 60065:2002 / A12: 2011

2009/125/EC-ErP Directive

□ Regulation (EC) No. 1275/2008	☑ Regulation (EC) No. 278/2009
□ Regulation (EC) No. 642/2009	☑ Regulation (EU) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 150326

CE marking

C E 0682

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

Declaration Date: 26/06/2015

Year to begin affixing CE marking: 2015

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name :	ASUS Tablet
Model name :	P01T

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011	EN 55024:2010
EN 61000-3-2:2006+A2:2009	EN 61000-3-3:2008
EN 55013:2001+A1:2003+A2:2006	EN 55020:2007+A11:2011

1999/5/EC-R&R'TTE Directive

EN 300 328 V1.9.1(2015-02)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.6.1(2013-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V6.2.1(2013-04)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V6.2.1(2013-10)	EN 301 489-17 V2.2.1(2012-09)
EN 301 908-13 V6.2.1(2013-10)	EN 301 489-24 V1.5.1(2010-10)
EN 300 330-2 V1.5.1(2010-02)	EN 302 326-2 V1.2.2(2007-06)
EN 300 330-1 V1.7.1(2010-02)	EN 302 326-3 V1.3.1(2007-09)
EN 302 623 V1.1.1(2009-01)	EN 301 357-2 V1.4.1(2008-11)
EN 50360:2001	EN 302 291-1 V1.1.1(2005-07)
EN 62479:2010	EN 302 291-2 V1.1.1(2005-07)
EN 62209-2 : 2010	EN 50566:2013 / AC:2014
EN 62311:2008

2006/95/EC-LVD Directive

EN 60950-1: 2006 / A12: 2011 EN 60950-1: 2006 / A2: 2013

EN 60065:2002 / A12: 2011

2009/125/EC-ErP Directive

□ Regulation (EC) No. 1275/2008	☑ Regulation (EC) No. 278/2009
□ Regulation (EC) No. 642/2009	□ Regulation (EU) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 150326

CE marking

C E 2200

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

Declaration Date: 13/07/2015

Year to begin affixing CE marking: 2015

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name :	Mobile Dock
Model name :	DA01

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011	EN 55024:2010
EN 61000-3-2:2006+A2:2009	EN 61000-3-3:2013
EN 55013:2001+A1:2003+A2:2006	EN 55020:2007+A11:2011

1999/5/EC-R&TTE Directive

EN 300 328 V1.8.1(2012-06)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.6.1(2013-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V5.2.1(2011-05)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V5.2.1(2011-07)	EN 301 489-17 V2.2.1(2012-09)
EN 301 893 V1.7.1(2012-06)	EN 301 489-24 V1.5.1(2010-09)
EN 302 544-2 V1.1.1(2009-01)	EN 302 326-2 V1.2.2(2007-06)
EN 302 623 V1.1.1(2009-01)	EN 302 326-3 V1.3.1(2007-09)
EN 50360:2001	EN 301 357-2 V1.4.1(2008-11)
EN 62479:2010	EN 302 291-1 V1.1.1(2005-07)
EN 50385:2002	EN 302 291-2 V1.1.1(2005-07)
EN 62311:2008	EN 50566:2013

2006/95/EC-LVD Directive

EN 60950-1: 2006 / A12: 2011 EN 60950-1: 2006 / A2: 2013

EN 60065:2002 / A12: 2011

2009/125/EC-ErP Directive

□ Regulation (EC) No. 1275/2008 □ Regulation (EC) No. 642/2009

□ Regulation (EC) No. 278/2009 □ Regulation (EU) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 150326

CE marking

C E

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

Declaration Date: 07/07/2015

Year to begin affixing CE marking: 2015

Model name: P023 / P021 / P01T / DA01

Manufacturer:	ASUSTeK Computer Inc.
Address:	4F, No.150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorised representative in Europe:	ASUS Computer GmbH
Address:	HARKORT STR. 21-23, 40880 RATINGEN, GERMANY
