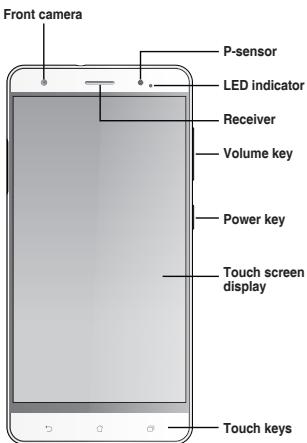

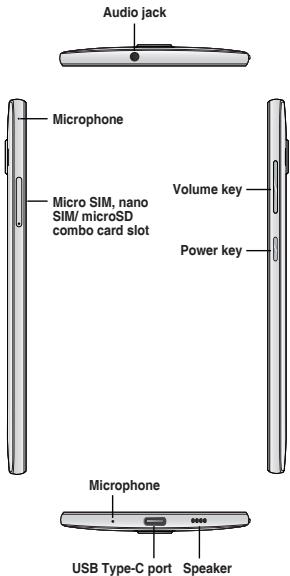

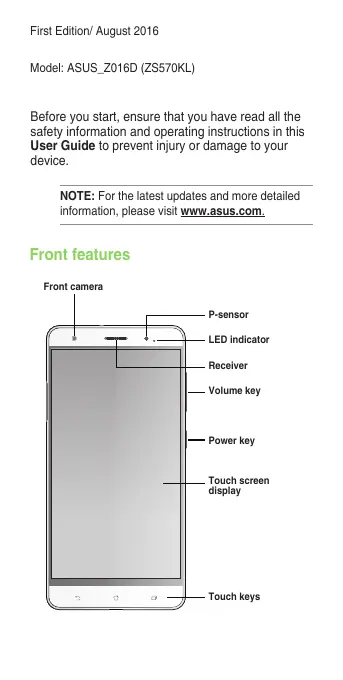

Front features

NOTES:

• The micro SIM card slot supports GSM/ GPRS/EDGE, WCDMA/HSPA+/DC-HSPA+, TD-SCDMA, CDMA2000, FDD-LTE, and TD-LTE DSDS network bands.
• The microSD card slot supports microSD and microSDHC card formats.

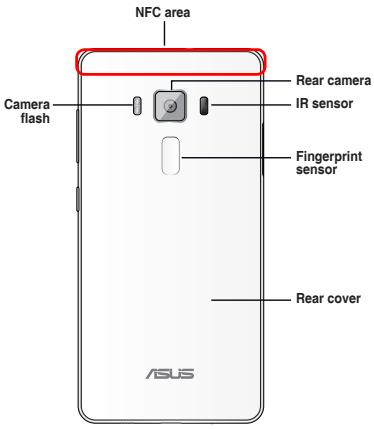

Rear features

Charging your ASUS Phone

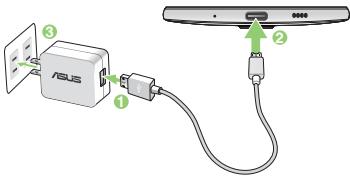

To charge your ASUS Phone:

1. Connect the USB connector into the power adapter's USB port.
2. Connect the other end of the USB Type-C cable to your ASUS Phone.
3. Plug the power adapter into a wall socket.

IMPORTANT!

• When using your OSUS Phone while it is plugged to a power outlet, the grounded power outlet must be near to the unit and easily accessible.
• When charging your OSUS Phone through your computer, ensure that you plug the USB Type-C cable to your computer's USB 2.0/ USB 3.0 port.
• Avoid charging your OSUS Phone in an environment with ambient temperature of above 35^ (95°F).

NOTES:

• Use only the power adapter that came with your device. Using a different power adapter may damage your device.
• Using the bundled power adapter and ASUS Phone signal cable to connect your ASUS Phone to a power outlet is the best way to charge your ASUS Phone.
• The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the USB Type-C cable is +9V=2A, 18W/ +5V=2A, 10W.

Installing a micro SIM/ nano SIM/ microSD card

To install a micro SIM/ nano SIM/ microSD card:

1. Push a pin into the hole on the micro SIM/ nano SIM/ microSD card slot to eject the tray out.

1. Insert the micro SIM / nano SIM or microSD card(s) into the card slot(s).

IMPORTANT! You can only use the nano SIM card or the microSD card at a time.

1. Push the tray to close it.

CAUTION!

• Do not use sharp tools or solvent on your device to avoid scratches on it.
• Use only a standard micro SIM card on your ASUS Phone. A nano to micro SIM adapter or a trimmed SIM card may not properly fit into and may not be detected by your ASUS Phone.
  DO NOT install an empty nano to micro SIM adapter into the micro SIM card slot to avoid irreversible damage.

Using NFC

You can use NFC in the following three scenarios:

Reader mode: Your phone reads information from a contactless card, NFC tag, or other NFC devices.

Place the NFC area of your phone on the contactless card, NFC tag, or NFC device.

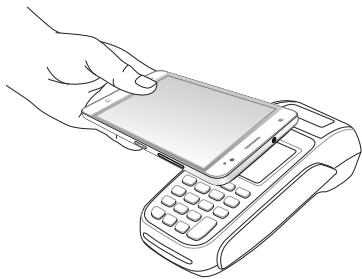

Card Emulation mode: Your phone can be used like a contactless card.

Place the NFC area of your phone on the NFC area of the NFC reader.

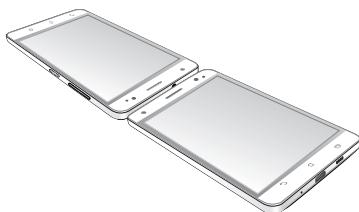

Peer-to-Peer mode: Transfers photos, contacts, or other data between your phone and an NFC-enabled smartphone.

Bring the NFC areas of both smartphones together, without any space between them.

CE RF Exposure Compliance

This device meets the EU requirements (1999/519/ EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

For body-worn operation, this device has been tested and meets the ICNIRP guidelines and the European Standard EN 62209-2, for use with dedicated accessories. SAR is measured with this device at a separation of 0.5cm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Use of other accessories which contain metals may not ensure compliance with ICNIRP exposure guidelines.

CE Mark Warning

C∈0682①

CE marking for devices with wireless LAN/Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity. The highest CE SAR values for the device are as follows:

0.663 W/Kg (Head) @ 10g
0.970 W/Kg (Body) @10g

This device is restricted for indoor use only when operating under 5150 MHz to 5350 MHz of frequency range.

For 5GHz WLAN: This equipment may be operated in:
AT	BE	BG	CH	CY	CZ	DE	DK
EE	ES	FI	FR	GB	GR	HU	IE
IT	IS	LI	LT	LU	LV	MT	NL
NO	PL	PT	RO	SE	SI	SK	TR

Using GPS (Global Positioning System) on your ASUS Phone

To use the GPS positioning feature on your ASUS Phone:

• Ensure that your device is connected to the Internet before using Google Map or any GPS-enabled apps.
• For first-time use of a GPS-enabled app on your device, ensure that you are outdoors to get the best positioning data.
• When using a GPS-enabled app on your device inside a vehicle, the metallic component of the car window and other electronic devices might affect the GPS performance.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Laser safety information

CLASS 1 LASER PRODUCT

Safety information

ASUS Phone care

The battery

• Use your ASUS Phone in an environment with ambient temperatures between 0^ ( 32^ ) and 35^ ( 95^ ).
  Your ASUS Phone is equipped with a high performance non-detachable Li-polymer battery. Observe the maintenance guidelines for a longer battery life.
• Do not remove the non-detachable Li-polymer battery as this will void the warranty.
• Avoid charging in extremely high or low temperature. The battery performs optimally in an ambient temperature of +5^ to +35^ .
• Do not remove and replace the battery with a non-approved battery.
• Do not remove and soak the battery in water or any other liquid.
• Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to come into contact with unprotected skin.
• Do not remove and short-circuit the battery, as it may overheat and cause a fire. Keep it away from jewelry or metal objects.
• Do not remove and dispose of the battery in fire. It could explode and release harmful substances into the environment.
• Do not remove and dispose of the battery with your regular household waste. Take it to a hazardous material collection point.
• Do not touch the battery terminals.

NOTES:

• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used battery according to the instructions.

The charger

• Use only the charger supplied with your ASUS Phone.
• Never pull the charger cord to disconnect it from the power socket. Pull the charger itself.

Caution

Your OSUS Phone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on the (1) AC Adapter.

• Do not use the ASUS Phone in an extreme environment where high temperature or high humidity exists. The ASUS Phone performs optimally in an ambient temperature between 0 °C (32 °F) and 35 °C (95 °F).
• Do not disassemble the ASUS Phone or its accessories. If service or repair is required, return the unit to an authorized service center. If the unit is disassembled, a risk of electric shock or fire may result.
• Do not short-circuit the battery terminals with metal items.

Operator access with a tool

If a TOOL is necessary to gain access to an OPERATOR ACCESS AREA, either all other compartments within that area containing a hazard shall be inaccessible to the OPERATOR by the use of the same TOOL, or such compartments shall be marked to discourage OPERATOR access.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Regional notice for Singapore

This ASUS Phone complies with IDA Standards.

Complies with IDA Standards DB103778

Proper disposal

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

DO NOT throw this product in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw this product in fire.
DO NOT short circuit the contacts.
DO NOT disassemble this product.

WARNING! This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling.

NOTE: For more regulatory information and FCC/IC/MIC/VCCI compliance marks (E-labels), check on your device from Settings > About > Regulatory Information.
