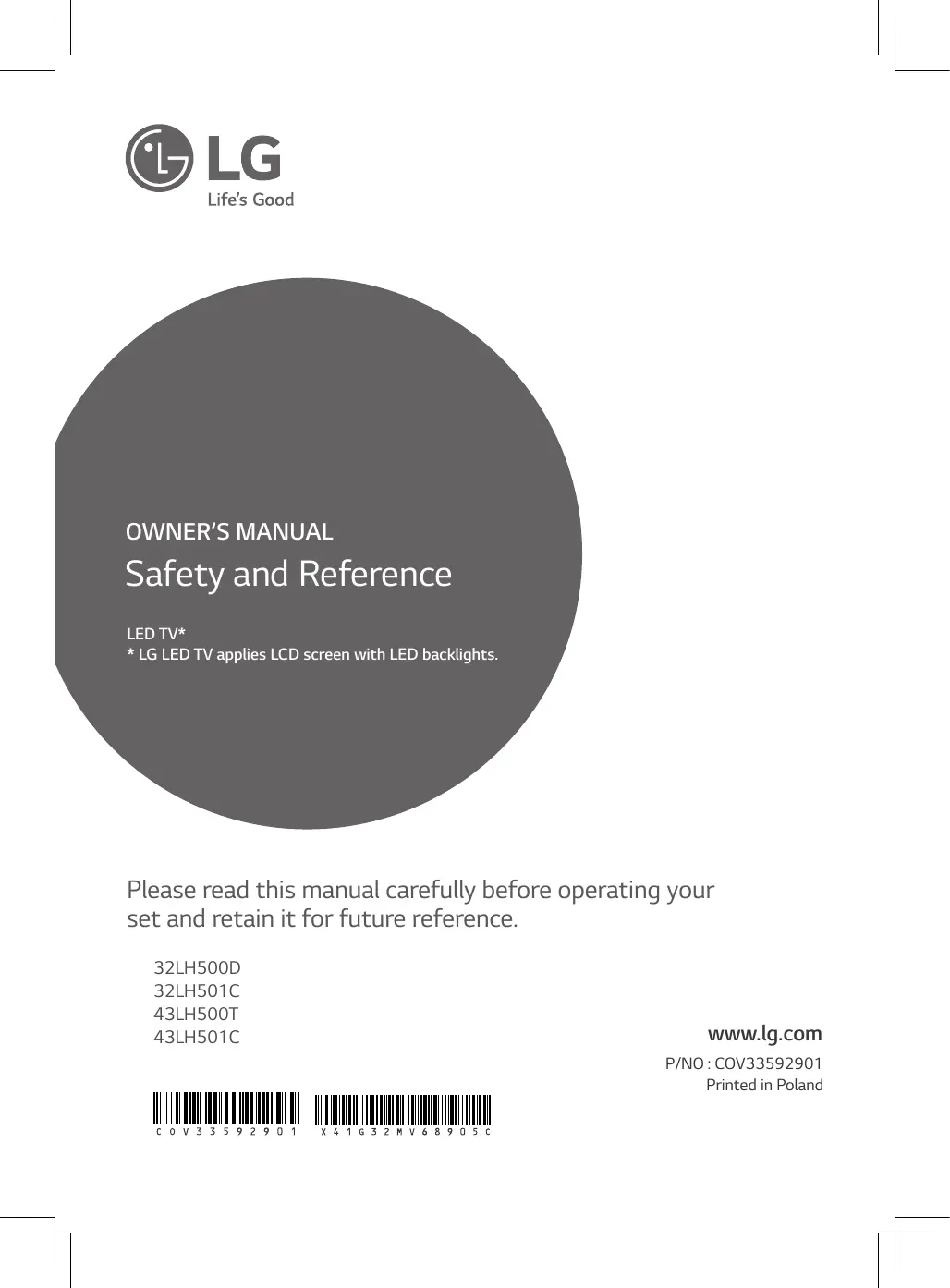

USER MANUAL 32LH500D LG

Safety and Reference LED TV*

• LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 32LH500D 32LH501C 43LH500T 43LH501C www.lg.com

P/NO : COV33592901

Printed in Poland Safety instructions ENGLISH Please read these safety precautions carefully before using the product. WARNING Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation. Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock. Do not place the product where it might be exposed to dust. This may cause a fire hazard. Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock. Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use. When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard. Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture. Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out. Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Des icca

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur. ENGLISH Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged. Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted. Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries. Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark. Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model) Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair. Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances. If any of the following occur, unplug the product immediately and contact your local service centre. Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell This may result in fire or electric shock. Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

ENGLISH Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall. If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise ,this may result in electric shock or fire. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product. If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop. Only use the attachments / accessories specified by the manufacturer. Never Disassemble the AC adapter or power cord. This may result in fire or electric shock. When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard. Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter. CAUTION

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision. Install the product where no radio wave occurs. Only use the specified type of battery. This could cause damage to the remote control. There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock. Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open fireplace and electric heaters. Do not place non-rechargeable batteries in charging device. Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area. ENGLISH Make sure there are no objects between the remote control and its sensor. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product. Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock. Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire. Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen. Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen. When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage). As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund. ENGLISH When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous. You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction. When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock. Displaying a still image for a prolonged time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time. When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury. Generated sound Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure. “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This Do not use high voltage electrical goods near the TV(e.g. electric mosquito-swatter). This may result in product malfunction. Preparing Maintenance NOTE

*A < = 10 mm *B < = 18 mm ENGLISH Cleaning your TV

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.
• Image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port. Clean your TV regularly to keep the best performance and to extend the product lifespan.
• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.
• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly.

• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI®/TM Cable (3m or less) - High-Speed HDMI®/TM Cable with Ethernet (3m or less) CAUTION
• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.
• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Lifting and moving the TV Turning the TV on or off

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

ENGLISH Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration. Mounting on a table (Image shown may differ from your TV.) 1 Lift and tilt the TV into its upright position on a table.
• Leave a 10 cm (minimum) space from the wall for proper ventilation.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding joystick button. CAUTION
• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

10 cm 10 cm 10 cm 10 cm 10 cm 2 Connect the power cord to a wall outlet. CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage. Securing the TV to a wall (This feature is not available for all models.) standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall mounting bracket) 43LH500T 43LH501C 200 x 200 Standard screw

LSW240B MSW240 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. Wall mount bracket LSW140B

• If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface. CAUTION
• Make sure that children do not climb on or hang on the TV. NOTE
• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. Mounting on a wall ENGLISH CAUTION
• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. NOTE Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount. 10 cm 10 cm 10 cm 10 cm Make sure to use screws and wall mount bracket that meet the VESA

Connections (notifications) ENGLISH Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment’s manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card. Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω).
• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: Dolby Digital, Dolby Digital Plus, PCM. CI module connection View the encrypted (pay) services in digital TV mode.
• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable Service Operator. USB connection Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided. NOTE

• Supported HDMI Audio format : Dolby Digital Plus/Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) Remote control To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. INDEX

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

• Do not mix old and new batteries, as this may damage the remote control.
• The remote control will not be included for all sales market. Make sure to point the remote control toward the remote control sensor on the TV.

TELETEXT buttons( TEXT, T.OPT) These buttons are used for teletext. TIME Adjusts TELETEXT time. SETTINGS Accesses the main menus. Q.MENU Accesses the Quick menus. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous level. EXIT Clears on-screen displays and returns to TV viewing.

(POWER) Turns the TV on or off. TV/RAD Selects Radio, TV and DTV programme. SUBTITLE Recalls your preferred subtitle in digital mode. INDEX RATIO Resizes an image. AV MODE Selectcs an AV mode. INPUT Changes the input source. AD/ By pressing AD button, audio descriptions function in the selected. - On : Audio descriptions function will be enabled. - Off : Audio descriptions function will be disabled. INDEX Changes to Teletext INDEX Page. Control buttons ( ) Controls MY MEDIA menus and USB. 1 Coloured buttons These access special functions in some menus. : Red, : Green, : Yellow, : Blue)

Number buttons Enters numbers. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. Adjusts the volume level. FAV Accesses your favourite programme list. GUIDE Shows programme guide. MUTE Mutes all sounds. Scrolls through the saved programmes. Moves to the previous or next screen.

ENGLISH Licenses PICTURE settings Supported licenses may differ by model. For more information about licenses, visit www.lg.com. To use Energy Saving feature SETTINGS PICTURE Energy Saving Reduce power consumption by adjusting screen brightness. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMIlogo are trademarks or registered trademarks of HDMI Licensing LLC in theUnited States and other countries.

• Off : Turns off the Energy Saving mode.
• Minimum / Medium / Maximum : Applies the pre-set Energy Saving mode.
• Screen Off : Screen is turned off and only sound is played. Press any button expect Power button on the remote control to turn the screen back on. To select Picture Mode SETTINGS PICTURE Picture Mode Select the picture mode optimized for the viewing environment or the programme. This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video. To play purchased DivX movies, first register your device at vod.divx. com. Find your registration code in the DivX VOD section of your device setup menu. DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license. Covered by DivX Patents 7,295,673; 7,460,668; 7,515,710; 8,656,183; 8,731,369; RE45,052; and others available at [www.divx.com/patents]

• Vivid : Heightens contrast, brightness and sharpness to display vivid images.
• Standard : Displays images in standard levels of contrast, brightness and sharpness.
• Eco : The Energy Saver feature changes settings on the TV to reduce power consumption.
• Cinema : Displays the optimum picture for movie.
• Sport : Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.
• Game : Displays the optimum picture for game. To set advanced control SETTINGS PICTURE Picture Mode Advanced Control Calibrates the screen for each picture mode; or adjusts picture settings for a special screen. First select a Picture Mode of your choice.
• Dynamic Contrast : Adjusts the contrast to the optimal level.
• Dynamic Colour : Adjusts colors to make the image appear in more natural colors.
• Gamma : Sets the gradation curve according to the output of picture signal in relation to the input signal. SETTINGS PICTURE Picture Mode Picture Option
• Noise Reduction : Eliminates noise in the picture.
• MPEG Noise Reduction : Eliminates noise generated while creating digital picture signals.
• Black Level : Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen.
• Real Cinema : Optimizes the screen for movie viewing. To reset picture settings SETTINGS PICTURE Picture Mode Picture Reset Resets picture settings that the user customizes. Each picture mode is reset. Select the picture mode you wish to reset.

To adjust Aspect Ratio SETTINGS PICTURE Aspect Ratio Selects the screen aspect ratio. AUDIO settings SETUP settings ENGLISH

• 16:9 : Resizes images to fit the screen width.
• Just Scan : Displays video images in the original size without removing parts of the edge of the image.
• In DTV, Component, HDMI, and DVI (over 720p) mode, Just Scan is available.
• Original : When your TV receives a wide screen signal it will automatically change to the picture format broadcasted.
• Full Wide : When TV receives the wide screen signal, it will let you adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully. 4:3 and 14:9 video is supported in full screen without any video distortion through DTV input.
• In Analogue/DTV/AV/Scart mode, Full Wide is available.
• 4:3 : Resizes images to the previous standard 4:3.
• 14:9 : You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is moved up or down.
• Zoom : Resizes images to fit the screen width. The top and bottom parts of the image may be cut off.

• PCM : Digital output signal is fixed to PCM.
• Auto : Bypass audio raw data to digital output signal. Automatically Setting Up Programme SETTINGS SETUP Auto Tuning Automatically tunes the programmes.
• Auto Tuning : Selects the input source to tune programmes.

1. Select Country where the TV is used. Programme settings change

depending on the country you choose.

2. Initiate Auto Tuning.

3. Select Input Source of your choice.

4. Set Auto Tuning following screen instructions.

• If Input Source is not connected properly, programme registration may not work.
• Auto Tuning only finds programmes that are currently broadcasting.
• If Lock System is turned on, a pop-up window will appear asking for password. To use Manual Tuning To use Sound Mode SETTINGS AUDIO Sound Mode Adjusts TV audio to an optimal level according to a selected sound mode.
• Standard : Suitable for all types of video.
• News / Music / Cinema / Sport / Game : Sets audio optimized for a specific genre. To select various sound effects. SETTINGS

AUDIO Sound Effect Treble : Controls the dominant sounds in the output. Bass : Controls the softer sounds in the output. Balance : Adjusts left/right audio balance. Reset : Initialize the applied effect under the Sound Effect menu. To set Auto Volume SETTINGS AUDIO Auto Volume Auto Volume to On. Varying volume output from channel to channel is automatically adjusted for convenient TV watching when clicking through different programme. Adjusts programmes manually and saves the results.

• Manual Tuning : Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.
• You can also adjust the Frequency(kHz) and Bandwidth(MHz). To select Programme mode SETTINGS SETUP Programme Mode This function allows you to watch a tuned program in Antenna, Cable Mode.
• Programme Mode : You can only watch programs in the selected mode. To set CI Information
• CI Information : This function enables you to watch some encrypted services (pay services).
• If you remove the CI Module, you cannot watch pay services.
• CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstances.
• When the module is inserted into the CI slot, you can access the module menu.
• To purchase a module and smart card, contact your dealer.
• When the TV is turned on after inserting a CI Module, you may not have any sound output. The Smart Card may not be compatible with the CI module. Selects the initial setting for digital audio output signal.

TIME settings SETTINGS TIME according to information from the broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

• Input Block : Blocks the input sources. ENGLISH

• Clock : Checks or changes the time while watching TV. To set the TV to turn on and off automatically SETTINGS TIME

• Off Time / On Time : Sets the time to turn on or off the TV automatically.
• To use On Time/Off Time, set the current time correctly.
• Even when the On Time function is on, the TV will turn off automatically in 120 minutes when no button is pressed within that time. Turns off the TV after a preset number of minutes.
• Sleep Timer : Sets the length of time until the TV to turns off . When you turn the TV off and turn it on again,the Sleep Timer feature will be set to off . To set Automatic Standby SETTINGS TIME Automatic Standby [This function is available on certain models or in certain countries only] If you do not press any button on the TV or remote control for a certain period, the TV will automatically switch to standby mode.
• Automatic Standby : Once the specified standby time passes, the TV turns off automatically. Pressing any button or changing the resolution will initialize the standby time.
• This function does not work on Store mode or while software update LOCK settings To set password SETTINGS LOCK

• Set Password : Sets or changes the TV password. The initial password is set to ‘0000’.
• When France is selected for Country, password is not ‘0000’ but ‘1234’.
• When France is selected for Country, password cannot be set to ‘0000’. To set Lock System

• Lock System : Activates or deactivates the lock system.
• Parental Guidance(Only DTV) : This function operates OPTION settings To select the language SETTINGS OPTION

• Language : Selects a desired language.
• Menu Language : Selects a language for the display text.
• Audio Language : [In Digital mode Only] Selects the desired language when watching digital broadcasting containing several voice languages.
• Subtitle Language : [In Digital mode Only] Use the Subtitle function when two or more subtitle languages are broadcast.
• If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.
• Text Language : [In Digital mode Only][This feature is available in certain countries only.] Use the Text language function when two or more Text languages are broadcast.
• If teletext data in a selected language is not broadcast, the default Text language will be displayed.
• If you select the wrong local country, teletext may not appear correctly on the screen and some problems may occur during teletext operation. To set the country SETTINGS OPTION Country

• Country : TV settings are changed according to the broadcast environment of the selected country.
• If the country setting is changed, the Auto Tuning information screen may appear.
• In a country that Digital broadcasting regulation isn’t fixed, some DTV functions may not work depending on digital broadcasting circumstances.
• If the country setting is set to “--”, European terrestrial digital standard broadcasting programmes are available, but some DTV functions may not work properly. To select audio commentary or subtitles SETTINGS OPTION Disability Assistance

• Disability Assistance : Audio commentary or subtitles are provided for those who are hard of hearing or visually impaired.
• Hard of Hearing : This function is used for the hearing impaired. If it is set to on, the subtitle is displayed by default.
• Audio Description : This function is for the blind, and provides explanatory audio describing the current situation in a TV programme in addition to the basic audio. When Audio Description is selected On, basic audio and Audio Description are provided only for those programmes that have Audio Description included. SETTINGS OPTION DivX(R) VOD

• Registration : Checks DivX Reg. Code for replaying DivX protected videos. Register at http://vod.divx.com. Use Reg. Code to rent or purchase movies at www.divx.com/vod.
• Rented/purchased DivX files cannot be played if the DivX Registration Code of a different device is used. Use only the DivX Registration Code granted to this specific device.
• Converted files not conforming to the DivX Codec Standard may not play or may produce abnormal sound.
• Deregistration : Deregisters DivX. To set Subtitle SETTINGS OPTION Subtitle

• Factory Reset : All stored information is deleted and TV settings are reset. TV turns itself off and back on, and all settings are reset.
• When Lock System is in place, a pop-up window appears and asks for password.
• Do not turn off the power during initialization. To change TV mode SETTINGS OPTION Mode Setting Selecting the environment. Choose the setting mode you want.
• Mode Setting : Selects Home Mode or Store Mode.
• When in use in home, please select Home Mode.
• Store Mode mode is for store display. To obtain the source code SETTINGS OPTION Open Source Software Notice

• LGE Open Source Software Notice : To display the open source licenses, that is contained in this product. To update the software SETTINGS OPTION ENGLISH To set up My Media using the OAD (Over Air Download) Update. Automatic update mode means TV will update software automatically, when software was downloaded completed.
• FW Version : Checks the software version and Product/Service information. System info.

• System info. : Selects USB Update, OAD Update, or FW Version. The firmware will download and install. Upon completion of the update, your LG TV will restart.
• USB Update : Updates software via USB device.
• OAD Update : Selects On/Off to update the operation software INPUT settings To select external input Selects external input. Press INPUT button or SETTINGS INPUT My Media settings To use My Media SETTINGS Music List MY MEDIA All Media / Movie List / Photo List / Selects a file from the list. Displays the file that you choose. Sets play related settings by checking option during disk playback. Using a USB storage device warning
• If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• Use only USB storage devices formatted with the Windows FAT32 or NTFS File System.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500 mA.
• It is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 2 TB or less.
• If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of the USB HDD.
• Data in the USB storage device can be damaged, so be sure to back up important files to other devices. Data maintenance is the user’s responsibility and the manufacturer is not responsible for data loss. My Media supporting file
• Maximum data transfer rate : 20 Mbps (Mega bit per second)
• External supported subtitle formats : *.srt (SubRip), *.smi (SAMI),*.sub (SubViewer, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)),*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer).
• Internal supported subtitle formats : *.divx/*.avi (XSUB generated from DivX6).

Supported Video Formats ENGLISH Supported Audio Formats

• .mp3 [Bit rate] 32Kbps - 320Kbps [Sample freq.] 16kHz - 48kHz [Audio codec] MPEG1 Layer3, MPEG2 Layer3, MPEG2.5 Layer3 Supported Photo Formats
• .jpeg [SOF0] Baseline [SOF1] Extend Sequential [SOF2] Progressive [Photo size] Minimum: 64 x 64 Maximum: Normal Type: 15360(W) x 8640(H) Progressive Type: 1024(W) x 768(H) Open source software notice information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product. External control device setup To obtain the external control device setup information, please visit www.lg.com. Troubleshooting Cannot control the TV with the remote control.
• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed ( to , to ). No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other products. The TV turns off suddenly.
• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby / Sleep Timer / Off Time is activated in the TIME settings.
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity. When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.
• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
• Restart the PC with the TV on.

Specifications CI Module (W x H x D) 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Digital TV VHF: E2 to E12 UHF : E21 to E69 CATV: S1 to S20 HYPER: S21 to S47 Maximum number of storable programmes 6,000 1,500 External antenna impedance ENGLISH Environment condition HDMI-DTV supported mode Resolution ENGLISH Vertical Frequency (Hz)

Vertical Frequency (Hz) 720 x 400 640 x 480 800 x 600 1024 x 768 1280 x 720 1360 x 768 1366 x 768 1280 x 1024 1920 x 1080 Component port connecting information Component ports on the TV 1920 x 1080i 1920 x 1080p

Video output ports on DVD player

Signal Component 480i / 576i

1080p Resolution 720 (1440) x 480i 720 x 480p

(Only 50 Hz / 60 Hz) Horizontal Frequency (kHz)

Vertical Frequency (Hz)

ENGLISH 1920 x 1080p

VHF: E2 a E12 UHF: E21 a E69 CATV: S1 a S20 HYPER: S21 a S47

Connexions (notifications) 10 cm 10 cm

• MP3 [Bitrate] 32 Kbit/s - 320 Kbit/s [Abtastfrequenz] 16 kHz - 48 kHz [Audio-Codec] MPEG1 Layer3, MPEG2 Layer3, MPEG2.5 Layer3 Actualizar o software SETTINGS OPÇÃO Info. sistema VHF: E2 a E12 UHF: E21 a E69 CATV: S1 a S20 HYPER: S21 a S47

LGE-VERKLARING OPEN SOURCE-

1080p Resolutie 720 (1440) x 480i 720 x 480p

NEDERLANDS 1920 x 1080i 33,72

VHF: E2 do E12 UHF: E21 do E69 CATV: S1 do S20 HYPER: S21 do S47

Regulatory LG Recycling Policy (Only EU) LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment. For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-backrecycling Energy Saving Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use. EU ecolabel (Only EU ecolabel applied model) Better for the environment...
• High Energy Efficiency
• Reduced CO2 emissions
• Designed to facilitate repair and recycling ... better for you. EU Ecolabel : PL/22/004 LGE announced the ‘LG Declaration for a Cleaner Environment ‘in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertaike Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features. The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu Packing Information (Only Russia, Kazakhstan, Belarus)

SLOVENŠČINA Please contact LG First. If you have any inquiries or comments, please contact LG customer information centre. LG Customer Information Centre Country Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL Country Service Service Österreich

Luxembourg 0032 15 200255 Polska

България 07001 54 54 Portugal
