USER MANUAL GBU341W6 IOGEAR

Thank you for purchasing one of the most feature-rich Bluetooth® to USB adapters available. IOGEAR's Bluetooth® to USB adapters are first-rate wireless connectivity accessories designed to help reduce the frustration of dealing with cable glut in your home or office. These adapters allow computers with USB connections to become Bluetooth enabled computers. They comply to Bluetooth® 2.0 and USB 1.1 specifications, and provide users with a 2.1Mbps data rate. They also enable wireless Personal Area Network (PAN) connectivity to Bluetooth enabled devices such as PDA's, printers, cellular phones, computers, etc.

We hope you enjoy using your IOGEAR Bluetooth® to USB adapter, another connectivity solution from IOGEAR.

Table of Contents

Package Contents 5

Features 6

System Requirements 7

Introduction 8

Software Installation 9

Hardware Installation 16

Installing the Bluetooth Mouse 20

Disabling Bluetooth Mouse 24

Installing a Bluetooth Enabled PDA 27

Installing a Bluetooth GPS 33

Installing a Bluetooth Headset 38

Installing a Bluetooth Stereo Headphone 42

Using a Bluetooth Stereo Headphone as 48

Headset on your PC

Installing a Bluetooth Printer Adapter 51

Technical Support 59

Federal Communications Commission 60

(FCC) Statement

CE Steatement 62

Limited Warranty 63

Contact 64

Package Contents

• 1 USB Bluetooth® Adapter
  1 Installation CD
  1 Quick Start Guide
  1 Warranty/Registration Card

If any items are damaged or missing, please contact your dealer.

Features

• Eliminates cables between your computers
  Controls and communicates with Bluetooth enabled devices
• Enables wireless Personal Area Network (PAN) connectivity
• Bluetooth® specification 2.0 compliant
  USB specification 1.1 compliant
  Up to 20 meter (66 feet) wireless working distance for GBU241W6, up to 100 meter (330 feet) for GBU341W6
  Up to 2.1 Mbps, 3x faster than 1.2
• Small form factor makes it easy to carry and place
• Crisp, easy, and fast installation and setup
  Built-in security to assure the privacy of your communication - Pairing, Encryption, and Authentication
• Transfer data between your cell phone and PC.
  PC and Mac compatible

System Requirements

Hardware Requirement:

Available USB port

Operating System:

For PCs:Windows 2000/XP/Vista
For Macs: OS X v10.3.9 or later

Introduction

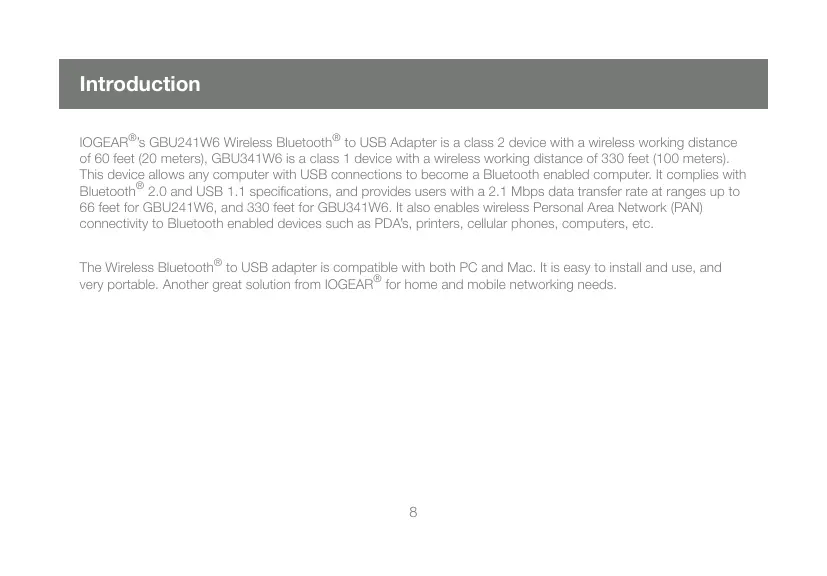

IOGEAR®'s GBU241W6 Wireless Bluetooth® to USB Adapter is a class 2 device with a wireless working distance of 60 feet (20 meters), GBU341W6 is a class 1 device with a wireless working distance of 330 feet (100 meters). This device allows any computer with USB connections to become a Bluetooth enabled computer. It complies with Bluetooth® 2.0 and USB 1.1 specifications, and provides users with a 2.1 Mbps data transfer rate at ranges up to 66 feet for GBU241W6, and 330 feet for GBU341W6. It also enables wireless Personal Area Network (PAN) connectivity to Bluetooth enabled devices such as PDA's, printers, cellular phones, computers, etc.

The Wireless Bluetooth® to USB adapter is compatible with both PC and Mac. It is easy to install and use, and very portable. Another great solution from IOGEAR® for home and mobile networking needs.

Software Installation

Windows XP

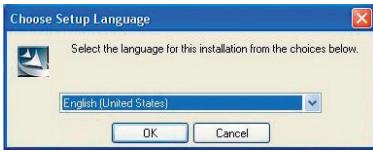

1. Insert the driver CD into an available CD drive on your computer. Select the language you would like to use for the installation and click OK.

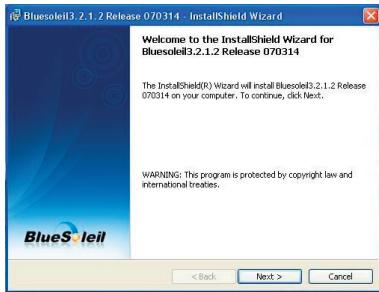

1. The InstallShield Wizard for the BlueSoleil software will appear. Click Next to continue.

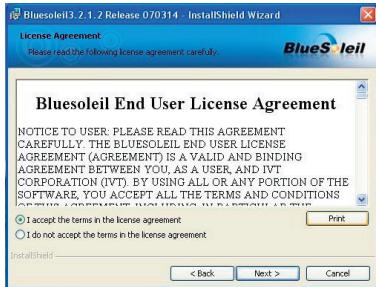

1. If you agree to the terms of the license agreement, click on the "I accept the terms in the license agreement" and click Next to continue.

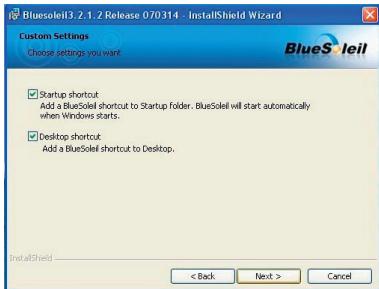

1. Please choose if you want to have shortcut on Startup folder and Desktop, and then click Next to continue. (We suggest you leave it as default to avoid mistaken setting.)

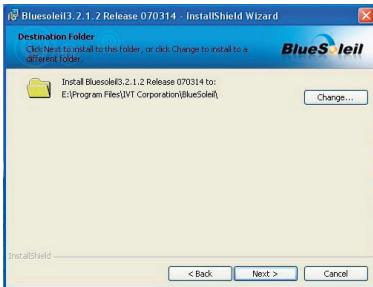

1. Click Change if you would like to change the directory that the Bluetooth software is installed to. Click Next when you are ready to continue.

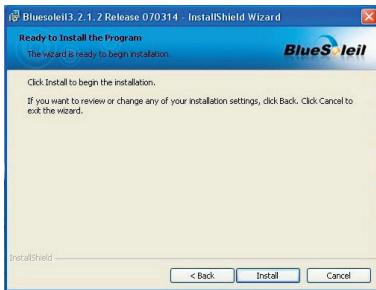

1. If you have set everything correctly, simply click Install to begin the installation process. Otherwise, please click Back to review the setup.

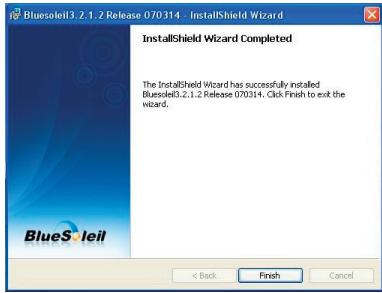

1. After the BlueSoleil software has completely installed, you will need to restart your computer to begin using the software.

Windows Vista

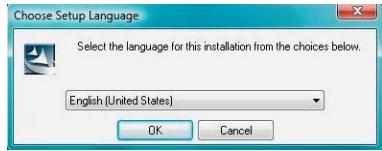

1. Insert the driver CD into an available CD drive on your computer. Select the language you would like to use for the installation and click OK.

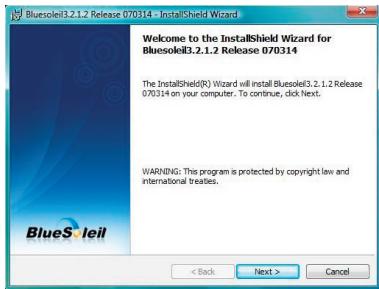

1. The InstallShield Wizard for the BlueSoleil software will appear. Click Next to continue.

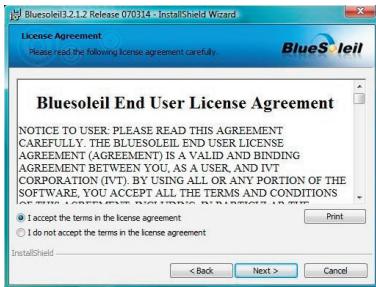

1. If you agree to the terms of the license agreement, click on the "I accept the terms in the license agreement" and click Next to continue.

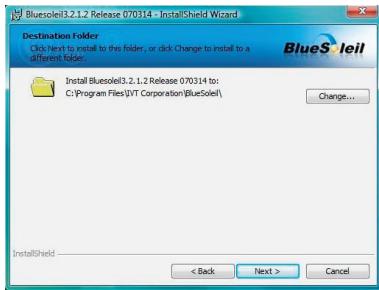

1. Click Change if you would like to change the directory that the Bluetooth software is installed to. Otherwise, click Next when you are ready to continue.

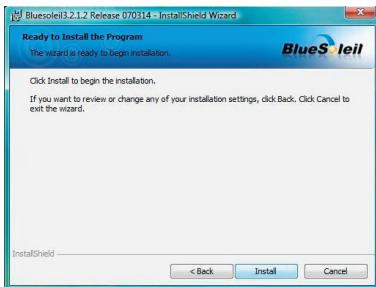

1. If you have set everything correctly, simply click Install to begin the installation process. Otherwise, please click Back to review the setup.

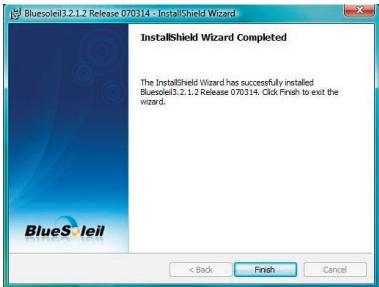

1. After the BlueSoleil software has completely installed, you will need to restart your computer to begin using the software.

Hardware Installation

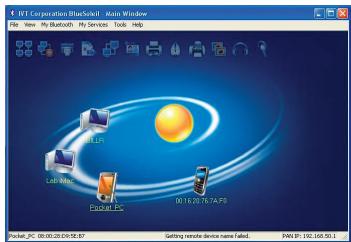

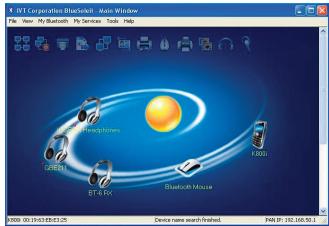

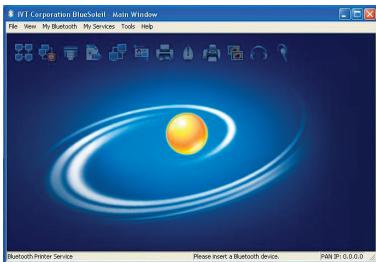

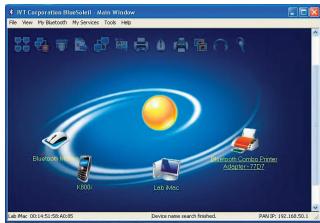

1. After restarting you will be presented with the main BlueSoleil window. At the bottom of the window will be a message asking you to insert a Bluetooth device. Insert the Bluetooth® adapter into an available USB port on your computer now.

1. On Windows XP, you will see a message bubble appear in the lower right corner of your screen as drivers are loaded for the Bluetooth® adapter.

1. When the drivers have completely loaded, the BlueSoleil software will ask you for the name and type of your computer so that other Bluetooth devices can correctly identify it. Press OK when you are done entering this information.

1. As the Bluetooth network is established, you may see a warning from any firewall software you have installed. Make sure you unblock the BlueSoleil software or you may experience problems with networking.

Windows Vista

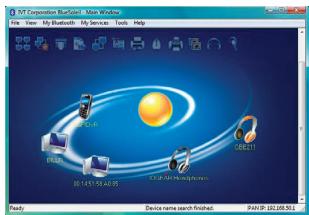

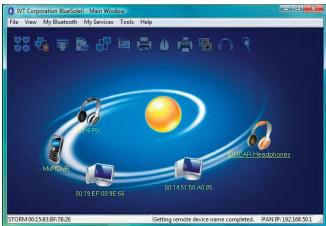

1. After your computer is restarted, double click the BlueSoleil icon on your desktop to start the BlueSoleil software. Then you will be presented with the main BlueSoleil window. At the bottom of the window will be a message asking you to insert a Bluetooth device. Insert the Bluetooth® adapter into an available USB port on your computer now.

1. On Windows Vista, you will see a message bubble appear in the lower right corner of your screen as drivers are loaded for the Bluetooth® adapter.

Installing device driver software Click here for status.

11:50AM

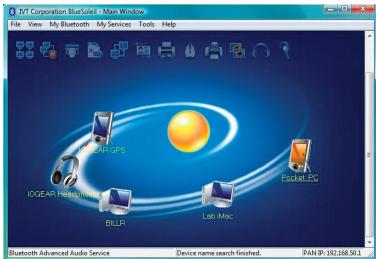

1. When the drivers are completely loaded, the BlueSoleil software will ask you for the name and the device type of your computer so that other Bluetooth devices can correctly identify it. Press OK when you are done entering this information.

1. As the Bluetooth network is established, you may see a warning from any firewall software you have installed. Make sure you unblock the BlueSoleil software or you may experience problems with networking.

Installing the Bluetooth Mouse

Windows XP

1. To connect to a Bluetooth mouse, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your Bluetooth mouse's documentation for instructions on making it discoverable.

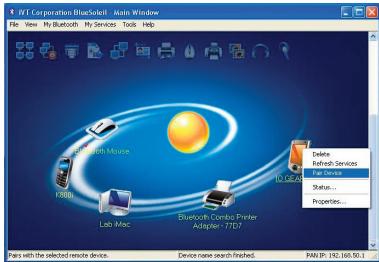

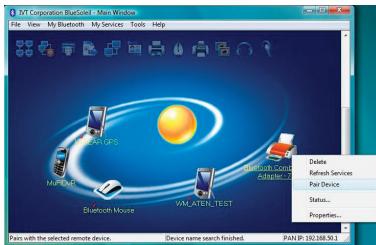

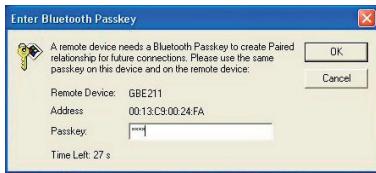

1. If the device requires authentication, right-click on the Bluetooth mouse icon and choose Pair Device.

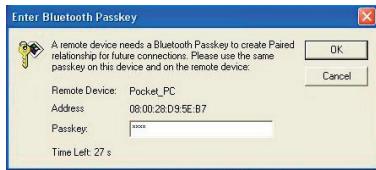

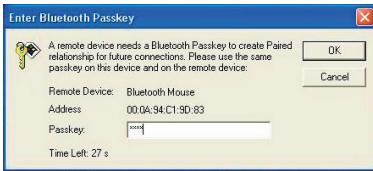

1. Then enter the passkey found in the device's documentation and click Ok.

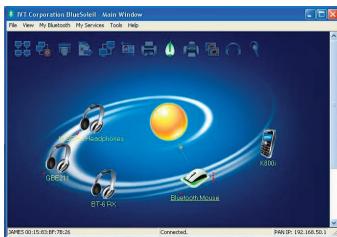

1. Double-click on the mouse to discover what Bluetooth features it supports. You will see the Bluetooth Human Interface Device (HID) icon light up at the top of the BlueSoleil window. Click once on the HID icon to connect to your mouse. The icon should turn green and a link should appear between your

green and a link should appear between your mouse and the orb. If this is the first time you have used a Bluetooth mouse there will be a brief pause while drivers are loaded, but your mouse should now be ready to use. You can close the BlueSoleil window and your mouse will continue to work.

Windows Vista

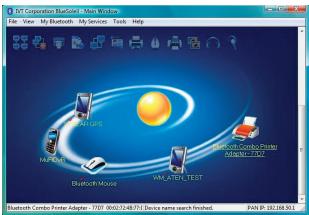

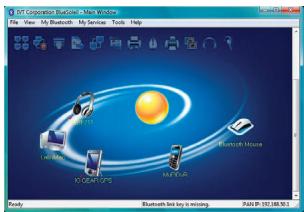

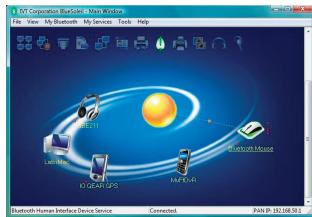

1. To connect to a Bluetooth mouse, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your Bluetooth mouse's documentation for instructions on making it discoverable.

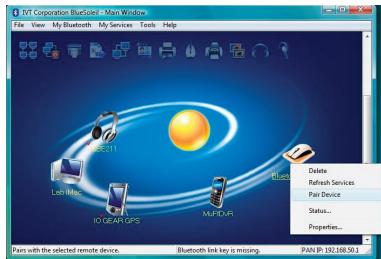

1. If the device requires authentication, right-click on the Bluetooth mouse icon and choose Pair Device.

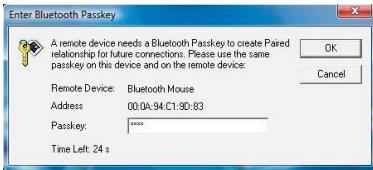

1. Then enter the passkey found in the device's documentation and click Ok.

1. Double-click on the mouse to discover what Bluetooth features it supports. You will see the Bluetooth Human Interface Device (HID) icon light up at the top of the BlueSoleil window. Click once on the HID icon to connect to your mouse. The icon

should turn green and a link should appear between your mouse and the orb. If this is the first time you have used a Bluetooth mouse there will be a brief pause while drivers are loaded, but your mouse should now be ready to use. You can close the BlueSoleil window and your mouse will continue to work.

Disabling Bluetooth Mouse

Windows XP

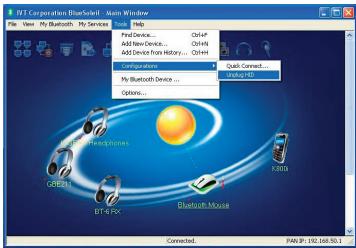

1. If you would like to stop the mouse from automatically connecting when it is turned on, you will need to "unplug" it. You can do this by pulling down the Tools menu, selecting Configurations and then Unplug HID.

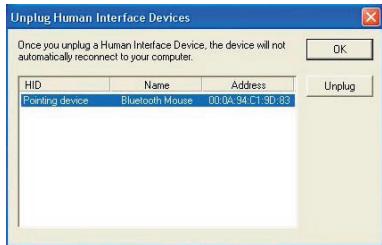

1. You will see a list of any HID devices you have connected to. Select the mouse and click Unplug.

1. Then you will see the Bluetooth mouse is cleared from the list, then simply click Ok to finished the unplug process.

Windows Vista

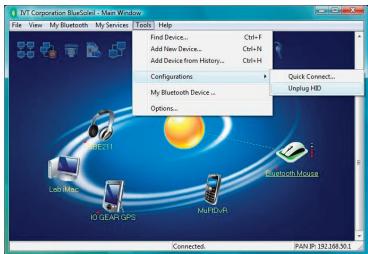

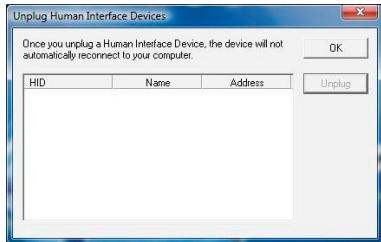

1. If you would like to stop the mouse from automatically connecting when it is turned on, you will need to "unplug" it. You can do this by pulling down the Tools menu, selecting Configurations and then Unplug HID.

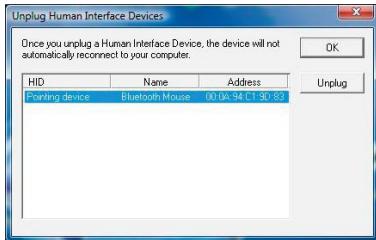

1. You will see a list of any HID devices you have connected to. Select the mouse and click Unplug.

1. Then you will see the Bluetooth mouse is cleared from the list, then simply click Ok to finished the unplug process.

Installing a Bluetooth Enabled PDA

Windows XP

1. To connect to a PDA device, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your PDA's documentation for instructions on making it discoverable.

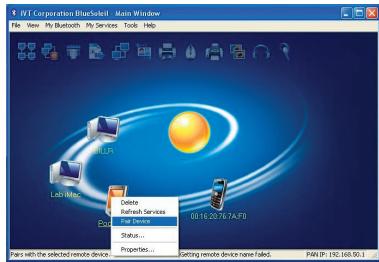

1. If the device requires authentication, right-click on the PDA icon and choose Pair Device.

1. Then enter the passkey found in the device's documentation and click Ok.

1. Double-click on the PDA icon to discover what services are offered by the device. The icon for Bluetooth Serial Port should light up. Click this icon to connect to the PDA. A window will appear, showing which

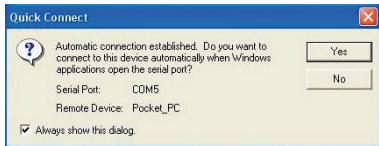

COM port number has been assigned to the PDA. If your PDA software does not have an auto-detect feature, you may need to manually select the COM port number shown here in the software preferences. Click Yes to allow your PDA software to start the connection on its own.

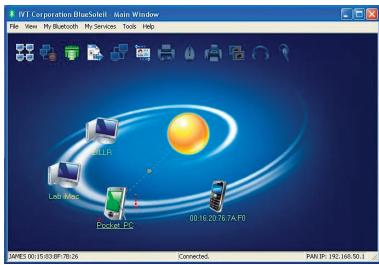

1. The icon should turn green and a link should appear between your PDA and the orb.

1. After the Bluetooth Serial Port Service is activated, you can now use your own PDA software (For example: Nokia PC Suite) to synchronized your PDA. Please select the same serial port number as shown on Step 4 (COM5 in this example) if your software asks you which COM port to use for synchronization.

Windows Vista

1. To connect to a PDA device, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your PDA's documentation for instructions on making it discoverable.

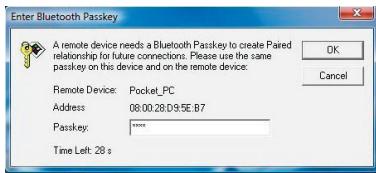

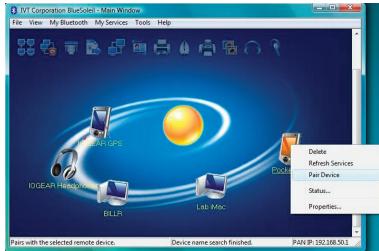

1. If the device requires authentication, right-click on the PDA icon and choose Pair Device.

1. Then enter the passkey found in the device's documentation and click Ok.

1. Double-click on the PDA icon to discover what services are offered by the device. The icon for Bluetooth Serial Port should light up. Click this icon to connect to the PDA. A window will appear, showing which COM

port number has been assigned to the PDA. If your PDA software does not have an auto-detect feature, you may need to manually select the COM port number shown here in the software preferences. Click Yes to allow your PDA software to start the connection on its own.

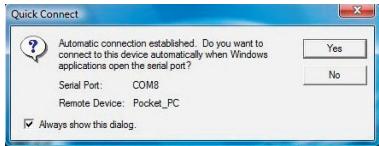

1. The icon should turn green and a link should appear between your PDA and the orb.

1. After the Bluetooth Serial Port Service is activated, you can now use your own PDA software (For example: Nokia PC Suite) to synchronized your PDA. Please select the same serial port number as shown on Step 4 (COM8 in this example) if your software asks you which COM port to use for synchronization.

Installing a Bluetooth GPS

Windows XP

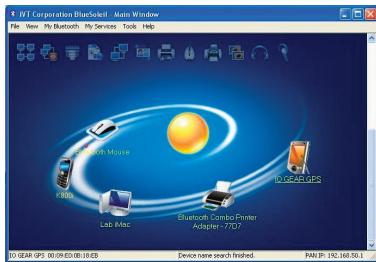

1. To connect to a GPS device, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your GPS' documentation for instructions on making it discoverable.

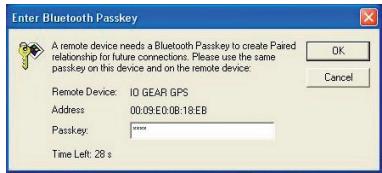

1. If the device requires authentication, right-click on the GPS icon and choose Pair Device.

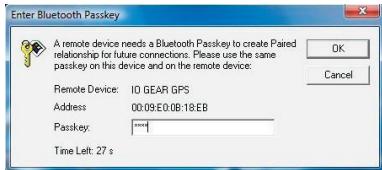

1. Then enter the passkey found in the device's documentation and click Ok.

1. Double-click on the GPS icon to discover what services are offered by the device. The icon for Bluetooth Serial Port should light up. Click this icon to connect to the GPS.

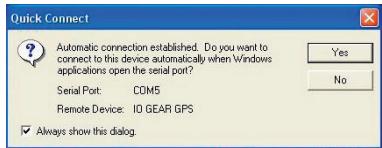

A window will appear, showing which COM port number has been assigned to the GPS. If your GPS software does not have an auto-detect feature, you may need to manually select the COM port number shown here in the software preferences. Click Yes to allow your GPS software to start the connection on its own.

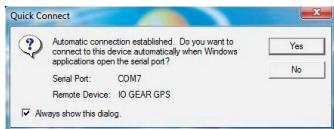

1. The icon should turn green and a link should appear between your GPS and the orb.

Windows Vista

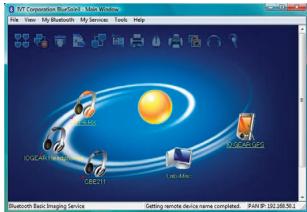

1. To connect to a GPS device, make sure the device is in discoverable mode and click the orange orb to search for nearby Bluetooth devices. If the device cannot be found, refer to your GPS' documentation for instructions on making it discoverable.

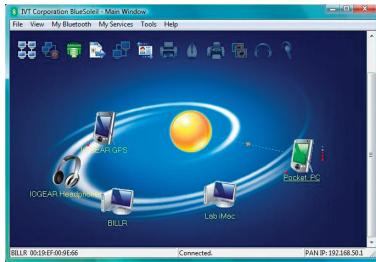

1. If the device requires authentication, right-click on the GPS icon and choose Pair Device.

1. Then enter the passkey found in the device's documentation and click Ok.

1. Double-click on the GPS icon to discover what services are offered by the device. The icon for Bluetooth Serial Port should light up. Click this icon to connect to the GPS. A window will appear, showing which COM port number has been assigned to the GPS. If your GPS software does not have an auto-detect feature, you may need to manually select the COM port number shown here in the software preferences. Click Yes to allow your GPS software to start the connection on its own.

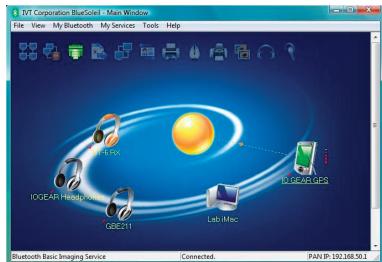

1. The icon should turn green and a link should appear between your GPS and the orb.

Installing a Bluetooth Headset

Windows XP

1. To connect to a Bluetooth headset, first make sure the headset has been set to discoverable mode. Refer to your headset's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the headset.

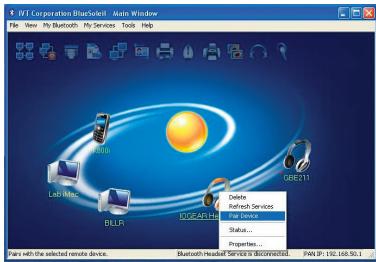

1. If the headset requires authentication, right-click the headset icon and choose Pair Device.

1. Then enter the passkey from the headset's documentation and click OK.

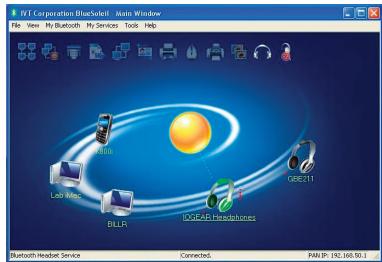

1. Double-click the headset icon to discover the services it offers. The Headset service should light up at the top of the window. Click the Headset service icon to connect to the headset. The headset should ring as if

you were receiving an incoming call. A press of the button on your headset should accept the call and begin transmitting sound from your computer to the headset. The microphone on the headset should also transmit to the computer, allowing you to make voice over IP (VOIP) phone calls.

Windows Vista

1. To connect to a Bluetooth headset, first make sure the headset has been set to discoverable mode. Refer to your headset's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the headset.

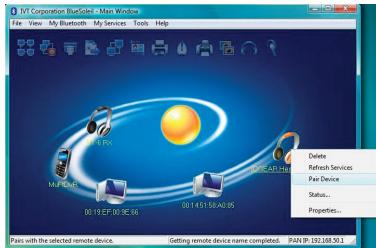

1. If the headset requires authentication, right-click the headset icon and choose Pair Device.

1. Then enter the passkey from the headset's documentation and click OK.

1. Double-click the headset icon to discover the services it offers. The Headset service should light up at the top of the window. Click the Headset service icon to connect to the headset. The headset should ring as if

you were receiving an incoming call. A press of the button on your headset should accept the call and begin transmitting sound from your computer to the headset. The microphone on the headset should also transmit to the computer, allowing you to make voice over IP (VOIP) phone calls.

Installing a Bluetooth Stereo Headphone

Windows XP

1. To connect to a Bluetooth Stereo Headphone, first make sure the headphone has been set to discoverable mode. Refer to your headphone's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the headphone.

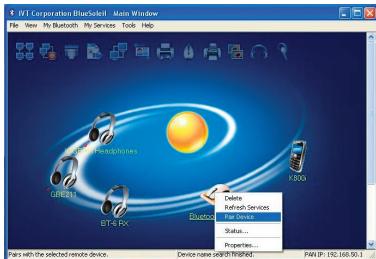

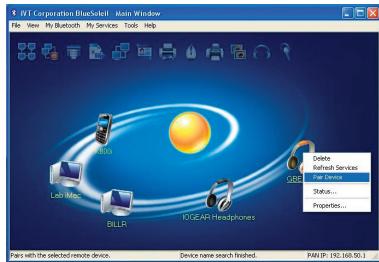

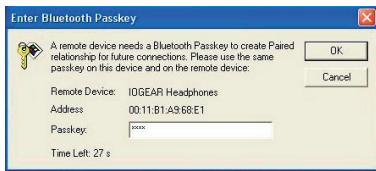

1. If the headphone requires authentication, right-click on the headphone icon and choose Pair Device.

1. Then enter the passkey from the headache's documentation and click OK.

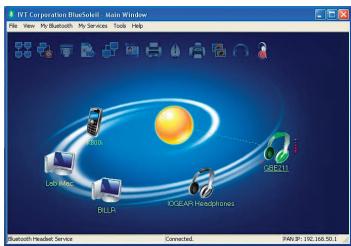

1. Both Headset and Advanced Audio Service icons should light up at the top right corner of the window. Right-click on the headphone icon to discover the services it offers. Click on Bluetooth Advanced Audio Service from the selection list to connect to the headphone. Advanced Audio Service icon at the top right corner of the window should turn GREEN when the service is activated.

1. A message dialog box will also show up at the bottom right corner of your desktop, indicating SBC Codec is selected.

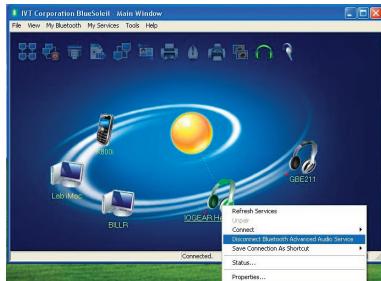

1. To disconnect the Advanced Audio Service, simply right-click on the headphone icon, and select Disconnect Bluetooth Advanced Audio Service.

Windows Vista

1. To connect to a Bluetooth Stereo Headphone, first make sure the headphone has been set to discoverable mode. Refer to your headphone's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the headphone.

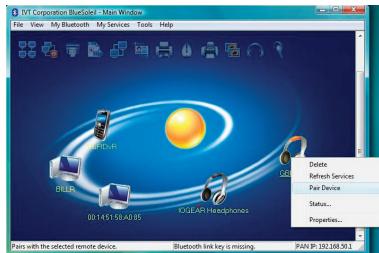

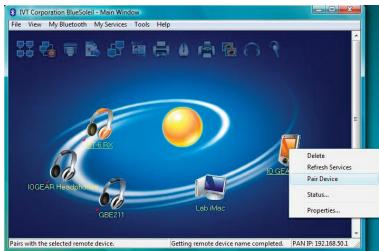

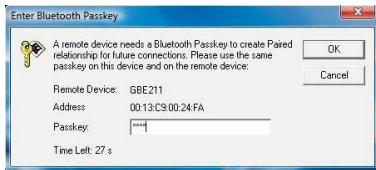

1. If the headphones require authentication, right-click on the headphone icon and choose Pair Device.

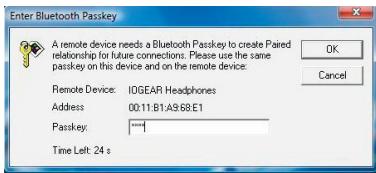

1. Then enter the passkey from the headache's documentation and click OK.

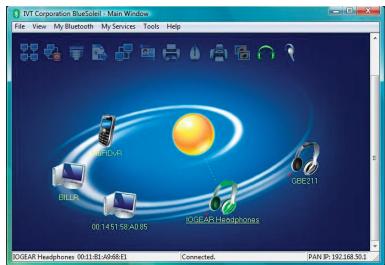

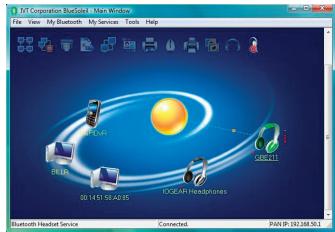

1. Both Headset and Advanced Audio Service icons should light up at the top right corner of the window. Right-click on the headphones icon to discover the services it offers. Click

on Bluetooth Advanced Audio Service fromthe selection list to connect to theheadphone. Advanced Audio Service iconat the top right corner of the window shouldturn GREEN when the service is activated.

1. A message dialog box will also show up at the bottom right corner of your desktop indicating SBC Codec is selected.

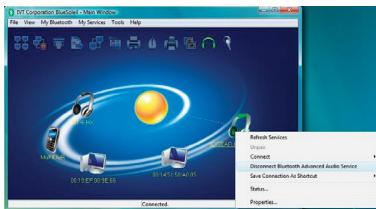

1. To disconnect the Advanced Audio Service, simply right-click on the headphone icon, and select Disconnect Bluetooth Advanced Audio Service.

Using a Bluetooth Stereo Headphone as Headset on Your PC

Windows XP

1. Click on Bluetooth Headset Service from the selection list to connect to the headphone. The headphone should ring as if you were receiving an incoming call. Press on the phone button on your headphone to accept the call and begin transmitting sound from your computer to the headphone. The microphone on the headphone should also transmit to the computer, allowing you to make voice over IP (VoIP) phone calls.

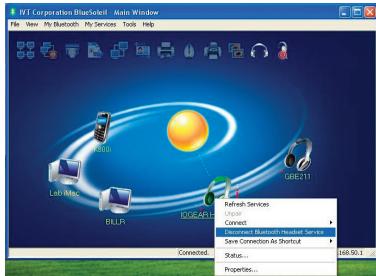

1. To disconnect the Headset Service, simply right-click on the headphone icon, and select Disconnect Bluetooth Headset Service.

Windows Vista

1. Click on Bluetooth Headset Service from the selection list to connect to the headphone. The headphone should ring as if you were receiving an incoming call. Press on the phone button on your headphone to accept the call and begin transmitting sound from your computer to the headphone. The microphone on the headphone should also transmit to the computer, allowing you to make voice over IP (VOIP) phone calls.

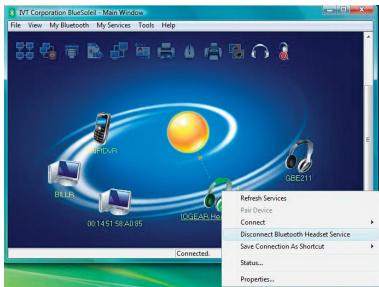

1. To disconnect the Headset Service, simply right-click on the headphone icon, and select Disconnect Bluetooth Headset Service.

Installing a Bluetooth Printer Adapter

Windows XP

1. To connect to a Bluetooth Printer Adapter, first make sure the adapter has been set to discoverable mode. Refer to your adapter's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the adapter.

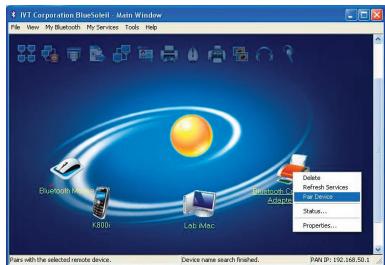

1. If the adapter requires authentication, right-click on the adapter icon, then click on Pair Device.

1. Then enter the passkey from the adapter documentation, then click OK.

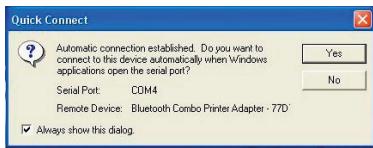

1. If you have completed the pairing process or the adapter does not require authentication, double click on the adapter icon. The Bluetooth Serial Port Service and Bluetooth Printer Service should light up on the top of the window. Click on the Bluetooth Printer Service.

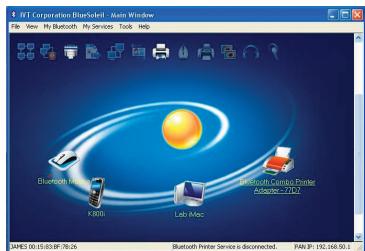

1. When you are connected to the Bluetooth Printer Service, the Bluetooth Printer Service icon will turn GREEN on the top of the window. A Quick connect window will appear telling you which port to use for the Bluetooth Printer Service. Simply click YES in the Quick Connect window.

1. Please follow the instruction of the dialog box showing at the bottom right corner of the desktop. Install the connected printer driver and set the print port to the designated port number.

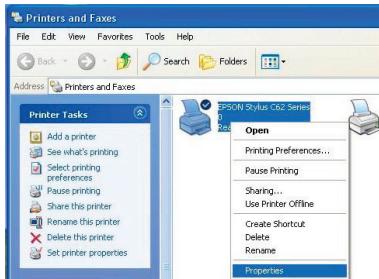

1. After the printer driver is installed, please go to Start -> Control Panel -> double click on Printers and Faxes. Right-click on the printer icon and select Properties.

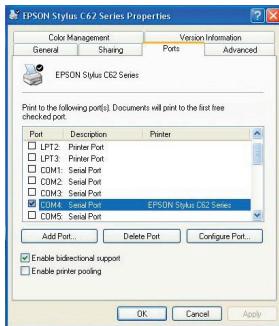

1. Select Ports tab to make sure your printer is set on the correct port.

Windows Vista

1. To connect to a Bluetooth Printer Adapter, first make sure the adapter has been set to discoverable mode. Refer to your adapter's documentation for instructions on how to do this. Then click the orange orb at the center of the Bluetooth window to search for the adapter.

1. If the adapter requires authentication, right-click on the adapter icon, then click on Pair Device.

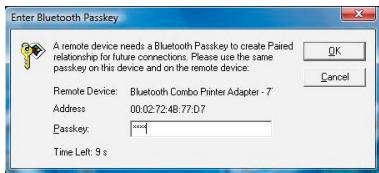

1. Then enter the passkey from the adapter documentation, then click OK.

1. If you have completed the pairing process or the adapter does not require authentication, double click on the adapter icon. The Bluetooth Serial Port Service and Bluetooth Printer Service should light up on the top of the window. Click on the Bluetooth Printer Service.

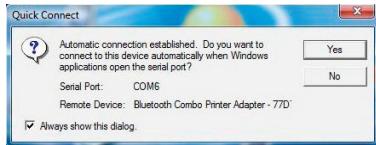

1. When you are connected to the Bluetooth Printer Service, the Bluetooth Printer Service icon will turn GREEN on the top of the window. A Quick connect window will appear telling you which port to use for the Bluetooth Printer Service. Simply click YES in the Quick Connect window.

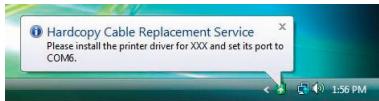

1. Please follow the instruction of the dialog box showing at the bottom right corner of the desktop. Install the connected printer driver and set the print port to the designated port number.

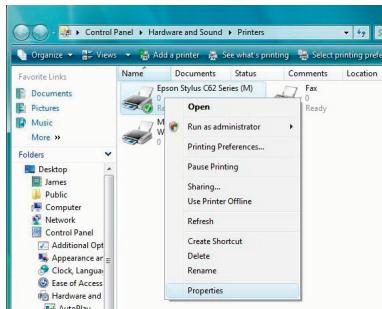

1. After the printer driver is installed, please go to Start Control Panel Hardware and Sound Printers. Right-click on the printer icon and select Properties.

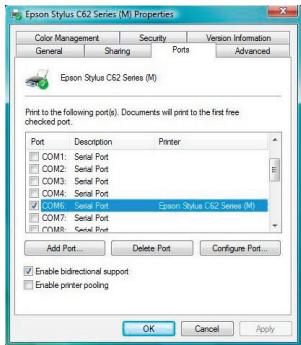

1. Select Ports tab to make sure your printer is set on the correct port.

Technical Support

If you need technical support, please check out our IOGEAR Tech Info Library (TIL) at http://www.iogear.com/support for the latest tips, tricks, and troubleshooting. The TIL is designed to provide you with the latest technical information about our products. Most of the answers to your questions can be found here, so please try it out before contacting technical support.

Technical support is available Monday through Friday from 8:00 am to 5:00 pm PST by calling our toll-free number 866-9-IOGEAR (866-946-4327). International callers may need to use the number 949-453-8782. Help is also available by e-mailing us at [e-mail].

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CE Statement

This device has been tested and found to comply with the requirements set up in the council directive on the approximation of the law of member states relating to EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and R&TTE Directive 99/5/EC.

Limited Warranty

IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID FOR THE PRODUCT.

The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.

The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or updates. For further inquiries please contact your direct vendor.

Contact

IOGEAR, INC.

23 Hubble

Irvine, CA 92618

P 949.453.8782

F 949.453.8785

Visit us at: www.iogear.com

©2007 IOGEAR. All Rights Reserved. PKG-M0418

IOGEAR, the IOGEAR logo, MiniView, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. IOGEAR makes no warranty of any kind with regards to information presented in this document. All information furnished here is for informational purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any inaccuracies or errors that may appear in this document.

About Us

FUN

IOGEAR offers connectivity solutions that are innovative, fun, and stylish, helping people enjoy daily life using our high technology products.

GREEN

IOGEAR is an environmentally conscious company that emphasizes the importance of conserving natural resources. The use of our technology solutions helps reduce electronic waste.

HEALTH

IOGEAR supports healthy and fit lifestyles. By integrating products with the latest scientific developments, IOGEAR's solutions enhance the life of end-users.
