USER MANUAL WN-300R AIRLIVE

ÂAüir Live Powered by OvisLink Corp. WN-300R Wireless 11N Broadband Router User’s Manual. WWw\W.airlive.com

This AirLive product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following. Legal Caution Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. Heed the safety precautions Be sure to follow the general safety precautions and the “Operation Notice.” In case of a breakdown In case of system breakdown, discontinue use and contact your authorized AirLive dealer. In case of abnormal operation - Ifthe unit emits smoke or an unusual smell, - If water or other foreign objects enter the cabinet, or - If you drop the unit or damage the cabinet: 1 Disconnect the cable and the connecting cables. 2 Contact your authorized AirLive dealer or the store where you purchased the prod- uct. Operation Notice - Operating or storage location Avoid operating or storing the camera in the following locations: -+ Extremely hot or cold places (Operating temperature: 0 °C to +50 °C [32 °F to 122°F]) - Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters) + Close to sources of strong magnetism -+ Close to sources of powerful electromagnetic radiation, such as radios or TV trans- mitters - Locations subject to strong vibration or shock Ventilation To prevent heat buildup, do not block air circulation around the device. Transportation AirLive WN-300R User’s Manual

When transporting the camera, repack it as originally packed at the factory or in materials of equal quality. Cleaning + Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry. + Do not use volatile solvents such as alcohol, benzene or thinners as they may dam- age the surface. 3 AirLive WN-300R Users Manual

7.7 Remote Administration

7.9 Upgrade Firmware

8.2 Management Connections

9.2 General Problems

11.1 Multi-Function Wireless Router.

112 Wireless Interface

11.3 Regulatory Approvals …

P/N: 956YN70001 Copyright © 2008. AIl Rights Reserved. Document Version: 2.0 All trademarks and trade names are the properties of their respective owners 5 AirLive WN-300R Users Manual

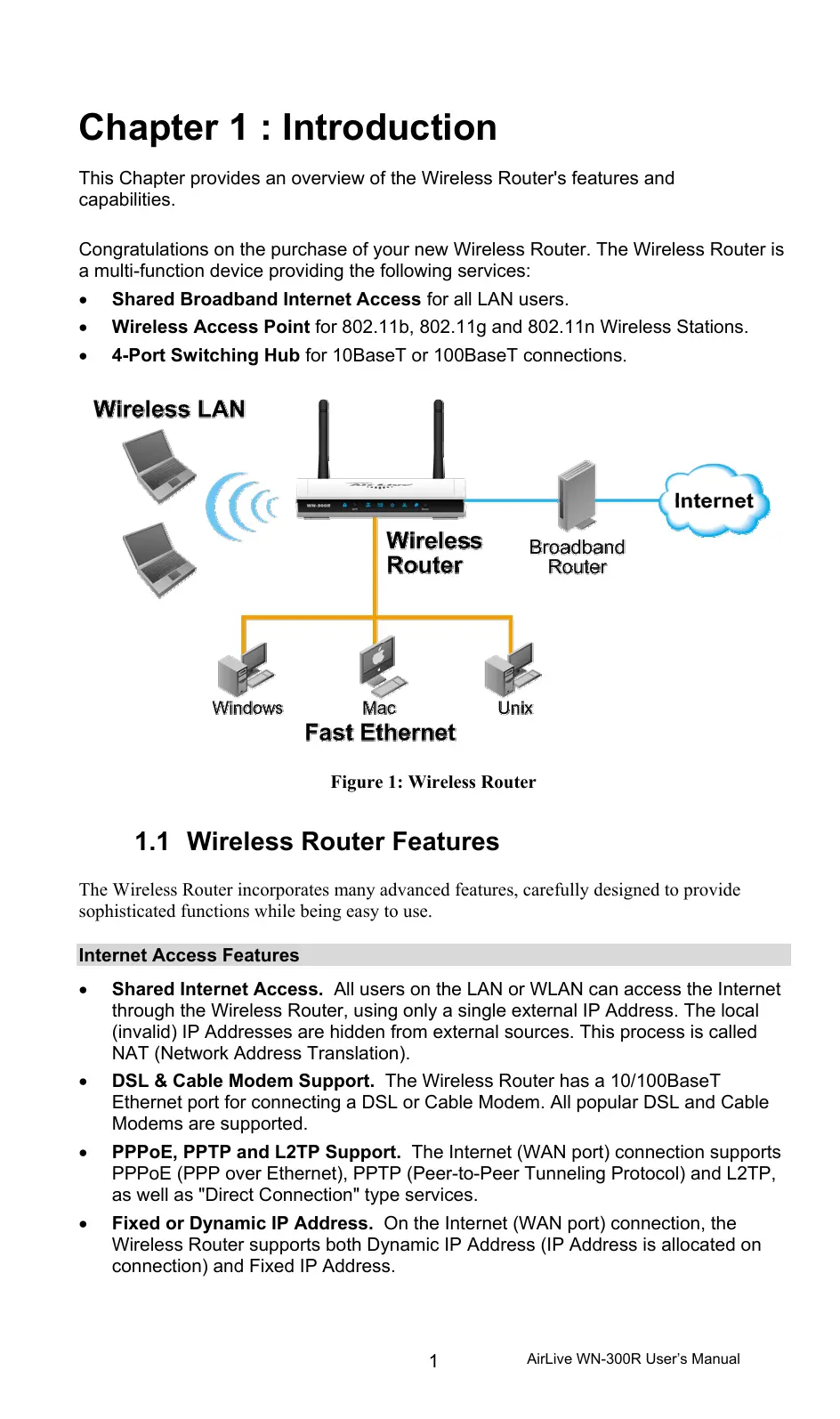

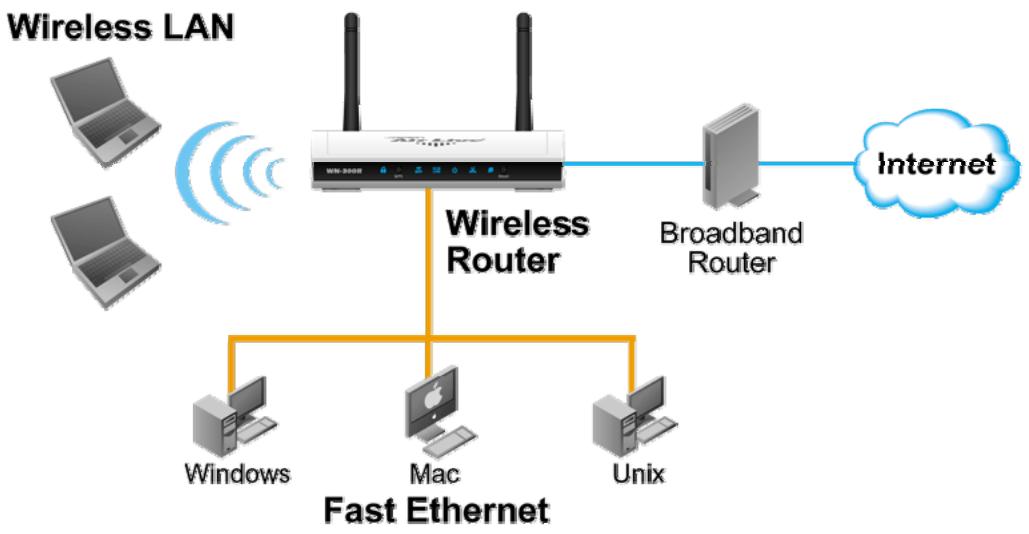

This Chapter provides an overview of the Wireless Router's features and capabilities. Congratulations on the purchase of your new Wireless Router. The Wireless Router is a multi-function device providing the following services: Shared Broadband Internet Access for all LAN users. Wireless Access Point for 802.11b, 802.11g and 802.11n Wireless Stations. 4-Port Switching Hub for 10BaseT or 100BaseT connections. Wireless LAN Internet Wireless Broadband LS LL Router Router + 4 € Windows Mac Unix Fast Ethernet Figure 1: Wireless Router

1.1 Wireless Router Features

The Wireless Router incorporates many advanced features, carefully designed to provide sophisticated functions while being easy to use. Internet Access Features Shared Internet Access. All users on the LAN or WLAN can access the Internet through the Wireless Router, using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation). DSL & Cable Modem Support. The Wireless Router has a 10/100BaseT Ethernet port for connecting a DSL or Cable Modem. All popular DSL and Cable Modems are supported. PPPO0E, PPTP and L2TP Support. The Internet (WAN port) connection supports PPP0E (PPP over Ethernet), PPTP (Peer-to-Peer Tunneling Protocol) and L2TP, as well as "Direct Connection" type services. Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the Wireless Router supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address. 1 AirLive WN-300R User's Manual

Advanced Internet Functions Application Level Gateways (ALGs). Applications which use non-standard connections or port numbers are normally blocked by the Firewall. The ability to define and allow such applications is provided, to enable such applications to be used normally. Port Triggering. This feature, also called Special Applications, allows you to use Internet applications which normally do not function when used behind a firewall. Port Forwarding. This feature allows Internet users to access Internet servers on your LAN. The required setup is quick and easy. Virtual Servers. This feature allows Internet users to access Internet servers on your LAN. The required setup is quick and easy. Dynamic DNS Support. DDNS, when used with the Virtual Servers feature, allows users to connect to Servers on your LAN using a Domain Name, even if you have a dynamic IP address which changes every time you connect. URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users. Access Control. Using the Access Control feature, you can assign LAN users to different groups, and determine which Internet services are available to each group. Scheduling. Both the URL Filter and Firewall rules can be scheduled to operate only at certain times. This provides great flexibility in controlling Internet -bound traffic. Logs. Define what data is recorded in the Logs, and optionally send log data to a Syslog Server. Log data can also be E-mailed to you. QoS Support Quality of Service can be used to handle packets so that more important connections receive priority over less important one. Wireless Features Standards Compliant. The Wireless Router complies with the IEEE802.11g (DSSS) specifications for Wireless LANSs. Supports Pre-N Wireless Stations. The 802.11n Draft standard provides for backward compatibility with the 802.11b standard, so 802.11n, 802.11b and 802.11g Wireless stations can be used simultaneously. Multi SSIDs Support. This feature can let you have 2 SSIDs on one AP, which provides more easy way for Guest access and also secure your resource at the same time. Speeds to 300Mbps. All speeds up to the 802.11N maximum of 300Mbps are supported. WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key sizes of 64 Bit and 128 Bit are supported. WEP encrypts any data before trans- mission, providing protection against snoopers. WPA-PSK support. Like WEP, WPA-PSK encrypts any data before transmission, providing protection against snoopers. The WPA-PSK is a later standard than WEP, and provides both easier configuration and greater security than WEP. WPA2-PSK support. Support for WPA2 is also included. WPA2 uses the ex- tremely secure AËS encryption method. 802.1x Support. Support for 802.1x mode is included, providing for the industrial strength wireless security of 802.1x authentication and authorization. AïirLive WN-300R User's Manual 2

Wireless MAC Access Control. The Wireless Access Control feature can check the MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless Stations can access your LAN. Simple Configuration. If the default settings are unsuitable, they can be changed quickly and easily. WPS Support. WPS (Wi-Fi Protected Setup) can simplify the process of connect- ing any device to the wireless network by using the push button configuration (PBC) on the Wireless Access Point, or entering a PIN code if there's no button. WDS Support. Support for WDS (Wireless Distribution System) allows the Wire- less Access Point to act as a Wireless Bridge. Both Point-to-Point and Multi-Point Bridge modes are supported. LAN Features 4-Port Switching Hub. The Wireless Router incorporates a 4-port 10/100BaseT switching hub, making it easy to create or extend your LAN. DHCP Server Support. Dynamic Host Configuration Protocol provides a dy- namic IP address to PCs and other devices upon request. The Wireless Router can act as a DHCP Server for devices on your local LAN and WLAN. Configuration & Management Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configuration. Configuration File Upload/Download. Save (download) the configuration data from the Wireless Router to your PC, and restore (upload) a previously-saved configuration file to the Wireless Router. Remote Management. The Wireless Router can be managed from any PC on your LAN or Wireless LAN. And, if the Internet connection exists, it can also (op- tionally) be configured via the Internet. Network Diagnostics. You can use the Wireless Router to perform a Ping or DNS lookup. UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and configuration of the Wireless Router. UPnP is supported by Windows ME, XP, or later. Security Features Password - protected Configuration. Password protection is provided to pre- vent unauthorized users from modifying the configuration data and settings. Wireless LAN Security. WPA-PSK, WEP and Wireless access control by MAC address are all supported. The MAC-level access control feature can be used to prevent unknown wireless stations from accessing your LAN. NAT Protection. An intrinsic side effect of NAT (Network Address Translation) technology is that by allowing all LAN users to share a single IP address, the loca- tion and even the existence of each PC is hidden. From the external viewpoint, there is no network, only a single device - the Wireless Router. Firewall. All incoming data packets are monitored and all incoming server re- quests are filtered, thus protecting your network from malicious attacks from external sources. Protection against DoS attacks. DoS (Denial of Service) attacks can flood your Internet connection with invalid packets and connection requests, using so much band- 3 AirLive WN-300R Users Manual

width and so many resources that Internet access becomes unavailable. The Wireless Router incorporates protection against Dos attacks.

1.2 Package Contents

The following items should be included. If any of these items are damaged or missing, please contact your dealer immediately. ° The Wireless Router Unit

  • 1 Cat-5 Ethernet (LAN) cable + Power Adapter e Quick Installation Guide ° CD-ROM containing the on-line manual.

1.3 Physical Details

Front-mounted LEDs Security WPS Button Wireless LAN Power Figure 2: Front Panel On - Wireless security is On. Off - Wireless security is Off. Flashing - When WPS button is pressed, this LED starts blinking. Push the WPS button on the device and on your other wireless device to perform WPS function that easily creates an encryption- secured wireless connection automatically. On - Wireless enabled. Off - No Wireless connections currently exist. Flashing (Amber) - Problem occurred while trying to establish the Wireless connection. On - The LAN port(s) is active. Off - No active connection on the LAN port(s). Flashing (Amber) - Problem occurred while trying to connect to the LAN. On - Power on. Off - No power. AïirLive WN-300R User's Manual 4

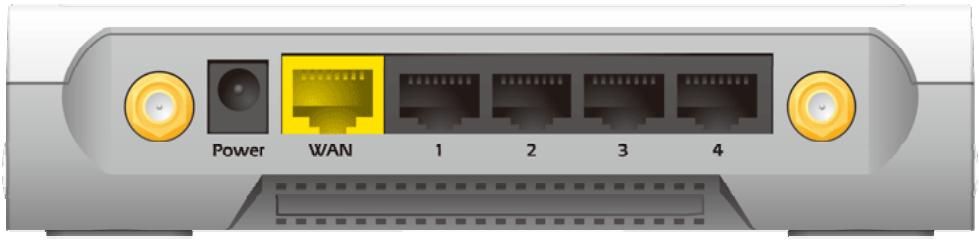

WAN Internet Reset But- ton Rear Panel On - Connection to the ADSL/Broadband Modem attached to the WAN (Internet) port is established. Off - No connection to the ADSL/Broadband Modem. Flashing (Amber) - Problem occurred while trying to connect to the ADSL/Broadband Modem. On - Internet connection is available. Off - No Internet connection available. Flashing (Amber) - Problem occurred while trying to establish the Internet connection. This button has two (2) functions: + Reboot. When pressed and released, the Wireless Router will reboot (restart). + Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values:

2. Keep holding the Reset Button down for 8 seconds.

3. Release the Reset Button. The Wireless Router is now using

the factory default values. Power port WAN port (10100BaseT) 10/100BaseT LAN connec- tions Power WAN Ü 2 3 4 Figure 3: Rear Panel Connect the supplied power adapter here. Connect the DSL or Cable Modem here. If your modem came With a cable, use the supplied cable. Otherwise, use a stan- dard LAN cable. Use standard LAN cables (RJ45 connectors) to connect your PCs to these ports. 5 AirLive WN-300R Users Manual

This Chapter covers the physical installation of the Wireless Router.

° Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. °__ TCP/IP protocol must be installed on all PCs. + For Internet Access, an Internet Access account with an ISP, and a DSL connec- tion. + Touse the Wireless Access Point, all Wireless devices must be compliant with the IÉEE 802.119, IEEE 802.11b or IEEE 802.11n Draft specifications.

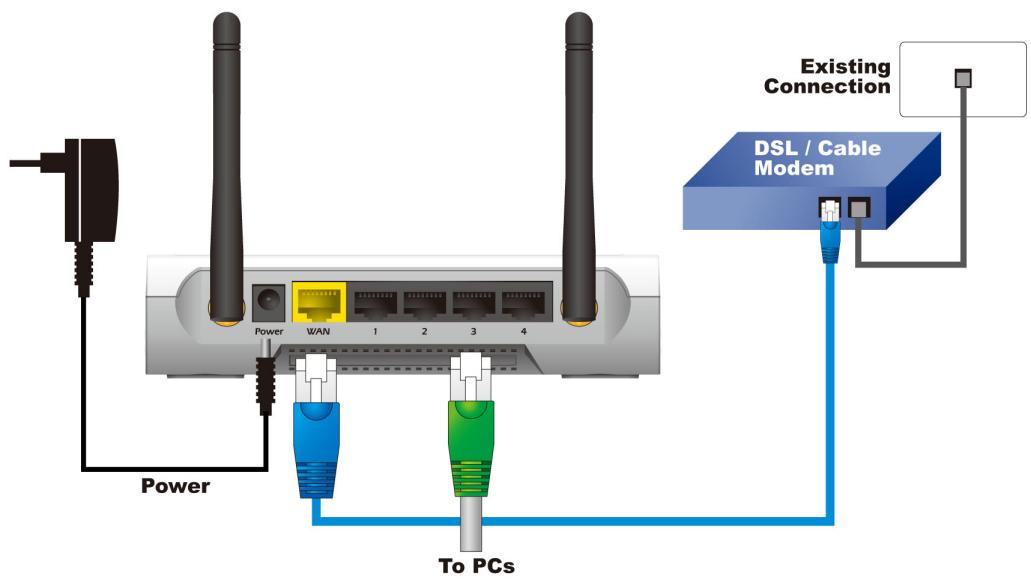

connection] H DSL / Cable Modem To PCs Figure 4: Installation Diagram

1. Choose an Installation Site

Select a suitable place on the network to install the Wireless Router. I For best Wireless reception and performance, the Wireless [ ] Router should be positioned in a central location with mini- LL mum obstructions between the Wireless Router and the Note! Pcs. Also, if using multiple Access Points, adjacent Access Points should use different Channels. 6 AirLive WN-300R User's Manual

Use standard LAN cables to connect PCs to the Switching Hub ports on the Wire- less Router. Both 10BaseT and 100BaseT connections can be used simultaneously.

3. Connect ADSL Cable

Connect the DSL or Cable modem to the WAN port on the Wireless Router. Use the cable supplied with your DSL/Cable modem. If no cable was supplied, use a standard cable.

Connect the supplied power adapter to the Wireless Router. Use only the power adapter provided. Using a different one may cause hardware damage.

+ __The Power LED should be ON. ° The LAN LED should be ON (provided the PC is also ON.) + __The Wireless LED should be ON if Wireless PC is connected. + __The WAN LED should be ON if ADSL line is connected. ° The Internet LED may be OFF. After configuration, it should come ON. For more information, refer to Front-mounted LEDs in Chapter 1. 7 AirLive WN-300R Users Manual

This Chapter provides Setup details of the Wireless Router.

  • _ Assigning a Password to protect the configuration data. PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Configuration. Other configuration may also be required, depending on which features and functions of the Wireless Router you wish to use. Use the table below to locate detailed instruc- tions for the required functions. To Do this: Refer to: Configure PCs on your LAN. Chapter 4: PC Configuration Check Wireless Router operation and Status. Chapter 5: Operation and Status Use any of the following Advanced features: Chapter 6: Internet (DMZ, URL Filter) Advanced Features + Access Control + Dynamic DNS + Options ° __Schedule + Port Trigger + __ Single Port Forwarding + __ Port Range Forwarding ° _Qos Use any of the following Administration Configuration | Chapter 7 settings or features: Advanced Administration + __ PC Database + Config File + _Logs + E-Mail + Diagnostics + __ Remote Administration + Routing + __ Upgrade Firmware 8 AirLive WN-300R User's Manual

The Wireless Router contains an HTTP server. This enables you to connect to it, and configure it, using your Web Browser. Your Browser must support JavaScript. The configuration program has been tested on the following browsers: + Netscape 7.1 or later. + Mozilla 1.6 or later °__ Internet Explorer V5.5 or later Preparation Before attempting to configure the Wireless Router, please ensure that: ° Your PC can establish a physical connection to the Wireless Router. The PC and the Wireless Router must be directly connected (using the Hub ports on the Wire- less Router) or on the same LAN segment. ° __ The Wireless Router must be installed and powered ON. ° __lfthe Wireless Router's default IP Address (192.168.1.254) is already used by another device, the other device must be turned OFF until the Wireless Router is allocated a new IP Address during configuration. Using your Web Browser To establish a connection from your PC to the Wireless Router:

1. After installing the Wireless Router in your LAN, start your PC. If your PC is al-

ready running, restart it.

2. Start your WEB browser.

3. Inthe Address box, enter "HTTP://" and the IP Address of the Wireless Router, as

in this example, which uses the Wireless Router's default IP Address: HTTP/192.168.1.254

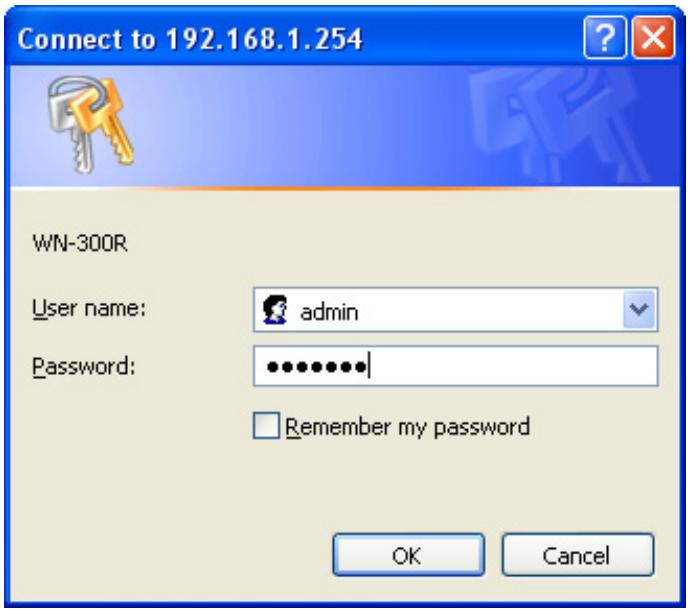

4. When prompted for the User name and Password, enter values as follows:

° Username admin ° Password airlive 9 AirLive WN-300R Users Manual

If you can't connect If the Wireless Router does not respond, check the following: + __ The Wireless Router is properly installed, LAN connection is OK, and it is powered ON. You can test the connection by using the "Ping" com- mand: + __ Open the MS-DOS window or command prompt window. + __Enterthe command: ping 192.168.1.254 If no response is received, either the connection is not working, or your PC's IP address is not compatible with the Wireless Router's IP Address. (See next item.) + __lf your PC is using a fixed IP Address, its IP Address must be within the range 192.168.1.2 to 192.168.1.254 to be compatible with the Wireless Router's default IP Address of 192.168.1.254. Also, the Network Mask must be set to 255.255.255.0. See Chapter 4 - PC Configuration for de- tails on checking your PC's TCP/IP settings. + Ensure that your PC and the Wireless Router are on the same network segment. (If you don't have a router, this must be the case.) + Ensure you are using the wired LAN interface. The Wireless interface can only be used if its configuration matches your PC's wireless set- tings.

The first time you connect to the Wireless Router, the Setup Wizard will run automati- cally. (The Setup Wizard will also run if the Wireless Router's default settings are restored.)

Step through the Wizard until finished. + You need to know the type of Internet connection service used by your ISP. Check the data supplied by your ISP. + __ The common connection types are explained in the tables below. On the final screen of the Wizard, run the test and check that an Internet connec- tion can be established. If the connection test fails: + Check your data, the Cable/DSL modem, and all connections. + Check that you have entered all data correctly. + _Ifusing a Cable modem, your ISP may have recorded the MAC (physical) ad- dress of your PC. Run the Wizard, and use the "Copy from PC" button to copy the MAC address from your PC to the Wireless Router. Common Connection Types AïirLive WN-300R User's Manual 10

DSL Modems Type Details ISP Data required Dynamic Your IP Address is allo- None. IP Address cated automatically, when you connect to you ISP. Static (Fixed) | Your ISP allocates a per- IP Address allocated to you. IP Address manent IP Address to you. PPPOE You connect to the ISP only | User name and password. when required. The IP address is usually allocated automatically. PPTP,L2TP | PPTP is mainly used in + __ Server IP Address. Europe. °__ User name and pass- You connect to the ISP only word. when required. The IP + __IP Address allocated to address is usually allocated you, if Static (Fixed). automatically, but may be Static (Fixed).

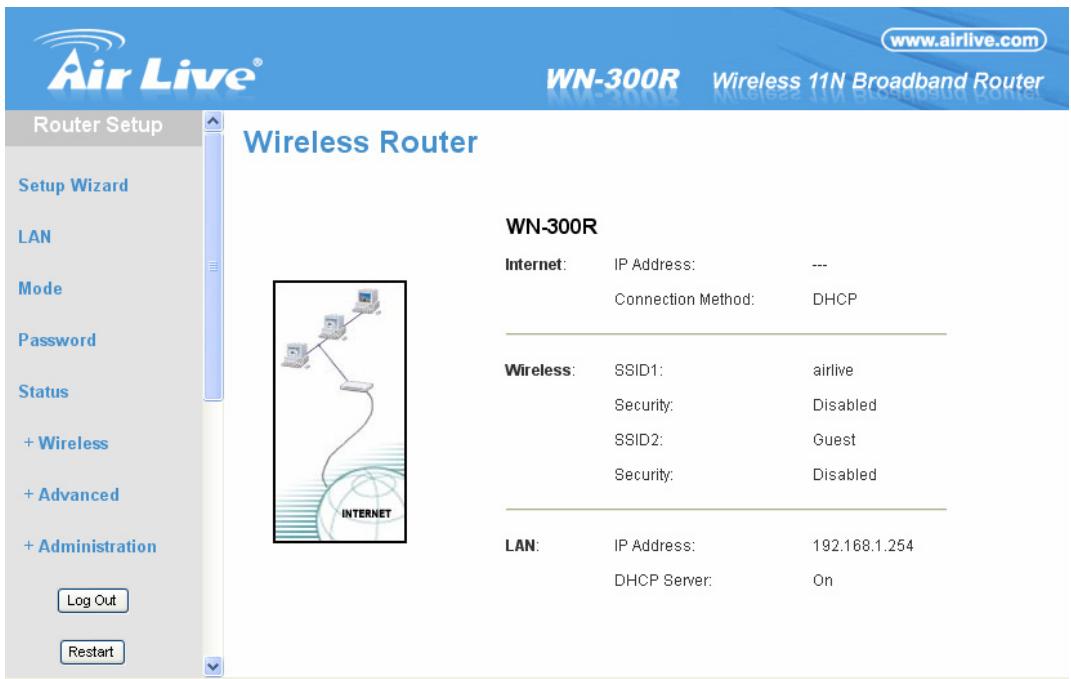

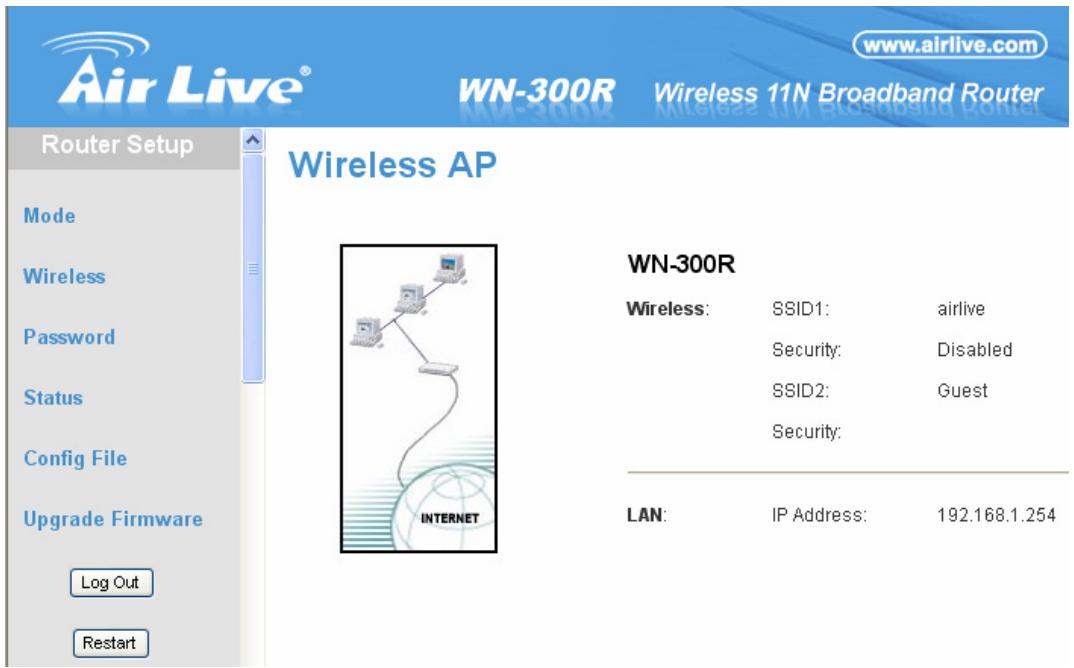

After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Gwwaïlive.com) WN-300R Wireless 11N Broadband Router Setup Wizard Fan WN-300R 4 internet IPAdttess Mode Connection Metnod DHCP Password LAN —— _ Sraus = » Securi Disaled + Wireless _s ss102 Guect A Seeurt Diane + Advanced — 4 À avremer LAN IP Address: 192.168.1.264 DHCP Server. on

Figure 5: Home Screen AirLive WN-300R Users Manual

Main Menu The main menu, on the left, contains links to the most-commonly used screen. To see the links to the other available screens, click "Advanced" or "Administration". The main menu also contains two (2) buttons: ° Log Out - When finished, you should click this button to logout. ° _ Restart - Use this if you wish to restart the Wireless Router. Note that restarting the Router will break any existing connections to or through the Router. Navigation & Data Input ° Use the menu bar on the left of the screen, and the "Back" button on your Browser, for navigation. ° _ Changing to another screen without clicking "Save" does NOT save any changes you may have made. You must "Save" before changing screens or your data will be ignored.

Note! On each screen, clicking the "Help" button will display help for that screen.

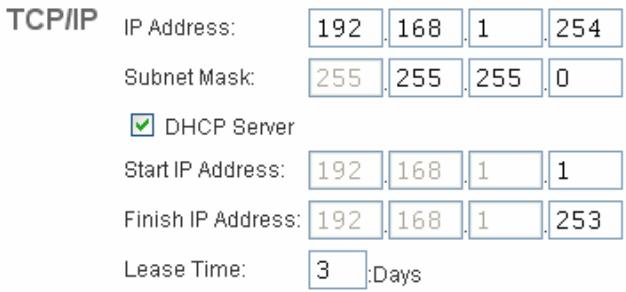

Use the LAN link on shown below. LAN TCP/IP Data - LAN Screen the main menu to reach the LAN screen. An example screen is address: [192 |168 [1 ||254 | Subnet Mask: [ [255 255 |0 ] DHCP Server Start IP Add Gs2]h6s ]1__]1 ] Finish IP Address: | [ 253 | Lease Time E Days Figure 6: LAN Screen TCP/IP IP Address IP address for the Wireless Router, as seen from the local LAN. Use the default value unless the address is already in use or your LAN is using a different IP address range. In the latter case, enter an unused IP Address from within the range used by your LAN. AïirLive WN-300R User's Manual 12

Subnet Mask The default value 255.255.255.0 is standard for small (class "C") networks. For other networks, use the Subnet Mask for the LAN segment to which the Wireless Router is attached (the same value as the PCs on that LAN segment). DHCP Server °+__ If Enabled, the Wireless Router will allocate IP Addresses to PCs (DHCP clients) on your LAN when they start up. The default (and recommended) value is Enabled. + If you are already using a DHCP Server, this setting must be Disabled, and the existing DHCP server must be re- configured to treat the Wireless Router as the default Gate- way. See the following section for further details. + The Start IP Address, Finish IP Address and Lease Time fields set the values used by the DHCP server when allocat- ing IP Addresses to DHCP clients. This range also determines the number of DHCP clients supported. See the following section for further details on using DHCP. DHCP What DHCP Does A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a DHCP Client (PC or device) upon request. ° The client request is made when the client device starts up (boots). + The DHCP Server provides the Gateway and DNS addresses to the client, as well as allocating an IP Address. + __The Wireless Router can act as a DHCP server. °__ Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client. This is the default Windows setting for the TCP/IP network protocol. How- ever, Windows uses the term Obtain an IP Address automatically instead of "DHCP Client”. ° You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your LAN does not have other Routers, this means there must only be one (1) DHCP Server on your LAN.) Using the Wireless Router's DHCP Server This is the default setting. The DHCP Server settings are on the LAN screen. On this screen, you can: + Enable or Disable the Wireless Router's DHCP Server function. + __Setthe range of IP Addresses allocated to PCs by the DHCP Server function. I You can assign Fixed IP Addresses to some devices [] while using DHCP, provided that the Fixed IP Addresses Notel are NOT within the range used by the DHCP Server. 13 AirLive WN-300R Users Manual

Using another DHCP Server You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP Server, rather than the Wireless Router's, the following procedure is required. + __ Disable the DHCP Server feature in the Wireless Router. This setting is on the LAN screen. °__ Configure the DHCP Server to provide the Wireless Router's IP Address as the Default Gateway. To Configure your PCs to use DHCP This is the default setting for TCP/IP for all non-Server versions of Windows. See Chapter 4 - Client Configuration for the procedure to check these settings.

Use this screen to change the mode between Router mode and Access Point mode. Mode Device Mode Device Name: WN300R Device Mode: [Router Ml Figure 7: Mode Screen Select the desired option, and click "Save". Router In this mode, this device can provide shared Internet Access to all your LAN users. Also, by default, it acts a DHCP Server, providing an IP address and related information to all Wireless and LAN users. Access The device links your Wireless Stations to your wired LAN. The Point Wireless stations and devices on the wired LAN are then on the same network, and can communicate with each other without regard for whether they are connected to the network via a Wireless or wired connection. You need to have a DHCP Server on your LAN to provide IP ad- dresses to the Wireless clients using this Access Point. Notes: + Generally, you should NOT use access point mode. Only select this mode if you are sure this is what you want. ° After changing the mode, this device will restart, which will take a few seconds. The menu will also be changed, depending on the mode you are in.

  • For details on using Access Point Mode, see Chapter 8. AïirLive WN-300R User's Manual 14

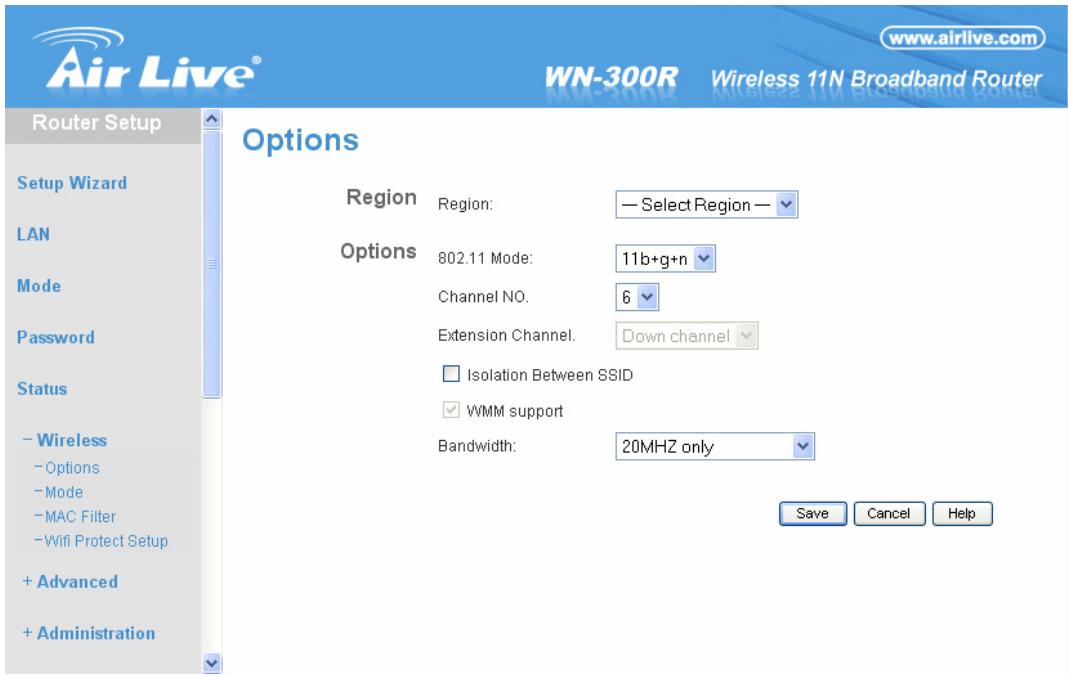

The Wireless Router's settings must match the other Wireless stations. Note that the Wireless Router will automatically accept both 802.11b and 802.11g connections, and no configuration is required for this feature. To change the Wireless Router's default settings for the Wireless Access Point feature, use the Wireless link on the main menu to reach the Wireless screen. An example screen is shown below. WN-300R Wireless 11N Broadband Router W Options Setup Wizard Region Region: — Select Region — % LAN : 4 Options 69211 Mode: Tibrgen M Dub Channel NO. Password tension Channel. [Dour chonnol [] isolation Between SSID Status (| vi cupport — Wireless Bandwidth: 20MHZ onhy M =Ontons -uoce =MaC Fier Win Protect Setup + Advanced + Administration Figure 8: Wireless Screen Data - Wireless Screen Region Region Select the correct domain for your location. It is your responsibil- ity to ensure: + __Thatthe Wireless ADSL Router is only used in domains for which is licensed. «That you select the correct domain, so that only the legal channels for that domain can be selected. Multi SSID SSID With Multiple SSIDs, you can have 2 SSIDs on one AP. For example, a Guest SSID without encryption for visitors to have Internet access only, and a Admin SSID with encryption for private use to secure your company resources. Select the desired SSID from the list to configure. 15 AirLive WN-300R Users Manual

SSID 1/2 This is also called the "Network Name”. + _Ifusing an ESS (Extended Service Set, with multiple access points) this ID is called an ESSID (Extended Service Set Identifier). + To communicate, all Wireless stations should use the same SSID/ESSID. Broadcast SSID If enabled, the Wireless ADSL Router will broadcast its SSID. This allows PCs and other wireless stations to detect this Ac- cess Point and use the correct SSID. If disabled, PC users will have to manually enter the SSID and other details of the wireless interface before they can connect to this Access Point. Isolation within SSID If Enabled, devices that have the same SSID will not be able to see each other. Security Set- The current Wireless security is displayed. The default value is ting Disabled. Configure SSID | Click this button to access the Wireless security sub-screen, and 1/2 Button view or change the settings. See the following section for details. Options

802.11 Mode Select the desired mode:

Off - Wireless is disabled. + __B only - Only 802.11b connections are available. 802.11g Wireless Stations will only be able to use the Wireless Router if they are fully backward-compatible with the 802.11b standard. + __G only - Only 802.11g Wireless stations can use the Wire- less Router. + 11b/g/n - 802.11.g, 802.11b and 802.11n Wireless stations can use the Wireless Broadband Router. Channel NO. Select the Channel you wish to use on your Wireless LAN. + __ If you experience interference (shown by lost connections and/or slow data transfers) you may need to experiment with different channels to see which is the best. + _Ifusing multiple Access Points, adjacent Access Points should use different Channels to reduce interference. Isolation If Enabled, devices that have the different SSIDs will not be able between SSID | to communicate with each other. WMM Support | Enable or disable this feature as required. Bandwidth Select the desired bandwidth from the list. AïirLive WN-300R User's Manual 16

MAC Address Filter Allow access by … Use this feature to determine which Wireless stations can use the Access Point. The options are: *__ All Wireless Stations - All wireless stations can use the access point, provided they have the correct SSID and secu- rity settings. + __Trusted Wireless stations only - Only wireless stations you designate as "Trusted" can use the Access Point, even if they have the correct SSID and security settings. This feature uses the MAC address to identify Wireless sta- tions. The MAC address is a low-level network identifier which is unique to each PC or network device. To define the trusted wireless stations, use the "Set Sta- tions" button. Set Stations Button Click this button to manage the trusted PC database. WiFi Protect Setup Enable WPS Enable this if you want to use Wireless WPS function. AP PIN Code Use the default displayed value or click the Regenerate button to have the new pin code in the field. Input Client Enter the client's PIN code in the field and click OK to add the PIN Code client device. WDS Enable WDS This feature allows you to make a completely wireless network by using multiple access points without connecting them with a wire LAN. In order to make the WDS working successfully, the access point must use the same channel, SSID, as well as the wireless encryption method. MAC Address Enter the MAC address(es) of the AP(s) into the fields to allow List the following access points to be connected to the wireless router. 17 AirLive WN-300R Users Manual

Mode Wireless Mode sde AP mode 4 s8ID aitive M SSID1 airlive Broadcast 881D [] isolation Within SSID curity Setting SSID1 :Disabled AP Mode Multi SSID SSID With Multiple SSIDs, you can have 2 SSIDs on one AP. For example, a Guest SSID without encryption for visitors to have Internet access only, and a Admin SSID with encryption for private use to secure your company resources. Select the desired SSID from the list to configure. SSID 1/2 This is also called the "Network Name”. + _Ifusing an ESS (Extended Service Set, with multiple access points) this ID is called an ESSID (Extended Service Set Identifier). + To communicate, all Wireless stations should use the same SSID/ESSID. Broadcast If enabled, the Wireless ADSL Router will broadcast its SSID. SSID This allows PCs and other wireless stations to detect this Ac- cess Point and use the correct SSID. If disabled, PC users will have to manually enter the SSID and other details of the wireless interface before they can connect to this Access Point. Isolation within | If Enabled, devices that have the same SSID will not be able to SSID see each other. Configure SSID | Click this button to access the Wireless security sub-screen, and 1/2 Button view or change the settings. See the following section for details. AïirLive WN-300R User's Manual 18

Mode Wireless Mode Mode Station - Infrastructure M AP SSID Security Setting Disabled Securty Setting Site Suvey Station- Infrastructure Wireless Mode AP SSID With SSIDs, you can have SSIDs on one AP. For example, a Guest SSID without encryption for visitors to have Internet access only, and a Admin SSID with encryption for private use to secure your company resources. Select the desired SSID from the list to configure. Site Survey Click to Site Survey Wireless AP or Router around you. Security Set- + __Disabled - no data encryption is used. ting + _ WEP - data is encrypted using the WEP standard. + __ WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. + __ WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. + __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: 19 AirLive WN-300R Users Manual

Mode Wireless Mode Mode Bridge - Ponit To Point v Security Setting MAC Address List AP1 [ ] Bridge- Point to Point Wireless Mode AP1 Please type your wireless AP or Router Mac address to connect wireless Bridge mode. Security Set- ting Disabled - no data encryption is used. WEP - data is encrypted using the WEP standard. WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. WPA-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: Mode Wireless Mode Mode Bridge - Ponit To Multi-Point Security Settng Disabled MAC Address List api [ ] AP 4 [ ] AïirLive WN-300R User's Manual 20

Bridge — Point To Multi-point Wireless Mode AP1-AP4 Please type your wireless AP or Router Mac address to connect wireless Bridge mode. Security Set- ting + _Disabled - no data encryption is used. + _ WEP - data is encrypted using the WEP standard. + __ WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. + __ WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. + __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: Mode Wireless Mode Mode [wos Repeater LV SSID aidive M SSID lairlive Broadcast SSID [] isolation Within SSID Security Setting: SSID1 :Disabled Contigure SSID1 MAC Address List api [ AP2 AP 3 AP 4 WDS Repeater Mode 21 AirLive WN-300R Users Manual

Multi SSID SSID With Multiple SSIDs, you can have 2 SSIDs on one AP. For example, a Guest SSID without encryption for visitors to have Internet access only, and a Admin SSID with encryption for private use to secure your company resources. Select the desired SSID from the list to configure. SSID1 This is also called the "Network Name”. + _Ifusing an ESS (Extended Service Set, with multiple access points) this ID is called an ESSID (Extended Service Set Identifier). + To communicate, all Wireless stations should use the same SSID/ESSID. Broadcast SSID If enabled, the Wireless ADSL Router will broadcast its SSID. This allows PCs and other wireless stations to detect this Ac- cess Point and use the correct SSID. If disabled, PC users will have to manually enter the SSID and other details of the wireless interface before they can connect to this Access Point. Isolation within SSID If Enabled, devices that have the same SSID will not be able to see each other. Configure SSID + _Disabled - no data encryption is used. + _ WEP - data is encrypted using the WEP standard. + __ WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. + __ WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. + __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: AP1- AP 4 Please type your wireless AP or Router Mac address to connect wireless Bridge mode. AïirLive WN-300R User's Manual 22

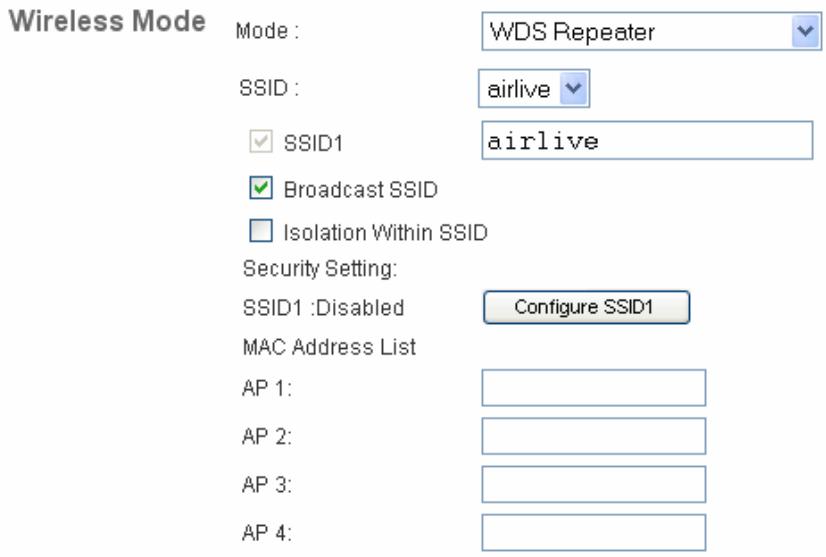

Mode Wireless Mode de Universal Repeater v SSID1 (Service Set Identifier) airlive Broadcast SSID [] isolation within SSID Security Setting SSID! :Disabled AP Client SSID Security Setting Universal Repeater Multi SSID SSID1 This is also called the "Network Name”. + _Ifusing an ESS (Extended Service Set, with multiple access points) this ID is called an ESSID (Extended Service Set Identifier). + To communicate, all Wireless stations should use the same SSID/ESSID. Broadcast If enabled, the Wireless ADSL Router will broadcast its SSID. SSID This allows PCs and other wireless stations to detect this Ac- cess Point and use the correct SSID. If disabled, PC users will have to manually enter the SSID and other details of the wireless interface before they can connect to this Access Point. Isolation within | If Enabled, devices that have the same SSID will not be able to SSID see each other. 23 AirLive WN-300R Users Manual

Configure SSID | * _Disabled - no data encryption is used. + _ WEP - data is encrypted using the WEP standard. + __ WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. + __ WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. + __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: Security Set- + __Disabled - no data encryption is used. ting + _ WEP - data is encrypted using the WEP standard. + __ WPA-PSK - data is encrypted using the WPA-PSK stan- dard. This is a later standard than WEP, and provides much better security than WEP. If all your Wireless stations sup- port WPA-PSK, you should use WPA-PSK rather than WEP. + __ WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method of encryption. + __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication ac- cording to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is selected: AP Client Please type your wireless AP or Router Client SSID to connect SSID1 wireless Repeater mode.

3.9 Wireless Security

This screen is accessed by clicking the "Configure" button on the Wireless screen. There are 4 options for Wireless security: + _Disabled - no data encryption is used. + WEP - data is encrypted using the WEP standard. °__ WPA-PSK - data is encrypted using the WPA-PSK standard. This is a later stan- dard than WEP, and provides much better security than WEP. If all your Wireless stations support WPA-PSK, you should use WPA-PSK rather than WEP. °__ WPA2-PSK- Thisis a further development of WPA-PSK, and offers even greater security, using the AËS (Advanced Encryption Standard) method of encryption. AïirLive WN-300R User's Manual 24

+ __ WPA:-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication according to the 802.1x standard. Data transmis- sions are encrypted using the WPA standard. If this option is selected: °__ This Access Point must have a "client login" on the Radius Server. + __ Each user must have a "user login" on the Radius Server. °__ Each user's wireless client must support 802.1x and provide the login data When required. ° All data transmission is encrypted using the WPA standard. Keys are auto- matically generated, so no key input is required. WEP Wireless Security Wireless Security Security System [WEP + Authentication Type WEP Data Encryption [64 bit (10 Hex chars) “| kat:© [7] key 2: O CC ] key 3: O key# O [7] Passphrase:| | [ Generate Keys ] Figure 9: WEP Data - WEP Screen WEP Data Encryption Authentication | Normally, this should be left at the default value of "Automatic". Type If changed to "Open System" or "Shared Key", ensure that your Wireless Stations use the same setting. WEP Data Select the desired option, and ensure the Wireless Stations use Encryption the same setting. + 64 Bit - data is encrypted, using the default key, before being transmitted. You must enter at least the default key. For 64 Bit Encryption, the key size is 10 chars in HEX (0-9 and A-F). + 128 Bit - data is encrypted, using the default key, before being transmitted. You must enter at least the default key. For 128 Bit Encryption, the key size is 26 chars in HEX (0-9 25 AirLive WN-300R Users Manual

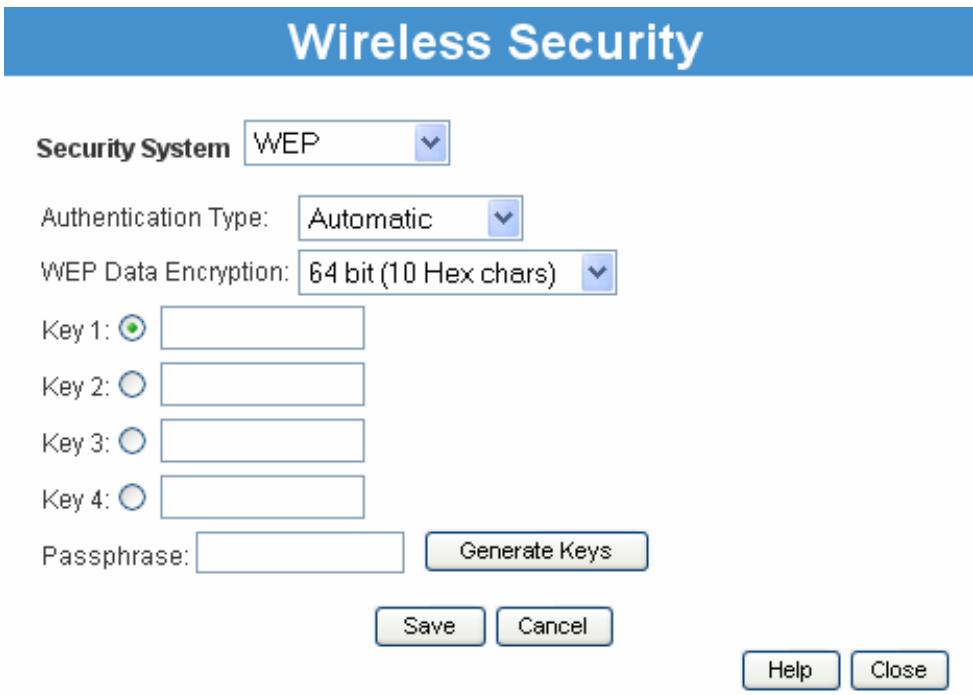

and A-F). Key Select the key you wish to be the default. Transmitted data is ALWAYS encrypted using the Default Key; the other Keys are for decryption only. You must enter a Key Value for the Default Key. Key Value Enter the key value or values you wish to use. The Key is re- quired, the other keys are optional. Other stations must have the same key. Passphrase If desired, you can generate a key from a phrase, instead of entering the key value directly. Enter the desired phrase, and click the "Generate Keys" button. WPA-PSK Wireless Security Wireless Security Security System | WPA-PEK M PSK | | Encryption [TKIP v Figure 10: WPA-PSK Data - WPA-PSK Screen Security WPA-PSK System Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should be used if possible. WPA- PSKis the version of WPA, which does NOT require a Radius Server on your LAN. PSK Enter the PSK (network key). Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same network key. The PSK must be from 8 to 63 characters in length. Encryption The WPA-PSK standard allows different encryption methods to be used. Select the desired option. Wireless Stations must use the same encryption method. AïirLive WN-300R User's Manual 26

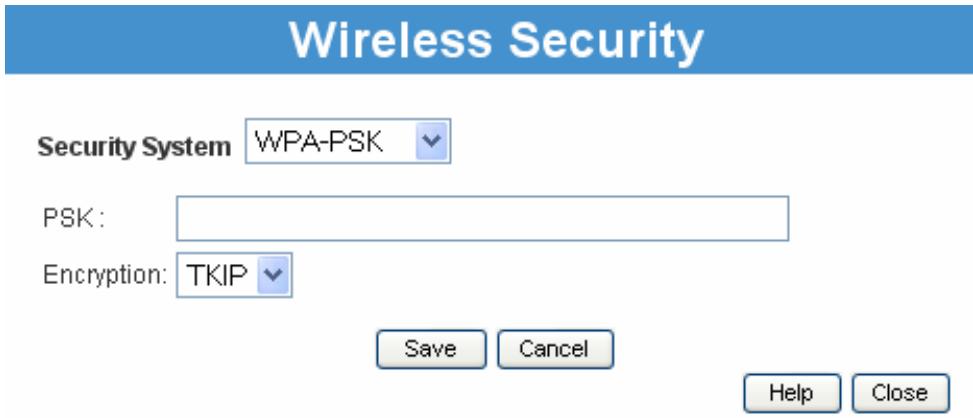

WPA2-PSK Wireless Security Wireless Security Security System | WPA2-PSK M PSK: Encryption: [TKIP “| Figure 11: WPA2-PSK Data - WPA2-PSK Screen Authentication WPA2-PSK This is a further development of WPA-PSK, and offers even greater security. PSK Enter the PSK (network key). Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same network key. The PSK must be from 8 to 63 characters in length. Encryption The WPA2-PSK standard allows different encryption methods to be used. Select the desired option. Wireless Stations must use the same encryption method. WPA-802.1x Wireless Security Wireless Security Security System | WPA-802.1x M Radius Port: Shared Key: Encryption: ae |

TKIP Figure 12: WPA-802.1x Data - WPA-802.1x Screen Server Address Enter the server address here. 27 AirLive WN-300R Users Manual

Radius Port Enter the port number used for connections to the Radius Server. Shared Key Enter the shared key. Data is encrypted using a key derived from the network key. Other Wireless Stations must use the same key. The key must be from 8 to 63 characters in length. Encryption The encryption method is TKIP. Wireless Stations must also use TKIP.

3.10 Trusted Wireless Stations

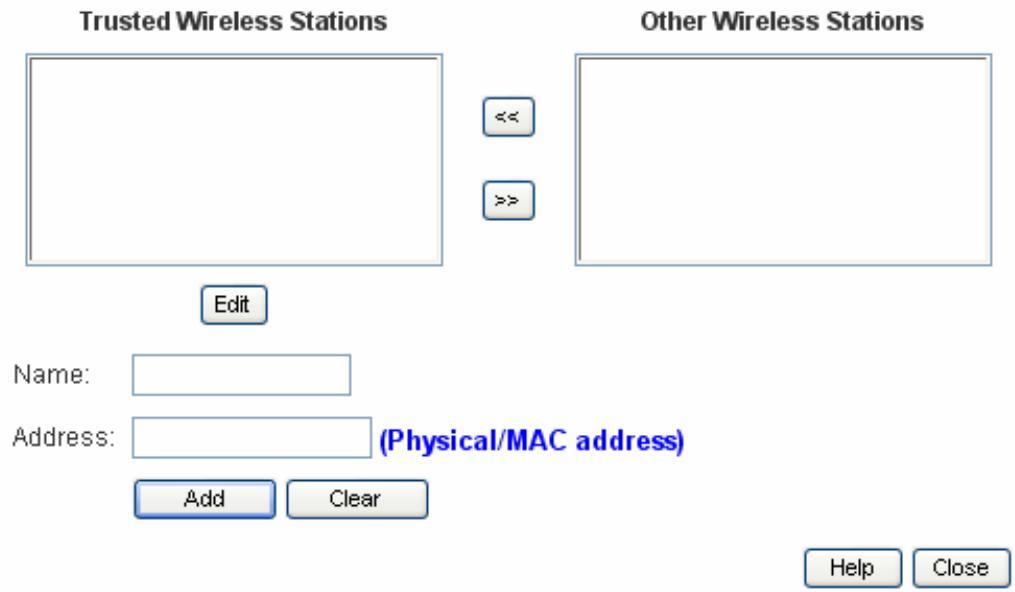

This feature can be used to prevent unknown Wireless stations from using the Access Point. This list has no effect unless the setting Allow access by trusted stations only is enabled. To change the list of trusted wireless stations, use the Modify List button on the Ac- cess Control screen. You will see a screen like the sample below. Trusted Wireless Stations Trusted Wireless Stations Other Wireless Stations Name: Address: (Physical/MAC address) Figure 13: Trusted Wireless Stations Data - Trusted Wireless Stations Trusted Wireless | This lists any Wireless Stations which you have designated Stations as “Trusted”. Other Wireless This list any Wireless Stations detected by the Access Point, Stations which you have not designated as "Trusted”. Name The name assigned to the Trusted Wireless Station. Use this when adding or editing a Trusted Station. AirLive WN-300R User's Manual 28

Address The MAC (physical) address of the Trusted Wireless Station. Use this when adding or editing a Trusted Station. Buttons

Add a Trusted Wireless Station to the list (move from the "Other Stations" list). + Select an entry (or entries) in the "Other Stations" list, and click the " <<" button. + Enter the Address (MAC or physical address) of the wireless station, and click the "Add " button.

Delete a Trusted Wireless Station from the list (move to the "Other Stations" list). ° Select an entry (or entries) in the "Trusted Stations" list. ° Clickthe" >>" button. Edit Use this to change an existing entry in the "Trusted Stations" list:

4. Select the Station in the Trusted Station list.

5. Click the Edit button. The address will be copied to the

"Address" field, and the Add button will change to Up- date.

6. Edit the address (MAC or physical address) as required.

7. Click Update to save your changes.

Add (Update) To add a Trusted Station which is not in the "Other Wireless Stations" list, enter the required data and click this button. When editing an existing Wireless Station, this button will change from Add to Update. Clear Clear the Name and Address fields. 3.11Password Screen The password screen allows you to assign a password to the Wireless Router. 29 AirLive WN-300R Users Manual

Password Password The password protects the configuration data Once set (recommended), you will be prompted for the password when you connect Old Password Verifs password: Figure 14: Password Screen Old Password Enter the existing password in this field. New password | Enter the new password here. Verify pass- Re-enter the new password here. word You will be prompted for the password when you connect, as shown below. Connect to 192.168.1.254 WN-300R User name: & admin v | Password: ClRemember my password CE Ce Figure 15: Password Dialog + The "User Name'"is always admin + Enter the password for the Wireless Router, as set on the Password screen above. AirLive WN-300R User's Manual 30

This Chapter details the PC Configuration required on the local ("Internal") LAN. 4.1. Overview For each PC, the following may need to be configured: °__ TCP/IP network settings ° Internet Access configuration ° Wireless configuration 4.2. Windows Clients This section describes how to configure Windows clients for Internet access via the Wireless Router. The first step is to check the PC's TCP/IP settings. The Wireless Router uses the TCP/IP network protocol for all functions, so it is essen- tial that the TCP/IP protocol be installed and configured on each PC. TCP/IP Settings - Overview If using the default Wireless Router settings, and the default Windows TCP/IP settings, no changes need to be made. + By default, the Wireless Router will act as a DHCP Server, automatically providing a suitable IP Address (and related information) to each PC when the PC boots. + __ For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP client. If using a Fixed (specified) IP address, the following changes are required: + The Gateway must be set to the IP address of the Wireless Router ° The DNS should be set to the address provided by your ISP. configure the Router itself. Refer to Chapter 8 - Ad- [M If your LAN has a Router, the LAN Administrator must re- = vanced Setup for details. Note! 31 AirLive WN-300R User's Manual

Checking TCP/IP Settings - Windows NT4.0

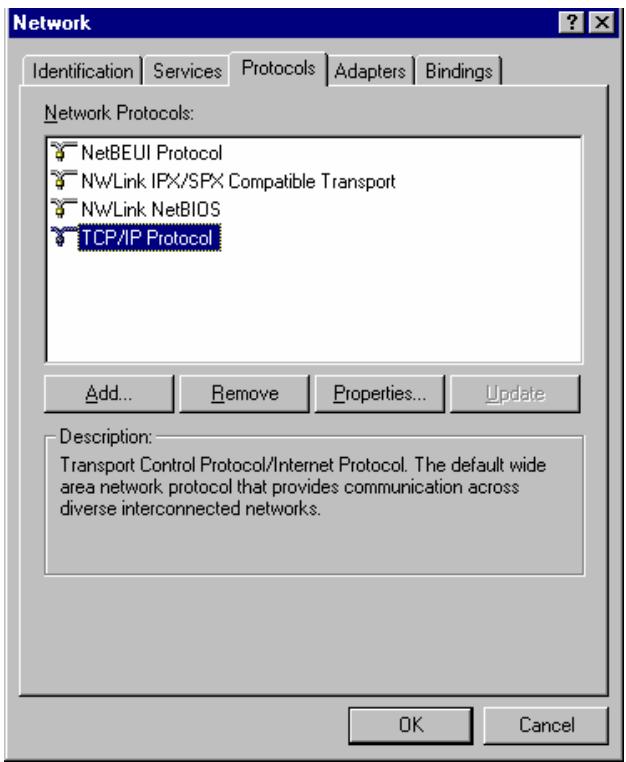

1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP

protocol, as shown below. FAT NetBEUI Protocol FT NWLink IPX/SPX Compatible Transport FT NwLink NetBlOS Figure 16: Windows NT4.0 - TCP/IP

2. Click the Properties button to see a screen like the one below.

AïirLive WN-300R User's Manual 32

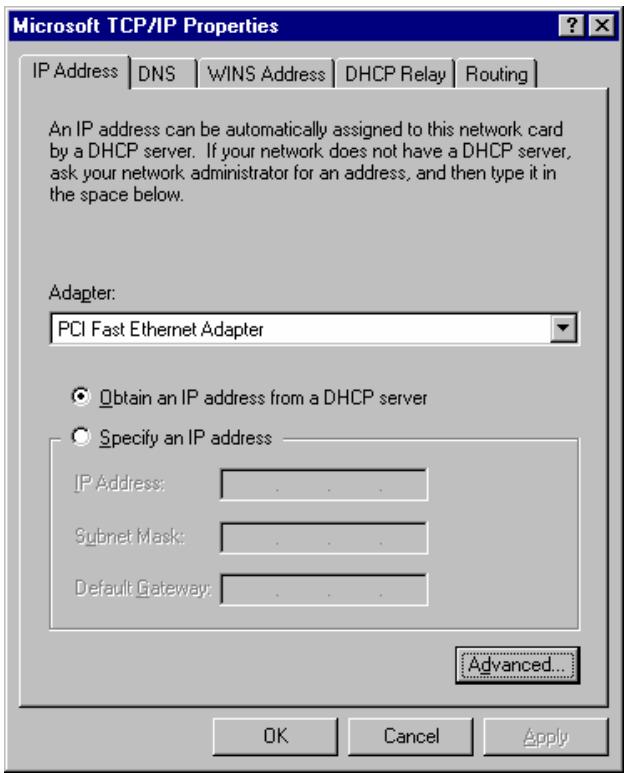

Microsoft TCP/IP Properties HE IP Address Jons T'WINS Address | DHCP Relay | Routing | An IP address can be automaticall assigned to this network card by a DHCP server. If your netaoik does not have a DHCP server, sk your netiotk administrator for an address, and then type tin the space below. Adapter. [PCI Fast Ethemet Adapter F2] &° Obtain an IP address from a DHCP server Specify an IP address 1PA04es Do | ok Cancel Bprÿ Figure 17: Windows NT4.0 - IP Address

3. Select the network card for your LAN.

4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or

Specify an IP Address, as explained below. Obtain an IP address from a DHCP Server This is the default Windows setting. Using this is recommended. By default, the Wireless Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the Wireless Router. Specify an IP Address If your PC is already configured, check with your network administrator before making the following changes.

1. The Default Gateway must be set to the IP address of the Wireless Router. To set

this: ° Click the Advanced button on the screen above. + __Onthe following screen, click the Add button in the Gateways panel, and en- ter the Wireless Router's IP address, as shown in Figure 18 below. + __Ifnecessary, use the Up button to make the Wireless Router the first entry in the Gateways list. 33 AirLive WN-300R Users Manual

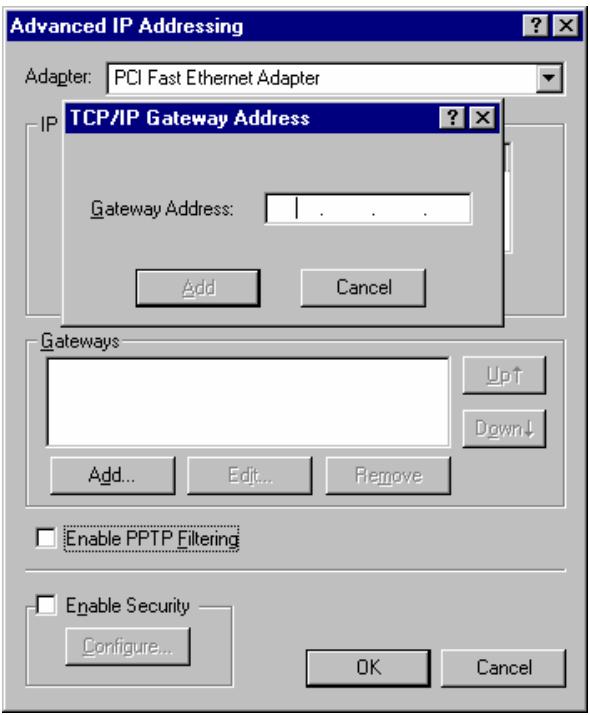

Advanced IP Addressing HE ‘Adapter | PCI Fast Ethemet Adapter AI TCP/IP Gateway Address Gateway Address: [ 1 Eneble Security | Cancel Figure 18 - Windows NT4.0 - Add Gateway

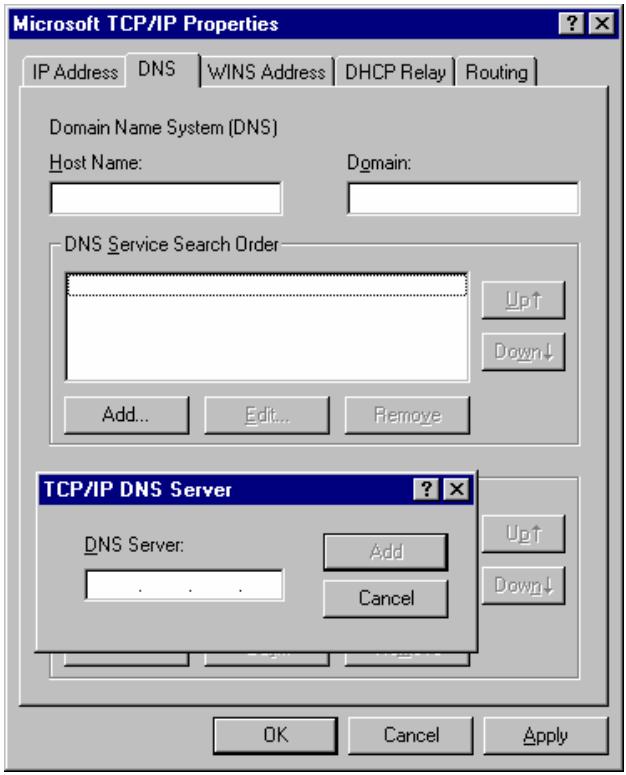

2. The DNS should be set to the address provided by your ISP, as follows:

1. Select Control Panel - Network and Dial-up Connection.

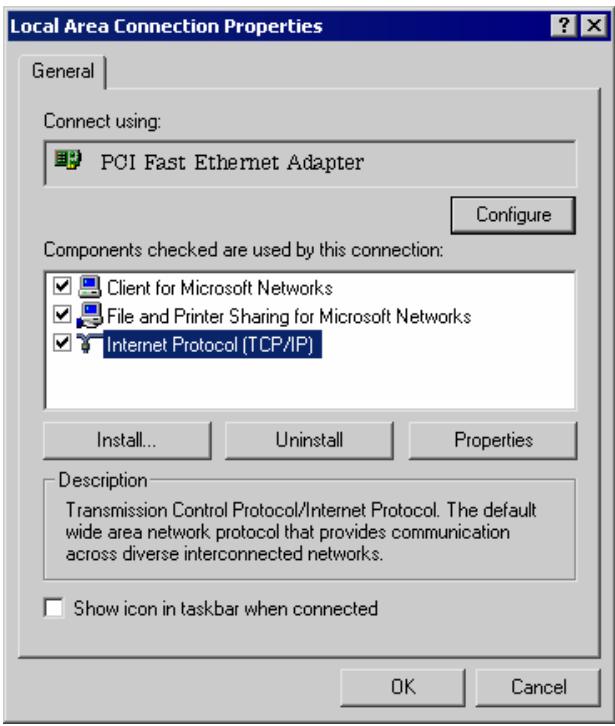

see a screen like the following: Local Area Connection Propei General | Connect using: Right - click the Local Area Connection icon and select Properties. You should

[ss POI Fast Ethernet Adapter Components checked are used by this connection: M SM Client for Microsoft Networks

Install... Uninstall and Printer Shaïing for Microsoft Networks Propetties Description Transmission Control Protacol/Intemet Protacol. The default wide area netwoik protocol that provides communication across diverse interconnected netnatks. T° Show icon in taskbar when connected Ok Cancel Figure 20: Network Configuration (Win 2000)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.

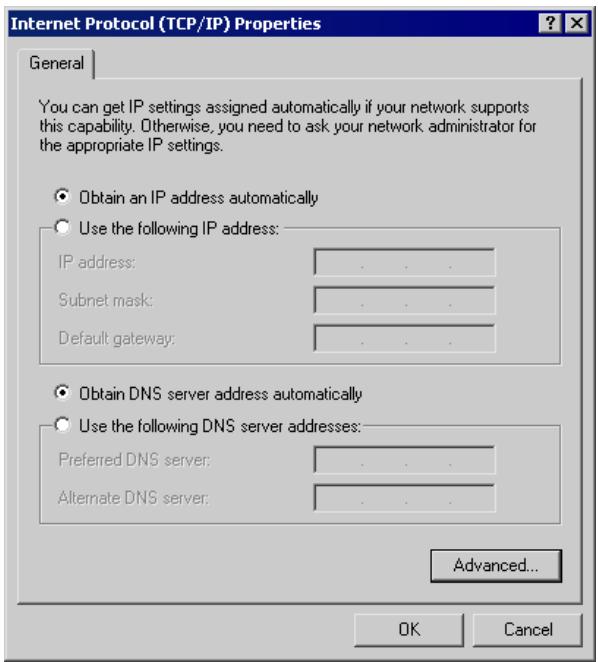

Internet Protocol (TCI General | You can get IP settings assigned automatically if vour network supports this capablt Dtherwise, you need to ask your network adminisiaor for the appropriate IP settings. 5° Obtain an IP address automatically Use the following IP address: IPéddes Sübretmask: Defaul gate 5° Obtain DNS server address automatically T° Use the folowing DNS server addresses: Prefered DNS server Alerte DNS 2er Figure 21: TCP/IP Properties (Win 2000)

AirLive WN-300R Users Manual

5. Ensure your TCP/IP settings are correct, as described below.

Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Wireless Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the Wireless Router. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured, check with your network administrator before making the following changes. + Enter the Wireless Router's IP address in the Default gateway field and click OK. (Your LAN administrator can advise you of the IP Address they assigned to the Wireless Router.) ° __lfthe DNS Serverfields are empty, select Use the following DNS server ad- dresses, and enter the DNS address or addresses provided by your ISP, then click OK. AïirLive WN-300R User's Manual 36

Checking TCP/IP Settings - Windows XP

1. Select Control Panel - Network Connection.

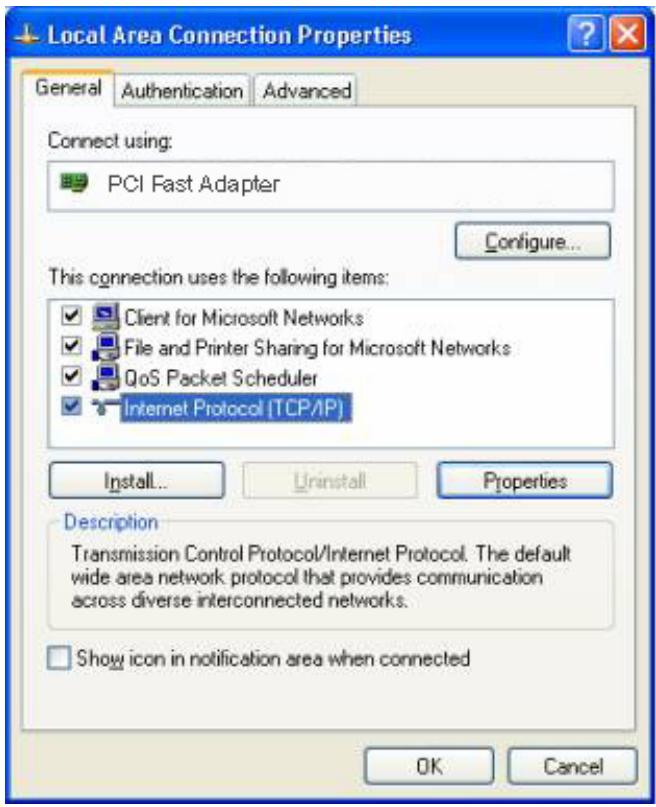

2. Right click the Local Area Connection and choose Properties. You should see a

screen like the following: 1 Local Area Con General | Authentication | Advanced) Connect using: æ PCI Fast Adapter This connection uses the folowing items: M Chent for Microsoft Netwoiks W Qo$ Packet Scheduler

Descrption #c:0ss diverse merconnected networks. M Fie and Pnter Shanmg for Microsoft Networks Transmission Control Protocol/Intemet Protocol. The default wide aies netwoik protocol that provides communication E] Shows icon in notification area when connected [Roses _] Figure 22: Network Configuration (Windows XP)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.

AirLive WN-300R Users Manual

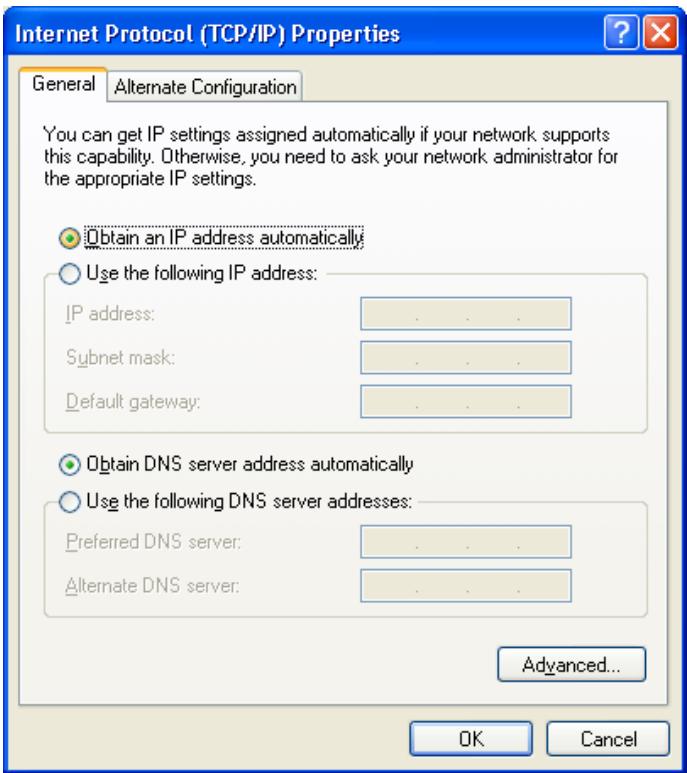

ternet Protocol (TCP/IP) Properties General | Altemate Configuration You can get IP settings assigned automatically if your network supports this capabiity. Dtherwise, you need to ask your network administrator for the appropriate IP settings. @ Übiain an IP address automaticalhi © Use the following IP address: © Obtain DNS server address automatically O Use the following DNS server addresses: Figure 23: TCP/IP Properties (Windows XP)

5. Ensure your TCP/IP settings are correct.

Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Wireless Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the Wireless Router. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured, check with your network administrator before making the following changes. + __Inthe Default gateway field, enter the Wireless Router's IP address and click OK. Your LAN administrator can advise you of the IP Address they assigned to the Wireless Router. ° __lfthe DNS Serverfields are empty, select Use the following DNS server ad- dresses, and enter the DNS address or addresses provided by your ISP, then click OK. AïirLive WN-300R User's Manual 38

Checking TCP/IP Settings - Windows Vista

1. Select Control Panel - Network Connections.

2. Right click the Local Area Connection Status and choose Properties. Click Con-

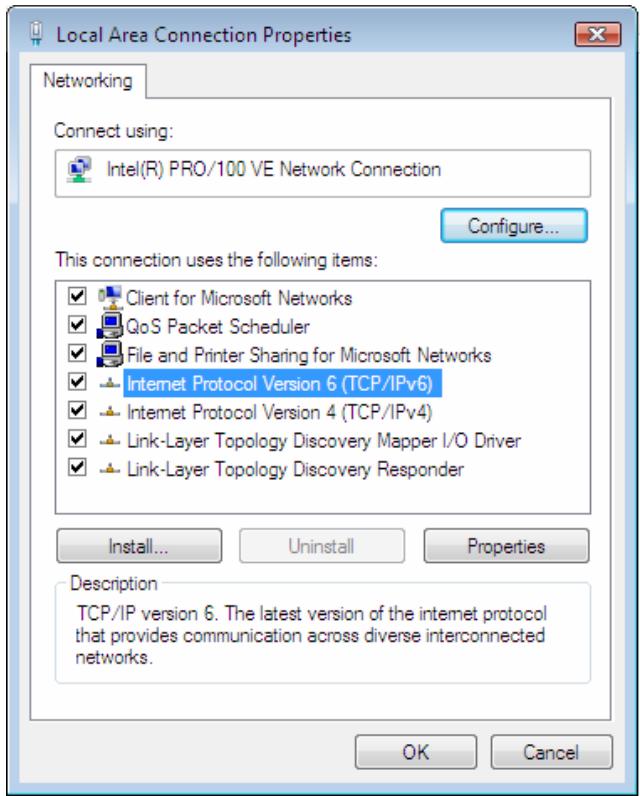

tinue to the User Account Control dialog box, then you should see a screen like the following: Networking Connect using S Intel(R) PRO/100 VE Network Connection ‘This connection uses the following items: À Client for Microsoft Networks QoS Packet Scheduier dMFie and Printer Sharing for Microsoft Networks En Intemet Protocol Version 6 6)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.

39 AirLive WN-300R Users Manual

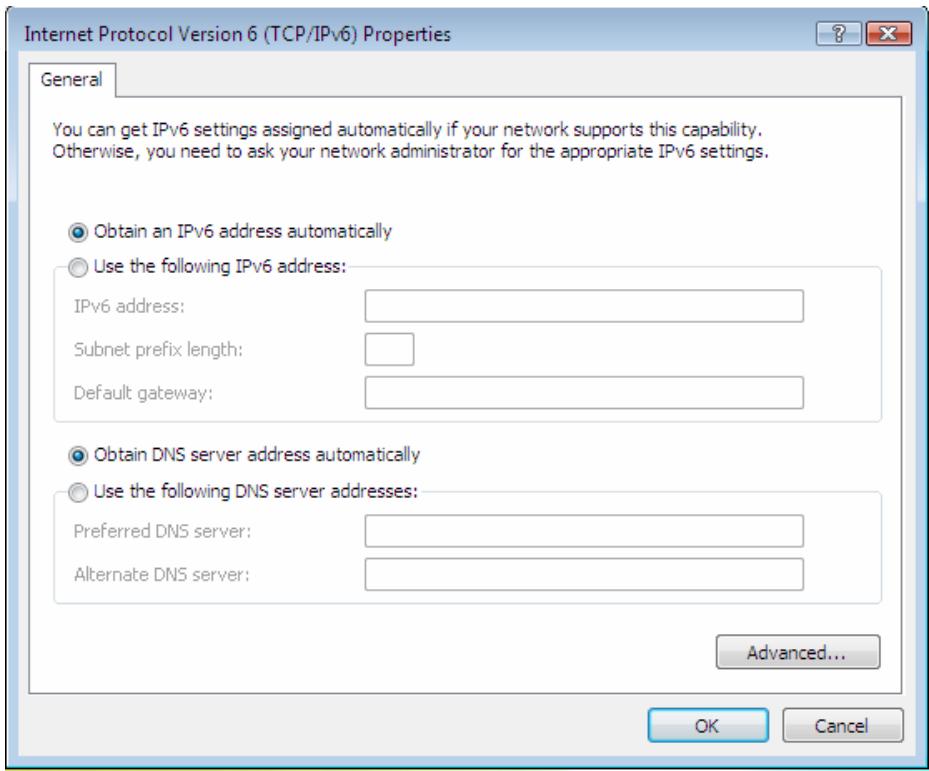

General You can get IPv6 settings assigned automatically if your network supports this capabiity. Otherwise, you need to ask your network administrator for the appropriate IPv6 settings. © Obtain an IPv6 address automatically

9) Use the foloning IPv6 address:

@ Obtain DNS server address automatically D Use the following DNS server addresses: Figure 25: TCP/IP Properties (Windows Vista)

5. Ensure your TCP/IP settings are correct.

Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. To work correctly, you need a DHCP server on your LAN. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured for a fixed (specified) IP address, no changes are required. (The Administrator should configure the Wireless Access Point with a fixed IP address from the same address range used on the PCs.) AïirLive WN-300R User's Manual 40

Internet Access To configure your PCs to use the Wireless Router for Internet access: ° _ Ensure that the DSL modem, Cable modem, or other permanent connection is functional. ° Use the following procedure to configure your Browser to access the Internet via the LAN, rather than by a Dial-up connection. For Windows 2000

2. Select the Connection tab, and click the Setup button.

3. Select "! want to set up my Internet connection manually, or | want to connect

through a local area network (LAN)" and click Next.

4. Select "l connect through a local area network (LAN)" and click Next.

5. Ensure all of the boxes on the following Local area network Internet Configuration

screen are unchecked.

6. Check the "No" option when prompted "Do you want to set up an Internet mail

7. Click Finish to close the Internet Connection Wizard.

Setup is now completed. For Windows XP Select Start Menu - Control Panel - Network and Internet Connections. Select Set up or change your Internet Connection. Select the Connection tab, and click the Setup button. Cancel the pop-up "Location Information" screen. Click Next on the "New Connection Wizard" screen. Select "Connect to the Internet" and click Next. Select "Set up my connection manually" and click Next. Check "Connect using a broadband connection that is always on" and click Next. Click Finish to close the New Connection Wizard. Setup is now completed. © œ® MN Oo 0 8 © D = For Windows Vista You might already be connected to the Internet if your PC is connected to a local area network. Open your web browser and try accessing a website to find out. Select Start - Control Panel - Network and Internet. Select Network and Sharing Center. Select Set up a connection or network Select Connect to the Internet. Select the desired method to fit your environment. an 8 w ND = Accessing AOL To access AOL (America On Line) through the Wireless Router, the AOL for Windows software must be configured to use TCP/IP network access, rather than a dial-up connection. The configuration process is as follows: e _Startthe AOL for Windows communication software. Ensure that it is Version 2.5,

3.0 or later. This procedure will not work with earlier versions.

° _Clickthe Setup button. 41 AirLive WN-300R Users Manual

+ Select Create Location, and change the location name from "New Locality" to "Wireless Router". ° Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Num- ber blank.) e Click Save, then OK. Configuration is now complete. ° Before clicking "Sign On", always ensure that you are using the "Wireless Router" location. 4.3. Macintosh Clients From your Macintosh, you can access the Internet via the Wireless Router. The pro- cedure is as follows.

1. Open the TCP/IP Control Panel.

2. Select Ethernet from the Connect via pop-up menu.

4. Close the TCP/IP panel, saving your settings.

Note: If using manually assigned IP addresses instead of DHCP, the required changes are: + __Setthe Router Address field to the Wireless Router's IP Address. ° __ Ensure your DNS settings are correct. 4.4. Linux Clients To access the Internet via the Wireless Router, it is only necessary to set the Wireless Router as the "Gateway". Ensure you are logged in as "root" before attempting any changes. Fixed IP Address By default, most Unix installations use a fixed IP Address. If you wish to continue using a fixed IP Address, make the following changes to your configuration. ° Set your "Default Gateway" to the IP Address of the Wireless Router. ° __ Ensure your DNS (Name server) settings are correct. To act as a DHCP Client (recommended) The procedure below may vary according to your version of Linux and X -windows shell.

1. Start your X Windows client.

2. Select Control Panel - Network

3. Select the "Interface" entry for your Network card. Normally, this will be called

4.5. Other Unix Systems To access the Internet via the Wireless Router: ° __ Ensure the "Gateway" field for your network card is set to the IP Address of the Wireless Router. ° __ Ensure your DNS (Name Server) settings are correct. 4.6. Wireless Station Configuration This section applies to all Wireless stations wishing to use the Wireless Router's Access Point, regardless of the operating system which is used on the client. To use the Wireless Access Point in the Wireless Router, each Wireless Station must have compatible settings, as follows: Mode The mode must be set to Infrastructure (rather than Ad-hoc) Access points only operate in Infrastructure mode. SSID (ESSID) | This must match the value used on the Wireless Router. Note! The SSID is case sensitive. Wireless By default, Wireless security on the Wireless Router is disabled. Security + __ If Wireless security remains disabled on the Wireless Router, all stations must have wireless security disabled. + __IfWireless security is enabled on the Wireless Router, each station must use the same settings as the Wireless Router. 4.7. Wireless Configuration on Windows XP If using Windows XP to configure the Wireless interface on your PC, the configuration procedure is as follows:

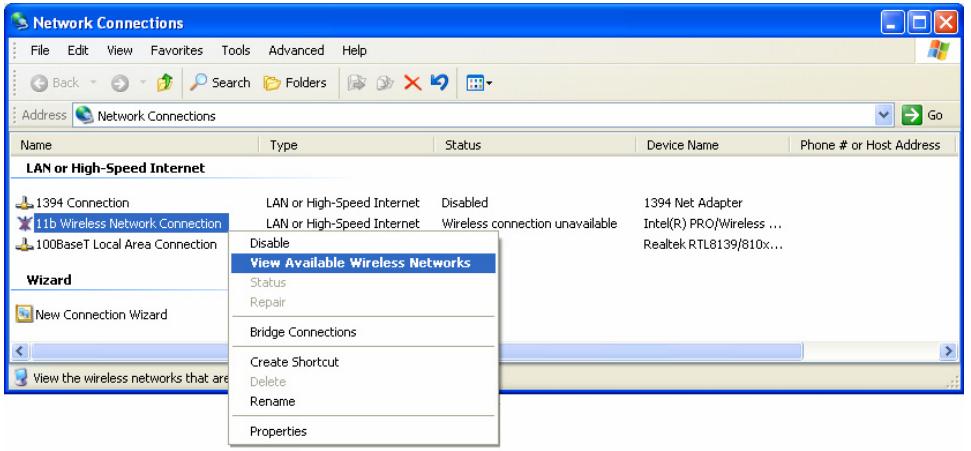

1. Open the Network Connections folder. (Start - Settings - Network Connections).

2. Right-click the Wireless Network Connection, check that it is enabled (menu

option says Disable, rather than Enable) and then select View Available Wireless Networks.

3. You will then see a list of wireless networks.

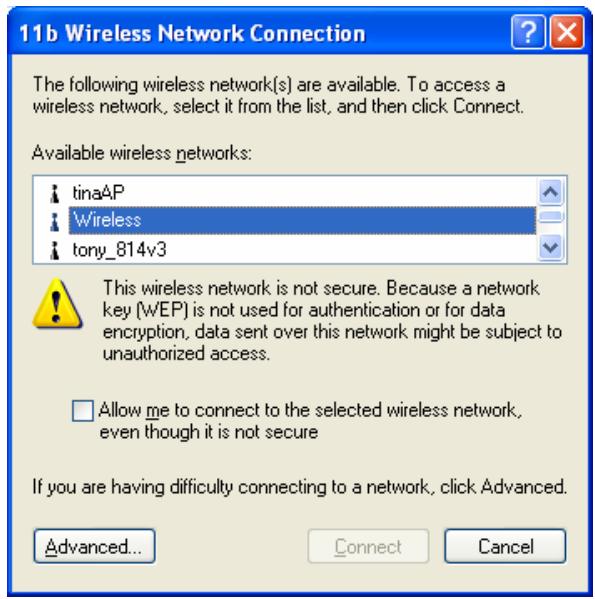

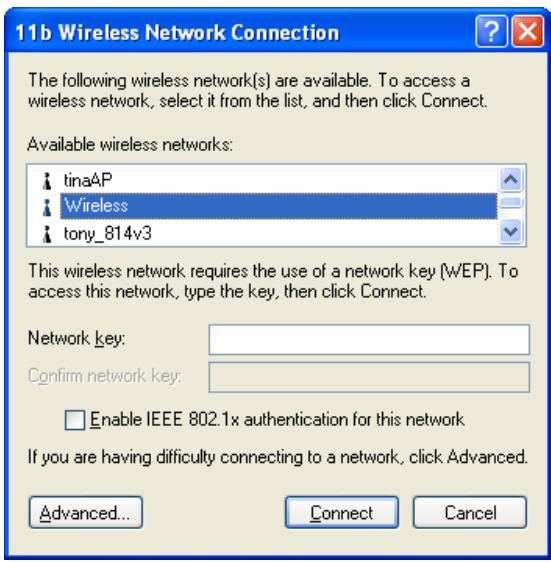

[EI 11b Wireless Network Connection The following wireless network(s] are available. To access à wireless network, select it from the list, and then click Connect. Available wireless networks: À tinaP a 2 EE À tony_814v3 v This wireless network is not secure. Because a network key (WEPI is not used for authentication or for data enciyption, data sent over this network might be subject to unauthorized access. [low me to connect ta the selected wireless network. even though it is not secure If you are having dificuly connecting to a network, click Advanced. Figure 27 Wireless Networks (Windows XP) If the "Broadcast SSID" setting on the Wireless Router has been disabled, its SSID will NOT be listed. See the following section "If the SSID is not listed" for details of dealing with this situation.

4. The next step depends on whether or not Wireless security has been enabled on

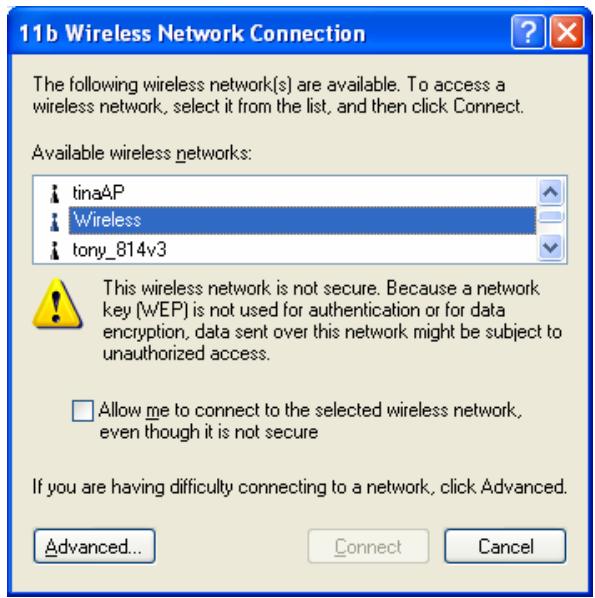

the Wireless Router. If Wireless Security is Disabled If Wireless security on the Wireless Router is disabled, Windows will warn you that the Wireless network is not secure. AïirLive WN-300R User's Manual 44

11b Wireless Network Connection @) The following wireless network(s] are available. To access à wireless network, select it from the list and then click Connect. Available wireless networks: À tina4P a 2 EE À tony_814v3 v This wireless network is not secure. Because a network key (WEPI is not used for authentication or for data enciyption, data sent over this network might be subject to unauthorized access. [JAllow me to connect ta the selected wireless network, even though it is not secure If you are having dificuly connecting to a network, click Advanced. Cancel Figure 28 Insecure Wireless Network (Windows XP) To connect: + Check the checkbox Allow me to connect to the selected wireless network, even though it is not secure. + The Connect button will then be available. Click the Connect button, and wait a few seconds for the connection to be established. If using WEP Data Encryption If WEP data encryption has been enabled on the Wireless Router, Windows will detect this, and show a screen like the following. To connect: 11b Wireless Network Connection The folowing wireless netwoik(s) are availble. To access a wireless network, select it from the list, and then click Connect Available wireless networks: À tony_814v3 # This wireless network requires the use of a network key [WEP] To access this network, type the key, then click Connect. Netoik key: [ ] If you are having difficulty connecting ta a network, click Advanced. (advances..] [connect _] [__ cancel] Figure 29: WEP (Windows XP) [[LJEnabe IEEE 80214 authentcation forthis netnork | —Ÿ= This setting must be DISABLED + _Enterthe WEP key, as set on the Wireless Router, in the Network Key field. + Re-enter the WEP key into the Confirm Network key field. 45 AirLive WN-300R Users Manual

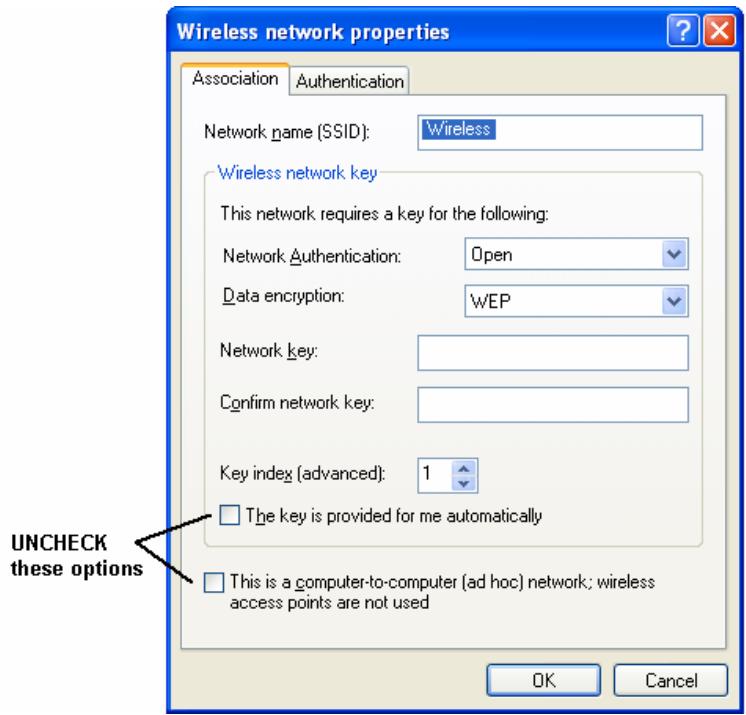

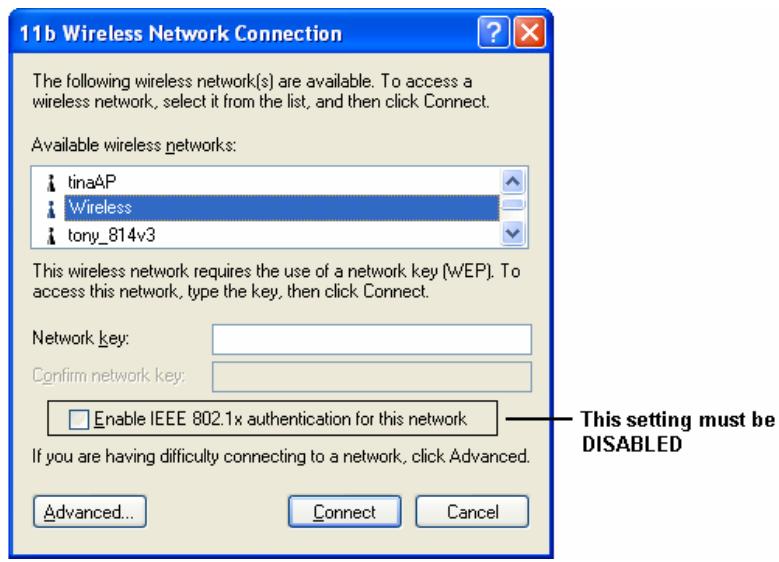

+ __ Disable the checkbox Enable IEEE 802.1x authentication for this network. + Clickthe Connect button. If this fails, click the Advanced button, to see a screen like the following: 1b Wireless Network Connec! General| Wireless Networks | Advanced] Use Windows to configure my wireless network settings Available networks: To connect lo an available network, click Configure. À tony_514v a Que à aber 1 “ Preferred networks: Automaicall connect ta available networks in the order isted below Move up Move doun Learn about settinq up wireless network corfauaion Figure 30: Advanced - Wireless Networks Select the SSID for the Wireless Router, and click Configure, to see a screen like the following: less network properties Association | Authentication Network name {SSID}: lwireless ] Wireless netotk key This netwoik requires a key for the folowing Network Authentication: Open v Data encryption: WEP v Netwaik key: Confirm network key: ] Keyindex (advanced: [1 2 [LL] The key is provided for me automatically UNCHECK these options NL Ps is a gomputerto-computer (ad hoc) netaik: wireless access points are not Figure 31: Wireless Network Properties - WEP AïirLive WN-300R User's Manual 46

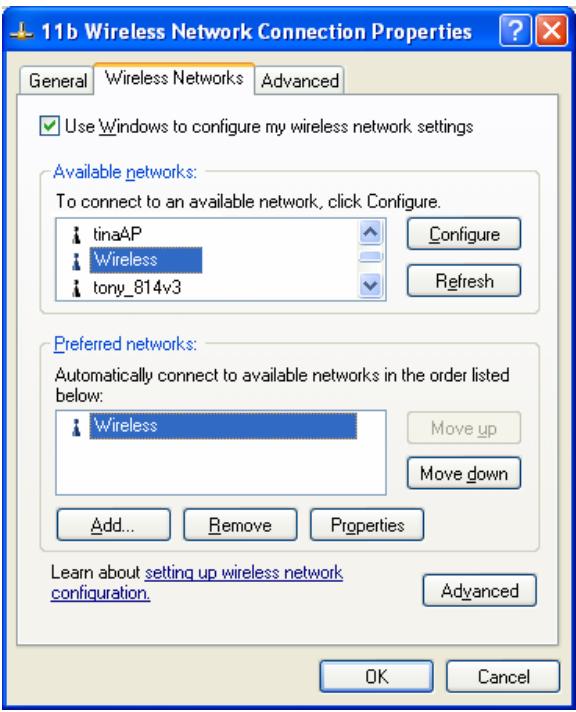

Configure this screen as follows: + Set Network Authentication to match the Wireless Router. (If the setting on the Wireless Router is "Auto", then either Open or Shared can be used.) + For Data Encryption, select WEP. + __Forthe Network key and Confirm network key, enter the default key value used on the Wireless Router. (Windows will determine if 64bit or 128bit encryption is used.) ° The Key index must match the default key index on the Wireless Router. The default value is 1. ° _Ensure the options The key is provided for me automatically and This is a com- puter-to-computer (ad hoc) network are unchecked. ° Click OK to save and close this dialog. °__ This wireless network will now be listed in Preferred Networks on the screen below. ‘eless Network Conne Properties General| Wireless Netmoiks | Advanced] Use Windows to configure my wireless network settings Available networks: To connect to an available network, click Configure. à mar * Come) Que | À tony_614vV3 “ Refresh Prefered netwoïks: Automatically connect to available networks in the order listed below [Wisess __| Move up

Lean about setinq up wireless network confiquration. Figure 32: Preferred Networks Click OK to establish a connection to the Wireless Router. 47 AirLive WN-300R Users Manual

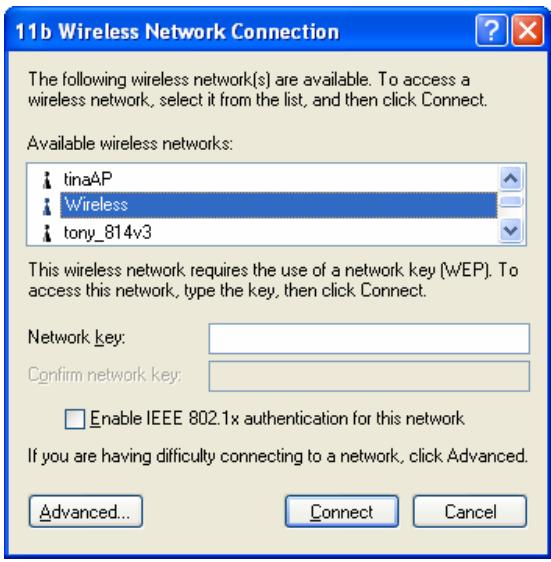

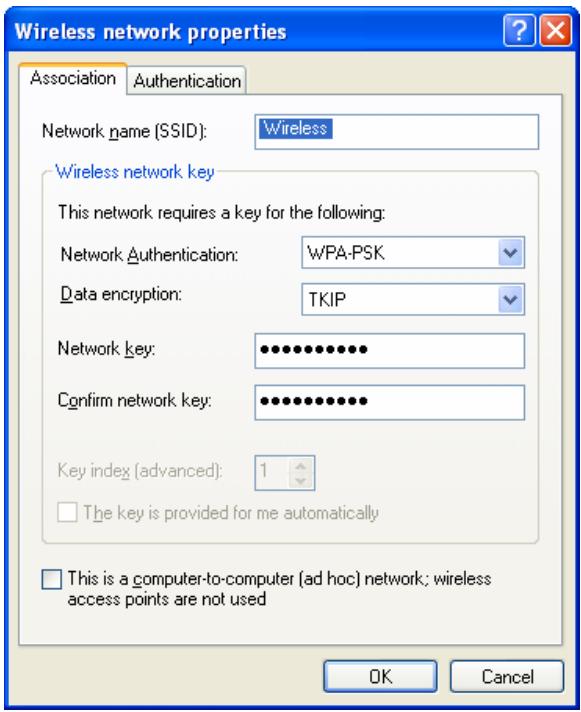

If using WPA-PSK Data Encryption If WPA-PSK data encryption has been enabled on the Wireless Router, it does not matter which network is selected on the screen below. Just click the Advanced button. ‘The following wireless network(s] are available. To access a wireless network, select it from the list, and then click Connect. Available virless netotks: À tina4P

à tony_814v3 This wireless netoik requires the use of à network key (WEP). To access this netnoik, type the kep, then click Connect Netwoik key: [JEnable IEEE 802.1x authentication for his network If you are having difficult connecting to a network, click Advanced. Advanced [connect Cancel Figure 33: Wireless Networks (Windows XP) You will then see a screen like the example below. 1bW General| Wireless Networks | Advanced] Use Windows to configure my vieless netoik settings less Network Connec: Available networks: To connect to an available network, click Configure.

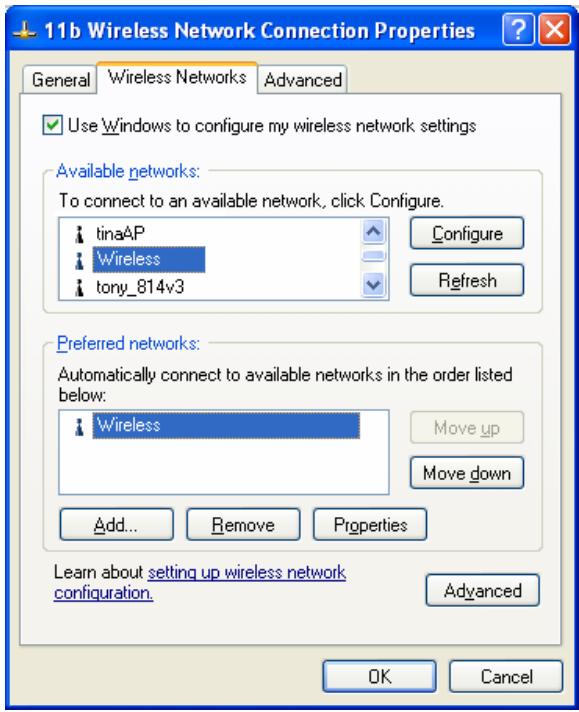

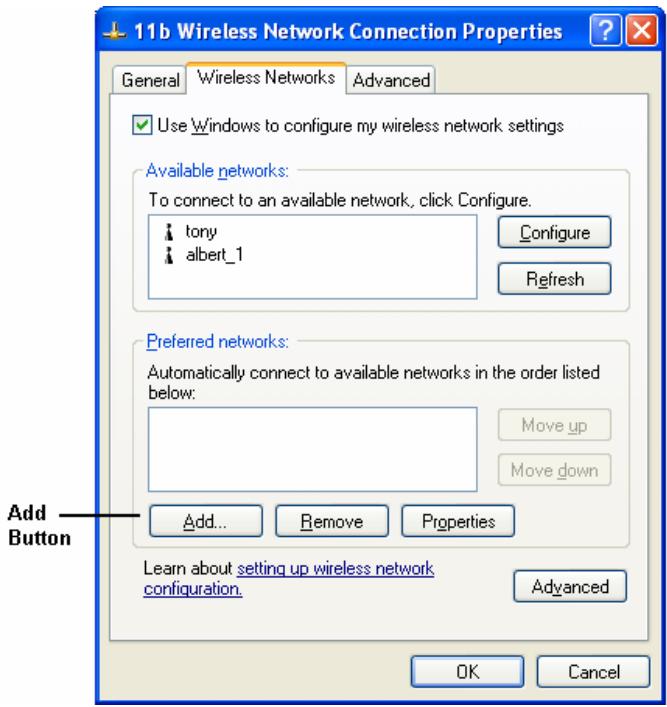

[Wiskess __ > à abert_1 # Rgtresh Prefemed networks: Automatically connect to available networks in the order listed below Move doun Learn about setting up wireless network confiquration. Figure 34: Advanced - Wireless Networks Select the SSID for the Wireless Router, and click Configure, to see a screen like the following: AïirLive WN-300R User's Manual 48

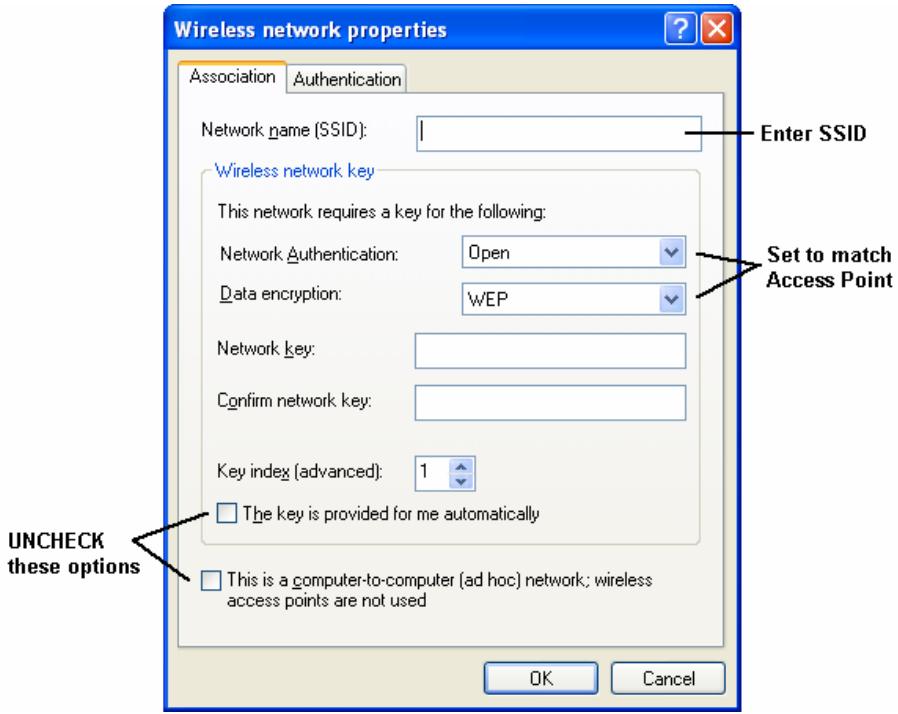

Wireless network properties Association | Authentication Network nème (SSID): [EEE Wireless network key This network requires a key for the following: Netwoik Authenticaton: WPA:PSK v Data encryption: TKIP 4 Network key Cm Canfim network key: [ssssssssee [) This is a compuier-to-compuier (ad hoc] network; wireless access points are not used Figure 35: Wireless Network Properties- WPA-PSK Configure this screen as follows: Set Network Authentication to WPA-PSK. For Data Encryption, select TKIP. For the Network key and Confirm network key, enter the network key (PSK) used on the Wireless Router. Ensure the option This is a computer-to-computer (ad hoc) network is unchecked. Click OK to save and close this dialog. This wireless network will now be listed in Preferred Networks on the screen below. 49 AirLive WN-300R Users Manual

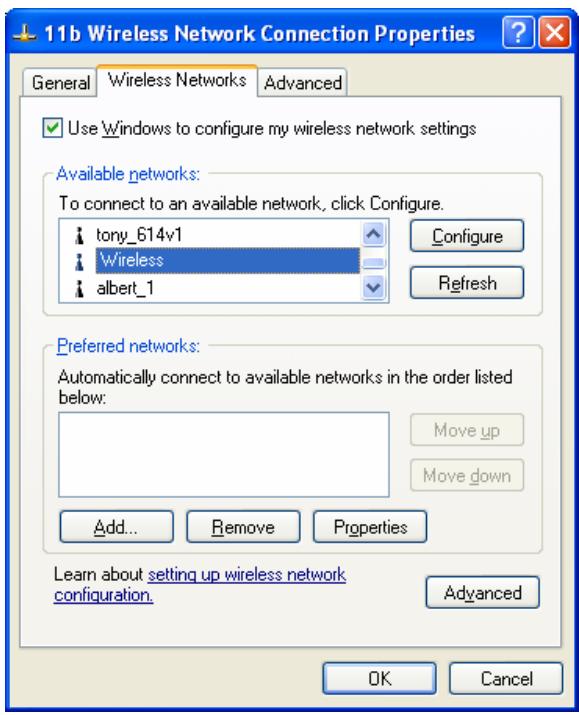

11b Wireless Network Connection Properties x] General| Wireless Netuotks | Advanced] Use Windows to configure my wireless netnatk settings Available networks: To connect to an available network, click Configure. ï im = À tony 8143 # Preferred networks: Automaicall connect ta available networks in the order isted below Aves | Move up Learn about settinq up wireless network confiquration, Advanced Figure 36: Preferred Networks Click OK to establish a connection to the Wireless Router. If the SSID is not listed Ifthe "Broadcast SSID" setting on the Wireless Router has been disabled, its SSID will NOT be listed on the screen below. 11b Wireless Network Connection ‘The following wireless network(s] are available. To access a wireless network, select it from the list, and then click Connect. Available wireless netwoiks: À tinañP À tony_B14v3

This wireless network requires the use of a network key (WEP). To access this network, type the key, then click Connect. Network key: []Enable IEEE 802 1x authentication for this network If you are having dificuly connecting to a network, cick Advanced Advanced [connect Cancel Figure 37: Wireless Networks (Windows XP) In this situation, you need to obtain the SSID from your network administrator, then follow this procedure:

1. Click the Advanced button to see a screen like the example below.

AirLive WN-300R User's Manual 50

11b Wireless Network Connection Properties General | Wireless Networks | Advanced! Use Windows ta configure my wireless netwotk settings Available netwotks: To connect to an available network, click Configure.

Prefened networks: Automatically connect to available networks in the arder listed below Button Learn about setting up wireless network Figure 38: Unlisted Wireless Network

2. Click the Add button. You will see a screen like the example below.

Wireless network properties Association | Authentication Netotk name (SSID) |] + Enter SSID Wireless network key This network requires a key for the following Network Authentication: Open #| =$ _ Setto match 4 5: Data encryption: WEP a 1 Access Point Network key ] Confim network key: ] Keyindes (advanced: [1 2 | CI The key is provided for me automaticalhs UNCHECK these options Pris is a computer to-computer (ad hoc} netwoik: wireless access paints are not used Figure 39: Add Wireless Network

3. Configure this screen as follows:

+ Enter the correct SSID, as used on the Wireless Router. Remember the SSID is case-sensitive, so be sure to match the case, not just the spelling. + Set Network Authentication and Data Encryption to match the Wireless Router. 51 AirLive WN-300R Users Manual

° If using data encryption (WEP or WPA-PSK), enter the key used on the Wire- less Router. See the preceding sections for details of WEP and WPA-PSK. + Uncheck the options The key is provided for me automatically and This is a computer-to-computer (ad hoc) network. ° Click OK to save and exit.

4. This wireless network will then be listed in Preferred Networks on the screen

11b Wireless Network Connection Properties x] Gieneral| Wireless Netwoiks | Advanced) below. Use Windows to configure my wireless network settings Available networks: To connect lo an available network, click Configure. à ina4P a À tony S143 # Preferred networks: Automatically connect to available netwoiks in the order Iisted below: Learn about settinq up wireless network corfauaion Figure 40: Preferred Networks

5. Click OK to establish a connection to the Wireless Router.

AïirLive WN-300R User's Manual 52

Chapter 5 : Operation and Status

This Chapter details the operation of the Wireless Router and the status screens. For Details of operation in Bridge (Modem) mode, see Chapter 8 - Modem Mode.

5.1 Operation - Router Mode

Once both the Wireless Router and the PCs are configured, operation is automatic. However, there are some situations where additional Internet configuration may be required. Refer to Chapter 6 - Advanced Features for further details.

Use the Status link on the main menu to view this screen. 53 AirLive WN-300R User's Manual

Status Internet LAN Wireless System Data - Status Screen Connection Method Connection Status Internet IP Address Wan MAC Address: IP Address Network Mask DHCP Server: MAC Address Region Channel: Wireless AP SSiD1 Name (8SID1) Broadcast Name: MAC Address: SSID2 Name (SS1D2) Broadcast Name: MAC Address: Device Name Firmware Version: Current Time 00:c0:02:25:84:11 Connection Details

1999-12-31 16:22:44 Refresh Screen Figure 41: Status Screen Internet Connection Method Wizard. Displays the current connection method, as set in the Setup Connection Status This indicates the current status of the Internet Connection + Active - Connection exists + _Idle - No current connection, but no error has been detected. This condition normally arises when an idle connection is automatically terminated. ° Failed - The connection was terminated abnormally. This could be caused by Modem failure, or the loss of the connection to the ISP's server. If there is an error, you can click the "Connection Details" AïirLive WN-300R User's Manual

button to find out more information. Internet IP Address | This IP Address is allocated by the ISP (Internet Service Provider). If using a dynamic IP address, and no connection currently exists, this information is unavailable. WAN MAC Address | lt displays the MAC address for the WAN. Connection Details | Click this button to open a sub-window and view a detailed description of the current connection. Depending on the type of connection, a "log" may also be available. LAN IP Address The IP Address of the Wireless Router. Network Mask The Network Mask (Subnet Mask) for the IP Address above. DHCP Server This shows the status of the DHCP Server function. The value will be "Enabled" or "Disabled". MAC Address This shows the MAC Address for the Wireless Router, as seen on the LAN interface. Wireless Region The current region, as set on the Wireless screen. Channel This shows the Channel currently used, as set on the Wireless screen. Wireless AP This indicates whether or not the Wireless Access Point feature is enabled. SSID 1/2 It displays the name of the SSID 1/2. Broadcast Name This indicates whether or not the SSID is Broadcast. This setting is on the Wireless screen. MAC Address The MAC (physical) address of the Wireless Access Point. System Device Name The current name of the Router. This name is also the "hostname" for users with an "@Home" type connection. Firmware Version The version of the current firmware installed. Current Time It displays the current time of the system. Buttons Connection Details | Click this button to open a sub-window and view a detailed description of the current connection. Refresh Screen Update the data displayed on screen.

5.3 Connection Status - PPPOE

If using PPPOE (PPP over Ethernet), a screen like the following example will be dis- played when the "Connection Details" button is clicked. 55 AirLive WN-300R Users Manual

Connection Status PPPOE Connection Time 00:00:00 Connection to Server Disconnect Negotiation — Authentication on IP Address — Network Mask _ Figure 42: PPPOE Status Screen Data - PPPOE Screen Connection Time This indicates how long the current connection has been established. Connection to This indicates whether or not the connection is currently Server established. Negotiation This indicates the status of the Server login. Authentication This indicates the authentication currently used. IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Network Mask The Network Mask associated with the IP Address above. Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, hang up the connection. Close Close this window.

5.4 Connection Status - PPTP

If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example Will be displayed when the "Connection Details" button is clicked. AïirLive WN-300R User's Manual 56

Connection Details PPTP Status IP Address Se PPTP Server IP 192.168.1.254 DNS Server Se Disconnect Figure 43: PPTP Status Screen Data - PPTP Status Screen Connection IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). PPTP Server IP The IP Address of the PPTP server. DNS Server This indicates the DNS address provided by your ISP. Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, terminate the connection.

5.5 Connection Status - L2TP

If using L2TP, a screen like the following example will be displayed when the "Con- nection Details” button is clicked. 57 AirLive WN-300R Users Manual

Connection Details L2TP Status IP Address _ L2TP Server IP 192.168.2.1 DNS Server — Figure 44: L2TP Status Screen Data - L2TP Screen L2TP Status IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). L2TP Server IP The IP Address of the L2TP server. DNS Server This indicates the DNS address provided by your ISP. Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, hang up the connection.

5.6 Connection Details - Dynamic IP Addr

If your access method is "Direct" (no login), with a Dynamic IP address, a screen like the following example will be displayed when the "Connection Details" button is clicked. AirLive WN-300R User's Manual 58

Connection Details Dynamic IP Address IP Address Subnet Mask _ Default Gateway = DNS Server DHCP Server _ Lease Obtained: -— Lease Expires: -— Figure 45: Connection Details - Fixed/Dynamic IP Address Data - Dynamic IP address Internet IP Address The current IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Subnet Mask The Subnet Mask associated with the IP Address above. Default Gateway The IP address of the remote Gateway or Router associated With the IP Address above. DNS Server The IP address of the Domain Name Server which is currently used. DHCP Server The IP address of your ISP's DHCP Server. Lease Obtained Lease Expires This indicates when the current IP address was obtained, and how long before this IP address allocation (the DCHP lease) expires. Buttons Release If an IP Address has been allocated to the Wireless Broadband Router (by the ISP's DHCP Server, clicking the "Release" button will break the connection and release the IP Address. Renew Ifthe ISP's DHCP Server has NOT allocated an IP Address for the Wireless Broadband Router, clicking the "Renew" button will attempt to re-establish the connection and obtain an IP Address from the ISP's DHCP Server. Close Close this window. 59 AirLive WN-300R Users Manual

If your access method is "Direct" (no login), with a fixed IP address, a screen like the following example will be displayed when the "Connection Details" button is clicked. Connection Status Fixed IP Address IP Address _ Subnet Mask _ Default Gateway _ DNS Server _ Figure 46: Connection Details - Fixed IP Address Data - Fixed IP address Screen Fixed IP Address IP Address The IP Address of this device, as seen by Internet users. This address is allocated by your ISP (Internet Service Provider). Subnet Mask The Subnet Mask associated with the IP Address above. Default Gateway The IP Address of the remote Gateway or Router associated With the IP Address above. DNS Server The IP Address of the Domain Name Server which is currently used. AïirLive WN-300R User's Manual 60

This Chapter explains when and how to use the Wireless Router's "Advanced" Features.

The following advanced features are provided: ° Internet: ° DMZ ° URL filter + Access Control ° Dynamic DNS ° Options ° _ Schedule ° Port Trigger ° __ Single Port Forwarding ° Port Range Forwarding ° Qos

This screen provides access to the DMZ, Special Applications and URL Filter features. Internet DMZ f] enable DMZ, using I | URL Filter Opisabie © Block Always © Block By Schedule Contigure URL Fiter Figure 47: Internet Screen DMZ This feature, if enabled, allows the DMZ computer on your LAN to be exposed to all users on the Internet. °__ This allows almost any application to be used on the "DMZ PC". + __The "DMZ PC" will receive all "Unknown" connections and data. + __lfthe DMZ feature is enabled, you must enter IP address of the PC to be used as the "DMZ PC". 61 AirLive WN-300R User's Manual

ing it more vulnerable to attacks. For this reason, you [M] The "DMZ PC"'is effectively outside the Firewall, mak- LI should only enable the DMZ feature when required. Note! URL Filter If you want to limit access to certain sites on the Internet, you can use this feature. The URL filter will check each Web site access. If the address, or part of the address, is included in the block site list, access will be denied. On the Advanced Internet screen, select the desired setting: + Disable - disable this feature. ° Block Always - allow blocking all of the time, independent of the Schedule page. ° Block By Schedule - block according to the settings on the Schedule page. Click the Configure URL Filter button to open the URL Filter screen, allowing you to create or modify the filter strings which determine which sites will be blocked. The URL Filter screen is displayed when the Configure URL Filter button on the Advanced Internet screen is clicked. AïirLive WN-300R User's Manual 62

URL Filter When enabled, a request is blocked if any ofthese entries occur in the requested URL. Current Filter Strings Delete All Add Filter String/| | (as) Filter Strings should be as specific as possible. Trusted PC Clallow this PC to Visit Blacked Sites Trusted PC: À Figure 48: URL Filter Screen Data - URL Filter Screen Current Filter Strings Current Filter The list contains the current list of items to block. Strings To add to the list, use the "Add" option below. + __ To delete an entry, select it and click Delete button. + To delete all entries, click the Delete All button. Add Filter To add to the current list, type the word or domain name you String want to block into the field provided, then click the Add button. Filter strings should be as specific as possible. Otherwise, you may block access to many more sites than intended. Trusted PC Allow this PC Enable this to allow one computer to have unrestricted access to to Visit the Internet. For this PC, the URL filter will be ignored. Blocked Sites If enabled, you must select the PC to be the trusted PC. Trusted PC Select the PC to be the Trusted PC. 63 AirLive WN-300R Users Manual

This free service is very useful when combined with the Virtual Server feature. It allows Internet users to connect to your Virtual Servers using a URL, rather than an IP Address. This also solves the problem of having a dynamic IP address. With a dynamic IP address, your IP address may change whenever you connect, which makes it difficult to connect to you. DDNS Services work as follows:

1. You must register for the service at one of the listed DDNS Service providers.

2. After registration, use the Service provider's normal procedure to obtain your

desired Domain name.

3. Enter your DDNS data on the Wireless Router's DDNS screen, and enable the

4. The Wireless Router will then automatically ensure that your current IP Address is

recorded at the DDNS service provider's Domain Name Server.

5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ

PC) using your Domain name, as shown on this screen. Dynamic DNS Screen Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following: DDNS DDNS Service Ej Use a Dynamic DNS Service Service Provider [DynDNS org (Dynamic) v| DDNS Data Host Name User Name Password DONS Status Figure 49: DDNS Screen Data - Dynamic DNS Screen DDNS Service Use a Dynamic Use this to enable or disable the DDNS feature as required. DNS Service Service Provider | Select the desired DDNS Service provider. AïirLive WN-300R User's Manual 64

Web Site Click this button to open a new window and connect to the Web site of the selected DDNS service provider. DDNS Data Host Name Enter the domain name allocated to you by the DDNS Service. If you have more than one name, enter the name you wish to use. User Name Enter your Username for the DDNS Service. (TZO.com uses your E-mail address.) Password Enter your current password for the DDNS Service. (TZO.com calls this a key.) DDNS Status «This message is returned by the DDNS Server. + __ Normally, this message should be "Update successful" + __lfthe message indicates some problem, you need to connect to the DDNS Service provider and correct this problem.

This screen allows advanced users to enter or change a number of settings. For normal operation, there is no need to use this screen or change any settings. An example Options screen is shown below. Options Internet [] Respond to Ping on Internet (WAN) Port MTU Size. 1492 |(Bytes, 600-1500) UPnP Bjenable UPnP Advertisement Period 30 minutes, 1-1440) Advertisement Time to Live: [4 |{Hops, 12255) Figure 50: Options Screen Data - Options Screen Internet Respond to + __lfchecked, the Wireless Router will respond to Ping (ICMP) Ping packets received from the Internet. + __Ifnot checked, Ping (ICMP) packets from the Internet will be ignored. Disabling this option provides a slight increase in security. 65 AirLive WN-300R Users Manual

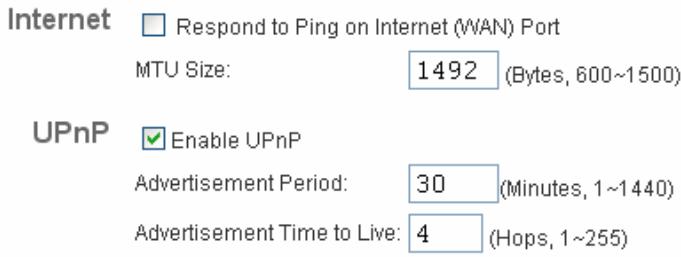

MTU Size Enter a value between 600 and 1500. Note: MTU (Maximum Transmission Unit) size should only be changed if advised to do so by Technical Support. UPnP Enable UPnP + UPnP (Universal Plug and Play) allows automatic discovery and configuration of equipment attached to your LAN. UPnP is by supported Windows ME, XP, or later. + If Enabled, this device will be visible via UPnP. + If Disabled, this device will not be visible via UPnP. Advertisement Period Enter the desired value, in minutes. The valid range is from 1 to

Advertisement Time to Live Enter the desired value, in hops. The valid range is from 1 to

This Schedule can be used for the Firewall Rules and the URL filter. AïirLive WN-300R User's Manual 66

Schedule Schedule Use 24 hour clock. On all day: 00:00 to 24:00 Off all day: All fields left 00 Session 1 Session 2 Start Finish Start Finish vecnescy |[RO{O0] (1200) | 12100) (24{00 Thursday | [00/00] [12/00] | [12][00] [24/[00| Free | [000] (12/00 | (1200) 4/00 Local Time Time Zone: | (GMT-08:00) Pacific Time(US, Canada): Tijuana “| Day M Adjust for Daylight Savings Time Dluse this NTP Server ] Current Time: 1999-12-31 16:03:54 Weekday Friday Figure 51: Schedule Screen Data - Schedule Screen Schedule Day Each day of the week can be scheduled independently. Session 1 Two (2) separate sessions or periods can be defined. Session Session 2 2 can be left blank if not required. Start Enter the start using a 24 hr clock. Finish Enter the finish time using a 24 hr clock. Local Time Time Zone In order to display your local time correcily, you must select your "Time Zone" from the list. Adjust for Day- If your region uses Daylight Savings Time, you must manually light Savings check "Adjust for Daylight Savings Time" at the beginning of Time the adjustment period, and uncheck it at the end of the Day- light Savings period. 67 AirLive WN-300R Users Manual

Use this NTP If you prefer to use a particular NTP server as the primary Server NTP server, check the checkbox "Use this NTP Server" and enter the Server's IP address in the fields provided. If this setting is not enabled, the default NTP Servers are used. Current Time This displays the current time on the Wireless Router, at the time the page is loaded.

If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the Wireless Router's firewall. In this case, you can define the application as a "Port Trigger". The Port Trigger screen can be reached by clicking the Port Trigger on the screen. You can then define your Port Trigger. You will need detailed information about the application; this is normally available from the supplier of the application. Also, note that the terms "Incoming" and "Outgoing" on this screen refer to traffic from the client (PC) viewpoint AïirLive WN-300R User's Manual 68

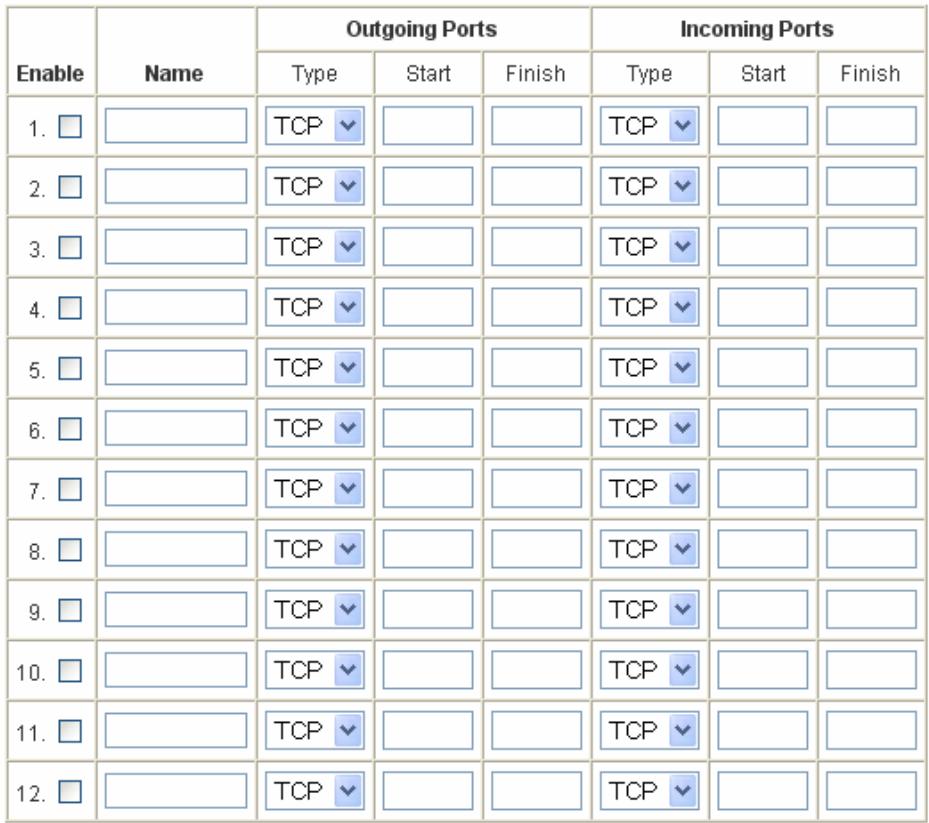

Port Trigger Outgoing Ports Incoming Ports Enable Name Type Start Finish Type Start Finish

Figure 52: Port Trigger Screen Data - Port Trigger Screen Port Trigger Enable Use this to Enable or Disable this Special Application as required. Name Enter a descriptive name to identify this Special Application. Outgoing °__ Type - Select the protocol (TCP or UDP) used when you Ports send data to the remote system or service. °__ Start - Enter the beginning of the range of port numbers used by the application server, for data you send to it. If the application uses a single port number, enter it in both the "Start" and "Finish" fields. ° Finish - Enter the end of the range of port numbers used by the application server, for data you send toit. If the application uses a single port number, enter it in both the "Start" and "Finish" fields. 69 AirLive WN-300R Users Manual

Incoming . Ports Type - Select the protocol (TCP or UDP) used when you receive data from the special application or service. (Note: Some applications use different protocols for out- going and incoming data). Start - Enter the beginning of the range of port numbers used by the application server, for data you receive. If the application uses a single port number, enter it in both the "Start" and "Finish" fields. Finish - Enter the end of the range of port numbers used by the application server, for data you receive.

6.7 Single Port Forwarding

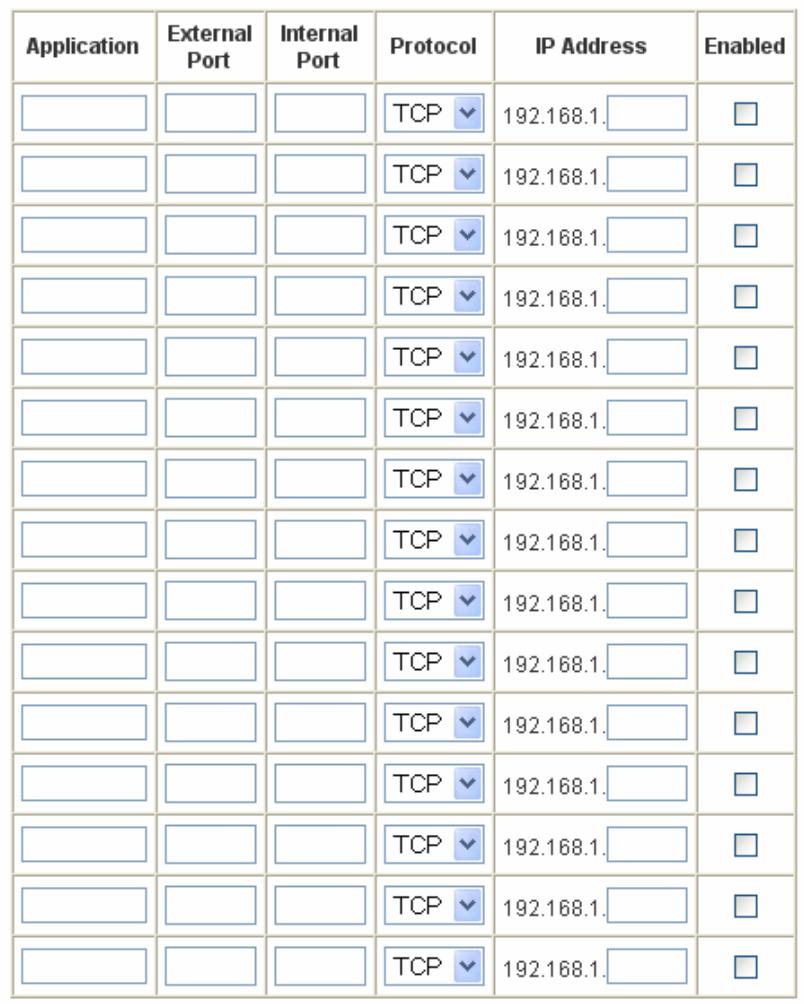

This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: + Your Server does not have a valid external IP Address. ° __ Attempts to connect to devices on your LAN are blocked by the firewall in this device. AïirLive WN-300R User's Manual

Single Port Forwarding External | Internal application | Poe. Mél | Protocol | IPAddress |Enabled EC JE IP Mhiga6el || D EE IT Mlhigu6ssl || © [ ||[TrcP Ml! 1921681| | O EE] ITCP Miel || D | | |I[TcP M]||1921681[ 7 ]| D EE IfrcP @lhig16sil || © [ [rep Ml! 1921681| | O CE JE IT Miel || D EE Irc Mises, || © ET IfTP Ml 021681] | O LE I JIÎTCP Ml\1021681! | © ns | || |I[TcP M]|{1921681[ 7 || D EE {fr @lhigi6esl || © [ ||[TrcP Ml! 1921681| | © EE] JITCP Miel || D Figure 53: Single Port Forwarding Screen Data - Single Port Forwarding Screen Single Port Forwarding Application Enter the desired application type. External Port Traffic from the Internet using this port number will be sent to the Server. This is normally the same as the Internal Port Number. [fit is different, this device will perform a "mapping" or "translation" function, allowing the server to use a different port to the clients. Internal Port Enter the port numbers which the Server software is config- ured to use. Protocol Select the protocol (TCP or UDP) used by the Server. IP Address Enter the desired IP address. 71 AirLive WN-300R Users Manual

Enabled Use this to Enable or Disable support for this Server, as required.

6.8 Port Range Forwarding

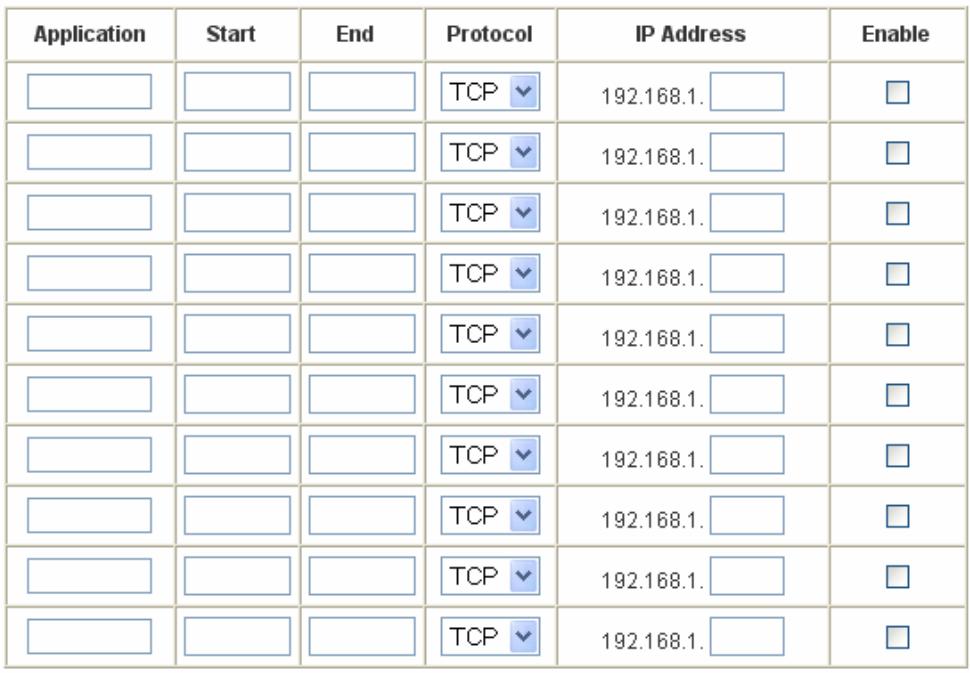

This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: Port Range Forwarding Application | Start End Protocol IP Address Enable [ [| EL] [rep w| 192168.1 E_] O | | JL [TcP M]. 1921681. | D | CIE TIM) re1681[ 7] (el [ [| EU] [rep »| 192.168. EC _] O }| ]| [rep me] | 18216811 7] O [ EU II JI[TPA]| igucerl | O [ [| EU] [rep »| 1921681 CE _] O es }| ]|[reP M] | 18216811] O [ El lITœæa 192.168. E_] O [ ] [TcP “| 192.168. [ ] O Figure 54: Port Range Forwarding Screen Data - Port Range Forwarding Screen Port Range Forwarding Application Enter the desired application type. Start Enter the beginning of the range of port numbers used by the application server. End Enter the end of the range of port numbers used by the application server. Protocol Select the protocol (TCP, UDP or Both) used by the Server. IP Address Enter the desired IP address. Enable Use this to Enable or Disable support for this Server, as required. AïirLive WN-300R User's Manual 72

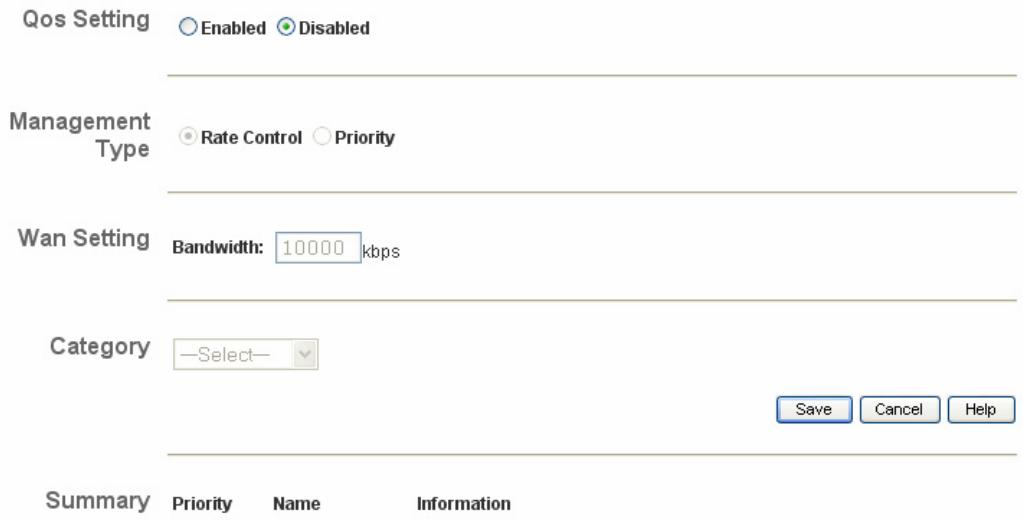

The QoS (Quality of Service) feature allows you specify priorities for different traffic. Lower priority traffic will be slowed down to allow greater throughput or less delay for high priority traffic. An example QoS screen is shown below. QosS Qos Setting Oenabled ©Disabled Management Type Rate Control Priority Wan Setting gandwiätn: [10000 Jénps Category Summary Priority Name Information Data - QoS Screen Figure 55: QoS Screen QosS Setting QoS Setting To disable QoS (Quality of Service), keep the default setting, Disable. To enable QoS (Quality of Service), click Enable and follow these instructions. Management There are 2 options: Type «Rate Control - The QoS will be managed by the size of the bandwidth. °__ Priority - The QoS will be managed by the priority. Bandwidth Enter the desired value of the bandwidth. 73 AirLive WN-300R Users Manual

+ Applications: Category + Add a New Application (Once selected, please complete the following setups.) + Ip/Net: Enter the IP address. + __ Rate: Enter the desired rate value. + Priority: Select the desired option (High, Normal, Low) + Direct: Select Upstream or Downstream as required. ° Self-Define + Name. Enter a name for your device. + Port Range: Enter the value for the desired port range. + __ Protocol: Select the desired option. + Ip/Net: Enter the IP address of your device. + __ Rate: Enter the desired rate value. + Priority: Select the option (High, Normal, Low) from the list. + Direct: Select Upstream or Downstream as required. Summary Priority The general Information of this Application or IP Address. Name The Name of this Application or IP Address. Information The general Information of this Application or IP Address. AïirLive WN-300R User's Manual

Normally, it is not necessary to use these screens, or change any settings. These screens and settings are provided to deal with non-standard situations, or to provide additional options for advanced users. The available settings and features are: PC Database Config File Logs & E-mail Diagnostics Remote Admin Routing Upgrade Firmware This is the list of PCs shown when you select the "DMZ PC" or a “Virtual Server". This database is maintained automati- cally, but you can add and delete entries for PCs which use a Fixed (Static) IP Address. Backup or restore the configuration file for the Wireless Router. This file contains all the configuration data. View or clear all logs, set E-Mailing of log files and alerts. Perform a Ping or DNS Lookup. Allow settings to be changed from the Internet. Only required if your LAN has other Routers or Gateways. Upgrade the Firmware (software) installed in your Wireless Router.

The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). + __Iteliminates the need to enter IP addresses. ° Also, you do not need to use fixed IP addresses on your LAN. However, if you do use a fixed IP address on some devices on your LAN, you should enter details of each such device into the PC database, using the PC Database screen. PC Database Screen An example PC Database screen is shown below. 75 AirLive WN-300R User's Manual

PC Database This Database only listthe clients connected. Known PCs

AIRLIVE-TEST 192.168.1.1 (LAN) 00:0D:61:27:37:50

(Retresh ]( Advanced ]{ Help ] Figure 56: PC Database + PCs which are "DHCP Clients” are automatically added to the database, and updated as required. + By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called "Obtain an IP Address automatically". + The Wireless Router uses the "Hardware Address" to identify each PC, not the name or |P address. The "Hardware Address" can only change if you change the PC's network card or adapter. ° This system means you do NOT need to use Fixed (static) IP addresses on your LAN. However, you can add PCs using Fixed (static) IP Addresses to the PC da- tabase if required. Data - PC Database Screen Known PCs This lists all current entries. Data displayed is name (IP Address) type. The "type" indicates whether the PC is connected to the LAN. Button Refresh Update the data on screen. Advanced Click this to view the advanced "PC Database" screen. AïirLive WN-300R User's Manual 76

PC Database (Admin) This screen is displayed if the "Advanced " button on the PC Database is clicked. It provides more control than the standard PC Database screen. PC Database - Advanced Any PC may be added, edited or deleted. Ifadding a PC which is not connected and On, you must provide the MAC (hardware) address Known PCs

AIRLIVE-TEST 192.168.1.1 (LAN) 00:0D:61:27:37:50

PC Properties Name: IP Address Automatic (DHCP Client) © DHCP Client- reserved P adaress:[122][168][1 | | © FiedIP address (set on PC) LU I 1] MAC Address: © Automatic discovery (PC must be available on LAN) © MAC address is Add as New Entry (Refresh ][_ Standard Screen ][ Heb ] Figure 57: PC Database (Admin) Data - PC Database ( Admin) Screen Known PCs This lists all current entries. Data displayed is name (IP Address) type. The "type" indicates whether the PC is connected to the LAN. Edit Use this to change the data for the selected PC in the list. The data for the selected PC will then be shown in the "Properties" area, where it may be edited. (Click "Update" to save any changes.) Delete Use this to Delete the selected PC from the list. This should be done in 2 situations: + The PC has been removed from your LAN. + The entryis incorrect. 77 AirLive WN-300R Users Manual

PC Properties Name If adding a new PC to the list, enter its name here. It is best if this matches the PC's "hostname". IP Address Select the appropriate option: Automatic - The PC is set to be a DHCP client (Windows: "Obtain an IP address automatically"). The Wireless Router will allocate an IP address to this PC when requested to do so. The IP address could change, but normally won't. DCHP Client - Reserved IP Address - Select this if the PC is set to be a DCHP client, and you wish to guarantee that the Wireless Router will always allocate the same IP Ad- dress to this PC. Enter the required IP address. Only the last field is required; the other fields must match the Wireless Router's IP ad- dress. Fixed IP Address - Select this if the PC is using a Fixed (Static) IP address. Enter the IP address allocated to the PC. (The PC must be configured to use this IP address.) MAC Address Select the appropriate option Automatic discovery - Select this to have the Wireless Router contact the PC and find its MAC address. This is only possible if the PC is connected to the LAN and powered On. MAC address is - Enter the MAC address on the PC. The MAC address is also called the "Hardware Address", "Physi- cal Address", or "Network Adapter Address". The Broadband Router uses this to provide a unique identifier for each PC. Because of this, the MAC address can NOT be left blank. Buttons Add as New Entry Add a new PC to the list, using the data in the "Properties" box. If "Automatic discovery" (for MAC address) is selected, the PC will be sent a "ping" to determine its hardware address. This will fail unless the PC is connected to the LAN, and powered on. Update Se- lected PC Update (modify) the selected PC, using the data in the "Proper- ties" box. Clear Form Clear the "Properties" box, ready for entering data for a new PC. Refresh Update the data on screen. Standard Screen Click this to view the standard PC Database screen. AïirLive WN-300R User's Manual 78

This feature allows you to download the current settings from the Wireless Router, and save them to a file on your PC. You can restore a previously-downloaded configuration file to the Wireless Router, by uploading it to the Wireless Router. This screen also allows you to set the Wireless Router back to its factory default configuration. Any existing settings will be deleted. An example Config File screen is shown below. Config File Backup Config Save a Copy of Current Settings Restore Config Restore Saved Settings from a File [ |CBrowse Default Config Revertto Factory Default Settings Factory Defauts Figure 58: Config File Screen Data - Config File Screen Backup Config | Use this to download a copy of the current configuration, and store the file on your PC. Click Backup to start the download. Restore Config | This allows you to restore a previously-saved configuration file back to the Wireless Router. Click Browse to select the configuration file, then click Restore to upload the configuration file. WARNING! Uploading a configuration file will destroy (overwrite) ALL of the existing settings. Default Config | Clicking the Factory Defaults button will reset the Wireless Router to its factory default settings. WARNING! This will delete ALL of the existing settings. 79 AirLive WN-300R Users Manual

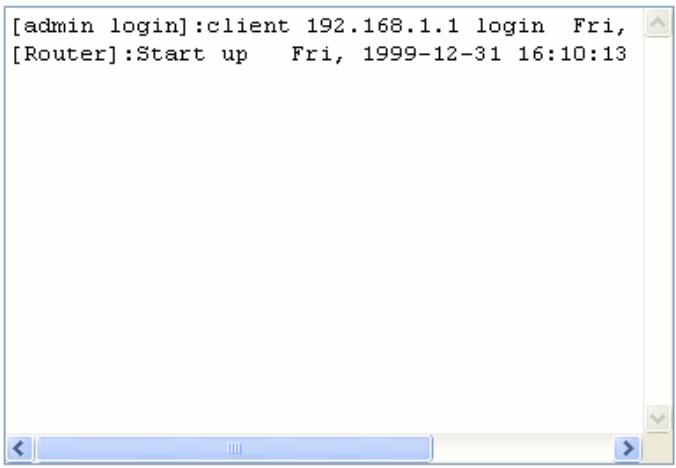

The Logs record various types of activity on the Wireless Router. This data is useful for troubleshooting, but enabling all logs will generate a large amount of data and adversely affect performance. Since only a limited amount of log data can be stored in the Wireless Router, log data can also be E-mailed to your PC. Use the E-Mail screen to configure this feature. Logs Logs Currenttime: 1999-12-31 18:11:22 [admin login]:client 192.168.1.1 login Fri, [Router]:Start up Fri, 1999-12-31 16:10:13 Attempted access to hlocked sites Connections to the Web-based interface ofthis Router Router operation (start up, get time etc) Known DoS attacks and Port Scans Include in Log [] Outgoing (ntemet) connections [] access control Syslog © Disable © Broadcast on LAN © Send to this Syslog Server : È : Figure 59: Logs Screen Data - Logs Screen Logs Current Time The current time on the Wireless Router is displayed. Log Data Current log data is displayed in this panel. AïirLive WN-300R User's Manual 80

Buttons There are three (3) buttons ° __Refresh - Update the log data. ° Clear Log - Clear the log, and restart it. This makes new messages easier to read. + Send Log - E-mail the log immediately. This is only functional if the E-mail screen has been configured. Include in Logs Include (Check- boxes) Use these checkboxes to determine which events are included in the log. Checking all options will increase the size of the log, so it is good practice to disable any events which are not really required. ° _Attempted access to blocked sites - If checked, attempted Internet accesses which were blocked are logged. + Connections to the Web-based interface of this Router - If checked, this will log connections TO this Router, rather than through this Router to the Internet. ° __ Router operation - If checked, other Router operations (not covered by the selections above) will be logged. e __Known DosS attacks and Port Scans - If checked, Denial of Service attacks, as well as port scans, will be logged. + Outgoing (Internet) connections - If checked, the outgoing Internet connections are logged. *« Access Control - If enabled, the log will include at- tempted outgoing connections which have been blocked by the "Access Control" feature. Syslog Disable Data is not sent to a Syslog Server. Broadcast on LAN The Syslog data is broadcast, rather than sent to a specific Syslog server. Use this if your Syslog Server does not have a fixed IP address. Send to this Syslog Server If your Syslog server has a fixed IP address, select this option, and enter the IP address of your Syslog server.

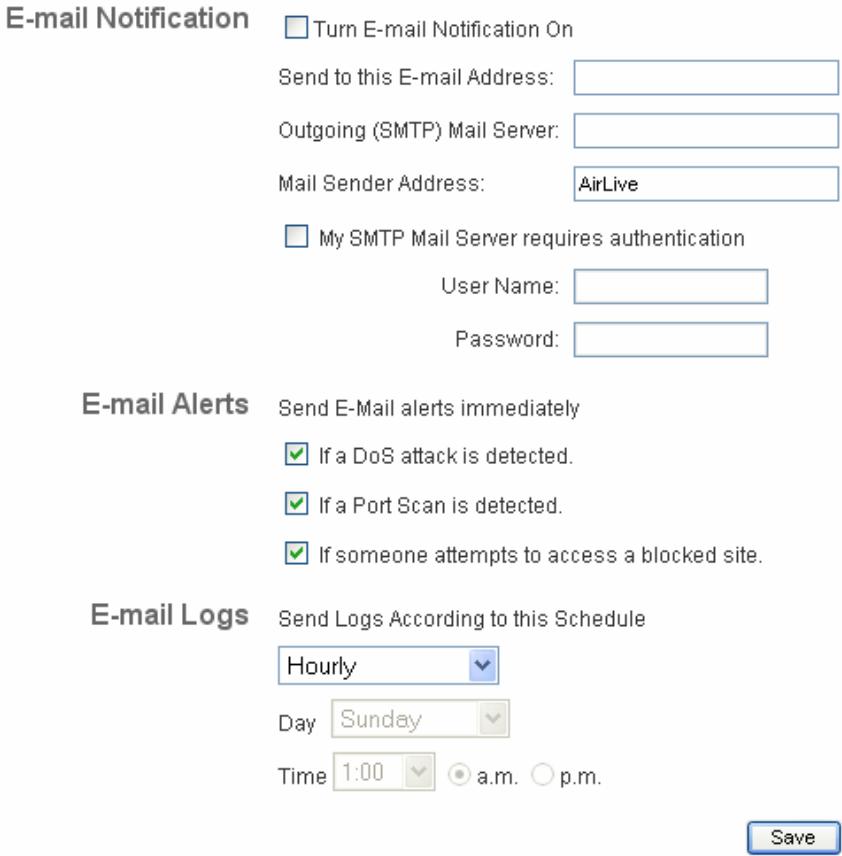

This screen allows you to E-mail Logs and Alerts. À sample screen is shown below. 81 AirLive WN-300R Users Manual

E-Mail E-mail Notification Cjrum E-mail Notification On Send to this E-mail Address Outgoing (SMTP) Mail Server. ail Sender Address [I My SMTP Mail Server requires authentication E-mail Alerts Send E-Mail alerts immediately a Dos attack is detected. Wa Port Scan is detected someone attempts to access a blocked site E-mail LogS Send Logs According to this Schedule [Hourty vw Day Time am. pm Figure 60: E-Mail Screen Data - E-Mail Screen E-Mail Notification Turn E-mail Check this box to enable this feature. If enabled, the E-mail Notification on address information (below) must be provided. Send to this E- Enter the E-mail address the Log is to be sent to. The E-mail mail Address will also show this address as the Sender's address. Outgoing Enter the address or IP address of the SMTP (Simple Mail (SMTP) Mail Transport Protocol) Server you use for outgoing E-mail. Server Mail Sender Enter the mail address of the sender. The E-mail will also show Address this address as the Sender's address. My SMTP Mail To stop spanners, many SMTP mail servers require you to log Server requires in to send mail. In this case, enable this checkbox, and enter authentication the login information (User name and Password) in the fields below. User Name If you have enabled "My SMTP Mail Server requires authenti- cation" above, enter the User Name required to login to your SMTP Server. AïirLive WN-300R User's Manual 82

Password If you have enabled "My SMTP Mail Server requires authenti- cation" above, enter the password required to login to your SMTP Server. E-mail Alerts Send E-mail alerts immedi- ately You can choose to have alerts E-mailed to you, by checking the desired checkboxes. The Wireless Router can send an immediate alert when it detects a significant security incident such as + __ A known hacker attack is directed at your IP address + __AÀ computer on the Internet scans your IP address for open ports + __Someone on your LAN (Local Area Network) tries to visit a blocked site. E-mail Logs Send Logs Select the desired option for sending the log by E-mail. + __ Never (default) - This feature is disabled; Logs are not sent. + __ When logis full - The time is not fixed. The log will be sent when the log is full, which will depend on the volume of traffic. + Hourly, Daily, Weekly... - The log is sent on the interval specified. + _IfDailyis selected, the log is sent at the time speci- fied. Select the time of day you wish the E-mail to be sent. + __IfWeeklyis selected, the log is sent once per week, on the specified day, at the specified time. Select the day and the time of day you wish the E-mail to be sent. Note: If the log is full before the time specified to send it, it will be sent regardless of the day and time specified.

This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful in solving network problems. An example Network Diagnostics screen is shown below.

AirLive WN-300R Users Manual

Network Diagnostics Ping DNS Lookup Routing IP Address Internet Name ] [Lookup ] IP address: DNS Server: Displaythe Routing Table Figure 61: Network Diagnostics Screen Data - Network Diagnostics Screen Ping IP Address Enter the IP address you wish to ping. The IP address can be on your LAN, or on the Internet. Note that if the address is on the Internet, and no connection currently exists, you could get a "Timeout" error. In that case, wait a few seconds and try again. Ping Button After entering the IP address, click this button to start the "Ping" procedure. The results will be displayed in the Ping Results pane. DNS Lookup Internet Name Enter the Domain name or URL for which you want a DNS (Domain Name Server) lookup. Note that if the address in on the Internet, and no connection currently exists, you could get a "Timeout" error. In that case, wait a few seconds and try again. Lookup Button After entering the Domain name/URL, click this button to start the "DNS Lookup" procedure. Routing Display Click this button to display the internal routing table. This information can be used by Technical Support and other staff Who understand Routing Tables.

7.7 Remote Administration

If enabled, this feature allows you to manage the Wireless Router via the Internet. AïirLive WN-300R User's Manual 84

Remote Administration Remote Administration Current IP Address Port Number 6080 Access Alow Remote Access By Permission © Everyane [] Enable Remote Management © only This Computer [ | À |. © 1P Address Range: From û : : To d À : Figure 62: Remote Administration Screen Data - Remote Administration Screen Remote Administration Enable Remote Check to allow administration/management via the Internet. Management (To connect, see below). If Disabled, this device will ignore Administration connection attempts from the Internet. Current This is the current address you will use when accessing this IP Address device from the Internet. To connect, see details and an ex- ample below. Port Number Enter a port number between 1 and 65535. The default for HTTP (Web) connections is port 80, but using port 80 will prevent the use of a Web "Virtual Server" on your LAN. So using a different port number is recommended. The default value is 8080. The port number must be specified in your Browser when you connect. See the following section for details. Access Permission Allow Remote Select the desired option. Access °__ Everyone - allow access by everyone on the Internet. + __ Only This Computer - allow access by only one IP ad- dress. Enter the desired IP address. + __IP Address Range - allow access from a range of IP addresses on the Internet. Enter a beginning and ending IP address to define the allowed range. For security, you should restrict access to as few external IP addresses as practical. 85 AirLive WN-300R Users Manual

To connect from a remote PC via the Internet

1. Ensure your Internet connection is established, and start your Web Browser.

2. Inthe "Address" bar, enter "HTTP://" followed by the Internet IP Address of the

Wireless Router. If the port number is not 80, the port number is also required. (After the IP Address, enter ":" followed by the port number.) e.g. HTTP/123.123.123.123:8080 This example assumes the WAN IP Address is 123.123.123.123, and the port number is 8080.

3. You will then be prompted for the login name and password for this device.

Overview °__ If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page completely. + __lfthe Wireless Router is only acting as a Gateway for the local LAN segment, ignore the "Routing" page even if your LAN has other Routers. ° __lf your LAN has a standard Router (e.g. Cisco) on your LAN, and the Wireless Router is to act as a Gateway for all LAN segments, enable RIP (Routing Informa- tion Protocol) and ignore the Static Routing table. °__lf your LAN has other Gateways and Routers, and you wish to control which LAN segments use each Gateway, do NOT enable RIP (Routing Information Protocol). Configure the Static Routing table instead. (You also need to configure the other Routers.) °< __lfusing Windows 2000 Data center Server as a software Router, enable RIP on the Wireless Router, and ensure the following Windows 2000 settings are correct: + __ Open Routing and Remote Access + __Inthe console tree, select Routing and Remote Access, [server name], IP Routing, RIP + __Inthe "Details" pane, right-click the interface you want to configure for RIP version 2, and then click "Properties". + __Onthe "General" tab, set Outgoing packet protocol to "RIP version 2 broad- cast", and /ncoming packet protocol to "RIP version 1 and 2". Routing Screen The routing table is accessed by the Routing link on the Administration menu. Using this Screen Generally, you will use either RIP (Routing Information Protocol) OR the Static Rout- ing Table, as explained above, although is it possible to use both methods simultaneously. AïirLive WN-300R User's Manual 86

Static Routing Table °__IfRIPis not used, an entry in the routing table is required for each LAN segment on your Network, other than the segment to which this device is attached. ° The other Routers must also be configured. See Configuring Other Routers on your LAN later in this chapter for further details and an example. Routing RIP RIP Direction | None v RIP Version | RIP-1 v Static Routing Static Routing Table Entries Figure 63: Routing Screen Data - Routing Screen RIP RIP Direction Select the desired RIP Direction. RIP Version Choose the RIP Version for the Server. Static Routing Static Routing This list shows all entries in the Routing Table. Table Entries + This area shows details of the selected item in the list. + Change any the properties as required, then click the "Edit" button to save the changes to the selected entry. Buttons Add Add a new entry to the Static Routing table, using the data shown in the "Properties" area on screen. The entry selected in the list is ignored, and has no effect. Edit Update the current Static Routing Table entry, using the data shown in the table area on screen. Delete Delete the current Static Routing Table entry. Save Save the RIP setting. This has no effect on the Static Routing Table. 87 AirLive WN-300R Users Manual

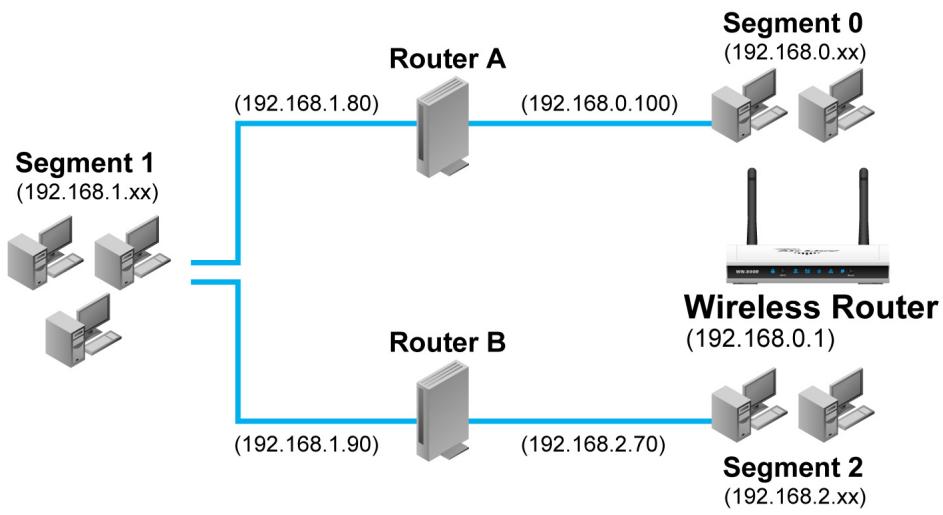

Configuring Other Routers on your LAN It is essential that all IP packets for devices not on the local LAN be passed to the Wireless Router, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the Wireless Router as the Default Route or Default Gateway. Local Router The local router is the Router installed on the same LAN segment as the Wireless Router. This router requires that the Default Route is the Wireless Router itself. Typi- cally, routers have a special entry for the Default Route. It should be configured as follows. Destination IP Address Normally 0.0.0.0, but check your router documenta- tion. Network Mask Normally 0.0.0.0, but check your router documenta- tion. Gateway IP Address The IP Address of the Wireless Router. Metric 1 Other Routers on the Local LAN Other routers on the local LAN must use the Wireless Router's Local Router as the Default Route. The entries will be the same as the Wireless Router's local router, with the exception of the Gateway IP Address. + For a router with a direct connection to the Wireless Router's local Router, the Gateway IP Address is the address of the Wireless Router's local router. ° For routers which must forward packets to another router before reaching the Wireless Router's local router, the Gateway IP Address is the address of the in- termediate router. Static Routing - Example Segment 0 Router À (192.168.0.xx) (192.168.1.80) A (192.168.0.100) 2 # Segment 1 À (192.168.1.xx) | | Wireless Router Router B (192.168.0.1) L 2 A (192.168.1.90) (192.168.2.70) 7 Segment 2 (192.168.2.xx) Figure 64: Routing Example AïirLive WN-300R User's Manual 88

For the Wireless Router's Routing Table For the LAN shown above, with 2 routers and 3 LAN segments, the Wireless Router requires 2 entries as follows. Entry 1 (Segment 1) Destination IP Address 192.168.1.0 Network Mask 255.255.255.0 (Standard Class C) Gateway IP Address 192.168.1.25400 (Wireless Router's local Router) Metric 2 Entry 2 (Segment 2) Destination IP Address 192.168.2.0 Network Mask 255.255.255.0 (Standard Class C) Gateway IP Address 192.168.1.25400 Metric 3 For Router A's Default Route Destination IP Address | 0.0.0.0 Network Mask 0.0.0.0 Gateway IP Address 192.168.1.254 (Wireless Router's IP Address) For Router B's Default Route Destination IP Address | 0.0.0.0 Network Mask 0.0.0.0 Gateway IP Address 192.168.1.80 (Wireless Router's local router)

7.9 Upgrade Firmware

The firmware (software) in the Wireless Router can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade Firmware on the Ad- ministration menu. You will see a screen like the following. Upgrade Firmware Locate and Selectthe Upgrade File from your Hard Disk: Browse. Figure 65: Router Upgrade Screen 89 AirLive WN-300R Users Manual

To perform the Firmware Upgrade:

1. Click the Browse button and navigate to the location of the upgrade file.

2. Select the upgrade file. Its name will appear in the Upgrade File field.

3. Click the Upload button to commence the firmware upgrade.

The Wireless Router is unavailable during the up- grade process, and must restart when the upgrade is completed. Any connections to or through the Wire- less Router will be lost. AïirLive WN-300R User's Manual 90

This Chapter explains configuration and operation when in "Access Point".

There are two modes available on the Access Point screen. ° Router -In this mode, this device can provide shared Internet Access to all your LAN users. Also, by default, it acts a DHCP Server, providing an IP address and related information to all Wireless and LAN users.

  • Access Point - The device links your Wireless Stations to your wired LAN. The Wireless stations and devices on the wired LAN are then on the same network, and can communicate with each other without regard for whether they are con- nected to the network via a Wireless or wired connection. This Chapter describes operation while in Access Point Mode.

8.2 Management Connections

+ You need to have a DHCP Server on your LAN to provide IP addresses to the Wireless clients using this Access Point. °__ This AP must be a valid device on your LAN, to allow management connections. You must assign a (fixed) IP address which is within the address range used on your LAN, but not within the address range used by your DHCP server. When you connect in future, just connect normally, using the IP address you assigned.

1. Start your WEB browser.

2. Inthe Address box, enter "HTTP://" and the current IP Address of the Wireless

ADSL Modem, as in this example, which uses the Wireless ADSL Modem's de- fault IP Address: HTTP/192.168.1.254

3. When prompted for the User name and Password, enter admin for the user name,

and the current password, as set on the password screen. (The password is the same regardless of the mode.)

If in Modem mode, the home screen will look like the example below. 91 AirLive WN-300R User's Manual

Mode : 4 CA WN-300R Wireless 4 1 7 Wireless SSID1 airlive Password è Securit Disabled Status 1 81D2 Guest 4 Security. Config File É = Upgrade Firmware Être: LAN IP Address: 192168.1.254 Figure 66: Home Screen - Modem Mode Note that the menu has changed, many of the options in Router mode are not avail- able. The screens available are: + __ Mode - change back to Router mode, if desired. + Wireless - this screen, and related sub-screens, is the same as in Router mode. + __ Password - this screen is the same as in Router mode. + Status - displays current settings and status. See the following section for details. + Config File - this screen is the same as in Router mode. + __ Upgrade FW - this screen is the same as in Router mode.

This screen is change back to Router mode, if desired. Mode Device Mode Device Name: WN-300R Device Mode: Access Point M IP Address: |192 Subnet Mas! Figure 67: Mode Screen AirLive WN-300R User's Manual 92

Data - Mode Screen Device Name This field displays the current name of this device. Device Mode Select the desired device mode for the router:

  • Router - In this mode, this device can provide shared Internet Access to all your LAN users. Also, by default, it acts a DHCP Server, providing an IP address and related information to all Wireless and LAN users. *« Access Point - The device links your Wireless Stations to your wired LAN. The Wireless stations and devices on the wired LAN are then on the same network, and can communicate with each other without regard for whether they are connected to the network via a Wireless or wired connection. After changing the mode, this device will restart, which will take a few seconds. The menu will also change, depending on the mode you are in. IP Address The IP Address of this device. Use the default value unless the address is already in use or your LAN is using a different IP ad- dress range. Subnet Mask The Network Mask associated with the IP Address above.

Operation is automatic. ° Wireless clients can connect to the Access Point if they have the correct SSID and security, but they must obtain an IP address from the DHCP Server on your LAN.

In Modem mode, the Status screen looks like the example below. 93 AirLive WN-300R Users Manual

Status LAN Wireless System IP Address Network Mask MAC Address Region: Channel 6 Wireless AP enable SSID1 Name (8S1D1) airiive Broadcast Name enable MAC Address 00:C0:02:25:84:10 SSID2 Name (8SID2) Guest Broadcast Name enable MAC Address 00:c0:02:25:84:11 Device Name WN-300R Firmware Version: 100.05 Current Time 1999-12-31 16:02:19 Refresh Screen Figure 68: Status Screen - Bridge Mode Data - Status Screen (Bridge Mode) LAN IP Address The IP Address of the Wireless ADSL Router. Network Mask The Network Mask (Subnet Mask) for the IP Address above. MAC Address This shows the MAC Address for the Wireless ADSL Router, as seen on the LAN interface. Wireless Region The current region, as set on the Wireless screen. Channel This shows the Channel currently used, as set on the Wireless screen. Wireless AP This indicates whether or not the Wireless Access Point feature is enabled. Name (SSID 1/2) It displays the name of the SSID 1/2. Broadcast Name This indicates whether or not the SSID is Broadcast. This setting is on the Wireless screen. MAC Address The MAC (physical) address of the Wireless Access Point. AïirLive WN-300R User's Manual 94

System Device Name The current name of the Router. This name is also the "hostname" for users with an "@Home" type connection. Firmware Version The version of the current firmware installed. Current Time It displays the current time of the system. Buttons Refresh Screen Update the data displayed on screen. 95 AirLive WN-300R Users Manual

This Appendix covers the most likely problems and their solutions.

This chapter covers some common problems that may be encountered while using the Wireless Router and some possible solutions to them. If you follow the suggested steps and the Wireless Router still does not function properly, contact your dealer for further advice.

9.2 General Problems

Problem 1: Solution 1: Can't connect to the Wireless Router to configure it. Check the following: The Wireless Router is properly installed, LAN connections are OK, and it is powered ON. Ensure that your PC and the Wireless Router are on the same network segment. (If you don't have a router, this must be the case.) If your PC is set to "Obtain an IP Address automatically" (DHCP client), restart it. If your PC uses a Fixed (Static) IP address, ensure that it is using an IP Address within the range 192.168.0.2 to 192.168.0.254 and thus compatible with the Wireless Router's default IP Address of

Also, the Network Mask should be set to 255.255.255.0 to match the Wireless Router. In Windows, you can check these settings by using Control Panel-Network to check the Properties for the TCP/IP protocol.

Problem 1: Solution 1: Problem 2: When l enter a URL or IP address | get a time out error. A number of things could be causing this. Try the following trouble- shooting steps. Check if other PCs work. If they do, ensure that your PCs IP settings are correct. If using a Fixed (Static) IP Address, check the Network Mask, Default gateway and DNS as well as the IP Address. Ifthe PCs are configured correctly, but still not working, check the Wireless Router. Ensure that it is connected and ON. Con- nect to it and check its settings. (If you can't connect to it, check the LAN and power connections.) Check the Wireless Router's status screen to see if it is working correctly. Some applications do not run properly when using the Wireless Router. 96 AirLive WN-300R User's Manual

Solution 2: The Wireless Router processes the data passing through it, so it is not transparent. For incoming connections, you must use the Virtual Server or Fire- wall Rules to specify the PC which will receive the incoming traffic. You can also use the DMZ function. This should work with almost every application, but: ltis a security risk, since the firewall is disabled. Only one (1) PC can use this feature.

Problem 1: Solution 1: Problem 2: Solution 2: My PC can't locate the Wireless Access Point. Check the following. Your PC is set to /nfrastructure Mode. (Access Points are always in Infrastructure Mode) The SSID on your PC and the Wireless Access Point are the same. Remember that the SSID is case-sensitive. So, for example "Workgroup" does NOT match "workgroup". Both your PC and the Wireless Router must have the same setting for WEP. The default setting for the Wireless Router is disabled, so your wireless station should also have WEP dis- abled. If WEP is enabled on the Wireless Router, your PC must have WEP enabled, and the key must match. Ifthe Wireless Router's Wireless screen is set to Allow Trusted PCs only, then each of your Wireless stations must have been designated as "Trusted", or the Wireless station will be blocked. To see if radio interference is causing a problem, see if connec- tion is possible when close to the Wireless Router. Remember that the connection range can be as little as 100 feet in poor environments. Wireless connection speed is very slow. The wireless system will connect at the highest possible speed, depending on the distance and the environment. To obtain the high- est possible connection speed, you can experiment with the following: Wireless Router location. Try adjusting the location and orientation of the Wireless Router. Wireless Channel If interference is the problem, changing to another channel may show a marked improvement. Radio Interference Other devices may be causing interference. You can experiment by switching other devices Off, and see if this helps. Any "noisy" devices should be shielded or relocated. RF Shielding Your environment may tend to block transmission between the wireless stations. This will mean high access speed is only pos- 97 AirLive WN-300R Users Manual

sible when close to the Wireless Router. AïirLive WN-300R User's Manual 98

Wireless LANs can work in either of two (2) modes: ° Ad-hoc ° Infrastructure Ad-hoc Mode Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wire- less Stations (e.g. notebook PCs with wireless cards) communicate directly with each other. Infrastructure Mode In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations (e.g. Notebook PCs with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations can then access all LAN resources. I Access Points can only function in "Infrastructure" mode, [N] and can communicate only with Wireless Stations which are Notel set to "Infrastructure" mode.

BSS A group of Wireless Stations and a single Access Point, all using the same ID (SSID), form a Basic Service Set (BSS). Using the same SSID is essential. Devices with different SSIDs are unable to com- municate with each other. ESS A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID), form an Extended Service Set (ESS). Different Access Points within an ESS can use different Channels. In fact, to reduce interference, it is recommended that adjacent Access Points SHOULD use different channels. As Wireless Stations are physically moved through the area covered by an ESS, they Will automatically change to the Access Point which has the least interference or best performance. This capability is called Roaming. (Access Points do not have or require Roaming capabilities.) 99 AirLive WN-300R User's Manual

The Wireless Channel sets the radio frequency used for communication. - Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best perform- ance. In the USA and Canada, 11 channels are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce inter- ference. ° __In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) ° __lfusing "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Chan- nels to see if there is an existing "Ad-hoc" group they can join.

WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmit- ted. This is desirable because it is impossible to prevent snoopers from receiving any data which is transmitted by your Wireless Stations. But if the data is encrypted, then it is meaningless unless the receiver can decrypt it. If WEP is used, the Wireless Stations and the Access Point must have the same settings for each of the following: WEP Off, 64 Bit, 128 Bit Key For 64 Bit encryption, the Key value must match. For 128 Bit encryption, the Key value must match WEP Authentication | Open System or Shared Key.

WPA-PSK is another standard for encrypting data before it is transmitted. This is a later standard than WEP (Wired Equivalent Privacy), and provides greater security for your data. Data is encrypted using a 256Bit key which is automatically generated and changed often. If all your Wireless stations support WPA-PSK, you should use this instead of WEP. If WPA-PSK is used, the Wireless Stations and the Access Point must have the same settings for each of the following: WPA PSK Enter the same value on every station and the AP. (Pre-shared Key) | The PSK must be from 8 to 63 characters in length. The 256Bit key used for the actual encryption is de- rived from this key. Encryption The same encryption method must be used. The most common encryption method is TKIP. Another widely- supported method is AES. AïrLive WN-300R Users Manual 100

This is a later version of WPA (WPA-PSK). The major change is the use of AES (Advanced Encryption System) for protecting data. AES is very secure, considered to be unbreakable. The PSK (Pre-shared Key) must be entered on each Wireless station. If WPA2-PSK is used, the Wireless Stations and the Access Point must have the same settings for each of the following: WPA2 PSK Enter the same value on every station and the AP. (Pre-shared Key) | The PSK must be from 8 to 63 characters in length. The 256Bit key used for the actual encryption is de- rived from this key. Encryption The same encryption method must be used. The most common encryption method is TKIP. Another widely- supported method is AES.

WPA-802.1x - This version of WPA requires a Radius Server on your LAN to provide the client authentication according to the 802.1x standard. Data transmissions are encrypted using the WPA standard. If this option is used: + The Access Point must have a "client login" on the Radius Server. ° Each user must have a "user login" on the Radius Server. ° Each user's wireless client must support 802.1x and provide the login data when required. ° All data transmission is encrypted using the WPA standard. Keys are automati- cally generated, so no key input is required.

10.8 Wireless LAN Configuration

To allow Wireless Stations to use the Access Point, the Wireless Stations and the Access Point must use the same settings, as follows: Mode On client Wireless Stations, the mode must be set to "Infrastruc- ture". (The Access Point is always in "Infrastructure" mode.) SSID (ESSID) Wireless Stations should use the same SSID (ESSID) as the Access Point they wish to connect to. Alternatively, the SSID can be set to "any" or null (blank) to allow connection to any Access Point. Wireless The Wireless Stations and the Access Point must use the same Security settings for Wireless security. (None, WEP, WPA-PSK, WPA2- PSK, WPA-802.1x) °+_IfWireless security remains disabled on the Wireless 101 AirLive WN-300R Users Manual

Router, all stations must have wireless security disabled. + __IfWireless security is enabled on the Wireless Router, each station must use the same settings as the Wireless ADLS Router. AïrLive WN-300R Users Manual 102

Standards IÈEE802.11b, IÈEE802.11g WLAN, 802.11n Draft Frequency 2.4 to 2.485GHz Channels Maximum 13 Channels, depending on regulatory authorities Modulation CCK, DOPSK, DBPSK, BPSK, QPSK, 16-QAM, 64-QAM, OFDM Data Rate Up to 300 Mbps (802.11n Draft) Security WEP 64/128Bit, WPA-PSK, WPA2-PSK, WPA-802.1x, MAC address filtering, WPS button support Antenna power 1.8dBi Antenna type Internal fixed x 2 103 AirLive WN-300R User's Manual

11.3 Regulatory Approvals

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ° __ Reorient or relocate the receiving antenna. ° Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ° __ Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly ap- proved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connect- ing to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncon- trolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Approval CE Standards This product complies with the 99/5/EEC directives, including the following safety and EMC standards: + EN300328-2 e EN301489-1/-17 ° EN60950 CE Marking Warning This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. AïrLive WN-300R Users Manual 104
