USER MANUAL IC300B GEORGE FOREMAN

Accessories/Parts (USA / Canada)

Accessoires/PIeces (É.-U./Canada)

1-800-738-0245

Oil-Free

FRYER

Please Read and Save this Use and Care Book

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
To protect against electric shock do not immerse cord, plugs or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
To disconnect, turn any control to OFF (0), then remove plug from wall outlet.
Do not use appliance for other than intended use.
- Avoid contacting moving parts.
Do not immerse in water.
Caution: To ensure continued protection against risk of electric shock, connect to properly grounded outlets only.
Caution: To reduce the risk of electric shock, cook only in removable container.
Use extreme caution when removing the tray or disposing of hot grease.
- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
The cord should be arranged so that it will no drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

The container is designed for use with this appliance. It must never be used on a range top.
Only set hot basket on a thermally protected surface.
A fire may occur if fryer is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any item on top of the appliance when in operation.
□ Do not place any of the following materials in the fryer: paper, cardboard, plastic and the like.

Warning: To reduce the risk of fire or electric shock, operate with crumb door closed.

Do not operate closer than 4^ (10 cm) to any adjoining surface.
- Only remove basket/food container with removing tool (fry basket holder).
Use extreme caution when removing hot food from basket/food container.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

GROUNDED PLUG)

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel, in Latin America, by an authorized service center.

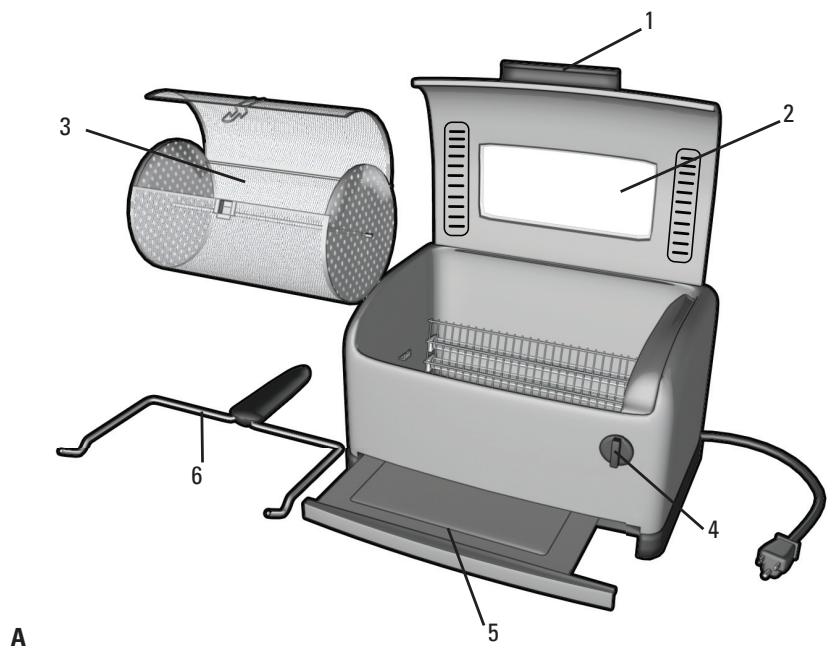

Product may vary slightly from what is illustrated.

1. Cool-touch handle
2. Viewing window
3. Frying basket (Part # 300B-01)
4. 15-minute countdown timer
   † 5. Removable crumb tray (Part # 300B-02)
   † 6. Basket holder (Part # 300B-03)

Note: indicates consumer replaceable/removable parts

How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material and any stickers.
• Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty.
• Your oil-free fryer is partially assembled in the box.
• Remove the basket, crumb tray and basket holder and wash as instructed in CARE AND CLEANING section of this manual. This will remove any traces of dust or residue left from manufacturing and shipping.
• Wipe outside of appliance with a damp cloth or sponge to remove any dust. Wipe dry with a soft cloth or paper towels.
• Select a location where this unit is to be used allowing enough space for back of the unit and the wall to allow heat to flow without damage to cabinets and walls. Allow for at least 4 to 6 inches (10 to 15cm ) of space.

USING YOUR OIL-FREE FRYER

Important: The generation of smoke is normal with the rapid cooking design of this product. Always allow for adequate ventilation.

1. Fill basket with 12 oz. (340 g) to 1 lb. (455 g) of frozen snack foods, dividing foods evenly, limited to the following:

2. Crinkle Cut Fries

3. Fast Food Fries
4. Shoestring Fries
5. Waffle Fries
6. Chicken Nuggets
   Southern Style Chicken Nuggets
7. Chicken Tenders
8. Popcorn Shrimp
9. Mini Corn Dogs
10. Vegetarian Buffalo Wings

1. Close latch of basket securely by snapping hook into depression just below the opening of the basket (B).
2. Open the lid on the appliance. Make sure it clicks into place so that it will stay open.

1. Insert basket into unheated fryer by fitting square extension on right center of basket into the matching square hole on the right interior of the fryer (C).

D

1. Lower left side of basket onto prong on left interior of appliance so that the square end rests inside the extension and smaller rounded portion rests in the groove (D).
2. Close the lid.
3. Plug appliance into standard electrical outlet.

Note: There is no need to preheat this appliance.

Important: Make sure that the crumb tray is cleaned prior to use and is installed properly

1. Turn dial on right front of the appliance to desired time. (See chart for SUGGESTED COOKING TIMES.)

Note: To stop frying at anytime, turn the timer to "0" and unplug the appliance.

WARNING: Once in use, all parts of the appliance become hot. Use pot holders or tongs when touching any part of the appliance or the cooked food.

1. To check for doneness, look through window on top of the appliance. Avoid opening the lid often to allow the food to cook properly.

E

1. When cooking is complete there will be an audible signal. Hook ends of the basket holder under indentation on the outside of the basket on both sides of the center post (E).

WARNING: Only use the fry basket holder provided to remove the fry basket.

WARNING: If the food catches on fire during cooking, do not open the lid. Simply turn the timer to the off position and unplug. The fire will self-extinguish.

1. Lift left side of basket first; then pull basket to the left to remove square prong from the right side of the fryer. Lift basket up and out of the appliance.
   Note: It may be necessary to use your other hand, covered by a pot holder, to help remove the basket from the appliance.
2. Place basket on heat proof surface.

3. Carefully open latch on basket and, using tongs, remove food from basket onto serving plate.

4. Before reusing appliance:

5. Allow appliance to cool completely.

6. Clean crumb tray and remove any remnants of food from inside the appliance.

7. Unplug appliance when not in use.

SUGGESTED COOKING TIMES

The following are meant to be used as a guideline only. The times reflect using from 34 lb. (340 g) of frozen precooked food. Use a cooking thermometer as a test for doneness. If the food needs longer cooking, check periodically to avoid overcooking the food.

FOOD	AMOUNT	APPROXIMATE COOKING TIME
Crinkle Cut Fries	12 oz / 340 g	15 minutes
Fast Food Fries	12 oz / 340 g	15 minutes
Shoe String Fries	12 oz / 340 g	15 minutes
Waffle Fries	12 oz / 340 g	15 minutes
Chicken Nuggets	12 oz / 340 g	12 minutes
Southern Style Chicken Nuggets	12 oz / 340 g	12 minutes
Chicken Breast Tenders	12 oz / 340 g	12 minutes
Mini Corn Dogs	12 oz / 340 g	12 minutes
Popcorn Shrimp	12 oz / 340 g	10 minutes
Vegetarian Buffalo Wings	12 oz / 340 g	10 minutes

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

Note: Unplug and allow the fryer to cool completely before cleaning.

1. After each frying cycle, slide the crumb tray out from under the front of the fryer and wipe with a damp cloth to remove any crumbs; dry thoroughly before replacing.
2. You may wash the frying basket, basket holder and crumb tray in the dishwasher, or wash by hand with a nonabrasive liquid cleanser using a nylon pad to remove any remaining oil.
3. After washing, dry the frying basket, basket holder and crumb tray thoroughly before replacing.

EXTERIOR SURFACES

Important: Do not immerse fryer in water or any other liquid.

Wipe exterior surfaces clean with a damp sponge or cloth and liquid detergent.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
Basket does not turn.	·Basket may be improperly placed. ·Appliance may not be plugged in.	·Check that basket is inserted into square hole on right and resting correctly on prong on left side of interior of appliance. ·Turn off timer. Check that appliance is correctly plugged into working electrical outlet.
Food falls out of basket.	Latch may not be properly closed on basket.	Turn off timer and unplug appliance. Remove basket and be sure the latch is securely closed.
Appliance is smoking a lot.	·Crumb tray may be dirty. ·Basket may have many crumbs inside.	Turn off timer and unplug appliance. Remove crumb tray and basket; clean thoroughly.
Food is undercooked.	Lid may have been opened often.	Keep lid closed while cooking; check through window on lid.

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two years after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

BESOIN D'AIDE?

Copyright © 2009 Applica Consumer Products, Inc.

Made in People's Republic of China Printed in People's Republic of China
