Product Type	Wood Stove
Brand	AUSTRO FLAMM
Model	LUBA
Height	1103 mm
Width	530 mm
Depth	530 mm
Weight	170 kg
Flue Diameter	130 mm
Nominal Power (DIN)	6 kW
Maximum Power	8 kW
Minimum Power	3.5 kW
Heated Volume (depending on insulation)	60 - 120 m³
Permitted Fuels	Dry natural wood (moisture < 15%), wood or lignite briquettes
Maximum Fuel Quantity	1.3 kg wood or 1 kg briquettes
Flue Gas Temperature (nominal)	285 °C
Flue Gas Flow Rate (nominal)	8.5 g/s
Minimum Draft Pressure (nominal)	0.12 mbar
Minimum Draft Pressure (0.8x nominal)	0.08 mbar
Safety Distance Front (flammable objects)	800 mm
Safety Distance Sides (flammable objects)	250 mm
Safety Distance Front (non-flammable objects)	400 mm
Safety Distance Sides (non-flammable objects)	200 mm
Glass Care	Special product like Thermohit
Care of Lacquered Parts	Damp cloth
Care of Stainless Steel Surfaces	Special products for stainless steel
Warranty (steel and cast iron)	2 years
Wear Parts (not covered by warranty)	Refractory ceramic, seals, grate, glass
Door Glass Reference	712702
Flat Seal 8x2 mm Reference	710096
Round Hollow Seal 6 mm Reference	718183
Round Fiberglass Seal d=14 mm Reference	714223
Available Accessories	Glass or metal base plate, Heat Memory system
Recommended Care Product	Glass cleaner (ref. 640070), varnish (ref. 650002)

Frequently Asked Questions - LUBA AUSTRO FLAMM

Which fuels are allowed in the LUBA stove?

The stove accepts dry natural wood (moisture < 15%), wood briquettes or lignite briquettes. Do not use treated or wet wood.

What is the maximum fuel quantity to load?

Do not exceed 1.3 kg of wood or 1 kg of briquettes per load to avoid overheating.

How to light the stove correctly?

Open the primary and secondary air supplies fully. Place uncoated paper, wood shavings and 1-2 logs. Light the paper and close the door. Once the shavings are burning, close the primary air. Adjust the power with the secondary air.

What safety distances must be observed?

In front of flammable objects: 800 mm on the front, 250 mm on the sides. For non-flammable objects: 400 mm in front, 200 mm on the sides.

What to do during the first use?

Heat the stove strongly for at least 1h30. The varnish may emit fumes, so ventilate the room. Repeat several times until the smell disappears.

How to maintain the stove glass?

Use a specific product like Thermohit or the AUSTRO FLAMM glass cleaner (ref. 640070). Do not use abrasive products.

What spare parts are available?

You can order seals (ref. 710096, 718183, 714223), refractory ceramics (various references), a door glass (ref. 712702) and accessories like the Heat Memory system.

What is the warranty of the LUBA stove?

The steel and cast iron elements are warranted 2 years from the first purchase. Wear parts (ceramics, seals, grate, glass) are not covered.

Can the stove be connected to an existing chimney?

Yes, provided the chimney dimensions allow it (according to DIN 4705 Part 3). Call a professional for installation.

How to clean lacquered and stainless steel surfaces?

Clean lacquered parts with a damp cloth. For stainless steel, use specific products for this material.

USER MANUAL LUBA AUSTRO FLAMM

secondary air supply

primary air supply

italiano

aperto - chiuso

As a stove of construction type 1, it is possible to connect it to the flue pipe of an existing other stove or another furnace for solid and liquid fuels, as long as the chimney does complies with DIN 4705, Part 3.

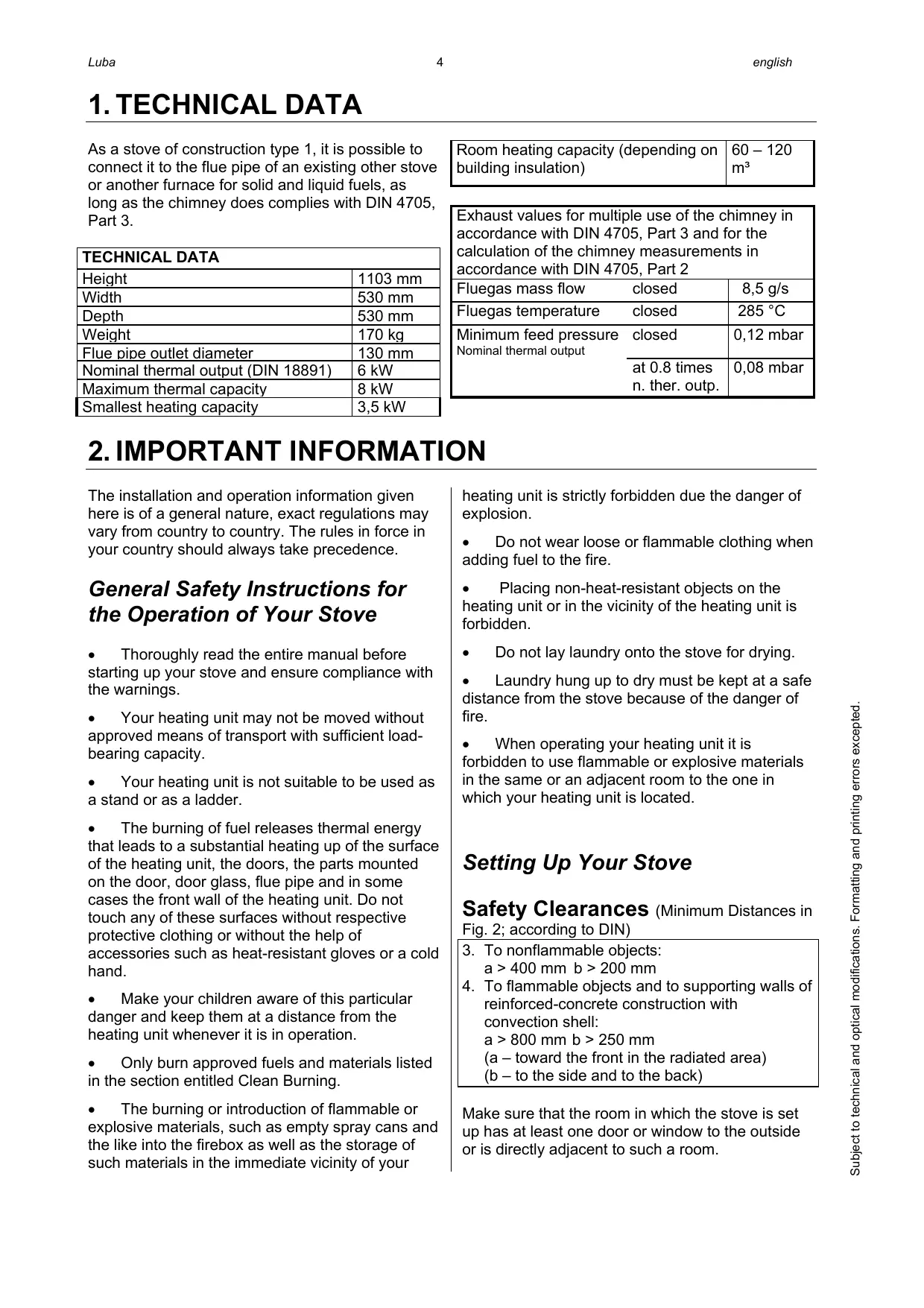

TECHNICAL DATA
Height	1103 mm
Width	530 mm
Depth	530 mm
Weight	170 kg
Flue pipe outlet diameter	130 mm
Nominal thermal output (DIN 18891)	6 kW
Maximum thermal capacity	8 kW
Smallest heating capacity	3,5 kW

Room heating capacity (depending on building insulation)

60 – 120 m3

Exhaust values for multiple use of the chimney in accordance with DIN 4705, Part 3 and for the calculation of the chimney measurements in accordance with DIN 4705, Part 2
Fluegas mass flow	closed	8,5 g/s
Fluegas temperature	closed	285 °C
Minimum feed pressure Nominal thermal output	closed	0,12 mbar
	at 0.8 times n. ther. outp.	0,08 mbar

2. IMPORTANT INFORMATION

The installation and operation information given here is of a general nature, exact regulations may vary from country to country. The rules in force in your country should always take precedence.

General Safety Instructions for the Operation of Your Stove

• Thoroughly read the entire manual before starting up your stove and ensure compliance with the warnings.
• Your heating unit may not be moved without approved means of transport with sufficient load-bearing capacity.

• Your heating unit is not suitable to be used as a stand or as a ladder.

• The burning of fuel releases thermal energy that leads to a substantial heating up of the surface of the heating unit, the doors, the parts mounted on the door, door glass, flue pipe and in some cases the front wall of the heating unit. Do not touch any of these surfaces without respective protective clothing or without the help of accessories such as heat-resistant gloves or a cold hand.

Make your children aware of this particular danger and keep them at a distance from the heating unit whenever it is in operation.
- Only burn approved fuels and materials listed in the section entitled Clean Burning.
- The burning or introduction of flammable or explosive materials, such as empty spray cans and the like into the firebox as well as the storage of such materials in the immediate vicinity of your

heating unit is strictly forbidden due the danger of explosion.

• Do not wear loose or flammable clothing when adding fuel to the fire.
• Placing non-heat-resistant objects on the heating unit or in the vicinity of the heating unit is forbidden.
• Do not lay laundry onto the stove for drying.
• Laundry hung up to dry must be kept at a safe distance from the stove because of the danger of fire.
• When operating your heating unit it is forbidden to use flammable or explosive materials in the same or an adjacent room to the one in which your heating unit is located.

Setting Up Your Stove

Safety Clearances (Minimum Distances in Fig. 2; according to DIN)

1. To nonflammable objects: a > 400 mm b > 200 mm
2. To flammable objects and to supporting walls of reinforced-concrete construction with convection shell:

a > 800 mm b > 250 mm
(a - toward the front in the radiated area)
(b - to the side and to the back)

Make sure that the room in which the stove is set up has at least one door or window to the outside or is directly adjacent to such a room.

Floor Load Capacity

Before the heating unit is installed, make sure that the load capacity of the supporting construction is sufficient to carry the weight of the entire unit.

Stovepipe Connection

For your own safety stringent laws apply to the connecting of the stovepipe to the chimney. Your professional dealer or distributor knows these laws. Please have your certified retailer carry out the connection of your stove.

Initial startup of your stove

Your stove was treated with a special environmentally friendly lacquer. The lacquer surface is still soft at the time the stove is shipped. The lacquer will harden when your stove is used for the first time. The lacquer surface may not be touched when it is heated for the first time. The stove must be initially heated to a high temperature for at least 1.5 hours. Visible vapors may appear during the hardening of the lacquer. For this reason it will be necessary to open windows during initial operation in order let the vapors escape into the outdoors.

PLEASE TAKE NOTE: It takes several heating sessions before for your stove releases only the pleasant smell of burning wood.

Approved Fuels

Dry, well cured and natural wood, wood briquettes.

Maximum Amount of Fuel

Maximum amount of fuel to be added: 1,3 kg wood or 1 kg wood briquettes. Larger amounts of fuel can lead to overheating and thus damage the stove.

Clean Burning

The wood must be dry (relative wood moisture < 15% ) and untreated and the right amount of wood must be burned in order to ensure a clean fire that releases only small amounts of emissions.

Making a Fire

Prepare everything you need for starting the fire—soft wood chips, igniter materials (such as Thermohit wood/coal igniter), uncoated paper, wood. Figure 3 provides a good overview of the materials you will need.

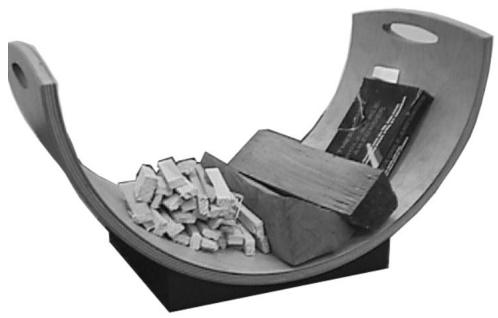

Figure 3: Heating Material

Open the primary and secondary air all the way. Move both sliders. See Figure 2.

Open the stove door.

Lay uncoated paper on the floor of the firebox. Lay soft wood chips onto the paper. Lay one or two logs of wood on the wood chips.

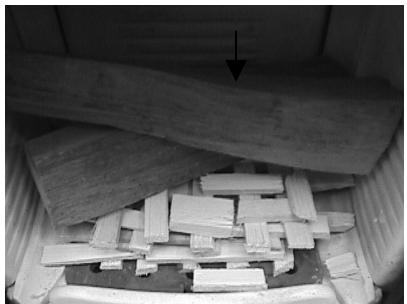

Figure 4: Igniting the Fire

Light the paper.

Close the firebox.

As soon as the chips are burning well, close the primary air supply.

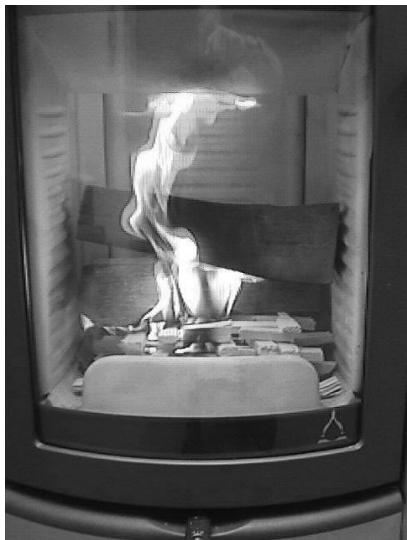

Figure 5: Close the Primary Air

As soon as the wood logs are burning well, you can regulate the heating capacity with the secondary air slider. (Slider set to the maximum ("AUF") setting produces maximum heat – see Figure 2.)

When adding wood to the fire, follow the same procedure as when igniting the fire: Open primary air, open secondary air, carefully open firebox door, lay wood on the fire, close the firebox door. Wait until the added wood catches fire and is burning. Then close the primary air. Subsequently regulate the fire with the secondary air supply.

4. THE MOST IMPORTANT SPARES—OVERVIEW

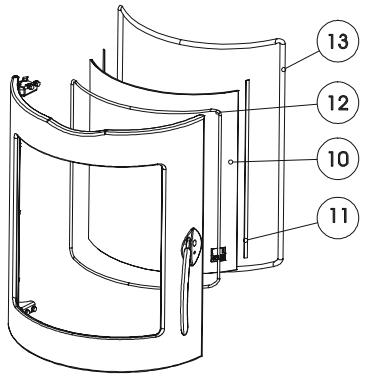

Gaskets

Description	Nr. drawing	Part number
Flat gasket 8 x 2 mm	11	710096
Round hollow round gasket 6 mm	12	718183
Round glas fibre gasket 14 mm	13	714223

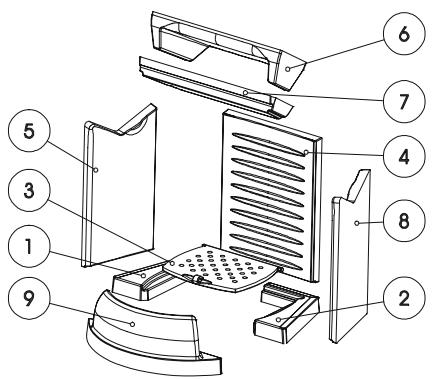

Keramott

Description	Nr. drawing	Part number
Bottom left, Keramott	1	712732
Bottom right, Keramott	2	712731
Grade	3	716408
Rear, Keramott	4	712729
Side component left, Keramott	5	712736
Side component right, Kermott	8	712730
Baffle plate rear, Keramott	6	712735
Baffle plate front, Keramott	7	712734
Wood retainer, Keramott	9	712733

Other parts

Description	Nr. drawing	Part number
Luba door glass	10	712702
Stove lacquer	--	650002
Wood/coal igniter	--	640067
Glass cleaner ½ litre	--	640070

Keramott numbering = installation instructions!

Accessories

You can obtain floor plates of glass or steel, fireplace utensils, care products or the Heat Memory System for heat storage from your certified dealer.

IMPORTANT: Have defective parts replaced by your certified dealer. This will guarantee that your stove functions properly and safely.

Maintenance

To clean the glass, please use a specialized product such as Thermohit glass cleaner. Lacquered surfaces are to be cleaned only with a cloth (may be damp). Special cleaning agents should also be used for stainless steel surfaces.

1. DATI TECHNICI

We guarantee full functionality of all AUSTROFLAMM stove components made of steel or cast iron for a full two years from the date of purchase. Steel and cast-iron components which show defect in materials or workmanship during the guarantee period shall be replaced with new components.

We do not guarantee wearable components (such as Keramott, gaskets, floor grid), surface coatings, lacquer, glass and ceramics.

Conditions of the Guarantee:

1. Your AUSTROFLAMM stove was installed by a certified professional and is operated in accordance with the operator's manual.
2. Claims to the guarantee shall be subject to a completely filled-out Guarantee Card and submittal of the original invoice issued by a certified AUSTROFLAMM sales agent.

IMPORTANT: Our guarantee includes free shipping of new components. Work and travel times are not included. Unwarranted claims shall be re-invoiced to the operator.

In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
