Product type	Floor-standing speakers
Brand	Klipsch
Model	RF-7
Nominal impedance	8 ohms
Number of ways	2-way
Power handling	Not specified (high power)
Frequency response	Not specified (wideband reproduction)
Sensitivity	High (high performance)
Connectivity	Dual binding posts (bi-wiring possible)
Recommended placement	Distance between speakers: 2 to 4.5 m; distance from walls: at least 60 cm
Listening distance	1 to 1.5 times the distance between speakers
Speaker type	Passive (requires amplifier)
Cabinet material	Real wood or vinyl (finish)
Grille	Cleanable with vacuum brush or damp cloth
Maintenance	Dust with dry cloth or damp cloth; no solvents or strong detergents
Safety	Follow instructions: do not expose to water or heat, do not block ventilation slots
Warranty (United States and Canada)	5 years (speakers), 2 years (electronic components)
International warranties	Subject to local laws (contact distributor)

Frequently Asked Questions - RF-7 KLIPSCH

How to install Klipsch RF-7 speakers for best sound quality?

Place the speakers at a distance of 2 to 4.5 m from each other and at least 60 cm from side walls. Slightly angle them inward for a better stereo image. The listening position should be about 1 to 1.5 times the distance between speakers.

What type of cable to use to connect the RF-7?

Use a speaker cable of at least 16 gauge. Connect the red terminal (+) of the speaker to the red terminal (+) of the amplifier and the black terminal (-) to the black terminal (-). For bi-wiring, remove the metal jumpers and use two cables per speaker.

What is the impedance of the RF-7 speakers?

The Klipsch RF-7 speakers have a nominal impedance of 8 ohms. They are compatible with most amplifiers and produce low distortion even at high sound levels.

How to clean the RF-7 speakers?

Dust with a dry cloth or clean with a slightly damp cloth. Never use abrasive products, solvents, or strong detergents. For the grilles, use a vacuum brush or a damp cloth.

Can I use the RF-7 with a low-power amplifier?

Yes, Klipsch speakers are very efficient and work with a wide variety of amplifiers. However, avoid excessively high volume levels to prevent damage to speakers or your hearing.

Are the RF-7 suitable for home theater use?

Yes, the RF-7 speakers are ideal as main left and right speakers. You can complement them with a center speaker and surround speakers from the Reference series for a complete home theater system.

How to bi-wire the RF-7?

Remove the metal jumpers connecting the two pairs of terminals. Connect one cable to the upper terminals (red with red, black with black) and another cable to the lower terminals in the same way. The other ends of both cables connect to the same terminals on the amplifier.

What is the warranty of Klipsch RF-7 speakers?

In the United States and Canada, the warranty is 5 years for speakers and 2 years for electronic components. For other countries, the warranty is subject to local laws; contact your dealer.

Can I place the speakers near a wall or in furniture?

It is not recommended to place the speakers near walls (at least 60 cm) or in confined spaces, as this can affect sound quality. Make sure ventilation slots are not blocked.

Are the RF-7 speakers shipped with feet or accessories?

Yes, some models come with stabilizing feet. Install them for maximum stability and safety. See diagrams in the manual for installation.

USER MANUAL RF-7 KLIPSCH

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

CAUTION: Changes or modifications not expressly approved by the manufacturer could void the users authority to operate this device.

POSITIONING YOUR REFERENCE SERIES SPEAKERS

Before You Start — Some Klipsch speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, and 3 for installation.

FOR MAXIMUM STABILITY AND SAFETY THE INCLUDED OUTRIGGER FEET MUST BE INSTALLED.

Left and Right Main Channel Speakers — For optimum performance, place your speakers six to 15 feet (2 to 4.5m ) apart and at least 24 inches (60.8cm) from the back and side walls. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 2 for connection and placement.

Center Channel Speakers — Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 2 and 3 for placement.

Rear Surround Channel Speakers — Klipsch WDST™ surround speakers should be placed on the walls directly adjacent to or on the wall behind the listening position. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Diagram 4 and Figures 2 for placement.

CONNECTING YOUR REFERENCE SERIES SPEAKERS TO YOUR AMPLIFIER

Conventional Connection — Using 16-gauge or larger speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 4 and 6. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment. Some Reference models have two sets of input terminals connected by wire jumpers. For conventional connection, leave these jumpers in place, and use either set of terminals.

Bi-wire Connections — Some Reference models have the capability to be bi-wired. These speakers have two sets of input terminals connected by wire jumpers. Bi-wiring requires using two separate speaker wires for each speaker. The RED "positive" (+) leads of both LEFT channel wires are tied together and inserted into the same RED "positive" (+) terminals of the amplifier's LEFT channel. On the LEFT speaker, the wire jumpers are removed. One of the two speaker wires is connected to the top set of terminals (RED to RED and BLACK to BLACK) while the other speaker wire is connected to the lower set of terminals in the same manner. Refer to Figure 5. Klipsch recommends this method of hook-up for improved bass response, imaging and detail. For more information on how to bi-wire your speakers, see your dealer or visit www.klipsch.com.

Amplifier Requirements — Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

CARE AND CLEANING OF YOUR REFERENCE SERIES SPEAKERS

Your speakers have a durable vinyl or real wood veneer finish that should only require dry dusting or cleaning with a damp cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents. The brush attachment of your vacuum or a slightly damp sponge should remove any dust from your speaker grilles.

WARRANTY—U.S. AND CANADA ONLY

The Warranty below is valid only for sales to consumers in the United States or Canada.

KLIPSCH, L.L.C. ("KLIPSCH") warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCH's option) this product or any defective parts (excluding electronics and amplifiers). For products that have electronics or amplifiers, the Warranty on those parts is for a period of two (2) years from the date of purchase.

To obtain Warranty service, please contact the KLIPSCH authorized dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH product, it can be returned, freight paid, to KLIPSCH for repair. Please call KLIPSCH at 1-800-KLIPSCH for instructions. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection.

Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the Warranty period, must be presented or included to obtain Warranty service.

This Warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a KLIPSCH authorized dealer. You may call 1-800-KLIPSCH to confirm that you have an unaltered serial number and/or you purchased from a KLIPSCH authorized dealer.

This Warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party.

This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, acts of God, accident, commercial use or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover product sold AS IS or WITH ALL FAULTS.

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTYES WHATSOVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.

Some states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

WARRANTY OUTSIDE THE UNITED STATES AND CANADA

The warranty on this product if it is sold to a consumer outside of the United States or Canada shall comply with applicable law and shall be the sole responsibility of the distributor that supplied this product. To obtain any applicable warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

IMPORTANT CONSIGNES DE SECURITÉ

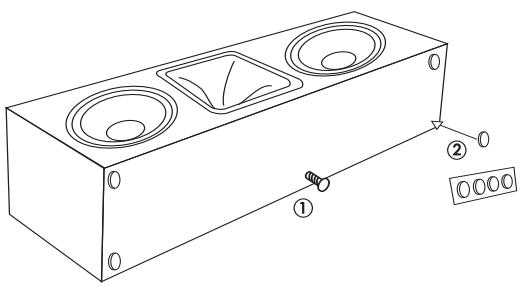

① Leveling foot for angling speaker
down when placed on top of TV.

② Rubber feet.

DIAGRAM 2

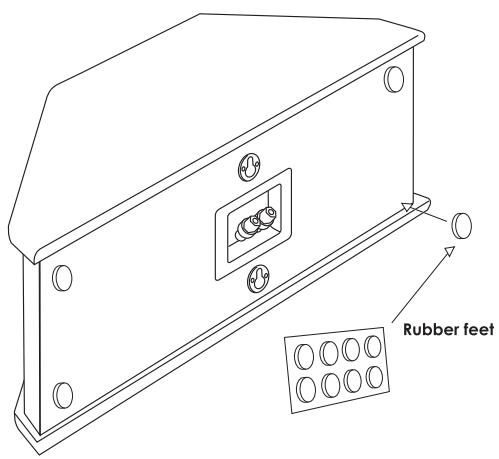

RS-7 BUMPER LOCATIONS

Step 1
Install screws
5'7" off floor.
Step 2
Hang speaker.

DIAGRAM 4

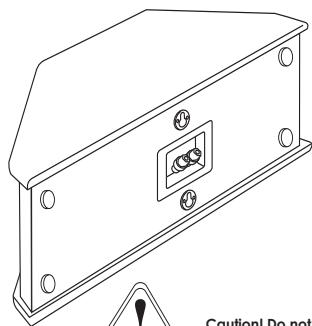

RS-7 WALL MOUNTING

Minimum

distance

from ceiling-

1.75 ft.

10 or #12
2.5"-3" panhead
wood screws.

Caution! Do not use keyholes
for ceiling mounting!

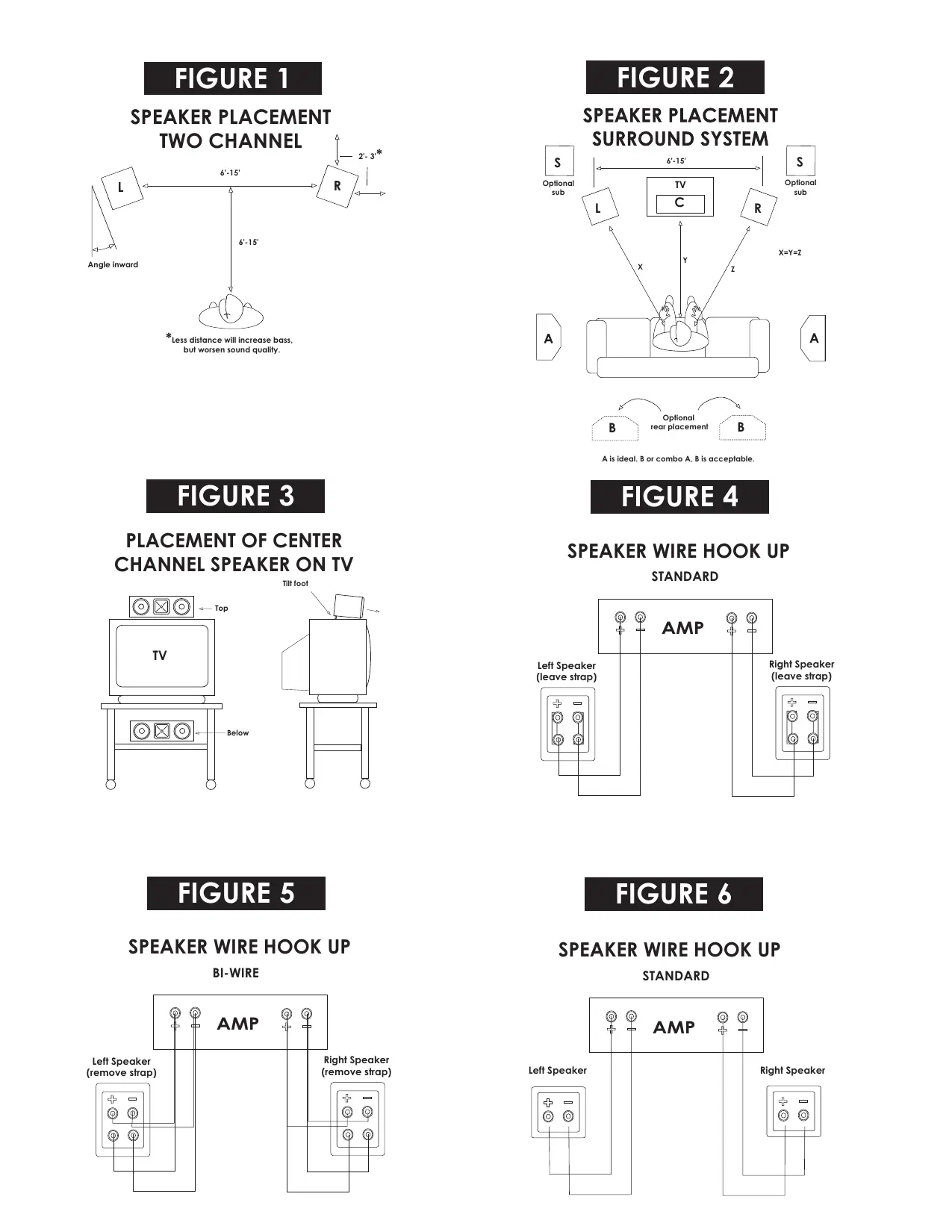

FIGURE 1

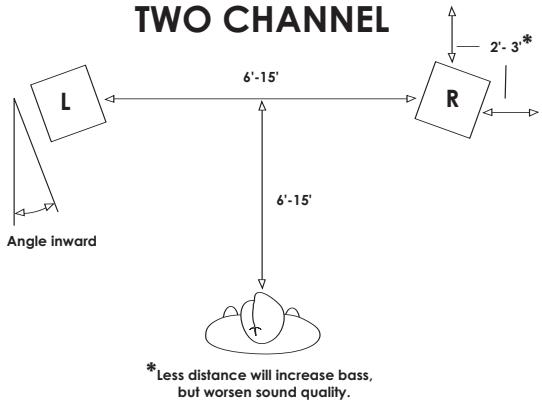

SPEAKER PLACEMENT TWO CHANNEL

FIGURE 2

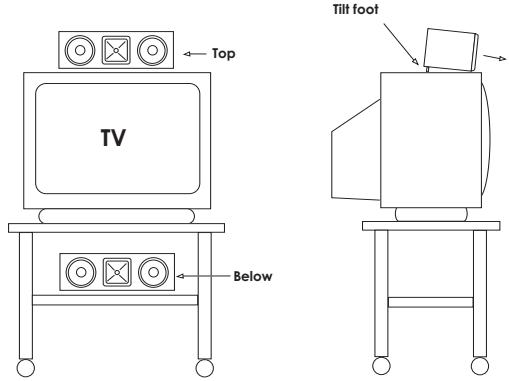

PLACEMENT OF CENTER CHANNEL SPEAKER ON TV

FIGURE 4

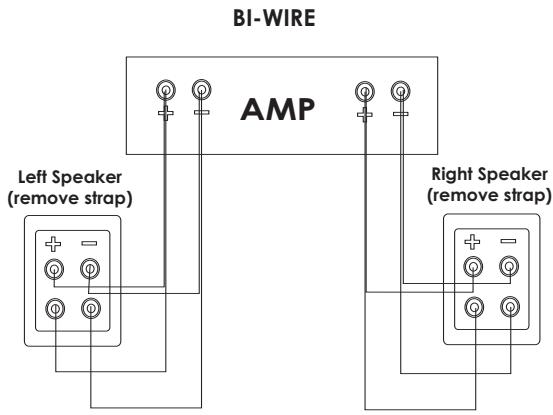

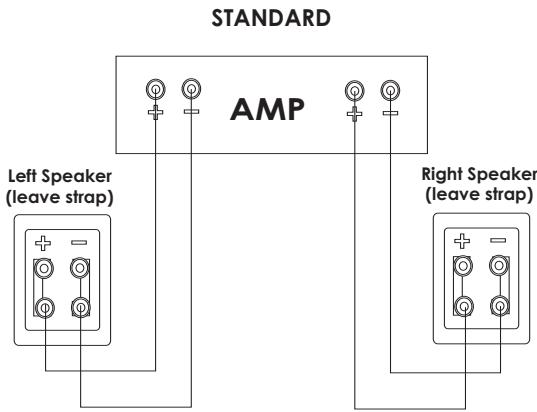

SPEAKER WIRE HOOK UP

FIGURE 5

SPEAKER WIRE HOOK UP

FIGURE 6

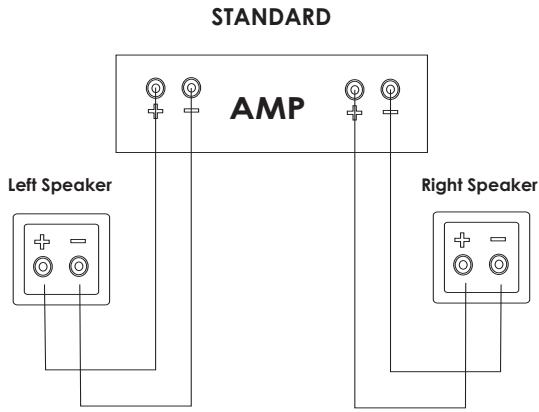

SPEAKER WIRE HOOK UP

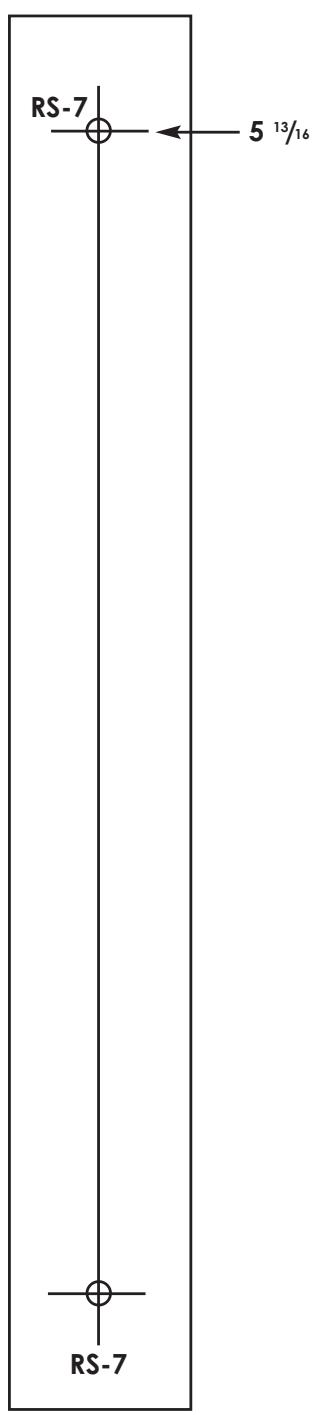

RS-7 Mounting Template

Cut along dotted line and mail.

For multiple speaker purchases, please fill out only one warranty card.

Name:

Street Address:

City/State/Zip:

Home Phone:

Work Phone:

E-mail Address:

Would you like to receive the latest product updates and news via e-mail? Yes No

Product Purchase

Model and serial number must be included to honor your warranty card. For multiple speaker purchases, please fill out only one warranty card.

Model

Serial Number

Model

Serial Number

Model

Serial Number

Model

Serial Number

Model

Serial Number

Model

Serial Number

WHAT store did you purchase your Klipsch products from?

Store Name:

State:

How did you hear about Klipsch? Audio/Home Theater Magazine Other Magazine TV Radio Newspaper

Trade

Show

iend

Retail Dealer

rect Mail

Have you purchased Klipsch products before? Yes No

If yes, what products?

Product Name(s):

When do you hope to purchase additional loudspeakers? 6 mos. -1 yr. 1-2 yrs.

How likely are you to consider Klipsch products for your upcoming purchases? Very likely Somewhat likely Doubtful

If doubtful, why?

Don't carry product I'm looking for

Too expensive

Klipsch dealer too far away

Other

Please tell us about you!

Married

□：

cle

□s

ident

ale

Female

Age: 15-17 18-24

25-35

36-45

46-5

55-64

65+

Annual Household Income:

Under $25,000

$25-35,000

$35-50,000

50-75,00075-100,000

$100,000+

Make sure you return your warranty card so that we may keep you up-to-date on new Klipsch products and promotions. As always, if you have any questions, contact your local authorized Klipsch dealer.

For your records:

Model:

Date Purchased:

89294 N1 's'odeuepeuip 002e nS 'eoeoepoo0296 seisouenpOnNv
