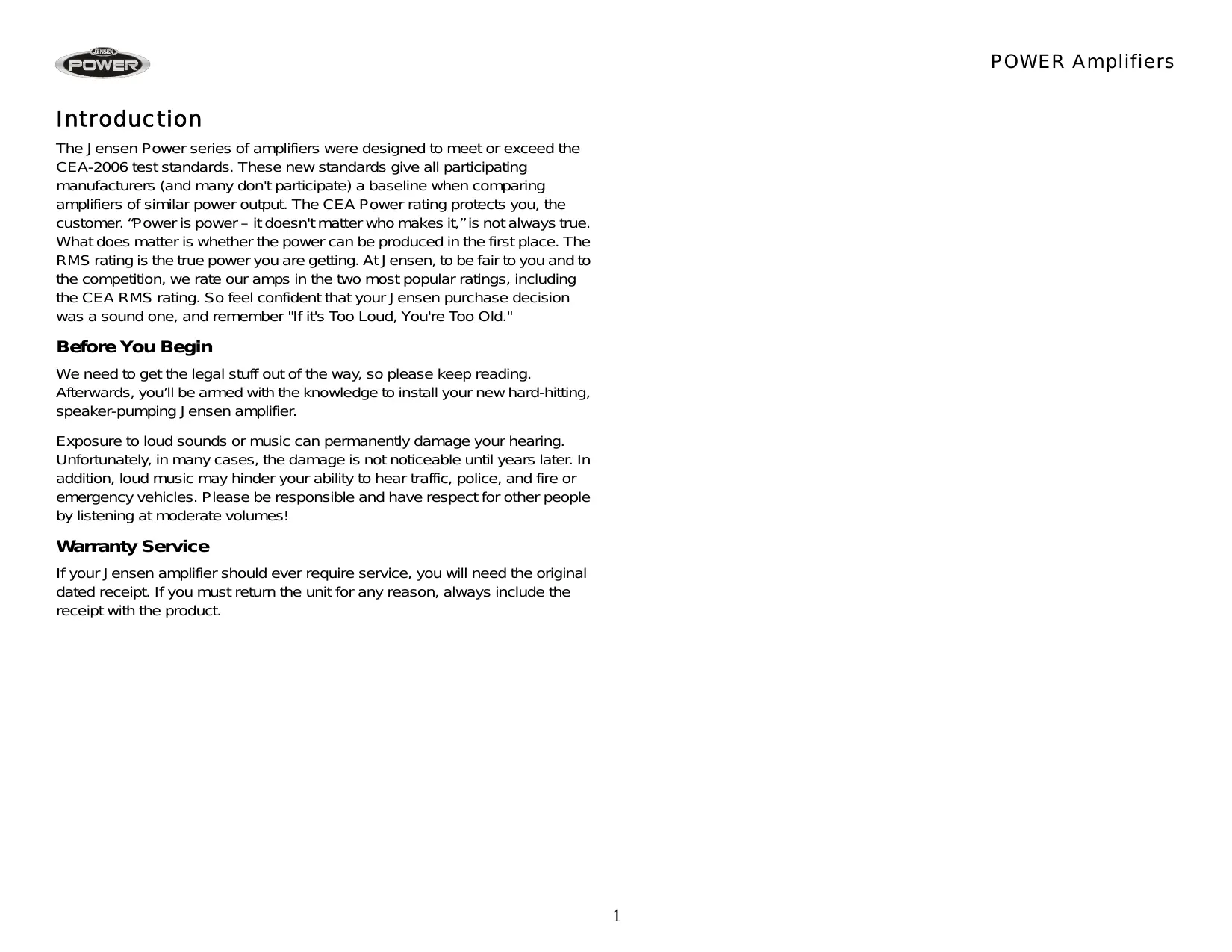

Introduction The Jensen Power series of amplifiers were designed to meet or exceed the CEA-2006 test standards. These new standards give all participating manufacturers (and many don't participate) a baseline when comparing amplifiers of similar power output. The CEA Power rating protects you, the customer. “Power is power – it doesn't matter who makes it,” is not always true. What does matter is whether the power can be produced in the first place. The RMS rating is the true power you are getting. At Jensen, to be fair to you and to the competition, we rate our amps in the two most popular ratings, including the CEA RMS rating. So feel confident that your Jensen purchase decision was a sound one, and remember "If it's Too Loud, You're Too Old." Before You Begin We need to get the legal stuff out of the way, so please keep reading. Afterwards, you’ll be armed with the knowledge to install your new hard-hitting, speaker-pumping Jensen amplifier. Exposure to loud sounds or music can permanently damage your hearing. Unfortunately, in many cases, the damage is not noticeable until years later. In addition, loud music may hinder your ability to hear traffic, police, and fire or emergency vehicles. Please be responsible and have respect for other people by listening at moderate volumes! Warranty Service If your Jensen amplifier should ever require service, you will need the original dated receipt. If you must return the unit for any reason, always include the receipt with the product.

POWER Amplifiers Features and Specifications

• Input Impedance: 20 kHz, nominal
• THD+N @ 5 Watts: 0.02%, 1 kHz, 14.4VDC Your new Jensen Power mobile stereo power amplifier is the amplifier of choice for the high demands of auto sound reproduction. With its deep-bass reproduction and plenty of reserve power, low harmonic distortion and neutral reproduction, the Power series of amplifiers takes Mobile Hi-Fi to new heights. Like all Jensen products, when it comes to accurate sound reproduction the Power series takes a back seat to no one. Jensen will bring your Hi-Fi experience to new heights with the following features:

• Signal to Noise @ 120 Hz: >100dB (Rated Power)
• Channel Separation Not Applicable
• THD+N @ 5 Watts: 0.02%, 125 Hz, 14.4VDC Power Output RMS Power Output @ 2% THD+N, 1kHz, 14.4VDC MOSFET Power Supply High Current Bi-Polar Output Transistors Optimized Class B Design Minimizes Distortion and Reduces Idle Current Easily Drives 2-Ohm Loads Pass-Thru RCA's Variable Bass EQ 0 - 12dB @ 45 Hz 12dB / Octave Low Pass and High Pass filters Variable Input Level 400mV - 5V Short Circuit, DC-offset and Thermal Overload Protection Circuitry Diagnostic LED's - Green: Power, Red: Standby / Fault Power 400
• 100 x 2 Watts, 2-Ohm
• 200 x 1 Watts, 4-Ohm Bridged Power 760
• 100 x 4 Watts, 2-Ohm
• 190 x 2 Watts, 4-Ohm Bridged Stereo Power 400 / 760 / 880 / 920 Power 880

• 135 x 2 Watts, 4-Ohm
• 220 x 2 Watts, 2-Ohm
• 440 x 1 Watts, 4-Ohm Bridged Low Pass Filter 40 - 300 Hz High Pass Filter 40 - 300 Hz High Pass / Low Pass / Full Range Selector Switch Stereo / Mono Mode Switch (Power 400 and 880 only) 2/ 3 / 4 Channel Mode Switch (Power 760 and 920 only)) Power 900
• 300 x 1 Watts, 4-Ohm
• 450 x 1 Watts, 2-Ohm Power 900 / 1050

Mono Subwoofer Amp Low Pass Filter 40 - 240 Hz (Power 900) Low Pass Filter 40 - 150 Hz (Power 1050) Subsonic Filter 10 - 40 Hz, 12dB / octave (Power 900) Subsonic Filter 15 - 55 Hz, 12dB / octave (Power 1050) Remote Input Level Control (Remote Bass Control) w/ 5 Meter Interface Cable Power 920

• 100 x 4 Watts, 4-Ohm
• 140 x 4 Watts, 2-Ohm
• 230 x 2 Watts, 4-Ohm Bridged Stereo Power 1050
• 350 x 1 Watts, 4-Ohm
• 525 x 1 Watts, 2-Ohm Specifications Power 400 / 760 / 880 / 920

Specifications subject to change without notice. Load Impedance: 2 / 4-Ohm Signal to Noise @ 1 kHz: >100dB (rated power) Channel Separation @ 1 kHz: >60dB Frequency Response: 5-60 kHz, -3dB

POWER Amplifiers Installation going to the vehicle chassis) and make sure the battery is grounded to the chassis with at least a #8 gauge wire. Also check the alternator connections, making sure they are tight and free from corrosion, rust or dirt. Before you begin the installation of your Power series amp remember, there are two ways to do things – right and twice! Use the proper installation techniques, tools and accessories to ensure that your Jensen Power series amp will put out all the power it was designed to. If necessary, seek a professional installer to have the amplifier installed correctly. Most mobile amp installations do not have the proper gauge wire for power and ground – do not let your amp be a victim of this common installation oversight! Location and Mounting The amplifier’s compact design allows great flexibility in mounting. Common mounting locations include under the front passenger seat or in the trunk area. When selecting a location, remember that amplifiers generate heat. Select a location on a flat surface away from heat and moisture where air can circulate around the amplifier. NOTE: This device is a high-power audio amplifier intended for installation in vehicles with a 12-Volt negative ground electrical system. Attempting to connect or operate the amplifier with another type of electrical system may cause damage to the amplifier or the electrical system. Place the amplifier in the mounting location and mark the positions of the holes with a marker, pen or pencil. Carefully drill the mounting holes in the marked positions, then use the supplied mounting screws to securely fasten the amplifier to the mounting surface. Installation Assistance Supplies and Tools Needed

WARNING: Do not cover the amplifier with carpets or enclose it behind

interior trim panels, and do not mount the amplifier in an inverted or upside down configuration. Be sure the mounting location and the drilling of pilot holes will not damage any wires, control cables, fuel lines, fuel tanks, hydraulic lines or other vehicle systems or components. To install the amplifier, you will need tools, supplies and adapters. It is best to make sure you have everything you need before you start. Routing Wires For installation assistance, call 1-800-323-4815 during normal business hours, or visit www.jensen.com at any time. Proper wiring connections are illustrated on the following pages. If wiring connections are made incorrectly, the unit will not operate properly and could become permanently damaged. Follow the installation instructions carefully, or have the amplifier installed by an experienced technician. Supplies

• Black electrical tape
• Amplifier Installation Kit Tools

Cordless drill with assortment of bits Flat-head and Philips screwdrivers Wire cutters/strippers Crimping tool 12-volt test light or digital multimeter Wire brush, sandpaper or scraping tool (ground connection to vehicle should be a clean, unpainted metal surface) Disconnect Battery Disconnect the negative (-) battery cable before starting the installation. Check the battery ground (there should be two (2) ground wires coming from the battery – one going to the starter mounting bolt or engine block and another

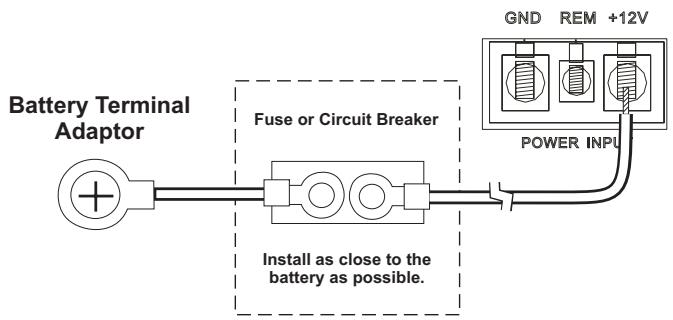

POWER Amplifiers Power Wiring Power Terminal (+12V/B+) Connect the main power wire to the battery, within 18 inches from the positive (+) battery post, using an adequate size fuse or circuit breaker capable of handling the current of the selected power wire. A fuse or circuit breaker must be installed to prevent a possible electrical fire should the main power wire short to ground. Charging System In some cases, the installation of just one (1) amplifier could be enough to overload your factory electrical system (i.e., alternator). Depending on the state of your electrical system and overall condition of your vehicle, you may need to upgrade your alternator and battery. After the vehicle is started, the alternator provides the power to your electrical system, not the battery. When the engine is running, the alternator is your main source of power. Upgrading the alternator should be your first consideration if you should experience a voltage drop in the system when operating your audio system. Adding capacitors and/or batteries without upgrading the alternator will only make the problem worse because these devices put an extra load on the alternator. After upgrading the alternator, capacitors and/or batteries can be installed if desired. Battery Terminal Adaptor Use the following recommended wire gauge as a guide when installing your amplifier(s): Install as close to the battery as possible. MODEL NUMBER Remote Terminal (REM)

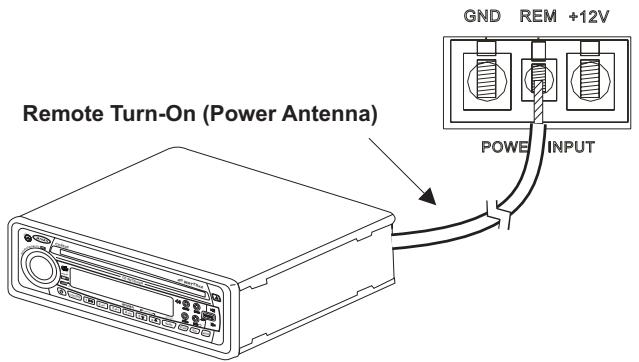

Connect the power antenna or amplifier turn-on lead from the receiver to the amplifier remote terminal.

Remote Turn-On (Power Antenna)

TR E FADE B BAL VOL CD262

2 INT 3 RPT SUB-W CHAN GER 4 SHF

MOD i X-BASS DISP SCA

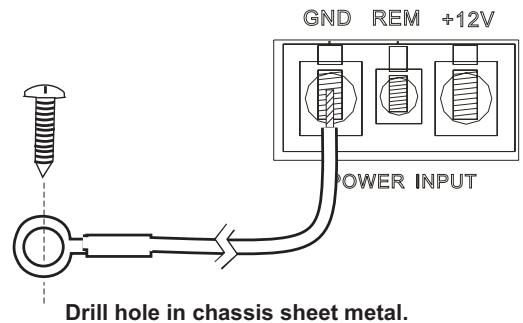

POWER Amplifiers Ground Terminal (GND) Make the ground lead as short as possible, leaving enough length to complete the installation and to allow for any service that may be needed at a later date. To ensure a good ground, scrape away any paint or undercoating to expose bare metal. Use a "ring" terminal of the proper gauge and an "outside star washer" (between the chassis and ring terminal) when making your ground connection. Although you’ve scraped away the paint to expose bare metal, the outside star washer will help to "bite into" the chassis for a tight, secure ground. Drill hole in chassis sheet metal. Replacement Fuse Requirements (FUSE) Model Quantity Amps Type

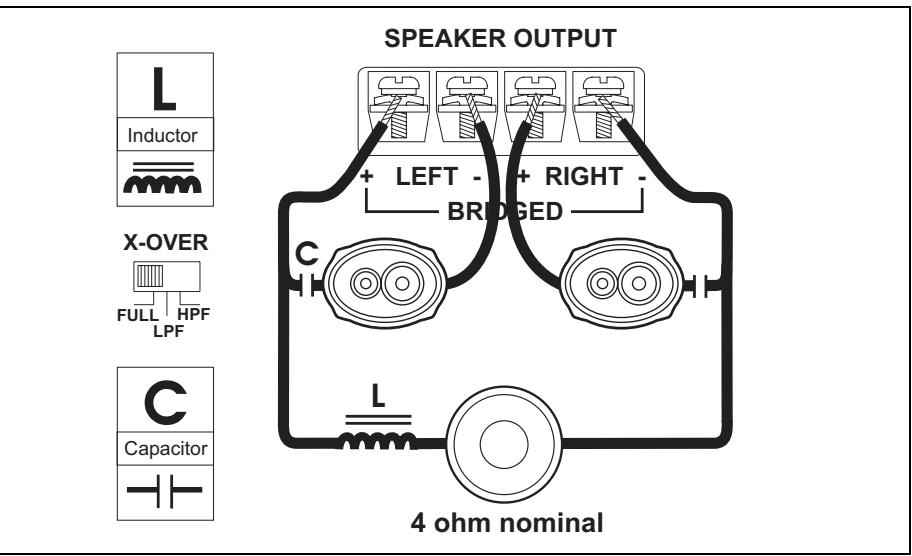

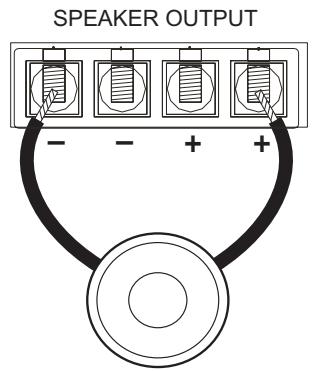

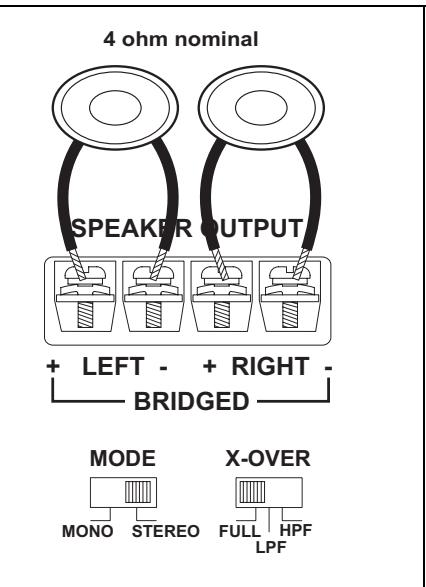

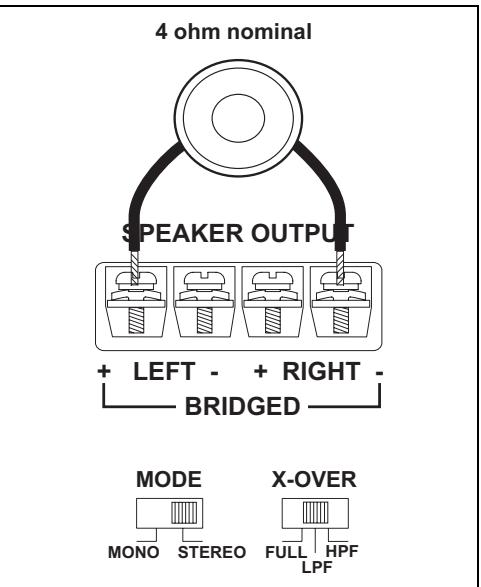

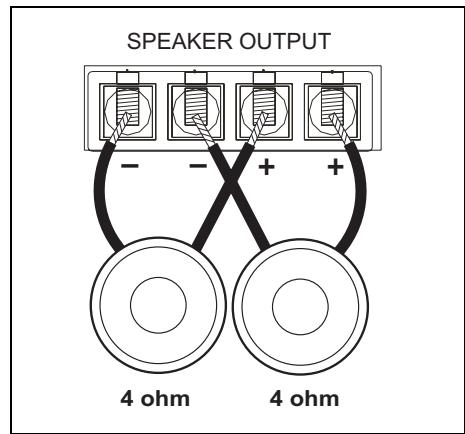

POWER Amplifiers Speaker Wiring Power 400/880 Two Speakers The Speaker Wiring diagrams illustrate options for connecting one or two speakers. Observe the proper speaker polarity. One Subwoofer 4 ohm nominal 4 ohm nominal SPEAKER OUTPUT SPEAKER OUTPUT

+ LEFT - + RIGHT BRIDGED

+ LEFT - + RIGHT BRIDGED

NOTE: Power amplifiers can drive speakers with a nominal impedance range of 2~ 4-ohms. For maximum power, configure your speakers for a nominal 2-ohm load. NOTE: Do not overlook the use of the proper gauge speaker wire. The Power series of amplifiers require a minimum of 12-gauge wire. Tri-Mode SPEAKER OUTPUT

Inductor 4 ohm 4 ohm

+ LEFT - + RIGHT BRIDGED

4 ohm nominal X-OVER

Capacitor 4 ohm nominal

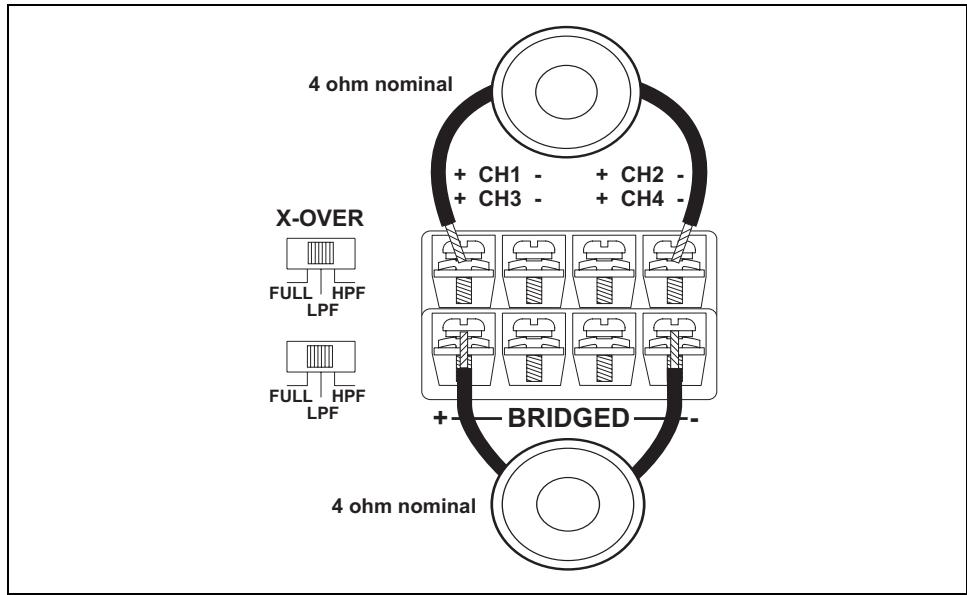

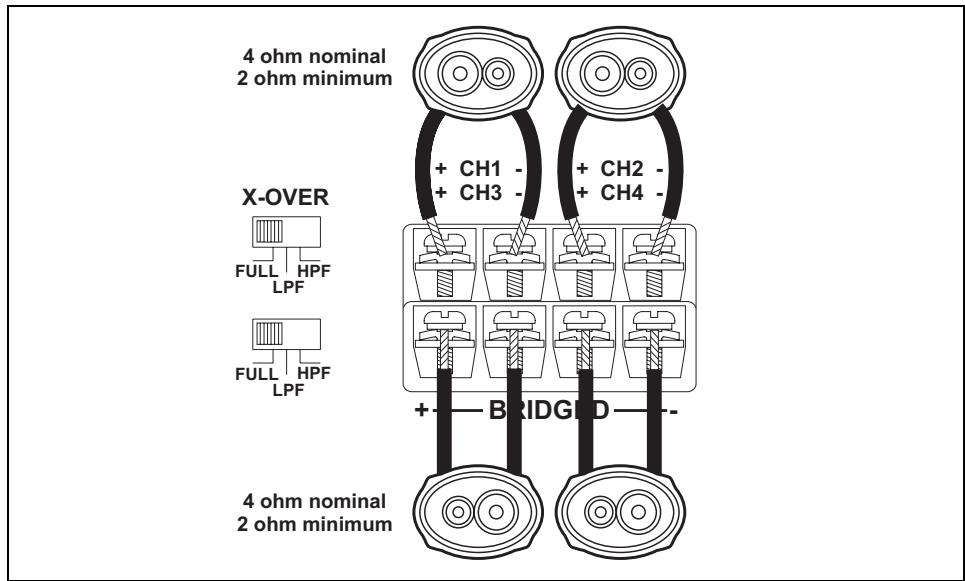

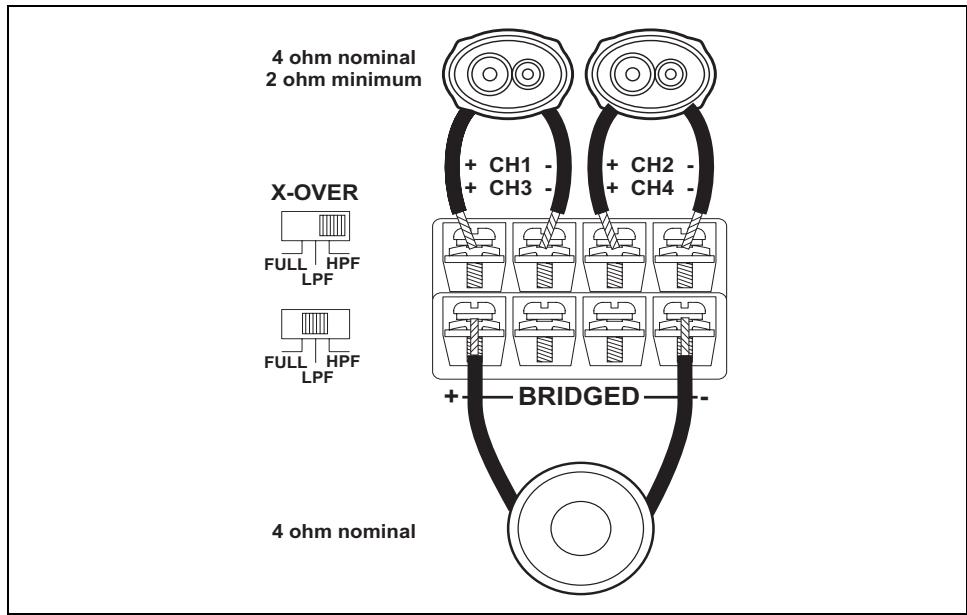

X-OVER FULL HPF LPF Two Speakers and Bridged Subwoofer Four Speakers 4 ohm nominal 2 ohm minimum 4 ohm nominal 2 ohm minimum + CH1 + CH3 - 4 ohm nominal 2 ohm minimum Two Subwoofers 4 ohm nominal + CH1 + CH3 - X-OVER + CH2 + CH4 - FULL HPF LPF FULL HPF LPF

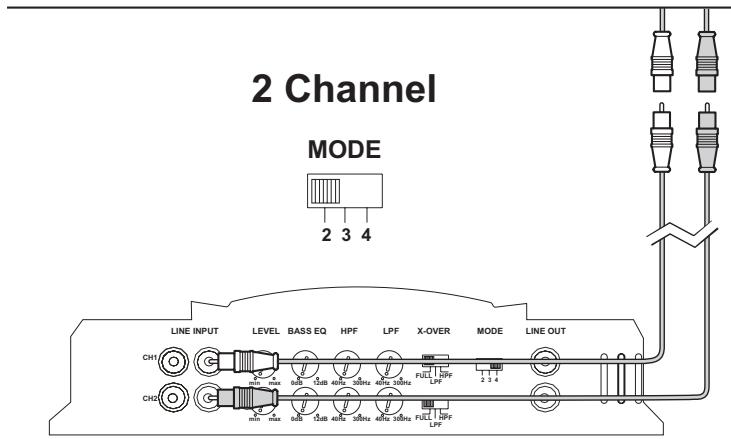

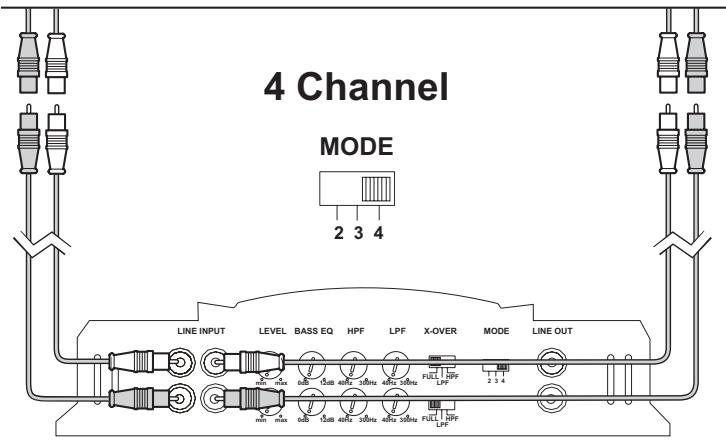

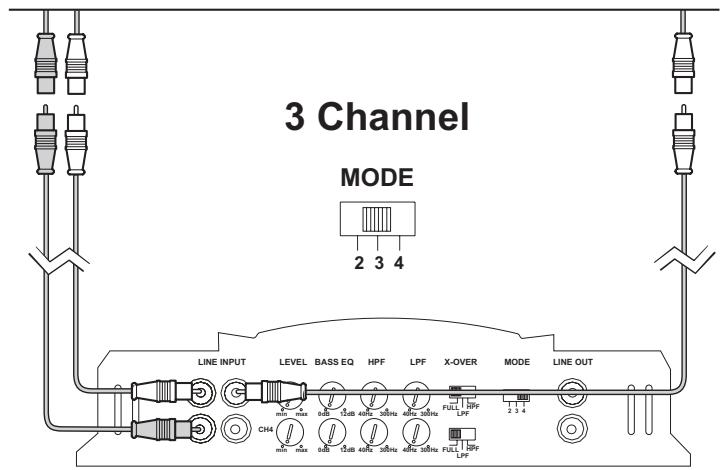

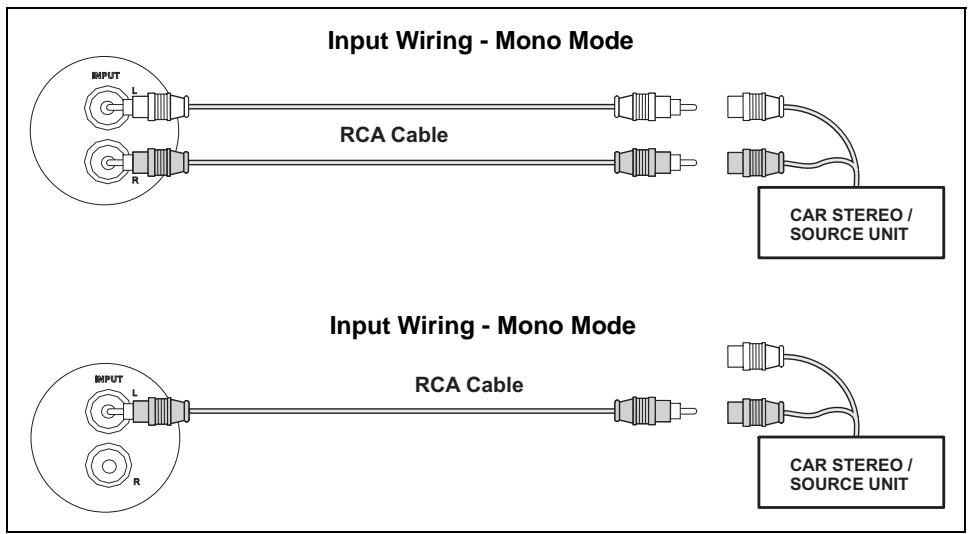

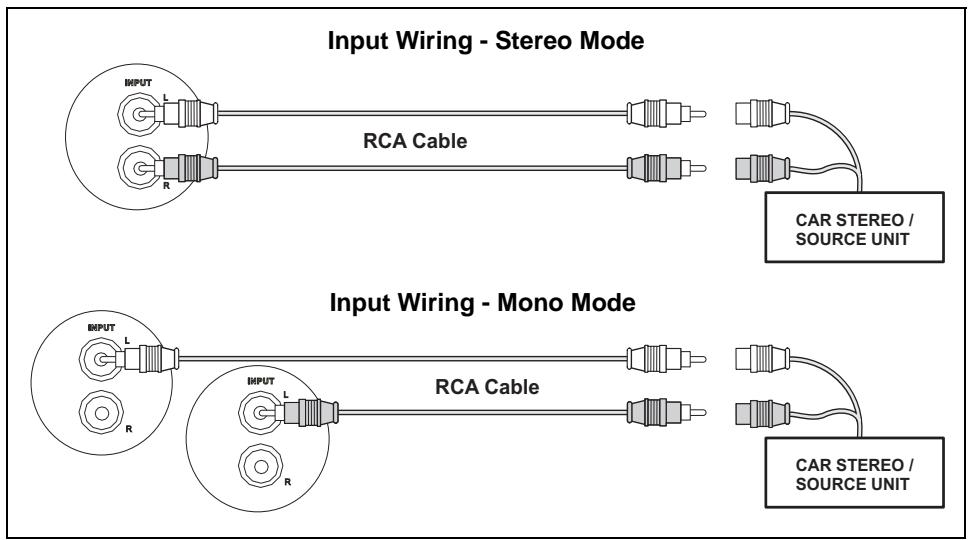

POWER Amplifiers Input Wiring Power 760/920 The Power 760 and 920 can be configured for three different input modes: 2 channel, 3 channel or 4 channel. Most trunk/hatchback installations will require a 15-20 foot RCA cable, while pickup trucks and under-seat mounting will require a 6-12 foot RCA cable. Connect an RCA cable from your receiver to the RCA input on your amplifier. Power 400/880 2 Channel MODE RCA Cable CAR STEREO / SOURCE UNIT LINE INPUT CAR STEREO / SOURCE UNIT 3 Channel Power 900/1050 MODE RCA Cable LINE INPUT CAR STEREO / SOURCE UNIT Input Wiring - Mono Mode RCA Cable CAR STEREO / SOURCE UNIT

LEVEL BASS EQ

CH1 CH3 CH2 CH4 HPF LPF X-OVER MODE FULL HPF LPF

min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz FULL HPF LPF LINE OUT POWER Amplifiers 4 Channel MODE

LEVEL BASS EQ

CH1 CH3 CH2 CH4 HPF LPF X-OVER MODE FULL HPF LPF

min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz FULL LINE OUT HPF LPF NOTE: The use of good quality RCA cables is just as important as power and speaker wire. Choose a high quality low capacitance cable for the best results. Connecting Additional Amplifiers Pass-Thru RCA connectors are provided to connect additional amplifiers without the need to purchase "Y" adapters.

POWER Amplifiers Indicators and Controls speakers (6 1/2", 6 X 9", etc.) by adjusting the crossover to a higher setting (80–100Hz). Power Indicator (POWER) The power indicator provides a visual indication that the amplifier is turned on. The Jensen Power series of amplifiers have built-in low-pass and high-pass crossover filters for bi-amplifying the system. Adjust the crossover to accommodate your chosen installation method. Select LPF (low pass filter) when the amplifier will be driving woofers or subwoofers. Choose FULL when crossover mode is not active and the amplifier is in “full range” mode. Select HPF (high pass filter) when the amplifier will be driving full-range or separate speakers, and you want to limit the “bass” being transferred to these speakers. Input Level Control (LEVEL) The input LEVEL control matches the output of your radio to the input of the amplifier. After the installation is complete, make sure the input level control on the amplifier is turned down all the way (counter-clockwise or all the way to the left). Play a tape or CD (make sure bass and treble settings or Bass EQ are flat) and turn the volume up slowly until you just start to hear distortion. Back the volume down just a bit. On the amplifier, slowly turn up the input level control (clockwise or to the right) until you just start to hear distortion, then back it down a bit. Now your radio and amplifier levels are matched. Mode Switch Power 400 and 880 The 400 and 880 come equiped with a MONO/STEREO MODE switch. Use STEREO mode when you have a 2-channel input from the source unit. Use MONO mode when you have a single input from the source unit. See “Input Wiring” on page 8. BASS EQ The Bass EQ is continuously adjustable from 0 to +12dB @ 45Hz. Adjusting the Bass Boost level allows different subwoofer/enclosure combinations to be equalized. Use this control to increase the level of low bass available from your subwoofer/enclosure combination. Ported and Band Pass enclosures should be limited to about +6dB to +9dB of boost. Sealed enclosures should be able to accept the full +12dB of boost, if necessary. The full +12dB of boost should be reserved for special applications since improper use of the Bass Boost could damage your subwoofers at high volumes. Power 760 and 920 The 760 and 920 come equiped with a 2/3/4 MODE switch and can be configured for three different input modes: 2 channel, 3 channel or 4 channel. Low Pass Filter (LPF) The Low Pass Filter controls adjust the crossover point. Typical crossover is between 60Hz and 80Hz for ported and sealed enclosures. Bandpass boxes will typically use a higher crossover setting between 125Hz and 150Hz. Since musical tastes vary, you should play music that you would normally listen to in your vehicle, with the above settings as a starting point. If necessary, set the crossover by ear. High Pass Filter (HPF) The high pass filter will limit the low frequencies being transmitted to your speakers. This can be useful in number of situations. For example, if you selected the high pass filter and set the crossover to 40Hz, then you would have an infra-sonic (sub-sonic) filter at 40Hz, which would be useful with certain enclosure/subwoofer combinations that were tuned between 45Hz and 50Hz. Other uses might include limiting the low frequencies to smaller

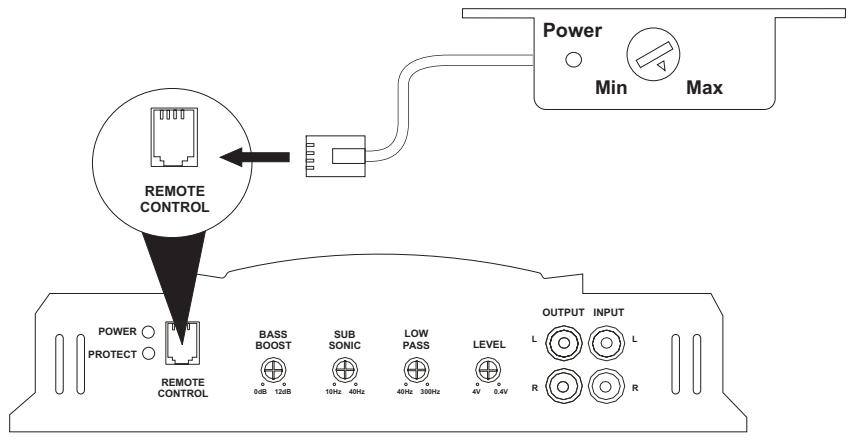

POWER Amplifiers Testing Remote Input Level Control Before finishing the installation, perform the following tests to make sure the wiring is correct and everything is operating properly. The Power 900 and 1050 come equipped with a Remote Input Level Control. The Remote Input Level Control allows the input level to be adjusted from an alternate location. It can be mounted under-dash or in-dash. When the amplifier is used to drive subwoofers and the low pass crossover is activated, the Remote Input Level Control can be used as a “remote bass level control”. This enables you to control the bass level independent from the rest of the system. This is convenient for system tuning and/or when playing many different types of music. Reconnect Battery When wiring is complete, reconnect the battery negative terminal. Test Power Wiring Turn on the receiver, but do not turn up the volume. The amplifier power light should come on. If not, check the REM and +12V (B+) wires. Turn up the receiver volume slightly. All speakers should operate. If not, check wiring connections at amplifier and speakers. The Remote Input Level Control uses a 6-pin modular cable for connectivity. Simply plug the 6-pin modular cable into the amplifier and then into the Remote Input Level Control to activate the circuit. Test Speaker Connections These tests make sure the speakers are connected properly. If speakers don’t play at all, one (or both) speaker wires may be disconnected. Power Min Max REMOTE CONTROL Troubleshooting Problem Amplifier does not turn on Possible Cause No power to +12V terminal No power to REM terminal Blown main fuse at battery Blown fuse at amplifier Faulty ground Volume control too sensitive Distorted sound Input level control adjusted too high Input level control adjusted too high Blows fuse(s) at amp Power wires connected backwards Internal problem with amp Engine noise / Ground loop(s) Alternator whine Faulty ground at amp Faulty ground at head unit Inductive coupling Thermal protection activated Input level on amp set too high Amplifier driving 2 ohm load for long durations Short circuit protection activated Corrective Action Check fuse(s) Low impedance protection activated Check head unit fuse(s) and wiring Replace fuse and identify cause of failure Replace fuse and identify cause of failure Re-ground main power ground to bare metal chassis Re-adjust the input level (refer to page 8) Re-adjust the input level (refer to page 8) Reconnect power wires properly Take unit for service Poor bass response Blown speakers Speaker wire(s) shorting to ground Defective crossover Amp connected to improper load Amp will not drive a 1 ohm mono load, 2 ohm minimum in mono configuration Speakers defective/ blown Faulty passive crossovers Speakers out of phase Check all speakers Check for faulty wiring Faulty passive crossover Check speaker connections Verify that speakers are connected properly Check speakers Check crossovers Check speaker polarity; reverse the connection to one speaker only if two subwoofers are connected to the amplifier. NOTE: If the protection light is activated with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the amplifier. Use good quality shielded RCA cables Re-ground amp to clean bare metal chassis Re-ground head unit to clean bare metal chassis Re-route RCA and/or speaker wires away from factory harnesses Re-adjust input level (refer to page 8) If the amplifier “thermals” frequently while driving subwoofers, install fan to keep amp cool.

POWER Amplifiers CEA Power Output Power 920 Power Output: 90 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 120 watts RMS X 4 channels into 2-ohms @ < 1% THD+N 190 watts RMS X 2 channels (Bridged Stereo) into 4-ohms @ < 1% THD+N Frequency Response: 10Hz to 60 kHz, -3dB (Reference: 1 watt) Dimensions: L15.75" x H2.5" x W9.0" Power 1050 Power Output: 290 watts RMS X 1 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 430 watts RMS X 1 channel into 2-ohms @ < 1% THD+N Frequency Response: 10Hz to 150Hz, -3dB (Reference: 1 watt) Dimensions: L17.25" x H2.5" x W9.0" RMS Power Output @ 1% THD+N, 14.4VDC Power 400 Power Output: 60 watts RMS X 2 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 80 watts RMS X 2 channels into 2-ohms @ < 1% THD+N 160 watts RMS X 1 channels (Bridged Mono) into 4-ohms @ < 1% THD+N Frequency Response: 10Hz to 60 kHz, -3dB (Reference: 1 watt) Dimensions: L9.5" x H2.5" x W9.0" Power 760 Power Output: 60 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 80 watts RMS X 4 channels into 2-ohms @ < 1% THD+N 155 watts RMS X 2 channels (Bridged Stereo) into 4-ohms @ < 1% THD+N Frequency Response: 10Hz to 60 kHz, -3dB (Reference: 1 watt) Dimensions: L12.5" x H2.5" x W9.0" Power 880 Power Output: 125 watts RMS X 2 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 200 watts RMS X 2 channels into 2-ohms @ < 1% THD+N 410 watts RMS X 1 channels (Bridged Mono) into 4-ohms @ < 1% THD+N Frequency Response: 10Hz to 60kHz, -3dB (Reference: 1 watt) Dimensions: L14.0" x H2.5" x W9.0" Power 900 Power Output: 230 watts RMS X 1 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms) Additional Power Output: 340 watts RMS X 1 channels into 2-ohms @ < 1% THD+N Frequency Response: 10Hz to 240Hz, -3dB (Reference: 1 watt) Dimensions: L15.75" x H2.5" x W9.0"
